FlexConnect (previously known as Hybrid Remote Edge Access Point or H-REAP) is a wireless solution for branch office and remote office deployments. It enables customers to configure and control access points in a branch or remote office from the corporate office through a wide area network (WAN) link without deploying a controller in each office. The FlexConnect access points can switch client data traffic locally and perform client authentication locally when their connection to the controller is lost. When they are connected to the controller, they can also send traffic back to the controller. In the connected mode, the FlexConnect access point can also perform local authentication.

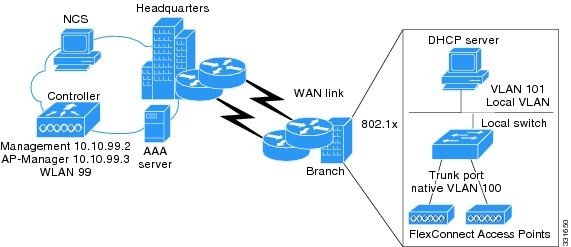

Figure 16-1 shows a typical FlexConnect deployment.
Figure 16-1 FlexConnect Deployment
This section contains the following topics:
FlexConnect Authentication Process
When an access point boots up, it looks for a controller. If it finds one, it joins the controller, downloads the latest software image and configuration from the controller, and initializes the radio. It saves the downloaded configuration in nonvolatile memory for use in standalone mode.
Note Once the access point is rebooted after downloading the latest controller software, it must be converted to the FlexConnect mode. This can be done using the GUI or CLI.
A FlexConnect access point can learn the controller IP address in one of these ways:
Note OTAP is no longer supported on the controllers with 6.0.196 code and above.
Note For more information about how access points find controllers, see “Controlling Lightweight Access Points,” or the controller deployment guide at: http://www.cisco.com/en/US/docs/wireless/technology/controller/deployment/guide/dep.html
When a FlexConnect access point can reach the controller (referred to as the connected mode), the controller assists in client authentication. When a FlexConnect access point cannot access the controller, the access point enters the standalone mode and authenticates clients by itself.
Note The LEDs on the access point change as the device enters different FlexConnect modes. See the hardware installation guide for your access point for information on LED patterns.
When a client associates to a FlexConnect access point, the access point sends all authentication messages to the controller and either switches the client data packets locally (locally switched) or sends them to the controller (centrally switched), depending on the WLAN configuration. With respect to client authentication (open, shared, EAP, web authentication, and NAC) and data packets, the WLAN can be in any one of the following states depending on the configuration and state of controller connectivity:
In connected mode, the access point provides minimal information about the locally authenticated client to the controller. The following information is not available to the controller:
Local authentication is useful where you cannot maintain a remote office setup of a minimum bandwidth of 128 kbps with the round-trip latency no greater than 100 ms and the maximum transmission unit (MTU) no smaller than 500 bytes. In local authentication, the authentication capabilities are present in the access point itself. Local authentication reduces the latency requirements of the branch office.
Note Local authentication can only be enabled on the WLAN of a FlexConnect access point that is in local switching mode.
Notes about local authentication are as follows:
– Guest authentication cannot be done on a FlexConnect local authentication-enabled WLAN.
– Local RADIUS on the controller is not supported.
– Once the client has been authenticated, roaming is only supported after the controller and the other FlexConnect access points in the group are updated with the client information.
– Local authentication in connected mode requires a WLAN configuration.
Note When locally switched clients that are connected to a FlexConnect access point renew the IP addresses, on joining back, the client continues to stay in the run state. These clients are not reauthenticated by the controller.
When a FlexConnect access point enters standalone mode, WLANs that are configured for open, shared, WPA-PSK, or WPA2-PSK authentication enter the “local authentication, local switching” state and continue new client authentications. In controller software release 4.2 or later releases, this configuration is also correct for WLANs that are configured for 802.1X, WPA-802.1X, WPA2-802.1X, or CCKM, but these authentication types require that an external RADIUS server be configured. You can also configure a local RADIUS server on a FlexConnect access point to support 802.1X in a standalone mode or with local authentication.
Other WLANs enter either the “authentication down, switching down” state (if the WLAN was configured for central switching) or the “authentication down, local switching” state (if the WLAN was configured for local switching).
When FlexConnect access points are connected to the controller (rather than in standalone mode), the controller uses its primary RADIUS servers and accesses them in the order specified on the RADIUS Authentication Servers page or in the config radius auth add CLI command (unless the server order is overridden for a particular WLAN). However, to support 802.1X EAP authentication, FlexConnect access points in standalone mode need to have their own backup RADIUS server to authenticate clients.
Note A controller does not use a backup RADIUS server. The controller uses the backup RADIUS server in local authentication mode.
You can configure a backup RADIUS server for individual FlexConnect access points in standalone mode by using the controller CLI or for groups of FlexConnect access points in standalone mode by using either the GUI or CLI. A backup server configured for an individual access point overrides the backup RADIUS server configuration for a FlexConnect.
When a FlexConnect access point enters standalone mode, it disassociates all clients that are on centrally switched WLANs. For web-authentication WLANs, existing clients are not disassociated, but the FlexConnect access point stops sending beacons when the number of associated clients reaches zero (0). It also sends disassociation messages to new clients associating to web-authentication WLANs. Controller-dependent activities, such as network access control (NAC) and web authentication (guest access), are disabled, and the access point does not send any intrusion detection system (IDS) reports to the controller. Most radio resource management (RRM) features (such as neighbor discovery; noise, interference, load, and coverage measurements; use of the neighbor list; and rogue containment and detection) are disabled. However, a FlexConnect access point supports dynamic frequency selection in standalone mode.
Note ● For Wi-Fi Protected Access version 2 (WPA2) in FlexConnect standalone mode or local-auth in connected mode or cckm fast-roaming in connected mode, only Advanced Encryption Standard (AES) is supported.
Note If your controller is configured for NAC, clients can associate only when the access point is in connected mode. When NAC is enabled, you need to create an unhealthy (or quarantined) VLAN so that the data traffic of any client that is assigned to this VLAN passes through the controller, even if the WLAN is configured for local switching. After a client is assigned to a quarantined VLAN, all of its data packets are centrally switched. See the “Configuring Dynamic Interfaces” section for information on creating quarantined VLANs and the “Configuring NAC Out-of-Band Integration” section for information on configuring NAC out-of-band support.
Note Even after configuring WLAN Override to stop transmitting locally switched WLAN on both radios, the WLAN still appears in the H-REAP VLAN mapping configuration on the AP.
When a FlexConnect access point enters into a standalone mode, the following occurs:
If the access point fails to establish the ARP, the following occurs:
Once the access point reestablishes a connection with the controller, it disassociates all clients, applies new configuration information from the controller, and reallows client connectivity.
This feature can be used only when both the access point and the controller have the same configuration.
Note Although NAT and PAT are supported for FlexConnect access points, they are not supported on the corresponding controller. Cisco does not support configurations in which the controller is behind a NAT/PAT boundary.
This section contains the following topics:
Note You must perform the procedures in the order listed.
Step 1 Attach the access point that will be enabled for FlexConnect to a trunk or access port on the switch.
Note The sample configuration in this procedure shows the FlexConnect access point connected to a trunk port on the switch.
Step 2 See the sample configuration in this procedure to configure the switch to support the FlexConnect access point.
In this sample configuration, the FlexConnect access point is connected to trunk interface FastEthernet 1/0/2 with native VLAN 100. The access point needs IP connectivity on the native VLAN. The remote site has local servers/resources on VLAN 101. A DHCP pool is created in the local switch for both VLANs in the switch. The first DHCP pool (NATIVE) is used by the FlexConnect access point, and the second DHCP pool (LOCAL-SWITCH) is used by the clients when they associate to a WLAN that is locally switched. The text in bold below shows these settings.
A sample local switch configuration is as follows:
You can configure the controller for FlexConnect in two environments:
Step 1 Choose WLANs to open the WLANs page.
Step 2 From the drop-down list, choose Create New and click Go to open the WLANs > New page.
Step 3 From the Type drop-down list, choose WLAN.
Step 4 In the Profile Name text box, enter a unique profile name for the WLAN.
Step 5 In the WLAN SSID text box, enter a name for the WLAN.
Step 6 From the WLAN ID drop-down list, choose the ID number for this WLAN.
Step 7 Click Apply to commit your changes. The WLANs > Edit page appears.
Step 8 You can configure the controller for FlexConnect in both centrally switched and locally switched WLANs:
a. In the General tab, choose the Status check box to enable the WLAN.
b. If you have enabled NAC and have created a quarantined VLAN and want to use it for this WLAN, select the interface from the Interface/Interface Group(G) drop-down list in the General tab.
c. In the Security > Layer 2 tab, choose WPA+WPA2 from the Layer 2 Security drop-down list and then set the WPA+WPA2 parameters as required.
a. In the General tab, select the Status check box to enable the WLAN.
b. If you have enabled NAC and have created a quarantined VLAN and want to use it for this WLAN, select the interface from the Interface/Interface Group(G) drop-down list in the General tab.
c. In the Security > Layer 2 tab, select WPA+WPA2 from the Layer 2 Security drop-down list and then set the WPA+WPA2 parameters as required.
d. In the Advanced tab, select the FlexConnect Local Switching check box to enable local switching for the WLAN.
Note When you enable local switching, any FlexConnect access point that advertises this WLAN is able to locally switch data packets (instead of tunneling them to the controller).
Note When you enable FlexConnect local switching, the controller is enabled to learn the client’s IP address by default. However, if the client is configured with Fortress Layer 2 encryption, the controller cannot learn the client’s IP address, and the controller periodically drops the client. Disable the client IP address learning feature so that the controller maintains the client connection without waiting to learn the client’s IP address. The ability to disable this option is supported only with FlexConnect local switching; it is not supported with FlexConnect central switching.
Note For FlexConnect access points, the interface mapping at the controller for WLANs that is configured for FlexConnect local switching is inherited at the access point as the default VLAN tagging. This mapping can be changed per SSID and per FlexConnect access point. Non-FlexConnect access points tunnel all traffic back to the controller, and VLAN tagging is determined by each WLAN’s interface mapping.
Step 9 Click Apply to commit your changes.
Step 10 Click Save Configuration to save your changes.
The controller configuration for FlexConnect consists of creating centrally switched and locally switched WLANs. Table 16-1 shows three WLAN scenarios.
|
|
|
|
|
---|---|---|---|---|
Note Guest user configuration is not supported with FlexConnect local switching.
Configuring the Controller for FlexConnect—For a Centrally Switched WLAN Used for Guest Access
Before you begin, you must have created guest user accounts. For more information about creating guest user accounts, see Chapter12, “Managing User Accounts”
Step 1 Choose WLANs to open the WLANs page.
Step 2 From the drop-down list, choose Create New and click Go to open the WLANs > New page.
Step 3 From the Type drop-down list, choose WLAN.
Step 4 In the Profile Name text box, enter guest-central (as per the example in Table 16-1 ).
Step 5 In the WLAN SSID text box, enter guest-central.
Step 6 From the WLAN ID drop-down list, choose and ID for the WLAN.
Step 7 Click Apply to commit your changes. The WLANs > Edit page appears.
Step 8 In the General tab, select the Status check box to enable the WLAN.
Step 9 In the Security > Layer 2 tab, choose None from the Layer 2 Security drop-down list.
Step 10 In the Security > Layer 3 tab:
a. Choose None from the Layer 3 Security drop-down list.
b. Select the Web Policy check box.
Note If you are using an external web server, you must configure a preauthentication access control list (ACL) on the WLAN for the server and then choose this ACL as the WLAN preauthentication ACL on the Layer 3 tab. For more information about ACLs, see Chapter7, “Configuring Security Solutions”
Step 11 Click Apply to commit your changes.
Step 12 Click Save Configuration to save your changes.
Note For more information about adding a local user to a WLAN and to customize the content and appearance of the login page for guest users when they access the WLAN, follow the instructions in Chapter7, “Configuring Security Solutions”.
Note When you enable FlexConnect local switching, the controller waits to learn the client IP address by default. However, if the client is configured with Fortress Layer 2 encryption, the controller cannot learn the client IP address, and the controller periodically drops the client. Use the config wlan flexconnect learn-ipaddr wlan_id disable command to disable the client IP address learning feature so that the controller maintains the client connection without waiting to learn the client’s IP address. The ability to disable this feature is supported only with FlexConnect local switching; it is not supported with FlexConnect central switching. To enable this feature, enter the config wlan flexconnect learn-ipaddr wlan_id enable command.
Use these commands to get FlexConnect information:
Use these commands to obtain debug information:
Ensure that the access point has been physically added to your network.

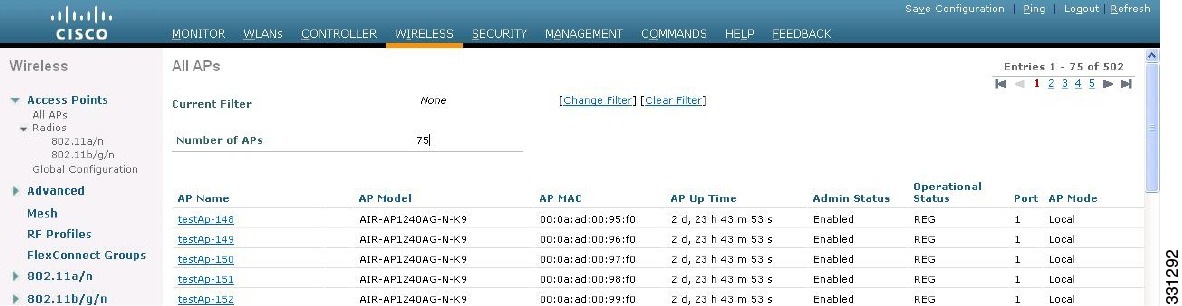

Step 1 Choose Wireless to open the All APs page.
Step 2 Click the name of the desired access point. The All APs > Details page appears.
Step 3 Choose FlexConnect from the AP Mode drop-down list to enable FlexConnect for this access point.
Note The last parameter in the Inventory tab indicates whether the access point can be configured for FlexConnect.
Step 4 Click Apply to commit your changes and to cause the access point to reboot.
Step 5 Choose the FlexConnect tab to open the All APs > Details for (FlexConnect) page.
If the access point belongs to a FlexConnect group, the name of the group appears in the FlexConnect Name text box.
Step 6 Select the VLAN Support check box and enter the number of the native VLAN on the remote network (such as 100) in the Native VLAN ID text box.
Note By default, a VLAN is not enabled on the FlexConnect access point. After FlexConnect is enabled, the access point inherits the VLAN ID associated to the WLAN. This configuration is saved in the access point and received after the successful join response. By default, the native VLAN is 1. One native VLAN must be configured per FlexConnect access point in a VLAN-enabled domain. Otherwise, the access point cannot send and receive packets to and from the controller.
Note To preserve the VLAN mappings in the access point after an upgrade or downgrade, it is necessary that the access point join is restricted to the controller for which it is primed. That is, no other discoverable controller with a different configuration should be available by other means. Similarly, at the time the access point joins, if it moves across controllers which have different VLAN mappings, the VLAN mappings at the access point may get mismatched.
Step 7 Click Apply to commit your changes. The access point temporarily loses its connection to the controller while its Ethernet port is reset.
Step 8 Click the name of the same access point and then select the FlexConnect tab.
Step 9 Click VLAN Mappings to open the All APs > Access Point Name > VLAN Mappings page.
Step 10 Enter the number of the VLAN from which the clients will get an IP address when doing local switching (VLAN 101, in this example) in the VLAN ID text box.
Step 11 Click Apply to commit your changes.
Step 12 Click Save Configuration to save your changes.
Note Repeat this procedure for any additional access points that need to be configured for FlexConnect at the remote site.
Note Only the Session Timeout RADIUS attribute is supported in standalone mode. All other attributes as well as RADIUS accounting are not supported.
Note To delete a RADIUS server that is configured for a FlexConnect access point, enter the config ap flexconnect radius auth delete {primary | secondary} Cisco_AP command.
Note To save the VLAN mappings in the access point after an upgrade or downgrade, you should restrict the access point join is restricted to the controller for which it is primed. No other discoverable controller with a different configuration should be available by other means. Similarly, at the time the access point joins, if it moves across controllers that have different VLAN mappings, the VLAN mappings at the access point might get mismatched.
Use these commands on the FlexConnect access point to get status information:
Use these commands on the FlexConnect access point to get debug information:
Step 1 Choose WLANs to open the WLANs page.
Step 2 Click the ID of the WLAN. The WLANs > Edit page appears.
Step 3 Click the Advanced tab to open the WLANs > Edit (WLAN Name) page.
Step 4 Select the FlexConnect Local Switching check box to enable FlexConnect local switching.
Step 5 Select the FlexConnect Local Auth check box to enable FlexConnect local authentication.
Step 6 Click Apply to commit your changes.
Before you begin, you must have enabled local switching on the WLAN where you want to enable local authentication for an access point. For instructions on how to enable local switching on the WLAN, see the “Configuring the Controller for FlexConnect (CLI)” section.
Follow the instructions for your client device to create profiles to connect to the WLANs you created in the “Configuring the Controller for FlexConnect” section.
In the example scenarios (see Table 16-1 ), there are three profiles on the client:
1. To connect to the “employee” WLAN, create a client profile that uses WPA/WPA2 with PEAP-MSCHAPV2 authentication. After the client becomes authenticated, the client gets an IP address from the management VLAN of the controller.
2. To connect to the “local-employee” WLAN, create a client profile that uses WPA/WPA2 authentication. After the client becomes authenticated, the client gets an IP address from VLAN 101 on the local switch.
3. To connect to the “guest-central” WLAN, create a client profile that uses open authentication. After the client becomes authenticated, the client gets an IP address from VLAN 101 on the network local to the access point. After the client connects, the local user can type any http address in the web browser. The user is automatically directed to the controller to complete the web-authentication process. When the web login page appears, the user enters the username and password.
To determine if a client’s data traffic is being locally or centrally switched, choose Monitor > Clients on the controller GUI, click the Detail link for the desired client, and look at the Data Switching parameter under AP Properties.
This section contains the following topics:
An access control list (ACL) is a set of rules that are used to limit access to a particular interface (for example, if you want to restrict a wireless client from pinging the management interface of the controller). ACLs enable access control of network traffic. After ACLs are configured on the controller and subsequently pushed to the FlexConnect access point, you can apply them to the access point’s VLAN interface. ACLs enable you to control data traffic to and from wireless clients. You can configure ACLs on the FlexConnect access points to enable effective usage and access control of locally switched data traffic on an access point.
Step 1 Choose Security > Access Control Lists > FlexConnect ACLs.

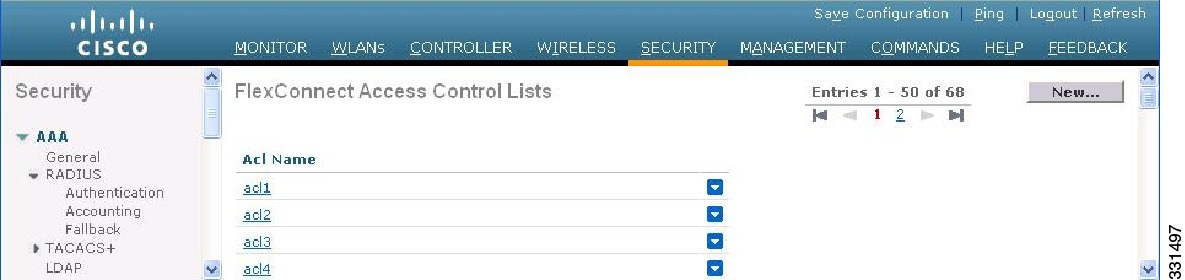

Figure 16-4 FlexConnect ACLs Page
This page lists all FlexConnect ACLs created and configured on the controller. To remove an ACL, hover your mouse over the blue drop-down arrow and choose Remove.
Step 2 Add a new ACL by clicking New.
The Access Control Lists > New page appears.
Step 3 In the Access Control List Name text box, enter a name for the new ACL.
You can enter up to 32 alphanumeric characters.
When the Access Control Lists page reappears, click the name of the new ACL.
Step 5 When the Access Control Lists > Edit page appears, click Add New Rule.
The Access Control Lists > Rules > New page appears.
Step 6 Configure a rule for this ACL as follows:
a. The controller supports up to 64 rules for each ACL. These rules are listed in order from 1 to 64. In the Sequence text box, enter a value (between 1 and 64) to determine the order of this rule in relation to any other rules defined for this ACL.
Note If rules 1 through 4 are already defined and you add rule 29, it is added as rule 5. If you add or change a sequence number for a rule, the sequence numbers for other rules adjust to maintain a continuous sequence. For instance, if you change a rule’s sequence number from 7 to 5, the rules with sequence numbers 5 and 6 are automatically reassigned as 6 and 7, respectively.
b. From the Source drop-down list, choose one of these options to specify the source of the packets to which this ACL applies:
c. From the Destination drop-down list, choose one of these options to specify the destination of the packets to which this ACL applies:
d. From the Protocol drop-down list, choose the protocol ID of the IP packets to be used for this ACL. The protocol options that you can choose are as follows:
Note If you choose Other, enter the number of the desired protocol in the Protocol text box. You can find the list of available protocols in the INAI website.
The access point can permit or deny only IP packets in an ACL. Other types of packets (such as ARP packets) cannot be specified.
If you chose TCP or UDP, two additional parameters appear: Source Port and Destination Port. These parameters enable you to choose a specific source port and destination port or port ranges. The port options are used by applications that send and receive data to and from the networking stack. Some ports are designated for certain applications such as Telnet, SSH, HTTP, and so on.
e. From the DSCP drop-down list, choose one of these options to specify the differentiated services code point (DSCP) value of this ACL. DSCP is an IP header text box that can be used to define the quality of service across the Internet.
f. From the Action drop-down list, choose Deny to cause this ACL to block packets or Permit to cause this ACL to allow packets. The default value is Deny.
g. Click Apply to commit your changes. The Access Control Lists > Edit page reappears, showing the rules for this ACL.
h. Repeat this procedure to add any additional rules for this ACL.
Step 7 Click Save Configuration to save your changes.
This section contains the following topics:
To organize and manage your FlexConnect access points, you can create FlexConnect Groups and assign specific access points to them.
All of the FlexConnect access points in a group share the same backup RADIUS server, CCKM, and local authentication configuration information. This feature is helpful if you have multiple FlexConnect access points in a remote office or on the floor of a building and you want to configure them all at once. For example, you can configure a backup RADIUS server for a FlexConnect rather than having to configure the same server on each access point. Figure 16-5 shows a typical FlexConnect deployment with a backup RADIUS server in the branch office.

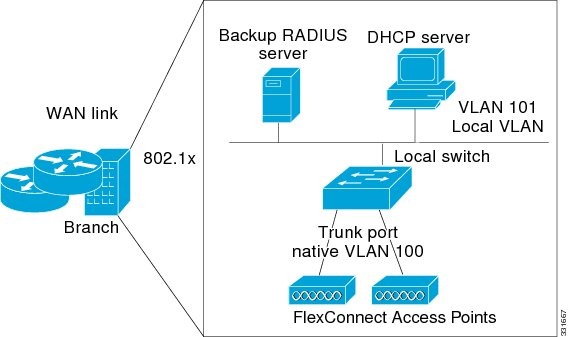

Figure 16-5 FlexConnect Group Deployment
You can configure the controller to allow a FlexConnect access point in standalone mode to perform full 802.1X authentication to a backup RADIUS server. You can configure a primary backup RADIUS server or both a primary and secondary backup RADIUS server. These servers can be used when the FlexConnect access point is in of these two modes: standalone or connected.
FlexConnect Groups are required for CCKM fast roaming to work with FlexConnect access points. CCKM fast roaming is achieved by caching a derivative of the master key from a full EAP authentication so that a simple and secure key exchange can occur when a wireless client roams to a different access point. This feature prevents the need to perform a full RADIUS EAP authentication as the client roams from one access point to another. The FlexConnect access points need to obtain the CCKM cache information for all the clients that might associate so they can process it quickly instead of sending it back to the controller. If, for example, you have a controller with 300 access points and 100 clients that might associate, sending the CCKM cache for all 100 clients is not practical. If you create a FlexConnect that includes a limited number of access points (for example, you create a group for four access points in a remote office), the clients roam only among those four access points, and the CCKM cache is distributed among those four access points only when the clients associate to one of them.
Note CCKM fast roaming among FlexConnect and non-FlexConnect access points is not supported. See the “Configuring WPA1 +WPA2” section for information on configuring CCKM.
Starting in the 7.0.116.0 release, FlexConnect groups enable Opportunistic Key Caching (OKC) to enable fast roaming of clients. OKC facilitates fast roaming by using PMK caching in access points that are in the same FlexConnect group.
This feature prevents the need to perform a full authentication as the client roams from one access point to another. Whenever a client roams from one FlexConnect access point to another, the FlexConnect group access point calculates the PMKID using the cached PMK.
To see the PMK cache entries at the FlexConnect access point, use the show capwap reap pmk command. This feature is supported on Cisco FlexConnect access points.
Note The FlexConnect access point must be in connected mode when the PMK is derived during WPA2/802.1x authentication.
When using FlexConenct groups for OKC or CCKM, the PMK-cache is shared only across the access points that are part of the same FlexConnect group and are associated to the same controller. If the access points are in the same FlexConnect group but are associated to different controllers that are part of the same mobility group, the PMK cache is not updated and CCKM roaming will fail.
You can configure the controller to allow a FlexConnect access point in standalone mode to perform LEAP or EAP-FAST authentication for up to 100 statically configured users. The controller sends the static list of usernames and passwords to each FlexConnect access point when it joins the controller. Each access point in the group authenticates only its own associated clients.
This feature is ideal for customers who are migrating from an autonomous access point network to a lightweight FlexConnect access point network and are not interested in maintaining a large user database or adding another hardware device to replace the RADIUS server functionality available in the autonomous access point.
Note This feature can be used with the FlexConnect backup RADIUS server feature. If a FlexConnect is configured with both a backup RADIUS server and local authentication, the FlexConnect access point always attempts to authenticate clients using the primary backup RADIUS server first, followed by the secondary backup RADIUS server (if the primary is not reachable), and finally the FlexConnect access point itself (if the primary and secondary are not reachable).
The number of FlexConnect groups and access point support depends on the platform that you are using. You can configure the following:
Step 1 Choose Wireless > FlexConnect Groups to open the FlexConnect Groups page.

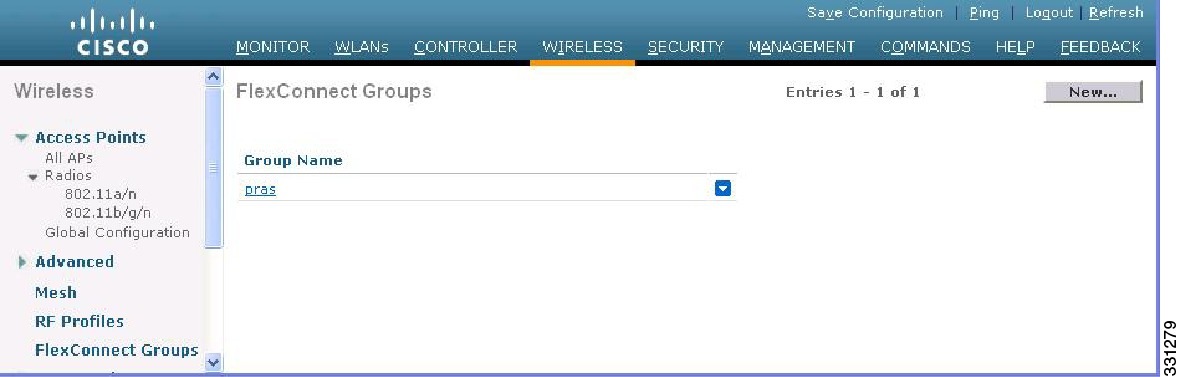

Figure 16-6 FlexConnect Groups Page
This page lists any FlexConnect groups that have already been created.
Note If you want to delete an existing group, hover your cursor over the blue drop-down arrow for that group and choose Remove.
Step 2 Click New to create a new FlexConnect Group.
Step 3 On the FlexConnect Groups > New page, enter the name of the new group in the Group Name text box. You can enter up to 32 alphanumeric characters.
Step 4 Click Apply to commit your changes. The new group appears on the FlexConnect Groups page.
Step 5 To edit the properties of a group, click the name of the desired group. The FlexConnect Groups > Edit page appears.
Step 6 If you want to configure a primary RADIUS server for this group (for example, the access points are using 802.1X authentication), choose the desired server from the Primary RADIUS Server drop-down list. Otherwise, leave the text box set to the default value of None.
Step 7 If you want to configure a secondary RADIUS server for this group, choose the server from the Secondary RADIUS Server drop-down list. Otherwise, leave the field set to the default value of None.
Step 8 To add an access point to the group, click Add AP . Additional fields appear on the page under Add AP.
Step 9 Perform one of the following tasks:
Note If you choose an access point on this controller, the MAC address of the access point is automatically entered in the Ethernet MAC text box to prevent any mismatches from occurring.
Note If the FlexConnect access points within a group are connected to different controllers, all of the controllers must belong to the same mobility group.
Step 10 Click Add to add the access point to this FlexConnect group. The access point’s MAC address, name, and status appear at the bottom of the page.
Note If you want to delete an access point, hover your cursor over the blue drop-down arrow for that access point and choose Remove.
Step 11 Click Apply to commit your changes.
Step 12 Repeat Perform one of the following tasks: through Click Apply to commit your changes. if you want to add more access points to this FlexConnect Group.
Step 13 Enable local authentication for a FlexConnect Group as follows:
a. Ensure that the Primary RADIUS Server and Secondary RADIUS Server parameters are set to None.
b. Select the Enable AP Local Authentication check box to enable local authentication for this FlexConnect Group. The default value is unselected.
c. Click Apply to commit your changes.
d. Click the Local Authentication tab to open the FlexConnect > Edit (Local Authentication > Local Users) page.
e. To add clients that you want to be able to authenticate using LEAP or EAP-FAST, perform one of the following:
Note You can add up to 100 clients.
f. Click Apply to commit your changes.
g. Click the Protocols tab to open the FlexConnect > Edit (Local Authentication > Protocols) page.
h. To allow a FlexConnect access point to authenticate clients using LEAP, select the Enable LEAP Authentication check box and then go to Click Apply to commit your changes..
i. To allow a FlexConnect access point to authenticate clients using EAP-FAST, select the Enable EAP-FAST Authentication check box and then go to the next step. The default value is unselected.
j. Perform one of the following, depending on how you want protected access credentials (PACs) to be provisioned:
k. In the Authority ID text box, enter the authority identifier of the EAP-FAST server. The identifier must be 32 hexadecimal characters.
l. In the Authority Info text box, enter the authority identifier of the EAP-FAST server in text format. You can enter up to 32 hexadecimal characters.
m. To specify a PAC timeout value, select the PAC Timeout check box and enter the number of seconds for the PAC to remain viable in the text box. The default value is unselected, and the valid range is 2 to 4095 seconds when enabled.
n. Click Apply to commit your changes.
Step 14 Click Save Configuration to save your changes.
Step 15 Repeat this procedure if you want to add more FlexConnects.
Note To see if an individual access point belongs to a FlexConnect Group, you can choose Wireless > Access Points > All APs > the name of the desired access point in the FlexConnect tab. If the access point belongs to a FlexConnect, the name of the group appears in the FlexConnect Name text box.
Step 1 Add or delete a FlexConnect Group by entering this command:
config flexconnect group_name { add | delete }
Step 2 Configure a primary or secondary RADIUS server for the FlexConnect Group by entering this command:
config flexconnect group_name radius server { add | delete } { primary | secondary } server_index
Step 3 Add an access point to the FlexConnect Group by entering this command:
config flexconnect group_name ap { add | delete } ap_mac
Step 4 Configure local authentication for a FlexConnect group as follows:
a. Make sure that a primary and secondary RADIUS server are not configured for the FlexConnect Group.
b. To enable or disable local authentication for this FlexConnect group, enter this command:
config flexconnect group_name radius ap { enable | disable }
c. To enter the username and password of a client that you want to be able to authenticate using LEAP or EAP-FAST, enter this command:
config flexconnect group_name radius ap user add username password password
Note You can add up to 100 clients.
d. To allow a FlexConnect access point to authenticate clients using LEAP or to disable this behavior, enter this command:
config flexconnect group_name radius ap leap { enable | disable }
e. To allow a FlexConnect access point to authenticate clients using EAP-FAST or to disable this behavior, enter this command:
config flexconnect group_name radius ap eap-fast { enable | disable }
f. Enter one of the following commands, depending on how you want PACs to be provisioned:
g. To specify the authority identifier of the EAP-FAST server, enter this command:
config flexconnect group_name radius ap authority id id
where id is 32 hexadecimal characters.
h. To specify the authority identifier of the EAP-FAST server in text format, enter this command:
config flexconnect group_name radius ap authority info info
where info is up to 32 hexadecimal characters.
i. To specify the number of seconds for the PAC to remain viable, enter this command:
config flexconnect group_name radius ap pac-timeout timeout
where timeout is a value between 2 and 4095 seconds (inclusive) or 0. A value of 0, which the default value, disables the PAC timeout.
Step 5 Save your changes by entering this command:
Step 6 See the current list of FlexConnect Groups by entering this command:
Information similar to the following appears:
Step 7 See the details for a specific FlexConnect Groups by entering this command:
show flexconnect group detail group_name
Information similar to the following appears:
Step 1 Choose Wireless > FlexConnect Groups.
The FlexConnect Groups page appears. This page lists the access points associated with the controller.
Step 2 Click the Group Name link of the FlexConnect Group for which you want to configure VLAN-ACL mapping.
Step 3 Click the VLAN-ACL Mapping tab.
The VLAN-ACL Mapping page for that FlexConnect group is displayed.
Step 4 Enter the Native VLAN ID in the VLAN ID text box.
Step 5 From the Ingress ACL drop-down list, choose the Ingress ACL.
Step 6 From the Egress ACL drop-down list, choose the Egress ACL.
Step 7 Click Add to add this mapping to the FlexConnect Group.
The VLAN ID is mapped with the required ACLs. To remove the mapping, hover your mouse over the blue drop-down arrow and choose Remove.
This section contains the following topics:
The Allow AAA Override option of a WLAN enables you to configure the WLAN for authentication. It enables you to apply VLAN tagging to individual clients based on the returned RADIUS attribute from the AAA server.
AAA overrides for FlexConnect access points introduce a dynamic VLAN assignment for locally switched clients. AAA overrides for FlexConnect also supports fast roaming (OKC/CCKM) of overridden clients.
– [064] Tunnel-Type : Tag 1 value VLAN
– [065] Tunnel-Medium Type : Tag1 value 802
– [081] Tunnel-Private-Group-ID : Tag1 value : Overridden VLAN ID.
Note To know more about how to configure IETF parameters, refer to the documentation of ACS server you are using.
Step 1 Choose Wireless > All APs.
The All APs appears. This page lists the access points associated with the controller.
Step 2 Click the AP name link of the access point for which you want to configure VLAN Override.
Step 3 Click the FlexConnect tab.
Step 4 Enter the Native VLAN ID.
Step 5 Click the VLAN Mappings button to configure the AP VLANs mappings. This page displays the following parameters:
– Ingress ACL—The ingress ACL that corresponds to the VLAN.
– Egress ACL—The egress ACL that corresponds to the VLAN.
– Ingress ACL—The ingress ACL for this VLAN.
– Egress ACL—The egress ACL for this VLAN.
Step 1 Add a VLAN to a FlexConnect group and map the ingress and egress ACLs:
config flexconnect group group-name vlan add vlan-id acl ingress-acl egress-acl
Note Use the none keyword in place of ‘ingress-acl’ or ‘egress-acl’ If you do not want to set a value to the ACL You can also use the none keyword to clear the ACL.
Step 2 Enable AAA override on the WLAN using the following command:
config wlan aaa-override enable wlan_id
This section contains the following topics:
Normally, when upgrading the image of an AP, you can use the preimage download feature to reduce the amount of time that the AP is unavailable to serve clients. However, it also increases the downtime because the access point cannot serve clients during an upgrade. The preimage download feature can be used to reduce this downtime. However, in the case of a branch office setup, the upgrade images are still downloaded to each access point over the WAN link, which has a higher latency.
A more efficient way is to use the Efficient AP Image Upgrade feature. When the Efficient Image Upgrade feature is enabled, one access point of each model in the local network first downloads the upgrade image over the WAN link. The process is similar to the primary-subordinate or client-server model. This access point then becomes the primary for the remaining access point of the similar model. The remaining access points then download the upgrade image from the primary access point using the preimage download feature over the local network, which reduces the WAN latency.
Step 1 Choose Wireless > FlexConnect Groups.
The FlexConnect Groups page appears. This page lists the FlexConnect Groups configured on the controller.
Step 2 Click the Group Name link on which you want to configure the image upgrade.
Step 3 Click the Image Upgrade tab.
Step 4 Select the FlexConnect AP Upgrade check box to enable efficient FlexConnect AP Upgrade.
Step 5 If you enabled FlexConnect AP Upgrade in the previous step, you must enable the following parameters:
Step 6 Click FlexConnect Upgrade to upgrade.
Step 7 You can manually assign primary access points in the FlexConnect group by selecting the access points from the AP Name drop-down list. Click Add Master to add the primary access point.
