About the Cisco MeetingPlace Audio Server System
Cisco MeetingPlace Audio Server system configurations include Cisco MeetingPlace 8100 series hardware, Cisco MeetingPlace Audio Server software, and Cisco MeetingPlace desktop software components with additional software options.
The following sections describe the hardware for the Cisco MeetingPlace 8100 series:
•Hardware Characteristics of the Cisco MeetingPlace 8106
•Hardware Characteristics of the Cisco MeetingPlace 8112
•Cisco MeetingPlace 8100 Series Hardware Components
•Alarm Panels for the Cisco MeetingPlace 8106
•Alarm Panels for the Cisco MeetingPlace 8112
•About Cisco MeetingPlace Audio Server System Configurations
•Cisco MeetingPlace Audio Server Software
Hardware Characteristics of the Cisco MeetingPlace 8106
The Cisco MeetingPlace 8106 is a rack-mountable box that is 7 in. tall, 18.9 in. wide, and 14.5 in. deep. Fully loaded, it weighs up to 40 pounds.
The Cisco MeetingPlace 8106 has the capacity for a CPU card, six slots for Smart Blades or Multi Access Blades to provide physical connectivity to the telephone network, and four drives: two disk drives, a floppy drive, and a CD-ROM drive. The front of the chassis allows access to the CPU, Smart Blades, and redundant power supplies. LAN cables, and telephony and IP cables plug into the back.
Figure 3-1 shows the Cisco MeetingPlace 8106.

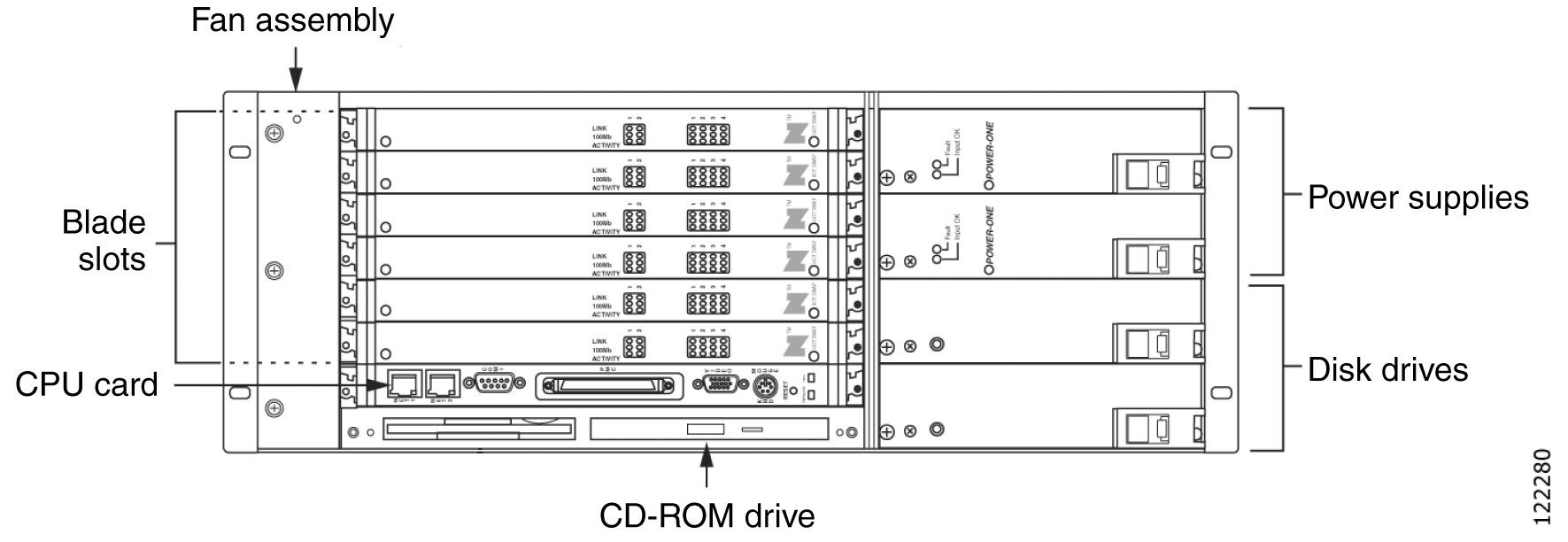

Figure 3-1 Cisco MeetingPlace 8106 Features (Front View)
Hardware Characteristics of the Cisco MeetingPlace 8112
The Cisco MeetingPlace 8112 is a rack-mountable box, 21 in. tall and 18.9 in. wide. Fully loaded, it weighs up to 110 pounds.
The Cisco MeetingPlace 8112 has the capacity for a CPU card, a Hot Swap Controller (HSC), 12 slots for Smart Blades or Multi Access Blades to provide physical connectivity to the telephone network, and four drives: two disk drives, a floppy drive, and a CD-ROM drive. The front of the chassis allows access to the CPU, Smart Blades, and redundant power supplies. LAN cables, and telephony and IP cables plug into the back.
An alarm panel, located on the top portion of the chassis front, indicates major alarms, minor alarms, and system status. For more information on the alarm panel, see the "Alarm Panels for the Cisco MeetingPlace 8106" section.
Figure 3-2 shows the Cisco MeetingPlace 8112.
Figure 3-2 Cisco MeetingPlace 8112 Features (Front View)
Cisco MeetingPlace 8100 Series Hardware Components
Table 3-1 describes the Cisco MeetingPlace 8100 series hardware components.
Table 3-1 Cisco MeetingPlace Audio Server Hardware Components
Component
|
Description
|
Mounting kits
|
Mechanical components necessary to mount the Cisco MeetingPlace Audio Servers in one of these configurations:
•19-in. EIA-310 rack (U.S. and Canada)
•19-in. Frame-Relay Rack
Note The Cisco MeetingPlace 8112 can also be mounted in 23-in. racks.
|
CD-ROM drive
|
The CD-ROM drive is used for software upgrade installations.
|
Smart Blades
|
Components required to provide physical connectivity to your telephone network. They include the following:
•Smart Blade. The Cisco proprietary high-performance conferencing card. It provides digital signal processing to ensure the highest voice quality and superior conferencing functions. Provides both Port Resource Card (PRC) and Master Switch Controller (MSC) functionality in a single card.
Note Because Multi Access Blades do not provide conferencing capability, every 96 ports of IP requires one Smart Blade.
•T1 Smart Blade. The Cisco proprietary high-performance conferencing card. It provides digital signal processing to ensure the highest voice quality and superior conferencing functions. Provides both PRC and MSC control functionality along with the necessary trunk interface functionality for digital T1 telephone lines. This Smart Blade also provides the ability to connect up to 4 T1 spans (96 phone calls) using E&M wink-start, loop-start, and ground-start call supervision.
|
Multi Access Blades
|
Multi Access Blades enhance the Smart Blade by including the necessary Ethernet interface for IP-based telephony. The Cisco MeetingPlace H.323/SIP IPGW is required for full functionality.
•MP-MA-4. Includes the necessary trunk interface card functionality for T1 PRI, E1, and IP-based telephony. For T1 PRI, the MP-MA-4-PRI supports AT&T, Bell, and Nortel protocols. For E1, the MP-MA-4-PRI supports Euro ISDN and QSIG protocols. For IP, the MP-MA-4 supports G.711 and G.729a audio encoding. Each MP-MA-4 requires at least one Smart Blade. The MP-MA-4 supports up to four PSTN spans.
•MP-MA-16. Includes the necessary trunk interface card functionality for T1 PRI, E1, and IP-based telephony. For T1 PRI, the MP-MA-16-PRI supports AT&T, Bell, and Nortel protocols. For E1, the MP-MA-16-PRI supports Euro ISDN and QSIG protocols. For IP, the MP-MA-16 supports G.711 and G.729a audio encoding. Each MP-MA-16 requires at least one Smart Blade. The MP-MA-16 supports up to 16 PSTN spans.
Note If a Cisco MeetingPlace 8106 only uses one MP-MA-4-PRI for PSTN (that is, for T1 PRI or E1) in slot 1, then slot 2 will be reserved when Cisco Systems ships the Cisco MeetingPlace Audio Server system.
|
Breakout box and cables
|
The breakout box provides a standard RJ-45 telephony interface for E1 and T1 PRI Cisco MeetingPlace systems. It interfaces to a maximum of 16 cables. For each MP-MA-16-PRI shipped with the Cisco MeetingPlace Audio Server system, we include 16 telephony cables and two trunk interface cables (50-pin Amphenol connectors) to connect each MP-MA-16-PRI to the breakout box; for each MP-MA-4-PRI shipped with the Cisco MeetingPlace Audio Server system, we include four telephony cables and one trunk interface cable (50-pin Amphenol connector) to connect each MP-MA-4-PRI to the breakout box.
|
System database disks
|
The Cisco MeetingPlace system has two 36 GB hard drives for the Cisco MeetingPlace Audio Server software and the Cisco MeetingPlace system database. Space is allocated equally on each drive, resulting in an extra database and system space as follows:
•System database disk 1. Supports up to 500 MB of primary system files, 800 MB of temporary work space, and 5 GB of alternative space for storing the automatic database backup from disk 2. Disk 1 also includes 22 GB of additional storage and user and meeting names.
•System database disk 2. Supports up to 500 MB of alternate system files, 800 MB of temporary workspace, and 5 GB of alternative space for storing the automatic database backup from disk 1. Disk 2 also includes 22 GB of additional storage and user and meeting names.
|
Network interface
|
A pair of 10/100 Ethernet ports on the CPU transition module. The first port is used as the primary network interface. (The second network interface is not used at this time.)
|
External modem
|
The Cisco MeetingPlace system includes an external modem connected to the Cisco MeetingPlace Audio Server through a serial cable. The modem cable connects through the back of the Cisco MeetingPlace Audio Server through a COM2 connector to the CPU transition module.
|
Alarm Panels for the Cisco MeetingPlace 8106
The Cisco MeetingPlace 8106 has three types of LEDs as described in Table 3-2. See Figure 3-3 to locate the Cisco MeetingPlace 8106 LEDs.
Table 3-2 Description of the Cisco MeetingPlace 8106 LEDs
Component
|
LED Color
|
Meaning
|
Fan assembly
|
•None
•Red
|
•Fan assembly is working properly or is not properly inserted.
•Fan assembly is not working properly.
|
Disk drives
|
•Green
•None
|
•Cisco MeetingPlace 8106 is accessing the disk drive.
•Cisco MeetingPlace 8106 is not accessing the disk drive.
|
Power supply units
|
•Green on both
•Red on both
•None on both
•Green on one; red on other
•Green on one; none on other
•Red on one; none on other
|
•Power supply units are working properly.
•Neither power supply unit is working properly. Shut off the Cisco MeetingPlace 8106 as soon as possible and remove all cards, the floppy drive and CD-ROM drive housing unit, and the disk drives.
•Either the Cisco MeetingPlace 8106 is powered off or the power supply units are not properly inserted.
•One power supply unit is working properly and the other is either bad or not properly inserted.
•One power supply unit is working properly and the other is either bad or not properly inserted.
•One power supply unit is bad and the other is not properly inserted.
|

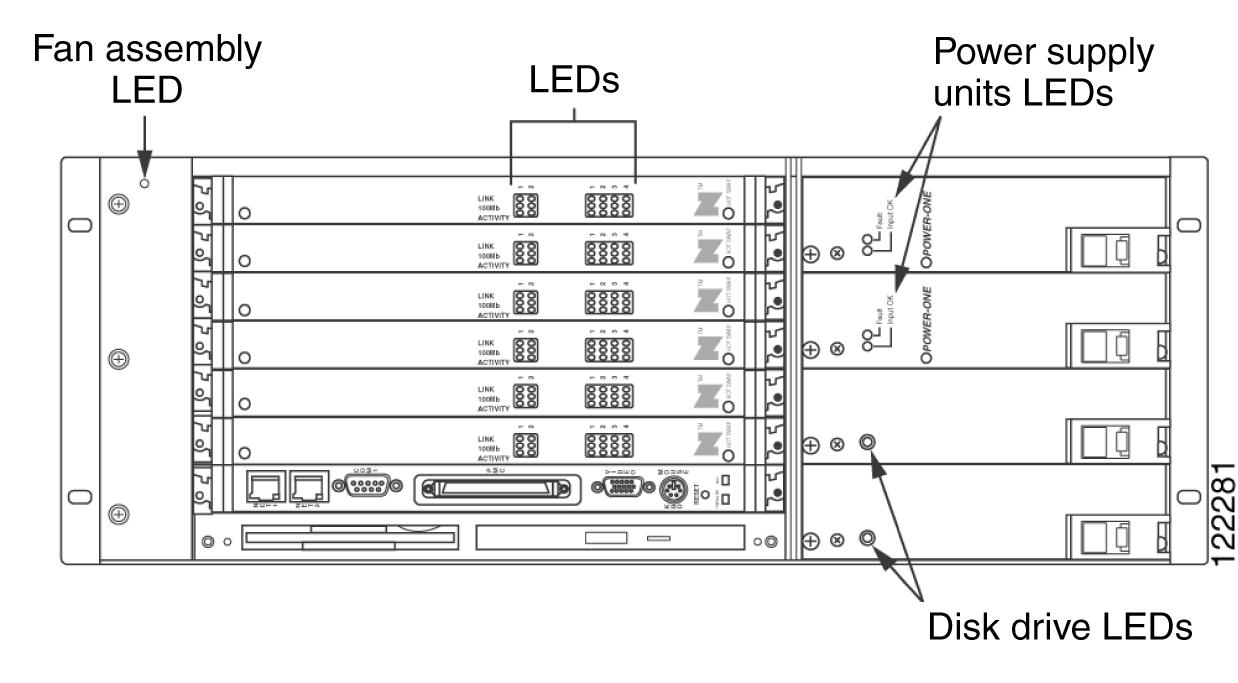

Figure 3-3 Location of the Cisco MeetingPlace 8106 LEDs
Alarm Panels for the Cisco MeetingPlace 8112
The Cisco MeetingPlace 8112 has system LEDs on the front top panel. See Table 3-3 for more information about these LEDs. See Figure 3-4 to locate the Cisco MeetingPlace 8112 LEDs.
Table 3-3 Description of the Cisco MeetingPlace 8112 LEDs
Component
|
Meaning
|
System in service
|
When on, indicates the Cisco MeetingPlace system is in service.
|
Component out of service
|
When on, indicates there is a component out of service. Check the alarm table.
|
System out of service
|
When on, indicates the Cisco MeetingPlace system is out of service.
|
Telco major alarm
|
When on, indicates a possible Telco problem that may affect service. Check the alarm table.
|
Telco minor alarm
|
When on, indicates a possible minor Telco problem that does not affect service. Check the alarm table.
|
Telco critical alarm
|
Not used, disregard.
|

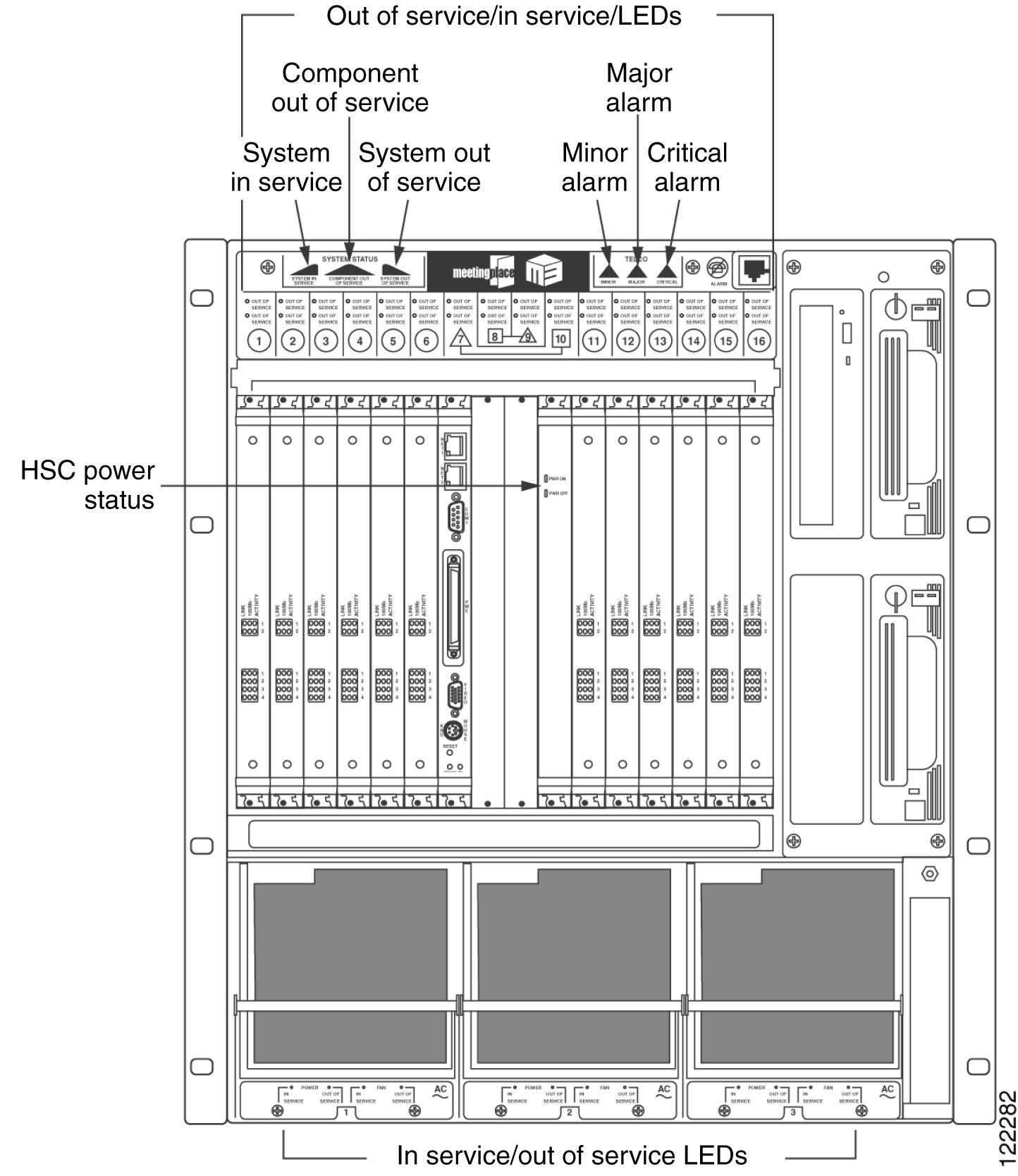

Figure 3-4 Location of the Cisco MeetingPlace 8112 LEDs
About Cisco MeetingPlace Audio Server System Configurations
This section contains examples of the different blade configurations for the Cisco MeetingPlace Audio Server systems. For specific instructions on how to configure your MeetingPlace Audio Server, see the Configuration Guide for Cisco MeetingPlace Audio Server Release 5.3.
The Cisco MeetingPlace 8106 comes equipped with 6 slots for Smart Blades, T1 Smart Blades, or Multi Access Blades and the Cisco MeetingPlace 8112 comes equipped with 12 slots for Smart Blades, T1 Smart Blades, or Multi Access Blades.
Table 3-4 lists the number of access ports supported per blade.
Note E1, T1 PRI, and IP-based telephony require at least one Multi Access Blade and one Smart Blade.
Table 3-4 Blades and the Number of Access Ports the Blade Supports
Blade
|
Number of Access Ports the Blade Supports
|
T1 Smart Blade or Smart Blade
|
96
|
MP-MA-16-PRI for E1
|
480
|
MP-MA-16-PRI for T1 PRI
|
368
|
MP-MA-16 for IP
|
480
|
MP-MA-4-PRI for E1
|
120
|
MP-MA-4-PRI for T1 PRI
|
92
|
MP-MA-4 for IP
|
120
|
Note Mixing protocols is not supported except in combination with IP ports. For example, a Cisco MeetingPlace system cannot have both T1 and E1 ports configured but it can have T1 (either PRI or CAS) and IP ports or E1 and IP ports. Also, a Cisco MeetingPlace system cannot have both T1 CAS and T1 PRI ports configured. See Table 3-5.
Table 3-5 Allowable Blade Configurations
Not Allowed
|
Allowed
|
T1 CAS and E1
|
T1 PRI and IP
|
T1 PRI and E1
|
E1 and IP
|
T1 PRI and T1 CAS
|
T1 CAS and IP
|
Note The Cisco MeetingPlace Audio Server only supports E1 PRI. We do not provide E1 CAS telephony interfaces.
Configuring the Cisco MeetingPlace 8106
The Cisco MeetingPlace 8106 supports the following:
•Up to 576 ports in a T1 CAS Cisco MeetingPlace system
•Up to 368 ports in a T1 PRI Cisco MeetingPlace system (U.S. and Canada)
•Up to 480 ports in an E1 Cisco MeetingPlace system
•Up to 480 IP ports (supports vocoders G.711 (A-law and u-law) and G.729a and signaling H.323 and SIP)
•Nonblocking N/2 simultaneous conferences
•Mix and match T1 and IP end-points
•Mix and match E1 and IP end-points
Table 3-6 lists the allowable port and blade configurations for each protocol and the hardware used to achieve them.
Table 3-6 Allowable Blade Configurations for the Cisco MeetingPlace 8106
Protocol
|
Maximum Ports
|
Hardware Configuration
|
T1 CAS
|
576
|
6 T1 Smart Blades
|
E1
|
480
|
5 Smart Blades and 1 MP-MA-16-PRI
|
T1 PRI
|
368
|
4 Smart Blades and 1 MP-MA-16-PRI
|
IP
|
480
|
5 Smart Blades and 1 MP-MA-16
|
T1 CAS Smart Blades and T1 PRI and E1 Multi Access Blades are installed starting from slot 1 on the bottom and move to the top. IP Multi Access Blades are installed starting from slot 6 on the top and move to the bottom.
Example: T1 CAS Configuration
Table 3-7 shows a pure T1 CAS configuration with 576 ports. Each slot has a T1 Smart Blade, denoted by SB. Each T1 Smart Blade provides 96 ports and there are 6 T1 Smart Blades (96 x 6 = 576).
Table 3-7 Pure T1 CAS Configuration, 576 T1 CAS Ports
Slot
|
Blade
|
6
|
SB
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
Example: T1 PRI Configuration
Table 3-8 shows a pure T1 PRI configuration with 368 T1 PRI ports. The MP-MA-16-PRI in slot 1 provides 368 T1 PRI ports. Because Multi Access Blades do not provide conferencing capability, every 96 ports requires one Smart Blade. All of the ports in slots 2 to 4 (3 x 96 = 288) and 80 of the ports in slot 5 are used for conferencing.
Table 3-8 Pure T1 PRI Configuration, 368 T1 CAS Ports
Slot
|
Blade
|
6
|
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-16-PRI
|
Example: Pure IP Configuration
Table 3-9 shows a pure IP configuration with 480 IP ports. The MP-MA-16 in slot 6 provides 480 IP ports. Because Multi Access Blades do not provide conferencing capability, every 96 ports of IP requires one Smart Blade, so slots 1 to 5 use their 480 ports (5 x 96 = 480) for IP conferencing.
Table 3-9 Pure IP Configuration, 480 IP Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
Examples: T1 CAS and IP Mixed Configurations
Table 3-10 to Table 3-13 show examples of T1 CAS and IP mixed configurations. The T1 CAS trunks may or may not be configured depending on the number of IP ports. In each table, SB is a T1 Smart Blade.
In Table 3-10, the MP-MA-4 in slot 6 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 5 uses its 96 ports and the Smart Blade in slot 4 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The remaining 72 ports in slot 4 (96 - the 24 used for the IP conferencing) plus the ports in slots 1 to 3 (3 x 96 = 288) are used for the T1 CAS portion of the configuration (288 + 72 = 360).
Table 3-10 120 IP Ports, 360 T1 CAS Ports, 480 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
In Table 3-11, the MP-MA-4 in slot 6 provides 96 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 5 uses its 96 ports for IP conferencing. The ports in slots 1 to 4 (96 x 4 = 384) are used for the T1 CAS portion of the configuration.
Table 3-11 96 IP Ports, 384 T1 CAS Ports, 480 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
In Table 3-12, the MP-MA-16 in slot 6 provides 240 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slot 4 and 5 use their 96 ports and the Smart Blade in slot 3 uses 48 of its 96 ports for IP conferencing (96 + 96 + 48 = 240). The remaining 48 ports in slot 3 (96 - the 48 used for the IP conferencing) plus the ports in slots 1 and 2 (2 x 96 = 192) are used for the T1 CAS portion of the configuration (48 + 192 = 240).
Table 3-12 240 IP Ports, 240 T1 CAS Ports, 480 Total Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
In Table 3-13, the MP-MA-16 in slot 6 provides 360 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 3 to 5 use their 96 ports and the Smart Blade in slot 2 uses 72 of its 96 ports for IP conferencing (3 x 96 = 288 + 72 = 360). The remaining 24 ports in slot 2 (96 - the 72 used for the IP conferencing) plus the 96 ports in slot 1 are used for the T1 CAS portion of the configuration (24 + 96 = 120).
Table 3-13 360 IP Ports, 120 T1 CAS Ports, 480 Total Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
SB
|
Examples: T1 PRI and IP Mixed Configurations
Table 3-14 to Table 3-17 show examples of T1 PRI and IP mixed configurations. IP Multi Access Blades are installed starting from slot 6 on the top and move to the bottom.
In Table 3-14, the MP-MA-4 in slot 6 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 4 uses its 96 ports and the Smart Blade in slot 3 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-4-PRI in slot 1 provides 92 T1 PRI ports. The Smart Blade in slot 2 uses 92 of its 96 ports for conferencing.
Table 3-14 120 IP Ports, 92 T1 PRI Ports, 212 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-4-PRI
|
In Table 3-15, the MP-MA-4 in slot 6 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 5 uses its 96 ports and the Smart Blade in slot 4 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-16-PRI in slot 1 provides 253 T1 PRI ports. The Smart Blades in slots 2 and 3 use their 96 ports and the Smart Blade in slot 4 uses 61 of its 72 ports for conferencing. (The Smart Blade in slot 4 uses 24 of its ports for the IP portion of the configuration and 61 ports for the T1 PRI portion of the configuration.)
Table 3-15 120 IP Ports, 253 T1 PRI Ports, 373 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-16-PRI
|
In Table 3-16, the MP-MA-16 in slot 6 provides 240 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 4 and 5 use their 96 ports and the Smart Blade in slot 3 uses 48 of its 96 ports for IP conferencing (96 + 96 + 48 = 240). The MP-MA-4-PRI in slot 1 provides 92 T1 PRI ports. The Smart Blade in slot 2 uses 92 of its 96 ports for conferencing.
Table 3-16 240 IP Ports, 92 T1 PRI Ports, 332 Total Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-4-PRI
|
In Table 3-17, the MP-MA-16 in slot 6 provides 180 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 5 uses its 96 ports and the Smart Blade in slot 4 uses 84 of its 96 ports for IP conferencing (96 + 84 = 180). The MP-MA-4-PRI in slot 1 provides 92 T1 PRI ports. The Smart Blade in slot 2 uses 92 of its 96 ports for conferencing.
Table 3-17 180 IP Ports, 92 T1 PRI Ports, 272 Total Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
|
2
|
SB
|
1
|
MP-MA-4-PRI
|
Example: E1 Configuration
The E1 Multi Access Blade is installed in slot 1, followed by Smart Blades. Table 3-18 shows a pure E1 configuration with 480 E1 ports. The MP-MA-16-PRI in slot 1 provides 480 E1 ports. The Smart Blades in slots 2 to 6 each have 96 ports (96 x 5 = 480) which are used for conferencing. In this table, SB is a Smart Blade.
Table 3-18 Pure E1 Configuration, 480 E1 Ports
Slot
|
Blade
|
6
|
SB
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-16-PRI
|
Examples: E1 and IP Mixed Configurations
The E1 Multi Access Blade is installed in slot 1, followed by Smart Blades. The IP Multi Access Blade is installed in slot 6.
Table 3-19 to Table 3-21 show examples of mixed E1 and IP configurations. The E1 trunks on the Multi Access Blades may or may not be configured depending on the number of IP Multi Access Blades populated. In the following tables, SB is a Smart Blade.
In Table 3-19, the MP-MA-4 in slot 6 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 4 uses its 96 ports and the Smart Blade in slot 3 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-4-PRI in slot 1 provides 120 E1 ports. The remaining 72 ports in slot 3 (96 - the 24 used for the IP conferencing) plus 48 ports in slot 2 (72 + 48 = 120) are used for the E1 portion of the configuration.
Table 3-19 120 IP Ports, 120 E1 Ports, 240 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-4-PRI
|
In Table 3-20, the MP-MA-4 in slot 6 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 5 uses its 96 ports and the Smart Blade in slot 4 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-16-PRI in slot 1 provides 240 E1 ports. The Smart Blades in slots 2 and 3 use their 96 ports and the Smart Blade in slot 4 uses 48 of its remaining 72 ports for conferencing (96 + 96 + 48 = 240). (The Smart Blade in slot 4 uses 24 of its ports for the IP portion of the configuration and 48 ports for the E1 portion of the configuration.)
Table 3-20 120 IP Ports, 240 E1 Ports, 360 Total Ports
Slot
|
Blade
|
6
|
MP-MA-4
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-16-PRI
|
In Table 3-21, the MP-MA-16 in slot 6 provides 240 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 4 and 5 use their 96 ports and the Smart Blade in slot 3 uses 48 of its 96 ports for IP conferencing (96 + 96 + 48 = 240). The MP-MA-4-PRI in slot 1 provides 120 E1 ports. The Smart Blade in slot 2 uses its 96 ports and the Smart Blade in slot 3 uses 24 of its remaining 48 ports for conferencing (96 + 24 = 120). (The Smart Blade in slot 4 uses 48 of its ports for the IP portion of the configuration and 24 ports for the E1 portion of the configuration.)
Table 3-21 240 IP Ports, 120 E1 Ports, 360 Total Ports
Slot
|
Blade
|
6
|
MP-MA-16
|
5
|
SB
|
4
|
SB
|
3
|
SB
|
2
|
SB
|
1
|
MP-MA-4-PRI
|
Configuring the Cisco MeetingPlace 8112
The Cisco MeetingPlace 8112 supports the following:
•Up to 1152 ports in a T1 CAS Cisco MeetingPlace system
•Up to 736 ports in a T1 PRI Cisco MeetingPlace system (U.S. and Canada)
•Up to 960 ports in an E1 Cisco MeetingPlace system
•Up to 960 IP ports (supports vocoders G.711 (A-law and u-law) and G.729a and signaling H.323 and SIP)
•Nonblocking N/2 simultaneous conferences
•Mix and match T1 and IP end-points
•Mix and match E1 and IP end-points
Table 3-22 lists the allowable port and blade configurations for each protocol and the hardware used to achieve them.
Table 3-22 Allowable Blade Configurations for the Cisco MeetingPlace 8112
Protocol
|
Maximum Ports
|
Hardware Configuration
|
T1 CAS
|
1152
|
12 T1 Smart Blades
|
E1
|
960
|
10 Smart Blades and 2 MP-MA-16-PRIs
|
T1 PRI
|
736
|
8 Smart Blades and 2 MP-MA-16-PRIs
|
IP
|
960
|
10 Smart Blades and 2 MP-MA-16s
|
T1 PRI and E1 Multi Access Blades are installed on the left (with slot 2 left vacant if no MP-MA-16-PRI or MP-MA-4-PRI is needed to populate it and if the slot is not needed for Smart Blade capacity). Next, T1 Smart Blades are installed to the right of this. Last, IP Multi Access Blades are installed starting on the right (slot 16), and move to the left.
Note In all configurations for the Cisco MeetingPlace 8112, slots 7 to 10 are reserved for CPU and system controller cards.
Example: T1 CAS Configuration
Table 3-23 shows a pure T1 CAS configuration with 1152 T1 CAS ports. Each slot (except for slots 7 to 10, which are reserved for CPU and system controller cards) has a T1 Smart Blade, denoted by SB. Each T1 Smart Blade has the capacity for 96 ports and there are 12 T1 Smart Blades (96 x 12 = 1152).
Table 3-23 Pure T1 CAS Configuration, 1152 T1 CAS Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
Example: T1 PRI Configuration
Table 3-24 shows a pure T1 PRI configuration with 736 T1 PRI ports. The MP-MA-16-PRIs in slots 1 and 2 provide 368 T1 PRI ports each (368 x 2 = 736). The ports in slots 3 to 13 (7 x 96 = 672) and 64 of the ports in slot 14 are used for conferencing (672 + 64 = 736).
Table 3-24 Pure T1 PRI Configuration, 736 T1 PRI Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-16-PRI
|
MP-MA-16-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
|
|
Example: Pure IP Configuration
Table 3-25 shows a pure IP configuration with 960 IP ports. There are two MP-MA-16s on the right which support 480 IP ports each (2 x 480 = 960). Because Multi Access Blades do not provide conferencing capability, every 96 ports of IP requires one Smart Blade, so slots 1 to 6 and slots 11 to 14 each have a Smart Blade with a capacity for 96 ports.
Table 3-25 Pure IP Configuration
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-16
|
MP-MA-16
|
, 960 IP Ports
Examples: T1 CAS and IP Mixed Configurations
Table 3-26 to Table 3-29 show examples of configurations with T1 CAS and IP. The T1 CAS trunks may or may not be configured depending on the number of IP ports. In each table, SB is a T1 Smart Blade.
In Table 3-26, the MP-MA-4 in slot 16 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 15 uses its 96 ports and the Smart Blade in slot 14 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The remaining 72 ports in slot 14 (96 - the 24 used for the IP conferencing) plus the ports in slots 1 to 6 and 11 to 13 (9 x 96 = 864) are used for the T1 CAS portion of the configuration (864 + 72 = 936).
Table 3-26 120 IP Ports, 936 T1 CAS Ports, 1056 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-4
|
In Table 3-27, the MP-MA-16 in slot 16 provides 480 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 11 to 15 use their 480 ports for IP conferencing (96 x 5 = 480). Slots 1 to 6 have T1 Smart Blades with 96 ports each (6 x 96 = 576 ports) to support the T1 CAS configuration.
Table 3-27 480 IP Ports, 576 T1 CAS Ports, 1056 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-16
|
In Table 3-28, the two MP-MA-4s in slots 15 and 16 provide 120 IP ports each (2 x 120 = 240). Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 13 and 14 use their 96 ports and the Smart Blade in slot 12 uses 48 of its 96 ports for IP conferencing (96 + 96 + 48 = 240). The remaining 48 ports in slot 12 (96 - the 48 used for the IP conferencing) plus the ports in slots 1 to 6 and 11 (7 x 96 = 672) are used for the T1 CAS portion of the configuration (672 + 48 = 720).
Table 3-28 240 IP Ports, 720 T1 CAS Ports, 960 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-4
|
MP-MA-4
|
In Table 3-29, the MP-MA-16 in slot 16 provides 480 IP ports and the MP-MA-4 in slot 15 provides 120 IP ports, for a total of 600 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 5 to 14 use their 576 ports and the Smart Blade in slot 4 uses 24 of its 96 ports for IP conferencing (96 x 6= 576 + 24 = 600). The remaining 72 ports in slot 4 (96 - the 24 used for the IP conferencing) plus the ports in slots 1 to 3 (3 x 96 = 288) are used for the T1 CAS portion of the configuration (288 + 72 = 360).
Table 3-29 600 IP Ports, 360 T1 CAS Ports, 960 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-4
|
MP-MA-16
|
Examples: T1 PRI and IP Mixed Configurations
Table 3-30 and Table 3-31 show examples of mixed configurations with T1 PRI and IP. In each table, SB is a T1 Smart Blade. The Multi Access Blade used for the IP part of the configuration is on the right, in slot 16 and the Multi Access Blade used for the T1 PRI part of the configuration is on the left, in slot 1.
In Table 3-30, the MP-MA-16 in slot 16 provides 480 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 3 to 11 use their 480 ports for IP conferencing (96 x 5= 480). The MP-MA-4-PRI in slot 1 provides 92 T1 PRI ports and the Smart Blade in slot 2 uses 92 of its 96 ports for conferencing.
Table 3-30 480 IP Ports, 92 T1 PRI Ports, 572 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-4-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
|
|
|
|
MP-MA-16
|
In Table 3-31, the MP-MA-16 in slot 16 provides 480 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 6 to 14 use their 480 ports for IP conferencing (96 x 5= 480). The MP-MA-16-PRI in slot 1 provides 368 T1 PRI ports. The Smart Blades in slots 2 to 4 use their 96 ports and the Smart Blade in slot 5 uses 80 of its 96 ports for conferencing (3 x 96 = 288 + 80 = 368).
Table 3-31 480 IP Ports, 368 T1 PRI Ports, 848 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-16-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
|
MP-MA-16
|
Example: Pure E1 Configuration
E1 Multi Access Blades are installed starting in slot 1 and move to the right, followed by Smart Blades. Table 3-32 shows a pure E1 configuration with 960 E1 ports. The two MP-MA-16-PRIs in slots 1 and 2 provide 480 E1 ports each (480 x 2 = 960). The Smart Blades in slots 3 to 16 each have 96 ports (96 x 10 = 960) which are used for conferencing.
In this table, SB is a Smart Blade.
Table 3-32 Pure E1 Configuration, 960 E1 Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-16-PRI
|
MP-MA-16-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
Examples: E1 and IP Mixed Slot Configurations
E1 Multi Access Blades are installed starting in slot 1 and move to the right, followed by Smart Blades. IP Multi Access Blades are installed starting in slot 16 and move to the left.
Table 3-33 to Table 3-36 show examples of mixed E1 and IP configurations. The E1 trunks on the Multi Access Blades may or may not be configured depending on the number of IP Multi Access Blades populated. In the following tables, SB is a Smart Blade.
In Table 3-33, the MP-MA-4 in slot 16 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 12 uses its 96 ports and the Smart Blade in slot 11 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-16-PRI in slot 1 provides 480 E1 ports. The remaining 72 ports in slot 11 (96 - the 24 used for the IP conferencing) plus the ports in slots 2 to 6 (5 x 96 = 480) are used for the E1 portion of the configuration (5 x 96 = 480).
Table 3-33 120 IP Ports, 480 E1 Ports, 600 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-16-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
|
|
|
MP-MA-4
|
In Table 3-34, the MP-MA-16 in slot 16 provides 480 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 11 to 15 use their 96 ports for IP conferencing (96 x 5 = 480). The MP-MA-16-PRI in slot 1 provides 480 E1 ports. The ports in slot 2 to 6 (5 x 96 = 480) are used for the E1 portion of the configuration.
Table 3-34 480 IP Ports, 480 E1 Ports, 960 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-16-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
MP-MA-16
|
In Table 3-35, the MP-MA-16 in slot 16 provides 480 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blades in slots 4 to 12 use their 96 ports for IP conferencing (96 x 5 = 480). The MP-MA-4-PRI in slot 1 provides 120 E1 ports. The 96 ports in slot 2 plus 24 of the ports in slot 3 are used for the E1 portion of the configuration (96 + 24 = 120).
Table 3-35 480 IP Ports, 120 E1 Ports, 600 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-4-PRI
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
SB
|
|
|
|
MP-MA-16
|
In Table 3-36, the MP-MA-4 in slot 16 provides 120 IP ports. Every 96 ports of IP requires one Smart Blade, so the Smart Blade in slot 4 uses its 96 ports and the Smart Blade in slot 3 uses 24 of its 96 ports for IP conferencing (96 + 24 = 120). The MP-MA-4-PRI in slot 1 provides 120 E1 ports. The 96 ports in slot 2 plus 24 of the unused ports in slot 3 are used for the E1 portion of the configuration (96 + 24 = 120).
Table 3-36 120 IP Ports, 120 E1 Ports, 240 Total Ports
Slot
|
1
|
2
|
3
|
4
|
5
|
6
|
11
|
12
|
13
|
14
|
15
|
16
|
Blade
|
MP-MA-4-PRI
|
SB
|
SB
|
SB
|
|
|
|
|
|
|
|
MP-MA-4
|
Cisco MeetingPlace Audio Server Software
Release 5.3 of the Cisco MeetingPlace Audio Server software uses a client server architecture that divides computing tasks between the server and the client. The software that resides on the Cisco MeetingPlace system database disk consists of the following:
•A real-time UNIX/POSIX-compatible operating system designed specifically for real-time intensive applications
•The system software, including:
–Cisco MeetingPlace application software
–Relational SQL database for storing all conference and profile information
–Cisco MeetingPlace options
Desktop software is installed on desktop computers. This software communicates with the Cisco MeetingPlace system over the LAN or WAN.
For a list of all Cisco MeetingPlace Audio Server software options for Release 5.3, see the Installation Planning Guide for Cisco MeetingPlace Release 5.3.
