Cisco SIP Proxy Server Integration Guide for Cisco Unity Connection 2.0
Published May 30, 2007
This document provides instructions for integrating the Cisco SIP Proxy Server phone system with Cisco Unity Connection.
Integration Tasks
Before doing the following tasks to integrate Cisco Unity Connection with the Cisco SIP Proxy Server phone system, confirm that the Cisco Unity Connection server is ready for the integration by completing the applicable tasks in the Cisco Unity Connection Installation Guide.
The following task lists describe the process for creating, changing, and deleting integrations.
Task List to Create the Integration
Use the following task list to set up a new integration with the Cisco SIP Proxy Server phone system. If you are installing a new Cisco Unity Connection server by using the Cisco Unity Connection Installation Guide, you may have already completed some of the following tasks.
1.
Review the system and equipment requirements to confirm that all phone system and Cisco Unity Connection server requirements have been met. See the "Requirements" section.
2. Plan how the voice messaging ports will be used by Cisco Unity Connection. See the "Planning How the Voice Messaging Ports Will Be Used by Cisco Unity Connection" section.
3. Program the SIP proxy server and other call processing components. See the "Programming the Cisco SIP Proxy Server Phone System" section.
4. Set up the SIP gateway that services Cisco Unity Connection. See the "Configure the SIP Gateway Servicing Cisco Unity Connection for the SIP Integration" section.
5. Create the integration. See the "Creating a New Integration with the Cisco SIP Proxy Server Phone System" section.
6. Test the integration. See the "Testing the Integration" section.
7. If this integration is a second or subsequent integration, add the applicable new user templates for the new phone system. See the (Multiple Integrations Only) Adding New User Templates.
Requirements
The Cisco SIP Proxy Server integration supports configurations of the following components:
Phone System
•Cisco SIP Proxy Server.
•Cisco SIP Proxy Server-enabled phones (for example, SIP-enabled Cisco IP Phone 7960 or Pingtel xpressa).
The SIP phones must use the REFER method for call transfers.
•SIP-enabled gateways (for example, Cisco AS5300 Access Server, Cisco 2600 series router, or Cisco 3600 series router) for access to the PSTN.
For details on compatibility of the phone system components with the integration, see the "Appendix: Compatibility of Phone System Components" section.
Cisco Unity Connection Server
•Cisco Unity Connection installed and ready for the integration, as described in the Cisco Unity Connection Installation Guide at http://www.cisco.com/en/US/products/ps6509/prod_installation_guides_list.html.
•A license that enables the applicable number of voice messaging ports.
Network Configuration
•Cisco Unity Connection server, Cisco SIP Proxy Server, SIP-enabled phones, and SIP-enabled gateways installed on the same subnet (ensures adequate bandwidth and avoids latency issues affecting integration behavior).
Integration Description
The Cisco SIP Proxy Server integration uses the SIP proxy server to set up communications between the voice messaging ports on the Cisco Unity Connection server and the applicable end point (for example, a SIP-enabled phone). The communications occur through:
•An IP network (LAN, WAN, or Internet) to all SIP-enabled devices connected to it.
•A SIP-enabled gateway to the PSTN and all phones connected to it.
Figure 1 shows the connections.

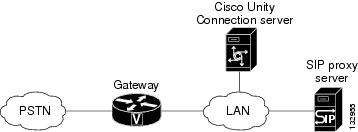

Figure 1 Connections Between the Cisco SIP Proxy Server Phone System and Cisco Unity Connection
Call Information
The proxy server sends the following information in the SIP message with the calls forwarded:
•In the Diversion header, the extension of the called party
•In the Diversion header, the reason for the forward (the extension is busy, does not answer, or is set to forward all calls)
•In the From header, the extension of the calling party (for internal calls) or the SIP URL of the calling party (if it is an external call and the system uses caller ID)
Cisco Unity Connection uses this information to answer the call appropriately. For example, a call forwarded to Cisco Unity Connection is answered with the personal greeting of the user. If the phone system routes the call to Cisco Unity Connection without this information, Cisco Unity Connection answers with the opening greeting.
Integration Functionality
The Cisco SIP Proxy Server integration with Cisco Unity Connection provides the following features:
•Call forward to personal greeting
•Call forward to busy greeting
•Caller ID
•Easy message access (a subscriber can retrieve messages without entering an ID because Cisco Unity Connection identifies the subscriber based on the extension from which the call originated; a password may be required)
•Identified subscriber messaging (Cisco Unity Connection identifies the subscriber who leaves a message during a forwarded internal call, based on the extension from which the call originated)
•Message waiting indication (MWI)
Integrations with Multiple Phone Systems
When Cisco Unity Connection is installed as Cisco Unified Communications Manager Business Edition (CMBE)—on the same server with Cisco CallManager—Cisco Unity Connection cannot be integrated with multiple phone systems at one time.
When Cisco Unity Connection is not installed as Cisco Unified Communications Suite, Cisco Unity Connection can be integrated with multiple phone systems at one time. For information on and instructions for integrating Cisco Unity Connection with multiple phone systems, refer to the Multiple Phone System Integration Guide for Cisco Unity Connection 2.0 at http://www.cisco.com/en/US/products/ps6509/products_installation_and_configuration_guides_list.html.
Planning How the Voice Messaging Ports Will Be Used by Cisco Unity Connection
Before programming the phone system, you need to plan how the voice messaging ports will be used by Cisco Unity Connection.
Unlike other integrations, the hunt group mechanism for a Cisco SIP Proxy Server phone system integration is implemented on the Cisco Unity Connection server. Within a port group, each incoming call hunts for an available voice messaging port among all the ports in a round-robin (or circular) fashion. If a voice messaging port in the cluster is set not to answer calls or is not enabled, a call reaching that port may receive a busy signal.
The following table describes the voice messaging port settings in Cisco Unity Connection that can be set on Telephony Integrations > Port of Cisco Unity Connection Administration.
Table 1 Settings for the Voice Messaging Ports
Field
|
Considerations
|
Enabled
|
Check this check box.
|
Answer Calls
|
Check this check box.
Caution All voice messaging ports connecting to the SIP proxy server must have the Answer Calls box checked. Otherwise, calls to Cisco Unity Connection may not be answered.
|
Perform Message Notification
|
Check this check box to designate the port for notifying users of messages.
|
Send MWI Requests
|
Check this check box to designate the port for turning MWIs on and off.
|
Allow TRAP Connections
|
Check this check box so that users can use the port for recording and playback through the phone in Cisco Unity Connection web applications.
|
The Number of Voice Messaging Ports to Install
The number of voice messaging ports to install depends on numerous factors, including:
•The number of calls Cisco Unity Connection will answer when call traffic is at its peak.
•The expected length of each message that callers will record and that users will listen to.
•The number of users.
•The number of calls made for message notification.
•The number of MWIs that will be activated when call traffic is at its peak.
•The number of TRAP connections needed when call traffic is at its peak. (TRAP connections are used by Cisco Unity Connection web applications to play back and record over the phone.)
•The number of calls that will use the automated attendant and call handlers when call traffic is at its peak.
It is best to install only the number of voice messaging ports that are needed so that system resources are not allocated to unused ports.
The Number of Voice Messaging Ports That Will Answer Calls
The calls that the voice messaging ports answer can be incoming calls from unidentified callers or from users. Assign all of the voice messaging ports to answer calls.
You can set voice messaging ports to both answer calls and to dial out (for example, to set MWIs).
The Number of Voice Messaging Ports That Will Dial Out
Ports that will dial out can do one or more of the following:
•Notify users by phone, pager, or e-mail of messages that have arrived.
•Turn MWIs on and off for user extensions.
•Make a TRAP connection so that users can use the phone as a recording and playback device in Cisco Unity Connection web applications.
Preparing for Programming the Phone System
Record your decisions about the voice messaging ports to guide you in programming the phone system.
Programming the Cisco SIP Proxy Server Phone System
If you use programming options other than those supplied in the following procedure, the performance of the integration may be affected. Do the following procedure.
To Program the Cisco SIP Proxy Server Phone System
Step 1 Install and set up the Cisco SIP Proxy Server as described in the server documentation.
Step 2 Program each phone to forward calls to <the contact line name>@<SIP proxy server>, the voice messaging line name that users will use to contact Cisco Unity Connection.
Step 3 If Cisco Unity Connection will authenticate with the Cisco SIP Proxy Server, enter a user record for the contact line name that Cisco Unity Connection will use.
Configure the SIP Gateway Servicing Cisco Unity Connection for the SIP Integration
To configure the SIP gateway for the SIP integration with Cisco Unity Connection, do the following three procedures.
To Configure Application Session on the Sip Gateway
Step 1 On the VoIP dial-peer servicing Cisco Unity Connection, use the following command:
Step 2 Create a destination pattern that matches the voice messaging port numbers. For example, if the system has voice messaging ports 1001 through 1016, enter the dial-peer destination pattern 10xx.
Step 3 Repeat Step 1 and Step 2 for all remaining VoIP dial-peers servicing Cisco Unity Connection.
To Disable the SIP Media Inactivity Timer
Step 1 On the gateway, go into the gateway configuration mode by entering the following command:
Step 2 Disable the RTCP timer by entering the following command:
Router(config-gateway)# no timer receive-rtcp
Step 3 Exit the gateway configuration mode by entering the following command:
Router(config-gateway)# exit
To Enable DTMF Relay for SIP Calls by Using Named Telephony Events
Step 1 On the gateway, go into dial-peer configuration mode and define the VoIP dial peer by entering the following command:
Router(config)# dial-peer voice <dial peer number> voip
Step 2 Configure the SIP protocol on the gateway by entering the following command:
Router(config-dial-peer)# session protocol sipv2
Step 3 Enable DTMF relay using NTE RTP packets by entering the following command:
Router(config-dial-peer)# dtmf-relay rtp-nte
Step 4 Configure the type of payload in the NTE packet by entering the following command:
Router(config-dial-peer)# rtp payload-type nte <NTE packet payload type>
Creating a New Integration with the Cisco SIP Proxy Server Phone System
After ensuring that the Cisco SIP Proxy Server phone system and Cisco Unity Connection are ready for the integration, do the following procedures to set up the integration and to enter the port settings.
To Create an Integration
Step 1 Log on to Cisco Unity Connection Administration.
Step 2 In Cisco Unity Connection Administration, expand Telephony Integrations, then click Phone System.
Step 3 On the Search Phone Systems page, on the Phone System menu, click New Phone System. The Phone System Integration Wizard appears.
Step 4 On the Select Phone System Manufacturer page, in the Manufacturer field, click Cisco Systems and click Next.
Step 5 On the Select Phone System Model page, in the Model field, click Cisco SIP Proxy Server and click Next.
Step 6 On the Set Up Phone System page, in the Phone System Name field, accept the default name or enter the descriptive name that you want, and click Next.
Step 7 On the Select Port Group Template page, in the Port Group Template field, click SIP - Session Initiation Protocol and click Next.
Step 8 On the Set Up Port Group page, enter the following settings and click Next.
Table 2 Settings for the Set Up Port Group Page
Field
|
Setting
|
Port Group Name
|
<a descriptive name for the port group; accept the default name or enter the name that you want>
|
Contact Line Name
|
<the voice messaging line name (or pilot number) that users will use to contact Cisco Unity Connection and that Cisco Unity Connection will use to register with the SIP proxy server>
|
Authenticate with SIP Proxy Server
|
<your indication whether you want Cisco Unity Connection to authenticate with the SIP proxy server>
|
Authentication User Name
|
<the name that Cisco Unity Connection will use to authenticate with the SIP proxy server>
|
Authentication Password
|
<the password that Cisco Unity Connection will use to authenticate with the SIP proxy server>
|
Cisco Unity Connection SIP Port
|
<the SIP port of the Cisco Unity Connection server that that the SIP proxy server will connect to; we recommend that you use the default setting>
|
Number of Ports
|
<the number of voice messaging ports that you want to create in this port group>
|
IP Address or Host Name
|
<the IP address (or host name) of the primary SIP proxy server that you are integrating with Cisco Unity Connection>
|
Test Address
|
Click this button to verify the IP address (or host name) that you entered. The result of the test appears in the text box beside the button.
|
Port
|
<the IP port of the primary SIP proxy server that you are integrating with Cisco Unity Connection; we recommend that you use the default setting>
Caution This setting must match the port setting of the SIP proxy server. Otherwise the integration will not function correctly.
|
Step 9 On the Confirm Phone System Settings page, confirm the settings that you have entered and click Finish.
Step 10 On the Phone System Creation Summary page, click Close.
Step 11 In Cisco Unity Connection Administration, expand Telephony Integrations, then click Port Group.
Step 12 On the Search Port Groups page, click the display name of the port group that you created for the Cisco SIP Proxy Server integration.
Note By default, the display name for a port group is composed of the phone system display name followed by an incrementing number.
Step 13 On the Port Group Basics page, on the Edit menu, click Servers.
Step 14 On the Edit Servers page, do the following substeps if there are secondary SIP proxy servers. Otherwise, continue to Step 15.
a. Under SIP Proxy Servers, click Add.
b. Enter the following settings for the secondary SIP proxy server and click Save.
Table 3 Settings for the SIP Proxy Server
Field
|
Setting
|
Order
|
<the order of priority for the SIP proxy server; the lowest number is the primary SIP proxy server, the higher numbers are the secondary servers>
|
IP Address or Host Name
|
<the IP address (or host name) of the secondary SIP proxy server>
|
Port
|
<the IP port of the secondary SIP proxy server that you are integrating with Cisco Unity Connection; we recommend that you use the default setting>
|
Note You can click Ping to verify the IP address (or host name) of the SIP proxy server.
c. Repeat Step 14a. and Step 14b. for all remaining secondary SIP proxy servers in the cluster.
Step 15 In Cisco Unity Connection Administration, expand Telephony Integrations, then click Port.
Step 16 On the Search Ports page, click the display name of the first voice messaging port that you created for this phone system integration.
Note By default, the display names for the voice messaging ports are composed of the port group display name followed by incrementing numbers.
Step 17 On the Port Basics page, enter the following settings. The fields in the following table are the ones that you can change.
Table 4 Settings for the Voice Messaging Ports
Field
|
Considerations
|
Enabled
|
Check this check box.
|
Answer Calls
|
Check this check box.
Caution All voice messaging ports connecting to the SIP proxy server must have the Answer Calls box checked. Otherwise, calls to Cisco Unity Connection may not be answered.
|
Perform Message Notification
|
Check this check box to designate the port for notifying users of messages.
|
Send MWI Requests
|
Check this check box to designate the port for turning MWIs on and off.
|
Allow TRAP Connections
|
Check this check box so that users can use the port for recording and playback through the phone in Cisco Unity Connection web applications.
|
Step 18 Click Save.
Step 19 Click Next.
Step 20 Repeat Step 17 through Step 19 for all remaining voice messaging ports for the phone system.
Step 21 If another phone system integration exists, in Cisco Unity Connection Administration, expand Telephony Integrations, then click Trunk. Otherwise, skip to Step 25.
Step 22 On the Search Phone System Trunks page, on the Phone System Trunk menu, click New Phone System Trunk.
Step 23 On the New Phone System Trunk page, enter the following settings for the phone system trunk and click Save.
Table 5 Settings for the Phone System Trunk
Field
|
Setting
|
From Phone System
|
<the display name of the phone system that you are creating a trunk for>
|
To Phone System
|
<the display name of the previously existing phone system that the trunk will connect to>
|
Trunk Access Code
|
<the extra digits that Cisco Unity Connection must dial to transfer calls through the gateway to extensions on the previously existing phone system>
|
Step 24 Repeat Step 22 and Step 23 for all remaining phone system trunks that you want to create.
Step 25 If prompted to restart the Connection Conversation Manager service, do the following substeps. Otherwise, continue to Step 26.
a. In the Navigation drop-down list, click Cisco Unity Connection Serviceability and click Go.
b. On the Cisco Unity Connection Serviceability page, on the Tools menu, click Control Center - Feature Services.
c. On the Control Center - Feature Services page, in the Server drop-down list, click the name of the Cisco Unity Connection server and click Go.
d. Under Cisco Unity Connection Services, click Connection Conversation Manager.
e. At the top of the page, click Restart.
f. When prompted to confirm restarting the service, click Yes.
g. In the Navigation drop-down list, click Cisco Unity Connection Administration and click Go.
h. In Cisco Unity Connection Administration, expand Telephony Integrations, then click Phone System.
Step 26 In the Related Links drop-down list, click Check Telephony Configuration and click Go to confirm the phone system integration settings.
If the test is not successful, the Task Execution Results displays one or more messages with troubleshooting steps. After correcting the problems, test the connection again.
Step 27 In the Task Execution Results window, click Close.
Step 28 Log off Cisco Unity Connection Administration.
Testing the Integration
To test whether Cisco Unity Connection and the phone system are integrated correctly, do the following procedures in the order listed.
If any of the steps indicate a failure, refer to the following documentation as applicable:
•The installation guide for the phone system.
•The setup information earlier in this guide.
To Set Up the Test Configuration
Step 1 Set up two test extensions (Phone 1 and Phone 2) on the same phone system that Cisco Unity Connection is connected to.
Step 2 Set Phone 1 to forward calls to the Cisco Unity Connection pilot number when calls are not answered.
Caution The phone system must forward calls to the Cisco Unity Connection pilot number in no fewer than four rings. Otherwise, the test may fail.
Step 3 To create a test user for testing, in Cisco Unity Connection Administration, expand Users, then click Users.
Step 4 On the Search Users page, on the User menu, click Add New.
Step 5 On the New User page, enter the following settings.
Table 6 Settings for the New User Page
Field
|
Setting
|
User Type
|
User with Voice Mailbox
|
Based on Template
|
<the applicable user template>
|
Alias
|
testuser
|
First Name
|
Test
|
Last Name
|
User
|
Display Name
|
Test User
|
Extension
|
<the extension of Phone 1>
|
Step 6 Click Save.
Step 7 On the Edit User Basics page, in the Voice Name field, record a voice name for the test user.
Step 8 In the Phone System field, confirm that the phone system selected is the phone system that Phone 1 is connected to.
Step 9 Uncheck the Set for Self-enrollment at Next Login check box.
Step 10 Click Save.
Step 11 On the Edit menu, click Message Waiting Indicators.
Step 12 On the Message Waiting Indicators page, click the message waiting indicator. If no message waiting indication is in the table, click Add New.
Step 13 On the Edit Message Waiting Indicator page, enter the following settings.
Table 7 Settings for the Edit MWI Page
Field
|
Setting
|
Enabled
|
Check this check box to enable MWIs for the test user.
|
Display Name
|
Accept the default or enter a different name.
|
Inherit User's Extension
|
Check this check box to enable MWIs on Phone 1.
|
Step 14 Click Save.
Step 15 On the Edit menu, click Transfer Options.
Step 16 On the Transfer Options page, click the active option.
Step 17 On the Edit Transfer Option page, under Transfer Action, click the Extension option and enter the extension of Phone 1.
Step 18 In the Transfer Type field, click Release to Switch.
Step 19 Click Save.
Step 20 Minimize the Cisco Unity Connection Administration window.
Do not close the Cisco Unity Connection Administration window because you will use it again in a later procedure.
Step 21 Log on to Real-Time Monitoring Tool (RTMT).
Step 22 On the Unity Connection menu, click Port Monitor. The Port Monitor tool appears in the right pane.
Step 23 In the right pane, click Start Polling. The Port Monitor will display which port is handling the calls that you will make.
To Test an External Call with Release Transfer
Step 1 From Phone 2, enter the access code necessary to get an outside line, then enter the number outside callers use to dial directly to Cisco Unity Connection.
Step 2 In the Port Monitor, note which port handles this call.
Step 3 When you hear the opening greeting, enter the extension for Phone 1. Hearing the opening greeting means that the port is configured correctly.
Step 4 Confirm that Phone 1 rings and that you hear a ringback tone on Phone 2. Hearing a ringback tone means that Cisco Unity Connection correctly released the call and transferred it to Phone 1.
Step 5 Leaving Phone 1 unanswered, confirm that the state of the port handling the call changes to "Idle." This state means that release transfer is successful.
Step 6 Confirm that, after the number of rings that the phone system is set to wait, the call is forwarded to Cisco Unity Connection and that you hear the greeting for the test user. Hearing the greeting means that the phone system forwarded the unanswered call and the call-forward information to Cisco Unity Connection, which correctly interpreted the information.
Step 7 On the Port Monitor, note which port handles this call.
Step 8 Leave a message for the test user and hang up Phone 2.
Step 9 In the Port Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.
Step 10 Confirm that the MWI on Phone 1 is activated. The activated MWI means that the phone system and Cisco Unity Connection are successfully integrated for turning on MWIs.
To Test Listening to Messages
Step 1 From Phone 1, enter the internal pilot number for Cisco Unity Connection.
Step 2 When asked for your password, enter the password for the test user. Hearing the request for your password means that the phone system sent the necessary call information to Cisco Unity Connection, which correctly interpreted the information.
Step 3 Confirm that you hear the recorded voice name for the test user (if you did not record a voice name for the test user, you will hear the extension number for Phone 1). Hearing the voice name means that Cisco Unity Connection correctly identified the user by the extension.
Step 4 Listen to the message.
Step 5 After listening to the message, delete the message.
Step 6 Confirm that the MWI on Phone 1 is deactivated. The deactivated MWI means that the phone system and Cisco Unity Connection are successfully integrated for turning off MWIs.
Step 7 Hang up Phone 1.
Step 8 On the Port Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.
To Set Up Supervised Transfer on Cisco Unity Connection
Step 1 In Cisco Unity Connection Administration, on the Edit Transfer Option page for the test user, in the Transfer Type field, click Supervise Transfer.
Step 2 In the Rings to Wait For field, enter 3.
Step 3 Click Save.
Step 4 Minimize the Cisco Unity Connection Administration window.
Do not close the Cisco Unity Connection Administration window because you will use it again in a later procedure.
To Test Supervised Transfer
Step 1 From Phone 2, enter the access code necessary to get an outside line, then enter the number outside callers use to dial directly to Cisco Unity Connection.
Step 2 On the Port Monitor, note which port handles this call.
Step 3 When you hear the opening greeting, enter the extension for Phone 1. Hearing the opening greeting means that the port is configured correctly.
Step 4 Confirm that Phone 1 rings and that you do not hear a ringback tone on Phone 2. Instead, you should hear the indication your phone system uses to mean that the call is on hold (for example, music).
Step 5 Leaving Phone 1 unanswered, confirm that the state of the port handling the call remains "Busy." This state and hearing an indication that you are on hold mean that Cisco Unity Connection is supervising the transfer.
Step 6 Confirm that, after three rings, you hear the greeting for the test user. Hearing the greeting means that Cisco Unity Connection successfully recalled the supervised-transfer call.
Step 7 During the greeting, hang up Phone 2.
Step 8 On the Port Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.
Step 9 Click Stop Polling.
Step 10 Exit RTMT.
To Delete the Test User
Step 1 In Cisco Unity Connection Administration, expand Users, then click Users.
Step 2 On the Search Users page, check the check box to the left of the test user.
Step 3 Click Delete Selected.
(Multiple Integrations Only) Adding New User Templates
When you create the first phone system integration, this phone system is automatically selected in the default user template. The users that you add after creating this phone system integration will be assigned to this phone system by default.
However, for each additional phone system integration that you create, you must add the applicable new user templates that will assign users to the new phone system. You must add the new templates before you add new users who will be assigned to the new phone system.
For details on adding new user templates, refer to the "Adding, Changing, or Deleting an Account Template" chapter in the Cisco Unity Connection User Moves, Adds, and Changes Guide at http://www.cisco.com/en/US/products/ps6509/prod_maintenance_guides_list.html.
For details on selecting a user template when adding a new user, refer to the applicable chapter for adding user accounts in the Cisco Unity Connection User Moves, Adds, and Changes Guide at http://www.cisco.com/en/US/products/ps6509/prod_maintenance_guides_list.html.
Appendix: Compatibility of Phone System Components
Testing has shown compatibility of the following phone system components with Cisco Unity Connection in a SIP integration.
Table 8 Cisco SIP Proxy Server Compatibility with the Integration
Version
|
Comments
|
1.3
|
If Cisco Unity Connection authenticates with the SIP proxy server, the authentication name entered in Cisco Unity Connection must be the same as the contact line name in the SIP proxy server.
|
2.0
|
If Cisco Unity Connection authenticates with the SIP proxy server, the authentication name entered in Cisco Unity Connection must be the same as the contact line name in the SIP proxy server.
|
Table 9 Cisco 7960 IP Phone Compatibility with the Integration
Version
|
Comments
|
7960 P0S3-03-1-00
|
|
7960 P0S3-03-2-00
|
|
7960 P0S3-04-0-00
|
When the phone initiates a call, release transfer of the call is not available to Cisco Unity Connection.
|
7960 P0S3-04-1-00
|
When the phone initiates a call, release transfer of the call is not available to Cisco Unity Connection.
|
7960 P0S3-04-2-00
|
|
Table 10 Pingtel xpressa Compatibility with the Integration
Version
|
Comments
|
1.2.6
|
To get the call forwarding to busy greeting integration feature, forwarding must be programmed on the SIP proxy server rather than configured on the Pingtel xpressa phones.
|
2.0.1
2.0.2
|
Not compatible. Silence is inserted into the audio stream every few seconds.
To get the call forwarding to busy greeting integration feature, forwarding must be programmed on the SIP proxy server rather than configured on the Pingtel xpressa phones.
|
Table 11 Gateway IOS Compatibility with the Integration
Version
|
Comments
|
12.2(2)XB4
|
|
12.2(2)XB6
|
|
Other compatibility issues are:
•The Pingtel xpressa cannot connect to a backup SIP proxy server.
•To enable call forwarding when Cisco Unity Connection is configured for failover, set the forwarding destinations in MySQL to be <contact line name>@proxy instead of <contact line name>@Connection.
•Caveat: CSCsb09665.
Appendix: Documentation and Technical Assistance
Conventions
The Cisco SIP Proxy Server Integration Guide for Cisco Unity Connection 2.0 uses the following conventions.
Table 12 Cisco SIP Proxy Server Integration Guide for Cisco Unity Connection 2.0 Conventions
Convention
|
Description
|
boldfaced text
|
Boldfaced text is used for:
•Key and button names. (Example: Click OK.)
•Information that you enter. (Example: Enter Administrator in the User Name box.)
|
< >
(angle brackets)
|
Angle brackets are used around parameters for which you supply a value. (Example: In the Command Prompt window, enter ping <IP address>.)
|
-
(hyphen)
|
Hyphens separate keys that must be pressed simultaneously. (Example: Press Ctrl-Alt-Delete.)
|
>
(right angle
bracket)
|
A right angle bracket is used to separate selections that you make:
•On menus. (Example: On the Windows Start menu, click Programs > Cisco Unified Serviceability > Real-Time Monitoring Tool.)
•In the navigation bar of Cisco Unity Connection Administration. (Example: In Cisco Unity Connection Administration, expand System Settings > Advanced.)
|
[x]
(square brackets)
|
Square brackets enclose an optional element (keyword or argument). (Example: [reg-e164])
|
[x | y]
(vertical line)
|
Square brackets enclosing keywords or arguments separated by a vertical line indicate an optional choice. (Example: [transport tcp | transport udp])
|
{x | y}
(braces)
|
Braces enclosing keywords or arguments separated by a vertical line indicate a required choice. (Example: {tcp | udp})
|
The Cisco SIP Proxy Server Integration Guide for Cisco Unity Connection 2.0 also uses the following conventions:
Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the document.
Caution Means
reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.
For descriptions and URLs of Cisco Unity Connection documentation on Cisco.com, see the About Cisco Unity Connection Documentation. The document is shipped with Cisco Unity Connection and is available at http://www.cisco.com/en/US/products/ps6509/products_documentation_roadmaps_list.html.
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
© 2007 Cisco Systems, Inc. All rights reserved.
Feedback
