Cisco MDS 9000 Family Troubleshooting Guide, Release 1.2(1a) - Troubleshooting IP Storage Issues [Cisco MDS 9000 NX-OS and SAN-OS Software]

Using open-standard, IP-based technology, the Cisco MDS 9000 Family IP storage module enables you to extend the reach of Fibre Channel SANs. The switch can connect separated SAN islands together via IP networks using FCIP, and allow IP hosts to access FC storage using the iSCSI protocol.

The IP Storage (IPS) services module allows you to use FCIP and iSCSI features. It supports the full range of features available on other switching modules, including VSANs, security, and traffic management. The IPS module can be used in any Cisco MDS 9000 Family switch and has eight Gigabit Ethernet ports. Each port can run the FCIP and iSCSI protocols simultaneously.

FCIP transports Fibre Channel frames transparently over an IP network between two Cisco MDS 9000 Family switches or other FCIP standards-compliant devices (see Figure 5-1). Using the iSCSI protocol, the IPS module provides IP hosts access to Fibre Channel storage devices. IP host-initiated iSCSI commands are encapsulated in IP, and sent to an MDS 9000 IPS port. There, the commands are routed from the IP network into a Fibre Channel network, and forwarded to the intended target.

Figure 5-1 Connecting MDS 9000 Family Switches Over IP

Troubleshooting IP Connections

If you suspect that all or part of your IP connection has failed, you can verify that by performing one or more of the procedures in this section. Using these procedures, you can verify connectivity for IP, subinterfaces/802.1q, EtherChannel, and VRRP for iSCSI.

Verifying Basic Connectivity

Step 1 Perform a basic check of host reachability and network connectivity using the ping command. A sample output of the ping command follows:

switch# ping 172.18.185.121

PING 172.18.185.121 (172.18.185.121): 56 data bytes

64 bytes from 172.18.185.121: icmp_seq=0 ttl=128 time=0.3 ms

64 bytes from 172.18.185.121: icmp_seq=1 ttl=128 time=0.1 ms

64 bytes from 172.18.185.121: icmp_seq=2 ttl=128 time=0.2 ms

64 bytes from 172.18.185.121: icmp_seq=3 ttl=128 time=0.2 ms

64 bytes from 172.18.185.121: icmp_seq=4 ttl=128 time=0.1 ms

64 bytes from 172.18.185.121: icmp_seq=5 ttl=128 time=0.1 ms

--- 172.18.185.121 ping statistics ---

6 packets transmitted, 6 packets received, 0% packet loss

round-trip min/avg/max = 0.1/0.1/0.3 ms

Step 2 Verify route to remote device using sh ip route, traceroute, and sh arp commands. A sample output of the sh ip route command follows:

switch # sh ip route

Codes: C - connected, S - static

Default gateway is 172.18.185.97

C 172.18.185.96/27 is directly connected, mgmt0

C 172.18.189.128/26 is directly connected, gigabitethernet4/7

A sample output of the traceroute command follows. The route is using int GigE, verified using the sh arp command.

switch# traceroute 172.18.185.121

traceroute to 172.18.185.121 (172.18.185.121), 30 hops max, 38 byte packets

 1  172.18.185.121 (172.18.185.121)  0.411 ms  0.150 ms  0.146 ms

Another sample output of the traceroute command follows. This route is using int mgmt0, verified using the sh arp command.

switch# traceroute 10.82.241.17

traceroute to 10.82.241.17 (10.82.241.17), 30 hops max, 38 byte packets

 1  172.18.189.129 (172.18.189.129)  0.413 ms  0.257 ms  0.249 ms

 2  172.18.0.33 (172.18.0.33)  0.296 ms  0.260 ms  0.258 ms

 3  10.81.254.69 (10.81.254.69)  0.300 ms  0.273 ms  0.277 ms

 4  10.81.254.118 (10.81.254.118)  0.412 ms  0.292 ms  0.287 ms

 5  10.83.255.81 (10.83.255.81)  0.320 ms  0.301 ms  0.310 ms

 6  10.83.255.163 (10.83.255.163)  0.314 ms  0.295 ms  0.279 ms

 7  10.82.241.17 (10.82.241.17)  48.152 ms  48.608 ms  48.423 ms

A sample output of the sh ips arp command follows.

switch# sh ips arp int giga 4/7

Protocol         Address   Age (min)   Hardware Addr  Type   Interface

Internet   172.18.185.97        0  00:d0:01:3b:38:0a  ARPA  GigabitEthernet4/7

Internet  172.18.189.129        0  00:d0:01:3b:38:0a  ARPA  GigabitEthernet4/7

Internet  172.18.189.153        0  00:08:02:24:e0:8b  ARPA  GigabitEthernet4/7

Internet  172.18.189.155        0  00:08:02:df:93:77  ARPA  GigabitEthernet4/7

Internet  172.18.189.156        9  00:08:02:b3:45:1b  ARPA  GigabitEthernet4/7

A sample output of the clear ips arp command follows. You clear the arp cache to verify that the activity you are viewing is the most current.

switch# clear ips arp int gig4/7

arp clear successful

A sample output of the sh ips arp command follows.

switch# sh ips arp int giga 4/7

Protocol         Address   Age (min)   Hardware Addr  Type   Interface

Internet   172.18.185.97        0  00:d0:01:3b:38:0a  ARPA  GigabitEthernet4/7

Internet  172.18.189.156        0  00:08:02:b3:45:1b  ARPA  GigabitEthernet4/7

A sample output of the sh ips arp command follows.

switch# sh ips arp int giga 4/7

Protocol         Address   Age (min)   Hardware Addr  Type   Interface

Internet   172.18.185.97        0  00:d0:01:3b:38:0a  ARPA  GigabitEthernet4/7

Internet  172.18.189.129        0  00:d0:01:3b:38:0a  ARPA  GigabitEthernet4/7

Internet  172.18.189.156        0  00:08:02:b3:45:1b  ARPA  GigabitEthernet4/7

A sample output of the sh arp command follows.

switch# sh arp

Protocol  Address           Age (min)  Hardware Addr  Type  Interface

Internet  172.18.185.97            0  00d0.013b.380a  ARPA  mgmt0

Step 3 Use the show interface command to verify that the Gigabit Ethernet interface is up. A sample output of the show interface command follows.

GigabitEthernet4/7 is up

    Hardware is GigabitEthernet, address is 0005.3000.9f58

    Internet address is 172.18.189.137/26

    MTU 1500  bytes, BW 1000000 Kbit

    Port mode is IPS

    Speed is 1 Gbps

    Beacon is turned off

    5 minutes input rate 688 bits/sec, 86 bytes/sec, 0 frames/sec

    5 minutes output rate 312 bits/sec, 39 bytes/sec, 0 frames/sec

    156643 packets input, 16859832 bytes

      0 multicast frames, 0 compressed

      0 input errors, 0 frame, 0 overrun 0 fifo

    144401 packets output, 7805631 bytes, 0 underruns

      0 output errors, 0 collisions, 0 fifo

      0 carrier errors

Verifying Static IP Routing

Static routing is a mechanism to configure IP routes on the switch. To verify that the IP routes are still there, use the sh ip route command. A sample output of the sh ip route command follows.

switch# sh ip route

Codes: C - connected, S - static

Default gateway is 172.17.8.1

C 172.17.8.0/24 is directly connected, mgmt0

S 11.2.36.0/22 via 11.3.36.1, gigabitethernet8/7

C 11.3.36.0/22 is directly connected, gigabitethernet8/7

C 11.3.56.0/22 is directly connected, gigabitethernet8/8

S 11.2.56.0/22 via 11.3.56.1, gigabitethernet8/8

switch#

A sample output of the sh ip route config command follows.

switch# sh ip route conf

     Destination          Gateway             Mask Metric        Interface

         default       172.17.8.1          0.0.0.0      0            mgmt0

       11.2.36.0        11.3.36.1    255.255.252.0      0

       11.2.56.0        11.3.56.1    255.255.252.0      0

       11.3.36.0          0.0.0.0    255.255.252.0      0 GigabitEthernet8/7

       11.3.56.0          0.0.0.0    255.255.252.0      0 GigabitEthernet8/8

      172.17.8.0          0.0.0.0    255.255.255.0      0            mgmt0

switch#

Troubleshooting FCIP Connections

This section contains information on troubleshooting FCIP tunnels with and without Special Frames.

One-to-One FCIP Tunnel Creation and Monitoring

This section describes the configuration for one-to-one FCIP tunnel with FCIP debug activated (MDS2) and without debug activated (MDS1). Figure 5-2 shows the one-to-one topology used for configuration.

Figure 5-2 One-to-One Topology

First, perform the following steps to configure the MDS1.

Step 1 Enter configuration mode

Step 2 Set the interface

MDS1(config)#inteface gig 2/8

Step 3 Set the IP address

MDS1(config-if)#ip address 10.10.10.2 255.255.255.0

Step 4 Enter no shutdown for some reason

MDS1(config-if)#no shutdown

Step 5 Enter the profile number and profile mode.

MDS1(config)# fcip profile 28

The profile number can be any number between 1 - 255

Step 6 Enter the IP address of the local GE port that will be endpoint of FCIP tunnel.

MDS1(config-profile)# ip address 10.10.10.2

Step 7 Exit profile mode.

MDS1(config-profile)# exit

Step 8 Set the interface FCIP and enter interface mode.

MDS1(config)# interface fcip 28

The interface FCIP can be any number between 1 - 255 and does not need to be the same as the profile number. In this example the same number is used for simplicity.

Step 9 Specify a profile to use.

MDS1(config-if)# use-profile 28

The interface FCIP will use the Local FCIP profile . The FCIP profile binds the interface FCIP to the physical Gigabit Ethernet port and configures the TCP settings used by the interface FCIP.

MDS1(config-if)# peer-info ipaddr 10.10.11.2

The IP address in this example indicates the remote endpoint IP address of the FCIP tunnel.

MDS1(config-if)# no shut

MDS1(config-if)# end

The output from issuing the show run command displays the default values in the following example.

MDS1# show run

Building Configuration ...

 fcip profile 28

ip address 10.10.10.2

port 3225

tcp keepalive-timeout 60

tcp max-retransmissions 4

tcp pmtu-enable reset-timeout 3600

tcp initial-retransmit-time 100

tcp window-size 64

vsan database

vsan 2 name grumpy_02

interface fcip28

no shutdown

use-profile 28

peer-info ipaddr 10.10.11.2

ip route 10.10.11.0 255.255.255.0 10.10.10.1

The static route must be set for FCIP tunnels. This route could also be ip route 10.10.11.0 255.255.255.0 int gig 2/8.

ips heartbeat

ips hapreset

ips boot

 interface GigabitEthernet2/8

ip address 10.10.10.2 255.255.255.0

(This is the IP address used by the FCIP profile.)

no shutdown

The following example shows the configuration of MDS2 with debug mode activated.

MDS2(config)# fcip profile 28

Mar 10 21:41:04 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32222)

Mar 10 21:41:04 ips: Create Entity 28

Mar 10 21:41:04 ips: entity28: add to config pss

MDS2(config-profile)# ip address 10.10.11.2

Mar 10 21:41:15 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32258)

Mar 10 21:41:15 ips: entity28: IP address changed to 10.10.11.2

Mar 10 21:41:15 ips: entity28: IP 10.10.11.2 configured for interface GigabitEthernet2/8

Mar 10 21:41:15 ips: entity28: Apply the entity config and save to config pss

Mar 10 21:41:15 ips: entity28: add to config pss

MDS2(config-profile)# exit

MDS2(config)# interface fcip 28

Mar 10 21:41:46 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32358)

Mar 10 21:41:46 ips: Verified FCIP28 Create:0

Mar 10 21:41:46 ips:  FCIP28: Verified Create:0

Mar 10 21:41:46 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32360)

Mar 10 21:41:46 ips: FCIP28: Creating FCIP tunnel

Mar 10 21:41:46 ips: FCIP28: add to admin pss

Mar 10 21:41:46 ips: FCIP28: add to run-time pss

Mar 10 21:41:46 ips: FCIP28: log: 0 phy: 0 state: 0 syslog: 0

MDS2(config-if)# use-profile 28

Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32480)

Mar 10 21:42:23 ips: FCIP28: Process tunnel configuration event

Mar 10 21:42:23 ips: FCIP28: Change Entity-id from 0 to 28

Mar 10 21:42:23 ips: FCIP: Optimal IF lookup for GigabitEthernet2/8 is GigabitEthernet2/8

Mar 10 21:42:23 ips: FCIP28: bind with GigabitEthernet2/8 (phy GigabitEthernet2/8)

Mar 10 21:42:23 ips: FCIP28: Queueing bind tunnel to src if event to tunnel FSM resource:
0

Mar 10 21:42:23 ips: Locked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32480)

Mar 10 21:42:23 ips: FCIP28: Send bind for GigabitEthernet2/8 to PM (phy
GigabitEthernet2/8)

Mar 10 21:42:23 ips: FCIP28: add to run-time pss

Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 0 syslog: 0

Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_IPS_CFG_FCIP_IF(mts opc 1905, msg id 7304)

Mar 10 21:42:23 ips: Hndlr MTS_OPC_IPS_CFG_FCIP_IF (mts_opc 1905 msg_id 7304)

Mar 10 21:42:23 ips: FCIP28: Got a tunnel param pull request from LC

Mar 10 21:42:23 ips: Added to pending queue event-id [29]  event-cat [2]

Mar 10 21:42:23 ips: FCIP28: Queueing Process a Pull Request event to Pending  queue
resource: 0

Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_PM_FCIP_BIND(mts opc 335, msg id 32495)

Mar 10 21:42:23 ips: Hndlr MTS_OPC_PM_FCIP_BIND (mts_opc 335 msg_id 32495)

Mar 10 21:42:23 ips: FCIP28: Success received from PM for bind to GigabitEthernet2/8 (phy
GigabitEthernet2/8)

Mar 10 21:42:23 ips: FCIP28: Bind-resp event processing bind...

Mar 10 21:42:23 ips: FCIP28: add to run-time pss

Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0

Mar 10 21:42:23 ips: FCIP28: Last reference....

Mar 10 21:42:23 ips: FCIP28: Update the tunnel param and save to PSS

Mar 10 21:42:23 ips: FCIP28: add to admin pss

Mar 10 21:42:23 ips: FCIP28: add to run-time pss

Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0

Mar 10 21:42:23 ips: Unlocked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32480)

Mar 10 21:42:23 ips: Dequeued pending queue msg event_id [29] cat [2]

Mar 10 21:42:23 ips: (ips_demux) Mts Opcode is 1905, id is 7304

Mar 10 21:42:23 ips: FCIP28: Processing Pull Config Request

Mar 10 21:42:23 ips: FCIP28: Bound to entity 28  port: 3225  ip: 10.10.11.2

MDS2(config-if)# peer-info ipaddr 10.10.10.2

Mar 10 21:43:01 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id
32616)

Mar 10 21:43:01 ips: FCIP28: Process tunnel configuration event

Mar 10 21:43:01 ips: FCIP28: Change Peer IP from 0.0.0.0 to 10.10.10.2 and port from 3225
to 3225

Mar 10 21:43:01 ips: FCIP28: Queueing Set tunnel param event to tunnel FSM resource: 0

Mar 10 21:43:01 ips: Locked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32616)

Mar 10 21:43:01 ips: FCIP28: Send tunnel params to LC to DPP: 7

Mar 10 21:43:01 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_SET_LC_TUNNEL_PARAM(mts opc 1897,
msg id 7358)

Mar 10 21:43:01 ips: Hndlr MTS_OPC_IPS_FCIP_SET_LC_TUNNEL_PARAM (mts_opc 1897 msg_id 7358)

Mar 10 21:43:01 ips: In handler : Received resp code: 0

Mar 10 21:43:01 ips: FCIP28: Received the tunnel params from LC

Mar 10 21:43:01 ips: FCIP28: Update the tunnel param and save to PSS

Mar 10 21:43:01 ips: FCIP28: add to admin pss

Mar 10 21:43:01 ips: FCIP28: add to run-time pss

Mar 10 21:43:01 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0

Mar 10 21:43:01 ips: Unlocked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32616)

MDS2(config-if)#

MDS2(config-if)# no shut

MDS2(config-if)# Mar 10 21:43:32 ips: Dequeued mts msg
MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 32737)

Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
32737)

Mar 10 21:43:32 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc
3114, msg id 32778)

Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
32778)

Mar 10 21:43:32 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc
3114, msg id 32783)

Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
32783)

The following example shows the debug output from the supervisor of the FCIP tunnel.

MDS2(config)# int fcip 28

MDS2(config-if)# no shut

MDS2(config-if)# Mar 10 22:59:46 ips: fu_priority_select:  - setting fd[3] for select call
- found data in FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1)

Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(0)

Mar 10 22:59:46 ips:     curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(0),
empty

Mar 10 22:59:46 ips:     Starting a new round

Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3),
usr_q_info(1)

Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc
3114, msg id 47540)

Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range:

Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
47540)

Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0)

Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list

Mar 10 22:59:46 ips: fu_fsm_engine: mts msg
MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47540) dropped

Mar 10 22:59:46 ips: fu_priority_select:  - setting fd[3] for select call  - found data in
FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1)

Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(6)

Mar 10 22:59:46 ips:     curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(3),
empty

Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3),
usr_q_info(1)

Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc
3114, msg id 47589)

Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range:

Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
47589)

Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0)

Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list

Mar 10 22:59:46 ips: fu_fsm_engine: mts msg
MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47589) dropped

Mar 10 22:59:46 ips: fu_priority_select:  - setting fd[3] for select call  - found data in
FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1)

Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(4)

Mar 10 22:59:46 ips:     curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(2),
empty

Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3),
usr_q_info(1)

Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc
3114, msg id 47602)

Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range:

Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id
47602)

Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0)

Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list

Mar 10 22:59:46 ips: fu_fsm_engine: mts msg
MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47602) dropped

The following example shows the debug output from the IPS module of the FCIP tunnel.

MDS2# attach module 2

module-2# debug ips fcip fsm port 8

(This is the Gigabit Ethernet port 2/8.)

Mar 13 19:18:19  port8: 2700:FCIP28: Received new TCP connection from peer:
10.10.10.2:65455

Mar 13 19:18:19  port8: 2701:FCIP: (fcip_de_create): DE = 0xdc02ca40

Mar 13 19:18:19  port8: 2702:FCIP28: Create a DE 0xdc02ca40 for this tunnel

Mar 13 19:18:19  port8: 2703:FCIP28: Bind the DE 0xdc02ca40 [1] to tunnel LEP 0x801ebac0

Mar 13 19:18:19  port8: 2704:FCIP28: Bind DE 1 to TCP-hdl 0xdc489800

Mar 13 19:18:19  port8: 2705:FCIP28: Bind DE 1 to eport 0x801eaaa0

Mar 13 19:18:19  port8: 2706:FCIP28: bind de 1 in eport 0x801eaaa0, hash = 1 num-conn: 2

Mar 13 19:18:19  port8: 2707:FCIP28: Received new TCP connection from peer:
10.10.10.2:65453

Mar 13 19:18:19  port8: 2708:FCIP: (fcip_de_create): DE = 0xdc02cb40

Mar 13 19:18:19  port8: 2709:FCIP28: Create a DE 0xdc02cb40 for this tunnel

Mar 13 19:18:19  port8: 2710:FCIP28: Bind the DE 0xdc02cb40 [2] to tunnel LEP 0x801ebac0

Mar 13 19:18:19  port8: 2711:FCIP28: Bind DE 2 to TCP-hdl 0xdc488800

Mar 13 19:18:19  port8: 2712:FCIP28: Bind DE 2 to eport 0x801eaaa0

Mar 13 19:18:19  port8: 2713:FCIP28: bind de 2 in eport 0x801eaaa0, hash = 2 num-conn: 2

Mar 13 19:18:19  port8: 2714:FCIP28: Send LINK UP to SUP

Mar 13 19:18:20  port8: 2715:FCIP28: *** Received eisl frame in E mode

Mar 13 19:18:20  port8: 2716:FCIP28: SUP-> Set trunk mode: 2

Mar 13 19:18:20  port8: 2717:FCIP28: Change the operational mode to TRUNK

Mar 13 19:18:20  port8: 2718:FCIP28: Tunnel bringup debounce timer callbeck, try to bring
up tunnel

Mar 13 19:18:20  port8: 2719:FCIP28: Tunnel is already in oper UP state, don't try to
bring up again...

Use the show fcip profile command to verify that the configuration of the profiles are correct. The IP address and TCP port are the ports to listen on, and both are adjustable in the FCIP profile. The example below displys all default values that are adjustable while configuring the FCIP profile.

MDS1# show fcip profile

-------------------------------------------------------------------------------

ProfileId       Ipaddr          TcpPort

-------------------------------------------------------------------------------

28              10.10.10.2      3225

MDS1# show fcip profile 28

FCIP Profile 28

	Listen Port is 3225

    TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 100 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

Use the show interface fcip command to verify that the interface FCIP tunnel is established and that traffic is passing through.

MDS1# show interface fcip 28

FCIP28 is trunking

    Hardware is GigabitEthernet

    Port WWN is 20:5e:00:05:30:00:59:de

    Peer port WWN is 20:5e:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    Port mode is TE

(The FCIP tunnel will be either E (ISL or TE (EISL) passing through multiple VSANs.)

vsan is 1

    Trunk vsans (allowed active) (1-2)

    Trunk vsans (operational)    (1-2)

    Trunk vsans (up)             (1-2)

    Trunk vsans (isolated)       ()

    Trunk vsans (initializing)   ()

    Using Profile id 28  (interface GigabitEthernet2/8)

(This is the FCIP profile and the Gigabit Ethernet being used by the FCIP tunnel.)

Peer Information

      Peer Internet address is 10.10.11.2 and port is 3225

(This is the remote end point's IP address and listening port.)

Special Frame is disabled

(The Special Frame for verification of a remote MDS is not being used.)

Maximum number of TCPconnections is 2

(The default is 2 TCP connection being used, one for class F and other for class 2 and 3.)

    Time Stamp is disabled

(The timestamp can be activated under the interface FCIP.)

B-port mode disabled

    TCP Connection Information

      2 Active TCP connections

        Control connection: Local 10.10.10.2:3225, Remote 10.10.11.2:65519

(The above is class F traffic.)

Data connection: Local 10.10.10.2:3225, Remote 10.10.11.2:65521

(The above is class 2,3 traffic.)

      6 Attempts for active connections, 3 close of connections

    TCP Parameters

      Path MTU 1500 bytes

      Current retransmission timeout is 100 ms <<< Default, adjusted under

      Round trip time: Smoothed 10 ms, Variance: 5

(This is the calculated round trip time of the FCIP tunnel. Large round trip times will require increasing the TCP window size under the FCIP profile.)

      Advertized window: Current: 64 KB, Maximum: 64 KB, Scale: 1

(This is the local advertised TCP window size, and the default is 64 KB.)

Peer receive window: Current: 64 KB, Maximum: 64 KB, Scale: 1

(This is the remote end point advertised TCP window size.)

Congestion window: Current: 2 KB

(This is the minimum windows size used during congestion, and is not configurable.)

5 minutes input rate 136 bits/sec, 17 bytes/sec, 0 frames/sec

5 minutes output rate 136 bits/sec, 17 bytes/sec, 0 frames/sec

      2288 frames input, 211504 bytes

         2288 Class F frames input, 211504 bytes

         0 Class 2/3 frames input, 0 bytes

         0 Error frames

      2288 frames output, 211520 bytes

         2288 Class F frames output, 211520 bytes

         0 Class 2/3 frames output, 0 bytes

         0 Error frames 0 reass frames

MDS1# show interface fcip 28 brief

-------------------------------------------------------------------------------

Interface  Vsan   Admin  Admin   Status       Oper  Profile  Port-channel

                  Mode   Trunk                Mode

                         Mode

-------------------------------------------------------------------------------

fcip28     	1      auto   on      trunking     TE     28      --

MDS1# show interface fcip 28 counters  bri

-------------------------------------------------------------------------------

Interface          Input (rate is 5 min avg)      Output (rate is 5 min avg)

                   -----------------------------  -----------------------------

                   Rate     Total                 Rate     Total

                   Mbits/s  Frames                Mbits/s  Frames

-------------------------------------------------------------------------------

fcip28             18       0                     18       0

(This is the frames that averaged over 5 minutes and the total count of frames since the last clear counters command was issued, or since the last tunnel up.)

Verify default 2 tcp connections are established for each fcip tunnel configured, one for control traffic and one for data traffic

MDS1# show ips stats tcp interface gigabitethernet 2/8

TCP Statistics for port GigabitEthernet2/8

    Connection Stats

      6 active openings, 8 accepts

      6 failed attempts, 0 reset received, 8 established

    Segment stats

      295930 received, 1131824 sent, 109 retransmitted

(Excessive retransmits indicate possible core drops and/or that the TCP window size should be adjusted.)

      0 bad segments received, 0 reset sent

    TCP Active Connections

      Local  Address        Remote Address        State      Send-Q   Recv-Q

      10.10.10.2:3225       10.10.11.2:65519      ESTABLISH  0        0

(This is used for F control traffic only.)

10.10.10.2:3225       10.10.11.2:65521      ESTABLISH  87568    0

(Send-Q increasing during read-only test.)

      10.10.10.2:3225       0.0.0.0:0             LISTEN     0        0

(The TCP listen port is ready for new TCP connections.)

You can use the following command to verify that traffic is incrementing on Gigabit Ethernet port of the FCIP tunnel.

MDS1# show ips stats mac interface gigabitethernet 2/8

Ethernet MAC statistics for port GigabitEthernet2/8

    Hardware Transmit Counters

      1074898 frame 1095772436 bytes

      0 collisions, 0 late collisions, 0 excess collisions

      0 bad frames, 0 FCS error, 0 abort, 0 runt, 0 oversize

    Hardware Receive Counters

      33488196 bytes, 298392 frames, 277 multicasts, 16423 broadcasts

      0 bad, 0 runt, 0 CRC error, 0 length error

      0 code error, 0 align error, 0 oversize error

    Software Counters

      298392 received frames, 1074898 transmit frames

      0 frames soft queued, 0 current queue, 0 max queue

      0 dropped, 0 low memory

Traffic statistics can be verified on the internal ASIC chip on each Gigabit Ethernet port.

MDS1# show ips stats flamingo interface gigabitethernet 2/8

Flamingo ASIC Statistics for port GigabitEthernet2/8

    Hardware Egress Counters

      2312 Good, 0 bad protocol, 0 bad header cksum, 0 bad FC CRC

(Good frames and CRC error frames can be monitored.)

Hardware Ingress Counters

(Verify good increments on the active tunnel.)

      2312 Good, 0 protocol error, 0 header checksum error

      0 FC CRC error, 0 iSCSI CRC error, 0 parity error

    Software Egress Counters

      2312 good frames, 0 bad header cksum, 0 bad FIFO SOP

      0 parity error, 0 FC CRC error, 0 timestamp expired error

      0 unregistered port index, 0 unknown internal type

      0 RDL, 0 RDL too big RDL, 0 TDL ttl_1

      3957292257 idle poll count, 0 loopback, 0 FCC PQ, 0 FCC EQ

      Flow Control: 0 [0], 0 [1], 0 [2], 0 [3]

    Software Ingress Counters

      2312 Good frames, 0 header cksum error, 0 FC CRC error

      0 iSCSI CRC error, 0 descriptor SOP error, 0 parity error

      0 frames soft queued, 0 current Q, 0 max Q, 0 low memory

      0 out of memory drop, 0 queue full drop

      0 RDL, 0 too big RDL drop

      Flow Control: 0 [0], 0 [1], 0 [2], 0 [3]

On the next few pages are screen captures taken with Ethereal, of TCP connection being established, and FCIP tunnels. Note that FCIP tunnel activation is the same as an FC EISL becoming active (such as ELP, ESC, and EFP). The following traces were captured after configuration on both MDS 9000 Family switches, and the last "no shutdown" was entered on switch MDS1. All settings are default (for example, SACK is disabled, the TCP window is set to 64K).

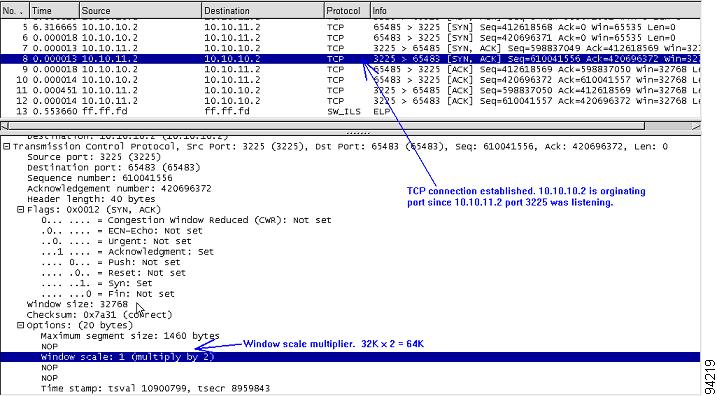

Figure 5-3 First Capture of TCP Connection

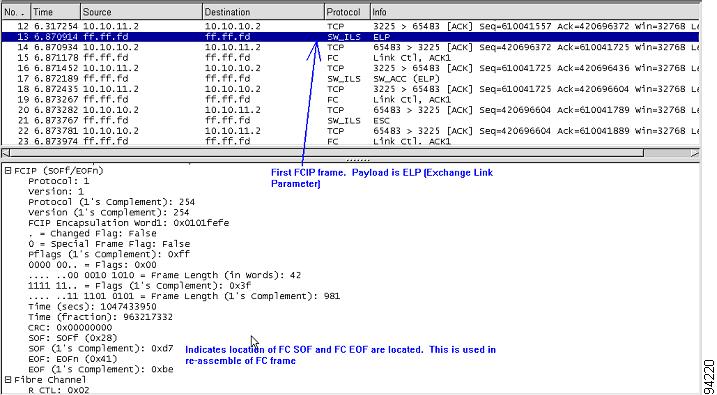

Figure 5-4 shows more of the trace, with frame 13 being the first FCIP frame. This frame carries the FC Standard ELP.

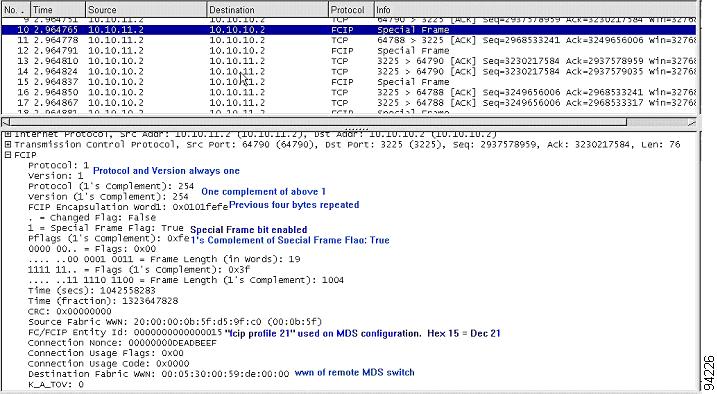

Figure 5-4 Second Capture of TCP Connection

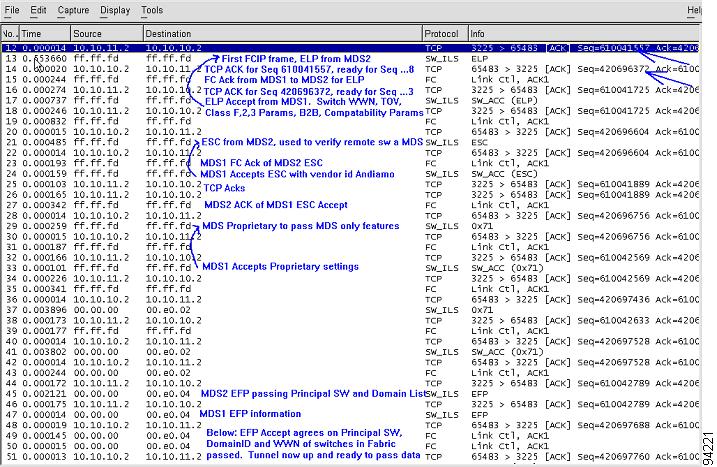

Figure 5-5 shows the FC portion of the EISL initialization over the FCIP tunnel.

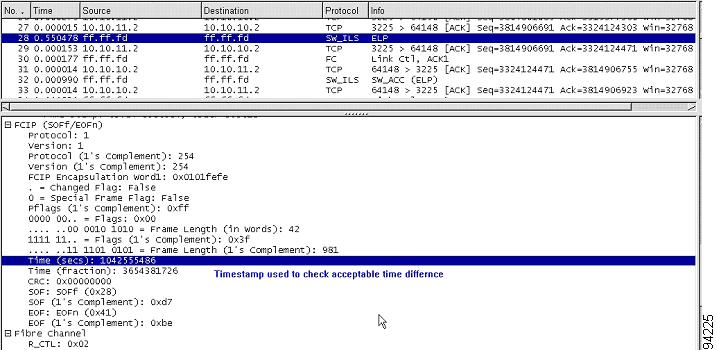

Figure 5-5 Third Capture of TCP Connection

One to three FCIP tunnel creation and monitoring

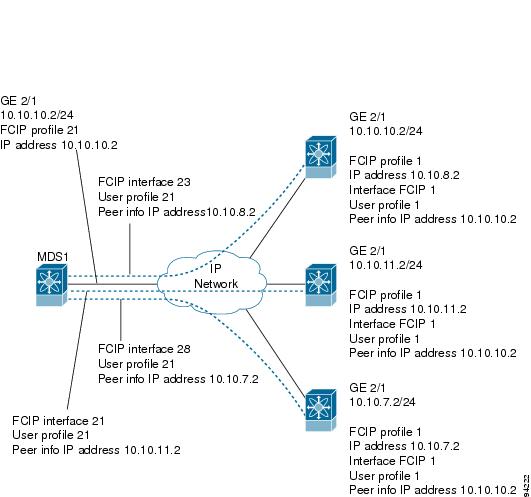

Figure 5-6 shows the configuration of switch MDS1 for three tunnels from one Gigabit Ethernet port.

Figure 5-6 MDS1 Configured for Three FCIP Tunnels

The following example shows the configuration of switch MDS1 for three tunnels from one Gigabit Ethernet port.

MDS1(config)# fcip profile 21

MDS1(config-profile)# ip address 10.10.10.2

MDS1(config-profile)# exit

MDS1(config)# interface fcip 21

MDS1(config-if)# use-profile 21

MDS1(config-if)# peer-info ipaddr 10.10.11.2

MDS1(config-if)# no shut

MDS1(config-if)# exit

MDS1(config)# ip route 10.10.11.0 255.255.255.0 10.10.10.1

MDS1(config)# ip route 10.10.11.0 255.255.255.0 int gigabitethernet 2/1

Now the interface FCIP is created for the second tunnel. The same FCIP profile is used for this example. A separate FCIP profile can be used for each interface FCIP if desired.

MDS1(config-if)#

MDS1(config-if)# int fcip 23

MDS1(config-if)# use-profile 21

MDS1(config-if)# peer-info ipaddr 10.10.8.2

MDS1(config-if)# no shut

MDS1(config-if)# exit

MDS1(config)#

Now the FCIP interface is created for the third tunnel.

MDS1(config)# int fcip 28

MDS1(config-if)# use-profile 21

MDS1(config-if)# peer-info ipaddr 10.10.7.2

MDS1(config-if)# no shut

MDS1(config-if)# end

FCIP Profile Misconfiguration Examples

The following example shows an incorrect or non existent IP address used for an FCIP profile.

MDS22(config)# fcip profile 21

MDS22(config-profile)# ip addr 1.1.1.1

MDS22(config-profile)# ip addr 34.34.34.34

MDS22(config-profile)# exit

MDS22(config)# exit

MDS22# show fcip profile 21

FCIP Profile 21

    Internet Address is 34.34.34.34

(In the line above, the interface Gigabit Ethernet port is not shown. This means the IP address is not assigned a Gigabit Ethernet port.

Listen Port is 3225

    TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 300 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

MDS22# conf t

Enter configuration commands, one per line.  End with CNTL/Z.

MDS22(config)# int gigabitethernet 2/5

MDS22(config-if)# ip addr 34.34.34.34 255.255.255.0

MDS22(config-if)# no shut

MDS22(config-if)# end

MDS22# show fcip profile  34

error: fcip profile not found

MDS22# show fcip profile 21

FCIP Profile 21

    Internet Address is 34.34.34.34  (interface GigabitEthernet2/5)

(In the line above, the Gigabit Ethernet port is now shown and the FCIP profile is bound to a physical port.)

Listen Port is 3225

    TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 300 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

The following example shows a configuration error when using multiple FCIP profiles on one physical Gigabit Ethernet port.

MDS2(config)# fcip profile 21

MDS2(config-profile)# ip address 10.10.11.2

error: fcip another profile exists with same port & ip

(Multiple FCIP profiles can be used on one physical Gigabit Ethernet port, but each profile must have a different listening port.)

MDS2(config-profile)# port ?

  <1-65535>  Profile TCP Port

MDS2(config-profile)# port 32

(Change the TCP listening port on the profile. The default is 3225.)

MDS2(config-profile)# ip address 10.10.11.2

(The IP address for the Gigabit Ethernet port 2/1 is now accepted, and two FCIP profiles are using the same Gigabit Ethernet port.)

MDS2(config-profile)# end

MDS2# show fcip profile 21

FCIP Profile 21

    Internet Address is 10.10.11.2  (interface GigabitEthernet2/1)

    Listen Port is 32

(This is a new TCP listen port.)

TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 300 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

MDS2# show fcip profile 28

FCIP Profile 28

    Internet Address is 10.10.11.2  (interface GigabitEthernet2/1)

    Listen Port is 3225

(This is the default listen port.)

TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 300 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

The following example shows a configuration error when bringing a tunnel up on the selected port. This could be either an FCIP profile issue or an interface FCIP issue. Both sides must be configured correctly.

MDS2(config)# fcip profile 21

MDS2(config-profile)# port 13

(Change the TCP listen port on switch MDS2.)

MDS2(config-profile)# end

MDS2(config)# int fcip 21

MDS2(config-if)# passive-mode

(Put interface FCIP 21 in passive mode to guarantee MDS1 initiates a TCP connection.)

module-2# debug ips fcip fsm port 1

module-2# Mar 14 23:08:02  port1: 863:FCIP21: SUP-> Set Port mode 1

Mar 14 23:08:02  port1: 864:FCIP21: SUP-> Port VSAN (1) already set to same value

Mar 14 23:08:02  port1: 865:FCIP21: SUP-> Trunk mode (1) already set to same value

Mar 14 23:08:02  port1: 866:FCIP21: SUP-> Enable tunnel ADMIN UP

Mar 14 23:08:02  port1: 867:FCIP21: Try to Bring UP the Tunnel

Mar 14 23:08:02  port1: 868:FCIP21: Start TCP listener with peer: 10.10.10.2:13

(This debug output from switch MDS2 shows that the FCIP tunnel will not come up because switch MDS2 is listening on port 13, and switch MDS1 is trying to establish the connection on the default port 3225.)

Mar 14 23:08:02  port1: 869:FCIP: Create a new listener object for 10.10.11.2:13

Mar 14 23:08:02  port1: 870:FCIP: Create FCIP Listener with local info: 10.10.11.2:13

MDS1(config)# int fcip 21

MDS1(config-if)# peer-info ip 10.10.11.2 port 13

(The remote end interface FCIP must be configured to establish a TCP connection on a port that is being used as TCP listen port.)

MDS1(config-if)# end

MDS1# show int fcip 21

fcip21 is trunking

(The FCIP tunnel is now up.)

Hardware is GigabitEthernet

    Port WWN is 20:42:00:05:30:00:59:de

    Peer port WWN is 20:42:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    Port mode is TE

    vsan is 1

    Trunk vsans (allowed active) (1-2)

    Trunk vsans (operational)    (1-2)

    Trunk vsans (up)             ()

    Trunk vsans (isolated)       ()

    Trunk vsans (initializing)   (1-2)

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.11.2 and port is 13

      Special Frame is disabled

    Maximum number of TCP connections is 2

    Time Stamp is disabled

    B-port mode disabled

    TCP Connection Information

      2 Active TCP connections

        Control connection: Local 10.10.10.2:65188, Remote 10.10.11.2:13

(The port is 13 as configured.)

Data connection: Local 10.10.10.2:65190, Remote 10.10.11.2:13

      174 Attempts for active connections, 5 close of connections

MDS2# show ips stats tcp interface gigabitethernet 2/1

TCP Statistics for port GigabitEthernet2/1

    Connection Stats

      44 active openings, 2 accepts

      26 failed attempts, 0 reset received, 20 established

    Segment stats

      2515 received, 2342 sent, 0 retransmitted

      0 bad segments received, 0 reset sent

    TCP Active Connections

      Local  Address        Remote Address        State      Send-Q   Recv-Q

      10.10.11.2:13         10.10.10.2:65188      ESTABLISH  0        0

(The port is 13 as configured.)

10.10.11.2:13         10.10.10.2:65190      ESTABLISH  0        0

(The port is 13 as configured.)

10.10.11.2:13         0.0.0.0:0             LISTEN     0        0

      0.0.0.0:3260          0.0.0.0:0             LISTEN     0        0

Interface FCIP Misconfiguration Examples

The following example shows the "peer-info" IP address of the remote end-point is missing. The debug output is from the IPS module.

Module-2# debug ips fcip fsm port 1

module-2# Mar 14 21:37:05  port1: 38:FCIP21: SUP-> Set Port mode 1

Mar 14 21:37:05  port1: 39:FCIP21: SUP-> Port VSAN (1) already set to same value

Mar 14 21:37:05  port1: 40:FCIP21: SUP-> Trunk mode (1) already set to same value

Mar 14 21:37:05  port1: 41:FCIP21: SUP-> Enable tunnel ADMIN UP

Mar 14 21:37:05  port1: 42:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:37:05  port1: 43:FCIP21: Bring up tunnel Failed, peer-ip not set

(The peer IP address is not set.)

MDS2# show int fcip 21

fcip21 is down (Link failure or not-connected)

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    vsan is 1

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

(This line shows the Peer Information as empty. The line should read "Peer Internet address is 10.10.10.2 and port is 3225."

      Special Frame is disabled

    Maximum number of TCP connections is 2

    Time Stamp is disabled

    B-port mode disabled

    TCP Connection Information

      0 Attempts for active connections, 0 close of connections

    5 minutes input rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

    5 minutes output rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

      0 frames input, 0 bytes

         0 Class F frames input, 0 bytes

         0 Class 2/3 frames input, 0 bytes

         0 Error frames

      0 frames output, 0 bytes

         0 Class F frames output, 0 bytes

         0 Class 2/3 frames output, 0 bytes

         0 Error frames 0 reass frames

The following example shows the interface FCIP is administratively shut down. The debug output is from the IPS module.

Module-2# debug ips fcip fsm port 1

module-2# Mar 14 21:32:27  port1: 1:FCIP21: Create tunnel with ifindex: a000014

Mar 14 21:32:27  port1: 2:FCIP21: Get the peer info from the SUP-IPS-MGR

Mar 14 21:32:27  port1: 3:FCIP21: SUP-> Disable tunnel: already in disable state

Mar 14 21:32:27  port1: 4:FCIP21: SUP-> Set Port mode 1

Mar 14 21:32:27  port1: 5:FCIP21: SUP-> Set port index: 21

Mar 14 21:32:27  port1: 6:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:32:27  port1: 7:FCIP21: Tunnel in admin down state

(The tunnel needs no shut down on the interface FCIP.)

Mar 14 21:32:27  port1: 8:FCIP21: SUP-> Set port VSAN: 1

Mar 14 21:32:27  port1: 9:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:32:27  port1: 10:FCIP21: Tunnel in admin down state

Mar 14 21:32:27  port1: 11:FCIP21: SUP-> Set port WWN: 0x2042000b5fd59fc0

Mar 14 21:32:27  port1: 12:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:32:27  port1: 13:FCIP21: Tunnel in admin down state

(The tunnel needs no shut down on the interface FCIP.)

Mar 14 21:32:27  port1: 14:FCIP21: SUP-> Set trunk mode: 1

Mar 14 21:32:27  port1: 15:FCIP21: SUP-> Set source IF: 2080000

Mar 14 21:32:27  port1: 16:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:32:27  port1: 17:FCIP21: Tunnel in admin down state

Mar 14 21:32:27  port1: 18:FCIP21: SUP-> Switch WWN: 0x2000000b5fd59fc0

Mar 14 21:32:27  port1: 19:FCIP21: Try to Bring UP the Tunnel

Mar 14 21:32:27  port1: 20:FCIP21: Tunnel in admin down state

Mar 14 21:32:27  port1: 21:FCIP21: SUP-> Response to SB's pull all tunnel info

Mar 14 21:32:27  port1: 22:FCIP21: SUP-> Set peer port: 3225 current port: 3225

Mar 14 21:32:27  port1: 23:FCIP21: peer port has same value, do nothing

Mar 14 21:32:27  port1: 24:FCIP21: Set number of tcp connection 2

Mar 14 21:32:27  port1: 25:FCIP21: SUP-> Set Local listen IP: 10.10.11.2 current ip
0.0.0.0

Mar 14 21:32:27  port1: 26:FCIP21: SUP-> Set Local listen Port: 3225 current port 3225

Mar 14 21:32:27  port1: 27:FCIP21: SUP-> Enable PMTU Discovery, timeout 3600

Mar 14 21:32:27  port1: 28:FCIP21: SUP-> Set round-trip time to 300 ms. Current value 100
ms

Mar 14 21:32:27  port1: 29:FCIP21: SUP-> Set keep-alive time to 60 sec. current value 60
sec

MDS2# show int fcip 21

fcip21 is down (Administratively down)

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    vsan is 1

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 3225

      Special Frame is disabled

    Maximum number of TCP connections is 2

Local MDS trying to connect to remote end point on port 13 and remote end point set to
default listen port 3225

MDS2# show int fcip 21

fcip21 is down (Link failure or not-connected)

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    vsan is 1

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 13

MDS1# show fcip profile 21

FCIP Profile 21

    Internet Address is 10.10.10.2  (interface GigabitEthernet2/1)

    Listen Port is 3225

    TCP parameters

        SACK is disabled

        PMTU discover is enabled, reset timeout is 3600 sec

        Keep alive is 60 sec

        Minimum retransmission timeout is 300 ms

        Maximum number of re-transmissions is 4

        Advertised window size is 64 KB

The following debug output is from switch MDS2.

Mar 14 23:26:07  port1: 1340:FCIP21: Start TCP listener with peer: 10.10.10.2:3225

Mar 14 23:26:07  port1: 1341:FCIP: Create a new listener object for 10.10.11.2:3225

Mar 14 23:26:07  port1: 1342:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225

Mar 14 23:26:07  port1: 1343:FCIP21: Create a DE 0xd802d140 for this tunnel

Mar 14 23:26:07  port1: 1344:FCIP21: Bind the DE 0xd802d140 [1] to tunnel LEP 0x80111570

Mar 14 23:26:07  port1: 1345:FCIP21: Start the active connection [1] to 10.10.10.2:13

Mar 14 23:26:07  port1: 1346:FCIP21: Create a DE 0xd802cdc0 for this tunnel

Mar 14 23:26:07  port1: 1347:FCIP21: Bind the DE 0xd802cdc0 [2] to tunnel LEP 0x80111570

Mar 14 23:26:07  port1: 1348:FCIP21: Start the active connection [2] to 10.10.10.2:13

(The switch is attempting to create a TCP connection on port 13. The creation port must match the TCP listen port on the remote end point.)

Mar 14 23:26:07  port1: 1349:FCIP21: Active Connect creation FAILED [1]

Mar 14 23:26:07  port1: 1350:FCIP21: Delete the DE [1]0xd802d140

Mar 14 23:26:07  port1: 1351:FCIP21: Delete the DE object [1] 0xd802d140

Mar 14 23:26:07  port1: 1352:FCIP21: Try 7 to bring up the tunnel

Mar 14 23:26:07  port1: 1353:FCIP21: Start the bringup tunnel timer, timeout: 64000

Mar 14 23:26:07  port1: 1354:FCIP21: Active Connect creation FAILED [2]

Mar 14 23:26:07  port1: 1355:FCIP21: Delete the DE [2]0xd802cdc0

Mar 14 23:26:07  port1: 1356:FCIP21: Set lep operation state to DOWN

Mar 14 23:26:07  port1: 1357:FCIP21: Delete the DE object [2] 0xd802cdc0

Mar 14 23:26:07  port1: 1358:FCIP21: Try 8 to bring up the tunnel

Mar 14 23:26:07  port1: 1359:FCIP21: Start the bringup tunnel timer, timeout: 128000

MDS2(config-if)# peer-info ipaddr 10.10.10.2 port 3225

(This changes the start active connection port to match the default port 3225.)

Or you can use this command:

MDS2(config-if)# no peer-info ipaddr 10.10.10.2 port 13

(Removing port 13 will also set it to the default of 3225.)

MDS2# show int fcip 21

fcip21 is trunking

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Peer port WWN is 20:42:00:05:30:00:59:de

    Admin port mode is auto, trunk mode is on

    Port mode is TE

    vsan is 1

    Trunk vsans (allowed active) (1-2)

    Trunk vsans (operational)    (1-2)

    Trunk vsans (up)             (1-2)

    Trunk vsans (isolated)       ()

    Trunk vsans (initializing)   ()

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 3225

      Special Frame is disabled

    Maximum number of TCP connections is 2

    Time Stamp is disabled

    B-port mode disabled

    TCP Connection Information

      2 Active TCP connections

        Control connection: Local 10.10.11.2:65330, Remote 10.10.10.2:3225

        Data connection: Local 10.10.11.2:65332, Remote 10.10.10.2:3225

In the following example, passive mode is set on both sides of the FCIP tunnel.

module-2# Mar 14 23:49:06  port1: 1870:FCIP21: SUP-> Set Port mode 1

Mar 14 23:49:06  port1: 1871:FCIP21: SUP-> Port VSAN (1) already set to same value

Mar 14 23:49:06  port1: 1872:FCIP21: SUP-> Trunk mode (1) already set to same value

Mar 14 23:49:06  port1: 1873:FCIP21: SUP-> Enable tunnel ADMIN UP

Mar 14 23:49:06  port1: 1874:FCIP21: Try to Bring UP the Tunnel

Mar 14 23:49:06  port1: 1875:FCIP21: Start TCP listener with peer: 10.10.10.2:3225

Mar 14 23:49:06  port1: 1876:FCIP: Create a new listener object for 10.10.11.2:3225

Mar 14 23:49:06  port1: 1877:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225

Mar 14 23:49:06  port1: 1878:FCIP21: Passive mode set, don't initiate TCP connection

(A TCP connection will not be established when passive mode is set. The Gigabit Ethernet port will only listen.)

MDS2# show int fcip 21

fcip21 is down (Link failure or not-connected)

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Admin port mode is auto, trunk mode is on

    vsan is 1

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 3225

      Passive mode is enabled

(Passive mode is set, so a TCP connection will not be established.)

Special Frame is disabled

MDS1# show int fcip 21

fcip21 is down (Link failure or not-connected)

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:05:30:00:59:de

    Admin port mode is auto, trunk mode is on

    vsan is 1

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.11.2 and port is 3225

      Passive mode is enabled

(Both sides are set to passive mode. You must change one or both sides to no passive-mode under the interface FCIP.)

Special Frame is disabled

MDS2(config)# int fcip 21

MDS2(config-if)# no passive-mode

(Change one or both sides to no passive-mode.)

MDS2# show int fcip 21

fcip21 is trunking

The following example shows a time stamp acceptable difference failure, or no NTP server connected to synchronize clocks. When using time stamps, the MDS switch must be a synchronized clock. NTP is configurable on the MDS 9000 switch.

MDS2(config)# int fcip 21

MDS2(config-if)# time-stamp

module-2# debug ips fcip fsm port 1

Mar 15 00:01:35  port1: 3248:FCIP21: IPS-> Enable timestamp acceptable difference 1000

(Timestamp is enabled under the interface FCIP. The default acceptable difference is 1000.)

Mar 15 00:01:35  port1: 3249:FCIP21: IPS-> acc diff in sec: 0x1 frac: 0x0

Mar 15 00:01:35  port1: 3250:FCIP21: Sending response code: 0

Mar 15 00:01:48  port1: 3251:FCIP21: Time stamp tolerance check failed local time:
0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a

(The timestamp difference failed the acceptable difference.)

Mar 15 00:01:48  port1: 3252:FCIP21: Time stamp tolerance check failed local time:
0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a

Mar 15 00:01:48  port1: 3253:FCIP21: Time stamp tolerance check failed local time:
0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a

<<< cut >>>
Mar 15 00:01:48  port1: 3290:FCIP21: Time stamp tolerance check failed local time:
0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a

Mar 15 00:01:48  port1: 3291:FCIP21: (fcip_de_rcv): Previous partial packet -
Concatenating

Mar 15 00:01:48  port1: 3292:FCIP21: Time stamp tolerance check failed local time:
0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a

Mar 15 00:01:48  port1: 3293:FCIP21: FCIP frame len 0x300 is not within correct range <<<
?? >>>

Mar 15 00:01:48  port1: 3294:FCIP21: Delete the DE [2]0xd802d680

Mar 15 00:01:48  port1: 3295:FCIP21: replace the eport entry at index: 1

Mar 15 00:01:48  port1: 3296:FCIP21: DE [-670902656] 0x00000002 terminate tcp connection
0xd8072800

(The TCP connection is disconnected because the timestamp difference is too large.)

Mar 15 00:01:48  port1: 3297:FCIP21: Delete the DE object [2] 0xd802d680

Mar 15 00:01:48  port1: 3298:FCIP21: Delete the DE [1]0xd802cf00

Mar 15 00:01:48  port1: 3299:FCIP21: Unregister from flamingo port_index: 0x21

Mar 15 00:01:48  port1: 3300:FCIP21: Send Link down to SUP

Mar 15 00:01:48  port1: 3301:FCIP21: Start the bringup tunnel timer, timeout: 18470

Mar 15 00:01:48  port1: 3302:FCIP21: replace the eport entry at index: 0

Mar 15 00:01:48  port1: 3303:FCIP21: Set lep operation state to DOWN

Mar 15 00:01:48  port1: 3304:FCIP21: DE [-670904576] 0x00000001 terminate tcp connection
0xd8072c00

Mar 15 00:01:48  port1: 3305:FCIP21: Delete the DE object [1] 0xd802cf00

Mar 15 00:01:50  port1: 3306:FCIP21: Received new TCP connection from peer:
10.10.10.2:65066

(The TCP connection begins trying to re-establish the connection.)

Mar 15 00:01:50  port1: 3307:FCIP21: Tunnel is not ADMIN UP state, reject new TCP
connection from 10.10.10.2:65066

Mar 15 00:01:50  port1: 3308:FCIP21: Received new TCP connection from peer:
10.10.10.2:65064

Mar 15 00:01:50  port1: 3309:FCIP21: Tunnel is not ADMIN UP state, reject new TCP
connection from 10.10.10.2:65064

Mar 15 00:01:56  port1: 3310:FCIP21: SUP-> Set Port mode 1

Mar 15 00:01:56  port1: 3311:FCIP21: SUP-> Port VSAN (1) already set to same value

Mar 15 00:01:56  port1: 3312:FCIP21: SUP-> Set trunk mode: 1

Mar 15 00:01:56  port1: 3313:FCIP21: SUP-> Enable tunnel ADMIN UP

Mar 15 00:01:56  port1: 3314:FCIP21: Try to Bring UP the Tunnel

Mar 15 00:01:56  port1: 3315:FCIP21: tunnel bring-up debounce timer set, wait for timer to
pop

(Connect the NTP server or synchronized clocks, or increase the acceptable difference.)

module-2# debug ips fcip fsm port 1

module-2#

Jan 14 14:22:08  port1: 854886:FCIP21: IPS-> Enable timestamp acceptable difference 2000

Jan 14 14:22:08  port1: 854887:FCIP21: IPS-> acc diff in sec: 0x2 frac: 0x0

(The timestamp acceptable difference passes and the tunnel continues to be brought up.)

module-2#

module-2# Jan 14 14:22:39  port1: 854932:FCIP21: Received new TCP connection from peer:
10.10.10.2:64172

Jan 14 14:22:39  port1: 854933:FCIP21: Create a DE 0xd802d5c0 for this tunnel

Jan 14 14:22:39  port1: 854934:FCIP21: Bind the DE 0xd802d5c0 [1] to tunnel LEP 0x80111570

Jan 14 14:22:39  port1: 854935:FCIP21: Bind DE 1 to TCP-hdl 0xd8071000

Jan 14 14:22:39  port1: 854936:FCIP21: Bind DE 1 to eport 0x80110550

Jan 14 14:22:39  port1: 854937:FCIP21: bind de 1 in eport 0x80110550, hash = 1 num-conn: 2

Jan 14 14:22:39  port1: 854938:FCIP21: Received new TCP connection from peer: 10

.10.10.2:64170

Jan 14 14:22:39  port1: 854939:FCIP21: Create a DE 0xd802c900 for this tunnel

Jan 14 14:22:39  port1: 854940:FCIP21: Bind the DE 0xd802c900 [2] to tunnel LEP

0x80111570

Jan 14 14:22:39  port1: 854941:FCIP21: Bind DE 2 to TCP-hdl 0xd8070000

Jan 14 14:22:39  port1: 854942:FCIP21: Bind DE 2 to eport 0x80110550

Jan 14 14:22:39  port1: 854943:FCIP21: bind de 2 in eport 0x80110550, hash = 2 n

um-conn: 2

Jan 14 14:22:39  port1: 854944:FCIP21: Send LINK UP to SUP

Jan 14 14:22:39  port1: 854945:FCIP21: *** Received eisl frame in E mode

Jan 14 14:22:39  port1: 854946:FCIP21: SUP-> Set trunk mode: 2

Jan 14 14:22:39  port1: 854947:FCIP21: Change the operational mode to TRUNK

MDS2# show int fcip 21

fcip21 is trunking

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Peer port WWN is 20:42:00:05:30:00:59:de

    Admin port mode is auto, trunk mode is on

    Port mode is TE

    vsan is 1

    Trunk vsans (allowed active) (1-2)

    Trunk vsans (operational)    (1-2)

    Trunk vsans (up)             (1-2)

    Trunk vsans (isolated)       ()

    Trunk vsans (initializing)   ()

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 3225

      Special Frame is disabled

    Maximum number of TCP connections is 2

    Time Stamp is enabled, acceptable time difference 2000 ms

    B-port mode disabled

    TCP Connection Information

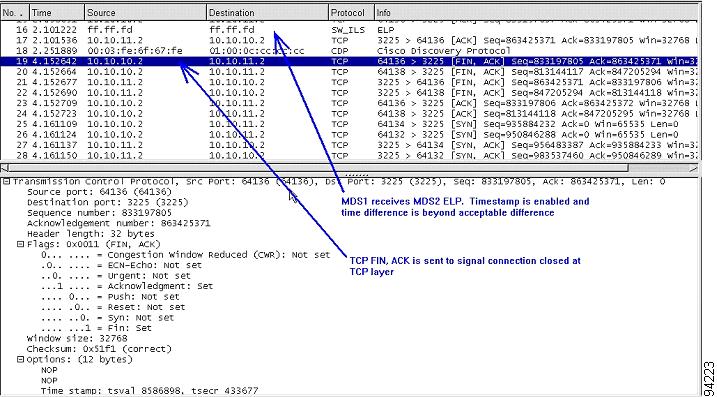

Figure 5-7 shows a trace of timestamp difference failure.

Figure 5-7 Trace of Timestamp Difference Failure

Figure 5-8 shows a trace of timestamp difference accepted.

Figure 5-8 Trace of Timestamp Difference Accepted

FCIP Special Frame Tunnel Creation and Monitoring

Previous FCIP tunnel configuration must be completed before adding FCIP Special Frame configuration. This section describes how to correctly configure and show an FCIP tunnel with a Special Frame.

MDS2# show wwn switch

Switch WWN is 20:00:00:0b:5f:d5:9f:c0

(You'll need the WWN of each MDS 9000 switch end point.)

MDS1(config)# int fcip 21

MDS1(config-if)# special-frame peer-wwn 20:00:00:0b:5f:d5:9f:c0

(This enables the Special Frame that is used in the creation of the FCIP tunnel.)

MDS1# show wwn switch

Switch WWN is 20:00:00:05:30:00:59:de

MDS2(config)# int fcip 21

MDS2(config-if)# special-frame peer-wwn 20:00:00:05:30:00:59:de

module-2#

Jan 14 15:25:38  port1: 857314:FCIP21: SUP-> Set Port mode 1

Jan 14 15:25:38  port1: 857315:FCIP21: SUP-> Port VSAN (1) already set to same value

Jan 14 15:25:38  port1: 857316:FCIP21: SUP-> Trunk mode (1) already set to same value

Jan 14 15:25:38  port1: 857317:FCIP21: SUP-> Enable tunnel ADMIN UP

Jan 14 15:25:38  port1: 857318:FCIP21: Try to Bring UP the Tunnel

Jan 14 15:25:38  port1: 857319:FCIP21: Start TCP listener with peer: 10.10.10.2:3225

Jan 14 15:25:38  port1: 857320:FCIP: Create a new listener object for 10.10.11.2:3225

Jan 14 15:25:38  port1: 857321:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225

Jan 14 15:25:38  port1: 857322:FCIP21: Create a DE 0xd802cd00 for this tunnel

Jan 14 15:25:38  port1: 857323:FCIP21: Bind the DE 0xd802cd00 [1] to tunnel LEP 0x80111570

Jan 14 15:25:38  port1: 857324:FCIP21: Start the active connection [1] to 10.10.10.2:3225

Jan 14 15:25:38  port1: 857325:FCIP21: Create a DE 0xd802db40 for this tunnel

Jan 14 15:25:38  port1: 857326:FCIP21: Bind the DE 0xd802db40 [2] to tunnel LEP 0x80111570

Jan 14 15:25:38  port1: 857327:FCIP21: Start the active connection [2] to 10.10.10.2:3225

Jan 14 15:25:38  port1: 857328:FCIP21: Active Connect creation SUCCEEDED [1]

Jan 14 15:25:38  port1: 857329:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00

Jan 14 15:25:38  port1: 857330:FCIP21: Setup for Special Frame handling: I'm Originator

(This begins the Special Frame setup of the Originator.)

Jan 14 15:25:38  port1: 857331:FCIP21: Send the SF as Originator & wait for response

(The Special Frame is sent.)

Jan 14 15:25:38  port1: 857332:FCIP21: Setup timer to wait for SF

Jan 14 15:25:38  port1: 857333:FCIP21: Active Connect creation SUCCEEDED [2]

(The Special Frame is correctly configured with the WWN of the remote MDS 9000 switch.)

Jan 14 15:25:38  port1: 857334:FCIP21: Bind DE 2 to TCP-hdl 0xd8072000

Jan 14 15:25:38  port1: 857335:FCIP21: Setup for Special Frame handling: I'm Originator

Jan 14 15:25:38  port1: 857336:FCIP21: Send the SF as Originator & wait for response

Jan 14 15:25:38  port1: 857337:FCIP21: Setup timer to wait for SF

Jan 14 15:25:38  port1: 857338:FCIP21: processing SF frame, I'm Originator

Jan 14 15:25:38  port1: 857339:FCIP21: Bind DE 1 to eport 0x80110550

Jan 14 15:25:38  port1: 857340:FCIP21: bind de 1 in eport 0x80110550, hash = 1 num-conn: 2

Jan 14 15:25:38  port1: 857341:FCIP21: processing SF frame, I'm Originator

Jan 14 15:25:38  port1: 857342:FCIP21: Bind DE 2 to eport 0x80110550

Jan 14 15:25:38  port1: 857343:FCIP21: bind de 2 in eport 0x80110550, hash = 2 num-conn: 2

Jan 14 15:25:38  port1: 857344:FCIP21: Send LINK UP to SUP

Jan 14 15:25:39  port1: 857345:FCIP21: SUP-> Set trunk mode: 2

Jan 14 15:25:39  port1: 857346:FCIP21: Change the operational mode to TRUNK

Jan 14 15:25:39  port1: 857347:FCIP21: *** Received non-eisl frame in TE mode 64 64

MDS2# show int fcip 21

fcip21 is trunking

    Hardware is GigabitEthernet

    Port WWN is 20:42:00:0b:5f:d5:9f:c0

    Peer port WWN is 20:42:00:05:30:00:59:de

    Admin port mode is auto, trunk mode is on

    Port mode is TE

    vsan is 1

    Trunk vsans (allowed active) (1-2)

    Trunk vsans (operational)    (1-2)

    Trunk vsans (up)             (1-2)

    Trunk vsans (isolated)       ()

    Trunk vsans (initializing)   ()

    Using Profile id 21  (interface GigabitEthernet2/1)

    Peer Information

      Peer Internet address is 10.10.10.2 and port is 3225

      Special Frame is enabled

(The Special Frame is enabled. It is used for security to verify that the tunnel remote end point is the correct pwwn of the switch.)

        Peer switch WWN is 20:00:00:05:30:00:59:de

(This is the peer WWN of the remote switch. The pWWN of the switch can be found using the show wwn switch command.)

Maximum number of TCP connections is 2

    Time Stamp is enabled, acceptable time difference 3000 ms

    B-port mode disabled

    TCP Connection Information

      2 Active TCP connections

        Control connection: Local 10.10.11.2:64792, Remote 10.10.10.2:3225

        Data connection: Local 10.10.11.2:64794, Remote 10.10.10.2:3225

      372 Attempts for active connections, 345 close of connections

    TCP Parameters

      Path MTU 1500 bytes

      Current retransmission timeout is 300 ms

      Round trip time: Smoothed 10 ms, Variance: 5

      Advertized window: Current: 64 KB, Maximum: 64 KB, Scale: 1

      Peer receive window: Current: 64 KB, Maximum: 64 KB, Scale: 1

      Congestion window: Current: 2 KB, Slow start threshold: 1048560 KB

Figure 5-9 shows a trace of an FCIP tunnel with a Special Frame.

Figure 5-9 Trace of FCIP Tunnel with a Special Frame

Special Frame Misconfiguration Examples

The following example shows an incorrect peer WWN when using Special Frame.

module-2# Jan 14 15:14:30  port1: 855278:FCIP21: SUP-> Set Port mode 1

Jan 14 15:14:30  port1: 855279:FCIP21: SUP-> Port VSAN (1) already set to same value

Jan 14 15:14:30  port1: 855280:FCIP21: SUP-> Trunk mode (1) already set to same

Jan 14 15:14:30  port1: 855281:FCIP21: SUP-> Enable tunnel ADMIN UP

Jan 14 15:14:30  port1: 855282:FCIP21: Try to Bring UP the Tunnel

Jan 14 15:14:30  port1: 855283:FCIP21: Start TCP listener with peer: 10.10.10.2:3225

Jan 14 15:14:30  port1: 855284:FCIP: Create a new listener object for 10.10.11.2:3225

Jan 14 15:14:30  port1: 855285:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225

Jan 14 15:14:30  port1: 855286:FCIP21: Create a DE 0xd802d240 for this tunnel

Jan 14 15:14:30  port1: 855287:FCIP21: Bind the DE 0xd802d240 [1] to tunnel LEP 0x80111570

Jan 14 15:14:30  port1: 855288:FCIP21: Start the active connection [1] to 10.10.10.2:3225

Jan 14 15:14:30  port1: 855289:FCIP21: Create a DE 0xd802d200 for this tunnel

Jan 14 15:14:30  port1: 855290:FCIP21: Bind the DE 0xd802d200 [2] to tunnel LEP 0x80111570

Jan 14 15:14:30  port1: 855291:FCIP21: Start the active connection [2] to 10.10.10.2:3225

Jan 14 15:14:30  port1: 855292:FCIP21: Active Connect creation SUCCEEDED [1]

Jan 14 15:14:30  port1: 855293:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00

Jan 14 15:14:30  port1: 855294:FCIP21: Setup for Special Frame handling: I'm Originator

Jan 14 15:14:30  port1: 855295:FCIP21: Send the SF as Originator & wait for response

Jan 14 15:14:30  port1: 855296:FCIP21: Setup timer to wait for SF

Jan 14 15:14:30  port1: 855297:FCIP21: Active Connect creation SUCCEEDED [2]

Jan 14 15:14:30  port1: 855298:FCIP21: Bind DE 2 to TCP-hdl 0xd8072000

Jan 14 15:14:30  port1: 855299:FCIP21: Setup for Special Frame handling: I'm Originator

Jan 14 15:14:30  port1: 855300:FCIP21: Send the SF as Originator & wait for response

Jan 14 15:14:30  port1: 855301:FCIP21: Setup timer to wait for SF

Jan 14 15:14:30  port1: 855302:FCIP21: TCP Received a close connection [1] reason 1

Jan 14 15:14:30  port1: 855303:FCIP21: Delete the DE [1]0xd802d240

Jan 14 15:14:30  port1: 855304:FCIP21: DE [-670903744] 0x00000001 terminate tcp connection
0xd8072c00

Jan 14 15:14:30  port1: 855305:FCIP21: Delete the DE object [1] 0xd802d240

Jan 14 15:14:30  port1: 855306:FCIP21: lep not bound, close only de [1]

Jan 14 15:14:30  port1: 855307:FCIP21: TCP Received a close connection [2] reason 1

Jan 14 15:14:30  port1: 855308:FCIP21: Delete the DE [2]0xd802d200

Jan 14 15:14:30  port1: 855309:FCIP21: Set lep operation state to DOWN

Jan 14 15:14:30  port1: 855310:FCIP21: Start the bringup tunnel timer, timeout: 38740

Jan 14 15:14:30  port1: 855311:FCIP21: DE [-670903808] 0x00000002 terminate tcp connection
0xd8072000

Jan 14 15:14:30  port1: 855312:FCIP21: Delete the DE object [2] 0xd802d200

Jan 14 15:14:30  port1: 855313:FCIP21: lep not bound, close only de [2]

Jan 14 15:14:31  port1: 855314:FCIP21: Received new TCP connection from peer:
10.10.10.2:64050

Jan 14 15:14:31  port1: 855315:FCIP21: Create a DE 0xd802d080 for this tunnel

Jan 14 15:14:31  port1: 855316:FCIP21: Bind the DE 0xd802d080 [1] to tunnel LEP 0x80111570

Jan 14 15:14:31  port1: 855317:FCIP21: Bind DE 1 to TCP-hdl 0xd8072000

Jan 14 15:14:31  port1: 855318:FCIP21: Setup for Special Frame handling: I'm Responder

Jan 14 15:14:31  port1: 855319:FCIP21: Setup timer to wait for SF

Jan 14 15:14:31  port1: 855320:FCIP21: processing SF frame, I'm Responder

Jan 14 15:14:31  port1: 855321:FCIP21: Source FC fabric name in SF (0x20000005300059de)
does not match LEP's peer fabric WWN (0x20010005300059df)

Jan 14 15:14:31  port1: 855322:FCIP21: Delete the DE [1]0xd802d080

Jan 14 15:14:31  port1: 855323:FCIP21: Set lep operation state to DOWN

Jan 14 15:14:31  port1: 855324:FCIP21: DE [-670904192] 0x00000001 terminate tcp connection
0xd8072000

Jan 14 15:14:31  port1: 855325:FCIP21: Delete the DE object [1] 0xd802d080

Jan 14 15:14:31  port1: 855326:FCIP21: Received new TCP connection from peer:
10.10.10.2:64048

Jan 14 15:14:31  port1: 855327:FCIP21: Create a DE 0xd802d200 for this tunnel

Jan 14 15:14:31  port1: 855328:FCIP21: Bind the DE 0xd802d200 [1] to tunnel LEP 0x80111570

Jan 14 15:14:31  port1: 855329:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00

Jan 14 15:14:31  port1: 855330:FCIP21: Setup for Special Frame handling: I'm Responder

Jan 14 15:14:31  port1: 855331:FCIP21: Setup timer to wait for SF

Jan 14 15:14:31  port1: 855332:FCIP21: processing SF frame, I'm Responder

Jan 14 15:14:31  port1: 855333:FCIP21: Source FC fabric name in SF (0x20000005300059de)
does not match LEP's peer fabric WWN (0x20010005300059df)

Jan 14 15:14:31  port1: 855334:FCIP21: Delete the DE [1]0xd802d200

Jan 14 15:14:31  port1: 855335:FCIP21: Set lep operation state to DOWN

Jan 14 15:14:31  port1: 855336:FCIP21: DE [-670903808] 0x00000001 terminate tcp connection
0xd8072c00

Jan 14 15:14:31  port1: 855337:FCIP21: Delete the DE object [1] 0xd802d200

Jan 14 15:14:37  port1: 855338:FCIP21: Received new TCP connection from peer:
10.10.10.2:64046

Jan 14 15:14:37  port1: 855339:FCIP21: Create a DE 0xd802d5c0 for this tunnel

Jan 14 15:14:37  port1: 855340:FCIP21: Bind the DE 0xd802d5c0 [1] to tunnel LEP 0x80111570

Jan 14 15:14:37  port1: 855341:FCIP21: Bind DE 1 to TCP-hdl 0xd8071000

Jan 14 15:14:37  port1: 855342:FCIP21: Setup for Special Frame handling: I'm Responder

Jan 14 15:14:37  port1: 855343:FCIP21: Setup timer to wait for SF

Jan 14 15:14:37  port1: 855344:FCIP21: processing SF frame, I'm Responder

Jan 14 15:14:37  port1: 855345:FCIP21: Source FC fabric name in SF (0x20000005300059de)
does not match LEP's peer fabric WWN (0x20010005300059df)

Jan 14 15:14:37  port1: 855346:FCIP21: Delete the DE [1]0xd802d5c0

Jan 14 15:14:37  port1: 855347:FCIP21: Set lep operation state to DOWN

Jan 14 15:14:37  port1: 855348:FCIP21: DE [-670902848] 0x00000001 terminate tcp connection
0xd8071000

Jan 14 15:14:37  port1: 855349:FCIP21: Delete the DE object [1] 0xd802d5c0

Jan 14 15:14:37  port1: 855350:FCIP21: Received new TCP connection from peer:
10.10.10.2:64044

Jan 14 15:14:37  port1: 855351:FCIP21: Create a DE 0xd802cac0 for this tunnel

Jan 14 15:14:37  port1: 855352:FCIP21: Bind the DE 0xd802cac0 [1] to tunnel LEP 0x80111570

Jan 14 15:14:37  port1: 855353:FCIP21: Bind DE 1 to TCP-hdl 0xd8071400

Jan 14 15:14:37  port1: 855354:FCIP21: Setup for Special Frame handling: I'm Responder

Jan 14 15:14:37  port1: 855355:FCIP21: Setup timer to wait for SF

Jan 14 15:14:37  port1: 855356:FCIP21: processing SF frame, I'm Responder

Jan 14 15:14:37  port1: 855357:FCIP21: Source FC fabric name in SF (0x20000005300059de)
does not match LEP's peer fabric WWN (0x20010005300059df)

Jan 14 15:14:37  port1: 855358:FCIP21: Delete the DE [1]0xd802cac0

Jan 14 15:14:37  port1: 855359:FCIP21: Set lep operation state to DOWN

Jan 14 15:14:37  port1: 855360:FCIP21: DE [-670905664] 0x00000001 terminate tcp connection
0xd8071400

Jan 14 15:14:37  port1: 855361:FCIP21: Delete the DE object [1] 0xd802cac0

Figure 5-10 shows a trace of an incorrect remote switch WWN using a Special Frame

Figure 5-10 Trace of Incorrect Remote Switch WWN Using a Special Frame

Troubleshooting iSCSI Issues

There are several types of issues you can experience with iSCSI, including the following:

•Troubleshooting iSCSI Authentication

•Configuring Authentication

•Troubleshooting Username/Password Configuration

•Troubleshooting Radius Configuration

•Troubleshooting Radius Routing Configuration

•Troubleshooting Dynamic iSCSI Configuration

Troubleshooting iSCSI Authentication

iSCSI user login authentication is required with the Cisco MDS 9000 Family switch. There are two ways of the getting iSCSI users authenticated: either locally configured the in the switch's configuration file, or using the Radius server database.

Figure 5-11 shows a successful iSCSI login for the Windows 2000 driver.

Figure 5-11 Sucessful iSCSI Login Status Window

On Solaris systems, a successful login is found in the /var/adm/messages directory, and should look similar to the following example:

Mar 14 12:53:23 ca-sun1 iscsid[12745]: [ID 702911 daemon.notice] discovery process for
172.22.91.223 finished, exiting

Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 448557 daemon.notice] logged into
DiscoveryAddress 172.22.91.223:3260 isid 023d0040

Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 702911 daemon.notice] iSCSI target 2 =
iqn.com.domainname.vrrp-11.gw.21000020375aff77 at0

Mar 14 12:58:45 ca-sun1 iscsid[12809]: [ID 529321 daemon.notice] logged into target
iqn.com.domainname.vrrp-11.gw.21000020375aff77 7

Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 702911 daemon.notice] iSCSI target 3 =
iqn.com.domainname.vrrp-11.gw.21000020374baf02 at0

Mar 14 12:58:45 ca-sun1 iscsid[12810]: [ID 529321 daemon.notice] logged into target
iqn.com.domainname.vrrp-11.gw.21000020374baf02 7

Figure 5-12 shows a failed iSCSI login for the Windows 2000 driver.

Figure 5-12 Failed iSCSI Login Status Window

On Solaris systems, a failed login is found in the /var/adm/messages directory and should look similar to the following example.

Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.notice] login rejected: initiator
error (01)

Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.error] Hard discovery login
failure to 172.22.91.223:3260 - exiting

Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.notice] discovery process for
172.22.91.223 finished, exiting

Configuring Authentication

Whenever you experience a login failure, use the show authentication command to see if the iSCSI authentication is correctly defined. A sample of local authentication should look like this:

switch# show authentication

authentication method:none

         console:not enabled

         telnet/ssh:not enabled

authentication method:radius

         console:not enabled

         telnet/ssh:not enabled

         iscsi:not enabled

authentication method:local  <<<<<<<<<<<<<<<<<<<<

         console:enabled

         telnet/ssh:enabled

         iscsi:enabled       <<<<<<<<<<<<<<<<<<<<

switch#

If iSCSI is configured for radius authentication, it should looks like this:

switch# show authentication

authentication method:none

         console:not enabled

         telnet/ssh:not enabled

authentication method:radius  <<<<<<<<<<<<<<<<<<<

         console:not enabled

         telnet/ssh:not enabled

         iscsi:enabled        <<<<<<<<<<<<<<<<<<<

authentication method:local

         console:enabled

         telnet/ssh:enabled

         iscsi:enabled

switch#

Troubleshooting Username/Password Configuration

The client side username and password should be check against either the switch's local configuration file or the Radius user database.

Use the show user-account command to verify that the iSCSI users are configured correctly with the username and password, if authentication is against the switch's local user database. Note that the iSCSI password must be at least 16 characters.

switch# sh user-account iscsi

username:iscsi

secret:1234567812345678

username:iscsiuser

secret:1234567812345678

Troubleshooting Radius Configuration

If authentication is against the Radius server, ping the Radius server to and from the switch to make sure it can be reached over IP. Execute the show radius-server command to make sure radius key and port for authentication and accounting match exactly with is configured on Radius server.

switch# show radius-server

retransmission count:3

timeout value:5

following RADIUS servers are configured:

        171.71.49.197:

                available for authentication on port:1812

                available for accounting on port:1813

                RADIUS shared secret:radius

Adjust the radius timeout and retransmission accordingly, as they have default value of 1 sec and 1 time.

Figure 5-13 shows a Windows-based Radius server configuration.

Figure 5-13 Windows-Based Raduis Server Configuration Dialog

If the items shown above match, verify that the client username and password match those in the Radius database.

The following example shows the results of the debug security radius comand, if the iSCSI client logs in successfully.

switch#

switch# Mar  4 23:16:20 securityd: received CHAP authentication request for user002

Mar  4 23:16:20 securityd: RADIUS is enabled, hence it will be tried first for CHAP
authentication

Mar  4 23:16:20 securityd: reading RADIUS configuration

Mar  4 23:16:20 securityd: opening radius configuration for group:default

Mar  4 23:16:20 securityd: opened the configuration successfully

Mar  4 23:16:20 securityd: GET request for RADIUS global config

Mar  4 23:16:20 securityd: got back the return value of global radius configuration
operation:success

Mar  4 23:16:20 securityd: closing RADIUS pss configuration

Mar  4 23:16:20 securityd: opening radius configuration for group:default

Mar  4 23:16:20 securityd: opened the configuration successfully

Mar  4 23:16:20 securityd: GETNEXT request for radius index:0 addr:

Mar  4 23:16:20 securityd: got some reply from 171.71.49.197

Mar  4 23:16:20 securityd: verified the response from:171.71.49.197

Mar  4 23:16:20 securityd: RADIUS server sent accept for authentication request for
user002

Mar  4 23:16:25 securityd: received CHAP authentication request for user002

Mar  4 23:16:25 securityd: RADIUS is enabled, hence it will be tried first for CHAP
authentication

Mar  4 23:16:25 securityd: reading RADIUS configuration

Mar  4 23:16:25 securityd: opening radius configuration for group:default

Mar  4 23:16:25 securityd: opened the configuration successfully

Mar  4 23:16:25 securityd: GET request for RADIUS global config

Mar  4 23:16:25 securityd: got back the return value of global radius configuration
operation:success

Mar  4 23:16:25 securityd: closing RADIUS pss configuration

Mar  4 23:16:25 securityd: opening radius configuration for group:default

Mar  4 23:16:25 securityd: opened the configuration successfully

Mar  4 23:16:25 securityd: GETNEXT request for radius index:0 addr:

Mar  4 23:16:25 securityd: got some reply from 171.71.49.197

Mar  4 23:16:25 securityd: verified the response from:171.71.49.197

Mar  4 23:16:25 securityd: RADIUS server sent accept for authentication request for
user002

Mar  4 23:16:25 securityd: got some reply from 171.71.49.197

Mar  4 23:16:25 securityd: verified the response from:171.71.49.197

Mar  4 23:16:25 securityd: RADIUS server sent accept for authentication request for
user002

The example above shows that the iSCSI client has been authenticated 3 times, first for the switch login, and the second and third times for the SCSI drive login. The switch sends Radius attributes 1, 3, 4, 5, 6, 60 and 61 to the Radius server. The Radius server only needs to respond with request accept or request reject.

The following example shows a radius authentication.

639 2003y3m14d 15h12m48s ------------------------------------------------

640 2003y3m14d 15h12m48s Message Type=Access_Request

641 2003y3m14d 15h12m48s ID=243, Length=90

642 2003y3m14d 15h12m48s User name=user002

643 2003y3m14d 15h12m48s NAS IP address=2887147911

644 2003y3m14d 15h12m48s CHAP password=‰j÷<¸Wøøë-K-ëÙ<]

645 2003y3m14d 15h12m48s CHAP challenge=n8NÝgø§"__Ó4}Ôx

646 2003y3m14d 15h12m48s NAS port=1426

647 2003y3m14d 15h12m48s NAS port type=5

648 2003y3m14d 15h12m48s Service type=8

649 2003y3m14d 15h12m48s User (user002) authenticate OK.

650 2003y3m14d 15h12m54s ------------------------------------------------

651 2003y3m14d 15h12m54s Message Type=Access_Request

652 2003y3m14d 15h12m54s ID=60, Length=90

653 2003y3m14d 15h12m54s User name=user002

654 2003y3m14d 15h12m54s NAS IP address=2887147911

655 2003y3m14d 15h12m54s CHAP password=_¿Éò_à!_AëC0__`								õ

656 2003y3m14d 15h12m54s CHAP challenge=_/Ô½Ÿ×!âßÈ 4_´ZH

657 2003y3m14d 15h12m54s NAS port=1426

658 2003y3m14d 15h12m54s NAS port type=5

659 2003y3m14d 15h12m54s Service type=8

660 2003y3m14d 15h12m54s User (user002) authenticate OK.

661 2003y3m14d 15h12m54s ------------------------------------------------

662 2003y3m14d 15h12m54s Message Type=Access_Request

663 2003y3m14d 15h12m54s ID=179, Length=90

664 2003y3m14d 15h12m54s User name=user002

665 2003y3m14d 15h12m54s NAS IP address=2887147911

666 2003y3m14d 15h12m54s CHAP password=							--5Àùrfàxh

667 2003y3m14d 15h12m54s CHAP challenge=#ùÊÝü{_"__"´_Ux

668 2003y3m14d 15h12m54s NAS port=1426

669 2003y3m14d 15h12m54s NAS port type=5

670 2003y3m14d 15h12m54s Service type=8

671 2003y3m14d 15h12m54s User (user002) authenticate OK.

Troubleshooting Radius Routing Configuration

The switch sends the Radius authentication request from the mgmt0 interface, so the correct route to the Radius server must be defined. If no correct route is defined, the switch may send the Radius request from Gigabit Ethernet port. In that case, the Radius server returns the accept to the Gigabit Ethernet port and the switch does not get the response. The following example shows the output from the debug security radius command.

switch# Mar  5 00:51:13 securityd: received CHAP authentication request for user002

Mar  5 00:51:13 securityd: RADIUS is enabled, hence it will be tried first for CHAP
authentication

Mar  5 00:51:13 securityd: reading RADIUS configuration

Mar  5 00:51:13 securityd: opening radius configuration for group:default

Mar  5 00:51:13 securityd: opened the configuration successfully

Mar  5 00:51:13 securityd: GET request for RADIUS global config

Mar  5 00:51:13 securityd: got back the return value of global radius configuration
operation:success

Mar  5 00:51:13 securityd: closing RADIUS pss configuration

Mar  5 00:51:13 securityd: opening radius configuration for group:default

Mar  5 00:51:13 securityd: opened the configuration successfully

Mar  5 00:51:13 securityd: GETNEXT request for radius index:0 addr:

Mar  5 00:51:18 securityd: sending data to 171.71.49.197

Mar  5 00:51:18 securityd: waiting for response from 171.71.49.197

Mar  5 00:51:23 securityd: sending data to 171.71.49.197

Mar  5 00:51:23 securityd: waiting for response from 171.71.49.197

Mar  5 00:51:28 securityd: sending data to 171.71.49.197

Mar  5 00:51:28 securityd: waiting for response from 171.71.49.197

Mar  5 00:51:33 securityd: trying out next server

Mar  5 00:51:33 securityd: no response from RADIUS server for authentication user002

Mar  5 00:51:33 securityd: doing local chap authentication for user002

Mar  5 00:51:33 securityd: local chap authentication result for user002:user not present

Troubleshooting Dynamic iSCSI Configuration

A physical Fibre Channel target (target pWWN) presented as an iSCSI target, makes the physical targets accessible to iSCSI hosts. The IPS module presents physical Fibre Channel targets as iSCSI targets to iSCSI hosts in one of two ways: Dynamic Mapping or Static Mapping.

By default, the IPS module does not automatically import Fibre Channel targets. Either dynamic or static mapping must be configured before the IPS module makes Fibre Channel targets available to iSCSI initiators. When both are configured, statically mapped Fibre Channel targets have the configured name. Targets that are not mapped will be advertised with the name created by the conventions explained in this section.

Checking the Configuration

Verify the configuration of the Gigabit Ethernet Interface by performing the following steps.

•Ensure that you are configuring the proper slot or port.

•Ensure that the Gigabit Ethernet interfaces are not shut down. Each Gigabit Ethernet interface is "partnered" with a virtual iSCSI interface. In order for iSCSI to operate on a particular Gigabit Ethernet, the virtual iSCSI interface for that port must be in a "no shutdown" state:

interface Gigabit Ethernet 3/1

no shutdown

interface iscsi 3/1

no shutdown

•Verify that the IP parameters are correct.

•Verify authentication on gigabit Ethernet interface (None or Chap) matches the authentication configured on the iSCSI initiator. Note that configuring authentication at the interface level overrides the Global Authentication setting.

•Verify gigabit Ethernet switchport parameters are correct (MTU, mode, etc.).

Performing Basic Dynamic iSCSI Troubleshooting

Keep the following in mind when performing basic dynamic iSCSI troubleshooting:

•iscsi import target fc must be enabled in order to allow SCSI targets to be discovered by the logged-in iSCSI initiators.

•Dynamic iSCSI configuration places all iSCSI initiators logging into the MDS9000 into VSAN 1 by default.

•Any zoning in effect on the default VSAN (VSAN1) will also be applied to iSCSI-connected devices.

Useful show Commands for Debugging Dynamic iSCSI Configuration

The output from the following commands reflects correctly established iSCSI sessions. Execute the same commands on your switch and compare with the output below to help identify possible issues:

show iscsi session detail

show iscsi remote-node initiator

show iscsi stats

show iscsi stats detail

show iscsi local-node

show fcns data vsan 1

show flogi database vsan 1

show iscsi session detail

switch#show iscsi session detail

Initiator iqn.1987-05.com.cisco.02.F984BCA7E08C307E2D87A099B2D452F3.FULLMOON (FULLMOON)

  Session #1 (index 2)

    Target iqn.com.domainname.IPS-TEST.02-07.gw.202300a0b80b14da

    VSAN 1, ISID 000000000000, TSID 134, Status active, no reservation

    Type Normal, ExpCmdSN 44, MaxCmdSN 53, Barrier 0

    MaxBurstSize 0, MaxConn 0, DataPDUInOrder No

    DataSeqInOrder No, InitialR2T Yes, ImmediateData No

    Registered LUN 0, Mapped LUN 0

    Stats:

      PDU: Command: 42, Response: 36

      Bytes: TX: 4960, RX: 0

    Number of connection: 1

    Connection #1

      Local IP address: 0xa021ec8, Peer IP address: 0xa021eca

      CID 0, State: LOGGED_IN

      StatSN 43, ExpStatSN 0

      MaxRecvDSLength 524288, our_MaxRecvDSLength 1024

      CSG 3, NSG 3, min_pdu_size 48 (w/ data 48)

      AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0)

      Version Min: 0, Max: 0

      FC target: Up, Reorder PDU: No, Marker send: No (int 0)

      Received MaxRecvDSLen key: Yes

show iscsi remote-node initiator

switch# sh iscsi remote-node initiator

iSCSI Node name is iqn.1987-05.com.cisco.02.F984BCA7E08C307E2D87A099B2D452F3.FULLMOON

    iSCSI alias name: FULLMOON

    Node WWN is 20:0c:00:0b:be:77:72:42 (dynamic)

    Member of vsans: 1

    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:0d:00:0b:be:77:72:42 (dynamic)

      Interface iSCSI 2/7, Portal group tag: 0x86

        VSAN ID 1, FCID 0x750105

show iscsi local-node

switch# sh iscsi local-node

target: iqn.com.domainname.IPS-TEST.02-07.gw.202300a0b80b14da

    Port WWN 20:23:00:a0:b8:0b:14:da , VSAN 1

    Auto-created node

show fcns data vsan 1

switch# sh fcns data vsan 1

VSAN 1:

-----------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)        FC4-TYPE:FEATURE

-----------------------------------------------------------------------

0x750000    N     20:23:00:a0:b8:0b:14:da (SymBios)       scsi-fcp:target

0x750102    N     10:00:00:00:c9:30:ba:06 (Emulex)        scsi-fcp:init

0x750105    N     20:0d:00:0b:be:77:72:42                 scsi-fcp:init isc..w

0x750201    N     50:08:05:f3:00:04:96:71                 scsi-fcp

0x750301    N     50:08:05:f3:00:04:96:79                 scsi-fcp

0x750400    N     20:00:00:02:3d:07:05:c0 (NuSpeed)       scsi-fcp:init

show flogi databse vsan 1

switch# show flogi database vsan 1

-----------------------------------------------------------

INTERFACE  VSAN    FCID            PORT NAME               NODE NAME

-----------------------------------------------------------

fc1/1      1     0x750400  20:00:00:02:3d:07:05:c0  10:00:00:02:3d:07:05:c0

fc1/6      1     0x750000  20:23:00:a0:b8:0b:14:da  20:22:00:a0:b8:0b:14:d9

fc1/8      1     0x750102  10:00:00:00:c9:30:ba:06  20:00:00:00:c9:30:ba:06

fc1/9      1     0x750201  50:08:05:f3:00:04:96:71  50:08:05:f3:00:04:96:70

fc1/10     1     0x750301  50:08:05:f3:00:04:96:79  50:08:05:f3:00:04:96:70

iscsi2/7   1     0x750105  20:0d:00:0b:be:77:72:42  20:0c:00:0b:be:77:72:42

Virtual Target Access Control

When creating a virtual target, double check the following:

•Did you specify the correct port world-wide name?

•If you are creating a virtual target from a subset of LUN(s) of a physical device, did you specify the correct fibre-channel (physical) LUN(s) and iSCSI (virtual) LUN(s)?

•If using an access list to control access to the virtual target, did you specify the correct initiator(s)? If you are not using an access list to restrict access, did you specify all-initiator-permit to insure all initiators have access?

•If restricting access to a particular interface(s), did you specify the correct gigabit Ethernet interface(s)?

Useful show Commands for Debugging Static iSCSI Configuration

The output from the following commands reflects correctly established iSCSI sessions. Execute the same commands on your switch and compare with the output below to help identify possible issues:

show iscsi session detail

show iscsi stats

show iscsi stats detail

show fcns data vsan 5

show flogi data vsan 5

show iscsi remote-node iscsi-session-detail tcp-parameters

show iscsi session detail

switch# show iscsi session detail

Initiator iqn.1987-05.com.cisco.02.8cb3c18879bf356ce18e09679103235f.my-kayak (MY-KAYAK)

  Session #1 (index 84)

    Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52d6d

    VSAN 5, ISID 00023d000054, TSID 135, Status active, no reservation

    Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0

    MaxBurstSize 0, MaxConn 0, DataPDUInOrder No

    DataSeqInOrder No, InitialR2T Yes, ImmediateData No

    Registered LUN 0, Mapped LUN 0

    Stats:

      PDU: Command: 13, Response: 13

      Bytes: TX: 1344, RX: 0

    Number of connection: 1

    Connection #1

      Local IP address: 0xa011d64, Peer IP address: 0xa011d65

      CID 0, State: LOGGED_IN

      StatSN 1356, ExpStatSN 0

      MaxRecvDSLength 524288, our_MaxRecvDSLength 1392

      CSG 3, NSG 3, min_pdu_size 48 (w/ data 48)

      AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0)

      Version Min: 0, Max: 0

      FC target: Up, Reorder PDU: No, Marker send: No (int 0)

      Received MaxRecvDSLen key: Yes

  Session #2 (index 85)

    Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52e2e

    VSAN 5, ISID 00023d000055, TSID 135, Status active, no reservation

    Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0

    MaxBurstSize 0, MaxConn 0, DataPDUInOrder No

    DataSeqInOrder No, InitialR2T Yes, ImmediateData No

    Registered LUN 0, Mapped LUN 0

    Stats:

      PDU: Command: 13, Response: 13

      Bytes: TX: 1344, RX: 0

    Number of connection: 1

    Connection #1

      Local IP address: 0xa011d64, Peer IP address: 0xa011d65

      CID 0, State: LOGGED_IN

      StatSN 1356, ExpStatSN 0

      MaxRecvDSLength 524288, our_MaxRecvDSLength 1392

      CSG 3, NSG 3, min_pdu_size 48 (w/ data 48)

      AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0)

      Version Min: 0, Max: 0

      FC target: Up, Reorder PDU: No, Marker send: No (int 0)

      Received MaxRecvDSLen key: Yes

  Session #3 (index 86)

    Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52356

    VSAN 5, ISID 00023d000056, TSID 135, Status active, no reservation

    Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0

    MaxBurstSize 0, MaxConn 0, DataPDUInOrder No

    DataSeqInOrder No, InitialR2T Yes, ImmediateData No

    Registered LUN 0, Mapped LUN 0

    Stats:

      PDU: Command: 13, Response: 13

      Bytes: TX: 1344, RX: 0

    Number of connection: 1

    Connection #1

      Local IP address: 0xa011d64, Peer IP address: 0xa011d65

      CID 0, State: LOGGED_IN

      StatSN 1356, ExpStatSN 0

      MaxRecvDSLength 524288, our_MaxRecvDSLength 1392

      CSG 3, NSG 3, min_pdu_size 48 (w/ data 48)

      AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0)

      Version Min: 0, Max: 0

      FC target: Up, Reorder PDU: No, Marker send: No (int 0)

      Received MaxRecvDSLen key: Yes

  Session #4 (index 87)

    Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a

    VSAN 5, ISID 00023d000057, TSID 135, Status active, no reservation

    Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0

    MaxBurstSize 0, MaxConn 0, DataPDUInOrder No

    DataSeqInOrder No, InitialR2T Yes, ImmediateData No

    Registered LUN 0, Mapped LUN 0

    Stats:

      PDU: Command: 13, Response: 13

      Bytes: TX: 1344, RX: 0

    Number of connection: 1

    Connection #1

      Local IP address: 0xa011d64, Peer IP address: 0xa011d65

      CID 0, State: LOGGED_IN

      StatSN 1356, ExpStatSN 0

      MaxRecvDSLength 524288, our_MaxRecvDSLength 1392

      CSG 3, NSG 3, min_pdu_size 48 (w/ data 48)

      AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0)

      Version Min: 0, Max: 0

      FC target: Up, Reorder PDU: No, Marker send: No (int 0)

      Received MaxRecvDSLen key: Yes

show iscsi stats

switch# sh iscsi stats iscsi2/7

iscsi2/7

    5 minutes input rate 3336 bits/sec, 417 bytes/sec, 0 frames/sec

    5 minutes output rate 120 bits/sec, 15 bytes/sec, 0 frames/sec

    iSCSI statistics

      4112871 packets input, 4022464380 bytes

        303100 Command pdus, 3740086 Data-out pdus, 3815901300 Data-out bytes, 0

 fragments

      1283306 packets output, 778111088 bytes

        303069 Response pdus (with sense 3163), 195108 R2T pdus

        715480 Data-in pdus, 715214528 Data-in bytes

show iscsi stats detail

switch# sh iscsi stats detail

iscsi2/7

    5 minutes input rate 3336 bits/sec, 417 bytes/sec, 0 frames/sec

    5 minutes output rate 120 bits/sec, 15 bytes/sec, 0 frames/sec

    iSCSI statistics

      4113028 packets input, 4022586092 bytes

        303140 Command pdus, 3740200 Data-out pdus, 3816015476 Data-out bytes, 0

 fragments

      1283382 packets output, 778114736 bytes

        303109 Response pdus (with sense 3163), 195141 R2T pdus

        715480 Data-in pdus, 715214528 Data-in bytes

  iSCSI Forward:

    Command: 303140 PDUs (Received: 303140)

    Data-Out (Write): 3740200 PDUs (Received 3740200), 0 fragments, 3816015476 b

ytes

    TMF Request: 0 (Received 28)

  FCP Forward:

    Xfer_rdy: 195141 (Received: 195141)

    Data-In: 715480 (Received: 715622), 715214528 bytes

    Response: 303109 (Received: 303322), with sense 3163

    TMF Resp: 0

  iSCSI Stats:

    Login: attempt: 16726, succeed: 114, fail: 16606, authen fail: 0

    Rcvd: NOP-Out: 36164, Sent: NOP-In: 36160

          NOP-In: 0, Sent: NOP-Out: 0

          TMF-REQ: 28, Sent: TMF-RESP: 0

          Text-REQ: 39, Sent: Text-RESP: 0

          SNACK: 0

          Unrecognized Opcode: 0, Bad header digest: 0

          Command in window but not next: 0, exceed wait queue limit: 0

          Received PDU in wrong phase: 0

  FCP Stats:

    Total: Sent: 4110679

           Received: 1281518 (Error: 0, Unknown: 0)

    Sent: PLOGI: 66367, Rcvd: PLOGI_ACC: 71, PLOGI_RJT: 66296

          PRLI: 71, Rcvd: PRLI_ACC: 71, PRLI_RJT: 0, Error resp: 0

          LOGO: 0, Rcvd: LOGO_ACC: 0, LOGO_RJT: 0

          ABTS: 87, Rcvd: ABTS_ACC: 0

          TMF REQ: 0

          Self orig command: 213, Rcvd: data: 142, resp: 213

    Rcvd: PLOGI: 614, Sent: PLOGI_ACC: 490

          LOGO: 197, Sent: LOGO_ACC: 111

          PRLI: 0, Sent: PRLI_ACC: 0

          ABTS: 183

  iSCSI Drop:

    Command: Target down 0, Task in progress 0, LUN map fail 0

             CmdSeqNo not in window 0, No Exchange ID 0, Reject 0

             Persistent Resv 0    Data-Out: 0, TMF-Req: 0

  FCP Drop:

    Xfer_rdy: 0, Data-In: 0, Response: 0

  Buffer Stats:

    Buffer less than header size: 48475, Partial: 2524437, Split: 3550971

    Pullup give new buf: 48475, Out of contiguous buf: 0, Unaligned m_data: 0

show fcns database

switch# sh fcns data vsan 5

VSAN 5:

--------------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)        FC4-TYPE:FEATURE

--------------------------------------------------------------------------

0x610002    N     20:0b:00:0b:be:77:72:42                 scsi-fcp:init isc..w

0x6101e1    NL    22:00:00:20:37:c5:2d:6d (Seagate)       scsi-fcp:target

0x6101e2    NL    22:00:00:20:37:c5:2e:2e (Seagate)       scsi-fcp:target

0x6101e4    NL    22:00:00:20:37:c5:23:56 (Seagate)       scsi-fcp:target

0x6101e8    NL    22:00:00:20:37:c5:26:0a (Seagate)       scsi-fcp:target

Total number of entries = 5

show flogi database

switch# sh flogi data vsan 5

---------------------------------------------------------------------------

INTERFACE  VSAN    FCID            PORT NAME               NODE NAME

---------------------------------------------------------------------------

fc1/12     5     0x6101e8  22:00:00:20:37:c5:26:0a  20:00:00:20:37:c5:26:0a

fc1/12     5     0x6101e4  22:00:00:20:37:c5:23:56  20:00:00:20:37:c5:23:56

fc1/12     5     0x6101e2  22:00:00:20:37:c5:2e:2e  20:00:00:20:37:c5:2e:2e

fc1/12     5     0x6101e1  22:00:00:20:37:c5:2d:6d  20:00:00:20:37:c5:2d:6d

iscsi2/8   5     0x610002  20:0b:00:0b:be:77:72:42  20:0a:00:0b:be:77:72:42

Total number of flogi = 5.

show iscsi remote-node iscsi-session-detail tcp parameters

switch# sh iscsi remote-node iscsi-session-detail tcp-parameters

iSCSI Node name is iqn.1987-05.com.cisco.02.8cb3c18879bf356ce18e09679103235f.my-kayak

    iSCSI alias name: MY-KAYAK

    Node WWN is 20:0a:00:0b:be:77:72:42 (dynamic)

    Member of vsans: 5

    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:0a:00:0b:be:77:72:42 (dynamic)

      Interface iSCSI 2/8, Portal group tag is 0x87

        VSAN ID 0, FCID 0x0

        No. of FC sessions: 1

        No. of iSCSI sessions: 1

        iSCSI session details

          Target node:

          Statistics:

            PDU: Command: 0, Response: 0

            Bytes: TX: 0, RX: 0

            Number of connection: 1

          TCP parameters

            Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1026

            Path MTU 1500 bytes

            Current retransmission timeout is 310 ms

            Round trip time: Smoothed 179 ms, Variance: 33

            Advertized window: Current: 62 KB, Maximum: 62 KB, Scale: 0

            Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0

            Congestion window: Current: 63 KB

        VSAN ID 5, FCID 0x610002

        No. of FC sessions: 4

        No. of iSCSI sessions: 4

        iSCSI session details

          Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a

          Statistics:

            PDU: Command: 13, Response: 13

            Bytes: TX: 1344, RX: 0

            Number of connection: 1

          TCP parameters

            Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048

            Path MTU 1500 bytes

            Current retransmission timeout is 300 ms

            Round trip time: Smoothed 165 ms, Variance: 35

            Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0

            Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0

            Congestion window: Current: 63 KB

          Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a

          Statistics:

            PDU: Command: 13, Response: 13

            Bytes: TX: 1344, RX: 0

            Number of connection: 1

          TCP parameters

            Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048

            Path MTU 1500 bytes

            Current retransmission timeout is 300 ms

            Round trip time: Smoothed 165 ms, Variance: 35

            Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0

            Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0

            Congestion window: Current: 63 KB

          Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a

          Statistics:

            PDU: Command: 13, Response: 13

            Bytes: TX: 1344, RX: 0

            Number of connection: 1

          TCP parameters

            Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048

            Path MTU 1500 bytes

            Current retransmission timeout is 300 ms

            Round trip time: Smoothed 165 ms, Variance: 35

            Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0

            Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0

            Congestion window: Current: 63 KB

          Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a

          Statistics:

            PDU: Command: 13, Response: 13

            Bytes: TX: 1344, RX: 0

            Number of connection: 1

          TCP parameters

            Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048

            Path MTU 1500 bytes

            Current retransmission timeout is 300 ms

            Round trip time: Smoothed 165 ms, Variance: 35

            Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0

            Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0

            Congestion window: Current: 63 KB

Fine Tuning/Troubleshooting IPS iSCSI TCP Performance

Generally there are two segments which will effect the iSCSI performance. First is the FC side flow control mechanism (Buffer to Buffer Credits, and the FC max frame size) Second is the TCP/IP side.

As in all TCP/IP-related throughput issues, the most important criteria are the Receive/Send Window Sizes on both TCP end points, RTT (Round Trip Time), actual available bandwidth between the TCP peers, the MSS (Maximum Segment Size) and the support for higher MTUs between the peers..

The following commands will give you information related to these criteria.

show iscsi remote-node iscsi-session-detail tcp-parameters

show ips stats tcp interface gigabitethernet 2/1 detail

show interface iscsi <x/y>

show interface gigabitethernet <x/y>

show interface fc <x/y>

show iscsi remote-node fcp-session-detail

The default MTU size of an ethernet network is 1500, while the FC networks generally support maximum frame sizes of 2148 bytes.. This means that an iSCSI gateway will need to chop the FC frames into two TCP segments or IP fragments while transferring form the FC side to the IP side depending on how this chopping is implemented within the device.

The IPS module adjusts the Receive Data Field Size that it advertises to its FC partner, according to the MTU that is configured on the corresponding Gigagbit port of an iSCSI client.

If left to default MTU, the FC frame size from the Target device is decreased to match the maximum Ethernet frame size, so that the switching of the packet through the switch is swifter. Hence, one point of performance tuning is increasing the MTU of the IP network between the peers. In this setup there is one single Catalyst switch.

Jumbo support was enabled for the IPS ports, as well as the MTU for the VLAN corresponding to these ports was increased.

The second point is to increase the TCP window size of the iSCSI end points. Depending on the latency between the iSCSI client and IPS, this will need fine tuning. The switch's iSCSI configuration defines the TCP window size in kilobytes.

Any value starting with 64K ( > 65535 = 0xFFFF bytes) will automatically trigger TCP window scaling according to RFC1323. The IPS TCP Window scaling begins only when the remote peer (iSCSI client in this case) requests it. This means that you need to configure the TCP stack of your client to trigger this functionality (see Figure 5-14).

For the FC side, depending on the direction of the traffic, the B2Bcredit of the ports corresponding to the input interfaces (feeding/receiving traffic to/from the iSCSI side) could be increased, especially in the case of local Gigabit Ethernet attached iSCSI clients.

Each of the above-mentioned commands are taken from a scenario in Figure 5-14. The important sections of the displays are highlighted/italicized or bolded.

Figure 5-14 IPS Window Scaling

Lab Setup

This is the lab setup that was used in collecting the performance-related information.

The server was an IBM PentiumIII Server: Dual CPU @ 1.13 Ghz

The tcp window-size at both ends was set to 1MB (1024K).

The IBM ESS Shark had a hardcoded B2B value of 64 (not configurable).

The fcrxbbcredit on the corresponding switch port (fc1/3) was set to the same value.

The C4 and C8 represented the corresponding port WWPNs for the IBM Shark storage subsytem. See below for full WWPN:

C4 Ë 50:05:07:63:00:c4:94:4c (in VSAN 778)

C8 Ë 50:05:07:63:00:c8:94:4c (in VSAN 777)

Configuration from the Bottom MDS

The following example is the configuration for the 9216 switch shown in Figure 5-14.

iscsi initiator name iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas

pWWN 20:05:00:0c:30:6c:24:42

  vsan 777

  vsan 778

iscsi virtual-target name shark_nas

pWWN 50:05:07:63:00:c8:94:4c fc-lun 0000 iscsi-lun 0000 secondary-pwwn
50:05:07:63:00:c4:94:4c

pWWN 50:05:07:63:00:c8:94:4c fc-lun 0001 iscsi-lun 0001 secondary-pwwn
50:05:07:63:00:c4:94:4c

initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas permit

interface GigabitEthernet2/1

ip address 10.48.69.251 255.255.255.192

iscsi authentication none

no shutdown

vrrp 1

priority 110

address 10.48.69.250

(This is the iSCSI target IP address for the Windows iSCSI client.)

no shutdown

interface iscsi2/1

tcp pmtu-enable

tcp window-size 1024

(To increase the receive window size of the IPS module (in kilobytes).)

tcp sack-enable

no shutdown

To verify the connectivity between your client and the IPS iSCSI service:

MDS_BOTTOM# show ips stats tcp interface gig 2/1

TCP Statistics for port GigabitEthernet2/1

    Connection Stats

      0 active openings, 24 accepts

      0 failed attempts, 0 reset received, 24 established

    Segment stats

      7047380 received, 56080130 sent, 0 retransmitted

      0 bad segments received, 0 reset sent

    TCP Active Connections

      Local  Address        Remote Address        State      Send-Q   Recv-Q

      10.48.69.250:3260     10.48.69.233:1026     ESTABLISH  0        0

      10.48.69.250:3260     10.48.69.233:1057     ESTABLISH  34560    0

      0.0.0.0:3260          0.0.0.0:0             LISTEN     0        0

MDS_BOTTOM# show flogi database vsan 777

---------------------------------------------------------------------------

INTERFACE  VSAN    FCID            PORT NAME               NODE NAME

---------------------------------------------------------------------------

fc1/3      777   0x610000  50:05:07:63:00:c8:94:4c  50:05:07:63:00:c0:94:4c

iscsi2/1   777   0x610001  20:05:00:0c:30:6c:24:42  20:00:00:0c:30:57:5e:c2

Total number of flogi = 2.

MDS_BOTTOM# show fcns dabase vsan 777

VSAN 777:

--------------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)        FC4-TYPE:FEATURE

--------------------------------------------------------------------------

0x610000    N     50:05:07:63:00:c8:94:4c (IBM)           scsi-fcp:target fc..

0x610001    N     20:05:00:0c:30:6c:24:42                 scsi-fcp:init isc..w

Total number of entries = 2

MDS_BOTTOM#

MDS_BOTTOM# show module

Mod  Ports  Module-Type                     Model              Status

---  -----  ------------------------------- ------------------ ------------

1    16     1/2 Gbps FC/Supervisor          DS-X9216-K9-SUP    active *

2    8      IP Storage Module               DS-X9308-SMIP      ok

Mod  Sw           Hw      World-Wide-Name(s) (WWN)

---  -----------  ------  --------------------------------------------------

1    1.1(0.133c)  1.0     20:01:00:0c:30:57:5e:c0 to 20:10:00:0c:30:57:5e:c0

2    1.1(0.133c)  0.2     20:41:00:0c:30:57:5e:c0 to 20:48:00:0c:30:57:5e:c0

Mod  MAC-Address(es)                         Serial-Num

---  --------------------------------------  ----------

1    00-0b-be-f8-7f-00 to 00-0b-be-f8-7f-04  JAB070804Q3

2    00-05-30-00-a8-56 to 00-05-30-00-a8-62  JAB070205am

* this terminal session

MDS_BOTTOM#

MDS_BOTTOM# show iscsi remote

iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas

    iSCSI alias name: SHARK-NAS

    Node WWN is 20:00:00:0c:30:57:5e:c2 (dynamic)

    Member of vsans: 777, 778

    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:05:00:0c:30:6c:24:42 (configured)

      Interface iSCSI 2/1, Portal group tag: 0x1001

        VSAN ID 778, FCID 0x7c0000

        VSAN ID 777, FCID 0x610001

MDS_BOTTOM# show iscsi local

target: shark_nas

    Port WWN 50:05:07:63:00:c8:94:4c

(This is the port of the Shark connected to mds_bottom.)

Secondary PWWN 50:05:07:63:00:c4:94:4c

(This is the port of the Shark connected to mds_top.)

Configured node

    No. of LU mapping: 2

      iSCSI LUN: 0000, FC LUN: 0000

      iSCSI LUN: 0001, FC LUN: 0001

    No. of initiators permitted: 1

      initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas is permitted

    all initiator permit is disabled

MDS_BOTTOM#

MDS_BOTTOM# show interface iscsi 2/1

iscsi2/1 is up

    Hardware is GigabitEthernet

    Port WWN is 20:41:00:0c:30:57:5e:c0

    Admin port mode is ISCSI

    Port mode is ISCSI

    Speed is 1 Gbps

    Number of iSCSI session: 2, Number of TCP connection: 2

    Configured TCP parameters

    Local Port is 3260

        PMTU discover is enabled (default)

(This is especially required if there may be devices without jumbo support in the path. The initial TCP 3-way handshake will establish a session with a high MSS value (provided both the IPS module and the iSCSI client are configured/capable) even if there are devices without jumbo frame support in the path. Without PMTU discovery, this will create problems.)

        Keepalive-timeout 60

        Initial-retransmit-time 300

(If there is high delay between the peers, this is one of the parameters that can be adjusted. There's no real formula, rather use trial and error to find the optimum value for your network. Try lower values as well as higher ones, and get hints from the show ips stats tcp display.)

        Max-retransmissions 8

        Window-size 1024000

        Sack is enabled

    Forwarding mode: pass-thru

    5 minutes input rate 410824 bits/sec, 51353 bytes/sec, 1069 frames/sec

    5 minutes output rate 581291520 bits/sec, 72661440 bytes/sec, 53302 frames/sec

    iSCSI statistics

      1072393 packets input, 51482588 bytes

        1072305 Command pdus, 0 Data-out pdus, 0 Data-out bytes, 0 fragments

      53430805 packets output, 72837086312 bytes

        1072273 Response pdus (with sense 9), 0 R2T pdus

        52358444 Data-in pdus, 70272402880 Data-in bytes

MDS_BOTTOM# show iscsi remote initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas
iscsi tcp

iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas

    iSCSI alias name: SHARK-NAS

    Node WWN is 20:00:00:0c:30:57:5e:c2 (dynamic)

    Member of vsans: 777, 778

    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:00:00:0c:30:57:5e:c2 (configured)

      Interface iSCSI 2/1, Portal group tag is 0x1001

        VSAN ID 0, FCID 0x     0

        No. of FC sessions: 1

        No. of iSCSI sessions: 1

        iSCSI session details

          Target node:

            Statistics:

              PDU: Command: 0, Response: 0

              Bytes: TX: 0, RX: 0

              Number of connection: 1

            TCP parameters

              Local 10.48.69.250:3260, Remote 10.48.69.233:1026

              Path MTU: 1500 bytes

              Retransmission timeout: 300 ms

              Round trip time: Smoothed 150 ms, Variance: 31

              Advertized window: Current: 998 KB, Maximum: 1000 KB, Scale: 4

              Peer receive window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4

              Congestion window: Current: 12 KB

        VSAN ID 777, FCID 0x610001

        No. of FC sessions: 1

        No. of iSCSI sessions: 1

        iSCSI session details

          Target node: shark_nas

            Statistics:

              PDU: Command: 392051, Response: 392042

              Bytes: TX: 25692593152, RX: 0

              Number of connection: 1

            TCP parameters

              Local 10.48.69.250:3260, Remote 10.48.69.233:1057

              Path MTU: 1500 bytes

              Retransmission timeout: 300 ms

              Round trip time: Smoothed 2 ms, Variance: 1

(Watch out for these numbers. The above output is for a TCP session that goes only through one Gigabit Ethernet switch. When there are multiple router hops, as well as WAN links in the middle, the RTT will grow, and the variance will fluctuate with higher values. You may need to adjust the Retransmission timeout.)

              Advertized window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4

(This is the window size set on the Windows Client. See Figure 5-15.)

              Peer receive window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4

(This is the window size set on the IPS iscsi interface. See Figure 5-15.)

Figure 5-15 Congestion window: Current: 24 KB

Changing TCP Parameters

To change TCP paramaters in the Windows registry use the Registry Parameters above as an example.

Setting the Tcp1323Opts (marked green) to 3, sets two bits ON, one for Window Scaling, the other for the TimeStamp Option. We are only interested in the Window Scaling here. User should be aware that editing registry is a high risk operation and can render the System unusable requiring a reinstall of the whole operating system !! Only advanced users should do this.

MDS_BOTTOM# show interface gigabitethernet 2/1

GigabitEthernet2/1 is up

    Hardware is GigabitEthernet, address is 0005.3000.a85a

    Internet address is 10.48.69.251/26

    MTU 1500  bytes, BW 1000000 Kbit

(Better throughput can be achieved if the MTU of both the client NIC, as well as the IPS Gigabit interface is changed for higher MTU, provided the network in the middle supports jumbo frames.)

    Port mode is IPS

    Speed is 1 Gbps

    Beacon is turned off

    5 minutes input rate 3957384 bits/sec, 494673 bytes/sec, 6716 frames/sec

    5 minutes output rate 609420144 bits/sec, 76177518 bytes/sec, 53267 frames/sec

    6979248 packets input, 514206826 bytes

      0 multicast frames, 0 compressed

      0 input errors, 0 frame, 0 overrun 0 fifo

    55551272 packets output, 79456286344 bytes, 0 underruns

      0 output errors, 0 collisions, 0 fifo

      0 carrier errors

MDS_BOTTOM# show interface fc 1/3

fc1/3 is up

    Hardware is Fibre Channel

    Port WWN is 20:03:00:0c:30:57:5e:c0

    Admin port mode is auto, trunk mode is on

    Port mode is F, FCID is 0x610000

    Port vsan is 777

    Speed is 1 Gbps

    Transmit B2B Credit is 64

(This depends on the storage device; it can not be changed.)

    Receive B2B Credit is 64

(This is the switch's receive; the default is 16 for F/FL ports.)

    Receive data field Size is 2112

    Beacon is turned off

    5 minutes input rate 524947584 bits/sec, 65618448 bytes/sec, 49382 frames/sec

    5 minutes output rate 470432 bits/sec, 58804 bytes/sec, 988 frames/sec

      64560099 frames input, 85630621884 bytes

        0 discards, 3 errors

        0 CRC,  0 unknown class

        0 too long, 0 too short

      1291861 frames output, 76739928 bytes

        0 discards, 0 errors

      0 input OLS, 0 LRR, 0 NOS, 0 loop inits

      3 output OLS, 3 LRR, 0 NOS, 2 loop inits

MDS_BOTTOM# show ips stats tcp interface gigabit 2/1 detail

TCP Statistics for port GigabitEthernet2/1

    TCP send stats

      56252632 segments, 76746280484 bytes

      56100434 data, 152173 ack only packets

      1 control (SYN/FIN/RST), 0 probes, 24 window updates

      0 segments retransmitted, 0 bytes

(The lower the better. Increasing values would show that the IP network in the middle has issues, or that the TCP peer has problems ACK'ing the data that IPS sends to it.)

      0 retransmitted while on ethernet send queue, 0 packets split

(Packets Split shows the IP level fragmentation; would increase if the MTU of this interface is higher than the MSS of the iSCSI client; for example, client MTU default 1500 => MSS=1460, but IPS Gigabit MTU changed to 2500).)

      3 delayed acks sent

    TCP receive stats

      7068115 segments, 1061853 data packets in sequence, 54245464 bytes in sequence

      0 predicted ack, 187 predicted data

      0 bad checksum, 0 multi/broadcast, 0 bad offset

      0 no memory drops, 0 short segments

      0 duplicate bytes, 0 duplicate packets

      0 partial duplicate bytes, 0 partial duplicate packets

      0 out-of-order bytes, 0 out-of-order packets

      0 packet after window, 0 bytes after window

      0 packets after close

      7067879 acks, 76746255713 ack bytes, 0 ack toomuch, 21 duplicate acks

      0 ack packets left of snd_una, 0 non-4 byte aligned packets

      5980106 window updates, 0 window probe

      50 pcb hash miss, 0 no port, 0 bad SYN, 0 paws drops

    TCP Connection Stats

      0 attempts, 24 accepts, 24 established

      22 closed, 2 drops, 0 conn drops

      0 drop in retransmit timeout, 0 drop in keepalive timeout

      0 drop in persist drops, 0 connections drained

    TCP Miscellaneous Stats

      7054414 segments timed, 7067879 rtt updated

      0 retransmit timeout, 0 persist timeout

      19 keepalive timeout, 19 keepalive probes

    TCP SACK Stats

      0 recovery episodes, 54218621 data packets, 77791012992 data bytes

      0 data packets retransmitted, 0 data bytes retransmitted

      1 connections closed, 0 retransmit timeouts

    TCP SYN Cache Stats

      24 entries, 24 connections completed, 0 entries timed out

      0 dropped due to overflow, 0 dropped due to RST

      0 dropped due to ICMP unreach, 0 dropped due to bucket overflow

      0 abort due to no memory, 0 duplicate SYN, 2 no-route SYN drop

      0 hash collisions, 0 retransmitted

    TCP Active Connections

      Local  Address        Remote Address        State      Send-Q   Recv-Q

      10.48.69.250:3260     10.48.69.233:1026     ESTABLISH  0        0

      10.48.69.250:3260     10.48.69.233:1057     ESTABLISH  29296    0

      0.0.0.0:3260          0.0.0.0:0             LISTEN     0        0

MDS_BOTTOM# show iscsi remote-node fcp-session-detail

iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas

    iSCSI alias name: SHARK-NAS

    Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic)

    Member of vsans: 777, 778

    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured)

      Interface iSCSI 2/1, Portal group tag is 0x1001

        VSAN ID 0, FCID 0x610001

        No. of FC sessions: 1

        No. of iSCSI sessions: 1

        FCP Session details

          Target FCID: 0x000000 (S_ID of this session: 0x000000)

                 pWWN: 00:00:00:00:00:00:00:00

                 nWWN: 00:00:00:00:00:00:00:00

            Session state: INIT

            1 iSCSI sessions share this FC session

              Target:

            Negotiated parameters

              RcvDataFieldSize 2048 our_RcvDataFieldSize 1392

Will be set to maximum 2048 if the MTU is increased on the Gigabit interface

corresponding to this iscsi remote-node. See below for an example.

              MaxBurstSize 0, EMPD: FALSE

              Random Relative Offset: FALSE, Sequence-in-order: Yes

            Statistics:

              PDU: Command: 0, Response: 0

        VSAN ID 777, FCID 0x610001

        No. of FC sessions: 1

        No. of iSCSI sessions: 1

        FCP Session details

          Target FCID: 0x610000 (S_ID of this session: 0x610001)

                 pWWN: 50:05:07:63:00:c8:94:4c

Verify that the local port, rather than a remote that is reached via an ISL link

is used for the storage target by the above field to avoid suboptimal access to storage.

You can see that C8 is the locally attached port of the shark storage subsystem.

                 nWWN: 50:05:07:63:00:c8:94:4c

            Session state: LOGGED_IN

            1 iSCSI sessions share this FC session

              Target: shark_nas

            Negotiated parameters

              RcvDataFieldSize 2048 our_RcvDataFieldSize 1392

              MaxBurstSize 0, EMPD: FALSE

              Random Relative Offset: FALSE, Sequence-in-order: Yes

            Statistics:

              PDU: Command: 0, Response: 1612007

MDS_BOTTOM#

Thefollowing example shows the effect of changing the Gigabit MTU on FC RcvDataFieldSize.

 interface GigabitEthernet2/1
ip address 10.48.69.249 255.255.255.192
iscsi authentication none
switchport mtu 2440
no shutdown
vrrp 1
address 10.48.69.250
no shutdown

MDS_Top# show iscsi remote-node iscsi-session-detail tcp-parameters
iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas
    iSCSI alias name: SHARK-NAS
    Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic)
    Member of vsans: 777, 778
    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured)
      Interface iSCSI 2/1, Portal group tag is 0x1001
        VSAN ID 0, FCID 0x     0
        No. of FC sessions: 1
        No. of iSCSI sessions: 1

        iSCSI session details

          Target node:
            Statistics:
              PDU: Command: 0, Response: 0
              Bytes: TX: 0, RX: 0
              Number of connection: 1
            TCP parameters
              Local 10.48.69.250:3260, Remote 10.48.69.233:1026
              Path MTU: 2440 bytes
              Retransmission timeout: 420 ms
              Round trip time: Smoothed 94 ms, Variance: 83
              Advertized window: Current: 999 KB, Maximum: 1000 KB, Scale: 4
              Peer receive window: Current: 1024 KB, Maximum: 1024 KB, Scale: 4
              Congestion window: Current: 11 KB
        VSAN ID 777, FCID 0x700003
        No. of FC sessions: 1
        No. of iSCSI sessions: 1

        iSCSI session details

          Target node: shark_nas
            Statistics:
              PDU: Command: 11, Response: 11
              Bytes: TX: 2152, RX: 0
              Number of connection: 1
            TCP parameters
              Local 10.48.69.250:3260, Remote 10.48.69.233:1040
              Path MTU: 2440 bytes
              Retransmission timeout: 370 ms
              Round trip time: Smoothed 47 ms, Variance: 81
              Advertized window: Current: 999 KB, Maximum: 1000 KB, Scale: 4
              Peer receive window: Current: 1024 KB, Maximum: 1024 KB, Scale: 4
              Congestion window: Current: 12 KB


MDS_Top# show iscsi remote-node fcp-session-detail
iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas
    iSCSI alias name: SHARK-NAS
    Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic)
    Member of vsans: 777, 778
    Number of Virtual n_ports: 1

    Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured)
      Interface iSCSI 2/1, Portal group tag is 0x1001
        VSAN ID 0, FCID 0x     0
        No. of FC sessions: 1
        No. of iSCSI sessions: 1

        FCP Session details

          Target FCID: 0x000000 (S_ID of this session: 0x000000)
                 pWWN: 00:00:00:00:00:00:00:00
                 nWWN: 00:00:00:00:00:00:00:00
            Session state: INIT
            1 iSCSI sessions share this FC session
              Target:
            Negotiated parameters
              RcvDataFieldSize 2048 our_RcvDataFieldSize 2048
              MaxBurstSize 0, EMPD: FALSE
              Random Relative Offset: FALSE, Sequence-in-order: Yes
            Statistics:
              PDU: Command: 0, Response: 0
        VSAN ID 777, FCID 0x700003
        No. of FC sessions: 1
        No. of iSCSI sessions: 1

        FCP Session details

          Target FCID: 0x700000 (S_ID of this session: 0x700003)
                 pWWN: 50:05:07:63:00:c4:94:4c
                 nWWN: 50:05:07:63:00:c4:94:4c
            Session state: LOGGED_IN
            1 iSCSI sessions share this FC session
              Target: shark_nas
            Negotiated parameters
              RcvDataFieldSize 2048 our_RcvDataFieldSize 2048
              MaxBurstSize 0, EMPD: FALSE
              Random Relative Offset: FALSE, Sequence-in-order: Yes
            Statistics:
              PDU: Command: 0, Response: 11

To get the real benefit of this increased MTU and higher FC Frame Size, the path between the iSCSI client and the IPS iSCSI interface (as well as the host NIC) has to be capable of supporting this high MTU.

If you do not have access to the host, one way to see if the host is also configured for high MTU/MSS (as well as the path in the middle) is to check the split packets field in the show ips stats tcp display :

However this is a generic display for all TCP sessions. That is, if you have some Hosts with high MTU-capable NICs, and some others without, it may be difficult to assess which is which.

MDS_Top# show ips stats tcp interface gig 2/1 detail (truncated output)

TCP Statistics for port GigabitEthernet2/1

    TCP send stats

      10 segments, 240 bytes

      5 data, 5 ack only packets

      0 control (SYN/FIN/RST), 0 probes, 0 window updates

      0 segments retransmitted, 0 bytes

      0 retransmitted while on ethernet send queue, 0 packets split

.........

    TCP Active Connections

      Local  Address        Remote Address        State      Send-Q   Recv-Q

      10.48.69.250:3260     10.48.69.233:1026     ESTABLISH  0        0

      10.48.69.250:3260     10.48.69.233:1040     ESTABLISH  0        0

      0.0.0.0:3260          0.0.0.0:0             LISTEN     0        0

MDS_Top#

Afterward, traffic starts flowing from the FC storage towards the server that is connected via iSCSI to the IPS.

MDS_Top# show ips stats tcp interface gig 2/1 detail (truncated output)

TCP Statistics for port GigabitEthernet2/1

    TCP send stats

      715535 segments, 943511612 bytes

      712704 data, 2831 ack only packets

      0 control (SYN/FIN/RST), 0 probes, 0 window updates

      0 segments retransmitted, 0 bytes

      0 retransmitted while on ethernet send queue, 345477 packets split

.........

	Cisco MDS 9000 Family Troubleshooting Guide, Release 1.2(1a)
	Troubleshooting IP Storage Issues
Cisco MDS 9000 Family Troubleshooting Guide, Release 1.2(1a) Index Preface Troubleshooting Overview Troubleshooting Switch Hardware and Booting Problems Troubleshooting Switch Level Issues and Interswitch Connectivity Troubleshooting Switch Fabric Level Issues Troubleshooting IP Storage Issues	Download this chapter Troubleshooting IP Storage Issues Download the complete book Full Book PDF (PDF - 1 MB) Feedback Table Of Contents Troubleshooting IP Storage Issues Overview Troubleshooting IP Connections Verifying Basic Connectivity Verifying Static IP Routing Troubleshooting FCIP Connections One-to-One FCIP Tunnel Creation and Monitoring One to three FCIP tunnel creation and monitoring FCIP Profile Misconfiguration Examples Interface FCIP Misconfiguration Examples FCIP Special Frame Tunnel Creation and Monitoring Special Frame Misconfiguration Examples Troubleshooting iSCSI Issues Troubleshooting iSCSI Authentication Configuring Authentication Troubleshooting Username/Password Configuration Troubleshooting Radius Configuration Troubleshooting Radius Routing Configuration Troubleshooting Dynamic iSCSI Configuration Checking the Configuration Performing Basic Dynamic iSCSI Troubleshooting Useful show Commands for Debugging Dynamic iSCSI Configuration Virtual Target Access Control Useful show Commands for Debugging Static iSCSI Configuration Fine Tuning/Troubleshooting IPS iSCSI TCP Performance Lab Setup Configuration from the Bottom MDS Changing TCP Parameters Troubleshooting IP Storage Issues This chapter describes IP storage troubleshooting procedures and includes the following sections: •Overview •Troubleshooting IP Connections •Troubleshooting FCIP Connections •Troubleshooting iSCSI Issues •Fine Tuning/Troubleshooting IPS iSCSI TCP Performance Overview Using open-standard, IP-based technology, the Cisco MDS 9000 Family IP storage module enables you to extend the reach of Fibre Channel SANs. The switch can connect separated SAN islands together via IP networks using FCIP, and allow IP hosts to access FC storage using the iSCSI protocol. The IP Storage (IPS) services module allows you to use FCIP and iSCSI features. It supports the full range of features available on other switching modules, including VSANs, security, and traffic management. The IPS module can be used in any Cisco MDS 9000 Family switch and has eight Gigabit Ethernet ports. Each port can run the FCIP and iSCSI protocols simultaneously. FCIP transports Fibre Channel frames transparently over an IP network between two Cisco MDS 9000 Family switches or other FCIP standards-compliant devices (see Figure 5-1). Using the iSCSI protocol, the IPS module provides IP hosts access to Fibre Channel storage devices. IP host-initiated iSCSI commands are encapsulated in IP, and sent to an MDS 9000 IPS port. There, the commands are routed from the IP network into a Fibre Channel network, and forwarded to the intended target. Figure 5-1 Connecting MDS 9000 Family Switches Over IP Troubleshooting IP Connections If you suspect that all or part of your IP connection has failed, you can verify that by performing one or more of the procedures in this section. Using these procedures, you can verify connectivity for IP, subinterfaces/802.1q, EtherChannel, and VRRP for iSCSI. Verifying Basic Connectivity Step 1 Perform a basic check of host reachability and network connectivity using the ping command. A sample output of the ping command follows: switch# ping 172.18.185.121 PING 172.18.185.121 (172.18.185.121): 56 data bytes 64 bytes from 172.18.185.121: icmp_seq=0 ttl=128 time=0.3 ms 64 bytes from 172.18.185.121: icmp_seq=1 ttl=128 time=0.1 ms 64 bytes from 172.18.185.121: icmp_seq=2 ttl=128 time=0.2 ms 64 bytes from 172.18.185.121: icmp_seq=3 ttl=128 time=0.2 ms 64 bytes from 172.18.185.121: icmp_seq=4 ttl=128 time=0.1 ms 64 bytes from 172.18.185.121: icmp_seq=5 ttl=128 time=0.1 ms --- 172.18.185.121 ping statistics --- 6 packets transmitted, 6 packets received, 0% packet loss round-trip min/avg/max = 0.1/0.1/0.3 ms Step 2 Verify route to remote device using sh ip route, traceroute, and sh arp commands. A sample output of the sh ip route command follows: switch # sh ip route Codes: C - connected, S - static Default gateway is 172.18.185.97 C 172.18.185.96/27 is directly connected, mgmt0 C 172.18.189.128/26 is directly connected, gigabitethernet4/7 A sample output of the traceroute command follows. The route is using int GigE, verified using the sh arp command. switch# traceroute 172.18.185.121 traceroute to 172.18.185.121 (172.18.185.121), 30 hops max, 38 byte packets 1 172.18.185.121 (172.18.185.121) 0.411 ms 0.150 ms 0.146 ms Another sample output of the traceroute command follows. This route is using int mgmt0, verified using the sh arp command. switch# traceroute 10.82.241.17 traceroute to 10.82.241.17 (10.82.241.17), 30 hops max, 38 byte packets 1 172.18.189.129 (172.18.189.129) 0.413 ms 0.257 ms 0.249 ms 2 172.18.0.33 (172.18.0.33) 0.296 ms 0.260 ms 0.258 ms 3 10.81.254.69 (10.81.254.69) 0.300 ms 0.273 ms 0.277 ms 4 10.81.254.118 (10.81.254.118) 0.412 ms 0.292 ms 0.287 ms 5 10.83.255.81 (10.83.255.81) 0.320 ms 0.301 ms 0.310 ms 6 10.83.255.163 (10.83.255.163) 0.314 ms 0.295 ms 0.279 ms 7 10.82.241.17 (10.82.241.17) 48.152 ms 48.608 ms 48.423 ms A sample output of the sh ips arp command follows. switch# sh ips arp int giga 4/7 Protocol Address Age (min) Hardware Addr Type Interface Internet 172.18.185.97 0 00:d0:01:3b:38:0a ARPA GigabitEthernet4/7 Internet 172.18.189.129 0 00:d0:01:3b:38:0a ARPA GigabitEthernet4/7 Internet 172.18.189.153 0 00:08:02:24:e0:8b ARPA GigabitEthernet4/7 Internet 172.18.189.155 0 00:08:02:df:93:77 ARPA GigabitEthernet4/7 Internet 172.18.189.156 9 00:08:02:b3:45:1b ARPA GigabitEthernet4/7 A sample output of the clear ips arp command follows. You clear the arp cache to verify that the activity you are viewing is the most current. switch# clear ips arp int gig4/7 arp clear successful A sample output of the sh ips arp command follows. switch# sh ips arp int giga 4/7 Protocol Address Age (min) Hardware Addr Type Interface Internet 172.18.185.97 0 00:d0:01:3b:38:0a ARPA GigabitEthernet4/7 Internet 172.18.189.156 0 00:08:02:b3:45:1b ARPA GigabitEthernet4/7 A sample output of the sh ips arp command follows. switch# sh ips arp int giga 4/7 Protocol Address Age (min) Hardware Addr Type Interface Internet 172.18.185.97 0 00:d0:01:3b:38:0a ARPA GigabitEthernet4/7 Internet 172.18.189.129 0 00:d0:01:3b:38:0a ARPA GigabitEthernet4/7 Internet 172.18.189.156 0 00:08:02:b3:45:1b ARPA GigabitEthernet4/7 A sample output of the sh arp command follows. switch# sh arp Protocol Address Age (min) Hardware Addr Type Interface Internet 172.18.185.97 0 00d0.013b.380a ARPA mgmt0 Step 3 Use the show interface command to verify that the Gigabit Ethernet interface is up. A sample output of the show interface command follows. GigabitEthernet4/7 is up Hardware is GigabitEthernet, address is 0005.3000.9f58 Internet address is 172.18.189.137/26 MTU 1500 bytes, BW 1000000 Kbit Port mode is IPS Speed is 1 Gbps Beacon is turned off 5 minutes input rate 688 bits/sec, 86 bytes/sec, 0 frames/sec 5 minutes output rate 312 bits/sec, 39 bytes/sec, 0 frames/sec 156643 packets input, 16859832 bytes 0 multicast frames, 0 compressed 0 input errors, 0 frame, 0 overrun 0 fifo 144401 packets output, 7805631 bytes, 0 underruns 0 output errors, 0 collisions, 0 fifo 0 carrier errors Verifying Static IP Routing Static routing is a mechanism to configure IP routes on the switch. To verify that the IP routes are still there, use the sh ip route command. A sample output of the sh ip route command follows. switch# sh ip route Codes: C - connected, S - static Default gateway is 172.17.8.1 C 172.17.8.0/24 is directly connected, mgmt0 S 11.2.36.0/22 via 11.3.36.1, gigabitethernet8/7 C 11.3.36.0/22 is directly connected, gigabitethernet8/7 C 11.3.56.0/22 is directly connected, gigabitethernet8/8 S 11.2.56.0/22 via 11.3.56.1, gigabitethernet8/8 switch# A sample output of the sh ip route config command follows. switch# sh ip route conf Destination Gateway Mask Metric Interface default 172.17.8.1 0.0.0.0 0 mgmt0 11.2.36.0 11.3.36.1 255.255.252.0 0 11.2.56.0 11.3.56.1 255.255.252.0 0 11.3.36.0 0.0.0.0 255.255.252.0 0 GigabitEthernet8/7 11.3.56.0 0.0.0.0 255.255.252.0 0 GigabitEthernet8/8 172.17.8.0 0.0.0.0 255.255.255.0 0 mgmt0 switch# Troubleshooting FCIP Connections This section contains information on troubleshooting FCIP tunnels with and without Special Frames. One-to-One FCIP Tunnel Creation and Monitoring This section describes the configuration for one-to-one FCIP tunnel with FCIP debug activated (MDS2) and without debug activated (MDS1). Figure 5-2 shows the one-to-one topology used for configuration. Figure 5-2 One-to-One Topology First, perform the following steps to configure the MDS1. Step 1 Enter configuration mode Step 2 Set the interface MDS1(config)#inteface gig 2/8 Step 3 Set the IP address MDS1(config-if)#ip address 10.10.10.2 255.255.255.0 Step 4 Enter no shutdown for some reason MDS1(config-if)#no shutdown Step 5 Enter the profile number and profile mode. MDS1(config)# fcip profile 28 The profile number can be any number between 1 - 255 Step 6 Enter the IP address of the local GE port that will be endpoint of FCIP tunnel. MDS1(config-profile)# ip address 10.10.10.2 Step 7 Exit profile mode. MDS1(config-profile)# exit Step 8 Set the interface FCIP and enter interface mode. MDS1(config)# interface fcip 28 The interface FCIP can be any number between 1 - 255 and does not need to be the same as the profile number. In this example the same number is used for simplicity. Step 9 Specify a profile to use. MDS1(config-if)# use-profile 28 The interface FCIP will use the Local FCIP profile . The FCIP profile binds the interface FCIP to the physical Gigabit Ethernet port and configures the TCP settings used by the interface FCIP. MDS1(config-if)# peer-info ipaddr 10.10.11.2 The IP address in this example indicates the remote endpoint IP address of the FCIP tunnel. MDS1(config-if)# no shut MDS1(config-if)# end The output from issuing the show run command displays the default values in the following example. MDS1# show run Building Configuration ... fcip profile 28 ip address 10.10.10.2 port 3225 tcp keepalive-timeout 60 tcp max-retransmissions 4 tcp pmtu-enable reset-timeout 3600 tcp initial-retransmit-time 100 tcp window-size 64 vsan database vsan 2 name grumpy_02 interface fcip28 no shutdown use-profile 28 peer-info ipaddr 10.10.11.2 ip route 10.10.11.0 255.255.255.0 10.10.10.1 The static route must be set for FCIP tunnels. This route could also be ip route 10.10.11.0 255.255.255.0 int gig 2/8. ips heartbeat ips hapreset ips boot interface GigabitEthernet2/8 ip address 10.10.10.2 255.255.255.0 (This is the IP address used by the FCIP profile.) no shutdown The following example shows the configuration of MDS2 with debug mode activated. MDS2(config)# fcip profile 28 Mar 10 21:41:04 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32222) Mar 10 21:41:04 ips: Create Entity 28 Mar 10 21:41:04 ips: entity28: add to config pss MDS2(config-profile)# ip address 10.10.11.2 Mar 10 21:41:15 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32258) Mar 10 21:41:15 ips: entity28: IP address changed to 10.10.11.2 Mar 10 21:41:15 ips: entity28: IP 10.10.11.2 configured for interface GigabitEthernet2/8 Mar 10 21:41:15 ips: entity28: Apply the entity config and save to config pss Mar 10 21:41:15 ips: entity28: add to config pss MDS2(config-profile)# exit MDS2(config)# interface fcip 28 Mar 10 21:41:46 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32358) Mar 10 21:41:46 ips: Verified FCIP28 Create:0 Mar 10 21:41:46 ips: FCIP28: Verified Create:0 Mar 10 21:41:46 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32360) Mar 10 21:41:46 ips: FCIP28: Creating FCIP tunnel Mar 10 21:41:46 ips: FCIP28: add to admin pss Mar 10 21:41:46 ips: FCIP28: add to run-time pss Mar 10 21:41:46 ips: FCIP28: log: 0 phy: 0 state: 0 syslog: 0 MDS2(config-if)# use-profile 28 Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32480) Mar 10 21:42:23 ips: FCIP28: Process tunnel configuration event Mar 10 21:42:23 ips: FCIP28: Change Entity-id from 0 to 28 Mar 10 21:42:23 ips: FCIP: Optimal IF lookup for GigabitEthernet2/8 is GigabitEthernet2/8 Mar 10 21:42:23 ips: FCIP28: bind with GigabitEthernet2/8 (phy GigabitEthernet2/8) Mar 10 21:42:23 ips: FCIP28: Queueing bind tunnel to src if event to tunnel FSM resource: 0 Mar 10 21:42:23 ips: Locked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32480) Mar 10 21:42:23 ips: FCIP28: Send bind for GigabitEthernet2/8 to PM (phy GigabitEthernet2/8) Mar 10 21:42:23 ips: FCIP28: add to run-time pss Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 0 syslog: 0 Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_IPS_CFG_FCIP_IF(mts opc 1905, msg id 7304) Mar 10 21:42:23 ips: Hndlr MTS_OPC_IPS_CFG_FCIP_IF (mts_opc 1905 msg_id 7304) Mar 10 21:42:23 ips: FCIP28: Got a tunnel param pull request from LC Mar 10 21:42:23 ips: Added to pending queue event-id [29] event-cat [2] Mar 10 21:42:23 ips: FCIP28: Queueing Process a Pull Request event to Pending queue resource: 0 Mar 10 21:42:23 ips: Dequeued mts msg MTS_OPC_PM_FCIP_BIND(mts opc 335, msg id 32495) Mar 10 21:42:23 ips: Hndlr MTS_OPC_PM_FCIP_BIND (mts_opc 335 msg_id 32495) Mar 10 21:42:23 ips: FCIP28: Success received from PM for bind to GigabitEthernet2/8 (phy GigabitEthernet2/8) Mar 10 21:42:23 ips: FCIP28: Bind-resp event processing bind... Mar 10 21:42:23 ips: FCIP28: add to run-time pss Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0 Mar 10 21:42:23 ips: FCIP28: Last reference.... Mar 10 21:42:23 ips: FCIP28: Update the tunnel param and save to PSS Mar 10 21:42:23 ips: FCIP28: add to admin pss Mar 10 21:42:23 ips: FCIP28: add to run-time pss Mar 10 21:42:23 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0 Mar 10 21:42:23 ips: Unlocked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32480) Mar 10 21:42:23 ips: Dequeued pending queue msg event_id [29] cat [2] Mar 10 21:42:23 ips: (ips_demux) Mts Opcode is 1905, id is 7304 Mar 10 21:42:23 ips: FCIP28: Processing Pull Config Request Mar 10 21:42:23 ips: FCIP28: Bound to entity 28 port: 3225 ip: 10.10.11.2 MDS2(config-if)# peer-info ipaddr 10.10.10.2 Mar 10 21:43:01 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_CMI_REQUEST(mts opc 3321, msg id 32616) Mar 10 21:43:01 ips: FCIP28: Process tunnel configuration event Mar 10 21:43:01 ips: FCIP28: Change Peer IP from 0.0.0.0 to 10.10.10.2 and port from 3225 to 3225 Mar 10 21:43:01 ips: FCIP28: Queueing Set tunnel param event to tunnel FSM resource: 0 Mar 10 21:43:01 ips: Locked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32616) Mar 10 21:43:01 ips: FCIP28: Send tunnel params to LC to DPP: 7 Mar 10 21:43:01 ips: Dequeued mts msg MTS_OPC_IPS_FCIP_SET_LC_TUNNEL_PARAM(mts opc 1897, msg id 7358) Mar 10 21:43:01 ips: Hndlr MTS_OPC_IPS_FCIP_SET_LC_TUNNEL_PARAM (mts_opc 1897 msg_id 7358) Mar 10 21:43:01 ips: In handler : Received resp code: 0 Mar 10 21:43:01 ips: FCIP28: Received the tunnel params from LC Mar 10 21:43:01 ips: FCIP28: Update the tunnel param and save to PSS Mar 10 21:43:01 ips: FCIP28: add to admin pss Mar 10 21:43:01 ips: FCIP28: add to run-time pss Mar 10 21:43:01 ips: FCIP28: log: 2087000 phy: 2087000 state: 1 syslog: 0 Mar 10 21:43:01 ips: Unlocked fcip_if_fsm for MTS_OPC_IPS_FCIP_CMI_REQUEST(msg id 32616) MDS2(config-if)# MDS2(config-if)# no shut MDS2(config-if)# Mar 10 21:43:32 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 32737) Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 32737) Mar 10 21:43:32 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 32778) Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 32778) Mar 10 21:43:32 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 32783) Mar 10 21:43:32 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 32783) The following example shows the debug output from the supervisor of the FCIP tunnel. MDS2(config)# int fcip 28 MDS2(config-if)# no shut MDS2(config-if)# Mar 10 22:59:46 ips: fu_priority_select: - setting fd[3] for select call - found data in FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(0) Mar 10 22:59:46 ips: curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(0), empty Mar 10 22:59:46 ips: Starting a new round Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 47540) Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range: Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 47540) Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0) Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list Mar 10 22:59:46 ips: fu_fsm_engine: mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47540) dropped Mar 10 22:59:46 ips: fu_priority_select: - setting fd[3] for select call - found data in FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(6) Mar 10 22:59:46 ips: curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(3), empty Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 47589) Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range: Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 47589) Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0) Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list Mar 10 22:59:46 ips: fu_fsm_engine: mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47589) dropped Mar 10 22:59:46 ips: fu_priority_select: - setting fd[3] for select call - found data in FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: fu_priority_select_select_queue: round credit(4) Mar 10 22:59:46 ips: curr_q - FU_PSEL_Q_CAT_CQ, usr_q_info(3), priority(4), credit(2), empty Mar 10 22:59:46 ips: fu_priority_select: returning FU_PSEL_Q_CAT_MTS queue, fd(3), usr_q_info(1) Mar 10 22:59:46 ips: Dequeued mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(mts opc 3114, msg id 47602) Mar 10 22:59:46 ips: ips_mts_hdlr_pm_logical_port_state_change_range: Mar 10 22:59:46 ips: Hndlr MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE (mts_opc 3114 msg_id 47602) Mar 10 22:59:46 ips: fu_fsm_execute_all: match_msg_id(0), log_already_open(0) Mar 10 22:59:46 ips: fu_fsm_execute_all: null fsm_event_list Mar 10 22:59:46 ips: fu_fsm_engine: mts msg MTS_OPC_PM_LOGICAL_PORT_STATE_CHANGE_RANGE(msg_id 47602) dropped The following example shows the debug output from the IPS module of the FCIP tunnel. MDS2# attach module 2 module-2# debug ips fcip fsm port 8 (This is the Gigabit Ethernet port 2/8.) Mar 13 19:18:19 port8: 2700:FCIP28: Received new TCP connection from peer: 10.10.10.2:65455 Mar 13 19:18:19 port8: 2701:FCIP: (fcip_de_create): DE = 0xdc02ca40 Mar 13 19:18:19 port8: 2702:FCIP28: Create a DE 0xdc02ca40 for this tunnel Mar 13 19:18:19 port8: 2703:FCIP28: Bind the DE 0xdc02ca40 [1] to tunnel LEP 0x801ebac0 Mar 13 19:18:19 port8: 2704:FCIP28: Bind DE 1 to TCP-hdl 0xdc489800 Mar 13 19:18:19 port8: 2705:FCIP28: Bind DE 1 to eport 0x801eaaa0 Mar 13 19:18:19 port8: 2706:FCIP28: bind de 1 in eport 0x801eaaa0, hash = 1 num-conn: 2 Mar 13 19:18:19 port8: 2707:FCIP28: Received new TCP connection from peer: 10.10.10.2:65453 Mar 13 19:18:19 port8: 2708:FCIP: (fcip_de_create): DE = 0xdc02cb40 Mar 13 19:18:19 port8: 2709:FCIP28: Create a DE 0xdc02cb40 for this tunnel Mar 13 19:18:19 port8: 2710:FCIP28: Bind the DE 0xdc02cb40 [2] to tunnel LEP 0x801ebac0 Mar 13 19:18:19 port8: 2711:FCIP28: Bind DE 2 to TCP-hdl 0xdc488800 Mar 13 19:18:19 port8: 2712:FCIP28: Bind DE 2 to eport 0x801eaaa0 Mar 13 19:18:19 port8: 2713:FCIP28: bind de 2 in eport 0x801eaaa0, hash = 2 num-conn: 2 Mar 13 19:18:19 port8: 2714:FCIP28: Send LINK UP to SUP Mar 13 19:18:20 port8: 2715:FCIP28: * Received eisl frame in E mode Mar 13 19:18:20 port8: 2716:FCIP28: SUP-> Set trunk mode: 2 Mar 13 19:18:20 port8: 2717:FCIP28: Change the operational mode to TRUNK Mar 13 19:18:20 port8: 2718:FCIP28: Tunnel bringup debounce timer callbeck, try to bring up tunnel Mar 13 19:18:20 port8: 2719:FCIP28: Tunnel is already in oper UP state, don't try to bring up again... Use the show fcip profile command to verify that the configuration of the profiles are correct. The IP address and TCP port are the ports to listen on, and both are adjustable in the FCIP profile. The example below displys all default values that are adjustable while configuring the FCIP profile. MDS1# show fcip profile ------------------------------------------------------------------------------- ProfileId Ipaddr TcpPort ------------------------------------------------------------------------------- 28 10.10.10.2 3225 MDS1# show fcip profile 28 FCIP Profile 28 Listen Port is 3225 TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 100 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB Use the show interface fcip command to verify that the interface FCIP tunnel is established and that traffic is passing through. MDS1# show interface fcip 28 FCIP28 is trunking Hardware is GigabitEthernet Port WWN is 20:5e:00:05:30:00:59:de Peer port WWN is 20:5e:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on Port mode is TE (The FCIP tunnel will be either E (ISL or TE (EISL) passing through multiple VSANs.) vsan is 1 Trunk vsans (allowed active) (1-2) Trunk vsans (operational) (1-2) Trunk vsans (up) (1-2) Trunk vsans (isolated) () Trunk vsans (initializing) () Using Profile id 28 (interface GigabitEthernet2/8) (This is the FCIP profile and the Gigabit Ethernet being used by the FCIP tunnel.) Peer Information Peer Internet address is 10.10.11.2 and port is 3225 (This is the remote end point's IP address and listening port.) Special Frame is disabled (The Special Frame for verification of a remote MDS is not being used.) Maximum number of TCPconnections is 2 (The default is 2 TCP connection being used, one for class F and other for class 2 and 3.) Time Stamp is disabled (The timestamp can be activated under the interface FCIP.) B-port mode disabled TCP Connection Information 2 Active TCP connections Control connection: Local 10.10.10.2:3225, Remote 10.10.11.2:65519 (The above is class F traffic.) Data connection: Local 10.10.10.2:3225, Remote 10.10.11.2:65521 (The above is class 2,3 traffic.) 6 Attempts for active connections, 3 close of connections TCP Parameters Path MTU 1500 bytes Current retransmission timeout is 100 ms <<< Default, adjusted under Round trip time: Smoothed 10 ms, Variance: 5 (This is the calculated round trip time of the FCIP tunnel. Large round trip times will require increasing the TCP window size under the FCIP profile.) Advertized window: Current: 64 KB, Maximum: 64 KB, Scale: 1 (This is the local advertised TCP window size, and the default is 64 KB.) Peer receive window: Current: 64 KB, Maximum: 64 KB, Scale: 1 (This is the remote end point advertised TCP window size.) Congestion window: Current: 2 KB (This is the minimum windows size used during congestion, and is not configurable.) 5 minutes input rate 136 bits/sec, 17 bytes/sec, 0 frames/sec 5 minutes output rate 136 bits/sec, 17 bytes/sec, 0 frames/sec 2288 frames input, 211504 bytes 2288 Class F frames input, 211504 bytes 0 Class 2/3 frames input, 0 bytes 0 Error frames 2288 frames output, 211520 bytes 2288 Class F frames output, 211520 bytes 0 Class 2/3 frames output, 0 bytes 0 Error frames 0 reass frames MDS1# show interface fcip 28 brief ------------------------------------------------------------------------------- Interface Vsan Admin Admin Status Oper Profile Port-channel Mode Trunk Mode Mode ------------------------------------------------------------------------------- fcip28 1 auto on trunking TE 28 -- MDS1# show interface fcip 28 counters bri ------------------------------------------------------------------------------- Interface Input (rate is 5 min avg) Output (rate is 5 min avg) ----------------------------- ----------------------------- Rate Total Rate Total Mbits/s Frames Mbits/s Frames ------------------------------------------------------------------------------- fcip28 18 0 18 0 (This is the frames that averaged over 5 minutes and the total count of frames since the last clear counters command was issued, or since the last tunnel up.) Verify default 2 tcp connections are established for each fcip tunnel configured, one for control traffic and one for data traffic MDS1# show ips stats tcp interface gigabitethernet 2/8 TCP Statistics for port GigabitEthernet2/8 Connection Stats 6 active openings, 8 accepts 6 failed attempts, 0 reset received, 8 established Segment stats 295930 received, 1131824 sent, 109 retransmitted (Excessive retransmits indicate possible core drops and/or that the TCP window size should be adjusted.) 0 bad segments received, 0 reset sent TCP Active Connections Local Address Remote Address State Send-Q Recv-Q 10.10.10.2:3225 10.10.11.2:65519 ESTABLISH 0 0 (This is used for F control traffic only.) 10.10.10.2:3225 10.10.11.2:65521 ESTABLISH 87568 0 (Send-Q increasing during read-only test.) 10.10.10.2:3225 0.0.0.0:0 LISTEN 0 0 (The TCP listen port is ready for new TCP connections.) You can use the following command to verify that traffic is incrementing on Gigabit Ethernet port of the FCIP tunnel. MDS1# show ips stats mac interface gigabitethernet 2/8 Ethernet MAC statistics for port GigabitEthernet2/8 Hardware Transmit Counters 1074898 frame 1095772436 bytes 0 collisions, 0 late collisions, 0 excess collisions 0 bad frames, 0 FCS error, 0 abort, 0 runt, 0 oversize Hardware Receive Counters 33488196 bytes, 298392 frames, 277 multicasts, 16423 broadcasts 0 bad, 0 runt, 0 CRC error, 0 length error 0 code error, 0 align error, 0 oversize error Software Counters 298392 received frames, 1074898 transmit frames 0 frames soft queued, 0 current queue, 0 max queue 0 dropped, 0 low memory Traffic statistics can be verified on the internal ASIC chip on each Gigabit Ethernet port. MDS1# show ips stats flamingo interface gigabitethernet 2/8 Flamingo ASIC Statistics for port GigabitEthernet2/8 Hardware Egress Counters 2312 Good, 0 bad protocol, 0 bad header cksum, 0 bad FC CRC (Good frames and CRC error frames can be monitored.) Hardware Ingress Counters (Verify good increments on the active tunnel.) 2312 Good, 0 protocol error, 0 header checksum error 0 FC CRC error, 0 iSCSI CRC error, 0 parity error Software Egress Counters 2312 good frames, 0 bad header cksum, 0 bad FIFO SOP 0 parity error, 0 FC CRC error, 0 timestamp expired error 0 unregistered port index, 0 unknown internal type 0 RDL, 0 RDL too big RDL, 0 TDL ttl_1 3957292257 idle poll count, 0 loopback, 0 FCC PQ, 0 FCC EQ Flow Control: 0 [0], 0 [1], 0 [2], 0 [3] Software Ingress Counters 2312 Good frames, 0 header cksum error, 0 FC CRC error 0 iSCSI CRC error, 0 descriptor SOP error, 0 parity error 0 frames soft queued, 0 current Q, 0 max Q, 0 low memory 0 out of memory drop, 0 queue full drop 0 RDL, 0 too big RDL drop Flow Control: 0 [0], 0 [1], 0 [2], 0 [3] On the next few pages are screen captures taken with Ethereal, of TCP connection being established, and FCIP tunnels. Note that FCIP tunnel activation is the same as an FC EISL becoming active (such as ELP, ESC, and EFP). The following traces were captured after configuration on both MDS 9000 Family switches, and the last "no shutdown" was entered on switch MDS1. All settings are default (for example, SACK is disabled, the TCP window is set to 64K). Figure 5-3 First Capture of TCP Connection Figure 5-4 shows more of the trace, with frame 13 being the first FCIP frame. This frame carries the FC Standard ELP. Figure 5-4 Second Capture of TCP Connection Figure 5-5 shows the FC portion of the EISL initialization over the FCIP tunnel. Figure 5-5 Third Capture of TCP Connection One to three FCIP tunnel creation and monitoring Figure 5-6 shows the configuration of switch MDS1 for three tunnels from one Gigabit Ethernet port. Figure 5-6 MDS1 Configured for Three FCIP Tunnels The following example shows the configuration of switch MDS1 for three tunnels from one Gigabit Ethernet port. MDS1(config)# fcip profile 21 MDS1(config-profile)# ip address 10.10.10.2 MDS1(config-profile)# exit MDS1(config)# interface fcip 21 MDS1(config-if)# use-profile 21 MDS1(config-if)# peer-info ipaddr 10.10.11.2 MDS1(config-if)# no shut MDS1(config-if)# exit MDS1(config)# ip route 10.10.11.0 255.255.255.0 10.10.10.1 MDS1(config)# ip route 10.10.11.0 255.255.255.0 int gigabitethernet 2/1 Now the interface FCIP is created for the second tunnel. The same FCIP profile is used for this example. A separate FCIP profile can be used for each interface FCIP if desired. MDS1(config-if)# MDS1(config-if)# int fcip 23 MDS1(config-if)# use-profile 21 MDS1(config-if)# peer-info ipaddr 10.10.8.2 MDS1(config-if)# no shut MDS1(config-if)# exit MDS1(config)# Now the FCIP interface is created for the third tunnel. MDS1(config)# int fcip 28 MDS1(config-if)# use-profile 21 MDS1(config-if)# peer-info ipaddr 10.10.7.2 MDS1(config-if)# no shut MDS1(config-if)# end FCIP Profile Misconfiguration Examples The following example shows an incorrect or non existent IP address used for an FCIP profile. MDS22(config)# fcip profile 21 MDS22(config-profile)# ip addr 1.1.1.1 MDS22(config-profile)# ip addr 34.34.34.34 MDS22(config-profile)# exit MDS22(config)# exit MDS22# show fcip profile 21 FCIP Profile 21 Internet Address is 34.34.34.34 (In the line above, the interface Gigabit Ethernet port is not shown. This means the IP address is not assigned a Gigabit Ethernet port. Listen Port is 3225 TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 300 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB MDS22# conf t Enter configuration commands, one per line. End with CNTL/Z. MDS22(config)# int gigabitethernet 2/5 MDS22(config-if)# ip addr 34.34.34.34 255.255.255.0 MDS22(config-if)# no shut MDS22(config-if)# end MDS22# show fcip profile 34 error: fcip profile not found MDS22# show fcip profile 21 FCIP Profile 21 Internet Address is 34.34.34.34 (interface GigabitEthernet2/5) (In the line above, the Gigabit Ethernet port is now shown and the FCIP profile is bound to a physical port.) Listen Port is 3225 TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 300 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB The following example shows a configuration error when using multiple FCIP profiles on one physical Gigabit Ethernet port. MDS2(config)# fcip profile 21 MDS2(config-profile)# ip address 10.10.11.2 error: fcip another profile exists with same port & ip (Multiple FCIP profiles can be used on one physical Gigabit Ethernet port, but each profile must have a different listening port.) MDS2(config-profile)# port ? <1-65535> Profile TCP Port MDS2(config-profile)# port 32 (Change the TCP listening port on the profile. The default is 3225.) MDS2(config-profile)# ip address 10.10.11.2 (The IP address for the Gigabit Ethernet port 2/1 is now accepted, and two FCIP profiles are using the same Gigabit Ethernet port.) MDS2(config-profile)# end MDS2# show fcip profile 21 FCIP Profile 21 Internet Address is 10.10.11.2 (interface GigabitEthernet2/1) Listen Port is 32 (This is a new TCP listen port.) TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 300 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB MDS2# show fcip profile 28 FCIP Profile 28 Internet Address is 10.10.11.2 (interface GigabitEthernet2/1) Listen Port is 3225 (This is the default listen port.) TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 300 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB The following example shows a configuration error when bringing a tunnel up on the selected port. This could be either an FCIP profile issue or an interface FCIP issue. Both sides must be configured correctly. MDS2(config)# fcip profile 21 MDS2(config-profile)# port 13 (Change the TCP listen port on switch MDS2.) MDS2(config-profile)# end MDS2(config)# int fcip 21 MDS2(config-if)# passive-mode (Put interface FCIP 21 in passive mode to guarantee MDS1 initiates a TCP connection.) module-2# debug ips fcip fsm port 1 module-2# Mar 14 23:08:02 port1: 863:FCIP21: SUP-> Set Port mode 1 Mar 14 23:08:02 port1: 864:FCIP21: SUP-> Port VSAN (1) already set to same value Mar 14 23:08:02 port1: 865:FCIP21: SUP-> Trunk mode (1) already set to same value Mar 14 23:08:02 port1: 866:FCIP21: SUP-> Enable tunnel ADMIN UP Mar 14 23:08:02 port1: 867:FCIP21: Try to Bring UP the Tunnel Mar 14 23:08:02 port1: 868:FCIP21: Start TCP listener with peer: 10.10.10.2:13 (This debug output from switch MDS2 shows that the FCIP tunnel will not come up because switch MDS2 is listening on port 13, and switch MDS1 is trying to establish the connection on the default port 3225.) Mar 14 23:08:02 port1: 869:FCIP: Create a new listener object for 10.10.11.2:13 Mar 14 23:08:02 port1: 870:FCIP: Create FCIP Listener with local info: 10.10.11.2:13 MDS1(config)# int fcip 21 MDS1(config-if)# peer-info ip 10.10.11.2 port 13 (The remote end interface FCIP must be configured to establish a TCP connection on a port that is being used as TCP listen port.) MDS1(config-if)# end MDS1# show int fcip 21 fcip21 is trunking (The FCIP tunnel is now up.) Hardware is GigabitEthernet Port WWN is 20:42:00:05:30:00:59:de Peer port WWN is 20:42:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on Port mode is TE vsan is 1 Trunk vsans (allowed active) (1-2) Trunk vsans (operational) (1-2) Trunk vsans (up) () Trunk vsans (isolated) () Trunk vsans (initializing) (1-2) Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.11.2 and port is 13 Special Frame is disabled Maximum number of TCP connections is 2 Time Stamp is disabled B-port mode disabled TCP Connection Information 2 Active TCP connections Control connection: Local 10.10.10.2:65188, Remote 10.10.11.2:13 (The port is 13 as configured.) Data connection: Local 10.10.10.2:65190, Remote 10.10.11.2:13 174 Attempts for active connections, 5 close of connections MDS2# show ips stats tcp interface gigabitethernet 2/1 TCP Statistics for port GigabitEthernet2/1 Connection Stats 44 active openings, 2 accepts 26 failed attempts, 0 reset received, 20 established Segment stats 2515 received, 2342 sent, 0 retransmitted 0 bad segments received, 0 reset sent TCP Active Connections Local Address Remote Address State Send-Q Recv-Q 10.10.11.2:13 10.10.10.2:65188 ESTABLISH 0 0 (The port is 13 as configured.) 10.10.11.2:13 10.10.10.2:65190 ESTABLISH 0 0 (The port is 13 as configured.) 10.10.11.2:13 0.0.0.0:0 LISTEN 0 0 0.0.0.0:3260 0.0.0.0:0 LISTEN 0 0 Interface FCIP Misconfiguration Examples The following example shows the "peer-info" IP address of the remote end-point is missing. The debug output is from the IPS module. Module-2# debug ips fcip fsm port 1 module-2# Mar 14 21:37:05 port1: 38:FCIP21: SUP-> Set Port mode 1 Mar 14 21:37:05 port1: 39:FCIP21: SUP-> Port VSAN (1) already set to same value Mar 14 21:37:05 port1: 40:FCIP21: SUP-> Trunk mode (1) already set to same value Mar 14 21:37:05 port1: 41:FCIP21: SUP-> Enable tunnel ADMIN UP Mar 14 21:37:05 port1: 42:FCIP21: Try to Bring UP the Tunnel Mar 14 21:37:05 port1: 43:FCIP21: Bring up tunnel Failed, peer-ip not set (The peer IP address is not set.) MDS2# show int fcip 21 fcip21 is down (Link failure or not-connected) Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on vsan is 1 Using Profile id 21 (interface GigabitEthernet2/1) Peer Information (This line shows the Peer Information as empty. The line should read "Peer Internet address is 10.10.10.2 and port is 3225." Special Frame is disabled Maximum number of TCP connections is 2 Time Stamp is disabled B-port mode disabled TCP Connection Information 0 Attempts for active connections, 0 close of connections 5 minutes input rate 0 bits/sec, 0 bytes/sec, 0 frames/sec 5 minutes output rate 0 bits/sec, 0 bytes/sec, 0 frames/sec 0 frames input, 0 bytes 0 Class F frames input, 0 bytes 0 Class 2/3 frames input, 0 bytes 0 Error frames 0 frames output, 0 bytes 0 Class F frames output, 0 bytes 0 Class 2/3 frames output, 0 bytes 0 Error frames 0 reass frames The following example shows the interface FCIP is administratively shut down. The debug output is from the IPS module. Module-2# debug ips fcip fsm port 1 module-2# Mar 14 21:32:27 port1: 1:FCIP21: Create tunnel with ifindex: a000014 Mar 14 21:32:27 port1: 2:FCIP21: Get the peer info from the SUP-IPS-MGR Mar 14 21:32:27 port1: 3:FCIP21: SUP-> Disable tunnel: already in disable state Mar 14 21:32:27 port1: 4:FCIP21: SUP-> Set Port mode 1 Mar 14 21:32:27 port1: 5:FCIP21: SUP-> Set port index: 21 Mar 14 21:32:27 port1: 6:FCIP21: Try to Bring UP the Tunnel Mar 14 21:32:27 port1: 7:FCIP21: Tunnel in admin down state (The tunnel needs no shut down on the interface FCIP.) Mar 14 21:32:27 port1: 8:FCIP21: SUP-> Set port VSAN: 1 Mar 14 21:32:27 port1: 9:FCIP21: Try to Bring UP the Tunnel Mar 14 21:32:27 port1: 10:FCIP21: Tunnel in admin down state Mar 14 21:32:27 port1: 11:FCIP21: SUP-> Set port WWN: 0x2042000b5fd59fc0 Mar 14 21:32:27 port1: 12:FCIP21: Try to Bring UP the Tunnel Mar 14 21:32:27 port1: 13:FCIP21: Tunnel in admin down state (The tunnel needs no shut down on the interface FCIP.) Mar 14 21:32:27 port1: 14:FCIP21: SUP-> Set trunk mode: 1 Mar 14 21:32:27 port1: 15:FCIP21: SUP-> Set source IF: 2080000 Mar 14 21:32:27 port1: 16:FCIP21: Try to Bring UP the Tunnel Mar 14 21:32:27 port1: 17:FCIP21: Tunnel in admin down state Mar 14 21:32:27 port1: 18:FCIP21: SUP-> Switch WWN: 0x2000000b5fd59fc0 Mar 14 21:32:27 port1: 19:FCIP21: Try to Bring UP the Tunnel Mar 14 21:32:27 port1: 20:FCIP21: Tunnel in admin down state Mar 14 21:32:27 port1: 21:FCIP21: SUP-> Response to SB's pull all tunnel info Mar 14 21:32:27 port1: 22:FCIP21: SUP-> Set peer port: 3225 current port: 3225 Mar 14 21:32:27 port1: 23:FCIP21: peer port has same value, do nothing Mar 14 21:32:27 port1: 24:FCIP21: Set number of tcp connection 2 Mar 14 21:32:27 port1: 25:FCIP21: SUP-> Set Local listen IP: 10.10.11.2 current ip 0.0.0.0 Mar 14 21:32:27 port1: 26:FCIP21: SUP-> Set Local listen Port: 3225 current port 3225 Mar 14 21:32:27 port1: 27:FCIP21: SUP-> Enable PMTU Discovery, timeout 3600 Mar 14 21:32:27 port1: 28:FCIP21: SUP-> Set round-trip time to 300 ms. Current value 100 ms Mar 14 21:32:27 port1: 29:FCIP21: SUP-> Set keep-alive time to 60 sec. current value 60 sec MDS2# show int fcip 21 fcip21 is down (Administratively down) Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on vsan is 1 Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 3225 Special Frame is disabled Maximum number of TCP connections is 2 Local MDS trying to connect to remote end point on port 13 and remote end point set to default listen port 3225 MDS2# show int fcip 21 fcip21 is down (Link failure or not-connected) Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on vsan is 1 Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 13 MDS1# show fcip profile 21 FCIP Profile 21 Internet Address is 10.10.10.2 (interface GigabitEthernet2/1) Listen Port is 3225 TCP parameters SACK is disabled PMTU discover is enabled, reset timeout is 3600 sec Keep alive is 60 sec Minimum retransmission timeout is 300 ms Maximum number of re-transmissions is 4 Advertised window size is 64 KB The following debug output is from switch MDS2. Mar 14 23:26:07 port1: 1340:FCIP21: Start TCP listener with peer: 10.10.10.2:3225 Mar 14 23:26:07 port1: 1341:FCIP: Create a new listener object for 10.10.11.2:3225 Mar 14 23:26:07 port1: 1342:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225 Mar 14 23:26:07 port1: 1343:FCIP21: Create a DE 0xd802d140 for this tunnel Mar 14 23:26:07 port1: 1344:FCIP21: Bind the DE 0xd802d140 [1] to tunnel LEP 0x80111570 Mar 14 23:26:07 port1: 1345:FCIP21: Start the active connection [1] to 10.10.10.2:13 Mar 14 23:26:07 port1: 1346:FCIP21: Create a DE 0xd802cdc0 for this tunnel Mar 14 23:26:07 port1: 1347:FCIP21: Bind the DE 0xd802cdc0 [2] to tunnel LEP 0x80111570 Mar 14 23:26:07 port1: 1348:FCIP21: Start the active connection [2] to 10.10.10.2:13 (The switch is attempting to create a TCP connection on port 13. The creation port must match the TCP listen port on the remote end point.) Mar 14 23:26:07 port1: 1349:FCIP21: Active Connect creation FAILED [1] Mar 14 23:26:07 port1: 1350:FCIP21: Delete the DE [1]0xd802d140 Mar 14 23:26:07 port1: 1351:FCIP21: Delete the DE object [1] 0xd802d140 Mar 14 23:26:07 port1: 1352:FCIP21: Try 7 to bring up the tunnel Mar 14 23:26:07 port1: 1353:FCIP21: Start the bringup tunnel timer, timeout: 64000 Mar 14 23:26:07 port1: 1354:FCIP21: Active Connect creation FAILED [2] Mar 14 23:26:07 port1: 1355:FCIP21: Delete the DE [2]0xd802cdc0 Mar 14 23:26:07 port1: 1356:FCIP21: Set lep operation state to DOWN Mar 14 23:26:07 port1: 1357:FCIP21: Delete the DE object [2] 0xd802cdc0 Mar 14 23:26:07 port1: 1358:FCIP21: Try 8 to bring up the tunnel Mar 14 23:26:07 port1: 1359:FCIP21: Start the bringup tunnel timer, timeout: 128000 MDS2(config-if)# peer-info ipaddr 10.10.10.2 port 3225 (This changes the start active connection port to match the default port 3225.) Or you can use this command: MDS2(config-if)# no peer-info ipaddr 10.10.10.2 port 13 (Removing port 13 will also set it to the default of 3225.) MDS2# show int fcip 21 fcip21 is trunking Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Peer port WWN is 20:42:00:05:30:00:59:de Admin port mode is auto, trunk mode is on Port mode is TE vsan is 1 Trunk vsans (allowed active) (1-2) Trunk vsans (operational) (1-2) Trunk vsans (up) (1-2) Trunk vsans (isolated) () Trunk vsans (initializing) () Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 3225 Special Frame is disabled Maximum number of TCP connections is 2 Time Stamp is disabled B-port mode disabled TCP Connection Information 2 Active TCP connections Control connection: Local 10.10.11.2:65330, Remote 10.10.10.2:3225 Data connection: Local 10.10.11.2:65332, Remote 10.10.10.2:3225 In the following example, passive mode is set on both sides of the FCIP tunnel. module-2# Mar 14 23:49:06 port1: 1870:FCIP21: SUP-> Set Port mode 1 Mar 14 23:49:06 port1: 1871:FCIP21: SUP-> Port VSAN (1) already set to same value Mar 14 23:49:06 port1: 1872:FCIP21: SUP-> Trunk mode (1) already set to same value Mar 14 23:49:06 port1: 1873:FCIP21: SUP-> Enable tunnel ADMIN UP Mar 14 23:49:06 port1: 1874:FCIP21: Try to Bring UP the Tunnel Mar 14 23:49:06 port1: 1875:FCIP21: Start TCP listener with peer: 10.10.10.2:3225 Mar 14 23:49:06 port1: 1876:FCIP: Create a new listener object for 10.10.11.2:3225 Mar 14 23:49:06 port1: 1877:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225 Mar 14 23:49:06 port1: 1878:FCIP21: Passive mode set, don't initiate TCP connection (A TCP connection will not be established when passive mode is set. The Gigabit Ethernet port will only listen.) MDS2# show int fcip 21 fcip21 is down (Link failure or not-connected) Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Admin port mode is auto, trunk mode is on vsan is 1 Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 3225 Passive mode is enabled (Passive mode is set, so a TCP connection will not be established.) Special Frame is disabled MDS1# show int fcip 21 fcip21 is down (Link failure or not-connected) Hardware is GigabitEthernet Port WWN is 20:42:00:05:30:00:59:de Admin port mode is auto, trunk mode is on vsan is 1 Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.11.2 and port is 3225 Passive mode is enabled (Both sides are set to passive mode. You must change one or both sides to no passive-mode under the interface FCIP.) Special Frame is disabled MDS2(config)# int fcip 21 MDS2(config-if)# no passive-mode (Change one or both sides to no passive-mode.) MDS2# show int fcip 21 fcip21 is trunking The following example shows a time stamp acceptable difference failure, or no NTP server connected to synchronize clocks. When using time stamps, the MDS switch must be a synchronized clock. NTP is configurable on the MDS 9000 switch. MDS2(config)# int fcip 21 MDS2(config-if)# time-stamp module-2# debug ips fcip fsm port 1 Mar 15 00:01:35 port1: 3248:FCIP21: IPS-> Enable timestamp acceptable difference 1000 (Timestamp is enabled under the interface FCIP. The default acceptable difference is 1000.) Mar 15 00:01:35 port1: 3249:FCIP21: IPS-> acc diff in sec: 0x1 frac: 0x0 Mar 15 00:01:35 port1: 3250:FCIP21: Sending response code: 0 Mar 15 00:01:48 port1: 3251:FCIP21: Time stamp tolerance check failed local time: 0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a (The timestamp difference failed the acceptable difference.) Mar 15 00:01:48 port1: 3252:FCIP21: Time stamp tolerance check failed local time: 0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a Mar 15 00:01:48 port1: 3253:FCIP21: Time stamp tolerance check failed local time: 0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a <<< cut >>> Mar 15 00:01:48 port1: 3290:FCIP21: Time stamp tolerance check failed local time: 0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a Mar 15 00:01:48 port1: 3291:FCIP21: (fcip_de_rcv): Previous partial packet - Concatenating Mar 15 00:01:48 port1: 3292:FCIP21: Time stamp tolerance check failed local time: 0x3e726d6c2db994b7 tolerance: 0x100000000 recv time: 0x3e7251ace20db73a Mar 15 00:01:48 port1: 3293:FCIP21: FCIP frame len 0x300 is not within correct range <<< ?? >>> Mar 15 00:01:48 port1: 3294:FCIP21: Delete the DE [2]0xd802d680 Mar 15 00:01:48 port1: 3295:FCIP21: replace the eport entry at index: 1 Mar 15 00:01:48 port1: 3296:FCIP21: DE [-670902656] 0x00000002 terminate tcp connection 0xd8072800 (The TCP connection is disconnected because the timestamp difference is too large.) Mar 15 00:01:48 port1: 3297:FCIP21: Delete the DE object [2] 0xd802d680 Mar 15 00:01:48 port1: 3298:FCIP21: Delete the DE [1]0xd802cf00 Mar 15 00:01:48 port1: 3299:FCIP21: Unregister from flamingo port_index: 0x21 Mar 15 00:01:48 port1: 3300:FCIP21: Send Link down to SUP Mar 15 00:01:48 port1: 3301:FCIP21: Start the bringup tunnel timer, timeout: 18470 Mar 15 00:01:48 port1: 3302:FCIP21: replace the eport entry at index: 0 Mar 15 00:01:48 port1: 3303:FCIP21: Set lep operation state to DOWN Mar 15 00:01:48 port1: 3304:FCIP21: DE [-670904576] 0x00000001 terminate tcp connection 0xd8072c00 Mar 15 00:01:48 port1: 3305:FCIP21: Delete the DE object [1] 0xd802cf00 Mar 15 00:01:50 port1: 3306:FCIP21: Received new TCP connection from peer: 10.10.10.2:65066 (The TCP connection begins trying to re-establish the connection.) Mar 15 00:01:50 port1: 3307:FCIP21: Tunnel is not ADMIN UP state, reject new TCP connection from 10.10.10.2:65066 Mar 15 00:01:50 port1: 3308:FCIP21: Received new TCP connection from peer: 10.10.10.2:65064 Mar 15 00:01:50 port1: 3309:FCIP21: Tunnel is not ADMIN UP state, reject new TCP connection from 10.10.10.2:65064 Mar 15 00:01:56 port1: 3310:FCIP21: SUP-> Set Port mode 1 Mar 15 00:01:56 port1: 3311:FCIP21: SUP-> Port VSAN (1) already set to same value Mar 15 00:01:56 port1: 3312:FCIP21: SUP-> Set trunk mode: 1 Mar 15 00:01:56 port1: 3313:FCIP21: SUP-> Enable tunnel ADMIN UP Mar 15 00:01:56 port1: 3314:FCIP21: Try to Bring UP the Tunnel Mar 15 00:01:56 port1: 3315:FCIP21: tunnel bring-up debounce timer set, wait for timer to pop (Connect the NTP server or synchronized clocks, or increase the acceptable difference.) module-2# debug ips fcip fsm port 1 module-2# Jan 14 14:22:08 port1: 854886:FCIP21: IPS-> Enable timestamp acceptable difference 2000 Jan 14 14:22:08 port1: 854887:FCIP21: IPS-> acc diff in sec: 0x2 frac: 0x0 (The timestamp acceptable difference passes and the tunnel continues to be brought up.) module-2# module-2# Jan 14 14:22:39 port1: 854932:FCIP21: Received new TCP connection from peer: 10.10.10.2:64172 Jan 14 14:22:39 port1: 854933:FCIP21: Create a DE 0xd802d5c0 for this tunnel Jan 14 14:22:39 port1: 854934:FCIP21: Bind the DE 0xd802d5c0 [1] to tunnel LEP 0x80111570 Jan 14 14:22:39 port1: 854935:FCIP21: Bind DE 1 to TCP-hdl 0xd8071000 Jan 14 14:22:39 port1: 854936:FCIP21: Bind DE 1 to eport 0x80110550 Jan 14 14:22:39 port1: 854937:FCIP21: bind de 1 in eport 0x80110550, hash = 1 num-conn: 2 Jan 14 14:22:39 port1: 854938:FCIP21: Received new TCP connection from peer: 10 .10.10.2:64170 Jan 14 14:22:39 port1: 854939:FCIP21: Create a DE 0xd802c900 for this tunnel Jan 14 14:22:39 port1: 854940:FCIP21: Bind the DE 0xd802c900 [2] to tunnel LEP 0x80111570 Jan 14 14:22:39 port1: 854941:FCIP21: Bind DE 2 to TCP-hdl 0xd8070000 Jan 14 14:22:39 port1: 854942:FCIP21: Bind DE 2 to eport 0x80110550 Jan 14 14:22:39 port1: 854943:FCIP21: bind de 2 in eport 0x80110550, hash = 2 n um-conn: 2 Jan 14 14:22:39 port1: 854944:FCIP21: Send LINK UP to SUP Jan 14 14:22:39 port1: 854945:FCIP21: * Received eisl frame in E mode Jan 14 14:22:39 port1: 854946:FCIP21: SUP-> Set trunk mode: 2 Jan 14 14:22:39 port1: 854947:FCIP21: Change the operational mode to TRUNK MDS2# show int fcip 21 fcip21 is trunking Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Peer port WWN is 20:42:00:05:30:00:59:de Admin port mode is auto, trunk mode is on Port mode is TE vsan is 1 Trunk vsans (allowed active) (1-2) Trunk vsans (operational) (1-2) Trunk vsans (up) (1-2) Trunk vsans (isolated) () Trunk vsans (initializing) () Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 3225 Special Frame is disabled Maximum number of TCP connections is 2 Time Stamp is enabled, acceptable time difference 2000 ms B-port mode disabled TCP Connection Information Figure 5-7 shows a trace of timestamp difference failure. Figure 5-7 Trace of Timestamp Difference Failure Figure 5-8 shows a trace of timestamp difference accepted. Figure 5-8 Trace of Timestamp Difference Accepted FCIP Special Frame Tunnel Creation and Monitoring Previous FCIP tunnel configuration must be completed before adding FCIP Special Frame configuration. This section describes how to correctly configure and show an FCIP tunnel with a Special Frame. MDS2# show wwn switch Switch WWN is 20:00:00:0b:5f:d5:9f:c0 (You'll need the WWN of each MDS 9000 switch end point.) MDS1(config)# int fcip 21 MDS1(config-if)# special-frame peer-wwn 20:00:00:0b:5f:d5:9f:c0 (This enables the Special Frame that is used in the creation of the FCIP tunnel.) MDS1# show wwn switch Switch WWN is 20:00:00:05:30:00:59:de MDS2(config)# int fcip 21 MDS2(config-if)# special-frame peer-wwn 20:00:00:05:30:00:59:de module-2# Jan 14 15:25:38 port1: 857314:FCIP21: SUP-> Set Port mode 1 Jan 14 15:25:38 port1: 857315:FCIP21: SUP-> Port VSAN (1) already set to same value Jan 14 15:25:38 port1: 857316:FCIP21: SUP-> Trunk mode (1) already set to same value Jan 14 15:25:38 port1: 857317:FCIP21: SUP-> Enable tunnel ADMIN UP Jan 14 15:25:38 port1: 857318:FCIP21: Try to Bring UP the Tunnel Jan 14 15:25:38 port1: 857319:FCIP21: Start TCP listener with peer: 10.10.10.2:3225 Jan 14 15:25:38 port1: 857320:FCIP: Create a new listener object for 10.10.11.2:3225 Jan 14 15:25:38 port1: 857321:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225 Jan 14 15:25:38 port1: 857322:FCIP21: Create a DE 0xd802cd00 for this tunnel Jan 14 15:25:38 port1: 857323:FCIP21: Bind the DE 0xd802cd00 [1] to tunnel LEP 0x80111570 Jan 14 15:25:38 port1: 857324:FCIP21: Start the active connection [1] to 10.10.10.2:3225 Jan 14 15:25:38 port1: 857325:FCIP21: Create a DE 0xd802db40 for this tunnel Jan 14 15:25:38 port1: 857326:FCIP21: Bind the DE 0xd802db40 [2] to tunnel LEP 0x80111570 Jan 14 15:25:38 port1: 857327:FCIP21: Start the active connection [2] to 10.10.10.2:3225 Jan 14 15:25:38 port1: 857328:FCIP21: Active Connect creation SUCCEEDED [1] Jan 14 15:25:38 port1: 857329:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00 Jan 14 15:25:38 port1: 857330:FCIP21: Setup for Special Frame handling: I'm Originator (This begins the Special Frame setup of the Originator.) Jan 14 15:25:38 port1: 857331:FCIP21: Send the SF as Originator & wait for response (The Special Frame is sent.) Jan 14 15:25:38 port1: 857332:FCIP21: Setup timer to wait for SF Jan 14 15:25:38 port1: 857333:FCIP21: Active Connect creation SUCCEEDED [2] (The Special Frame is correctly configured with the WWN of the remote MDS 9000 switch.) Jan 14 15:25:38 port1: 857334:FCIP21: Bind DE 2 to TCP-hdl 0xd8072000 Jan 14 15:25:38 port1: 857335:FCIP21: Setup for Special Frame handling: I'm Originator Jan 14 15:25:38 port1: 857336:FCIP21: Send the SF as Originator & wait for response Jan 14 15:25:38 port1: 857337:FCIP21: Setup timer to wait for SF Jan 14 15:25:38 port1: 857338:FCIP21: processing SF frame, I'm Originator Jan 14 15:25:38 port1: 857339:FCIP21: Bind DE 1 to eport 0x80110550 Jan 14 15:25:38 port1: 857340:FCIP21: bind de 1 in eport 0x80110550, hash = 1 num-conn: 2 Jan 14 15:25:38 port1: 857341:FCIP21: processing SF frame, I'm Originator Jan 14 15:25:38 port1: 857342:FCIP21: Bind DE 2 to eport 0x80110550 Jan 14 15:25:38 port1: 857343:FCIP21: bind de 2 in eport 0x80110550, hash = 2 num-conn: 2 Jan 14 15:25:38 port1: 857344:FCIP21: Send LINK UP to SUP Jan 14 15:25:39 port1: 857345:FCIP21: SUP-> Set trunk mode: 2 Jan 14 15:25:39 port1: 857346:FCIP21: Change the operational mode to TRUNK Jan 14 15:25:39 port1: 857347:FCIP21: * Received non-eisl frame in TE mode 64 64 MDS2# show int fcip 21 fcip21 is trunking Hardware is GigabitEthernet Port WWN is 20:42:00:0b:5f:d5:9f:c0 Peer port WWN is 20:42:00:05:30:00:59:de Admin port mode is auto, trunk mode is on Port mode is TE vsan is 1 Trunk vsans (allowed active) (1-2) Trunk vsans (operational) (1-2) Trunk vsans (up) (1-2) Trunk vsans (isolated) () Trunk vsans (initializing) () Using Profile id 21 (interface GigabitEthernet2/1) Peer Information Peer Internet address is 10.10.10.2 and port is 3225 Special Frame is enabled (The Special Frame is enabled. It is used for security to verify that the tunnel remote end point is the correct pwwn of the switch.) Peer switch WWN is 20:00:00:05:30:00:59:de (This is the peer WWN of the remote switch. The pWWN of the switch can be found using the show wwn switch command.) Maximum number of TCP connections is 2 Time Stamp is enabled, acceptable time difference 3000 ms B-port mode disabled TCP Connection Information 2 Active TCP connections Control connection: Local 10.10.11.2:64792, Remote 10.10.10.2:3225 Data connection: Local 10.10.11.2:64794, Remote 10.10.10.2:3225 372 Attempts for active connections, 345 close of connections TCP Parameters Path MTU 1500 bytes Current retransmission timeout is 300 ms Round trip time: Smoothed 10 ms, Variance: 5 Advertized window: Current: 64 KB, Maximum: 64 KB, Scale: 1 Peer receive window: Current: 64 KB, Maximum: 64 KB, Scale: 1 Congestion window: Current: 2 KB, Slow start threshold: 1048560 KB Figure 5-9 shows a trace of an FCIP tunnel with a Special Frame. Figure 5-9 Trace of FCIP Tunnel with a Special Frame Special Frame Misconfiguration Examples The following example shows an incorrect peer WWN when using Special Frame. module-2# Jan 14 15:14:30 port1: 855278:FCIP21: SUP-> Set Port mode 1 Jan 14 15:14:30 port1: 855279:FCIP21: SUP-> Port VSAN (1) already set to same value Jan 14 15:14:30 port1: 855280:FCIP21: SUP-> Trunk mode (1) already set to same Jan 14 15:14:30 port1: 855281:FCIP21: SUP-> Enable tunnel ADMIN UP Jan 14 15:14:30 port1: 855282:FCIP21: Try to Bring UP the Tunnel Jan 14 15:14:30 port1: 855283:FCIP21: Start TCP listener with peer: 10.10.10.2:3225 Jan 14 15:14:30 port1: 855284:FCIP: Create a new listener object for 10.10.11.2:3225 Jan 14 15:14:30 port1: 855285:FCIP: Create FCIP Listener with local info: 10.10.11.2:3225 Jan 14 15:14:30 port1: 855286:FCIP21: Create a DE 0xd802d240 for this tunnel Jan 14 15:14:30 port1: 855287:FCIP21: Bind the DE 0xd802d240 [1] to tunnel LEP 0x80111570 Jan 14 15:14:30 port1: 855288:FCIP21: Start the active connection [1] to 10.10.10.2:3225 Jan 14 15:14:30 port1: 855289:FCIP21: Create a DE 0xd802d200 for this tunnel Jan 14 15:14:30 port1: 855290:FCIP21: Bind the DE 0xd802d200 [2] to tunnel LEP 0x80111570 Jan 14 15:14:30 port1: 855291:FCIP21: Start the active connection [2] to 10.10.10.2:3225 Jan 14 15:14:30 port1: 855292:FCIP21: Active Connect creation SUCCEEDED [1] Jan 14 15:14:30 port1: 855293:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00 Jan 14 15:14:30 port1: 855294:FCIP21: Setup for Special Frame handling: I'm Originator Jan 14 15:14:30 port1: 855295:FCIP21: Send the SF as Originator & wait for response Jan 14 15:14:30 port1: 855296:FCIP21: Setup timer to wait for SF Jan 14 15:14:30 port1: 855297:FCIP21: Active Connect creation SUCCEEDED [2] Jan 14 15:14:30 port1: 855298:FCIP21: Bind DE 2 to TCP-hdl 0xd8072000 Jan 14 15:14:30 port1: 855299:FCIP21: Setup for Special Frame handling: I'm Originator Jan 14 15:14:30 port1: 855300:FCIP21: Send the SF as Originator & wait for response Jan 14 15:14:30 port1: 855301:FCIP21: Setup timer to wait for SF Jan 14 15:14:30 port1: 855302:FCIP21: TCP Received a close connection [1] reason 1 Jan 14 15:14:30 port1: 855303:FCIP21: Delete the DE [1]0xd802d240 Jan 14 15:14:30 port1: 855304:FCIP21: DE [-670903744] 0x00000001 terminate tcp connection 0xd8072c00 Jan 14 15:14:30 port1: 855305:FCIP21: Delete the DE object [1] 0xd802d240 Jan 14 15:14:30 port1: 855306:FCIP21: lep not bound, close only de [1] Jan 14 15:14:30 port1: 855307:FCIP21: TCP Received a close connection [2] reason 1 Jan 14 15:14:30 port1: 855308:FCIP21: Delete the DE [2]0xd802d200 Jan 14 15:14:30 port1: 855309:FCIP21: Set lep operation state to DOWN Jan 14 15:14:30 port1: 855310:FCIP21: Start the bringup tunnel timer, timeout: 38740 Jan 14 15:14:30 port1: 855311:FCIP21: DE [-670903808] 0x00000002 terminate tcp connection 0xd8072000 Jan 14 15:14:30 port1: 855312:FCIP21: Delete the DE object [2] 0xd802d200 Jan 14 15:14:30 port1: 855313:FCIP21: lep not bound, close only de [2] Jan 14 15:14:31 port1: 855314:FCIP21: Received new TCP connection from peer: 10.10.10.2:64050 Jan 14 15:14:31 port1: 855315:FCIP21: Create a DE 0xd802d080 for this tunnel Jan 14 15:14:31 port1: 855316:FCIP21: Bind the DE 0xd802d080 [1] to tunnel LEP 0x80111570 Jan 14 15:14:31 port1: 855317:FCIP21: Bind DE 1 to TCP-hdl 0xd8072000 Jan 14 15:14:31 port1: 855318:FCIP21: Setup for Special Frame handling: I'm Responder Jan 14 15:14:31 port1: 855319:FCIP21: Setup timer to wait for SF Jan 14 15:14:31 port1: 855320:FCIP21: processing SF frame, I'm Responder Jan 14 15:14:31 port1: 855321:FCIP21: Source FC fabric name in SF (0x20000005300059de) does not match LEP's peer fabric WWN (0x20010005300059df) Jan 14 15:14:31 port1: 855322:FCIP21: Delete the DE [1]0xd802d080 Jan 14 15:14:31 port1: 855323:FCIP21: Set lep operation state to DOWN Jan 14 15:14:31 port1: 855324:FCIP21: DE [-670904192] 0x00000001 terminate tcp connection 0xd8072000 Jan 14 15:14:31 port1: 855325:FCIP21: Delete the DE object [1] 0xd802d080 Jan 14 15:14:31 port1: 855326:FCIP21: Received new TCP connection from peer: 10.10.10.2:64048 Jan 14 15:14:31 port1: 855327:FCIP21: Create a DE 0xd802d200 for this tunnel Jan 14 15:14:31 port1: 855328:FCIP21: Bind the DE 0xd802d200 [1] to tunnel LEP 0x80111570 Jan 14 15:14:31 port1: 855329:FCIP21: Bind DE 1 to TCP-hdl 0xd8072c00 Jan 14 15:14:31 port1: 855330:FCIP21: Setup for Special Frame handling: I'm Responder Jan 14 15:14:31 port1: 855331:FCIP21: Setup timer to wait for SF Jan 14 15:14:31 port1: 855332:FCIP21: processing SF frame, I'm Responder Jan 14 15:14:31 port1: 855333:FCIP21: Source FC fabric name in SF (0x20000005300059de) does not match LEP's peer fabric WWN (0x20010005300059df) Jan 14 15:14:31 port1: 855334:FCIP21: Delete the DE [1]0xd802d200 Jan 14 15:14:31 port1: 855335:FCIP21: Set lep operation state to DOWN Jan 14 15:14:31 port1: 855336:FCIP21: DE [-670903808] 0x00000001 terminate tcp connection 0xd8072c00 Jan 14 15:14:31 port1: 855337:FCIP21: Delete the DE object [1] 0xd802d200 Jan 14 15:14:37 port1: 855338:FCIP21: Received new TCP connection from peer: 10.10.10.2:64046 Jan 14 15:14:37 port1: 855339:FCIP21: Create a DE 0xd802d5c0 for this tunnel Jan 14 15:14:37 port1: 855340:FCIP21: Bind the DE 0xd802d5c0 [1] to tunnel LEP 0x80111570 Jan 14 15:14:37 port1: 855341:FCIP21: Bind DE 1 to TCP-hdl 0xd8071000 Jan 14 15:14:37 port1: 855342:FCIP21: Setup for Special Frame handling: I'm Responder Jan 14 15:14:37 port1: 855343:FCIP21: Setup timer to wait for SF Jan 14 15:14:37 port1: 855344:FCIP21: processing SF frame, I'm Responder Jan 14 15:14:37 port1: 855345:FCIP21: Source FC fabric name in SF (0x20000005300059de) does not match LEP's peer fabric WWN (0x20010005300059df) Jan 14 15:14:37 port1: 855346:FCIP21: Delete the DE [1]0xd802d5c0 Jan 14 15:14:37 port1: 855347:FCIP21: Set lep operation state to DOWN Jan 14 15:14:37 port1: 855348:FCIP21: DE [-670902848] 0x00000001 terminate tcp connection 0xd8071000 Jan 14 15:14:37 port1: 855349:FCIP21: Delete the DE object [1] 0xd802d5c0 Jan 14 15:14:37 port1: 855350:FCIP21: Received new TCP connection from peer: 10.10.10.2:64044 Jan 14 15:14:37 port1: 855351:FCIP21: Create a DE 0xd802cac0 for this tunnel Jan 14 15:14:37 port1: 855352:FCIP21: Bind the DE 0xd802cac0 [1] to tunnel LEP 0x80111570 Jan 14 15:14:37 port1: 855353:FCIP21: Bind DE 1 to TCP-hdl 0xd8071400 Jan 14 15:14:37 port1: 855354:FCIP21: Setup for Special Frame handling: I'm Responder Jan 14 15:14:37 port1: 855355:FCIP21: Setup timer to wait for SF Jan 14 15:14:37 port1: 855356:FCIP21: processing SF frame, I'm Responder Jan 14 15:14:37 port1: 855357:FCIP21: Source FC fabric name in SF (0x20000005300059de) does not match LEP's peer fabric WWN (0x20010005300059df) Jan 14 15:14:37 port1: 855358:FCIP21: Delete the DE [1]0xd802cac0 Jan 14 15:14:37 port1: 855359:FCIP21: Set lep operation state to DOWN Jan 14 15:14:37 port1: 855360:FCIP21: DE [-670905664] 0x00000001 terminate tcp connection 0xd8071400 Jan 14 15:14:37 port1: 855361:FCIP21: Delete the DE object [1] 0xd802cac0 Figure 5-10 shows a trace of an incorrect remote switch WWN using a Special Frame Figure 5-10 Trace of Incorrect Remote Switch WWN Using a Special Frame Troubleshooting iSCSI Issues There are several types of issues you can experience with iSCSI, including the following: •Troubleshooting iSCSI Authentication •Configuring Authentication •Troubleshooting Username/Password Configuration •Troubleshooting Radius Configuration •Troubleshooting Radius Routing Configuration •Troubleshooting Dynamic iSCSI Configuration Troubleshooting iSCSI Authentication iSCSI user login authentication is required with the Cisco MDS 9000 Family switch. There are two ways of the getting iSCSI users authenticated: either locally configured the in the switch's configuration file, or using the Radius server database. Figure 5-11 shows a successful iSCSI login for the Windows 2000 driver. Figure 5-11 Sucessful iSCSI Login Status Window On Solaris systems, a successful login is found in the /var/adm/messages directory, and should look similar to the following example: Mar 14 12:53:23 ca-sun1 iscsid[12745]: [ID 702911 daemon.notice] discovery process for 172.22.91.223 finished, exiting Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 448557 daemon.notice] logged into DiscoveryAddress 172.22.91.223:3260 isid 023d0040 Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 702911 daemon.notice] iSCSI target 2 = iqn.com.domainname.vrrp-11.gw.21000020375aff77 at0 Mar 14 12:58:45 ca-sun1 iscsid[12809]: [ID 529321 daemon.notice] logged into target iqn.com.domainname.vrrp-11.gw.21000020375aff77 7 Mar 14 12:58:45 ca-sun1 iscsid[12802]: [ID 702911 daemon.notice] iSCSI target 3 = iqn.com.domainname.vrrp-11.gw.21000020374baf02 at0 Mar 14 12:58:45 ca-sun1 iscsid[12810]: [ID 529321 daemon.notice] logged into target iqn.com.domainname.vrrp-11.gw.21000020374baf02 7 Figure 5-12 shows a failed iSCSI login for the Windows 2000 driver. Figure 5-12 Failed iSCSI Login Status Window On Solaris systems, a failed login is found in the /var/adm/messages directory and should look similar to the following example. Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.notice] login rejected: initiator error (01) Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.error] Hard discovery login failure to 172.22.91.223:3260 - exiting Mar 14 11:44:42 ca-sun1 iscsid[12561]: [ID 702911 daemon.notice] discovery process for 172.22.91.223 finished, exiting Configuring Authentication Whenever you experience a login failure, use the show authentication command to see if the iSCSI authentication is correctly defined. A sample of local authentication should look like this: switch# show authentication authentication method:none console:not enabled telnet/ssh:not enabled authentication method:radius console:not enabled telnet/ssh:not enabled iscsi:not enabled authentication method:local <<<<<<<<<<<<<<<<<<<< console:enabled telnet/ssh:enabled iscsi:enabled <<<<<<<<<<<<<<<<<<<< switch# If iSCSI is configured for radius authentication, it should looks like this: switch# show authentication authentication method:none console:not enabled telnet/ssh:not enabled authentication method:radius <<<<<<<<<<<<<<<<<<< console:not enabled telnet/ssh:not enabled iscsi:enabled <<<<<<<<<<<<<<<<<<< authentication method:local console:enabled telnet/ssh:enabled iscsi:enabled switch# Troubleshooting Username/Password Configuration The client side username and password should be check against either the switch's local configuration file or the Radius user database. Use the show user-account command to verify that the iSCSI users are configured correctly with the username and password, if authentication is against the switch's local user database. Note that the iSCSI password must be at least 16 characters. switch# sh user-account iscsi username:iscsi secret:1234567812345678 username:iscsiuser secret:1234567812345678 Troubleshooting Radius Configuration If authentication is against the Radius server, ping the Radius server to and from the switch to make sure it can be reached over IP. Execute the show radius-server command to make sure radius key and port for authentication and accounting match exactly with is configured on Radius server. switch# show radius-server retransmission count:3 timeout value:5 following RADIUS servers are configured: 171.71.49.197: available for authentication on port:1812 available for accounting on port:1813 RADIUS shared secret:radius Adjust the radius timeout and retransmission accordingly, as they have default value of 1 sec and 1 time. Figure 5-13 shows a Windows-based Radius server configuration. Figure 5-13 Windows-Based Raduis Server Configuration Dialog If the items shown above match, verify that the client username and password match those in the Radius database. The following example shows the results of the debug security radius comand, if the iSCSI client logs in successfully. switch# switch# Mar 4 23:16:20 securityd: received CHAP authentication request for user002 Mar 4 23:16:20 securityd: RADIUS is enabled, hence it will be tried first for CHAP authentication Mar 4 23:16:20 securityd: reading RADIUS configuration Mar 4 23:16:20 securityd: opening radius configuration for group:default Mar 4 23:16:20 securityd: opened the configuration successfully Mar 4 23:16:20 securityd: GET request for RADIUS global config Mar 4 23:16:20 securityd: got back the return value of global radius configuration operation:success Mar 4 23:16:20 securityd: closing RADIUS pss configuration Mar 4 23:16:20 securityd: opening radius configuration for group:default Mar 4 23:16:20 securityd: opened the configuration successfully Mar 4 23:16:20 securityd: GETNEXT request for radius index:0 addr: Mar 4 23:16:20 securityd: got some reply from 171.71.49.197 Mar 4 23:16:20 securityd: verified the response from:171.71.49.197 Mar 4 23:16:20 securityd: RADIUS server sent accept for authentication request for user002 Mar 4 23:16:25 securityd: received CHAP authentication request for user002 Mar 4 23:16:25 securityd: RADIUS is enabled, hence it will be tried first for CHAP authentication Mar 4 23:16:25 securityd: reading RADIUS configuration Mar 4 23:16:25 securityd: opening radius configuration for group:default Mar 4 23:16:25 securityd: opened the configuration successfully Mar 4 23:16:25 securityd: GET request for RADIUS global config Mar 4 23:16:25 securityd: got back the return value of global radius configuration operation:success Mar 4 23:16:25 securityd: closing RADIUS pss configuration Mar 4 23:16:25 securityd: opening radius configuration for group:default Mar 4 23:16:25 securityd: opened the configuration successfully Mar 4 23:16:25 securityd: GETNEXT request for radius index:0 addr: Mar 4 23:16:25 securityd: got some reply from 171.71.49.197 Mar 4 23:16:25 securityd: verified the response from:171.71.49.197 Mar 4 23:16:25 securityd: RADIUS server sent accept for authentication request for user002 Mar 4 23:16:25 securityd: got some reply from 171.71.49.197 Mar 4 23:16:25 securityd: verified the response from:171.71.49.197 Mar 4 23:16:25 securityd: RADIUS server sent accept for authentication request for user002 The example above shows that the iSCSI client has been authenticated 3 times, first for the switch login, and the second and third times for the SCSI drive login. The switch sends Radius attributes 1, 3, 4, 5, 6, 60 and 61 to the Radius server. The Radius server only needs to respond with request accept or request reject. The following example shows a radius authentication. 639 2003y3m14d 15h12m48s ------------------------------------------------ 640 2003y3m14d 15h12m48s Message Type=Access_Request 641 2003y3m14d 15h12m48s ID=243, Length=90 642 2003y3m14d 15h12m48s User name=user002 643 2003y3m14d 15h12m48s NAS IP address=2887147911 644 2003y3m14d 15h12m48s CHAP password=‰j÷<¸Wøøë-K-ëÙ<] 645 2003y3m14d 15h12m48s CHAP challenge=n8NÝgø§"__Ó4}Ôx 646 2003y3m14d 15h12m48s NAS port=1426 647 2003y3m14d 15h12m48s NAS port type=5 648 2003y3m14d 15h12m48s Service type=8 649 2003y3m14d 15h12m48s User (user002) authenticate OK. 650 2003y3m14d 15h12m54s ------------------------------------------------ 651 2003y3m14d 15h12m54s Message Type=Access_Request 652 2003y3m14d 15h12m54s ID=60, Length=90 653 2003y3m14d 15h12m54s User name=user002 654 2003y3m14d 15h12m54s NAS IP address=2887147911 655 2003y3m14d 15h12m54s CHAP password=_¿Éò_à!_AëC0__` õ 656 2003y3m14d 15h12m54s CHAP challenge=_/Ô½Ÿ×!âßÈ 4_´ZH 657 2003y3m14d 15h12m54s NAS port=1426 658 2003y3m14d 15h12m54s NAS port type=5 659 2003y3m14d 15h12m54s Service type=8 660 2003y3m14d 15h12m54s User (user002) authenticate OK. 661 2003y3m14d 15h12m54s ------------------------------------------------ 662 2003y3m14d 15h12m54s Message Type=Access_Request 663 2003y3m14d 15h12m54s ID=179, Length=90 664 2003y3m14d 15h12m54s User name=user002 665 2003y3m14d 15h12m54s NAS IP address=2887147911 666 2003y3m14d 15h12m54s CHAP password= --5Àùrfàxh 667 2003y3m14d 15h12m54s CHAP challenge=#ùÊÝü{_"__"´_Ux 668 2003y3m14d 15h12m54s NAS port=1426 669 2003y3m14d 15h12m54s NAS port type=5 670 2003y3m14d 15h12m54s Service type=8 671 2003y3m14d 15h12m54s User (user002) authenticate OK. Troubleshooting Radius Routing Configuration The switch sends the Radius authentication request from the mgmt0 interface, so the correct route to the Radius server must be defined. If no correct route is defined, the switch may send the Radius request from Gigabit Ethernet port. In that case, the Radius server returns the accept to the Gigabit Ethernet port and the switch does not get the response. The following example shows the output from the debug security radius command. switch# Mar 5 00:51:13 securityd: received CHAP authentication request for user002 Mar 5 00:51:13 securityd: RADIUS is enabled, hence it will be tried first for CHAP authentication Mar 5 00:51:13 securityd: reading RADIUS configuration Mar 5 00:51:13 securityd: opening radius configuration for group:default Mar 5 00:51:13 securityd: opened the configuration successfully Mar 5 00:51:13 securityd: GET request for RADIUS global config Mar 5 00:51:13 securityd: got back the return value of global radius configuration operation:success Mar 5 00:51:13 securityd: closing RADIUS pss configuration Mar 5 00:51:13 securityd: opening radius configuration for group:default Mar 5 00:51:13 securityd: opened the configuration successfully Mar 5 00:51:13 securityd: GETNEXT request for radius index:0 addr: Mar 5 00:51:18 securityd: sending data to 171.71.49.197 Mar 5 00:51:18 securityd: waiting for response from 171.71.49.197 Mar 5 00:51:23 securityd: sending data to 171.71.49.197 Mar 5 00:51:23 securityd: waiting for response from 171.71.49.197 Mar 5 00:51:28 securityd: sending data to 171.71.49.197 Mar 5 00:51:28 securityd: waiting for response from 171.71.49.197 Mar 5 00:51:33 securityd: trying out next server Mar 5 00:51:33 securityd: no response from RADIUS server for authentication user002 Mar 5 00:51:33 securityd: doing local chap authentication for user002 Mar 5 00:51:33 securityd: local chap authentication result for user002:user not present Troubleshooting Dynamic iSCSI Configuration A physical Fibre Channel target (target pWWN) presented as an iSCSI target, makes the physical targets accessible to iSCSI hosts. The IPS module presents physical Fibre Channel targets as iSCSI targets to iSCSI hosts in one of two ways: Dynamic Mapping or Static Mapping. By default, the IPS module does not automatically import Fibre Channel targets. Either dynamic or static mapping must be configured before the IPS module makes Fibre Channel targets available to iSCSI initiators. When both are configured, statically mapped Fibre Channel targets have the configured name. Targets that are not mapped will be advertised with the name created by the conventions explained in this section. Checking the Configuration Verify the configuration of the Gigabit Ethernet Interface by performing the following steps. •Ensure that you are configuring the proper slot or port. •Ensure that the Gigabit Ethernet interfaces are not shut down. Each Gigabit Ethernet interface is "partnered" with a virtual iSCSI interface. In order for iSCSI to operate on a particular Gigabit Ethernet, the virtual iSCSI interface for that port must be in a "no shutdown" state: interface Gigabit Ethernet 3/1 no shutdown . . . interface iscsi 3/1 no shutdown •Verify that the IP parameters are correct. •Verify authentication on gigabit Ethernet interface (None or Chap) matches the authentication configured on the iSCSI initiator. Note that configuring authentication at the interface level overrides the Global Authentication setting. •Verify gigabit Ethernet switchport parameters are correct (MTU, mode, etc.). Performing Basic Dynamic iSCSI Troubleshooting Keep the following in mind when performing basic dynamic iSCSI troubleshooting: •iscsi import target fc must be enabled in order to allow SCSI targets to be discovered by the logged-in iSCSI initiators. •Dynamic iSCSI configuration places all iSCSI initiators logging into the MDS9000 into VSAN 1 by default. •Any zoning in effect on the default VSAN (VSAN1) will also be applied to iSCSI-connected devices. Useful show Commands for Debugging Dynamic iSCSI Configuration The output from the following commands reflects correctly established iSCSI sessions. Execute the same commands on your switch and compare with the output below to help identify possible issues: show iscsi session detail show iscsi remote-node initiator show iscsi stats show iscsi stats detail show iscsi local-node show fcns data vsan 1 show flogi database vsan 1 show iscsi session detail switch#show iscsi session detail Initiator iqn.1987-05.com.cisco.02.F984BCA7E08C307E2D87A099B2D452F3.FULLMOON (FULLMOON) Session #1 (index 2) Target iqn.com.domainname.IPS-TEST.02-07.gw.202300a0b80b14da VSAN 1, ISID 000000000000, TSID 134, Status active, no reservation Type Normal, ExpCmdSN 44, MaxCmdSN 53, Barrier 0 MaxBurstSize 0, MaxConn 0, DataPDUInOrder No DataSeqInOrder No, InitialR2T Yes, ImmediateData No Registered LUN 0, Mapped LUN 0 Stats: PDU: Command: 42, Response: 36 Bytes: TX: 4960, RX: 0 Number of connection: 1 Connection #1 Local IP address: 0xa021ec8, Peer IP address: 0xa021eca CID 0, State: LOGGED_IN StatSN 43, ExpStatSN 0 MaxRecvDSLength 524288, our_MaxRecvDSLength 1024 CSG 3, NSG 3, min_pdu_size 48 (w/ data 48) AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0) Version Min: 0, Max: 0 FC target: Up, Reorder PDU: No, Marker send: No (int 0) Received MaxRecvDSLen key: Yes show iscsi remote-node initiator switch# sh iscsi remote-node initiator iSCSI Node name is iqn.1987-05.com.cisco.02.F984BCA7E08C307E2D87A099B2D452F3.FULLMOON iSCSI alias name: FULLMOON Node WWN is 20:0c:00:0b:be:77:72:42 (dynamic) Member of vsans: 1 Number of Virtual n_ports: 1 Virtual Port WWN is 20:0d:00:0b:be:77:72:42 (dynamic) Interface iSCSI 2/7, Portal group tag: 0x86 VSAN ID 1, FCID 0x750105 show iscsi local-node switch# sh iscsi local-node target: iqn.com.domainname.IPS-TEST.02-07.gw.202300a0b80b14da Port WWN 20:23:00:a0:b8:0b:14:da , VSAN 1 Auto-created node show fcns data vsan 1 switch# sh fcns data vsan 1 VSAN 1: ----------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE ----------------------------------------------------------------------- 0x750000 N 20:23:00:a0:b8:0b:14:da (SymBios) scsi-fcp:target 0x750102 N 10:00:00:00:c9:30:ba:06 (Emulex) scsi-fcp:init 0x750105 N 20:0d:00:0b:be:77:72:42 scsi-fcp:init isc..w 0x750201 N 50:08:05:f3:00:04:96:71 scsi-fcp 0x750301 N 50:08:05:f3:00:04:96:79 scsi-fcp 0x750400 N 20:00:00:02:3d:07:05:c0 (NuSpeed) scsi-fcp:init show flogi databse vsan 1 switch# show flogi database vsan 1 ----------------------------------------------------------- INTERFACE VSAN FCID PORT NAME NODE NAME ----------------------------------------------------------- fc1/1 1 0x750400 20:00:00:02:3d:07:05:c0 10:00:00:02:3d:07:05:c0 fc1/6 1 0x750000 20:23:00:a0:b8:0b:14:da 20:22:00:a0:b8:0b:14:d9 fc1/8 1 0x750102 10:00:00:00:c9:30:ba:06 20:00:00:00:c9:30:ba:06 fc1/9 1 0x750201 50:08:05:f3:00:04:96:71 50:08:05:f3:00:04:96:70 fc1/10 1 0x750301 50:08:05:f3:00:04:96:79 50:08:05:f3:00:04:96:70 iscsi2/7 1 0x750105 20:0d:00:0b:be:77:72:42 20:0c:00:0b:be:77:72:42 Virtual Target Access Control When creating a virtual target, double check the following: •Did you specify the correct port world-wide name? •If you are creating a virtual target from a subset of LUN(s) of a physical device, did you specify the correct fibre-channel (physical) LUN(s) and iSCSI (virtual) LUN(s)? •If using an access list to control access to the virtual target, did you specify the correct initiator(s)? If you are not using an access list to restrict access, did you specify all-initiator-permit to insure all initiators have access? •If restricting access to a particular interface(s), did you specify the correct gigabit Ethernet interface(s)? Useful show Commands for Debugging Static iSCSI Configuration The output from the following commands reflects correctly established iSCSI sessions. Execute the same commands on your switch and compare with the output below to help identify possible issues: show iscsi session detail show iscsi stats show iscsi stats detail show fcns data vsan 5 show flogi data vsan 5 show iscsi remote-node iscsi-session-detail tcp-parameters show iscsi session detail switch# show iscsi session detail Initiator iqn.1987-05.com.cisco.02.8cb3c18879bf356ce18e09679103235f.my-kayak (MY-KAYAK) Session #1 (index 84) Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52d6d VSAN 5, ISID 00023d000054, TSID 135, Status active, no reservation Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0 MaxBurstSize 0, MaxConn 0, DataPDUInOrder No DataSeqInOrder No, InitialR2T Yes, ImmediateData No Registered LUN 0, Mapped LUN 0 Stats: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 Connection #1 Local IP address: 0xa011d64, Peer IP address: 0xa011d65 CID 0, State: LOGGED_IN StatSN 1356, ExpStatSN 0 MaxRecvDSLength 524288, our_MaxRecvDSLength 1392 CSG 3, NSG 3, min_pdu_size 48 (w/ data 48) AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0) Version Min: 0, Max: 0 FC target: Up, Reorder PDU: No, Marker send: No (int 0) Received MaxRecvDSLen key: Yes Session #2 (index 85) Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52e2e VSAN 5, ISID 00023d000055, TSID 135, Status active, no reservation Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0 MaxBurstSize 0, MaxConn 0, DataPDUInOrder No DataSeqInOrder No, InitialR2T Yes, ImmediateData No Registered LUN 0, Mapped LUN 0 Stats: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 Connection #1 Local IP address: 0xa011d64, Peer IP address: 0xa011d65 CID 0, State: LOGGED_IN StatSN 1356, ExpStatSN 0 MaxRecvDSLength 524288, our_MaxRecvDSLength 1392 CSG 3, NSG 3, min_pdu_size 48 (w/ data 48) AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0) Version Min: 0, Max: 0 FC target: Up, Reorder PDU: No, Marker send: No (int 0) Received MaxRecvDSLen key: Yes Session #3 (index 86) Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c52356 VSAN 5, ISID 00023d000056, TSID 135, Status active, no reservation Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0 MaxBurstSize 0, MaxConn 0, DataPDUInOrder No DataSeqInOrder No, InitialR2T Yes, ImmediateData No Registered LUN 0, Mapped LUN 0 Stats: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 Connection #1 Local IP address: 0xa011d64, Peer IP address: 0xa011d65 CID 0, State: LOGGED_IN StatSN 1356, ExpStatSN 0 MaxRecvDSLength 524288, our_MaxRecvDSLength 1392 CSG 3, NSG 3, min_pdu_size 48 (w/ data 48) AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0) Version Min: 0, Max: 0 FC target: Up, Reorder PDU: No, Marker send: No (int 0) Received MaxRecvDSLen key: Yes Session #4 (index 87) Target iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a VSAN 5, ISID 00023d000057, TSID 135, Status active, no reservation Type Normal, ExpCmdSN 1356, MaxCmdSN 1366, Barrier 0 MaxBurstSize 0, MaxConn 0, DataPDUInOrder No DataSeqInOrder No, InitialR2T Yes, ImmediateData No Registered LUN 0, Mapped LUN 0 Stats: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 Connection #1 Local IP address: 0xa011d64, Peer IP address: 0xa011d65 CID 0, State: LOGGED_IN StatSN 1356, ExpStatSN 0 MaxRecvDSLength 524288, our_MaxRecvDSLength 1392 CSG 3, NSG 3, min_pdu_size 48 (w/ data 48) AuthMethod none, HeaderDigest None (len 0), DataDigest None (len 0) Version Min: 0, Max: 0 FC target: Up, Reorder PDU: No, Marker send: No (int 0) Received MaxRecvDSLen key: Yes show iscsi stats switch# sh iscsi stats iscsi2/7 iscsi2/7 5 minutes input rate 3336 bits/sec, 417 bytes/sec, 0 frames/sec 5 minutes output rate 120 bits/sec, 15 bytes/sec, 0 frames/sec iSCSI statistics 4112871 packets input, 4022464380 bytes 303100 Command pdus, 3740086 Data-out pdus, 3815901300 Data-out bytes, 0 fragments 1283306 packets output, 778111088 bytes 303069 Response pdus (with sense 3163), 195108 R2T pdus 715480 Data-in pdus, 715214528 Data-in bytes show iscsi stats detail switch# sh iscsi stats detail iscsi2/7 5 minutes input rate 3336 bits/sec, 417 bytes/sec, 0 frames/sec 5 minutes output rate 120 bits/sec, 15 bytes/sec, 0 frames/sec iSCSI statistics 4113028 packets input, 4022586092 bytes 303140 Command pdus, 3740200 Data-out pdus, 3816015476 Data-out bytes, 0 fragments 1283382 packets output, 778114736 bytes 303109 Response pdus (with sense 3163), 195141 R2T pdus 715480 Data-in pdus, 715214528 Data-in bytes iSCSI Forward: Command: 303140 PDUs (Received: 303140) Data-Out (Write): 3740200 PDUs (Received 3740200), 0 fragments, 3816015476 b ytes TMF Request: 0 (Received 28) FCP Forward: Xfer_rdy: 195141 (Received: 195141) Data-In: 715480 (Received: 715622), 715214528 bytes Response: 303109 (Received: 303322), with sense 3163 TMF Resp: 0 iSCSI Stats: Login: attempt: 16726, succeed: 114, fail: 16606, authen fail: 0 Rcvd: NOP-Out: 36164, Sent: NOP-In: 36160 NOP-In: 0, Sent: NOP-Out: 0 TMF-REQ: 28, Sent: TMF-RESP: 0 Text-REQ: 39, Sent: Text-RESP: 0 SNACK: 0 Unrecognized Opcode: 0, Bad header digest: 0 Command in window but not next: 0, exceed wait queue limit: 0 Received PDU in wrong phase: 0 FCP Stats: Total: Sent: 4110679 Received: 1281518 (Error: 0, Unknown: 0) Sent: PLOGI: 66367, Rcvd: PLOGI_ACC: 71, PLOGI_RJT: 66296 PRLI: 71, Rcvd: PRLI_ACC: 71, PRLI_RJT: 0, Error resp: 0 LOGO: 0, Rcvd: LOGO_ACC: 0, LOGO_RJT: 0 ABTS: 87, Rcvd: ABTS_ACC: 0 TMF REQ: 0 Self orig command: 213, Rcvd: data: 142, resp: 213 Rcvd: PLOGI: 614, Sent: PLOGI_ACC: 490 LOGO: 197, Sent: LOGO_ACC: 111 PRLI: 0, Sent: PRLI_ACC: 0 ABTS: 183 iSCSI Drop: Command: Target down 0, Task in progress 0, LUN map fail 0 CmdSeqNo not in window 0, No Exchange ID 0, Reject 0 Persistent Resv 0 Data-Out: 0, TMF-Req: 0 FCP Drop: Xfer_rdy: 0, Data-In: 0, Response: 0 Buffer Stats: Buffer less than header size: 48475, Partial: 2524437, Split: 3550971 Pullup give new buf: 48475, Out of contiguous buf: 0, Unaligned m_data: 0 show fcns database switch# sh fcns data vsan 5 VSAN 5: -------------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE -------------------------------------------------------------------------- 0x610002 N 20:0b:00:0b:be:77:72:42 scsi-fcp:init isc..w 0x6101e1 NL 22:00:00:20:37:c5:2d:6d (Seagate) scsi-fcp:target 0x6101e2 NL 22:00:00:20:37:c5:2e:2e (Seagate) scsi-fcp:target 0x6101e4 NL 22:00:00:20:37:c5:23:56 (Seagate) scsi-fcp:target 0x6101e8 NL 22:00:00:20:37:c5:26:0a (Seagate) scsi-fcp:target Total number of entries = 5 show flogi database switch# sh flogi data vsan 5 --------------------------------------------------------------------------- INTERFACE VSAN FCID PORT NAME NODE NAME --------------------------------------------------------------------------- fc1/12 5 0x6101e8 22:00:00:20:37:c5:26:0a 20:00:00:20:37:c5:26:0a fc1/12 5 0x6101e4 22:00:00:20:37:c5:23:56 20:00:00:20:37:c5:23:56 fc1/12 5 0x6101e2 22:00:00:20:37:c5:2e:2e 20:00:00:20:37:c5:2e:2e fc1/12 5 0x6101e1 22:00:00:20:37:c5:2d:6d 20:00:00:20:37:c5:2d:6d iscsi2/8 5 0x610002 20:0b:00:0b:be:77:72:42 20:0a:00:0b:be:77:72:42 Total number of flogi = 5. show iscsi remote-node iscsi-session-detail tcp parameters switch# sh iscsi remote-node iscsi-session-detail tcp-parameters iSCSI Node name is iqn.1987-05.com.cisco.02.8cb3c18879bf356ce18e09679103235f.my-kayak iSCSI alias name: MY-KAYAK Node WWN is 20:0a:00:0b:be:77:72:42 (dynamic) Member of vsans: 5 Number of Virtual n_ports: 1 Virtual Port WWN is 20:0a:00:0b:be:77:72:42 (dynamic) Interface iSCSI 2/8, Portal group tag is 0x87 VSAN ID 0, FCID 0x0 No. of FC sessions: 1 No. of iSCSI sessions: 1 iSCSI session details Target node: Statistics: PDU: Command: 0, Response: 0 Bytes: TX: 0, RX: 0 Number of connection: 1 TCP parameters Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1026 Path MTU 1500 bytes Current retransmission timeout is 310 ms Round trip time: Smoothed 179 ms, Variance: 33 Advertized window: Current: 62 KB, Maximum: 62 KB, Scale: 0 Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0 Congestion window: Current: 63 KB VSAN ID 5, FCID 0x610002 No. of FC sessions: 4 No. of iSCSI sessions: 4 iSCSI session details Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a Statistics: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 TCP parameters Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048 Path MTU 1500 bytes Current retransmission timeout is 300 ms Round trip time: Smoothed 165 ms, Variance: 35 Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0 Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0 Congestion window: Current: 63 KB Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a Statistics: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 TCP parameters Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048 Path MTU 1500 bytes Current retransmission timeout is 300 ms Round trip time: Smoothed 165 ms, Variance: 35 Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0 Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0 Congestion window: Current: 63 KB Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a Statistics: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 TCP parameters Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048 Path MTU 1500 bytes Current retransmission timeout is 300 ms Round trip time: Smoothed 165 ms, Variance: 35 Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0 Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0 Congestion window: Current: 63 KB Target node: iqn.com.domainname.IPS-TEST.02-08.gw.2200002037c5260a Statistics: PDU: Command: 13, Response: 13 Bytes: TX: 1344, RX: 0 Number of connection: 1 TCP parameters Connection Local 10.1.29.100:3260, Remote 10.1.29.101:1048 Path MTU 1500 bytes Current retransmission timeout is 300 ms Round trip time: Smoothed 165 ms, Variance: 35 Advertized window: Current: 61 KB, Maximum: 62 KB, Scale: 0 Peer receive window: Current: 63 KB, Maximum: 63 KB, Scale: 0 Congestion window: Current: 63 KB Fine Tuning/Troubleshooting IPS iSCSI TCP Performance Generally there are two segments which will effect the iSCSI performance. First is the FC side flow control mechanism (Buffer to Buffer Credits, and the FC max frame size) Second is the TCP/IP side. As in all TCP/IP-related throughput issues, the most important criteria are the Receive/Send Window Sizes on both TCP end points, RTT (Round Trip Time), actual available bandwidth between the TCP peers, the MSS (Maximum Segment Size) and the support for higher MTUs between the peers.. The following commands will give you information related to these criteria. show iscsi remote-node iscsi-session-detail tcp-parameters show ips stats tcp interface gigabitethernet 2/1 detail show interface iscsi <x/y> show interface gigabitethernet <x/y> show interface fc <x/y> show iscsi remote-node fcp-session-detail The default MTU size of an ethernet network is 1500, while the FC networks generally support maximum frame sizes of 2148 bytes.. This means that an iSCSI gateway will need to chop the FC frames into two TCP segments or IP fragments while transferring form the FC side to the IP side depending on how this chopping is implemented within the device. The IPS module adjusts the Receive Data Field Size that it advertises to its FC partner, according to the MTU that is configured on the corresponding Gigagbit port of an iSCSI client. If left to default MTU, the FC frame size from the Target device is decreased to match the maximum Ethernet frame size, so that the switching of the packet through the switch is swifter. Hence, one point of performance tuning is increasing the MTU of the IP network between the peers. In this setup there is one single Catalyst switch. Jumbo support was enabled for the IPS ports, as well as the MTU for the VLAN corresponding to these ports was increased. The second point is to increase the TCP window size of the iSCSI end points. Depending on the latency between the iSCSI client and IPS, this will need fine tuning. The switch's iSCSI configuration defines the TCP window size in kilobytes. Any value starting with 64K ( > 65535 = 0xFFFF bytes) will automatically trigger TCP window scaling according to RFC1323. The IPS TCP Window scaling begins only when the remote peer (iSCSI client in this case) requests it. This means that you need to configure the TCP stack of your client to trigger this functionality (see Figure 5-14). For the FC side, depending on the direction of the traffic, the B2Bcredit of the ports corresponding to the input interfaces (feeding/receiving traffic to/from the iSCSI side) could be increased, especially in the case of local Gigabit Ethernet attached iSCSI clients. Each of the above-mentioned commands are taken from a scenario in Figure 5-14. The important sections of the displays are highlighted/italicized or bolded. Figure 5-14 IPS Window Scaling Lab Setup This is the lab setup that was used in collecting the performance-related information. The server was an IBM PentiumIII Server: Dual CPU @ 1.13 Ghz The tcp window-size at both ends was set to 1MB (1024K). The IBM ESS Shark had a hardcoded B2B value of 64 (not configurable). The fcrxbbcredit on the corresponding switch port (fc1/3) was set to the same value. The C4 and C8 represented the corresponding port WWPNs for the IBM Shark storage subsytem. See below for full WWPN: C4 Ë 50:05:07:63:00:c4:94:4c (in VSAN 778) C8 Ë 50:05:07:63:00:c8:94:4c (in VSAN 777) Configuration from the Bottom MDS The following example is the configuration for the 9216 switch shown in Figure 5-14. iscsi initiator name iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas pWWN 20:05:00:0c:30:6c:24:42 vsan 777 vsan 778 iscsi virtual-target name shark_nas pWWN 50:05:07:63:00:c8:94:4c fc-lun 0000 iscsi-lun 0000 secondary-pwwn 50:05:07:63:00:c4:94:4c pWWN 50:05:07:63:00:c8:94:4c fc-lun 0001 iscsi-lun 0001 secondary-pwwn 50:05:07:63:00:c4:94:4c initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas permit interface GigabitEthernet2/1 ip address 10.48.69.251 255.255.255.192 iscsi authentication none no shutdown vrrp 1 priority 110 address 10.48.69.250 (This is the iSCSI target IP address for the Windows iSCSI client.) no shutdown interface iscsi2/1 tcp pmtu-enable tcp window-size 1024 (To increase the receive window size of the IPS module (in kilobytes).) tcp sack-enable no shutdown To verify the connectivity between your client and the IPS iSCSI service: MDS_BOTTOM# show ips stats tcp interface gig 2/1 TCP Statistics for port GigabitEthernet2/1 Connection Stats 0 active openings, 24 accepts 0 failed attempts, 0 reset received, 24 established Segment stats 7047380 received, 56080130 sent, 0 retransmitted 0 bad segments received, 0 reset sent TCP Active Connections Local Address Remote Address State Send-Q Recv-Q 10.48.69.250:3260 10.48.69.233:1026 ESTABLISH 0 0 10.48.69.250:3260 10.48.69.233:1057 ESTABLISH 34560 0 0.0.0.0:3260 0.0.0.0:0 LISTEN 0 0 MDS_BOTTOM# show flogi database vsan 777 --------------------------------------------------------------------------- INTERFACE VSAN FCID PORT NAME NODE NAME --------------------------------------------------------------------------- fc1/3 777 0x610000 50:05:07:63:00:c8:94:4c 50:05:07:63:00:c0:94:4c iscsi2/1 777 0x610001 20:05:00:0c:30:6c:24:42 20:00:00:0c:30:57:5e:c2 Total number of flogi = 2. MDS_BOTTOM# show fcns dabase vsan 777 VSAN 777: -------------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE -------------------------------------------------------------------------- 0x610000 N 50:05:07:63:00:c8:94:4c (IBM) scsi-fcp:target fc.. 0x610001 N 20:05:00:0c:30:6c:24:42 scsi-fcp:init isc..w Total number of entries = 2 MDS_BOTTOM# MDS_BOTTOM# show module** Mod Ports Module-Type Model Status --- ----- ------------------------------- ------------------ ------------ 1 16 1/2 Gbps FC/Supervisor DS-X9216-K9-SUP active * 2 8 IP Storage Module DS-X9308-SMIP ok Mod Sw Hw World-Wide-Name(s) (WWN) --- ----------- ------ -------------------------------------------------- 1 1.1(0.133c) 1.0 20:01:00:0c:30:57:5e:c0 to 20:10:00:0c:30:57:5e:c0 2 1.1(0.133c) 0.2 20:41:00:0c:30:57:5e:c0 to 20:48:00:0c:30:57:5e:c0 Mod MAC-Address(es) Serial-Num --- -------------------------------------- ---------- 1 00-0b-be-f8-7f-00 to 00-0b-be-f8-7f-04 JAB070804Q3 2 00-05-30-00-a8-56 to 00-05-30-00-a8-62 JAB070205am * this terminal session MDS_BOTTOM# MDS_BOTTOM# show iscsi remote iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iSCSI alias name: SHARK-NAS Node WWN is 20:00:00:0c:30:57:5e:c2 (dynamic) Member of vsans: 777, 778 Number of Virtual n_ports: 1 Virtual Port WWN is 20:05:00:0c:30:6c:24:42 (configured) Interface iSCSI 2/1, Portal group tag: 0x1001 VSAN ID 778, FCID 0x7c0000 VSAN ID 777, FCID 0x610001 MDS_BOTTOM# show iscsi local target: shark_nas Port WWN 50:05:07:63:00:c8:94:4c (This is the port of the Shark connected to mds_bottom.) Secondary PWWN 50:05:07:63:00:c4:94:4c (This is the port of the Shark connected to mds_top.) Configured node No. of LU mapping: 2 iSCSI LUN: 0000, FC LUN: 0000 iSCSI LUN: 0001, FC LUN: 0001 No. of initiators permitted: 1 initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas is permitted all initiator permit is disabled MDS_BOTTOM# MDS_BOTTOM# show interface iscsi 2/1 iscsi2/1 is up Hardware is GigabitEthernet Port WWN is 20:41:00:0c:30:57:5e:c0 Admin port mode is ISCSI Port mode is ISCSI Speed is 1 Gbps Number of iSCSI session: 2, Number of TCP connection: 2 Configured TCP parameters Local Port is 3260 PMTU discover is enabled (default) (This is especially required if there may be devices without jumbo support in the path. The initial TCP 3-way handshake will establish a session with a high MSS value (provided both the IPS module and the iSCSI client are configured/capable) even if there are devices without jumbo frame support in the path. Without PMTU discovery, this will create problems.) Keepalive-timeout 60 Initial-retransmit-time 300 (If there is high delay between the peers, this is one of the parameters that can be adjusted. There's no real formula, rather use trial and error to find the optimum value for your network. Try lower values as well as higher ones, and get hints from the show ips stats tcp display.) Max-retransmissions 8 Window-size 1024000 Sack is enabled Forwarding mode: pass-thru 5 minutes input rate 410824 bits/sec, 51353 bytes/sec, 1069 frames/sec 5 minutes output rate 581291520 bits/sec, 72661440 bytes/sec, 53302 frames/sec iSCSI statistics 1072393 packets input, 51482588 bytes 1072305 Command pdus, 0 Data-out pdus, 0 Data-out bytes, 0 fragments 53430805 packets output, 72837086312 bytes 1072273 Response pdus (with sense 9), 0 R2T pdus 52358444 Data-in pdus, 70272402880 Data-in bytes MDS_BOTTOM# show iscsi remote initiator iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iscsi tcp iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iSCSI alias name: SHARK-NAS Node WWN is 20:00:00:0c:30:57:5e:c2 (dynamic) Member of vsans: 777, 778 Number of Virtual n_ports: 1 Virtual Port WWN is 20:00:00:0c:30:57:5e:c2 (configured) Interface iSCSI 2/1, Portal group tag is 0x1001 VSAN ID 0, FCID 0x 0 No. of FC sessions: 1 No. of iSCSI sessions: 1 iSCSI session details Target node: Statistics: PDU: Command: 0, Response: 0 Bytes: TX: 0, RX: 0 Number of connection: 1 TCP parameters Local 10.48.69.250:3260, Remote 10.48.69.233:1026 Path MTU: 1500 bytes Retransmission timeout: 300 ms Round trip time: Smoothed 150 ms, Variance: 31 Advertized window: Current: 998 KB, Maximum: 1000 KB, Scale: 4 Peer receive window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4 Congestion window: Current: 12 KB VSAN ID 777, FCID 0x610001 No. of FC sessions: 1 No. of iSCSI sessions: 1 iSCSI session details Target node: shark_nas Statistics: PDU: Command: 392051, Response: 392042 Bytes: TX: 25692593152, RX: 0 Number of connection: 1 TCP parameters Local 10.48.69.250:3260, Remote 10.48.69.233:1057 Path MTU: 1500 bytes Retransmission timeout: 300 ms Round trip time: Smoothed 2 ms, Variance: 1 (Watch out for these numbers. The above output is for a TCP session that goes only through one Gigabit Ethernet switch. When there are multiple router hops, as well as WAN links in the middle, the RTT will grow, and the variance will fluctuate with higher values. You may need to adjust the Retransmission timeout.) Advertized window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4 (This is the window size set on the Windows Client. See Figure 5-15.) Peer receive window: Current: 1000 KB, Maximum: 1000 KB, Scale: 4 (This is the window size set on the IPS iscsi interface. See Figure 5-15.) Figure 5-15 Congestion window: Current: 24 KB Changing TCP Parameters To change TCP paramaters in the Windows registry use the Registry Parameters above as an example. Setting the Tcp1323Opts (marked green) to 3, sets two bits ON, one for Window Scaling, the other for the TimeStamp Option. We are only interested in the Window Scaling here. User should be aware that editing registry is a high risk operation and can render the System unusable requiring a reinstall of the whole operating system !! Only advanced users should do this. MDS_BOTTOM# show interface gigabitethernet 2/1 GigabitEthernet2/1 is up Hardware is GigabitEthernet, address is 0005.3000.a85a Internet address is 10.48.69.251/26 MTU 1500 bytes, BW 1000000 Kbit (Better throughput can be achieved if the MTU of both the client NIC, as well as the IPS Gigabit interface is changed for higher MTU, provided the network in the middle supports jumbo frames.) Port mode is IPS Speed is 1 Gbps Beacon is turned off 5 minutes input rate 3957384 bits/sec, 494673 bytes/sec, 6716 frames/sec 5 minutes output rate 609420144 bits/sec, 76177518 bytes/sec, 53267 frames/sec 6979248 packets input, 514206826 bytes 0 multicast frames, 0 compressed 0 input errors, 0 frame, 0 overrun 0 fifo 55551272 packets output, 79456286344 bytes, 0 underruns 0 output errors, 0 collisions, 0 fifo 0 carrier errors MDS_BOTTOM# show interface fc 1/3 fc1/3 is up Hardware is Fibre Channel Port WWN is 20:03:00:0c:30:57:5e:c0 Admin port mode is auto, trunk mode is on Port mode is F, FCID is 0x610000 Port vsan is 777 Speed is 1 Gbps Transmit B2B Credit is 64 (This depends on the storage device; it can not be changed.) Receive B2B Credit is 64 (This is the switch's receive; the default is 16 for F/FL ports.) Receive data field Size is 2112 Beacon is turned off 5 minutes input rate 524947584 bits/sec, 65618448 bytes/sec, 49382 frames/sec 5 minutes output rate 470432 bits/sec, 58804 bytes/sec, 988 frames/sec 64560099 frames input, 85630621884 bytes 0 discards, 3 errors 0 CRC, 0 unknown class 0 too long, 0 too short 1291861 frames output, 76739928 bytes 0 discards, 0 errors 0 input OLS, 0 LRR, 0 NOS, 0 loop inits 3 output OLS, 3 LRR, 0 NOS, 2 loop inits MDS_BOTTOM# show ips stats tcp interface gigabit 2/1 detail TCP Statistics for port GigabitEthernet2/1 TCP send stats 56252632 segments, 76746280484 bytes 56100434 data, 152173 ack only packets 1 control (SYN/FIN/RST), 0 probes, 24 window updates 0 segments retransmitted, 0 bytes (The lower the better. Increasing values would show that the IP network in the middle has issues, or that the TCP peer has problems ACK'ing the data that IPS sends to it.) 0 retransmitted while on ethernet send queue, 0 packets split (Packets Split shows the IP level fragmentation; would increase if the MTU of this interface is higher than the MSS of the iSCSI client; for example, client MTU default 1500 => MSS=1460, but IPS Gigabit MTU changed to 2500).) 3 delayed acks sent TCP receive stats 7068115 segments, 1061853 data packets in sequence, 54245464 bytes in sequence 0 predicted ack, 187 predicted data 0 bad checksum, 0 multi/broadcast, 0 bad offset 0 no memory drops, 0 short segments 0 duplicate bytes, 0 duplicate packets 0 partial duplicate bytes, 0 partial duplicate packets 0 out-of-order bytes, 0 out-of-order packets 0 packet after window, 0 bytes after window 0 packets after close 7067879 acks, 76746255713 ack bytes, 0 ack toomuch, 21 duplicate acks 0 ack packets left of snd_una, 0 non-4 byte aligned packets 5980106 window updates, 0 window probe 50 pcb hash miss, 0 no port, 0 bad SYN, 0 paws drops TCP Connection Stats 0 attempts, 24 accepts, 24 established 22 closed, 2 drops, 0 conn drops 0 drop in retransmit timeout, 0 drop in keepalive timeout 0 drop in persist drops, 0 connections drained TCP Miscellaneous Stats 7054414 segments timed, 7067879 rtt updated 0 retransmit timeout, 0 persist timeout 19 keepalive timeout, 19 keepalive probes TCP SACK Stats 0 recovery episodes, 54218621 data packets, 77791012992 data bytes 0 data packets retransmitted, 0 data bytes retransmitted 1 connections closed, 0 retransmit timeouts TCP SYN Cache Stats 24 entries, 24 connections completed, 0 entries timed out 0 dropped due to overflow, 0 dropped due to RST 0 dropped due to ICMP unreach, 0 dropped due to bucket overflow 0 abort due to no memory, 0 duplicate SYN, 2 no-route SYN drop 0 hash collisions, 0 retransmitted TCP Active Connections Local Address Remote Address State Send-Q Recv-Q 10.48.69.250:3260 10.48.69.233:1026 ESTABLISH 0 0 10.48.69.250:3260 10.48.69.233:1057 ESTABLISH 29296 0 0.0.0.0:3260 0.0.0.0:0 LISTEN 0 0 MDS_BOTTOM# show iscsi remote-node fcp-session-detail iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iSCSI alias name: SHARK-NAS Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic) Member of vsans: 777, 778 Number of Virtual n_ports: 1 Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured) Interface iSCSI 2/1, Portal group tag is 0x1001 VSAN ID 0, FCID 0x610001 No. of FC sessions: 1 No. of iSCSI sessions: 1 FCP Session details Target FCID: 0x000000 (S_ID of this session: 0x000000) pWWN: 00:00:00:00:00:00:00:00 nWWN: 00:00:00:00:00:00:00:00 Session state: INIT 1 iSCSI sessions share this FC session Target: Negotiated parameters RcvDataFieldSize 2048 our_RcvDataFieldSize 1392 Will be set to maximum 2048 if the MTU is increased on the Gigabit interface corresponding to this iscsi remote-node. See below for an example. MaxBurstSize 0, EMPD: FALSE Random Relative Offset: FALSE, Sequence-in-order: Yes Statistics: PDU: Command: 0, Response: 0 VSAN ID 777, FCID 0x610001 No. of FC sessions: 1 No. of iSCSI sessions: 1 FCP Session details Target FCID: 0x610000 (S_ID of this session: 0x610001) pWWN: 50:05:07:63:00:c8:94:4c Verify that the local port, rather than a remote that is reached via an ISL link is used for the storage target by the above field to avoid suboptimal access to storage. You can see that C8 is the locally attached port of the shark storage subsystem. nWWN: 50:05:07:63:00:c8:94:4c Session state: LOGGED_IN 1 iSCSI sessions share this FC session Target: shark_nas Negotiated parameters RcvDataFieldSize 2048 our_RcvDataFieldSize 1392 MaxBurstSize 0, EMPD: FALSE Random Relative Offset: FALSE, Sequence-in-order: Yes Statistics: PDU: Command: 0, Response: 1612007 MDS_BOTTOM# Thefollowing example shows the effect of changing the Gigabit MTU on FC RcvDataFieldSize. interface GigabitEthernet2/1 ip address 10.48.69.249 255.255.255.192 iscsi authentication none switchport mtu 2440 no shutdown vrrp 1 address 10.48.69.250 no shutdown MDS_Top# show iscsi remote-node iscsi-session-detail tcp-parameters iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iSCSI alias name: SHARK-NAS Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic) Member of vsans: 777, 778 Number of Virtual n_ports: 1 Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured) Interface iSCSI 2/1, Portal group tag is 0x1001 VSAN ID 0, FCID 0x 0 No. of FC sessions: 1 No. of iSCSI sessions: 1 iSCSI session details Target node: Statistics: PDU: Command: 0, Response: 0 Bytes: TX: 0, RX: 0 Number of connection: 1 TCP parameters Local 10.48.69.250:3260, Remote 10.48.69.233:1026 Path MTU: 2440 bytes Retransmission timeout: 420 ms Round trip time: Smoothed 94 ms, Variance: 83 Advertized window: Current: 999 KB, Maximum: 1000 KB, Scale: 4 Peer receive window: Current: 1024 KB, Maximum: 1024 KB, Scale: 4 Congestion window: Current: 11 KB VSAN ID 777, FCID 0x700003 No. of FC sessions: 1 No. of iSCSI sessions: 1 iSCSI session details Target node: shark_nas Statistics: PDU: Command: 11, Response: 11 Bytes: TX: 2152, RX: 0 Number of connection: 1 TCP parameters Local 10.48.69.250:3260, Remote 10.48.69.233:1040 Path MTU: 2440 bytes Retransmission timeout: 370 ms Round trip time: Smoothed 47 ms, Variance: 81 Advertized window: Current: 999 KB, Maximum: 1000 KB, Scale: 4 Peer receive window: Current: 1024 KB, Maximum: 1024 KB, Scale: 4 Congestion window: Current: 12 KB MDS_Top# show iscsi remote-node fcp-session-detail iSCSI Node name is iqn.1987-05.com.cisco:02.75af2f95624c.shark-nas iSCSI alias name: SHARK-NAS Node WWN is 20:00:00:0c:30:6c:24:42 (dynamic) Member of vsans: 777, 778 Number of Virtual n_ports: 1 Virtual Port WWN is 20:00:00:0c:30:6c:24:42 (configured) Interface iSCSI 2/1, Portal group tag is 0x1001 VSAN ID 0, FCID 0x 0 No. of FC sessions: 1 No. of iSCSI sessions: 1 FCP Session details Target FCID: 0x000000 (S_ID of this session: 0x000000) pWWN: 00:00:00:00:00:00:00:00 nWWN: 00:00:00:00:00:00:00:00 Session state: INIT 1 iSCSI sessions share this FC session Target: Negotiated parameters RcvDataFieldSize 2048 our_RcvDataFieldSize 2048 MaxBurstSize 0, EMPD: FALSE Random Relative Offset: FALSE, Sequence-in-order: Yes Statistics: PDU: Command: 0, Response: 0 VSAN ID 777, FCID 0x700003 No. of FC sessions: 1 No. of iSCSI sessions: 1 FCP Session details Target FCID: 0x700000 (S_ID of this session: 0x700003) pWWN: 50:05:07:63:00:c4:94:4c nWWN: 50:05:07:63:00:c4:94:4c Session state: LOGGED_IN 1 iSCSI sessions share this FC session Target: shark_nas Negotiated parameters RcvDataFieldSize 2048 our_RcvDataFieldSize 2048 MaxBurstSize 0, EMPD: FALSE Random Relative Offset: FALSE, Sequence-in-order: Yes Statistics: PDU: Command: 0, Response: 11 To get the real benefit of this increased MTU and higher FC Frame Size, the path between the iSCSI client and the IPS iSCSI interface (as well as the host NIC) has to be capable of supporting this high MTU. If you do not have access to the host, one way to see if the host is also configured for high MTU/MSS (as well as the path in the middle) is to check the split packets field in the show ips stats tcp display : However this is a generic display for all TCP sessions. That is, if you have some Hosts with high MTU-capable NICs, and some others without, it may be difficult to assess which is which. MDS_Top# show ips stats tcp interface gig 2/1 detail (truncated output) TCP Statistics for port GigabitEthernet2/1 TCP send stats 10 segments, 240 bytes 5 data, 5 ack only packets 0 control (SYN/FIN/RST), 0 probes, 0 window updates 0 segments retransmitted, 0 bytes 0 retransmitted while on ethernet send queue, 0 packets split ......... TCP Active Connections Local Address Remote Address State Send-Q Recv-Q 10.48.69.250:3260 10.48.69.233:1026 ESTABLISH 0 0 10.48.69.250:3260 10.48.69.233:1040 ESTABLISH 0 0 0.0.0.0:3260 0.0.0.0:0 LISTEN 0 0 MDS_Top# Afterward, traffic starts flowing from the FC storage towards the server that is connected via iSCSI to the IPS. MDS_Top# show ips stats tcp interface gig 2/1 detail (truncated output) TCP Statistics for port GigabitEthernet2/1 TCP send stats 715535 segments, 943511612 bytes 712704 data, 2831 ack only packets 0 control (SYN/FIN/RST), 0 probes, 0 window updates 0 segments retransmitted, 0 bytes 0 retransmitted while on ethernet send queue, 345477 packets split .........
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks

Table Of Contents

Troubleshooting IP Storage Issues

Overview

Troubleshooting IP Connections

Verifying Basic Connectivity

Verifying Static IP Routing

Troubleshooting FCIP Connections

One-to-One FCIP Tunnel Creation and Monitoring

One to three FCIP tunnel creation and monitoring

FCIP Profile Misconfiguration Examples

Interface FCIP Misconfiguration Examples

FCIP Special Frame Tunnel Creation and Monitoring

Special Frame Misconfiguration Examples

Troubleshooting iSCSI Issues

Troubleshooting iSCSI Authentication

Configuring Authentication

Troubleshooting Username/Password Configuration

Troubleshooting Radius Configuration

Troubleshooting Radius Routing Configuration

Troubleshooting Dynamic iSCSI Configuration

Checking the Configuration

Performing Basic Dynamic iSCSI Troubleshooting

Useful show Commands for Debugging Dynamic iSCSI Configuration

show iscsi session detail

show iscsi remote-node initiator

show iscsi local-node

show fcns data vsan 1

show flogi databse vsan 1

Virtual Target Access Control

Useful show Commands for Debugging Static iSCSI Configuration

show iscsi session detail

show iscsi stats

show iscsi stats detail

show fcns database

show flogi database

show iscsi remote-node iscsi-session-detail tcp parameters

Fine Tuning/Troubleshooting IPS iSCSI TCP Performance

Lab Setup

Configuration from the Bottom MDS

Changing TCP Parameters
