Cisco 1700 Series Modular Access Routers

Cisco 1701 ADSL Security Access Router Cabling and Installation Quick Start Guide


Table Of Contents

Cisco 1701 ADSL Security Access Router Cabling and Installation

Cisco One-Year Limited Hardware Warranty Terms


Parts List

Items You Need to Provide

Connecting the Router

Configuring the Router Using Cisco Router and Security Device Manager

Connecting a PC to the Router

Verifying Your Installation

Obtaining Documentation


Documentation DVD

Ordering Documentation

Documentation Feedback

Cisco Product Security Overview

Reporting Security Problems in Cisco Products

Obtaining Technical Assistance

Cisco Technical Support Website

Submitting a Service Request

Definitions of Service Request Severity

Obtaining Additional Publications and Information

Quick Start Guide

Cisco 1701 ADSL Security Access Router Cabling and Installation

Including License and Warranty

1 Cisco One-Year Limited Hardware Warranty Terms

There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.

1. Launch your browser, and go to this URL:


The Warranties and License Agreements page appears.

2. To read the Cisco Information Packet, follow these steps:

a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.

b. Select the language in which you would like to read the document.

c. Click Go.

The Cisco Limited Warranty and Software License page from the Information Packet appears.

d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).

Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com

3. To read translated and localized warranty information about your product, follow these steps:

a. Enter this part number in the Warranty Document Number field:


b. Select the language in which you would like to view the document.

c. Click Go.

The Cisco warranty page appears.

d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).

You can also contact the Cisco service and support website for assistance:


Duration of Hardware Warranty

One (1) Year

Replacement, Repair, or Refund Policy for Hardware

Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

To Receive a Return Materials Authorization (RMA) Number

Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.

Complete the information below, and keep it for reference.

Company product purchased from


Company telephone number


Product model number


Product serial number


Maintenance contract number


2 Overview

This document describes the steps for installing your Cisco 1701 router. Additional documentation can be found on Cisco.com.

Product Serial Number Location

The serial number label for Cisco 1701 router is located on the rear of the chassis, to the right of the power switch.

3 Parts List

Your router package should include the following items:

One Cisco 1701 router

One blue RJ-45-to-DB-9 console cable

One lavender asymmetric digital subscriber line (ADSL) cable (for use with the 1-port ADSL WAN interface card [WIC], in slot 0)

One DB-9-to-DB-25 adapter (for use with the console cable)

One black power supply

One black power supply cord

Product documentation.

Items You Need to Provide

Depending on your network environment, you may need to provide some of the following items so that you can install the router:

Ethernet hub or switch to connect the router to the local network

Straight-through Ethernet cable (RJ-45 to RJ-45) to connect the router to a hub or switch

External NT-1, if needed, to connect the ISDN WIC to WAN services

4 Connecting the Router

Figure 1 shows a typical installation of the Cisco 1701 router.

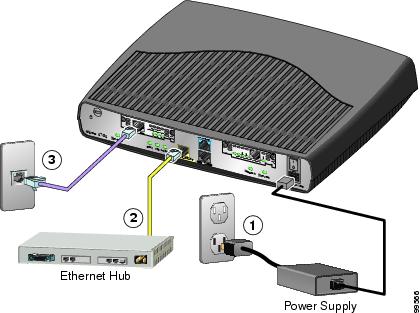

Figure 1 Typical Cisco 1701 Installation

Follow these steps to connect the router to the power supply, your local network, and your service provider's network:

Step 1 Connect power to the router as shown in Figure 1:

a. Connect the attached power supply cord to the power socket (labeled +5, +12, -12 VDC) on the back panel of the router.

b. Connect the separate power cord to the power socket on the power supply.

c. Connect the other end of the separate power cord to a power outlet.

d. Turn on the router by pressing the power switch to the on ( | ) position.

e. Confirm that the router has power by checking that the PWR LED on the front panel is on.

Step 2 To connect the router to your network, connect one end of an Ethernet cable to the 10/100 ETHERNET port (the yellow port) and connect the other end of the cable to a port on the hub or switch as shown in Figure 1.

Caution Always connect the Ethernet cable to the Ethernet port on the router. Accidentally connecting the cable to the wrong port can damage your router.

Step 3 To connect the router to an ADSL or ISDN line, use either the lavender cable to connect the ADSL WIC (in slot 0) to an ADSL line, or use the orange cable to connect the ISDN WIC (in slot 1) to an ISDN line. (Figure 1 shows an ADSL connection.)

Refer to the following two chapters in the Cisco Interface Cards Installation Guide for instructions on cabling the ADSL WIC or the ISDN WIC:

ADSL WIC—"Connecting ADSL and G.SHDSL WAN Interface Cards to a Network"


ISDN WIC—"Connecting ISDN WAN Interface Cards to a Network"


5 Configuring the Router Using Cisco Router and Security Device Manager

Cisco Router and Security Device Manager (SDM) is a web-based configuration tool that allows you to configure LAN and WAN interfaces, routing, Network Address Translation (NAT), firewalls, VPNs, and other features on your router. If SDM is installed on your router, configure the router by following the instructions in the Cisco Router and Security Device Manager (SDM) Quick Start Guide. If this document was not shipped with your router, you can obtain SDM and instructions for installing it on your router from the following location:

To obtain the SDM release notes, and other SDM documentation, go to http://www.cisco.com/go/sdm and click the Technical Documentation link.

6 Connecting a PC to the Router

This step is optional, and required only if you want to use the Cisco IOS CLI to configure or troubleshoot the router, instead of SDM. In order for the Cisco IOS software to be used to configure the router, the router must be connected to a terminal or a PC with terminal emulation software. Terminal emulation software should be configured with the following settings: 9600 baud, 8 data bits, no parity bits, and 1 stop bit. The Cisco 1700 Router Software Configuration Guide describes how to configure the router by using the Cisco IOS software.

Follow these steps to connect the router to a terminal or PC:

Step 1 Connect the RJ-45 end of the console cable to the CONSOLE port on the back panel of the router, as shown in Figure 2.

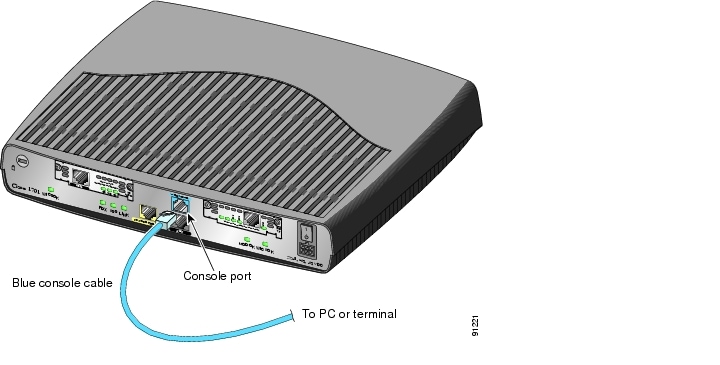

Figure 2 Connecting the Console Cable to the Router

Step 2 Connect the DB-9 end of the console cable to the console port (also called the serial port) on your PC. If this adapter does not fit your PC console port, you must provide an adapter that fits.

7 Verifying Your Installation

You can verify that you have correctly installed your router by checking the LEDs as described in Table 1.

Table 1 LEDs That Verify Installation

What to Look For



On when power is being supplied to the router.



On when the router software is loaded and functional.

Blinking when the router is running a power-on self-test (POST). Continual blinking can indicate a problem with the router, although the LED will also blink if the router is in ROMMON mode. Refer to the "Troubleshooting" chapter in the Cisco 1701 ADSL Security Access Router Hardware Installation Guide for more information.



Blinks when data is being sent to or received from the card in the WIC0 slot.



Remains off.



On solid when the ISDN B channel is up for the card in the WIC1 slot.



Remains off.



Blinking when there is network traffic on the local Ethernet LAN.



Blinking when there are packet collisions on the local Ethernet network.



On when the router is correctly connected to the Ethernet network through the 10/100 ETHERNET port.



On when the Ethernet port is operating in full-duplex mode.



On when the 10/100 ETHERNET port is operating at 100 Mbps.



On when a WIC is correctly installed in the corresponding WIC slot.



On when the VPN hardware encryption module is installed and recognized by the Cisco IOS software.
