Cisco 12006 and Cisco 12406 Router Unpacking and Repacking Instructions

---

This document contains instructions for unpacking and repackaging the Cisco 12006 and Cisco 12406 routers. After you unpack the system, refer to the Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide for more information.

This document includes the following topics:

•Before Unpacking the Router

•Tools and Equipment

•Unpacking the Router

•Repacking the Router

•Regulatory, Compliance, and Safety Information

•Obtaining Documentation

•Documentation Feedback

•Obtaining Technical Assistance

•Obtaining Additional Publications and Information

Before Unpacking the Router

Figure 1 shows the Cisco 12006 or Cisco 12406 router on its shipping pallet. A fully configured system can weigh as much as 205 pounds (94 kg), not counting the additional weight of the pallet and packaging materials. Before unpacking the system, you should carefully plan the site location of the router and the method you will use to move it into position to install it in a rack.

---

Note Save all packing material and hardware (bolts, screws, brackets, and so on) after unpacking the router. You can use them to repackage the router for shipping if necessary.

---

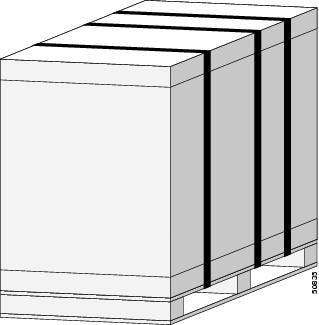

Figure 1 Cisco 12006 or Cisco 12406 Router Secured to Pallet

Tools and Equipment

You need the following items and tools:

•3/16-inch flat-blade screwdriver

•1/4-inch flat-blade screwdriver

•9/16-inch (14-mm) wrench

•10-mm wrench (open-end or socket)

•Wire cutters

•Pliers

Unpacking the Router

This section explains how to unpack the router from the shipping pallet. Figure 2 shows the packing material and accessory kit container.

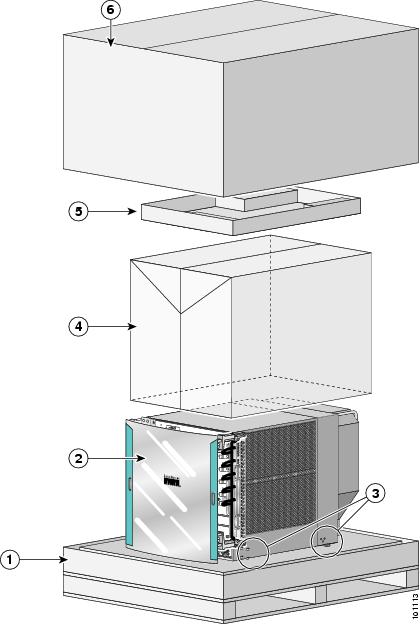

Figure 2 Unpacking the Router—Enhanced Model)

1	Pallet base	4	Plastic bag
2	Front door (enhanced model only)	5	Accessory kit tray
3	Hold-down brackets with bolts	6	Outer shipping container

---

Step 1 Use wire cutters to cut the plastic bands that secure the router to the pallet.

Step 2 Remove the tape that seals the shipping container and open the top of the box.

Step 3 Lift out the accessory kit and set it aside (see Figure 2).

Step 4 Remove the shipping container, the plastic bag, and all of the packing materials and set them aside.

Step 5 Remove the bolts and screws that secure the two front anchor clips and side angle brackets to the pallet (Figure 3).

If you are installing the enhanced version of the 12404 Internet router, go to Step 6. For all other models, go to Step 8.

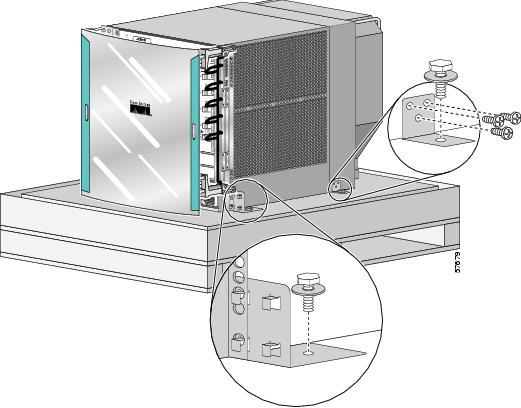

Figure 3 Removing the Router from the Shipping Pallet—Enhanced Model)

Step 6 Cut the plastic tie-wrap and remove it from the upper left hinge bracket (Figure 4).

---

Note The plastic tie-wrap secures the front door to the chassis during shipment.

---

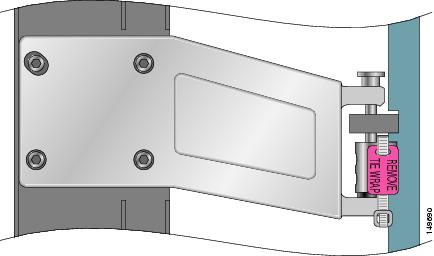

Figure 4 Removing the Tie-Wrap and Label

Step 7 Open the front door and remove the labels (labeled REMOVE) that protect the rubber bumpers during shipment (Figure 5).

Close the front door.

Figure 5 Removing the Rubber Bumper Shipping Label

Step 8 Your Cisco router is ready for installation. For installation instructions, see the Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide (see Obtaining Documentation).

---

Repacking the Router

This section describes how to repack your Cisco router into the shipping container. This procedure assumes you have the pallet, packing material, and hardware you saved when the chassis was unpacked.

---

Note If the original packing kit—consisting of the pallet base, hold-down brackets, bolts, screws, plastic bag cover, packing material, and shipping cartons—was lost or damaged, you can order another kit (Product Number GSR6-PKG=)

---

---

Step 1 Place the router on a Cisco 12006/12406 shipping pallet.

Step 2 Secure the side and rear brackets to the pallet using the bolts and screws you saved when the chassis was unpacked (see Figure 3).

Step 3 Tighten all of the captive screws on the power entry modules, power distribution unit, and line cards so that they are secure.

Step 4 Refer to Figure 2 and:

a. Place the plastic bag cover over the router.

b. Place the accessory kit on top of the router.

c. Place the cardboard shipping container over the accessory kit and router.

---

Note If the master shipper tape closure was removed, replace it before you secure the bands to your package.

---

Step 5 Secure the cardboard shipping container to the pallet using straps similar to the ones used to ship the router to you.

Your router is ready for shipment.

---

Transporting the Router

The shipping package for the router is engineered to reduce the potential of product damage during shipment. To minimize potential damage to the product, transport the router in its Cisco specified packaging. Failure to do so may result in damage to the router or degradation of its performance. Do not remove the router from its shipping container until you are ready to install it. The router should always be transported or stored in an upright position. Keep the router in the shipping container until you have determined an installation site.
