1-Port OC-48/STM-16 Packet over SONET Line Card Overview

---

This chapter describes the Cisco 10000 series 1-port OC-48/STM-16 Packet over SONET line card (referred to as the 1-port OC-48/STM-16 Packet over SONET line card), and contains the following sections:

•Line Card Summary

•Software and Hardware Compatibility

•Line Card, Router, and Processor Compatibility

•LEDs

•Physical Specifications

•Slot Locations

•Cables and Connectors

Line Card Summary

Table 14-1 1-Port OC-48/STM-16 Packet over SONET Line Card Summary

Product Number	Description	Minimum Cisco IOS Release
ESR1OC48/P/SRPSMS=	1-port OC-48/STM-16 POS/SRP, single-mode, short-reach line card	Initial Cisco IOS releases for PRE-2: 12.2(15)BX and later releases 12.2(28)SB and later releases of Cisco IOS Release 12.2(28)SB 12.2BX 12.2(28)SB and later releases of Cisco IOS Release 12.2(28)SB 12.3(7)XI and later releases of Cisco IOS 12.3XI For registered Cisco.com users, use Software Advisor to determine the software releases for this line card.
ESR1OC48/P/SRPSML=	1-port OC-48/STM-16 POS/SRP, single-mode, long-reach line card

The 1-port OC-48/STM-16 Packet over SONET line card provides a trunk uplink capable of supporting up to 2.4 Gbps full duplex throughput over a standard SONET/ITU-T Synchronous Digital Hierarchy (SDH) interface, using a single-mode fiber with SC connectors.

Figure 14-1 shows the front panel of the OC-48/STM-16 Packet over SONET line card.

The 1-port OC-48/STM-16 Packet over SONET line card provides a point-to-point connection to a backbone router and encapsulates IP packets with byte-wise HDLC framing, placing them directly into the OC-48 SONET (or SDH) payload.

The 1-port OC-48/STM-16 Packet over SONET line card is a standard implementation of Packet over SONET switching, and supports the following features:

•OC-48 bandwidth between the line card and the Performance Routing Engine (PRE)

•North American (SONET) and European (SDH) formats

•Automatic protection switching (APS)

•Alarm processing

•Performance monitoring

•IP over DCC (Data Communications Protocol) for remote management of the Cisco 15104 OC-48/STM16 Optical Regenerator, where applicable

If you are a registered Cisco.com user, see Feature Navigator for supported features.

Software and Hardware Compatibility

To check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether line cards within a system are compatible, but does provide the minimum Cisco IOS requirements for individual hardware line cards, modules, or options.

---

Note Access to this tool is limited to users with Cisco.com login accounts.

---

To access Software Advisor, click Login at Cisco.com, type Software Advisor in the Search box, and click Go. Click the link for the Software Advisor tool.

Choose a product family or enter a specific product number to search for the minimum supported software release needed for your hardware.

Line Card, Router, and Processor Compatibility

Table 14-2 lists the router model, line card, and processor compatibility.

Table 14-2 Line Card, Router, and Processor Compatibility

Line Card	Cisco 10008	Cisco 10005	PRE-2	PRE-1	PRE
1-port OC-48/STM-16 Packet over SONET line card ESROC48/P/SRPSMS=	Yes	No	Yes	No	No
1-port OC-48/STM-16 Packet over SONET l line card ESROC48/P/SRPSML=	Yes	No	Yes	No	No

LEDs

The 1-port OC-48/STM-16 Packet over SONET line card LEDs are shown in Figure 14-1.

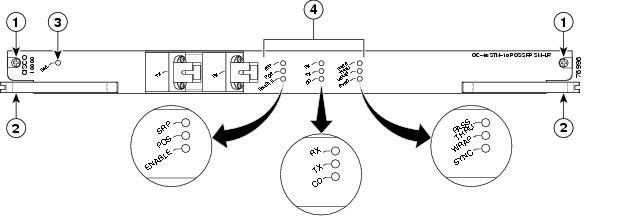

Figure 14-1 1-Port OC-48/STM-16 Packet over SONET Line Card Faceplate Description

1	Captive screw	3	FAIL LED
2	Ejector lever	4	Port status LEDs: SRP, POS, ENABLE RX, TX, CD (carrier detect) PASS THRU, WRAP, SYNC

Table 14-3 provides a description of the 1-port OC-48/STM-16 Packet over SONET line card LEDs.

Table 14-3 LED Description

LED Label	Color	State	Meaning
FAIL	Yellow	Off	The line card is operating properly.
		On	A major failure has disabled the line card.
SRP	Green	Off	SRP is not supported on the OC-48/STM-16 Packet over SONET line card when it is installed in the Cisco 10000 chassis.
POS	Green	On	The line card is operating in POS mode.
		Off	The line card is not operating in POS mode.
ENABLE	Green	On	The line card is enabled (administratively up) and operational.
		Off	The line card is disabled (administratively down) or the card is not operational.
RX	Green	On	The port is receiving traffic.
		Off	The port is not receiving traffic.
TX	Green	On	The port is transmitting traffic.
		Off	The port is not transmitting traffic.
CD (carrier detected)	Green	On	On when a carrier is detected at the corresponding port.
		Off	Off when no carrier is detected.
PASS THRU	—	Off	An SRP indicator that is not supported on the OC-48/STM-16 Packet over SONET line card when it is installed in the Cisco 10000 chassis.
WRAP	—	Off	An SRP indicator that is not supported on the OC-48/STM-16 Packet over SONET line card when it is installed in the Cisco 10000 chassis.
SYNC	—	Off	An SRP indicator that is not supported on the OC-48/STM-16 Packet over SONET line card when it is installed in the Cisco 10000 chassis.

Physical Specifications

The 1-port OC-48/STM-16 Packet over SONET line card physical specifications appear in Table 14-4.

Table 14-4 1-Port OC-48/STM-16 Packet over SONET Line Card Physical Specifications

Description	Specifications
Physical dimensions	Height: 16.0 in. (40.64 cm) Depth: 9.97 in. (25.32 cm) Width: 1.12 in. (2.83 cm)
Shipping weight	Approximately 4.75 lb (2.16 kg)
Operating temperature	41oF to 104oF (5oC to 40oC) Short-term operating temperature is limited to 131oF (55oC) in compliance with Bellcore GR
Relative humidity	Operating—nominal: 5% to 85% Operating—short term: 5% to 90% Storage: 5% to 95%
Storage temperature	-40oF to 158oF (-40oC to 70C o)

Slot Locations

The line card slot designations are shown in Figure 14-2.

Figure 14-2 Line Card Slot and Subslot Designations for the Cisco 10008 Router

1	Blower module	6	PRE slot 0B
2	Primary PEM	7	Line card slots 5 to 8
3	Redundant PEM	8	Subslot 0
4	Line card slots 1 to 4	9	Subslot 1
5	PRE slot 0A

The 1-port OC-48/STM-16 Packet over SONET line card can be installed in slot 1 through slot 8.

Cables and Connectors

The1-port OC-48/STM-16 Packet over SONET line card uses a single- mode fiber-optic cable with SC-type connectors.

---

Warning The long reach version of the 1-port OC-48/STM-16 Packet over SONET line card (product number ESR1OC48/P/SRP-SML) requires a minimum optical attenuation to avoid irreversible damage to the receiver.

---

Table 14-5 lists optical cabling specifications for the 1-port OC-48/STM-16 Packet over SONET line card.

Table 14-5 Optical Specifications

Transceiver Type	Transmit Power	Maximum Power to Receiver	Minimum Receiver Sensitivity	Nominal Distance Between Stations	Wavelength	Fiber Type
OC-48 POS short reach	-10 dBm minimum to -3 dBm maximum	-3 dBm	-18 dBm	Up to 1.24 mi (2 km)	1266 nm to 1360 nm	Single mode, core size 8 to 10 microns
OC-48 POS long reach 2 (LR2)	-2 dBm minimum to +3 dBm maximum	-9 dBm1	-28 dBm	Up to 50 mi (80 km)	1500 nm to 1580 nm	Single mode, core size 8 to 10 microns

1 For LR2, a minimum of 12 dB of total attenuation between transmitter and receiver is required. Exceeding the maximum receive power can damage the optics.

Go to Chapter 16, "Preparing for Installation" to begin the installation or replacement of the line card.

For troubleshooting information, see Chapter 18, "Troubleshooting the Installation."
