Performance monitoring parameters (PMs) are used by service providers to gather, store, threshold, and report performance data for early detection of problems. In this chapter, PM parameters and concepts are defined for electrical cards, Ethernet cards, and optical cards in the Cisco ONS 15454.
For information about enabling and viewing PM values, refer to the Cisco ONS 15454 Procedure Guide.
Note For additional information regarding PM parameters, refer to Telcordia's GR-1230-CORE, GR-820-CORE, GR-499-CORE, and GR-253-CORE documents and the ANSI document entitled Digital Hierarchy - Layer 1 In-Service Digital Transmission Performance Monitoring.
12.1 Threshold Performance Monitoring
Thresholds are used to set error levels for each PM parameter. You can set individual PM threshold values from the Cisco Transport Controller (CTC) card view Provisioningtab. For procedures on provisioning card thresholds, such as line, path, and SONET thresholds, refer to the Cisco ONS 15454 Procedure Guide.
During the accumulation cycle, if the current value of a performance monitoring parameter reaches or exceeds its corresponding threshold value, a threshold crossing alert (TCA) is generated by the node and displayed by CTC. TCAs provide early detection of performance degradation. When a threshold is crossed, the node continues to count the errors during a given accumulation period. If 0 is entered as the threshold value, the performance monitoring parameter is disabled.
Change the threshold if the default value does not satisfy your error monitoring needs. For example, customers with a critical DS1 installed for 911 calls must guarantee the best quality of service on the line; therefore, they lower all thresholds so that the slightest error raises a TCA.
12.2 Intermediate Path Performance Monitoring
Intermediate path performance monitoring (IPPM) allows transparent monitoring of a constituent channel of an incoming transmission signal by a node that does not terminate that channel. Many large ONS 15454 networks only use line terminating equipment (LTE) not path terminating equipment (PTE). Table 12-1 shows ONS 15454 cards that are considered LTEs.
Table 12-1 Traffic Cards That Terminate the Line, Called LTEs
Line Terminating Equipment
Electrical LTE
EC1-12
DS1-14
DS1N-14
DS3-12
DS3N-12
DS3-12E
DS3N-12E
DS3XM-6
Optical LTE
OC3 IR 4/STM1 SH 1310
OC3 IR/STM1 SH 1310-8
OC12 IR/STM4 SH1310
OC12 LR/STM4 LH1310
OC12 LR/STM4 LH 1550
OC12 IR/STM4 SH 1310-4
OC48 IR 1310
OC48 LR 1550
OC48 IR/STM16 SH AS 1310
OC48 LR/STM16 LH AS 1550
OC48 ELR/STM16 EH 100 GHz
OC48 ELR 200 GHz
OC192 SR/STM64 IO 1310
OC192 IR/STM64 SH 1550
OC192 LR/STM64 LH 1550
OC192 LR/STM64 LH ITU 15xx.xx
TXP_MR_10G
MXP_2.5G_10G
Software R3.0 and higher allows LTE cards to monitor near-end PM data on individual STS payloads by enabling IPPM. After enabling IPPM provisioning on the line card, service providers can monitor large amounts of STS traffic through intermediate nodes, thus making troubleshooting and maintenance activities more efficient.
IPPM occurs only on STS paths which have IPPM enabled, and TCAs are raised only for PM parameters on the IPPM enabled paths. The monitored IPPM parameters are STS CV-P, STS ES-P, STS SES-P, STS UAS-P, and STS FC-P.
Note Far-end IPPM is not supported. However, SONET path PMs can be monitored by logging into the far-end node directly.
The ONS 15454 performs IPPM by examining the overhead in the monitored path and by reading all of the near-end path PM values in the incoming direction of transmission. The IPPM process allows the path signal to pass bidirectionally through the node completely unaltered.
For detailed information about specific IPPM parameters, locate the card name in the following sections and review the appropriate definition.
Pointers are used to compensate for frequency and phase variations. Pointer justification counts indicate timing errors on SONET networks. When a network is out of synch, jitter and wander occurs on the transported signal. Excessive wander can cause terminating equipment to slip.
Slips cause different effects in service: Voice service has intermittent audible clicks. Compressed voice technology has short transmission errors or dropped calls. Fax machines lose scanned lines or experience dropped calls. Digital video transmission has distorted pictures or frozen frames. Encryption service loses the encryption key causing data to be transmitted again.
Pointers provide a way to align the phase variations in STS and VT payloads. The STS payload pointer is located in the H1 and H2 bytes of the line overhead. Clocking differences are measured by the offset in bytes from the pointer to the first byte of the STS synchronous payload envelope (SPE) called the J1 byte. Clocking differences that exceed the normal range of 0 to 782 can cause data loss.
There are positive (PPJC) and negative (NPJC) pointer justification count parameters. PPJC is a count of path-detected (PPJC-Pdet) or path-generated (PPJC-Pgen) positive pointer justifications. NPJC is a count of path-detected (NPJC-Pdet) or path-generated (NPJC-Pgen) negative pointer justifications depending on the specific PM name.
A consistent pointer justification count indicates clock synchronization problems between nodes. A difference between the counts means the node transmitting the original pointer justification has timing variations with the node detecting and transmitting this count. Positive pointer adjustments occur when the frame rate of the SPE is too slow in relation to the rate of the STS 1.
You must enable PPJC and NPJC performance monitoring parameters for LTE cards. See Table 12-1 for a list of Cisco ONS 15454 LTE cards. On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the card view Provisioning tab.
For detailed information about specific pointer justification count PM parameters, locate the card name in the following sections and review the appropriate definition.
12.4 DS1 Facility Data Link Performance Monitoring
Facility Data Link (FDL) performance monitoring enables the DS1N-14 card to calculate and report DS1 error rate performance measured at both the near-end and far-end of the FDL. The far-end information is reported as received on the FDL in a performance report message (PRM) from an intelligent channel service unit (CSU).
To monitor DS1 FDL PM values, the DS1 must be set to use extended superframe (ESF) format and the FDL must be connected to an intelligent CSU. For procedures on provisioning ESF on the DS1N-14 card, refer to the Cisco ONS 15454 Procedure Guide.
The monitored DS1 FDL PM parameters are, CV-PFE, ES-PFE, ESA-PFE, ESB-PFE, SES-PFE, SEFS-PFE, CSS-PFE, UAS-PFE, FC-PFE, and ES-LFE. For detailed information about specific DS1 FDL PM parameters, locate the DS1N-14 card name in the following sections and review the appropriate definition.
12.5 Performance Monitoring for Electrical Cards
The following sections define performance monitoring parameters for the EC1-12, DS1-14, DS1N-14, DS3-12, DS3N-12, DS3-12E, DS3N-12E, and DS3XM-6 electrical cards.

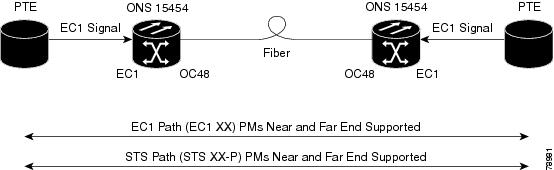

Figure 12-1 shows signal types that support near-end and far-end PMs. Figure 12-2 shows where overhead bytes detected on the application specific integrated circuits (ASICs) produce performance monitoring parameters for the EC1-12 card.
Figure 12-1 Monitored Signal Types for the EC1-12 Card
Note The XX in the illustration above represents all PMs listed in Table 12-2 through Table 12-7 with the given prefix and/or suffix.

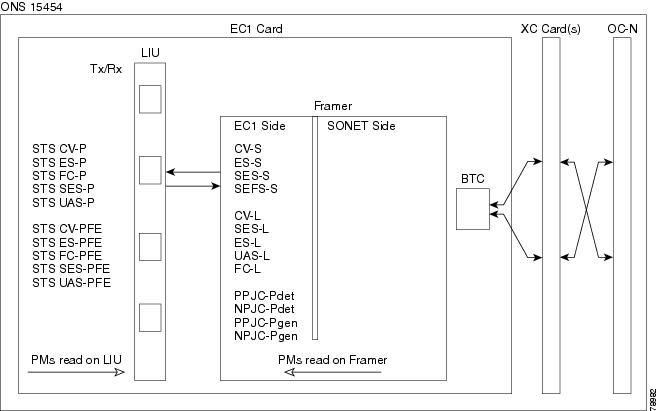

The PM parameters for the EC1-12 cards are described in Table 12-2 through Table 12-7.
Table 12-2 Near-End Section PMs for the EC1-12 Card
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame; each error increments the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or loss of signal (LOS) defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253-CORE for value) or more section-layer BIP errors were detected or a severely errored frame (SEF) or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected during most seconds where an LOS or loss of frame (LOF) defect is present. However, there may be situations when that is not the case, and the SEFS-S parameter is only incremented based on the presence of the SEF defect.
Table 12-3 Near-End Line Layer PMs for the EC1-12 Card
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame, with each error incrementing the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an alarm indication signal-line (AIS-L) defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253 for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and the line continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure or a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Table 12-4 Near-End SONET Path PMs for the EC1-12 Card
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. STS ES-P can also be caused by an AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a unequipped path (UNEQ-P) or a trace identifier mismatch (TIM-P) failure is declared. A failure event also begins if the STS PTE monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. STS SES-P can also be caused by an AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-5 Near-End SONET Path BIP PMs for the EC1-12 Card
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the card view Provisioning tab.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path in an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path in an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (NPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Table 12-6 Far-End Line Layer PMs for the EC1-12 Card
Parameter
Definition
CV-L
Far-End Line Code Violation (CV-L) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-L
Far-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-L
Far-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-L
Far-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-L
Far-End Line Failure Count (FC-L) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared, and it ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-7 Far-End SONET Path PMs for the EC1-12 Card
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. STS ES-PFE can also be caused by an AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a unequipped path (UNEQ-P) or a trace identifier mismatch (TIM-P) failure is declared. A failure event also begins if the STS PTE monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. STS SES-PFE can also be caused by an AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
12.5.2 DS1-14 and DS1N-14 Card Performance Monitoring Parameters
Figure 12-3 shows the signal types that support near-end and far-end PMs. Figure 12-4 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the DS1-14 and DS1N-14 cards.
Figure 12-3 Monitored Signal Types for the DS1-14 and DS1N-14 Cards
Note The XX in the illustration above represents all PMs listed in Table 12-8 through Table 12-15 with the given prefix and/or suffix.
Figure 12-4 PM read points on the DS1-14 and DS1N-14 cards
The PM parameters for the DS1-14 and DS1N-14 cards are described in Table 12-8 through Table 12-15.
Table 12-8 DS1 Line PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
DS1 CV-L
Line Code Violation (CV-L) indicates the number of coding violations occurring on the line. This parameter is a count of bipolar violations (BPVs) and excessive zeros (EXZs) occurring over the accumulation period.
DS1 ES-L
Line Errored Seconds (ES-L) is a count of the seconds containing one or more anomalies (BPV + EXZ) and/or defects (loss of signal) on the line.
DS1 SES-L
Line Severely Errored Seconds (SES-L) is a count of the seconds containing more than a particular quantity of anomalies (BPV + EXZ > 1544) and/or defects on the line.
DS1 LOSS-L
Line Loss of Signal Seconds (LOSS-L) is a count of one-second intervals containing one or more LOS defects.
Table 12-9 DS1 Receive Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
Note Under the Provisioning > Threshold tab, the DS1-14 and DS1N-14 cards have user-defined thresholds for the DS1 receive (Rx) path PMs. In the Threshold tab they are displayed as CV, ES, SES, UAS, AISS, and SAS without the Rx prefix.
DS1 Rx AISS-P
Receive Path Alarm Indication Signal (Rx AIS-P) means an alarm indication signal occurred on the receive end of the path. This parameter is a count of seconds containing one or more AIS defects.
DS1 Rx CV-P
Receive Path Code Violation (Rx CV-P) means a coding violation occurred on the receive end of the path. For DS1-ESF paths, this parameter is a count of detected CRC-6 errors. For the DS1-SF paths, the Rx CV-P parameter is a count of detected frame bit errors (FE).
DS1 Rx ES-P
Receive Path Errored Seconds (Rx ES-P) is a count of the seconds containing one or more anomalies and/or defects for paths on the receive end of the signal. For DS1-ESF paths, this parameter is a count of one-second intervals containing one or more CRC-6 errors, or one or more CS events, or one or more SEF or AIS defects. For DS1-SF paths, the Rx ES-P parameter is a count of one-second intervals containing one or more FE events, or one or more CS events, or one or more SEF or AIS defects.
DS1 Rx SAS-P
Receive Path Severely Errored Seconds Frame/Alarm Indication Signal (Rx SAS-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects on the receive end of the signal.
DS1 Rx SES-P
Receive Path Severely Errored Seconds (Rx SES-P) is a count of the seconds containing more than a particular quantity of anomalies and/or defects for paths on the receive end of the signal. For the DS1-ESF paths, this parameter is a count of seconds when 320 or more CRC-6 errors or one or more SEF or AIS defects occurred. For DS1-SF paths, an SES is a second containing either the occurrence of four FEs or one or more SEF or AIS defects.
DS1 Rx UAS-P
Receive Path Unavailable Seconds (Rx UAS-P) is a count of one-second intervals when the DS1 path is unavailable on the receive end of the signal. The DS1 path is unavailable when ten consecutive SESs occur. The ten SESs are included in unavailable time. Once unavailable, the DS1 path becomes available when ten consecutive seconds occur with no SESs. The ten seconds with no SESs are excluded from unavailable time.
Table 12-10 DS1 Transmit Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
Note Under the Performance tab, the displayed DS1 Tx path PM values are based on calculations performed by the card and therefore have no user-defined thresholds.
DS1 Tx AISS-P
Transmit Path Alarm Indication Signal (Tx AIS-P) means an alarm indication signal occurred on the transmit end of the path. This parameter is a count of seconds containing one or more AIS defects.
DS1 Tx CV-P
Transmit Path Code Violation (Tx CV-P) means a coding violation occurred on the transmit end of the path. For DS1-ESF paths, this parameter is a count of detected CRC-6 errors. For the DS1-SF paths, the Tx CV-P parameter is a count of detected FEs.
DS1 Tx ES-P
Transmit Path Errored Seconds (Tx ES-P) is a count of the seconds containing one or more anomalies and/or defects for paths on the transmit end of the signal. For DS1-ESF paths, this parameter is a count of one-second intervals containing one or more CRC-6 errors, or one or more CS events, or one or more SEF or AIS defects. For DS1-SF paths, the Tx ES-P parameter is a count of one-second intervals containing one or more FE events, or one or more CS events, or one or more SEF or AIS defects.
DS1 Tx SAS-P
Transmit Path Severely Errored Seconds Frame/Alarm Indication Signal (Tx SAS-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects on the receive end of the signal.
DS1 Tx SES-P
Transmit Path Severely Errored Seconds (Tx SES-P) is a count of the seconds containing more than a particular quantity of anomalies and/or defects for paths on the transmit end of the signal. For the DS1-ESF paths, this parameter is a count of seconds when 320 or more CRC-6 errors or one or more SEF or AIS defects occurred. For DS1-SF paths, an SES is a second containing either the occurrence of four FEs or one or more SEF or AIS defects.
DS1 Tx UAS-P
Transmit Path Unavailable Seconds (Tx UAS-P) is a count of one-second intervals when the DS1 path is unavailable on the transmit end of the signal. The DS1 path is unavailable when ten consecutive SESs occur. The ten SESs are included in unavailable time. Once unavailable, the DS1 path becomes available when ten consecutive seconds occur with no SESs. The ten seconds with no SESs are excluded from unavailable time.
Table 12-11 VT Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
CV-V
Code Violation VT Layer (CV-V) is a count of the BIP errors detected at the VT path layer. Up to two BIP errors can be detected per VT superframe, with each error incrementing the current CV-V second register.
ES-V
Errored Seconds VT Layer (ES-V) is a count of the seconds when at least one VT Path BIP error was detected. An AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect can also cause an ES-V.
SES-V
Severely Errored Seconds VT Layer (SES-V) is a count of seconds when K (600) or more VT Path BIP errors were detected. SES-V can also be caused by an AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect.
UAS-V
Unavailable Second VT Layer (UAS-V) is a count of the seconds when the VT path was unavailable. A VT path becomes unavailable when ten consecutive seconds occur that qualify as SES-Vs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Vs.
Table 12-12 Near-End SONET Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
STS CV-P
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame, with each error incrementing the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-13 Far-End SONET Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
STS CV-PFE
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame, with each error incrementing the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Table 12-14 Far-End VT Path PMs for the DS1-14 and DS1N-14 Cards
Parameter
Definition
CV-VFE
Far-End VT Path Coding Violations (CV-VFE) is a count of the number of BIP errors detected by the far-end VT path terminating equipment (PTE) and reported back to the near-end VT PTE using the REI-V indication in the VT path overhead. Only one BIP error can be indicated per VT superframe using the REI-V bit. The current CV-VFE second register is incremented for each BIP error indicated by the incoming REI-V.
ES-VFE
Far-End VT Path Errored Seconds (ES-VFE) is a count of the seconds when at least one VT path BIP error was reported by the far-end VT PTE, or a one-bit RDI-V defect was present.
SES-VFE
Far-End VT Path Severely Errored Seconds (SES-VFE) is a count of the seconds when K (600) or more VT path BIP errors were reported by the far-end VT PTE or a one-bit RDI-V defect was present.
UAS-VFE
Far-End VT Path Unavailable Seconds (UAS-VFE) is a count of the seconds when the VT path is unavailable at the far-end. A VT path is unavailable at the far-end when ten consecutive seconds occur that qualify as SES-VFEs.
Table 12-15 DS1 FDL PMs for the Near-End or Far-End DS1N-14 Card
Parameter
Definition
DS1 Rx CSS-P
Received FDL Path Controlled Slip Seconds (Rx CSS-P) is a count of the seconds when at least one FDL path slipped seconds error was reported by the far-end FDL PTE..
DS1 RxESA-P
Received FDL Path Errored Seconds type A (RX ESA-P) is a count of the seconds when at least one FDL path BIP error type A was reported by the far-end FDL PTE.
DS1 Rx ESB-P
Received FDL Path Errored Seconds type B (Rx ESB-P) is a count of the seconds when at least one FDL path BIP error type B was reported by the far-end FDL PTE.
DS1 Rx SEFS-P
Received FDL Path Severely Errored Frame Seconds (RX SEFS-P) is a count of the seconds when at least one or more severely errored frames were reported by the far-end FDL PTE.
12.5.3 DS3-12 and DS3N-12 Card Performance Monitoring Parameters

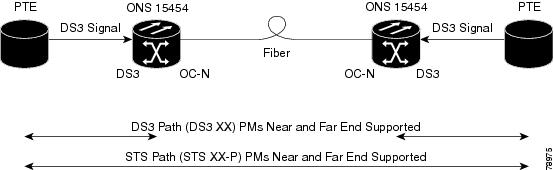

Figure 12-5 shows the signal types that support near-end and far-end PMs. Figure 12-6 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the DS3-12 and DS3N-12 cards.
Figure 12-5 Monitored Signal Types for the DS3-12 and DS3N-12 Cards
Note The XX in the illustration above represents all PMs listed in Table 12-16 through Table 12-19 with the given prefix and/or suffix.

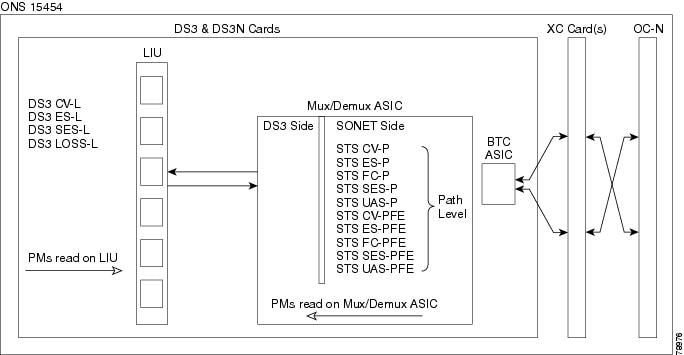

Figure 12-6 PM read points on the DS3-12 and DS3N-12 cards
The PM parameters for the DS3-12 and DS3N-12 cards are described in Table 12-16 through Table 12-19.
Table 12-16 Near-End DS3 Line PMs for the DS3-12 and DS3N-12 Cards
Parameter
Definition
DS3 CV-L
Line Code Violation (CV-L) indicates the number of coding violations occurring on the line. This parameter is a count of bipolar violations (BPVs) and excessive zeros (EXZs) occurring over the accumulation period.
DS3 ES-L
Line Errored Seconds (ES-L) is a count of the seconds containing one or more anomalies (BPV + EXZ) and/or defects (loss of signal) on the line.
DS3 SES-L
Line Severely Errored Seconds (SES-L) is a count of the seconds containing more than a particular quantity of anomalies (BPV + EXZ > 44) and/or defects on the line.
DS3 LOSS-L
Line Loss of Signal (LOSS-L) is a count of one-second intervals containing one or more LOS defects.
Table 12-17 Near-End DS3 Path PMs for the DS3-12 and DS3N-12 Cards
Parameter
Definition
DS3 CV-P
Code Violation-Path (CV-P) indicates the number of coding violations occurring on the path. This parameter is a count of bipolar violations (BPVs) and excessive zeros (EXZs) occurring over the accumulation period.
DS3 ES-P
Errored Seconds-Path (ES-P) is a count of one-second intervals containing one or more CRC-6 errors, or one or more CS events, or one or more SEF or AIS defects.
DS3 SES-P
Severely Errored Seconds-Path (SES-P) is a count of seconds where 320 or more CRC-6 errors occur or one or more SEF or AIS defects occur.
DS3 SAS-P
Severely Errored Frame/Alarm Indication Signal-Path (SAS-P) is a count of seconds containing one or more SEFs or one or more AIS defects.
DS3 AISS-P
Alarm Indication Signal Seconds-Path (AISS-P) is a count of seconds containing one or more AIS defects.
DS3 UAS-P
Unavailable Seconds-Path (UAS-P) is a count of one-second intervals during which the DS3 path is unavailable.
Table 12-18 Near-End SONET Path PMs for the DS3-12 and DS3N-12 Cards
Parameter
Definition
STS CV-P
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-19 Far-End SONET Path PMs for the DS3-12 and DS3N-12 Cards
Parameter
Definition
STS CV-PFE
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
12.5.4 DS3-12E and DS3N-12E Card Performance Monitoring Parameters

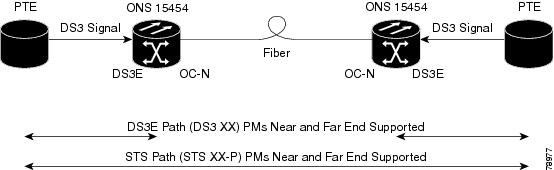

Figure 12-7 shows the signal types that support near-end and far-end PMs. Figure 12-8 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the DS3-12E and DS3N-12E cards.
Figure 12-7 Monitored Signal Types for the DS3-12E and DS3N-12E Cards
Note The XX in the illustration above represents all PMs listed in Table 12-20 through Table 12-25 with the given prefix and/or suffix.
Figure 12-8 PM read points on the DS3-12E and DS3N-12E cards
The PM parameters for the DS3-12E and DS3N-12E cards are described in Table 12-20 through Table 12-25.
Table 12-20 Near-End DS3 Line PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
DS3 CV-L
Line Code Violation (CV-L) indicates the number of coding violations occurring on the line. This parameter is a count of bipolar violations (BPVs) and excessive zeros (EXZs) occurring over the accumulation period.
DS3 ES-L
Line Errored Seconds (ES-L) is a count of the seconds containing one or more anomalies (BPV + EXZ) and/or defects (i.e. loss of signal) on the line.
DS3 SES-L
Line Severely Errored Seconds (SES-L) is a count of the seconds containing more than a particular quantity of anomalies (BPV + EXZ > 44) and/or defects on the line.
DS3 LOSS-L
Line Loss of Signal (LOSS-L) is a count of one-second intervals containing one or more LOS defects.
Table 12-21 Near-End P-bit Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
DS3 AISS-P
AIS Seconds Path (AISS-P) is a count of one-second intervals containing one or more AIS defects.
DS3 CVP-P
Code Violation Path (CVP-P) is a code violation parameter for M23 applications. CVP-P is a count of P-bit parity errors occurring in the accumulation period.
DS3 ESP-P
Errored Second Path (ESP-P) is a count of seconds containing one or more P-bit parity errors, one or more SEF defects, or one or more AIS defects.
DS3 SASP-P
SEF/AIS Seconds Path (SASP-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects on the path.
DS3 SESP-P
Severely Errored Seconds Path (DS3 SESP-P) is a count of seconds containing more than 44 P-bit parity violations, one or more SEF defects, or one or more AIS defects.
DS3 UASP-P
Unavailable Second Path (DS3 UASP-P) is a count of one-second intervals when the DS3 path is unavailable. A DS3 path becomes unavailable when ten consecutive SESP-Ps occur. The ten SESP-Ps are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds with no SESP-Ps occur. The ten seconds with no SESP-Ps are excluded from unavailable time.
Table 12-22 Near-End CP-bit Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
DS3 CVCP-P
Code Violation CP-bit Path (CVCP-P) is a count of CP-bit parity errors occurring in the accumulation period.
DS3 ESCP-P
Errored Second CP-bit Path (ESCP-P) is a count of seconds containing one or more CP-bit parity errors, one or more SEF defects, or one or more AIS defects. ESCP-P is defined for the C-bit parity application.
DS3 SASCP-P
SEF/AIS Seconds CP-bit Path (SASCP-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects on the path.
DS3 SESCP-P
Severely Errored Seconds CP-bit Path (SESCP-P) is a count of seconds containing more than 44 CP-bit parity errors, one or more SEF defects, or one or more AIS defects.
DS3 UASCP-P
Unavailable Seconds CP-bit Path (UASCP-P) is a count of one-second intervals when the DS3 path is unavailable. A DS3 path becomes unavailable when ten consecutive SESCP-Ps occur. The ten SESCP-Ps are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds with no SESCP-Ps occur. The ten seconds with no SESCP-Ps are excluded from unavailable time.
Table 12-23 Near-End SONET Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
STS CV-P
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-24 Far-End CP-bit Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
DS3 CVCP-PFE
Code Violation CP-bit Path (CVCP-PFE) is a parameter that is counted when the three far-end block error (FEBE) bits in a M-frame are not all collectively set to 1.
DS3 ESCP-PFE
Errored Second CP-bit Path (ESCP-PFE) is a count of one-second intervals containing one or more M-frames with the three FEBE bits not all collectively set to 1 or one or more far-end SEF/AIS defects.
DS3 SASCP-PFE
SEF/AIS Second CP-bit Path (SASCP-PFE) is a count of one-second intervals containing one or more far-end SEF/AIS defects.
DS3 SESCP-PFE
Severely Errored Second CP-bit Path (SESCP-PFE) is a count of one-second intervals containing one or more 44 M-frames with the three FEBE bits not all collectively set to 1 or one or more far-end SEF/AIS defects.
DS3 UASCP-PFE
Unavailable Second CP-bit Path (UASCP-PFE) is a count of one-second intervals when the DS3 path becomes unavailable. A DS3 path becomes unavailable when ten consecutive far-end CP-bit SESs occur. The ten CP-bit SESs are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds occur with no CP-bit SESs. The ten seconds with no CP-bit SESs are excluded from unavailable time.
Table 12-25 Far-End SONET Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
Definition
STS CV-PFE
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Figure 12-9 shows the signal types that support near-end and far-end PMs. Figure 12-10 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the DS3XM-6 card.
Figure 12-9 Monitored Signal Types for the DS3XM-6 Card
Note The XX in the illustration above represents all PMs listed in Table 12-26 through Table 12-34 with the given prefix and/or suffix.

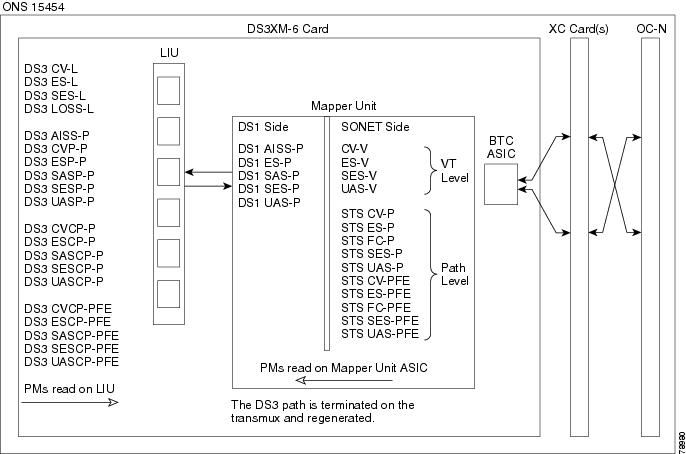

Figure 12-10 PM read points on the DS3XM-6 card
The PM parameters for the DS3XM-6 cards are described in Table 12-26 through Table 12-34.
Table 12-26 Near-End DS3 Line PMs for the DS3XM-6 Card
Parameter
Definition
DS3 CV-L
Line Code Violation (CV-L) indicates the number of coding violations occurring on the line. This parameter is a count of bipolar violations (BPVs) and excessive zeros (EXZs) occurring over the accumulation period.
DS3 ES-L
Line Errored Seconds (ES-L) is a count of the seconds containing one or more anomalies (BPV + EXZ) and/or defects (i.e. LOS) on the line.
DS3 SES-L
Line Severely Errored Seconds (SES-L) is a count of the seconds containing more than a particular quantity of anomalies (BPV + EXZ > 44) and/or defects on the line.
DS3 LOSS-L
Line Loss of Signal (LOSS-L) is a count of one-second intervals containing one or more LOS defects.
Table 12-27 Near-End P-bit Path PMs for the DS3XM-6 Card
Parameter
Definition
DS3 AISS-P
AIS Seconds Path (AISS-P) is a count of one-second intervals containing one or more AIS defects.
DS3 CVP-P
Code Violation Path (CVP-P) is a code violation parameter for M23 applications. CVP-P is a count of P-bit parity errors occurring in the accumulation period.
DS3 ESP-P
Errored Second Path (ESP-P) is a count of seconds containing one or more P-bit parity errors, one or more SEF defects, or one or more AIS defects.
DS3 SASP-P
SEF/AIS Seconds Path (SASP-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects on the path.
DS3 SESP-P
Severely Errored Seconds Path (SESP-P) is a count of seconds containing more than 44 P-bit parity violations, one or more SEF defects, or one or more AIS defects.
DS3 UASP-P
Unavailable Second Path (UASP-P) is a count of one-second intervals when the DS3 path is unavailable. A DS3 path becomes unavailable when ten consecutive SESP-Ps occur. The ten SESP-Ps are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds with no SESP-Ps occur. The ten seconds with no SESP-Ps are excluded from unavailable time.
Table 12-28 Near-End CP-bit Path PMs for the DS3XM-6 Card
Parameter
Definition
DS3 CVCP-P
Code Violation Path (CVCP-P) is a count of CP-bit parity errors occurring in the accumulation period.
DS3 ESCP-P
Errored Second Path (ESCP-P) is a count of seconds containing one or more CP-bit parity errors, one or more SEF defects, or one or more AIS defects.
DS3 SASCP-P
SEF/AIS Second (SASCP-PFE) is a count of one-second intervals containing one or more near-end SEF/AIS defects.
DS3 SESCP-P
Severely Errored Seconds Path (SESCP-P) is a count of seconds containing more than 44 CP-bit parity errors, one or more SEF defects, or one or more AIS defects.
DS3 UASCP-P
Unavailable Seconds Path (DS3 UASCP-P) is a count of one-second intervals when the DS3 path is unavailable. A DS3 path becomes unavailable when ten consecutive SESCP-Ps occur. The ten SESCP-Ps are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds with no SESCP-Ps occur. The ten seconds with no SESCP-Ps are excluded from unavailable time.
Table 12-29 Near-End DS1 Path PMs for the DS3XM-6 Card
Parameter
Definition
DS1 AISS-P
Alarm Indication Signal Path (AIS-P) means an AIS occurred on the path. This parameter is a count of seconds containing one or more AIS defects.
DS1 ES-P
Errored Seconds Path (ES-P) is a count of the seconds containing one or more anomalies and/or defects for paths. For DS1-ESF paths, this parameter is a count of one-second intervals containing one or more CRC-6 errors, or one or more CS events, or one or more SEF or AIS defects. For DS1-SF paths, the ES-P parameter is a count of one-second intervals containing one or more FE events, or one or more CS events, or one or more SEF or AIS defects.
DS1 SAS-P
Severely Errored Seconds Path Frame/Alarm Indication Signal (SAS-P) is a count of one-second intervals containing one or more SEFs or one or more AIS defects.
DS1 SES-P
Severely Errored Seconds Path (SES-P) is a count of the seconds containing more than a particular quantity of anomalies and/or defects for paths. For the DS1-ESF paths, this parameter is a count of seconds when 320 or more CRC-6 errors or one or more SEF or AIS defects occurs. For DS1-SF paths, an SES is a second containing either the occurrence of eight FEs, four FEs, or one or more SEF or AIS defects.
DS1 UAS-P
Unavailable Seconds Path (UAS-P) is a count of one-second intervals when the DS1 path is unavailable. The DS1 path is unavailable when ten consecutive SESs occur. The ten SESs are included in unavailable time. Once unavailable, the DS1 path becomes available when ten consecutive seconds occur with no SESs. The ten seconds with no SESs are excluded from unavailable time.
Table 12-30 Near-End VT PMs for the DS3XM-6 Card
Parameter
Definition
CV-V
Code Violation VT Layer (CV-V) is a count of the BIP errors detected at the VT path layer. Up to two BIP errors can be detected per VT superframe; each error increments the current CV-V second register.
ES-V
Errored Seconds VT Layer (ES-V) is a count of the seconds when at least one VT Path BIP error was detected. An AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect can also cause ES-V.
SES-V
Severely Errored Seconds VT Layer (SES-V) is a count of seconds when K (600) or more VT Path BIP errors were detected. An AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect can also cause SES-V.
UAS-V
Unavailable Seconds VT Layer (UAS-V) is a count of the seconds when the VT path was unavailable. A VT path becomes unavailable when ten consecutive seconds occur that qualify as SES-Vs and continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Vs.
Table 12-31 Near-End SONET Path PMs for the DS3XM-6 Card
Parameter
Definition
STS CV-P
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-32 Far-End CP-bit Path PMs for the DS3XM-6 Card
Parameter
Definition
DS3 CVCP-PFE
Code Violation (CVCP-PFE) is a parameter that is counted when the three FEBE bits in a M-frame are not all collectively set to 1.
DS3 ESCP-PFE
Errored Second (ESCP-PFE) is a count of one-second intervals containing one or more M-frames with the three FEBE bits not all collectively set to 1 or one or more far-end SEF/AIS defects.
DS3 SASCP-PFE
SEF/AIS Second (SASCP-PFE) is a count of one-second intervals containing one or more far-end SEF/AIS defects.
DS3 SESCP-PFE
Severely Errored Second (SESCP-PFE) is a count of one-second intervals containing one or more 44 M-frames with the three FEBE bits not all collectively set to 1 or one or more far-end SEF/AIS defects.
DS3 UASCP-PFE
Unavailable Second (UASCP-PFE) is a count of one-second intervals when the DS3 path becomes unavailable. A DS3 path becomes unavailable when ten consecutive far-end CP-bit SESs occur. The ten CP-bit SESs are included in unavailable time. Once unavailable, the DS3 path becomes available when ten consecutive seconds with no CP-bit SESs occur. The ten seconds with no CP-bit SESs are excluded from unavailable time.
Table 12-33 Far-End VT PMs for the DS3XM-6 Card
Parameter
Definition
CV-VFE
Code Violation VT Layer (CV-VFE) is a count of the BIP errors detected at the VT path layer. Up to two BIP errors can be detected per VT superframe; each error increments the current CV-V second register.
ES-VFE
Errored Seconds VT Layer (ES-VFE) is a count of the seconds when at least one VT Path BIP error was detected. An AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect can also cause an ES-V.
SES-VFE
Severely Errored Seconds VT Layer (SES-VFE) is a count of seconds when K (600) or more VT Path BIP errors were detected. An AIS-V defect (or a lower-layer, traffic-related, near-end defect) or an LOP-V defect can also cause an SES-V.
UAS-VFE
Unavailable Second VT Layer (UAS-VFE) is a count of the seconds when the VT path was unavailable. A VT path becomes unavailable when ten consecutive seconds occur that qualify as SES-Vs and continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Vs.
Table 12-34 Far-End SONET Path PMs for the DS3XM-6 Card
Parameter
Definition
STS CV-PFE
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of near-end STS path failure events. A failure event begins when an AIS-P failure, an LOP-P failure, a UNEQ-P, or a TIM-P failure is declared. A failure event also begins if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
12.6 Performance Monitoring for Ethernet Cards
The following sections define performance monitoring parameters and definitions for the E-Series, G-Series, and ML-Series Ethernet cards.
CTC provides Ethernet performance information, including line-level parameters, port bandwidth consumption, and historical Ethernet statistics. The E-Series Ethernet performance information is divided into the Statistics, Utilization, and History tabbed panes within the card view Performance tab window.
12.6.1.1 E-Series Ethernet Statistics Pane
The Ethernet statistics pane lists Ethernet parameters at the line level. The Statistics pane provides buttons to change the statistical values shown. The Baseline button resets the displayed statistics values to zero. The Refreshbutton manually refreshes statistics. Auto-Refreshsets a time interval at which automatic refresh will occur.
Table 12-35 defines the E-Series Ethernet card Statistics parameters.
Indicates whether link integrity is present; up means present, and down means not present
Rx Packets
Number of packets received since the last counter reset
Rx Bytes
Number of bytes received since the last counter reset
Tx Packets
Number of packets transmitted since the last counter reset
Tx Bytes
Number of bytes transmitted since the last counter reset
Rx Total Errors
Total number of receive errors
Rx FCS
Number of packets with a Frame Check Sequence (FCS) error. FCS errors indicate frame corruption during transmission
Rx Alignment
Number of packets with alignment errors; alignment errors are received incomplete frames
Rx Runts
Number of packets received that are less than 64 bytes in length
Rx Giants
Number of packets received that are greater than 1518 bytes in length for untagged interfaces and 1522 bytes for tagged interfaces
Tx Collisions
Number of transmit packets that are collisions; the port and the attached device transmitting at the same time caused collisions
Tx Late Collisions
Number of frames that were not transmitted since they encountered a collision outside of the normal collision window (late collision events should occur only rarely).
Tx Excessive Collisions
Number of consecutive collisions
Tx Deferred
Number of packets deferred
12.6.1.2 E-Series Ethernet Utilization Pane
The Utilization pane shows the percentage of transmit (Tx) and receive (Rx) line bandwidth used by the Ethernet ports during consecutive time segments. The Mode field displays the real-time mode status, such as 100 Full, which is the mode setting configured on the E-Series port. However, if the E-Series port is set to auto-negotiate the mode (Auto), this field shows the result of the link negotiation between the E-Series and the peer Ethernet device attached directly to the E-Series port.
The Utilization pane provides an Interval menu, that enables you to set time intervals of 1 minute, 15 minutes, 1 hour, and 1 day. Line utilization is calculated with the following formulas:
The interval is defined in seconds. The maxBaseRate is defined by raw bits/second in one direction for the Ethernet port (that is, 1 Gbps). The maxBaseRates for E-series Ethernet cards is shown in Table 12-36.
Table 12-36 maxBaseRate for STS Circuits
STS-1
51840000
STS-3c
155000000
STS-6c
311000000
STS-12c
622000000
Note Line utilization numbers express the average of ingress and egress traffic as a percentage of capacity.
Note The E-Series Ethernet card is a Layer 2 device or switch and supports Trunk Utilization statistics. The Trunk Utilization statistics are similar to the Line Utilization statistics, but shows the percentage of circuit bandwidth used rather than the percentage of line bandwidth used. The Trunk Utilization statistics are accessed via the card view Maintenance tab.
12.6.1.3 E-Series Ethernet History Pane
The Ethernet History pane lists past Ethernet statistics for the previous time intervals. Depending on the selected time interval, the History pane will display the statistics for each port for the number of previous time intervals as shown in Table 12-37. The listed parameters are defined in Table 12-35.
Table 12-37 Ethernet History Statistics per Time Interval
CTC provides Ethernet performance information, including line-level parameters, port bandwidth consumption, and historical Ethernet statistics. The G-Series Ethernet performance information is divided into the Statistics, Utilization, and History tabbed panes within the card view Performance tab window.
12.6.2.1 G-Series Ethernet Statistics Pane
The Ethernet statistics pane lists Ethernet parameters at the line level. The Statistics pane provides buttons to change the statistical values shown. The Baseline button resets the displayed statistics values to zero. The Refreshbutton manually refreshes statistics. Auto-Refreshsets a time interval at which automatic refresh will occur. The G-Series Statistics pane also has a Clear button. The Clearbutton sets the values on the card to zero, but will not reset the G-Series card.
Table 12-38 defines the G-Series Ethernet card Statistics parameters.
A time stamp indicating the last time statistics were reset.
Link Status
Indicates whether the Ethernet link is receiving a valid Ethernet signal (carrier) from the attached Ethernet device; up means present, and down means not present
Rx Packets
Number of packets received since the last counter reset
Rx Bytes
Number of bytes received since the last counter reset
Tx Packets
Number of packets transmitted since the last counter reset
Tx Bytes
Number of bytes transmitted since the last counter reset
Rx Total Errors
Total number of receive errors
Rx FCS
Number of packets with a Frame Check Sequence (FCS) error. FCS errors indicate frame corruption during transmission
Rx Alignment
Number of packets with received incomplete frames
Rx Runts
The total number of frames received that are less than 64 bytes in length and have a CRC error
Rx Jabbers
The total number of frames received that exceed the1548-byte maximum and contain CRC errors
Rx Pause Frames
Number of received Ethernet 802.3z pause frames
Tx Pause Frames
Number of transmitted 802.3z pause frames
Rx Pkts Dropped Internal Congestion
Number of received packets dropped due to overflow in G-Series frame buffer
Tx Pkts Dropped Internal Congestion
Number of transmit queue drops due to drops in the G-Series frame buffer
HDLC Errors
High-level data link control (HDLC) errors received from SONET/SDH (see note)
Note Do not use the HDLC errors counter to count the number of frames dropped because of HDLC errors, because each frame can fragment into several smaller frames during HDLC error conditions and spurious HDLC frames can also be generated. If HDLC error counters are incrementing when no SONET path problems should be present, it might indicate a problem with the quality of the SONET path. For example, a SONET protection switch generates a set of HLDC errors. But the actual values of these counters are less significant than the fact they are changing.
12.6.2.2 G-Series Ethernet Utilization Pane
The Utilization pane shows the percentage of transmit (Tx) and receive (Rx) line bandwidth used by the Ethernet ports during consecutive time segments. The Mode field displays the real-time mode status, such as 100 Full, which is the mode setting configured on the G-Series port. However, if the G-Series port is set to auto-negotiate the mode (Auto), this field shows the result of the link negotiation between the G-Series and the peer Ethernet device attached directly to the G-Series port.
The Utilization pane provides an Interval menu, that enables you to set time intervals of 1 minute, 15 minutes, 1 hour, and 1 day. Line utilization is calculated with the following formulas:
The interval is defined in seconds. The maxBaseRate is defined by raw bits/second in one direction for the Ethernet port (that is,1 Gbps). The maxBaseRates for G-series Ethernet cards is shown in Table 12-39.
Table 12-39 maxBaseRate for STS Circuits
STS-1
51840000
STS-3c
155000000
STS-6c
311000000
STS-12c
622000000
Note Line utilization numbers express the average of ingress and egress traffic as a percentage of capacity.
Note Unlike the E-Series, the G Series card does not have a display of Trunk Utilization statistics, because the G-Series card is not a Layer 2 device or switch.
12.6.2.3 G-Series Ethernet History Pane
The Ethernet History pane lists past Ethernet statistics for the previous time intervals. Depending on the selected time interval, the History pane will display the statistics for each port for the number of previous time intervals as shown in Table 12-40. The listed parameters are defined in Table 12-38.
Table 12-40 Ethernet History Statistics per Time Interval
CTC provides Ethernet performance information for line-level parameters and historical Ethernet statistics. The ML-Series Ethernet performance information is divided into the Ether Ports and POS Ports tabbed panes within the card view Performance tab window.
Number of bytes received since the last counter reset.
Rx Packets
Number of packets received since the last counter reset.
Rx Unicast Packets
Number of unicast packets received since the last counter reset.
Rx Multicast Packets
Number of multicast packets received since the last counter reset.
Rx Broadcast Packets
Number of broadcast packets received since the last counter reset.
Rx Giants
Number of packets received that are greater than 1530 bytes in length.
Rx Total Errors
Total number of receive errors.
Rx FCS Errors
Number of packets with a Frame Check Sequence (FCS) error.
Rx Runts
Total number of frames received that are less than 64 bytes in length and have a cyclic redundancy check (CRC) error.
Rx Jabbers
Total number of frames received that exceed the maximum 1548 bytes and contain CRC errors.
Rx Alignment
Number of received packets with alignment errors.
Tx Packets
Number of packets transmitted since the last counter reset.
Tx Bytes
Number of bytes transmitted since the last counter reset.
Tx Unicast Packets
Number of unicast packets transmitted.
Tx Multicast Packets
Number of multicast packets transmitted.
Tx Broadcast Packets
Number or broadcast packets transmitted.
Tx Giants
Number of packets transmitted that are greater than 1548 bytes in length.
Tx Collisions
Number of transmitted packets that collided.
Port Drop Counts
Number of received frames dropped at the port level.
Rx Pause Frames
Number of received pause frames.
Rx Threshold Oversizes
Number of received packets larger than the ML-Series remote monitoring (RMON) threshold.
Rx GMAC Drop Counts
Number of received frames dropped by MAC module.
Tx Pause Frames
Number of transmitted pause frames.
Table 12-42 defines the ML-Series Ethernet card POS Ports parameters.
Table 12-42 ML-Series POS Ports Parameters
Parameter
Meaning
Rx Pre Hdlc Bytes
Number of bytes received prior to the bytes HLDC encapsulation by the policy engine.
Rx Post Hdlc Bytes
Number of bytes received after the bytes HLDC encapsulation by the policy engine.
Rx Packets
Number of packets received since the last counter reset.
Rx Normal Packets
Number of packets between the minimum and maximum packet size received.
Rx Shorts
Number of packets below the minimum packet size received.
Rx Runts
Total number of frames received that are less than 64 bytes in length and have a CRC error.
Rx Longs
Counter for the number of received frames that exceed the maximum valid packet length of 1518 bytes.
Rx Total Errors
Total number of receive errors.
Rx CRC Errors
Number of packets with a CRC error.
Rx Input Drop Packets
Number of received packets dropped before input.
Rx Input Abort Packets
Number of received packets aborted before input.
Tx Pre Hdlc Bytes
Number of bytes transmitted prior to the bytes HLDC encapsulation by the policy engine.
Tx Post Hdlc Bytes
Number of bytes transmitted after the bytes HLDC encapsulation by the policy engine.
Tx Packets
Number of packets transmitted since the last counter reset.
Port Drop Counts
Number of received frames dropped at the port level.
12.7 Performance Monitoring for Optical Cards
The following sections define performance monitoring parameters and definitions for the OC-3, OC-12, OC-48, OC-192, TXP_MR-10G, and MXP_2.5G_10G optical cards.
Figure 12-11 shows the signal types that support near-end and far-end PMs. Figure 12-12 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the OC-3 card.

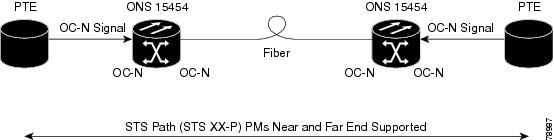

Figure 12-11 Monitored Signal Types for the OC-3 Card

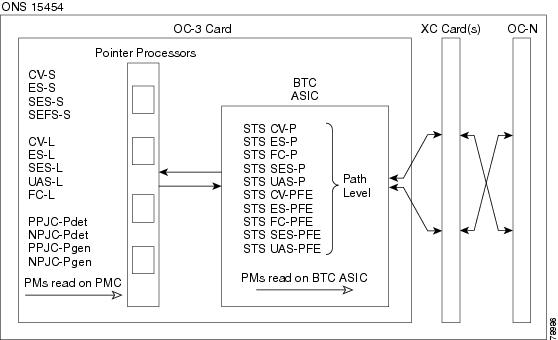

Figure 12-12 PM Read Points on the OC-3 Card
Note For PM locations relating to protection switch counts, see the GR-253-CORE document.
Table 12-43 Near-End Section PMs for the OC-3 Card
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame, with each error incrementing the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or LOS defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253 for value) or more section-layer BIP errors were detected or an SEF or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected to be present during most seconds when an LOS or LOF defect is present. However, there can be situations when the SEFS-S parameter is only incremented based on the presence of the SEF defect.
Table 12-44 Near-End Line Layer PMs for the OC-3 Card
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame; each error increments the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an AIS-L defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared or when a lower-layer traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Note For information about troubleshooting path protection configuration switch counts, see the alarm troubleshooting information in the Cisco ONS 15454 Troubleshooting Guide. For information about creating circuits that perform a switch, see "Circuits and Tunnels."
Table 12-45 Near-End Line Layer PMs for the OC-3 Cards
Parameter
Definition
PSC (1+1 protection)
In a 1 + 1 protection scheme for a working card, Protection Switching Count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card.
For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used.
Note BLSR is not supported on the OC-3 card; therefore, the PSC-W, PSC-S, and PSC-R PMs do not increment.
PSD
Protection Switching Duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line.
For the protection line, PSD is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used.
Note BLSR is not supported on the OC-3 card; therefore, the PSD-W, PSD-S, and PSD-R PMs do not increment.
Table 12-46 Near-End SONET Path H-byte PMs for the OC-3 Card
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (NPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Table 12-47 Near-End SONET Path PMs for the OC-3 Card
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when one or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure, or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-48 Far-End Line Layer PMs for the OC-3 Card
Parameter
Definition
CV-LFE
Far-End Line Code Violation (CV-LFE) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-LFE
Far-End Line Errored Seconds (ES-LFE) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-LFE
Far-End Line Severely Errored Seconds (SES-LFE) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-LFE
Far-End Line Unavailable Seconds (UAS-LFE) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-LFE
Far-End Line Failure Count (FC-LFE) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared, and it ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-49 Near-End SONET Path H-byte PMs for the OC-3 Card
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (NPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Table 12-50 Far-End SONET Path PMs for the OC-3 Card
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when one or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure, or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Figure 12-13 shows the signal types that support near-end and far-end PMs. Figure 12-14 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the OC-12 card.

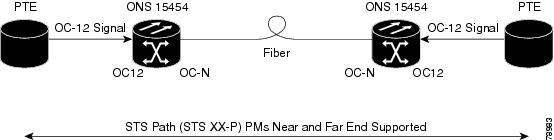

Figure 12-13 Monitored Signal Types for the OC-12 Card
Note PMs on the protect STS are not supported for BLSR. The XX in the illustration above represents all PMs listed below with the given prefix and/or suffix.

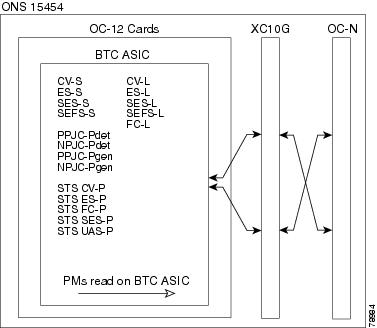

Figure 12-14 PM Read Points on the OC-12 Card
Note For PM locations relating to protection switch counts, see the GR-1230-CORE document.
Table 12-51 Near-End Section PMs for the OC-12 Card
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame; each error increments the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or LOS defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253 for value) or more section-layer BIP errors were detected or an SEF or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected to be present during most seconds when an LOS or LOF defect is present. However, there may be situations when the SEFS-S parameter is only incremented based on the presence of an SEF defect.
Table 12-52 Near-End Line Layer PMs for the OC-12 Card
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame; each error increments the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an AIS-L defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253 for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure or a lower-layer traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Table 12-53 Near-End SONET Path H-byte PMs for the OC-12 Card
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Note For information about troubleshooting path protection configuration switch counts, see the alarm troubleshooting information in the Cisco ONS 15454 Troubleshooting Guide. For information about creating circuits that perform a switch, see "Circuits and Tunnels."
Table 12-54 Near-End Line Layer PMs for the OC-12 Card
Parameter
Definition
PSC (BLSR)
For a protect line in a 2-fiber ring, Protection Switching Count (PSC) refers to the number of times a protection switch has occurred either to a particular span's line protection or away from a particular span's line protection. Therefore, if a protection switch occurs on a 2-fiber BLSR, the PSC of the protection span to which the traffic is switched will increment, and when the switched traffic returns to its original working span from the protect span, the PSC of the protect span will increment again.
Note 4-fiber BLSR is not supported on the OC-12 card; therefore, the PSC-S, and PSC-R PMs do not increment.
PSC (1+1 protection)
In a 1 + 1 protection scheme for a working card, Protection Switching Count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card.
For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used.
PSD
For an active protection line in a 2-fiber BLSR, Protection Switching Duration (PSD) is a count of the number of seconds that the protect line is carrying working traffic following the failure of the working line. PSD increments on the active protect line and PSD-W increments on the failed working line.
Note 4-fiber BLSR is not supported on the OC-12 card; therefore, the PSD-S, and PSD-R PMs do not increment.
PSC-W
For a working line in a 2-fiber BLSR, Protection Switching Count-Working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line.
PSD-W
For a working line in a 2-fiber BLSR, Protection Switching Duration-Working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line.
Table 12-55 Near-End SONET Path PMs for the OC-12 Card
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-56 Far-End Line Layer PMs for the OC-12 Card
Parameter
Definition
CV-LFE
Far-End Line Code Violation (CV-LFE) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-LFE
Far-End Line Errored Seconds (ES-LFE) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-LFE
Far-End Line Severely Errored Seconds (SES-LFE) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-LFE
Far-End Line Unavailable Seconds (UAS-LFE) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-LFE
Far-End Line Failure Count (FC-LFE) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared and ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-57 Far-End SONET Path PMs for the OC-12 Card
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
12.7.3 OC-48 and OC-192 Card Performance Monitoring Parameters
Figure 12-15 shows the signal types that support near-end and far-end PMs. Figure 12-16 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the OC-48 and OC-192 cards.
Figure 12-15 Monitored Signal Types for the OC-48 and OC-192 Cards
Note PMs on the protect STS are not supported for BLSR. The XX in the illustration above represents all PMs listed below with the given prefix and/or suffix.

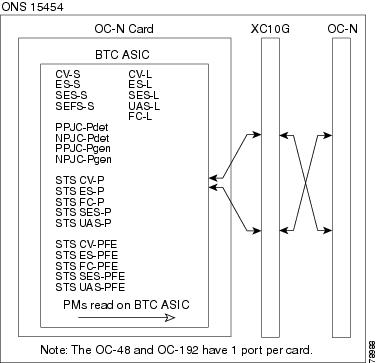

Figure 12-16 PM Read Points on the OC-48 and OC-192 Cards
Note For PM locations relating to protection switch counts, see the GR-1230-CORE document.
The PM parameters for the OC-48 and OC-192 cards are described in Table 12-58 through Table 12-64.
Table 12-58 Near-End Section PMs for the OC-48 and OC-192 Cards
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame; each error increments the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or LOS defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253 for value) or more section-layer BIP errors were detected or an SEF or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected to be present during most seconds when an LOS or LOF defect is present. However, there may be situations when the SEFS-S parameter is only incremented based on the presence of an SEF defect.
Table 12-59 Near-End Line Layer PMs for the OC-48 and OC-192 Cards
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame; each error increments the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an AIS-L defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253 for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure or a lower-layer traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Table 12-60 Near-End SONET Path H-byte PMs for the OC-48 and OC-192 Cards
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Note For information about troubleshooting path protection configuration switch counts, see the alarm troubleshooting information in the Cisco ONS 15454 Troubleshooting Guide. For information about creating circuits that perform a switch, see "Circuits and Tunnels."
Table 12-61 Near-End Line Layer PMs for the OC-48 and OC-192 Cards
Parameter
Definition
PSC (BLSR)
For a protect line in a 2-fiber ring, Protection Switching Count (PSC) refers to the number of times a protection switch has occurred either to a particular span's line protection or away from a particular span's line protection. Therefore, if a protection switch occurs on a 2-fiber BLSR, the PSC of the protection span to which the traffic is switched will increment, and when the switched traffic returns to its original working span from the protect span, the PSC of the protect span will increment again.
PSC (1+1 protection)
In a 1 + 1 protection scheme for a working card, Protection Switching Count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card.
For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used.
PSD
For an active protection line in a 2-fiber BLSR, Protection Switching Duration (PSD) is a count of the number of seconds that the protect line is carrying working traffic following the failure of the working line. PSD increments on the active protect line and PSD-W increments on the failed working line.
PSC-W
For a working line in a 2-fiber BLSR, Protection Switching Count-Working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line.
For a working line in a 4-fiber BLSR, PSC-W is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. PSC-W increments on the failed line and PSC-R or PSC-S increments on the active protect line.
PSD-W
For a working line in a 2-fiber BLSR, Protection Switching Duration-Working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line.
PSC-S
In a 4-fiber BLSR, Protection Switching Count-Span (PSC-S) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. A count is only incremented if span switching is used.
PSD-S
In a 4-fiber BLSR, Protection Switching Duration-Span (PSD-S) is a count of the seconds that the protection line was used to carry service. A count is only incremented if span switching is used.
PSC-R
In a 4-fiber BLSR, Protection Switching Count-Ring (PSC-R) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to a working line. A count is only incremented if ring switching is used.
PSD-R
In a 4-fiber BLSR, Protection Switching Duration-Ring (PSD-R) is a count of the seconds that the protection line was used to carry service. A count is only incremented if ring switching is used.
Table 12-62 Near-End SONET Path PMs for the OC-48 and OC-192 Cards
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-63 Far-End Line Layer PMs for the OC-48 and OC-192 Cards
Parameter
Definition
CV-LFE
Far-End Line Code Violation (CV-LFE) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-LFE
Far-End Line Errored Seconds (ES-LFE) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-LFE
Far-End Line Severely Errored Seconds (SES-LFE) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-LFE
Far-End Line Unavailable Seconds (UAS-LFE) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-LFE
Far-End Line Failure Count (FC-LFE) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared and ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-64 Far-End SONET Path PMs for the OC-48 and OC-192 Cards
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Figure 12-17 shows the signal types that support near-end and far-end PMs. Figure 12-18 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the TXP-MR-10G card.
Figure 12-17 Monitored Signal Types for TXP-MR-10G Cards

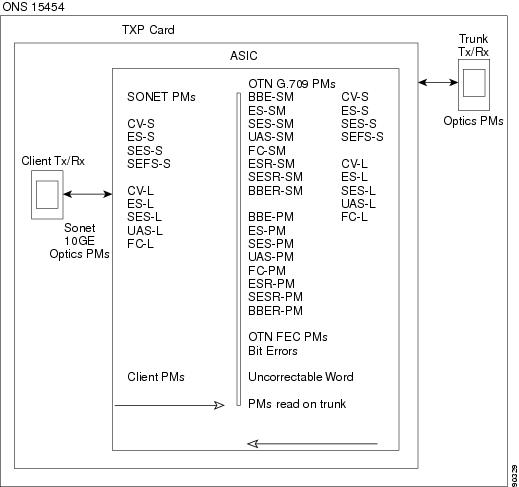

Figure 12-18 PM Read Points on TXP-MR-10G Cards
The PM parameters for the TXP-MR-10G cards are described in Table 12-65 through Table 12-74.
Table 12-65 Physical Optics PMs for TXP-MR-10G Cards
Parameter
Definition
Rx Optical Pwr (Min, dBm)
Minimum receive optical power
Rx Optical Pwr (Avg, dBm)
Average receive optical power
Rx Optical Pwr (Max, dBm)
Maximum receive optical power
Tx Optical Pwr (Min, dBm)
Minimum transmit optical power
TX Optical Pwr (Avg, dBm)
Average transmit optical power
Tx Optical Pwr (Max, dBm)
Maximum transmit optical power
Laser Bias (Min, %)
Minimum percentage of laser bias current
Laser Bias (Avg, %)
Average percentage of laser bias current
Laser Bias (Max, %)
Maximum percentage of laser bias current
Laser Temp (Min, C)
Minimum laser temperature
Laser Temp (Avg, C)
Average laser temperature
Laser Temp (Max, C)
Maximum laser temperature
Rx Temp (Min, C)
Minimum receive laser temperature
Rx Temp (Avg, C)
Average receive laser temperature
Rx Temp (Max, C)
Maximum receive laser temperature
Transceiver Vlt (Min, mV)
Minimum transceiver voltage
Transceiver Vlt (Avg, mV)
Average transceiver voltage
Transceiver Vlt (Max, mV)
Maximum transceiver voltage
Table 12-66 Near-End Section PMs for TXP-MR-10G Cards
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame; each error increments the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or LOS defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253 for value) or more section-layer BIP errors were detected or an SEF or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected to be present during most seconds when an LOS or LOF defect is present. However, there may be situations when the SEFS-S parameter is only incremented based on the presence of an SEF defect.
Table 12-67 Near-End Line Layer PMs for TXP-MR-10G Cards
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame; each error increments the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an AIS-L defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253 for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure or a lower-layer traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Table 12-68 Near-End SONET Path H-byte PMs for TXP-MR-10G Cards
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Note For information about troubleshooting path protection configuration switch counts, see the alarm troubleshooting information in the Cisco ONS 15454 Troubleshooting Guide. For information about creating circuits that perform a switch, see "Circuits and Tunnels."
Table 12-69 Near-End Line Layer PMs for TXP-MR-10G Cards
Parameter
Definition
PSC (BLSR)
For a protect line in a 2-fiber ring, Protection Switching Count (PSC) refers to the number of times a protection switch has occurred either to a particular span's line protection or away from a particular span's line protection. Therefore, if a protection switch occurs on a 2-fiber BLSR, the PSC of the protection span to which the traffic is switched will increment, and when the switched traffic returns to its original working span from the protect span, the PSC of the protect span will increment again.
PSC (1+1 protection)
In a 1 + 1 protection scheme for a working card, Protection Switching Count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card.
For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used.
PSD
For an active protection line in a 2-fiber BLSR, Protection Switching Duration (PSD) is a count of the number of seconds that the protect line is carrying working traffic following the failure of the working line. PSD increments on the active protect line and PSD-W increments on the failed working line.
PSC-W
For a working line in a 2-fiber BLSR, Protection Switching Count-Working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line.
For a working line in a 4-fiber BLSR, PSC-W is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. PSC-W increments on the failed line and PSC-R or PSC-S increments on the active protect line.
PSD-W
For a working line in a 2-fiber BLSR, Protection Switching Duration-Working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line.
PSC-S
In a 4-fiber BLSR, Protection Switching Count-Span (PSC-S) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. A count is only incremented if span switching is used.
PSD-S
In a 4-fiber BLSR, Protection Switching Duration-Span (PSD-S) is a count of the seconds that the protection line was used to carry service. A count is only incremented if span switching is used.
PSC-R
In a 4-fiber BLSR, Protection Switching Count-Ring (PSC-R) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to a working line. A count is only incremented if ring switching is used.
PSD-R
In a 4-fiber BLSR, Protection Switching Duration-Ring (PSD-R) is a count of the seconds that the protection line was used to carry service. A count is only incremented if ring switching is used.
Table 12-70 Near-End SONET Path PMs for TXP-MR-10G Cards
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-71 Far-End Line Layer PMs for TXP-MR-10G Cards
Parameter
Definition
CV-LFE
Far-End Line Code Violation (CV-LFE) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-LFE
Far-End Line Errored Seconds (ES-LFE) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-LFE
Far-End Line Severely Errored Seconds (SES-LFE) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-LFE
Far-End Line Unavailable Seconds (UAS-LFE) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-LFE
Far-End Line Failure Count (FC-LFE) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared and ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-72 Far-End SONET Path PMs for TXP-MR-10G Cards
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Table 12-73 Near-End or Far-End OTN G.709 PM Parameters for the TXP_MR_10G Card
Parameter
Definition
BBE-SM
Section monitoring background block errors (BBE-SM) indicates the number of background block errors recorded in the OTN section during the PM time interval.
ES-SM
Section monitoring errored seconds (ES-SM) indicates the errored seconds recorded in the OTN section during the PM time interval.
SES-SM
Section monitoring severely errored seconds (SES-SM) indicates the severely errored seconds recorded in the OTN section during the PM time interval.
UAS-SM
Section monitoring unavailable seconds (UAS-SM) indicates the unavailable seconds recorded in the OTN section during the PM time interval.
FC-SM
Section monitoring failure counts (FC-SM) indicates the failure counts recorded in the OTN section during the PM time interval.
ESR-SM
Section monitoring errored seconds ratio (ESR-SM) indicates the errored seconds ratio recorded in the OTN section during the PM time interval.
SESR-SM
Section monitoring severely errored seconds ratio (SESR-SM) indicates the severely errored seconds ratio recorded in the OTN section during the PM time interval.
BBER-SM
Section monitoring background block errors ratio (BBER-SM) indicates the background block errors ratio recorded in the OTN section during the PM time interval.
BBE-PM
Path monitoring background block errors (BBE-PM) indicates the number of background block errors recorded in the OTN path during the PM time interval.
ES-PM
Path monitoring errored seconds (ES-PM) indicates the errored seconds recorded in the OTN path during the PM time interval.
SES-PM
Path monitoring severely errored seconds (SES-PM) indicates the severely errored seconds recorded in the OTN path during the PM time interval.
UAS-PM
Path monitoring unavailable seconds (UAS-PM) indicates the unavailable seconds recorded in the OTN path during the PM time interval.
FC-PM
Path monitoring failure counts (FC-PM) indicates the failure counts recorded in the OTN path during the PM time interval.
ESR-PM
Path monitoring errored seconds ratio (ESR-PM) indicates the errored seconds ratio recorded in the OTN path during the PM time interval.
SESR-PM
Path monitoring severely errored seconds ratio (SESR-PM) indicates the severely errored seconds ratio recorded in the OTN path during the PM time interval.
BBER-PM
Path monitoring background block errors ratio (BBER-PM) indicates the background block errors ratio recorded in the OTN path during the PM time interval.
Table 12-74 Near-End or Far-End OTN FEC PM Parameters for the TXP_MR_10G Card
Parameter
Definition
Bit Errors Corrected
Indicates the number of bit errors corrected in the DWDM trunk line during the PM time interval.
Byte Errors corrected
indicates the number of byte erros corrected in the DWDM trunk line during the PM time interval.
Zero Bit Errors Detected
Indicates the number of 0 bit errors detected in the DWDM trunk line during the PM time interval.
One Bit Errors Detected
Indicates the number of 1 bit errors detected in the DWDM trunk line during the PM time interval.
Uncorrectable Words
Indicates the number of uncorrectable words detected in the DWDM trunk line during the PM time interval.
Figure 12-19 shows the signal types that support near-end and far-end PMs. Figure 12-20 shows where overhead bytes detected on the ASICs produce performance monitoring parameters for the MXP-2.5G-10G card.

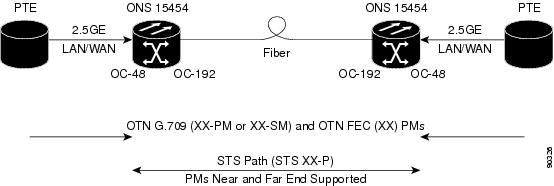

Figure 12-19 Monitored Signal Types for MXP-2.5G-10G Cards

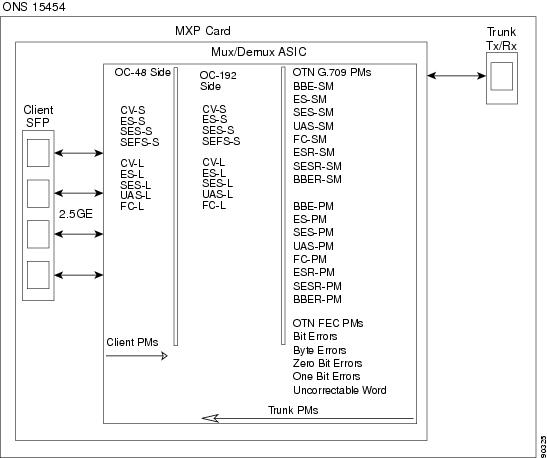

Figure 12-20 PM Read Points on MXP-2.5G-10G Cards
The PM parameters for the MXP-2.5G-10G cards are described in Table 12-75 through Table 12-84.
Table 12-75 Physical Optics PMs for MXP-2.5G-10G Cards
Parameter
Definition
Rx Optical Pwr (Min, dBm)
Minimum receive optical power
Rx Optical Pwr (Avg, dBm)
Average receive optical power
Rx Optical Pwr (Max, dBm)
Maximum receive optical power
Tx Optical Pwr (Min, dBm)
Minimum transmit optical power
TX Optical Pwr (Avg, dBm)
Average transmit optical power
Tx Optical Pwr (Max, dBm)
Maximum transmit optical power
Laser Bias (Min, %)
Minimum percentage of laser bias current
Laser Bias (Avg, %)
Average percentage of laser bias current
Laser Bias (Max, %)
Maximum percentage of laser bias current
Laser Temp (Min, C)
Minimum laser temperature
Laser Temp (Avg, C)
Average laser temperature
Laser Temp (Max, C)
Maximum laser temperature
Rx Temp (Min, C)
Minimum receive laser temperature
Rx Temp (Avg, C)
Average receive laser temperature
Rx Temp (Max, C)
Maximum receive laser temperature
Transceiver Vlt (Min, mV)
Minimum transceiver voltage
Transceiver Vlt (Avg, mV)
Average transceiver voltage
Transceiver Vlt (Max, mV)
Maximum transceiver voltage
Table 12-76 Near-End Section PMs for MXP-2.5G-10G Cards
Parameter
Definition
CV-S
Section Coding Violation (CV-S) is a count of BIP errors detected at the section-layer (i.e. using the B1 byte in the incoming SONET signal). Up to eight section BIP errors can be detected per STS-N frame; each error increments the current CV-S second register.
ES-S
Section Errored Seconds (ES-S) is a count of the number of seconds when at least one section-layer BIP error was detected or an SEF or LOS defect was present.
SES-S
Section Severely Errored Seconds (SES-S) is a count of the seconds when K (see GR-253 for value) or more section-layer BIP errors were detected or an SEF or LOS defect was present.
SEFS-S
Section Severely Errored Framing Seconds (SEFS-S) is a count of the seconds when an SEF defect was present. An SEF defect is expected to be present during most seconds when an LOS or LOF defect is present. However, there may be situations when the SEFS-S parameter is only incremented based on the presence of an SEF defect.
Table 12-77 Near-End Line Layer PMs for MXP-2.5G-10G Cards
Parameter
Definition
CV-L
Near-End Line Code Violation (CV-L) is a count of BIP errors detected at the line-layer (i.e. using the B2 bytes in the incoming SONET signal). Up to 8 x N BIP errors can be detected per STS-N frame; each error increments the current CV-L second register.
ES-L
Near-End Line Errored Seconds (ES-L) is a count of the seconds when at least one line-layer BIP error was detected or an AIS-L defect was present.
SES-L
Near-End Line Severely Errored Seconds (SES-L) is a count of the seconds when K (see GR-253 for values) or more line-layer BIP errors were detected or an AIS-L defect was present.
UAS-L
Near-End Line Unavailable Seconds (UAS-L) is a count of the seconds when the line is unavailable. A line becomes unavailable when ten consecutive seconds occur that qualify as SES-Ls, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ls.
FC-L
Near-End Line Failure Count (FC-L) is a count of the number of near-end line failure events. A failure event begins when an AIS-L failure or a lower-layer traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
Table 12-78 Near-End SONET Path H-byte PMs for MXP-2.5G-10G Cards
Parameter
Definition
Note On CTC, the count fields for PPJC and NPJC PMs appear white and blank unless they are enabled on the Provisioning > Line tabs.
PPJC-Pdet
Positive Pointer Justification Count, STS Path Detected (PPJC-Pdet) is a count of the positive pointer justifications detected on a particular path on an incoming SONET signal.
NPJC-Pdet
Negative Pointer Justification Count, STS Path Detected (NPJC-Pdet) is a count of the negative pointer justifications detected on a particular path on an incoming SONET signal.
PPJC-Pgen
Positive Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the positive pointer justifications generated for a particular path to reconcile the frequency of the SPE with the local clock.
NPJC-Pgen
Negative Pointer Justification Count, STS Path Generated (PPJC-Pgen) is a count of the negative pointer justifications generated for a particular path to reconcile the frequency of the synchronous payload envelope (SPE) with the local clock.
Table 12-79 Near-End Line Layer PMs for MXP-2.5G-10G Cards
Parameter
Definition
For information about Troubleshooting path protection configuration switch counts, see the alarm troubleshooting information in the Cisco ONS 15454 Troubleshooting Guide. For information about creating circuits that perform a switch, see "Circuits and Tunnels."
PSC (BLSR)
For a protect line in a 2-fiber ring, Protection Switching Count (PSC) refers to the number of times a protection switch has occurred either to a particular span's line protection or away from a particular span's line protection. Therefore, if a protection switch occurs on a 2-fiber BLSR, the PSC of the protection span to which the traffic is switched will increment, and when the switched traffic returns to its original working span from the protect span, the PSC of the protect span will increment again.
PSC (1+1 protection)
In a 1 + 1 protection scheme for a working card, Protection Switching Count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card.
For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used.
PSD
For an active protection line in a 2-fiber BLSR, Protection Switching Duration (PSD) is a count of the number of seconds that the protect line is carrying working traffic following the failure of the working line. PSD increments on the active protect line and PSD-W increments on the failed working line.
PSC-W
For a working line in a 2-fiber BLSR, Protection Switching Count-Working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line.
For a working line in a 4-fiber BLSR, PSC-W is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. PSC-W increments on the failed line and PSC-R or PSC-S increments on the active protect line.
PSD-W
For a working line in a 2-fiber BLSR, Protection Switching Duration-Working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line.
PSC-S
In a 4-fiber BLSR, Protection Switching Count-Span (PSC-S) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to the working line. A count is only incremented if span switching is used.
PSD-S
In a 4-fiber BLSR, Protection Switching Duration-Span (PSD-S) is a count of the seconds that the protection line was used to carry service. A count is only incremented if span switching is used.
PSC-R
In a 4-fiber BLSR, Protection Switching Count-Ring (PSC-R) is a count of the number of times service switches from a working line to a protection line plus the number of times it switches back to a working line. A count is only incremented if ring switching is used.
PSD-R
In a 4-fiber BLSR, Protection Switching Duration-Ring (PSD-R) is a count of the seconds that the protection line was used to carry service. A count is only incremented if ring switching is used.
Table 12-80 Near-End SONET Path PMs for MXP-2.5G-10G Cards
Near-End STS Path Coding Violations (CV-P) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-P second register.
STS ES-P
Near-End STS Path Errored Seconds (ES-P) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS ES-P.
STS FC-P
Near-End STS Path Failure Counts (FC-P) is a count of the number of near-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-P
Near-End STS Path Severely Errored Seconds (SES-P) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, near-end defect) or an LOP-P defect can also cause an STS SES-P.
STS UAS-P
Near-End STS Path Unavailable Seconds (UAS-P) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-Ps, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-Ps.
Table 12-81 Far-End Line Layer PMs for MXP-2.5G-10G Cards
Parameter
Definition
CV-LFE
Far-End Line Code Violation (CV-LFE) is a count of BIP errors detected by the far-end line terminating equipment (LTE) and reported back to the near-end LTE using the REI-L indication in the line overhead. For SONET signals at rates below OC-48, up to 8 x N BIP errors per STS-N frame can be indicated using the REI-L. For OC-48 signals, up to 255 BIP errors per STS-N frame can be indicated. The current CV-L second register is incremented for each BIP error indicated by the incoming REI-L.
ES-LFE
Far-End Line Errored Seconds (ES-LFE) is a count of the seconds when at least one line-layer BIP error was reported by the far-end LTE or an RDI-L defect was present.
SES-LFE
Far-End Line Severely Errored Seconds (SES-LFE) is a count of the seconds when K (see GR-253-CORE for values) or more line-layer BIP errors were reported by the far-end LTE or an RDI-L defect was present.
UAS-LFE
Far-End Line Unavailable Seconds (UAS-LFE) is a count of the seconds when the line is unavailable at the far end. A line becomes unavailable at the far end when ten consecutive seconds occur that qualify as SES-LFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-LFEs.
FC-LFE
Far-End Line Failure Count (FC-LFE) is a count of the number of far-end line failure events. A failure event begins when RFI-L failure is declared and ends when the RFI-L failure clears. A failure event that begins in one period and ends in another period is counted only in the period where it began.
Table 12-82 Far-End SONET Path PMs for MXP-2.5G-10G Cards
Far-End STS Path Coding Violations (CV-PFE) is a count of BIP errors detected at the STS path layer (i.e., using the B3 byte). Up to eight BIP errors can be detected per frame; each error increments the current CV-PFE second register.
STS ES-PFE
Far-End STS Path Errored Seconds (ES-PFE) is a count of the seconds when at least one STS path BIP error was detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS ES-PFE.
STS FC-PFE
Far-End STS Path Failure Counts (FC-PFE) is a count of the number of far-end STS path failure events. A failure event begins with an AIS-P failure, an LOP-P failure, a UNEQ-P failure or a TIM-P failure is declared, or if the STS PTE that is monitoring the path supports ERDI-P for that path. The failure event ends when these failures are cleared.
STS SES-PFE
Far-End STS Path Severely Errored Seconds (SES-PFE) is a count of the seconds when K (2400) or more STS path BIP errors were detected. An AIS-P defect (or a lower-layer, traffic-related, far-end defect) or an LOP-P defect can also cause an STS SES-PFE.
STS UAS-PFE
Far-End STS Path Unavailable Seconds (UAS-PFE) is a count of the seconds when the STS path was unavailable. An STS path becomes unavailable when ten consecutive seconds occur that qualify as SES-PFEs, and it continues to be unavailable until ten consecutive seconds occur that do not qualify as SES-PFEs.
Table 12-83 Near-End or Far-End OTN G.709 PM Parameters for the MXP_2.5G_10G Card
Parameter
Definition
BBE-SM
Section monitoring background block errors (BBE-SM) indicates the number of background block errors recorded in the OTN section during the PM time interval.
ES-SM
Section monitoring errored seconds (ES-SM) indicates the errored seconds recorded in the OTN section during the PM time interval.
SES-SM
Section monitoring severely errored seconds (SES-SM) indicates the severely errored seconds recorded in the OTN section during the PM time interval.
UAS-SM
Section monitoring unavailable seconds (UAS-SM) indicates the unavailable seconds recorded in the OTN section during the PM time interval.
FC-SM
Section monitoring failure counts (FC-SM) indicates the failure counts recorded in the OTN section during the PM time interval.
ESR-SM
Section monitoring errored seconds ratio (ESR-SM) indicates the errored seconds ratio recorded in the OTN section during the PM time interval.
SESR-SM
Section monitoring severely errored seconds ratio (SESR-SM) indicates the severely errored seconds ratio recorded in the OTN section during the PM time interval.
BBER-SM
Section monitoring background block errors ratio (BBER-SM) indicates the background block errors ratio recorded in the OTN section during the PM time interval.
BBE-PM
Path monitoring background block errors (BBE-PM) indicates the number of background block errors recorded in the OTN path during the PM time interval.
ES-PM
Path monitoring errored seconds (ES-PM) indicates the errored seconds recorded in the OTN path during the PM time interval.
SES-PM
Path monitoring severely errored seconds (SES-PM) indicates the severely errored seconds recorded in the OTN path during the PM time interval.
UAS-PM
Path monitoring unavailable seconds (UAS-PM) indicates the unavailable seconds recorded in the OTN path during the PM time interval.
FC-PM
Path monitoring failure counts (FC-PM) indicates the failure counts recorded in the OTN path during the PM time interval.
ESR-PM
Path monitoring errored seconds ratio (ESR-PM) indicates the errored seconds ratio recorded in the OTN path during the PM time interval.
SESR-PM
Path monitoring severely errored seconds ratio (SESR-PM) indicates the severely errored seconds ratio recorded in the OTN path during the PM time interval.
BBER-PM
Path monitoring background block errors ratio (BBER-PM) indicates the background block errors ratio recorded in the OTN path during the PM time interval.
Table 12-84 Near-End or Far-End OTN FEC PM Parameters for the MXP_2.5G_10G Card
Parameter
Definition
Bit Errors Corrected
Indicates the number of bit errors corrected in the DWDM trunk line during the PM time interval.
Byte Errors corrected
indicates the number of byte erros corrected in the DWDM trunk line during the PM time interval.
Zero Bit Errors Detected
Indicates the number of 0 bit errors detected in the DWDM trunk line during the PM time interval.
One Bit Errors Detected
Indicates the number of 1 bit errors detected in the DWDM trunk line during the PM time interval.
Uncorrectable Words
Indicates the number of uncorrectable words detected in the DWDM trunk line during the PM time interval.
[an error occurred while processing this directive]
Feedback
Threshold Performance Monitoring
