Cisco 766 Configuration

Site Profile Characteristics

Overview of Tasks

Step 1—Configuring System Level Settings

Configure

Verify

Step 2—Configuring the LAN Profile

Configure

Verify

Step 3—Configuring the Site Profile hq-sanjose

Configure

Verify

Step 4—Testing Connections to the Cisco AS5300

Step 5—Confirming the Final Running Configuration


Cisco 766 Configuration

This chapter describes how to configure the Cisco 766 to dial out to the Cisco AS5300.

Site Profile Characteristics

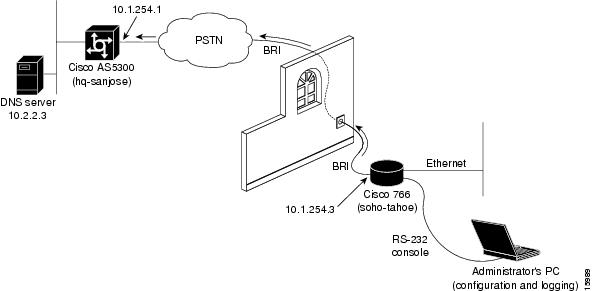

Figure 4-1 shows the network topology from the Cisco 766's perspective.

Figure 4-1

Network Topology

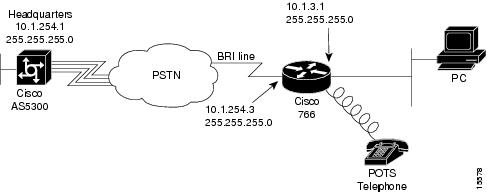

provides detailed information about each end of the connection. This is the network administrator's top-level design table.

Table 4-1 Site Characteristics

Host Name/
Username
Username
Password
WAN
IP Address1
Ethernet
IP Address
Assigned Phone Number
Site Hardware

soho-tahoe

tahoe-pw

10.1.254.3 255.255.255.0

10.1.3.1 255.255.255.0

Directory numbers = 5558084
5558085

Cisco 766

hq-sanjose

hq-sanjose-pw

10.1.254.1 255.255.255.0

10.1.1.10 255.255.255.0

4085551234

Cisco AS5300

1 The Cisco 766's default route is 10.1.254.1, which is the Cisco AS5300's dialer interface IP address. This is the next hop IP address.


Note   To enhance readability throughout this chapter, the most important output fields are highlighted with bold font. The commands you enter are also bold but are preceded by a router prompt.

Overview of Tasks

Perform the following steps:

•"Step 1—Configuring System Level Settings" on page 2

•"Step 2—Configuring the LAN Profile" on page 5

•"Step 3—Configuring the Site Profile hq-sanjose" on page 7

•"Step 4—Testing Connections to the Cisco AS5300" on page 9

•"Step 5—Confirming the Final Running Configuration" on page 11

Note   Before you perform the configuration tasks in this chapter, be sure you understand the overall software configuration action plan. See the chapter "."

Step 1—Configuring System Level Settings

System level settings include system name, security, ISDN setup, and PPP setup.

Configure

To configure the system level settings, use the following commands in system mode:

Step
Command
Purpose

1

> set system soho-tahoe

Enter the host name for this Cisco 766.

2

soho-tahoe> set switch ni1

Specify the ISDN switch type that your phone company uses.

3

soho-tahoe> set 1 directorynumber 5558084
soho-tahoe> set 2 directorynumber 5558085

Enter the directory numbers for the BRI port's two B channels.

4

soho-tahoe> set 1 spid 53055580840101
soho-tahoe> set 2 spid 53055580850101

Configure your SPIDs, which are required by many switches types. The SPID number is a derivative of the directory number.

5

soho-tahoe> set phone1 5558084
soho-tahoe> set phone2 5558085

Enable calls to route to the phone 1 and phone 2 POTS jacks.

6

soho-tahoe> set voicepriority out conditional
soho-tahoe> set voicepriority in conditional

Set the incoming and outgoing voice priority mode. It determines whether the system will disconnect a B channel assigned to a data call to allow a voice call.

7

soho-tahoe> set ppp multilink on

Turn on multilink PPP.

8

soho-tahoe> set ppp authentication incoming chap

Authenticate incoming callers using CHAP.

9

soho-tahoe> set ppp secret host
Enter new password: tahoe-pw
Re-Type new password: tahoe-pw

Specify the CHAP password for authenticating PPP peers. You must enter it twice for verification1 .

10

soho-tahoe> set password system
Enter new password: admin-pw
Re-Type new password: admin-pw

Protect your Cisco 766 terminal service shell with a password1. The system configuration mode can be accessed through the console port or a telnet session2 .

1 Make sure to use your own secret password. Do not use "tahoe-pw" or "admin-pw."

2 To modify what is protected by the password, use the set local access command.


Verify

To verify the configuration:

•Enter the show configuration command to display a subset of the current configuration parameters:

Note   This case study configures IP routing on the LAN and access profile. The internal profile is not used. See the display field "Profile Parameters."

soho-tahoe> show configuration

System Parameters

    Environment

      Screen Length          20

      Echo Mode              ON

      CountryGroup           1

    Bridging Parameters

      LAN Forward Mode       ANY

      WAN Forward Mode       ONLY

      Address Age Time       OFF

    Call Startup Parameters

      Multidestination       OFF

    Line Parameters

      Switch Type            NI-1

      Svc Profile ID 1       53055580840101

      Directory Number(s)    5558084

      Svc Profile ID 2       53055580850101

      Directory Number(s)    5558085

      Auto SPID and Switch Detection   OFF

      Conference access code 60

Transfer access code   61

    Call Parameters          Link 1             Link 2

      Retry Delay              30                 30

      Button                 Standard


Profile Parameters

    Bridging Parameters

      Bridging               ON

      Routed Protocols       NONE

      Learn Mode             ON

      Passthru               OFF

    Call Startup Parameters

    Line Parameters

      Line Speed             AUTO

      Numbering Plan         NORMAL

    Call Parameters          Link 1             Link 2

      Auto                     ON                 ON

      Called Number

      Backup Number

      Ringback Number

      CLI Validate Number

    CLICallback              OFF

    CLIAuthentication        OFF

•Enter the show security command to display the current system security configuration:

soho-tahoe> show security

System Parameters

    Security

      Access Status            ON

      System Password          EXISTS

      Remote Configuration     PROTECTED

      Local Configuration      ON

      ClickStart               ON

      Logout Timeout           5

      Caller ID Security       OFF

      Caller Id Numbers


    PPP Security

      PPP Authentication  IN   CHAP

      CHAP REFUSE              NONE


Profile Parameters

    PPP Security

      PPP Authentication OUT   NONE

      PPP Authentication ACCEPT   EITHER

      Token Authentication Support

        TAS Client             0.0.0.0

        Use Local CHAP Secret  ON

      Client

        User Name              soho-tahoe

        PAP Password           NONE

        CHAP Secret            NONE

      Host

        PAP Password           NONE

        CHAP Secret            EXISTS

      Callback

        Request                OFF

        Reply                  OFF

•Enter the show status command:

soho-tahoe> show status

Status    01/01/1998 00:01:08

Line Status

  Line Activated

  Terminal Identifier Assigned    SPID Accepted

  Terminal Identifier Assigned    SPID Accepted

Port Status                                           Interface

Connection Link

  Ch:  1      Waiting for Call

  Ch:  2      Waiting for Call

Step 2—Configuring the LAN Profile

The LAN profile contains the Cisco 766's Ethernet IP address and routing characteristics. Before you configure the LAN profile, you should understand how profiles work.

The Cisco 766's operating system uses a profile model. The LAN and remote site parameters are configured inside profiles. When using the command line interface for configuring the device, the current mode determines the effect and display output of each command. The current mode is indicated by the router prompt. To move between modes, use the cd command.

soho-tahoe>       <----------------------- This is system mode.
soho-tahoe> cd lan    <------------------- Change to the LAN profile.
soho-tahoe:LAN> cd hq-sanjose     <------- Change to the hq-sanjose profile.
soho-tahoe:hq-sanjose> cd    <------------ Go back to system mode.

soho-tahoe>

Note   For illustrative purposes, the hq-sanjose profile is included in this example. The actual hq-sanjose profile is configured later in the next section "Step 3—Configuring the Site Profile hq-sanjose."

In the following example, notice that the output of the show security command is different for each configuration mode.

soho-tahoe> show security

System Parameters

    Security

      Access Status            ON

      System Password          EXISTS

      Remote Configuration     PROTECTED

      Local Configuration      ON

      ClickStart               ON

      Logout Timeout           5

      Caller ID Security       OFF

      Caller Id Numbers


    PPP Security

      PPP Authentication  IN   CHAP

      CHAP REFUSE              NONE


Profile Parameters

    PPP Security

      PPP Authentication OUT   NONE

      PPP Authentication ACCEPT   EITHER

      Token Authentication Support

        TAS Client             0.0.0.0

        Use Local CHAP Secret  ON

      Client

        User Name              soho-tahoe

        PAP Password           NONE

        CHAP Secret            NONE

      Host

        PAP Password           NONE

        CHAP Secret            EXISTS

      Callback

        Request                OFF

        Reply                  OFF

soho-tahoe> cd hq-sanjose

soho-tahoe:hq-sanjose> show security


Profile Parameters

    PPP Security

      PPP Authentication OUT      NONE<*>

      PPP Authentication ACCEPT   EITHER

      Token Authentication Support

        TAS Mode                  OFF

        TAS Client                0.0.0.0

        Use Local CHAP Secret     ON

      Client

        User Name                soho-tahoe

        PAP Password             NONE

        CHAP Secret              EXISTS

      Host

        PAP Password             NONE

        CHAP Secret              EXISTS

      Callback

        Request                  OFF

        Reply                    OFF

Configure

To configure the LAN profile parameters, use the following commands beginning in system configuration mode:

Step
Command
Purpose

1

soho-tahoe> cd lan

Enter LAN profile mode.

2

soho-tahoe:LAN> set ip address 10.1.3.1

Enter the IP address.

3

soho-tahoe:LAN> set netmask 255.255.255.0

Configure the subnet mask.

4

soho-tahoe:LAN> set bridging off

Turn bridging off.

5

soho-tahoe:LAN> set ip routing on

Turn on IP routing.

6

soho-tahoe:LAN> set ip rip update off

Turn off IP RIP updates.


Verify

To verify the configuration:

•Enter the show configuration command to display the current LAN configuration:

soho-tahoe:LAN> show configuration


Profile Parameters

    Bridging Parameters

      Bridging               OFF<*>

      Routed Protocols       IP <*>

      Learn Mode             ON

      Passthru               OFF

    Call Startup Parameters

    Line Parameters

      Line Speed             AUTO

      Numbering Plan         NORMAL

    Call Parameters          Link 1             Link 2

      Auto                     ON                 ON

      Called Number

      Backup Number

      Ringback Number

      CLI Validate Number

    CLICallback              OFF

    CLIAuthentication        OFF

•Enter the show lan packets command to display packeting statistics associated with the LAN interface:

soho-tahoe:LAN> show lan packets

Packet Statistics for LAN

Filtered: 120  Forwarded: 1  Received: 124

Dropped: 0  Lost: 0   Corrupted: 0  Misordered: 0

Ethernet Type:  0800  Count:  15

Ethernet Type:  0806  Count:  7

Step 3—Configuring the Site Profile hq-sanjose

The hq-sanjose profile provides the dialing characteristics for connecting to the Cisco AS5300 (hq-sanjose).

Configure

To configure the site profile, use the following commands beginning in LAN profile mode:

Step
Command
Purpose

1

soho-tahoe:LAN> set user hq-sanjose
soho-tahoe> New user hq-sanjose being created

Create the profile for the headquarters NAS.

This profile name must match the PPP name sent by the NAS during CHAP authentication1 .

2

soho-tahoe:hq-sanjose> set prof power=activate user=hq-sanjose
soho-tahoe:hq-sanjose> set active

Ensure that the profile is currently active and active at reboot.

3

soho-tahoe:hq-sanjose> set encap ppp

Enable PPP encapsulation.

4

soho-tahoe:hq-sanjose> set ip routing on

Turn on IP routing.

5

soho-tahoe:hq-sanjose> set ip framing none

Set IP framing for PPP encapsulation.

6

soho-tahoe:hq-sanjose> set ip address 10.1.254.3

Set the IP address to be used on the WAN port when using this profile. See .

7

soho-tahoe:hq-sanjose> set ip netmask 255.255.255.0

Set the IP netmask address for the dialer cloud.

8

soho-tahoe:hq-sanjose> set ip route destination 0.0.0.0 gateway 10.1.254.1

Create a static route for the next hop, which is the Cisco AS5300's WAN port. IP address 10.1.254.1 is used on the Cisco AS5300's dialer interface2 .

9

soho-tahoe:hq-sanjose> set bridging off

Turn off bridging.

10

soho-tahoe:hq-sanjose> set ip rip update off

Turn off IP RIP updates.

11

soho-tahoe:hq-sanjose> set number 14085551234

Enter the hq-sanjose telephone number.

12

soho-tahoe:hq-sanjose> set speed 56k

Start your connection testing with 56K, which is often a more dependable connect speed3 .

13

soho-tahoe:hq-sanjose> set ppp authentication outgoing none

When soho-tahoe dials out, it will not authenticate hq-sanjose.

14

soho-tahoe:hq-sanjose> set ppp authentication incoming chap

All incoming PPP callers are authenticated with CHAP.

15

soho-tahoe:hq-sanjose> set ppp secret client
soho-tahoe:hq-sanjose> Enter new Password: tahoe-pw
soho-tahoe:hq-sanjose> Re-Type new Password: tahoe-pw

Specify the secret password to use when soho-tahoe is logging into hq-sanjose4 .

1 On Cisco IOS devices the PPP name is defined by one of the following commands: hostname, sgbp group, ppp pap sent-username, or ppp chap hostname.

2 By definition IP address 10.1.254.1 is connected to the Cisco 766's BRI interface, because the dialer's subnet contains address 10.1.254.1.

3 You are less likely to run into a problem by using 56K. After the connection is up and operational, try to upgrade the speed to 64K. Call blocking is more common at 64K than 56K. During the experiment, check to see if you have any reliability issues. The set speed auto command tells the router to try 64K. However, only a 64K end-to-end data path will work. If you are blocked, try again at 56K.

4 This secret client password must match the password configured on hq-sanjose. For example, the password "tahoe-pw" is in the central site's username soho-tahoe password tahoe-pw command. See the section "Configuring Site Definitions" in the chapter "Cisco AS5300 Configuration."


Verify

To verify the configuration:

•Enter the show security command to view the security parameters associated with the hq-sanjose profile. Notice that the Cisco 766 is not configured to support PAP.

soho-tahoe:hq-sanjose> show security


Profile Parameters

    PPP Security

      PPP Authentication OUT      NONE<*>

      PPP Authentication ACCEPT   EITHER

      Token Authentication Support

        TAS Mode                  OFF

        TAS Client                0.0.0.0

        Use Local CHAP Secret     ON

      Client

        User Name                soho-tahoe

        PAP Password             NONE

        CHAP Secret              EXISTS

      Host

        PAP Password             NONE

        CHAP Secret              EXISTS

      Callback

        Request                  OFF

        Reply                    OFF

•Enter the show configuration command to view the configuration settings for the hq-sanjose profile. Notice that bridging is turned off and IP routing is on. The dialed number for each channel is displayed. Hq-sanjose's phone number is 4085551234.

soho-tahoe:hq-sanjose> show configuration


Profile Parameters

    Bridging Parameters

      Bridging               OFF<*>

      Routed Protocols       IP <*>

      Learn Mode             ON

      Passthru               OFF

    Call Startup Parameters

    Line Parameters

      Line Speed             AUTO

      Numbering Plan         NORMAL

    Call Parameters          Link 1             Link 2

      Auto                     ON                     ON

      Called Number       14085551234<*>      14085551234<*>

      Backup Number

      Ringback Number

      CLI Validate Number

    CLICallback              OFF

    CLIAuthentication        OFF

Step 4—Testing Connections to the Cisco AS5300

This section describes how to perform the test. shows the actual test lab environment used in this test case.

Figure 4-2

Test Lab Environment

Step 1 Look at the routing table. Enter the show ip route command to verify that the correct routes are set up. Before you try to use IP, you should verify that IP will work.

View this information in the hq-sanjose profile and at the system level. If the profile is shut down, you will not see the route at the system level.

soho-tahoe:hq-sanjose> show ip route

Profile         Type Destination     Bits Gateway         Prop Cost Source Age

------------------------------------------------------------------------------

hq-sanjose      NET  10.1.254.0       24   DIRECT           ON   1   DIRECT  0


soho-tahoe:hq-sanjose> cd

soho-tahoe> show ip route

Profile         Type Destination     Bits Gateway         Prop Cost Source Age

------------------------------------------------------------------------------

LAN             NET  10.1.3.0          24   DIRECT          ON   1     DIRECT 0

hq-sanjose      NET 10.1.254.0         24   DIRECT          ON   1     DIRECT 0

Step 2 Change to the hq-sanjose profile. Enter the show connection command. Verify that no calls are currently connected:

soho-tahoe> cd hq-sanjose

soho-tahoe:hq-sanjose> show connection

Connections    01/01/1998 00:04:47

    Start Date & Time   #  Name                #     Ethernet

  1 01/01/1998 00:00:00 #                      # 00 00 00 00 00 00

  2 01/01/1998 00:02:36 #                      # 00 00 00 00 00 00

Step 3 Call hq-sanjose manually by entering the call ch2 command. Notice that the call must be initiated from within the hq-sanjose profile:

soho-tahoe:hq-sanjose> call ch2

01/01/1998 00:04:50  L05  0 14085551234 Outgoing Call Initiated

01/01/1998 00:04:53  L08  2 14085551234 Call Connected

01/01/1998 00:04:53  Connection 2 Add     Link 1 Channel 2

Step 4 Ping the DNS server, which is behind hq-sanjose and might be several hops away. If it fails, move back and try to ping the closest router (10.1.254.1).

soho-tahoe:hq-sanjose> ping 10.2.2.3

Start sending:   round trip time is 100 msec.

Step 5 Enter the show connection command to verify that the second connection is up:

soho-tahoe:hq-sanjose> show connection

Connections    01/01/1998 00:05:42

    Start Date & Time   #  Name                #     Ethernet

  1 01/01/1998 00:00:00 #                      # 00 00 00 00 00 00

  2 01/01/1998 00:02:36 # hq-sanjose           #

            Link: 1 Channel: 2 Phone: 14085551234

Step 6 Enter the show status command:

soho-tahoe> show status

Status    01/01/1998 00:47:50

Line Status

  Line Activated

  Terminal Identifier Assigned    SPID Accepted

  Terminal Identifier Assigned    SPID Accepted

Port Status                                           Interface Connection Link

  Ch:  1   56K Call In Progress        14085551234       DATA          2      1

  Ch:  2      Waiting for Call

Step 7 Try pinging the DNS server from a test PC on the local Ethernet LAN. Open the DOS application and enter the ping command.

Microsoft(R) Windows 95

   (C)Copyright Microsoft Corp 1981-1996.


C:\WINDOWS> ping 10.2.2.3

Pinging 10.1.3.2 with 32 bytes of data:


Reply from 10.1.3.2: bytes=32 time=3ms TTL=236

Reply from 10.1.3.2: bytes=32 time=2ms TTL=236

Reply from 10.1.3.2: bytes=32 time=3ms TTL=236

Reply from 10.1.3.2: bytes=32 time=2ms TTL=236

Troubleshooting and Debugging Tips

•Sometimes calls fail because the public phone network is blocking the call, which is beyond your control. Look at the B channel LEDs on the router. If the CH1 light is flashing, it means that the router is trying to place a call. Be patient and wait for the call to go through.

•If problems persist, have the local administrator connect to the command line interface (CLI) of the Cisco700 using telnet or a directly attached console to use various show commands, as described in the next bullet.

•Use log commands to enhance the output to the CLI. For example, the log calls verbose command displays call information on the terminal screen. If calls connect (channel LED on steady) then quickly disconnect, plus you are having serious connection problems, turn on PPP debugging by entering the diag ppp on | off command. Be sure to set diag ppp off when the function is not in use by an administrator.

Step 5—Confirming the Final Running Configuration

Here is the final configuration running on the Cisco 766. This configuration file can be used as a basic template for turning up additional remote sites. The bold entries are site specific. They should be customized for each site.

Timesaver

You can save time configuring a Cisco 766 by pasting a configuration file directly into a router. To do this, first return the router to its default state using the set default command. The router has no running configuration after this command is entered. Next, paste in the configuration file.

set system soho-tahoe

set switch ni1

set 1 spid 53055580840101

set 2 spid 53055580850101

set 1 directorynumber 5558084

set 2 directorynumber 5558085

set phone1 5558084

set phone2 5558085

set voice out conditional

set voice in conditional

set ppp multilink on

set ppp authentication incoming chap

set ppp secret host

tahoe-pw

tahoe-pw

set password system

admin-pw

admin-pw

cd lan

set ip address 10.1.3.1

set ip netmask 255.255.255.0

set ip routing on

set ip rip update off

set bridging off

cd

set user hq-sanjose

set prof power=activate user=hq-sanjose

cd hq-sanjose

set active

set encap ppp

set ip routing on

set ip framing none

set ip address 10.1.254.3

set ip netmask 255.255.0.0

set ip pat off

set ip rip update off

set ip route destination 0.0.0.0 gateway 10.1.254.1

set bridging off

set number 14085551234

set speed 56

set ppp authentication outgoing none

set ppp authentication incoming chap

set ppp secret client

tahoe-pw

tahoe-pw

cd

reboot

After you verify that the configuration works, initiate an upload at the end of the session and save it. An upload displays the setting of every configuration parameter on the Cisco 766.

soho-tahoe> upl

CD

SET SCREENLENGTH 20

SET COUNTRYGROUP 1

SET LAN MODE ANY

SET WAN MODE ONLY

SET AGE OFF

SET MULTIDESTINATION OFF

SET SWITCH NI-1

SET 1 SPID 53055580840101

SET 1 DIRECTORYNUMBER 5558084

SET PHONE1 = 5558084

SET 2 SPID 53055580850101

SET 2 DIRECTORYNUMBER 5558085

SET PHONE2 = 5558085

SET AUTODETECTION  OFF

SET CONFERENCE 60

SET TRANSFER 61

SET 1 DELAY 30

SET 2 DELAY 30

SET BRIDGING ON

SET LEARN ON

SET PASSTHRU OFF

SET SPEED AUTO

SET PLAN NORMAL

SET 1 AUTO ON

SET 2 AUTO ON

SET 1 NUMBER

SET 2 NUMBER

SET 1 BACKUPNUMBER

SET 2 BACKUPNUMBER

SET 1 RINGBACK

SET 2 RINGBACK

SET 1 CLIVALIDATENUMBER

SET 2 CLIVALIDATENUMBER

SET CLICALLBACK OFF

SET CLIAUTHENTICATION OFF

SET SYSTEMNAME SOHO-TAHOE

LOG CALLS TIME VERBOSE

SET UNICASTFILTER OFF

DEMAND 1 THRESHOLD 0

DEMAND 2 THRESHOLD 48

DEMAND 1 DURATION 1

DEMAND 2 DURATION 1

DEMAND 1 SOURCE LAN

DEMAND 2 SOURCE BOTH

TIMEOUT 1 THRESHOLD 0

TIMEOUT 2 THRESHOLD 48

TIMEOUT 1 DURATION 0

TIMEOUT 2 DURATION 0

TIMEOUT 1 SOURCE LAN

TIMEOUT 2 SOURCE BOTH

SET PASSWORD SYSTEM ENCRYPTED 0500120632484048

SET REMOTEACCESS PROTECTED

SET LOCALACCESS ON

SET CLICKSTART ON

SET LOGOUT 5

SET CALLERID OFF

SET PPP AUTHENTICATION IN CHAP

SET PPP CHAPREFUSE NONE

SET PPP AUTHENTICATION OUT NONE

SET PPP AUTHENTICATION ACCEPT EITHER

SET PPP TAS CLIENT 0.0.0.0

SET PPP TAS CHAPSECRET LOCAL ON

SET PPP SECRET HOST ENCRYPTED 10471a1d0b43191f4d45

SET PPP CALLBACK REQUEST OFF

SET PPP CALLBACK REPLY OFF

SET PPP NEGOTIATION INTEGRITY 10

SET PPP NEGOTIATION COUNT 10

SET PPP NEGOTIATION RETRY  3000

SET PPP TERMREQ COUNT 2

SET PPP MULTILINK ON

SET COMPRESSION STAC

SET PPP BACP ON

SET PPP ADDRESS NEGOTIATION LOCAL OFF

SET PPP IP NETMASK LOCAL OFF

SET IP PAT UDPTIMEOUT 5

SET IP PAT TCPTIMEOUT 30

SET IP RIP TIME 30

SET CALLDURATION 0

SET SNMP CONTACT ""

SET SNMP LOCATION ""

SET SNMP TRAP COLDSTART OFF

SET SNMP TRAP WARMSTART OFF

SET SNMP TRAP LINKDOWN OFF

SET SNMP TRAP LINKUP OFF

SET SNMP TRAP AUTHENTICATIONFAIL OFF

SET DHCP OFF

SET DHCP DOMAIN

SET DHCP NETBIOS_SCOPE

SET VOICEPRIORITY INCOMING INTERFACE PHONE1 CONDITIONAL

SET VOICEPRIORITY OUTGOING INTERFACE PHONE1 CONDITIONAL

SET CALLWAITING INTERFACE PHONE1 ON

SET VOICEPRIORITY INCOMING INTERFACE PHONE2 CONDITIONAL

SET VOICEPRIORITY OUTGOING INTERFACE PHONE2 CONDITIONAL

SET CALLWAITING INTERFACE PHONE2 ON

SET CALLTIME VOICE INCOMING OFF

SET CALLTIME VOICE OUTGOING OFF

SET CALLTIME DATA INCOMING OFF

SET CALLTIME DATA OUTGOING OFF

SET USER LAN

SET BRIDGING OFF

SET IP ROUTING ON

SET IP ADDRESS 10.1.3.1

SET IP NETMASK 255.255.255.0

SET IP FRAMING ETHERNET_II

SET IP PROPAGATE ON

SET IP COST 1

SET IP RIP RECEIVE V1

SET IP RIP UPDATE OFF

SET IP RIP VERSION 1

SET USER Internal

SET IP FRAMING ETHERNET_II

SET USER Standard

SET PROFILE ID 000000000000

SET PROFILE POWERUP ACTIVATE

SET PROFILE DISCONNECT KEEP

SET IP ROUTING ON

SET IP ADDRESS 0.0.0.0

SET IP NETMASK 0.0.0.0

SET IP FRAMING NONE

SET IP RIP RECEIVE V1

SET IP RIP UPDATE OFF

SET IP RIP VERSION 1

SET USER HQ-SANJOSE

SET PROFILE ID 000000000000

SET PROFILE POWERUP ACTIVATE

SET PROFILE DISCONNECT KEEP

SET BRIDGING OFF

SET SPEED 56K

SET 1 NUMBER 14085551234

SET 2 NUMBER 14085551234

SET PPP AUTHENTICATION OUT NONE

SET PPP SECRET CLIENT ENCRYPTED 020f175f055204350d0f

SET IP ROUTING ON

SET IP ADDRESS 10.1.254.3

SET IP NETMASK 255.255.0.0

SET IP FRAMING NONE

SET IP PROPAGATE ON

SET IP COST 1

SET IP RIP RECEIVE V1

SET IP RIP UPDATE OFF

SET IP RIP VERSION 1

SET IP PAT OFF

SET IP ROUTE DEST 0.0.0.0/0 GATEWAY 10.1.254.1 PROPAGATE OFF COST 1

CD

SET BUTTON Standard

LOGOUT

[an error occurred while processing this directive]
