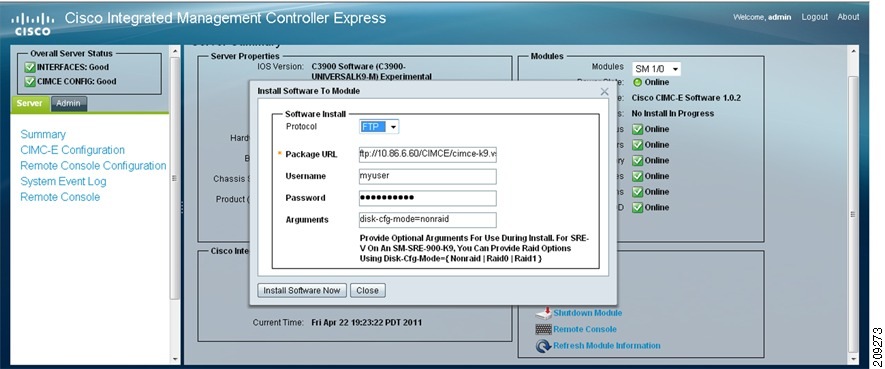

Installing Software on the Module

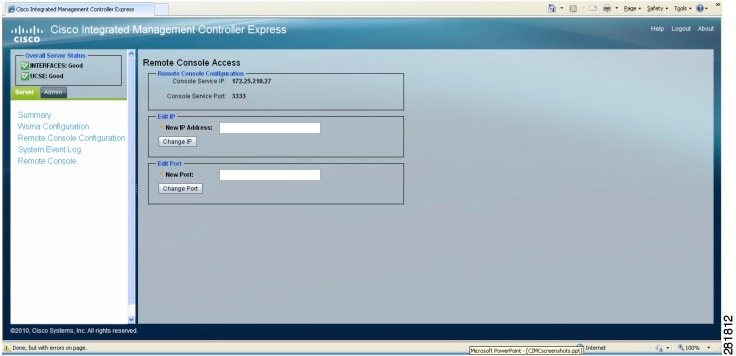

Configuring the Remote Console

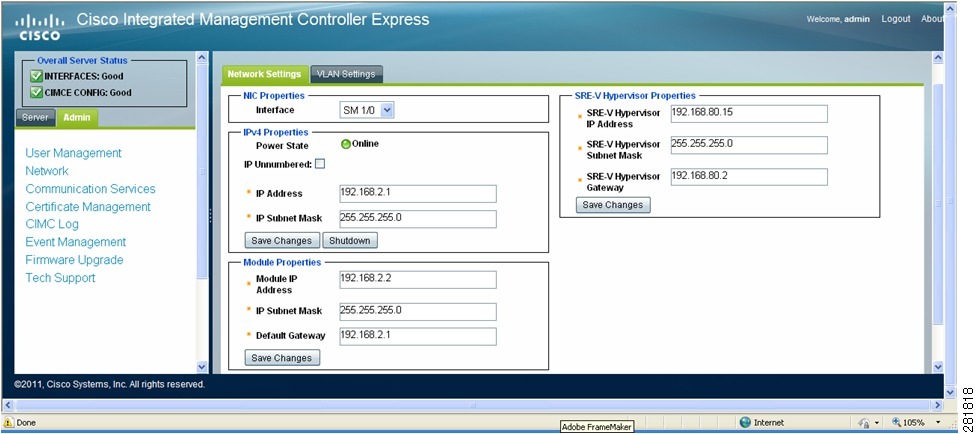

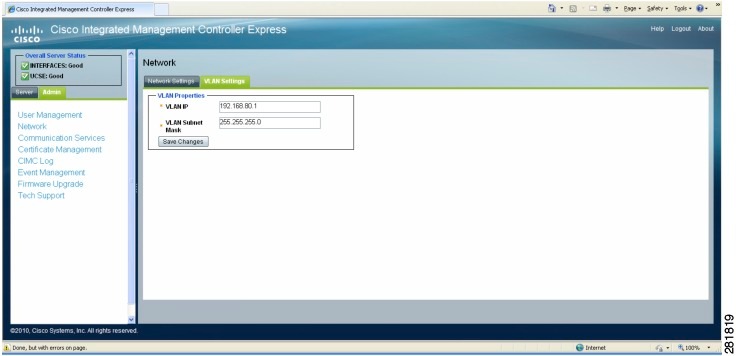

Configuring Network-Related Settings

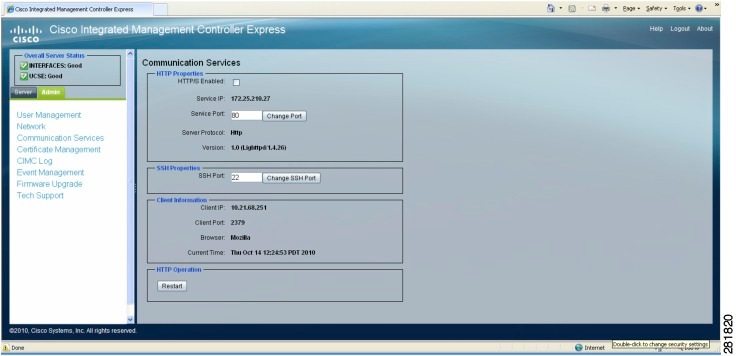

Configuring Communication Services
Using the Default Cisco Certificate
Creating a Self-Signed Certificate
Uploading a Server Certificate

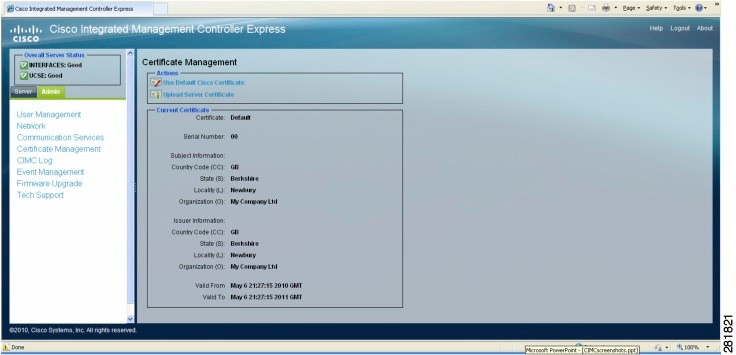

Viewing Current Certificate Information

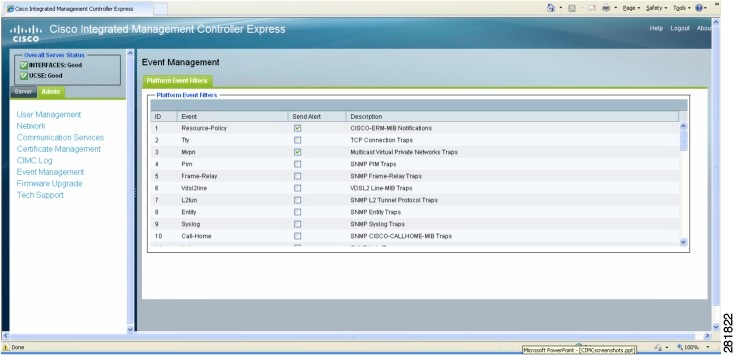

Configuring Platform Event Filters
Enabling Platform Event Alerts
Disabling Platform Event Alerts

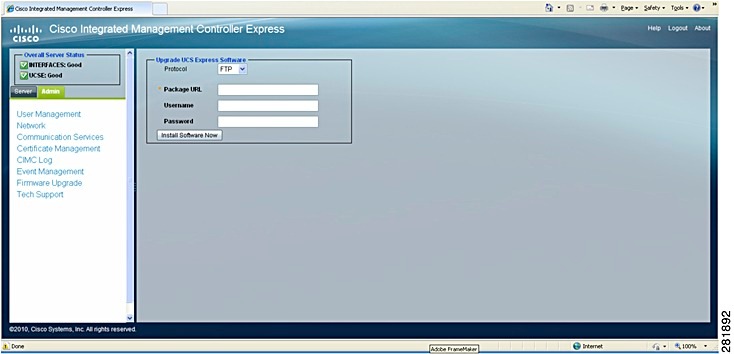

Obtaining CIMC-E Firmware from Cisco

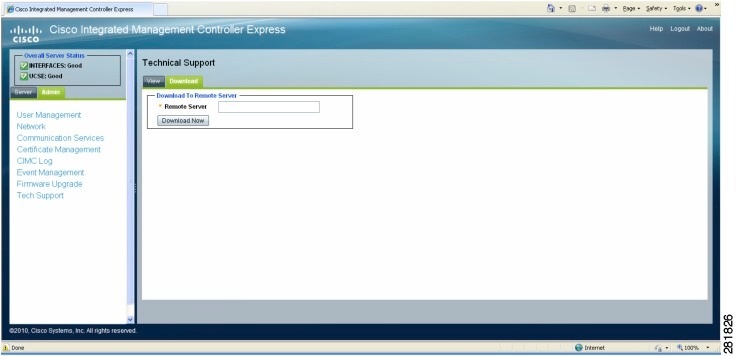

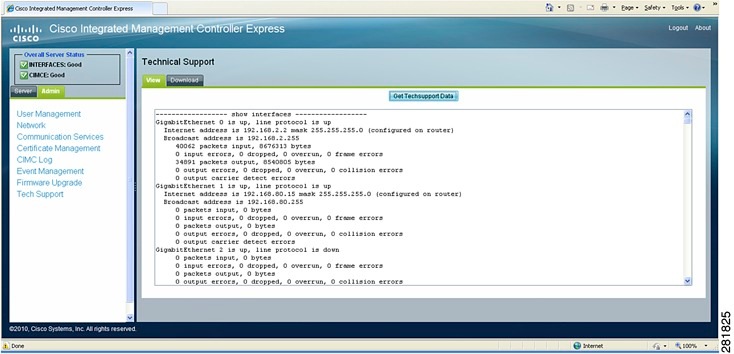

Exporting Technical Support Data
show status (service-module/module port)
show status (interface/interface port)
Embedded Service Engine Command Reference
interface embedded-service-engine 0/0
service-module embedded-service-engine 0/0 install
service-module embedded-service-engine 0/0 password-reset
service-module embedded-service-engine 0/0 reload
service-module embedded-service-engine 0/0 reset
service-module embedded-service-engine 0/0 session
service-module embedded-service-engine 0/0 shutdown
service-module embedded-service-engine 0/0 statistics
service-module embedded-service-engine 0/0 status
show interface embedded-service-engine 0/0
CIMC Express
First Published: April 21, 2011
Last Updated: September 16, 2011Cisco Integrated Management Controller Express (Cisco CIMC-E) provides the same basic management features as the UCS-C Series Rackmount Server product line on Cisco SRE Internal Service Module-Services Ready Engine (Cisco SRE ISM) and Cisco SRE Service Module-Services Ready Engine (Cisco SRE SM).
Contents
•
Embedded Service Engine Overview
•
•
•
•
•
•
CIMC-E Overview
The Cisco Integrated Management Controller Express (CIMC-E) is the management service for the Cisco SRE SM. This section contains the following topics:
•
•
Management Interfaces
You can use a web-based GUI or SSH-based CLI to access, configure, administer, and monitor the server. Almost all tasks can be performed in either interface, and the results of tasks performed in one interface are displayed in another. However, you cannot do the following:
•
•
•
Tasks You Can Perform in CIMC-E
You can use CIMC-E to perform the following server management tasks:
•
•
•
•
•
•
•
•
•
•
No Operating System or Application Provisioning or Management
CIMC-E provisions servers and, as a result, exists below the operating system on a server. Therefore, you cannot use it to provision or manage operating systems or applications on servers. For example, you cannot do the following:
•
•
•
•
•
•
CIMC-E GUI
The CIMC-E GUI is a web-based management interface for Cisco SRE SMs. You can launch the CIMC-E GUI and manage the server from any remote host that meets the following minimum requirements:
•
•
The CIMC-E GUI is described in the following sections:
CIMC-E Elements

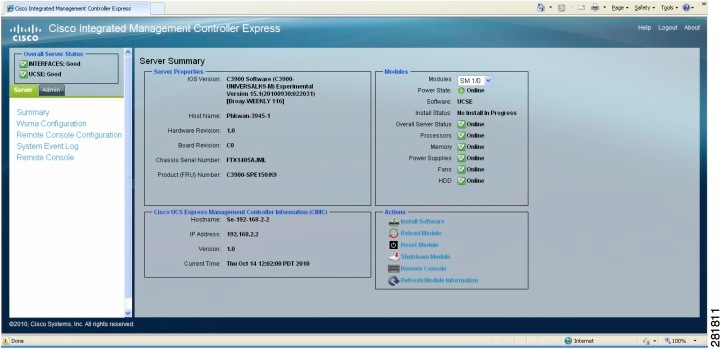

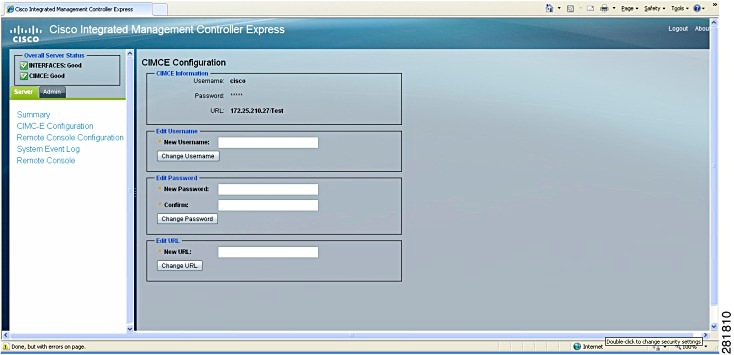

Figure 1 shows the CIMC-E GUI.
Figure 1 Cisco Integrated Management Controller Express GUI
Navigation Pane
The Navigation pane displays on the left side of the CIMC-E GUI. Clicking links on the Server or Admin tabs in the Navigation pane displays the selected pages in the Work pane on the right side of the CIMC-E GUI.
Table 1 describes the elements in the Navigation pane:
Work Pane
The Work pane displays on the right side of the UI. Different pages appear in the Work pane, depending on what link you click on the Server or Admin tab.
Table 2 describes the elements and pages in the Work pane:
Logging In to CIMC-E
To log in to CIMC-E, follow this procedure:
Procedure
Step 1
Step 2
a.
b.
Step 3
The default username is admin; the default password is password.
Step 4
Logging Out of CIMC-E
To log out of CIMC-E, follow this procedure:
Procedure
Step 1
Logging out returns you to the CIMC-E log in page.
Step 2
Embedded Service Engine Overview
Cisco Integrated Services Routers Generation 2 (Cisco ISRs G2) have dual core CPUs on the motherboard. The first core runs Cisco IOS software as Cisco Integrated Services Routers (ISRs) do; the second core, or the Embedded Service Engine, is capable of running Linux-based applications.
The following Cisco ISR G2 platforms support the Embedded Service Engine:
•
•
•
•
•
When the Embedded Service Engine is configured on a Cisco ISR G2, the infrastructure required to run an application on the Embedded Service Engine is partitioned between Cisco IOS software and the Embedded Service Engine.
When embedded applications are enabled, the Embedded Service Engine requires a compact flash card in the second compact flash slot. See Table 3 for further details.
Note
CIMC-E is not supported on the ISM-SRE-300-K9.
Note
Prerequisites
Compact Flash Card Requirements
Two compact flash cards are required for installing and running CIMC-E with Cisco IOS.
The compact flash card in slot CF0 is used for running Cisco IOS and the compact flash card in slot CF1 is used for the Embedded Service Engine. In Cisco IOS, slot CF0 is shown as "flash0:" and slot CF1 is shown as "flash1:".
Router Memory Requirements
The minimum memory that is required by different router platforms for the Embedded Service Engine is shown in Table 4.
Table 4 Embedded Service Engine Minimum Memory Requirement
Cisco 2911
Cisco 2951
Cisco 3925
Cisco 2921
—
Cisco 3945
For all platforms, the maximum memory is the platform's maximum supported memory.
CIMC-E Product Files
Table 5 lists the CIMC-E files contained in cimce-k9.vsem.1.0.2.tar.gz. These files are used for installation on the Cisco 2911 and Cisco 2921 platforms.
Table 6 lists the CIMC-E files contained in cimce-k9.vsep.1.0.2.tar.gz. These files are used for installation on the Cisco 2951, Cisco 3925, and Cisco 3945 platforms.
Installing CIMC-E on the Embedded Service Engine
To install CIMC-E on the Embedded Service Engine, follow the procedures described in these sections:
•
•
•
•
Configuring the Embedded Service Engine (Required)
Note
The new interface Embedded-Service-Engine has been added to existing service-module commands to manage the Embedded Service Engine. To configure the Embedded Service Engine, you have to:
1.
2.
3.
You must reboot the system before you install an application on the Embedded Service Engine.
SUMMARY STEPS
From the Host-Router CLI
1.
2.
3.
4.
5.
or
ip unnumbered type number6.
7.
8.
9.
10.
11.
12.
13.
14.
DETAILED STEPS
Step 1
enable
password
Example:Router> enable
Router> password
Router#
Enters privileged EXEC mode on the host router. Enter your password if prompted.
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode on the host router.
Step 3
interface Embedded-Service-Engine 0/0
Example:Router(config)# interface Embedded-Service-Engine 0/0
Enters interface configuration mode for the slot and port where the Embedded Service Engine resides.
Step 4
service-module enable
Example:Router(config-if)# service-module enable
Enables the Embedded Service Engine on a service module interface and partitions hardware resources.
Step 5
ip address module-side-ip-address subnet-mask
or
ip unnumbered type number
Example:Router(config-if)# ip address 10.10.10.1 255.255.0.0
or
Router(config-if)# ip unnumbered gigabitethernet 1/0
Specifies the IP address for the router side of the interface.
•
or
Enables IP processing on an interface without assigning an explicit IP address to the interface.
•
•
Note
Step 6
service-module ip address module-side-ip-address subnet-mask
Example:Router(config-if)# service-module ip address 10.10.10.2 255.255.255.0
Specifies the IP address for the module side of the interface.
•
•
Step 7
service-module ip default-gateway gateway-ip-address
Example:Router(config-if)# service-module ip default-gateway 10.10.10.1
Specifies the IP address of the default gateway for the module.
•
Step 8
no shutdown
Example:Router(config-if)# end
Restarts a disabled interface.
Step 9
exit
Example:Router(config-if)# end
Exits global configuration mode on the host router.
Step 10
ip route prefix mask ip-address
Example:Router# ip route 10.0.0.1 255.255.255.255 Embedded-Service-Engine0/0
Establishes static routes.
Note
Step 11
end
Example:Router(config-if)# end
Returns to Privileged EXEC mode on the host router.
Step 12
copy running-config startup-config
Example:Router# copy running-config startup-config
Saves the router's new running configuration as the startup configuration.
Step 13
show running-config
Example:Router# show running-config
Displays the router's running configuration, so that you can verify address configurations.
Step 14
reload
Example:Router# reload
Proceed with reload? [confirm]
Reloads the operating system.
Configuring the Embedded Service Engine: Example
In the following example, the Embedded Service Engine is enabled.
interface Embedded-Service-Engine0/0ip address 10.10.10.1 255.255.0.0service-module enableservice-module ip address 10.10.10.2 255.255.0.0service-module ip default-gateway 10.10.10.1!The resources are divided between the first core and the Embedded Service Engine after the configuration has been saved to NVRAM and the system has been rebooted.
Router# show running-config
Router# copy running-config startup-config
Router# reload
Proceed with reload? [confirm]Installing CIMC-E on the Embedded Service Engine
Installing CIMC-E on the Embedded Service Engine is similar to installing an application on any SRE-enabled service module.
Note
Once the installation begins, do not enter commands on the module until the "Installation successful..." message appears.
To install CIMC-E on the Embedded Service Engine, complete the following steps:
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Installing CIMC-E on the Embedded Service Engine: Example
The following is an example installation of the CIMC-E application on the Embedded Service Engine:
Router# service-module embedded-Service-Engine 0/0 install url ftp://10.86.26.195/vsem/cimce-k9.vsem.1.0.2.pkgProceed with installation? [no]: yesLoading nightly/BNDR/vsem/cimce-k9.vsem.1.0.2.pkg.install.sre ![OK - 15482/4096 bytes]partition_support is available.Has enough memory and disk disk space for app installrsrc_str is disk= 488 mem= 256raid option -1sku vsemios_version 15.1(20101031:104834)ios_image c2900-universalk9-mzpkg name cimce-k9.vsem.1.0.2.pkgResource requirements check completed successfully. Proceeding to Install....CSL-2911#CSL-2911#Install successful on Embedded-Service-Engine0/0The "Install successful..." message indicates that the installation process is finished.
The following example shows that CIMC-E was installed correctly:
Router# service-module embedded-Service-Engine 0/0 statusService Module is Cisco Embedded-Service-Engine0/0Service Module supports session via TTY line 2Service Module is in Steady stateService Module heartbeat-reset is enabledGetting status from the Service Module, please wait..Cisco CIMC-E Software 1.0CIMCE Running on VSEMEmbedded Service Engine boot state is KERNEL UPModule resource information:CPU Frequency: 500 MHzMemory Size: 256 MBDisk Size: 488 MBNo install/uninstall in progressConfiguring the Cisco ISR G2 for CIMC-E
To configure the Cisco ISR G2 for CIMC-E, perform the tasks described in the following sections.
•
•
•
Setting Up the HTTPS Server and Authentication
The HTTPS server must be started.
Note
SUMMARY STEPS
1.
2.
3.
4.
5.
DETAILED STEPS
Setting Up the HTTPS Server and Authentication: Example
The following example shows how to set up the HTTPS server and authentication.
Router# config tRouter(config)# ip http secure-serverRouter(config)# ip http authentication localRouter(config)# exitRouter#Configuring the Web Services Management Agent
The Web Services Management Agent (WSMA) enables communication between CIMC-E and Cisco IOS software. A user must be configured with level 15 privileges. In addition, a WSMA profile must be set up to listen for both config and exec mode commands.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
DETAILED STEPS
Configuring the Web Services Management Agent: Example
The following example shows how to configure a WSMA listener profile named wsma:
Router# config tRouter(config)# username wsmauser privilege 15 password 0 mypasswordRouter(config)# wsma profile listener wsmaRouter(config-wsma-listen)# transport https path /cimceRouter(config-wsma-listen)# exitRouter(config)# wsma agent exec profile wsmaRouter(config)# wsma agent config profile wsmaRouter(config)# wsma agent notify profile wsmaRouter(config)# exitRouter#Configuring Rollback (WSMA Capability)
You must enable WSMA to use rollback by configuring the Cisco IOS software to allow archiving of commands.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
DETAILED STEPS
Configuring Rollback (WSMA Capability): Example
The following example shows how to configure rollback.
Router# config tEnter configuration commands, one per line. End with CNTL/Z.Router(config)# archiveRouter(config-archive)# log configRouter(config-archive-log-cfg)# hidekeysRouter(config-archive-log-cfg)# exitRouter(config-archive)# path flash:rollRouter(config-archive)# maximum 5Router(config-archive)# exitRouter(config)#Accessing the CIMC-E CLI
To access the CIMC-E CLI, from any Linux workstation, enter:
ssh admin@Embedded-Service-Engine-Service-Module-IP-Address
as in the following example in which the Embedded Service Engine service module IP address is 10.0.0.2:
> ssh admin@10.0.0.2
admin@10.0.0.2's password:
se-10-0-0-2#
Note
Configuring CIMC-E
Once the Cisco ISR G2 has been properly configured, the CIMC-E software must be configured with settings that match those configured on the Cisco ISR G2 in the "Configuring the Cisco ISR G2 for CIMC-E" section. To configure CIMC-E, log into the CIMC-E CLI using SSH as described in the "Accessing the CIMC-E CLI" section. The following commands are found in the scope cimce.
SUMMARY STEPS
1.
2.
3.
4.
5.
DETAILED STEPS
Configuring CIMC-E: Example
In the following example, the IP address of the Cisco ISR G2 router, as reachable from the Embedded Service Engine, is 10.0.0.5:
ssh admin@10.0.0.5admin@10.0.0.5's password:se-10-0-0-5# scope cimcese-10-0-0-5 /cimce # set username wsmauserse-10-0-0-5 /cimce *# set password <PASSWORD>se-10-0-0-5 /cimce *# set url 10.0.0.5/cimcese-10-0-0-5 /cimce *# commitUsername: wsmauserPassword: <hidden>End Point: 10.0.0.5/cimceNew config changes have been savedse-10-0-0-5 /cimce #
Note
The username and password setup here must correspond to the username and password setup in the "Configuring the Web Services Management Agent" section.
Verifying That CIMC-E Is Configured Properly
To verify that the CIMC-E application is configured properly, use the show hardware command in the scope router. In the following example, the IP address of the Embedded Service Engine is 10.0.0.5:
ssh admin@10.0.0.5admin@10.0.0.5's password:se-10-0-0-5# scope routerse-10-0-0-5 /router# show hardwareCisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M)Cisco CISCO2911/K9 (revision 1.0) with 729056K/57344K bytes of memory.Chassis Serial Number : FTX1405A1Z5Chassis MAC Address : 0000.e181.5150se-10-0-0-5#If CIMC-E is configured properly, you should see an output similar to this example when you run the show hardware command.
Managing the Embedded Service Engine
This section contains the following topics:
•
•
Disabling the Embedded Service Engine
To disable the Embedded Service Engine, you have to:
1.
2.
3.
When you disable the Embedded Service Engine, all resources are returned to the first core.
SUMMARY STEPS
From the Host-Router CLI
1.
2.
3.
4.
5.
6.
7.
8.
DETAILED STEPS
Disabling the Embedded Service Engine: Example
In the following example, the Embedded Service Engine is disabled:
interface Embedded-Service-Engine0/0no service-module enable!The resources are returned to the first core after the configuration has been saved to NVRAM and the system has been rebooted.
Router# copy running-config startup-config
Router# show running-config
Router# reload
Proceed with reload? [confirm]Troubleshooting the Embedded Service Engine
This section contains troubleshooting information for the following scenarios:
•
•
•
•
Verifying That the Embedded Service Engine Is Enabled
From the Cisco IOS software prompt, enter the following command:
Router# show running-configIn the command output, verify that the line "service-module enable" is present under the Embedded-Service-Engine0/0 interface:
interface Embedded-Service-Engine0/0ip address 10.10.10.1 255.255.0.0service-module enableservice-module ip address 10.10.10.2 255.255.0.0service-module ip default-gateway 10.10.10.1!If you try to enable the Embedded Service Engine on a system that does not have enough memory, the following message is displayed:
2911B# configure terminalEnter configuration commands, one per line. End with CNTL/Z.2911B(config)# interface Embedded-Service-Engine 0/02911B(config-if)# service-module enableMemory size does not meet the requirements of Embedded-Service-Engine 0/0Verifying System Resources
After enabling the Embedded Service Engine, saving the configuration, and rebooting the router, enter the show diag command. Verify that the Embedded Service Engine resources are shown as in the following example:
Show diag:...Embedded Service Engine 0/0 :Total platform memory : 2097152K bytesTotal 2nd core memory : 262144K bytesStart of physical address for 2nd core : 0x20000000Number of blocks of memory for 2nd core : 12nd core configured enabledL2 cache ways for 2nd core : 1CF1 for 2nd coreMac address of interface is 8843.e100.0006Mac address of 2nd core is 8843.e100.0007Checking the Status of the Embedded Service Engine
Use the service-module status command to check the status of the Embedded Service Engine:
C2951# service-module embedded-Service-Engine 0/0 statusService Module is Cisco Embedded-Service-Engine0/0Service Module supports session via TTY line 2Service Module is in Steady stateService Module heartbeat-reset is enabledGetting status from the Service Module, please wait..Cisco CIMCE Software 1.0Fndn running on C2951Embedded Service Engine boot state is KERNEL UPNo install/uninstall in progressCheck that the state is not in RESET or FAILED.
If the state is RESET:
•
•
If the state is FAILED, see the "Corrupt uboot Image" section.
Verifying the Embedded Service Engine Boot Up
Check the console log to verify that the Embedded Service Engine boots up to the KERNEL.
*Sep 20 18:41:54.283: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP*Sep 20 18:41:54.287: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP*Sep 20 18:41:55.359: %SM_INSTALL-6-INST_RBIP: Embedded-Service-Engine0/0 received msg: RBIP Registration Request*Sep 20 18:41:56.203: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to up*Sep 08 18:46:23.639: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UPCorrupt uboot Image
If the uboot image is corrupt, the following console messages are displayed:
Router#*Sep 28 18:40:01.898: %SECONDCORE-3-UBOOT_BADMAGIC: Invalid Image magic is 0xD0A5468 expected 0x42553049*Sep 28 18:40:01.898: %SECONDCORE-3-NOT_LAUNCHED: Second core not launched*Sep 28 18:40:01.922: %SECONDCORE-3-UBOOT_BADMAGIC: Invalid Image magic is 0xD0A5468 expected 0x42553049*Sep 28 18:40:01.922: %SECONDCORE-3-NOT_LAUNCHED: Second core not launched*Sep 28 18:40:03.894: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to downIf the uboot image is corrupt, do the following:
1.
2.
3.
4.
5.
6.
You do not have to save the configuration to NVRAM, and a reboot is not required.
Corrupt uboot Configuration
Open a session with the Embedded Service Engine:
Router# service-module embedded-Service-Engine 0/0 sessionTrying 10.10.10.1, 2002 ... Open***ServicesEngine Bootloader Version : 1.0boot loader > show configIP Address: 10.10.10.2Subnet Mask: 255.255.0.0TFTP Server: 10.10.10.1Gateway: 10.10.10.1Default Helper-file: cimce-installer.vsep.eng_bld.prt1Ethernet Interface: internalDefault Boot: diskDefault Bootloader: primaryBootloader Version: 1.0If the Embedded Service Engine is stuck at the uboot prompt, it is possible that the uboot configuration is lost or corrupt. If the Default Boot field shown above is NULL, the uboot configuration read may have failed or the uboot configuration is corrupt. Enter the following command from the Cisco IOS software prompt:
Router# service-module embedded-service-engine 0/0 resetVerifying Application Installation
The following is an example installation of the CIMC-E application on the Embedded Service Engine:
Router# service-module embedded-Service-Engine 0/0 install url ftp://example@10.86.26.195/new/vsep/cimce-k9.vsep.1.0.2.pkgProceed with installation? [no]: yesLoading new/vsep/cimce-k9.vsep.1.0.2.pkg.install.sre ![OK - 15049/4096 bytes]partition_support is available.Has enough memory and disk disk space for app installrsrc_str is disk= 256 mem= 256raid option -1sku vsepios_version 15.1(20101009:200234)ios_image c2951-universalk9-mzpkg name cimce-k9.vsep.1.0.2.pkgResource requirements check completed successfully. Proceeding to Install....To verify that CIMC-E was installed correctly, use the following command:
Router# service-module embedded-Service-Engine 0/0 statusService Module is Cisco Embedded-Service-Engine0/0Service Module supports session via TTY line 2Service Module is in Steady stateService Module heartbeat-reset is enabledGetting status from the Service Module, please wait..Cisco CIMC-E Software 1.0CIMCE Running on VSEMEmbedded Service Engine boot state is KERNEL UPNo install/uninstall in progressManaging the Server
This section contains the following topics:
•
•
•
Configuring CIMC-E Properties
To enable communication with CIMC-E, follow this procedure. This configuration can also be performed from the CIMC-E command line as described in the "Configuring CIMC-E" section.
Procedure
Step 1
Step 2
Step 3
Table 7 CIMC-E Configuration Field Descriptions
Username
Username for communicating with CIMC-E.
Password
Password for communicating with CIMC-E.
URL
URL of the router.
Step 4
Step 5
Step 6
The CIMC-E Configuration Pane is shown in Figure 2.
Figure 2 CIMC-E Configuration Pane
Viewing Overall Server Status
To view overall server status, follow this procedure:
Procedure
Step 1
Step 2
Figure 3 Server Summary Pane
Review the following information in the Modules area of the Server Summary pane:
Shutting Down the Module
To shut down the module, follow this procedure:
Before You Begin
You must have privileges for the module that you want to shut down.
Procedure
Step 1
Step 2
Step 3
Reloading the Module
To reload the module, follow this procedure:
Before You Begin
You must have privileges for the module that you want to reload.
Procedure
Step 1
Step 2
Step 3
Resetting the Module
To reset the module, follow this procedure:
Before You Begin
You must have privileges for the module that you want to reset.
Procedure
Step 1
Step 2
Step 3
Installing Software on the Module
To install software on the module, follow this procedure:
Before You Begin
You must have privileges for the module on which you want to install software.
Procedure
Step 1
Step 2
Step 3
Step 4
Figure 4 Install Software to Module Screen
Step 5
Viewing Server Properties
To view server properties, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Viewing CIMC-E Information
To view CIMC-E information, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Managing the Remote Console
This section contains the following topics:
•
Configuring the Remote Console
To configure the remote console, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Step 4
Figure 5 Remote Console Access Pane
Note
Using the Remote Console
You can use the remote console to telnet into an application on a router blade. For example, you can telnet into a Cisco SRE-V and accept Cisco Software Licensing (CSL) licenses.
Procedure
Step 1
Step 2
Step 3

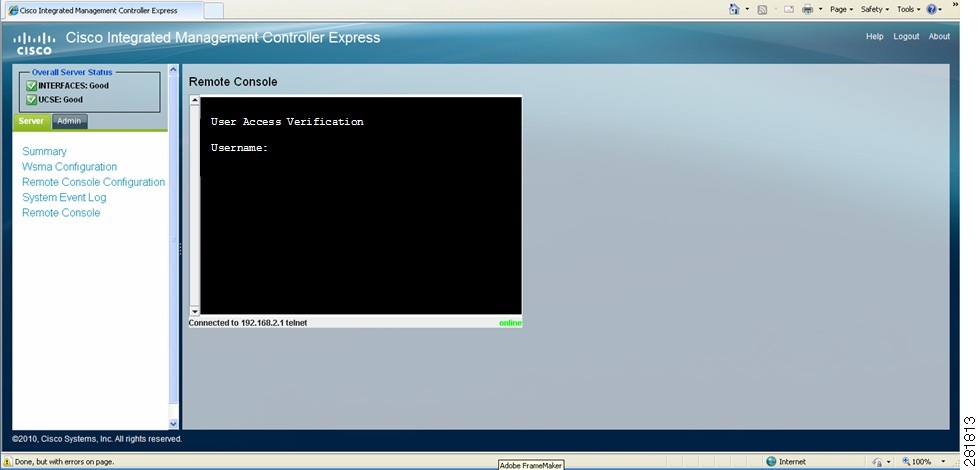

The Remote Console Pane is shown in Figure 6.
Figure 6 Remote Console Pane
Managing User Accounts
This section contains the following topics:
Creating Local Users
To create local users, follow this procedure:
Before You Begin
You must log in as the admin user to configure local users.

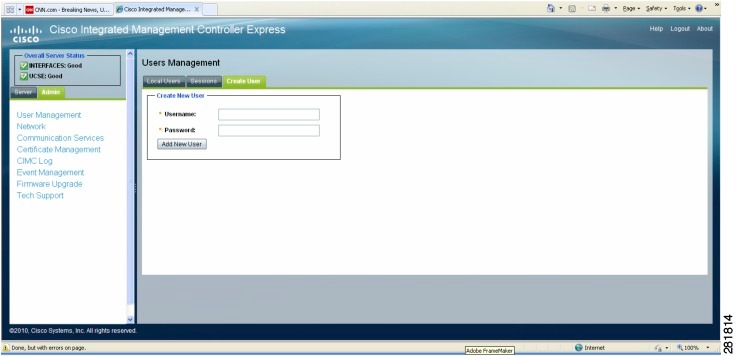

The Create User screen is shown in Figure 7.
Figure 7 Create User Pane
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Configuring User Privileges
To configure user privileges, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Step 4

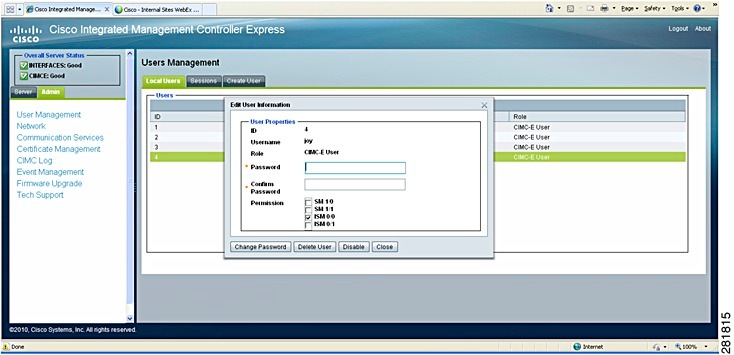

Figure 8 Edit User Information Dialog Box
In the Edit User Information dialog box, you can update the following properties:
Note
Step 5
Step 6
Step 7
Step 8
Step 9
Step 10
Step 11
Viewing Local Users
To view local users, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Step 4
Tip

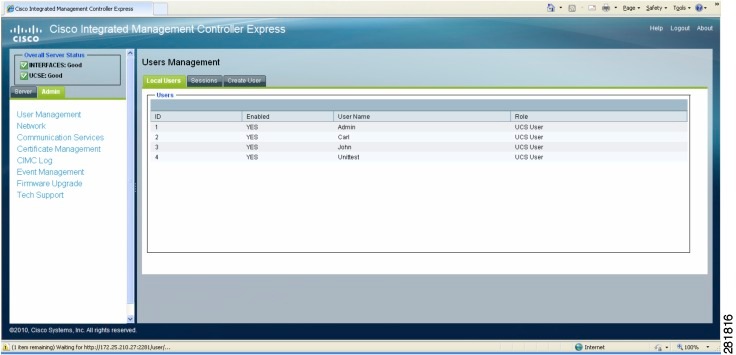

Figure 9 Local Users Pane
Viewing User Sessions
To view user sessions, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Step 4
Tip

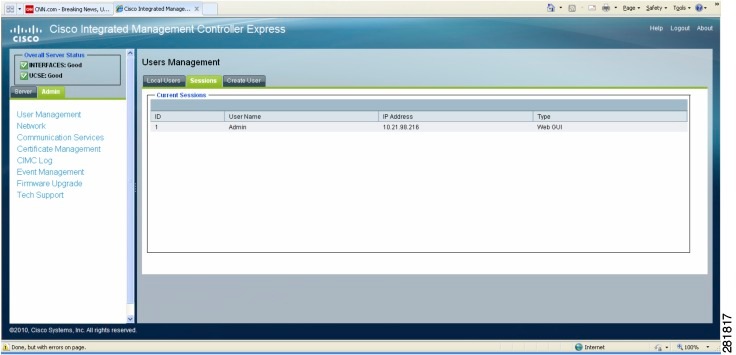

The Sessions screen is shown in Figure 10.
Figure 10 Sessions Screen
Configuring Network-Related Settings
This section contains the following topics:
•
Configuring NIC Properties
To configure NIC properties, follow this procedure:
Before You Begin
You must log in as a user with admin privileges to configure the NIC.
Procedure
Step 1
Step 2
Step 3
Step 4
Configuring IPv4
To configure IPv4, follow this procedure:
Before You Begin
You must log in as a user with admin privileges to configure IPv4.
Procedure
Step 1
Step 2
Step 3
Step 4
Table 17 IPv4 Properties Field Descriptions
Power State field
Whether module is Online or not.
IP Address field
The IP address of the module.
IP Subnet field
The subnet.
Step 5
Step 6
Configuring Module Properties
To configure module properties, follow this procedure:
Before You Begin
You must log in as a user with admin privileges to configure module properties.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
The Module Properties area of the Network Settings tab is shown in Figure 11.
Figure 11 Network Settings
Configuring VLANs
To configure VLANs, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Step 4
Table 19 VLAN Settings Field Descriptions
VLAN IP field
The IP address of the VLAN.
VLAN Subnet field
The subnet of the IP address.
Step 5
The VLAN properties are shown in Figure 12.
Figure 12 VLAN Settings
Configuring Communication Services
This section contains the following topics:
Configuring HTTP
To configure HTTP, follow this procedure:
Procedure
Step 1
Step 2
Step 3
The HTTP properties are shown in Figure 13.
Figure 13 Communication Services Pane
Configuring SSH
You can configure the port used to connect via SSH to the CIMC-E CLI interface.
Procedure
Step 1
Step 2
Step 3
Step 4
Viewing Client Information
To view client information, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Restarting HTTP Operations
To restart HTTP operations, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Managing Certificates
The CIMC-E GUI supports the HTTPS protocol and so requires a privacy-enhanced mail (PEM) certificate to establish HTTPS connections. The two ways of getting a server certificate for the CIMC-E GUI to use are described in the following sections:
•
•
Note
•
•
•
•
Using the Default Cisco Certificate
To use the default Cisco certificate, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Creating a Self-Signed Certificate
As an alternative to using a public Certificate Authority (CA) to generate and sign a server certificate, you can generate your own self-signed certificate. This section shows commands for generating a self-signed certificate using the OpenSSL certificate server running on Linux. For detailed information about OpenSSL, see http://www.openssl.org.
Note
Before You Begin
Obtain and install a certificate server software package on a server within your organization.
Procedure
From a Linux machine, you can use openssl to generate a self-signed certificate. To do so, enter these commands:
openssl genrsa -out key.pem 1024openssl req -new -key key.pem -out request.pem [-batch]openssl req -x509 -days 30 -key key.pem -in request.pem -out certificate.pemcat key.pem certificate.pem > myNewKey.pemWhat to Do Next
Upload myNewKey.pem to the CIMC-E web server for use with HTTPS connections, as described in the following section.
Uploading a Server Certificate
If you have created your own server certificate, you can use the GUI to upload it.
Procedure
Step 1
Step 2
Step 3
Viewing Current Certificate Information
To view current certificate information, follow this procedure:
Procedure
Step 1
Step 2
Step 3
Figure 14 Certificate Management Pane
View the following information about the current certificate:
Configuring Platform Event Filters
This section contains the following topics:
•
•
Platform Event Filters
A platform event filter (PEF) can trigger an action and generate an alert when a critical hardware-related event occurs. For each PEF, you can choose the action to be taken (or take no action) when a platform event occurs. You can also choose to generate and send an alert when a platform event occurs. Alerts are sent as an SNMP trap, so you must configure an SNMP trap destination before the alerts can be sent.
You can globally enable or disable the generation of platform event alerts. When disabled, alerts are not sent even if PEFs are configured to send them.
Enabling Platform Event Alerts
To enable platform event alerts, follow this procedure:
Before You Begin
You must log in as a user with admin privileges to enable platform event alerts.
Procedure
Step 1
Step 2
Step 3
Figure 15 Event Management Screen
Disabling Platform Event Alerts
To disable platform event alerts, follow this procedure:
Before You Begin
You must log in as a user with admin privileges to disable platform event alerts.
Procedure
Step 1
Step 2
Step 3
CIMC-E Firmware Management
This section contains the following topics:
•
Overview of Firmware
After you have obtained a new firmware image from Cisco, you can use it to update the firmware on your server. Cisco also provides release notes with each image, which you can obtain from the same website from which you obtained the image.
Note
Updating CIMC-E firmware is a process that occurs separately from products on other modules, so these modules do not have to be shutdown. When you update firmware, the CIMC-E transfers the selected firmware version to the Embedded Service Engine. You can install the firmware from an FTP server. The install process always overwrites the firmware in the Embedded Service Engine.
Obtaining CIMC-E Firmware from Cisco
To obtain CIMC-E firmware from Cisco, follow this procedure:
Procedure
Step 1
Step 2
Step 3
What to Do Next
Install the CIMC-E firmware on the server.
Installing CIMC-E Firmware
To install the CIMC-E firmware, follow this procedure:
Before You Begin
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
•
•
Figure 16 Firmware Upgrade
Step 5
Viewing Logs
This section contains the following topics:
CIMC-E Log
To view the CIMC-E Log, follow this procedure:
Procedure
Step 1
Step 2
Step 3

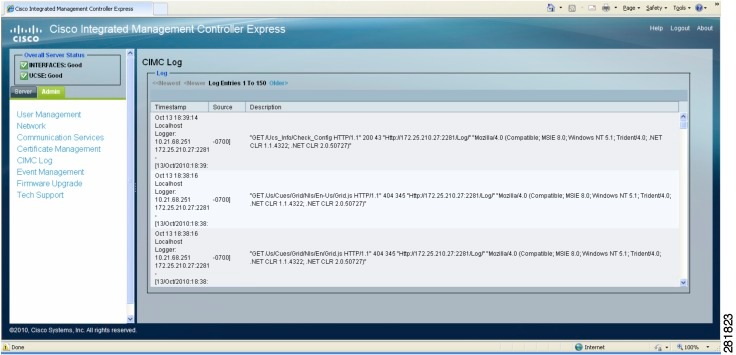

Figure 17 CIMC-E Log Example
Review the following information for each CIMC-E event in the log.
Table 23 CIMC-E Log Field Descriptions
Timestamp
The date and time the event occurred.
Source
The software module that logged the event.
Description
A description of the event.
Step 4
By default, the newest CIMC-E events are displayed at the top if the list.
Step 5
System Event Log
The system event log records any action that is performed on a managed module, such as, installing software, performing a reset, or changing IP addresses. To view the System Event Log, follow this procedure:
Procedure
Step 1
Step 2
Step 3

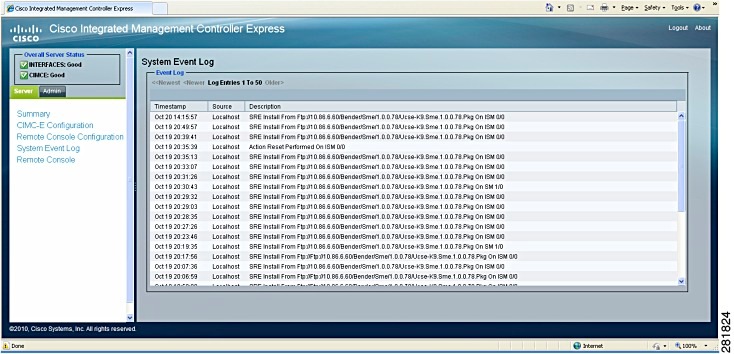

Figure 18 System Event Log Example
Review the following information for each system event in the log:
Table 24 System Event Log Field Descriptions
Timestamp
The date and time the event occurred.
Source
The software module that logged the event.
Description
A description of the event.
Step 4
By default, the newest CIMC-E events are displayed at the top if the list.
Step 5
Server Utilities
This section contains the following topics:
•
Exporting Technical Support Data
Perform this task when requested by Cisco Technical Support. This utility creates a summary report containing configuration information, logs, and diagnostic data that will help Technical Support in troubleshooting and resolving a technical issue.
Procedure
Step 1
Step 2
Step 3
Figure 19 Get Tech Support Data
Step 4
Figure 20 Download Tab
Step 5
Step 6
What to Do Next
Provide the generated report file to Cisco Technical Support.
Rebooting CIMC-E
On rare occasions, such as an issue with the current running firmware, troubleshooting a server may require you to reboot CIMC-E. This procedure is not part of the normal maintenance of a server. After you reboot the CIMC-E, you are logged off and the CIMC-E will be unavailable for a few minutes.
To reboot CIMC-E, enter the following command:
Router# service-module embedded-service-engine 0/0 reloadDo you want to proceed with reload?[confirm]CIMC-E Command Reference
This command reference documents commands for CIMC-E. You must open a session on the service module to access the CIMC-E commands.
The following commands are new or have been modified:
Scope router
Scope syslog
Scope service-module
•
Scope interface
•
Scope user
Scope cimce
•
Scope http
Scope syslog
scope router
To enter router mode, use the scope router command.
scope router
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Router (/router)
Command History
Usage Guidelines
You use router mode to set router properties, display system information, and enter commands on the console.
Examples
This example shows how to enter router mode:
Router# scope routerrouter /router #show hardware
To display hardware specifications of the router, use the show hardware command in router mode.
show hardware
Syntax Description
This command has no arguments or keywords.
Command Modes
Router (/router)
Command History
Examples
The following example displays hardware specifications for the router.:
router /router # show hardware
Cisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M), Experimental Version 15.1(20100215:211240) [jquan-tb18 200]
Cisco CISCO2911/K9 (revision 1.0) with 745472K/40960K bytes of memory.
Chassis Serial Number : FTX1405A1Z5
Chassis MAC Address : 0000.e181.5150
show log
To display the system log, use the show log command in router mode.
show log
Syntax Description
This command has no arguments or keywords.
Command Modes
Router (/router)
Command History
Examples
The following example displays the system log:
router /router # show log
Log Buffer (4096 bytes):
May 14 14:51:30.554: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.1.1.60 port 514 stopped - CLI initiated
May 14 14:51:57.842: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.1.1.60 port 514 stopped - CLI initiated
May 14 14:51:58.842: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.168.24.4 port 514 started - CLI initiated
May 14 14:52:04.862: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.168.24.4 port 514 stopped - CLI initiated
May 16 01:47:22.502: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN
May 16 01:47:22.542: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP
May 16 01:47:23.022: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP
May 16 01:57:22.542: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN
May 16 01:57:22.586: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP
May 16 01:57:23.062: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP
May 17 14:09:45.261: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UP
May 17 14:09:46.521: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:09:47.521: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:10:33.913: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up
May 17 14:42:27.825: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core SAFE FOR RESET
May 17 14:42:27.825: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN
May 17 14:42:29.825: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:42:30.825: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:42:37.865: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP
May 17 14:42:38.345: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP
May 17 14:42:39.241: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up
May 17 14:43:29.133: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UP
May 17 14:43:30.009: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:43:31.009: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down
May 17 14:44:16.437: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up
set logbuffer
To set the size of the log buffer, use the set logbuffer command in router mode.
set logbuffer number
Syntax Description
Command Default
4096
Command Modes
Router (/router)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example sets the size of the log buffer to 8192 bytes:
router /router # set logbuffer 8192router /router # commitConfiguration updated successfully.Related Commands
set loglevel
To set the level of logging, use the set loglevel command in router mode.
set loglevel [0-7 | level]
Syntax Description
Command Default
3 (errors)
Command Modes
Router (/router)
Command History
Usage Guidelines
Setting a specific log level saves messages less than or equal to the configured level. For example, when you set the log level at 5-notification, all events generating messages with a log level of 4 or less are written into the log file.
The logging system's log levels are used to identify the urgency with which you might want to address log issues. The 0-emergency setting is the most severe level of logging, while 6-info is the least severe, saving mostly informational log messages.
To save changes, you must enter the commit command.
Examples
This example sets the log level to 7 bytes:
router /router # set loglevel 7router /router # commitConfiguration updated successfully.Related Commands
clear log
To clear the system log, use the clear log command in router mode.
clear log
Syntax Description
This command has no arguments or keywords.
Command Modes
Router (/router)
Command History
Examples
The following example clears the system log:
router /router # clear log
The operation completed successfully.
scope syslog
To enter syslog mode, use the scope syslog command.
scope syslog
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Syslog (/router/syslog)
Command History
Usage Guidelines
You use syslog mode to configure and manage syslog servers.
Examples
This example shows how to enter router mode:
Router# scope routerrouter /router # scope syslogrouter /router/syslog #create server
To create a syslog server, use the create server command in syslog mode.
create server ip-address
Syntax Description
Command Default
None
Command Modes
Syslog (/router/syslog)
Command History
Examples
This example creates a syslog server with the IP address 172.1.1.60:
router /router/syslog # create server 172.1.1.60Configuration updated successfully.show servers
To display information about the syslog servers, use the show servers command in syslog mode.
show servers
Syntax Description
This command has no arguments or keywords.
Command Modes
Syslog (/router/syslog)
Command History
Examples
The following example displays the system log:
router /router/syslog # show servers
Logging to 192.1.1.60 (udp port 514, audit disabled,
authentication disabled, encryption disabled, link down),
0 message lines logged,
0 message lines rate-limited,
0 message lines dropped-by-MD,
xml disabled, sequence number disabled
filtering disabled
delete server
To delete a syslog server, use the delete server command in syslog mode.
delete server ip-address
Syntax Description
Command Modes
Syslog (/router/syslog)
Command History
Examples
The following example deletes a syslog server:
router /router/syslog # delete server 172.1.1.60
Configuration updated successfully.
scope service-module
To enter service-module mode, use the scope service-module command.
scope service-module
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Service-module (/service-module)
Command History
Usage Guidelines
You use service-module mode to set service-module properties, display system information, and enter commands on the console.
Examples
This example shows how to enter service-module mode:
Router# scope service-modulerouter /service-module #scope module port
To enter module port mode, use the scope module port command in service-module mode.
scope module port
Syntax Description
Command Default
None
Command Modes
Module port (/service-module/module port)
Command History
Usage Guidelines
You use service-module module port mode to set properties and display information for the service module in the specified slot/port.
Examples
This example shows how to enter service-module module port mode:
router /service-module # scope ism 0/0router /service-module/ISM 0/0 #reload
To perform a graceful shutdown and reboot of the service module in the specified port, use the reload command in service-module module port mode.
reload
Syntax Description
This command has no arguments or keywords.
Command Modes
Service-module module port (/service-module/module port)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
Examples
The following example shows how to gracefully shut down the module and reboot the operating system:
router /service-module/ISM 0/0# reloadreset
To reset the service module in the specified port, use the reset command in service-module module port mode.
reset
Syntax Description
This command has no arguments or keywords.
Command Modes
Service-module module port (/service-module/module port)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
Caution
Examples
The following example shows how to reset the service module hardware:
router /service-module/ISM 0/0# resetUse reset only to recover from shutdown or failed state
Warning: May lose data on the NVRAM, nonvolatile file system or unsaved configuration!
show statistics
To display reset and reload information for the service module in the specified port, use the show statistics command in service-module module port mode.
show statistics
Syntax Description
This command has no arguments or keywords.
Command Modes
Service-module module port (/service-module/module port)
Command History
Examples
The following example displays statistics for the Cisco ISM in the 0/0 port:
router /service-module/ISM 0/0# show statistics
Module Reset Statistics:
CLI reset count = 0
CLI reload count = 1
Registration request timeout reset count = 0
Error recovery timeout reset count = 0
Module registration count = 3
The last IOS initiated event was a cli reload at *19:31:00.318 UTC Fri Jul 30 20 10
show status (service-module/module port)
To display status information for the service module in the specified port, use the show status command in service-module module port mode.
show status
Syntax Description
This command has no arguments or keywords.
Command Modes
Service-module module port (/service-module/module port)
Command History
Usage Guidelines
Use this command to:
•
•
•
Examples
The following example displays status information for Cisco ISM in the 0/0 port:
router /service-module/ISM 0/0 # show status
Service Module is Cisco Embedded-Service-Engine0/0
Service Module supports session via TTY line 2
Service Module is in Steady state
Service Module heartbeat-reset is enabled
Getting status from the Service Module, please wait..
Cisco CIMC-E Software 1.0
UCSE Running on VSEM
Embedded Service Engine boot state is KERNEL UP
Module resource information:
CPU Frequency: 500 MHz
Memory Size: 256 MB
Disk Size: 488 MB
No install/uninstall in progress
shutdown
To gracefully shut down an Embedded Service Engine service module, use the shutdown command in service-module module port mode.
shutdown
Syntax Description
This command has no arguments or keywords.
Command Modes
Service-module module port (/service-module/module port)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
This command brings down the operating system of the specified service module in an orderly fashion to protect the hard drive. When the system is shut down, the module can be removed from the router.
Examples
The following example shows how to gracefully shut down the service module:
router /service-module/ISM 0/0 # shutdownShutdown is used for Online removal of Service Module.Use service module reset command to recover from shutdown.WARNING: Confirm that the service-module status shows `is Shutdown' before removing the module or powering off the system !scope interface
To enter interface mode, use the scope interface command.
scope interface
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Interface (/interface)
Command History
Usage Guidelines
You use interface mode to set interface properties, display interface information, and enter commands on the console.
Examples
This example shows how to enter interface mode:
Router # scope interfacerouter /interface #show description
To display the descriptive information for the interface, use the show description command in interface mode.
show description
Syntax Description
This command has no arguments or keywords.
Command Modes
Interface (/interface)
Command History
Usage Guidelines
Use this command to display information about the interface.
Examples
The following example displays descriptive information for the interface:
router /interface # show description
Interface Status Protocol Description
Em0/0 up up
Gi0/0 up up $ETH-LAN$$ETH-SW-LAUNCH$$INTF-INFO-GE 0/0$
Gi0/1 admin down down
Gi0/2 admin down down
show stat
To display statistics for the interface, use the show stat command in interface mode.
show stat
Syntax Description
This command has no arguments or keywords.
Command Modes
Interface (/interface)
Command History
Usage Guidelines
Use this command to display performance statistics and status information for the interface.
Examples
The following example displays statistics for the interface:
cimce/interface # show stat
Embedded-Service-Engine0/0
Switching path Pkts In Chars In Pkts Out Chars Out
Processor 250 33014 169 52830
Route cache 8927 2643609 8170 994438
Total 9177 2676623 8339 1047268
GigabitEthernet0/0
Switching path Pkts In Chars In Pkts Out Chars Out
Processor 1316 94523 1338 143909
Route cache 8170 994438 8921 2643089
Total 9486 1088961 10259 2786998
Interface GigabitEthernet0/1 is disabled
Interface GigabitEthernet0/2 is disabled
show summary
To display summary information for the interface, use the show summary command in interface mode.
show summary
Syntax Description
This command has no arguments or keywords.
Command Modes
Interface (/interface)
Command History
Usage Guidelines
Use this command to display summary information for the interface.
Examples
The following example displays summary information for the interface:
router /interface # show summary
*: interface is upIHQ: pkts in input hold queue IQD: pkts dropped from input queueOHQ: pkts in output hold queue OQD: pkts dropped from output queueRXBS: rx rate (bits/sec) RXPS: rx rate (pkts/sec)TXBS: tx rate (bits/sec) TXPS: tx rate (pkts/sec)TRTL: throttle countInterface IHQ IQD OHQ OQD RXBS RXPS TXBS TXPS TRTL-------------------------------------------------------------------------------------------------------------*Embedded-Service-Engine0/0 0 0 0 1 0 0 0 0 0*GigabitEthernet0/0 0 0 0 0 0 0 0 0 0GigabitEthernet0/1 0 0 0 0 0 0 0 0 0GigabitEthernet0/2 0 0 0 0 0 0 0 0 0
scope interface port
To enter interface port mode, use the scope interface port command in interface mode.
scope interface port
Syntax Description
Command Default
None
Command Modes
Interface port (/interface/interface port)
Command History
Usage Guidelines
You use interface port mode to set properties and display information for the specified interface port.
Examples
This example shows how to enter interface interface port mode:
router /interface # scope ISM 0/0router /interface/ISM 0/0 #show status (interface/interface port)
To display configuration information related to the hardware and software on the interface, use the show status command in interface interface port mode.
show status
Syntax Description
This command has no arguments or keywords.
Command Modes
Interface interface port (/interface/module port)
Command History
Examples
The following example displays status information for Cisco ISM in the 0/0 port:
router /interface/ISM 0/0 # show status
ISM0/0 is administratively down, line protocol is down
Hardware is PSE2, address is 0000.e198.8230 (bia 0000.e198.8230)
Internet address is 4.4.4.4/24
MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
Full Duplex, 1Gbps, media type is internal
output flow-control is XON, input flow-control is XON
ARP type: ARPA, ARP Timeout 04:00:00
Last input 00:00:03, output 00:00:03, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/60 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
125119 packets input, 10774946 bytes, 0 no buffer
Received 55319 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 watchdog, 0 multicast, 0 pause input
13304 packets output, 4252490 bytes, 0 underruns
0 output errors, 0 collisions, 6 interface resets
0 unknown protocol drops
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier, 0 pause output
0 output buffer failures, 0 output buffers swapped out
ISM0/0 is administratively down, line protocol is down
Hardware is PSE2, address is 0000.e198.8230 (bia 0000.e198.8230)
Internet address is 4.4.4.4/24
MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
Full Duplex, 1Gbps, media type is internal
output flow-control is XON, input flow-control is XON
ARP type: ARPA, ARP Timeout 04:00:00
Last input 00:00:03, output 00:00:03, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/60 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
125119 packets input, 10774946 bytes, 0 no buffer
Received 55319 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 watchdog, 0 multicast, 0 pause input
13304 packets output, 4252490 bytes, 0 underruns
0 output errors, 0 collisions, 6 interface resets
0 unknown protocol drops
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier, 0 pause output
0 output buffer failures, 0 output buffers swapped out
set ip
To set the IP address of the interface, use the set ip command in interface interface port mode.
set ip ip-address [unnumbered]
Syntax Description
ip-address
IP address of the interface.
unnumbered
Enables IP processing on an interface without assigning an explicit IP address to the interface.
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
The set ip command and the set mask command must be entered together. Entering one command without the other is not supported. If you use the unnumbered keyword, you must enter the set unnumbered-interface command to specify the interface on which the router has an assigned IP address. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered.
To save changes, you must enter the commit command.
Examples
This example sets the IP address and mask on the ISM 0/0 interface:
router /interface/ISM 0/0 # set ip 10.0.0.100router /interface/ISM 0/0 *# set mask 255.255.255.0router /interface/ISM 0/0 *# commitConfiguration updated successfully.This example creates an unnumbered interface:
router /interface/SM 2/0 # set ip unnumberedrouter /interface/SM 2/0* # set unnumbered-interface GigabitEthernet0/0router /interface/SM 2/0* # commitConfiguration updated successfully.Related Commands
set mask
To set the mask of the interface, use the set mask command in interface interface port mode.
set mask mask
Syntax Description
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
The set ip command and the set mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.
Examples
This example sets the IP address and mask on the ISM 0/0 interface:
router /interface/ISM 0/0 # set ip 10.0.0.100router /interface/ISM 0/0 *# set mask 255.255.255.0router /interface/ISM 0/0 *# commitConfiguration updated successfully.Related Commands
commit
Saves configuration changes.
set ip
Sets the IP address of the interface.
set module-gateway
To set the gateway IP address for the interface, use the set module-gateway command in interface interface port mode.
set module-gateway ip-address
Syntax Description
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
The gateway must be reachable by the interface.
Examples
This example sets the gateway IP address on the ISM 0/0 interface:
router /interface/ISM 0/0 # set module-gateway 172.168.1.1router /interface/ISM 0/0 *# commitConfiguration updated successfully.Related Commands
set module-ip
To set the IP address of the module, use the set module-ip command in interface interface port mode.
set module-ip ip-address
Syntax Description
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
The set module-ip command and the set module-mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.
Examples
This example sets the IP address and mask on the ISM 0/0 interface:
router /interface/ISM 0/0 # set module-mask 255.255.255.0router /interface/ISM 0/0 *# set module-ip 172.168.1.101router /interface/ISM 0/0 *# commitConfiguration updated successfully.Related Commands
commit
Saves configuration changes.
set module-mask
Sets the mask of the module.
set module-mask
To set the mask of the module, use the set module-mask command in interface interface port mode.
set module-mask mask
Syntax Description
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
The set module-ip command and the set module-mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.
Examples
This example sets the IP address and mask on the ISM 0/0 interface:
router /interface/ISM 0/0 # set module-mask 255.255.255.0router /interface/ISM 0/0 *# set module-ip 172.168.1.101router /interface/ISM 0/0 *# commitConfiguration updated successfully.Related Commands
commit
Saves configuration changes.
set module-ip
Sets the IP address of the module.
set power noshutdown
To power on the interface, use the set power noshutdown command in interface interface port mode.
set power noshutdown
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example turns the ISM 0/0 interface power on:
router /interface/ISM 0/0 # set power noshutdownrouter /interface/ISM 0/0 *# commitConfiguring power for interface ISM 0/0Configuration updated successfully.Related Commands
set power shutdown
To power down the interface, use the set power shutdown command in interface interface port mode.
set power shutdown
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example turns the ISM 0/0 interface power down:
router /interface/ISM 0/0 # set power shutdownrouter /interface/ISM 0/0 *# commitConfiguring power for interface ISM 0/0Configuration updated successfully.Related Commands
set unnumbered-interface
To enable IP processing on an interface without assigning an explicit IP address to the interface, use the set unnumbered-interface command in interface interface port mode.
set unnumbered-interface type number
Syntax Description
Command Default
None
Command Modes
Interface interface port (/interface/module port)
Command History
Usage Guidelines
You must use the set ip command with the unnumbered keyword in conjunction with this command. You do not have to specify a mask for an unnumbered interface. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered.
To save changes, you must enter the commit command.
Examples
This example creates an unnumbered interface:
router /interface/SM 2/0 # set ip unnumberedrouter /interface/SM 2/0* # set unnumbered-interface GigabitEthernet0/0router /interface/SM 2/0* # commitConfiguration updated successfully.Related Commands
commit
Saves configuration changes.
set ip
Sets the IP address of the interface.
scope user
To enter user mode, use the scope user command.
scope user
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
User (/user)
Command History
Usage Guidelines
It is important to note that users are restricted in the following ways:
•
•
•
•
•
Examples
This example shows how to enter user mode:
Router# scope userrouter /user #create username
To create a user and enter user username mode, use the create username command in user mode.
create username username
Syntax Description
Command Default
None
Command Modes
User (/user)
Command History
Usage Guidelines
It is important to note that users are restricted in the following ways:
•
•
•
•
•
To save changes, you must enter the commit command.
You must create a password using the set password command when you create a username.
Examples
This example shows how to create a user:
router /user # create username myuserrouter /user/username cisco *# set password mypasswordrouter /user/username cisco *# commitUser myuser successfully added.Password for user myuser successfully updated.Related Commands
commit
Saves configuration changes.
set password
Sets a password for a username.
set password
To set a password for a username, use the set password command in user username mode.
set password password
Syntax Description
Command Default
None
Command Modes
User username (/user/username)
Command History
Usage Guidelines
For a given user, userA, only userA and admin can change passwords for userA.
To save changes, you must enter the commit command.
Examples
This example shows how to set a password for user myuser:
router /user # scope username myuserrouter /user/username myuser # set password newpassrouter /user/username myuser *# commitPassword for user myuser successfully updated.Related Commands
create permissions
To create permissions for a username, use the create permissions command in user username mode.
create permissions module port
Syntax Description
Command Default
None
Command Modes
User username (/user/username)
Command History
Usage Guidelines
Use this command to grant a user permission to configure the specified module and port.
Examples
This example shows how to create permissions for user myuser:
router /user # scope username myuserrouter /user/username myuser # create permissions SM 1/0Permission successfully added.delete username
To delete a user, use the delete username command in user mode.
delete username username
Syntax Description
Command Default
None
Command Modes
User (/user)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example shows how to delete the user myuser:
router /user # delete username myuserrouter /user *# commitUser myuser successfully deleted.Related Commands
delete permissions
To delete permissions for a user, use the delete permissions command in user username mode.
delete permissions module port
Syntax Description
Command Default
None
Command Modes
User username (/user/username)
Command History
Usage Guidelines
Use this command to delete a user's permission to configure the specified module and port.
Examples
This example shows how to delete permissions for user myuser:
router /user # scope username myuserrouter /user/username myuser # delete permissions SM 1/0Permission successfully deleted.show all
To display the usernames of all users, use the show all command in user mode.
show all
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
User (/user)
Command History
Usage Guidelines
Use this command to display the usernames for all user defined in CIMC-E.
Examples
This example displays the usernames defined in CIMC-E:
router /user # show alladminmyusershow username
To display the information about a specific user, use the show username command in user mode.
show username username
Syntax Description
Command Default
None
Command Modes
User (/user)
Command History
Usage Guidelines
Use this command to display the groups to which the user belongs and the privileges the user has.
Examples
This example displays information for the user myuser:
cimce/user # show username myuserUser Name: myuserGroup(s): cimce usersCIMCE Privileges: CIMC-E Usershow permissions
To display permissions for a user, use the show permissions command in user username mode.
show permissions
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
User username (/user/username)
Command History
Usage Guidelines
Use this command to display the modules and ports for which a user has permission to configure.
Examples
This example displays permissions for the user myuser:
router /user # scope username myuserrouter /user/username myuser # show permissionssm1/0scope cimce
To enter cimce mode, use the scope cimce command.
scope cimce
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
You use cimce mode to set CIMC-E properties, display system information, and enter commands on the console.
Examples
This example shows how to enter cimce mode:
Router# scope cimcerouter /cimce #set url
To set the URL of the router for communication with CIMC-E, use the set url command in cimce mode.
set url url
Syntax Description
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
To enable communications between CIMC-E and the router, you must set the following:
•
•
•
Use this command to set the URL of the router. Use the set username command to set the username. Use the set password command to set the password.
To save changes, you must enter the commit command.
Examples
This example sets the URL of the router to 172.168.24.52 and shows a username and password that were created previously:
router /cimce # set url 172.168.24.52/testrouter /cimce *# commitUsername: myuserPassword: <hidden>End Point: 172.168.24.52/testNew config changes have been savedRelated Commands
set username
To set the username that CIMC-E uses to communicate with the router, use the set username command in cimce mode.
set username username
Syntax Description
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
To enable communications between CIMC-E and the router, you must set the following:
•
•
•
Use this command to set the username. Use the set password command to set the password. Use the set url command to set the URL of the router.
To save changes, you must enter the commit command.
Examples
This example sets the username that CIMC-E uses to communicate with the router:
router /cimce # set username myuserrouter /cimce *# commitUsername: myuserPassword: <hidden>End Point: 172.168.24.52/testNew config changes have been savedRelated Commands
set password
To set the password that CIMC-E uses to communicate with the router, use the set password command in cimce mode.
set password password
Syntax Description
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
To enable communications between CIMC-E and the router, you must set the following:
•
•
•
Use this command to set the password. Use the set username command to set the username. Use the set url command to set the URL of the router.
To save changes, you must enter the commit command.
Examples
This example sets the password that CIMC-E uses to communicate with the router:
router /cimce # set password mypasswordrouter /cimce *# commitUsername: myuserPassword: <hidden>End Point: 172.168.24.52/testNew config changes have been savedRelated Commands
set sshport
To set the SSH port for communication with CIMC-E, use the set sshport command in cimce mode.
set sshport ssh-port
Syntax Description
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
This is the SSH port used to log in to the CIMC-E CLI interface. To save changes, you must enter the commit command.
Examples
This example sets the SSH port to 2222:
router /cimce # set sshport 2222router /cimce *# commitRelated Commands
show config
To display the CIMC-E configuration on the router, use the show config command in cimce mode.
show config
Syntax Description
This command has no arguments or keywords.
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
Use this command to display the username, password, and URL configured for CIMC-E communication on the router:
Examples
The following example displays the CIMC-E configuration:
router /cimce # show config
Username: myuser
Password: <hidden>
End Point: 172.168.24.52/test
Last Modified: Mon May 17 11:10:11 EDT 2010
show logs
To display information about the CIMC-E log files, use the show logs command in cimce mode.
show logs
Syntax Description
This command has no arguments or keywords.
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
Use this command to display all the CIMC-E log filenames. Use the show log command to display the contents of a specific log file.
Examples
The following example displays the CIMC-E logs:
router /cimce # show logs
SIZE LAST_MODIFIED_TIME NAME
17844 Tue May 04 17:39:15 America/New_York 2010 lighttpd_access.log
742613 Mon May 17 10:58:24 America/New_York 2010 messages.log
18882 Mon May 17 10:42:19 America/New_York 2010 lighttpd_error.log
Related Commands
show log (cimce)
To display the contents of a specific CIMC-E log file, use the show log command in cimce mode.
show log logname
Syntax Description
This command has no arguments or keywords.
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
Use this command to display the contents of a specific log file. Use the show logs command to display all the CIMC-E log filenames.
Examples
The following example displays the contents of the lighttpd_error.log file:
router /cimce # show log lighttpd_error.log
2010-04-28 20:38:11: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-02 02:52:31: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-03 19:43:17: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 7413
2010-05-04 21:37:14: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-06 03:59:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-07 17:55:04: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 6822
2010-05-07 17:56:13: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-07 14:26:31: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-09 05:33:32: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-10 14:24:33: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 6212
2010-05-10 14:25:18: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-10 20:07:31: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-10 20:21:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
2010-05-10 20:34:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started
Related Commands
show sshport
To display the SSH port used for CIMC-E communications, use the show sshport command in cimce mode.
show sshport
Syntax Description
This command has no arguments or keywords.
Command Modes
Cimce (/cimce)
Command History
Usage Guidelines
Use this command to display SSH port set with the set sshport command.
Examples
The following example displays the contents of the lighttpd_error.log file:
router /cimce # show sshport
Port: 2222
Related Commands
tail
To display the specified number of lines of the specified log file, use the tail command in cimce mode.
tail logname number-of-lines
Syntax Description
Command Default
None
Command Modes
Cimce (/cimce)
Command History
Examples
This example displays the last five lines of the messages.log file:
router /cimce # tail messages.log 5<195>May 17 11:11:16 localhost ntpd[1375]: ERROR ntp ntp ntp Error lookup /sw/proto/ntp/stat/1 failed<195>May 17 11:15:32 localhost ntpd[1375]: ERROR ntp ntp ntp Error lookup /sw/proto/ntp/stat/refserver11 failed<195>May 17 11:15:32 localhost ntpd[1375]: ERROR ntp ntp ntp Error lookup /sw/proto/ntp/stat/1 failed<195>May 17 11:15:32 localhost ntpd[1375]: ERROR ntp ntp ntp Error lookup /sw/proto/ntp/stat/refserver11 failed<195>May 17 11:15:32 localhost ntpd[1375]: ERROR ntp ntp ntp Error lookup /sw/proto/ntp/stat/1 failedscope http
To enter http mode, use the scope http command in cimce mode.
scope http
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
You use http mode to configure HTTP services.
Examples
This example shows how to enter http mode:
router /cimce # scope httprouter /cimce/http #set port
To set the HTTP port for communication with CIMC-E, use the set port command in http mode.
set port port
Syntax Description
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
This is the HTTP/S port used when logging into the CIMC-E GUI interface.
To save changes, you must enter the commit command.
Examples
This example sets the port to 8080:
router /cimce/http # set port 8080router /cimce/http *# commitConfiguring HTTP service portPort is set to: 8080Please restart the HTTP server to apply the new changeRelated Commands
set ssl enable
To enable HTTP SSL service for CIMC-E, use the set ssl enable command in http mode.
set ssl enable
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example enables SSL:
router /cimce/http # set ssl enablerouter /cimce/http *# commitConfiguring HTTP SSL serviceSSL is set to: enablePlease restart the HTTP server to apply the new changeRelated Commands
set ssl disable
To disable HTTP SSL service for CIMC-E, use the set ssl disable command in http mode.
set ssl disable
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example disables SSL:
router /cimce/http # set ssl disablerouter /cimce/http *# commitConfiguring HTTP SSL serviceSSL is set to: disablePlease restart the HTTP server to apply the new changeRelated Commands
set cert default
To use the default Cisco server certificate for CIMC-E, use the set cert default command in http mode.
set cert default
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example configures the router to use the default Cisco server certificate:
router /cimce/http # set cert defaultrouter /cimce/http *# commitConfiguring HTTP CertificateCertificate set to factory default.Please restart the HTTP server forchanges to take effect.Related Commands
show port
To display the HTTP port used for CIMC-E communications, use the show port command in http mode.
show port
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
Use this command to display the HTTP port set with the set port command.
Examples
The following example displays the HTTP port:
router /cimce/http # show port
Current Port: 8080
Related Commands
show ssl
To display the HTTP SSL service status, use the show ssl command in http mode.
show ssl
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
Use this command to display the SSL status set with the set ssl enable or set ssl disable command.
Examples
The following example shows that SSL is disabled:
router /cimce/http # show ssl
Current SSL Status: "disable"
Related Commands
set ssl disable
Disables HTTP SSL service for CIMC-E.
set ssl enable
Enables HTTP SSL service for CIMC-E.
show status (cimce/http)
To display the HTTP service status, use the show status command in http mode.
show status
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
Use this command to display the HTTP service status.
Examples
The following example shows that the HTTP service is running:
router /cimce/http # show status
HTTP Service is currently running
Related Commands
set ssl disable
Disables HTTP SSL service for CIMC-E.
set ssl enable
Enables HTTP SSL service for CIMC-E.
shutdown (cimce/http)
To gracefully shut down HTTP service for CIMC-E, use the shutdown command in http mode.
shutdown
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Examples
The following example shows how to gracefully shut down HTTP service for CIMC-E:
router /cimce/http # shutdownShutting down HTTP serviceHTTP service has been shutdown
Related Commands
start (cimce/http)
To start HTTP service for CIMC-E, use the start command in http mode.
start
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Examples
The following example starts the HTTP service for CIMC-E:
router /cimce/http # start
Related Commands
restart (cimce/http)
To restart HTTP service for CIMC-E, use the restart command in http mode.
restart
Syntax Description
This command has no arguments or keywords.
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
Use this command to restart HTTP service after it has been shut down using the shutdown (cimce/http) command.
Examples
The following example restarts the HTTP service for CIMC-E:
router /cimce/http # restart
Related Commands
upload cert url
To upload a server certificate from a server for CIMC-E, use the upload cert url command in http mode.
upload cert url url
Syntax Description
Command Default
None
Command Modes
Http (/cimce/http)
Command History
Usage Guidelines
The certificate file must be on an FTP or HTTP server. Use the restart command to restart the HTTP server and make changes take effect.
Examples
This example uploads a certificate from an FTP server:
router /cimce/http # upload cert url ftp://192.1.1.60/pub/good.pemCertificate uploaded successfully.Please restart the HTTP server for changesto take effect.Related Commands
commit
Saves configuration changes.
restart (cimce/http)
Restarts HTTP service for CIMC-E.
scope syslog (cimce)
To enter syslog mode, use the scope syslog command in cimce mode.
scope syslog
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Syslog (/cimce/syslog)
Command History
Usage Guidelines
You use syslog mode to configure syslog services.
Examples
This example shows how to enter syslog mode:
router /cimce # scope syslogrouter /cimce/syslog #set server
To set the syslog server for CIMC-E, use the set server command in syslog mode.
set server server
Syntax Description
Command Default
None
Command Modes
Syslog (/cimce/syslog)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example sets the syslog server to 192.1.1.60:
router /cimce/syslog # set server 192.1.1.60router /cimce/syslog *# commitThe operation completed successfully.Related Commands
set syslog disable
To disable syslog for CIMC-E, use the set syslog disable command in syslog mode.
set syslog disable
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Syslog (/cimce/syslog)
Command History
Usage Guidelines
To save changes, you must enter the commit command.
Examples
This example disables syslog:
router /cimce/syslog # set syslog disablerouter /cimce/syslog *# commitSyslog disabled successfully.Related Commands
show server (cimce/syslog)
To display the URL of the syslog server for CIMC-E, use the show server command in syslog mode.
show server
Syntax Description
This command has no arguments or keywords.
Command Modes
Syslog (/cimce/syslog)
Command History
Examples
This example displays the URL of the syslog server for CIMC-E:
router /cimce/syslog # show server
Log server address: 192.1.1.60
Embedded Service Engine Command Reference
This command reference documents commands for the Embedded Service Engine.
The following configuration command is new:
The following EXEC commands are new:
•
•
•
•
•
•
•
•
•
•
For information about other commands used with this feature, see the Cisco IOS Interface and Hardware Component Command Reference at http://www.cisco.com/en/US/docs/ios/interface/command/reference/ir_book.html.
For information about all Cisco IOS commands, use the Command Lookup Tool at http://tools.cisco.com/Support/CLILookup or the Cisco IOS Master Command List, All Releases, at http://www.cisco.com/en/US/docs/ios/mcl/allreleasemcl/all_book.html.
service-module enable
To enable the Embedded Service Engine on a service module interface and partition hardware resources, use the service-module enable command in interface configuration mode. To disable the Embedded Service Engine and return hardware resources to the first core, use the no form of this command.
service-module enable
no service-module enable
Syntax Description
This command has no arguments or keywords.
Command Default
The Embedded Service Engine is not enabled.
Command Modes
Interface configuration (config-if)
Command History
Usage Guidelines
Cisco Integrated Services Routers Generation 2 (Cisco ISRs G2) have dual core CPUs on the motherboard. The first core runs Cisco IOS software; the second core, or the Embedded Service Engine, is capable of running Linux-based applications. Use this command to enable the Embedded Service Engine and partition hardware resource between the first core and the Embedded Service Engine. To enable the Embedded Service Engine, you have to:
1.
2.
3.
You must reboot the system before you install an application on the Embedded Service Engine.
To disable the Embedded Service Engine, you have to:
1.
2.
3.
After the system has been rebooted, hardware resources are returned to the first core.
Examples
In the following example, the Embedded Service Engine is enabled:
interface Embedded-Service-Engine0/0ip address 10.10.10.1 255.255.0.0service-module enableservice-module ip address 10.10.10.2 255.255.0.0service-module ip default-gateway 10.10.10.1In the following example, the Embedded Service Engine is disabled:
interface Embedded-Service-Engine0/0no service-module enableinterface embedded-service-engine 0/0
To configure an interface on the router that connects to an Embedded Service Engine, use the interface embedded-service-engine 0/0 command in global configuration mode. This command does not have a no form.
interface embedded-service-engine 0/0
Syntax Description
This command has no arguments or keywords.
Command Default
The interface is not configured.
Command Modes
Global configuration (config)
Command History
Usage Guidelines
This command enters interface configuration mode to configure the interface between the router and the Embedded Service Engine.
Examples
The following example shows how to enter interface configuration mode for the Embedded Service Engine:
Router(config)# interface embedded-service-engine 0/0Related Commands
service-module embedded-service-engine 0/0 install
To use Cisco SRE to install an application on a service module (Cisco SM-SRE), use the service-module embedded-service-engine 0/0 install command in privileged EXEC configuration mode.
service-module embedded-service-engine 0/0 install url url [script filename] [argument "string"] [force]
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
This command uses a common module-dependent bootloader on Cisco SRE to install a Linux-based application, such as Cisco Unity Express or Cisco AXP, on a service module (Cisco SM-SRE).
The slash mark (/) is required between the slot argument and the port argument.
You can only issue one instance of this command at a time on a router. You cannot use this command to install an application on two or more services engine modules in the same router at a time.
The Tcl script to be run must reside in the same FTP or HTTP server and directory as the application packages to be installed. If a credential is required, the username and password must be embedded in the URL, as shown in the following example:
Router# service-module embedded-service-engine 0/0 install url ftp://username:passwd@server.com/axpIf two or more of the optional keyword/argument combinations are used with this command, they must be issued in the order presented in the command syntax. For example, you cannot use the force keyword before the script or argument keywords nor the argument keyword before the script keyword when you issue this command.
Use the script filename keyword/argument combination with this command to specify that the Cisco IOS software use a Tcl script other than the default installer during the installation.
Use the argument "string" keyword/argument combination with this command to manually provide variables during the installation process and bypass the user interaction feature of the installer. The variable must include the left and right quotation marks (" ").
Use the force keyword with this command to install an application without prompting for user input. If you use this keyword and if the application requires you to provide certain variables during the installation, you should also use the argument "string" keyword/argument combination to manually provide the required variables because the force keyword will direct the installer to bypass all user interaction during the installation.
To stop the install while the Tcl script is being downloaded, use the service-module sm install abort command. This command cannot be used once the actual installation begins.
Examples
The following example shows how to use this command to run a "help.sre" Tcl script rather than the default installation Tcl script:
Router# service-module embedded-service-engine 0/0 install url ftp://server.com/cimce script help.sre argument arg1Router#The following example shows the messages displayed on the module console during a successful installation using Cisco SRE:
Feb 6 19:09:22.526 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING: Validating package signature ...1 .Feb 6 19:09:23.058 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING: Parsing package manifest files ...1 .Feb 6 19:09:44.742 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING: Starting payload download1 .Feb 6 19:09:52.022 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING: Performing Hot install ...1 .Install successful on Service-Module-SM 1/0 Feb 6 19:10:28.826 EDT: %SM_INSTALL-6-INST_SUCC: Service-Module-SM 1/0 SUCCESS: install-completed .Related Commands
service-module embedded-service-engine 0/0 install abort
Stops the install and returns to the boot-loader prompt.
service-module embedded-service-engine 0/0 password-reset
To reset the password for the Embedded Service Engine, use the service-module embedded-service-engine password-reset command in privileged EXEC mode.
service-module embedded-service-engine 0/0 password-reset
Syntax Description
This command has no arguments or keywords.
Command Default
None
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Use this command to reset the Embedded Service Engine password. You can then open a session on the Embedded Service Engine without a password.
Examples
The following example resets the password on the Embedded Service Engine. After resetting the password, opening a session does not require a password.
Router# service-module embedded-service-engine 0/0 password-resetRouter# service-module embedded-service-engine 0/0 sessionTrying 10.86.25.94, 2002 ... OpenCORE2-VSEP#Related Commands
service-module embedded-service-engine 0/0 session
Begins a configuration session for an Embedded Service Engine service module through a console connection.
service-module embedded-service-engine 0/0 reload
To perform a graceful shutdown and reboot of the Embedded Service Engine, use the service-module embedded-service-engine 0/0 reload command in privileged EXEC mode.
service-module embedded-service-engine 0/0 reload
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
Examples
The following example shows how to gracefully shut down the module and reboot the operating system:
Router# service-module embedded-service-engine 0/0 reloadDo you want to proceed with reload?[confirm]Related Commands
service-module embedded-service-engine 0/0 reset
To reset the Embedded Service Engine service module hardware, use the service-module embedded-service-engine 0/0 reset command in privileged EXEC mode.
service-module embedded-service-engine 0/0 reset
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
Caution
Examples
The following example shows how to reset the service module hardware:
Router# service-module embedded-service-engine 0/0 resetUse reset only to recover from shutdown or failed state
Warning: May lose data on the NVRAM, nonvolatile file system or unsaved configuration!
Do you want to reset?[confirm]
Related Commands
service-module embedded-service-engine 0/0 session
To begin a configuration session for an Embedded Service Engine service module through a console connection, use the service-module embedded-service-engine 0/0 session command in privileged EXEC mode.
service-module embedded-service-engine 0/0 session [clear]
Syntax Description
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Only one session at a time is allowed into the service module from the service module interface.
After starting a session, you can perform any service module configuration task. You first access the service module console in a user-level shell. To access the privileged EXEC command shell, where most commands are available, use the enable command.
After you finish configuration tasks and exit the service module console session, use this command with the clear keyword to clear the session. At the confirmation prompt, press Enter to confirm the action or n to cancel.
Examples
The following example shows a session being opened for an Embedded Service Engine:
Router# service-module embedded-service-engine 0/0 session
Trying 10.10.10.1, 2129 ... Open
SE-Module con now available
Press RETURN to get started!
SE-Module> enable
The following example clears the session that had been used to configure the Embedded Service Engine in slot 1:
Router# service-module embedded-service-engine 0/0 session clear[confirm][OK]Related Commands
service-module embedded-service-engine 0/0 shutdown
To gracefully shut down an Embedded Service Engine service module, use the service-module embedded-service-engine 0/0 shutdown command in privileged EXEC mode.
service-module embedded-service-engine 0/0 shutdown
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
At the confirmation prompt, press Enter to confirm the action or n to cancel.
This command brings down the operating system of the specified service module in an orderly fashion to protect the hard drive. When the system is shut down, the module can be removed from the router.
Examples
The following example shows how to gracefully shut down the service module:
Router# service-module embedded-service-engine 0/0 shutdownDo you want to proceed with shutdown?[confirm]Use service module reset command to recover from shutdown.WARNING: Confirm that the service-module status shows 'is Shutdown' before removing the module or powering off the system !Related Commands
service-module embedded-service-engine 0/0 statistics
To display reset and reload information for an Embedded Service Engine service module and its Cisco IOS software, use the service-module embedded-service-engine 0/0 statistics command in EXEC mode.
service-module embedded-service-engine 0/0 statistics
Syntax Description
This command has no arguments or keywords.
Command Modes
User EXEC (>)
Privileged EXEC (#)Command History
Examples
The following example displays information for a service module in slot 1:
Router# service-module embedded-service-engine 0/0 statistics
Module Reset Statistics:
CLI reset count = 0
CLI reload count = 0
Registration request timeout reset count = 1
Error recovery timeout reset count = 1
Module registration count = 1
Related Commands
service-module embedded-service-engine 0/0 status
To display configuration information related to the hardware and software on an Embedded Service Engine service module, use the service-module embedded-service-engine 0/0 status command in privileged EXEC mode.
service-module embedded-service-engine 0/0 status
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Usage Guidelines
Use this command to:
•
•
•
Examples
The following example displays information for an Embedded Service Engine:
Router# service-module embedded-service-engine 0/0 status
Service Module is Cisco Embedded-Service-Engine0/0Service Module supports session via TTY line 2Service Module is in Steady stateService Module heartbeat-reset is enabledGetting status from the Service Module, please wait..Cisco CIMC-E Software 1.0CIMCE Running on VSEMEmbedded Service Engine boot state is KERNEL UPModule resource information:CPU Frequency: 500 MHzMemory Size: 256 MBDisk Size: 488 MBNo install/uninstall in progressRelated Commands
show interface embedded-service-engine 0/0
To display status, traffic data, and configuration information about the Embedded Service Engine 0/0 interface, use the show interface embedded-service-engine 0/0 command in user EXEC or privileged EXEC mode.
show interface embedded-service-engine 0/0
Syntax Description
This command has no arguments or keywords.
Command Modes
User EXEC (>)
Privileged EXEC (#)Command History
Usage Guidelines
This command displays interface information for the Embedded Service Engine 0/0 interface.
Examples
The following example displays status, traffic data, and configuration information about the interface to the SM-SRE installed in the router.
Router# show interface embedded-service-engine 0/0Embedded-Service-Engine0/0 is up, line protocol is upHardware is Embedded Service Engine, address is 8843.e1b2.eff5 (bia 8843.e1b2.eff5)Interface is unnumbered. Using address of GigabitEthernet0/0 (10.86.25.94)MTU 1500 bytes, BW 10000 Kbit/sec, DLY 1000 usec,reliability 255/255, txload 1/255, rxload 1/255Encapsulation ARPA, loopback not setKeepalive set (10 sec)ARP type: ARPA, ARP Timeout 04:00:00Last input 00:00:27, output never, output hang neverLast clearing of "show interface" counters neverInput queue: 0/64/0/0 (size/max/drops/flushes); Total output drops: 4Queueing strategy: fifoOutput queue: 0/60 (size/max)5 minute input rate 0 bits/sec, 0 packets/sec5 minute output rate 0 bits/sec, 0 packets/sec33420 packets input, 3249092 bytes, 0 no bufferReceived 53 broadcasts (0 IP multicasts)0 runts, 0 giants, 0 throttles0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored0 input packets with dribble condition detected66908 packets output, 74463378 bytes, 0 underruns0 output errors, 0 collisions, 8 interface resets0 unknown protocol drops0 babbles, 0 late collision, 0 deferred0 lost carrier, 0 no carrier0 output buffer failures, 0 output buffers swapped outRouter#Table 25 describes the significant fields shown in the display.
Related Commands
show controllers embedded-service-engine 0/0
Displays controller information for the Embedded Service Engine.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
© 2011 Cisco Systems, Inc. All rights reserved.
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
