简介
本文档介绍思科寻呼服务器产品（也称为InformaCast），以及如何将其与思科统一通信管理器(CUCM)集成。 本文档将介绍功能的用途、功能配置、要收集哪些数据进行故障排除、数据示例分析以及相关资源，以供其他研究。
先决条件
要求
Cisco 建议您了解以下主题：
- Cisco Unified Communications Manager
- InformaCast
- SIP、CTI、Http和SNMP协议。
使用的组件
本文档中的信息基于以下软件和硬件版本：
- InformaCast版本11.5.2 - 38
- CUCM版本11.5.1.14900-8
- CP-8811和CP-8861 sip88xx.12-0-1SR1-1
- 基本许可证
本文档中的信息都是基于特定实验室环境中的设备编写的。用于本文的所有设备始于初始（默认）配置。如果您使用的是真实网络，请确保您已经了解所有命令的潜在影响。
背景信息
功能的用途
思科寻呼服务器是面向成千上万部电话、扬声器和其他设备的寻呼/群发通知解决方案。这在具有实时、预录音频和/或文本通告的紧急情况下尤其有用。
根据与Singlewire（InformaCast供应商）签订的原始设备制造商(OEM)协议，思科技术支持中心(TAC)支持从8.3版到CUCM 8.5版及更高版本的InformaCast。思科TAC支持的唯一模式是基本寻呼。
基本与高级
基本寻呼模式仅支持每个收件人组最多50部电话的实时音频广播，无需额外许可证。作为CUCM的一部分提供的InformaCast版本包括基本寻呼模式的许可证。需要补充功能的客户可以升级到高级通知模式并受Singlewire支持。
高级寻呼许可证允许无限寻呼组。它还可实现其他高级功能，包括呼叫到高开销模拟和IP扬声器、铃声调度、使用呼叫插入选项排定紧急通知的优先顺序、预录和纯文本页面、与社交媒体站点集成以进行通知、电邮和短信服务(SMS)群发通知和全号监控、紧急服务警报，以及与Cisco Jabber客户端集成。安装InformaCast后，您可以启用高级通知模式试用。
使用的协议
思科寻呼服务器使用SIP、SNMP、AXL和CTI与Unified CM通信，从思科寻呼服务器9.0.1开始，HTTP或JTAPI可用于与电话通信。
思科寻呼服务器使用SNMP查找其他Unified CM节点以及注册到每个集群成员的电话列表。SNMP通信完成后，思科寻呼服务器使用AXL来确定有关每个注册电话的其他信息，如设备名称、说明、设备池、呼叫搜索空间、目录号码和位置。此信息可用于构建电话的逻辑组，称为收件人组。如前所述，在具有基本许可证的思科寻呼服务器中，收件人组最多可以包含50部电话。
HTTP与JTAPI
9.x之前的InformaCast版本都使用HTTP进行电话激活。在HTTP模式下，思科寻呼服务器向每个IP电话HTTP服务器发送命令和凭证。IP电话验证这些凭证，然后执行命令。 在广播发送时，InformaCast通过HTTP直接与XML服务接口(XSI)联系。
在JTAPI模式下，思科寻呼通过Unified CM向每台电话发送命令。思科寻呼服务器不需要随每个请求发送凭证，因此每部电话都不必激活其Web服务器，命令的执行速度也更快。此外，CTI模式允许更快检查繁忙电话并激活它们。
无论与CUCM的集成类型（SIP或CTI）如何，您都可以使用HTTP或JTAPI。请记住，在非英语区域设置的电话上，JTAPI比HTTP更有效。要确认用户区域设置，请查看电话网页。
SIP与CTI
Informacast可以通过CTI和/或SIP接收呼叫。在CTI的情况下，呼叫在CTI路由点上进行服务（思科寻呼服务器不需要CTI端口来应答入站呼叫）。
对于SIP，呼叫在SIP中继上离开Unified CM。CTI和SIP均有效且受支持。但是，思科建议通过CTI进行SIP呼叫流，因为排除SIP集成故障比CTI容易得多。
配置

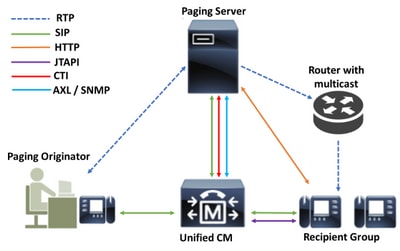

网络图
呼叫流程
- 主叫方（寻呼发起方）在Unified CM中拨打预定义号码。例如7777。
- Unified CM通过SIP中继或CTI路由点将呼叫路由到思科寻呼服务器。
- 思科寻呼服务器应答呼叫。
- 主叫方听到低停音。当思科寻呼服务器播放此音时，指令通过HTTP或JTAPI发送到收件人组中的每部电话，以加入组播组。
- 所有电话加入组播组后，思科寻呼服务器将播放高提前音。当主叫方听到此音时，它表示思科寻呼服务器已准备好接收音频并将其发送到组播IP和端口。
- 当主叫方发言时，媒体从主叫方的电话发送到思科寻呼服务器，然后从寻呼服务器发送到组播IP地址和端口，最后从组播IP发送到接收电话。
- 当主叫方挂断时，指示将发送到每部IP电话，这次将离开组播组，广播结束。
当InformaCast使用JTAPI库和计算机电话集成(CTI)管理器与Cisco Call Manager集成时，它使用TCP上的快速缓冲编码(QBE)协议，如图所示。

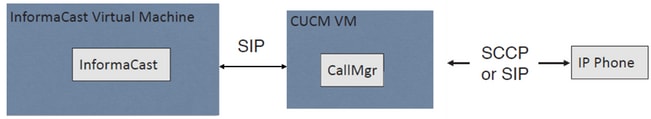

对于SIP集成，InformaCast使用TCP上的SIP协议和端口5060与Call Manager通信，如图所示。
配置Call Manager
步骤1.激活服务，导航至Cisco Unified Serviceability > Tools > Service Activation并启用以下服务：
- Cisco CallManager
- Cisco CTIManager
- Cisco AXL Web Service
- Cisco CallManager SNMP Service
步骤2.配置SNMP（版本2或版本3）

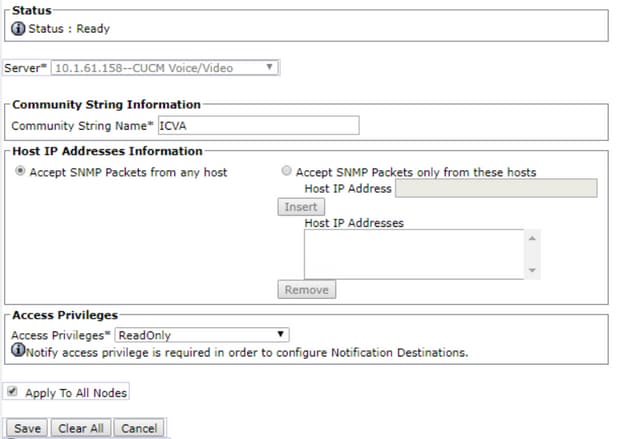

对于SNMP v2
- 导航至Cisco Unified Serviceability > SNMP > v1/v2。
- 使用ReadOnly的访问权限配置社区字符串名。
- 如果可能，应用到所有节点复选框，然后单击保存。

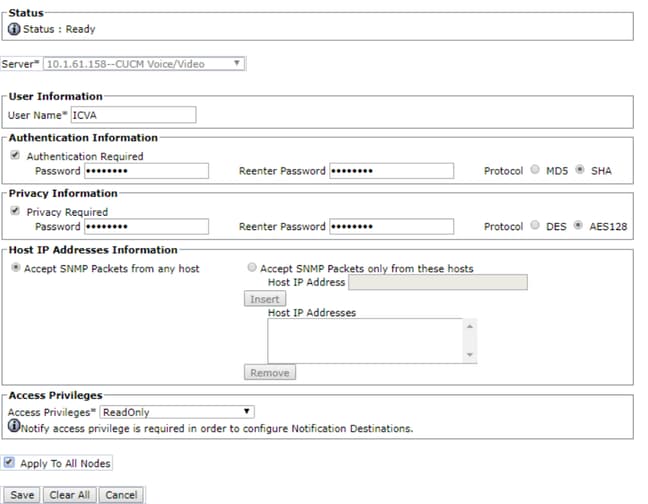

对于SNMP v3
- 导航至Cisco Unified Serviceability > SNMP > V3> User并创建名为ICVA的用户。
- 启用“需要身份验证”复选框，输入身份验证密码并选择SHA单选按钮。
- 启用“需要隐私”复选框，输入隐私密码并选择AES128单选按钮。
- 从“访问权限”下拉菜单中选择“只读”，并选中“应用到所有节点”复选框（如果可能），然后单击“保存”。

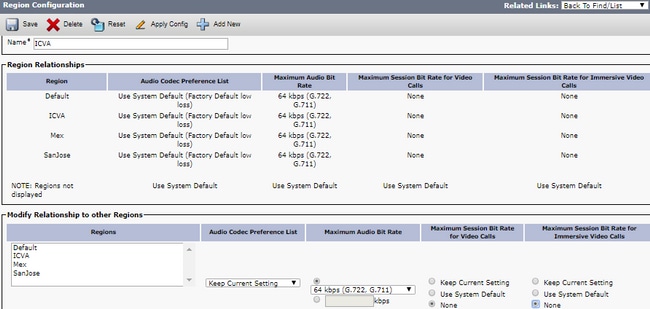

步骤3.将默认编解码器设置为G.711
- 导航至CM管理>System >区域信息>区域并创建新区域，例如ICVA。
- 在Regions区域中选择所有区域，并将64kbps(G.722、G.711)配置为Maximum Audio Bit Rate。
- 在Max Video Call Bit Rate中选择None单选按钮，然后单击Save。
步骤4.创建设备池

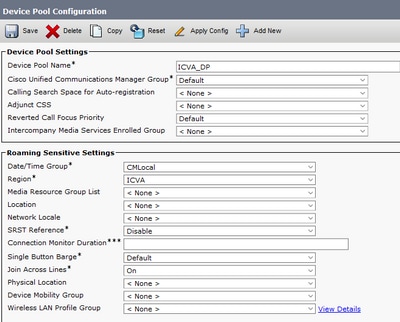

- 导航至CM Administration > System > Device Pool并创建设备池。例如，将其命名为ICVA_DP。
- 将您刚创建的ICVA区域添加到该区域。
- 从SRST Reference下拉菜单中选择Disable。
- 从“跨行连接”下拉菜单中选择“开”，然后单击“保存”。
步骤5.创建路由分区，例如ICVA_PT。
步骤6.创建呼叫搜索空间，例如ICVA_CSS。包括ICVA_PT。
步骤7.创建访问控制组(AXL)。
- 导航至CM Admin > User Management > User Settings > Access Control Group并创建访问控制组，例如ICVA User Group。
- 将标准AXL API访问角色添加到该角色。

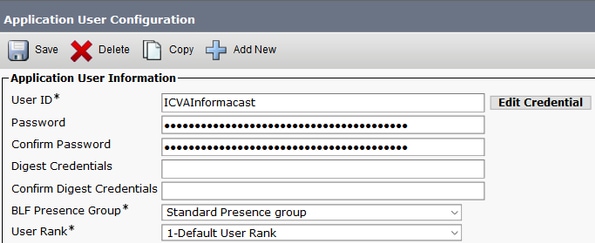

步骤8.创建应用用户
- 导航至CM Admin > User Management > Application User，然后点击Add New。将应用程序用户命名为ICVA_InformaCast并分配以下角色：
- Standard CTI Enabled
- ICVA用户组（或标准AXL API访问）
- 标准CTI允许控制支持Connected Xfer和Conf的电话。
- 标准 CTI 允许控制支持回滚模式的电话
- Standard CTI Allow Control of All Devices
步骤9.使用SIP或CTI将Communications Manager与Informacast集成。
对于SIP集成，请创建SIP配置文件、SIP中继和路由模式。
- 导航至CM Admin> Device > Device Settings > SIP Profile，然后点击标准SIP配置文件，然后点击Copy
- 将配置文件命名为ICVA SIP配置文件，然后选择Best Effort（不插入MTP）。 单击“Save(保存)”。

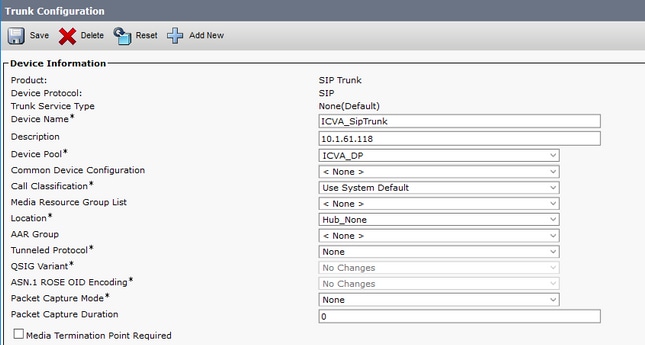

- 导航至CM Admin > Device > Trunk，然后点击Add New
- 从中继类型下拉菜单中选择SIP中继。单击Next并输入SIP中继的名称。
- 选择设备池ICVA_DP，向下滚动到SIP Information区域，并在Destination Address中输入InformaCast服务器的IP地址
- 确保Destination Port字段中的值为5060，选择Non Secure SIP Trunk Profile，并从SIP Profile下拉菜单中分配之前创建的SIP配置文件。单击“Save(保存)”。
- 创建路由模式，导航至CM Admin > Call Routing > Route Hunt > Route pattern，然后点击Add New。
- 输入路由模式（例如7777），并配置可从电话（例如ICVA_PT）访问的分区。
- 从Gateway/Route List下拉菜单中选择您刚创建的SIP中继。
- 选择Route This Pattern和OnNet单选按钮。
- 取消选中Provide Outside Dial Tone复选框，然后单击Save。
对于CTI集成，请创建CTI路由点并关联到步骤8中创建的应用用户。
- 导航至CM Administration > Device > CTI Route Point，然后点击Add new。
- 输入名称，例如ICVA_CTI_RP（或您喜欢的任何名称）。
- 分配设备池ICVA_DP，然后单击Save。
- 选择行1，输入目录编号（例如7778），并分配最近创建的分区(ICVA_PT)。
- 根据需要配置其余信息，然后单击“Save”。
在ICVA应用用户配置中将CTI路由点添加为受控设备。
步骤10.启用Web Access for Cisco IP电话以使用HTTP控制电话。
- 在企业电话配置中，可以按设备、通用设备配置文件或系统范围配置Web访问。
- 要应用企业电话配置中的更改，请导航至CM Admin > System > Enterprise Phone Configuration，向下滚动到Web Access下拉菜单并选择Enabled。单击“Save(保存)”。
- 重置电话以应用更改。

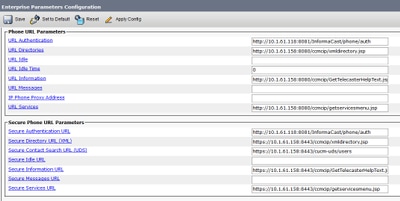

步骤11.设置身份验证URL。
更改身份验证URL，以便将身份验证请求从IP电话发送到InformaCast。所有非InformaCast身份验证请求都重定向回默认CUCM身份验证URL。
- 导航至CM Administration > System > Enterprise parameters。
- 在URL Authentication（URL身份验证）字段和Secure Authentication URL（安全身份验证URL）中输入http://<InformaCast Virtual Appliance IP Address>:8081/InformaCast/phone/auth。
- 单击Save、Apply config和Reset the phones。
步骤12.设置API浏览器访问的身份验证方法。
- 如果您使用Unified Communications Manager 11.5.1及更高版本，请向下滚动页面到Security Parameters区域，然后从Authentication Method for API Browser Access下拉菜单中选择Basic。
步骤13.测试您的电话，例如拨号7777（用于SIP集成）或7778（用于CTI集成）。
配置Informacast

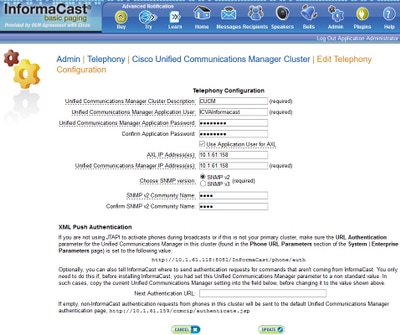

步骤1.在Informacast中配置Communications Manager集群。
- 登录Informacast并导航至Admin > Telephony > Unified Communications Manager Cluster。单击“编辑”。
- 输入您在第8步中创建的应用用户的用户名和密码。
- 确保选中Use Application User for AXL复选框，这表示在构建InformaCast的电话缓存时使用您的应用程序用户凭据。
- 在Communications Manager IP Address(es)字段中输入Unified Communications Manager服务器的IP地址。使用数字IP地址而不是DNS名称。
- 选择SNMP v2或SNMP v3单选按钮。输入在CUCM中配置的相同信息。单击“Update(更新)”。
步骤2.配置收件人组。

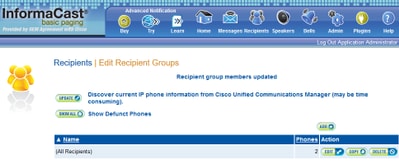

- 导航至Recipients > Edit Recipient Groups，然后单击Update以显示在CUCM中注册并由InformaCast发现的所有电话。

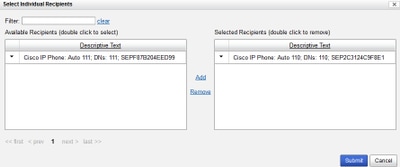

- 要创建新的收件人组，请单击Add，写下名称，然后单击Edit，为此收件人组添加电话。将电话添加到收件人后，单击Submit。
- 要保存更改，请单击“更新”。

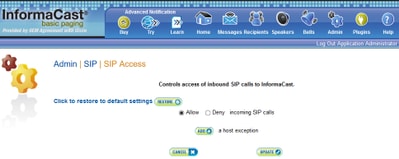

步骤3.允许/禁用对InformaCast的SIP访问。
- 导航至Admin > SIP > SIP Access。默认情况下，所有SIP呼叫都被拒绝。
- 选择“允许”单选按钮允许所有SIP呼叫，或单击“添加”以允许此允许的例外。
步骤4.添加广播拨号配置

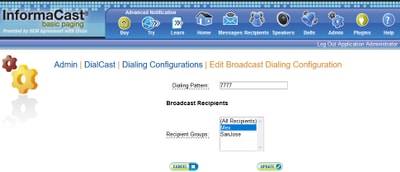

- 转到Admin > DialCast > Dialing Configurations，单击Add
- 根据在CUCM中创建的路由模式（用于SIP集成）或CTI路由点（用于CTI集成），在拨号模式字段中输入拨号模式（例如7777、7778）。
- 从列表中选择收件人组，然后单击“更新”。

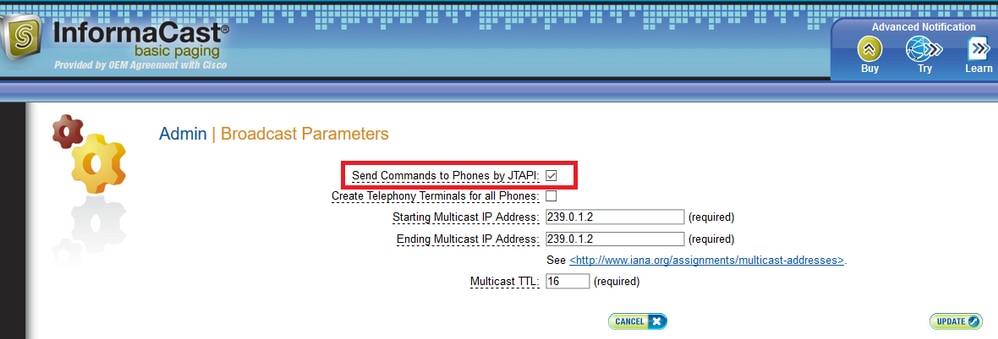

步骤5.配置广播参数。
- 导航至Admin > Broadcast Parameters
- 配置组播的IP。通常使用默认IP(239.0.1.2)。
- 如果要将命令以JTAPI的形式发送到电话，请启用JTAPI复选框，否则将使用HTTP消息。
确保此范围与您的网络基础设施设置相对应，并覆盖所有收件人组。在多站点部署中，Singlewire和Cisco建议使用一系列地址。此范围应足够大，以便处理每个同步广播的一个地址。
在网络中配置组播
如果思科寻呼服务器和IP电话位于不同的IP子网上，则必须为组播路由配置这两个子网之间的路由器。
思科寻呼服务器不需要任何特定的组播路由方法（SM、DM、S-DM、SSM等）。 某些广域网环境不支持组播路由。对于这些环境，GRE隧道可以在站点之间构建，并用于传输组播。
在您的环境中设计和配置组播不在本文档的讨论范围之内，但您可能会发现以下资源很有帮助：
验证
当前没有可用于此配置的验证过程。
故障排除
常见问题
电话未激活
考虑到广播发生时，Informacast会跳过所有正在使用（忙）的电话。
InformaCast使用不同的忙检测方法，具体取决于您向电话（HTTP或JTAPI）发送消息的方式。

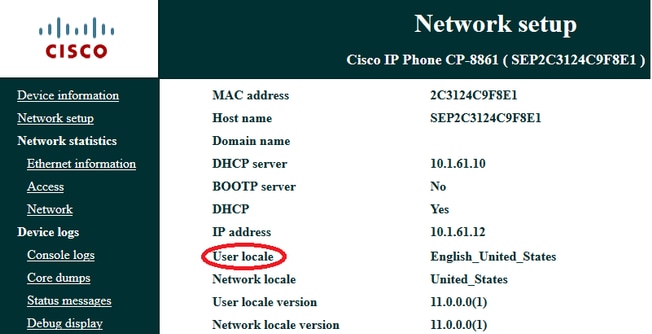

HTTP:忙线检测仅适用于运行英语负载的电话区域设置
CTI:与非英语电话区域设置配合使用
根据协议以及线路类型和线路状态，忙线检测的工作方式也不同。
| 线路状态 |
CTI忙检测 |
HTTP忙检测 |
| 在另一部电话上使用呼叫的共享线路，无呼叫处于保留状态 |
空闲 |
空闲 |
| 摘机，收集数字 |
忙碌 |
不忙 |
| 通话、活动呼叫 |
忙碌 |
忙碌 |
| 保留，共享线路上的非活动呼叫 |
忙碌 |
不忙 |
| 处于保留状态，在唯一线路上处于非活动状态的呼叫 |
忙碌 |
不忙 |
排除未激活的电话故障时，应收集以下数据：
- 从Informacast发送性能日志。
- 从电话中记录控制台日志(PRT)。
未发现电话
InformaCast只发现注册电话。如果IP电话已注册但未发现，请检查Informacast和电话注册到的CUCM节点中的SNMP服务配置。应为激活Call Manager服务的所有节点配置SNMP服务和社区字符串。

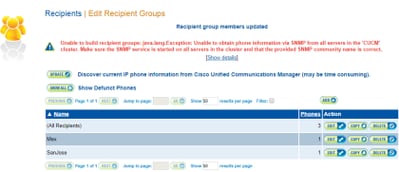

SNMP错误无法生成收件人组：java.lang.exception
- 该错误意味着SNMP由于DNS连接或解析而无法及时响应查询。
- 确认没有阻止从InformaCast服务器到所有Unified Communications Manager集群节点的UDP端口161。
- 确认SNMP信息正确。导航至Admin > Telephony > Unified Communications Manager Cluster，并键入新的SNMP字符串（如果可能）。在CUCM中配置新字符串。
- 您也可能使用的社区字符串超过了社区字符串的最大字符数。如果从CUCM复制社区字符串并将其粘贴到Informacast配置中，请尝试键入该字符串以查看是否可以键入整个字符串。在Informacast版本11中，最大字符数为18。
- 检查CUCM上的DNS配置是否正确，并确认您与缺陷CSCtb70375不匹配。
目标电话上没有音频
如果电话亮起但不播放音频，则问题很可能与组播路由有关，而与CUCM服务器或IP电话无关。
要收集的数据
排除Informacast故障时，应收集以下数据：
- 从Informacast发送性能日志。
- 从Informacast捕获数据包。
- 从电话捕获数据包。
- 从CUCM捕获数据包。
- 来自CUCM的SDL日志
- PRT（控制台日志）
性能日志
从Informacast获取性能日志有两种方法。
方法 1
- 导航至https://<Informacast IP>:8444/InformaCast/logs/performance.log
- 复制并将日志保存到.txt文件。
方法 2
- 在Web浏览器中打开Informacast IP，https://<informacast_IP>并选择Informacast。

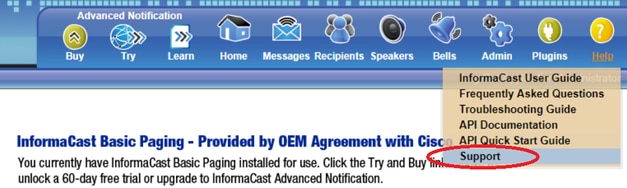

- 使用您的凭证登录并导航至“帮助”>“支持”。

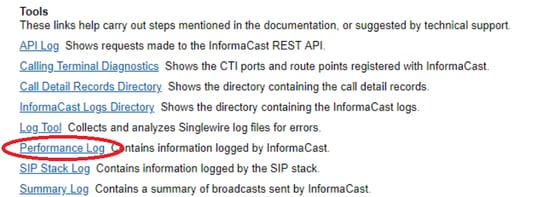

3.单击“工具”部分下的“性能日志”，如图所示。
数据包捕获
从Informacast
从Informacast获取数据包捕获有三种方法。
方法 1
- 通过SSH连接到Informacast框的CLI
- 执行命令sudo capturePackets test.cap以开始捕获并创建名为test.cap的文件
- 向不工作的电话分页
- 按Ctrl + C结束pcap
- 执行ls以确保数据包捕获在机箱中
- 使用SFTP或安全复制(SCP)将文件传输到PC
方法 2
- 从Web下载并安装InformaCast_LogTool。
- 执行软件并选择选项[5]。写下Informacast的IP、登录凭证和数据包捕获应运行的秒数，如图所示。
- 捕获不会立即开始，这样您就可以准备测试环境。 准备就绪后，选择选项[1]并按Enter开始捕获数据包，如图所示。
- 该工具将显示一个倒计时计时器，其中显示捕获的未完成持续时间。在此时间复制问题，当捕获倒计时达到零时，捕获完成并停止。
- 该工具将数据包捕获和所有日志捆绑到.tgz文件中，并将其传输到工作站。 这与用于收集日志的选项1相同，但也包括网络流量捕获。
- 该工具将在Informacast_LogTool.exe的基目录中创建一个包含数据包捕获的文件夹，如图所示。
方法3（在版本12.0.1及更高版本中提供）

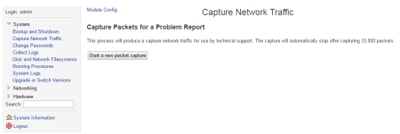

- 登录<Informacast_IP>:10000
- 导航至System > Capture Network Traffic。
- 单击“Start a new packet capture(开始新数据包捕获)” ，然后复制问题，如图所示。
- 当问题被完全复制时，单击Stop Packet Capture（停止数据包捕获），或者在捕获33,000个数据包后单击Stop Packet Capture（停止数据包捕获）。

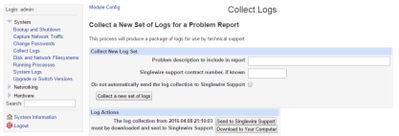

- 导航至System > Collect Logs，输入问题的简短说明，然后单击Collect a new set logs。
- 要保存日志，请单击“Download to Your Computer(下载到您的计算机)” ，如图所示。
方法4（在版本12.0.1及更高版本中提供）
在版本12.0.1及更高版本中，不再需要sudo命令。要运行数据包捕获，请使用capture-packets <文件名> <数据包数>命令，如示例所示：
admin@informacast:~$ capture-packets test Saving up to 33000 packets to /var/log/capture-packets/test tcpdump: listening on eth0, link-type EN10MB (Ethernet), capture size 1514 bytes ^C13 packets captured 15 packets received by filter 0 packets dropped by kernel Interrupt signaled. Cleaning up.
从CUCM
根据部署定义从何处获取数据包捕获。集群中只能有一个CUCM节点或多个CUCM。
- 如果您有一个CUCM节点，请获取数据包捕获，如图所示。

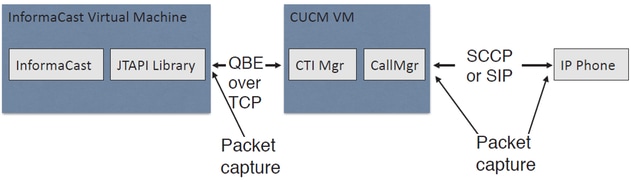

- 如果您有CUCM群集，并且一个节点与Informacast通信，但另一个节点与电话通信，则获取数据包捕获，如图所示。
- 为需要捕获的节点打开SSH会话
- 运行命令utils network capture eth0 size all count 1000000 file Test以启动数据包捕获。
- 复制问题
- 使用Ctrl + C停止数据包捕获
- 要确认数据包捕获已保存，请运行命令file list activelog platform/cli/*

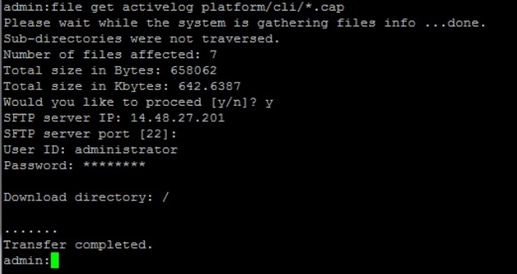

- 使用命令file get activelog platform/cli/Test.cap将数据包捕获发送到SFTP服务器。或者，要收集存储在服务器上的所有.cap文件，请使用file get activelog platform/cli/*.cap

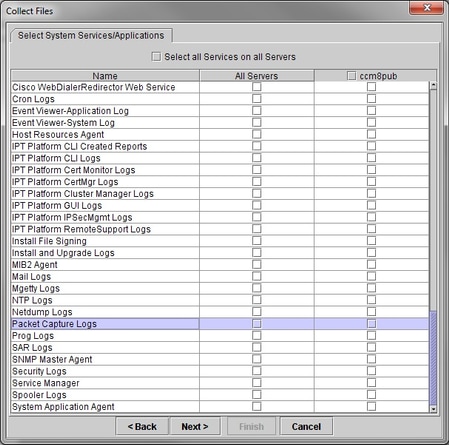

- 如果无法使用SFTP服务器，请使用RTMT。导航至System > Trace & Log Central > Collect Files。单击“下一步”并启用“数据包捕获日志”复选框，如图所示。
- 单击“Next(下一步)” ，选择下载文件目录，然后单击“Finish（完成）”。
- 使用命令file delete activelog platform/cli/Test.cap删除数据包

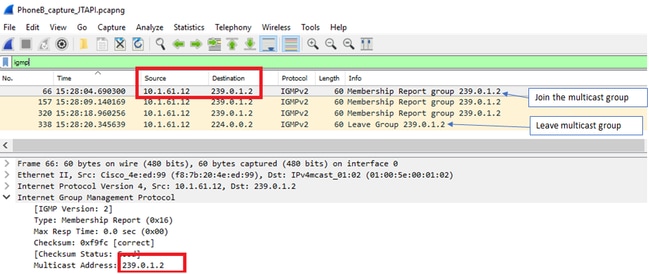

从电话
- 激活SPAN到PC端口。导航至CM Admin page > Device > phone，并查找报告有问题的电话。
- 在“产品特定配置布局”部分下，找到Span to PC Port，然后从下拉菜单中选择“启用”。单击“保存”，然后单击“应用配置”。
- 将笔记本电脑连接到电话的PC端口。
- 在笔记本电脑中运行数据包分析器软件。您可以使用Wireshark（或其他数据包捕获软件）。
- 复制问题。
- 当问题完全复制时，继续停止数据包捕获。
您可以在以下链接中找到更多详细信息：https://supportforums.cisco.com/document/44741/collecting-packet-capture-cisco-ip-phone

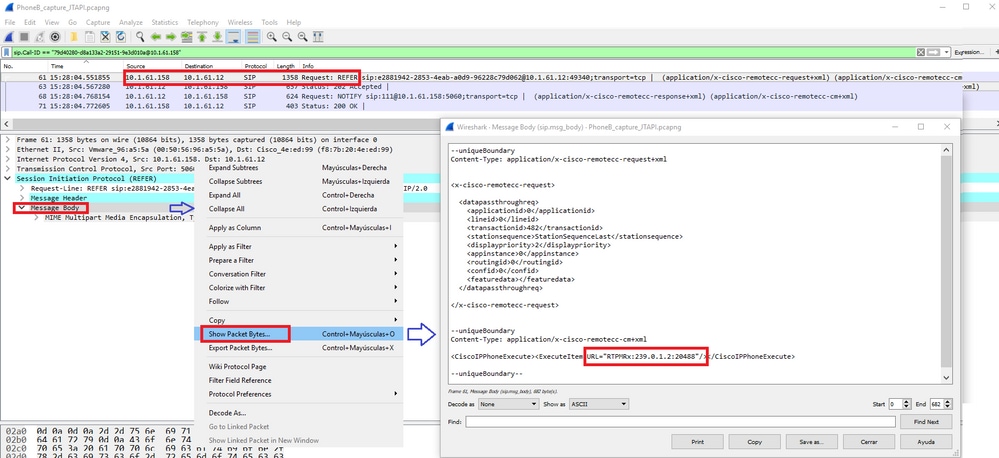

示例分析
SDL跟踪
用于SIP集成和由JTAPI控制的电话
CUCM:10.1.61.158
Informacast:10.1.61.118
电话A
DN:110
型号：CP-8861
固件版本：sip8xx.12-0-1SR1-1
电话A的IP地址：10.1.61.12
MAC SEP2C3124C9F8E1
电话B
DN:111
型号：CP-8811
固件版本：sip8xx.12-0-1SR1-1
电话B的IP地址：10.1.61.11
MAC SEPF87B204EED99
拨号播号：7777
#### CUCM receives the invite from Phone A 71439050.002 |19:00:35.206 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.12 on port 51600 index 25770 with 1791 bytes: [431528,NET] INVITE sip:7@10.1.61.158;user=phone SIP/2.0 Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK18a14280 From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c3c246b7956-5c62fa57 To: <sip:7@10.1.61.158> Call-ID: 2c3124c9-f8e1000d-00337209-0547bb10@10.1.61.12 Max-Forwards: 70 Session-ID: 712c9e1f00105000a0002c3124c9f8e1;remote=00000000000000000000000000000000 Date: Tue, 10 Sep 2019 00:00:37 GMT CSeq: 101 INVITE User-Agent: Cisco-CP8861/12.0.1 Contact: <sip:142b9f25-7f2b-48a8-9ff9-377f616f3084@10.1.61.12:51600;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEP2C3124C9F8E1" Expires: 180 Accept: application/sdp Allow: ACK,BYE,CANCEL,INVITE,NOTIFY,OPTIONS,REFER,REGISTER,UPDATE,SUBSCRIBE,INFO Remote-Party-ID: "PhoneA" <sip:110@10.1.61.158>;party=calling;id-type=subscriber;privacy=off;screen=yes Supported: replaces,join,sdp-anat,norefersub,resource-priority,extended-refer,X-cisco-callinfo,X-cisco-serviceuri,X-cisco-escapecodes,X-cisco-service-control,X-cisco-srtp-fallback,X-cisco-monrec,X-cisco-config,X-cisco-sis-7.0.0,X-cisco-xsi-8.5.1 Allow-Events: kpml,dialog Recv-Info: conference Recv-Info: x-cisco-conference Content-Length: 548 Content-Type: application/sdp Content-Disposition: session;handling=optional v=0 o=Cisco-SIPUA 11811 0 IN IP4 10.1.61.12 s=SIP Call b=AS:4064 t=0 0 m=audio 22018 RTP/AVP 114 9 124 0 8 116 18 101 c=IN IP4 10.1.61.12 b=TIAS:64000 a=rtpmap:114 opus/48000/2 a=fmtp:114 maxplaybackrate=16000;sprop-maxcapturerate=16000;maxaveragebitrate=64000;stereo=0;sprop-stereo=0;usedtx=0 a=rtpmap:9 G722/8000 a=rtpmap:124 ISAC/16000 a=rtpmap:0 PCMU/8000 a=rtpmap:8 PCMA/8000 a=rtpmap:116 iLBC/8000 a=fmtp:116 mode=20 a=rtpmap:18 G729/8000 a=fmtp:18 annexb=yes a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-15 a=sendrecv ### CUCM performs digit analysis for the dialed digits (dd="7777") 71439203.000 |19:00:36.580 |SdlSig |DaReq |wait |Da(1,100,216,1) |Cdcc(1,100,224,6) |1,100,14,1368.16^10.1.61.12^* |[R:N-H:0,N:0,L:0,V:0,Z:0,D:0] CI=19282342 Fqdn=ti=1nd=110pi=0si1 Cgpn=tn=0npi=0ti=1nd=110pi=1si1 DialedNum=tn=0npi=1ti=1nd=7777User=7777Host=10.1.61.158Port=5060PassWord=Madder=Transport=4mDisplayName=RawUrl=sip:7@10.1.61.158;user=phoneOrigPort=0pi=0si1 requestID=0 DigitAnalysisComplexity=1 CallingUser= IgnoreIntercept=0 callingDeviceName=SEP2C3124C9F8E1 71439203.001 |19:00:36.580 |AppInfo |Digit Analysis: star_DaReq: daReq.partitionSearchSpace(8653f609-05a7-5914-819b-3a89680af6a2:), filteredPartitionSearchSpaceString(Informacast_PT:phone_pt), partitionSearchSpaceString(Informacast_PT:phone_pt) 71439203.002 |19:00:36.580 |AppInfo |Digit Analysis: Host Address=10.1.61.158 MATCHES this node's IPv4 address. 71439203.003 |19:00:36.580 |AppInfo |Digit Analysis: star_DaReq: Matching SIP URL, Numeric User, user=7777 71439203.012 |19:00:36.588 |AppInfo |Digit analysis: match(pi="2", fqcn="110", cn="110",plv="5", pss="Informacast_PT:phone_pt", TodFilteredPss="Informacast_PT:phone_pt", dd="7777",dac="1") 71439203.013 |19:00:36.588 |AppInfo |Digit analysis: analysis results 71439203.014 |19:00:36.588 |AppInfo ||PretransformCallingPartyNumber=110 |CallingPartyNumber=110 |DialingPartition=Informacast_PT |DialingPattern=7777 |FullyQualifiedCalledPartyNumber=7777 |DialingPatternRegularExpression=(7777) |DialingWhere= |PatternType=Enterprise |PotentialMatches=NoPotentialMatchesExist |DialingSdlProcessId=(0,0,0) |PretransformDigitString=7777 |PretransformTagsList=SUBSCRIBER |PretransformPositionalMatchList=7777 |CollectedDigits=7777 |UnconsumedDigits= |TagsList=SUBSCRIBER |PositionalMatchList=7777 |VoiceMailbox= |VoiceMailCallingSearchSpace= |VoiceMailPilotNumber= |RouteBlockFlag=RouteThisPattern |RouteBlockCause=0 |AlertingName= |UnicodeDisplayName= |CallableEndPointName=[ddef6b78-6232-f5eb-b286-79292be99bb5] #### CUCM determines call must stay on the same node, then it sends the call to SIP Trunk PID=SIPD(1,100,84,12) 71439207.001 |19:00:36.588 |AppInfo |Digit analysis: wait_DmPidRes- Partition=[107a02ea-a384-5219-3670-ba9d14b9d094] Pattern=[7777] Where=[],cmDeviceType=[Unknown], OutsideDialtone =[0], DeviceOverride=[0], PID=SIPD(1,100,84,12),CI=[19282342],Sender=Cdcc(1,100,224,6) ### CUCM extends the call to the Informacast SIP Trunk 71439248.001 |19:00:36.643 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.118 on port 5060 index 25758 [431545,NET] INVITE sip:7777@10.1.61.118:5060 SIP/2.0 Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK1996d1e0c5e3e From: "PhoneA" <sip:110@10.1.61.158>;tag=229417~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282343 To: <sip:7777@10.1.61.118> Date: Tue, 10 Sep 2019 00:00:36 GMT Call-ID: 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158 Supported: timer,resource-priority,replaces Min-SE: 1800 User-Agent: Cisco-CUCM11.5 Allow: INVITE, OPTIONS, INFO, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY CSeq: 101 INVITE Expires: 180 Allow-Events: presence, kpml Supported: X-cisco-srtp-fallback,X-cisco-original-called Call-Info: ;method="NOTIFY;Event=telephone-event;Duration=500" Call-Info: ;x-cisco-video-traffic-class=DESKTOP Session-ID: 712c9e1f00105000a0002c3124c9f8e1;remote=00000000000000000000000000000000 Cisco-Guid: 0047656832-0000065536-0000000001-2654798090 Session-Expires: 1800 P-Asserted-Identity: "PhoneA" <sip:110@10.1.61.158> Remote-Party-ID: "PhoneA" <sip:110@10.1.61.158>;party=calling;screen=yes;privacy=off Contact: <sip:110@10.1.61.158:5060;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEP2C3124C9F8E1" Max-Forwards: 69 Content-Type: application/sdp Content-Length: 552 v=0 o=CiscoSystemsCCM-SIP 229417 1 IN IP4 10.1.61.158 s=SIP Call c=IN IP4 10.1.61.12 b=TIAS:64000 b=AS:64 t=0 0 m=audio 22018 RTP/AVP 114 9 124 0 8 116 18 101 b=TIAS:64000 a=rtpmap:114 opus/48000/2 a=fmtp:114 maxplaybackrate=16000;sprop-maxcapturerate=16000;maxaveragebitrate=64000;stereo=0;sprop-stereo=0;usedtx=0 a=rtpmap:9 G722/8000 a=rtpmap:124 iSAC/16000 a=rtpmap:0 PCMU/8000 a=rtpmap:8 PCMA/8000 a=rtpmap:116 iLBC/8000 a=maxptime:20 a=fmtp:116 mode=20 a=rtpmap:18 G729/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-15 #### Informacast replies with 200 OK (Call established using codec PCMU) 71439316.004 |19:00:36.849 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.118 on port 5060 index 25758 with 889 bytes: [431549,NET] SIP/2.0 200 OK CSeq: 101 INVITE Call-ID: 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158 From: "PhoneA" <sip:110@10.1.61.158>;tag=229417~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282343 To: <sip:7777@10.1.61.118>;tag=2c9be8b4 Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK1996d1e0c5e3e;rport=43802 Content-Type: application/sdp Contact: "InformaCast" <sip:7777@10.1.61.118;transport=tcp> Allow: ACK,BYE,CANCEL,INFO,INVITE,OPTIONS,NOTIFY Accept: application/sdp Accept-Encoding: identity Accept-Language: en Supported: Call-Info: <sip:7777@10.1.61.118:5060>;method="NOTIFY;Event=telephone-event;Duration=500" Content-Length: 248 v=0 o=SinglewireInformaCast-SIP 1568074182370 1 IN IP4 10.1.61.118 s=SIP Call c=IN IP4 10.1.61.118 b=TIAS:64000 b=AS:64 t=0 0 m=audio 32070 RTP/AVP 0 101 a=rtpmap:0 PCMU/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-15 a=ptime:20 #### ACK from CUCM to Informacast 71439319.001 |19:00:36.850 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.118 on port 5060 index 25758 [431550,NET] ACK sip:7777@10.1.61.118;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK1996e72237022 From: "PhoneA" <sip:110@10.1.61.158>;tag=229417~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282343 To: <sip:7777@10.1.61.118>;tag=2c9be8b4 Date: Tue, 10 Sep 2019 00:00:36 GMT Call-ID: 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158 User-Agent: Cisco-CUCM11.5 Max-Forwards: 70 CSeq: 101 ACK Allow-Events: presence, kpml Content-Length: 0 ### CUCM sends 200 OK to Phone A with codec PCMU 71439437.001 |19:00:36.884 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.12 on port 51600 index 25770 [431551,NET] SIP/2.0 200 OK Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK18a14280 From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c3c246b7956-5c62fa57 To: <sip:7@10.1.61.158>;tag=229414~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282342 Date: Tue, 10 Sep 2019 00:00:35 GMT Call-ID: 2c3124c9-f8e1000d-00337209-0547bb10@10.1.61.12 CSeq: 101 INVITE Allow: INVITE, OPTIONS, INFO, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY Allow-Events: presence Supported: replaces Server: Cisco-CUCM11.5 Call-Info: ; security= NotAuthenticated; orientation= to; gci= 1-15008; isVoip; call-instance= 1 Send-Info: conference, x-cisco-conference Remote-Party-ID: <sip:7777@10.1.61.158>;party=called;screen=no;privacy=off Session-ID: ddef6b786232f5ebb2867929ab229417;remote=712c9e1f00105000a0002c3124c9f8e1 Remote-Party-ID: <sip:7777@10.1.61.158;user=phone>;party=x-cisco-original-called;privacy=off Contact: <sip:7@10.1.61.158:5060;transport=tcp> Content-Type: application/sdp Content-Length: 235 v=0 o=CiscoSystemsCCM-SIP 229414 1 IN IP4 10.1.61.158 s=SIP Call c=IN IP4 10.1.61.118 b=AS:64 t=0 0 m=audio 32070 RTP/AVP 0 101 b=TIAS:64000 a=ptime:20 a=rtpmap:0 PCMU/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-15 #### ACK from Phone A to CUCM 71439438.002 |19:00:36.950 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.12 on port 51600 index 25770 with 692 bytes: [431552,NET] ACK sip:7@10.1.61.158:5060;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK20553712 From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c3c246b7956-5c62fa57 To: <sip:7@10.1.61.158>;tag=229414~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282342 Call-ID: 2c3124c9-f8e1000d-00337209-0547bb10@10.1.61.12 Max-Forwards: 70 Session-ID: 712c9e1f00105000a0002c3124c9f8e1;remote=ddef6b786232f5ebb2867929ab229417 Date: Tue, 10 Sep 2019 00:00:39 GMT CSeq: 101 ACK User-Agent: Cisco-CP8861/12.0.1 Remote-Party-ID: "PhoneA" <sip:110@10.1.61.158>;party=calling;id-type=subscriber;privacy=off;screen=yes Content-Length: 0 Recv-Info: conference Recv-Info: x-cisco-conference #### Since integration is with JTAPI, CUCM sends REFER to the phone with instructions to join to the IP and port of multicast 71439541.002 |19:00:38.199 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.11 on port 51784 index 25768 [431557,NET] REFER sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK19970687ccd2b From: <sip:111@10.1.61.158>;tag=1598606730 To: <sip:111@10.1.61.11> Call-ID: 4085c80-d761e7a6-1996d-9e3d010a@10.1.61.158 CSeq: 101 REFER Max-Forwards: 70 Contact: <sip:111@10.1.61.158:5060;transport=tcp> User-Agent: Cisco-CUCM11.5 Expires: 30 Refer-To: cid:1234567890@10.1.61.158 Content-Id: <1234567890@10.1.61.158> Content-Type: multipart/mixed;boundary=uniqueBoundary Mime-Version: 1.0 Referred-By: <sip:111@10.1.61.158> Content-Length: 682
--uniqueBoundary
Content-Type:application/x-cisco-remotecc-request+xml
<x-cisco-remotecc-request>
<datapassthroughreq>
<applicationid>0</applicationid>
<lineid>0</lineid>
<transactionid>109</transactionid>
<stationsequence>StationSequenceLast</stationsequence>
<displaypriority>2</displaypriority>
<appinstance>0</appintance>
<routingid>0</routingid>
<confid>0</confid>
<featuredata></featuredata>
</datapassthroughreq>
</x-cisco-remotecc-request>
--uniqueBoundary
Content-Type:application/x-cisco-remote-cm+xml
<CiscoIPPhoneExecute><ExecuteItem URL="RTPMRx:239.0.1.2:20480"/></CiscoIPPhoneExecute>
--uniqueBoundary--
#### Phone B replies with 202 Accepted 71439542.002 |19:00:38.215 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.11 on port 51784 index 25768 with 571 bytes: [431558,NET] SIP/2.0 202 Accepted Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK19970687ccd2b From: <sip:111@10.1.61.158>;tag=1598606730 To: <sip:111@10.1.61.11>;tag=f87b204eed990c3a4020c613-5969341f Call-ID: 4085c80-d761e7a6-1996d-9e3d010a@10.1.61.158 Session-ID: f9d4984b00105000a000f87b204eed99;remote=00000000000000000000000000000000 Date: Tue, 10 Sep 2019 00:00:40 GMT CSeq: 101 REFER Server: Cisco-CP8811/12.0.1 Contact: <sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEPF87B204EED99" Content-Length: 0 #### Phone B sends a NOTIFY to indicate that it was activated (Data="Success") 71439548.004 |19:00:38.453 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.11 on port 51784 index 25768 with 2006 bytes: [431559,NET] NOTIFY sip:111@10.1.61.158:5060;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.11:51784;branch=z9hG4bK08ccf329 To: <sip:111@10.1.61.158>;tag=1598606730 From: <sip:111@10.1.61.11>;tag=f87b204eed990c3a4020c613-5969341f Call-ID: 4085c80-d761e7a6-1996d-9e3d010a@10.1.61.158 Session-ID: f9d4984b00105000a000f87b204eed99;remote=00000000000000000000000000000000 Date: Tue, 10 Sep 2019 00:00:40 GMT CSeq: 1000 NOTIFY Event: refer Subscription-State: terminated; reason=timeout Max-Forwards: 70 Contact: <sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEPF87B204EED99" Allow: ACK,BYE,CANCEL,INVITE,NOTIFY,OPTIONS,REFER,REGISTER,UPDATE,SUBSCRIBE Content-Type: multipart/mixed; boundary=uniqueBoundary Mime-Version: 1.0 Content-Length: 1199
--uniqueBoundary
Content-Type:application/x-cisco-remotecc-response+xml
Content-Disposition_session;handling=required
<?xml version=1.0" enconding="UTF-8"?>
<x-cisco-remotecc-response>
<response>
<code>200</code>
<reason></reason>
<applicationid>0</applicationid>
<transactionid>109</transactionid>
<stationsequence>StationSequenceLast</stationsequence>
<displaypriority>2</displaypriority>
<appinstance>0</appintance>
<linenumber>0</linenumber>
<routingid>0</routingid>
<confid>0</confid>
<callid></callid>
<options_ind>
<combine max="0">
<service-control></service-control>
</combine>
<dialog usage="">
<unot></unot>
<sub></sub>
</dialog>
<presence usage="">
<unot></unot>
<sub></sub>
</presence>
</options_ind>
</response>
</x-cisco-remotecc-response>
--uniqueBoundary
Content-Type:application/x-cisco-remote-cm+xml
Csontent-Disposition:session;handling=required
<?xml version="1.0" encoding="utf-8"?>
<CiscoIPPhoneResponse>
<ResponseItem URL="RTPMRx:239.0.1.2:20480" Data="Success" Status="0"/>
</CiscoIPPhoneResponse>
--uniqueBoundary--
#### CUCM send a 200 OK for the NOTIFY received
71439556.001 |19:00:38.464 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.11 on port 51784 index 25768
[431560,NET]
SIP/2.0 200 OK
Via: SIP/2.0/TCP 10.1.61.11:51784;branch=z9hG4bK08ccf329
From: <sip:111@10.1.61.11>;tag=f87b204eed990c3a4020c613-5969341f
To: <sip:111@10.1.61.158>;tag=1598606730
Date: Tue, 10 Sep 2019 00:00:38 GMT
Call-ID: 4085c80-d761e7a6-1996d-9e3d010a@10.1.61.158
CSeq: 1000 NOTIFY
Server: Cisco-CUCM11.5
Content-Length: 0
#### CUCM sends to the phone B a REFER to stop receiving multicast audio 71442357.002 |19:01:10.795 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.11 on port 51784 index 25768 [431582,NET] REFER sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK199754588a6e3 From: <sip:111@10.1.61.158>;tag=928499252 To: <sip:111@10.1.61.11> Call-ID: 171b2c80-d761e7c6-19970-9e3d010a@10.1.61.158 CSeq: 101 REFER Max-Forwards: 70 Contact: <sip:111@10.1.61.158:5060;transport=tcp> User-Agent: Cisco-CUCM11.5 Expires: 30 Refer-To: cid:1234567890@10.1.61.158 Content-Id: <1234567890@10.1.61.158> Content-Type: multipart/mixed;boundary=uniqueBoundary Mime-Version: 1.0 Referred-By: <sip:111@10.1.61.158> Content-Length: 683 --uniqueBoundary
Content-Type:application/x-cisco-remotecc-request+xml
<x-cisco-remotecc-request>
<datapassthroughreq>
<applicationid>0</applicationid>
<lineid>0</lineid>
<transactionid>109</transactionid>
<stationsequence>StationSequenceLast</stationsequence>
<displaypriority>2</displaypriority>
<appinstance>0</appintance>
<routingid>0</routingid>
<confid>0</confid>
<featuredata></featuredata>
</datapassthroughreq>
</x-cisco-remotecc-request>
--uniqueBoundary
Content-Type:application/x-cisco-remote-cm+xml
<CiscoIPPhoneExecute><ExecuteItem Priority="0" URL="RTPMRx:Stop"/></CiscoIPPhoneExecute>
--uniqueBoundary--
#### Phone B sends to CUCM a 202 Accepted
71442358.002 |19:01:10.802 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.11 on port 51784 index 25768 with 571 bytes:
[431583,NET]
SIP/2.0 202 Accepted
Via: SIP/2.0/TCP 10.1.61.158:5060;branch=z9hG4bK199754588a6e3
From: <sip:111@10.1.61.158>;tag=928499252
To: <sip:111@10.1.61.11>;tag=f87b204eed990c3e1c1bfe96-1d092704
Call-ID: 171b2c80-d761e7c6-19970-9e3d010a@10.1.61.158
Session-ID: f9d4984b00105000a000f87b204eed99;remote=00000000000000000000000000000000
Date: Tue, 10 Sep 2019 00:01:12 GMT
CSeq: 101 REFER
Server: Cisco-CP8811/12.0.1
Contact: <sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEPF87B204EED99"
Content-Length: 0
#### A NOTIFY is sent from the phone B to CUCM to indicate that it stopped receiving multicast audio 71442417.004 |19:01:11.069 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.11 on port 51784 index 25768 with 1994 bytes: [431584,NET] NOTIFY sip:111@10.1.61.158:5060;transport=tcp SIP/2.0 Via: SIP/2.0/TCP 10.1.61.11:51784;branch=z9hG4bK68d7f530 To: <sip:111@10.1.61.158>;tag=928499252 From: <sip:111@10.1.61.11>;tag=f87b204eed990c3e1c1bfe96-1d092704 Call-ID: 171b2c80-d761e7c6-19970-9e3d010a@10.1.61.158 Session-ID: f9d4984b00105000a000f87b204eed99;remote=00000000000000000000000000000000 Date: Tue, 10 Sep 2019 00:01:13 GMT CSeq: 1000 NOTIFY Event: refer Subscription-State: terminated; reason=timeout Max-Forwards: 70 Contact: <sip:e2881942-2853-4eab-a0d9-96228c79d062@10.1.61.11:51784;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEPF87B204EED99" Allow: ACK,BYE,CANCEL,INVITE,NOTIFY,OPTIONS,REFER,REGISTER,UPDATE,SUBSCRIBE Content-Type: multipart/mixed; boundary=uniqueBoundary Mime-Version: 1.0 Content-Length: 1187 --uniqueBoundary
Content-Type:application/x-cisco-remotecc-request+xml
Content-Disposition:session;handling=required
<?xml version="1.0" encoding="UTF-8"?>
<x-cisco-remotecc-response>
<response>
<code>200</code>
<reason></reason>
<applicationid>0</applicationid>
<transactionid>117</transactionid>
<stationsequence>StationSequenceLast</stationsequence>
<displaypriority>2</displaypriority>
<appinstance>0</appinstance>
<linenumber>0</linenumber>
<routingid>0</routingid>
<confid>0</confid>
<callid></callid>
<options_ind>
<combine max="0">
<service-control></service-control>
</combine>
<dialog usage="">
<unot></unot>
<sub></sub>
</dialog>
<presence usage="">
<unot></unot>
<sub></sub>
</presence>
</options_ind>
</response>
</x-cisco-remotecc-response>
--uniqueBoundary
Content-Type: application/x-cisco-remotecc-cm+xml
Content-Disposition: session;handling=required
<?xml version="1.0" encoding="utf-8"?>
<CiscoIPPhoneResponse>
<ResponseItem URL="RTPRx:Stop" Data="Success" Status="0" />
</CiscoIPPhoneResponse>
--uniqueBoundary—
### CUCM replies with 200 OK
71442425.001 |19:01:11.070 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.11 on port 51784 index 25768
[431585,NET]
SIP/2.0 200 OK
Via: SIP/2.0/TCP 10.1.61.11:51784;branch=z9hG4bK68d7f530
From: <sip:111@10.1.61.11>;tag=f87b204eed990c3e1c1bfe96-1d092704
To: <sip:111@10.1.61.158>;tag=928499252
Date: Tue, 10 Sep 2019 00:01:11 GMT
Call-ID: 171b2c80-d761e7c6-19970-9e3d010a@10.1.61.158
CSeq: 1000 NOTIFY
Server: Cisco-CUCM11.5
Content-Length: 0
用于CTI集成和由HTTP控制的电话
CUCM:10.1.61.158
Informacast:10.1.61.118
电话A
DN:110
型号：CP-8861
固件版本：sip8xx.12-0-1SR1-1
电话A的IP地址：10.1.61.12
MAC :SEP2C3124C9F8E1
电话B
DN:111
型号：CP-8811
固件版本：sip8xx.12-0-1SR1-1
电话B的IP地址：10.1.61.11
MAC :SEPF87B204EED99
拨号播号：7778
#### CUCM receives the INVITE from phone A (Call Manager SDL Log)
71531116.002 |19:15:32.972 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.12 on port 51600 index 25770 with 1791 bytes:
[431985,NET]
INVITE sip:7@10.1.61.158;user=phone SIP/2.0
Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK112766fc
From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c541ed075c2-67793e32
To: <sip:7@10.1.61.158>
Call-ID: 2c3124c9-f8e10011-0bb54030-57b0a7c8@10.1.61.12
Max-Forwards: 70
Session-ID: 02023b9b00105000a0002c3124c9f8e1;remote=00000000000000000000000000000000
Date: Tue, 10 Sep 2019 00:15:35 GMT
CSeq: 101 INVITE
User-Agent: Cisco-CP8861/12.0.1
Contact: <sip:142b9f25-7f2b-48a8-9ff9-377f616f3084@10.1.61.12:51600;transport=tcp>;+u.sip!devicename.ccm.cisco.com="SEP2C3124C9F8E1"
Expires: 180
Accept: application/sdp
Allow: ACK,BYE,CANCEL,INVITE,NOTIFY,OPTIONS,REFER,REGISTER,UPDATE,SUBSCRIBE,INFO
Remote-Party-ID: "PhoneA" <sip:110@10.1.61.158>;party=calling;id-type=subscriber;privacy=off;screen=yes
Supported: replaces,join,sdp-anat,norefersub,resource-priority,extended-refer,X-cisco-callinfo,X-cisco-serviceuri,X-cisco-escapecodes,X-cisco-service-control,X-cisco-srtp-fallback,X-cisco-monrec,X-cisco-config,X-cisco-sis-7.0.0,X-cisco-xsi-8.5.1
Allow-Events: kpml,dialog
Recv-Info: conference
Recv-Info: x-cisco-conference
Content-Length: 548
Content-Type: application/sdp
Content-Disposition: session;handling=optional
v=0
o=Cisco-SIPUA 19108 0 IN IP4 10.1.61.12
s=SIP Call
b=AS:4064
t=0 0
m=audio 19104 RTP/AVP 114 9 124 0 8 116 18 101
c=IN IP4 10.1.61.12
b=TIAS:64000
a=rtpmap:114 opus/48000/2
a=fmtp:114 maxplaybackrate=16000;sprop-maxcapturerate=16000;maxaveragebitrate=64000;stereo=0;sprop-stereo=0;usedtx=0
a=rtpmap:9 G722/8000
a=rtpmap:124 ISAC/16000
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:116 iLBC/8000
a=fmtp:116 mode=20
a=rtpmap:18 G729/8000
a=fmtp:18 annexb=yes
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=sendrecv
#### Digit analysis for the dialed number 7778
71531367.000 |19:15:34.231 |SdlSig |DaReq |wait |Da(1,100,216,1) |Cdcc(1,100,224,12) |1,100,14,1368.88^10.1.61.12^* |[R:N-H:0,N:0,L:0,V:0,Z:0,D:0] CI=19282358 Fqdn=ti=1nd=110pi=0si1 Cgpn=tn=0npi=0ti=1nd=110pi=1si1 DialedNum=tn=0npi=1ti=1nd=7778User=7778Host=10.1.61.158Port=5060PassWord=Madder=Transport=4mDisplayName=RawUrl=sip:7@10.1.61.158;user=phoneOrigPort=0pi=0si1 requestID=0 DigitAnalysisComplexity=1 CallingUser= IgnoreIntercept=0 callingDeviceName=SEP2C3124C9F8E1
71531367.001 |19:15:34.231 |AppInfo |Digit Analysis: star_DaReq: daReq.partitionSearchSpace(8653f609-05a7-5914-819b-3a89680af6a2:), filteredPartitionSearchSpaceString(Informacast_PT:phone_pt), partitionSearchSpaceString(Informacast_PT:phone_pt)
71531367.002 |19:15:34.231 |AppInfo |Digit Analysis: Host Address=10.1.61.158 MATCHES this node's IPv4 address.
71531367.003 |19:15:34.231 |AppInfo |Digit Analysis: star_DaReq: Matching SIP URL, Numeric User, user=7778
71531367.004 |19:15:34.232 |AppInfo |Digit Analysis: getDaRes data: daRes.ssType=[0] Intercept DAMR.sstype=[0], TPcount=[0], DAMR.NotifyCount=[0], DaRes.NotifyCount=[0]
71531367.005 |19:15:34.232 |AppInfo |Digit Analysis: getDaRes - Remote Destination [] isURI[1]
71531367.006 |19:15:34.232 |AppInfo |Digit analysis: patternUsage=2
71531367.007 |19:15:34.232 |AppInfo |Digit analysis: match(pi="2", fqcn="110", cn="110",plv="5", pss="Informacast_PT:phone_pt", TodFilteredPss="Informacast_PT:phone_pt", dd="7778",dac="1")
71531367.008 |19:15:34.232 |AppInfo |Digit analysis: analysis results
71531367.009 |19:15:34.232 |AppInfo ||PretransformCallingPartyNumber=110
|CallingPartyNumber=110
|DialingPartition=Informacast_PT
|DialingPattern=7778
|FullyQualifiedCalledPartyNumber=7778
|DialingPatternRegularExpression=(7778)
|DialingWhere=
|PatternType=Enterprise
|PotentialMatches=NoPotentialMatchesExist
|DialingSdlProcessId=(0,0,0)
|PretransformDigitString=7778
|PretransformTagsList=SUBSCRIBER
|PretransformPositionalMatchList=7778
|CollectedDigits=7778
|UnconsumedDigits=
|TagsList=SUBSCRIBER
|PositionalMatchList=7778
|VoiceMailbox=
|VoiceMailCallingSearchSpace=
|VoiceMailPilotNumber=
|RouteBlockFlag=RouteThisPattern
|RouteBlockCause=0
|AlertingName=InformacastCTIRP
|UnicodeDisplayName=InformacastCTIRP
|DisplayNameLocale=1
|OverlapSendingFlagEnabled=0
|WithTags=
|WithValues=
|CallingPartyNumberPi=NotSelected
|ConnectedPartyNumberPi=NotSelected
|CallingPartyNamePi=NotSelected
|ConnectedPartyNamePi=NotSelected
|CallManagerDeviceType=NoDeviceType
|PatternPrecedenceLevel=Routine
|CallableEndPointName=[4db482c3-64c3-5adf-33c5-a11c890d96d0]
|PatternNodeId=[4db482c3-64c3-5adf-33c5-a11c890d96d0]
|AARNeighborhood=[]
|AARDestinationMask=[]
|AARKeepCallHistory=true
|AARVoiceMailEnabled=false
|NetworkLocation=OnNet
|Calling Party Number Type=Cisco Unified CallManager
|Calling Party Numbering Plan=Cisco Unified CallManager
|Called Party Number Type=Cisco Unified CallManager
|Called Party Numbering Plan=Cisco Unified CallManager
|ProvideOutsideDialtone=false
|AllowDeviceOverride=false
|IsEmergencyNumber=false
|AlternateMatches=
|TranslationPatternDetails=
|ResourcePriorityNamespace=
|PatternRouteClass=RouteClassDefault
#### CUCM extends the call to the Line control associated to the CTI Route Point ICVA_CTI_RP (Call Manager SDL Log)
71531370.001 |19:15:34.232 |AppInfo |Digit analysis: wait_DmPidRes- Partition=[107a02ea-a384-5219-3670-ba9d14b9d094] Pattern=[7778] Where=[],cmDeviceType=[UserDevice], OutsideDialtone =[0], DeviceOverride=[0], PID=LineControl(1,100,178,1306),CI=[19282358],Sender=Cdcc(1,100,224,12)
71531386.001 |19:15:34.233 |AppInfo |LineCdpc(20): -dispatchToAllDevices-, sigName=CcSetupReq, device=ICVA_CTI_RP
#### CUCM sends the CTI New call notify (Call Manager SDL Log)
71531404.000 |19:15:34.235 |SdlSig-O |CtiNewCallNotify |NA RemoteSignal |UnknownProcessName(1,200,25,1) |StationCdpc(1,100,67,2) |1,100,14,1.33^*^* |[R:N-H:0,N:4,L:0,V:0,Z:0,D:0] LH=1|47 GCH=1|15018 CH=1|19282359 Held CH=0|0 State=2(CtiOfferingState) Reason=1 Origin=1 DeviceName=ICVA_CTI_RP CGPN=[ DN=110 uDN=110 NumPI=T Part=phone_pt VmBox= NumType=0 Name=PhoneA UniName=PhoneA NamePI=T Locale=1 PU=2 Device=SEP2C3124C9F8E1 GlblCgpn=110] CDPN=[ DN=7778 uDN=7778 NumPI=T Part=Informacast_PT VmBox= NumType=0 Name=InformacastCTIRP UniName=InformacastCTIRP NamePI=T Locale=1 PU=2 Device=] LRP=[ DN= uDN= NumPI=T Part= VmBox= NumType=0 Name= UniName= NamePI=T Locale=1] OCDPN=[ DN=7778 uDN=7778 NumPI=T Part=Informacast_PT VmBox= NumType=0 Name=InformacastCTIRP UniName=InformacastCTIRP NamePI=T Locale=1] AuxData=T FarEndCMId=1 EndpointType=1 RIU=F Privacy=F CallPresent=T FeatPriority=1 Feature=137 AttrType=0 LineId [DN=110 Part=phone_pt] IPAddrMode=0 IsConsCallDueToRollover=F UniqCallRef=0000000000003AAA012639B700000000 CgpnIPv4Addr=c3d010a CgpnIPv6Addr= CallingMultiMediaCap=0F0 CalledMultiMediaCap=0F0 CallingPartyMultiMediaMask=3 CalledPartyMultiMediaMask=3 Session-ID: Device= 5ee92aa5415831d8b114c4ba19282359; Remote= 02023b9b00105000a0002c3124c9f8e1
#### CTI process receives the CtiNewCallNotify from CallManager process (CTI Manager SDL Trace)
04961495.000 |19:15:34.236 |SdlSig-I |CtiNewCallNotify |ready |CTIDeviceLineMgr(1,200,25,1) |StationCdpc(1,100,67,2) |1,100,14,1.33^*^* |[R:N-H:0,N:1,L:0,V:0,Z:0,D:0] LH=1|47 GCH=1|15018 CH=1|19282359 Held CH=0|0 State=2(CtiOfferingState) Reason=1 Origin=1 DeviceName=ICVA_CTI_RP CGPN=[ DN=110 uDN=110 NumPI=T Part=phone_pt VmBox= NumType=0 Name=PhoneA UniName=PhoneA NamePI=T Locale=1 PU=2 Device=SEP2C3124C9F8E1 GlblCgpn=110] CDPN=[ DN=7778 uDN=7778 NumPI=T Part=Informacast_PT VmBox= NumType=0 Name=InformacastCTIRP UniName=InformacastCTIRP NamePI=T Locale=1 PU=2 Device=] LRP=[ DN= uDN= NumPI=T Part= VmBox= NumType=0 Name= UniName= NamePI=T Locale=1] OCDPN=[ DN=7778 uDN=7778 NumPI=T Part=Informacast_PT VmBox= NumType=0 Name=InformacastCTIRP UniName=InformacastCTIRP NamePI=T Locale=1] AuxData=T FarEndCMId=1 EndpointType=1 RIU=F Privacy=F CallPresent=T FeatPriority=1 Feature=137 AttrType=0 LineId [DN=110 Part=phone_pt] IPAddrMode=0 IsConsCallDueToRollover=F UniqCallRef=0000000000003AAA012639B700000000 CgpnIPv4Addr=c3d010a CgpnIPv6Addr= CallingMultiMediaCap=0F0 CalledMultiMediaCap=0F0 CallingPartyMultiMediaMask=3 CalledPartyMultiMediaMask=3 Session-ID: Device= 5ee92aa5415831d8b114c4ba19282359; Remote= 02023b9b00105000a0002c3124c9f8e1
#### CTI process sends the NewCallEvent to Informacast server (CTI Manager SDL Trace)
04961497.003 |19:15:34.236 |AppInfo |[CTI-APP] [CTIHandler::OutputCtiMessage ] CTI NewCallEvent ( LH=1|46 CH=1|19282359 CH=0|0 GCH=1|15018 lineHandleSpecified=1 state=2 origin=1 farEndpointSpecified=1 farEndpointCMID=1 endpointType=1 reason=1 remote in use=0 privacy=0 mediaResourceID= resource ID=0 deviceName=ICVA_CTI_RP cgpn=110 Presentation=1 cgpn NameInfo=locale: 1 pi: 1 Name: PhoneA UnicodeName: PhoneA cdpn=7778 Presentation=1 cdpn NameInfo=locale: 1 pi: 1 Name: InformacastCTIRP UnicodeName: InformacastCTIRP original cdpn=7778 Presentation=1 original cdpn NameInfo=locale: 1 pi: 1 Name: InformacastCTIRP UnicodeName: InformacastCTIRP LRP= Presentation=1 LRP NameInfo=locale: 1 pi: 1 Name: UnicodeName: UserData= callingPartyDeviceName=SEP2C3124C9F8E1 mediaDeviceName= ucgpn=110 ucdpn=7778 unmodifiedOriginal cdpn=7778 uLRP= cgPnPartition=phone_pt cdPnPartition=Informacast_PT oCdPnPartition=Informacast_PT lrpPartition= CgpnIP=0xc3d010a IsConsultCallDueToRollover=0 apiCallReference=0000000000003AAA012639B700000000 lineId.DN=110 lineId.part=phone_pt CallPresentable=1 FeaturePriority =1 globalizedCgPn=110 ipAddrMode=0 cgpnPU=2 cdpnPU=2CallingPartyMultiMediaBitMask=3CalledPartyMultiMediaBitMask=3 Session-ID: Device= 5ee92aa5415831d8b114c4ba19282359; Remote= 02023b9b00105000a0002c3124c9f8e1
#### CTI process receives the LineCallAcceptRequest from Informacast server (CTI Manager SDL Trace)
04961500.002 |19:15:34.242 |AppInfo |[CTI-APP] [CTIHandler::processIncomingMessage] CTI LineCallAcceptRequest ( seq#=33 LH=1|46 CH=1|19282359 media resource ID= resource ID=0 media device name=)
#### CTI process sends the answer to Call Manager process (CTI Manager SDL Trace)
04961503.000 |19:15:34.242 |SdlSig-O |CtiLineCallAcceptReq |NA RemoteSignal |UnknownProcessName(1,100,66,16) |CTIDeviceLineMgr(1,200,25,1) |1,200,13,90.89^10.1.61.118^ICVA_CTI_RP |[R:N-H:0,N:0,L:0,V:0,Z:0,D:0] AsyncResponse=124 CH=1|19282359 LH=1|47 MediaDeviceName = MediaDevicePid = (0,0,0,0) resource ID=0
#### Call Manager process receives the answer from CTI process (Call Manager SDL Log)
71531414.000 |19:15:34.243 |SdlSig-I |CtiLineCallAcceptReq |restart0 |StationD(1,100,66,16) |CTIDeviceLineMgr(1,200,25,1) |1,200,13,90.89^10.1.61.118^ICVA_CTI_RP |[R:N-H:0,N:0,L:0,V:0,Z:0,D:0] AsyncResponse=124 CH=1|19282359 LH=1|47 MediaDeviceName = MediaDevicePid = (0,0,0,0) resource ID=0
#### CTI Process receives from Informacast the port to be used to receive the audio (CTI Manager SDL Trace)
04961525.002 |19:15:34.256 |AppInfo |[CTI-APP] [CTIHandler::processIncomingMessage] CTI DeviceSetRTPForCallRequest ( seq#=35 DH=1|52 CH=1|19282359 RtpDestination=1983709450|32080)
#### CTI Process sends the port to Call manager process (CTI Manager SDL Trace)
04961528.000 |19:15:34.256 |SdlSig-O |CtiDeviceSetRTPForCallReq |NA RemoteSignal |UnknownProcessName(1,100,66,16) |CTIDeviceLineMgr(1,200,25,1) |1,200,13,90.91^10.1.61.118^ICVA_CTI_RP |[R:N-H:0,N:0,L:0,V:0,Z:0,D:0] AsyncResponse=126mCtiInterface(1,200,25,1) DH=1|53 CH=1|19282359 RtpDestination1983709450|32080
#### CUCM sends the 200 OK to the Phone A (Codec PCMU, IP and port of Informacast)
71531593.001 |19:15:34.258 |AppInfo |SIPTcp - wait_SdlSPISignal: Outgoing SIP TCP message to 10.1.61.12 on port 51600 index 25770
[432000,NET]
SIP/2.0 200 OK
Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK112766fc
From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c541ed075c2-67793e32
To: <sip:7@10.1.61.158>;tag=229579~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282358
Date: Tue, 10 Sep 2019 00:15:32 GMT
Call-ID: 2c3124c9-f8e10011-0bb54030-57b0a7c8@10.1.61.12
CSeq: 101 INVITE
Allow: INVITE, OPTIONS, INFO, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY
Allow-Events: presence
Supported: replaces
Server: Cisco-CUCM11.5
Call-Info: <urn:x-cisco-remotecc:callinfo>; security= NotAuthenticated; orientation= to; gci= 1-15018; isVoip; call-instance= 1
Send-Info: conference, x-cisco-conference
Session-ID: 5ee92aa5415831d8b114c4ba19282359;remote=02023b9b00105000a0002c3124c9f8e1
Remote-Party-ID: "InformacastCTIRP" <sip:7778@10.1.61.158>;party=called;screen=yes;privacy=off
Contact: <sip:7@10.1.61.158:5060;transport=tcp>
Content-Type: application/sdp
Content-Length: 179
v=0
o=CiscoSystemsCCM-SIP 229579 1 IN IP4 10.1.61.158
s=SIP Call
c=IN IP4 10.1.61.118
b=AS:64
t=0 0
m=audio 32080 RTP/AVP 0
b=TIAS:64000
a=ptime:20
a=rtpmap:0 PCMU/8000
#### ACK from Phone A to CUCM
71531622.002 |19:15:34.473 |AppInfo |SIPTcp - wait_SdlReadRsp: Incoming SIP TCP message from 10.1.61.12 on port 51600 index 25770 with 692 bytes:
[432004,NET]
ACK sip:7@10.1.61.158:5060;transport=tcp SIP/2.0
Via: SIP/2.0/TCP 10.1.61.12:51600;branch=z9hG4bK4fcbad6d
From: "PhoneA" <sip:110@10.1.61.158>;tag=2c3124c9f8e10c541ed075c2-67793e32
To: <sip:7@10.1.61.158>;tag=229579~7cc9781e-f7e3-4c51-a2b9-de353a4e7d6f-19282358
Call-ID: 2c3124c9-f8e10011-0bb54030-57b0a7c8@10.1.61.12
Max-Forwards: 70
Session-ID: 02023b9b00105000a0002c3124c9f8e1;remote=5ee92aa5415831d8b114c4ba19282359
Date: Tue, 10 Sep 2019 00:15:37 GMT
CSeq: 101 ACK
User-Agent: Cisco-CP8861/12.0.1
Remote-Party-ID: "PhoneA" <sip:110@10.1.61.158>;party=calling;id-type=subscriber;privacy=off;screen=yes
Content-Length: 0
Recv-Info: conference
Recv-Info: x-cisco-conference
NOTE: At this point the call from phone A to Informacast has been established successfully. For this scenario the phones are activated using HTTP, hence there are no CUCM logs related to the phone activation.
性能日志
用于SIP集成
#### Informacast receives an INVITE sent by CUCM 2019-09-09 19:09:42,323 [pool-41-thread-1] INFO ba [] - Received INVITE request; call ID 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158; from "PhoneA" <sip:110@10.1.61.158>; to <sip:7777@10.1.61.118>; contact <sip:110@10.1.61.158:5060;transport=tcp>; user-agent Cisco-CUCM11.5
#### Informacast sends a 200 OK to CUCM 2019-09-09 19:09:42,508 [pool-41-thread-1] INFO ba [] - Sent INVITE response; status OK (200) ; call ID 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158; from "PhoneA" <sip:110@10.1.61.158>; to <sip:7777@10.1.61.118>; contact "InformaCast" <sip:7777@10.1.61.118;transport=tcp> #### CUCM replies with ACK to Informacast 2019-09-09 19:09:42,527 [pool-41-thread-1] INFO ba [] - Received ACK request; call ID 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158; from "PhoneA" <sip:110@10.1.61.158>; to <sip:7777@10.1.61.118>; user-agent Cisco-CUCM11.5 #### Informacast provides the IP and port 2019-09-09 19:09:42,871 [pool-1264-thread-1] INFO u [] - providing address: 239.0.1.2 2019-09-09 19:09:42,885 [pool-1264-thread-1] INFO t [] - Gathering information required to send the message 2019-09-09 19:09:42,904 [pool-1264-thread-1] INFO t [] - Broadcast will be sent on port: 20480 #### Stream settings: 2019-09-09 19:09:43,556 [Signaler # 1 run 1] INFO Signaler [] - Stream settings: General info: User=dialcast(System User), BroadcastInitiator=10.1.61.12, SourceType=CallingPhone, MessageKey=908, MessageType=Live Audio, MessageDescription=Basic Paging Live Broadcast, RecipientGroupDescription=SanJose, MaxIPPhones=50, MaxIPSpeakers=0, DeviceArbiter=null, CreatedOn=Mon Sep 09 19:09:42,849 CDT 2019, PauseLength=0, NumberOfRepetitions=1 Audio details: AudioFile=null, AudioFormat=ULAW 8000.0 Hz, 8 bit, mono, 1 bytes/frame, , RemoteAddress=239.0.1.2, RemotePort=20480, MessageVolume=As-Is, NonUrgent=true, Interrupt=false, Priority=2, LiveAudioSource=LiveBroadcastTriggerTask[callID=2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158, callMapper=CallMapper[dialedNumber=7777 isMapped=true messageId=908 recipientIds=[1714] dialcode=null dn=null] , multicastAddress=null, multicastPort=0, triggerFailAudioFile=/usr/local/singlewire/InformaCast/web/sounds/ivr/broadcastTrigger/triggerFail.ulaw.wav, preToneFile=null, postToneFile=null, recordedFile=null, recordingStarted=false, done=false] , PreTone=null, PostTone=null, HasDynamicAudio=falseReplay=false Confirmation details: CollectConfirmations=false #### Informacast sends the instruction message to 1 participant (SEPF87B204EED99) 2019-09-09 19:09:43,555 [Signaler # 1 run 1] INFO Signaler [] - Sending message to 1 participants 2019-09-09 19:09:43,643 [Push:10.1.61.11-pool-1269-thread-1] INFO i [1 run 1] - Started device instructor for phone PhoneDescription (deviceType=36670, deviceName=SEPF87B204EED99, description=Auto 111, devicePool=Default, callingSearchSpace=, address=10.1.61.11, ctiUser=ICVAInformacast, ctiPassword=[hidden], location=Hub_None, profileDescription=null, pbxDescription=CUCM) #### Informacast received the response via JTAPI from the phone 2019-09-09 19:09:44,126 [Push:10.1.61.11-pool-1269-thread-1] INFO i [1 run 1] - The response from the phone SEPF87B204EED99 via JTAPI is:
<?xml version="1.0" encoding="UTF-8"?>
<CiscoIPPhoneResponse>
<ResponseItem URL="RTPMRx:239.0.1.2:20480" Data="Success" Status="0" />
</CiscoIPPhoneResponse>
#### Informacast starts broadcasting 2019-09-09 19:09:44,151 [pool-1269-thread-1] INFO ah [] - Starting broadcast for inbound call 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158 on multicast address /239.0.1.2 and port 20480 #### Informacast receives the BYE to end the paging 2019-09-09 19:10:15,222 [pool-41-thread-1] INFO ba [] - Received BYE request; call ID 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158; from "PhoneA" <sip:110@10.1.61.158>; to <sip:7777@10.1.61.118>; user-agent Cisco-CUCM11.5 #### Informacast sends to the phone the instruction to stop receiving audio 2019-09-09 19:10:16,403 [Push:10.1.61.11-pool-1269-thread-3] INFO i [1 run 1] - Pushing stop command to phone: PhoneDescription (deviceType=36670, deviceName=SEPF87B204EED99, description=PhoneB, devicePool=Default, callingSearchSpace=, address=10.1.61.11, ctiUser=ICVAInformacast, ctiPassword=[hidden], location=Hub_None, profileDescription=null, pbxDescription=CUCM) #### Informacast receives the response from the phone 2019-09-09 19:10:16,732 [Push:10.1.61.11-pool-1269-thread-3] INFO i [1 run 1] - The response from the phone SEPF87B204EED99 via JTAPI is: <?xml version="1.0" encoding="UTF-8"?>
<CiscoIPPhoneResponse>
<ResponseItem URL="RTPMRx:Stop" Data="Success" Status="0" />
</CiscoIPPhoneResponse>
#### Task ended 2019-09-09 19:10:19,357 [DeviceDeactivator-pool-1268-thread-1] INFO ah [1] - Canceling live broadcast for inbound call 2d72f80-d761e7a4-1996c-9e3d010a@10.1.61.158 2019-09-09 19:11:45,250 [Timer-0] INFO JavaExchangeAdapter [] - Task Ended: checkpoint command to compact the database
用于CTI集成
#### Informacast receives the request to route the call
2019-09-09 19:24:39,936 [RouteCall:15018/1Thread] INFO av [] - Route request for call [CiscoCallID=15018/1 callingDN=110 callingPartition=phone_pt callingTerminal=SEP2C3124C9F8E1 lastRedirectedDN=null modifiedCalledDN=7778 currentCalledDN=7778 calledDN=7778] on ICVA_CTI_RP,7778
#### Dialing pattern matches
2019-09-09 19:24:39,942 [ObserverThread(af@feaf7c)] INFO V [] - Dialing pattern "7778" matched dialed route point number 7778
#### Informacast provides the IP and port for multicast
2019-09-09 19:24:40,020 [pool-1287-thread-1] INFO u [] - providing address: 239.0.1.2
2019-09-09 19:24:40,020 [pool-1287-thread-1] INFO t [] - Gathering information required to send the message
2019-09-09 19:24:40,023 [pool-1287-thread-1] INFO t [] - Broadcast will be sent on port: 20486
#### Informacast sends the message to all devices in the recipient group, in this case to only 1 device
2019-09-09 19:24:40,262 [Signaler # 4 run 1] INFO Signaler [] - Sending message to 1 participants
#### Informacast starts the live broadcast over the IP and port
2019-09-09 19:24:40,263 [Signaler # 4 run 1] INFO ah [] - Starting live broadcast alert for inbound call 15018/1 on multicast address /239.0.1.2 and port 20486
#### Informacast sends the instruction activate the phone (SEPF87B204EED99) and join to the multicast audio
2019-09-09 19:24:40,278 [Push:10.1.61.11-pool-1269-thread-10] INFO i [4 run 1] - Started device instructor for phone PhoneDescription (deviceType=36670, deviceName=SEPF87B204EED99, description=PhoneB, devicePool=Default, callingSearchSpace=, address=10.1.61.11, ctiUser=ICVAInformacast, ctiPassword=[hidden], location=Hub_None, profileDescription=null, pbxDescription=CUCM)
#### Informacast receives the response from the phone
2019-09-09 19:24:40,624 [Push:10.1.61.11-pool-1269-thread-10] INFO i [4 run 1] - The response from the phone is:
#### Informacast starts the broadcast over the IP and port
2019-09-09 19:24:40,637 [pool-1269-thread-10] INFO ah [] - Starting broadcast for inbound call 15018/1 on multicast address /239.0.1.2 and port 20486
#### Informacast receives the notification that the call has ended
2019-09-09 19:25:21,253 [ObserverThread(af@feaf7c)] INFO af [] - RTP input stopped event received for inbound call 15018/1
#### Informacast sends the instruction to the phones in order to stop receiving audio
2019-09-09 19:25:21,865 [Push:10.1.61.11-pool-1269-thread-12] INFO i [4 run 1] - Pushing stop command to phone: PhoneDescription (deviceType=36670, deviceName=SEPF87B204EED99, description=PhoneB, devicePool=Default, callingSearchSpace=, address=10.1.61.11, ctiUser=ICVAInformacast, ctiPassword=[hidden], location=Hub_None, profileDescription=null, pbxDescription=CUCM)
#### Informacast receives the response from the phone
2019-09-09 19:25:22,123 [Push:10.1.61.11-pool-1269-thread-12] INFO i [4 run 1] - The response from the phone is:
#### Deactivation done
2019-09-09 19:25:22,134 [pool-1269-thread-12] INFO ah [] - Canceling live broadcast for inbound call 15018/1
2019-09-09 19:25:22,134 [pool-1269-thread-12] INFO Signaler [] - Notifying signaler that the deactivator is done
控制台日志(PRT)
#### The same IP and port for multicast provided by Informacast is shown in the console logs 5311 INF Sep 10 00:15:34.434302 (701:844) JAVA-PushThread|cip.push.PushThread:execute - Sleep for 100ms previous= current=RTPMRx:239.0.1.2:20486 i=0 total=1 5312 DEB Sep 10 00:15:34.535773 (701:832) JAVA-SIPCC-MSP: mp_create_rtp_session: scheme_specific=239.0.1.2:20486 direction=0 mcast=1 payloadtype=4 framesize=20 vadenable=0 5313 DEB Sep 10 00:15:34.535893 (701:832) JAVA-SIPCC-MSP: mp_create_rtp_session: precedence=0 mixingmode=0 mixingparty=0 channeltype=0 5314 DEB Sep 10 00:15:34.535980 (701:832) JAVA-SIPCC-MSP: mp_create_rtp_session: ipv4 address/port/type [-1382943496/20486/1]. #### Create receive session only 5315 DEB Sep 10 00:15:34.536032 (701:832) JAVA-SIPCC-MSP: mp_create_rtp_session: Create Rx only stream. 5316 NOT Sep 10 00:15:34.536151 (408:408) ms-MSAPI.ms_forceReserveMediaPort port 20486 5317 NOT Sep 10 00:15:34.536291 (701:832) JAVA-SIPCC-MED_API: 0/-1, mp_create_rx_session: MCAP 0:GRP -1:STRM -1: PT 4: PRD 20: PORT 20486: DTPT 0: MCAST 1 5320 DEB Sep 10 00:15:34.536489 (701:832) JAVA-mp_create_rx_session:type=1, addr=239.0.1.2, ip4=-285212414 5321 DEB Sep 10 00:15:34.536525 (701:832) JAVA-mp_create_rx_session:addr_str=239.0.1.2 5323 DEB Sep 10 00:15:34.536661 (701:832) JAVA-mp_create_rx_session:[ToMS] payload=4 dynpayload=0 pkt_period=20 local_addr=239.0.1.2 type=0 local_port=20486 5326 NOT Sep 10 00:15:34.537528 (408:408) ms-RTPSESSION.createRTPSession media [ipv4=239.0.1.2][port=20486][interface=NULL][mediatype=4][relayee=0][groupid=4294967295][callid=4294967295] #### Start RTCP 5385 NOT Sep 10 00:15:34.673264 (408:408) ms-RTCPMGR.rtcpm_startRtcp[A:6:5:8] [local IPv4:port=239.0.1.2:20487][remote IPv4:port=0.0.0.0:0] #### Start RTP session RX 5388 NOT Sep 10 00:15:34.673917 (408:408) ms-RTPSESSION.ms_startRTPSessionRx[A:6] START RX [stream=5][mediaType(codec)=4][pkt size=20][P-IPv4=239.0.1.2][Port=20486][groupid=-1][callid=-1] #### Release connection 5536 NOT Sep 10 00:16:16.173301 (701:832) JAVA-SIPCC-MED_API: mp_session_cmd: release local rtp port 20486 5537 NOT Sep 10 00:16:16.173396 (408:408) ms-MSAPI.ms_releaseRxPort : port 20486
数据包捕获
从电话收集数据包捕获并检验InformaCast的HTTP XSI命令。发送互联网组管理协议(IGMP)消息以加入组播流。如果在IGMP消息后未看到组播实时传输协议(RTP)流，则可以从InformaCast捕获数据包，确认Informacast服务器已将RTP发送到IP和端口，然后检查网络基础设施。
电话上的数据包捕获（由HTTP控制）
- CUCM:10.1.61.158
- Informacast:10.1.61.118
- 电话B的IP地址：10.1.61.11
- 型号：CP-8811
- 固件版本：sip8xx.12-0-1SR1-1
- eth.addr==SEPF87B204EED99
电话上收到的HTTP和IGMP消息显示在图像中。
电话上的数据包捕获（由JTAPI控制）
- CUCM:10.1.61.158
- Informacast:10.1.61.118
- 电话B的IP地址：10.1.61.11
- 型号：CP-8811
- 固件版本：sip8xx.12-0-1SR1-1
- MAC SEPF87B204EED99
如配置部分所述，电话可以由JTAPI控制，这意味着Send Commands to Phones by Jtapi已启用，如图所示。
如果是这样，电话B通过SIP REFER从CUCM服务器接收组播的IP和端口。您可以单击SIP REFER消息，然后右键单击Message Body报头并选择Show Packet Bytes，如图所示。
电话收到指令后，会使用IGMP消息加入组播IP和端口。电话尝试的接收音频次数是最大尝试次数的三倍。当寻呼结束时，收件人组中的电话发送离开组消息以丢弃组播会话。
故障排除工具
组播测试工具将帮助您进一步排除SNMP故障。
InformaCast_LogTool将帮助您排除在网络中实施和维护InformaCast时遇到的常见问题。
高级许可证
Singlewire支持具有高级通知模式的客户。请联系sales@singlewire.com以获得更多支持。
Sunglewire支持服务于CDT（星期一至星期五）上午7:00至下午6:00（电话：+1 608.661.1140选项2）。
密码
在Informacast中，有几种密码类型：
操作系统凭证：用于进入Webmin和控制中心(https://x.x.x.x:10000)，以及使用SSH访问InformaCast虚拟设备时。默认用户为admin，而密码为changeMe。
Admin 密码:用于登录管理员界面(https://x.x.x.x:8444/InformaCast/admin)。
密码：用于保护InformaCast虚拟设备的备份。您必须记住此密码。如果丢失，Singlewire支持人员无法为您恢复。
密码 恢复
对于思科寻呼服务器12.5.1并转发：https://www.singlewire.com/help/InformaCast/v12.5.1/advanced/cucm/index.htm#t=InformaCast_Fusion%2FWebmin%2FRecover_the_Servers_Password.htm
在Informacast中更新JTAPI
最初安装InformaCast虚拟设备时，或每次更改CUCM版本时，需要将InformaCast虚拟设备使用的JTAPI库更新为CUCM服务器使用的相同版本。
通过虚拟设备更新JTAPI将更新使用JTAPI的所有Singlewire应用的JTAPI版本。
这些步骤在以下指南https://community.cisco.com/t5/collaboration-voice-and-video/integrating-basic-cisco-paging-basic-informacast-with-cucm/ta-p/3161322的Update JTAPI In Informacast部分中有所描述
常见缺陷
CSCve47332
Cisco IP电话69XX系列无法处理Informacast应用用户中的空格
CSCuy56088 8800系列电话无组播音频
CSCut91894 FF37和Chrome到InformaCast的连接在FF/Chrome更新后失败
CSCtb70375 SNMP需要向用户发出DNS连接问题的警报
相关信息
- CUCM兼容性列表：https://www.singlewire.com/matrix/cisco-platforms
- 电话矩阵：https://www.singlewire.com/matrix/cisco-phones
- 升级路径:https://www.singlewire.com/matrix/ic-upgrades
- 服务器平台：https://www.singlewire.com/matrix/server-platforms
- 硬件要求:https://www.singlewire.com/informacast-hardware-requirements
- 技术支持和文档 — Cisco Systems SRND:https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab12/collab12.pdf
- CUCM与思科分页服务器/InformaCast集成配置示例：https://www.cisco.com/c/en/us/support/docs/unified-communications/paging-server/117059-configure-informacast-00.html
- 思科寻呼服务器 — 快速入门指南：https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucm/cisco_paging_server/12_5_1/QSGInformaCastBasicPaging1251.pdf
反馈
