本文档介绍如何使用FTD 7.6和相关详细信息在Firepower 4200防火墙系列中配置容器(多实例模式)。

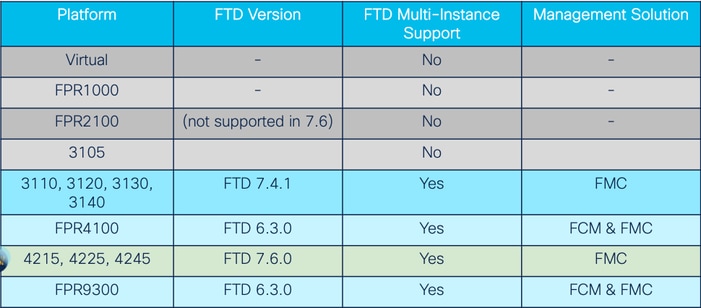

注意:任何平台上的FDM均不支持多实例。
本文档不限于特定的软件和硬件版本。
本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始(默认)配置。如果您的网络处于活动状态,请确保您了解所有命令的潜在影响。

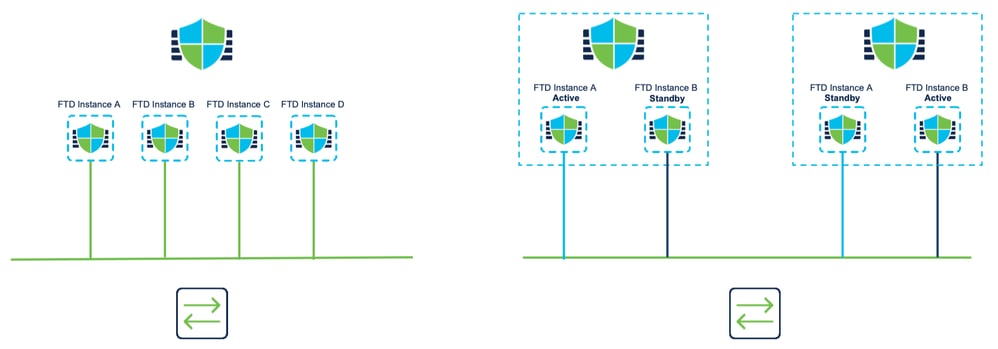

注意:对于FPR4100系列,如果是FTD-HA,主节点和辅助节点必须位于两个不同的4200系列(MI模式)设备上。此外,此版本不支持MI集群。
7.6.0中多实例配置的更改:

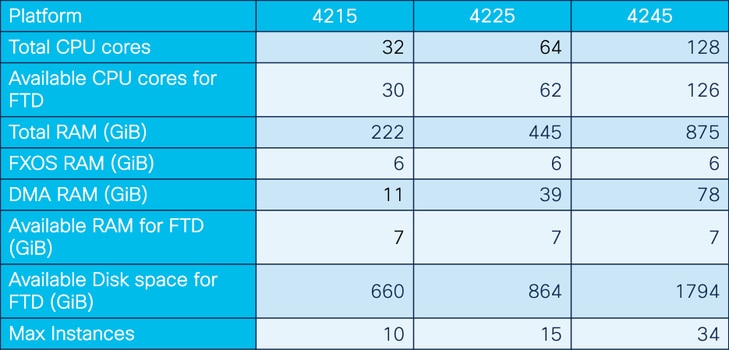

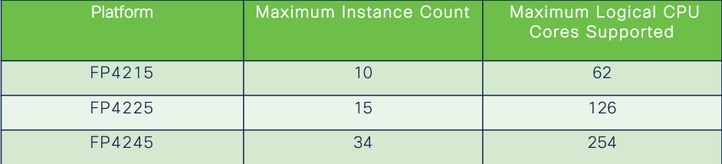

实例密度由两个主要因素驱动:
1.给定平台上的CPU核心数量和磁盘空间量
2.这些资源中有多少可用于向实例提供资源。最小的实例大小需要3个物理CPU(6个逻辑)内核和48 GB磁盘空间。
4215 |
4225 |
4245 |
||||
实例大小 |
数据平面核心 |
Snort核心 |
数据平面核心 |
Snort核心 |
数据平面核心 |
Snort核心 |
6 |
2 |
2 |
2 |
2 |
2 |
2 |
8 |
2 |
4 |
2 |
4 |
2 |
4 |
10 |
4 |
4 |
4 |
4 |
4 |
4 |
12 |
4 |
6 |
4 |
6 |
4 |
6 |
14 |
6 |
8 |
6 |
6 |
6 |
6 |
16 |
6 |
8 |
6 |
6 |
8 |
8 |
18 |
8 |
10 |
8 |
8 |
8 |
10 |
20 |
8 |
10 |
8 |
8 |
10 |
10 |
22 |
10 |
12 |
10 |
10 |
10 |
12 |
24 |
12 |
12 |
10 |
10 |
10 |
12 |
26 |
12 |
14 |
12 |
12 |
12 |
12 |
28 |
14 |
14 |
12 |
14 |
12 |
14 |
30 |
14 |
16 |
14 |
14 |
14 |
14 |
32 |
14 |
16 |
14 |
16 |
14 |
16 |
34 |
16 |
16 |
16 |
16 |
16 |
16 |
36 |
16 |
18 |
16 |
18 |
16 |
18 |
38 |
18 |
18 |
18 |
18 |
18 |
18 |
40 |
18 |
20 |
18 |
20 |
18 |
20 |
42 |
20 |
20 |
20 |
20 |
20 |
20 |
44 |
20 |
22 |
20 |
22 |
20 |
22 |
46 |
22 |
22 |
22 |
22 |
22 |
22 |
48 |
22 |
24 |
22 |
24 |
22 |
24 |
50 |
24 |
24 |
24 |
24 |
24 |
24 |
52 |
24 |
26 |
24 |
26 |
24 |
26 |
54 |
26 |
26 |
26 |
26 |
24 |
26 |
56 |
26 |
28 |
26 |
28 |
26 |
28 |
58 |
28 |
28 |
28 |
28 |
28 |
28 |
60 |
28 |
30 |
28 |
39 |
28 |
30 |
62 |
30 |
30 |
30 |
30 |
30 |
30 |
64 |
30 |
32 |
30 |
32 |
||
66 |
30 |
34 |
30 |
34 |
||
68 |
32 |
34 |
32 |
34 |
||
70 |
32 |
36 |
32 |
36 |
||
72 |
34 |
36 |
34 |
36 |
||
74 |
34 |
38 |
34 |
38 |
||
76 |
36 |
38 |
36 |
38 |
||
78 |
36 |
40 |
36 |
40 |
||
80 |
38 |
40 |
38 |
40 |
||
82 |
38 |
42 |
38 |
42 |
||
84 |
40 |
42 |
40 |
42 |
||
86 |
40 |
44 |
40 |
44 |
||
88 |
42 |
44 |
42 |
44 |
||
90 |
42 |
46 |
42 |
46 |
||
92 |
44 |
46 |
44 |
46 |
||
94 |
44 |
48 |
44 |
48 |
||
96 |
46 |
48 |
46 |
48 |
||
98 |
46 |
50 |
46 |
50 |
||
100 |
48 |
50 |
48 |
50 |
||
102 |
48 |
52 |
48 |
52 |
||
104 |
50 |
52 |
50 |
52 |
||
106 |
50 |
54 |
50 |
54 |
||
108 |
52 |
54 |
52 |
54 |
||
110 |
52 |
56 |
52 |
56 |
||
112 |
54 |
56 |
54 |
56 |
||
114 |
54 |
58 |
54 |
58 |
||
116 |
56 |
58 |
56 |
58 |
||
118 |
56 |
60 |
56 |
60 |
||
120 |
58 |
60 |
58 |
60 |
||
122 |
58 |
62 |
58 |
62 |
||
124 |
60 |
62 |
60 |
62 |
||
128 |
60 |
64 |
||||
130 |
60 |
66 |
||||
132 |
62 |
66 |
||||
134 |
62 |
68 |
||||
136 |
64 |
68 |
||||
138 |
64 |
70 |
||||
140 |
66 |
70 |
||||
142 |
66 |
72 |
||||
144 |
68 |
72 |
||||
146 |
68 |
74 |
||||
148 |
70 |
74 |
||||
150 |
70 |
76 |
||||
152 |
72 |
76 |
||||
154 |
72 |
78 |
||||
156 |
74 |
78 |
||||
158 |
74 |
80 |
||||
254 |
120 |
130 |
默认情况下,4200处于本机模式。要在FMC中将4200系列转换为多实例模式,请执行以下操作:
注意:在本机模式和MI模式之间切换会重置机箱上的所有配置。从MI模式转换到本地模式仍然通过CLI。

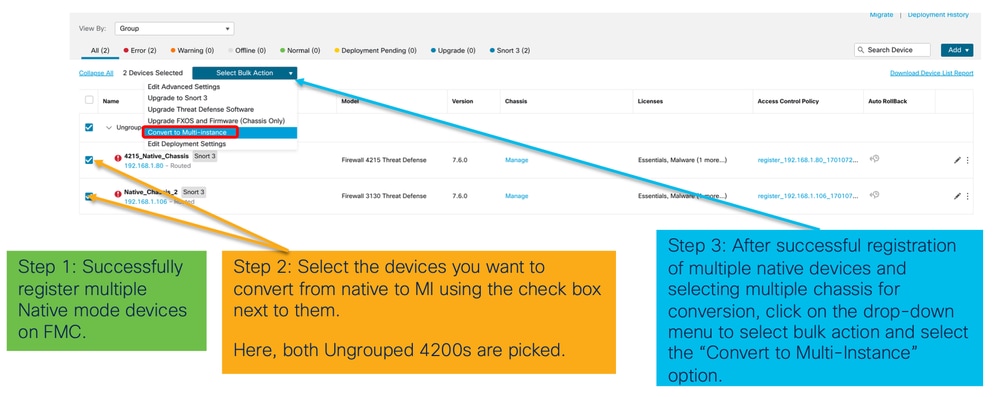

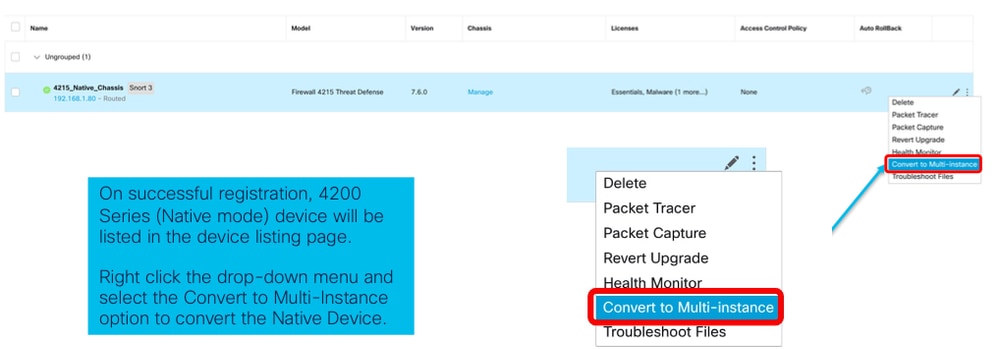

1.要开始转换,请导航到设备>设备管理。

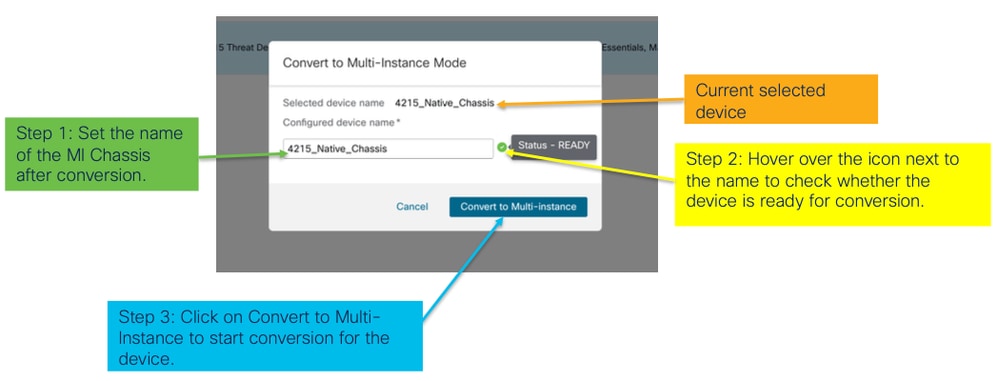

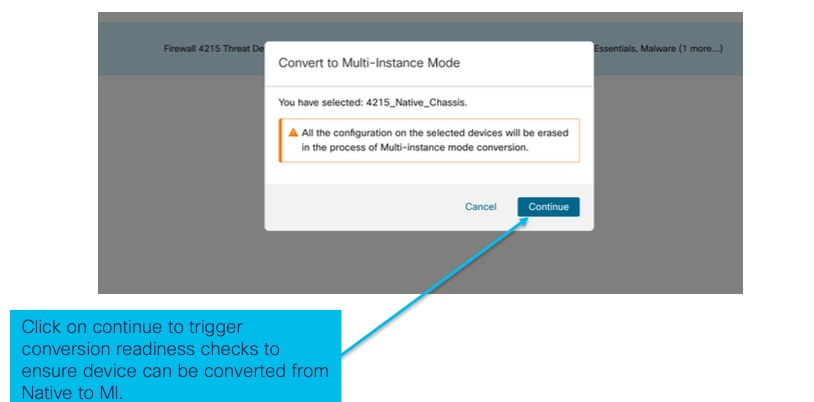

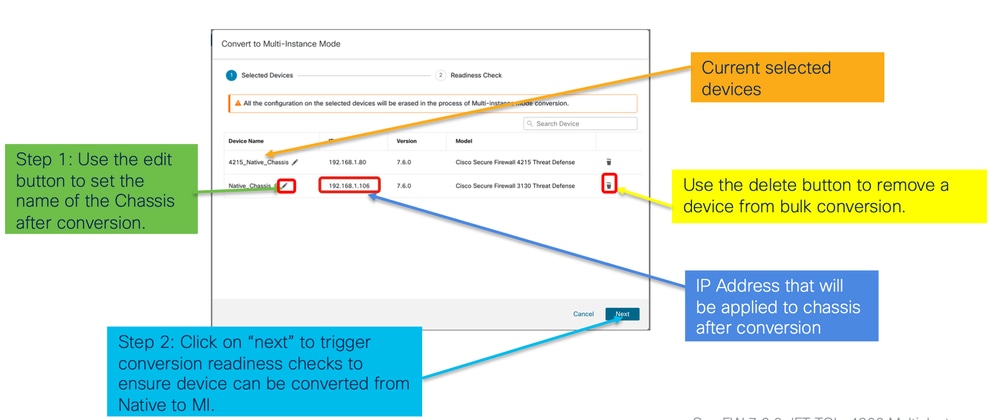

2.验证所选设备并点击继续:
验证所选设备

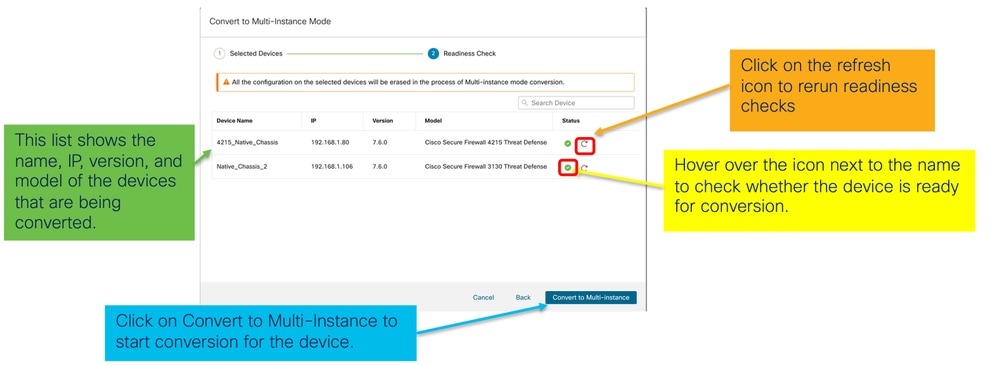

就绪性检查

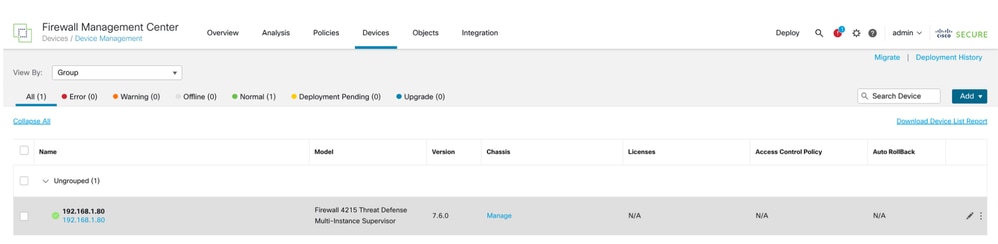

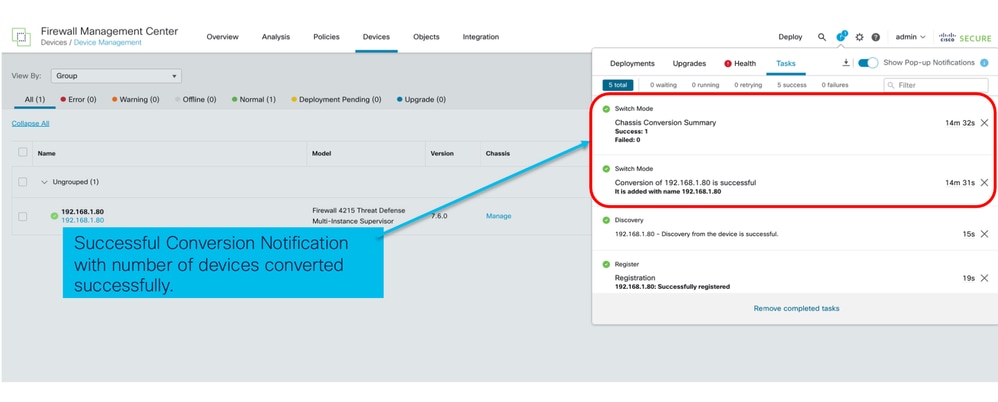

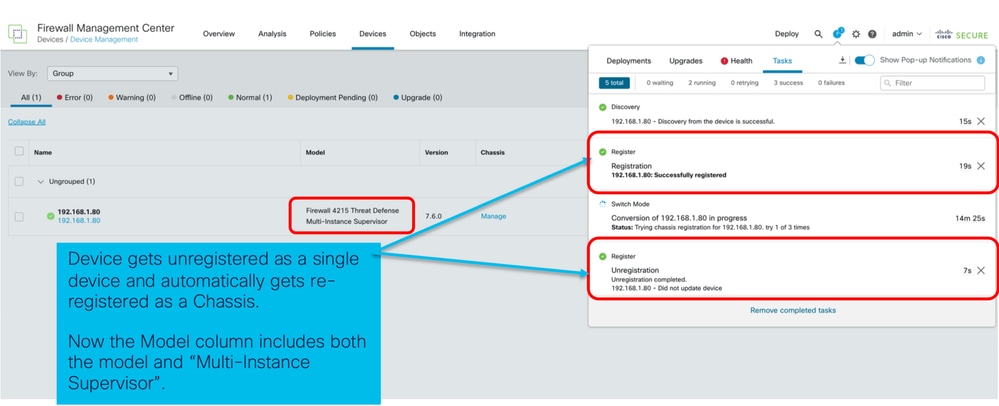

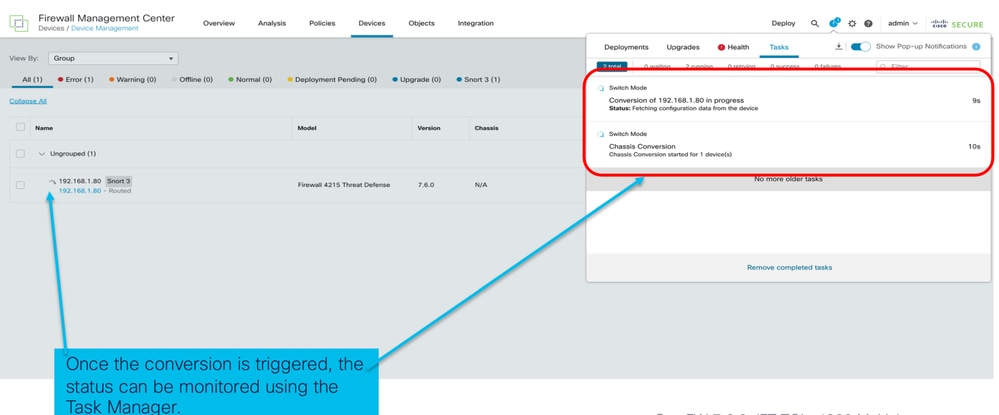

结果设备管理页面列出4200系列(MI模式)设备:
FMC机箱概述页面提供了4200系列(MI模式)设备的完整摘要。此命令包括:

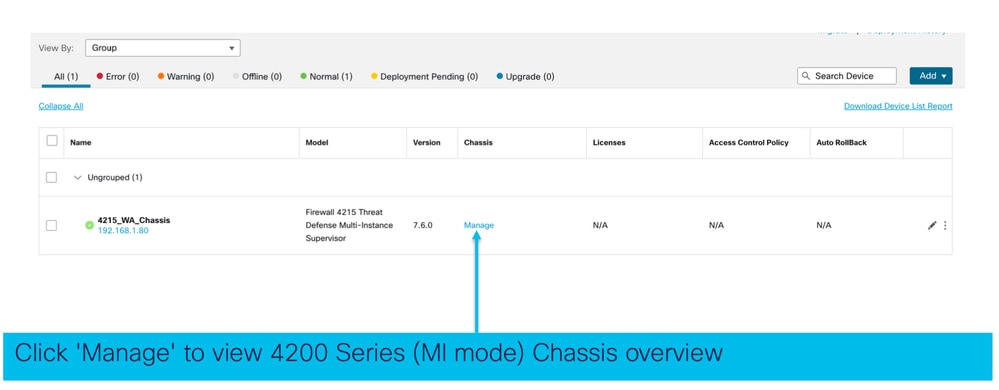

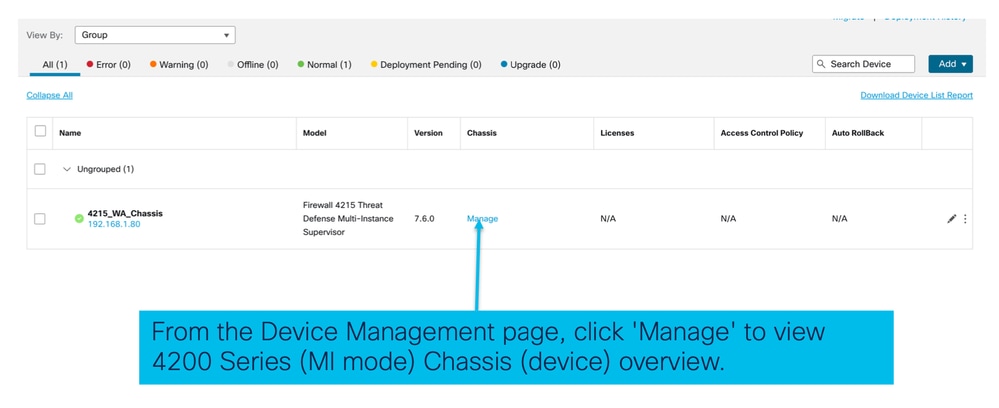

单击Manage导航到Chassis Overview:

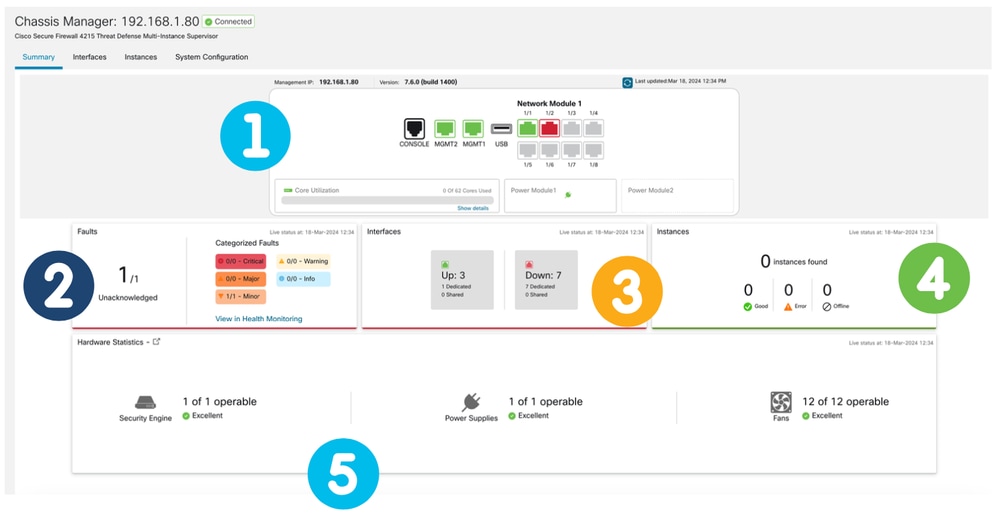

机箱页面摘要选项卡:

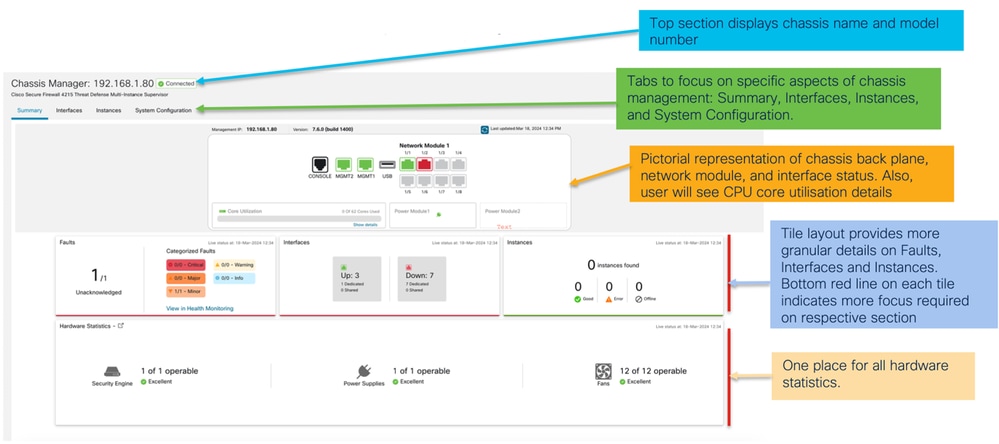

“摘要”选项卡包含多个部分。单击以获取更多详细信息:
节按编号进行映射,如下图所示:

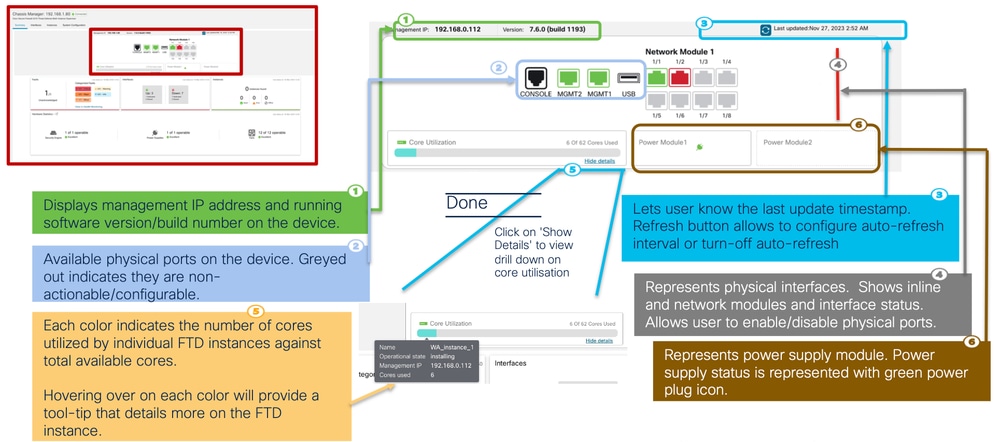

1.背板视图:
2.故障部分:

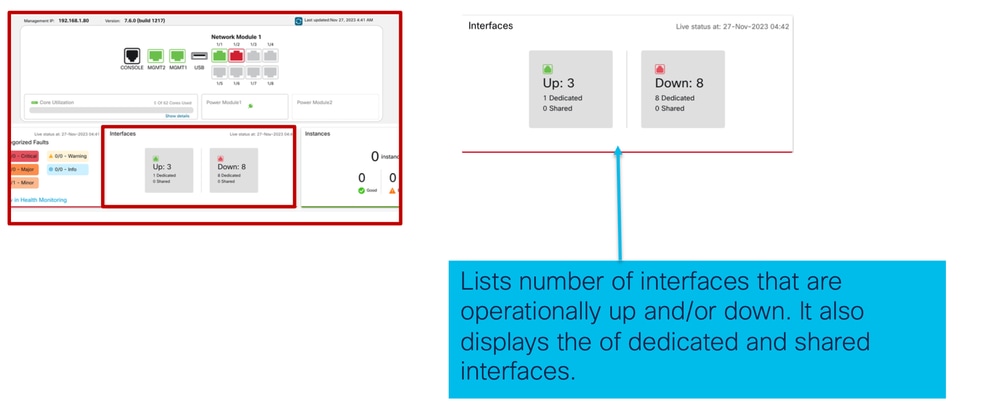

3. Interfaces部分:

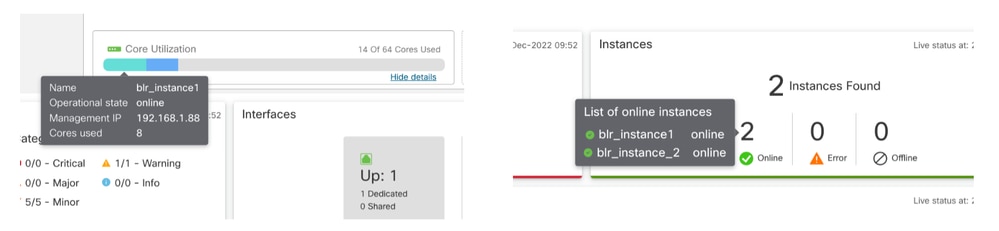

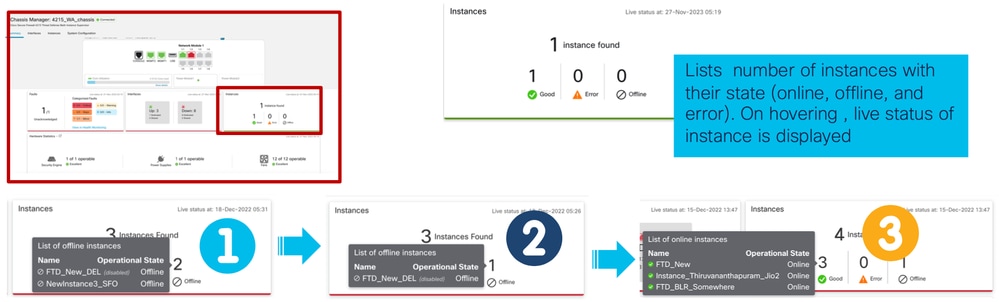

4 .Instances部分:
实例从脱机状态到联机状态的转换如前面的图像所示。
5.硬件统计:
Interfaces选项卡支持的操作:

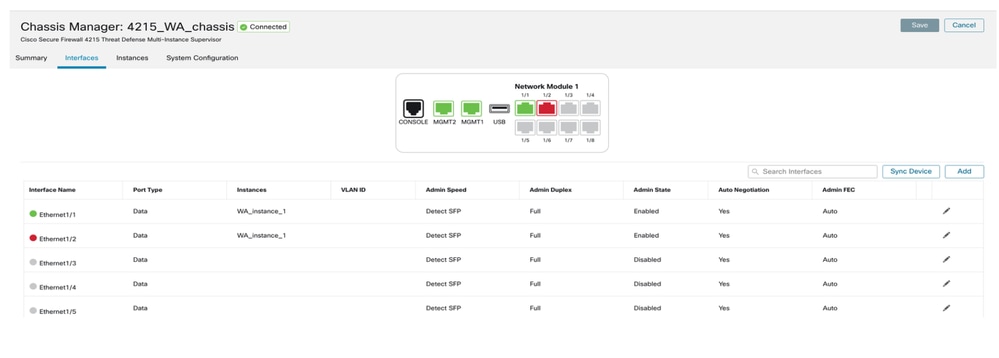

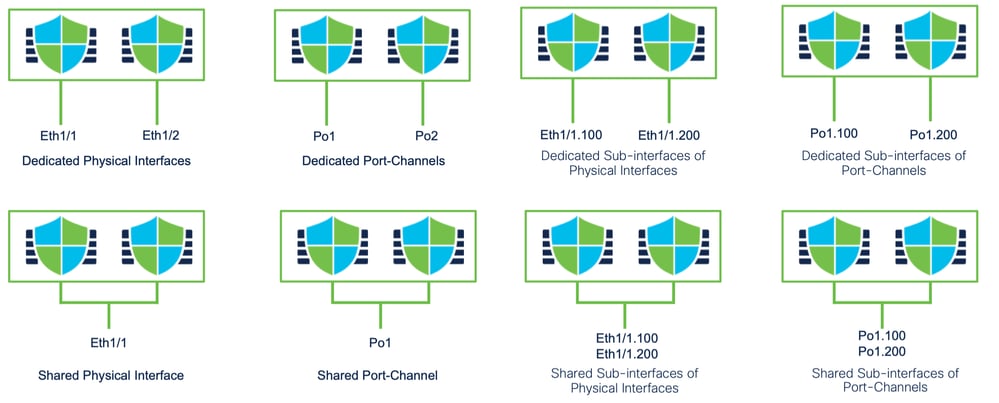

Interfaces选项卡的登录页显示机箱管理的所有类型的接口,例如物理接口、子接口和EtherChannel以及EtherChannel子接口。

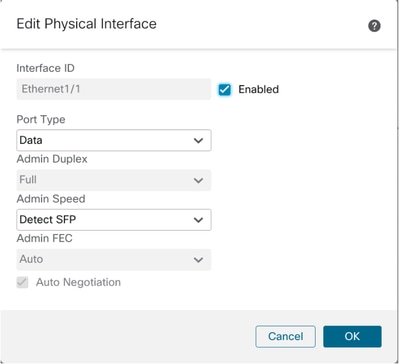

可以更新物理接口的以下属性:

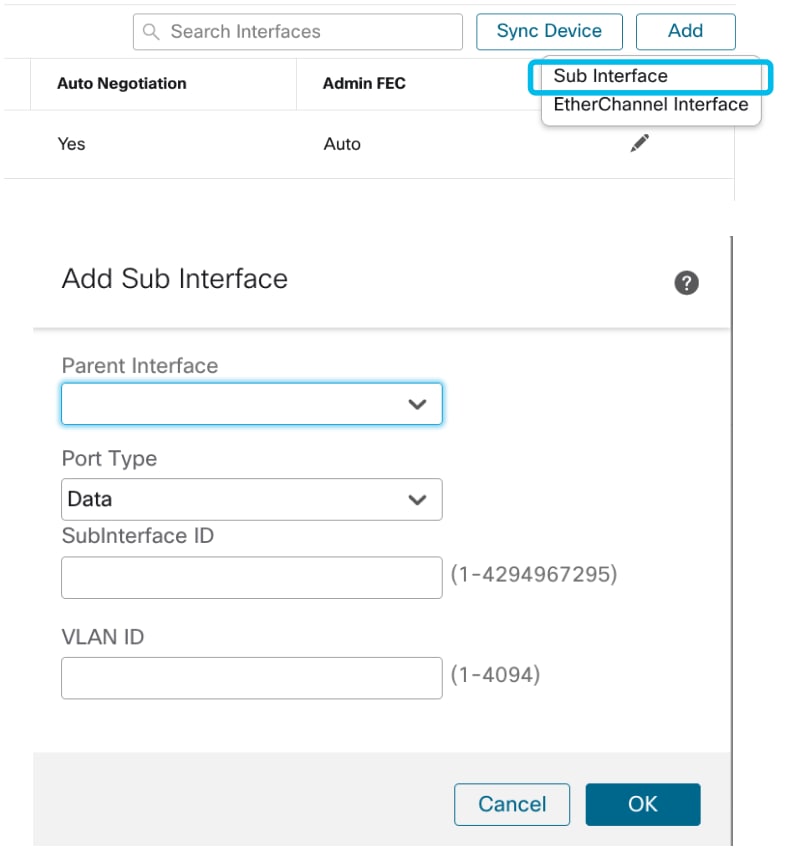

从Add按钮选择子接口选项以添加新接口。
可以修改子接口的以下属性:

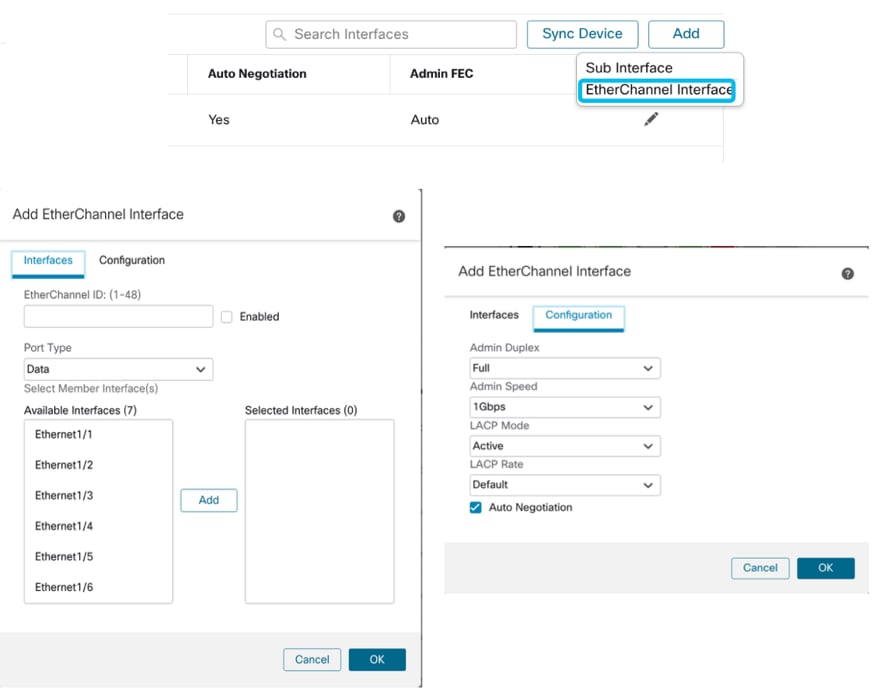

要创建新的EtherChannel接口,请使用Add按钮下的“EtherChannel interface”。
可以为EtherChannel配置的属性包括:

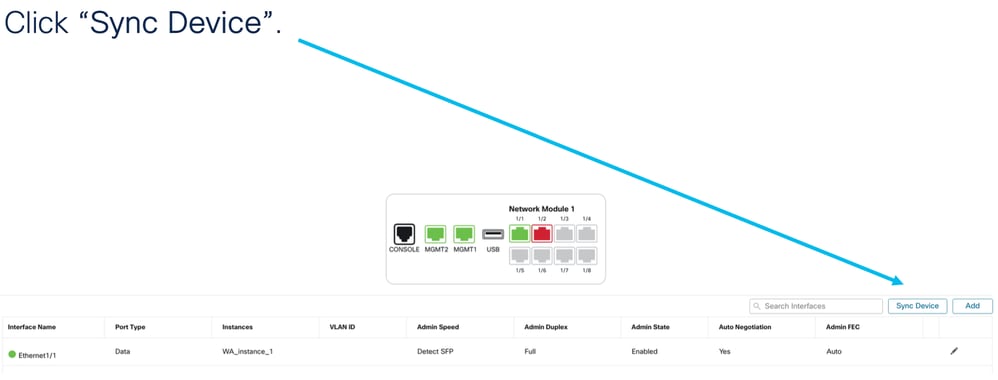

在某些情况下,FMC配置和设备配置可能会不同步。一种情况是用户删除或插入netmod。在这种情况下可以执行同步设备。
您的文档中使用的“热插拔”在其他内部文档中称为“在线插拔”或OIR。

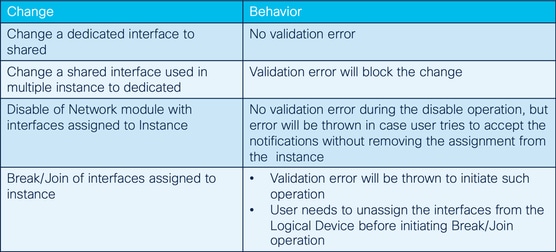

启用/禁用网络模块或中断或加入接口时可以立即进行部署。多实例模式与本地模式中的4200系列模式相同。

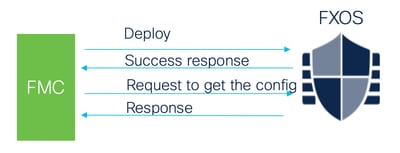

FMC将收到的响应与当前配置进行比较,然后创建接口更改通知供用户确认。
独立本地模式安全防火墙4200系列独立版已经支持EPM OIR和分支。
4200系列EPM OIR和分支FMC文档:

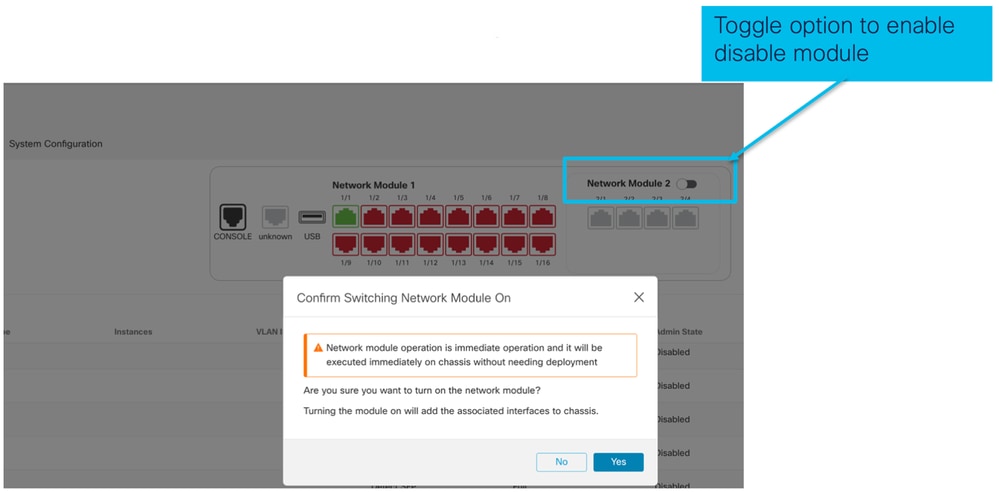

当用户切换启用模块时,会显示警告,以确保这不是偶然的点击。
此屏幕截图显示用于查看关联接口的选项:

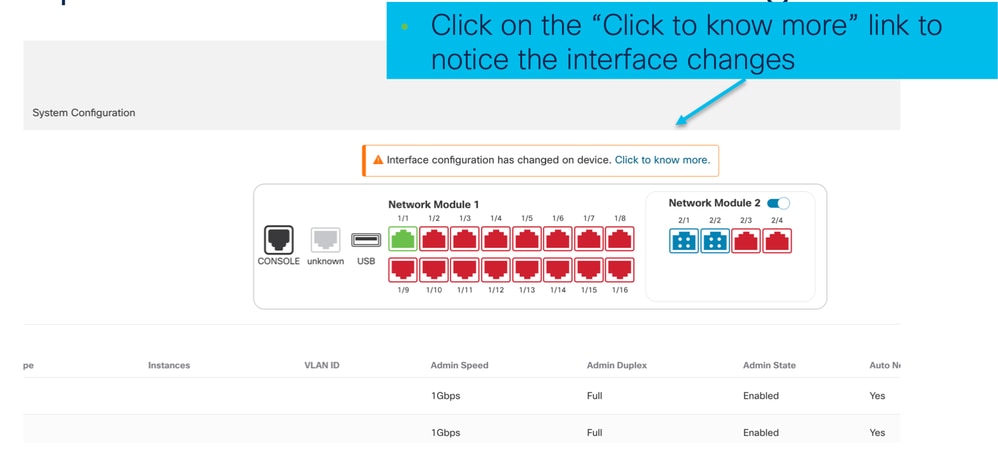

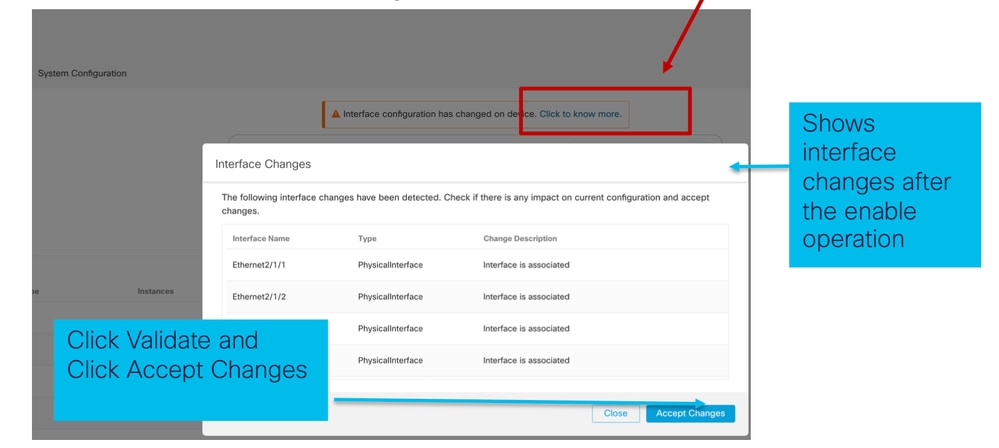

接口列表页面列出了启用EPM时添加的接口。单击以了解更多信息,启动接口更改对话框。
保存后,单击了解更多信息不可用。

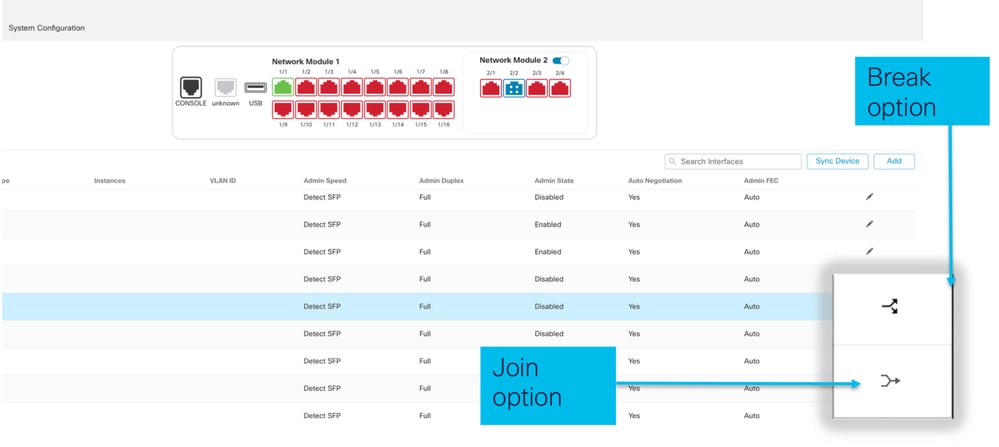

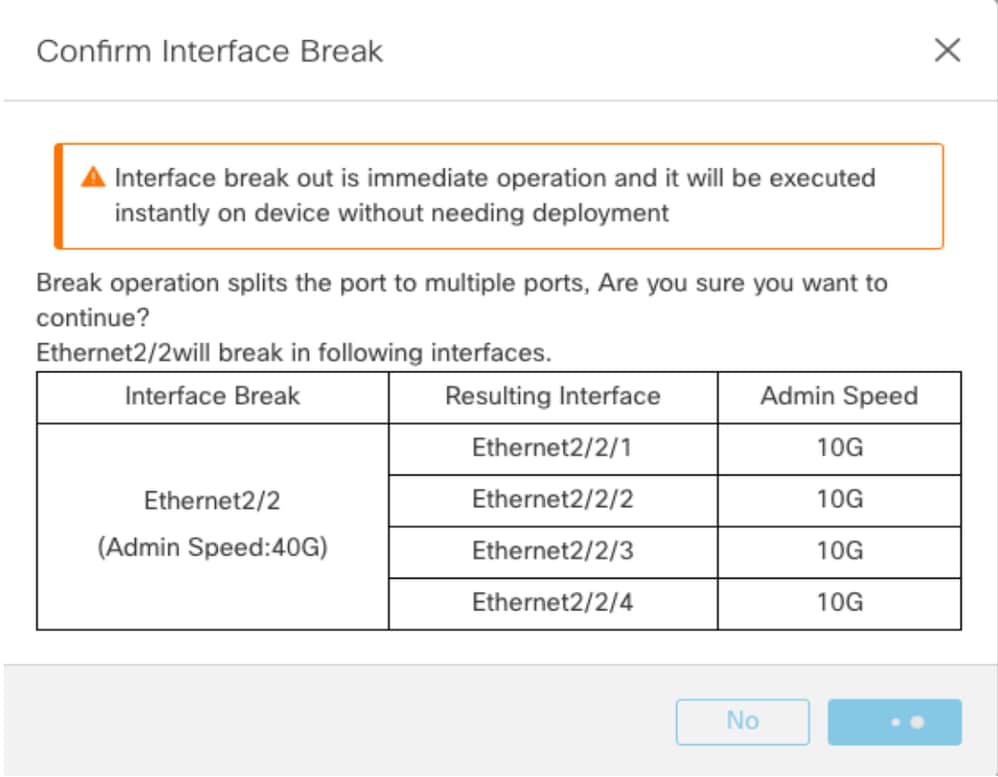

接口中断确认向导在中断选项触发时打开。

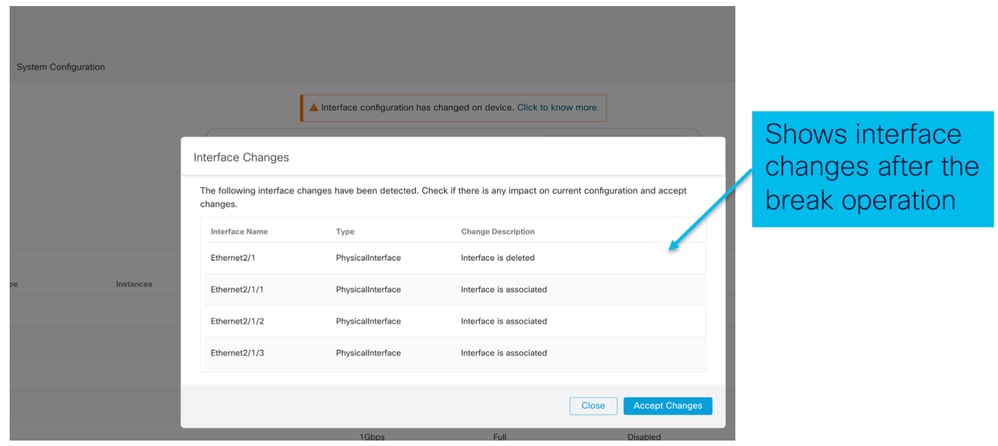

确认接口中断后,接口更新通知将显示在机箱页面上。
单击Accept Changes后,这些接口在要使用的FMC中变为可用:

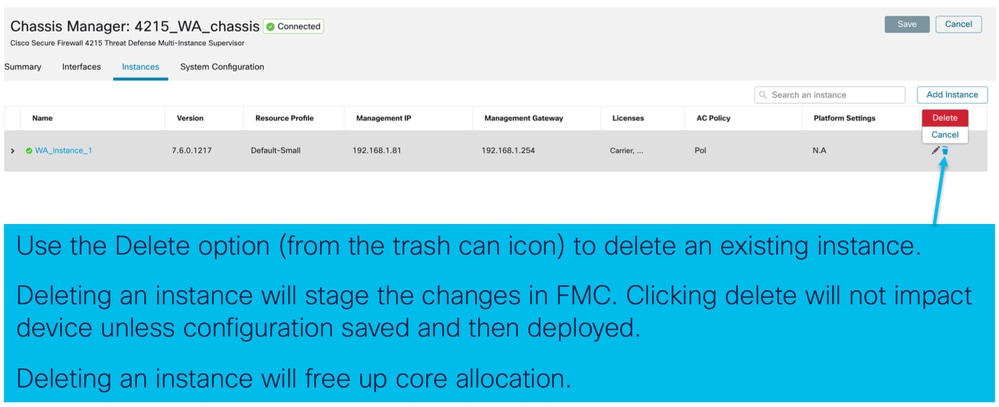

实例管理使您能够:

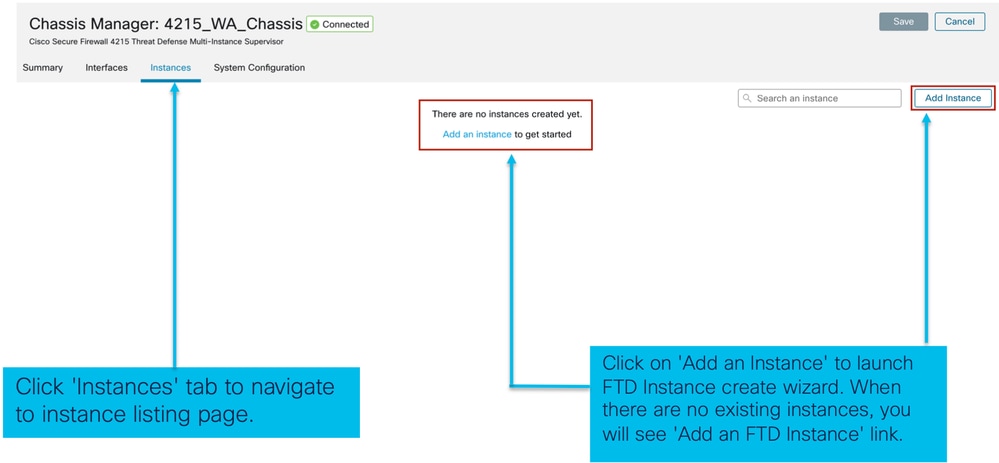

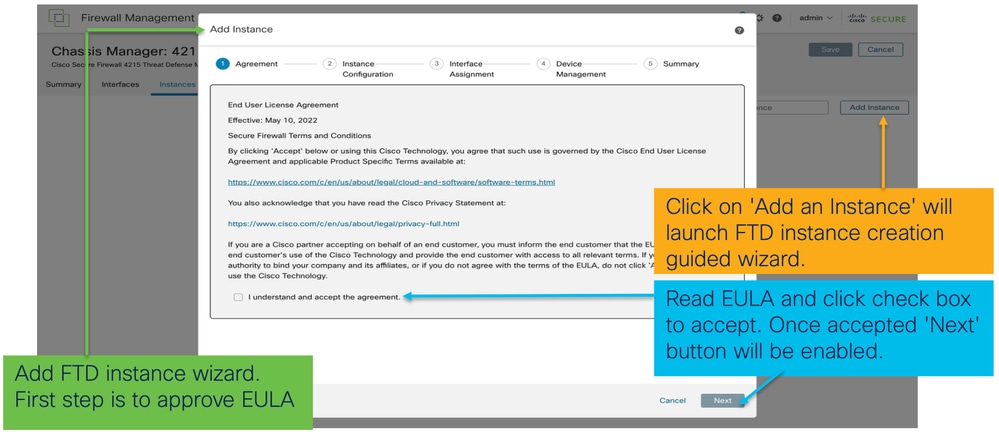

单击Add Instance启动向导。
步骤1.协议:

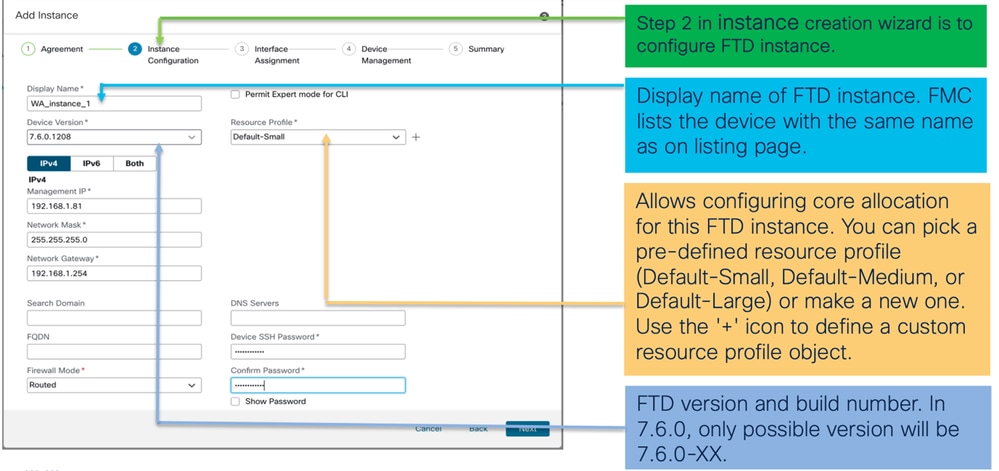

Step 2.

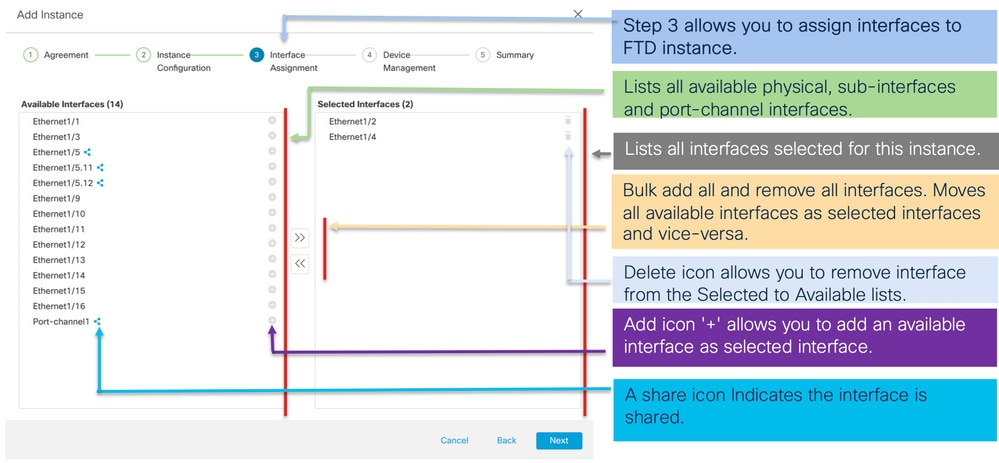

步骤3.接口分配:

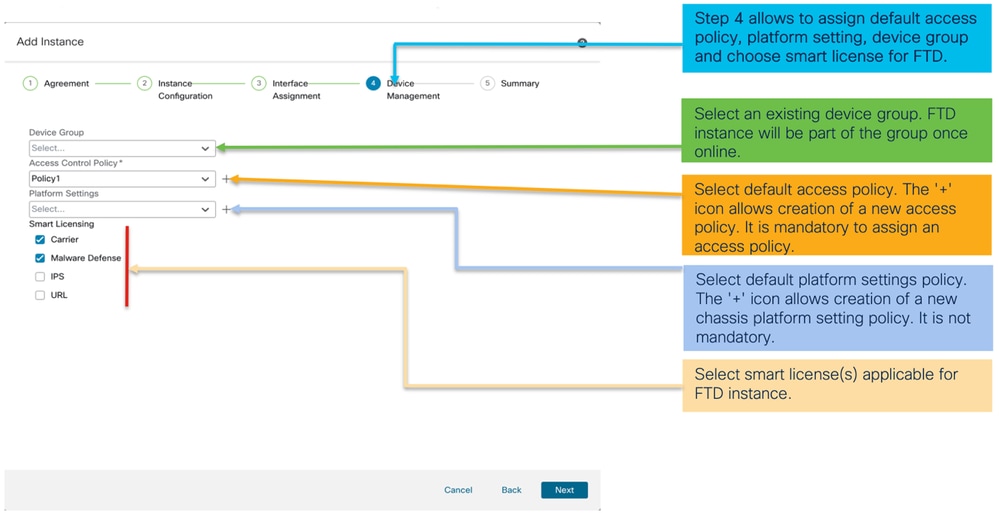

步骤4.设备管理:

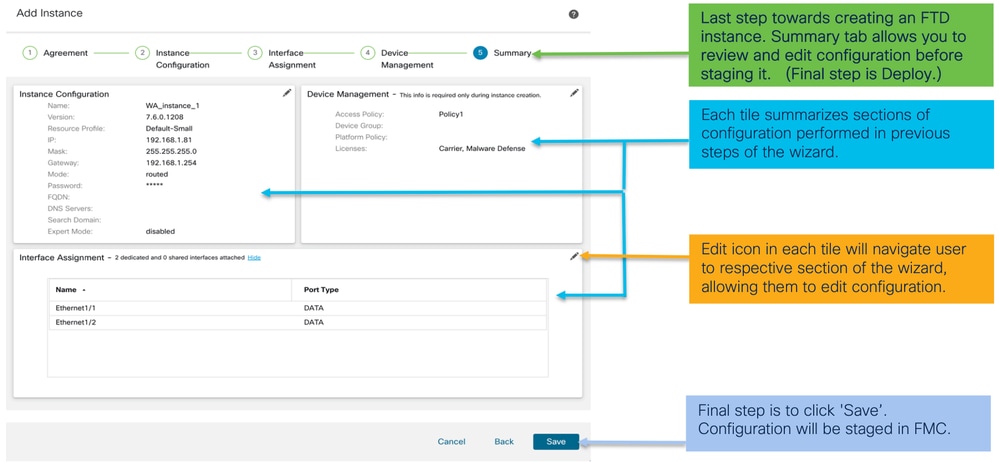

步骤5.总结:

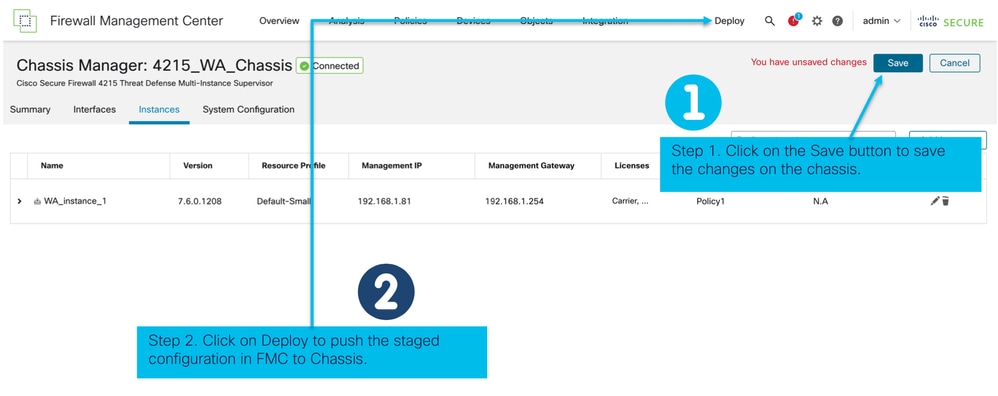

要完成配置,请保存并部署。

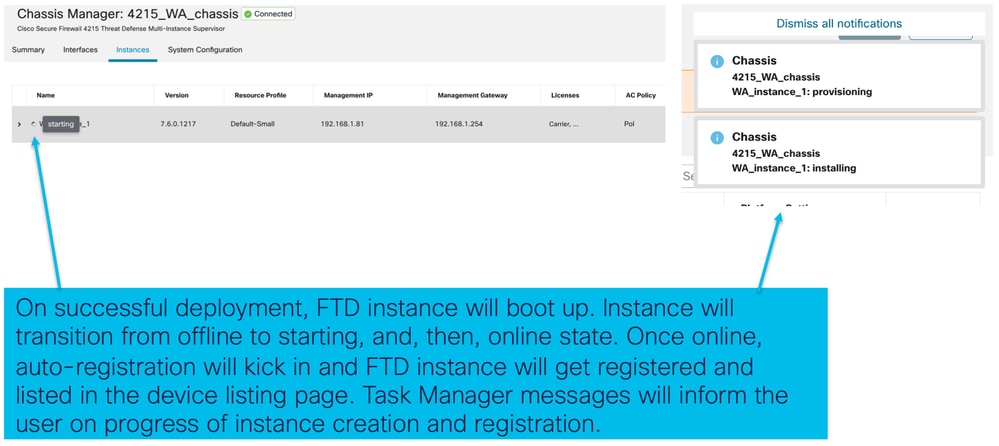

成功部署后FTD实例的自动注册:

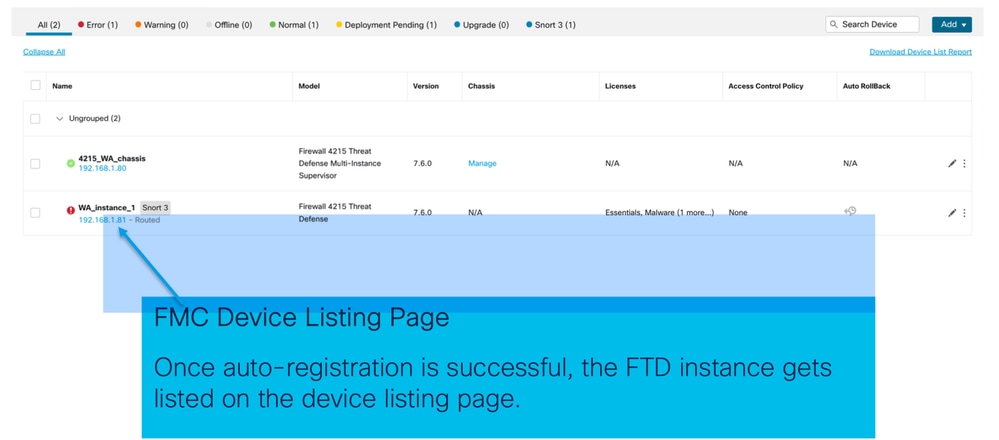

注册到管理中心的实例:

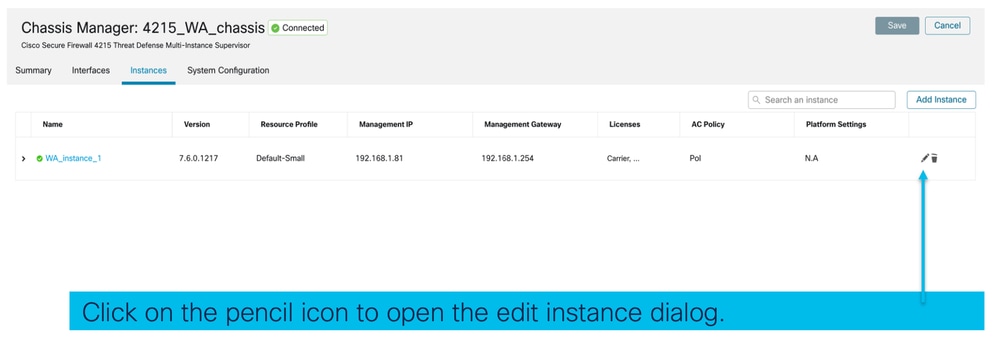

点击铅笔图标编辑FTD实例:

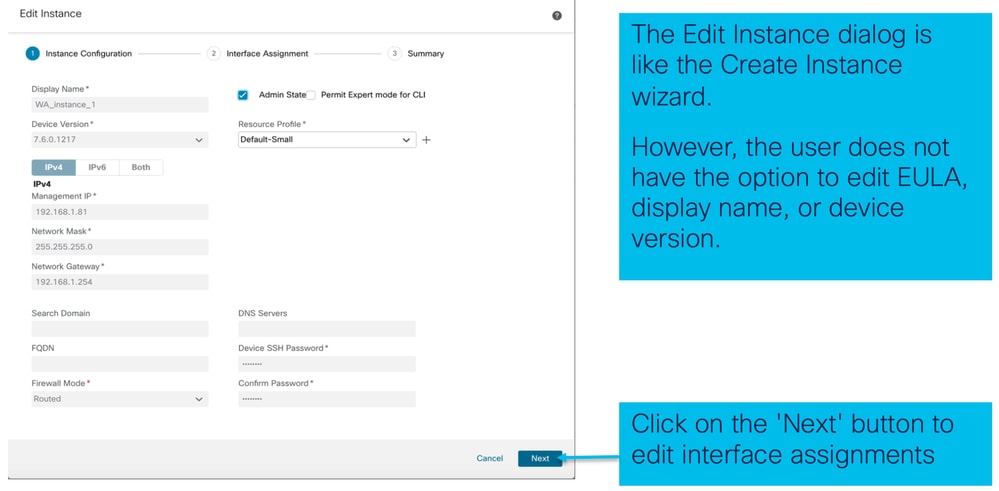

步骤1.编辑FTD实例:

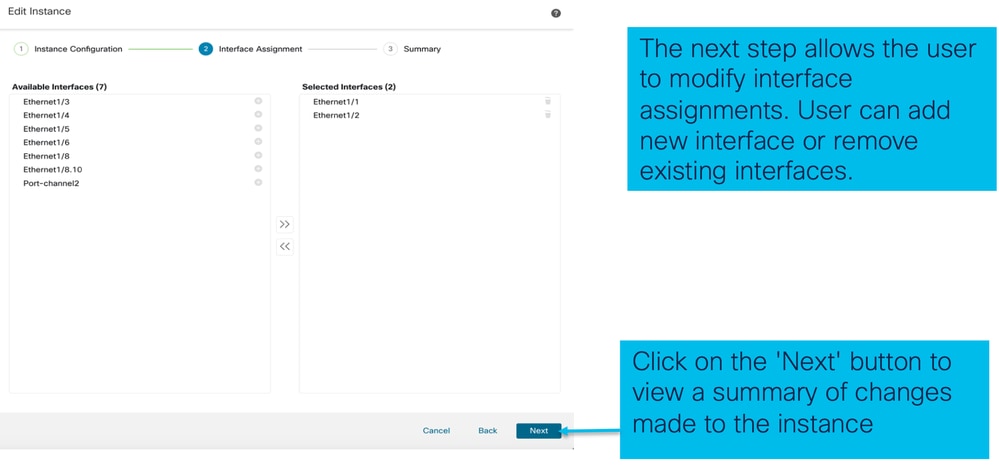

步骤2.编辑实例的接口分配:

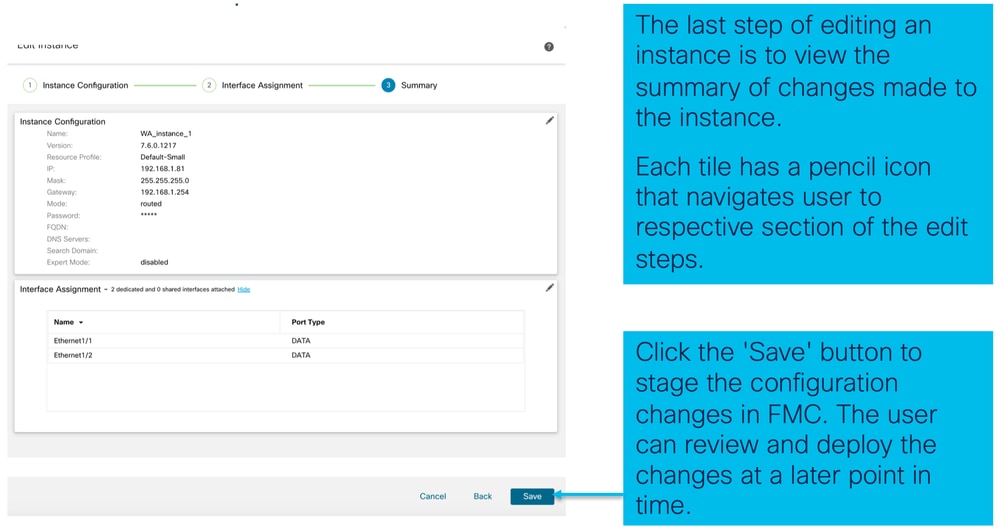

步骤3.编辑实例摘要:

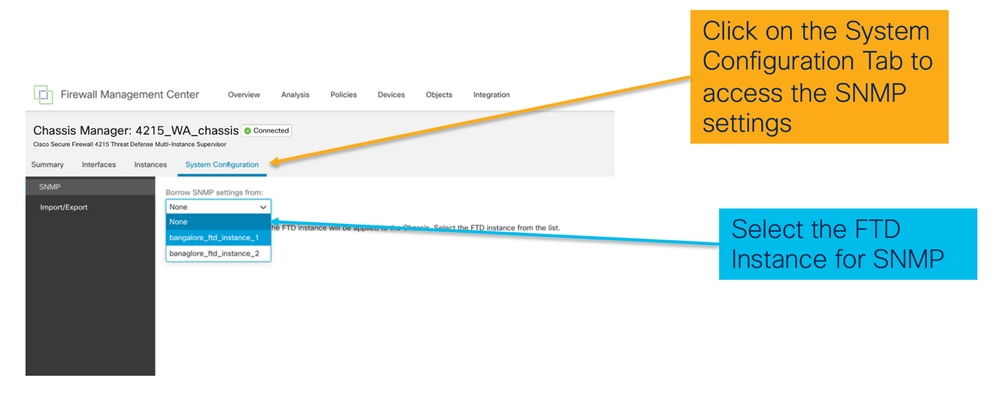

导航到用于配置SNMP的系统配置选项卡:

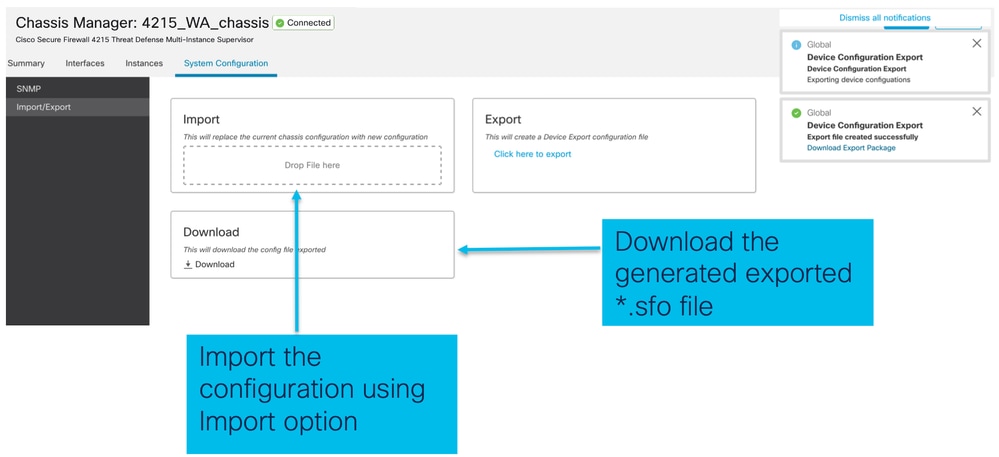

导航至管理机箱>系统配置>导入/导出:
导航至管理机箱>系统配置>导入/导出:
机箱平台设置策略允许用户配置以下平台特定配置:
提示:机箱平台设置仅适用于机箱。如果用户想要将平台设置应用于其实例,则可以使用威胁防御平台设置策略。

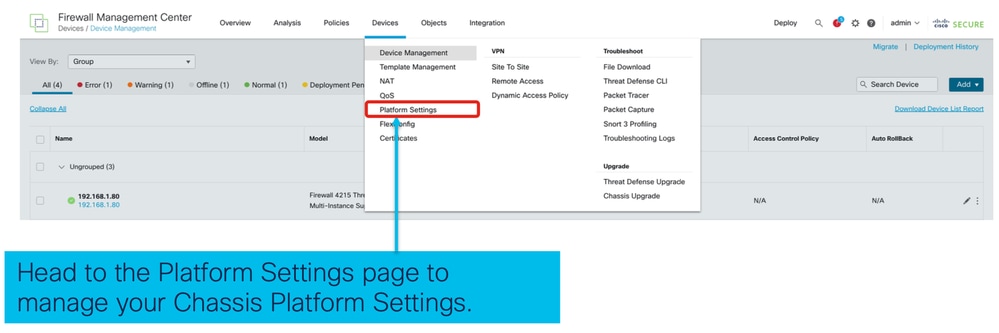

1.导航到机箱平台设置策略:

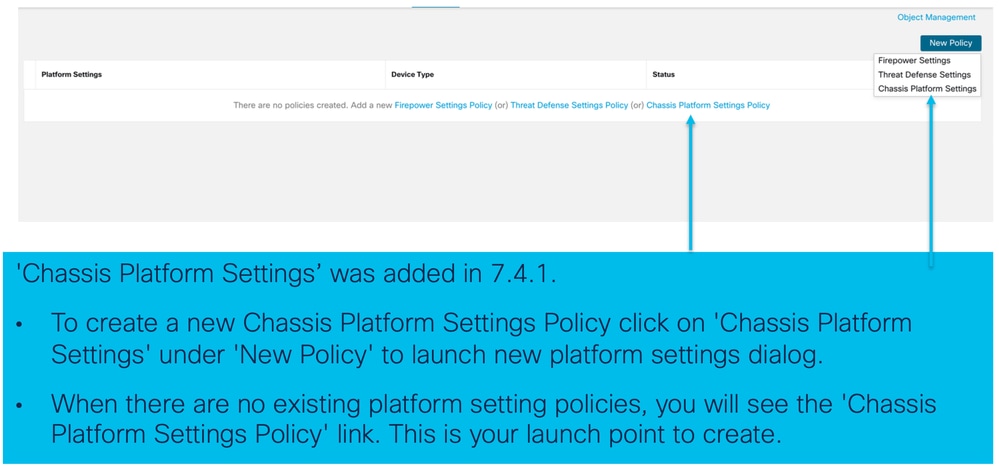

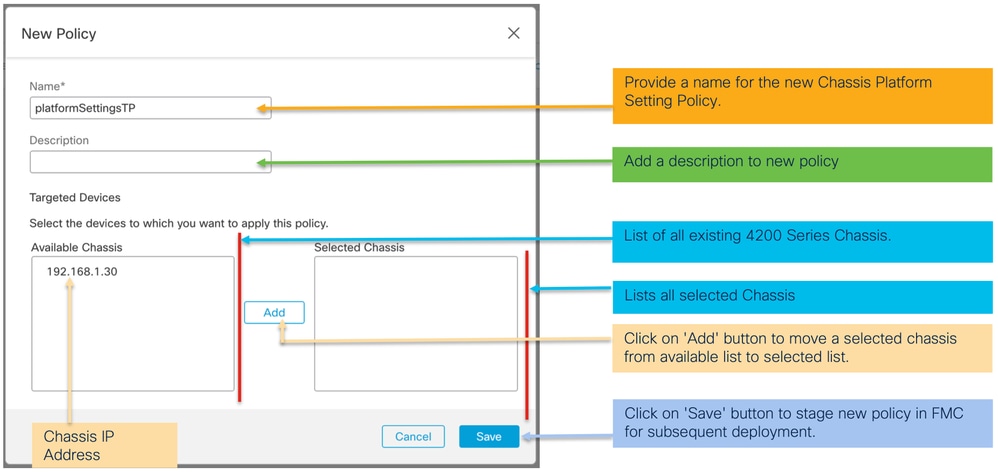

2.创建机箱平台设置:
3.机箱平台设置策略页:

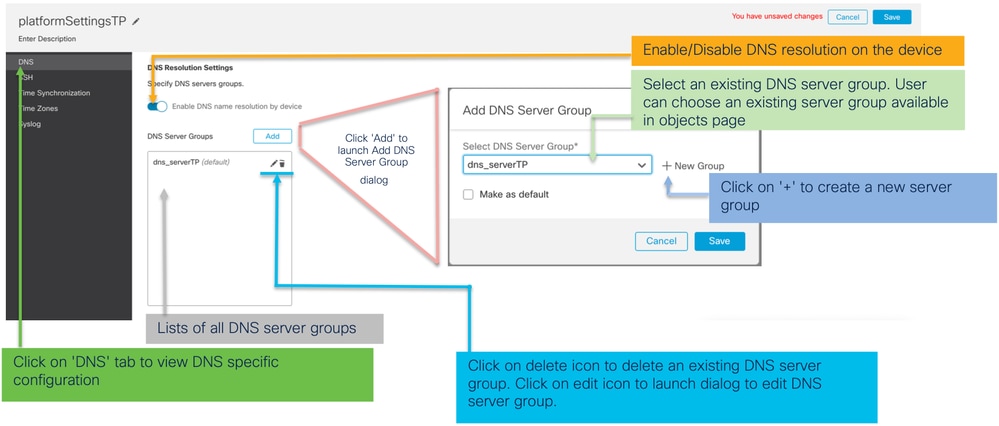

在机箱平台设置策略的DNS部分下启用和添加DNS服务器组:

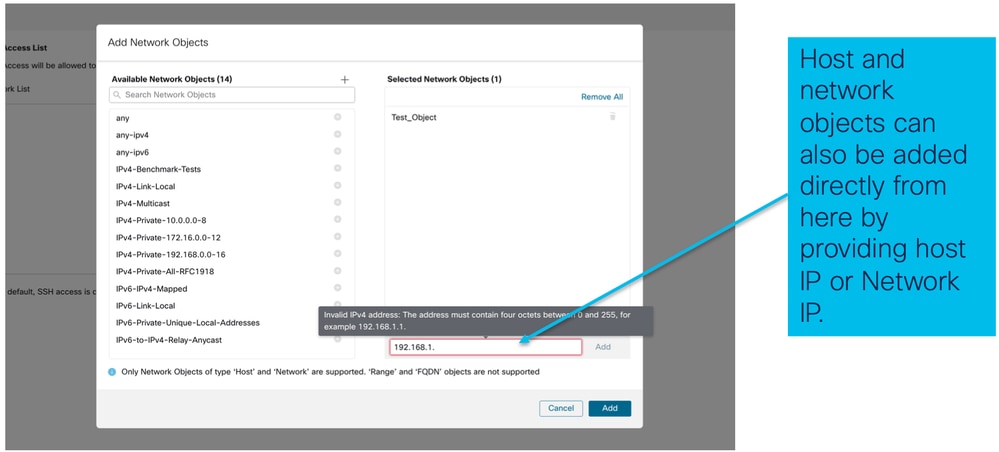

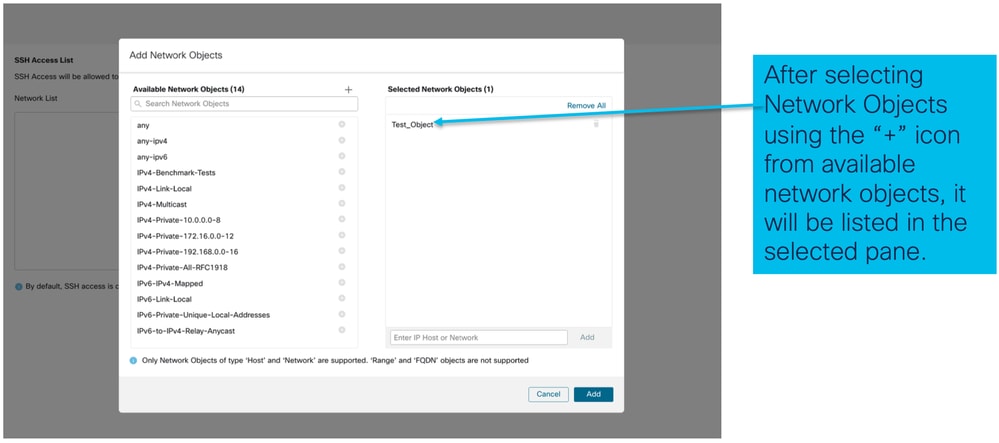

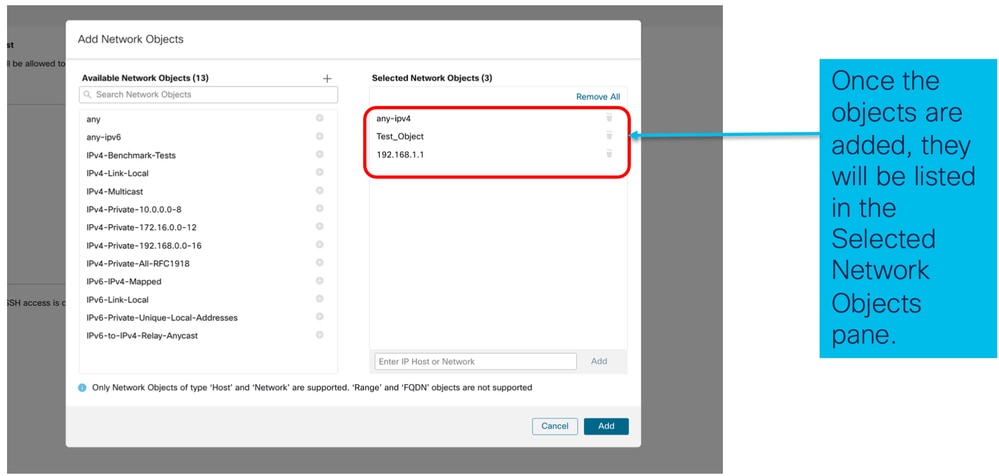

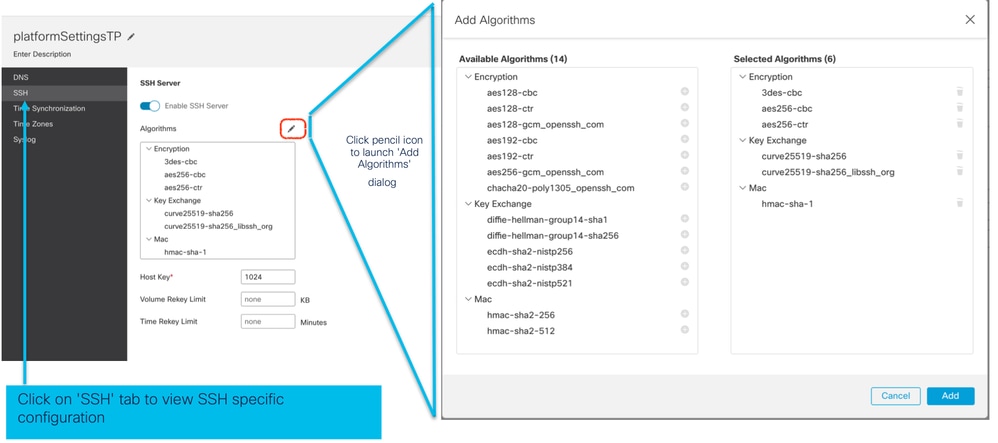

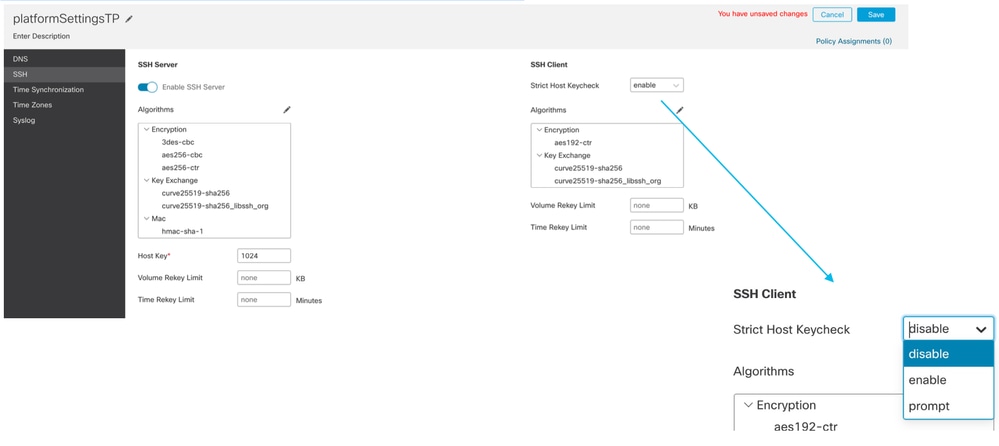

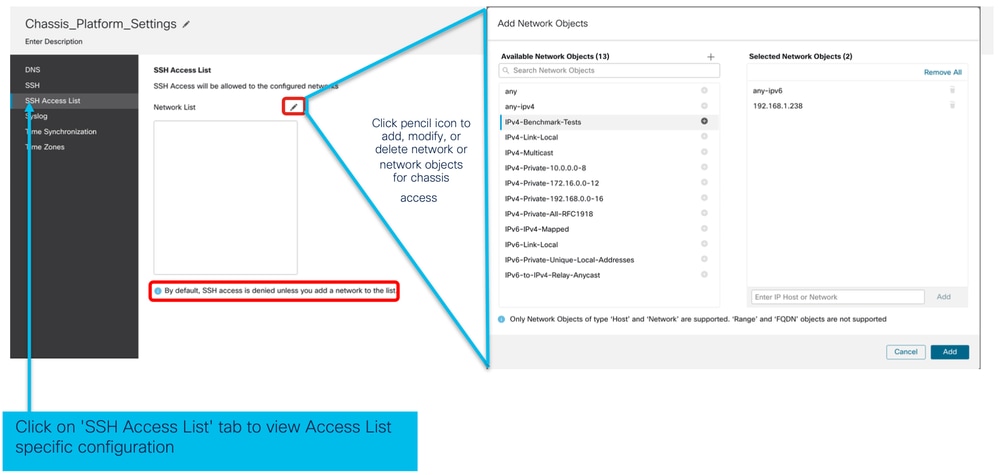

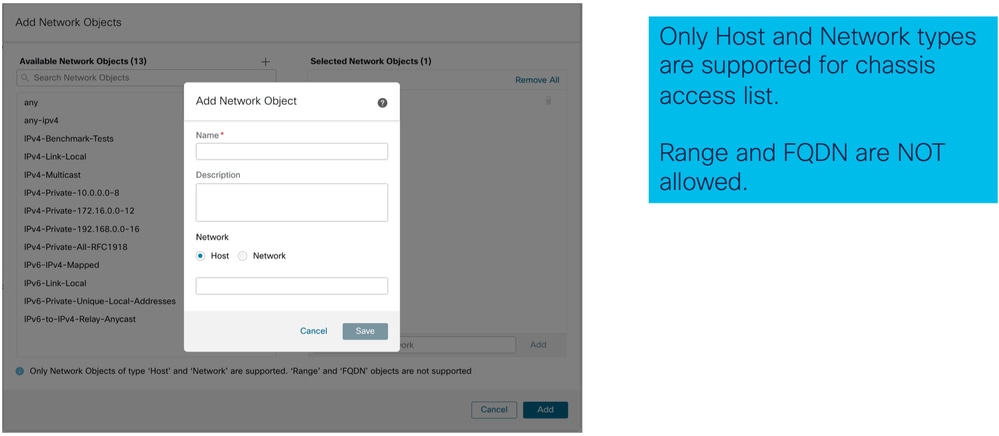

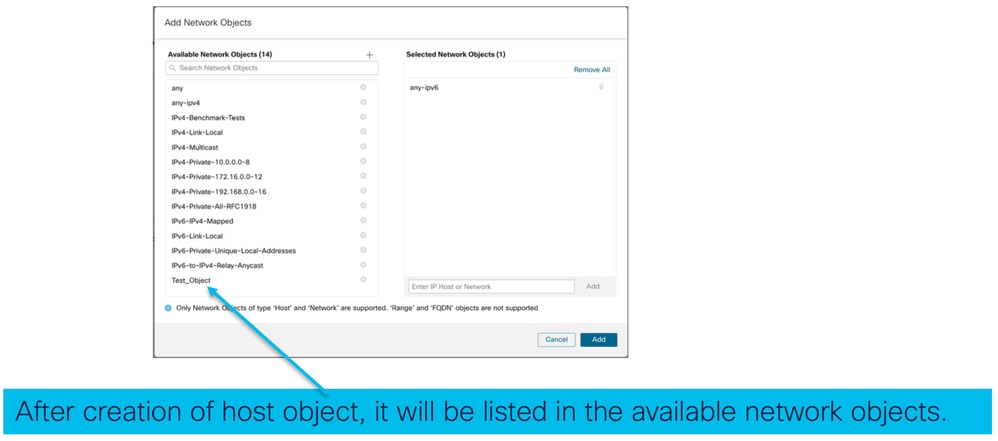

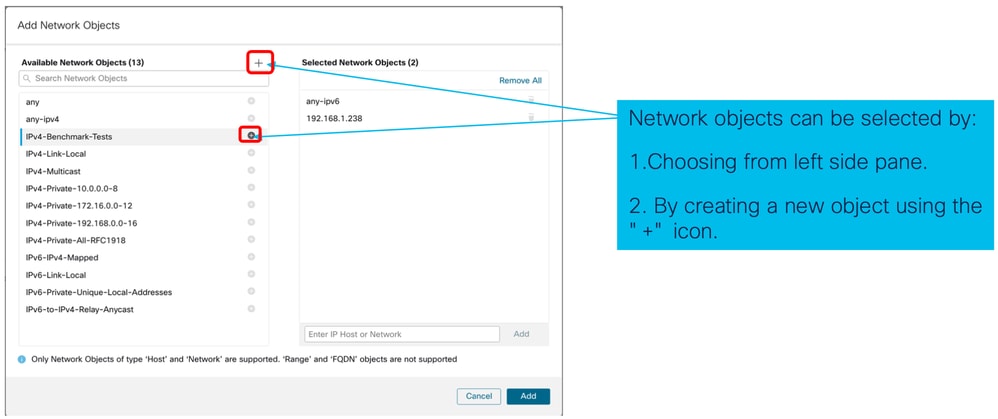

此选项卡仅在机箱平台设置的SSH部分下启用SSH后显示。

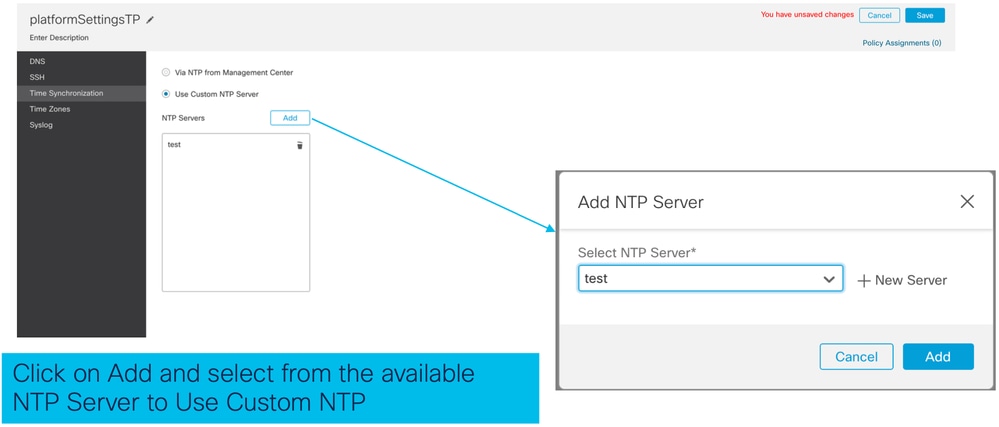

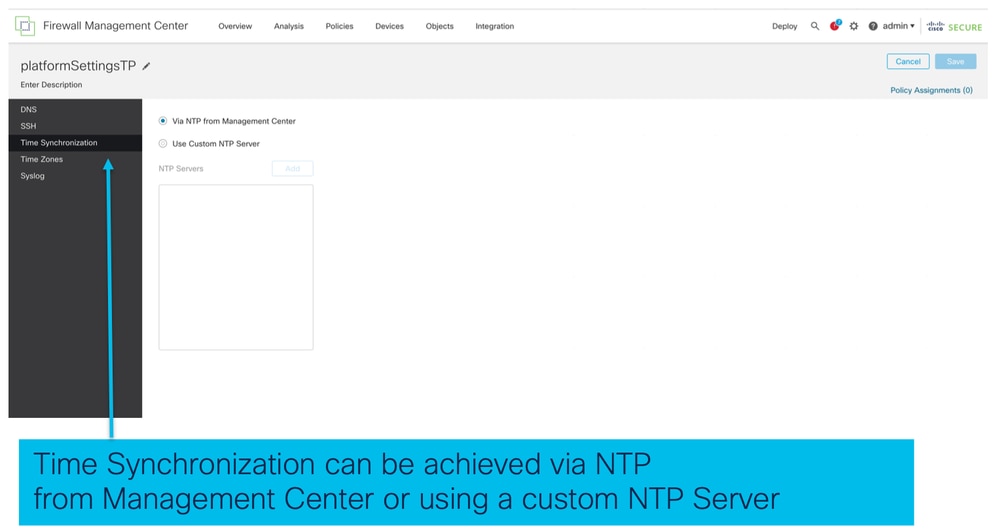

时间同步可通过两种方式完成:
设置时区:

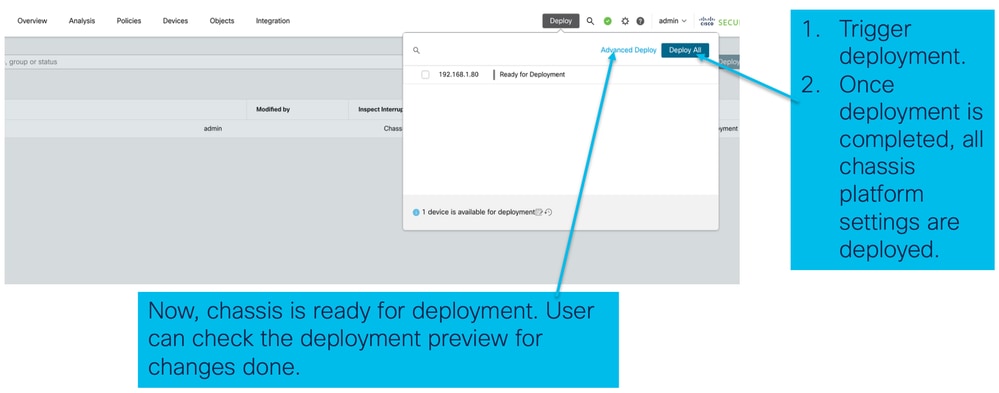

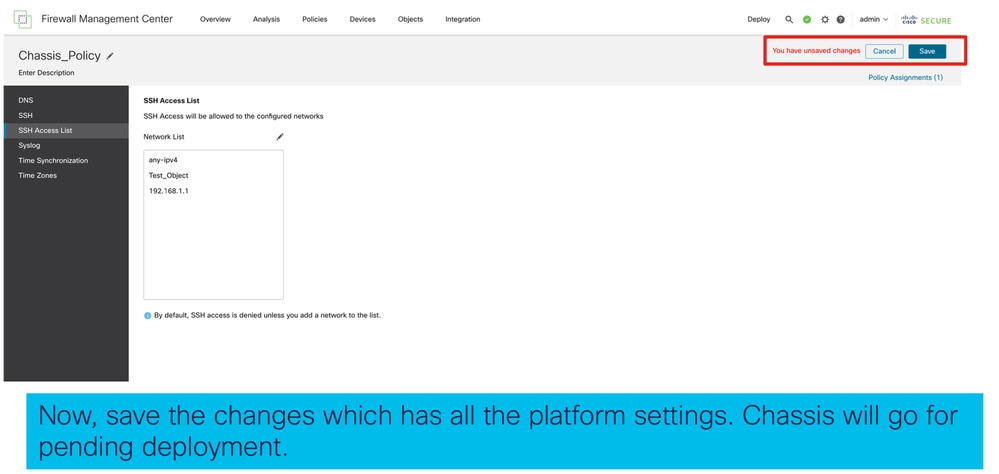

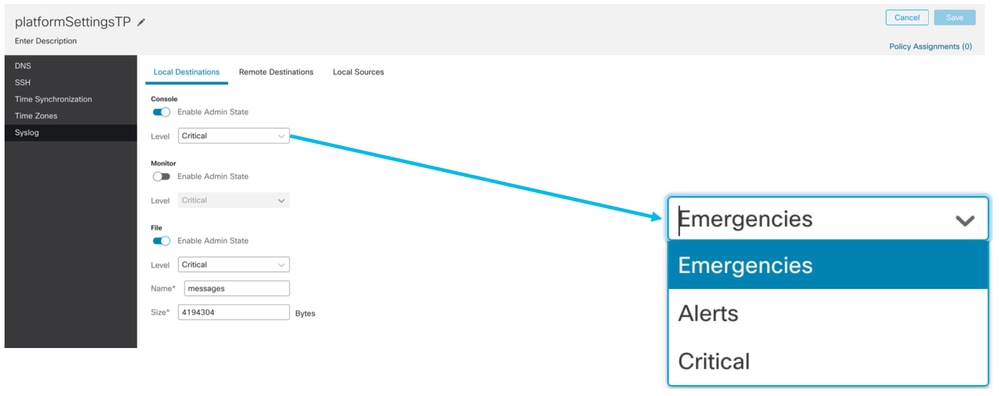

保存机箱平台设置更改,然后部署:

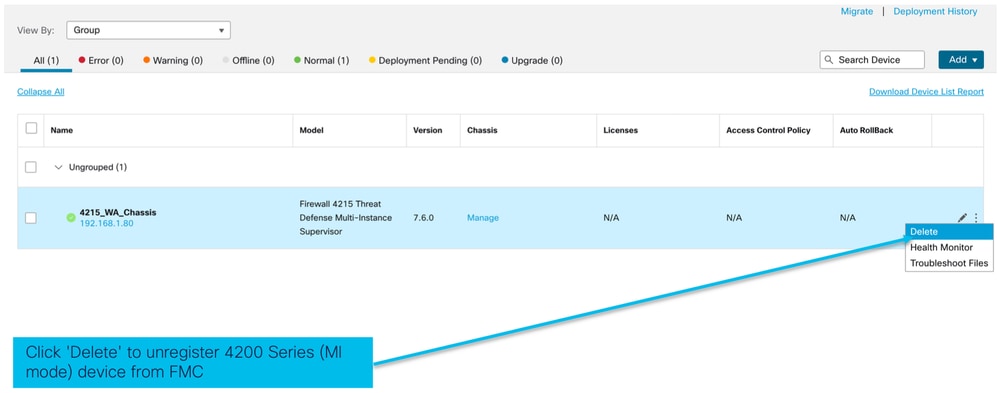

要从FMC注销机箱,请导航至设备>设备管理>删除。
目前,FMC仅支持从本地到多实例的转换。因此,要将设备转换回本地模式,用户必须使用CLI。
步骤 1:从FMC注销机箱。
步骤 2:使用此CLI命令将4200系列设备转换为本地模式:
firepower-4215# scope system
firepower-4215 /system # set deploymode native

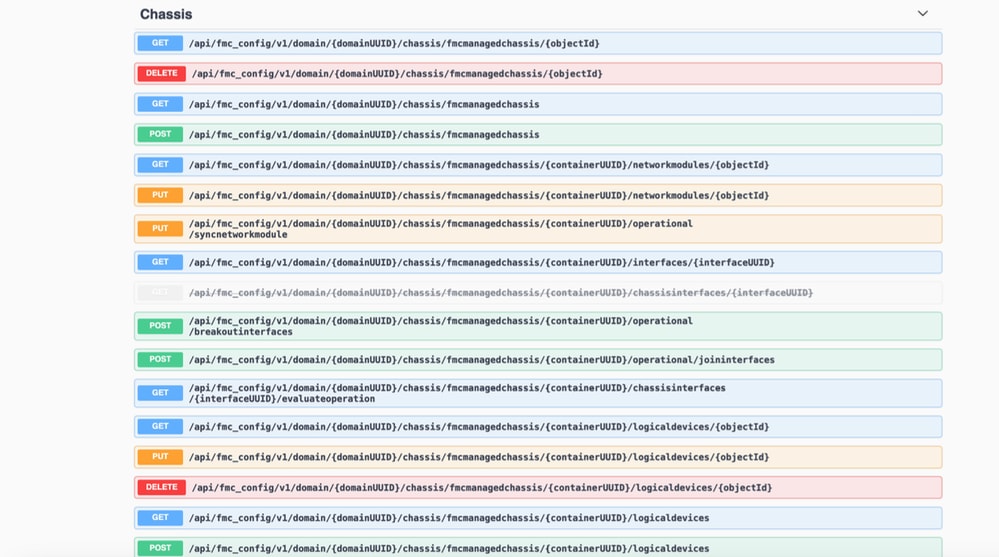

FMC公共REST API可用于FMC支持的所有操作。
POST API用于验证本地设备是否准备好进行多实例转换:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/operational/switchmodereadinessccheck
POST请求JSON示例:
{
"devices": [
{
"id": "DeviceUUID",
"type": "Device"
}
],
"conversionType": "NATIVE_TO_MULTI_INSTANCE"
}
POST API以触发单个本机到多实例转换:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/operational/switchmode
POST请求JSON示例:
{
"items": [
{
"id": "",
"displayName": "Sample_Chassis_Name1"
}
],
"conversionType": "NATIVE_TO_MULTI_INSTANCE"
}
POST API以触发批量本地到多实例转换:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/operational/switchmode
POST请求JSON示例:
{
"items": [
{
"id": "",
"displayName": "Sample_Chassis_Name1"
},
{
"id": "",
"displayName": "Sample_Chassis_Name2"
}
],
"conversionType": "NATIVE_TO_MULTI_INSTANCE"
}
POST将机箱添加到管理中心:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis
获取所有机箱:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/
通过uuid获取特定机箱:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{objectId}
通过uuid删除机箱:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{objectId}
POST请求JSON示例:
{
"type": "FMCManagedChassis",
"chassisName": "CHASSIS123",
"chassisHostName": "192.168.xx.74",
"regKey": "*****"
}
通过uuid获取网络模块:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/networkmodules/{objectId}
获取所有网络模块:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/networkmodules/
PUT — 通过uuid编辑现有网络模块:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/networkmodules/{objectId}
PUT — 从FXOS检索网络模块数据并更新管理中心:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/operational/syncnetworkmodule
GET响应示例
{
"metadata": {
"timestamp": 1688670821060,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-************",
"type": "Domain"
}
},
"links": {
"self": "https://u32c01p10-vrouter.cisco.com:32300/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-************/chassis/fmcmanagedchassis/f0f11b69-4229-4025-b0b9-************/networkmodules/0050568A-3F3F-0ed3-0000-0************"
},
"id": "0050568A-3F3F-0ed3-0000-************",
"moduleState": "ENABLED",
"type": "NetworkModule",
"description": "Cisco FPR 8X1G 8X10G 1RU Module",
"model": "FPR-3120",
"operationState": "ok",
"numOfPorts": 16,
"slotId": "1",
"vendor": "Cisco Systems, Inc.",
"name": "Network Module 1"
}
POST将机箱添加到管理中心:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/logicaldevices
获取所有机箱:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/logicaldevices
通过uuid获取特定实例:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/logicaldevices/{objectId}
PUT — 按uuid编辑实例:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/logicaldevices/{objectId}
通过uuid删除机箱:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/logicaldevices/{objectId}
PUT请求示例:
{
"name": "ftd1",
"operationalState": "string",
"deviceRegistration": {
"licenseCaps": [
"MALWARE",
"URLFilter",
"CARRIER",
"PROTECT"
],
"accessPolicy": {
"name": "AC Policy name",
"id": "",
"type": "AccessPolicy"
},
"deviceGroup": {
"name": "DeviceGroup name",
"id": "",
"type": "DeviceGroup"
}
},
"managementBootstrap": {
"ipv4": {
"gateway": "192.168.xx.68",
"ip": "192.168.xx.78",
"mask": "255.255.255.0"
},
"adminState": "enable",
"firepowerManagerIP": "192.168.xx.32",
"permitExpertMode": "yes",
"searchDomain": "string",
"firewallMode": "Routed",
"dnsServers": "192.168.xx.123",
"natId": "natId",
"registrationKey": "regKey",
"adminPassword": "adminPwd",
"fqdn": "fqdn"
},
"externalPortLink": [
{
"name": "Ethernet1/1",
"id": "",
"type": "ChassisInterface"
},
{
"name": "Ethernet2/2.1",
"id": "",
"type": "ChassisInterface"
}
],
"type": "LogicalDevice"
}
通过uuid获取SNMP设置:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/snmpsettings/{objectId}
获取所有SNMP设置:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/snmpsettings/
PUT — 按uuid编辑现有网络模块:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/snmpsettings/{objectId}
GET响应示例:
{
"snmpAdminInstance": {
"id": "logicalDeviceUuid",
"type": "LogicalDevice",
"name": "ftd3"
},
"id": "snmpsettingsUUID2",
"type": "SnmpSetting"
}
此列表包含有关用于获取摘要的REST API的详细信息:
机箱的GET故障摘要:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/faultsummary
示例响应:
{
"links": {
"self": "/api/fmc_config/v1/domain/domainUUID/chassis/fmcmanagedchassis/containerUUID/faultsummary?offset=0&limit=25&expanded=true"
},
"items": [
{
"faultList": [
{
"id": 27429,
"isAcknowledged": "no",
"cause": "device-registration-pending",
"gateway": "3::1",
"ip": "3::2",
"prefixLength": "33"
}
],
"managementPort": "Management1",
"operationalState": "online",
"adminState": "enabled",
"deployType": "container"
}
],
"modifiedTime": "2022-07-05T06:39:25Z",
"type": "InstanceSummary"
],
"paging": {
"offset": 0,
"limit": 25,
"count": 1,
"pages": 1
}
}
机箱的GET实例摘要:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/instancesummary
示例响应:
{
"links": {
"self": "/api/fmc_config/v1/domain/domainUUID/chassis/fmcmanagedchassis/containerUUID/instancesummary?offset=0&limit=25&expanded=true"
},
"items": [
{
"instanceList": [
{
"name": "ftdmi2",
"startupVersion": "7.3.0.1402",
"coresUsed": 6,
"ipv4": {
"gateway": "192.168.xx.68",
"ip": "192.168.xx.78",
"mask": "255.255.255.0"
},
"ipv6": {
"gateway": "3::1",
"ip": "3::2",
"prefixLength": "33"
},
"managementPort": "Management1",
"operationalState": "online",
"adminState": "enabled",
"deployType": "container"
}
],
"modifiedTime": "2022-07-05T06:39:25Z",
"type": "InstanceSummary"
}
],
"paging": {
"offset": 0,
"limit": 25,
"count": 1,
"pages": 1
}
}
获取机箱的资产摘要:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/inventorysummary
示例响应:
{
"links": {
"self": "/api/fmc_config/v1/domain/domainUUID/chassis/fmcmanagedchassis/containerUUID/inventorysummary?offset=0&limit=25&expanded=true"
},
"items": [
{
"fanList": [
{
"operationalState": "operable",
"operability": "operable",
"power": "on",
"thermalStatus": "ok",
"module": 1,
"tray": 1,
"id": 1,
"model": "N/A",
"vendor": "N/A"
},
{
"operationalState": "operable",
"operability": "operable",
"power": "on",
"thermalStatus": "ok",
"module": 1,
"tray": 1,
"id": 2,
"model": "N/A",
"vendor": "N/A"
}
],
"powerSupplyList": [
{
"id": 2,
"operationalState": "operable",
"operability": "operable",
"serialNumber": "***********",
"thermalStatus": "ok",
"model": "FPR2K-PWR-AC-400",
"vendor": "Cisco Systems, Inc"
}
],
"processorList": [
{
"id": 1,
"operationalState": "operable",
"operability": "operable",
"vendor": "AuthenticAMD",
"model": "49 AMD EPYC 7282 16-Core Processor",
"type": "CPU",
"thermalStatus": "ok"
}
],
"securityModuleList": [
{
"id": 1,
"operationalState": "ok",
"operability": "operable",
"serialNumber": "***********",
"vendor": "Cisco Systems, Inc",
"model": "FPR-3120",
"availableCores": 24,
"totalCores": 32
}
],
"memoryList": [
{
"capacity": 65536,
"id": 1,
"array": 1,
"bank": 0,
"model": "HMAA8GR7AJR4N-XN",
"operationalState": "operable",
"operability": "operable",
"performance": "ok",
"power": "not-supported",
"serialNumber": "********",
"thermalStatus": "ok",
"vendor": "Hynix"
}
],
"model": "FPR-3120",
"availableCores": 24,
"totalCores": 32
}
],
"paging": {
"offset": 0,
"limit": 25,
"count": 1,
"pages": 1
}
}
机箱的GET接口摘要:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/interfacesummary
示例响应:
{
"links": {
"self": "/api/fmc_config/v1/domain/domainUUID/chassis/fmcmanagedchassis/containerUUID/interfacesummary?offset=0&limit=25"
},
"items": [
{
"interfaceList": [
{
"name": "Ethernet1/8",
"operationalState": "up",
"adminState": "disabled",
"portType": "data",
"operationalSpeed": "10mbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Ethernet1/7",
"operationalState": "up",
"adminState": "disabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Ethernet1/6",
"operationalState": "up",
"adminState": "disabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Ethernet1/3",
"operationalState": "up",
"adminState": "disabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Ethernet1/2",
"operationalState": "up",
"adminState": "enabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Ethernet1/1",
"operationalState": "up",
"adminState": "enabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "PhysicalInterface"
},
{
"name": "Port-channel48",
"operationalState": "up",
"adminState": "enabled",
"portType": "data",
"operationalSpeed": "1gbps",
"adminSpeed": "1gbps",
"adminDuplex": "fullDuplex",
"autoNegotiation": "yes",
"mediaType": "rj45",
"type": "EtherChannelInterface"
}
],
"modifiedTime": "2022-07-05T06:39:25Z",
"type": "InterfaceSummary"
}
],
"paging": {
"offset": 0,
"limit": 25,
"count": 1,
"pages": 1
}
}
获取机箱的应用信息:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID} /inventorysummary
示例响应:
{
"links": {
"self": "/api/fmc_config/v1/domain/domainUUID/chassis/fmcmanagedchassis/containerUUID/appinfo?offset=0&limit=25&expanded=true"
},
"items": [
{
"appVersion": "7.4.0.1024",
"type": "AppInfo"
},
{
"appVersion": "7.4.0.1075",
"type": "AppInfo"
}
],
"paging": {
"offset": 0,
"limit": 25,
"count": 1,
"pages": 1
}
}
本节包含有关用于接口配置管理的REST API的详细信息:
为了支持物理接口的更新,引入了这些URL。
GET所有物理接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/physicalinterfaces
通过接口uuid获取特定物理接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/physicalinterface s/{interfaceUUID}
按接口uuid更新接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/physicalinterface s/{interfaceUUID}
物理接口模型如下所示:
{
"metadata": {
"supportedSpeed": "TEN_GBPS,ONE_GBPS,TWENTY_FIVE_GBPS,DETECT_SFP",
"mediaType": "sfp",
"sfpType": "none",
"isBreakoutCapable": false,
"isSplitInterface": false,
"timestamp": 1692344434067,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-**********",
"type": "Domain"
}
},
"type": "PhysicalInterface",
"name": "Ethernet2/2",
"portType": "DATA",
"adminState": "DISABLED",
"hardware": {
"flowControlSend": "OFF",
"fecMode": "AUTO",
"autoNegState": true,
"speed": "DETECT_SFP",
"duplex": "FULL"
},
"LLDP": {
"transmit": false,
"receive": false
},
"id": "*************************************"
}
为了支持子接口管理,引入了这些URL。
获取所有子接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/subinterfaces
通过接口uuid获取特定子接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/subinterfaces/{interfaceUUID}
POST新子接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/subinterfaces
UPDATE interface by interface uuid(通过接口uuid更新接口):
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/subinterfaces/{interfaceUUID}
通过接口uuid删除子接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/subinterfaces/{interfaceUUID}
子接口模型如下所示:
{
"metadata": {
"isBreakoutCapable": false,
"isSplitInterface": false,
"timestamp": 1692536476265,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-**********",
"type": "Domain"
}
},
"type": "SubInterface",
"name": "Ethernet1/3.3",
"portType": "DATA",
"subIntfId": 3,
"parentInterface": {
"type": "PhysicalInterface",
"id": "00505686-9A51-0ed3-0000-**********",
"name": "Ethernet1/3"
},
"vlanId": 3,
"id": "*************************************"
}
为了支持EtherChannel EtherChannel接口的管理,引入了这些URL。
获取所有etherchannel接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/etherchannelinterfaces/{interfaceUUID}
按接口uuid获取特定etherchannel接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/etherchannelinterfaces/{interfaceUUID}
对新的etherchannel接口执行POST:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/etherchannel接口
UPDATE interface by interface uuid(通过接口uuid更新接口):
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/etherchannelinterfaces/{interfaceUUID}
通过接口uuid删除etherchannel接口:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/etherchannelinterfaces/{interfaceUUID}
EtherChannel接口型号如下所示:
{
"metadata": {
"supportedSpeed": "HUNDRED_MBPS,TEN_MBPS,ONE_GBPS",
"timestamp": 1692536640172,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-**********",
"type": "Domain"
}
},
"type": "EtherChannelInterface",
"name": "Port-channel45",
"portType": "DATA",
"etherChannelId": 45,
"selectedInterfaces": [
{
"type": "PhysicalInterface",
"id": "00505686-9A51-0ed3-0000-**********",
"name": "Ethernet1/4"
},
{
"type": "PhysicalInterface",
"id": "00505686-9A51-0ed3-0000-**********",
"name": "Ethernet1/5"
}
],
"lacpMode": "ON",
"lacpRate": "FAST",
"adminState": "DISABLED",
"hardware": {
"flowControlSend": "OFF",
"autoNegState": true,
"speed": "ONE_GBPS",
"duplex": "FULL"
},
"LLDP": {
"transmit": true,
"receive": true
},
"id": "00505686-9A51-0ed3-0000-**********"
}
要支持4200系列中的接口分组/加入,可以使用以下URL:
GET :
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/chassisinterfaces/{interfaceUUID}/evaluateoperation
评估接口中断/加入的可行性
POST:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/operational/breakoutinterfaces
中断接口
POST:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/operational/joininterfaces
连接一组断开的接口
1.使用fmcmanagedchassis终端查找FMC受管机箱设备(4200)。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis
返回FMC受管机箱设备列表以及多实例设备,以及每个设备的ID、名称和型号等详细信息。选择“MULTIINSTANCE”设备。
示例响应:
{
"id": "fcaa9ca4-85e5-4bb0-b049-**********",
"type": "FMCManagedChassis",
"chassisName": "192.168.0.75",
"chassisMode": "MULTIINSTANCE",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22512/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/chassis/fmcmanagedchassis/fcaa9ca4-85e5-4bb0-b049-**********"
}
}
2.使用接口/物理接口端点检查接口是否支持分流。
只有当“isBreakoutCapable”为true且mediaType为QSFP时,才能进行分流。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/interfaces
示例响应:
{
"metadata": {
"supportedSpeed": "FORTY_GBPS,DETECT_SFP", >>>>>>>>>
"mediaType": "qsfp", >>>>>>>>>
"sfpType": "none",
"isBreakoutCapable": true, >>>>>>>>>
"breakoutFactor": "4", >>>>>>>>>
"isSplitInterface": false,
"timestamp": 1692344434067,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-**********",
"type": "Domain"
}
},
"type": "PhysicalInterface",
"name": "Ethernet2/4",
"portType": "DATA",
"adminState": "DISABLED",
"hardware": {
"flowControlSend": "OFF",
"fecMode": "AUTO",
"autoNegState": true,
"speed": "DETECT_SFP",
"duplex": "FULL"
},
"LLDP": {
"transmit": false,
"receive": false
},
"id": "00505686-9A51-0ed3-0000-**********"
}

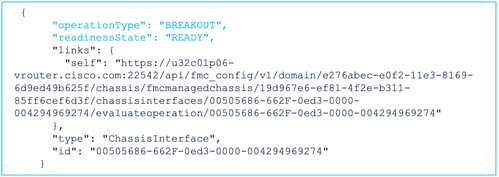

3.在接口上,使用evaluateoperation endpoint评估break操作的可行性。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/chassisinterfaces/{interfaceUUID}/evaluateoperation
如果响应中没有警告/错误,用户可以执行中断操作。
示例响应:
如果响应中存在错误,则不允许用户执行中断操作:
{
"operationType": "BREAKOUT",
"interfaceUsages": [
{
"conflictType": "Interface usage on instance(s)",
"severity": "ERROR", >>>>>>>>>
"description": "Interface Ethernet2/4 can not be split. Remove it from instances [FTD1] and try again.\n"
}
],
"readinessState": "NOT_READY", >>>>>>>>>
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/chassis/fmcmanagedchassis/19d967e6-ef81-4f2e-b311-**********/chassisinterfaces/00505686-662F-0ed3-0000-004294969274/evaluateoperation/00505686-662F-0ed3-0000-**********"
},
"type": "ChassisInterface",
"id": "00505686-662F-0ed3-0000-**********"
}
4.如果接口支持分流,并且就绪状态为“就绪”,请使用分流接口终结点断开接口。
POST /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/operational/breakoutinterfaces
请求:
{
"targetInterfaces": [
{
"id": "***************ed3-0000-004294969276",
"metadata": {
"type": "PhysicalInterface"
}
}
],
"type": "BreakoutInterface"
}
回复 :
{
"id": "4294969716",
"type": "TaskStatus",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/job/taskstatuses/4294969716"
},
"taskType": "DEVICE_DEPLOYMENT",
"message": "Deployment status for ************************************: SUCCEEDED",
"status": "Interface notification received"
}
5.使用中断响应中的任务ID跟踪任务完成。将Task状态设置为“Interface Notification received”。
GET /api/fmc_config/v1/domain/{domainUUID}/job/taskstatuses/{objectId}
{
"metadata": {
"task": {
"id": "4294969699",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/job/taskstatuses/4294969699"
}
}
},
"targetInterfaces": [
{
"id": "00505686-662F-0ed3-0000-**********",
"type": "PhysicalInterface"
}
],
"type": "BreakoutInterface"
}
{
"id": "4294969716",
"type": "TaskStatus",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/job/taskstatuses/4294969716"
},
"taskType": "DEVICE_DEPLOYMENT",
"message": "Deployment status for ************************************: SUCCEEDED",
"status": "Interface notification received"
}
6.使用机箱接口事件终结点获取接口更改。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/ fmcmanagedchassis/{containerUUID}/chassisinterfaceevents
示例响应:
[
{
"change": "Interface is deleted",
"type": "PhysicalInterface",
"state": "DISASSOCIATED",
"name": "Ethernet2/3"
},
{
"change": "Interface is associated",
"type": "PhysicalInterface",
"state": "ASSOCIATED",
"name": "Ethernet2/3/2"
},
{
"change": "Interface is associated",
"type": "PhysicalInterface",
"state": "ASSOCIATED",
"name": "Ethernet2/3/3"
},
{
"change": "Interface is associated",
"type": "PhysicalInterface",
"state": "ASSOCIATED",
"name": "Ethernet2/3/4"
}
]
7.如果未收到接口通知,请使用机箱接口事件终结点同步设备,并检查是否有挂起的更改。
POST /api/fmc_config/v1/domain/{domainUUID}/devices/devicereces/{containerUUID}/机箱接口事件
请求:
{
"action": "SYNC_WITH_DEVICE"
}
回复 :
{
"action": "SYNC_WITH_DEVICE",
"hasPendingChanges": true
}
8.收到通知后,使用机箱接口事件终结点接受更改。
POST /api/fmc_config/v1/domain/{domainUUID}/devices/devicereces/{containerUUID}/机箱接口事件
请求:
{
"action":"ACCEPT_CHANGES"
}
9.获取所有机箱接口,并使用接口端点查找拆分(中断)接口。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/interfaces
一个40G接口(例如eth2/2)拆分为4x10G接口 — eth2/2/1、eth2/2/2、eth2/2/3和eth2/2/4
1.使用接口/物理接口终结点检查接口是否已断开。
只有当“isSplitInterface”为true且mediaType为SFP时,才能执行加入操作
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/interfaces
{
"metadata": {
"supportedSpeed": "TEN_GBPS,DETECT_SFP",
"mediaType": "sfp",
"sfpType": "none",
"isBreakoutCapable": false,
"breakoutFactor": "4",
"isSplitInterface": true,
"timestamp": 1692541554935,
"domain": {
"name": "Global",
"id": "e276abec-e0f2-11e3-8169-**********",
"type": "Domain"
}
},
"type": "PhysicalInterface",
"name": "Ethernet2/3/4",
"portType": "DATA",
"adminState": "DISABLED",
"LLDP": {
"transmit": false,
"receive": false
},
"hardware": {
"flowControlSend": "OFF",
"speed": "DETECT_SFP",
"duplex": "FULL",
"fecMode": "AUTO",
"autoNegState": true
},
"id": "00505686-662F-0ed3-0001-**********"
}
2.使用四个拆分接口之一上的evaluateoperation endpoint评估Join操作的可行性。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/ch assisinterfaces/{interfaceUUID}/evaluateoperation
{
"operationType": "JOIN",
"readinessState": "READY",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-**********/chassis/fmcmanagedchassis/19d967e6-ef81-4f2e-b311-**********/chassisinterfaces/00505686-662F-0ed3-0001-**********/evaluateoperation/00505686-662F-0ed3-0001-**********"
},
"type": "ChassisInterface",
"id": "00505686-662F-0ed*******************"
}
{
"operationType": "JOIN",
"interfaceUsages": [
{
"conflictType": "Interface used in EtherChannel Configuration",
"severity": "ERROR",
"description": "Interface (Ethernet2/3/4) referred to in Ether Channel Interface (Port-channel32) configurations will be impacted due to the JOIN operation."
}
],
"readinessState": "NOT_READY",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-*********/chassis/fmcmanagedchassis/19d967e6-ef81-4f2e-b311-********/chassisinterfaces/00505686-662F-0ed3-0001-692539698200/evaluateoperation/00505686-662F-0ed3-0001-***********"
},
"type": "ChassisInterface",
"id": "00505686-662F-0ed*******************"
}
3.如果接口已断开,并且就绪状态为“就绪”,请使用联合接口终结点加入接口。Interface_uuid可以是4个中断接口中任意一个的ID。
POST/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/operational/joininterfaces
请求:
{
"targetInterfaces": [
{
"id": "***************ed3-0001-692539698200",
"type": "PhysicalInterface"
}
],
"type": "JoinInterface"
}
回复 :
{
"metadata": {
"task": {
"id": "4294970217",
"links": {
"self": "/api/fmc_config/v1/domain/e27"***************-8169-6d9ed49b625f/job/taskstatuses/4294970217"
}
}
},
"targetInterfaces": [
{
"id": "***************ed3-0001-692539698200",
"type": "PhysicalInterface"
},
{
"id": "***************ed3-0001-692539698201",
"type": "PhysicalInterface"
},
{
"id": "***************ed3-0001-692539698202",
"type": "PhysicalInterface"
},
{
"id": "***************ed3-0001-692539698203",
"type": "PhysicalInterface"
}
],
"type": "JoinInterface"
}
4.使用加入响应中的任务ID跟踪任务完成。将Task状态设置为“Interface Notification received”。
GET /api/fmc_config/v1/domain/{domainUUID}/job/taskstatuses/{objectId}
回复 :
{
"id": "4294970237",
"type": "TaskStatus",
"links": {
"self": "https://u32c01p06-vrouter.cisco.com:22542/api/fmc_config/v1/domain/e276abec-e0f2-11e3-8169-6d9ed49b625f/job/taskstatuses/4294970237"
},
"taskType": "SSP_EPM_OIR",
"message": "Deployment status for 19d967e6-xxxx-xxxx-xxxx-85ff6cef6d3f: SUCCEEDED",
"status": "Interface notification received"
}
5.使用机箱接口事件终结点获取接口更改。
GET /api/fmc_config/v1/domain/{domainUUID}/devices/devicereces/{containerUUID}/chassisinterfaceevents
回复 :
[
{
"change": "Interface is associated",
"type": "PhysicalInterface",
"state": "ASSOCIATED",
"name": "Ethernet2/3"
},
{
"change": "Interface is deleted",
"type": "PhysicalInterface",
"state": "DISASSOCIATED",
"name": "Ethernet2/3/1"
},
{
"change": "Interface is deleted",
"type": "PhysicalInterface",
"state": "DISASSOCIATED",
"name": "Ethernet2/3/2"
},
{
"change": "Interface is deleted",
"type": "PhysicalInterface",
"state": "DISASSOCIATED",
"name": "Ethernet2/3/3"
},
{
"change": "Interface is deleted",
"type": "PhysicalInterface",
"state": "DISASSOCIATED",
"name": "Ethernet2/3/4"
}
]
6.如果未收到接口通知,请使用机箱接口事件终结点同步设备,并检查是否有挂起的更改。
POST /api/fmc_config/v1/domain/{domainUUID}/devices/devicereces/{containerUUID}/chassisinterfaceevents
请求:
{
"action":"SYNC_WITH_DEVICE"
}
回复 :
{
"action":"SYNC_WITH_DEVICE",
"hasPendingChanges":true
}
7.收到通知后,使用机箱接口事件终结点接受更改。
POST /api/fmc_config/v1/domain/{domainUUID}/devices/devicerecories/{containerUUID}/chassisinterfac eevents
请求:
{
"action":"ACCEPT_CHANGES"
}
8.获取所有机箱接口,并使用接口终端查找连接的接口和其他接口。
GET /api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/interfaces
假设eth2/2/1在10G接口上发起加入,则响应中会提供40G接口eth2/2。
为了支持网络模块和接口的同步,引入了这些URL。
POST:
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/chassisinterface events
带负载
{“操作”:"SYNC_WITH_DEVICE"} - >触发同步
{“操作”:"ACCEPT_CHANGES"} - >接受更改
GET :
/api/fmc_config/v1/domain/{domainUUID}/chassis/fmcmanagedchassis/{containerUUID}/chassisinterface events
列出生成的已更改事件
如果注册失败,这些FXOS CLI可用于检查sftunnel、sfipproxy进程是否已启动。
firepower# connect local-mgmt
firepower-4215(local-mgmt)# show processes | include sftunnel grep: (standard input): binary file matches
3323 root 20 0 80328 2024 1544 S 0.0 0.0 0:11.53 /opt/cisco/sftunnel/sfipproxy -d –f /etc/sf/sfipproxy.conf
22066 root 20 0 376880 7140 5944 S 0.0 0.0 0:41.18 /opt/cisco/sftunnel/sftunnel -d -f /etc/sf/sftunnel.conf
如果使用终端控制台进行CLI,请使用以下CLI将终端宽度设置为适当的值,以确保show processes的输出不会被截断:
firepower-4215(local-mgmt)# terminal width 100
如果SFTunnel进程已启动且正在运行,但注册失败,则可以使用这些命令查找失败的任何潜在原因。
在FXOS中从connect local-mgmt引入新的CLI以查看/opt/cisco/platform/logs/sfmessages中的系统日志消息
firepower# connect local-mgmt
firepower(local-mgmt)# tail-mgmt-log sfmessages
Dec 9 18:31:17 firepower Ipc [30483]: add ep: 1,0x5613aa0e2fe8 total = 1
Dec 9 18:31:17 firepower Ipc [30483]: add ep: 1,0x5613aa0ec528 total = 2
Dec 9 18:31:17 firepower Ipc [30483]: add ep: 1,0x5613aa0f5ea8 total = 3
Dec 9 18:31:18 firepower SF-IMS[12621]: [12625] sftunneld:SYNC_PROC [INFO] Change in directory /var/sf/sync detected (0 vs 1670610348)
FMC支持从设备管理页面生成机箱故障排除(FPRM)。

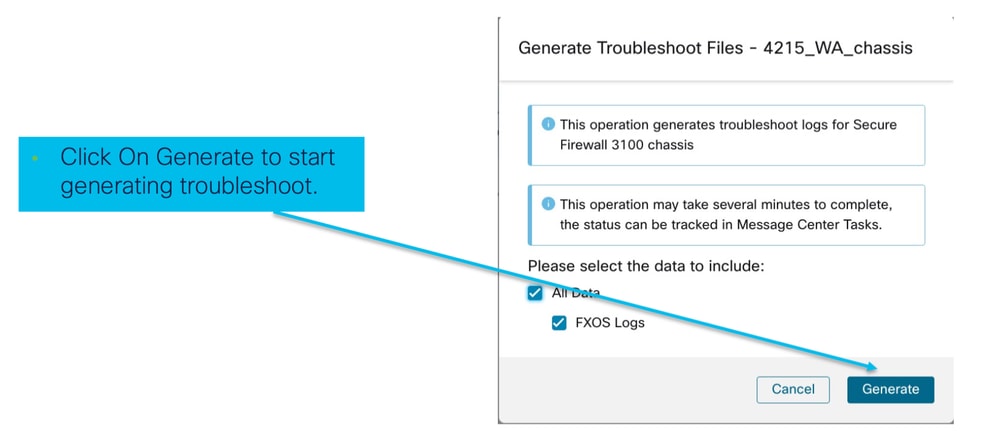

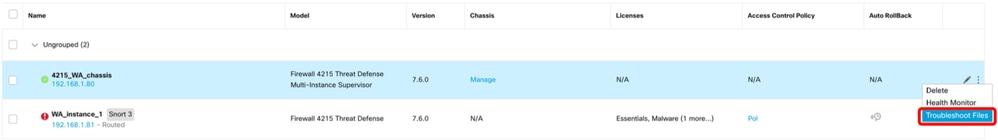

机箱故障排除选项和生成:

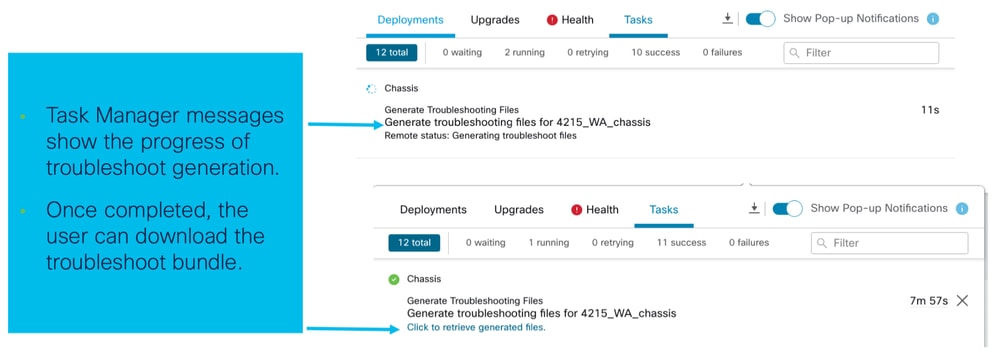

机箱故障排除进度和下载:
问题:在FMC中机箱自动注册失败。
预期结果:
实际结果:
1.支票兑换:
firepower# scope sys
firepower /system # show
Systems:
Name Mode Deploy Mode System IP Address System IPv6 Address
---------- ----------- ----------- ----------------- -------------------
firepower Stand Alone Container 192.168.xx.xx ::
2.检查设备管理器:
firepower# show device-manager
Device manager:
Name: manager
Hostname: 10.10.xx.xx
NAT id: 3ab4bb1a-d723-11ee-a694-89055xxxxxxx
Registration Status: Completed
Error Msg:
3.1.导航至/var/opt/CSCOpx/MDC/log/operation/vmssharedsvcs.log和/var/opt/CSCOpx/MDC/log/operation/usmsharedsvcs.log
3.2.在文件中搜索关键字“NATIVE_TO_MI_CONVERSION”和“CHASSIS DISCOVERY”,查找失败原因。
问题:FMC中的实例自动注册失败。
预期结果:
实际结果:
ps -ef | grep -i "sftunnel”
pmtool restartById sftunnel
问题:将设备转换回本机模式后,FMC中的本机设备注册失败
configure network ipv4 manual 192.168.0.xx 255.255.255.0 192.168.0.1 management1
版本 | 发布日期 | 备注 |
---|---|---|
1.0 |
29-Oct-2024
|
初始版本 |
