排除SEG "；故障：API服务器未启动或无法访问"

简介

本文档介绍如何对安全邮件网关(SEG)下一代GUI中的错误“Either API server is not started or is unreachable”（API服务器未启动或无法访问）进行故障排除。

先决条件

从AsyncOS 11.4开始，再从AsyncOS 12.x for Security Management Appliance(SMA)继续，Web用户界面(UI)经历了重新设计以及数据的内部处理。

要求

Cisco 建议您了解以下主题：

• 安全邮件网关(SEG)
• 安全管理设备(SMA)
• Web用户界面(UI)访问

使用的组件

• 版本11.4或更高版本上的SEG
• 版本12.x.或更高版本上的SMA

本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。

问题

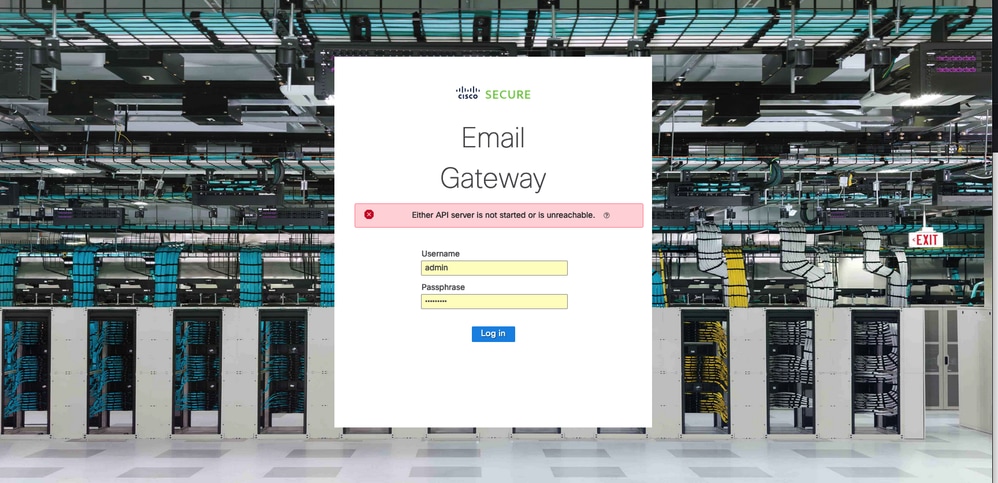

无法访问下一代Web界面并获取错误“The API Server is not started or is unreachable”。

解决方案

步骤1:验证已在安全邮件网关/安全管理设备的管理IP中启用AsyncOS API HTTPS

注意：对于思科安全邮件云网关，请联系TAC以查看IP配置。

sma.local> interfaceconfig
Currently configured interfaces:
1. Management (10.31.124.134/26 on Management: esa14.mexesa.com)

Choose the operation you want to perform:
- NEW - Create a new interface.
- EDIT - Modify an interface.
- GROUPS - Define interface groups.
- DELETE - Remove an interface.
[]> edit

Enter the number of the interface you wish to edit.
[]> 1

IP interface name (Ex: "InternalNet"):
[Management]>

Would you like to configure an IPv4 address for this interface (y/n)? [Y]>

IPv4 Address (Ex: 192.168.1.2 ):
[10.31.124.134]>

Netmask (Ex: "24", "255.255.255.0" or "0xffffff00"):
[0xffffffc0]>

Would you like to configure an IPv6 address for this interface (y/n)? [N]>

Ethernet interface:
1. Management
[1]>

Hostname:
[sma.local]>

Do you want to configure custom SMTP Helo to use in the SMTP conversation? [N]>

Do you want to enable SSH on this interface? [Y]>

Which port do you want to use for SSH?
[22]>

Do you want to enable FTP on this interface? [N]>

Do you want to enable Cluster Communication Service on this interface? [N]>

Do you want to enable HTTP on this interface? [Y]>

Which port do you want to use for HTTP?
[80]>

Do you want to enable HTTPS on this interface? [Y]>

Which port do you want to use for HTTPS?
[443]>

Do you want to enable Spam Quarantine HTTP on this interface? [N]>

Do you want to enable Spam Quarantine HTTPS on this interface? [N]>

Do you want to enable AsyncOS API HTTP on this interface? [N]>

Do you want to enable AsyncOS API HTTPS on this interface? [N]> Y

第二步：确认主机名配置

确保设备主机名未在任何其它配置或设备中使用，运行sethostname命令以验证它或更改配置（如果需要）。

sma.local> sethostname
[sma.local]>

第三步：检验网络访问

对于下一代GUI，需要允许跟踪器和端口443。

运行命令trailblazerconfig status。

sma.local> trailblazerconfig status

trailblazer is not running

sma.local> trailblazerconfig enable
trailblazer is enabled.

第四步：访问下一代GUI

访问下一代网络界面。

如果问题仍然存在，请联系思科TAC。
