配置BGP FlowSpec VRF到VRF重定向

简介

本文档介绍如何配置BGP Flowspec VRF到VRF重定向。

要求

• 支持MPLS的有效IGP实施
• 有效的VPNv4实施

使用的组件

此测试在运行Cisco IOS XR 7.8.2版的Cisco ASR 9000系列聚合服务路由器上进行

本文档中的信息都是基于特定实验室环境中的设备编写的。用于本文的所有设备始于初始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。

BGP流规范(Flowspec)功能允许您在多个BGP对等路由器之间快速部署和传播过滤和策略功能，以缓解网络上的分布式拒绝服务(DDoS)攻击的影响。

配置

网络图

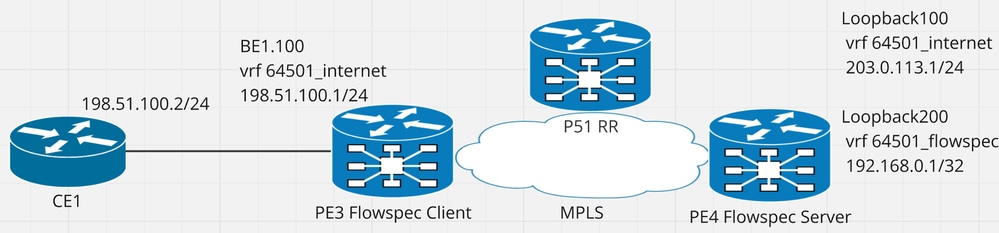

图1具有相关IP地址的网络图。

配置

FlowSpec客户端PE3配置

vrf 64501_internet
address-family ipv4 unicast
  import route-target
   64501:100
  !
  export route-target
   64501:100
  !
!
address-family ipv4 flowspec   <<<<<  Since traffic ingresses on a VRF interface we need to enable VPNV4 flowspec RTs
  import route-target
   64501:100
  !
  export route-target
   64501:100
  !
!
vrf 64501_flowspec       <<<< The honeypot VRF to redirect dirty traffic to
address-family ipv4 unicast
  import route-target
   64501:200
  !
  export route-target
   64501:200
  !
!
interface Bundle-Ether1.100
vrf 64501_internet
ipv4 address 198.51.100.1 255.255.255.0
encapsulation dot1q 100
!
flowspec
vrf 64501_internet
  address-family ipv4
   local-install interface-all   <<<< To install VPNV4 flowspec policies on the vrf interface
  !
!
router bgp 64501
bgp router-id 10.3.3.3
address-family vpnv4 unicast
 !
address-family vpnv4 flowspec   <<<< Enable VPNV4 flowspec on global BGP
!
neighbor 10.51.51.51
  remote-as 64501
  update-source Loopback0
  address-family vpnv4 unicast
   soft-reconfiguration inbound always
  !
  address-family vpnv4 flowspec  <<<<
   soft-reconfiguration inbound always
  !
vrf 64501_internet
  rd 64501:103
  address-family ipv4 unicast
   redistribute connected
  !
  address-family ipv4 flowspec   <<<< Enable VPNV4 on the VRF for which we are going to receive policies
  !
!
vrf 64501_flowspec     <<<< This is just the honeypot VRF to redirect the dirty traffic to
  rd 64501:203
  address-family ipv4 unicast
  !
!
router static
vrf 64501_flowspec
  address-family ipv4 unicast
   0.0.0.0/0 192.168.0.1    <<<< We need a default route on the honeypot VRF to be able to forward the redirected traffic
  !
!

Flowspec服务器PE4配置

vrf 64501_internet
address-family ipv4 unicast
  import route-target
   64501:100
  !
  export route-target
   64501:100
  !
!
address-family ipv4 flowspec    <<<<<< We are going to advertise VPNV4 flowspec policies for this VRF we need RTs
  import route-target
   64501:100
  !
  export route-target
   64501:100
  !
!
vrf 64501_flowspec    <<<< The honeypot VRF to redirect dirty traffic to
address-family ipv4 unicast
  import route-target
   64501:200
  !
  export route-target
   64501:200
  !
!
interface Loopback100   <<<< Traffic destination prefix for testing
vrf 64501_internet
ipv4 address 203.0.113.1 255.255.255.0
!
interface Loopback200   <<<< Just for testing purposes, this is where we are redirecting the traffic to in the honeypot vrf
vrf 64501_flowspec
ipv4 address 192.168.0.1 255.255.255.255
!
class-map type traffic match-all 64501_flow
match source-address ipv4 198.51.100.2 255.255.255.255
end-class-map
!
policy-map type pbr 64501_flow
class type traffic 64501_flow
  redirect nexthop route-target 64501:200   <<<< honeypot vrf 64501_flowspec  RT
!
 class type traffic class-default
 !
 end-policy-map
!
flowspec
vrf 64501_internet
  address-family ipv4
   service-policy type pbr 64501_flow       <<<< Advertise the policy within the VRF context in the server
  !
!
router bgp 64501
bgp router-id 10.4.4.4
address-family vpnv4 unicast
!
address-family vpnv4 flowspec    <<<< Enable VPNV4 flowspec on global BGP
!
neighbor 10.51.51.51
  address-family vpnv4 unicast
   soft-reconfiguration inbound always
  !
  address-family vpnv4 flowspec    <<<<
   soft-reconfiguration inbound always
  !
!
vrf 64501_internet
  rd 64501:104
  address-family ipv4 unicast
   redistribute connected
  !
  address-family ipv4 flowspec  <<<< Enable VPNV4 on the VRF for which we are going to advertise policies
  !
!
vrf 64501_flowspec <<<< This is just the honeypot VRF to redirect the dirty traffic to
  rd 64501:204
  address-family ipv4 unicast
   redistribute connected
  !
!

RR P51配置

router bgp 64501
bgp router-id 10.51.51.51
address-family vpnv4 unicast
!
address-family vpnv4 flowspec
!
neighbor 10.3.3.3
  remote-as 64501
  update-source Loopback0
  address-family vpnv4 unicast
   route-reflector-client
   soft-reconfiguration inbound always
  !
  address-family vpnv4 flowspec
   route-reflector-client
   soft-reconfiguration inbound
  !
!
neighbor 10.4.4.4
  remote-as 64501
  update-source Loopback0
  address-family vpnv4 unicast
   route-reflector-client
   soft-reconfiguration inbound always
  !
  address-family vpnv4 flowspec
   route-reflector-client
   soft-reconfiguration inbound
  !
!

验证

RP/0/RP0/CPU0:PE3#show flowspec vrf 64501_internet ipv4 detail
Tue Oct  1 16:54:51.990 CDT
VRF: 64501_internet     AFI: IPv4
  Flow           :Source:198.51.100.2/32
    Actions      :Redirect: VRF 64501_flowspec Route-target: ASN2-64501:200  (bgp.1)
    Statistics                        (packets/bytes)
      Matched             :                   5/610 <<<<<<<
      Dropped             :                   0/0

RP/0/RP0/CPU0:PE3#show bgp vpnv4 flowspec
Tue Oct  1 16:54:57.352 CDT
BGP router identifier 10.3.3.3, local AS number 64501
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0
BGP main routing table version 7
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs
Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 64501:103 (default for vrf 64501_internet)
Route Distinguisher Version: 7
*>iSource:198.51.100.2/32/48
                      0.0.0.0                       100      0 i
Route Distinguisher: 64501:104
Route Distinguisher Version: 6
*>iSource:198.51.100.2/32/48
                      0.0.0.0                       100      0 i
Processed 2 prefixes, 2 paths

RP/0/RP0/CPU0:PE3#show bgp vpnv4 flowspec vrf 64501_internet Source:198.51.100.2/32/48
BGP routing table entry for Source:198.51.100.2/32/48, Route Distinguisher: 64501:103
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                   7            7
Last Modified: Oct  1 16:52:12.083 for 00:02:55
Paths: (1 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Not advertised to any peer
  Local, (received & used
    0.0.0.0 from 10.51.51.51 (10.4.4.4)
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported
      Received Path ID 0, Local Path ID 1, version 7
      Extended community: FLOWSPEC Redirect-RT:64501:200 RT:64501:100    <<<<<<
      Originator: 10.4.4.4, Cluster list: 0.0.253.233
      Source AFI: VPNv4 Flowspec, Source VRF: default, Source Route Distinguisher: 64501:104

通过数据包捕获，我们可以观察服务MPLS标签，该标签可确认数据包被重定向

RP/0/RP0/CPU0:PE4#show mpls forwarding labels 24005
Tue Oct  1 16:45:21.743 CST
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
24005  Aggregate   64501_flowspec: Per-VRF Aggr[V]   \
                                      64501_flowspec                1500

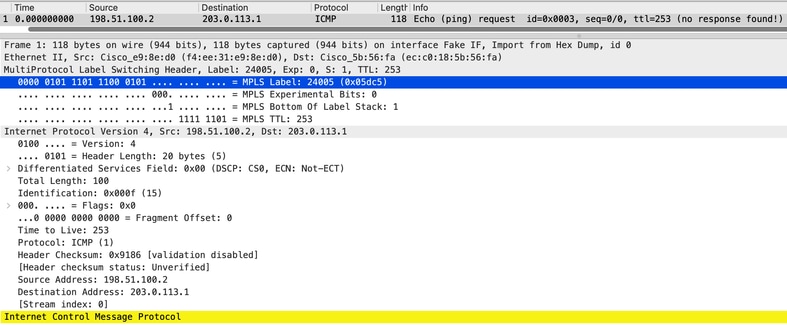

图2显示流量重定向证据的PCAP，请注意服务MPLS标签24005。

与策略64501配的Flowspec客户端上的VRF_internet入口流量将被重定向到64501_flowspec VRF。
