Inleiding
In dit document wordt beschreven hoe u de AOMedia Video 1 (AV1)-codec inschakelt op de Cisco Meeting Server (CMS).
Opmerking: Deze AV1 is een bètafunctie op CMS 3.9.
Voorwaarden
Vereisten
Cisco raadt u aan kennis te hebben van de CMS-configuratie.
Gebruikte componenten
De informatie in dit document is gebaseerd op de volgende software- en hardware-versies:
- CMS versie 3.9-service Callbridge
- Chrome browser 122.0.6261.112
- Firefox browser 123.0.1 (20240304104836)
De informatie in dit document is gebaseerd op de apparaten in een specifieke laboratoriumomgeving. Alle apparaten die in dit document worden beschreven, hadden een opgeschoonde (standaard)configuratie. Als uw netwerk live is, moet u zorgen dat u de potentiële impact van elke opdracht begrijpt.
Configureren
1. Dit is een voorbeeld van de standaard AV1-codecstatus op CMS-logs:
2024-03-05T16:50:25.736 user.info cms01 host:server: INFO :
AV1 Video Codec Enabled for Content: 0
2. Schakel AV1-codec in op de Callbridge of CMS via de opdracht Secure Shell (SSH) callbridge av1 enable
.
cms01> callbridge av1 enable
Dit is een voorbeeld van het inschakelen van AV1 op CMS-logs:
2024-03-06T09:34:45.395 local0.info cms01 cli: User admin from 10.140.249.233:63290 issued command <
callbridge av1 enable>: permission granted
3. Start de Callbridge-service op CMS opnieuw op via de opdracht SSH om de nieuwe functie AV1-codec te activeren.
cms01> callbridge restart
4. Controleer de Callbridge-status van zowel de CMS SSH-opdrachtregel als de CMS-logs om te bevestigenAV1 Video Codec is enabled
.
Dit is een voorbeeld van de opdrachtregelstatus van CMS SSH:
cms01> callbridge
Listening interfaces : a
Preferred interface : none
Key file : cms.key
Certificate file : cms.cer
Address : none
CA Bundle file : root.cer
C2W trusted certs : cms.cer
Callbridge cluster trusted certs : cms.cer
Callbridge trust branding certs : none
UCM trusted certs : cucmtomcat.cer
UCM verification mode : enabled
IMPS trusted certs : impcup.cer
IMPS verification mode : enabled
WC3 JWT Expiry in hours : 24
AV1 Video Codec : enabled
Dit is een voorbeeld van het inschakelen van de AV1-codecstatus op CMS-logs:
2024-03-06T09:35:42.003 user.info cms01 host:server: INFO :
AV1 Video Codec Enabled for Content: 1
Opmerking: AV1-codec moet zijn ingeschakeld op alle Callbridge-servers in het CMS-cluster.
Verifiëren

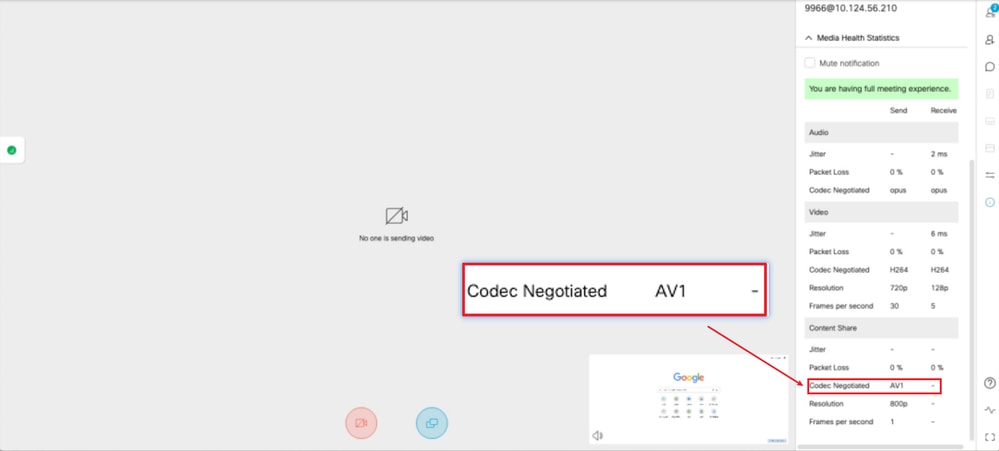

1. De gezondheidsstatistieken van de media van de inhoudspresentator laten zien dat de codec voor de inhoud waarover wordt onderhandeld AV1 is in de Chrome-browser.
De codec voor de inhoud van de presentator is AV1 op chroom

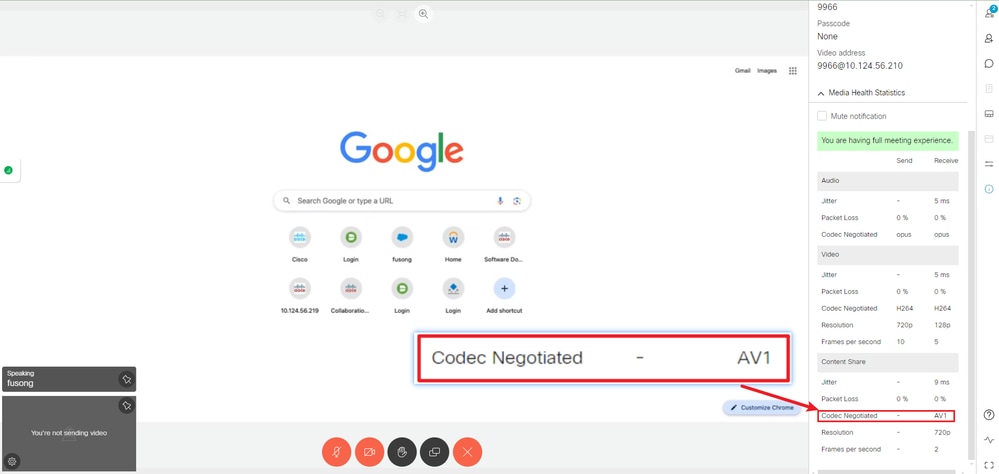

2. De gezondheidsstatistieken van de media van de inhoudsontvanger tonen aan dat de content onderhandelde codec AV1 is in de Chrome-browser wanneer de content wordt ontvangen van CMS-servers.
Codec voor inhoud van ontvanger is AV1 op chroom
3. Als AV1 is ingeschakeld op het CMS maar browsers AV1 niet ondersteunen, wordt de codec die door de browser wordt ondersteund, opgehaald door de inhoudsoverdracht tussen het CMS en de browser.

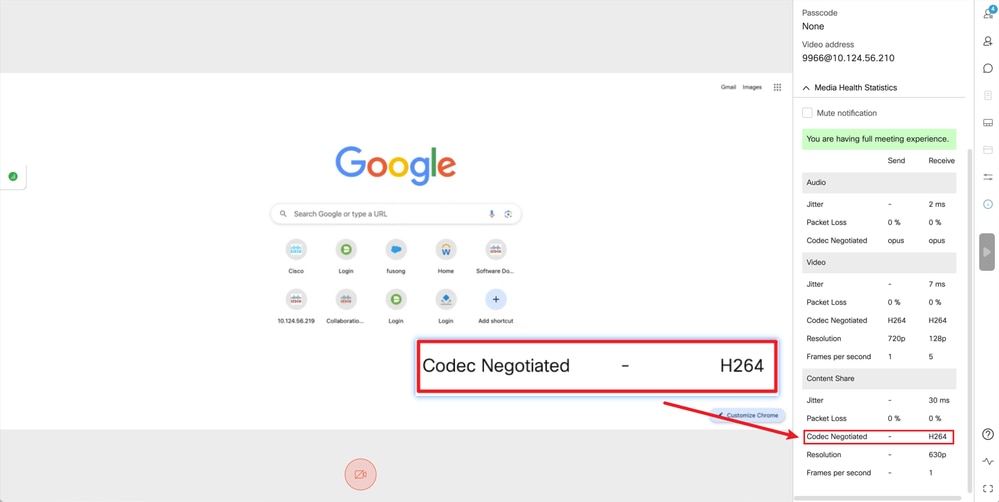

In dit voorbeeld ziet u dat de CMS- en Firefox-codec voor het onderhandelen over inhoud van de browser H.264 is.
De codec voor de inhoud van de ontvanger is H.264 op Firefox
Probleemoplossing
1. Uit CMS-logs kan worden opgemaakt dat de presentator is begonnen met het delen van inhoud:
2024-03-06 12:36:05.737 Info call 49: new video presentation request from user "guest3577572234"
2024-03-06 12:36:05.737 Info call 49: becoming floor
2. In de webtc-logs van de presentator in de Chrome-browser kunt u zien dat CMS AV1-codec ondersteunt in het SDP-bericht (Session Description Protocol) en dat de codec voor het delen van inhoud AV1 is.
U kunt webrtc-logs verzamelen via chrome://webrtc-internals/ op de Chrome-browser.
Dit is een voorbeeld van het CMS SDP-bericht in webtc-logs.
v=0 (11 more lines)
o=Acano 0 0 IN IP4 10.124.56.212 s=-
c=IN IP4 10.124.56.212
b=CT:6000
t=0 0
a=setup:active
a=msid-semantic: WMS ef86aaf0-f732-40ca-a65a-484dd196864d 494ba500-d708-4048-80f3-2820b1503423
a=ice-ufrag:CONP
a=ice-pwd:n++OtYUn97Vt8rkqwhUhPv
a=fingerprint:sha-256 2B:84:FF:34:56:54:55:AC:3D:57:D0:27:B6:E3:F5:4F:CF:00:1B:AC:8C:9F:55:02:93:F8:45:CA:E9:58:B7:21
a=group:BUNDLE 0 1 2
m=audio 35648 RTP/SAVPF 111 9 0 8 13 126 (16 more lines) mid=0 a=rtcp-mux
a=sendrecv
a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
a=candidate:1 1 udp 2130706431 10.124.56.212 35648 typ host
a=candidate:1 2 udp 2130706431 10.124.56.212 35648 typ host
a=rtpmap:111 opus/48000/2
a=fmtp:111 useinbandfec=1
a=rtpmap:9 G722/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:13 CN/8000
a=rtpmap:126 telephone-event/8000
a=fmtp:126 0-15
a=ssrc:849856969 cname:8db99900-7685-4b58-8df7-f6254f6679dc
a=ssrc:849856969 msid:ef86aaf0-f732-40ca-a65a-484dd196864d main_audio_track
a=mid:0
m=video 35648 RTP/SAVPF 104 102 45 96 (24 more lines) mid=1 b=TIAS:6000000
a=rtcp-mux
a=content:main
a=sendrecv
a=rtcp-fb:* nack
a=rtcp-fb:* nack pli
a=rtcp-fb:* ccm fir
a=rtcp-fb:* goog-remb
a=extmap:2 http://www.example.com/experiments/rtp-hdrext/abs-send-time
a=candidate:1 1 udp 2130706431 10.124.56.212 35648 typ host
a=candidate:1 2 udp 2130706431 10.124.56.212 35648 typ host
a=rtpmap:104 H264/90000
a=fmtp:104 profile-level-id=428015;max-mbps=244800;max-fs=8160;max-br=5000;max-fps=6000;x-google-start-bitrate=6000;x-google-max-bitrate=6000
a=rtpmap:102 H264/90000
a=fmtp:102 profile-level-id=428015;max-mbps=244800;max-fs=8160;max-br=5000;max-fps=6000;packetization-mode=1;x-google-start-bitrate=6000;x-google-max-bitrate=6000
a=rtpmap:45 AV1/90000 a=fmtp:45 profile=0;level-idx=31
a=rtpmap:96 VP8/90000
a=fmtp:96 max-fs=8160;max-fr=30
a=ssrc:2217027374 cname:8db99900-7685-4b58-8df7-f6254f6679dc
a=ssrc:2217027374 msid:ef86aaf0-f732-40ca-a65a-484dd196864d main_video_track
a=ssrc:2217027374 label:main
a=label:11
a=mid:1
m=video 35648 RTP/SAVPF 45 104 105 102 103 96 97 (42 more lines) mid=2 b=TIAS:6000000
a=rtcp-mux
a=content:slides a=sendonly
a=extmap:2/sendrecv http://www.example.com/experiments/rtp-hdrext/abs-send-time
a=candidate:1 1 udp 2130706431 10.124.56.212 35648 typ host
a=candidate:1 2 udp 2130706431 10.124.56.212 35648 typ host
a=rtpmap:45 AV1/90000 a=fmtp:45 profile=0;level-idx=31
a=rtcp-fb:45 nack
a=rtcp-fb:45 nack pli
a=rtcp-fb:45 ccm fir
a=rtcp-fb:45 goog-remb
a=rtpmap:104 H264/90000
a=fmtp:104 profile-level-id=428015;max-mbps=244800;max-fs=8160;max-br=5000;max-fps=6000;x-google-start-bitrate=6000;x-google-max-bitrate=6000
a=rtcp-fb:104 nack
a=rtcp-fb:104 nack pli
a=rtcp-fb:104 ccm fir
a=rtcp-fb:104 goog-remb
a=rtpmap:105 rtx/90000
a=fmtp:105 apt=104
a=rtpmap:102 H264/90000
a=fmtp:102 profile-level-id=428015;max-mbps=244800;max-fs=8160;max-br=5000;max-fps=6000;packetization-mode=1;x-google-start-bitrate=6000;x-google-max-bitrate=6000
a=rtcp-fb:102 nack
a=rtcp-fb:102 nack pli
a=rtcp-fb:102 ccm fir
a=rtcp-fb:102 goog-remb
a=rtpmap:103 rtx/90000
a=fmtp:103 apt=102
a=rtpmap:96 VP8/90000
a=fmtp:96 max-fs=8160;max-fr=30
a=rtcp-fb:96 nack
a=rtcp-fb:96 nack pli
a=rtcp-fb:96 ccm fir
a=rtcp-fb:96 goog-remb
a=rtpmap:97 rtx/90000
a=fmtp:97 apt=96
a=ssrc:910559423 cname:8db99900-7685-4b58-8df7-f6254f6679dc
a=ssrc:910559423 msid:494ba500-d708-4048-80f3-2820b1503423 presentation_video_track
a=ssrc:910559423 label:slides
a=label:12
a=mid:2
Dit is een voorbeeld van codec-informatie voor het delen van webrtc-inhoud.
outbound-rtp (kind=video, mid=2, ssrc=1277302382, scalabilityMode=L1T1, encoderImplementation=libaom, powerEfficientEncoder=false,
[codec]=AV1 (45, level-idx=31;profile=0), id=OT01V1277302382)
Statistics OT01V1277302382
timestamp 3/6/2024, 1:15:33 PM
ssrc 1277302382
kind video
transportId T01
codecId COT01_45_level-idx=31;profile=0
[codec] AV1 (45, level-idx=31;profile=0)
packetsSent 3964
[packetsSent/s] 48.982867749455345
bytesSent 145005
[bytesSent_in_bits/s] 399.860144893513
mediaSourceId SV20
remoteId RIV1277302382
mid 2
retransmittedPacketsSent 0
[retransmittedPacketsSent/s] 0
headerBytesSent 1027880
[headerBytesSent_in_bits/s] 105723.02230984485
retransmittedBytesSent 0
[retransmittedBytesSent_in_bits/s] 0
targetBitrate 500000
framesEncoded 151
[framesEncoded/s] 0.9996503622337826
keyFramesEncoded 1
totalEncodeTime 0.627
[totalEncodeTime/framesEncoded_in_ms] 2.0000000000000018
totalEncodedBytesTarget 0
[totalEncodedBytesTarget_in_bits/s] 0
frameWidth 1778
frameHeight 800
framesPerSecond 1
framesSent 151
[framesSent/s] 0.9996503622337826
hugeFramesSent 1
totalPacketSendDelay 1.6430509999999998
[totalPacketSendDelay/packetsSent_in_ms] 0
qualityLimitationReason none
qualityLimitationDurations {"bandwidth":0,"cpu":0,"none":87.68899999999999,"other":0}
qualityLimitationResolutionChanges 0
contentType screenshare encoderImplementation libaom
firCount 0
pliCount 0
nackCount 0
qpSum 9208
[qpSum/framesEncoded] 40
active true
powerEfficientEncoder false
scalabilityMode L1T1
Gerelateerde informatie
Opmerking: Cisco garandeert niet dat een bètafunctie in de toekomst overgaat in een volledig ondersteunde functie. Betafuncties kunnen worden gewijzigd op basis van feedback en functionaliteit kan worden gewijzigd of verwijderd in de toekomst.
Opmerking:
- Deze functie wordt niet ondersteund voor SIP-eindpunten.
- AV1-transmissie is alleen getest en gekwalificeerd op Chrome-browser.
- Als AV1 is ingeschakeld in de vergaderserver, maar de browsers deze niet ondersteunen, wordt de codec die door de browser wordt ondersteund, opgehaald.
- Nadat u de opdracht Mainboard Management Processor (MMP) hebt ingeschakeld, start u de callbridge opnieuw op om ervoor te zorgen dat de wijziging wordt toegepast.
