Dépannage d'EVPN/VxLAN dans une configuration multisite
Introduction
Ce document décrit l'approche de dépannage d'un VPN Ethernet/Virtual Extensible LAN (EVPN/VxLAN) dans une configuration multisite.
Conditions préalables
Exigences
Cisco vous recommande de prendre connaissance des rubriques suivantes :
- VPN de couche 3 MPLS (Multiprotocol Label Switching)
- Protocole MP-BGP (Multiprotocol-Border Gateway Protocol)
- EVPN
Composants utilisés
Les informations contenues dans ce document sont basées sur les versions de matériel et de logiciel suivantes :
| Toutes les feuilles de site | N9K-C9336C-FX2 | NXOS : 10.2(3) |
| Comm1_Spine1 | N9K-C9364C | NXOS : 10.2(4) |
| Comm1_Spine2 | N9K-C9364C | NXOS : 9.3(5) |
| S1_Border Gateway1, S2_Border Gateway2, S2_Border Gateway1 | N9K-C932C | NXOS : 9.3(9) |
| Passerelle en limite S1_2 | N9K-C932C | NXOS : 10.2(4) |
| Serveur de routage | N9K-C9396PX | NXOS : 9.2(2) |
| Hôte-1 | N3K-C3264C-E | NXOS : 9.3(5) |
| Hôte 2 et Hôte 3 | N3K-C3264C-E | NXOS : 9.2(2) |
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. Si votre réseau est en ligne, assurez-vous de bien comprendre l’incidence possible des commandes.

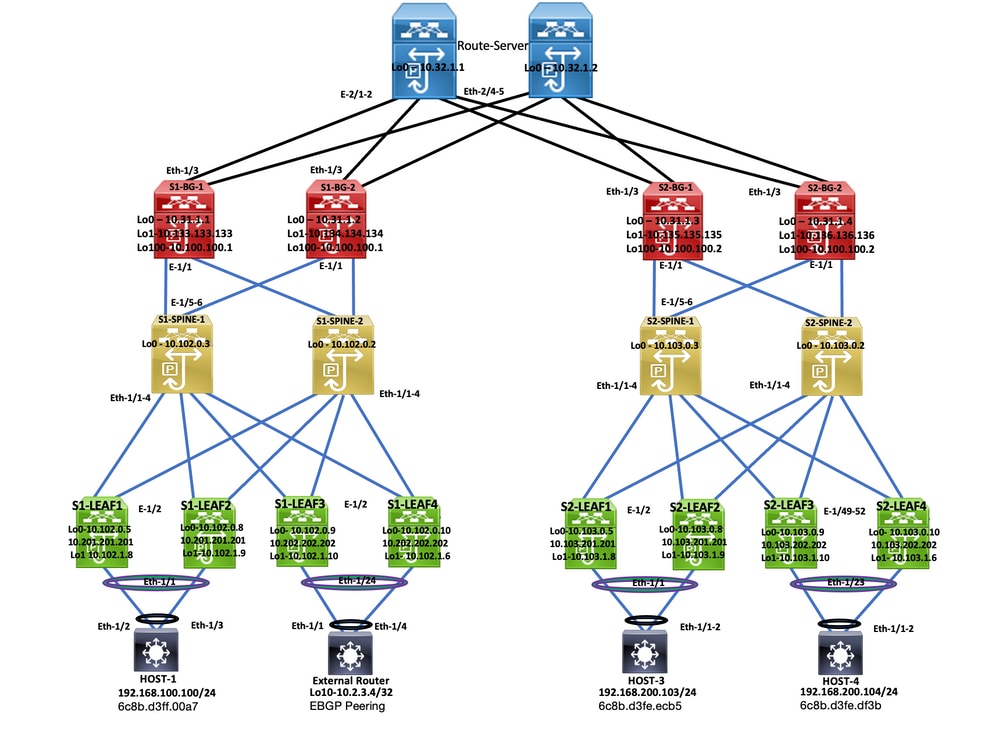

Topologie
Topologie
Ce document décrit l'origine du trafic depuis l'hôte 3 DC-2 (192.168.200.104/24), puis accompagne les paquets jusqu'à l'hôte 2 DC-1 de destination (10.2.3.4).
Vérification du plan de contrôle
Afin de vérifier le plan de contrôle, entrez ces commandes :
HOST_3# show ip int brief
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Vlan100 192.168.100.103 protocol-up/link-up/admin-up
Vlan200 192.168.200.103 protocol-up/link-up/admin-up
HOST_3#
External_Router#
External_Router# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Vlan100 192.168.100.102 protocol-up/link-up/admin-up
Vlan200 192.168.200.102 protocol-up/link-up/admin-up
Lo10 10.2.3.4 protocol-up/link-up/admin-up
External_Router#
HOST_3#
HOST_3# ping 10.2.3.4 source 192.168.100.103
PING 10.2.3.4 (10.2.3.4) from 192.168.100.103: 56 data bytes
64 bytes from 10.2.3.4: icmp_seq=0 ttl=250 time=1.153 ms
64 bytes from 10.2.3.4: icmp_seq=1 ttl=250 time=0.569 ms
64 bytes from 10.2.3.4: icmp_seq=2 ttl=250 time=0.562 ms
64 bytes from 10.2.3.4: icmp_seq=3 ttl=250 time=0.525 ms
64 bytes from 10.2.3.4: icmp_seq=4 ttl=250 time=0.527 ms
--- 10.2.3.4 ping statistics ---
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min/avg/max = 0.525/0.667/1.153 ms
HOST_3#
S2-Leaf1# show bgp l2vpn evp vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 4420, Local Router ID is 10.103.0.5
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.103.0.5:5 (L3VNI 4000502)
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.2 100 0 300 100 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.2
S2-Leaf2# show bgp l2vpn evp vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 4389, Local Router ID is 10.103.0.8
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.103.0.8:5 (L3VNI 4000502)
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.2 100 0 300 100 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.2 100 0 300 100 i
S2-Leaf2#
S2-leaf3# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 4196, Local Router ID is 10.103.0.9
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.103.0.9:5 (L3VNI 4000502)
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.2 100 0 300 100 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.2 100 0 300 100 i
S2-Leaf4#
S2-Leaf4# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 4381, Local Router ID is 10.102.0.10
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.102.0.10:5 (L3VNI 4000502)
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.2 100 0 300 100 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.2 100 0 300 100 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.2 100 0 300 100 i
S2-Leaf4#
S2-Leaf4#
S2-Spine1# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 1235, Local Router ID is 10.103.0.3
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 200:4000502
* i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.2 100 0 300 100
*>i 10.100.100.2 100 0 300 100 i
* i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.2 100 0 300 100 65111 i
*>i 10.100.100.2 100 0 300 100 65111 i
* i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.2 100 0 300 100 i
*>i 10.100.100.2 100 0 300 100 i
* i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.2 100 0 300 100 i
*>i 10.100.100.2 100 0 300 100 i
S2-BG1# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.31.1.3 protocol-up/link-up/admin-up
Lo1 10.135.135.135 protocol-up/link-up/admin-up
Lo100 10.100.100.2 protocol-up/link-up/admin-up
Eth1/1 192.168.17.12 protocol-up/link-up/admin-up
Eth1/3 10.150.152.1 protocol-up/link-up/admin-up
S2-BG1#
S2-BG1# show ip route 10.2.3.4 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.2.3.4/32, ubest/mbest: 1/0
*via 10.100.100.1%default, [20/0], 04:09:46, bgp-200, external, tag 300, segid: 4000502 tunnelid: 0xa646401 encap: VXLAN
S2-BG1#
S2-BG1# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 6206, Local Router ID is 10.31.1.3
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:4000502
*>e[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.1 0 300 100 i
*>e[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.1 0 300 100 65111 i
*>e[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.1 0 300 100 i
*>e[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.1 0 300 100 i
S2-BG2# show ip int brief
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.31.1.4 protocol-up/link-up/admin-up
Lo1 10.136.136.136 protocol-up/link-up/admin-up
Lo100 10.100.100.2 protocol-up/link-up/admin-up
Eth1/1 192.168.18.12 protocol-up/link-up/admin-up
Eth1/3 10.150.153.1 protocol-up/link-up/admin-up
S2-BG2#
S2-BG2#
S2-BG2# show ip route 10.2.3.4 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.2.3.4/32, ubest/mbest: 1/0
*via 10.100.100.1%default, [20/0], 04:15:13, bgp-200, external, tag 300, segid: 4000502 tunnelid: 0xa646401 encap: VXLAN
S2-BG2#
S2-BG2# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 5455, Local Router ID is 10.31.1.4
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 100:4000502
*>e[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.1 0 300 100 i
*>e[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.1 0 300 100 65111 i
*>e[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.1 0 300 100 i
*>e[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.100.100.1 0 300 100 i
Router_Server# show ip int brief
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.32.1.1 protocol-up/link-up/admin-up
Eth2/1 10.150.150.2 protocol-up/link-up/admin-up
Eth2/2 10.150.151.2 protocol-up/link-up/admin-up
Eth2/4 10.150.152.2 protocol-up/link-up/admin-up
Eth2/5 10.150.153.2 protocol-up/link-up/admin-up
Router_Server#
Router_Server# show ip route 10.100.100.1
IP Route Table for VRF "default"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.100.100.1/32, ubest/mbest: 2/0
*via 10.150.150.1, [20/0], 4d22h, bgp-300, external, tag 100
*via 10.150.151.1, [20/0], 4d22h, bgp-300, external, tag 100
Router_Server#
Router_Server#
Router_Server# show ip route 10.100.100.2
IP Route Table for VRF "default"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.100.100.2/32, ubest/mbest: 2/0
*via 10.150.152.1, [20/0], 3w5d, bgp-300, external, tag 200
*via 10.150.153.1, [20/0], 3w5d, bgp-300, external, tag 200
Router_Server#
Router_Server# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 4574, Local Router ID is 10.32.1.1
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 200:4000100
* e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.2 2000 0 200 i
*>e 10.100.100.2 2000 0 200 i
Route Distinguisher: 100:4000502
*>e[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.100.100.1 2000 0 100 i
* e 10.100.100.1 2000 0 100 i
* e[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.100.100.1 2000 0 100 65111 i
*>e 10.100.100.1 2000 0 100 65111 i
*>e[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.100.100.1 2000 0 100 i
* e 10.100.100.1 2000 0 100 i
*>e[5]:[0]:[0]:[32]:[10.100.100.2]/224
> 10.100.100.1 2000 0 100 i
* e 10.100.100.1 2000 0 100 i
S1_B2#
S1_B2# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.31.1.2 protocol-up/link-up/admin-up
Lo1 10.134.134.134 protocol-up/link-up/admin-up
Lo100 10.100.100.1 protocol-up/link-up/admin-up
Eth1/1 192.168.16.12 protocol-up/link-up/admin-up
Eth1/3 10.150.151.1 protocol-up/link-up/admin-up
S1_B2#
S1_B2#sho ip route 192.168.100.103 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
192.168.100.103/32, ubest/mbest: 1/0
*via 10.100.100.2%default, [20/0], 4d23h, bgp-100, external, tag 300, segid: 4000502 tunnelid: 0xa646402 encap: VXLAN
S1_B2#
S1_B2# show ip route 10.2.3.4 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.2.3.4/32, ubest/mbest: 1/0
*via 10.102.1.10%default, [200/0], 05:04:19, bgp-100, internal, tag 65111, segid: 4000502 tunnelid: 0xa66010a encap: VXLAN
S1_B2#
S1_B2#
S1_B2# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 5449, Local Router ID is 10.31.1.2
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 200:4000100
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.df3b]:[32]:[192.168.100.104]/272
10.100.100.2 0 300 200 i
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.2 0 300 200 i
Route Distinguisher: 200:4000200
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.df3b]:[32]:[192.168.100.104]/272
10.100.100.2 0 300 200 i
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.2 0 300 200 i
Route Distinguisher: 10.102.0.9:5
*>i[2]:[0]:[0]:[48]:[cc7f.76fa.118f]:[0]:[0.0.0.0]/216
10.202.202.202 100 0 i
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.10 100 0 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.10 100 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.102.1.10 100 0 i
Route Distinguisher: 10.102.0.10:5
*>i[2]:[0]:[0]:[48]:[cc7f.76c6.a673]:[0]:[0.0.0.0]/216
10.202.202.202 100 0 i
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.6 100 0 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.6 100 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 0 i
Route Distinguisher: 10.31.1.2:5 (L3VNI 4000502)
*>l[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.134.134.134 100 0 i
*>l[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.134.134.134 100 0 65111 i
*>l[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.134.134.134 100 0 i
*>l[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.134.134.134 100 0 i
S1_B2#
S1-Bg1# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.31.1.1 protocol-up/link-up/admin-up
Lo1 10.133.133.133 protocol-up/link-up/admin-up
Lo100 10.100.100.1 protocol-up/link-up/admin-up
Eth1/1 192.168.15.12 protocol-up/link-up/admin-up
Eth1/3 10.150.150.1 protocol-up/link-up/admin-up
S1-Bg1#
S1-Bg1# show ip route 10.100.100.2 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.100.100.2/32, ubest/mbest: 1/0
*via 10.102.1.10%default, [200/0], 4d23h, bgp-100, internal, tag 100, segid: 4000502 tunnelid: 0xa66010a encap: VXLAN
S1-Bg1#
S1-Bg1# show ip route 192.168.100.103 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
192.168.100.103/32, ubest/mbest: 1/0
*via 10.100.100.2%default, [20/0], 4d23h, bgp-100, external, tag 300, segid: 4000502 tunnelid: 0xa646402 encap: VXLAN
S1-Bg1#
S1-Bg1# show ip route 10.2.3.4 vrf vrf_2
IP Route Table for VRF "vrf_2"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>
10.2.3.4/32, ubest/mbest: 1/0
*via 10.102.1.10%default, [200/0], 05:21:41, bgp-100, internal, tag 65111, segid: 4000502 tunnelid: 0xa66010a encap: VXLAN
S1-Bg1#
S1-Bg1# show bgp l2vpn evpn
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 6654, Local Router ID is 10.31.1.1
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 200:4000100
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.df3b]:[32]:[192.168.100.104]/272
10.100.100.2 0 300 200 i
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.2 0 300 200 i
Route Distinguisher: 200:4000200
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.df3b]:[32]:[192.168.200.104]/272
10.100.100.2 0 300 200 i
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.200.103]/272
10.100.100.2 0 300 200 i
Route Distinguisher: 10.31.1.1:32867 (L2VNI 4000100)
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.2 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ff09]:[32]:[192.168.100.102]/272
10.202.202.202 100 0 i
* i 10.202.202.202 100 0 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3ff.00a7]:[32]:[192.168.100.100]/272
10.201.201.201 100 0 i
* i 10.201.201.201 100 0 i
*>e[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.200.103]/272
10.100.100.2 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ff09]:[32]:[192.168.200.102]/272
10.202.202.202 100 0 i
* i 10.202.202.202 100 0 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3ff.00a7]:[32]:[192.168.200.100]/272
10.201.201.201 100 0 i
* i 10.201.201.201 100 0 i
Route Distinguisher: 10.102.0.10:5
*>i[2]:[0]:[0]:[48]:[cc7f.76c6.a673]:[0]:[0.0.0.0]/216
10.202.202.202 100 0 i
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.6 100 0 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.6 100 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 0 i
Route Distinguisher: 10.31.1.1:5 (L3VNI 4000502)
*>l[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.133.133.133 100 0 i
*>l[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.133.133.133 100 0 65111 i
*>l[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.133.133.133 100 0 i
*>l[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.133.133.133 100 0 i
S1-Bg1#
S1-Leaf1# show ip int brief
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.102.0.5 protocol-up/link-up/admin-up
Lo1 10.102.1.8 protocol-up/link-up/admin-up
Eth1/2 192.168.17.12 protocol-up/link-up/admin-up
S1-Leaf1#
S1-Leaf1# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 918, Local Router ID is 10.102.0.5
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.102.0.5:5 (L3VNI 4000502)
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.1 100 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.200.103]/272
10.100.100.1 100 0 300 200 i
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.10 100 0 i
* i 10.102.1.6 100 0 i
*>i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.10 100 0 65111 i
* i 10.102.1.6 100 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 0 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.102.1.10 100 0 i
S1-Leaf1#
S1-Leaf2# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.102.0.8 protocol-up/link-up/admin-up
Lo1 10.102.1.9 protocol-up/link-up/admin-up
Eth1/2 192.168.18.12 protocol-up/link-up/admin-up
S1-Leaf2#
S1-Leaf2#
S1-Leaf2# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 680, Local Router ID is 10.102.0.8
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.102.0.8:5 (L3VNI 4000502)
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.1 100 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.200.103]/272
10.100.100.1 100 0 300 200 i
*>i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.10 100 0 i
* i 10.102.1.6 100 0 i
* i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.6 100 0 65111 i
*>i 10.102.1.10 100 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 0 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.102.1.10 100 0 i
S1-Leaf3#
S1-Leaf3# show ip int brie
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.102.0.9 protocol-up/link-up/admin-up
Lo1 10.102.1.10 protocol-up/link-up/admin-up
Eth1/2 192.168.19.12 protocol-up/link-up/admin-up
S1-Leaf3#
S1-Leaf3#
S1-Leaf3#
S1-Leaf3# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 5431, Local Router ID is 10.102.0.9
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.102.0.9:5 (L3VNI 4000502)
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.1 100 0 300 200 i
* i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.6 100 0 i
*>l 10.102.1.10 100 32768 i
* i[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.6 100 0 65111 i
*>l 10.102.1.10 0 65111 i
*>i[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 0 i
*>l[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.102.1.10 100 32768 i
S1-Leaf3#
S1_Leaf4#
S1_Leaf4# show ip int brief
IP Interface Status for VRF "default"(1)
Interface IP Address Interface Status
Lo0 10.102.0.10 protocol-up/link-up/admin-up
Lo1 10.102.1.6 protocol-up/link-up/admin-up
Eth1/2 192.168.20.12 protocol-up/link-up/admin-up
S1_Leaf4#
S1_Leaf4#
S1_Leaf4# show bgp l2vpn evpn vrf vrf_2
BGP routing table information for VRF default, address family L2VPN EVPN
BGP table version is 5118, Local Router ID is 10.102.0.10
Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best
Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-injected
Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - best2
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.102.0.10:5 (L3VNI 4000502)
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.100.103]/272
10.100.100.1 100 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3fe.ecb5]:[32]:[192.168.200.103]/272
10.100.100.1 100 0 300 200 i
*>i[2]:[0]:[0]:[48]:[6c8b.d3ff.00a7]:[32]:[192.168.100.100]/272
10.201.201.201 100 0 i
* i 10.201.201.201 100 0 i
* i[5]:[0]:[0]:[24]:[192.168.100.0]/224
10.102.1.10 100 0 i
*>l 10.102.1.6 100 32768 i
*>l[5]:[0]:[0]:[32]:[10.2.3.4]/224
10.102.1.6 0 65111 i
* i 10.102.1.10 100 0 65111 i
*>l[5]:[0]:[0]:[32]:[10.100.100.1]/224
10.102.1.6 100 32768 i
*>i[5]:[0]:[0]:[32]:[10.100.100.2]/224
10.102.1.10 100 0 i
S1_Leaf4#
Vérification du plan de données
La vérification du plan de données est testée sur plusieurs périphériques afin de comprendre différentes méthodes et variantes de capture de paquets.
Envoyez une requête ping au routeur externe loopback 100 « 10.2.3.4 » à partir de l’adresse IP source 192.168.100.103 sur l’hôte 3.
HOST_3#
HOST_3# ping 10.2.3.4 source 192.168.100.103
PING 10.2.3.4 (10.2.3.4) from 192.168.100.103: 56 data bytes
64 bytes from 10.2.3.4: icmp_seq=0 ttl=250 time=1.153 ms
64 bytes from 10.2.3.4: icmp_seq=1 ttl=250 time=0.569 ms
64 bytes from 10.2.3.4: icmp_seq=2 ttl=250 time=0.562 ms
64 bytes from 10.2.3.4: icmp_seq=3 ttl=250 time=0.525 ms
64 bytes from 10.2.3.4: icmp_seq=4 ttl=250 time=0.527 ms
--- 10.2.3.4 ping statistics ---
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min/avg/max = 0.525/0.667/1.153 ms
HOST_3#
Ethanalyzer est utilisé sur Site 2 Leaf-1 et Leaf-2 afin de confirmer quel leaf reçoit/transfère le trafic pour l'accessibilité du bouclage de routeur externe 10.2.3.4.
S2-Leaf1(config-monitor)# sho clock
Warning: No NTP peer/server configured. Time may be out of sync.
07:11:37.455 UTC Tue Feb 21 2023
Time source is NTP
S2-Leaf1(config-monitor)#
S2-Leaf1(config-monitor)# show run section monitor
show running-config | section monitor
icam monitor scale
monitor session 1
source interface port-channel100 both
destination interface sup-eth0
no shut
S2-Leaf1(config-monitor)#
S2-Leaf2(config-monitor)#
S2-Leaf2(config-monitor)# ethanalyzer local interface inband display-filter "ip.addr==10.2.3.4 && ip.addr==192.168.100.103 && icmp" limit-captured-frames 0
Capturing on 'ps-inb'
1385 2023-02-21 07:10:46.424195144 192.168.100.103 → 10.2.3.4 ICMP 102 Echo (ping) request id=0xdd1f, seq=0/0, ttl=255
1386 2023-02-21 07:10:46.424818423 10.2.3.4 → 192.168.100.103 ICMP 98 Echo (ping) reply id=0xdd1f, seq=0/0, ttl=251 (request in 1385)
1387 2023-02-21 07:10:46.425263621 192.168.100.103 → 10.2.3.4 ICMP 102 Echo (ping) request id=0xdd1f, seq=256/1, ttl=255
1388 2023-02-21 07:10:46.425486046 10.2.3.4 → 192.168.100.103 ICMP 98 Echo (ping) reply id=0xdd1f, seq=256/1, ttl=251 (request in 1387)
1389 2023-02-21 07:10:46.425856150 192.168.100.103 → 10.2.3.4 ICMP 102 Echo (ping) request id=0xdd1f, seq=512/2, ttl=255
1390 2023-02-21 07:10:46.426095692 10.2.3.4 → 192.168.100.103 ICMP 98 Echo (ping) reply id=0xdd1f, seq=512/2, ttl=251 (request in 1389)
1391 2023-02-21 07:10:46.426438174 192.168.100.103 → 10.2.3.4 ICMP 102 Echo (ping) request id=0xdd1f, seq=768/3, ttl=255
1392 2023-02-21 07:10:46.426642605 10.2.3.4 → 192.168.100.103 ICMP 98 Echo (ping) reply id=0xdd1f, seq=768/3, ttl=251 (request in 1391)
1393 2023-02-21 07:10:46.427004108 192.168.100.103 → 10.2.3.4 ICMP 102 Echo (ping) request id=0xdd1f, seq=1024/4, ttl=255
1394 2023-02-21 07:10:46.427210984 10.2.3.4 → 192.168.100.103 ICMP 98 Echo (ping) reply id=0xdd1f, seq=1024/4, ttl=251 (request in 1393)
10
S2-Leaf2(config-monitor)#
S2-Leaf2(config-monitor)# sho clock
Warning: No NTP peer/server configured. Time may be out of sync.
07:12:31.069 UTC Tue Feb 21 2023
Time source is NTP
S2-Leaf2(config-monitor)#
Le résultat de l'interface de ligne de commande a confirmé que Site 2 Leaf-2 reçoit et transfère la requête ICMP (Internet Control Message Protocol) pour le routeur externe 10.2.3.4.
L'exemple de CLI suivant confirme que le site 1 vérifie quel terminal transmet les paquets vers la destination 10.2.3.4.
S1-Leaf3(config-monitor)#
S1-Leaf3(config-monitor)# ethanalyzer local interface inband display-filter "ip.addr==10.2.3.4 && ip.addr==192.168.100.103 && icmp" limit-captured-frames 0
Capturing on 'ps-inb'
253 2023-02-21 07:10:50.379741403 192.168.100.103 → 10.2.3.4 ICMP 98 Echo (ping) request id=0xdd1f, seq=0/0, ttl=251
254 2023-02-21 07:10:50.380357311 10.2.3.4 → 192.168.100.103 ICMP 102 Echo (ping) reply id=0xdd1f, seq=0/0, ttl=255 (request in 253)
255 2023-02-21 07:10:50.380810012 192.168.100.103 → 10.2.3.4 ICMP 98 Echo (ping) request id=0xdd1f, seq=256/1, ttl=251
256 2023-02-21 07:10:50.381025676 10.2.3.4 → 192.168.100.103 ICMP 102 Echo (ping) reply id=0xdd1f, seq=256/1, ttl=255 (request in 255)
257 2023-02-21 07:10:50.381401968 192.168.100.103 → 10.2.3.4 ICMP 98 Echo (ping) request id=0xdd1f, seq=512/2, ttl=251
258 2023-02-21 07:10:50.381631838 10.2.3.4 → 192.168.100.103 ICMP 102 Echo (ping) reply id=0xdd1f, seq=512/2, ttl=255 (request in 257)
259 2023-02-21 07:10:50.381984272 192.168.100.103 → 10.2.3.4 ICMP 98 Echo (ping) request id=0xdd1f, seq=768/3, ttl=251
260 2023-02-21 07:10:50.382176820 10.2.3.4 → 192.168.100.103 ICMP 102 Echo (ping) reply id=0xdd1f, seq=768/3, ttl=255 (request in 259)
261 2023-02-21 07:10:50.382549820 192.168.100.103 → 10.2.3.4 ICMP 98 Echo (ping) request id=0xdd1f, seq=1024/4, ttl=251
262 2023-02-21 07:10:50.382746640 10.2.3.4 → 192.168.100.103 ICMP 102 Echo (ping) reply id=0xdd1f, seq=1024/4, ttl=255 (request in 261)
S1-Leaf3(config-monitor)# sho clock
Warning: No NTP peer/server configured. Time may be out of sync.
07:11:22.514 UTC Tue Feb 21 2023
Time source is NTP
S1-Leaf3(config-monitor)#
S1-Leaf3(config-monitor)# show run section monitor
show running-config | section monitor
monitor session 1
source interface port-channel2 both
destination interface sup-eth0
no shut
S1-Leaf3(config-monitor)#
S1-Leaf3(config-monitor)# show moni sess 1
session 1
---------------
type : local
state : up
acl-name : acl-name not specified
source intf :
rx : Po2
tx : Po2
both : Po2
source VLANs :
rx :
tx :
both :
filter VLANs : filter not specified
source fwd drops :
destination ports : sup-eth0
source VSANs :
rx :
S1-Leaf3(config-monitor)#
S1_Leaf4(config-monitor)# ethanalyzer local interface inband display-filter "ip.addr==192.168.100.103" limit-captured-frames 0
Capturing on 'ps-inb'
S1_Leaf4(config-monitor)#
S1_Leaf4(config-monitor)# sho clock
Warning: No NTP peer/server configured. Time may be out of sync.
07:11:15.187 UTC Tue Feb 21 2023
Time source is NTP
S1_Leaf4(config-monitor)#
Le client répond qu’il rencontre des problèmes de connectivité entre l’hôte 3 et le routeur externe. Le client veut confirmer que tout va bien dans le fabric VXLAN et a besoin de confirmation que notre leaf transfère le trafic vers le routeur externe. Les étapes à suivre pour résoudre ce problème sont les suivantes :
- Lancez une requête ping vers le routeur externe et vérifiez si l’adresse IP 10.2.3.4 est accessible ou non.
- Effectuez des captures ELAM (Embedded Logic Analyzer Module) sur S1-Leaf3 et S1-Leaf4 afin de voir s'il se déclenche (en fonction de la topologie et du flux de trafic).
- Avec la capture ELAM, vérifiez que le paquet est transféré depuis l’interface et pointe vers le routeur externe.
- Site 2 - Avec l'éthanalyseur, nous pouvons voir la requête et la réponse ICMP. En l'absence de réponse, le problème se situe du côté distant .
- Si 10.2.3.4 est accessible à partir de l'hôte 4 et que l'hôte 3 rencontre des problèmes, il peut s'agir d'un problème spécifique à l'hôte. Vérifiez la liste de contrôle d'accès (ACL), les erreurs CRC (Cyclic Redundancy Check) et la liaison de hachage.
HOST_3# ping 10.2.3.4 source 192.168.100.103
PING 10.2.3.4 (10.2.3.4) from 192.168.100.103: 56 data bytes
Request 0 timed out
Request 1 timed out
Request 2 timed out
Request 3 timed out
Request 4 timed out
--- 10.2.3.4 ping statistics ---
5 packets transmitted, 0 packets received, 100.00% packet loss
HOST_3#
Host4# ping 10.2.3.4 source 192.168.100.104
PING 10.2.3.4 (10.2.3.4) from 192.168.100.104: 56 data bytes
64 bytes from 10.2.3.4: icmp_seq=0 ttl=250 time=1.266 ms
64 bytes from 10.2.3.4: icmp_seq=1 ttl=250 time=0.62 m
64 bytes from 10.2.3.4: icmp_seq=2 ttl=250 time=0.603 ms
64 bytes from 10.2.3.4: icmp_seq=3 ttl=250 time=0.474 ms
64 bytes from 10.2.3.4: icmp_seq=4 ttl=250 time=0.457 ms
--- 10.2.3.4 ping statistics ---
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min/avg/max = 0.457/0.684/1.266 ms
Vérification du plan de données
Effectuer des captures ELAM pour vérifier le port ASIC, la tranche et l'ID source
show hardware internal tah interface
show system internal ethpm info interface
| i i src
S1-Leaf3(TAH-elam)# debug platform internal tah elam asic 0
S1-Leaf3(TAH-elam)# trigger init asic 0 slice 1 in-select 7 out-select 0 use-src-id 8
Slot 1: param values: asic 0, slice 1, lu-a2d 1, in-select 7, out-select 0, src_id 8
S1-Leaf3(TAH-elam-insel7)# set inner ipv4 src_ip 192.168.100.103
S1-Leaf3(TAH-elam-insel7)# start
S1-Leaf3(TAH-elam-insel7)# report
HEAVENLY ELAM REPORT SUMMARY
slot - 1, asic - 0, slice - 1
============================
Incoming Interface: Eth1/2
Src Idx : 0x5, Src BD : 2001
Outgoing Interface Info: dmod 1, dpid 52>>>>>>>>>>>>Pointing to Eth 1/24 towards external Router
Dst Idx : 0x601, Dst BD : 100
Packet Type: IPv4
Dst MAC address: CC:7F:76:FA:11:8F
Src MAC address: 4C:E1:75:F7:38:C7
Dst IPv4 address: 10.2.3.4
Src IPv4 address: 192.168.100.103
Ver = 4, DSCP = 0, Don't Fragment = 0
Proto = 1, TTL = 252, More Fragments = 0
Hdr len = 20, Pkt len = 84, Checksum = 0xb712
L4 Protocol : 1
ICMP type : 8
ICMP code : 0
Drop Info:
----------
LUA:
LUB:
LUC:
LUD:
Final Drops:
vntag:
vntag_valid : 0
vntag_vir : 0
vntag_svif : 0
S1-Leaf3(TAH-elam-insel7)#
S1_Leaf4# show system internal ethpm info interface ethernet 1/2 | grep slice
IF_STATIC_INFO: port_name=Ethernet1/2,if_index:0x1a000200,ltl=6140,slot=0, nxos_port=4,
dmod=1,dpid=76,unit=0,queue=65535,xbar_unitbmp=0x0,ns_pid=255,slice_num=1,port_on_slice=4,src_id=8
S1_Leaf4(TAH-elam)# debug platform internal tah elam asic 0
S1_Leaf4(TAH-elam)# trigger init asic 0 slice 1 in-select 7 out-select 0 use-src-id 8
Slot 1: param values: asic 0, slice 1, lu-a2d 1, in-select 7, out-select 0, src_id 8
S1_Leaf4(TAH-elam-insel7)# set inner ipv4 src_ip 192.168.100.103
S1_Leaf4(TAH-elam-insel7)# start
S1_Leaf4(TAH-elam-insel7)# report
ELAM not triggered yet on slot - 1, asic - 0, slice - 1
S1_Leaf4(TAH-elam-insel7)#
La conclusion du résultat d'ELAM est que le leaf transfère le trafic au routeur externe, mais il n'y a pas de réponse du routeur externe. Par conséquent, vérifiez auprès de l’équipe du routeur externe la réponse ICMP.
Historique de révision
| Révision | Date de publication | Commentaires |
|---|---|---|
1.0 |
11-Apr-2023 |
Première publication |
CommentairesContacter Cisco
- Ouvrir un dossier d’assistance
- (Un contrat de service de Cisco est requis)
