Ericsson MD-110 Serial PIMG Integration Guide for Cisco Unity 4.0


Revised October 12, 2007

This document provides instructions for integrating the Ericsson MD-110 phone system with Cisco Unity by using the Intel NetStructure PBX-IP Media Gateway (PIMG) and an RS-232 serial cable.

Integration Tasks

Before doing the following tasks to integrate Cisco Unity with the Ericsson MD-110 phone system by using the Intel NetStructure PBX-IP Media Gateway (PIMG), confirm that the Cisco Unity server is ready for the integration by completing the applicable tasks in the applicable Cisco Unity installation guide.

The following task lists describe the process for creating the integration.

Task List to Create the Integration

Use the following task list to set up a new integration with the Ericsson MD-110 phone system. If you are installing a new Cisco Unity server by using the applicable Cisco Unity installation guide, you may have already completed some of the following tasks.

1. Review the system and equipment requirements to confirm that all phone system and Cisco Unity server requirements have been met. See the "Requirements" section.

2. Plan how the voice messaging ports will be used by Cisco Unity. See the "Planning How the Voice Messaging Ports Will Be Used by Cisco Unity" section.

3. Program the Ericsson MD-110 phone system and extensions. See the "Programming the Ericsson MD-110 Phone System" section.

4. Set up the PIMG units. See the "Setting Up the PIMG Units" section.

5. Create the integration. See the "Creating a New Integration with the Ericsson MD-110 Phone System" section.


Caution Do not edit the phone configuration file (also known as the switch ini file) to customize this integration. If you change the settings in this file, the integration may not function correctly.

6. Test the integration. See the "Testing the Integration" section.

7. (Cisco Unity 4.1 and later) If you have a secondary server for Cisco Unity failover, integrate the secondary server. See the "Integrating a Secondary Server for Cisco Unity Failover" section.

Requirements

The Ericsson MD-110 integration supports configurations of the following components:

Phone System

Ericsson MD-110.

Software level BC6 or later.

ICU card installed to provide the serial data port.

One or more of the applicable PIMG units. For details, refer to the "Supported Circuit-Switched Phone System Integrations" section in the applicable Supported Hardware and Software, and Support Policies at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.

The serial data port on the phone system connected to the serial port on the master PIMG unit with an RS-232 serial cable.

We recommend that the serial cable have the following construction:

A maximum of 50 feet (15.24 m) in length

24 AWG stranded conductors

Low capacitance—for example, no more than 12 pF/ft (39.4 pF/m) between conductors

At least 65 percent braided shield over aluminized polymer sleeve around conductors

UL-recognized overall cable jacket insulation with low dielectric constant

Braided shield fully terminated to and enclosed by a metal connector backshell

Gold-plated connector contacts

The voice messaging ports in the phone system connected by analog lines to the ports on the PIMG units.

We recommend that you connect the voice messaging ports on the phone system to the ports on the PIMG units in a planned manner to simplify troubleshooting. For example, the first phone system voice messaging port connects to the first port on the first PIMG unit, the second phone system voice messaging port connects to the second port on the first PIMG unit, and so on.

The PIMG units connected to the same LAN or WAN that Cisco Unity is connected to.

If the PIMG units connect to a WAN, the requirements for the WAN network connections are:

For G.729a codec formatting, a minimum of 32.76 Kbps guaranteed bandwidth for each voice messaging port.


Caution If you use G.729a codec formatting over a WAN and your PIMG units use firmware release 4 SU6 or earlier, you must disable comfort noise. Otherwise, callers will hear loud comfort noise at certain points. For details, see the "Appendix: PIMG Integrations Over a WAN That Use the G.729a Codec May Need to Disable Comfort Noise" section.

For G.711 codec formatting, a minimum of 91.56 Kbps guaranteed bandwidth for each voice messaging port.

No network devices that implement network address translation (NAT).

A maximum 200 ms network latency.

The phone system ready for the integration, as described in the documentation for the phone system.

Cisco Unity Server

Cisco Unity installed and ready for the integration, as described in the applicable Cisco Unity installation guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.

A license that enables the applicable number of voice messaging ports.

Integration Description

The Ericsson MD-110 PIMG integration sends call information and MWI requests through the data link, which is an RS-232 serial cable that connects the phone system and the master PIMG unit. Voice connections are sent through the analog lines between the phone system and the PIMG units. The PIMG units communicate with the Cisco Unity server through the LAN or WAN by using Session Initiation Protocol (SIP). Figure 1 shows the required connections.

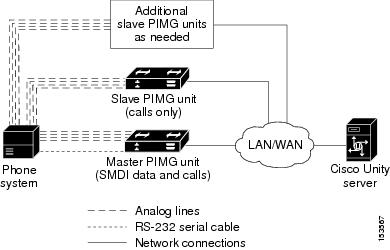

Figure 1 Connections Between the Phone System and Cisco Unity

Call Information

The phone system sends the following information through the data link:

The extension of the called party

The extension of the calling party (for internal calls) or the phone number of the calling party (if it is an external call and the system uses caller ID)

The reason for the forward (the extension is busy, does not answer, or is set to forward all calls)

Cisco Unity uses this information to answer the call appropriately. For example, a call forwarded to Cisco Unity is answered with the personal greeting of the subscriber. If the phone system routes the call to Cisco Unity without this information, Cisco Unity answers with the opening greeting.


Note The Ericsson MD-110 phone system also sends requests to turn on and turn off MWIs through the data link.


Integration Functionality

The Ericsson MD-110 integration with Cisco Unity provides the following integration features:

Call forward to personal greeting

Call forward to busy greeting

Caller ID

Easy message access (a subscriber can retrieve messages without entering an ID because Cisco Unity identifies the subscriber based on the extension from which the call originated; a password may be required)

Identified subscriber messaging (Cisco Unity identifies the subscriber who leaves a message during a forwarded internal call, based on the extension from which the call originated)

Message waiting indication (MWI)

Integrations with Multiple Phone Systems

Depending on the version, Cisco Unity can be integrated with two or more phone systems:

Cisco Unity 4.0 and 4.1 can be integrated with a maximum of two phone systems at one time. For information on and instructions for integrating Cisco Unity with two phone systems, refer to the Dual Phone System Integration Guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_configuration_guide09186a0080211b2e.html.

Cisco Unity 4.2 and later can be integrated with two or more phone systems at one time. For information on the maximum supported combinations and instructions for integrating Cisco Unity with multiple phone systems, refer to the Multiple Phone System Integration Guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_configuration_guide09186a00806192a3.html.

Planning How the Voice Messaging Ports Will Be Used by Cisco Unity

Before programming the phone system, you need to plan how the voice messaging ports will be used by Cisco Unity. The following considerations will affect the programming for the phone system (for example, setting up the hunt group or call forwarding for the voice messaging ports):

The number of voice messaging ports installed.

The number of voice messaging ports that will answer calls.

The number of voice messaging ports that will only dial out, for example, to send message notification, to set message waiting indicators (MWIs), to make AMIS deliveries, and to make telephone record and playback (TRAP) connections.

The following table describes the voice messaging port settings in Cisco Unity that can be set in UTIM, and that are displayed as read-only text on the System > Ports page of the Cisco Unity Administrator.

Table 1 Settings for the Voice Messaging Ports

Field
Considerations

Extension

Enter the extension for the port as assigned on the phone system.

Enabled

Check this check box to enable the port. The port is enabled during normal operation.

Uncheck this check box to disable the port. When the port is disabled, calls to the port get a ringing tone but are not answered. Typically, the port is disabled only by the installer during testing.

Answer Calls

Check this check box to designate the port for answering calls. These calls can be incoming calls from unidentified callers or from subscribers.

Message Notification

Check this check box to designate the port for notifying subscribers of messages. Assign Message Notification to the least busy ports.

Dialout MWI

(not used by serial or SMDI integrations)

Check this check box to designate the port for turning MWIs on and off. Assign Dialout MWI to the least busy ports.

AMIS Delivery

(available with the AMIS licensed feature only)

Check this check box to designate the port for making outbound AMIS calls to deliver voice messages from Cisco Unity subscribers to users on another voice messaging system. Cisco Unity supports the Audio Messaging Interchange Specification (AMIS) protocol, which provides an analog mechanism for transferring voice messages between different voice messaging systems.

This setting affects outbound AMIS calls only. All ports are used for incoming AMIS calls.

Because the transmission of outgoing AMIS messages may tie up voice ports for long periods of time, you may want to adjust the schedule on the Network > AMIS > Schedule page so that outgoing AMIS calls are placed during closed hours or at times when Cisco Unity is not processing many calls.

TRAP Connection

Check this check box so that subscribers can use the phone as a recording and playback device in Cisco Unity web applications and e-mail clients. Assign TRAP Connection to the least busy ports.


The Number of Voice Messaging Ports to Install

The number of voice messaging ports to install depends on numerous factors, including:

The number of calls Cisco Unity will answer when call traffic is at its peak.

The expected length of each message that callers will record and that subscribers will listen to.

The number of subscribers.

The number of ports that will be set to dial out only.

The number of calls made for message notification.

The number of MWIs that will be activated when call traffic is at its peak.

The number of AMIS delivery calls.

The number of TRAP connections needed when call traffic is at its peak. (TRAP connections are used by Cisco Unity web applications to play back and record over the phone.)

The number of calls that will use the automated attendant and call handlers when call traffic is at its peak.

It is best to install only the number of voice messaging ports that are needed so that system resources are not allocated to unused ports.

The Number of Voice Messaging Ports That Will Answer Calls

The calls that the voice messaging ports answer can be incoming calls from unidentified callers or from subscribers. Typically, the voice messaging ports that answer calls are the busiest.

You can set voice messaging ports to both answer calls and to dial out (for example, to send message notifications). However, when the voice messaging ports perform more than one function and are very active (for example, answering many calls), the other functions may be delayed until the voice messaging port is free (for example, message notifications cannot be sent until there are fewer calls to answer). For best performance, dedicate certain voice messaging ports for only answering incoming calls, and dedicate other ports for only dialing out. Separating these port functions eliminates the possibility of a collision, in which an incoming call arrives on a port at the same time that Cisco Unity takes the port off-hook to dial out.

The Number of Voice Messaging Ports That Will Only Dial Out, and Not Answer Calls

Ports that will only dial out and will not answer calls can do one or more of the following:

Notify subscribers by phone, pager, or e-mail of messages that have arrived.

Turn MWIs on and off for subscriber extensions.

Make outbound AMIS calls to deliver voice messages from Cisco Unity subscribers to users on another voice messaging system. (This action is available only with the AMIS licensed feature.)

Make a TRAP connection so that subscribers can use the phone as a recording and playback device in Cisco Unity web applications.

Typically, these voice messaging ports are the least busy ports.


Caution In programming the phone system, do not send calls to voice messaging ports in Cisco Unity that cannot answer calls (voice messaging ports that are not set to Answer Calls). For example, if a voice messaging port is set only to Dialout MWI, do not send calls to it.

Preparing for Programming the Phone System

Record your decisions about the voice messaging ports to guide you in programming the phone system.

Programming the Ericsson MD-110 Phone System

If you use programming options other than those supplied in the following procedure, the performance of the integration may be affected.

Do the following procedure.

To Program the Ericsson MD-110 Phone System


Step 1 Check the software version on the phone system and the country variant that is configured. This information may be useful for troubleshooting problems with the integration. For example:

<cadap;                          ==> Check the software version and Country variant
CALENDAR DATA

IDENTITY=ACM1
VERSION=CXP1010101/4/TSWSP02/R3A ==> 01 == Standard Application

Step 2 Configure the analog extensions for the voice messaging ports similarly to the following example:

<excap:dir=1063&1064;            ==> print analog extension
EXTENSION CATEGORY FIELDS

DIR       TRAF      SERV        CDIV       ROC       TRM       ADC        BSEC
1063      00151515  0201120600  000151000  000001    0         010001701  0
1064      00151515  0201120600  000151000  000001    0         010001701  0

Step 3 Configure the hunt group number for the voice messaging ports on the PIMG units similarly to the following example:

<vmpop:grp=all;                  ==> print VM HuntGroup number
VOICE MAIL GROUP DATA
GRP      IFCIND
4500     1

Step 4 Associate the voice messaging port extensions with the hunt group number similarly to the following example:

<vmpop:dir=all;                  ==> print VM port DN associated with the HuntGroup number
VOICE MAIL PORT DATA
DIR      PORT     IFCIND
1063     1063     1
1064     1064     1

Step 5 Configure the voice mail function information similarly to the following:

<vmfup:ifcind=1;                 ==> print VM function information
VOICE MAIL FUNCTION DATA
IFCIND   VMF    POFMT
1        EXTN3  4

Step 6 Define the I/O device interface for voice mail similarly to the following:

<ioddp;                          ==> print I/O Device interface
I/O DEVICE DATA
NODE           IODEV/SUBFS     BPOS/EQU    I/O-BUS TYPE/USAGE    STATUS    AUTH
SYSN           V-MAIL          001-0-60-3  -       OUT           IN SERVICE

Step 7 Configure the I/O device function for voice mail similarly to the following example:

<iofdp;                             ==> print I/O Device Function
I/O FUNCTIONS DEFINITION
IODEV            TRD         NDC              CALLS  WAIT  DELAY  SUPER
V-MAIL           BOTH                           2     30      5   YES

Step 8 Configure the serial connection parameters for voice mail similarly to the following example:

<ioifp;                             ==> print I/O Device serial interface parameters VM
I/O INTERFACE CHARACTERISTICS
IODEV           IFACE   BAUDR    WORDL   PARITY  STPBIT  PROC
SYSTERMINAL     V24       ALL     8      NONE     1      ECHO
V-MAIL          V24      9600     8      NONE     1      ECHO

Step 9 Configure MWIs to be sent over the serial cable similarly to the following example:

<icmwp:sid=1;                       ==> print MWI ext using on serial interface
INFORMATION COMPUTER MESSAGE WAITING DATA
SID  DTXT            KFCN DIG
1    4500            MWC  4500

Step 10 Configure the filler information similarly to the following example:

<ICFUP:ifcind=1;                    ==> print the filler information
INFORMATION COMPUTER COMMON FUNCTIONS DATA

MESSAGE WAITING FUNCTIONALITY IS ALL

INFORMATION COMPUTER EQUIPMENT DATA

IFCIND  IODEV           EQU          RATE   DFMT  UPDFCN  PARITY  CCHECK
1       V-MAIL                              4     YES
                      FILLER=48     ICEXG=NONE     USER=NONE

Step 11 Configure the hookflash timer similarly to the following example:

<aspap:parnum=253;                  ==> print Hookflash timer
APPLICATION SYSTEM PARAMETERS
PARNUM     PARVAL
   253        110

Step 12 Configure the on-hook timer similarly to the following example:

<aspap:parnum=252;                  ==> print On-hook timer
APPLICATION SYSTEM PARAMETERS
PARNUM     PARVAL
   252        225

Step 13 Program each phone to forward calls to the hunt group number (defined in Step 3), based on one of the Cisco Unity call transfer types shown in Table 2.

Table 2 Call Transfer Types

Transfer Type
Usage

Release transfer
(blind transfer)

Program the phone to forward calls to the pilot number when:

The extension is busy

The call is not answered

Supervised transfer

Program the phone to forward calls to the pilot number only when the call is not answered. Confirm that call forwarding is disabled when the extension is busy.



Setting Up the PIMG Units

Do the following procedures to set up the PIMG units that are connected to the Ericsson MD-110 phone system.

These procedures require that the following tasks have already been completed:

The phone system is connected to the PIMG units by using analog lines and the applicable RS-232 serial cable.

The PIMG units are ready to be connected to the LAN or WAN.

The PIMG units are connected to a power source.

Fields that are not mentioned in the following procedures must keep their default values. For the default values of all fields, see the documentation for the PIMG unit.

To Download the PIMG Firmware Update Files for Analog PIMG Units


Step 1 On a Windows workstation that will have access to the PIMG units, open a web browser and go to the Cisco Unity PIMG Software Download page at http://www.cisco.com/cgi-bin/tablebuild.pl/unity-PIMG.


Note To access the software download page, you must be logged on to Cisco.com as a registered user.


Step 2 On the Cisco Unity PIMG Software Download page, click the most recent version of the firmware for analog PIMG units.

Step 3 On the Details page, click Next.

Step 4 On the Document page, click Accept.

Step 5 In the Enter Network Password dialog box, enter your user name and password, then click OK.

Step 6 In the File Download dialog box, click Save.

Step 7 In the Save As dialog box, browse to the Windows workstation that will have access the PIMG units, browse to a directory where you want to save the file, and click Save.

Step 8 In the Download Complete dialog box, click Open. The window for extracting the PIMG firmware update files appears.

Step 9 Click Extract.

Step 10 In the Extract dialog box, browse to the directory where you want the extracted files, and click Extract.

Step 11 Close the window for the extracting application.


To Set Up the Analog PIMG Units


Step 1 On the Windows workstation, add a temporary route to enable access to the PIMG units.

a. On the Windows Start menu, click Run.

b. Enter cmd, and press Enter. The Command Prompt window appears.

c. At the command prompt, enter route add 10.12.13.74 <IP Address of Workstation>, and press Enter.

For example, if the IP address of the workstation is 198.1.3.25, enter "route add 10.12.13.74<space>198.1.3.25" in the Command Prompt window.

d. Close the Command Prompt window.

Step 2 Connect a PIMG unit to the network.

Step 3 In the web browser, go to http://10.12.13.74.

Step 4 On the System Login page, enter the following case-sensitive settings.

Table 3 System Login Page Settings

Field
Setting

Username

admin

Password

IpodAdmin


Step 5 Click Log On.

Step 6 On the Configure menu, click Upgrade.

Step 7 On the Upgrade page, click Browse.

Step 8 In the Choose File dialog box, browse to the directory on the Windows workstation that has the extracted PIMG firmware update files.

Step 9 Click Ls_<xx>.app (where <xx> is multiple digits), and click Open.

Step 10 On the Upgrade page, click Install.

Step 11 After the file is installed, a message prompting you to restart the PIMG unit appears. Click Cancel.


Caution Do not restart the PIMG unit until you are instructed to do so later in this procedure, even if the file installation fails. Restarting the PIMG unit at this step may prevent the PIMG unit from functioning correctly.

Step 12 Repeat Step 6 through Step 11 for the file Run_<xx>.dsp.

Step 13 On the Configure menu, click Upgrade.

Step 14 On the Upgrade page, under Import, click Browse.

Step 15 In the Choose File dialog box, browse to the file Ls_<xx>.fsh.

Step 16 Click Ls_<xx>.fsh, and click Open.

Step 17 On the Upgrade page, click Install.

Step 18 After the file is installed, a message prompting you to restart the PIMG unit appears. Click OK.

Step 19 In the web browser, go to http://10.12.13.74.

Step 20 On the System Login page, enter the following case-sensitive settings.

Table 4 System Login Page Settings

Field
Setting

Username

admin

Password

IpodAdmin


Step 21 Click Log On.

Step 22 On the Configure menu, click Password.

Step 23 On the Password page, enter the following settings.

Table 5 Password Page Settings

Field
Setting

Old Password

IpodAdmin

(This setting is case sensitive.)

New Password

<your new password>

(This setting is case sensitive.)

Confirm Password

<your new password>

(This setting is case sensitive.)


Step 24 Click Change.

Step 25 On the Configure menu, click System.

Step 26 On the System page, enter the following settings.

Table 6 System Page Settings

Field
Setting

Operating Mode

SIP

Telephony Switch Type

None

PCM Coding

uLaw


Step 27 Click Apply Changes.

Step 28 On the Configure menu, click Serial Protocol.

Step 29 On the Serial Protocol page, enter the following settings.

Table 7 Serial Protocol Page Settings

Field
Setting

Serial Mode

Click the applicable setting:

Master—This PIMG unit is connected to the data link serial cable from the phone system. There can be only one master PIMG unit in a phone system integration.

Slave—This PIMG unit is not connected to the data link serial cable from the phone system. There can be multiple slave PIMG units in a phone system integration.

Serial Interface Protocol

MD110

Cpid Len

Click the applicable setting. Typically, the settings are 7 or 10.

Cpid Padding String

Leave this field blank or enter the applicable string.

Voice Mail Port Len

2

System Number

1

MWI Response Timeout

2000

IP Address of Serial Server

If the PIMG unit is the master, leave this field blank.

If the PIMG unit is a slave, enter the IP address of the master PIMG unit (the PIMG unit that is connected to the data link serial cable from the phone system).

Serial Cpid Expiration

2000

Logical Extension Number

Enter the extension number for each port on the PIMG unit.


Step 30 Click Apply Changes.

Step 31 On the Configure menu, click Gateway.

Step 32 On the Gateway page, click the Gateway Routing tab.

Step 33 On the Gateway Routing tab, enter the following settings.

Table 8 Gateway Routing Tab Settings

Field
Setting

Fault Tolerance Enabled

(Cisco Unity without failover) No

(Cisco Unity with failover configured) Yes

Load Balancing Enabled

No

VoIP Endpoint ID:
1

(Cisco Unity without failover) <the IP address of the Cisco Unity server>

(Cisco Unity with failover configured) <the name the primary Cisco Unity server; this setting must match the Contact Line Name field setting in UTIM>

VoIP Endpoint ID:
2

(Cisco Unity without failover) <blank>

(Cisco Unity with failover configured) <the name the secondary Cisco Unity server; this setting must match the Contact Line Name field setting in UTIM>


Step 34 Click Apply Changes.

Step 35 Click the Gateway Advanced tab.

Step 36 On the Gateway Advanced tab, enter the following settings.

Table 9 Gateway Advanced Tab Settings

Field
Setting

Call Connect Mode

OnAnswer

Destination for Unroutable IP Calls

<blank>

Destination for Unroutable PBX Calls

<blank>

Monitor Call Connections

No

Maximum Call Party Delay (msecs)

2000

Dial Digit on Time (msecs)

100

Dial Inter-Digit Time (msecs)

100

Dial Pause Time (msecs)

2000

Turn MWI On FAC

<blank>

Turn MWI Off FAC

<blank>

Outbound Call Connect Timeout (msecs)

10000

Wait for Ringback/Connect on Blind Transfer

Yes

Hunt Group Extension

<the pilot number for the Cisco Unity voice messaging ports>

Audio Compression

Click the preferred codec for audio compression:

G.711 Only

G.729 A Preferred

RTP Digit Relay Mode

RFC2833

Signaling Digit Relay Mode

Off

Voice Activity Detection

Off

Frame Size

Click the applicable setting:

G.711—20

G.729a—10


Caution Failure to use the correct setting will result in recorded messages containing nothing but silence.

Frames Per Packet

Click the applicable setting:

G.711—1

G.729a—2


Caution Failure to use the correct setting will result in recorded messages containing nothing but silence.

Call Control QOS Byte

(PIMG units connect only to a LAN) 0

(PIMG units connect to a WAN) 104


Note For details on the setting for a LAN, see the caveat CSCsb96387.


RTP QOS Byte

(PIMG units connect only to a LAN) 0

(PIMG units connect to a WAN) 184


Note For details on the setting for a LAN, see the caveat CSCsb96387.


SNMP Traps Enabled

No

E-mail Alarms Enabled

No


Step 37 Click Apply Changes.

Step 38 Click the Gateway Capabilities tab.

Step 39 Depending on how you have planned to use the voice messaging ports, click the applicable setting for each port in the Telephony Port Capability column.

Table 10 Gateway Capabilities Tab Settings

Telephony Port Capability Settings
Voice Messaging Port Usage

Calls-Only

The port will answer incoming calls only and will not dial out (for example, to send message notifications).

MWIs-Only

The port will dial out only (for example, to send message notifications) and will not answer incoming calls.

Both

The port will answer incoming calls and will also dial out (for example, to send message notifications).



Caution In setting up the PIMG unit, do not send calls to ports in Cisco Unity that cannot answer calls (voice messaging ports that are not set to Answer Calls). For example, if a voice messaging port is set only to Dialout MWI, do not send calls to it. Otherwise the integration will not function correctly.

If a port in Cisco Unity is disabled, click No in the Telephony Port Enabled column for the corresponding port on this tab. Note that changing a setting in the Telephony Port Enabled column requires restarting the PIMG unit.

Step 40 Click Apply Changes.

Step 41 On the Configure menu, click SIP.

Step 42 On the SIP page, enter the following settings.

Table 11 SIP Page Settings

Field
Setting

Host and Domain Name

<the domain name of the PIMG unit>

Server Port

5060

Primary Proxy Server Address

(Cisco Unity without failover) <the IP address of the Cisco Unity server>

(Cisco Unity with failover configured) <the IP address of the primary Cisco Unity server>

Primary Proxy Server Port

5060

(When you configure more than one PIMG unit, increase this setting by 1 for each successive unit. For example, unit 2 will be 5061, unit 3 will be 5062, and so on. For failover, this setting must match the setting for the Backup Proxy Server Port field.)

Backup Proxy Server Address

(Cisco Unity without failover) Not applicable; leave the default setting.

(Cisco Unity with failover configured) <the IP address of the secondary Cisco Unity server>

Backup Proxy Server Port

(Cisco Unity without failover) Not applicable; leave the default setting.

(Cisco Unity with failover configured) 5060

(When you configure more than one PIMG unit, increase this setting by 1 for each successive unit. For example, unit 2 will be 5061, unit 3 will be 5062, and so on. For failover, this setting must match the setting for the Primary Proxy Server Port field.)

Proxy Query Interval

10

T1 Time

400

T2 Time

3000


Step 43 Click Apply Changes.

Step 44 On the Configure menu, click IP.

Step 45 On the IP page, enter the following settings.

Table 12 IP Page Settings

Field
Setting

Client IP Address

<the new IP address you want to use for the PIMG unit>

(This is the IP address that you will enter in UTIM when you create the integration.)

Client Subnet Mask

<the new subnet mask, if the subnet mask is different from the default IP address>

Default Network Gateway Address

<the IP address of the default network gateway router that the PIMG units will use>

BOOTP Enabled

No


Step 46 Click Apply Changes.

Step 47 On the Configure menu, click Tones.

Step 48 On the Tones page, click the Learn tab.


Caution Destination addresses cannot be duplicated in the same session. Otherwise, the process for learning tones will not succeed. If you do not have enough available phones to learn all the tones at one time, you can run multiple sessions to learn tones individually by checking or unchecking the applicable Acquire Tone check boxes.

Step 49 On the Tones page, for the Dialtone event, confirm that the Acquire Tone check box is checked and leave the Destination Address field blank.

Step 50 On the Tones page, for the Busy Tone event, confirm that the Acquire Tone check box is checked and do the following substeps to verify that the tone is correct.

a. From a available phone, call a second phone.

b. Answer the second phone when it rings, and leave both handsets off so that both phones are busy.

c. From a third phone, dial one of the busy phones.

d. Confirm that you hear a busy tone.

e. Hang up the third phone but leave the handsets for the other two phones off.

Step 51 On the Tones page, in the Destination Address field for Busy Tone, enter the extension that you dialed in Step 50c. from the third phone.

Step 52 On the Tones page, for the Error/Reorder Tone event, confirm that the Acquire Tone check box is checked and do the following substeps to verify that the tone is correct.

a. From an available phone, dial an extension that does not exist.

b. Confirm that you hear the reorder or error tone.

c. Hang up the phone.

Step 53 On the Tones page, in the Destination Address field for Error/Reorder Tone, enter the extension that you dialed in Step 52a.

Step 54 On the Tones page, for the Ringback Tone event, confirm that the Acquire Tone check box is checked and do the following substeps to verify that the tone is correct.

a. From an available phone, dial an extension that does exist

b. Confirm that you hear the ringback tone.

c. Hang up the phone.

Step 55 On the Tones page, in the Destination Address field for Ringback Tone, enter the extension that you dialed in Step 54a.

Step 56 Click Learn.


Note When running learn tones, the PIMG unit will restart after learning the first tone. For details, see the caveat CSCsh53791.


Step 57 When the process is complete, check the check box for each newly learned tone and click Apply.

Step 58 Hang up the phones that you used in Step 50.

Step 59 On the Configure menu, click Restart.

Step 60 On the Restart page, click Restart Unit Now.

Step 61 When the PIMG unit has restarted, in the View menu, click Refresh.

Step 62 Repeat Step 2 through Step 61 on all remaining PIMG units.


Creating a New Integration with the Ericsson MD-110 Phone System

After ensuring that the Ericsson MD-110 phone system and the Cisco Unity server are ready for the integration, do the following procedures to set up the integration and to enter the port settings.

To Create an Integration


Step 1 If UTIM is not already open, on the Windows Start menu of the Cisco Unity server, click Programs > Cisco Unity > Manage Integrations. UTIM appears.

Step 2 In the left pane of the UTIM window, click Cisco Unity Server.

Step 3 On the Integration menu of the UTIM window, click New. The Telephony Integration Setup Wizard appears.

Step 4 On the Welcome page, click Circuit-switched via Intel PIMG and click Next.

Step 5 On the Name the Phone System Integration page, accept the default name or enter the phone system name to identify this integration, then click Next.

Step 6 On the Enter PIMG Settings page, click Add.

Step 7 In the Add PIMG dialog box, enter the following settings, then click OK.

Table 13 Settings for the Add PIMG Dialog Box

Field
Setting

Display Name

<accept the default name or enter another name to identify this PIMG unit>

IP Address

<the IP address of this PIMG unit>

SIP Port

5060

Phone Lines (Ports) Connected

8

<if you want to use fewer than eight voice messaging ports, enter the number of ports (or phone lines) that you want to use with this PIMG unit>


Step 8 Repeat Step 6 and Step 7 for each remaining PIMG unit that you are connecting to the Cisco Unity server.

You can press the following buttons to modify, delete, or verify the PIMG units that you are connecting to the Cisco Unity server.

Table 14 Buttons on the Enter PIMG Settings Page

Button
Action

Add

Displays the Add PIMG dialog box to add another PIMG unit to the integration.

Modify

Displays the Modify PIMG dialog box so that you can modify the settings of the selected PIMG unit.

Delete

Deletes the selected PIMG unit from the integration.

Ping Servers

Confirms that the IP address is correct for all PIMG units.

Licensing

Displays a list of the licensed, used, and available voice messaging ports on the Cisco Unity server.


Step 9 On the Enter PIMG Settings page, click Next.

Step 10 On the PIMG Integration with the PBX page, click Yes.

Step 11 In the This PIMG Is the Serial Master field, click the name of the PIMG unit that is connected to the serial cable from the phone system, then click Next.

Step 12 On the Configure Cisco Unity SIP Settings page, enter the following settings, then click Next.

Table 15 Settings for the Configure Cisco Unity SIP Settings Page

Field
Setting

Contact Line Name

(Cisco Unity without failover) <the voice messaging line name that subscribers use to contact Cisco Unity and that Cisco Unity will use to register with the PIMG units>

(Cisco Unity with failover configured) <the name the primary Cisco Unity server; this setting must match the Port X Endpoint parameter settings in the PIMG administration; this setting must be the same for both the primary and the secondary Cisco Unity servers>

Cisco Unity SIP Port

<the IP port on Cisco Unity that callers and the SIP server use to connect to voice mail; we recommend using the default setting>

Preferred Codec

<the codec Cisco Unity will first attempt to use on outgoing calls>


Step 13 If other integrations already exist, the Enter Trunk Access Code page appears. Enter the extra digits that Cisco Unity must use to transfer calls through the gateway to extensions on the other phone systems with which it is integrated. Then click Next.

Step 14 (Cisco Unity 4.2 and later only) On the Reassign Subscribers page, any subscribers whose phone system integration has been deleted and who are not currently assigned to a phone system integration will appear in the list.

If no subscribers appear in the list, click Next and continue to Step 15.

Otherwise, select the subscribers that you want to assign to this phone system integration and click Next. You can use the following selection controls for selecting subscribers.

Table 16 Selection Controls for the Reassign Subscribers Page

Selection Control
Effect

Check All

Checks the check boxes for all subscribers in the list.

Uncheck All

Unchecks the check boxes for all subscribers in the list.

Toggle Selected

For the subscribers highlighted in the list, toggles between checking and unchecking the check boxes.

If some highlighted subscriber check boxes are checked and others are unchecked, clicking this button will check all the check boxes. Clicking again will uncheck all the check boxes.


Step 15 (Cisco Unity 4.2 and later only) On the Reassign Call Handlers page, any call handlers whose phone system integration has been deleted and that are not currently assigned to a phone system integration will appear in the list.

If no call handlers appear in the list, click Next and continue to Step 16.

Otherwise, select the call handlers that you want to assign to this phone system integration and click Next. You can use the following selection controls for selecting call handlers.

Table 17 Selection Controls for the Reassign Call Handlers Page

Selection Control
Effect

Check All

Checks the check boxes for all call handlers in the list.

Uncheck All

Unchecks the check boxes for all call handlers in the list.

Toggle Selected

For the call handlers highlighted in the list, toggles between checking and unchecking the check boxes.

If some highlighted call handler check boxes are checked and others are unchecked, clicking this button will check all the check boxes. Clicking again will uncheck all the check boxes.


Step 16 On the Completing page, verify the settings you entered, then click Finish.

Step 17 At the prompt to restart the Cisco Unity services, click Yes. The Cisco Unity services restart.

Alternatively, you can restart the Cisco Unity services in UTIM on the Tools menu by clicking Restart Cisco Unity.


To Enter the Voice Messaging Port Settings for the Integration


Step 1 After the Cisco Unity services restart, on the View menu, click Refresh.

Step 2 In the left pane of the UTIM window, expand the phone system integration that you are creating.

Step 3 In the left pane, click the name of the first PIMG unit.

Step 4 In the right pane, click the Ports tab.

Step 5 Enter the settings shown in Table 18 for the voice messaging ports.

For best performance, use the first voice messaging ports for incoming calls and the last ports to dial out. This helps minimize the possibility of a collision, in which an incoming call arrives on a port at the same time that Cisco Unity takes the port off-hook to dial out.


Caution In programming the phone system, do not send calls to voice messaging ports in Cisco Unity that cannot answer calls (voice messaging ports that are not set to Answer Calls). For example, if a voice messaging port is set only to Message Notification, do not send calls to it.

Table 18 Settings for the Voice Messaging Ports

Field
Considerations

Extension

Enter the extension for the port as assigned on the phone system.

Enabled

Check this check box to enable the port. The port is enabled during normal operation.

Uncheck this check box to disable the port. When the port is disabled, calls to the port get a ringing tone but are not answered. Typically, the port is disabled only by the installer during testing.

Answer Calls

Check this check box to designate the port for answering calls. These calls can be incoming calls from unidentified callers or from subscribers.

Message Notification

Check this check box to designate the port for notifying subscribers of messages. Assign Message Notification to the least busy ports.

Dialout MWI

(not used by serial or SMDI integrations)

Check this check box to designate the port for turning MWIs on and off. Assign Dialout MWI to the least busy ports.

AMIS Delivery

(available with the AMIS licensed feature only)

Check this check box to designate the port for making outbound AMIS calls to deliver voice messages from Cisco Unity subscribers to users on another voice messaging system. Cisco Unity supports the Audio Messaging Interchange Specification (AMIS) protocol, which provides an analog mechanism for transferring voice messages between different voice messaging systems.

This setting affects outbound AMIS calls only. All ports are used for incoming AMIS calls.

Because the transmission of outgoing AMIS messages may tie up voice ports for long periods of time, you may want to adjust the schedule on the Network > AMIS > Schedule page so that outgoing AMIS calls are placed during closed hours or at times when Cisco Unity is not processing many calls.

TRAP Connection

Check this check box so that subscribers can use the phone as a recording and playback device in Cisco Unity web applications and e-mail clients. Assign TRAP Connection to the least busy ports.


Step 6 Click Save.

Step 7 Click the SIP Info tab.

Step 8 (Cisco Unity 4.2 and later) Uncheck the Register with SIP Server check box and click Save.

(Cisco Unity 4.0 and 4.1) Uncheck the Register with Proxy Server check box and click Save.

Step 9 At the prompt to restart the Cisco Unity services, click No.

Step 10 Repeat Step 3 through Step 9 for all remaining PIMG units.

Step 11 In the left pane, click Properties for the phone system.

Step 12 In the right pane, click the PIMG tab.

Step 13 Under Set Messaging Waiting Indicators (MWI) Using This Method, confirm that the Out-of-Band - SIP NOTIFY option is selected.

Step 14 Click Save.

Step 15 At the prompt to restart the Cisco Unity services, click Yes.

Step 16 After the Cisco Unity services restart, exit UTIM.



Caution Do not edit the phone configuration file (also known as the switch ini file) to customize this integration. If you change the settings in this file, the integration may not function correctly.

Testing the Integration

To test whether Cisco Unity and the phone system are integrated correctly, do the following procedures in the order listed.

If any of the steps indicate a failure, refer to the following documentation as applicable:

The installation guide for the phone system.

Cisco Unity Troubleshooting Guide, available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_troubleshooting_guides_list.html.

The setup information earlier in this guide.

To Set Up the Test Configuration


Step 1 Set up two test extensions (Phone 1 and Phone 2) on the same phone system that Cisco Unity is connected to.

Step 2 Set Phone 1 to forward calls to the Cisco Unity pilot number when calls are not answered.


Caution The phone system must forward calls to the Cisco Unity pilot number in no fewer than four rings. Otherwise, the test may fail.

Step 3 In the Cisco Unity Administrator, create a test subscriber to use for testing by doing the applicable substeps below.

If your message store is Microsoft Exchange, do the following:

a. In the Cisco Unity Administrator, go to the Subscribers > Subscribers > Profile page.

b. Click the Add icon.

c. Select New Exchange Subscriber.

d. On the Add Subscriber page, enter the applicable information.

e. Click Add.

If your message store is IBM Lotus Domino, do the following:

a. In the Cisco Unity Administrator, go to the Subscribers > Subscribers > Profile page.

b. Click the Add icon.

c. Click Notes.

d. In the Address Book list, confirm that the address book listed is the one that contains the user data that you want to import.

If the address book that you want to use is not listed, go to the System > Configuration > Subscriber Address Books page and add a different address book.

e. In the Find Domino Person By list, indicate whether to search by short name, first name, or last name.

f. Enter the applicable short name or name. You also can enter * to display a list of all users, or enter one or more characters followed by * to narrow your search.

g. Click Find.

h. On the list of matches, click the name of the user to import.

i. On the Add Subscriber page, enter the applicable information.

j. Click Add.

Step 4 In the Extension field, enter the extension of Phone 1.

Step 5 In the Active Schedule field, click All Hours - All Days.

Step 6 Click the Save icon.

Step 7 In the navigation bar, click Call Transfer to go to the Subscribers > Subscribers > Call Transfer page for the test subscriber.

For more information on transfer settings, refer to the "Subscriber Template Call Transfer Settings" section in the Cisco Unity Administrator Help.

Step 8 Under Transfer Incoming Calls, click Yes, Ring Subscriber's Extension, and confirm that the extension number is for Phone 1.

Step 9 Under Transfer Type, click Release to Switch.

Step 10 Click the Save icon.

Step 11 In the navigation bar, click Messages to go to the Subscribers > Subscribers > Messages page for the test subscriber.

Step 12 Under Message Waiting Indicators (MWIs), check Use MWI for Message Notification.

Step 13 In the Extension field, enter x.

Step 14 Click the Save icon.

Step 15 Open the Status Monitor by doing one of the following:

In Internet Explorer, go to http://<Cisco Unity server name>/web/sm.

Double-click the desktop shortcut to the Status Monitor.

In the status bar next to the clock, right-click the Cisco Unity tray icon and click Status Monitor.


To Test an External Call with Release Transfer


Step 1 From Phone 2, enter the access code necessary to get an outside line, then enter the number outside callers use to dial directly to Cisco Unity.

Step 2 On the Status Monitor, note which port handles this call.

Step 3 When you hear the opening greeting, enter the extension for Phone 1. Hearing the opening greeting means that the port is configured correctly.

Step 4 Confirm that Phone 1 rings and that you hear a ringback tone on Phone 2. Hearing a ringback tone means that Cisco Unity correctly released the call and transferred it to Phone 1.

Step 5 Leaving Phone 1 unanswered, confirm that the state of the port handling the call changes to "Idle." This state means that release transfer is successful.

Step 6 Confirm that, after the number of rings that the phone system is set to wait, the call is forwarded to Cisco Unity and that you hear the greeting for the test subscriber. Hearing the greeting means that the phone system forwarded the unanswered call and the call-forward information to Cisco Unity, which correctly interpreted the information.

Step 7 On the Status Monitor, note which port handles this call.

Step 8 Leave a message for the test subscriber and hang up Phone 2.

Step 9 On the Status Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.

Step 10 Confirm that the MWI on Phone 1 is activated. The activated MWI means that the phone system and Cisco Unity are successfully integrated for turning on MWIs.


To Test Listening to Messages


Step 1 From Phone 1, enter the internal pilot number for Cisco Unity.

Step 2 When asked for your password, enter the default password. Hearing the request for your password means that the phone system sent the necessary call information to Cisco Unity, which correctly interpreted the information.

Step 3 Confirm that you hear the recorded voice name for the test subscriber (if you did not record a voice name for the test subscriber, you will hear the extension number for Phone 1). Hearing the voice name means that Cisco Unity correctly identified the subscriber by the extension.

Step 4 When asked whether you want to listen to your message, press 1.

Step 5 After listening to the message, press 3 to delete the message.

Step 6 Confirm that the MWI on Phone 1 is deactivated. The deactivated MWI means that the phone system and Cisco Unity are successfully integrated for turning off MWIs.

Step 7 Hang up Phone 1.

Step 8 On the Status Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.


To Set Up Supervised Transfer on Cisco Unity


Step 1 In the Cisco Unity Administrator, go to the Subscribers > Subscribers > Call Transfer page.

If the name of the test subscriber is not displayed, click the Find icon (the magnifying glass) in the title bar, then click Find, and select the name of the test subscriber in the list that appears.

For more information on transfer settings, refer to the "Subscriber Template Call Transfer Settings" section in the Cisco Unity Administrator Help.

Step 2 Under Transfer Type, click Supervise Transfer.

Step 3 Set the Rings to Wait For field to 3.

Step 4 Click the Save icon.


To Test Supervised Transfer


Step 1 From Phone 2, enter the access code necessary to get an outside line, then enter the number outside callers use to dial directly to Cisco Unity.

Step 2 On the Status Monitor, note which port handles this call.

Step 3 When you hear the opening greeting, enter the extension for Phone 1. Hearing the opening greeting means that the port is configured correctly.

Step 4 Confirm that Phone 1 rings and that you do not hear a ringback tone on Phone 2. Instead, you should hear the indication your phone system uses to mean that the call is on hold (for example, music or beeps).

Step 5 Leaving Phone 1 unanswered, confirm that the state of the port handling the call remains "Busy." This state and hearing an indication that you are on hold mean that Cisco Unity is supervising the transfer.

Step 6 Confirm that, after three rings, you hear the greeting for the test subscriber. Hearing the greeting means that Cisco Unity successfully recalled the supervised-transfer call.

Step 7 During the greeting, hang up Phone 2.

Step 8 On the Status Monitor, confirm that the state of the port handling the call changes to "Idle." This state means that the port was successfully released when the call ended.


To Delete the Test Subscriber


Step 1 In the Cisco Unity Administrator, go to the Subscribers > Subscribers > Profile page.

If the name of the test subscriber is not displayed, click the Find icon (the magnifying glass) in the title bar, then click Find, and select the name of the test subscriber in the list that appears.

Step 2 In the title bar, click the Delete Subscriber icon (the X).

Step 3 Click Delete.


Integrating a Secondary Server for Cisco Unity Failover

For Cisco Unity 4.1 and later, the Cisco Unity failover feature enables a secondary server to provide voice messaging services when the primary server becomes inactive. For information on installing a secondary server for failover, refer to the applicable Cisco Unity installation guide, available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.

The Cisco Unity failover feature is not available when this phone system is integrated with Cisco Unity 4.0 through PIMG units.

For information on failover, refer to the Cisco Unity Failover Configuration and Administration Guide. The Domino version of the guide is available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/products_feature_guide_book09186a00803f70f3.html. The Exchange version of the guide is available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/products_feature_guide_book09186a00801b9241.html.

Requirements

The following components are required to integrate a secondary server:

One secondary server for each primary server installed and ready for the integration, as described in the applicable Cisco Unity installation guide and earlier in this integration guide.

A license that enables failover.

Integration Description

The Ericsson MD-110 phone system sends call information and MWI requests through the data link, which consists of an RS-232 serial cable between the phone system and the master PIMG unit. Voice connections are sent through the analog lines between the phone system and the PIMG units. The PIMG units communicate with the primary and secondary servers through the LAN or WAN by using Session Initiation Protocol (SIP). Figure 2 shows the required connections.

Figure 2 Connections Between the Phone System and the Cisco Unity Servers

The primary and secondary servers act in the following manner:

When the primary server is operating normally, the secondary server is inactive.

When the primary server becomes inactive, the secondary server becomes active.

When the primary server becomes active again, the secondary server becomes inactive.

Setting Up the Secondary Server for Failover

Do the following procedure to integrate the secondary server.

To Set Up the Secondary Server for Failover


Step 1 Install a secondary server with the same configuration as the primary server. For installation instructions, refer to the applicable Cisco Unity installation guide.

Step 2 On the Windows Start menu of the secondary server, click Programs > Cisco Unity > Manage Integrations. The UTIM window appears.

Step 3 On the Integration menu of the UTIM window, click New. The Telephony Integration Setup Wizard appears.

Step 4 Enter the settings to match the integration settings on the primary server.


Note We recommend not reassigning any unassigned subscribers and call handlers to the new integration, if you are asked by the wizard. Failover replication will automatically assign the correct integration.


Step 5 At the prompt to restart the Cisco Unity services, click Yes.


Note When restarting the Cisco Unity services, use the UTIM prompt instead of the Cisco Unity icon in the Windows taskbar. The taskbar icon does not restart all of the Cisco Unity services.


Step 6 After Cisco Unity restarts, on the Windows Start menu of the Cisco Unity server, click Programs > Cisco Unity > Manage Integrations. UTIM appears.

Step 7 In the left pane of the UTIM window, click the phone system integration that you created in Step 3.

Step 8 For Cisco Unity 4.0 and 4.1, continue to Step 9.

For Cisco Unity 4.2 and later, do the following substeps.

a. In the right pane, click Properties.

b. On the Integration tab, compare the setting of the Integration ID field for the secondary server to the setting of the Integration ID field for the primary server.

c. If the integration IDs of the phone system on the primary and secondary server are the same, continue to Step 9.

If the integration IDs of the phone system on the primary and secondary servers are different, on the secondary server, click Modify Integration ID.

d. When cautioned that subscribers associated with the current Integration ID setting will not be automatically associated with the new Integration ID setting, click OK.

e. In the Modify Integration ID dialog box, in the Enter New Integration ID field, enter the Integration ID setting for the phone system on the primary server and click OK.

f. Click Save.

g. At the prompt to restart the Cisco Unity services, click Yes.

h. In the left pane, click the phone system integration that you created in Step 3.

Step 9 In the right pane, click the Ports tab.

Step 10 Enter the port settings to match the port settings on the primary server.


Caution In programming the phone system, do not send calls to voice messaging ports in Cisco Unity that cannot answer calls (voice messaging ports that are not set to Answer Calls). For example, if a voice messaging port is set only to Message Notification, do not send calls to it.

Step 11 Click Save.

Step 12 Repeat Step 9 through Step 11 for each remaining PIMG unit in the phone system integration.

Step 13 Exit UTIM.



Appendix: PIMG Integrations Over a WAN That Use the G.729a Codec May Need to Disable Comfort Noise



Note This appendix applies only to systems that use PIMG units with PIMG firmware release 4, SU6 or earlier.


When the PIMG units connect to a WAN, use the G.729a codec, and have firmware release 4 SU6 or earlier, you must disable comfort noise. Otherwise, callers will hear loud comfort noise after pressing a DTMF key or between prompts when recording a message.

To Disable Comfort Noise


Step 1 On the Cisco Unity server, on the Start menu, click Run.

Step 2 In the Run dialog box, enter regedit and click OK.


Caution Changing the wrong registry key or entering an incorrect value can cause the server to malfunction. Before you edit the registry, confirm that you know how to restore it if a problem occurs. (Refer to the "Restoring" topics in Registry Editor Help.) Note that for a Cisco Unity failover system, registry changes on one Cisco Unity server must be made manually on the other Cisco Unity server, because registry changes are not replicated. If you have any questions about changing registry key settings, contact Cisco TAC.

Step 3 If you do not have a current backup of the registry, save the registry settings to a file by doing the following depending on the Windows version:

Windows 2003

Click File > Export.

Windows 2000

Click Registry > Export Registry File.


Step 4 Expand the registry key
HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Avaudio\Parameters
and double-click the ComfortNoise value in the right pane.

Step 5 In the Edit DWORD Value dialog box, under Base, click Decimal.

Step 6 In the Value Date field, enter 128.

Step 7 Click OK.

Step 8 Exit the Registry Editor.

Step 9 Restart the Cisco Unity server.

Step 10 If you are using failover, repeat this procedure to apply the registry setting to the secondary Cisco Unity server.



Appendix: Documentation and Technical Assistance


Conventions

The Ericsson MD-110 Serial PIMG Integration Guide for Cisco Unity 4.0 uses the following conventions.

Table 19 Ericsson MD-110 Serial PIMG Integration Guide for Cisco Unity 4.0 Conventions

Convention
Description

boldfaced text

Boldfaced text is used for:

Key and button names. (Example: Click OK.)

Information that you enter. (Example: Enter Administrator in the User Name box.)

< >

(angle brackets)

Angle brackets are used around parameters for which you supply a value. (Example: In the Command Prompt window, enter ping <IP address>.)

-

(hyphen)

Hyphens separate keys that must be pressed simultaneously. (Example: Press Ctrl-Alt-Delete.)

>

(right angle
bracket)

A right angle bracket is used to separate selections that you make:

On menus. (Example: On the Windows Start menu, click Settings > Control Panel > Phone and Modem Options.)

In the navigation bar of the Cisco Unity Administrator. (Example: Go to the System > Configuration > Settings page.)

[x]

(square brackets)

Square brackets enclose an optional element (keyword or argument). (Example: [reg-e164])

[x | y]

(vertical line)

Square brackets enclosing keywords or arguments separated by a vertical line indicate an optional choice. (Example: [transport tcp | transport udp])

{x | y}

(braces)

Braces enclosing keywords or arguments separated by a vertical line indicate a required choice. (Example: {tcp | udp})


The Ericsson MD-110 Serial PIMG Integration Guide for Cisco Unity 4.0 also uses the following conventions:


Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the document.



Caution Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.

For descriptions and URLs of Cisco Unity documentation on Cisco.com, see the About Cisco Unity Documentation. The document is shipped with Cisco Unity and is available at http://www.cisco.com/univercd/cc/td/doc/product/voice/c_unity/about/aboutdoc.htm.

Obtaining Documentation, Obtaining Support, and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
