Software Configuration for Integrated Applications

These instructions provide information for installing and configuring Unified Intelligent Contact Manager (Unified ICM) Release 9.0 software as part of a system integrated with the integrated applications.


Note
For detailed information about the Unified Email Interaction Manager (Unified EIM) and Unified Web Interaction Manager (Unified WIM) applications, refer to the system administration documentation at http://www.cisco.com/en/US/products/ps7233/prod_maintenance_guides_list.html.

For additional information about the system software, refer to the Cisco web site listing Unified ICM documentation: http://www.cisco.com/web/psa/products/index.html

For a high-level overview of integrating the applications with the system software, refer to the Cisco Customer Contact Suite Implementation Map that is delivered with the system software.

Important: While performing the tasks outlined in this chapter, be sure to note the system software configuration information, as you will need to enter this information when configuring the integrated applications.

9.0 software requirements

Important: Do not install the system software and the integrated applications on the same machine.

Before you begin configuring the system software for the integrated applications, you must upgrade the system software.

For complete and current information on software requirements, refer to the Hardware & System Software Specification (Bill of Materials) for Cisco Unified ICM/Contact Center Enterprise & Hosted, Release 9.0(1). The Unified ICM BOM is available at: http://www.cisco.com/cisco/web/support/index.html.

Refer to the Upgrade Guide for Cisco Unified ICM/Contact Center Enterprise & Hosted for specific upgrade and installation requirements.

Install the application interface

Important: You must install the application interface before beginning the Unified ICM configuration.

If you want your Administration & Data Server to be the point of contact for the integrated applications configuration (to host the CMS Server), you need to perform this installation.

Refer to the Installation Guide for Cisco Unified ICM/Contact Center Enterprise & Hosted for detailed information about the Administration & Data Server setup.

To install the application interface:

Procedure
    Step 1   Run the Web Setup tool (accessed from the Unified Contact Center Enterprise [Unified CCE] Tools folder).
    Step 2   Select Component Management > Administration & Data Servers.
    Step 3   Edit the Administration & Data Server on which the Distributor Service is running.
    Step 4   On the Database and Options page, check Configuration Management Service (CMS) Node.
    Step 5   Finish the installation process by completing the rest of the pages, then click Finish to save your edits.

    After installing the application interface, you need to run the CMS Control tool on the installed Administration & Data Server to set up, from the Unified ICM side, the connections that allow the integrated applications to talk to that Administration & Data Server. You must also configure each application's end of the connection.

    To improve performance, if no debugging is being performed using that console, keep the CMS node console minimized. If the console is not minimized, considerable CPU resources are tied up displaying numerous messages from the system I/O.

    See Application Connections for more information about using the CMS Control tool to set up the connections between the system software and the integrated applications.

    Pre-integration configuration verification

    Verify the configuration by doing the following:

    • Verify that all processes, including all PIMs and CTI servers, are active (that is, all processes start, duplexed routers load the configuration and synchronize, and all PIMs and CTI servers are active).
    • Verify that the MSSQL server has started. Submit sample calls through all routing clients and all call types. Use the Call Tracer tool in the Script Editor to test router call handling functionality.

    Note
    This test must be finished both prior to the Unified ICM upgrade and after the Unified ICM upgrade. Address failures prior to integration.

    Software configuration for integration

    To configure the system software for the applications, you need to configure/install the following:

    • Media routing domains (MRDs) for appropriate media classes within the system software
    • Media routing peripheral gateways (MRPGs) and peripherals
    • ECC (Expanded Call Context) variables
    • Application instances, and define them in the system software
    • Agents (you can create agents either in the system software or in the applications)
    • Connections to the CMS server using the Application tab of the CMS Control tool in the Administration Tools folder
    • Configuration work on the integrated applications
    • Skill group configuration using Script Editor
    • Information to push to waiting Cisco Unified E-mail Interaction Manager (Unified EIM) or Unified Web Interaction Manager (Unified WIM) callers

    The following sections describe each of the preceding actions, their configuration and installation instructions, and indicate the configuration tool you need for each configuration. Refer to a configuration tool's online help if you have any questions.


    Note
    Before using the configuration tools to perform each configuration process, if you have more than one Unified ICM instance you want to configure, open the Select Administration Instance tool in the Administration & Data Server or Administration Client and select the Unified ICM instance with which you want to work.

    Media Routing Domains

    To create and then assign an MRD to a media class (physical media that the system software treats as a single concept), use the Configuration Manager's Media Routing Domain List tool.

    The system software uses MRDs to organize how requests from different media are routed. An MRD is a collection of skill groups and services that are associated with a common communication medium. The system software uses an MRD to route a task to an agent who is associated with a skill group and a particular medium.

    Before you can configure your application (for example, the Cisco Unified Interaction Manager) to use the system software as a routing engine, MRDs must be established in the system software. These MRDs have unique IDs across the enterprise. Then, on the application, you must enable those Unified ICM MRDs that you need to use.

    Important: The MRD IDs must be created in the system software first, and then passed on to the person configuring the application to perform a successful configuration. In Cisco Unified Interaction Manager you need only the MRD name; you do not need the MRD ID.

    A media class describes the type of requests you want to set up for routing on the system software.

    Create the following media classes for Cisco Unified Interaction Manager:

    • CIM_EIM
    • CIM_WIM
    • CIM_BC

    The media class for voice already exists (Cisco_Voice).

    How to Configure the Media Routing Domain

    To configure the MRD:
    Procedure
      Step 1   Start the Configuration Manager and select Tools > List Tools > Media Routing Domain List. The Media Routing Domain List window displays. Click the Retrieve button and then the Add button to display the Attributes tab.
      Step 2

      Enter the following information:

      • Name. Enter the enterprise name of the MRD.
      • Media Class. Use the drop-down list to select the media class for the integrated application.
      • The MRDomainID is a required read-only field. (An ID number will be automatically created when you save your entry.)
      Step 3   After entering the required fields, save the configuration and close the window.
      Note    Refer to the Configuration Manager's online help for detailed information about the Media Routing Domain List tool.

      Media Routing Peripheral Gateway

      To create a media routing peripheral gateway (MR PG), use the Configuration Manager's Network VRU Explorer and the PG Explorer tools.

      A media routing peripheral gateway is capable of routing media requests of different kinds (for example, email, Web callback, and so on). MR PGs support multiple media routing applications by placing multiple, independent Peripheral Interface Managers (PIMs) on a PG platform. (Set up no more than 10 PIMs per MR PG.) A single MR PIM is required for each application server to be connected to the Unified ICM system. In addition to an MR PG, you also need at least one Agent PG, a legacy ACD PG, or a NonVoiceAgent PG.

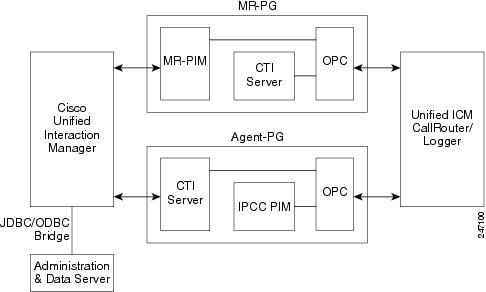

      For example, the diagram below provides an overview of the interfaces that need to be configured for Unified ICM integration with Cisco Unified Interaction Manager.

      Figure 1. Interfacing with Cisco Unified Interaction Manager



      Configuring the MR PG

      The MR PG interface provides routing instructions to the integrated applications, while the Agent PG configuration is used to report agent state and status to the system software.


      Note
      No agents are configured on MR PGs. Agents are configured on NonVoice Agent PGs or other agent PGs.

      The system software media routing mechanism leverages and takes advantage of the existing Unified ICM Network VRU operational infrastructures. To set up for media routing, you must configure a Network VRU in the Unified ICM configuration. This Network VRU configuration has no relationship with any actual Network VRU in your environment.

      Configure MR PG

      To configure the MR PG:

      Procedure
        Step 1   Start the Configuration Manager. From the Configuration Manager menu, select Configure ICM > Targets > Network VRU > Network VRU Explorer. The Network VRU Explorer window displays.
        Step 2   Click the Retrieve button and then click the Add Network VRU button. The Network VRU dialog displays.
        Step 3   Do the following:
        • Enter a name for the Network VRU (for example, Cust_MR_VRU).
        • Select Type 2 from Type drop-down list.
        • Optionally, enter a description (that is, “Media Routing”).
        • Save and close the window.
        Step 4   From the Configuration Manager menu, select Configure ICM > Peripherals > Peripheral > PG Explorer. The PG Explorer window displays.
        Step 5   Click Retrieve and then click the Add PG button. The Logical controller dialog displays.
        Step 6   Do the following:
        • Enter a name for the PG (for example, Cust_MR_PG1).
        • Select MediaRouting as the Client Type.
        Step 7   In the tree section of the window, expand the tree and click the Add Peripheral button. The Peripheral configuration dialog displays.
        Step 8   Do the following:
        • Select the Peripheral tab and check the Enable Post Routing box.
        • Select the Advanced tab and select the previously created Network VRU from the drop-down list.
        • On the Routing Client tab, enter a routing client name (for example, Cust_MR_PG1_1.RC) and set the default timeouts to 2000, 1000, and 10, respectively.
        • Save the configuration. After you save the configuration, the system assigns a Logical Controller ID and a Physical Controller ID.
        Note    Make a note of these values because you will need to provide them when you install the MR PG.
        Step 9   Close the window.

        Setting Up the MR PG

        Customer contact applications use the MediaRouting interface to request instructions from the system software when they receive a contact request from a customer using one of the mediums, such as email, web collaboration, or voice. When the system software receives a new task request from the application, Unified ICM runs a pre-defined Unified ICM script to determine how to handle the task.

        After the Unified ICM script executes Unified ICM sends an instruction to the application to do one of the following:

        • While the application is executing an application script that is stored on the application server, Unified ICM is looking for a best available agent that has the matching skill within the enterprise, and assigns this agent to this task.
        • Handle the new task with a Unified ICM–determined best available agent that has the matching skill within the enterprise or a label the application uses to determine the best available agent for the task.

        Note
        When choosing where to set up the MR PG, be aware that you can only set up two PGs per server.

        Set up MR PG

        To set up the MR PG, follow these steps:

        Procedure
          Step 1   Access the Peripheral Gateway Setup tool on the machine that you want to make an MR PG. Add the customer if you have not already done so.
          Step 2   Click Add in the Instance Components section and choose Peripheral Gateway from the Unified ICM Component Selection window. The Peripheral Gateway Properties window displays.
          Step 3   Do the following:
          • Choose Production Mode.
            Note    The Auto Start at System Startup option ensures that the PG can restart itself automatically if necessary. Set the Auto Start feature after installation is complete. The server may need to be rebooted a number of times during installation, and problems could occur if the node starts before hotfixes and/or databases are applied.
          • Specify whether the PG is part of a duplexed pair.
          • In the ID field, choose the PG's device identifier as enabled in the CallRouter's Device Management Protocol (DMP) configuration dialog (part of setting up the CallRouter portion; enables the connection between the Router and the PG). Each logical PG must have a unique device assignment at the CallRouter. (If a PG is duplexed, both physical machines use the same device assignment.) To add another logical PG, you must enable another PG device for the CallRouter.
          • If the PG is duplexed, specify whether you are installing Side A or Side B. If the PG is simplexed, select Side A.
          • Use the Client Type Selection section of the window to select MediaRouting and click the Add button.
          • Select the drive and language as appropriate and click the Next button.
          Step 4   The Peripheral Gateway Component Properties window displays.

          Enter the Logical Controller ID generated when you configured the PG with the PG Explorer in Step 8 of Configure MR PG. Click the Add button and select PIM 1 from the list.

          Step 5   The MediaRouting Configuration box displays.
          Step 6   Do the following:
          • To put the PIM into service, check the Enabled option. This allows the PIM to communicate with the peripheral when the Peripheral Gateway is running.
          • Enter the peripheral name in the Peripheral name field. In most cases, you must use the enterprise name from the associated Peripheral record.
            Note    When creating peripheral names, use short descriptive names and keep the length to a minimum.
          • Enter the Peripheral ID from the Peripheral record.
          • For Application Hostname (1), enter the host name or the IP address of the application server machine (Cisco Unified Web Interaction Manager). If using the host name, the name must be in the host's file.
          • For Application Connection Port (1), enter the port number on the application server machine that the PIM will use to communicate with the application.
          • Leave Application Hostname (2) blank.
          • Leave Application Connection Port (2) blank.
          • For Heartbeat Interval (seconds), specify how often the PG will check its connection to the application server. (Use the default value) .
          • For Reconnect Interval (seconds), specify how often the PG will try to re-establish a lost connection to the application server. Use the default value
          • Click OK.
          Step 7   From the Peripheral Gateway Component Properties window, click the Next button. The Device Management Protocol Properties window displays. Enter the appropriate settings and click the Next button.
          Step 8   The Peripheral Gateway Network Interfaces window displays. Enter the appropriate settings and click the Nextbutton.
          Step 9   The Check Setup Information window displays. Verify the setup information and click the Nextbutton. The system software sets up the PG.
          Step 10   When the Setup Complete window displays, click the Finish button to exit from the setup program.

          Configuring and Installing the IPCC PG

          When agents and skill groups are created in the system software, they reside on a peripheral. A peripheral can be associated with an IPCC, SoftACD, or Legacy ACD for agents doing any work on the phone. If the agents on the peripheral will never be doing phone work, one or more NonVoice peripherals can be used.

          Configure IPCC PG

          To configure the IPCC PG, follow these steps:

          Procedure
            Step 1   Start the Configuration Manager. From the Configuration Manager menu, select Configure ICM > Peripherals > Peripheral > PG Explorer. The PG Explorer window displays.
            Step 2   Click Retrieve and then click the Add PG button. The Logical controller dialog displays.
            Step 3   Do the following:
            • Enter a name for the PG (for example, Cust_NVA_PG1).
            • Select IPCC/SoftACD/EA as the Client Type.
            • Enter the address for the Primary CTI server and the Secondary CTI server in the following form: <IP address of the CTI server>:<Client Connection Port Number> that is, 192.168.1.101:42027 This entry is necessary for Cisco Unified EIM to gather CTI connection data.
            Step 4   In the tree section of the window, expand the tree and click on the peripheral. The Peripheral configuration dialog displays.
            Step 5   Do the following:
            • Use the default name or change the name.
              Note    This name is used in composite names which are limited to a 32-character length, for example, an agent enterprise name. Therefore, keep the name short.
            • Because Unified CCE uses post routing, do not un-select the Enable Post Routing checkbox.
            Step 6   Select the Advanced tab and click the Agent Reporting checkbox.
            Step 7   Select the Routing Client tab and specify the routing client for post routing.
            Note    This tab appears only if the Enable Post Routing checkbox is selected.
            Step 8   Save the configuration. After you save the configuration, the system assigns a Logical Controller ID and a Physical Controller ID. Make a note of these values because you will need to provide them when you install the IPCC PG.
            Step 9   Close the window.

            Install IPCC PG

            To install the IPCC PG, follow these steps:

            Procedure
              Step 1   Run the PG Setup tool (accessed from the Unified CCE Tools folder) on the machine that will be the Agent PG. Add the customer if you have not already done so.
              Step 2   Click Add in the Instance Components section and select Peripheral Gateway from the ICM Component Selection window. The Peripheral Gateway Properties window displays.
              Step 3   Do the following:
              • Choose Production Mode.
                Note    The Auto Start at System Startup option ensures that the PG can restart itself automatically if necessary. Set the Auto Start feature after installation is complete. The server may need to be rebooted a number of times during installation, and problems could occur if the node starts before hotfixes and/or databases are applied.
              • Specify whether the PG is part of a duplexed pair.
              • In the ID field, choose the PG's device identifier as enabled in the CallRouter's DMP configuration dialog. Each logical PG must have a unique device assignment at the CallRouter. (If a PG is duplexed, both physical machines use the same device assignment.) To add another logical PG, you must enable another PG device for the CallRouter.
              • If the PG is duplexed, specify whether you are installing Side A or Side B. If the PG is simplexed, select Side A.
              • Use the Client Type Selection section of the window to select the IPCC/SoftACD/EA PG and click the Add button.
              • Select the drive and language as appropriate and click the Next button.
              Step 4   The Peripheral Gateway Component Properties window displays.

              Enter the Logical Controller ID generated when you configured the Agent PG with the PG Explorer. Click the Add button.

              Step 5   The IPCC/SoftACD/EA Configuration box displays.
              Step 6   Do the following:
              • To put the PIM into service, check the Enabled option. This allows the PIM to communicate with the peripheral when the Peripheral Gateway is running.
              • Enter the peripheral name in the Peripheral Name field. In most cases, you must use the enterprise name from the associated Peripheral record.
                Note    When creating peripheral names, use short descriptive names and keep the length to a minimum.
              • Enter the Peripheral ID from the Peripheral record.
              • Specify the maximum length for an agent extension in the Agent Extension Length field.
              • Click the IPCC button in the Telephony Server Protocol section.
              • Enter the Unified CM host/IP that this peripheral will connect to in the Service field in the IPCC Parameters section.
              • Specify the User ID and User password created on the Unified Communications Manager (Unified CM) you are connecting to.
              Step 7   Click OK.

              Installing CTI Server

              You need to install a CTI Server for each Agent PG (the steps are basically the same as those for a Media Routing PG). Each PG uses a CTI Server to provide the interface between the integrated application and the system software.


              Note
              • It is important that when you install a CTI Server, you pick the Custom Gateway (CG) that corresponds to the Agent PG that you just installed. For example, if you just installed a MR PG as PG1 and an IPCC Agent PG as PG2, you must install the CTI Server for PG2 as CG2, not CG1.
              • You do not need to install a CTI server on the Agent PG if one is already installed.

              Install a CTI server

              To install a CTI Server, follow these steps:

              Procedure
                Step 1   Run the PG Setup tool (accessed from the Unified CCE Tools folder) on the same machine as the Agent PG. Add the customer if you have not already done so.
                Step 2   Click Add in the Instance Components section and select CTI Server from the ICM Component Selection window. The CTI Server Properties window displays.
                Figure 2. CTI Server Properties dialog box



                Step 3   Do the following:
                • Choose Production Mode.
                  Note    The Auto Start at System Startup option ensures that the PG can restart itself automatically if necessary. Set the Auto Start feature after installation is complete. The server may need to be rebooted a number of times during installation, and problems could occur if the node starts before hotfixes or databases are applied.
                • Specify whether the CTI Server is part of a duplexed pair.
                • In the ID field, specify the number of the CTI Server node (CG1 through CG80).
                • In the ICM System ID field, enter the DMP device number of the Agent PG that you want associated with the CTI Server.
                  Note    The DMP device number is the checkbox you checked for the PG (that is, if you checked box 1, the device number is 1; box 2, the device number is 2; and so on).
                • If the CTI Server is duplexed, specify whether you are installing Side A or Side B. If the CTI Server is simplexed, select Side A.
                • Select the drive and language as appropriate and click the Next button.
                Step 4   The CTI Server Component Properties window displays.
                Figure 3. CTI Server Properties



                Enter the Client Connection Port Number.

                Step 5   Click the Next button. The CTI Server Network Interface Properties window displays. Enter the appropriate interface information.
                Step 6   Click the Next button to view the setup information window. If the information is correct, click the Next button and finish the installation.

                Agents

                You can create persons (records that contain personal information about an agent) and agents (person who handles customer contact) in the system software. Creating them in Unified ICMs does not make them immediately available to Unified ICM; the application must enable the agent.


                Note
                When you create an Agent record, you can associate it with an existing Person record (clicking the Select Person button). If you do not associate the Agent record with an existing Person record, a new Person record is automatically created when you create the agent.

                Configuring an agent for multi-media means assigning that agent to at least two skill groups (one for each media). For example, the agent might handle both email and phones, chat and phones, or blended collaboration and email.


                Note
                Use the integrated applications to assign an agent an application-specific skill group. Application-specific skill groups must be created and maintained in the application, not in the system software.

                If you want to configure phone agents in the system software, you must first create Person records for them in the Configuration Manager's Person List tool.

                Every agent is associated with a Person record. This is primarily a person's first and last name and login password. This record must exist before you can create an agent in the system software.

                The purpose of the Person record is so that, in a multi-channel contact center, one person can be assigned as an agent on different peripherals since the system software defines an agent as belonging to only one peripheral.


                Note
                The preceding is also true for non-integrated Unified ICM systems.

                The second step in creating an agent in the system software is to use the Configuration Manager's Agent Explorer tool to create the agent. When you do so, the agent is associated with a person.

                Related Tasks

                Non Voice Agents

                A Non Voice Agent PG/PIM is intended for use only at a site that does not have voice, but that does want to use Unified ICM to do its multi-channel (Non Voice) contact routing. For such a site a Non Voice Agent PG is necessary, since every agent must be associated with a peripheral, and the site has no Agent peripheral other than the Non Voice Agent PG. (A Media Routing PG is also needed, but an MR-PG is not an Agent PG.)

                At a site with voice, some agents may be NonVoice agents, that is, these agents will not make/take telephone calls. Such agents are created on the IPCC or ACD PG for that site and indicated by a Peripheral Number beginning with the letters NV. You do not require a separate Non Voice Agent PG for these agents.


                Note
                In this discussion "voice" means the making/taking of telephone calls, while NonVoice implies the inability to make/take any such calls. This is to be distinguished from the meaning of Voice with regard to Media Classes. The Media Classes called Voice and Blended Collaboration both involve "voice" in the current sense.
                • If a NonVoice agent is created through the application, a peripheral-unique Peripheral Number beginning with the letters NV is automatically generated. If later you wish to change a NonVoice agent to a voice enabled agent, go to the Agent Explorer in Configuration Manager and change the agent's Peripheral Number to the agent's peripheral-unique voice Peripheral Number (often the agent's telephone number). Do not simply remove the letters NV from the beginning of the previously generated Peripheral Number. If the agent was created as a voice agent, a peripheral-unique peripheral number is assigned at creation.
                • If a NonVoice agent is being created through Configuration Manager, leave the Peripheral Number field blank when creating the agent. The system will then generate a peripheral-unique Peripheral Number beginning with NV.

                If it is later decided that an existing NonVoice agent will be allowed to receive telephone calls, change the agent's Peripheral Number to a voice Peripheral Number, using Agent Explorer, as indicated above in the first bulleted item.

                If it is decided that an existing voice-enabled agent will become a NonVoice agent, delete the Peripheral Number as it appears in the Agent Explorer—thus blanking the field—and then continue as indicated above in the second bulleted item.

                Application instance

                Important: Application instances must be configured before you configure the multi-media application.

                Use the Configuration Manager's Application Instance List tool to configure application instances, external to Unified ICM, to allow identification and access to the Configuration Management System (CMS). This enters an application ID and application key (password) that identifies the application. You need to enter the same information in the application.

                Important: Share the system software configuration information you noted during the previous procedures with the person performing the integrated applications configuration.

                Configure an application instance

                To configure the application instance, follow these steps:

                Procedure
                  Step 1   Start the Configuration Manager and select Tools > List Tools > Application Instance List. The Application Instance List window displays. Click the Retrieve button and then the Add button to display the Attributes tab.
                  Step 2   Enter the following information:
                  • Name. The enterprise name for the application instance.
                  • Application key. This is the password that the integrated application will use to be identified by the system software. The password is restricted to the 7-bit printable ASCII characters (any of the 94 characters with the numeric values from 32 to 126). Control characters (for example, “tab”) and international characters are not allowed. This means passwords cannot be entered in a non-Western alphabet, such as Kanji.
                  • Application type. Available option is <Other>.
                    Note    Select <Other> when using Unified EIM and Unified WIM.
                  • Permission Level. Select the permission level from the drop-down list.
                  Step 3   After entering the required fields, save the configuration and close the window.
                  Note    Refer to the Configuration Manager's online help for detailed information about the Application Instance List tool.

                  Application connections

                  In order for the application to communicate with the Unified ICM system for configuration purposes, a communications path between the system software and the application must be established.

                  You can define the communications path from the system software (CMS Server) to the application using the Application tab in the CMS Control tool, which resides on the Administration & Data Server in the icm\bin directory. A similar user interface on the application side is used to define the communications path from the application to the CMS Server.

                  Within the Application tab, the Application Connections table lists the current application connections, where you can add, edit, and delete application connections.


                  Note
                  The Application link and Unified ICM Administration & Data Server link must match on the application side.

                  Configure CMS server connections

                  To configure CMS Server connections, follow these steps:

                  Procedure
                    Step 1   From the Start menu, select Run and enter C:\icm\bin\cmscontrol.exe to access CMS Control.
                    Step 2   Select the Application tab.
                    Step 3   Click Add. The Application Connection Details dialog displays.
                    Step 4   Enter the application connection properties:
                    • Administration & Data Server link. The Unified ICM RMI Driver connection end point identity.
                    • Administration & Data Server RMI Registry Port. The port number for the Unified ICM Administration & Data Server RMI registry.
                    • Application link. The application RMI Driver connection end point identity.
                    • Application RMI registry port. The port number for the Application RMI registry.
                    • Application host name. The computer address where the application interface client resides. This name can be either an IP address or a name resolved by DNS or WINS.
                    Step 5   Click OK twice. This restarts the Cms_Jserver on the Administration & Data Server or Administration Client.
                    Note    When you click OK the second time to save your changes and close the CMS Control window, a message box may appear that states:

                    The CmsJServer process is about to be cycled. Click OK to proceed or Cancel to quit.

                    Step 6   Click OK to proceed.
                    Note    Refer to the application-specific instructions for specific field information. Refer to the CMS Control tool's online help for specific information about the field descriptions.

                    Additional configuration setups

                    After configuring the system software, you need to perform the following configurations in the Cisco Unified Interaction Manager application:

                    • Once you have configured the system software and Cisco Unified Interaction Manager, more configuration must occur on the Cisco Media Blender server.

                      Note
                      Refer to the Cisco Media Blender Administration Guide, Release 7.1, for details.
                    • Unified ICM and ACD queues: If the Cisco Unified Interaction Manager will be used to send requests submitted to it to the system software, you must create one Unified ICM queue. When a request is submitted to a Unified ICM queue, the system software will route the request to the Cisco Unified Interaction Manager and agent most appropriate to handle the request. If you are using legacy ACDs for blended collaboration you must create ACD queues on the Cisco Unified Interaction Manager. ACD queues are used to communicate with Cisco Media Blender.

                    Refer to the Cisco Unified Interaction Manager installation CD for documentation on performing these configurations.

                    Application gateways

                    An application gateway is an optional Unified ICM feature that allows you to invoke an external application from within a script (using a Gateway node). You can pass data to the application and receive data in return, which you can then examine and use for routing decisions.

                    Before you can use these nodes in a script, you must first configure the gateways.

                    The application gateway requires connection information to communicate with the external application. You perform this task using the Configuration Manager.

                    Configuring application gateways

                    You must configure an application gateway for each application you want to access from within scripts.

                    Configuration information includes data such as:

                    • The type of application the gateway will interact with: a non-Unified ICM application or an application on another Unified ICM system
                    • The form of connection the gateway will use: duplex or simplex
                    • A fault tolerance strategy for the gateway, described below in the following table
                    Table 1 Application gateway fault tolerance strategies

                    Fault Tolerance Strategy

                    Description

                    Duplicate Request

                    Each request is sent to both sides of the gateway.

                    Alternate Request

                    All requests are sent to only the A side of the gateway unless it fails. Side B is used only if side A is not available.

                    None

                    The application gateway is not duplexed.

                    Once you specify the configuration information, you can define the connection information for the gateway, such as the network address of the port through which the system software communicates with the application.

                    If your Central Controller is duplexed, you can define separate connection information for each side of the Central Controller. This allows each side to communicate with a local copy of the external application.


                    Note
                    For a remote Unified ICM, the address must be the same address specified for the ICRP NIC on the targeted system. (You may use the hostname in place of the address.) This address value must be followed by a colon, an instance or customer number (denoting which Unified ICM to access on the remote system), another colon, and a letter indicating which side of the NAM system prefers to use this connection. The preference letters are A (side A of the NAM prefers this connection), B (side B of the NAM prefers this connection), N (neither side of the NAM prefers this connection), or R (both sides of the NAM prefer this connection). For example, the address might be 199.97.123.45:1:A.

                    Configure an application gateway

                    To configure an application gateway, follow these steps:

                    Procedure
                      Step 1   Within the Configuration Manager, select Tools > List Tools > Application Gateway List. The Application Gateway List window appears.
                      Step 2   To enable Add, click Retrieve.
                      Step 3   Click Add. The Attributes property tab appears.
                      Step 4   Complete the Attributes property tab.
                      Note    For additional information refer to the online help.
                      Step 5   Click Save to create the application gateway.

                      Next, configure the connection information for the application gateway.

                      Configure an application gateway connection and set default connection parameters

                      To configure an application gateway connection and set the default connection parameters, follow these steps:

                      Procedure
                        Step 1   Within the Application Gateway List window, click Retrieve and select the desired Application Gateway.
                        Step 2   Complete the Connection property tabs.
                        Note    For additional information refer to the online Help.
                        Step 3   Click Save to apply your changes.

                        Skill group configuration with Script Editor

                        Universal Queue is the ability of the system software to route requests from voice, web, chat, and email channels from a single queue point directly to appropriately skilled agents. With Universal Queue, the system software treats requests from different media channels as a part of a single queue. Routing scripts send queued requests to agents based on business rules regardless of the media channel. For example, the routing of asynchronous channels such as email, and synchronous channels such as voice and chat, allows the system software to deliver the right contact to the right resource the first time, regardless of the channel it came through. The Queue to Agent node allows the targeting of a task (the work performed by an agent) to a script-specified agent.

                        The Queue to Agent node enables an agent to receive and operate on more than one task at a time. As a result, Universal Queue coordinates an agent's ability to work on multiple tasks on various media. It supports a simple control model where an agent's ability to handle an additional task depends on what task that agent is currently handling. For this level of control, the system software must have exclusive access to task assignment.


                        Note
                        For Universal Queue to work, the agent must be assigned to skill groups that "ICM picks the agent", that is for which the system software does the routing.

                        The CallRouter can move tasks out of the present script execution and resubmit them into the system as a new invocation.

                        Routing Script Configuration

                        Due to the introduction of a Media Routing Domain relationship, skill groups are medium specific. When an agent logs into the system software via a phone, or via Cisco Unified Interaction Manager, the agent actually logs into an MRD. This automatically logs the agent into skill groups associated with that agent within that MRD. Then, as a task request for a specific MRD begins script execution, the CallRouter considers only the skill groups associated with that specific MRD. This allows one script to be written to handle many MRDs.

                        When upgrading from an earlier version of the system software, setup upgrades all existing skill group definitions to the Voice Media Routing Domain. (MRDs for chat, email, or blended collaboration media classes must be added using the Configuration Manager's Media Routing Domain List tool.)

                        The associated MRD applies to most related objects. Service member objects map skill groups only to services of the same media routing domain.

                        Skill groups are created as follows:

                        • Skill groups for integrated email, chat, and blended collaboration are created, modified, and deleted using the system software.
                        • Skill groups for standalone email and chat are created, modified, and deleted using the application.
                        • Legacy ACD skill groups are configured on the ACD and on the system software.

                        Queue to Specific Agent

                        To assign a task to a specific agent, the CallRouter needs to do four things:

                        1. Pick an agent to receive the task.
                        2. Pick the MRD.
                        3. Pick a skill group from the list provided by the MRD selection.
                        4. Pick a route from the list provided by the skill group selection.

                        Using this style of Queue to Agent node, you select a specific agent at script design time.

                        In this case, where it is obvious who the agent is, the node property sheet displays a choice of routes for the peripheral that the agent is assigned to.


                        Note
                        Routes, agents, skill groups, and services are all associated with a peripheral.

                        Select multiple skill groups and routes by agent

                        To select multiple skill groups and routes for different media by agent, follow these steps:

                        Procedure
                          Step 1   In Script Editor, open the appropriate script in Edit mode.
                          Step 2   Select the Queue to Agent node.
                          Step 3   Right-click and select Properties to open the Queue to Agent Properties dialog.
                          Step 4   Ensure the Queue to Agent type is set to Select using direct references. If not:
                          1. Select Change to open the Queue Agent Type dialog.
                          2. Select Explicit agent references.
                          3. Click OK to return to the Queue to Agent Properties dialog.
                          Step 5   Select an agent from the drop-down list in the Agent column. This enables the rest of the columns.
                          Step 6   In the Domain column, select the appropriate MRD.
                          Step 7   In the appropriate column, select a skill group and a Route valid for the selected agent and MRD.

                          You can specify the agent multiple times, each with a different MRD selection.

                          Queue to Agent Expression

                          In this mode of the Queue to Agent node, the agent identity is determined by the queue to agent expression at runtime.

                          Since the agent and MRD are not known until script execution time, you need some way of selecting an appropriate skill group and route. To accomplish this, pick an enterprise skill group. Ensure the enterprise skill group includes appropriate skill groups to cover all MRD cases for that agent. To select the route, use an enterprise route. Again, ensure that the enterprise route includes an appropriate collection of routes.

                          Select multiple skill groups and routes by agent expression

                          To select multiple skill groups and routes for different media by agent expression, follow these steps:

                          Procedure
                            Step 1   In Script Editor, open the appropriate script in Edit mode.
                            Step 2   Select the Queue to Agent node.
                            Step 3   Right-click and select Properties to open the Queue to Agent Properties dialog.
                            Step 4   Ensure the Queue to Agent type is set to Select using indirect references. If not:
                            1. Select Change to open the Queue Agent Type dialog.
                            2. Select Lookup agent references by expression.
                            3. Click OK to return to the Queue to Agent Properties dialog.
                            Step 5   Enter an agent expression (normally task.PreferredAgentID) into the Agent Expression column. Formula Editor is enabled when the Agent Expression column is selected.
                            Step 6   In the appropriate column, select an appropriate Enterprise Skill Group and an Enterprise Route valid for the entered agent expression.

                            You can specify the agent expression multiple times, each with a different enterprise skill group and enterprise route selection.

                            Refer to the Scripting and Media Routing Guide for Cisco Unified ICM/Contact Center Enterprise & Hosted for more information about using Script Editor.

                            Information to waiting web collaboration/chat users

                            On the Central Controller, you can create a Network VRU script list, which lists scripts set up to play to callers waiting for an agent.

                            With Unified ICM routing, you can display information, such as advertisements or informational URLs to a caller who is waiting to join a session with an agent. You can also populate these ads or URLs so that they display caller information originating in the callform. This way, you can personalize ads or messages seen by the waiting caller.

                            You can set up a VRU script list to point to URLs or text messages to display on the browsers of callers waiting for a Collaboration agent. Refer to the Cisco Unified Web and E-Mail Interaction Manager System Administration Guide for detailed instructions on setting up this information.

                            Application object filter

                            The application object filter restricts access to application-specific data that is not owned by the running application. Application owned data includes skill groups, services, application paths, and routes. The application object filter is not applicable if there are no multimedia applications.

                            Access to the application object filter is restricted. You must use a super user password (case sensitive) to enable or disable the application object filter. This password is set as "password" during installation.

                            Normally enabled, the application object filter prevents administrators from creating or editing application-specific skill groups, services, application paths, or routes in the Configuration Manager. You would want this enabled since creating or editing the preceding application-specific data using Unified ICM could cause the application to become out of sync with Unified ICM. These items must be created and updated in the application requiring them, and not in the system software.

                            Disabling the application object filter allows administrators to create, delete, or edit application-specific skill groups, services, application paths, and routes from the Configuration Manager tools. You might want to do this if, for example, an application is dead (you cannot access the application) and application-specific data needs to be removed from the Unified ICM database. Another example of when you would want to disable the application object filter would be you need clean up after removing an application.

                            Disable application object filter

                            To disable an application object filter, follow these steps:

                            Procedure
                              Step 1   Select Options > Application Object Filter.
                              Step 2   Enter the Password when prompted.
                              Step 3   Select Disable.
                              Step 4   The tool opens and the status line indicates the application object filter is disabled.
                              Note
                              • Open tools are not affected by the change in the application object filter status. The status change affects tools opened only after the application object filter status has been changed.
                              • Each time the Configuration Manager opens, the application object filter reverts to its default status – enabled.
