Release Notes for Cisco MGX 8950, Software Release 3.0.00


Contents

About Release 3.0.00

These release notes describe the system requirements, new features, and limitations that apply to Release 3.0.00 of the MGX 88950 multi-service switch. These notes also contain Cisco support information.

For PXM45-based switches (that is, MGX 8850 (PXM45) and MGX 8950), MGX Release 3.0.00 provides the tools for more powerful scaling. MGX Release 3.0.00 allows networks based on the MGX 8850 (PXM45) or MGX 8950 to scale to new heights in supported connections, going from the current 40K to 100K persistent connections per node, in addition to up to 150K transient connections. MGX Release 3.0.00 also allows service providers to expand ABR with VS/VD capability on the MGX 8850(PXM45) platform by doubling the number of ports supported on the AXSM/E cards.

These release notes accompany the technical manuals listed in the "Related Documentation" section.

For information about the MGX 8850 (PXM45), MGX 8850 (PXM1E), or MGX 8830 release 3.0.00, see the "Release Notes for Cisco MGX 8850 (PXM45/B and PXM1E) and MGX 8830, Software Version 3."

Type of Release

Release 3.0.00 is a software release for the MGX 8950 switch.

Locating Software Updates

This is the location for the MGX 8950 software:

ftp://ftp.cisco.com/cisco/wan/beta/0598xgm.

New Features and Enhancements in Release 3.0.00

Release 3.0.00 contains these new features:

ITU APS and Annex B on AXSM/B for PXM45

DSL Access Support — Single-ended SPVC configuration

250K Connections

Path and Connection Trace

Network Control Distribution Protocol

Simple Network Time Protocol

Priority Routing

Per Connection Overbooking

Preferred Routing

Clear Service Module Configuration (clrsmcnf)

Disk Sync Verify

AXSM Virtual UNI

Persistent Topology

SCT File Management and User Configurable Names

Detection of Non-native Controller Front Card and HDD Card

ITU APS on AXSM/B for PXM45

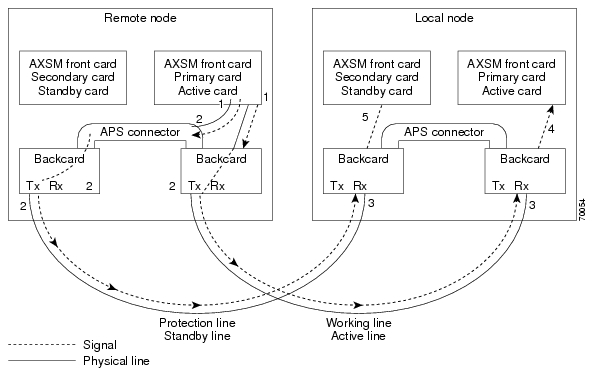

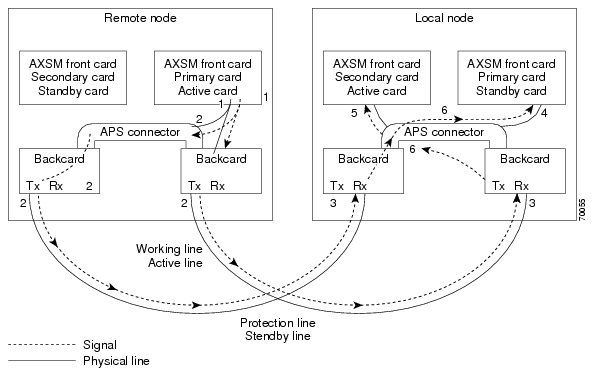

APS provides redundancy on SONET/SDH equipment to protect against line failure or fiber cut. APS permits the network to react to failed optical lines and/or optical interfaces by switching to an alternate line. This release supports the international standards ITU-T G.783 Annex A and B APS on AXSM/B optical modules. APS 1+1 intercard redundancy requires use of an APS connector (MGX-APS-CON) to connect adjacent back cards.

The complete list of architecture mode supported by software is:

1+1 GR253

1:1 GR253

1+1 G.783 Annex A

1:1 G.783 Annex A

1+1 G.783 Annex B

ITU-T APS on AXSM/B is supported on the MGX 8850 (PXM45) and MGX 8950 switches. ITU-T APS on AXSM-E is supported on MGX 8850 (PXM45).

Benefits

For a line failure, the detection and signaling of the failure occurs within 10 ms and the switchover occurs within 50 ms. For a card failure, the recovery will occur in less than 250msec. Using APS is a faster way to recover than can be achieved with Y-cable redundancy or ATM layer rerouting.

DSL Access Support — Single-ended SPVC Configuration

The feature enables configuration of both the endpoints of the SPVCs at the master end of the connection. With the feature, the connection needs be provisioned using the double ended provisioning model. The slave end of the connection is activated when the connection is established by the master end. This feature provides the ability to provision single-ended SPVC connections that originate on the DSLAM.

The Single-ended SPVC Configuration feature is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830, and MGX 8850 (PXM1E) switches.

Benefits

This feature enables improved interoperability with other vendor equipment and management stations.

250K Connections

The 250K Conns feature improves the scalability of the existing PXM45 node from the current 100K connections to 250K connections. This feature is supported only on the version B of the PXM 45 card with 256M of memory. On a single node, there can be a maximum of 250K SPVC/SPVP and SVC/SVP connections, where a maximum of 100k connections are persistent, and the other 150K connections are non-persistent. However, a node will support 250k persistent connections if it is not managed by CWM.

The number of persistent connections are limited by the number of connections supported by CWM, which is currently 100K.

The 250K Connections feature is supported on the MGX 8850 and MGX 8950 switches with PXM 45 version B cards.

Benefits

Customers can provision more connections on each switch.

Path and Connection Trace

The Path and Connection Trace feature allows the user to determine the path taken by a connection. The Path Trace feature is used for new connections in the process of being established. The Connection Trace feature is used to collect information on existing connections that have already been established. The Path and Connection Trace feature supported in the previous releases is based on the pre-standard version of the ATM Forum specification. In the current release the Path and Connection Trace feature will conform to ATM Forum standard PNNI Addendum for Path and Connection Trace, Version 1.0 af-cs-0141.000.

The Path and Conn Trace feature is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830 and MGX 8850 (PXM1E) switches.

Benefits

Standards based feature enables interoperability with other vendor equipment.

Network Clock Distribution Protocol (NCDP)

Network Clock Distribution Protocol (NCDP) is the means by which an accurate clock source is chosen by a node and is distributed to the rest of the nodes within a network for the purpose of ensuring synchronized network operation. NCDP based clocking provides resiliency of clock sources in a network which is vital for delay-sensitive traffic like video and voice traffic and allows the network to proactively switch clock sources rather than waiting for the quality of the active clock source to degrade.

NCDP is disabled by default. The only configuration required to enable the clock distribution is to enable it, then add the clock source references. NCDP can be turned off on a nodal basis or an interface basis. NCDP supports clock distribution to 200 nodes in the network. If the network is larger than 200 nodes, it should have multiple clocking domains with separate clock sources.

NCDP is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830, and MGX 8850 (PXM1E) switches.

Benefits

The implementation of NCDP based clock distribution on the MGX 8800 enables service providers to deploy large scale networks with integrated clocking suitable for delay sensitive data transfer.

Simple Network Time Protocol (SNTP)

Simple Network Time Protocol (SNTP) based time of day synchronization enables MGX 8800 nodes to have network time synchronization. Accurate time of day service is provided by synchronizing to Universal Time Coordinated (UTC) time. The standard based approach allows the switch to synchronize to any SNTP/NTP time server. This provides accurate time for statistics and alarms generated on the switch and enables accurate synchronization of such events between switches. The BPX uses a similar protocol for time distribution, but with the addition of SES, the BPX can also be synchronized using SNTP. In a network of BPX 86xx and MGX 88xx switches, time must be set on the BPX in order to be distributed consistently throughout the network.

SNTP is supported on the MGX 8850 PXM45, MGX 8950, MGX 8830 and MGX 8850 (PXM1E) switches.

Benefits

The SNTP Server functionality allows MGX 88xx and BPX 86xx switches to act as SNTP servers for the network.

Priority Routing

Priority based routing allows customers to specify the priority of connections. The priority allows high priority connections to be established before low priority connections. During failures, the high priority connections are also released before low priority connections. This action enables rerouting and reestablishment of high priority connections earlier than low priority connections.

This feature is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830, and MGX 8850 (PXM1E) switches.

Benefits

The customer can offer prioritized services based on connection priority.

Per Connection Overbooking

The Per Connection Overbooking feature for SPVCs provides improved control of network utilization for multiple tiers of service on a network supporting various trunk capacities. The percentage utilization factor is used for Connection Admission Control for the connection. The actual bandwidth used for Connection Admission Control for the connection is based on the PCR/SCR configured for the connection and the percentage utilization factor configured for the connection, combined with the percent utilization configured for interfaces in the selected path.

Overbooking means that less bandwidth is reserved for a connection, however it can use more bandwidth. The feature will enable overbooking to be performed on a connection basis.

Per Conn Overbooking is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830, and MGX 8850 (PXM1E) switches.

Benefits

This feature enables service providers to provide differentiated overbooking on a per connection basis rather than only on a uniform basis allowed by interface overbooking.

Preferred Routing

Preferred routing of connections provides the network operator a means of bypassing the PNNI route selection, and configuring a specific path through the network by which a connection will follow. Preferred routes can be configured as either Preferred or Directed routes. A Preferred route is a route which will follow the configured path if available, but will revert to a PNNI-selected route if the preferred route is not available. A Directed route is a route which will follow only the configured path; if the configured path is not available, the connection will remain unrouted.

In this first implementation of Preferred routes, a set of preferred routes is configured and assigned reference numbers, referred to as route sets. As connections are configured, they can be assigned to a particular route set. Each route set can currently contain one preferred (or directed) route.

Preferred routes can currently be specified only across a single PNNI peer group.

Since the preferred route is placed in the PNNI DTL by the source node, preferred routes are interoperable with any standard PNNI implementation.

Preferred routing is supported on the MGX 8850 (PXM45), MGX 8950, MGX 8830, and MGX 8850 (PXM1E) switches.

Benefits

The customer can control the selection of routes based on criteria other than those allowed in the route selection algorithms offered by PNNI.

Clear Service Module Configuration (clrsmcnf)

The clrsmcnf feature clears the configuration for a particular service module slot without affecting the configuration of other slots. This feature clears the configuration from both memory and disk (persistent). The clrsmcnf command will be a blocking command and the service module will be unavailable for provisioning during the entire duration of the command.

The clrsmcnf feature is supported on the following modules.

MGX 8950: AXSM/B, RPM-PR

Benefits

The clrsmcnf feature does not impact or clear the configuration of the entire shelf (clrallcnf), it only clears the configuration for a particular slot thereby limiting the impact.

Disk Sync Verify

This feature provides a verification utility to check the synchronization of the disk "data" between the active PXM and standby PXM hard disks in the D:/DB2 directory. This disk synchronization verification utility provides a method of checking the "data" between the active PXM and standby PXM hard disks when invoked through CLI. This new CLI command, dskdbverify, invokes the task of verifying the "data" between the active PXM and standby PXM hard disks. This CLI command can be invoked both on the active PXM and standby PXM.

AXSM Virtual UNI

A new port type called Virtual UNI (VUNI) is defined in addition to the already defined port types - UNI, NNI, VNNI (Virtual Trunk). This feature benefits both the MPLS and PNNI control plane.

Virtual UNI is supported on the MGX 8950 switch with the AXSM/B line cards.

Benefits

Customers can provision multiple Virtual ports each with a VP range on one physical line and thus allow transport of PNNI SPVPs. This feature removes the restrictions in previous releases with Virtual Trunks (VNNI) wherein only one VP could be defined so only SPVC could be transported across those VNNI interfaces. With Virtual Port an MGX, that is not configured with MPLS control plane (LSC) but is expected to transport PNNI and MPLS traffic to a neighboring switch configured with both MPLS and PNNI, can utilize this feature by defining a combination of VUNI (0-255 VP range) or VNNI (0-4095 range) or a VNNI (one VP only) on a single Physical ATM port thus allowing trunking as well as terminating traffic on a single physical port.

Virtual port allows the flexibility of defining separate Service Class Templates per logical Virtual port. This allows customers to engineer different behaviors of traffic on different logical ports on the same physical line.

Persistent Topology

The Persistent Topology feature enables CWM to maintain a persistent topology information of the entire network. One or more nodes will be designated as gateway nodes. Whenever CWM needs info about the network, it will query gateway nodes to collect necessary information. Gateway nodes are defined to be nodes from which CWM can query for information on the nodes contained within a peer group. A node needs to be configured to be a gateway node in every peer group through CLI or CWM before it can be used as one.

This feature will deliver the following functionality:

Cumulative collection of node info for topology database. Node info will contain nodeId, nodeName, lanIP, atmIP, sysObjId.

Allow manual configuring (i.e. enabling and disabling) a gateway node through CLI.

Allowing manual deletion of a node info from the topology database.

Support redundancy of the cumulative topology database.

Benefits

This feature is useful to monitor the entire network as information of all the nodes irrespective of their state will be available to the CWM. It enables service providers who deploy large scale networks to keep track of the all the nodes in the network.

SCT File Management and User-Configurable Names

This features implements version control for the SCT files such that the SCT files can have a major version, which would keep track of the parameters being added/deprecated, and a minor version to address limitations. A SCT management MIB was created to keep CWM and the switch in sync with respect to the MIBs. The SCT MIB contains a version parameter, and can be used to convey the minor and major versions of the SCT file. When the SCT file is modified by the user, the user can save the file as a new file or as a different version of the SCT file.

Detection of Non-native Controller Front Card and HDD Card

With this feature the runtime firmware detects when a controller front card or HDD card from another shelf/node is inserted into a node in the standby controller card slot. When the firmware detects a non-native PXM1E front (that has hard disk) or HDD back card is inserted into a node in the standby controller card slot, all the contents, except the contents in the C:FW, C:SCT, F:SCT and the image files and auto configuration files in the E:RPM, on the hard disk in the standby controller card slot will be deleted and the event log files will be backed up.

In other words, when a non-native hard disk is detected in the standby controller slot, the following files and directories will be preserved, event log files are backed up and everything else, including event log files, will be deleted on the non-native hard disk:

C:FW

C:SCT

F:SCT

all files except auto configuration files in E:RPM directory

As a result of this feature, the hard disk on the standby controller slot no longer needs to be manually cleaned up when it is moved from another shelf/node.

Enhancements

The product enhancement requests (PERs) in Table 1 were introduced in Release 3.0.00.

Table 1 List of Product Enhancement Requests in MGX Release 3.0.00

Enhancement Number
Purpose

124

This feature provides a verification utility to chck the synchronization of the disk data between the active PXM and the standby PXM hard disks in the D:/DB2 directory. This utility provides a method of checking the "data" between the active PXM and the standby PXM hard disks when invoked through the CLI.

1087

Since the MGX8850 with PXM45 is used as a core switch and that switch does not have a time of day/date distribution, the switch needs to provide support for Network Time protocol (NTP - RFC 1305). Accurate time of day is needed by customer operations to correlate events on multiple switches as well as network management and with customers.

1473

AXSMs, when APS is configured, is bridging the SONET line instead of just section and path as specified in ANSI T1.105.

1557

This extension of VNNI functionality - by permitting the assignment of VPI range instead of a single VPI would benefit lots many customers. Currently, we have following possible config on an AXSM line: - A NNI port, over which you could run PNNI and assign the full 0 -4095 VPI address range. - A UNI port, you have a VPI range 0-255 for terminating connections. - Multiple VNNI ports. Initial definition requires specifying a VPI assignment for the port. You cannot terminate connection on an NNI port. Neither can you route PVP through a VNNI interface. These restrictions have the potential of affecting our customer's business decisions. Implementing this PER will eliminate the above listed constraints on an AXSM port.

1609

The community read string on 8850 was changed to something other than public to close a potential security hole/violation.

1663

This feature is included support ITU-T O.151 based segment OAM loopback test feature.

1092

The conntrace command currently is not synchronous and the prompt is sometimes returned prior to the trace output. The request is to have conntrace command provide a timeout per hop and also to provide an output that shows when the command failed due to a time out. The timer per hop can be up to 5 seconds. Also, the results of the command should be placed at the end of the command display. In addition, a field showing the Terminating InterfaceID should also be provided before the field showing the Terminating Interface VPI.

2182

The Cisco MGX 8850/8950 did not offer a way to configure a preferred route for any connection. Instead the PNNI routing engine configures the route across the network based on configurable routing policies. This feature is available on other Cisco PAR platforms (BPX/IGX) and is used frequently by customers. Customers require the ability to configure a preferred route per connection (VC and VP), and the ability to configure a direct preferred route whereby if the preferred fails the connection is not re routed.

2193

This features implements version control for the SCT files such that the SCT files can have a major version, which would keep track of the parameters being added/deprecated, and a minor version to keep track of modifications to parameters. A SCT management MIB was created to keep CWM and the switch in sync with respect to the SCT files in a node. It also helps CWM in getting the operational status of a SCT file.

2291

The persistent topology feature enables CWM to maintain a persistent topology information of the entire network.

2500

User configurable names for specific SCTs can be entered using CWM and is stored in the switch's database.

2509

A connection summary alarm trap is sent whenever several connections enter into alarm on a service module. The connection summary alarm trap (60306) has been replaced with a newer trap (60311) which contains additional information such as the number of VPCs and VCCs in failure.

2834

This PER tracks PER 20000123 A dsphotstandby command which, when entered on the AXSM, would check for the readiness of the standby AXSM. This would ensure that a switchover to the standby AXSM would be safe.


Service Class Template (SCT) File Information

This section contains SCT file information for Release 3.0.00.

AXSM and AXSM/B

SCT 2 - policing enabled, PNNI

SCT 3 - policing disabled, PNNI

SCT 4 - policing enabled, MPLS and PNNI

SCT 5 - policing disabled, MPLS and PNNI

The check sum for the SCT files are as follows

AXSM_SCT.PORT.2.V1:Check sum is = 0x78ccfb22= 2026699554

AXSM_SCT.PORT.3.V1:Check sum is = 0x987919a7= 2558073255

AXSM_SCT.PORT.4.V1:Check sum is = 0x775bfaa2= 2002516642

AXSM_SCT.PORT.5.V1:Check sum is = 0xe84c696a= 3897321834

AXSM_SCT.CARD.2.V1:Check sum is = 0x78ccfb22= 2026699554

AXSM_SCT.CARD.3.V1:Check sum is = 0x987919a7= 2558073255

AXSM_SCT.CARD.4.V1:Check sum is = 0x775bfaa2= 2002516642

AXSM_SCT.CARD.5.V1:Check sum is = 0xe84c696a= 3897321834

A user can do dspsctchksum <filename> to confirm that the checksum of the Cisco-released SCT file and the file on the node match.

System Requirements

This section describes software compatible with this release, and lists the hardware supported in this release.

Software/Firmware Compatibility Matrix

Table 2 lists Cisco WAN or IOS products that are interoperable with Release 3.0.00.

Table 2 MGX 3.0.00 Compatibility Matrix

Product
N
N-1
N-2

CWM

11.0.00

10.5.10 patch 1

N/A

MGX 1

1.2.10

1.2.01

1.1.40

MGX 2

3.0.00

2.1.76

N/A

BPX/IGX

9.3.40

9.3.36

9.2.41

BXM FW

MFV

MFR

MFN

UXM FW

ACH

ABT

N/A

URM FW

XBB

XBA

N/A

MGX 8220

5.0.18

4.1.12

N/A

SES

3.0.00

1.1.75

1.0.16

RPM IOS

12.2(8)T4

12.2(8)T2

N/A


MGX and RPM Software Version Compatibility Matrix

Table 3 lists the software that is compatible for use in a switch running Release 3.0.00 software. Note that the AXSM/B cards use the same software as AXSM cards.

Table 3 MGX 8950 and RPM Software Compatibility Matrix

PXM45/B

pxm45_003.000.000.000_bt.fw

3.0.00

pxm45_003.000.000.000_mgx.fw

3.0.00

3.0.00

AXSM-1-2488/B

axsm_003.000.000.000_bt.fw

3.0.00

axsm_003.000.000.000.fw

3.0.00

3.0.00

AXSM-16-155/B

axsm_003.000.000.000_bt.fw

3.0.00

axsm_003.000.000.000.fw

3.0.00

3.0.00

AXSM-4-622/B

axsm_003.000.000.000_bt.fw

3.0.00

axsm_003.000.000.000.fw

3.0.00

3.0.00

AXSM-16-T3/E3/B

axsm_003.000.000.000_bt.fw

3.0.00

axsm_003.000.000.000.fw

3.0.00

3.0.00

RPM-PR

rpm_js_mz.122_8.T4

12.2(8)T4

rpm_boot_mz.122_8.T4

12.2(8)T4

12.2(8)T4


Additional Compatibility Information

The RPM IOS releases are as follows:

RPM-PR card IOS release number is 12.2(8)T4.

RPM/B card IOS release number is 12.2(8)T4.

Additional Notes

The following notes provide additional compatibility information for this release:

You can gracefully upgrade to Release 3.0.00 from Release 2.1.80.

MGX 3.0.00 interoperates with SES PNNI 3.0.00 plus BPX Switch Software (SWSW) 9.3.40 plus BXM MFV.

This release supports feeder connections from Cisco MGX 8850 Release 1.2.10. Please see the "Release Notes for MGX 8850, 8230, and 8250 Software Version 1.2.10" for feeder feature issues. Release notes can be downloaded from http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm

You must use CWM Release 11.0.00 to manage networks that contain MGX switches running Release 3.0.00.

The RPM-PR software in this release is based on IOS release 12.2(8)T4.

The SNMP MIB release for 3.0.00 is mgx8850rel300mib.tar.

Hardware Supported

This section lists Product IDs, 800 part numbers, and revision levels for MGX 8950 cards. It also list MGX 8950 front and back card types, and whether APS connectors are supported.

New Hardware in Release 3.0.00

There is no new hardware for MGX 8950.

Table 4


MGX 8950 Product IDs and card types

Table 5 lists Product IDs, 800 part numbers, and revision levels for the MGX 8950.

Table 6 lists MGX 8950 front and back card types and whether APS connectors are supported.


Note MGX 8950 does not support the AXSM/A or the AXSM-E cards. If these cards are present, they will show up as "Failed" when the dspcds command is issued.


Table 5 Card Numbers and Revisions Supported in Release 3.0.00 for MGX 8950

Product ID
800 Part Number
Minimum Revision

PXM45/B

800-09266-04

-A0

PXM-UI-S3

800-05787-02

-A0

PXM-HD

800-05052-03

-A0

AXSM-1-2488/B

800-07983-02

-A0

SMFSR-1-2488/B

800-07255-01

-A0

SMFLR-1-2488/B

800-08847-01

-A0

SMFXLR-1-2488/B

800-08849-01

-A0

AXSM-16-155/B

800-07909-05

-A0

AXSM-4-622/B

800-07910-05

-A0

AXSM-16-T3E3/B

800-07911-05

-A0

MMF-8-155-MT/B

800-07120-02

-A0

SMFIR-8-155-LC/B

800-07864-02

-B0

SMFLR-8-155-LC/B

800-07865-02

-B0

SMFIR-2-622/B

800-07412-02

-B0

SMFLR-2-622/B

800-07413-02

-B0

SMB-8-T3

800-05029-02

-A0

SMB-8-E3

800-04093-02

-A0

SMB-4-155

800-07425-02

-A0

XM-60

800-04706-06

-A0

MGX-APS-CON-8950

800-15308-01

-A0

RPM-PR-256

800-07178-02

-A0

RPM-PR-512

800-07656-02

-A0

MGX-MMF-FE

800-03202-02

-A0

MGX-RJ45-4E/B

800-12134-01

-A0

MGX-RJ45-FE

800-02735-02

-A0


Table 6 MGX 8950 Front and Back Card Types and Supported APS Connectors

Front Card Type
Back Card Types
Supports APS Connector (MGX-APS-CON-8950)

AXSM-1-2488/B

SMFSR-1-2488/B
SMFLR-1-2488/B
SMFXLR-1-2488/B

Yes
Yes
Yes

AXSM-4-622/B

SMFIR-2-622/B
SMFLR-2-622/B

Yes
Yes

AXSM-16-155/B

SMB-4-155
MMF-8-155-MT/B
SMFIR-8-155-LC/B
SMFLR-8-155-LC/B

Yes
Yes
Yes
Yes

AXSM-16-T3E3/B

SMB-8-T3
SMB-8-E3

N/A

PXM45/B

PXM-HD
PXM-UI-S3

N/A

RPM-PR-256
RPM-PR-512

MGX-MMF-FE
MGX-RJ45-4E/B
MGX-RJ45-FE

N/A


New and Changed Commands

Refer to the "MGX 8850, MGX 8950, and MGX 8830 Command Reference, Release 3" for details about new and changed commands. This manual is available online at http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm. To access it, click on the switch name (for example, MGX 8850 (PXM45), click on Release 3, and then click on the Command Reference link.

Limitations, Restrictions, and Notes for 3.0.00

This section includes information about limitations, restrictions, and notes pertaining to MGX Release 3.0.00.


Note For the MGX 8950, references to "AXSM" refer to the AXSM/B cards.


MGX Release 3.0.00 Limitations

Maximum Threshold Accuracy for PXM45

There is a limitation regarding the maximum threshold accuracy for the PXM45 and PXM1E. The Qbin threshold and VI rate are stored in the form of exponent and mantissa, and some accuracy is lost in expressing the real rate. In testing the thresholds, the lack of accuracy is compounded with both of the Qbin and VI rate (draining rate) and therefore we cannot calculate a exact 100% correct discard rate.

To ensure that the user gets the rate that they have specified, the software configures Qbin depth at the next larger rate which the hardware can support. As a result, ICG and RSD are truncated. In this example, we have the following scenario:

(Refer to anomalies CSCdw89558, CSCdw85738, CSCdw89101, CSCdw89123)

Disk Space Maintenance

As the firmware doesn't audit the disk space usage and remove unused files, the disk space in C: and E: drives should be manually monitored and any unused saved configuration files, core files and firmware files and the configuration files of the MGX-RPM-PR-256/512 and MGX-RPM-XF-512 cards should be promptly deleted manually to avoid shortage of disk space to store event logs, configuration upload files in the C: drive and the configuration of MGX-RPM-PR-256/512 and MGX-RPM-XF-512 cards in the E: drive.

Non-native Controller Front Card and HDD Card

When a non-native PXM1E or HDD back card is inserted in the Standby controller slot, the firmware doesn't clean up the drives which have free disk space below 30%. So, when the standby controller card comes up, it needs to be verified whether the contents have been cleaned up or not.

When a non-native PXM1E or HDD back card is inserted in the Standby controller slot, the firmware doesn't clean up the non-auto configuration files in the E:RPM directory. These non-auto configuration files in the E:RPM directory have to be manually cleaned up after the Standby controller card becomes ready.

Due to the checks for non-native cards, when the controller front or HDD cards are swapped in the same node, the controller card that attempts to come up as Active may get reset twice.

When a non-native HDD card is inserted into the standby controller slot, verify, after the card becomes ready in the standby controller slot, its hard disk contents are deleted and synchronized the relevant files from the Active card.

clrsmcnf Limitations

For the clear service module configuration feature, if there is a controller card switchover before the clear service module configuration operation is complete, the clrsmcnf command needs to be re-issued to ensure that the configuration is completely cleared to avoid any incomplete cleanup.

For the clear service module configuration feature, using the clrsmcnf command may result in discrepancy in the PNNI configuration. For example, some connections may be in the mis-match state.

If the clrsmcnf command is given with the option to clear the software version for the slot as well, then the card will go into the failed state after the operation is complete.

While using the clrsmcnf command, the card in the specified slot is not usable until the operation has successfully completed.

APS Limitations

For AXSM-B APS, the backcard of the active card MUST be present for APS to function

New commands dspadjlnalm and dspadjlnalmcnt are now supported on AXSMB

Port LED lights on AXSM-E front cards indicate the receive status of physical line connected to it only when the card is in active state. For a standby AXSM-E card, the LEDs always remain green whether the lines are in LOS irrespective of which lines are Active (CSCdv68576).

Limitations and Restrictions for PNNI Features

PNNI requires SCR=453 cells/sec and PCR=969 cells/sec for the control connection.

SSCOP requires SCR=126 cells/sec and PCR=2000 cells/sec.

Path and Conn Trace

1. Path trace is not supported on the control port.

2. Path trace will not have the accurate information when there is a crankback on the connect path.

3. Path and Connection trace feature in Release 3.0.00 is not compatible with the path and connection trace available with previous releases

SNTP

The CWM MIB is not supported in Release 3.0.00.

Priority Routing

Prioritized reroute of SPVCs is not guaranteed, if the SPVCs originate on a signalling port. We might see SPVCs getting routed out-of-order. In-order routing of SPVCs is guaranteed on non-signalling ports.

RPM does not support configuration of routing priority. All RPM mastered SPVCs will be assigned a routing priority of 8 by the PXM.

addcon command on SES does not have support for specifying the routing priority. All the added SPVCs are assigned a routing priority of 8. cnfcon can be used to change the routing priority of the SPVCs.

Changing the routing priority for dax connections, will not change the priority of the associated pn-cons (SVCs), this is because the SPVCs will not be derouted and rerouted if just the end-point parameters are changed, and routing priority is a end-point parameter. Also since dax connections are never derouted even when the UNI port goes down and rrtcon command is not supported for dax connections, the routing priority change will never get reflected. The only way for this to get reflected is to do a dncon and upcon. The very fact that dax connections are never derouted, the effect of this limitation is voided.

Priority routing operates in a best effort manner. This is because of the following reasons:

Two in-order RELEASEs can still arrive out-of-order at the Master node, if they take two different paths.

Under congestion scenarios we can expect RELEASEs to be transmitted out-of-order. This is because we do not want to hold up the release of other calls if we are not able to send RELEASEs on one of the interfaces, as it is congested. The calls that we are unable to release could be higher priority calls.

Lower priority SPVCs can be routed ahead of higher priority SPVCs. This can happen if we have attempted several times to route higher priority SPVCs, but failed. To prevent starvation of lower priority SPVCs, we will start to route lower priority SPVCs and we will get to the higher priority SPVCs at a later point in time.

SPVC Interop

1. NNI SPVC Addendum Version 1.0 is not supported.

2. PNNI 1.0 Addendum (Soft PVC MIB) is not supported.

3. Terminating single-ended SPVCs on MSSBU switch Legacy Service Modules is not supported.

4. Origination of Single ended spvcs (with -slavepersflag) from Legacy Service Modules (FRSM, CESM, VISM & RPM) is not supported.

5. CC (Continuity Check) shall not be available at the slave end of a single-ended SPVC.

6. Reporting AIS detection to CWM shall not be available at the slave end of a single-ended SPVC.

7. tstdelay shall not be available at the slave end of a single-ended SPVC for POPEYE2. In case of Orion, the command is available from the PXM even for the slave endpoint.

8. The slave end of a single-ended SPVC shall not be visible to CWM.

9. If Single-ended SPVCs are originated from MSSBU switches, they can only be configured via CLI and not from CWM in the current release.

10. Single-end Provisioning will not be supported for DAX connections as no value addition is seen for Interoperability.

11. SPVC Statistics shall not be available for the slave endpoint of a single-ended SPVC because this endpoint is non-persistent.

12. When the persistent slave endpoint of an existing SPVC connection is deleted and the master endpoint is allowed to remain, the connection may get established as a single-ended spvc connection. In this case, CWM will show the connection as "Incomplete"

14. Override of SVC connections on a VPI due to an incoming SPVP request for that VPI is not supported The following override options are alone supported:

spvcoverridesvc

spvcoverridesvp

spvpoverridesvp.

Preferred Route feature

a) The preferred routes can be specified only within a PNNI single peer group meaning all the nodes in the preferred route lie within the same peer group.

b) All the nodes in the network should be running Release 3.0.00 software to use preferred route feature

c) All the links specified in the preferred should be PNNI links

d) If any of the nodes in the pnni network changes its pnni node id, then the old entry in the persistent topology database in all the nodes in the network need to be deleted. If any of the preferred routes in any of the nodes in the network contains the changed node as one of the hops, then the preferred route(s) has to be modified using the new table index (in the persistent topology database) allocated for the changed node.

e) If any of the nodes in the pnni network is deleted via configuration commands from the persistent topology database, if any of the preferred routes configured at that node (where the delete command is executed) contains the deleted node as one of the hops, then the preferred route(s) has to be deleted/modified manually.

f) If any of the nodes in the pnni network is removed via physical de-commissioning and if any of the nodes in the network had some preferred routes that contain the removed node as one of the hops, then the preferred route(s) has to be deleted/modified manually.

g) Due to differences in physical port numbering, non-MSSBU nodes can only be the terminating nodes in a preferred route.

h) When a connection is routed on a route other than its preferred route and if the preferred route becomes available, the connection would not be automatically de-routed to route back to its preferred route. The user has to de-route/re-route using configuration commands. (optrte, rrtcon, dncon/upcon etc)

Persistent Topology Feature

1. In a mixed network of pre-Release 3.0.00 and 3.0.00 or later nodes, only the node name and the node id will be shown for a pre-Release 3.0.00 node in the topo DB. This is because the feature is not present in pre-Release 3.0.00 nodes.

2. If a peer group is made up of physical nodes with pre-Release 3.0.00 release logical nodes, then the info for the logical node will be stored in the Topo DB, because there is no way to distinguish between physical nodes and pre-Release 3.0.00 release logical nodes. Logical nodes with Release 3.0.00 or later SW release will not be stored in the Topo DB.

3. To delete a node info entry from the Topo DB, first remove the node itself from the network, either by disconnecting the cables, or downing all the links between that node and the network. Wait for an hour. Then, delete that node from the topo DB. This is done because, even if a node is removed from the topo DB of all nodes in the peer group, its PTSEs will still be stored in the other nodes, until they are flushed from those nodes. This would happen within an hour's time, but it is configurable as a PNNI timer value. If the node is deleted from the Topo DB within that hour's time, and the node does switchcc/reboot, then it's possible that the node info for that deleted node will be added back into the topo db.

4. When the node id of a node is changed, the old node id is added back into the Topo DB as a new node entry. In addition, the old node id will still be stored in the topo DB of all the other nodes in the PG. In order to delete this entry, wait for an hour so that the PTSEs with the old node id is flushed from the DB of all the nodes in the PG, and then delete the info of the old node id from the topo DB.

5. It is possible that the gateway nodes are not in sync in a peer group, and this could happen in many situations. For example, a gateway node is added in a peer group, then a node is deleted from the PG, and another gateway node is configured, then the info for the deleted node would not be in the second gateway node. Another example is that a node is deleted from one gateway node, but not in another gateway node.

6. When deleting a node from the PG, the node info must be deleted from all the nodes in that PG, even the non-gateway-node nodes. Otherwise, the node info for that deleted node will still be in the non-gateway-node nodes. This could cause inconsistencies later if this node is configured to be a gateway node.

NCDP

1. FRSM:NO clock sources supported on FRSM. So if the root clock is chosen to be a port on FRSM it will be a bad clock source for us and we will compute a new root clock source. Ideally No clock source should be configured on FRSM.

2. If a clock source goes bad there is no way to find out if it has become good. If the user wants NCDP to consider that clock source again he/she needs to re-add the clock source

3. Suppose a root clock source is configured on NBSM which is in redundant configuration. If a switchover of the NBSM is done there *might* be loss of clocking for some time.

4. Currently there is no way for the user to know what is the secondary (second best) clock source in NCDP mode. This might create problems for the user if he/she is trying to delete/modify the partition on the line carrying the secondary best clock source.

5. Revertive option is not provided in NCDP.

Manual Clocking

AUSM can support only one clock. If a second clock is configured on the same AUSM card AUSM will nack us. When the second clock is naked no warning or message is given by the CLI. The NAK can only be found out by looking through the logs. The second clock configured on the AUSM will not be reflected in the clocking database

If the line carrying the primary or the secondary clock source goes in alarm and a switchcc is done on the switch the clock configuration for the line in alarm will be wiped out. The clock configuration will also be wiped out if any card is rebooted when the clocking line is in alarm. This only applies to AXSM and VISMs.

FRSM: NO clock sources supported on FRSM. If a clock source is configured on FRSM it will not be reflected in our database.

When resetcd is invoked on a service module, the primary and secondary (if configured) clock sources will be recommitted even though the primary or secondary clock source is not a port on the service module that was reset. Recommitted means that the primary and secondary will get requalified and the node will temporarily latch onto the internal oscillator, After the clock is requalified, the node will lock onto the primary clock source once again.

RPM-PRLimitations

Starting with Release 3.0.00, Route Processor Module (RPM) cards have their own release notes. For details on RPM cards, refer to the "Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for MGX Release 1.2.10 and MGX Release 3.0.00". These release notes are available online at http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm. They are found under the switch name (for example, MGX 8850 (PXM45), Release 3, Route Processor Module, Release Notes.

Restrictions

Formatting Disks

The hard disks should not be formatted with the Release 3.0.00 backup boot or runtime firmware. The Release 3.0.00 firmware initializes the disks with DOS File System Version 2.0 where as the earlier 2.x releases use DOS File System Version 1.0. As a result, if the hard disks are formatted with Release 3.0.00 firmware, those disks will become unusable in nodes running Release 2.x firmware. Since, Release 3.0.00 firmware is backward compatible, it can use hard disks with DOS File System Version 1.0.

Saving Configurations

The C disk drive should not be used for saving multiple older configurations, images, and core dumps. The disk space on this drive is needed to save event logs and configurations, and the logs and configurations will not be correctly saved if there is inadequate disk space.

Other Limitations and Restrictions

clrsmcnf will not work for redundant service modules.

clrsmcnf will not work if an upgrade is in progress.

If RPM-PR is configured as a LSC (Label Switch Controller), execution of clrsmcnf command on those LSC slots will be rejected - as designed.

PXM disk sync verification will not work if an upgrade is in progress.

The maximum number of 250k connections supported in Release 3.0.00 with PXM45/B.

Only type B cards are supported in the MGX 8950 platform.

Conn and Path trace are not supported between different peer groups.

NCDP is not supported on BPX.

Clearing the Configuration on Redundant PXM45Cards

Due to checks to prevent an inserted card from affecting the system, an additional step may be required when inserting two "non-native" PXM45 cards in a shelf. Insert the first PXM45, do a clrallcnf, and allow this to become active before inserting the second PXM45.

After a clrallcnf, the user needs to explicitly clean up stale SCT files (refer to anomaly CSCdw80282).

Limitations and Restrictions for 2.1.x

This section is extracted from the MGX 2.1.79 release notes. It describes the following issues for Releases 2.1.60 through 2.1.80:

General limitations, restrictions, and notes

APS management information and open issues

Clearing the configuration on redundant PXM45/B cards

General Limitations, Restrictions, and Notes

The following limitations and restrictions apply to this release.


Note For the MGX 8950, references to "AXSM" refer to the AXSM/B cards.


For a graceful upgrade, you must upgrade from version 2.1.80.

Presently, the PXM CLI allows for provisioning of a PNNI controller (controller id 2) on any slot in the chassis, but for this release, such provisioning should be restricted to slot 7 only.

APS is not supported on AXSM-1-2488/B.

Of 192 PNNI interfaces, up to 100 interfaces can be signaling ports. The other 92 interfaces should be non-signaling ports, such as non self-supporting ports.

AXSM-1-2488/B cards do not have a policing function enabled.

In Multiple Peer Group (MPG) mode, when one switches over to the standby on a PGL node with 3 levels, it can take several minutes on the standby card for this PGL to come up and the SVC based RCC to setup. This is normal behavior, because PNNI doesn't support hot redundancy. So on switch over, the entire PNNI database has to be rebuilt. (It is like a reboot for PNNI, even though the active calls are not affected.)

Trace information captured in the error logs of non PXM slots (seen with dsperr -sl <slotnum>) will not translate addresses in the trace to correct symbolic names. Such files with trace data need to be moved off the system using FTP and forwarded to TAC and engineering.

Support for 3 controllers only (1 for PNNI and 2 for LSC). Controller ID 2 is reserved for a PNNI controller; IDs 3-20 are available for LSC controllers.

Partition ID 1 is reserved for PNNI.

The maximum number of logical interfaces (physical trunks, virtual trunks, logical ports) supported in this release with PXM45 cards is 99 and PXM45/B cards is 192.

If an active AXSM card is stuck in the active INIT state, the standby PXM will not go to the standby Ready state until the active AXSM goes to a steady state. Steady states are: Active Ready, Failed, Mismatch, Empty, Empty Reserved, Standby Ready. With redundancy configured, if a standby AXSM card is stuck in a standby init state, with an active Active AXSM already in a Active Ready state, the standby PXM will go to the standby Ready state without any delay. If both AXSMs in the redundancy pair are not in a steady state, then the standby PXM will not go to the standby Ready state until one or both of the 2 AXSM cards are in the active Ready state.

If the destination address is reachable for both an IISP and a PNNI link from the same node, ABR connections will not route. The current routing algorithm will always choose IISP links over PNNI links because it is local. Since IISP does not support ABR connections, the connection setup will fail.

In this release, a Service Class Template (SCT) can be changed with connections present. However, if the change affects services in use, the connections will be rerouted.

When CWM is used to manage the network, the IP address 10.0.x.x cannot be used as the LAN address (lnPci) for the switch.

Here is information about anomaly CSCdx29956. The release note enclosure contains these fields: Bug CSCdx29956, CSC.mssbu.sw, Enclosure 2 of 2, mgx, Retitled 020413 by ddts. Symptom: Cellbus clock configuration defaults after a power cycle. Condition: Set one of the cell bus clock speeds to 42 MHz and power cycle the node. Workaround: Re-configure cell bus clock after a node rebuild.

If there are MGX -RPM-PR-256/512 card(s) in the node, after clrallcnf, the standby controller card takes longer to come up. The more MGX-RPM-PR-256/512 cards in the node, the longer the standby controller takes to come up. This also happens when the standby controller card is coming up, and MGX-RPM-PR-256/512 cards are inserted into slots that were not previously used for MGX-RPM-PR-256/512 cards.

Limitations for rteopt via parallel links

The following are limitations for rteopt via parallel link.

link 1 . . . . . .. . . .. . . . .link 2

Node A ------------- Node B -------------- Node C

fwd & bwd aw= 500 fwd & bwd aw= 1000

-------------

link 3 fwd & bwd aw = 2000

Configuration:

link 1 has forward and backward admin weight set to 500 (via cnfpnni-intf)

link 2 has forward and backward admin weight set to 1000

link 3 has forward and backward admin weight set to 2000

SPVC connection is routed from Node A to Node C (Master endpoint is at Node A) via link 1 and link 2

Scenario 1: Link 2 is down (e.g., via dnpnport), connections are re-routed right away but Node A hasn't had that info updated in the routing tables yet.43

So SPVC on Node A will have routing cost = 2*500 + 2*1000 = 3000, but since link 2 is down, Node B will choose link 3. But the routing cost on Node A SPVC is still 3000 as it did the calculation during the route search.

Now if link 2 is up, if you do rteopt on Node A, it gets the new route, the new path selected has a cost of 3000.

Since spvc has 3000, it doesn't re-route through link 2.

Scenario 2: Instead of link 2 down, if there is a crankback on link 2, the same result stated above will happen.

Scenario 3 (for CBR and VBR): link selection is set as maxavcr or maxcr or random on node B (via cnfpnni-selection) If link 2 has less bandwidth than link 3, and the link selection criteria at Node B is set to maxavcr, Node A will still put the cost as 3000 with least aw calculation, but Node B will choose link 3 (even though it is costlier) because it has more bandwidth.

Scenario 4 (for ABR and UBR): link selection doesn't apply to ABR and UBR. (via cnfpnni-selection. This is exactly the same as Scenario 3 as ABR and UBR follow load balancing on parallel links instead of choosing the minaw link.

Scenario 5 (for all types of service categories): After call setup, if the admin weight is increased on the link on which the call is routed, the routing cost calculated during the call setup will not get changed. So if a rteopt is done after increasing admin weights on the existing links on the connection path, the connections will not get optimized to take the newer path.

Workaround

If you dnpnport on link 2 (connections will be routed via link 3), after uppnport on link 2, then use cnfpnni-intf to change the existing admin weight on link 2 to lesser value, e.g., 800 (from 1000).

So when optrte is executed at Node A, routing cost will be = 2*500 + 800(fwd) + 1000 (bwd) = 2800 for the new route of link 2.

Since all SPVC connections have 3000 as the routing cost, connections will be rerouted on link 2.

Important Notes

This section provides general notes that apply to this release, and covers some procedures that are not yet in the manuals.

You must use the SCT files released with 2.1.80 (number 2 and 3, which were included in version 2.0.13 are similar to number 2 and 3 for 2.1.80) for the Control VC feature. If you are using the MPLS feature, then you will need to change to SCT 4 or 5, which were released with version 2.1.00.

By default, 2000 cps and 543 cps will be reserved for SSCOP and PNNI Signalling VC respectively, even when you disable SSCOP and PNNI. These values are configurable by the cnfpnctlvc command.

Do not execute the delcontroller command when connections/ports still exists. The impact of executing delcontroller with connections is that the connections cannot be recovered until the controller is re-added using addcontroller and the AXSM cards or the entire node has to be reset (otherwise ports remain in the provisioning state). There is now a warning to the user of the impact of the command when there are existing connections/ports.

Analysis of the code has identified a situation which has a low probability of occurring and in fact has not been encountered in any test scenarios to date. This caution and associated workaround is provided as a precautionary measure. When the link bandwidth for SPVC connections is reaching full capacity, making minimal bandwidth available for new SPVC connections, a condition can be encountered where the initial software check believes there is sufficient bandwidth for the new SPVC connection; however, the final software confirmation for available bandwidth may be rejected because there is no bandwidth available. If this problem occurs, the system will recover when the PNNI updates are refreshed. (This will happen at the default time of 30 minutes.) The user can recover from this problem by making the Administrative weight of that link very high to avoid that link from being used.

When the switch cannot automatically resolve nativity check conflicts, you can force a configuration rebuild from a specific hard disk by establishing a console port session through the corresponding PXM-UI-S3 card and issuing the shmRecoverIgRbldDisk command. This command ignores the nativity check and configures the entire switch according to the configuration on the hard disk.

PNNI default min VCI is 35 unless changed explicitly. The reason for the default is to reserve VCI=32-34 for other control purposes (e.g., MPLS and NCDP). For users who would like to add MPLS controller in future releases of MGX 8850, it is highly recommend to set the min-vci value to be 35 or more for all partitions on the port where the MPLS partition will be added. By doing so, the TDP sig vc for MPLS will be established automatically on 0/32. MinVPI is not negotiated by ILMI, so the user should set this parameter same on both nodes.

In Multiple Peer Group (MPG) mode, when one switches over to the standby on a PGL node with 3 levels, it can take several minutes on the standby card for this PGL to come up and the SVC based RCC to setup. This is normal behavior, because PNNI doesn't support hot redundancy. So on switch over, the entire PNNI database has to be rebuilt. (It is like a reboot for PNNI even though the active calls are not affected.)

APS Management Information

The following tips apply to the use of the dspapsbkplane command and the APS connector, which is sometimes called a backplane. The APS connector must be installed to enable intercard APS.

The APS commands dspapsln, dspapslns, switchapsln, and dspapsbkplane were modified in release 2.1.70.


Note Commands dspadjlnalm and dspadjlnalmcnt are new to Release 3.0.00. The command dspadjlnalmcnt is supported on AXSM/B.


The APS command dspadjlnalm was new to release 2.1.70. Refer to the "MGX 8850 Command Reference for Release 2.1" at http://www.cisco.com/univercd/cc/td/doc/product/wanbu/8850r21/index.htm for further details about the commands mentioned in these release notes.


Note The issues in this section are seen only in Operational mode 1+1, bi-directional, Rev/non-Rev. If at least one side is configured as 1+1 unidirectional, these problems do not occur.


The following are some open issues in this release:

Reset of active AXSM, removal of active AXSM, or AXSM switchover may cause the lines behind that card to be in a LOS status for 20 to 30 ms. If these lines were active at the time, some additional APS switch will occur; and the corresponding lines at the far-end will be in SF alarms before the standby AXSM is coming up. The momentary loss of signal is due to the hardware limitation; no other workaround is available. (Refer to CSCdu41763 -- P-comment and CSCdv01058 -- Eng-Note for more details.)

For AXSM/A hardware only: If multiple active lines are removed at the same time, one line may not switchover.

To recover, either perform lockout of Protection line and Clear from the far end or perform delete APS for the line, then add the APS line back.

Preparing for Intercard APS

The following components are required for intercard APS:

two front cards.

two back cards for every bay hosting APS lines. All lines on cards used for intercard APS must operate in APS pairs or use Y cables.

an APS connector installed between the two back cards for every bay hosting APS lines.

Use the dspapsbkplane command on both the standby and active card to verify that the APS connector is plugged in properly. The following example shows the results displayed by the dspapsbkplane command when the APS connector is in place:

M8xx0_NY.1.AXSM.a > dspapsbkplane

Line-ID   Primary Card Signal Status       Secondary Card Signal Status
                    Slot #1                             Slot #2
  1.1               PRESENT                             PRESENT
  1.2               PRESENT                             ABSENT
  2.1               PRESENT                             ABSENT
  2.2               PRESENT                             ABSENT

Remote Front Card : PRESENT
Top Back Card     : ENGAGED
Bottom Back Card  : ENGAGED

The following example shows the results displayed by the dspapsbkplane command when the APS connector is not place:

M8xx0_LA.1.AXSM.a > dspapsbkplane

Line-ID   Primary Card Signal Status       Secondary Card Signal Status
                    Slot #1                             Slot #2
  1.1               PRESENT                             ABSENT
  1.2               ABSENT                              ABSENT
  2.1               PRESENT                             ABSENT
  2.2               ABSENT                              ABSENT

Remote Front Card : ABSENT
Top Back Card     : ENGAGED
Bottom Back Card  : NOT-ENGAGED

Note The dspapsbkplane command should be used only when the standby card is in the Ready state. When the standby card is booting or fails, intercard APS cannot work properly and this command displays "NOT ENGAGED."


If the dspapsbkplane command displays the message "APS Line Pair does not exist," suspect that the APS is not configured on a line.

If the dspapsbkplane command shows different values for each of the two cards, suspect that the APS connector is seated properly on one card but not on the other.

The APS connector status is the same for all lines in a single bay because the APS connector interconnects two back cards within the same bay. You need to enter the dspapsbkplane command only once to display the APS connector status for both upper and lower bays.

Enter the dspapslns command to verify APS configuration. If the working and protection lines show OK, both lines are receiving signals from the remote note.

Managing Intercard APS Lines

In AXSM and AXSM/B intercard APS, either front card can be active, and can be connected to either APS line through the APS connector joining the two back cards. The following process describes how intercard APS communication works:

1. The signal leaves the front card at the remote end of the line. (See Figure 1 and Figure 2.)

2. The signal passes through the APS connector and both back card transmit ports at the remote end of the line. (See Figure 1 and Figure 2.)

3. The signal travels through both communication lines to the receive ports on both back cards at the local end. (See Figure 1 and Figure 2.)

4. The active front card processes the signal that is received on the active line. (See Figure 1 and Figure 2.)

5. The standby card monitors only the status of the standby line. (See Figure 1 and Figure 2.)

6. If necessary, the signal passes through the APS connector to the front card. (See Figure 2.)


Note For AXSM, the front card monitors only one of the receive lines. For AXSM/B, the front card monitors both the receive lines.


Figure 1 shows an example of how this process operates in a standard APS configuration, where the primary card monitors the working line and the secondary card monitors the protection line.

Figure 2 shows an example of how the APS communication process operates in a crossed APS configuration, where the secondary card monitors the working line that is attached to the primary card, and the primary card monitors the protection line that is connected to the secondary card.

Figure 1

Standard APS Configuration

Figure 2

Crossed APS Configuration

Line failures are always detected at the receive end of the line. This is where a switchover occurs when a failure is detected. Two different types of switchovers can occur, depending on whether the APS was configured as unidirectional or bidirectional in the cnfapsln command:

When a failure occurs on a line configured for unidirectional switching, the switch changes lines at the receive end only. A switchover is not necessary at the transmit end because the transmitting back cards send signals on both lines in the 1 +1 APS configuration.

When a failure occurs on a line configured for bidirectional switching, a switchover occurs at both ends of the line.

If the status of the standby line is good, a switchover from the failed active line to the standby is automatic.

Enter the cnfapsln command to enable an automatic switchover back to the working line after it recovers from a failure, as shown in the following example:

M8xx0_LA.1.AXSM.a > cnfapsln -w 1.1.1 -rv 2

Table 1 describes the configurable parameters for the cnfapsln command.

Table 7 cnfapsln Command Parameters

-w <working line>

Slot number, bay number, and line number of the active line to configure, in the format:

slot.bay.line

Example: -w 1.1.1

-sf <signal fault ber>

A number between 3 and 5 indicating the Signal Fault Bit Error Rate (BER), in powers of ten:

3 = 10-3

4 = 10-4

5 = 10-5

Example: -sf 3

-sd <SignalDegradeBER>

A power if 10 in the range 5-9 that indicates the Signal Degrade Bit Error Rate (BER):

5 = 10-5

6 = 10-6

7 = 10-7

8 = 10-8

9 = 10-9

Example: -sd 5

-wtr <Wait To Restore>

The number of minutes to wait after the failed working line has recovered, before switching back to the working line. The range is 5-12.

Example: -wtr 5

-dr <direction>

Determines whether the line is unidirectional or bidirectional.

1 = Unidirectional. The line switch occurs at the receive end of the line.

2 = Bidirectional. The line switch occurs at both ends of the line.

Note This optional parameter is not shown in the above example because you do not need to set it for a revertive line.

Example: -dr 2

-rv <revertive>

Determines whether the line is revertive or non-revertive.

1 = Non-revertive. You must manually switch back to a recovered working line.

2 = Revertive. APS automatically switches back to a recovered working line after the number of minutes set in the -wtr parameter.

Example: -rv 1


If you want to manually switch from one line to another, enter the switchapsln <bay> <line> <switchOption> command, as shown in the following example:

M8xx0_LA.1.AXSM.a > switchapsln 1 1 6
Manual line switch from protection to working succeeded on line 1.1.1

Table 2 describes the configurable parameters for the cnfapsln command.

Table 8 switchapsln Command Parameters

Parameter
Description

bay

The working bay number to switch.

line

The working line number to switch.

switchOption

The method of performing the switchover.

1 = Clear previous user switchover requests. Return to working line only if the mode is revertive.

2 = Lockout of protection. Prevents specified APS pair from being switched over to the protection line. If the protection line is already active, the switchover is made back to the working line.

3 = Forced working to protection line switchover. If the working line is active, the switchover is made to the protection line unless the protection line is locked out or in the SF condition, or if a forced switchover is already in effect.

4 = Forced protection to working line switchover. If the protection line is active, the switch is made to the working line unless a request of equal or higher priority is in effect. This option has the same priority as option 3 (forced working to protection line switchover). Therefor, if a forced working to protection line switchover is in effect, it must be cleared before this option (forced protection to working line switchover) can succeed.

5 = Manual switchover from working to protection line unless a request of equal or higher priority is in effect.

6 = Manual switchover from protection to working line. This option is only available in the 1+1 APS architecture.

service switch

This is an optional parameter. When set to 1, this field causes all APS lines to switch to their protected lines.


Enter the dspapslns command to verify that the active line switched over from the protection line to the working line, as shown in the following example:

M8xx0_LA.1.AXSM.a > dspapslns
Working Prot.  Conf  Oper    Active  WLine PLine WTR   Revt Conf Oper LastUser
Index   Index  Arch  Arch    Line    State State (min)      Dir  Dir  SwitchReq
------- -----  ----  -----   ------  ----- ----- ----- ---- ---- ---- ----------
  1.1.1  2.1.1 1+1    1+1    working    OK    OK     5  Yes   bi   bi ManualP->W

Troubleshooting APS Lines

Port light behavior changed in Release 3.0.00 as follows:

Port lights on AXSM /B front cards indicate the receive status of APS lines. The active front card always displays the status of the active line. The standby card always displays the status of the inactive line. If only one APS line fails, the line failure LED is always displayed on the standby front card.

Port lights on AXSMB front cards indicate the receive status of the Physical Line connected to it. For example, when APS is configured for working line as 5.1.3 and protection line as 6.1.3, regardless of which card is active, port LED on card 5 will show the receive status of 5.1.3 and card 6 will show the receive status of 6.1.3.


Note The remainder of this section is the same as for Release 2.1.80 unless otherwise noted as updated for Release 3.0.00.



Caution When the active front card and the active line are in different slots and the inactive line has failed, it is easy to incorrectly identify the failed line as the line in the standby slot. To avoid disrupting traffic through the active line, verify which physical line is at fault before disconnecting the suspect line.

If the active line fails and the standby line is not available, the switch reports a critical alarm.

If the active line fails and the standby line takes over, the former standby line becomes the new active line, and the switch reports a major alarm.

If an AXSM/A front card fails, APS communication between the redundant front cards fails. This can result in one of the following situations:

If both APS lines were working before the failure, an APS line failure causes a switchover to the protection line

If either APS line failed prior to a front card failure, a failure on the active line does not cause a switchover to the other line. Because the standby front card failed, it cannot monitor the standby line and report when the line has recovered. This means that the active card cannot use the standby line until the standby front card is replaced and the line problem corrected.

Use the following procedure to troubleshoot APS lines.


Step 1 Enter the dsplns command to determine if the line in alarm is an APS line. The dsplns  command shows which lines are enabled for APS:

M8xx0_LA.1.AXSM.a > dsplns
                                           Medium Medium
  Sonet  Line     Line     Line    Frame   Line   Line     Alarm   APS
  Line  State     Type     Lpbk   Scramble Coding Type     State   Enabled
  ----- ----- ------------ ------ -------- ------ -------  -----   --------
   1.1     Up sonetSts12c NoLoop   Enable  Other ShortSMF    Clear Enable
   1.2     Up sonetSts12c NoLoop   Enable  Other ShortSMF    Clear Disable
   2.1     Up sonetSts12c NoLoop   Enable  Other ShortSMF    Clear Disable
   2.2     Up sonetSts12c NoLoop   Enable  Other ShortSMF    Clear Disable

If the line in alarm is an APS line, and has always functioned properly as an APS line, proceed to Step 2.

If the line in alarm has never functioned properly as an APS line, verify that the following are true:

redundant front and back cards are in the appropriate bays and are installed at both ends of the line.

cable is properly connected to both ends of the line.

enter the dspapsbkplane command to verify that the APS connector is installed properly at both ends of the line.

Step 2 Enter the dspapslns command at both ends of the communication line to determine whether one or both lines in an APS pair are bad. Use Table 3 to help you determine which APS line is not functioning properly.


Note Table 9 is updated for Release 3.0.00.


Table 9 Troubleshooting APS Line Problems Using the dspaps Command

Active Line
Working Line
Protection Line
Working Line LED
Protection Line
LED
Description

Working

OK

OK

Green

Green

Active card is receiving signal on working and protection lines. This does not guarantee that transmit lines are functioning properly. You must view the status on remote switch.

Protection

SF

OK

Green for
AXSM/A, Red for AXSM/A, Green for AXSM/B

Red

Active card is receiving signal on the protection line. No signal received on the working line.

Working

OK

SF

Green

Red

Active card is receiving signal on the working line. No signal received on the protection line.

Working

SF

SF

Red

Red

Active card is not receiving signal from either line. The working line was the last line to work.

Protection

SF

SF

Red

Red

Active card is not receiving signal from either line. The protection line was the last line to work.

Working

UNAVAIL

UNAVAIL



The card set is not complete. One or more cards have failed or been removed. See Table 10 to troubleshoot card errors.


If one or both lines appear to be bad, determine whether the working or protection line is in alarm. Troubleshoot and correct the standby line first. Replace the components along the signal path until the problem is resolved.

If the dspapslns command at either end of the line indicates a front or back card problem, resolve that problem first. (See Table 10 to troubleshoot card problems).

If the dspapslns command shows a signal failure on the standby line, replace that line.

If the standby line is still down, replace the cards along the signal path.

Table 10 Troubleshooting Card Problems

APS Line Failure
Possible Cause

All lines in upper and lower bays

Suspect a bad or removed front card. If both front cards are good, both back cards may be bad.

All lines in upper bay only. Lower bay APS lines ok.

Suspect bad upper bay back card.

All lines in lower bay only. Upper bay APS lines OK.

Suspect bad lower bay back card.



Installing and Upgrading to Release 3.0.00

For upgrades, the term graceful means the process does not interrupt switch traffic or change the switch configuration.


Caution You must upgrade to release 2.1.76 or 2.1.80 first before going to 3.0.00. If you have AXSM-E cards, a direct upgrade from a release prior to 2.1.80 to 3.0.00 is not supported. You must upgrade to 2.1.80 before going to 3.0.00.

The MGX 8950 switch can be upgraded to release 3.0.00 from release 2.1.80.

Important Note

On a system running a pre-3.0.00 version of software, if there are AXSM/B (i.e., AXSM model B) cards in the shelf configured and running APS, we should check to see if the slots are reserved for AXSM/B or AXSM/A (check using dspcd command) before upgrading to 3.0.00 version of software. If they are reserved for model A, then there is no limitation. There is no limitation if APS is not configured either.

If they are reserved for AXSM/B and are running APS, then we would have a problem upon upgrade to 3.0.00 version with the card coming up with APS operational mode B, instead of the expected APS operational mode A. To overcome this problem, the steps in Single Card Scenario or Redundant Scenario need to be followed:

The workaround consists of basically reserving the AXSM card to Model A before upgrading the AXSM to 3.0.00. This workaround does not cause traffic loss.

Single card scenario


Step 1 Find out the AXSM-B front card type using dspcds command.

Step 2 Issue the following shellconn command on the PXM:

gShmFcResNvramIdSet <AXSM slot #>, <modelA NVid from Table 11>

It does not matter if the command is issued before upgrading the PXM or after. But the command should be issued before upgrading the AXSM. Table 11 shows how to map a given AXSM/B card with the corresponding AXSM/A NovramID.

Table 11 AXSM-B card mapping to corresponding AXSM-A NovramID

Model B FC type
Model A Nvid

1port OC48-B

0x184

16port OC3-B

0x180

4port OC12-B

0x17E



Note No workaround has been provided for T3E3 card, because the APS functionality is not affected for T3E3 cardtype.


Redundant scenario

Issue the shellconn command for both the primary and secondary slot#.

Installation and Upgrade Procedures

The procedures in this section were extracted from two different manuals. The procedures appear in "Appendix A, Downloading and Installing Software Upgrades" in:

Cisco MGX 8850 (PXM45/B) and MGX 8950 Software Configuration Guide, Release 3 (DOC-7814577=)

Cisco MGX 8850 (PXM1E) and MGX 8830 Software Configuration Guide, Release 3 (DOC-7814248=)

In this section, references to "chapters" refer to chapters in the above manuals.

You can order manuals (see the "Ordering Documentation" section) or download them from the main Multiservice Switch Documentation site as follows:


Step 1 Go to http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm.

Step 2 Click on the link that matches your product name or configuration, for example:

MGX 8950

Step 3 Click on Release 3.

Step 4 Click on the Software Configuration Guide.


Upgrade Process Overview

The following procedures are described in the remainder of this section:

Upgrade Process Overview

Quickstart Procedures for Software Upgrades

Browsing the File System

Copying Software Files to the Switch

Upgrade Procedures for PXM45 and AXSM Cards

Troubleshooting Upgrade Problems


Note To upgrade MGX-RPM-XF-512 runtime software and boot software, refer to "Cisco MGX 8850 (PXM45/B) and MGX 8950 Software Configuration Guide, Release 3" (DOC-7814577=).


This section provides a series of quickstart procedures that describe how to perform graceful and non-graceful upgrades to the switch. To perform a graceful upgrade on a switch card, the card must be operating in redundant mode with another switch card of the same type. When performed properly, graceful upgrades have minimal impact on connections in progress and do not interrupt any established connections.


Note Graceful upgrades to Release 3.0.00 are supported from Release 2.1.80.


When a card to be upgraded is not operating in redundant mode, you must do a non-graceful upgrade, which disrupts all traffic that passes through the card. For PXM45 cards, an ungraceful upgrade interrupts all traffic passing through the switch. For all other types of cards, an ungraceful upgrade affects only the traffic that passes through that card.

Each type of switch card runs boot and runtime software. The recommended sequence for upgrading the software (i.e., firmware) on switch cards is as follows:

1. PXM45 boot software

2. PXM45 runtime software

3. AXSM boot software

4. AXSM runtime software


Note If you plan to upgrade PXM45 cards and AXSM cards, upgrade the PXM45 cards first. Wait until the PXM45 cards are operating in active and standby modes with the correct software before upgrading AXSM cards. The software version used by the PXM45/B cards should be equal to or later than the version used on the AXSM/B card.


Typically, the boot software requires less frequent upgrades. However, in this release, both the boot and runtime software need to be upgraded.

When you upgrade the software on a switch card, proceed as follows:

Decide whether you are performing a graceful or non-graceful upgrade

Follow the appropriate quickstart procedure for that type of upgrade

For additional information on a task within a quickstart procedure, see the subsection to which the procedure refers

The next subsection presents the quickstart procedures for switch card software upgrades.

Quickstart Procedures for Software Upgrades

The following subsections provide quickstart procedures for the following upgrades:

Preparing for Upgrades

Graceful PXM45 Boot Upgrades

Non-Graceful PXM45 Boot Upgrades

Graceful PXM45 and AXSM Runtime Software Upgrades

Non-Graceful PXM45 and AXSM Runtime Software Upgrades

Graceful AXSM Boot Upgrades

Non-Graceful AXSM Boot Upgrades


Caution A CP port session is required because you will be resetting the node and entering commands in "Backup Boot mode," which is not accessible through other connection methods.

Preparing for Upgrades

Before you can upgrade the software on any card, you must copy the software to your switch and then log into the switch. The following table describes how to prepare for software upgrades on any card:


Command
Description

Step 1

ftp

Copy the boot and runtime files you want to use to your switch.

FTP the AXSM and PXM45 boot and runtime images to the C:FW directory.

See "Copying Software Files to the Switch," which appears later in this section.

Step 2

username

password

Establish a CLI session with the standby PXM45 card using the CP port on the UI back card and a user name with CISCO_GP privileges.

Step 3

saveallcnf

This optional step saves the current configuration to the hard disk of the active PXM45 card. (The command can only be issued on the active PXM card.)

Refer to "Saving a Configuration" in Chapter 7, "Switch Operating Procedures."

Graceful PXM45 Boot Upgrades

When performed properly, graceful upgrades have minimal impact on connections in progress and do not interrupt any established connections.

When a boot software upgrade is required, the procedure for upgrading redundant PXM45 cards updates the standby card and then makes that card active. This method ensures a smooth transition to the new software and preserves all established calls. Any calls that are not established are lost.

A graceful upgrade of the boot software does the following:

1. Loads the new software on the standby PXM45 card

2. Makes the standby PXM45 card active

3. Loads the new software on the formerly active (now standby) PXM45 card


Note Avoid making configuration changes while upgrading PXM45 software. Configuration changes can be lost when the PXM45 is reset during the upgrade. .


To upgrade the runtime software, use the following procedure.


Command
Purpose

Step 1



Copy the boot files you want to use to the switch and log into the active PXM45 card.

Step 2

sysPxmRemove

At the backup boot prompt, enter the sysPxmRemove command: This step prevents the active card from resetting the standby card while you are working with it.

Step 3

sysFlashBootBurn "Filename"

reboot

username

password

dspcds; dsprevs

Burn the boot software. Remember to enter quotation marks before and after the boot software filename. For example:

sysFlashBootBurn "C:FW/pxm45_003.000.000.000_bt.fw"

See "Upgrading PXM45 Boot Software," which appears later in this section.

Step 4

username

password

Establish a CLI session with the active PXM45 card (which is the non-upgraded card) using the CP port on the UI-S3 back card and a user name with CISCO_GP privileges.

Step 5

switchcc

y

Switch the roles of the active and standby cards so you can upgrade the non-upgraded card in standby mode.

Step 6

sh

sysBackupBoot

Using the CP port connection, change to the PXM45 Backup Boot mode.

Note that the software versions 2.0.11 and earlier require you to press Return during the reboot sequence to enter backup boot mode.

See "Changing to PXM45 Backup Boot Mode" in Appendix B, "PXM45 Backup Boot Procedures.".

Step 7

sysPxmRemove

At the backup boot prompt, enter the sysPxmRemove command: This step prevents the active card from resetting the standby card while you are working with it.

Step 8

sysFlashBootBurn "Filename"

reboot

username

password

dspcds; dsprevs

Burn the boot software. Remember to enter quotation marks before and after the boot software filename. For example:

sysFlashBootBurn "C:FW/pxm45_003.000.000.000_bt.fw"

See "Upgrading PXM45 Boot Software," which appears later in this section.

The boot software is now upgraded on both the active and standby cards. The card that was active before the upgrade is now operating in standby mode.

Non-Graceful PXM45 Boot Upgrades

Ungraceful upgrades disrupt all switch traffic and are usually used in lab installations where the use of standalone cards provides no opportunity for a graceful upgrade. The quickstart procedure is provided as an overview and as a quick reference.


Note Avoid making configuration changes while upgrading PXM45 software. Configuration changes can be lost when the PXM45 is reset during the upgrade.



Command
Purpose

Step 1



Copy the boot files you want to use to the switch and log into the active PXM45 card.

Step 2

sh

sysBackupBoot

Using the CP port connection, change to the PXM45 Backup Boot mode.

Step 3

sysFlashBootBurn "Filename"

reboot

username

password

dspcd; dsprevs

Burn the boot software. Remember to enter quotation marks before and after the boot software filename. For example:

sysFlashBootBurn "C:FW/pxm45_003.000.000.000_bt.fw"

See "Upgrading PXM45 Boot Software," which appears later in this section.

Graceful PXM45 and AXSM Runtime Software Upgrades

When performed properly, graceful upgrades have minimal impact on connections in progress and do not interrupt any established connections.

This quickstart procedure applies to both PXM45 and AXSM cards and does the following:

1. Loads the new software on the standby PXM45 or AXSM card

2. Makes the standby card active

3. Loads the new software on the formerly active (now standby) card


Note If you plan to upgrade PXM45 cards and AXSM cards, upgrade the PXM45 cards first. Wait until the PXM45 cards are operating in active and standby modes with the correct software before upgrading AXSM cards. The software version used by the PXM45/B cards should be equal to or later than the version used on the AXSM/B card. When AXSM boot software is to be upgraded, it should be upgraded before upgrading the runtime software.



Note Avoid making configuration changes while upgrading PXM45 software. Configuration changes can be lost when the PXM45 is reset during the upgrade.


To upgrade the runtime software, use the following procedure.


Command
Purpose

Step 1



Copy the runtime files you want to use to the switch and log into the active PXM45 card.

Step 2

dspcds; dsprevs; dsprevs -s

commitrev <slot> <revision>

Verify that all previous upgrades have been committed.

If a previous upgrade has not been committed, commit to the new upgrade.

See "Committing to a Runtime Software Upgrade," which appears later in this section.

Step 3

loadrev <slot> <revision>

dspcds; dsprevs -s

Load the new runtime software on the standby card.

Step 4

runrev <slot> <revision>

dspcds; dsprevs -s

dspcd <slot>

Switch over to the standby card and load the new runtime software on the new standby (non-upgraded) card.

Step 5

commitrev <slot> <revision>

dspcds

dsprevs

dsprevs -s

This command prevents an accidental switch back to a previous software revision if someone enters the abortrev command. Enter the commitrev command after the former active card comes up in the standby-U state. Cisco Systems recommends that you avoid configuration changes until after you have run the commitrev or abortrev commands.

See "Aborting a Runtime Software Upgrade" and "Committing to a Runtime Software Upgrade," both of which appear later in this section.

Non-Graceful PXM45 and AXSM Runtime Software Upgrades

Ungraceful upgrades disrupt all switch traffic and are usually used in lab installations where the use of standalone cards provides no opportunity for a graceful upgrade. The quickstart procedure is provided as an overview and as a quick reference.


Note If you plan to upgrade PXM45 cards and AXSM cards, upgrade the PXM45 cards first. Wait until the PXM45 cards are operating in active and standby modes with the correct software before upgrading AXSM cards. The software version used by the PXM45/B cards should be equal to or later than the version used on the AXSM/B card. When AXSM boot software is to be upgraded, it should be upgraded before upgrading the runtime software.



Note Avoid making configuration changes while upgrading PXM45 software. Configuration changes can be lost when the PXM45 is reset during the upgrade.



Command
Purpose

Step 1



Copy the runtime files you want to use to the switch and log into the active PXM45 card.

Step 2

dspcds; dsprevs -s

commitrev <slot> <revision>

Verify that all previous upgrades have been committed.

If a previous upgrade has not been committed, commit to the new upgrade.

See "Committing to a Runtime Software Upgrade," which appears later in this section.

Step 3

loadrev <slot> <revision>

dspcds; dsprevs -s

Define the new software version to be used.

Step 4

runrev <slot> <revision>

dspcds; dsprevs -s

Reset the card and run the new runtime software version.

Step 5

commitrev <slot> <revision>

dspcds

dsprevs -s

dsprevs

This command prevents an accidental switch back to a previous software revision if someone enters the abortrev command.

Cisco Systems recommends that you avoid configuration changes until after you have run the commitrev or abortrev commands.

See "Aborting a Runtime Software Upgrade" and "Committing to a Runtime Software Upgrade," both of which appear later in this section.

Graceful AXSM Boot Upgrades

When performed properly, graceful upgrades have minimal impact on connections in progress and do not interrupt any established connections. The quickstart procedure is provided as an overview and as a quick reference.


Note If you plan to upgrade PXM45 cards and AXSM cards, upgrade the PXM45 cards first. Wait until the PXM45/B cards are operating in active and standby modes with the correct software before upgrading AXSM cards. The software version used by the PXM45/B cards should be equal to or later than the version used on the AXSM/B card.



Command
Purpose

Step 1



Copy the boot files you want to use to the switch and log into the active PXM45 card.

Step 2

burnboot <slot> <revision>

dspcd <slot>

dsprevs

Burn the boot software on the standby AXSM card by specifying the slot number of the standby card.

See "Upgrading Boot Software on an AXSM Card," which appears later in this section.

Step 3

switchredcd <fromSlot> <toSlot>

Activate the upgraded card and place the non-upgraded card in standby mode.

Step 4

burnboot <slot> <revision>

dspcd <slot>

dsprevs

Burn the boot software on the non-upgraded, standby AXSM card by specifying the slot number of the standby card.

See "Upgrading Boot Software on an AXSM Card," which appears later in this section.

Non-Graceful AXSM Boot Upgrades

Ungraceful upgrades disrupt all switch traffic and are usually used in lab installations where the use of standalone cards provides no opportunity for a graceful upgrade. The quickstart procedure is provided as an overview and as a quick reference.


Note If you plan to upgrade PXM45 cards and AXSM cards, upgrade the PXM45 cards first. Wait until the PXM45 cards are operating in active and standby modes with the correct software before upgrading AXSM cards. The software version used by the PXM45/B cards should be equal to or later than the version used on the AXSM/B card.



Command
Purpose

Step 1



Copy the boot files you want to use to the switch and log into the active PXM45 card.

Step 2

burnboot <slot> <revision>

dspcd <slot>

dsprevs

Burn the boot software on the standby AXSM card by specifying the slot number of the standby card.

See "Upgrading Boot Software on an AXSM Card," which appears later in this section.

Browsing the File System

The active PXM45 hard disk stores log files, configuration files, and boot and runtime software. The switch operating system supports a set of UNIX-like commands that you can use to locate log files or manage software updates. Table 12 lists commands that you can use to browse the file system.


Note File and directory names in the switch file system are case sensitive. Also, some of the commands listed in Table 12 are not available at all administrator access levels.


Table 12 File System Commands at Switch Prompt

Command
Description

cd

Change directories. Access level required: ANYUSER or above.

copy

Copies a file from one location to another.

Syntax: copy <source file name> <destination file name>

Access level required: GROUP1 or above.

del

Deletes a file.

Syntax: del <file name>

Access level required: GROUP1 or above.

ll

List directory contents using long format, which includes the name, size, modification date, and modification time for each file. This command also displays the total disk space and free disk space.

Syntax: ll

Access level required: ANYUSER or above.

ls

List directory contents using the short format, which displays filenames, total disk space, and free disk space.

Syntax: ls

Access level required: ANYUSER or above.

pwd

Display the present working directory.

Syntax: pwd

Access level required: ANYUSER or above.

rename

Renames a file.

Syntax: rename <old file name> <new file name>

Access level required: GROUP1 or above.

whoami

Lists the login name for the current session.

Syntax: whoami

Access level required: ANYUSER or above.


Copying Software Files to the Switch

This section describes how to copy software files to the MGX 8950 switch. The switch cards use boot software and runtime software. Each PXM45 and AXSM card uses the boot software to define communications between the card components and to enable cards to start up. The runtime software defines how the card operates after startup.


Note The boot and runtime software are installed on the switch at the factory. Before you copy new files to the switch, verify that you need to update the files by comparing the file versions on the disk to the file versions in Table 3 .


The MGX 8950 switches provide a File Transfer Protocol (FTP) service to support file transfers to the switch. If you have FTP client software and network connectivity to both the switch and the server where the software files are stored, you can use FTP to transfer files directly from the server to the switch.


Note The following procedure describes how to copy files to the switch when the runtime software is up and running (showing the node name switch prompt). When the runtime software cannot load, copy the software files to the switch as described in "Transferring Software Files to and from the Switch" in Appendix B, "PXM45 Backup Boot Procedures."



Step 1 Locate the files you want to download from http://www.cisco.com/kobayashi/sw-center/wan/wan-planner.shtml.

Step 2 Using a workstation with FTP client software, transfer PXM45 and AXSM files from the server to the switch directory C:/FW. For RPM-PR, the file goes to E:/RPM.

The procedure you use for transferring the files depends on the FTP client software you are using. When initiating the FTP connection, remember the following:

Select the switch by entering its IP address.

When prompted for a username and password, enter the username and password you use when managing the switch.

When configuring file transfer options, select binary mode for the file transfer.

Step 3 To verify that the new PXM45 and AXSM files have been transferred to the switch, log into the switch and display the contents of the C:/FW directory.

Step 4 Using a workstation with FTP client software, transfer RPM-PR files from the server to the switch directory E:/RPM.


Note You must use a capital E when referencing the E drive in switch commands.


Step 5 To verify that the new RPM-PR files have been transferred to the switch, log into the switch and display the contents of the E:/RPM directory.

For more information on browsing the switch file system, see "Browsing the File System," which appears earlier in this section.


Upgrade Procedures for PXM45 and AXSM Cards

The following sections describe procedures that support upgrades to PXM45 and AXSM cards. For complete upgrade procedures, see "Quickstart Procedures for Software Upgrades," which appears earlier in this section. The procedures in this section detail some of the tasks listed in the quickstart procedures.

Upgrading PXM45 Boot Software

This section describes how to upgrade the PXM45 boot software on a single PXM45 card. If you are performing a graceful upgrade, use the quickstart procedure described in "Graceful PXM45 Boot Upgrades," which appears earlier in this section. The following procedure provides detailed information on the upgrade task within the quickstart procedure.


Step 1 If you have not done so already, establish a CLI session with the active PXM45 card using the CP port on the UI-S3 back card and a user name with CISCO_GP privileges.

Step 2 If you have not done so already, change to PXM45 Backup Boot mode as described in "Changing to PXM45 Backup Boot Mode" in Appendix B, "PXM45 Backup Boot Procedures.".

Step 3 To burn the boot software on the PXM45, enter the sysFlashBootBurn command as follows:

pxm45bkup> sysFlashBootBurn "filename"

Replace filename with the complete path to the boot file on the PXM45 hard drive. For example:

pxm45bkup> sysFlashBootBurn "C:FW/pxm45_003.000.000.000_bt.fw"

Step 4 When the switch prompts you to confirm this action, type y and press Return.

When the boot software burning process is complete, the switch displays a message similar to the following:

Flash download completed ...
value = 0 = 0x0

Step 5 When the boot software has been burned, reset the card with the reboot command. For example:

pxm45bkup> reboot

Be patient and wait for Login prompt to appear.

Step 6 When the Login prompt appears, log in to the switch as you do at the beginning of a CLI session. The switch prompt should appear.

M8xx0_NY.8.PXM.a >

Step 7 To confirm that the PXM45 card is now using the correct boot software, enter the dsprevs command.

M8xx0_NY.8.PXM.a > dsprevs
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 17:01:54 PST
MGX8850                                              Node Alarm: CRITICAL
Physical  Logical   Inserted       Cur Sw              Boot FW
Slot      Slot      Card           Revision            Revision
--------  -------   --------       --------            --------

01        01        AXSM_4OC12     3.0(0.0)         3.0(0.0)
02        01        AXSM_4OC12     3.0(0.0)         3.0(0.0)
03        03        AXSM_4OC12     3.0(0.0)         3.0(0.0)
04        04        ---            ---                 ---
05        05        ---            ---              3.0(0.0)
06        06        ---            ---              3.0(0.0)
07        07        PXM45          3.0(0.0)         3.0(0.0)
08        07        PXM45          3.0(0.0)         3.0(0.0)
09        09        RPM_PR         ---                 ---
10        10        ---            ---                 ---
11        11        ---            ---                 ---
12        12        ---            ---                 ---
13        13        ---            ---                 ---
14        14        ---            ---                 ---

Step 8 Use dspcd to see the condition of the PXM45 card. You should see active/active and no card alarm.

The Boot FW Rev row in the display should show the new revision as shown in the following example:

8850_NY.7.PXM.a > dspcd
8850_NY                          System Rev: 03.00   Jun. 18, 2002 22:47:23 PST
MGX8850                                              Node Alarm: NONE
Slot Number    7    Redundant Slot:  8

                    Front Card          Upper Card          Lower Card
                    ----------          ----------          ----------

Inserted Card:      PXM45               UI Stratum3         PXM HardDiskDrive
Reserved Card:      PXM45               UI Stratum3         PXM HardDiskDrive
State:              Active              Active              Active
Serial Number:      SBK050302AF         SBK045203PJ         SBK044602HJ
Prim SW Rev:        3.0(0)              ---                 ---
Sec SW Rev:         3.0(0)              ---                 ---
Cur SW Rev:         3.0(0)              ---                 ---
Boot FW Rev:        3.0(0)              ---                 ---
800-level Rev:      A0                  A0                  A0
800-level Part#:    800-06147-08        800-05787-02        800-05052-04
CLEI Code:          BAA670YCAA          BA7IBCLAAA          BA7IADNAAA
Reset Reason:       On Power up
Card Alarm:         NONE
Failed Reason:      None
Miscellaneous Information:

Type <CR> to continue, Q<CR> to stop:

After you confirm the upgrade to the first PXM45 card, the boot software upgrade for that card is complete.


Loading the Runtime Upgrade Software

This section describes how to load the runtime upgrade software in preparation for running it. Production switches should have redundant cards installed, so that upgrades can occur without interrupting traffic. For graceful upgrades, the upgrade software is loaded on the standby card first, and then the control is switched to upgraded card so that the other card can be upgraded.

The best way to assess the boot software upgrade status of a card is to enter the dsprevs command (without any parameters), as in the following example:

M8xx0_NY.8.PXM.a > dsprevs
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 17:14:58 PST
MGX8850                                              Node Alarm: CRITICAL
Physical  Logical   Inserted       Cur Sw              Boot FW
Slot      Slot      Card           Revision            Revision
--------  -------   --------       --------            --------

01        01        AXSM_4OC12     3.0(0.0)         3.0(0.0)
02        01        AXSM_4OC12     3.0(0.0)         3.0(0.0)
03        03        AXSM_4OC12     3.0(0.0)         3.0(0.0)
04        04        ---            ---                 ---
05        05        ---            ---              3.0(0.0)
06        06        ---            ---              3.0(0.0)
07        07        PXM45          3.0(0.0)         3.0(0.0)
08        07        PXM45          3.0(0.0)         3.0(0.0)
09        09        RPM_PR         ---                 ---
10        10        ---            ---                 ---
11        11        ---            ---                 ---
12        12        ---            ---                 ---
13        13        ---            ---                 ---
14        14        ---            ---                 ---

The current (Cur SW Revision) software revision label indicates the status of an upgrade for runtime
software. The boot (Boot FW Revision) label indicates the status of an upgrade for the boot software.

To assess the runtime software upgrade status of a card, enter the dsprevs -s command. For example:

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 17:10:49 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

The current (Cur SW Revision), primary (Prim SW Revision), and secondary (Sec SW Revision) runtime software revision labels indicate the status of an upgrade for runtime software. In this example, these numbers match because the software upgrade has not started.

The primary software revision indicates which revision a card will run if it becomes active, and the secondary revision indicates an alternate revision that the card will use if the abortrev command is entered. (For more information on aborting an upgrade, see "Aborting a Runtime Software Upgrade," which appears later in this section.) The current software revision represents the software the active card is using. During a runtime upgrade, the Rev Change Status column shows when the revision command is in progress and subsequently when it is done.

The normal sequence of commands for a runtime software upgrade is loadrev, runrev, and commitrev. Table 13 shows how the software revision levels change during a graceful runtime software upgrade. Software Versions Reported During Graceful Upgrades

Table 13 Software Versions Reported During Graceful Upgrades

Software Revision
Before Upgrade
After loadrev
After runrev
After commitrev
Slot 7
Slot 8
Slot 7
Slot 8
Slot 7
Slot 8
Slot 7
Slot 8
Active
Standby
Active
Standby
Standby
Active
Active
Standby

Primary

2.1(80)

2.1(80)

2.1(80)

2.1(80)

3.0(00)

3.0(00)

3.0(00)

3.0(00)

Secondary

2.1(80)

2.1(80)

3.0(00)

3.0(00)

2.1(80)

2.1(80)

3.0(00)

3.0(00)

Current

2.1(80)

2.1(80)

2.1(80)

3.0(00)

3.0(00)

3.0(00)

3.0(00)

3.0(00)


For non-graceful upgrades, the load process defines the software version to which the switch is about to be upgraded. Table 14 shows how the revision levels change during a non-graceful upgrade.

Table 14 Software Versions Reported During Non-Graceful Upgrades

Software Revision
Before Upgrade
After loadrev
After runrev
After commitrev

Primary

2.1(80)

2.1(80)

3.0(00)

3.0(00)

Secondary

2.1(80)

3.0(00)

2.1(80)

3.0(00)

Current

2.1(80)

2.1(80)

3.0(00)

3.0(00)


If you are performing a graceful upgrade, use the quickstart procedure described in "Graceful PXM45 and AXSM Runtime Software Upgrades," which appears earlier in this section. The following procedure provides detailed information on the load task within the quickstart procedure.


Step 1 To load the upgrade runtime software version on a PXM45 or AXSM card, enter the following command:

mgx8950a.7.PXM.a > loadrev <slot> <revision>

Replace <slot> with the card slot number for the card to be upgraded, and replace <revision> with the software version number for the update. For graceful upgrades, you can specify either the active or the standby card. The switch software will automatically load the upgrade runtime software on the standby card when it is installed. The following example shows how to enter this command:

mgx8950a.7.PXM.a > loadrev 7 3.0(0)

After you enter the loadrev command, the standby card comes up in the standby-U state.

You can find the software version number in Table 2. You can also determine the version number from the runtime software filename as described in "Determining the Software Version Number from Filenames," which appears in Chapter 7, "Switch Operating Procedures."

Step 2 When prompted to confirm the command, type y and press Return to continue.

Step 3 To verify that the load command was processed correctly, enter the dsprevs -s command and check the status of the software revision levels.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

Note In a standalone configuration, the switch does not start the upgraded runtime software until the runrev command is entered. In a redundant configuration, the switch starts the upgraded runtime software on the standby card. The standby card does not become active until the runrev command is entered.



Activating the Upgraded Runtime Software

After you load the upgraded runtime software for a PXM45 or AXSM card, enter the runrev command to start using the software. The version levels for graceful and non-graceful upgrades change as shown earlier in Table 13 and Table 14. The following procedure describes how to activate the upgraded runtime software.


Step 1 To start using the new runtime software version on a PXM45 or AXSM card, enter the following command:

mgx8950a.7.PXM.a > runrev <slot> <revision>

Replace <slot> with the card slot number, and replace <revision> with the software version number specified with the loadrev command. For graceful upgrades, you can specify either the active or the standby card. The switch software will automatically run the upgrade runtime software on the standby card when it is installed. The following example shows how to enter this command:

mgx8950a.7.PXM.a > runrev 7 3.0(0)

The active card is reset, and the former standby card comes up in the active-U state.

Step 2 When prompted to confirm the command, type y and press Return to continue.

Step 3 To verify that the load command was processed correctly, enter the dsprevs -s command and check the status of the software revision levels.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

Step 4 When the former active PXM45 comes up in the standby-U state, enter the commitrev command to commit to that software version. This step is optional. The dsprevs -s command shows that runrev is done.

After the runrev command is entered, the switch starts running the new runtime software revision. The secondary software revision shows that a previous revision is still available. Whenever the secondary runtime software revision is different from the primary and current runtime software revisions, you can revert back to the secondary software revision as described in "Aborting a Runtime Software Upgrade," which appears later in this section.


Upgrading Boot Software on an AXSM Card


Note The AXSM upgrade procedures are the same for AXSM and AXSM/B cards.


The upgrade procedure for the boot software on a single AXSM card is the same for graceful and non-graceful upgrades. The difference between the graceful and non-graceful boot software upgrades is the sequence of commands before and after the upgrade on a single card. For information on the proper sequence see "Graceful AXSM Boot Upgrades" or "Non-Graceful AXSM Boot Upgrades," both of which appear earlier in this section.

To upgrade the boot software, use the following procedure.


Step 1 Copy the new boot software files for the AXSM card to the switch as described in "Copying Software Files to the Switch," which appears earlier in this section.

Step 2 Establish a CLI session with the switch using a user name with SERVICE_GP privileges or higher.

Step 3 To burn the new AXSM boot software, enter the burnboot command from the active PXM45 card. For example:

mgx8950a.7.PXM.a > burnboot <slot> <revision>

Replace <slot> with the slot number of a standalone AXSM card or an AXSM card operating in standby mode. Replace <revision> with the software revision number to which you are upgrading. For example:

mgx8950a.7.PXM.a > burnboot 1 3.0(0)

Step 4 When prompted to confirm the upgrade, type y and press Return.

After you confirm the upgrade, the new boot software is burned into the AXSM card and the card is reset. Be patient, the card reset takes some time. You can use the dsprevs command to display the status of the AXSM card. At first, the status may show that the card slot is empty or the card is rebooting. Reenter the command periodically to see the current status of the card. When the card status returns to active or standby, you are ready to continue.

M8xx0_NY.8.PXM.a > dsprevs
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 17:14:58 PST
MGX8850                                              Node Alarm: CRITICAL
Physical  Logical   Inserted       Cur Sw              Boot FW
Slot      Slot      Card           Revision            Revision
--------  -------   --------       --------            --------

01        01        AXSM_4OC12     3.0(0.0)            3.0(0.0)
02        01        AXSM_4OC12     3.0(0.0)            3.0(0.0)
03        03        AXSM_4OC12     3.0(0.0)            3.0(0.0)
04        04        ---            ---                 ---
05        05        ---            ---                 3.0(0.0)
06        06        ---            ---                 3.0(0.0)
07        07        PXM45          3.0(0.0)            3.0(0.0)
08        07        PXM45          3.0(0.0)            3.0(0.0)
09        09        RPM_PR         ---                 ---
10        10        ---            ---                 ---
11        11        ---            ---                 ---
12        12        ---            ---                 ---
13        13        ---            ---                 ---
14        14        ---            ---                 ---

M8xx0_NY.8.PXM.a >

Step 5 To confirm that the AXSM card is now using the correct boot software, enter the dsprevs command.


After you confirm the boot software upgrade to the AXSM card, the boot software upgrade for that card is complete.


Aborting a Runtime Software Upgrade

After upgrading PXM45 or AXSM runtime software, you can revert to the previously used version of software at any time, as long as you have not committed to the new software version with the commitrev command (which is described in the next section).


Note Reverting to the previously used version of runtime software terminates all calls in progress.


To revert to the previously used runtime software version, use the following procedure.


Step 1 Establish a configuration session using a user name with SERVICE_GP privileges or higher.

Step 2 To display the software revisions known to the switch, enter the dsprevs -s command.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

To complete the next step, you need to know the secondary software revision shown in the display.


Note If the primary and secondary software revisions are the same, there is no other revision level to revert back to.


Step 3 To abort use of the primary software revision and revert back to the secondary software revision, enter the following command:

mgx8950a.7.PXM.a > abortrev <slot> <revision>

Replace <slot> with the card slot number for the active PXM45 or AXSM card, and replace <revision> with the software version number for the secondary software revision.

Step 4 To verify that the standby card is running the previously used software version, enter the dsprevs -s command to view the software version in use.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

Committing to a Runtime Software Upgrade

Committing to an upgrade does the following:

Disables use of the abortrev command to revert back to the previously used version of software

Enables upgrading of the current version of software and other cards

Once you are sure that an upgrade is stable, you can use the commitrev command to commit that software version. This prevents other administrators from inadvertently reverting to the previous version. You must also commit the current software version before you can upgrade to another software version or other additional cards.


Note If you do not run the commitrev command in a PXM or AXSM upgrade, the upgrade is not complete and you cannot upgrade any other like card in the switch.


To commit the currently running runtime software version, use the following procedure:


Step 1 Establish a configuration session using a user name with SERVICE_GP privileges or higher.

Step 2 Determine if there is an unfinished upgrade by doing the following:

a. If necessary, use the cc command to select the active PXM45 card.

b. Enter the dsprevs -s command.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
04   04   ---              ---              ---              ---
05   05   ---              3.0(0.0)         3.0(0.0)         ---
06   06   ---              3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)         3.0(0.0)         3.0(0.0)         ---
09   09   ---              ---              ---              ---
10   10   ---              ---              ---              ---
11   11   ---              ---              ---              ---
12   12   ---              ---              ---              ---
13   13   ---              ---              ---              ---
14   14   ---              ---              ---              ---

c. Check the dsprevs -s command report to see if the same software revision is listed for the current (Cur SW Rev), primary (Prim SW Revision), and secondary (Sec SW Rev) software revisions.

If all version numbers are identical, the runtime software can be upgraded. There is no need to commit to the current software revision.

Step 3 To commit to the software version, enter the following command:

mgx8950a.7.PXM.a > commitrev <slot> <revision>

Replace <slot> with the card slot number for the active PXM45 or AXSM card, and replace <revision> with the software version number for the currently used software version. To display the software version numbers, use the dsprevs -s command to view the software version in use.

M8xx0_NY.8.PXM.a > dsprevs -s
M8xx0_NY                         System Rev: 03.00   Jun. 18, 2002 01:16:26 PST
MGX8850                                              Node Alarm: CRITICAL
Phy. Log. Cur Sw           Prim Sw          Sec Sw           Rev Chg
Slot Slot Revision         Revision         Revision         Status
---- ---- --------         --------         --------         -------

01   01   3.0(0.0)          3.0(0.0)         3.0(0.0)         ---
02   01   3.0(0.0)          3.0(0.0)         3.0(0.0)         ---
03   03   3.0(0.0)          3.0(0.0)         3.0(0.0)         ---
04   04   ---               ---              ---              ---
05   05   ---               3.0(0.0)         3.0(0.0)         ---
06   06   ---               3.0(0.0)         3.0(0.0)         ---
07   07   3.0(0.0)          3.0(0.0)         3.0(0.0)         ---
08   07   3.0(0.0)          3.0(0.0)         3.0(0.0)         ---
09   09   ---               ---              ---              ---
10   10   ---               ---              ---              ---
11   11   ---               ---              ---              ---
12   12   ---               ---              ---              ---
13   13   ---               ---              ---              ---
14   14   ---               ---              ---              ---

Note Cisco Systems recommends that you avoid configuration changes until after you have run the commitrev or abortrev commands.



Troubleshooting Upgrade Problems

Table 15 lists symptoms of upgrade problems and suggestions on how to correct them.


Tips When troubleshooting problems on standby PXM45 cards or cards that do not start up to the active state, establish communications through the boot IP address or through the console port.


Table 15 Troubleshooting Upgrade Problems

Primary Symptom
Secondary Symptom
Suggested Action

loadrev or runrev command fails



The loadrev command is blocked when a previous upgrade has not been completed with the commitrev command. Use the dsprev -s command to locate the cards that are still being upgraded.

For more information on a particular card, enter the dspcd <slot> command and verify that the Current, Primary, and Secondary software revision numbers are identical. If the numbers are not identical, issue the commitrev <slot> command.

Enter the dspcds command (or dsprevs or dsprev -s) and verify that the standby card is in standby state. Also look for a -U or -D in the dspcds command display, which indicates that the card is in the process of being upgraded (-U) or downgraded (-D). The loadrev and runrev commands are blocked whenever the standby card is not in standby state or an upgrade or downgrade is in progress.

After restart, the switch stops displaying messages and does not display a prompt.



Press Return to display the prompt.

After restart, switch stops at backup boot prompt: pxm45bkup>.

(Use a console port connection to see this. If you missed the startup messages, enter the reboot command.)

The switch displays the message: Can not open file C:/version.

The version file is probably missing. Create the version file as described in "Initializing the Switch" in Chapter 2, "Configuring General Switch Features."

The switch displays the message: Unable to determine size of C:/FW/filename.

The version recorded in the version file doesn't match software installed in the C:FW directory.

Enter the sysVersionShow command to see which file the PXM45 is trying to load.

Verify that the correct software is installed on the switch using the commands described in "Browsing the File System in Backup Boot Mode" in Appendix B, "PXM45 Backup Boot Procedures."

If the runtime software is not on the hard disk, copy it to the hard disk as described in "Transferring Software Files to and from the Switch" in Appendix B, "PXM45 Backup Boot Procedures."

If a typo is entered when initializing the switch, re-enter the sysVersionSet command, enter the sysVersionShow command to verify the correct setting, and then reboot the switch with the reboot command.

The switch displays the message: Please run sysDiskCfgCreate.

The hard disk is formatted, but not ready for operation. Enter the sysDiskCfgCreate command. For more information, refer to "Initializing the PXM45 Hard Disk" in Appendix B, "PXM45 Backup Boot Procedures."

Standby PXM45 continually reboots.

You can view the rebooting process through the console port.



The active PXM45 card cannot bring up the standby card. The following procedure assumes that this card has just been installed in the switch and that you have given the standby card sufficient time to synchronize with the Active card.

Interrupt the boot cycle by pressing Return. Timing is important, so you might have to press Return multiple times. When the pxm45bkup prompt appears, immediately enter the sysPxmRemove command to prevent the Active card from rebooting the standby card while you are working on it.

Enter the sysChangeEnet command and verify that the inet on ethernet (e) and gateway inet (g) values are set to the boot and gateway IP address set with the bootChange command on the active card. Also, verify that the boot device is set to lnPci. The sysChangeEnet command works like the bootChange command, which is described in "Setting the Boot IP Address" in Chapter 2, "Configuring General Switch Features."

Enter the sysClrallcnf command to clear any configuration data on the standby card set. This command does not clear the boot IP address set with the sysChangeEnet command.

After restart, the switch stops at shell prompt: pxm45>.



If the Return key is pressed at one of the auto-boot prompts during start up, the switch stops in shell mode. Enter the reboot command to restart the switch and avoid pressing the Return key.

The non-active PXM45 will not transition out of the active init state.

One or more non-standby AXSM cards are in a transitional state.

A non-standby AXSM card is a standalone AXSM card or the card within a redundant AXSM pair that is trying to go active. When a non-standby AXSM card is in a transitional state, such as the init state, the PXM45 cannot transition to the standby state. When all non-standby cards have reached a steady (non-transitional) state, the PXM45 will transition to a steady state. Steady states include the following: active ready, failed, mismatch, empty, empty reserved, and standby ready.

Note When either card in a redundant AXSM pair is active, that AXSM pair is not preventing the standby PXM45 from transitioning to a steady state. The standby PXM45 is only affected when both cards in a redundant pair are in a transitional state.


Documentation

Release notes ship with the switch. You can also download the release notes and other documentation from http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm, or you can order printed manuals (see "Ordering Documentation").


Note The technical documentation that supports this release may include descriptions of features not implemented as of this printing.


Related Documentation

The following Cisco publications contain additional information related to the operation of this product and associated equipment in a Cisco WAN switching network.

Cisco WAN Manager Release 11.0.00

The product documentation for the Cisco WAN Manager (CWM) network management system for Release 11.0.00 is listed in Table 16.

Table 16 Cisco WAN Manager Release 11 Documentation

Title
Description

Cisco WAN Manager Installation Guide for Solaris 7, Release 11

DOC-7813567=

Provides procedures for installing Release 11 of the CWM network management system and Release 5.4 of CiscoView.

Cisco WAN Manager User's Guide, Release 11

DOC-78-13568=

Describes how to use the CWM Release 11 software, which consists of user applications and tools for network management, connection management, network configuration, statistics collection, and security management.

Cisco WAN Manager SNMP Service Agent, Release 11

DOC-7813569=

Provides information about the CWM Simple Network Management Protocol Service Agent, an optional adjunct to CWM that is used for managing Cisco WAN switches using SNMP.

Cisco WAN Manager Database Interface Guide, Release 11

DOC-7813542=

Provides information about accessing the CWM Informix OnLine database that is used to store information about the network elements.


Cisco MGX 8850 (PXM45) Multiservice Switch Release 3

The product documentation for the installation and operation of the MGX 8850 Multiservice Switch for Release 3 is listed in Table 17.

Table 17 Cisco MGX 8850 (PXM45) Multiservice Switch Release 3 Documentation

Title
Description

Cisco MGX 8850 Hardware Installation Guide, Release 3 (PXM45/B and PXM1E)

DOC-7814250=

Describes how to install the MGX 8850 multiservice switch. This guide explains what the switch does and covers site preparation, grounding, safety, card installation, and cabling. The MGX 8850 switch uses either a PXM45 or a PXM1E controller card and provides support for both broadband and narrow band service modules.

Cisco MGX 8850, MGX 8950, and MGX 8830 Command Reference (PXM45/B and PXM1E), Release 3

DOC-7814245=

Describes how to use the PXM and AXSM commands that are available for the MGX 8850, MGX 8950, and MGX 8830 switches.

Cisco Frame Relay Software Configuration Guide and Command Reference for the MGX 8850 FRSM12 Card, Release 3

DOC-7810327=

Describes how to use the high-speed Frame Relay (FRSM12) commands that are available for the MGX 8850 switch.

Cisco MGX 8850 (PXM45) and MGX 8950 Software Configuration Guide, Release 3

DOC-7814577=

Describes how to configure MGX 8850 and MGX 8950 switches with PXM45 controller cards to operate as ATM edge or core switches. This guide also provides some operation and maintenance procedures.

Cisco MGX and SES PNNI Network Planning Guide for MGX Release 3 and SES Release 3

DOC-7814261=

Provides guidelines for planning a PNNI network that uses the MGX 8850 and the MGX 8950 switches and the BPX 8600 switches. When connected to a PNNI network, each BPX 8600 series switch requires a SES for PNNI route processing.

Cisco VISM Installation and Configuration Guide, Release 3

OL-2521-01 (online only)

Describes how to install and configure VISM1 in several MGX 8000 Series switches. This guide is available online only.

Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 3

OL-2768-01 (online only)

Describes how to install and configure the MGX Route Processor Module (RPM-XF) in the MGX 8850 Release 3 switch. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Cisco MGX Route Processor Module (RPM-PR) Installation and Configuration Guide, Release 2.1

DOC-7812510=

Describes how to install and configure the MGX Route Processor Module (RPM-PR) in the MGX 8850 Release 2.1 and later switches. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides the latest feature, upgrade, and compatibility information, as well as known and resolved anomalies for RPM-PR.

1 VISM = Voice Interworking Service Module


Cisco MGX 8850 (PXM1E) Multiservice Switch Release 3

The product documentation for the installation and operation of the Cisco MGX 8850 (PXM1E) Multiservice Switch Release 3 is listed in Table 18.

Table 18 Cisco MGX 8850 (PXM1E) Multiservice Switch Release 3 Documentation

Title
Description

Cisco MGX 8850 Hardware Installation Guide (PXM45/B and PXM1E), Release 3

DOC-7814250=

Describes how to install the MGX 8850 multiservice switch. This guide explains what the switch does and covers site preparation, grounding, safety, card installation, and cabling. The MGX 8850 switch uses either a PXM45 or a PXM1E controller card and provides support for both broadband and narrow band service modules.

Cisco MGX 8850, MGX 8950, and MGX 8830 Command Reference (PXM45/B and PXM1E), Release 3

DOC-7814245=

Describes how to use the PXM and AXSM commands that are for the the MGX 8850, MGX 8950, and MGX 8830 switches.

Cisco MGX 8850 (PXM1E) and MGX 8830 Software Configuration Guide, Release 3

DOC-7814248=

Describes how to configure MGX 8850 and MGX 8830 switches with PXM1E controller cards to operate as ATM edge switches. This guide also provides some operation and maintenance procedures.

Cisco Frame Relay Software Configuration Guide and Command Reference for MGX Switches (PXM1E)

DOC-7814255=

Provides software configuration procedures for provisioning connections and managing the FRSM cards supported in this release. Also provides command descriptions for all FRSM commands.

Cisco MGX and SES PNNI Network Planning Guide for MGX Release 3 and SES Release 3

DOC-7814261=

Provides guidelines for planning a PNNI network that uses the MGX 8850 and the MGX 8950 switches and the BPX 8600 switches. When connected to a PNNI network, each BPX 8600 series switch requires a SES for PNNI route processing.

Cisco MGX Route Processor Module (RPM-PR) Installation and Configuration Guide, Release 2.1

DOC-7812510=

Describes how to install and configure the MGX Route Processor Module (RPM-PR) in the MGX 8850 Release 3 switch. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides the latest compatibility information, as well as known and resolved anomalies for RPM-PR.


Cisco MGX 8950 Multiservice Switch Release 3

The product documentation for the installation and operation of the MGX 8950 Multiservice Switch for Release 3.0.00 is listed in Table 19.

Table 19 Cisco MGX 8950 Multiservice Switch Release 3 Documentation

Title
Description

Cisco MGX 8950 Hardware Installation Guide, Release 3

DOC-7814147=

Describes how to install the MGX 8950 core switch. This guide explains what the switch does and covers site preparation, grounding, safety, card installation, and cabling. The MGX 8950 switch uses a PXM45/B controller card and provides support for broadband service modules.

Cisco MGX 8850, MGX 8950, and MGX 8830 Command Reference (PXM45/B and PXM1E), Release 3

DOC-7814245=

Describes how to use the PXM and AXSM commands that are available for the MGX 8850, MGX 8950, and MGX 8830 switches.

Cisco MGX 8850 (PXM45) and MGX 8950 Software Configuration Guide, Release 3

DOC-7814577=

Describes how to configure MGX 8850 and MGX 8950 switches with PXM45 controller cards to operate as ATM edge or core switches. This guide also provides some operation and maintenance procedures.

Cisco MGX and SES PNNI Network Planning Guide for MGX Release 3 and SES Release 3

DOC-7814261=

Provides guidelines for planning a PNNI network that uses the MGX 8850 and the MGX 8950 switches and the BPX 8600 switches. When connected to a PNNI network, each BPX 8600 series switch requires a SES for PNNI route processing.

Cisco MGX Route Processor Module (RPM-PR) Installation and Configuration Guide, Release 2.1

DOC-7812510=

Describes how to install and configure the MGX Route Processor Module (RPM-PR) in the MGX 8950. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides the latest feature, upgrade, and compatibility information, as well as known and resolved anomalies for RPM-PR.


Service Expansion Shelf PNNI Controller Release 3

The product documentation for the installation and operation of the Service Expansion Shelf (SES) PNNI Controller is listed in Table 20.

Table 20 SES PNNI Controller Release 3 Documentation

Title
Description

Cisco SES PNNI Controller Software Configuration Guide, Release 3

DOC-7814258=

Describes how to configure, operate, and maintain the SES PNNI Controller.

Cisco SES PNNI Controller Command Reference, Release 3

DOC-7814260=

Provides a description of the commands used to configure and operate the SES PNNI Controller.

Cisco MGX and SES PNNI Network Planning Guide for MGX Release 3 and SES Release 3

DOC-7814261=

Provides guidelines for planning a PNNI network that uses the MGX 8850 and the MGX 8950 switches and the BPX 8600 switches. When connected to a PNNI network, each BPX 8600 series switch requires a SES for PNNI route processing.


Cisco MGX 8830 Multiservice Switch Release 3

The product documentation for the installation and operation of the MGX 8830 Multiservice Switch Release 3.0.00 is listed in Table 21.

Table 21 Cisco MGX 8830 Multiservice Switch Release 3 Documentation

Title
Description

Cisco MGX 8830 Hardware Installation Guide, Release 3

DOC-7814547=

Describes how to install the MGX 8830 edge switch. This guide explains what the switch does and covers site preparation, grounding, safety, card installation, and cabling. The MGX 8830 switch uses a PXM1E controller card and provides PNNI support for narrow band service modules.

Cisco MGX 8850 (PXM1E) and MGX 8830 Software Configuration Guide, Release 3

DOC-7814248=

Describes how to configure MGX 8850 and MGX 8830 switches with PXM1E controller cards to operate as ATM edge switches. This guide also provides some operation and maintenance procedures.

Cisco MGX 8850, MGX 8950, and MGX 8830 Command Reference (PXM45/B and PXM1E), Release 3

DOC-7814245=

Describes how to use the PXM and AXSM commands that are available in the CLI of the MGX 8850, MGX 8950, and MGX 8830 switches.

Cisco Frame Relay Software Configuration Guide and Command Reference for MGX Switches (PXM1E)

DOC-7814255=

Provides software configuration procedures for provisioning connections and managing the FRSM cards supported in this release. Also provides command descriptions for all FRSM commands.

Cisco MGX and SES PNNI Network Planning Guide for MGX Release 3 and SES Release 3

DOC-7814261=

Provides guidelines for planning a PNNI network that uses the MGX 8850 and the MGX 8950 switches and the BPX 8600 switches. When connected to a PNNI network, each BPX 8600 series switch requires a SES for PNNI route processing.

Cisco MGX Route Processor Module (RPM-PR) Installation and Configuration Guide, Release 2.1

DOC-7812510=

Describes how to configure the MGX Route Processor Module (RPM-PR) in the MGX 8830 Release 3 switch. Also provides troubleshooting, maintenance, and basic Cisco IOS configuration information. (For RPM-PR software configuration information only.)

Cisco MGX Route Processor Module Installation and Configuration Guide, Release 1.1

DOC-7812278=

Describes how to install the MGX Route Processor Module (RPM-PR) in the MGX 8230 Release 1 switch. Also provides site preparation, troubleshooting and maintenance information, cable and connector specifications, and basic RPM-PR slot and redundancy limitations and constraints. (For RPM-PR hardware installation information only.)

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides compatibility information, as well as known and resolved anomalies for RPM-PR.


Cisco WAN Switching Software Release 9.3.40

The product documentation for the installation and operation of the Cisco WAN Switching Software Release 9.3.40 is listed in Table 22.

Table 22 Cisco WAN Switching Software Release 9.3.40 Documentation

Title
Description

Cisco BPX 8600 Series Installation and Configuration, Release 9.3.30

DOC-7812907=

Provides a general description and technical details of the BPX broadband switch.

Cisco WAN Switching Command Reference, Release 9.3.30

DOC-7812906=

Provides detailed information on the general command line interface commands.

Cisco IGX 8400 Series Installation Guide

OL-1165-01 (online only)

Provides hardware installation and basic configuration information for IGX 8400 Series switches that are running Switch Software Release 9.3.30 or earlier.

Cisco IGX 8400 Series Provisioning Guide

OL-1166-01 (online only)

Provides information for configuration and provisioning of selected services for the IGX 8400 Series switches that are running Switch Software Release 9.3.40 or earlier.

Cisco IGX 8400 Series Regulatory Compliance and Safety Information

DOC-7813227=

Provides regulatory compliance, product warnings, and safety recommendations for the IGX 8400 Series switch.

9.3.40 Version Software Release Notes for Cisco WAN Switching System Software

78-13538-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.


MGX 8850 (PXM1) Multiservice Switch Release 1.2.10

The product documentation for the installation and operation of the MGX 8850 (PXM1) Multiservice Switch is listed in Table 23.

Table 23 MGX 8850 (PXM1) Multiservice Switch Release 1.2.10 Documentation

Title
Description

Cisco MGX 8850 Multiservice Switch Installation and Configuration, Release 1.1.3

DOC-7811223=

Provides installation instructions for the MGX 8850 multiservice switch.

Cisco MGX 8800 Series Switch Command Reference, Release 1.1.3

DOC-7811210=

Provides detailed information on the general command line for the MGX 8850 switch.

Cisco MGX 8800 Series Switch System Error Messages, Release 1.1.3

DOC-7811240=

Provides error message descriptions and recovery procedures.

Cisco MGX 8850 Multiservice Switch Overview, Release 1.1.3

OL-1154-01 (online only)

Provides a technical description of the system components and functionality of the MGX 8850 multiservice switch from a technical perspective.

Cisco VISM Installation and Configuration Guide, Release 3

OL-2521-01 (online only)

Describes how to install and configure VISM in several MGX 8000 Series switches. This guide is available online only.

Cisco MGX Route Processor Module Installation and Configuration Guide, Release 1.1

DOC-7812278=

Describes how to install and configure the MGX Route Processor Module (RPM/B and RPM-PR) in the MGX 8850, MGX 8250, and MGX 8230 Release 1 switch. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX 8230, MGX 8250, and MGX 8850 (Release 1), Software Version 1.2.10 (PXM1)

78-14247-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.


MGX 8250 Edge Concentrator Release 1.2.10

The documentation for the installation and operation of the MGX 8250 Edge Concentrator is listed in Table 24.

Table 24 MGX 8250 Edge Concentrator Release 1.2.10 Documentation

Title
Description

Cisco MGX 8250 Edge Concentrator Installation and Configuration, Release 1.1.3

DOC-7811217=

Provides installation instructions for the MGX 8250 Edge Concentrator.

Cisco MGX 8250 Multiservice Gateway Command Reference, Release 1.1.3

DOC-7811212=

Provides detailed information on the general command line interface commands.

Cisco MGX 8250 Multiservice Gateway Error Messages, Release 1.1.3

DOC-7811216=

Provides error message descriptions and recovery procedures.

Cisco MGX 8250 Edge Concentrator Overview, Release 1.1.3

DOC-7811576=

Describes the system components and functionality of the MGX 8250 Edge Concentrator from a technical perspective.

Cisco VISM Installation and Configuration Guide, Release 3

OL-2521-01 (online only)

Describes how to install and configure VISM in several MGX 8000 Series switches. This guide is available online only.

Cisco MGX Route Processor Module Installation and Configuration Guide, Release 1.1

DOC-7812278=

Describes how to install and configure the MGX Route Processor Module (RPM/B and RPM-PR) in the MGX 8850, MGX 8250, and MGX 8230 Release 1 switch. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX 8230, MGX 8250, and MGX 8850 (Release 1), Software Version 1.2.10 (PXM1)

78-14247-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.


MGX 8230 Edge Concentrator Release 1.2.10

The documentation for the installation and operation of the MGX 8230 Edge Concentrator is listed in Table 25.

Table 25 MGX 8230 Edge Concentrator Documentation

Title
Description

Cisco MGX 8230 Edge Concentrator Installation and Configuration, Release 1.1.3

DOC-7811215=

Provides installation instructions for the MGX 8230 Edge Concentrator.

Cisco MGX 8230 Multiservice Gateway Command Reference, Release 1.1.3

DOC-7811211=

Provides detailed information on the general command line interface commands.

Cisco MGX 8230 Multiservice Gateway Error Messages, Release 1.1.3

DOC-78112113=

Provides error message descriptions and recovery procedures.

Cisco MGX 8230 Edge Concentrator Overview, Release 1.1.3

DOC-7812899=

Provides a technical description of the system components and functionality of the MGX 8250 Edge Concentrator from a technical perspective.

Cisco VISM Installation and Configuration Guide, Release 3

OL-2521-01 (online only)

Describes how to install and configure VISM in several MGX 8000 Series switches. This guide is available online only.

Cisco MGX Route Processor Module Installation and Configuration Guide, Release 1.1

DOC-7812278=

Describes how to install and configure the MGX Route Processor Module (RPM/B and RPM-PR) in the MGX 8850, MGX 8250, and MGX 8230 Release 1 switch. Also provides site preparation, troubleshooting, maintenance, cable and connector specifications, and basic Cisco IOS configuration information.

Release Notes for Cisco MGX 8230, MGX 8250, and MGX 8850 (Release 1), Software Version 1.2.10 (PXM1)

78-14247-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.

Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for Release 1.2.10 and Release 3

78-14243-01

Provides new feature, upgrade, and compatibility information, as well as known and resolved anomalies.


Ordering Documentation

Cisco documentation is available in the following ways:

Registered Cisco Direct Customers can order printed Cisco product documentation from the Networking Products MarketPlace:

http://www.cisco.com/cgi-bin/order/order_root.pl

Starting with MGX 2.1.60 and its associated releases, printed documentation is offered through the "Printed Information Ordering" site, which can be accessed through:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription Store:

http://www.cisco.com/go/subscription

Non-registered Cisco.com users can order documentation through a local account representative by calling Cisco corporate headquarters (California, USA) at 408 526-7208 or, in North America, by calling 800 553-NETS(6387).

Documentation on the World Wide Web

You can access the most current Cisco documentation on the World Wide Web at the following sites:

http://www.cisco.com (for example, http://www.cisco.com/univercd/cc/td/doc/product/wanbu/index.htm)

http://www-china.cisco.com

http://www-europe.cisco.com

Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM package is available as a single unit or as an annual subscription as mentioned above.

Documentation Feedback

If you are reading Cisco product documentation on the World Wide Web, you can submit technical comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco.

You can e-mail your comments to bug-doc@cisco.com or msspubs-feedback@cisco.com.

To submit your comments by mail, use the response card behind the front cover of your document, or write to the following address:

Attn: Document Resource Connection
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

Technical Assistance

Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain documentation, troubleshooting tips, and sample configurations from online tools. For Cisco.com registered users, additional troubleshooting tools are available from the TAC website.

Cisco.com

Cisco.com is the foundation of a suite of interactive, networked services that provides immediate, open access to Cisco information and resources at anytime, from anywhere in the world. This highly integrated Internet application is a powerful, easy-to-use tool for doing business with Cisco.

Cisco.com provides a broad range of features and services to help customers and partners streamline business processes and improve productivity. Through Cisco.com, you can find information about Cisco and our networking solutions, services, and programs. In addition, you can resolve technical issues with online technical support, download and test software packages, and order Cisco learning materials and merchandise. Valuable online skill assessment, training, and certification programs are also available.

Customers and partners can self-register on Cisco.com to obtain additional personalized information and services. Registered users can order products, check on the status of an order, access technical support, and view benefits specific to their relationships with Cisco.

To access Cisco.com, go to http://www.cisco.com

Technical Assistance Center

The Cisco TAC website is available to all customers who need technical assistance with a Cisco product or technology that is under warranty or covered by a maintenance contract.

Contacting TAC by Using the Cisco TAC Website

If you have a priority level 3 (P3) or priority level 4 (P4) problem, contact TAC by going to the TAC website:

http://www.cisco.com/tac

P3 and P4 level problems are defined as follows:

P3—Your network performance is degraded. Network functionality is noticeably impaired, but most business operations continue.

P4—You need information or assistance on Cisco product capabilities, product installation, or basic product configuration.

In each of the above cases, use the Cisco TAC website to quickly find answers to your questions.


Note To register for Cisco.com, go to http://www.cisco.com/register/


If you cannot resolve your technical issue by using the TAC online resources, Cisco.com registered users can open a case online by using the TAC Case Open tool at http://www.cisco.com/tac/caseopen

Contacting TAC by Telephone

If you have a priority level 1(P1) or priority level 2 (P2) problem, contact TAC by telephone and immediately open a case. To obtain a directory of toll-free numbers for your country, go to the following website:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

P1 and P2 level problems are defined as follows:

P1—Your production network is down, causing a critical impact to business operations if service is not restored quickly. No workaround is available.

P2—Your production network is severely degraded, affecting significant aspects of your business operations. No workaround is available.

Caveats

This section provides information about known anomalies.

Table 26


MGX 8950 Anomalies

Severity level 1 and 2 anomalies are organized as follows:

Known Anomalies in Release 3.0.00

Anomalies Resolved in Release 3.0.00

Known Anomalies in Release 3.0.00

Table 27 lists known anomalies in MGX 8950.

Table 27 Known Anomalies in Release 3.0.00 of MGX 8950

Bug
Description
S1 Bugs


CSCdt54958

Symptom: OC12 p-p jitter amplitude exceeded the 0.10 UI pp.

Conditions: Unknown

Workaround: None.

Hardware: AXSM OC-12 cards

CSCdw27075

Symptom: Unable to CC to a AXSM card in Y-redundancy configuration. The reason for that is that QE VI threshold has been exceeded and QE is discarding the incoming AAL5 frames. This situation may be met in PXM45A, where SAR overflow may occur (very rare). Note: customer should not let QE SAR overflow occur in PXM45A.

Conditions: After a switchredcd on an AXSM card pair in redundant mode.

Workaround: None.

Hardware: PXM45

CSCdx33812

Symptom: Xbar planes being shut done on the PXM45B.

Conditions: Xbar errors being reported between slots 3, 7, and 8.

Workaround: None.

Hardware: PXM45B

CSCdx69070

Symptom: Several possible symptoms including:

- Inability or sporadic ability, to connect via telnet

-"gray-out" of the node on the CWM topology map

- no output from or receipt of an error message from 'dsplog' command or file system listing command 'ls' or other commands

- standby PXM45 or AXSM service modules which remain in the "Boot" and/or "Init" or alternate between the two after a reload

- inconsistent connection alarms on slave and master. (one side reporting alarm, the suspect side not)

Conditions: System memory and/or file handle allocation may get into a marginal or maxed out state due to "ungraceful" exit from the 'dsplog' command multiple times. This includes exiting display of the command with any other method other than using the 'Q' option to quit or going to the end of the output.

Workaround: On redundant systems with healthy standby PXM45 present, switchcc. On non-redundant systems: reset the single PXM45.

Hardware: PXM45

CSCdx77614

Symptom: Multiple nodes with failed PXM45Bs (standby) and active-f (active).

Conditions: When simulator nodes are sending addresses of length zero.

Workaround: resetsys, or switchcc as long as the simulator is off.

Hardware: PXM45B

S2 Bugs



CSCdt53631

Symptom: LOF criteria is not met per R5-225, for AXSM OC12 interface.

Condition: OOF condition is cleared at the presence of three consecutive error free patterns rather than two.

Workaround: Unknown.

Hardware: AXSM OC-12 cards

CSCdu26365

Symptom:

Conditions:

Workaround:

Hardware: PXM45

CSCdu86213

Symptom: Cannot get large files from a switch using ftp. Data Connection Error is reported.

Conditions: When a large file is uploaded from a shelf to a workstation, the ethernet chip hangs and a data connection error is reported by the ftp client on the workstation.

Workaround: Do not ftp on a workstation which is on the same subnet as the shelf.

Hardware: PXM45

CSCdv53825

Symptom: sframetick lock config is lost.

Condition: When a switchcc is executed on the shelf.

Workaround: None.

Hardware: PXM45

CSCdv73419

Symptoms: Traffic loss on multi cast root connections with no indications of cell loss in any discard counters.

Conditions: During ingress multi cast or slot multi cast, the switch may issue a grant for a root cell when it can not deliver to all requested slot destinations. This will only occur if there is a switch port alarm on a service module that is the target of a multi cast root cell.

Workaround: There is no workaround. You can take action to remove the switch port alarm. If there are no switch port alarms then the problem will not occur.

Hardware: AXSM

CSCdw68448

Symptom: The low accuracy of AXSM's MBS policing function for Rel.2.0 and 2.1.

Condition: None.

Workaround: None.

Hardware: AXSM

CSCdw94593

Symptom: Cross commit failures between two shelves, and connection failures.

Conditions: May have been triggered by enni tuneup procedure, which included adding and deleting enni ports.

Workaround: None.

Hardware: AXSM

CSCdx12518

Symptom: No report of an LOS in certain conditions.

Condition: When the transmit fiber is disconnected from the AXSM.

Workaround: None.

Hardware: AXSMB OC-3

CSCdx38504

Symptom: RPM-PR cannot communicate successfully with the PXM.

Condition: Power cycle the MGX8850, the card recovered in a empty/reserve state. The RPM does boot successfully and can be viewed via the console CLI. dspcd on the PXM does not recognize the RPM.

Workaround: None.

Hardware: RPM-PR

CSCdx44559

Symptom: A phantom level 0 node may appear in a Multiple Peer Group (MPG) It can be seen in the output of the command dsppnni-node-list as shown here:

node # node id

node name level ------- -------------------------------------------------- ---------- ------- 2 0:6:00.000c020000000100106d3839.35302d376200.00 0 <==

Conditions: PNNI hierarchical network running multiple peer groups (MPG).

Workaround: None.

Hardware: PXM45

CSCdx47744

Symptom:

Conditions:

Workaround:

Hardware: PXM45B

CSCdx49157

Symptom: Can not change PCR of sscop back to the default value.

Condition: After modifying it to a lower value of 4000.

Workaround: None.

Hardware: PXM45B

CSCdx57346

Symptom: Intercard communication is lost between PXM and AXSM cards.

Conditions: User cannot access (CC) to other cards in MGX2 chassis. Redundant PXM remains in init state.

Workaround: None.

Hardware: PXM45B

CSCdx64083

Symptom: OC48B card became Active-F

Conditions: After burnboot.

Workaround: Unknown.

Hardware: AXSM OC-48

CSCdx67985

Symptom: PXM degraded, but no xbar alarm reported.

Condition: Upon the execution of 2 consecutive switchcc's.

Workaround: None.

Hardware: PXM45B

CSCdx68487

Symptom: AXSM failed to come up, and is stuck in failed state.

Conditions: 1+1 APS Annex B with large number of the connections routing over. Do AXSM switch over, and the newly active card reset after a little while.

Workaround: Reset failed AXSM card.

Hardware: AXSMB OC-3

CSCdx70819

Symptom: Active PXM resets standby PXM while in init state, creating a coredump.

Conditions: DB synch between active and standby PXM.

Workaround: None. Node recovers.

Hardware: PXM45B

CSCdx71179

Symptom: Unable to provision a SPVC.

Condition: While adding a spvc from a AXSM CLI.

Workaround: Re-try adding the connection.

Hardware: PXM45B

CSCdx71196

Symptom: OC12 AXSM/A Delpart failed with "Invalid Partition Number". Addpart failed with "Cannot allocate requested LCNs....".

Conditions:

1. OC12 AXSM/A with 1+1 APS configured, then delapsln.

2. Do delpart on port 3 with IF=3.

3. Do addpart on port 4 with IF=4, Maxconn= 10 to 1000.

Workaround: None.

Hardware: AXSM OC-12

CSCdx71590

Symptom: Switchcc causes the AXSM cards to go into AXSM-F state.

Conditions: MGX8850, AXSM T3/E3 AXSM OC_12

Workaround: Under investigation.

Hardware: AXSM OC-12

CSCdx76852

Symptom: RPM_PR back cards change status from active to empty.

Conditions: After doing runrev on PXM.

Workaround: Reload RPM-PR.

Hardware: PXM45B

CSCdx77374

Symptom: Multiple traps being sent to CWM after 80 seconds.

Conditions: When configuring APS SFBER=10-3 only.

Workaround: None.

Hardware: PXM45B

CSCdx77522

Symptom: CWM gets lots of sd clear traps, and dsplog dropped events.

Conditions: When any backcard is removed.

Workaround: None.

Hardware: PXM45B

CSCdx78739

Symptom: Subagent did not register with Master agent.

Conditions:

Workaround:

Hardware: PXM45B

S3 Bugs



CSCdt54906

Symptom: OC3/OC12 J1 byte does not provide trace patch to FE NE.

Conditions: None.

Workaround: None.

Hardware: AXSM OC-3/OC-12

CSCdt70323

Symptom: Need non-shellconn method of burning PXM boot code that also does not require console access to each PXM.

Conditions: None.

Workaround: None.

Hardware: PXM45

CSCdu26141

Symptom: SHM-4_DB_REQ_FAIL messages are logged at Sev-4 in the event log.

Conditions: Consecutive resetcds were executed on the PXMs in this system. This log can be seen under 2 conditions: 1. Under the normal operation of the PXM if this is logged, it is a problem with the communication between 2 tasks that needs to be investigated. 2. During any form of shelf reset like resetsys, abortrev, setrev etc. If this log is seen at around the time a shelf reset is happening, it is not a problem if this log is seen. This will not have any impact at all on the state of the shelf or the state of the configuration on the shelf. In the case of this particular bug, this log was seen at the time of a shelf reset hence it is not a problem to see this log.

Workaround: None.

Hardware: PXM45

CSCdu27030

Symptom: OAM CC Activation Cell correlation tag is incorrectly modified.

Conditions: User notes that an F4-Seg Active-CC OAM cell with a correlation tag of 0x6A is returned to the sending device with a correlation tag of 0x00.

Workaround: None.

Hardware: AXSM

CSCdu71423

Symptom: Popup message about LMI discovery on node.

Conditions: User executed 3 cli commands, and then the popup message appeared.

Workaround: None.

Hardware: AXSM

CSCdu71558

Symptom: Alarms on slot #11 and #12, during fault insertion testing.

Conditions: By inserting high speed link error on slot #7, active PXM.

Workaround: None.

Hardware: AXSM OC-48

CSCdv22540

Symptom: AXSM core dumps.

Conditions: Burn boot was executed.

Workaround: None.

Hardware: AXSMB OC-12

CSCdv47986

Symptom: dspln/dsplns/dspalm/dspalms no longer reflect APS line failures (SF).

Conditions: An error injector was setup to inject an error rate sufficient to force the W line into SF.

Workaround: Unknown.

Hardware: AXSMB OC-12

CSCdv48058

Symptom: Event log and trapd.log file incorrectly show APS switchovers due to SD when the failure condition was SF.

Conditions: SF condition was created on the active working line to induce a switchover.

Workaround: Unknown.

Hardware: AXSMB OC-12

CSCdv49510

Symptom: No indication on dspapslns of a condition causing port to go operationally down. At the node level, only an indication of a minor alarm from the line interface

Conditions: Tx cables were pulled from both the W and P lines of a 1+1 APS pair.

Workaround: None.

Hardware: AXSMB

CSCdv50574

Symptom: Incorrect usage statement generated.

Conditions: When the delapsln cli command is executed.

Workaround: None.

Hardware: AXSMB

CSCdv62753

Symptom: cnfabr error message is not clear that VS/VD is not supported on specific card types.

Conditions: AXSM cards.

Workaround: Unknown.

Hardware: AXSM

CSCdv62811

Symptom: APS line toggles between SF and SD.

Conditions: SF threshold set to 10-3, error injected at 10-2.

Workaround: None.

Hardware: AXSM

CSCdv69323

Symptom: Shelf sends too many messages to CWM.

Conditions: After the execution of switchredcd on the shelf.

Workaround: None.

Hardware: PXM45

CSCdw08931

Symptom: LAN IP retained after a clrallcnf.

Conditions: clrallcnf performed on node.

Workaround: None.

Hardware: PXM45

CSCdw10207

Symptom: APS switching between W and P lines when both are in alarm.

Conditions: W line is in LOS and P line may be in SD or SF or LOS condition.

Workaround: None.

Hardware: AXSM

CSCdx04460

Symptom: Popup message is display during normal telnet session.

Conditions: After doing a resetsys on the shelf.

Workaround: None.

Hardware: PXM45

CSCdx31466

Symptom: Danglers remain after using the CLI command delcons. This is the caveat with these commands. While provisioning connections in bulk (copycons/delcons), if the PNNI layer gets busy due to re-route/de-route activity, then it will reject the deletion.

Conditions: The command delcons was developed for Dev-test usage only. It is not recommended to use this command on a production node due to resource problems generated by the flood of traps on each con deletion.

Workaround: Use delcon for each individual PVC until a better method is developed see PXM release notes for description of cli commands delcon and delcons usage.

Hardware: PXM45

CSCdx34833

Symptom: Popup message seen on the cli display.

Conditions: While the shelf was idle and no cli command where being executed.

Workaround: None.

Hardware: PXM45B

CSCdx41607

Symptom: User cannot reliably determine how signalling was assigned on a pnport via runtime cli.

Conditions: dsppnportsig or other cli commands do not show how a signalling type was assigned to a pnport. It shows what was assigned to a type but not how it was assigned.

Workaround: Use shell-conn commands or look at log file to determine how signalling was assigned.

Hardware: PXM45B

CSCdx43364

Symptom: The OID represents the interface name (ifName). The interface "sw1" is the main switch interface on the RPM. There can be only one main switch interface that can exist per RPM card and multiple sub-Interfaces. The switch subinterfaces (subinterfaces of the main switch interface) are represented by "sw1.x" on RPM. This SNMP response is returned by the RPM. The ifTable does not display multiple instances for "sw1". The SNMP query on ifName seems to always return "sw1" 5 times. This is not correct.

Conditions: If we do snmpget on ifName, then it's possible to see multiple records for the same "Sw1" interface. To get the ifIndex for a particular interface, we can try to walk on ifDescr.

Workaround: None.

Hardware: PXM45

CSCdx45501

Symptom: Command display field do not match the cnf fields.

Conditions: When executing the cnfpnni-routing-policy, and the dsppnni-routing-policy command.

Workaround: None.

Hardware: PXM45B


Anomalies Resolved in Release 3.0.00

The anomalies in Table 28 were opened against 2.0 or 2.1 images and fixed in 3.0, but not fixed in 2.0 or 2.1.

Table 28 Anomalies Resolved in Release 3.0.00

Bug
Description
S1 Bugs


CSCdw66847

Symptom: Signalling thresholds on the cosb 16 not working in packet discard mode.

Conditions: If the signalling traffic is artificially pumped at a very high rate (ex: OC3/OC12) the qbin thresholds for cosb number 16 are discarding the cells indiscriminately.

Workaround: Change the signalling cosb number to 14 (it is available) in the card's SCT file.


Known Route Processor Module or MPLS Anomalies

For information about anomalies with the RPM-PR or RPM/B card, refer to "Release Notes for Cisco MGX Route Processor Module (RPM/B and RPM-PR) for MGX Release 1.2.10 and MGX Release 3."

Acronyms

Table 29 lists acronyms used in these release notes.

Table 29 Acronyms and Their Descriptions

Acronym
Description

AINI

ATM Inter-Network Interface

APS

automatic protection switching

ATM

asynchronous transmission mode

AXSM

ATM Switch Service Module

B-ISUP

Broadband ISDN User Part

BPX

an earlier Cisco backbone switch

CLI

command line interface

CWM

Cisco Wide Area Network Manager

DSLAM

digital subscriber line access module

IETF

Internet Engineering Task Force

LDP

label distribution protocol

LSC

label switch controller

LSP

label switched paths

LSR

label switch router

MIB

management information base

MPG

multiple peer group

MPLS

multiple protocol label switching

NCDP

network clock distribution protocol

PNNI

private network-to-network interface

PXM

processor switch module

RPM

route processor module

RPM-PR

route processor module - Premium

RPM-XF

route processor module - Express Forwarding

SCT

service class template

SLA

service level agreement

SM

service module (a card)

SNMP

simple network management protocol

SPVC

soft permanent virtual connection

SVC

switched virtual circuit

UNI

User-Network Interface

VCI

virtual channel identifier

VPI

virtual path identifier
