Configuring TACACS+

This chapter contains the following sections:

Information About TACACS+

The TACACS+ security protocol provides centralized validation of users who are attempting to gain access to a device. TACACS+ services are maintained in a database on a TACACS+ daemon that is running, typically, on a UNIX or Windows NT workstation. You must have access to and must configure a TACACS+ server before the configured TACACS+ features on your device are available.

TACACS+ provides for separate authentication, authorization, and accounting services. The TACACS+ daemon provides each service independently. Each service can be tied into its own database to take advantage of other services available on that server or on the network, depending on the capabilities of the daemon.

The TACACS+ client/server protocol uses TCP (TCP port 49) for transport requirements. Centralized authentication is provided using the TACACS+ protocol.

TACACS+ Operation for User Login

The following sequence of events take place when you attempt to log in to a TACACS+ server using the Password Authentication Protocol (PAP):

  1. When a connection is established, the TACACS+ daemon is contacted to obtain the username and password.

    Note
    TACACS+ allows an arbitrary conversation between the daemon and the user until the daemon receives enough information to authenticate the user. This action is usually done by prompting for a username and password combination, but might include prompts for additional information, such as your mother’s maiden name.
  2. The TACACS+ daemon provides one of the following responses:
    1. ACCEPT—User authentication succeeds and service begins. If user authorization is needed, authorization begins.
    2. REJECT—User authentication failed. The TACACS+ daemon either denies further access to the user or prompts the user to retry the login sequence.
    3. ERROR—An error occurred at some time during authentication either at the daemon or in the network connection. If an ERROR response is received, the device tries to use an alternative method for authenticating the user.
    If further authorization is required after authentication, the user also undergoes an additional authorization phase. Users must first successfully complete TACACS+ authentication before proceeding to TACACS+ authorization.
  3. If TACACS+ authorization is required, the TACACS+ daemon is contacted and it returns an ACCEPT or REJECT authorization response. An ACCEPT response contains attributes that are used to direct the EXEC or NETWORK session for that user and determines the services that the user can access. Services include the following:
    • Telnet, rlogin, Point-to-Point Protocol (PPP), Serial Line Internet Protocol (SLIP), or EXEC services
    • Connection parameters, including the host or client IP address, access list, and user timeouts

Default TACACS+ Server Encryption Type and Preshared Key

You must configure the TACACS+ preshared key to authenticate to the TACACS+ server. A preshared key is a secret text string shared between the device and the TACACS+ server host. The length of the key is restricted to 63 characters and can include any printable ASCII characters (white spaces are not allowed). You can configure a global preshared secret key for all TACACS+ server configurations.

You can override the global preshared key assignment by explicitly using the key option when configuring an individual TACACS+ server.

TACACS+ Server Monitoring

Unresponsive TACACS+ servers are marked as dead and are not sent AAA requests. Dead TACACS+ servers are periodically monitored and brought back alive once they respond. This process confirms that a TACACS+ server is in a working state before real AAA requests are sent its way. The following figure shows how a TACACS+ server state change generates a Simple Network Management Protocol (SNMP) trap and an error message showing the failure before it impacts performance.

Figure 1. TACACS+ Server States




Note

The monitoring interval for alive servers and dead servers are different and can be configured by the user. The TACACS+ server monitoring is performed by sending a test authentication request to the TACACS+ server.

Vendor-Specific Attributes

The Internet Engineering Task Force (IETF) draft standard specifies a method for communicating vendor-specific attributes (VSAs) between the network access server and the TACACS+ server. The IETF uses attribute 26. VSAs allow vendors to support their own extended attributes that are not suitable for general use.

Cisco VSA Format

The Cisco TACACS+ implementation supports one vendor-specific option using the format recommended in the IETF specification. The Cisco vendor ID is 9, and the supported option is vendor type 1, which is named cisco-av-pair. The value is a string with the following format:

protocol : attribute separator value *

The protocol is a Cisco attribute for a particular type of authorization. The separator is = (equal sign) for mandatory attributes, and * (asterisk) indicates optional attributes.

When you use TACACS+ servers for authentication, the TACACS+ protocol directs the TACACS+ server to return user attributes, such as authorization information, with authentication results. This authorization information is specified through VSAs.

The following VSA protocol options are supported:

  • Shell—Protocol used in access-accept packets to provide user profile information.
  • Accounting—Protocol used in accounting-request packets. If a value contains any white spaces, you should enclose the value within double quotation marks.

The following attributes are other supported:

  • roles—Lists all the roles to which the user belongs. The value consists of a string that lists the role names delimited by white space. This subattribute, which the TACACS+ server sends in the VSA portion of the Access-Accept frames, can only be used with the shell protocol value.
  • accountinginfo—Stores accounting information in addition to the attributes covered by a standard TACACS+ accounting protocol. This attribute is sent only in the VSA portion of the Account-Request frames from the TACACS+ client on the switch. It can be used only with the accounting protocol data units (PDUs).

Prerequisites for TACACS+

  • Obtain the IP addresses or hostnames for the TACACS+ servers.
  • Obtain the preshared keys from the TACACS+ servers, if any.
  • Ensure that the Cisco Nexus 1000V is configured as a TACACS+ client of the AAA servers.
  • You have already configured AAA, including remote TACACS+ authentication.

Guidelines and Limitations for TACACS+

  • You can configure a maximum of 64 TACACS+ servers.
  • The logging level for TACACS + must be set to 5.

Default Settings for TACACS+

Parameters

Default

TACACS+

Disabled

Dead timer interval

0 minutes

Timeout interval

5 seconds

Idle timer interval

0 minutes

Periodic server monitoring username

test

Periodic server monitoring password

test

Configuring TACACS+

The following flowchart guides you through the TACACS+ configuration process.


Note

Be aware that the Cisco Nexus 1000V commands might differ from the Cisco IOS commands.

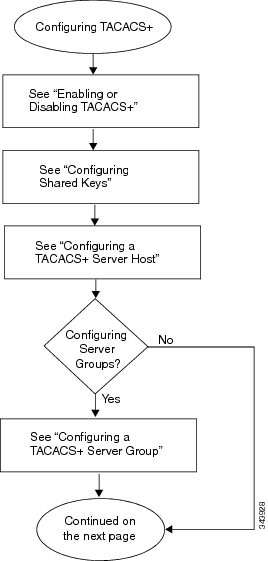

Figure 2. Configuring TACACS+ Flowchart

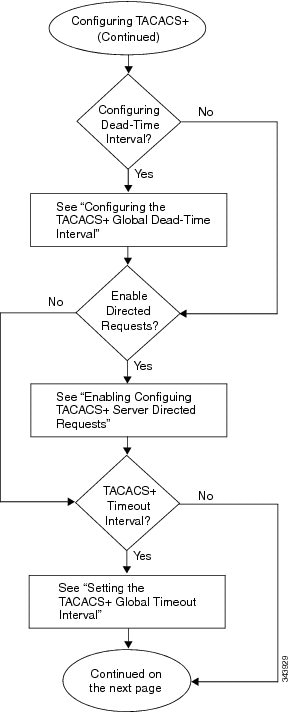

Figure 3. Configuring TACACS+ Flowchart (continued)

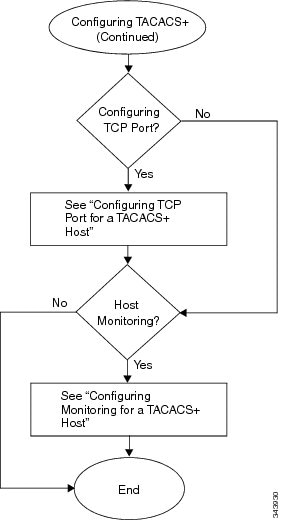

Figure 4. Configuring TACACS+ Flowchart (continued)

Enabling or Disabling TACACS+

By default, TACACS+ is disabled. You must explicitly enable the TACACS+ feature to access the configuration and verification commands that support TACACS+ authentication.


Caution

When you disable TACACS+, all related configurations are automatically discarded.

Before You Begin

Log in to the CLI in EXEC mode.

Procedure
     Command or ActionPurpose
    Step 1switch# configure terminal

    Enters global configuration mode.


    Step 2switch(config)# [no] tacacs+ enable

    Enables or disables TACACS+.


    Step 3switch(config)# exit

    Exits the global configuration mode and returns you to EXEC mode.


    Step 4switch(config)# copy running-config startup-config

    Copies the running configuration to the startup configuration



    The following example enables TACACS+:

    switch# configure terminal
switch(config)# tacacs+ enable
switch(config)# exit
switch# copy running-config startup-config

    Configuring Shared Keys

    By default, no global key is configured.

    You can configure the following:

    • The global key, or a secret text string shared between the Cisco Nexus 1000V and all TACACS+ server hosts
    • The key, or secret text string shared between the Cisco Nexus 1000V and a single TACACS+ server host
    Before You Begin
    • Log in to the CLI in EXEC mode.
    • Enable TACACS+ for authentication.
    • Know the key for the TACACS+ server host(s).
    Procedure
       Command or ActionPurpose
      Step 1switch# configure terminal

      Enters global configuration mode.

      Do one of the following:
      • To configure a global key for all TACACS+ server hosts, continue to the next step.
      • To configure a key for a single TACACS+ server host, go to Step 3.

      Step 2switch(config)# tacacs-server key [ 0 | 7 ] global_key

      Designates the global key shared between the Cisco Nexus 1000Vand the TACACS+ server hosts.

      0—Specifies that a clear text string (key) follows. 0 is the default.

      7—Specifies that an encrypted string (key) follows.

      global_key—The global key. The key is a string of up to 63 characters.

      By default, no global key is configured.

      Go to Step 4.


      Step 3switch(config)# tacacs-server host {ipv4-address | host-name} key [0 | 7] shared_key

      Designates the key shared between the Cisco Nexus 1000V and this specific TACACS+ server host.

      0—Specifies that a clear text string (key) follows. 0 is the default.

      7—Specifies that an encrypted string (key) follows.

      global_key—The global key. The key is a string of up to 63 characters.

      This shared key is used instead of the global shared key.


      Step 4switch(config)# exit

      Exits global configuration mode and returns you to EXEC mode.


      Step 5switch(config)# show tacacs-server   (Optional)

      Displays the TACACS+ server configuration.

      Note

      The global shared key is saved in encrypted form in the running configuration. To display the key, use the show running-config command.


      Step 6switch(config)# copy running-config startup-config   (Optional)

      Copies the running configuration to the startup configuration



      The following example configures shared keys:

      switch# configure terminal
switch(config)# tacacs-server key 0 QsEFtkI#
switch(config)# exit
switch# show tacacs-server
Global TACACS+ shared secret:********
timeout value:5
deadtime value:0
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:49
switch# copy running-config startup-config

      Configuring a TACACS+ Server Host

      All TACACS+ server hosts are added to the default TACACS+ server group.

      Before You Begin
      • Log in to the CLI in EXEC mode.
      • Enable TACACS+ for authentication.
      • Configure the shared key.
      • Know the IP addresses or the hostnames for the remote TACACS+ server hosts.
      Procedure
         Command or ActionPurpose
        Step 1switch# configure terminal

        Enters global configuration mode.


        Step 2switch(config)# tacacs-server host {ipv4-address | host-name}

        Configures the server IP address or hostname as a TACACS+ server host.

        ipv4-address—The IP address for the TACACS+ server.

        hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.


        Step 3switch(config)# exit

        Exits global configuration mode and returns you to EXEC mode.


        Step 4switch(config)# show tacacs-server   (Optional)

        Displays the TACACS+ server configuration.


        Step 5switch(config)# copy running-config startup-config   (Optional)

        Copies the running configuration to the startup configuration



        The following example configures a TACACS+ server host:

        switch# configure terminal
switch(config)# tacacs-server host 10.10.2.2
switch(config)# exit
switch# show tacacs-server
timeout value:5
deadtime value:0
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:49
switch# copy running-config startup-config

        Configuring a TACACS+ Server Group

        You can configure a TACACS+ server group whose member servers share authentication functions.

        After you configure the TACACS+ server group, the server members are tried in the same order in which you configured them.

        A TACACS+ server group can provide a failover if one server fails to respond. If the first server in the group fails, the next server in the group is tried until a server responds. Multiple server groups can provide failovers for each other in this same way.

        Before You Begin
        • Log in to the CLI in EXEC mode.
        • Know that all servers added to a TACACS+ server group use the TACACS+ protocol.
        • Configure the preshared keys.
        • Enable TACACS+ for authentication.
        Procedure
           Command or ActionPurpose
          Step 1switch# configure terminal

          Enters global configuration mode.


          Step 2 switch(config)# aaa group server tacacs+ group-name

          Creates a TACACS+ server group with the specified name and places you into the TACACS+ configuration mode for that group.

          group-name—The name of the TACACS+ server group.


          Step 3switch(config-tacacs+)# server {ipv4-address | hostname}

          Configures the TACACS+ server hostname or IP address as a member of the TACACS+ server group.

          ipv4-address—The IP address for the TACACS+ server.

          hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.

          Note

          If the specified TACACS+ server is not found, configure it using the tacacs-server host command and retry this command.


          Step 4switch(config-tacacs+)# deadtime minutes   (Optional)

          Configures the monitoring dead time for this TACACS+ group.

          minutes—The dead time, in minutes. The range is from 0 to 1440 minutes. The default value is 0 minutes.

          Note

          If the dead time interval for a TACACS+ server group is greater than zero (0), that value takes precedence over the global dead-time value.


          Step 5switch(config-tacacs+)# use-vrf vrf-name   (Optional)

          Specifies the virtual routing and forwarding (VRF) instance to use to contact this server group.

          vrf-name—The name of the VRF instance.


          Step 6switch(config-tacacs+)# source-interface {interface-type} {interface-number}   (Optional)

          Specifies a source interface to be used to reach the TACACS+ server.

          • loopback—Virtual interface number. The range is from 0 to 1023.
          • mgmt—Management interface 0.
          • null—Null interface 0.
          • port-channel—Port channel number. The range is from 1 to 4096.

          Step 7switch(config-tacacs+)# show tacacs-server groups   (Optional)

          Displays the TACACS+ server group configuration.


          Step 8switch(config-tacacs+)# copy running-config startup-config   (Optional)

          Copies the running configuration to the startup configuration.



          The following example configures a TACACS+ server group:

          switch# configure terminal
switch(config)# aaa group server tacacs+ TacServer
switch(config-tacacs+)# server 10.10.2.2
switch(config-tacacs+)# deadtime 30
switch(config-tacacs+)# use-vrf management
switch(config-tacacs+)# source-interface mgmt0
switch(config-tacacs+)# show tacacs-server groups
total number of groups:1

following TACACS+ server groups are configured:
        group TacServer:
                server 10.10.2.2 on port 49
                deadtime is 30
                vrf is management
switch# copy running-config startup-config

          Enabling TACACS+ Server Directed Requests

          You can designate the TACACS+ server to receive authentication requests. This is called a directed-request.

          When directed requests are enabled, the user can log in as username@vrfname:hostname, where vrfname is the VRF to use and hostname is the name of a configured TACACS+ server.

          Note

          User-specified logins are supported only for Telnet sessions.

          Before You Begin
          • Log in to the CLI in EXEC mode.
          • Enable TACACS+ for authentication.
          Procedure
             Command or ActionPurpose
            Step 1switch# configure terminal

            Enters global configuration mode.


            Step 2switch(config)# tacacs-server directed-request

            Enables use of directed requests for specifying the TACACS+ server to send an authentication request to when logging in. The default is disabled.


            Step 3switch(config)# exit

            Exits the global configuration mode and returns you to EXEC mode.


            Step 4switch(config)# show tacacs-server directed-request   (Optional)

            Displays the TACACS+ directed request configuration.


            Step 5switch(config)# copy running-config startup-config

            Copies the running configuration to the startup configuration.



            The following example enables TACACS+ server directed requests:

            switch# configure terminal
switch(config)# tacacs-server directed-request
switch(config)# exit
switch# show tacacs-server directed-request
enabled
switch# copy running-config startup-config

            Setting the TACACS+ Global Timeout Interval

            You can set the interval in seconds that the Cisco Nexus 1000V waits for a response from any TACACS+ server before declaring a timeout.

            The timeout specified for an individual TACACS+ server overrides the global timeout interval.

            Before You Begin
            • Log in to the CLI in EXEC mode.
            • Enable TACACS+ for authentication.
            Procedure
               Command or ActionPurpose
              Step 1switch# configure terminal

              Enters global configuration mode.


              Step 2switch(config)# tacacs-server timeout seconds

              Specifies the interval in seconds that the Cisco Nexus 1000V waits for a response from a server.

              seconds—The timeout interval, in seconds. The range is from 1 to 60 seconds. The default value is 5 seconds.


              Step 3switch(confi)# exit

              Exits global configuration mode and returns you to EXEC mode.


              Step 4switch(config)# show tacacs-server   (Optional)

              Displays the TACACS+ server configuration.


              Step 5switch(confi)# copy running-config startup-config   (Optional)

              Copies the running configuration to the startup configuration.



              The following example sets the TACACS+ global timeout interval:

              switch# configure terminal
switch(config)# tacacs-server timeout 10
switch(config)# exit
switch# n1000v# show tacacs-server
Global TACACS+ shared secret:********
timeout value:10
deadtime value:0
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:49
switch# copy running-config startup-config

              Setting a Timeout Interval for an Individual TACACS+ Host

              You can set the interval in seconds that the Cisco Nexus 1000V waits for a response from a specific TACACS+ server before declaring a timeout. This setting is configured per TACACS+ host.

              The timeout setting for an individual TACACS+ server overrides the global timeout interval.

              Before You Begin
              • Log in to the CLI in EXEC mode.
              • Enable TACACS+ for authentication.
              • Configure the TACACS+ server.
              Procedure
                 Command or ActionPurpose
                Step 1switch# configure terminal

                Enters global configuration mode.


                Step 2switch(config)# tacacs-server host {ipv4-address | hostname} timeout seconds

                Specifies the timeout interval for a specific server.

                ipv4-address—The IP address for the TACACS+ server.

                hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.

                seconds—The timeout interval, in seconds. The range is from 1 to 60 seconds. The default value is the global timeout interval.


                Step 3switch(config)# exit

                Exits global configuration mode and returns you to EXEC mode.


                Step 4switch(config)# show tacacs-server   (Optional)

                Displays the TACACS+ server configuration.


                Step 5switch(config)# copy running-config startup-config   (Optional)

                Copies the running configuration to the startup configuration.



                The following example sets a timeout interval for an individual TACACS+ host:

                switch# config terminal
switch(config)#  tacacs-server host 10.10.2.2 timeout 10
switch(config)# exit
switch# n1000v# show tacacs-server
Global TACACS+ shared secret:********
timeout value:10
deadtime value:0
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:49
                timeout:10
switch# copy running-config startup-config

                Configuring the TCP Port for a TACACS+ Host

                You can configure a TCP port other than port 49 (the default for TACACS+ requests).

                Before You Begin
                • Log in to the CLI in EXEC mode.
                • Enable TACACS+ for authentication.
                • Configure the TACACS+ server.
                Procedure
                   Command or ActionPurpose
                  Step 1switch# configure terminal

                  Enters global configuration mode.


                  Step 2 switch(config)# tacacs-server host {ipv4-address | host-name} port tcp-port

                  Specifies the TCP port to use.

                  ipv4-address—The IP address for the TACACS+ server.

                  hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.

                  tcp-port—The TCP port. The range is from 1 to 65535. The default value is 49.


                  Step 3switch(config)# exit

                  Exits global configuration mode and returns you to EXEC mode.


                  Step 4switch(config)# show tacacs-server   (Optional)

                  Displays the TACACS+ server configuration.


                  Step 5switch(config)# copy running-config startup-config   (Optional)

                  Copies the running configuration to the startup configuration.



                  The following example configures the TCP port for a TACACS+ host:

                  switch# configure terminal
switch(config)# tacacs-server host 10.10.2.2 port 2
switch(config)# exit
switch# show tacacs-server
Global TACACS+ shared secret:********
timeout value:10
deadtime value:0
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:2
                timeout:10
switch# copy running-config startup-config

                  Configuring Monitoring for a TACACS+ Host

                  Before You Begin
                  • Log in to the CLI in EXEC mode.
                  • Enable TACACS+ for authentication.
                  • Configure the TACACS+ server.
                  • Know that the idle timer specifies how long a TACACS+ server should remain idle (receiving no requests) before sending it a test packet.
                  • Know that the default idle timer value is 0 minutes. When the idle time interval is 0 minutes, periodic TACACS+ server monitoring is not done.
                  Procedure
                     Command or ActionPurpose
                    Step 1switch# configure terminal

                    Enters global configuration mode.


                    Step 2switch(config)# tacacs-server host {ipv4-address | host-name} test {idle-time minutes | password password [idle-time minutes] | username name [password password [idle-time minutes] ] }

                    Configures server monitoring.

                    ipv4-address—The IP address for the TACACS+ server.

                    hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.

                    minutes—The idle time interval, in minutes. The range is from 0 to 1440 minutes. The default value is 0 minutes. For periodic TACACS+ server monitoring, the idle timer value must be greater than 0.

                    password—The user's password. The default value is test.

                    name—The username to use when connecting to the TACACS+ server. The default value is test. To protect network security, we recommend that you assign a username that is not already in the TACACS+ database.


                    Step 3switch(config)# tacacs-server dead-time minutes

                    Specifies the duration of time in minutes before checking a TACACS+ server that was previously unresponsive.

                    minutes—The dead time interval, in minutes. The range is from 0 to 1440 minutes. The default value is 0 minutes.


                    Step 4switch(config)# exit

                    Exits global configuration mode and returns you to EXEC mode.


                    Step 5switch(config)# show tacacs-server   (Optional)

                    Displays the TACACS+ server configuration.


                    Step 6switch(config)# copy running-config startup-config   (Optional)

                    Copies the running configuration to the startup configuration.



                    The following example configures monitoring for a TACACS+ host:

                    switch# configure terminal
switch(config)# tacacs-server host 10.10.2.2 test username pvk2 password a3z9yjqz7 idle-time 3
switch(config)# tacacs-server dead-time 5
switch(config)# exit
switch# show tacacs-server
Global TACACS+ shared secret:********
timeout value:10
deadtime value:5
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:2
                timeout:10
switch# copy running-config startup-config

                    Configuring the TACACS+ Global Dead-Time Interval

                    You can configure the interval to wait before sending a test packet to a previously unresponsive server.

                    When the dead-timer interval is 0 minutes, TACACS+ servers are not marked as dead even if they are not responding. You can configure the dead time per group.

                    Before You Begin
                    • Log in to the CLI in EXEC mode.
                    • Enable TACACS+ for authentication.
                    • Configure the TACACS+ server.
                    Procedure
                       Command or ActionPurpose
                      Step 1switch# configure terminal

                      Enters global configuration mode.


                      Step 2switch(config)# tacacs-server deadtime minutes

                      Configures the global dead-time interval.

                      minutes—The dead-time interval, in minutes. The range is from 0 to 1440 minutes. The default value is 0 minutes.


                      Step 3switch(config)# exit

                      Exits global configuration mode and returns you to EXEC mode.


                      Step 4switch(config)# show tacacs-server   (Optional)

                      Displays the TACACS+ server configuration.


                      Step 5switch(config)# copy running-config startup-config   (Optional)

                      Copies the running configuration to the startup configuration.



                      The following example configures the TACACS+ global dead-time interval:

                      switch# configure terminal
switch(config)#  tacacs-server deadtime 5
switch(config)# exit
switch# show tacacs-server
Global TACACS+ shared secret:********
timeout value:10
deadtime value:5
total number of servers:1

following TACACS+ servers are configured:
        10.10.2.2:
                available on port:2
                timeout:10
switch# copy running-config startup-config

                      Displaying Statistics for a TACACS+ Host

                      Use the following command to display statistics for a TACACS+ host:

                      Command

                      Description

                      show tacacs-server statistics {hostname | ipv4-address}

                      Displays the statistics for a TACACS+ host.

                      hostname—The hostname for the TACACS+ server. The hostname is alphanumeric, case sensitive, and has a maximum of 256 characters.

                      ipv4-address—The IP address for the TACACS+ server.

                      Configuration Example for TACACS+

                      The following example configures a TACACS+ server:

                      switch# configure terminal
switch(config)# feature tacacs+
switch(config-tacacs+)# tacacs-server key 7 "ToIkLhPpG"
switch(config-tacacs+)# tacacs-server host 10.10.2.2 key 7 "ShMoMhTl"
switch(config-tacacs+)# aaa group server tacacs+ TacServer
    server 10.10.2.2

                      Feature History for TACACS+

                      This table only includes updates for those releases that have resulted in additions to the feature.

                      Feature Name

                      Releases

                      Feature Information

                      TACACS+

                      Release 5.2(1)SK1(2.1)

                      This feature was introduced.
                      [an error occurred while processing this directive]
