Cisco VPN 5001 Concentrator FRU Installation and Replacement Notes


This document provides information about installing and replacing field-replaceable units (FRUs) for the Cisco VPN 5001 concentrator. For more information on VPN 5001 concentrator hardware, see the Cisco VPN 5001 Concentrator Hardware Guide.

This document describes how to install and replace the following FRUs:

Universal AC Adapter

Rack-Mounting Kit


Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.


For a complete list of translated safety warnings, refer to the Regulatory Compliance and Safety Information for the Cisco VPN 5001 Concentrator.

Universal AC Adapter

Product Number: PWR-CVPN5001-AC

A universal AC adapter is shipped standard with the Cisco VPN 5001 concentrator. Table 1 describes the power supply and transformer specifications for the universal AC adapter.

Table 1 Power Supply and Transformer Specifications

Component or Parameter
Description

Power switch

Toggles power input On and Standby.

Power port

Accepts the provided power cable with a 2-pin power connector.

AC adapter type

The chassis requires EOS power adapter model ZVC30FS12AD.

Pour utilisé avec EOS modèle ZVC30FS12AD.

Maximum power consumption

30W

Voltage range



AC adapter

Chassis (from AC adapter)

100 to 120 VAC, 200 to 240 VAC at 50 to 60 Hz

12 VDC

Input current



AC adapter output

Chassis (DC input from AC adapter)

12 VDC 2.9A

2A



Warning The power supply cord is used as the main disconnect device. Ensure that the socket outlet is located or installed near the equipment and is easily accessible.


Attaching the Power Cable

AC-input power supply power cords are available in five different plug styles. Make sure that you use the correct style for your location (Figure 1 and Table 2).

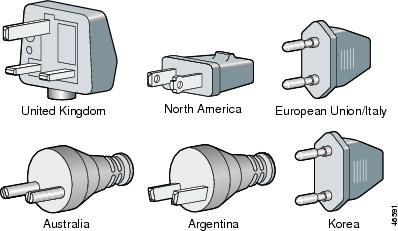

Figure 1 AC Power Cords

Table 2 AC Power Cord Options

Location
Power Cord Description
Product Name

North American

CORD, PWR, 2.5A, 250V, 2COND, NA

CAB-PS-XDSL-NA

United Kingdom

CORD, PWR, 2.5A, 250V, 2COND, UK

CAB-PS-XDSL-UK

Australian

CORD, PWR, 2.5A, 250V, 2CORD, AUSTR

CAB-PS-XDSL-AUS

European Union-Italy

CORD, PWR, 2.5A, 250V, 2COND, EU/IT

CAB-PS-XDSL-EUR

Argentina

PCORD, ARGEN, 10A/250V, 1.8 m, ARG10C2, AC25M-IEC320

CAB-PS-XDSL-ARG

Korea

PCORD, KOREA, 10A/250V, 1.8 m, KS C3304

CAB-PS-XDSL-KOR


Plug the appropriate power cable into the 2-pin power connector on the chassis back. Use the power cord retainer to keep the power cord securely in place. For instructions, see the "Attaching the Power Cord Retainer" section.

Attaching the Power Cord Retainer

The power cord retainer prevents the power cord from being accidentally pulled out. You need the following provided parts to attach the power cord retainer:

Retainer bracket

Screw

Tie-wrap

To attach the power cord retainer


Step 1 Attach the retainer bracket to the chassis back with the provided screw.

Step 2 Loop the power cord so that there is enough cord to attach to the bracket (Figure 2).

Step 3 Use the tie-wrap to fasten the power cord to the retainer bracket.


Figure 2 Attaching the Power Cord Retainer

Rack-Mounting Kit

Product Number: ACS-CVPN5001-RM

Only trained, authorized personnel can install the chassis in a rack. The VPN 5001 chassis requires 1 rack unit (1.8 vertical inches, 4.572 cm) of rack space. You must provide:

Four of your own screws or clips to attach the brackets to the rack

Phillips screwdriver

Complete the following steps to attach the provided brackets to the chassis, and to mount the chassis in the rack.


Step 1 On each side of the chassis, attach the bracket using four provided screws.

For a standard rack, use the front four holes.

For a telco rack, use the back four holes as shown in Figure 3.

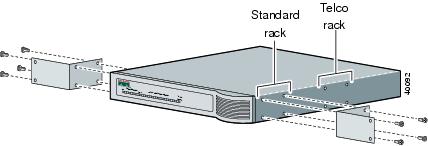

Figure 3 Attaching Brackets to the Chassis

Step 2 Attach the brackets to the rack using your own screws as shown in Figure 4.

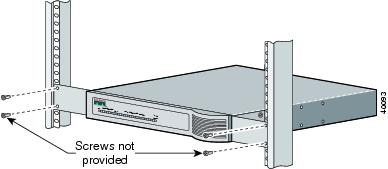

Figure 4 Attaching Brackets to the Rack
