Installing 6-Port MICA Modules


Product Number: MICA-6MOD=

This document describes how to replace the 6-port MICA modules used by Cisco 3640 routers and Cisco AS5300 universal access servers.

Use this document with the installation material shipped with the product, the Regulatory Compliance and Safety Information document, and the Cisco IOS configuration guides and command references. For information about modem AT commands, refer to the AT Command Set and Register Summary for MICA 6-Port Modules publication.

Cisco documentation and additional literature are available in a CD-ROM, which ships with your product. The Documentation CD, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more up to date than printed documentation. To order additional copies of the Documentation CD, contact your local sales representative or call customer service. The CD is available as a single unit or as an annual subscription.

You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com. From the Web, you can send Cisco your comments on any document by clicking the Feedback button, selecting MarketPlace, and clicking Enter the feedback form.

This document contains the following information:

Safety Recommendations

Software Requirements

Installation Procedures

Removing a 6-Port Module

Installing a 6-Port Module

Cisco Connection Online

If you have questions or need help, refer to the section "Cisco Connection Online" later in this document for further information.

Safety Recommendations

Follow these guidelines to ensure general safety:

Keep the chassis area clear and dust-free during and after installation.

Keep tools away from walk areas where you or others could fall over them.

Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.

Wear safety glasses when working under any conditions that might be hazardous to your eyes.

Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.

Safety Warnings

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each safety warning.

Warning

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Waarschuwing  Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Varoitus  Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Attention  Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warnung  Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Avvertenza  Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.

Advarsel  Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.

Aviso  Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.

¡Advertencia!  Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.

Varning!  Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Safety with Electricity


Warning

Read the installation instructions before you connect the system to its power source.



Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.



Warning

Only trained and qualified personnel should be allowed to install or replace this equipment.



Warning

To ensure your safety and the safety of others, be sure the power is OFF and the power cord is unplugged before working on the router.



Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.


Follow these guidelines when working on equipment powered by electricity:

Locate the emergency power-OFF switch in the room in which you are working. Then, if an electrical accident occurs, you can quickly shut the power OFF.

Disconnect all power before doing the following:

Installing or removing a chassis

Working near power supplies

Do not work alone if potentially hazardous conditions exist.

Never assume that power is disconnected from a circuit. Always check.

Look carefully for possible hazards in your work area, such as moist floors, ungrounded power extension cables, and missing safety grounds.

If an electrical accident occurs, proceed as follows:

Use caution; do not become a victim yourself.

Turn OFF power to the system.

If possible, send another person to get medical aid. Otherwise, determine the condition of the victim and then call for help.

Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Always follow ESD prevention procedures when removing and replacing cards. Ensure that the chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground. To properly guard against ESD damage and shocks, the wrist strap and cord must operate effectively. If no wrist strap is available, ground yourself by touching the metal part of the chassis.


Caution
For safety, periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohm).

Software Requirements

The 6-port modules require Cisco IOS Release 11.2(9)XA or Cisco IOS Release 11.2(10)P or higher.

Installation Procedures

To access a 6-port module, you must first remove the Cisco 3640 digital modem network module or Cisco AS5300 carrier card as described in one of the following documents:

Cisco 3640 router

Digital Modem Network Module Configuration Note

Cisco 3640 Router Installation and Configuration Guide

Cisco AS5300 access server:

Installing 6-Port Modem Modules and Carrier Cards in Cisco AS5300 Universal Access Servers

Maintaining the Universal Access Server, an appendix in the Cisco AS5300 Universal Access Server Hardware Installation Guide


Note   Printed versions of these documents ship with the hardware product. For online versions, refer to the Cisco Connection Documentation CD or on the World Wide Web at http://www.cisco.com.


and show the module faceplate and removal from a Cisco 3540 router, and and show the carrier card faceplate and removal from a Cisco universal access server.

Figure 1 Cisco 3640 Digital Modem Network Module Faceplate

Figure 2 Cisco 3640 Digital Modem Network Module Removal

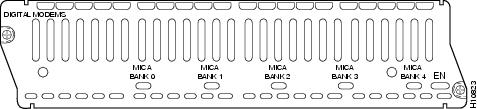

Figure 3 Cisco Universal Access Server Carrier Card Faceplate (Cisco AS5300 Shown)

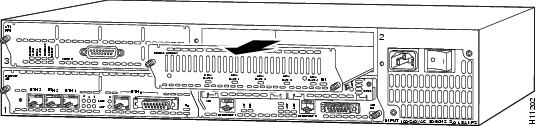

Figure 4 Cisco Universal Access Server Carrier Card Removal (Cisco AS5300 Shown)

Removing a 6-Port Module

To remove the 6-port modules:


Step 1 Make sure that you have attached an ESD-preventive wrist strap and placed the network module or carrier card on an ESD-preventive mat.

Step 2 On the network module or carrier card, locate the 6-port module you will replace.

Step 3 Orient the network module carrier card so that the module socket faces away from you.

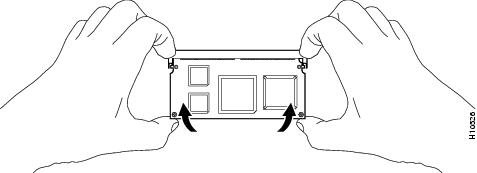

Step 4 For Cisco access servers, use your thumbs to gently pry the edges of the 6-port module away from the standoffs, as shown in .

Figure 5 Prying the 6-Port module from the Standoffs (Access Servers Only)

Step 5 Push the two socket latches away from the module, as shown in .

Figure 6 Releasing the 6-Port Module from the Socket Latch

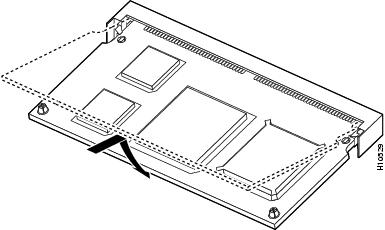

Step 6 Remove the module from its socket, as shown in .

Figure 7 Removing the 6-Port Module

Installing a 6-Port Module

To install a 6-port module:

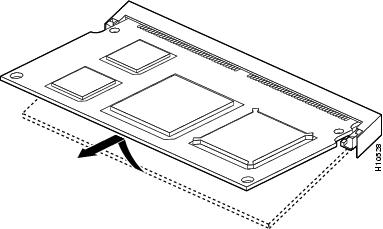

Step 1 Insert the 6-port module into the socket at a 45× angle.

Step 2 Seat the 6-port module in the socket and press its edges onto the standoffs, as shown in .

Figure 8 Installing the 6-Port module

Step 3 Reinstall the network module or carrier card as described in the document shipped with the product, for example

Cisco 3640 router

Digital Modem Network Module Configuration Note

Cisco 3640 Router Installation and Configuration Guide

Cisco AS5300 access server:

Installing 6-Port Modem Modules and Carrier Cards in Cisco AS5300 Universal Access Servers

Maintaining the Universal Access Server, an appendix in the Cisco AS5300 Universal Access Server Hardware Installation Guide


Note   The documents also contain configuration information for the new 6-port module.
