Cisco 1700 Series Modular Access Routers

Quick Start Guide for Installing Your Cisco 1721 Router

 Feedback

Table Of Contents

Cisco 1721 Router Cabling and Installation

Cisco One-Year Limited Hardware Warranty Terms

Overview

Parts List

Items You Need to Provide

Connect the Power Supply

Connect the Router to Your Local Network

Installing the WICs

Connecting a PC to the Router

Verify Your Installation

Configure the Router Using Cisco Router and Security Device Manager

For More Information

Obtaining Documentation

Cisco.com

Documentation DVD

Ordering Documentation

Documentation Feedback

Cisco Product Security Overview

Reporting Security Problems in Cisco Products

Obtaining Technical Assistance

Cisco Technical Support Website

Submitting a Service Request

Definitions of Service Request Severity

Obtaining Additional Publications and Information


Quick Start Guide

Cisco 1721 Router Cabling and Installation


Including License and Warranty

1 Cisco One-Year Limited Hardware Warranty Terms

There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.

1. Launch your browser, and go to this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm

The Warranties and License Agreements page appears.

2. To read the Cisco Information Packet, follow these steps:

a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.

b. Select the language in which you would like to read the document.

c. Click Go.

The Cisco Limited Warranty and Software License page from the Information Packet appears.

d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).


Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com


3. To read translated and localized warranty information about your product, follow these steps:

a. Enter this part number in the Warranty Document Number field:

78-10747-01C0

b. Select the language in which you would like to view the document.

c. Click Go.

The Cisco warranty page appears.

d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).

You can also contact the Cisco service and support website for assistance:

http://www.cisco.com/public/Support_root.shtml.

Duration of Hardware Warranty

One (1) Year

Replacement, Repair, or Refund Policy for Hardware

Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

To Receive a Return Materials Authorization (RMA) Number

Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.

Complete the information below, and keep it for reference.

Company product purchased from



Company telephone number



Product model number



Product serial number



Maintenance contract number



2 Overview

This document describes the steps for installing your Cisco 1721 router with its complement of WAN interface cards (WICs).

Additional documentation can be found on Cisco.com.

Product Serial Number Location

The serial number label for Cisco 1721 router is located on the rear of the chassis, to the right of the power switch.

3 Parts List

Your router package should include the following items:

One Cisco 1721 router

One blue RJ-45-to-DB-9 console cable

One DB-9-to-DB-25 adapter

One black power supply

One black power supply cord

Product documentation

Items You Need to Provide

Depending on your network environment, you may need to provide some of the following items to install the router:

Ethernet hub or switch to connect the router to the local network

Straight-through Ethernet cables (RJ-45-to-RJ-45) to connect the router to a broadband (xDSL or cable) modem and to a hub or switch

Cisco WIC(s), if you did not order the router with WICs already installed

Cables to connect WICs to the appropriate WAN services

External NT-1 or data service unit/channel service unit (DSU/CSU), if needed, to connect a WIC to WAN services

4 Connect the Power Supply

Follow these steps to connect the router to the power supply:


Step 1 Connect the attached power supply cord to the power socket (labeled +5, +12, -12 VDC) on the back panel of the router, as shown in Figure 1.

Figure 1 Connecting the Power Supply

Step 2 Connect the separate power cord to the power socket on the power supply.

Step 3 Connect the other end of the separate power cord to a power outlet.

Step 4 Turn on the router by pressing the power switch to the on ( | ) position.

Step 5 Confirm that the router has power by checking that the PWR LED on the front panel is on.


5 Connect the Router to Your Local Network

You need to provide straight-through Ethernet cables for connecting the router to the local Ethernet network. For more information on these cables, refer to the "Cabling Specifications" chapter in the hardware installation guide that came with the router. Follow these steps to connect the router to your local network:


Step 1 Connect one end of an Ethernet cable to the 10/100 ETHERNET port (the yellow port) as shown in Figure 2.


Caution Always connect the Ethernet cable to the Ethernet ports on the router. Accidentally connecting the cable to the wrong port can damage your router.

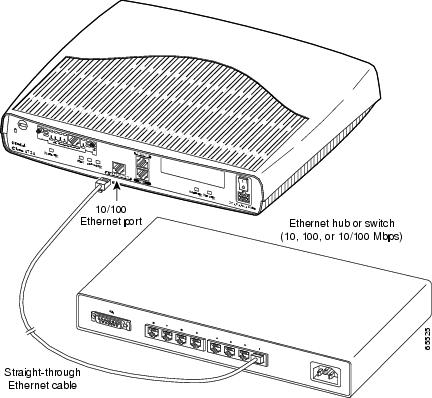

Figure 2 Connecting the Router to Your Local Network

Step 2 Connect the other end of the cable to a port on the hub or switch.


6 Installing the WICs

Look for a WIC in one or both of the slots on the back of the router. If a card is already installed, it can be connected to a WAN line in accordance with the <Emphasis>Cisco WAN Interface Cards Hardware Installation Guide that came with the card. To install a card in either slot, follow these instructions.


Note If you are installing a WIC in the router for the first time, install the card in the WIC0 slot to ensure that your software configuration will not be affected if you install a second card at a later time.



Step 1 Set the power switch to the STANDBY (  ) position and confirm the router is not connected to the power supply.


Caution Power must be removed from the system prior to installing or removing WICs to avoid damaging them. When WICs are pushed into or pulled out of a router that is powered up, it is likely that they could be damaged electrically and will no longer function.

Step 2 Remove the screws that hold the slot cover in place, as shown in Figure 3, and then remove the slot cover. You should be able to loosen the screws using your fingers; however, if the screws are very tight, you might need to use a Phillips screwdriver.

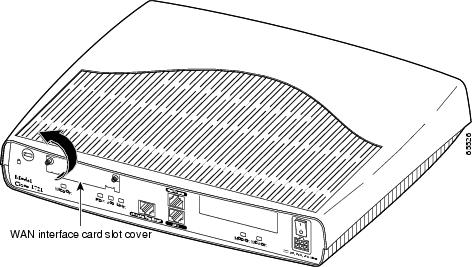

Figure 3 Removing the WIC Slot Cover

Step 3 Hold the WIC by the edges on either side of the card front panel, and line up the card edges with the guides inside the card slot, as shown in Figure 4.

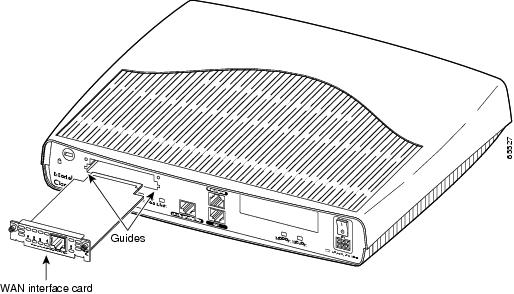

Figure 4 Inserting a WIC

Step 4 Insert the card in the slot. Gently push it into the router until the front panel of the card is flush with the back panel of the router.

Step 5 Tighten the screws.


7 Connecting a PC to the Router

In order for the Cisco IOS software to be used to configure the router, the router must be connected to a terminal or a PC with terminal emulation software. Terminal emulation software should be configured with the following settings: 9600 baud, 8 data bits, no parity bits, and 1 stop bit. The Cisco 1700 Router Software Configuration Guide describes how to configure the router by using Cisco IOS software.


Note If it is installed on your router, you can use Security Device Manager, a web-based configuration tool, to configure your router. If you want to use Security Device Manager, skip this section, and complete sections 8 and 9. If you want to use the Cisco IOS command line interface (CLI), you can use the information in this section to connect a PC to the router's console port so that you can access the IOS CLI.


Follow these steps to connect the router to a terminal or PC:


Step 1 Connect the RJ-45 end of the included console cable to the CONSOLE port on the back panel of the router, as shown in Figure 5.

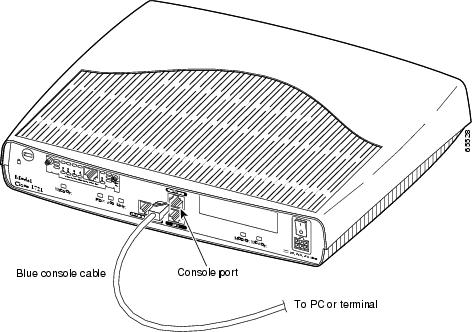

Figure 5 Connecting the Console Cable to the Router

Step 2 Connect the DB-9 end of the console cable to the console port (also called the serial port) on your PC. If this adapter does not fit your PC console port, you must provide an adapter that fits.


8 Verify Your Installation

You can verify that you have correctly installed your router by checking the LEDs as described in Table 1.

Table 1 LEDs That Verify Installation

LED
Panel
What to Look For

PWR

Front

On when power is being supplied to the router.

OK

Front

On when the router software is loaded and functional.

Blinking when the router is running a power-on self-test (POST). Continual blinking can indicate a problem with the router, although the LED will also blink if the router is in ROMMON mode. Refer to the "Troubleshooting" chapter in the Cisco 1721 Router Hardware Installation Guide for more information.

LINK

Back

On when the router is correctly connected to the Ethernet network through the 10/100 ETHERNET port.

FDX

Back

On when the Ethernet port is operating in full-duplex mode.

100

Back

On when the 10/100 ETHERNET port is operating at 100 Mbps.

ETH ACT

Front

Blinking when there is network traffic on the local Ethernet LAN.

WIC0 ACT and WIC1 ACT

Front

On solid or blinking when there is data traffic on the corresponding WIC port. Refer to Table 1-4 in Chapter 1, "Cisco 1721 Router Overview," of the Cisco 1721 Router Hardware Installation Guide, for detailed information.

WIC0 OK and WIC1 OK

Back

On when a WIC is correctly installed in the corresponding WIC slot.

MOD OK

Back

On when the VPN hardware encryption module is installed and recognized by the IOS.


9 Configure the Router Using Cisco Router and Security Device Manager

Cisco Router and Security Device Manager (SDM) is a web-based configuration tool that allows you to configure LAN and WAN interfaces, routing, Network Address Translation (NAT), firewalls, VPNs, and other features on your router. If SDM is installed on your router, configure the router by following the instructions in the Cisco Router and Security Device Manager (SDM) Quick Start Guide. If this document was not shipped with your router, you can obtain SDM and instructions for installing it on your router from the following location:


To obtain the SDM release notes, and other SDM documentation, go to http://www.cisco.com/go/sdm and click the Technical Documentation link.

10 For More Information

For more information about installing or configuring your Cisco 1721 router, see the following:

Cisco 1721 Router Hardware Installation Guide, available on Cisco.com

Cisco 1700 Router Software Configuration Guide, available on Cisco.com

Cisco Security Device Manager Troubleshooting Guide, available on Cisco.com

The Cisco Warranty card, included in the accessory kit, which lists telephone numbers, e-mail addresses, and World Wide Web URLs for getting information directly from Cisco Systems

For more information about SDM, visit http://www.cisco.com/go/sdm.
