Quick Start Guide
Cisco 1710 Security Router Cabling and Installation
Including License and Warranty
1 Cisco One-Year Limited Hardware Warranty Terms
There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.
1. Launch your browser, and go to this URL:
The Warranties and License Agreements page appears.
2. To read the Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.
b. Select the language in which you would like to read the document.
c. Click Go.
The Cisco Limited Warranty and Software License page from the Information Packet appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com
3. To read translated and localized warranty information about your product, follow these steps:
a. Enter this part number in the Warranty Document Number field:
b. Select the language in which you would like to view the document.
c. Click Go.
The Cisco warranty page appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
You can also contact the Cisco service and support website for assistance:
Duration of Hardware Warranty
One (1) Year
Replacement, Repair, or Refund Policy for Hardware
Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
To Receive a Return Materials Authorization (RMA) Number
Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.
Complete the information below, and keep it for reference.
Company product purchased from
Company telephone number
Product model number
Product serial number
Maintenance contract number
This document describes the basic process of setting up the Cisco 1710 Security router.
For advanced cabling information, refer to the Cisco 1710 Security Router Hardware Installation Guide. For advanced configuration information, refer to the Cisco 1710 Security Router Software Configuration Guide. These documents also can be found on Cisco.com.
Product Serial Number Location
The serial number label for Cisco 1710 router is located on the rear of the chassis, to the right of the power switch.
3 Parts List
Your router package should include the following items:
•One Cisco 1710 Security router
•One blue RJ-45-to-DB-9 console cable
•One black power supply
•One black power supply cord
Items You Need to Provide
Depending on your network environment, you may need to provide some of the following items to install the router:
•Ethernet hub or switch to connect the router to the local network
•Straight-through Ethernet cables (RJ-45-to-RJ-45) to connect the router to a broadband (xDSL or cable) modem and to a hub or switch
•A broadband modem connection to the Internet (typically, xDSL or cable)
4 Install the Router
You need to provide straight-through Ethernet cables for connecting the router to the local Ethernet network, and to your xDSL/cable modem for your Internet connection. For more information on these cables, refer to the "Cabling Specifications" chapter in the hardware installation guide that comes with the router.
Follow these steps to connect the router to your local network and to the Internet:
Step 1 Connect one end of an Ethernet cable to the 10/100 ETHERNET port (the port on the right).
Step 2 Connect the other end of the Ethernet cable to a 10-, 100-, or 10/100-Mbps port on the hub or switch. The router senses the port speed and duplex mode and then operates at the same speed and duplex.
Figure 1 Installing the Router
Caution Always connect the Ethernet cable to the Ethernet ports on the router. Accidentally connecting the cable to the wrong port can damage your router.
Step 3 Connect one end of a second Ethernet cable to the 10BT ETHERNET port on the router (the port on the left).
Step 4 Connect the other end to your Internet modem.
Note The 10BT ETHERNET port does not perform autosensing for full-/half-duplex operation, and the default setting is for half-duplex. To enable full-duplex mode on the 10BT ETHERNET port, you will need to use the Cisco IOS software to reconfigure the port.
5 Configure the Router Using Cisco Router and Security Device Manager
Cisco Router and Security Device Manager (SDM) is a web-based configuration tool that allows you to configure LAN and WAN interfaces, routing, Network Address Translation (NAT), firewalls, VPNs, and other features on your router. If SDM is installed on your router, configure the router by following the instructions in the Cisco Router and Security Device Manager (SDM) Quick Start Guide. If this document was not shipped with your router, you can obtain SDM and instructions for installing it on your router from the following location:
To obtain the SDM release notes, and other SDM documentation, go to http://www.cisco.com/go/sdm and click the Technical Documentation link.
6 Connect a PC to the Router (Optional)
This step is optional, and required only if you want to use the Cisco IOS CLI to configure or troubleshoot the router, instead of SDM. To use Cisco IOS software to configure the router, it must be connected to a terminal or to a PC with terminal-emulation software. Terminal emulation software should be configured with the following settings: 9600 baud, 8 data bits, no parity bits, and 1 stop bit. The Cisco 1710 Security Router Software Configuration Guide describes how to configure the router using Cisco IOS software.
Follow these steps to connect the router to a terminal or PC:
Step 1 Connect the RJ-45 end of the console cable (included) to the CONSOLE port on the back panel of the router.

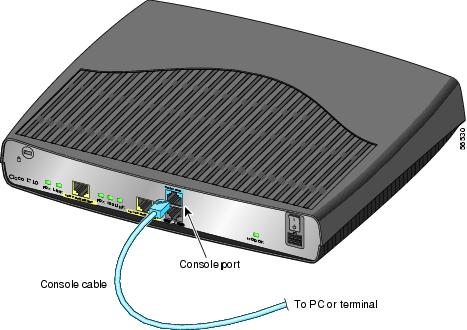

Figure 2 Connecting a PC to the Router
Step 2 Connect the DB-9 end of the console cable to the console port (also called the serial port) on your PC. If this adapter does not fit your PC console port, you must provide an adapter that fits.
7 Connect the Power Supply
Follow these steps to connect the router to the power supply:
Step 1 Connect the attached power-supply cord to the power socket (labeled +5, +12, -12 VDC) on the back panel of the router.
Step 2 Connect the separate power cord to the power socket on the power supply.
Step 3 Connect the other end of the separate power cord to a power outlet.
Figure 3 Connecting the Power Supply
Step 4 Turn on the router by pressing the power switch to the on ( | ) position.
Step 5 Confirm that the router has power by checking that the PWR LED on the front panel is on.
8 Verify Your Installation
After the router is powered on, the following LEDs confirm that you have correctly installed your router.
9 For More Information
For more information about installing or configuring your Cisco 1710 Security router, see the following documents available on Cisco.com:
•Cisco 1710 Security Router Hardware Installation Guide
•Cisco 1710 Security Router Software Configuration Guide
•Cisco Security Device Manager Troubleshooting Guide
•The Cisco Warranty card, included in the accessory kit, which lists telephone numbers, e-mail addresses, and World Wide Web URLs for getting information directly from Cisco Systems
For more information about SDM, visit http://www.cisco.com/go/sdm
10 Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
You can access the most current Cisco documentation at this URL:
You can access the Cisco website at this URL:
You can access international Cisco websites at this URL:
Cisco documentation and additional literature are available in a Documentation DVD package, which may have shipped with your product. The Documentation DVD is updated regularly and may be more current than printed documentation. The Documentation DVD package is available as a single unit.
Registered Cisco.com users (Cisco direct customers) can order a Cisco Documentation DVD (product number DOC-DOCDVD=) from the Ordering tool or Cisco Marketplace.
Cisco Ordering tool:
You can find instructions for ordering documentation at this URL:
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:
•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 1 800 553-NETS (6387).
11 Documentation Feedback
You can send comments about technical documentation to firstname.lastname@example.org.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
12 Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
From this site, you can perform these tasks:
•Report security vulnerabilities in Cisco products.
•Obtain assistance with security incidents that involve Cisco products.
•Register to receive security information from Cisco.
A current list of security advisories and notices for Cisco products is available at this URL:
If you prefer to see advisories and notices as they are updated in real time, you can access a Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you might have identified a vulnerability in a Cisco product, contact PSIRT:
•Emergencies — email@example.com
•Nonemergencies — firstname.lastname@example.org
Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive information that you send to Cisco. PSIRT can work from encrypted information that is compatible with PGP versions 2.x through 8.x.
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one that has the most recent creation date in this public key server list:
In an emergency, you can also reach PSIRT by telephone:
•1 877 228-7302
•1 408 525-6532
13 Obtaining Technical Assistance
For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco Technical Support provides 24-hour-a-day, award-winning technical assistance. The Cisco Technical Support Website on Cisco.com features extensive online support resources. In addition, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not hold a valid Cisco service contract, contact your reseller.
Cisco Technical Support Website
The Cisco Technical Support Website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, 365 days a year, at this URL:
Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone request for service. You can access the CPI tool from the Cisco Technical Support Website by clicking the Tools & Resources link under Documentation & Tools. Choose Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco TAC engineer. The TAC Service Request Tool is located at this URL:
For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
For a complete list of Cisco TAC contacts, go to this URL:
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.
Severity 1 (S1)—Your network is "down," or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
14 Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:
•Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:
•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:
•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
•World-class networking training is available from Cisco. You can view current offerings at this URL:
