Hardware Specifications and Cable Pinouts

Hardware Specifications

Cable Pinouts

Hardware Specifications and Cable Pinouts

This appendix contains the following sections:

•Hardware Specifications—All models of Cisco 1600 series routers.

•Cable Pinouts—Cables that can be used with Cisco 1600 series routers.

Hardware Specifications

lists the system specifications for Cisco 1600 series routers.

Table C-1 System Specifications

Description

Specification

Processor

Motorola MC68360 QUICC (33 MHz)

Dimensions

•Height

•Width

•Depth

2.19 in. (5.56 cm)

11.15 in. (28.32 cm)

8.67 in. (22.02 cm)

Weight

•Minimum (no WAN interface card installed)

•Maximum

1.65 LB (0.75 kg)

1.80 LB (0.82 kg)

Power (external)

14 VDC (+ / - 8%), minimum 1A

Console port

RJ-45 connector

10BaseT port

RJ-45 connector

AUI port

DB-15 connector

Flash memory slot

Flash PC card

Serial port (Cisco 1601)

DB-60 connector

DSU/CSU port (Cisco 1602)

RJ-48S connector

ISDN ports¹ (Cisco 1603 and Cisco 1604)

RJ-45 connector

Temperature

•Operating

•Nonoperating

32 to 104×F (0 to 40×C)

-4 to 149×F (-20 to 65×C)

Operating humidity

5 to 95%, noncondensing

¹ISDN ports refer to the ISDN S/T and the ISDN U ports.

Cable Pinouts

This section includes the following pinouts:

•10BaseT Port Pinouts

•

•

•56-kbps DSU/CSU (RJ-48S) Pinouts

•ISDN BRI S/T Port Pinouts (RJ-45)

•ISDN BRI U Port Pinouts (RJ-45)

•EIA/TIA-232 DTE Cable Pinouts (DB-60 to DB-25)

•EIA/TIA-449 DTE Cable Pinouts (DB-60 to DB-37)

•X.21 DTE Cable Pinouts (DB-60 to DB-15)

•V.35 Cable Pinouts (DB-60 to 34-Pin)

•EIA-530 DTE Cable Pinouts (DB-60 to DB-25)

Table C-2 10BaseT Port Pinouts

8 Pin¹

Description

1

TX+

2

TX-

3

RX+

6

RX-

¹Pins 4, 5, 7, and 8 are not used.

Table C-3 RJ-45-DB-9 Console Cable Assembly

RJ-45

DB-9

RTS

1

8

CTS

DTR

2

6

DSR

TXD

3

2

ZXD

GND

4

5

GND

GND

5

5

GND

ZXD

6

3

TXD

DSR

7

4

DTR

CTS

8

7

RTS

Pinouts

The EIA/TIA-232 console port is configured as data terminal equipment (DTE) and uses an RJ-45 connector. A console cable kit is provided with your router to connect a console (an ASCII terminal or PC running terminal emulation software) to the console port. The console cable kit contains an RJ-45-to-DB-9 console cable and a DB-9-to-DB-25 male DTE adapter (labeled Terminal). lists out the DB-9-to-DB-25 modem adapter pinouts.

Table C-4

DB-9 Pin

DB-25 Pin

7

5

4

8

3

3

5

7

2

2

6

20

8

4

DB-9-DB-25 Modem Adapter Pinouts

Table C-5 56-kbps DSU/CSU (RJ-48S) Pinouts

8 Pin¹

Description

1

Transmit

2

Transmit

7

Receive

8

Receive

¹Pins 3, 4, 5, and 6 are not used.

Table C-6 ISDN BRI S/T Port Pinouts (RJ-45)

8 Pin¹

TE²

NT³

Polarity

3

Transmit

Receive

+

4

Receive

Transmit

+

5

Receive

Transmit

-

6

Transmit

Receive

-

¹Pins 1, 2, 7, and 8 are not used.

²TE refers to terminal terminating layer 1 aspects of TE1, TA, and NT functional groups. This applies to the Cisco 1603 and the ISDN BRI S/T WAN interface card.

³NT refers to network terminating layer 1 aspects of NT1 and NT2 functional groups. This applies to the Cisco 1604 ISDN S/T port.

Table C-7 ISDN BRI U Port Pinouts (RJ-45)

8 Pin¹

Function

3

No connection

4

Signal—Tip or Ring

5

Signal—Tip or Ring

6

No connection

¹Pins 1, 2, 7, and 8 are not used.

The serial port on the router uses a universal port, a 60-pin receptacle that supports the following serial interfaces: EIA/TIA-232, EIA/TIA-449, X.21, V.35, and EIA-530. The shielded serial transition cable determines the electrical interface type. The router end of all of the cables is a 60-pin connector.

DTE connectors have a plug connector at the network end. (DCE connectors have a receptacle at the network end.) However, V.35 is available in DTE mode either a receptacle or a plug connector at the network end. The serial port operates in DTE and DCE modes.

The tables that follow list the signal pinouts for the DTE mode serial transition cables for each router interface type.

shows the EIA/TIA-232 serial cable assembly, and lists the EIA/TIA-232 cable pinouts.

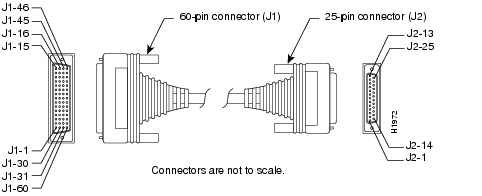

Figure C-1 EIA/TIA-232 Serial Cable Assembly

Table C-8 EIA/TIA-232 DTE Cable Pinouts (DB-60 to DB-25)

60 Pin¹

Signal

Description

Direction

25 Pin

Signal

J1-50
J1-51
J1-52

MODE_0
GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield GND

Single

-

J2-1

Shield GND

J1-41
Shield

TxD/RxD
-

Twisted pair no. 5

—>
-

J2-2
Shield

TxD
-

J1-36
Shield

RxD/TxD
-

Twisted pair no. 9

<—
-

J2-3
Shield

RxD
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 4

—>
-

J2-4
Shield

RTS
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 10

<—
-

J2-5
Shield

CTS
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 11

<—
-

J2-6
Shield

DSR
-

J1-45
Shield

Circuit GND
-

Twisted pair no. 1

-
-

J2-7
Shield

Circuit GND
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 12

<—
-

J2-8
Shield

DCD
-

J1-37
Shield

TxC/NIL
-

Twisted pair no. 8

<—
-

J2-15
Shield

TxC
-

J1-38
Shield

RxC/TxCE
-

Twisted pair no. 7

<—
-

J2-17
Shield

RxC
-

J1-44
Shield

LL/DCD
-

Twisted pair no. 2

—>
-

J2-18
Shield

LTST
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 3

—>
-

J2-20
Shield

DTR
-

J1-39
Shield

TxCE/TxC
-

Twisted pair no. 6

—>
-

J2-24
Shield

TxCE
-

¹Any pin not referenced is not connected.

Figure C-2 EIA/TIA-449 Serial Cable Assembly

Table C-9 EIA/TIA-449 DTE Cable Pinouts (DB-60 to DB-37)

60 Pin¹

Signal

Description

Direction

37 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-51
J1-52

GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield_GND

Single

_

J2-1

Shield GND

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 6

—>
—>

J2-4
J2-22

SD+
SD-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 9

<—
<—

J2-5
J2-23

ST+
ST-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 11

<—
<—

J2-6
J2-24

RD+
RD-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 5

—>
—>

J2-7
J2-25

RS+
RS-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 10

<—
<—

J2-8
J2-26

RT+
RT-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-9
J2-27

CS+
CS-

J1-44
J1-45

LL/DCD
Circuit_GND

Twisted pair no. 12

—>
_

J2-10
J2-37

LL
SC

J1-3
J1-4

DSR/DTR+
DSR/DTR-

Twisted pair no. 2

<—
<—

J2-11
J2-29

DM+
DM-

J1-7
J1-8

DTR/DSR+
DTR/DSR-

Twisted pair no. 4

—>
—>

J2-12
J2-30

TR+
TR-

J1-5
J1-6

DCD/DCD+
DCD/DCD-

Twisted pair no. 3

<—
<—

J2-13
J2-31

RR+
RR-

J1-13
J1-14

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 7

—>
—>

J2-17
J2-35

TT+
TT-

J1-15
J1-16

Circuit_GND
Circuit_GND

Twisted pair no. 9

-
-

J2-19
J2-20

SG
RC

¹Any pin not referenced is not connected.

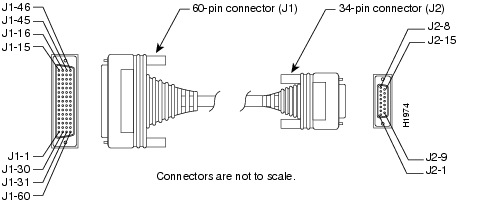

Figure C-3 X.21 Cable Assembly

Table C-10 X.21 DTE Cable Pinouts (DB-60 to DB-15)

60 Pin¹

Signal

Description

Direction

15 Pin

Signal

J1-48
J1-47

GND
MODE_2

Shorting group

-

-

-

J1-51
J1-52

GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-1

Shield GND

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 3

—>
—>

J2-2
J2-9

Transmit+
Transmit-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 2

—>
—>

J2-3
J2-10

Control+
Control-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 6

<—
<—

J2-4
J2-11

Receive+
Receive-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-5
J2-12

Indication+
Indication-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 5

<—
<—

J2-6
J2-13

Timing+
Timing-

J1-15
Shield

Control_GND
-

Twisted pair no. 4

-
-

J2-8
Shield

Control GND
-

¹Any pin not referenced is not connected.

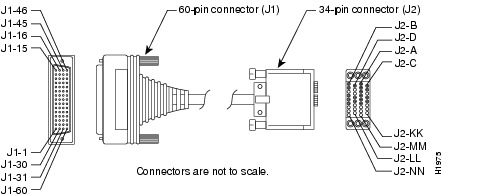

Figure C-4 V.35 Cable Assembly

Table C-11 V.35 Cable Pinouts (DB-60 to 34-Pin)

60 Pin¹

Signal

Description

Direction

34 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-50
J1-51
J1-52

MODE_0
GND
MODE_DCE

Shorting group

-

-

-

J1-53
J1-54
J1-55
J1-56

TxC/NIL
RxC_TxCE
RxD/TxD
GND

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-A

Frame GND

J1-45
Shield

Circuit_GND
-

Twisted pair no. 12

-
-

J2-B
Shield

Circuit GND
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 9

—>
-

J2-C
Shield

RTS
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 8

<—
-

J2-D
Shield

CTS
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 7

<—
-

J2-E
Shield

DSR
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 6

<—
-

J2-F
Shield

RLSD
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 10

—>
-

J2-H
Shield

DTR
-

J1-44
Shield

LL/DCD
-

Twisted pair no. 11

—>
-

J2-K
Shield

LT
-

J1-18
J1-17

TxD/RxD+
TxD/RxD-

Twisted pair no. 1

—>
—>

J2-P
J2-S

SD+
SD-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 5

<—
<—

J2-R
J2-T

RD+
RD-

J1-20
J1-19

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 2

—>
—>

J2-U
J2-W

SCTE+
SCTE-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 4

<—
<—

J2-V
J2-X

SCR+
SCR-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 3

<—
<—

J2-Y
J2-AA

SCT+
SCT-

¹Any pin not referenced is not connected.

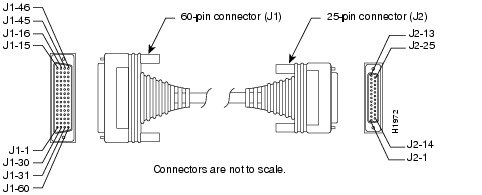

Figure C-5 EIA-530 Cable Assembly

Table C-12 EIA-530 DTE Cable Pinouts (DB-60 to DB-25)

60 Pin¹

Signal

25 Pin

Signal

Direction
DTE DCE²

J1-11
J1-12

TxD/RxD+
TxD/RxD-

J2-2
J2-14

BA(A), TxD+
BA(B), TxD-

—>
—>

J1-28
J1-27

RxD/TxD+
RxD/TxD-

J2-3
J2-16

BB(A), RxD+
BB(B), RxD-

<—
<—

J1-9
J1-10

RTS/CTS+
RTS/CTS-

J2-4
J2-19

CA(A), RTS+
CA(B), RTS-

—>
—>

J1-1
J1-2

CTS/RTS+
CTS/RTS-

J2-5
J2-13

CB(A), CTS+
CB(B), CTS-

<—
<—

J1-3
J1-4

DSR/DTR+
DSR/DTR-

J2-6
J2-22

CC(A), DSR+
CC(B), DSR-

<—
<—

J1-46
J1-47

Shield_GND
MODE_2

J2-1
-

Shield
-

Shorted

J1-48
J1-49

GND
MODE_1

-
-

-
-

Shorted

J1-5
J1-6

DCD/DCD+
DCD/DCD-

J2-8
J2-10

CF(A), DCD+
CF(B), DCD-

<—
<—

J1-24
J1-23

TxC/RxC+
TxC/RxC-

J2-15
J2-12

DB(A), TxC+
DB(B), TxC-

<—
<—

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

J2-17
J2-9

DD(A), RxC+
DD(B), RxC-

<—
<—

J1-44
J1-45

LL/DCD
Circuit_GND

J2-18
J2-7

LL
Circuit_ GND

—>
-

J1-7
J1-8

DTR/DSR+
DTR/DSR-

J2-20
J2-23

CD(A), DTR+
CD(B), DTR-

—>
—>

J1-13
J1-14

TxCE/TxC+
TxCE/TxC-

J2-24
J2-11

DA(A), TxCE+
DA(B), TxCE-

—>
—>

¹Any pin not referenced is not connected.

²The EIA-530 interface cannot be operated in DCE mode. A DCE cable is not available for the EIA-530 interface.
