Optical Cards
Note
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.
This chapter describes Cisco ONS 15454 card features and functions. For installation and card turn-up procedures, see the Cisco ONS 15454 Procedure Guide.
Chapter topics include:
•
•
•
•
4.1 Card Overview
The optical card overview section summarizes card functions, power consumption, and temperature ranges. For compatibility, see the "Software and Hardware Compatibility" section.
Note
4.1.1 Optical Cards
Table 4-1 lists the Cisco ONS 15454 optical cards.
Table 4-1 Optical Cards for the ONS 15454
The OC3 IR 4 1310 card provides four intermediate or short-range OC-3 ports.
Note
See the "OC3 IR 4/STM1 SH 1310 Card" section.
The OC3 IR 4/STM1 SH 1310 card provides four intermediate or short-range OC-3 ports.
See the "OC3 IR 4/STM1 SH 1310 Card" section.
The OC3 IR/STM1 SH 1310-8 card provides eight intermediate or short-range OC-3 ports.
See the "OC3IR/STM1SH 1310-8 Card" section.
The OC12 IR 1310 card provides one intermediate or short-range OC-12 port.
Note
See the "OC12 IR/STM4 SH 1310 Card" section.
The OC12 IR/STM4 SH 1310 card provides one intermediate or short-range OC-12 port.
See the "OC12 IR/STM4 SH 1310 Card" section.
The OC12 LR 1310 card provides one long-range OC-12 port and operates at 1310 nm.
Note
See the "OC12 LR/STM4 LH 1310 Card" section.
The OC12 LR/STM4 LH 1310 card provides one long-range OC-12 port and operates at 1310 nm.
See the "OC12 LR/STM4 LH 1310 Card" section.
The OC12 LR 1550 card provides one long-range OC-12 port and operates at 1550 nm.
Note
See the "OC12 LR/STM4 LH 1550 Card" section.
The OC12 LR/STM4 LH 1550 card provides one long-range OC-12 port and operates at 1550 nm.
See the "OC12 LR/STM4 LH 1550 Card" section.
The OC12 IR/STM4 SH 1310-4 card provides four intermediate or short-range OC-12/STM-4 ports.
The OC48 IR 1310 card provides one intermediate-range OC-48 port and operates at 1310 nm. This card functions in Slots 5, 6, 12, or 13 (high-speed slots) only.
See the "OC48 IR 1310 Card" section.
The OC48 LR 1550 card provides one long-range OC-48 port and operates at 1550 nm. This card functions in Slots 5, 6, 12, or 13 only.
See the "OC48 LR 1550 Card" section.
The OC48 IR/STM16 SH AS 1310 card provides one intermediate-range OC-48 port and operates in Slots 1 to 6 and 12 to 17 (any multispeed or high-speed card slot).
The OC48 LR/STM16 LH AS 1550 card provides one long-range OC-48 port and operates in Slots 1 to 6 and 12 to 17.
Thirty-seven distinct OC48 ITU 100-GHz dense wavelength division multiplexing (DWDM) cards provide the ONS 15454 DWDM channel plan.
Eighteen distinct OC48 ITU 20-GHz DWDM cards provide the ONS 15454 DWDM channel plan.
See the "OC48 ELR 200 GHz Cards" section.
The OC192 SR/STM64 IO 1310 card provides one intra-office haul OC-192 port at 1310 nm and operates in Slot 5, 6, 12, or 13 with the 10 Gigabit Cross-Connect (XC10G) card.
The OC192 IR/STM64 SH 1550 card provides one intermediate reach OC-192 port at 1550 nm and operates in Slot 5, 6, 12, or 13 with the XC10G.
The OC192 LR/STM64 LH 1550 card provides one long-range OC-192 port at 1550 nm and operates in Slot 5, 6, 12, or 13 with the XC10G.
The OC192 LR/STM64 LH ITU 15xx.xx card provides one long-reach OC-192 port and operates in Slot 5, 6, 12, or 13 with the XC10G. This card is available in multiple wavelengths in the 1550-nm range of the ITU grid for 100-GHz spaced DWDM.
The TXP_MR_10G (10-Gbps Transponder-100-Ghz-

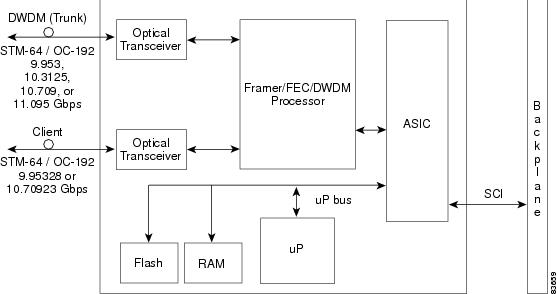

Tunable xx.xx-xx.xx) card provides one extended long-range OC-192 port (trunk side) and one short-range OC-192 port (client side). It can process one standard OC-192 interface for use in a 100-GHz DWDM system. On the trunk side, it can provide forward error correction (FEC). The TXP_MR_10G card operates in Slots 1 to 6 and 12 to 17. The TXP_MR_10G card is tunable over two neighboring wavelengths in the 1550-nm, ITU 100-GHz range. It is available in four different versions, covering eight different wavelengths in the 1550-nm range. For the individual card, "xx.xx" is replaced with the wavelength intended to be used.Note
See the "TXP_MR_10G Card" section

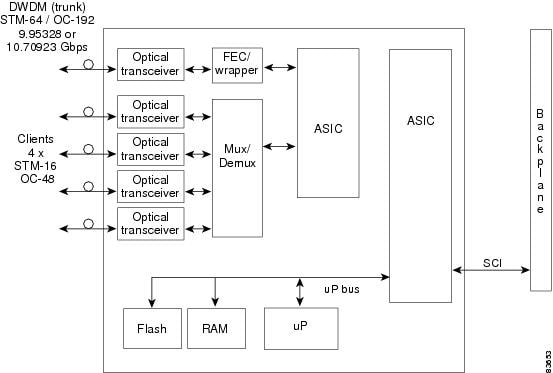

The MXP_2.5G_10G (2.5-Gbps-10-Gbps Muxponder-100 Ghz-Tunable xx.xx-xx.xx) card provides one extended long-range OC-192 port (trunk side) and four short-range OC-48 ports (client side). It can multiplex four standard OC-48 interfaces into one OC-192 interface for usage in a 100-GHz DWDM system. On the trunk side, it can provide FEC. The MXP_2.5G_10G card operates in Slots 1 to 6 and 12 to 17. The MXP_2.5G_10G card is tunable over two neighboring wavelengths in the 1550-nm, ITU 100-GHz range. It is available in four different versions, covering eight different wavelengths in the 1550-nm range. For the individual card, "xx.xx" is replaced with the wavelength intended to be used.
See the "MXP_2.5G_10G Card" section
Note
Corning MetroCor fiber is optimized for optical interfaces that transmit at 1550 nm or in the C and L DWDM windows, and targets interfaces with higher dispersion tolerances than those found in OC3 IR/STM1 SH, OC12 IR/STM4 SH, and OC48 IR/STM16 SH interface optics. If you are using Corning MetroCor fiber, OC3 IR/STM1 SH, OC12 IR/STM4 SH, and OC48 IR/STM16 SH interface optics become dispersion limited before they become attenuation limited. In this case, consider using OC3 LR/STM1 LH, OC12 LR/STM4 LH, and OC48 LR/STM16 LH cards instead of OC3 IR/STM1 SH, OC12 IR/STM4 SH, and OC48 IR/STM16 SH cards.
With all fiber types, network planners/engineers should review the relative fiber type and optics specifications to determine attenuation, dispersion, and other characteristics to ensure appropriate deployment.4.1.2 Card Power Requirements
Table 4-2 lists power requirements for individual cards.
Note
4.1.3 Card Temperature Ranges
Table 4-3 shows C-Temp and I-Temp compliant cards and their product names.
Note
4.2 OC3 IR 4/STM1 SH 1310 Card
The OC3 IR 4/STM1 SH 1310 card provides four intermediate or short range SONET/SDH OC-3 ports compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. Each port operates at 155.52 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at the STS-1 or STS-3c signal levels. Figure 4-1 shows the OC3 IR 4/STM1 SH 1310 faceplate and a diagram of the card.
Note

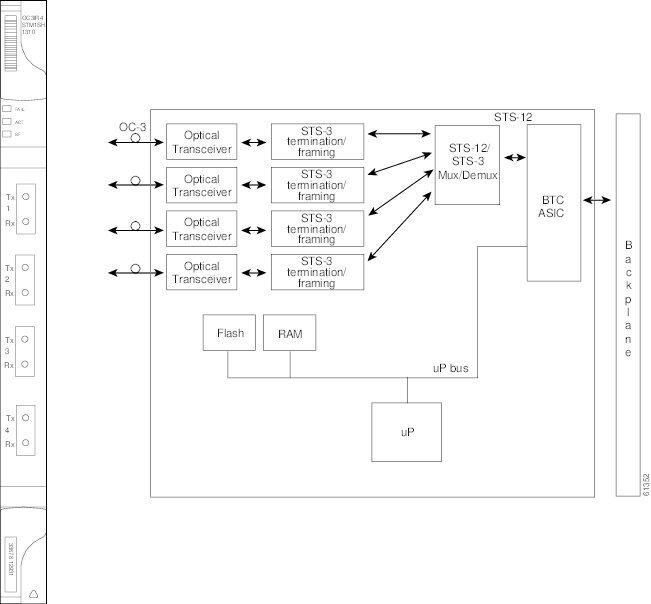

Figure 4-1 OC3 IR 4/STM1 SH 1310 Faceplate and Block Diagram
You can install the OC3 IR 4/STM1 SH 1310 card in Slots 1 to 6 and 12 to 17. The card can be provisioned as part of a path protection configuration or in a linear add-drop multiplexer (ADM) configuration. Each port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC connectors.
The OC3 IR 4/STM1 SH 1310 card supports 1+1 unidirectional or bidirectional protection switching. You can provision protection on a per port basis.
The OC3 IR 4/STM1 SH 1310 detects loss of signal (LOS), loss of frame (LOF), loss of pointer (LOP), line-layer alarm indication signal (AIS-L), and line-layer remote defect indication (RDI-L) conditions. See the Alarm Troubleshooting chapter in the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line bit interleaved parity (BIP) errors.
4.2.1 OC3 IR 4/STM1 SH 1310 Card-Level Indicators
The OC3 IR 4/STM1 SH 1310 card has three card-level LED indicators, described in Table 4-4.
4.2.2 OC3 IR 4/STM1 SH 1310 Port-Level Indicators
You can find the status of the four card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.2.3 OC3 IR 4/STM1 SH 1310 Card Specifications
The OC3 IR 4/STM1 SH 1310 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC34IR1310): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
I-Temp (15454-OC34I13-T): -40 to +65 degrees Celsius (-40 to +149 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.3 OC3IR/STM1SH 1310-8 Card
The OC3IR/STM1SH 1310-8 card provides eight intermediate or short range SONET/SDH OC-3 ports compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. Each port operates at 155.52 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at the STS-1 or STS-3c signal levels. Figure 4-2 shows the OC3IR/STM1SH 1310-8 faceplate and Figure 4-3 shows a block diagram of the card.
Warning
Figure 4-2 OC3IR/STM1SH 1310-8 Faceplate

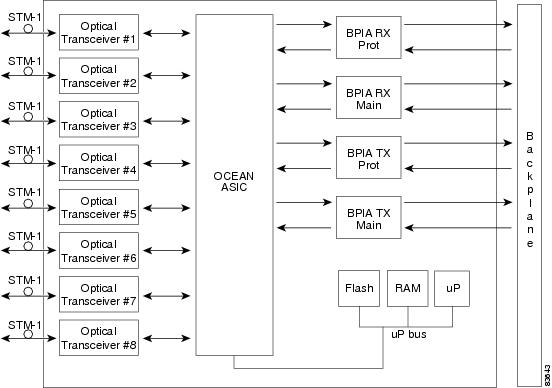

Figure 4-3 OC3IR/STM1SH 1310-8 Block Diagram
Warning
You can install the OC3IR/STM1SH 1310-8 card in Slots 1 to 4 and 14 to 17 (multispeed slots). The card can be provisioned as part of an path protection configuration or in an add-drop multiplexer/terminal monitor (ADM/TM) configuration. Each interface features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses LC connectors on the faceplate, angled downward 12.5 degrees.
The OC3IR/STM1SH 1310-8 card supports 1+1 unidirectional and bidirectional protection switching. You can provision protection on a per port basis.
The OC3IR/STM1SH 1310-8 card detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors.
To enable APS, the OC3IR/STM1SH 1310-8 card extracts the K1 and K2 bytes from the SONET overhead to perform appropriate protection switches. The OC3IR/STM1SH 1310-8 card supports full data communications channel/general communication channel (DCC/GCC) connectivity for remote network management.
4.3.1 OC3IR/STM1SH 1310-8 Card-Level Indicators
The OC3IR/STM1SH 1310-8 card has three card-level LED indicators, described in Table 4-5.
4.3.2 OC3IR/STM1SH 1310-8 Port-Level Indicators
Eight bi-color LEDs show the status per port. The LEDs shows green if the port is available to carry traffic, is provisioned as in-service, and is part of a protection group, in the active mode. You can also find the status of the eight card ports using using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. Refer to the Cisco ONS 15454 Troubleshooting Guide for a complete description of the alarm messages.
4.3.3 OC3IR/STM1SH 1310-8 Card Specifications
The OC3IR/STM1SH 1310-8 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.4 OC12 IR/STM4 SH 1310 Card
The OC12 IR/STM4 SH 1310 card provides one intermediate or short range SONET/SDH OC-12 port compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 622.08 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at STS-1, STS-3c, STS-6c or STS-12c signal levels. Figure 4-4 shows the OC12 IR/STM4 SH 1310 faceplate and a block diagram of the card.
Note

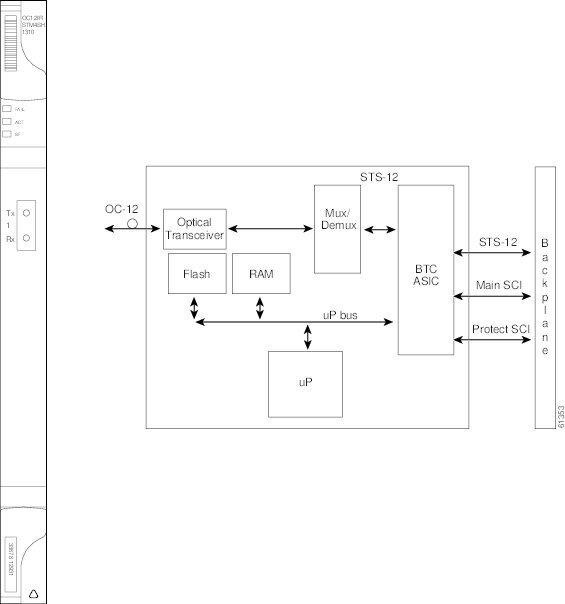

Figure 4-4 OC12 IR/STM4 SH 1310 Faceplate and Block Diagram
You can install the OC12 IR/STM4 SH 1310 card in Slots 1 to 6 and 12 to 17, and provision the card as a drop card or span card in a two-fiber BLSR, path protection configuration, or in ADM (linear) configurations.
The OC12 IR/STM4 SH 1310 port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The OC12 IR/STM4 SH 1310 uses SC optical connections and supports 1+1 unidirectional and bidirectional protection.
The OC12 IR/STM4 SH 1310 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. See the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card counts section and line BIT errors.
4.4.1 OC12 IR/STM4 SH 1310 Card-Level Indicators
The OC12 IR/STM4 SH 1310 card has three card-level LED indicators, described in Table 4-6.
4.4.2 OC12 IR/STM4 SH 1310 Port-Level Indicators
You can find the status of the OC-12 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.4.3 OC12 IR/STM4 SH 1310 Card Specifications
The OC12 IR/STM4 SH 1310 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC121IR1310): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
I-Temp (15454-OC121I13-T): -40 to +65 degrees Celsius (-40 to +149 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.5 OC12 LR/STM4 LH 1310 Card
The OC12 LR/STM4 LH 1310 card provides one long-range SONET OC-12 port per card compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 622.08 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at STS-1, STS-3c, STS-6c or STS-12c signal levels. Figure 4-5 shows the OC12 LR/STM4 LH 1310 faceplate and a block diagram of the card.
Note

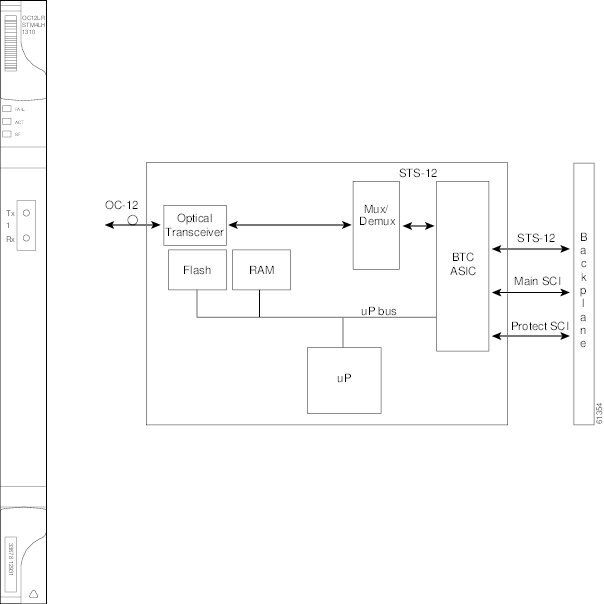

Figure 4-5 OC12 LR/STM4 LH 1310 Faceplate and Block Diagram
You can install the OC12 LR/STM4 LH 1310 card in Slots 1 to 6 and 12 to 17, and provision the card as a drop card or span card in a two-fiber BLSR (Bidirectional line switched ring), path protection configuration, or ADM (linear) configuration.
The OC12 LR/STM4 LH 1310 card port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC optical connections supporting 1+1 unidirectional and bidirectional protection.
The OC12 LR/STM4 LH 1310 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.5.1 OC12 LR/STM4 LH 1310 Card-Level Indicators
The OC12 LR/STM4 LH 1310 card has three card-level LED indicators, described in Table 4-7.
4.5.2 OC12 LR/STM4 LH 1310 Port-Level Indicators
You can find the status of the OC12 LR/STM4 LH 1310 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to quickly view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.5.3 OC12 LR/STM4 LH 1310 Card Specifications
The OC12 LR/STM4 LH 1310 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC121LR1310): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
I-Temp (15454-OC121L13-T): -40 to +65 degrees Celsius (-40 to +149 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.6 OC12 LR/STM4 LH 1550 Card
The OC12 LR/STM4 LH 1550 card provides one long-range SONET/SDH OC-12 port compliant with the ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 622.08 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated, or concatenated payloads at STS-1, STS-3c, STS-6c, or STS-12c signal levels. Figure 4-6 shows the OC12 LR/STM4 LH 1550 faceplate and a block diagram of the card.
Note

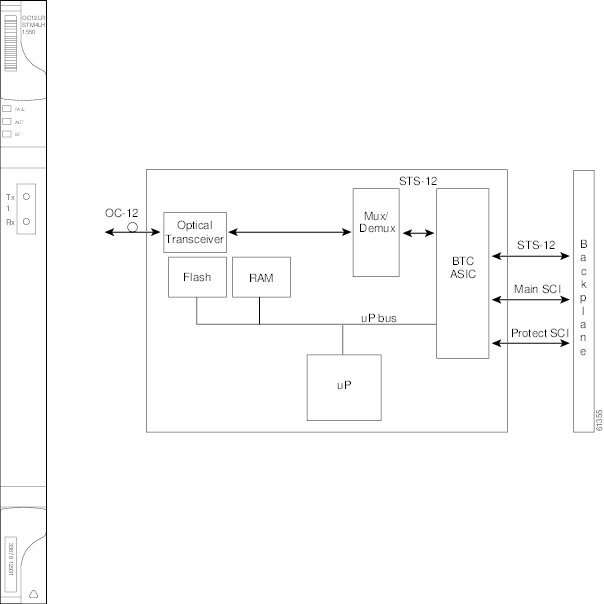

Figure 4-6 OC12 LR/STM4 LH 1550 Faceplate and Block Diagram
You can install the OC12 LR/STM4 LH 1550 card in Slots 1 to 4 and 14 to 17. The OC12 LR/STM4 LH 1550 can be provisioned as part of a two-fiber BLSR, path protection configuration or linear ADM.
The OC12 LR/STM4 LH 1550 uses long-reach optics centered at 1550 nm and contains a transmit and receive connector (labeled) on the card faceplate. The OC12 LR/STM4 LH 1550 uses SC optical connections and supports 1+1 bidirectional or unidirectional protection switching.
The OC12 LR/STM4 LH 1550 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.6.1 OC12 LR/STM4 LH 1550 Card-Level Indicators
The OC12 LR/STM4 LH 1550 card has three card-level LED indicators, described in Table 4-8.
4.6.2 OC12 LR/STM4 LH 1550 Port-Level Indicators
You can find the status of the OC12 LR/STM4 LH 1550 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.6.3 OC12 LR/STM4 LH 1550 Card Specifications
The OC12 LR/STM4 LH 1550 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC121LR1550): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
I-Temp (15454-OC121L15-T): -40 to +65 degrees Celsius (-40 to +149 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.7 OC12 IR/STM4 SH 1310-4 Card
The OC12 IR/STM4 SH 1310-4 card provides four intermediate or short range SONET/SDH OC-12/STM-4 ports compliant with the ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. Each port operates at 622.08 Mbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at the STS-1, STS-3c, STS-6c, or STS-12c signal levels.
The OC12 IR/STM4 SH 1310-4 card supports 1+1 unidirectional or bidirectional protection switching. You can provision protection on a per port basis.
The OC12 IR/STM4 SH 1310-4 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIP errors.
Note
4.7.1 OC12 IR/STM4 SH 1310-4 Slots and Connectors
You can install the OC12 IR/STM4 SH 1310-4 card in Slots 1 to 4 and 14 to 17. The card can be provisioned as part of a path protection configuration or in an ADM configuration. Each port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC connectors.
4.7.2 OC12 IR/STM4 SH 1310-4 Faceplate and Block Diagram
Figure 4-7 shows the OC12 IR/STM4 SH 1310-4 faceplate and a diagram of the card.

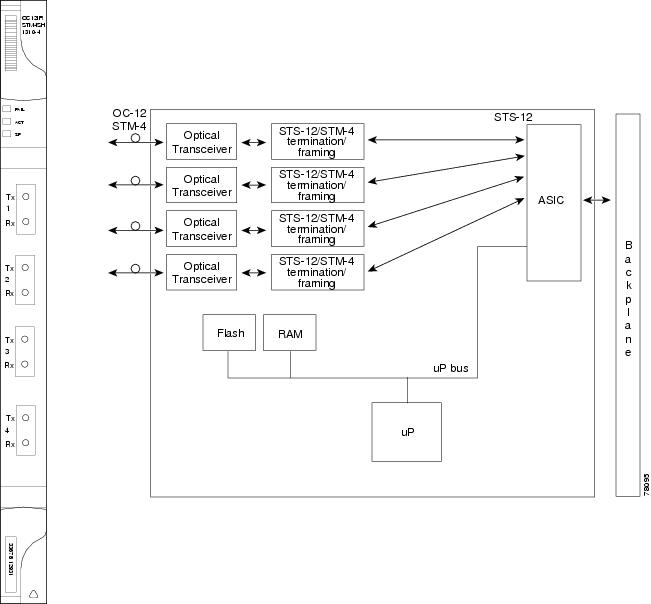

Figure 4-7 OC12 IR/STM4 SH 1310-4 Faceplate and Block Diagram
4.7.3 OC12 IR/STM4 SH 1310-4 Card-Level Indicators
The OC12 IR/STM4 SH 1310-4 card has three card-level LED indicators, described in Table 4-9.
4.7.4 OC12 IR/STM4 SH 1310-4 Port-Level Indicators
You can find the status of the four card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.7.5 OC12 IR/STM4 SH 1310-4 Specifications
The OC12 IR/STM4 SH 1310-4 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
•
–
•
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
Note
4.8 OC48 IR 1310 Card
The OC48 IR 1310 card provides one intermediate-range, SONET OC-48 port per card, compliant with Telcordia GR-253-CORE. Each port operates at 2.49 Gbps over a single-mode fiber span. The card supports VT and nonconcatenated, or concatenated payloads at STS-1, STS-3c, STS-6c, STS-12c, or STS-48c signal levels. Figure 4-8 shows the OC48 IR 1310 faceplate and a block diagram of the card.

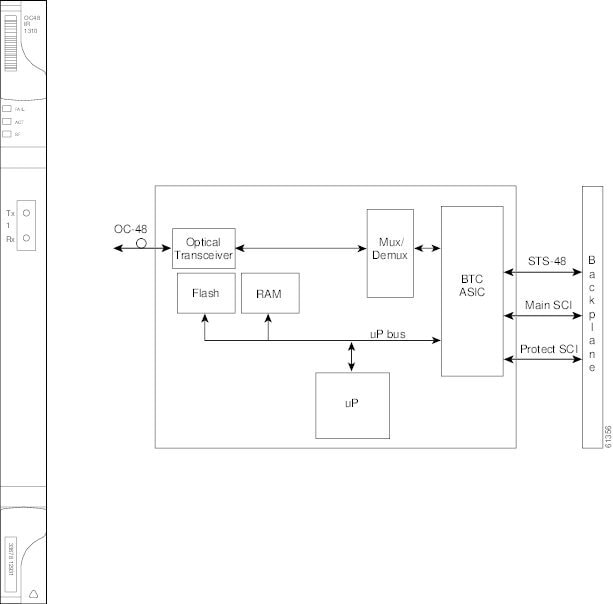

Figure 4-8 OC48 IR 1310 Faceplate and Block Diagram
You can install the OC48 IR 1310 card in Slots 5, 6, 12, and 13, and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration.
The OC-48 port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The OC48 IR 1310 uses SC connectors. The card supports 1+1 unidirectional and bidirectional protection switching.
The OC48 IR 1310 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.8.1 OC48 IR 1310 Card-Level Indicators
The OC48 IR 1310 card has three card-level LED indicators, described in Table 4-10.
4.8.2 OC48 IR 1310 Port-Level Indicators
You can find the status of the OC48 IR 1310 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.8.3 OC48 IR 1310 Card Specifications
The OC48 IR 1310 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
Transmitter: Uncooled direct modulated DFB
•
–
–
–
–
–
•
–
C-Temp (15454-OC481IR1310): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.9 OC48 LR 1550 Card
The OC48 LR 1550 card provides one long-range, SONET OC-48 port per card, compliant with Telcordia GR-253-CORE. Each port operates at 2.49 Gbps over a single-mode fiber span. The card supports VT, nonconcatenated or concatenated payloads at STS-1, STS-3c, STS-6c STS-12c or STS-48c signal levels. Figure 4-9 shows the OC48 LR 1550 faceplate and a block diagram of the card.
Figure 4-9 OC48 LR 1550 Faceplate and Block Diagram
You can install OC48 LR 1550 cards in Slots 5, 6, 12, and 13 and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration.
The OC48 LR 1550 port features a 1550-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC connectors, and it supports 1+1 unidirectional and bidirectional protection switching.
The OC48 LR 1550 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.9.1 OC48 LR 1550 Card-Level Indicators
The OC48 LR 1550 card has three card-level LED indicators, described in Table 4-11.
4.9.2 OC48 LR 1550 Port-Level Indicators
You can find the status of the OC48 LR 1550 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.9.3 OC48 LR 1550 Card Specifications
The OC48 LR 1550 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC481LR1550): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.10 OC48 IR/STM16 SH AS 1310 Card
The OC48 IR/STM16 SH AS 1310 card provides one intermediate-range SONET/SDH OC-48 port compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 2.49 Gbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at STS-1, STS-3c, STS-6c, STS-12c, or STS-48c signal levels. Figure 4-10 shows the OC48 IR/STM16 SH AS 1310 faceplate and a block diagram of the card.

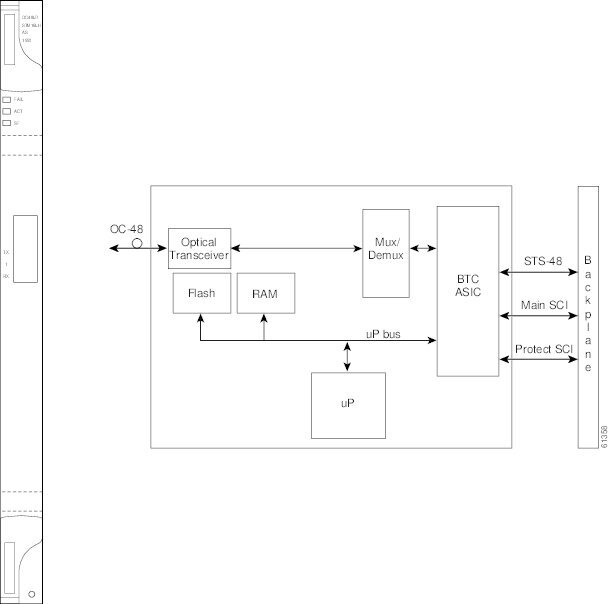

Figure 4-10 OC48 IR/STM16 SH AS 1310 Faceplate and Block Diagram
You can install the OC48 IR/STM16 SH AS 1310 card in Slots 1 to 6 and 12 to 17 and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration.
The OC-48 port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The OC48 IR/STM16 SH AS 1310 uses SC connectors. The card supports 1+1 unidirectional and bidirectional protection switching.
The OC48 IR/STM16 SH AS 1310 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.10.1 OC48 IR/STM16 SH AS 1310 Card-Level Indicators
The OC48 IR/STM16 SH AS 1310 card has three card-level LED indicators, described in Table 4-12.
4.10.2 OC48 IR/STM16 SH AS 1310 Port-Level Indicators
You can find the status of the OC48 IR/STM16 SH AS 1310 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.10.3 OC48 IR/STM16 SH AS 1310 Compatibility
Use the XC10G card, the TCC+/TCC2 card, the 15454-SA-ANSI shelf assembly, and Software R3.1 or later to enable the OC48 IR/STM16 SH AS 1310 card. The OC48 IR/STM16 SH AS 1310 card uses the BTC backplane interface to provide recognition in Slots 1 to 6 and 12 to 17.
4.10.4 OC48 IR/STM16 SH AS 1310 Card Specifications
The OC48 IR/STM16 SH AS 1310 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC481IR1310A): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.11 OC48 LR/STM16 LH AS 1550 Card
The OC48 LR/STM16 LH AS 1550 card provides one long-range SONET/SDH OC-48 port compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. Each port operates at 2.49 Gbps over a single-mode fiber span. The card supports VT and nonconcatenated or concatenated payloads at STS-1, STS-3c, STS-6c, STS-12c, or STS-48c signal levels. Figure 4-11 shows a block diagram and the faceplate of the OC48 LR/STM16 LH AS 1550 card.

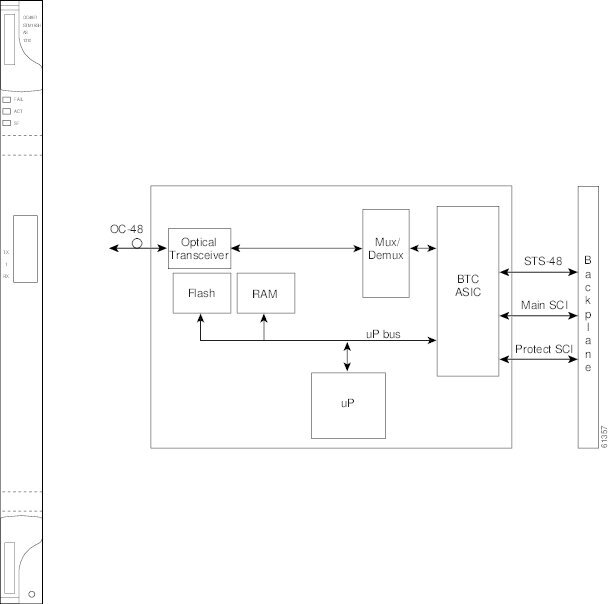

Figure 4-11 OC48 LR/STM16 LH AS 1550 Faceplate and Block Diagram
You can install OC48 LR/STM16 LH AS 1550 cards in Slots 1 to 6 and 12 to 17 and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration.
The OC48 LR/STM16 LH AS 1550 port features a 1550-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC connectors, and it supports 1+1 unidirectional and bidirectional protection switching.
The OC48 LR/STM16 LH AS 1550 detects LOS, LOF, LOP, AIS-L, and RDI-L conditions. The card also counts section and line BIT errors.
4.11.1 OC48 LR/STM16 LH AS 1550 Card-Level Indicators
The OC48 LR/STM16 LH AS 1550 card has three card-level LED indicators, described in Table 4-13.
4.11.2 OC48 LR/STM16 LH AS 1550 Port-Level Indicators
You can find the status of the OC48 LR/STM16 LH AS 1550 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.11.3 OC48 LR/STM16 LH AS 1550 Compatibility
Use the XC10G card, the TCC+/TCC2 card, the 15454-SA-ANSI shelf assembly, and Software R3.1 or later to enable the OC48 LR/STM16 LH AS 1550 card. The OC48 LR/STM16 LH AS 1550 card uses the BTC backplane interface to provide recognition in Slots 1 to 6 and 12 to 17.
4.11.4 OC48 LR/STM16 LH AS 1550 Card Specifications
The OC48 LR/STM16 LH AS 1550 card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC481LR1550A): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.12 OC48 ELR/STM16 EH 100 GHz Cards
Thirty-seven distinct OC48 ELR/STM16 EH 100 GHz cards provide the ONS 15454 DWDM channel plan. Each OC48 ELR/STM16 EH 100 GHz card has one SONET OC-48/SDH STM-16 port that complies with Telcordia GR-253-CORE, ITU-T G.692, and ITU-T G.958.
The port operates at 2.49 Gbps over a single-mode fiber span. The card carries VT, concatenated, and nonconcatenated payloads at STS-1, STS-3c, STS-6c, STS-12c, or STS-48c signal levels. Figure 4-12 shows the OC48 ELR/STM16 EH 100 GHz faceplate and a block diagram of the card.

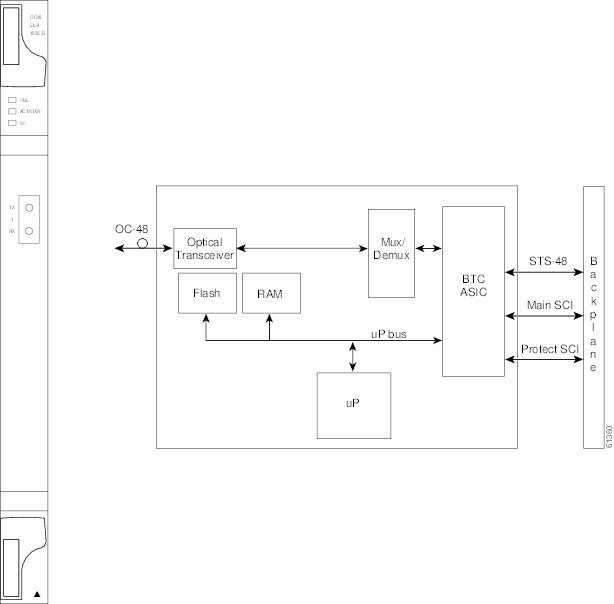

Figure 4-12 OC48 ELR/STM16 EH 100 GHz Faceplate and Block Diagram
Nineteen of the cards operate in the blue band with spacing of 100 GHz on the ITU grid (1528.77 nm, 1530.33 nm, 1531.12 nm, 1531.90 nm, 1532.68 nm, 1533.47 nm, 1534.25 nm, 1535.04 nm, 1535.82 nm, 1536.61 nm, 1538.19 nm, 1538.98 nm, 1539.77 nm, 1540.56 nm, 1541.35 nm, 1542.14 nm, 1542.94 nm, 1543.73 nm, 1544.53 nm). ITU spacing conforms to ITU-T G.692 and Telcordia GR-2918-CORE, issue 2.
The other eighteen cards operate in the red band with spacing of 100 GHz on the ITU grid (1546.12 nm, 1546.92 nm, 1547.72 nm, 1548.51 nm,1549.32 nm, 1550.12 nm, 1550.92 nm, 1551.72 nm, 1552.52 nm, 1554.13 nm, 1554.94 nm, 1555.75 nm, 1556.55 nm, 1557.36 nm, 1558.17 nm, 1558.98 nm, 1559.79 nm, 1560.61 nm). These cards are also designed to interoperate with the Cisco ONS 15216 DWDM solution.
You can install the OC48 ELR/STM16 EH 100 GHz cards in Slots 5, 6, 12, and 13, and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration. Each OC48 ELR/STM16 EH 100 GHz card uses extended long-reach optics operating individually within the ITU-T 100 GHz grid. The OC-48 DWDM cards are intended to be used in applications with long unregenerated spans of up to 186 miles (300 km) (with mid-span amplification). These transmission distances are achieved through the use of inexpensive optical amplifiers (flat gain amplifiers) such as Cisco ONS 15216 erbium-doped fiber amplifiers (EDFAs).
Maximum system reach in filterless applications is 26 dB without the use of optical amplifiers or regenerators. However, system reach also depends on the condition of the facilities, number of splices and connectors, and other performance-affecting factors. When used in combination with ONS 15216 100-GHz filters, the link budget is reduced by the insertion loss of the filters plus an additional 2-dB power penalty. The wavelength stability of the OC48 ELR/STM16 EH 100 GHz cards is +/- 0.12 nm for the life of the product and over the full range of operating temperatures. Each interface contains a transmitter and receiver.
The OC48 ELR/STM16 EH 100 GHz cards detect LOS, LOF, LOP, and AIS-L conditions. The cards also count section and line BIT errors.
4.12.1 OC48 ELR 100 GHz Card-Level Indicators
The OC48 ELR/STM16 EH 100 GHz cards have three card-level LED indicators, listed in Table 4-14.
4.12.2 OC48 ELR 100 GHz Port-Level Indicators
You can find the status of the OC48 ELR/STM16 EH 100 GHz card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to quickly view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.12.3 OC48 ELR 100 GHz Compatibility
The OC48 ELR/STM16 EH 100 GHz card requires a Cross Connect (XC) card, a Cross Connect Virtual Tributary (XCVT) card, or an XC10G for proper operation.
4.12.4 OC48 ELR 100 GHz Card Specifications
The OC48 ELR 100 GHz card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
•
–
–
–
–
–
–
•
–
C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
(For product names, see Card Temperature Ranges)–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.13 OC48 ELR 200 GHz Cards
Eighteen distinct OC48 ELR 200 GHz cards provide the ONS 15454 DWDM channel plan. Each OC48 ELR 200 GHz card provides one SONET OC-48 port that is compliant with Telcordia GR-253-CORE. The port operates at 2.49 Gbps over a single-mode fiber span. The card carries VT, concatenated, and nonconcatenated payloads at STS-1, STS-3c, STS-6c, STS-12c, or STS-48c signal levels. Figure 4-13 shows the OC48 ELR 200 GHz faceplate and a block diagram of the card.
Figure 4-13 OC48 ELR 200 GHz Faceplate and Block Diagram
Nine of the cards operate in the blue band with spacing of 200 GHz on the ITU grid (1530.33 nm, 1531.90 nm, 1533.47 nm, 1535.04 nm, 1536.61 nm, 1538.19 nm, 1539.77 nm, 1541.35 nm, 1542.94 nm).
The other nine cards operate in the red band with spacing of 200 GHz on the ITU grid
(1547.72 nm, 1549.32 nm, 1550.92 nm, 1552.52 nm, 1554.13 nm, 1555.75 nm, 1557.36 nm, 1558.98 nm, 1560.61 nm). These cards are also designed to interoperate with the Cisco ONS 15216 DWDM solution.You can install the OC48 ELR 200 GHz cards in Slots 5, 6, 12, and 13, and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration. Each OC48 ELR 200 GHz card uses extended long-reach optics operating individually within the ITU-T 200-GHz grid. The OC48 ELR 200 GHz cards are intended to be used in applications with long unregenerated spans of up to 124 miles (200 km) (with mid-span amplification). These transmission distances are achieved through the use of inexpensive optical amplifiers (flat gain amplifiers) such as EDFAs. Using collocated amplification, distances up to 124 miles (200 km) can be achieved for a single channel, 99 miles (160 km) for 8 channels.
Maximum system reach in filterless applications is 24 dB or approximately 50 miles (80 km) without the use of optical amplifiers or regenerators. However, system reach also depends on the condition of the facilities, number of splices and connectors or other performance-affecting factors. The OC48 ELR DWDM cards feature wavelength stability of +/- 0.25 nm. Each interface contains a transmitter and receiver.
The OC48 ELR 200 GHz cards are the first in a family of cards meant to support extended long-reach applications in conjunction with optical amplification. Using electro-absorption technology, the OC48 DWDM cards provide a solution at the lower extended long-reach distances.
The OC48 ELR 200 GHz interface features a 1550-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses SC connectors and supports 1+1 unidirectional and bidirectional protection switching.
The OC48 ELR 200 GHz cards detect LOS, LOF, LOP, AIS-L, and RDI-L conditions. The cards also count section and line BIT errors. To enable APS, the OC48 ELR 200 GHz cards extract the K1 and K2 bytes from the SONET overhead. The DCC bytes are forwarded to the TCC+/TCC2 card; the TCC+/TCC2 terminates the DCC/GCC.
4.13.1 OC48 ELR 200 GHz Card-Level Indicators
The OC48 ELR 200 GHz cards have three card-level LED indicators, described in Table 4-15.
4.13.2 OC48 ELR 200 GHz Port-Level Indicators
You can find the status of the OC48 ELR 200 GHz card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to quickly view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.13.3 OC48 ELR 200 GHz Compatibility
The OC48 ELR 200 GHz card requires an XC card, XCVT card, or XC10G card for proper operation.
4.13.4 OC48 ELR 200 GHz Card Specifications
The OC48 ELR 200 GHz card has the following specifications:
•
–
–
–
–
–
–
•
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.14 OC192 SR/STM64 IO 1310 Card
Warning
The OC192 SR/STM64 IO 1310 card provides one intra-office haul SONET/SDH OC-192 port in the 1310-nm wavelength range, compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 9.95328 Gbps over unamplified distances up to 1.24 miles (2 km). The card supports VT and nonconcatenated or concatenated payloads. Figure 4-14 shows the OC192 SR/STM64 IO 1310 faceplate and Figure 4-15 shows a block diagram of the card.
Figure 4-14 OC192 SR/STM64 IO 1310 Faceplate
Figure 4-15 OC192 SR/STM64 IO 1310 Block Diagram
You can install OC192 SR/STM64 IO 1310 cards in Slot 5, 6, 12, or 13. You can provision this card as part of an BLSR, a path protection configuration, a linear configuration, or as a regenerator for longer span reaches.
The OC192 SR/STM64 IO 1310 port features a 1310-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses a dual SC connector for optical cable termination. The card supports 1+1 unidirectional and bidirectional facility protection. It also supports 1:1 protection in four-fiber bidirectional line switched ring applications where both span switching and ring switching might occur.
The OC192 SR/STM64 IO 1310 card detects SF, LOS, or LOF conditions on the optical facility. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors from B1 and B2 byte registers in the section and line overhead.
4.14.1 OC192 SR/STM64 IO 1310 Card-Level Indicators
The OC192 SR/STM64 IO 1310 card has three card-level LED indicators, listed in Table 4-16.
4.14.2 OC192 SR/STM64 IO 1310 Port-Level Indicators
You can find the status of the OC192 SR/STM64 IO 1310 card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. Refer to the Cisco ONS 15454 Troubleshooting Guide for a complete description of the alarm messages.
4.14.3 OC192 SR/STM64 IO 1310 Card Specifications
The OC 192 SR/STM64 IO 1310 card has the following specifications:
•
–
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
at BER = 1 * 10 exp - 12 including dispersion–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.15 OC192 IR/STM64 SH 1550 Card
Warning
The OC192 IR/STM64 SH 1550 card provides one intermediate reach SONET/SDH OC-192 port in the 1550-nm wavelength range, compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The port operates at 9.95328 Gbps over unamplified distances up to 25 miles (40 km) with SMF-28 fiber limited by loss and/or dispersion. The card supports VT and nonconcatenated or concatenated payloads. Figure 4-16 shows the OC192 IR/STM64 SH 1550 faceplate and Figure 4-17 shows a block diagram of the card.
Figure 4-16 OC192 IR/STM64 SH 1550 Faceplate

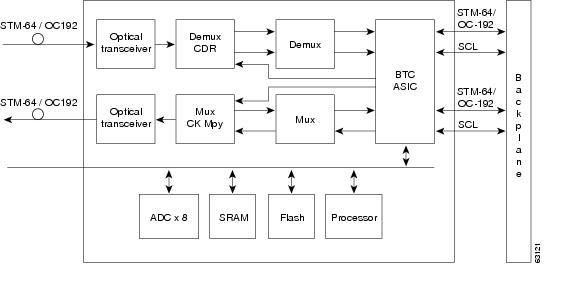

Figure 4-17 OC192 IR/STM64 SH 1550 Block Diagram
Note
You can install OC192 IR/STM64 SH 1550 cards in Slot 5, 6, 12, or 13. You can provision this card as part of an BLSR, path protection configuration, or linear configuration, or also as a regenerator for longer span reaches.
The OC192 IR/STM64 SH 1550 port features a 1550-nm laser and contains a transmit and receive connector (labeled) on the card faceplate. The card uses a dual SC connector for optical cable termination. The card supports 1+1 unidirectional and bidirectional facility protection. It also supports 1:1 protection in four-fiber bidirectional line switched ring applications where both span switching and ring switching might occur.
The OC192 IR/STM64 SH 1550 card detects SF, LOS, or LOF conditions on the optical facility. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors from B1 and B2 byte registers in the section and line overhead.
4.15.1 OC192 IR/STM64 SH 1550 Card-Level Indicators
The OC192 IR/STM64 SH 1550 card has three card-level LED indicators, listed in Table 4-17.
4.15.2 OC192 IR/STM64 SH 1550 Port-Level Indicators
You can find the status of the OC192 IR/STM64 SH 1550 card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. Refer to the Cisco ONS 15454 Troubleshooting Guide for a complete description of the alarm messages.
4.15.3 OC192 IR/STM64 SH 1550 Card Specifications
The OC192 IR/STM64 SH 1550 card has the following specifications:
•
–
–
–
–
–
Note
–
–
•
–
–
–
–
–
•
–
–
–
–
at BER = 1 * 10 exp - 12 including dispersion–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.16 OC192 LR/STM64 LH 1550 Card
The OC192 LR/STM64 LH 1550 card provides one long-range SONET/SDH OC-192 port compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE. The card port operates at 9.96 Gbps over unamplified distances up to 50 miles (80 km) with different types of fiber such as C-SMF or dispersion compensated fiber limited by loss and/or dispersion. The card supports VT and nonconcatenated or concatenated payloads.
Figure 4-18 shows the OC192 LR/STM64 LH 1550 faceplate and a block diagram of the card. Figure 4-19 shows an enlarged view of the faceplate warning.

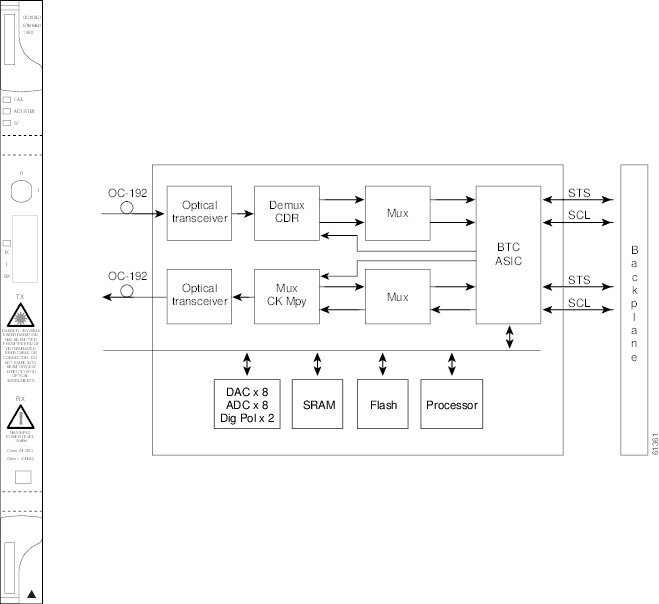

Figure 4-18 OC192 LR/STM64 LH 1550 Faceplate and Block Diagram

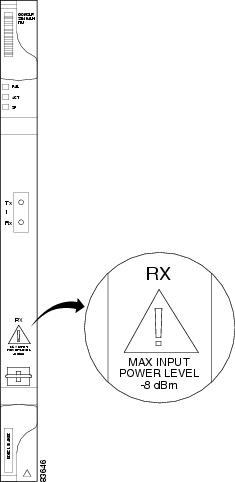

Figure 4-19 Enlarged Section of the OC192 LR/STM64 LH 1550 Faceplate
Caution
You can install OC192 LR/STM64 LH 1550 cards in Slots 5, 6, 12, and 13 and provision the card as a drop or span card in a two-fiber or four-fiber BLSR, path protection configuration, or in an ADM (linear) configuration.
The OC-192 card port features a 1550-nm laser and contains a transmit and receive connector (labeled) on the card faceplate.
Warning
The card uses a dual SC connector for optical cable termination. The card supports 1+1 unidirectional and bidirectional facility protection. It also supports 1:1 protection in four-fiber bidirectional line switched ring applications where both span switching and ring switching might occur.
The OC192 LR/STM64 LH 1550 card detects SF, LOS, or LOF conditions on the optical facility. The card also counts section and line BIT errors from B1 and B2 byte registers in the section and line overhead.
4.16.1 OC192 LR/STM64 LH 1550 Card-Level Indicators
The OC192 LR/STM64 LH 1550 card has three card-level LED indicators, described in Table 4-18.
4.16.2 OC192 LR/STM64 LH 1550 Port-Level Indicators
You can find the status of the OC192 LR/STM64 LH 1550 card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of the port or card slot; the screen displays the number and severity of alarms for a given port or slot.
Warning
4.16.3 OC192 LR/STM64 LH 1550 Compatibility
Use the XC10G card, the TCC+/TCC2 card, the new 15454-SA-ANSI shelf assembly, and Software R3.1 or later to enable the OC192 LR/STM64 LH 1550 card.
4.16.4 OC192 LR/STM64 LH 1550 Card Specifications
The OC192 LR/STM64 LH 1550 card has the following specifications:
•
–
–
–
–
Note
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
C-Temp (15454-OC192LR1550): -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
–
•
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.17 OC192 LR/STM64 LH ITU 15xx.xx Card
Warning
Sixteen distinct OC-192/STM-64 ITU 100 GHz DWDM cards comprise the ONS 15454 DWDM channel plan. The OC192 LR/STM64 LH ITU 15xx.xx card provides one long-reach STM-64/OC-192 port per card, compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE . The port operates at 9.95328 Gbps over unamplified distances up to 37 miles (60 km) with different types of fiber such as C-SMF or dispersion compensated fiber limited by loss and/or dispersion.
Note
The card supports VT and nonconcatenated or concatenated payloads. Figure 4-20 shows the OC192 LR/STM64 LH ITU 15xx.xx faceplate and Figure 4-21 shows a block diagram of the card.
Figure 4-20 OC192 LR/STM64 LH ITU 15xx.xx Faceplate
Figure 4-21 OC192 LR/STM64 LH ITU 15xx.xx Block Diagram
Note
Eight of the cards operate in the blue band with a spacing of 100 GHz in the ITU grid (1534.25 nm, 1535.04 nm, 1535.82 nm, 1536.61 nm, 1538.19 nm, 1538.98 nm, 1539.77 nm, and 1540.56 nm). The other eight cards operate in the red band with a spacing of 100 GHz in the ITU grid (1550.12 nm, 1550.92 nm, 1551.72 nm, 1552.52 nm, 1554.13 nm, 1554.94 nm, 1555.75 nm, and 1556.55 nm).
You can install OC192 LR/STM64 LH ITU 15xx.xx cards in Slot 5, 6, 12, or 13. You can provision this card as part of an BLSR, path protection configuration, or linear configuration or also as a regenerator for longer span reaches.
The OC192 LR/STM64 LH ITU 15xx.xx port features a laser on a specific wavelength in the 1550-nm range and contains a transmit and receive connector (labeled) on the card faceplate. The card uses a dual SC connector for optical cable termination. The card supports 1+1 unidirectional and bidirectional facility protection. It also supports 1:1 protection in four-fiber bidirectional line switched ring applications where both span switching and ring switching might occur.
The OC192 LR/STM64 LH ITU 15xx.xx card detects SF, LOS, or LOF conditions on the optical facility. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors from B1 and B2 byte registers in the section and line overhead.
4.17.1 OC192 LR/STM64 LH ITU 15xx.xx Card-Level Indicators
The OC192 LR/STM64 LH ITU 15xx.xx card has three card-level LED indicators, listed in Table 4-19.
4.17.2 OC192 LR/STM64 LH ITU 15xx.xx Port-Level Indicators
You can find the status of the OC192 LR/STM64 LH ITU 15xx.xx card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. Refer to the Cisco ONS 15454 Troubleshooting Guide for a complete description of the alarm messages.
4.17.3 OC192 LR/STM64 LH ITU 15xx.xx Card Specifications
The OC192 LR/STM64 LH ITU 15xx.xx card has the following specifications:
•
–
–
–
–
in deployments with DCU: +/- 1000 ps/nm, with ONSR of 19 dB (0.5 nm RBW)
in deployments without DCU: +/- 1200 ps/nm, with ONSR of 23 dB (0.5 nm RBW)–
Note
–
–
•
–
–
–
–
–
•
–
–
–
–
at BER = 1 * 10 exp - 12 including dispersion–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
•
ITU grid blue band:
–
–
–
–
–
–
–
–
ITU grid red band:
–
–
–
–
–
–
–
–
4.18 TXP_MR_10G Card
Warning
The TXP_MR_10G card (Transponder multirate 10G) processes one 10-Gbps signal (client side) into one 10-Gbps, 100-GHz DWDM signal (trunk side). It provides one extended long-range STM-64/OC-192 port per card, compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE.
The TXP_MR_10G card is tunable over two neighboring wavelengths in the 1550-nm, ITU 100-GHz range. It is available in four different versions, covering eight different wavelengths in the 1550-nm range.
Note
The port operates at 9.95328 Gbps (or 10.70923 Gbps with ITU-T G.709 Digital Wrapper/FEC) over unamplified distances up to 50 miles (80 km) with different types of fiber such as C-SMF or dispersion compensated fiber limited by loss and/or dispersion. Figure 4-22 shows the TXP_MR_10G faceplate and Figure 4-23 shows a block diagram of the card.
Caution
For cards such as the TXP_MR_10G or the MXP_2.5G_10G card, protection is done using the Y-cable protection. Two TXP_MR_10G cards can be joined in a Y-cable protection group. In Y-cable protection, the client ports of the two cards are joined by Y-cables. A single client signal is injected into the receive (RX) Y-cable and is split between the two TXP_MR_10G cards. The two transmit (TX) client signals from the TXP_MR_10G cards are summed in the TX Y-cable into a single client signal.
Note
Figure 4-22 TXP_MR_10G Faceplate
Figure 4-23 TXP_MR_10G Block Diagram
Note
You can install TXP_MR_10G cards in Slots 1 to 6 and 12 to 17. You can provision this card in a linear configuration. TXP_MR_10G cards cannot be provisioned as BLSR, path protection configuration, or as a regenerator. They can be used in the middle of BLSR or path protection configuration spans.
The TXP_MR_10G port features a 1550-nm laser for the trunk port and a 1310-nm laser for the client port and contains two transmit and receive connector pairs (labeled) on the card faceplate. The card uses dual LC connectors for optical cable termination.
The TXP_MR_10G card detects SF, LOS, or LOF conditions on the optical facility. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors from B1 and B2 byte registers in the section and line overhead.
4.18.1 TXP_MR_10G Card-Level Indicators
The TXP_MR_10G card has three card-level LED indicators, listed in Table 4-20.
4.18.2 TXP_MR_10G Port-Level Indicators
The TXP_MR_10G card has four port-level LED indicators, listed in Table 4-21.
4.18.3 TXP_MR_10G Card Specifications
The TXP_MR_10G card has the following specifications:
•
–
10.70923 Gbps with ITU-T G.709 Digital Wrapper/FEC–
–
–
–
Caution
–
–
•
–
–
(The optical output power on the trunk side is configurable from -16 to +3 dBm with an accuracy of +/-0.5 dB.)–
•
ITU grid blue band:
–
–
ITU grid red band:
–
–
•
–
–
–
–
–
–
BER = 1 * 10 exp - 12 including dispersion–
•
–
–
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
–
–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
4.19 MXP_2.5G_10G Card
Warning
The MXP_2.5G_10G card (Muxponder 2.5G/10G) multiplexes/demultiplexes four 2.5-Gbps signals (client side) into one 10-Gbps, 100-GHz DWDM signal (trunk side). It provides one extended long-range STM-64/OC-192 port per card on the trunk side (compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE) and four intermediate or short-range OC-48/STM-16 ports per card on the client side. The port operates at 9.95328 Gbps over unamplified distances up to 50 miles (80 km) with different types of fiber such as C-SMF or dispersion compensated fiber limited by loss and/or dispersion.
The MXP_2.5G_10G card is tunable over two neighboring wavelengths in the 1550-nm, ITU 100-GHz range. It is available in four different versions, covering eight different wavelengths in the 1550-nm range.
Note
The port can also operate at 10.70923 Gbps in ITU-T G.709 Digital Wrapper/FEC mode. Figure 4-24 shows the MXP_2.5G_10G faceplate and Figure 4-25 shows a block diagram of the card.
Caution
For cards such as the TXP_MR_10G or the MXP_2.5G_10G card, protection is done using the Y-cable protection. Two TXP_MR_10G cards can be joined in a Y-cable protection group. In Y-cable protection, the client ports of the two cards are joined by Y-cables. A single client signal is injected into the RX Y-cable and is split between the two TXP_MR_10G cards. The two TX client signals from the TXP_MR_10G cards are summed in the TX Y-cable into a single client signal.
Note
Figure 4-24 MXP_2.5G_10G Faceplate
Figure 4-25 MXP_2.5G_10G Block Diagram
Note
You can install MXP_2.5G_10G cards in Slots 1 to 6 and 12 to 17. You can provision this card in a linear configuration. MXP_2.5G_10G cards cannot be provisioned as BLSR, path protection configuration, or as a regenerator. They can be used in the middle of BLSR or path protection configuration spans.
The MXP_2.5G_10G port features a 1550-nm laser on the trunk port and four 1310-nm lasers on the client ports and contains five transmit and receive connector pairs (labeled) on the card faceplate. The card uses a dual LC connector on the trunk side and small form factor pluggable (SFP) connectors on the client side for optical cable termination.
The MXP_2.5G_10G card detects SF, LOS, or LOF conditions on the optical facility. Refer to the Cisco ONS 15454 Troubleshooting Guide for a description of these conditions. The card also counts section and line BIP errors from B1 and B2 byte registers in the section and line overhead.
4.19.1 MXP_2.5G_10G Card-Level Indicators
The MXP_2.5G_10G card has three card-level LED indicators, listed in Table 4-22.
4.19.2 MXP_2.5G_10G Port-Level Indicators
The MXP_2.5G_10G card has seven port-level LED indicators, listed in Table 4-22.
4.19.3 MXP_2.5G_10G Card Specifications
The MXP_2.5G_10G card has the following specifications:
•
–
10.70923 Gbps with ITU-T G.709 Digital Wrapper/FEC–
–
–
–
Caution
–
–
•
–
–
(The optical output power on the trunk side is configurable from -16 to +3 dBm with an accuracy of +/-0.5 dB.)–
•
ITU grid blue band:
–
–
ITU grid red band:
–
–
•
–
–
–
–
–
–
BER = 1 * 10 exp - 12 including dispersion–
•
–
–
–
–
–
–
–
•
–
•
–
•
–
–
–
•
–
–
–
–
–
•
ONS 15454 optical cards, when installed in a system, comply with these standards:
–
–
