XMPP Federation through Expressway
External XMPP federation enables users registered to Cisco Unified Communications Manager IM and Presence Service, to communicate via the Expressway-E with users from a different XMPP deployment.
Note |
This section describes XMPP federation as managed through Expressway, but it can also be managed through the IM and Presence Service, as described later in this guide. |

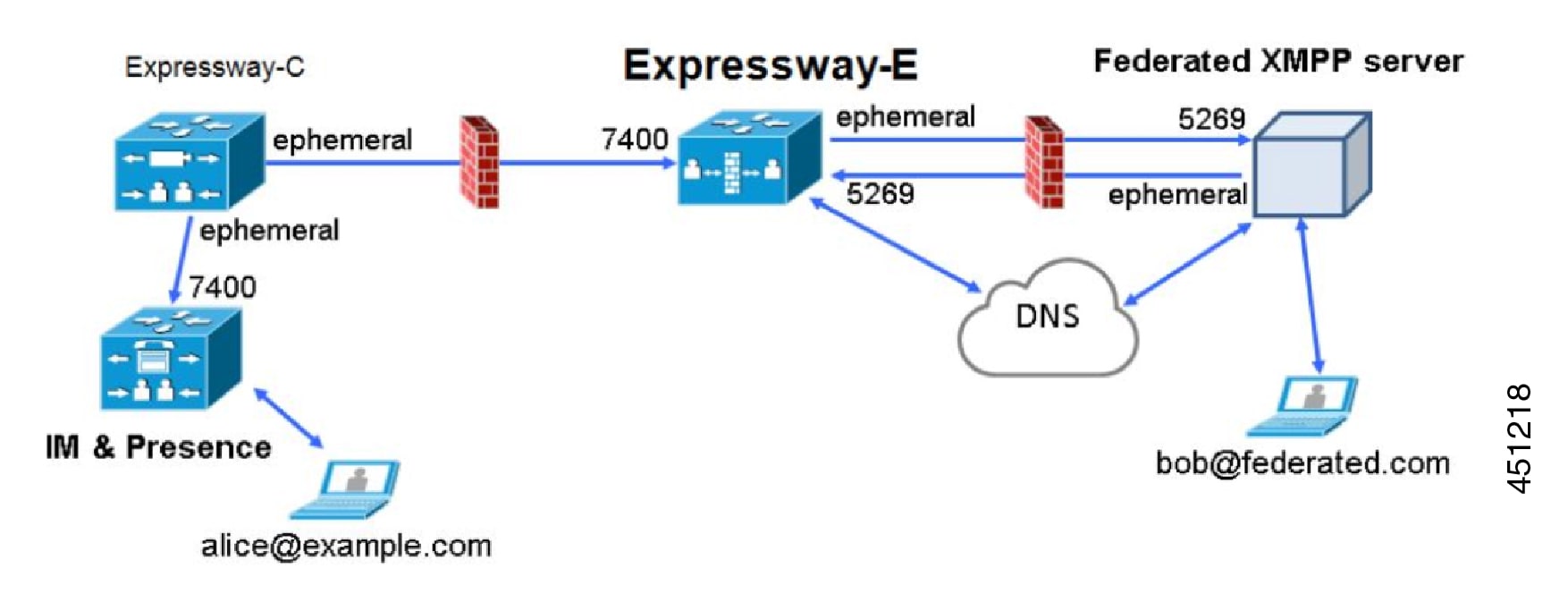

The diagram shows XMPP message routing from the on-premises IM & Presence server, through the Expressway-C and Expressway-E Collaboration Edge solution, to the federated XMPP server. It also shows the ports and connections as the messages traverse DMZ firewalls. The "example.com" organization is using an Expressway federation model (left of picture), while the "federated.com" organization (right of picture) is using an IM and Presence Service in DMZ federation model.
Supported Systems XMPP through Expressway
Expressway-E supports XMPP federation with the following products:
-
Expressway X8.2 or later
-
Cisco Unified Communications Manager IM and Presence Service 9.1.1 or later
-
Cisco Webex Connect Release 6.x
-
Cisco Jabber 9.7 or later
-
Other XMPP standards-compliant servers
Limitations
-
When using Expressway for XMPP federation, the Expressway-E handles the connection to the remote federation server and can only use Jabber IDs to manage XMPP messages. Expressway-E does not support XMPP address translation (of email addresses, for example).
If you, as an external user, try to chat with a user in an enterprise through federation, you must use the enterprise user’s Jabber ID to contact them through XMPP. If their Jabber ID does not match their email address (especially if their Jabber ID uses an internal user ID or domain) you are unable to have federation, as you won't know the enterprise user’s email address. We therefore recommend that enterprises configure their Unified CM nodes to use the same address for a user’s Jabber ID and email when using Expressway for XMPP federation. This limitation does not apply to users contacting each other within the enterprise (not using federation) even when federation is handled by Expressway-E. You can configure IM and Presence Service to use either the Jabber ID or the Directory URI (typically email) for non-federated use cases.
To make a user's Jabber ID resemble a user's email address, so that the federated partner can approximate email addresses for federation, set the following:
-
Unified CM Lightweight Directory Access Protocol (LDAP) attribute for User ID to be the user's sAMAccountName
-
IM and Presence Service presence domain to be the same as the email domain.
-
Your email address to the same as samaccountname@presencedomain.
-
-
Simultaneous internal federation managed by IM and Presence Service and external federation managed by Expressway is not supported. If only internal federation is required then you must use interdomain federation on IM and Presence Service. The available federation deployment configuration options are:
-
External federation only (managed by Expressway).
-
Internal federation only (managed by IM and Presence Service).
-
Internal and external federation managed by IM and Presence Service but requires you to configure your firewall to allow inbound connections.
-
Prerequisites
-
Interdomain XMPP Federation must be disabled on the IM and Presence Service before you enable XMPP federation on Expressway:
Go to Cisco Unified CM IM and Presence Administration > Presence > Inter Domain Federation > XMPP Federation > Settings and ensure that XMPP Federation Node Status is set to Off.
-
XMPP federation is only supported on a single Expressway cluster.
-
An Expressway-C (cluster) and Expressway-E (cluster) must be configured for Mobile and Remote Access (MRA) to Unified Communications services, as described in the Mobile and Remote Access via Cisco Expressway Deployment Guide. If only XMPP federation is required (video calls and remote registration to Unified CM are not required), these items do not have to be configured:
-
Domains that support SIP registrations and provisioning on Unified CM or that support IM and Presence services on Unified CM
-
Unified CM servers (you must still configure the IM&P servers)
-
HTTP server allow list
Note
The Federated communications are available to both on-premises clients (connected directly to IM and Presence Service) and off-premises clients (connected to IM and Presence Service through MRA).
-
-
SIP and XMPP federations are separate and do not impact on each other. For example, it's possible to deploy SIP federation on IM and Presence Service and external XMPP federation on Expressway.
-
If you deploy external XMPP federation through Expressway, do not activate the Cisco XCP XMPP federation Connection Manager feature service on the IM and Presence Service.
-
If you intend to use both Transport Layer Security (TLS) and group chat, the Expressway-C and Expressway-E server certificates must include in their list of subject alternate names the Chat Node Aliases that are configured on the IM and Presence Service servers. Use either the XMPPAddress or DNS formats.
Note
The Expressway-C automatically includes the chat node aliases in its certificate signing requests (CSRs), providing it has discovered a set of IM and Presence Service servers.
When generating CSRs for the Expressway-E we recommend that you copy-paste the chat node aliases from the equivalent Generate CSR page on the Expressway-C. For details, see Server Certificate Requirements for Unified Communications.
Task Flow for XMPP Federation through Expressway
This table outlines the tasks required to deploy XMPP federation on Expressway:
Task |
See |
---|---|
Validate email addresses for federation |
|
Ensure IM and Presence Service is operational and has XMPP federation turned off |
|
Complete Server Certificate Requirements |
|
Configure the local domains for XMPP federation on Expressway-C |
|
Configure Expressway-E for XMPP federation |
|
Configure how XMPP servers for federated domains and chat node aliases are located using either DNS lookups or static routes |
|
Configure the allow and deny lists for federated domains and chat node aliases |
|
Publish DNS SRV records for XMPP federation (if not using static routes) |
|
Check that the correct firewall ports are open |
See the Cisco Expressway IP Port Usage Configuration Guide, for your version, on the Cisco Expressway Series Configuration Guides page. |
Check the status of XMPP federation |
|
To troubleshoot your connection |
Server Certificate Requirements for Unified Communications
Cisco Unified Communications Manager Certificates
Two Cisco Unified Communications Manager certificates are significant for Mobile and Remote Access:
-
CallManager certificate
-
tomcat certificate
These certificates are automatically installed on the Cisco Unified Communications Manager and by default they are self-signed and have the same common name (CN).
We recommend using CA-signed certificates. However, if you do use self-signed certificates, the two certificates must have different common names. The Expressway does not allow two self-signed certificates with the same CN. So, if the CallManager and tomcat self-signed certificates have the same CN in the Expressway's trusted CA list, the Expressway can only trust one of them. This means that either secure HTTP or secure SIP, between Expressway-C and Cisco Unified Communications Manager, will fail.
Also, when generating tomcat certificate signing requests for any products in the Cisco Collaboration Systems Release 10.5.2, you need to be aware of CSCus47235. You need to work around this issue to ensure that the FQDNs of the nodes are in the certificates as Subject Alternative Name (SAN) entries. The Expressway X8.5.3 Release Note on the Release Notes page has details of the workarounds.
IM and Presence Service Certificates
Two IM and Presence Service certificates are significant if you use XMPP:
-
cup-xmpp certificate
-
tomcat certificate
We recommend using CA-signed certificates. However, if you do use self-signed certificates, the two certificates must have different common names. The Expressway does not allow two self-signed certificates with the same CN. If the cup-xmpp and tomcat (self-signed) certificates have the same CN, Expressway only trusts one of them, and some TLS attempts between Cisco Expressway-E and IM and Presence Service servers will fail. For more details, see CSCve56019.
Expressway Certificates
The Expressway certificate signing request (CSR) tool prompts for and incorporates the relevant Subject Alternative Name (SAN) entries as appropriate for the Unified Communications features that are supported on that Expressway.
The following table shows which CSR alternative name elements apply to which Unified Communications features:
Add these items as subject alternative names |
When generating a CSR for these purposes |
|||
Mobile and Remote Access |
Jabber Guest |
XMPP Federation |
Business to Business Calls |
|
Unified CM registrations domains (despite their name, these have more in common with service discovery domains than with Unified CM SIP registration domains) |
Required on Expressway- E only |
- |
- |
- |
XMPP federation domains |
- |
- |
Required on Expressway- E only |
- |
IM and Presence chat node aliases (federated group chat) |
- |
- |
Required |
- |
Unified CM phone security profile names |
Required on Expressway- E only |
- |
- |
- |
(Clustered systems only) Expressway cluster name |
Required on Expressway- E only |
Required on Expressway- E only |
Required on Expressway- E only |
- |
Note |
|
More details about the individual feature requirements per Expressway-C / Expressway-E are described below.

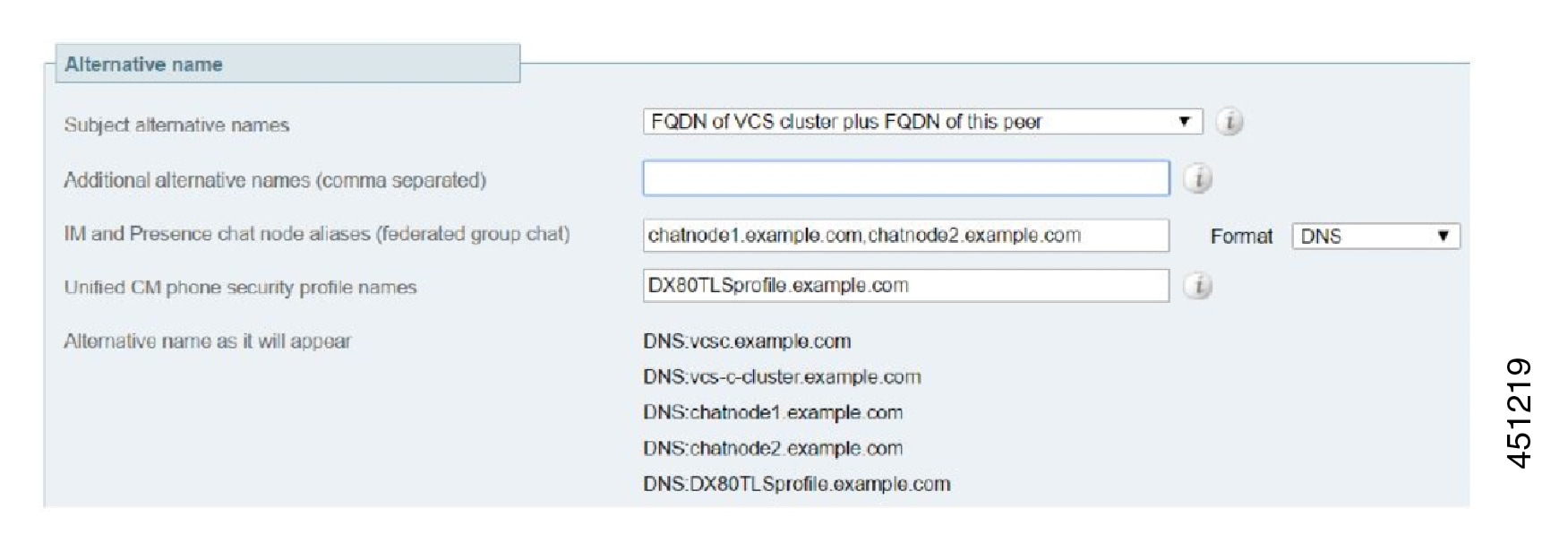

Expressway-C Server Certificate Requirements
The Expressway-C server certificate needs to include the following elements in its list of subject alternate names:
-
Unified CM phone security profile names: The names of the Phone Security Profiles in Unified CM that are configured for encrypted TLS and are used for devices requiring remote access. Use the FQDN format and separate multiple entries with commas.
Having the secure phone profiles as alternative names means that Unified CM can communicate via TLS with the Expressway-C when it is forwarding messages from devices that use those profiles.
-
IM and Presence chat node aliases (federated group chat): The Chat Node Aliases (e.g. chatroom1.example.com) that are configured on the IM and Presence servers. These are required only for Unified Communications XMPP federation deployments that intend to support group chat over TLS with federated contacts.
The Expressway-C automatically includes the chat node aliases in the CSR, providing it has discovered a set of IM&P servers.
We recommend that you use DNS format for the chat node aliases when generating the CSR. You must include the same chat node aliases in the Expressway-E server certificate's alternative names.

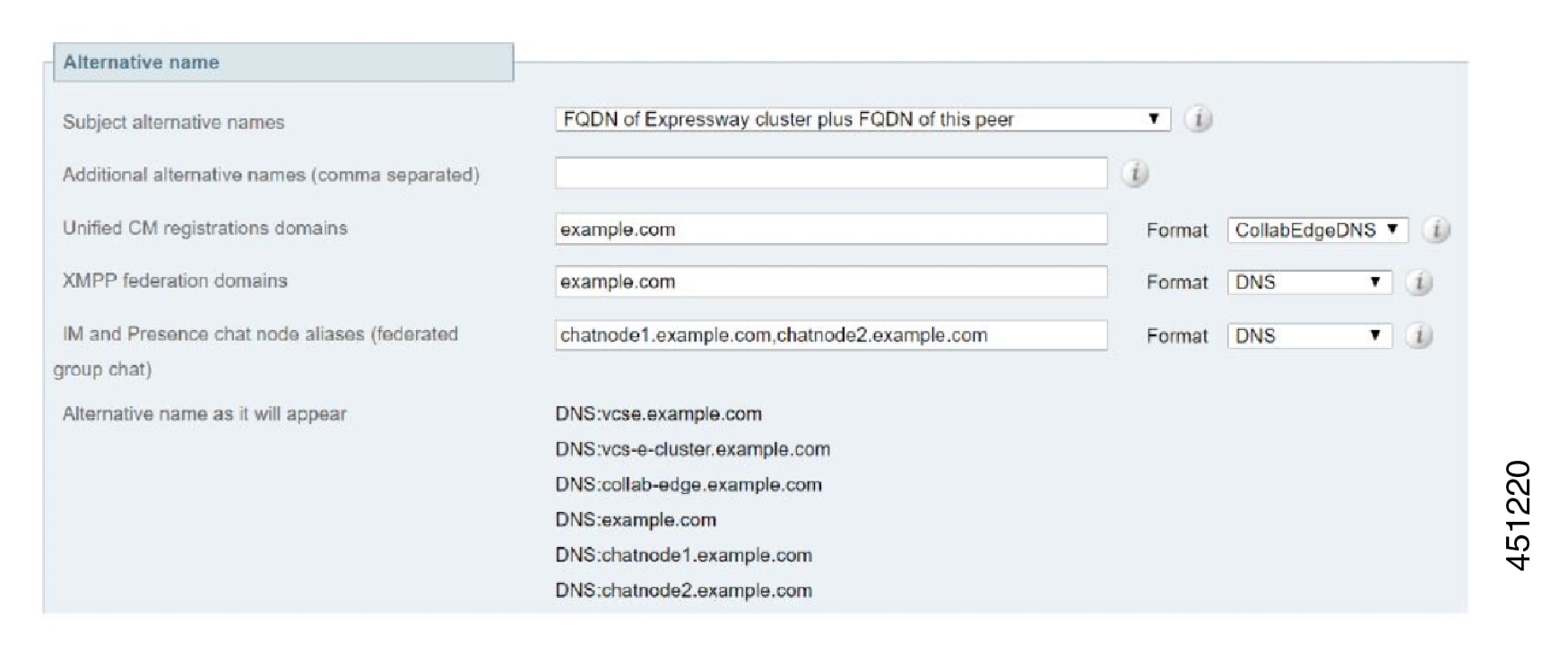

Expressway-E Server Certificate Requirements
The Expressway-E server certificate needs to include the following elements in its list of subject alternative names (SAN):
-
Unified CM registrations domains: All the domains which are configured on the Expressway-C for Unified CM registrations. Required for secure communications between endpoint devices and Expressway-E.
The Unified CM registration domains used in the Expressway configuration and Expressway-E certificate, are used by Mobile and Remote Access clients to lookup the
_collab-edge
DNS SRV record during service discovery. They enable MRA registrations on Unified CM and are primarily for service discovery.These service discovery domains may or may not match the SIP registration domains. It depends on the deployment, and they don't have to match. One example is a deployment that uses a .local or similar private domain with Unified CM on the internal network, and public domain names for the Expressway-E FQDN and service discovery. In this case, you need to include the public domain names in the Expressway-E certificate as SANs. There is no need to include the private domain names used on Unified CM. You only need to list the edge domain as a SAN.
Select the DNS format and manually specify the required FQDNs. Separate the FQDNs by commas if you need multiple domains. You may select CollabEdgeDNS format instead, which simply adds the prefix
collab-edge
. to the domain that you enter. This format is recommended if you do not want to include your top-level domain as a SAN (see example in following screenshot). -
XMPP federation domains: The domains used for point-to-point XMPP federation. These are configured on the IM&P servers and should also be configured on the Expressway-C as domains for XMPP federation.
Select the DNS format and manually specify the required FQDNs. Separate the FQDNs by commas if you need multiple domains. Do not use the XMPPAddress format as it may not be supported by your CA and may be discontinued in future versions of the Expressway software.
-
IM and Presence chat node aliases (federated group chat): The same set of Chat Node Aliases as entered on the Expressway-C's certificate. They are only required for voice and presence deployments which will support group chat over TLS with federated contacts.
Note
You can copy the list of chat node aliases from the equivalent Generate CSR page on the Expressway-C.
See Cisco Expressway Certificate Creation and Use Deployment Guide on the Expressway Configuration Guides page.
Configuring Expressway for External XMPP Federation
This section describes how to configure the Expressway for external XMPP federation.
Before You Begin
-
Make sure that the items specified in "Prerequisites" are complete.
-
Some supporting systems configuration needs to be in place:
-
DNS. An internal DNS configured with forward and reverse lookups for Expressway-E, Expressway-C.
-
External DNS. An external DNS configured with forward lookup for the Expressway-E cluster FQDN.
-
Traversal Zones. A traversal server zone (Expressway-E) and a traversal client zone (Expressway-C).
-
NTP. All servers must be internally synchronized to the same time source.
-
Configuring Local Domains for XMPP Federation on Expressway-C
You must configure the local domain names for which you want to provide XMPP federated services.
Procedure
Step 1 |
On Expressway-C, go to Configuration > Domains. |
||
Step 2 |
Click New (or click View/Edit if the required domain already exists). |
||
Step 3 |
Enter your local Domain name to be federated. |
||
Step 4 |
Set XMPP federation to On. |
||
Step 5 |
Click Save. |
||
Step 6 |
Repeat for any other local domains requiring federation.
|

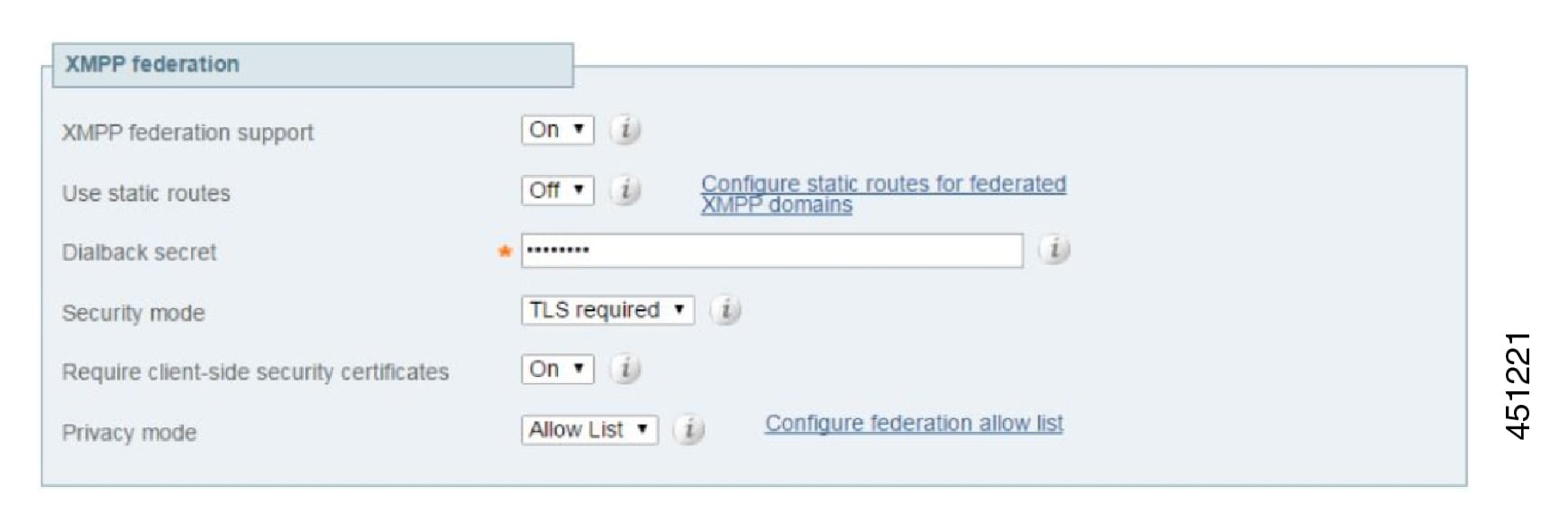

Configuring Expressway-E for XMPP Federation
We recommend that XMPP federation configuration changes are made "out of hours". Enabling XMPP federation will restart the XCP router on all Expressway-E systems within the cluster. This will temporarily interrupt any existing mobile and remote access IM&P client sessions. Depending on the number of clients, full client reconnection may take several minutes. (See Impact of Configuration Changes on a Live System for more information.)
Procedure
Step 1 |
On Expressway-E, go to Configuration > Unified Communications. |
||||||||||||||||||
Step 2 |
Set XMPP federation support to On. When you apply this change, you may need to restart the XCP Routers on the IM&P server(s). The other settings on this page do not require a restart. |
||||||||||||||||||
Step 3 |
Configure the remaining fields as described in the table below. |
||||||||||||||||||
Step 4 |
Click Save. Your changes are applied. If you toggled XMPP federation support, you will be required to confirm that you want to restart the XCP router on the Expressway-C. You may also need to restart the Unified CM IM&P XCP router services that are connected to the associated Expressway-C. |
||||||||||||||||||
Step 5 |
Log on to each IM and Presence server to check for notifications that you need to restart the XCP Routers. If you do need to restart them: You could use the utils service CLI option (accessed via the Cisco Unified IM and Presence Operating System) to restart the services instead.
|
Configuring How XMPP Servers for Federated Domains and Chat Node Aliases Are Located
You can use DNS lookups to locate the XMPP servers for federated domains and chat node aliases, or you can configure the addresses of specific XMPP servers.
To Use DNS Lookups
Procedure
Step 1 |
On Expressway-E, go to Configuration > Unified Communications. |
||
Step 2 |
Set Use static routes to Off. |
||
Step 3 |
Click Save.
|
To Use Static Routes
Procedure
Step 1 |
Contact the partners with whom you are federating to get a list of their chat node aliases. |
||||||
Step 2 |
On Expressway-E, go to Configuration > Unified Communications. |
||||||
Step 3 |
Set Use static routes to On and click Save. |
||||||
Step 4 |
Click Configure static routes for federated XMPP domains. |
||||||
Step 5 |
On the Federated static routes page, click New. |
||||||
Step 6 |
Enter the details of the static route:
|
||||||
Step 7 |
Click Save. |
||||||
Step 8 |
Add as many additional static routes as required. You can specify additional routes to alternative addresses for the same domain or chat node alias (all routes have an equal priority).
|
Configuring the Allow and Deny Lists for Federated Domains and Chat Node Aliases
The allow and deny lists are used to control restrictions to the set of federated domains and chat node aliases. If Privacy mode is set to Allow list or Deny list, you must add the domains and chat node aliases with which you want to allow or deny federated connections. This function manages restrictions at the domain / chat node alias level.
Individual user-based privacy is controlled by each client / end-user.
Allow list and deny list modes are mutually exclusive. A domain/alias cannot be allowed and denied at the same time.
When federation is first enabled, Privacy mode is set to Allow list by default. In effect this puts the system in "lockdown" mode — you will not be allowed to connect with any federated domains or chat node aliases until you add them to the allow list, configure static routes, or change the Privacy mode setting.
Procedure
Step 1 |
On Expressway-E, go to Configuration > Unified Communications. |
||
Step 2 |
Set Privacy mode as appropriate:
|
||
Step 3 |
Click Save. |
||
Step 4 |
To manage the domains and chat node aliases in the allow or deny lists, click either Federation allow list or Federation deny list as appropriate. In the resulting page you can add, modify, or delete the items in the allow/deny list. Wildcards or regexes are not allowed in the names; it must be an exact match.
|
Delayed Cisco XCP Router Restart
The delayed Cisco XCP Router restart feature is part of Cisco Hosted Collaboration Solution (HCS) and is only available when the Expressway-E is in multitenant mode. The Expressway-E enters multitenant mode when you add a second Unified CM traversal zone with a new SIP domain.
Note |
In multitenant mode, you must configure the system hostname on the System > DNS page of the Cisco Expressway-E to match the hostname configured in DNS (case-specific before X8.10.1, case insensitive from X8.10.1). Otherwise Cisco Jabber clients will be unable to register successfully for MRA. |
Multitenancy allows a service provider to share an Expressway-E cluster among multiple tenants. Each tenant has a dedicated Expressway-C cluster that connects to the shared Expressway-E cluster.
Certain configuration changes on the Expressway-E cluster, or a customer’s Expressway-C cluster, require a restart of the Cisco XCP Router on each Expressway-E in the shared cluster. The restart is required for Cisco XCP Router configuration changes to take effect across all nodes in a multitenant Expressway-E cluster. The restart affects all users across all customers.
To reduce the frequency of this restart, and the impact on users, you can use the delayed Cisco XCP Router restart feature.
Note |
Without the delayed restart feature enabled, the restart happens automatically and occurs each time you save any configuration change that affects the Cisco XCP Router. If multiple configuration changes are required, resulting in several restarts of the Cisco XCP Router, it can adversely affect users. We strongly recommend that multitenant customers enable the delayed Cisco XCP Router restart feature. |
The delayed restart feature lets you control when the restart takes place. You can make a batch of configuration changes - followed by a single Cisco XCP Router restart – and apply all the changes at once. A delayed restart generates the latest configuration and performs a Cisco XCP Router restart on each node in the multitenant Cisco Expressway-E cluster.
When a restart of the Cisco XCP Router occurs, all XMPP clients (such as Cisco Jabber) across all customers go offline for a few minutes and then reconnect. Because of this impact, we recommend that you take advantage of the delayed restart capability.
Once enabled, you can carry out the restart manually or set it to be schedule-based. In either mode, you can initiate the restart at any time and the system determines which Cisco XCP Router instances require a restart, performing the restart only as needed. When you set the restart to be scheduled, the restart happens at the scheduled time, but again only as needed. We recommend doing the Cisco XCP Router restart during off-peak hours whenever possible.
Note |
|
Important |
More information about multitenancy, see Multitenancy with Cisco Expressway on the Cisco Hosted Collaboration Solution page. |
How to Configure Delayed Restarts
Use the following methods to configure delayed restarts.
To Configure the Delayed Cisco XCP Router Restart
Procedure
Step 1 |
Go to Configuration > Unified Communications > Delayed Cisco XCP Router restart. |
Step 2 |
Under Configuration, turn Delayed Cisco XCP Router restart On. |
Step 3 |
If you do not enable Scheduled Restart, you must initiate the restart manually using the Restart button. Configuration changes do not happen automatically. |
To Schedule the Restart
Procedure
Step 1 |
Under Configuration, turn Scheduled Restart On and set the time that all nodes in the multi-tenant Expressway-E cluster are updated each day. Only nodes that are not running on the latest configuration are impacted. |
Step 2 |
Set the time that the restart takes place each day using the Scheduled restart time (UTC) option. |
Configuration Changes That Require a Restart of the Cisco XCP Router
If you make any system configuration changes in the following areas a restart of the Cisco XCP Router takes place:
-
XMPP federation
-
Internal/external Ethernet
-
Hostname or IP address
-
DNS
-
NTP
-
Option keys
-
QoS
-
Clustering
-
Zones
-
MRA
-
Domains
-
Maintenance mode
-
Cisco XCP Router delayed restart
-
Cisco XCP Router / XMPP changes through networking
-
Server-to-server communication to IM and Presence Service
-
Changes to the logging flags for any of the above
Important |
More information about configuration changes, see Impact of Configuration Changes on a Live System in the Cisco Unified Communications XMPP Federation guide. |
DNS SRV Records for XMPP Federation
If federating parties are not using static routes to access federated XMPP services, suitable DNS SRV records must be published.
_xmpp-server records
You must publish an _xmpp-server DNS SRV record in DNS for your local domain so that remote enterprises can access your federated XMPP services.
For example:
Domain |
Service |
Protocol |
Priority |
Weight |
Port |
Target host |
---|---|---|---|---|---|---|
ciscoexample.com |
xmpp-server |
tcp |
0 |
0 |
5269 |
expe.ciscoexample.com |
Similarly, to allow federating parties to discover a particular XMPP federated domain (if they are not using static routes), the federated enterprise must publish an _xmpp-server DNS SRV record in its public DNS server.
For example:
Domain |
Service |
Protocol |
Priority |
Weight |
Port |
Target host |
---|---|---|---|---|---|---|
federated.com |
xmpp-server |
tcp |
0 |
0 |
5269 |
xmppserver.federated.com |
All enterprises must publish the service on port 5269. The published FQDNs must also be resolvable in DNS to an IP address.
Group Chat
If you configure the Group Chat feature on a Unified CM IM&P server in an XMPP federation deployment, you must publish DNS SRV records for the federated chat node aliases.
To allow IM and Presence Service to discover a particular XMPP federated chat node alias, the federated enterprise must publish an _xmpp-server DNS SRV record in its public DNS server. Similarly, IM and Presence Service must publish the same DNS SRV record in DNS for its domain.
For example:
Domain |
Service |
Protocol |
Priority |
Weight |
Port |
Target host |
---|---|---|---|---|---|---|
chatroom1.example.com |
xmpp-server |
tcp |
0 |
0 |
5269 |
expe.ciscoexample.com |
Both enterprises must publish the service on port 5269. The published FQDN must also be resolvable to an IP address in DNS.
Alternatively, to use group chat aliases on federated servers, you can configure static routes on the Expressway-E (Configuration > Unified Communications > Federated static routes) for each chat node alias.
Note |
|
See "Chat configuration on IM and Presence" for more information about point-to-point instant messaging and group chat.
Checking XMPP Federation Status
XMPP federation status information is available on the Expressway-E only.
You can go to Status > Unified Communications to check the primary status of the XMPP federation service.
Normally, XMPP Federation should be Active.
If there are problems with the service, such as connectivity issues with the Expressway-C, the status will show as Inactive. In this case, you should also review the Unified Communications status page on the associated Expressway- C for more guidance as to what is causing the problem.
Viewing Federated Connections
To view the current federated connections being managed by the Expressway-E:
Procedure
Step 1 |
On the Expressway-E, go to Status > Unified Communications. |
||
Step 2 |
Click View federated connections in the Advanced status information section. This shows all the current connections passing through that Expressway-E. It displays the IP Address of the client, and the Direction (Incoming or Outgoing) of the communication. Connections are closed after 10 minutes of inactivity.
|
Troubleshooting External XMPP Federation
This section describes how to troubleshoot an external XMPP federation deployment and describes the impact of making configuration changes on a live system.
Checking System Status
If you encounter issues with the XMPP federation status service, check the Status > Unified Communications page on both the Expressway-C and the Expressway-E. This will highlight any basic connection or configuration problem and provide information and links to help correct the problem.
General Configuration Checklist
Ensure that the following Expressway configuration items are specified correctly:
-
Port 5269 is open in both directions between the internet and Expressway-E in the DMZ.
-
DNS settings: host name, domain name and default DNS server (System > DNS).
-
An accessible NTP server (System > Time).
-
An active Unified Communications traversal zone on the Expressway-C and its associated Expressway-E (Status > Zones).
-
Unified Communications mode is set to Mobile and remote access on both the Expressway-C and the Expressway-E (Configuration > Unified Communications > Configuration).
-
XMPP federation support is On on the Expressway-E (Configuration > Unified Communications > Configuration).
-
If static routes are enabled, ensure that the appropriate routes for the federated XMPP domains have been added to the Expressway-E (Configuration > Unified Communications > Federated static routes).
-
At least one domain is configured on the Expressway-C with XMPP federation set to On (Configuration > Domains).
-
IM &Presence servers have been discovered on the Expressway-Cand have an active status (Configuration > Unified Communications > IM and Presence servers).
Discovery, Connectivity and Firewall Issues
Observe the following:
-
If using DNS lookup, check that _xmpp-server public DNS records exist for the domains and chat node aliases of all federated parties, and that they use port 5269.
-
Check that port 5269 is open in both directions between the internet and Expressway-E in the DMZ.
-
If the Expressway-C cannot connect to XCP on the Expressway-E remote host:
-
Check that the firewall has not blocked port 7400.
-
If the Expressway-E is running dual network interfaces, ensure that the traversal zone on the Expressway-C is connected to the internally-facing interface on the Expressway-E.
-
-
Be aware that inbound and outbound connections can be routed through different cluster peers.
-
If the address of an IM and Presence Service node has changed, or a new peer has been added to an IM and Presence Service cluster, go to Configuration > Unified Communications > IM and Presence Service nodes and click Refresh Servers. You must then save the updated configuration.
-
If an IM and Presence Service node fails over to a different node after an outage, the affected users are not dynamically moved to the other node. Expressway does not support this functionality, and it has not been tested.
Certificates and Secure TLS Connections
If you have configured secure TLS connections, ensure that:
-
Valid server certificates are installed, they are in date and not revoked.
-
Both the remote and local server certificates must contain a valid domain in the Subject Alternative Name (SAN). This applies even if Require client-side security certificates is disabled.
-
If Require client-side security certificates is enabled, ensure that the server certificate is signed by a CA and is not locally signed.
-
Certificate Authority (CA) certificates are installed.
-
If you are using group chat over TLS, ensure that the Expressway-C and Expressway-E server certificates include in their list of subject alternate names (using either XMPPAddress or DNS formats) all of the Chat Node Aliases that are configured on the IM and Presence servers.
-
Ensure that compatible security settings (TLS required, optional, no TLS) exist on your system and the remote federated system.
See Server Certificate Requirements for Unified Communications for more information.
Checking the Event Log
Check the Event Log on the Expressway-E for XMPP events.
Events related to XMPP federation are tagged with Module="XMPPFederation". There are no XMPP-related logs on the Expressway-C.
Performing Diagnostic Logging
When performing diagnostic logging (Maintenance > Diagnostics > Diagnostic logging), set the develop.xcp.federation support log (Maintenance > Diagnostics > Advanced > Support Log configuration) to debug level.
Disabling Interdomain XMPP Federation on Unified CM IM&P
Before you begin
You must choose whether to enable Interdomain XMPP Federation on IM and Presence Service or on Expressway.
To disable Interdomain Federation on IM and Presence Service, perform the following operations in exactly the order shown:
Procedure
Step 1 |
Disable Interdomain Federation on the IM&P servers:
|
Step 2 |
Refresh the set of discovered IM&P servers on Expressway-C. |
Step 3 |
Restart all of the Unified CM IM&P XCP Router services that are connected to that Expressway-C. |
Impact of Configuration Changes on a Live System
In general, we recommend that XMPP federation configuration changes are made "out of hours". This section describes the impact that configuration changes will have on current clients using XMPP federation and any Jabber clients using mobile and remote access.
Expressway-C Configuration Changes
Domains
Any domain configuration changes, when one or more existing domains are configured for IM and Presence services on Unified CM or XMPP Federation will result in an automatic restart of the XCP router on both Expressway-C and Expressway-E.
The end-user impact is temporary loss of federation and any Jabber clients using mobile and remote access will be temporarily disconnected. The clients will automatically reconnect after a short period.
Unified Communications mode
Setting the Unified Communications mode to Off or to Jabber Guest services’ will stop the XCP router on both Expressway-C and Expressway-E.
-
This will remove the Expressway-E XMPP federation node from all discovered IM&P servers. A notification will appear on the IM&P administration interface to restart the XCP router on all affected IM&P nodes.
-
The end-user impact is that all IM&P sessions will be disconnected. That is, there is a loss of federation, IM&P sessions over mobile and remote access will be disconnected, and sessions directly homed on the IM&P node will be dropped. When the XCP router is restarted on each IM&P node, all XCP functionality on that node will be disrupted.
Discovered IM & Presence Servers
Adding or deleting an IM & Presence publisher will require a restart of the XCP router on each IM & Presence node associated with that publisher only if XMPP Federation is enabled.
-
This will cause a restart of the XCP router on Expressway-C.
-
The end-user impact should be minimal. They will be unable to send or receive IM & Presence updates for a few seconds.
Expressway-E Configuration Changes
Unified Communications Mode
Setting the Unified Communications mode to Off or to Jabber Guest services’ will stop the XCP router on both Expressway-C and Expressway-E.
-
This will remove the Expressway-E XMPP federation node from all discovered IM&P servers. A notification will appear on the IM&P administration interface to restart the XCP router on all affected IM&P nodes.
-
The end-user impact is that all IM&P sessions will be disconnected. That is, there is a loss of federation, IM&P sessions over mobile and remote access will be disconnected, and sessions directly homed on the IM&P node will be dropped. When the XCP router is restarted on each IM&P node, all XCP functionality on that node will be disrupted.
Note |
Turning the Unified Communications Mode back to On will reinsert the XMPP federation node and have the same impact on the IM&P servers. |
XMPP Federation Support
Changing the XMPP federation support setting will restart the Expressway-E XCP router.
-
This will result in the addition/removal of the Expressway-E XMPP federation node from all discovered IM & Presence servers. A notification will appear on the IM&P administration interface to restart the XCP router on all affected IM&P nodes.
-
The end-user impact is that all IM&P sessions will be disconnected. That is, there is a loss of federation, IM&P sessions over mobile and remote access will be disconnected, and sessions directly homed on the IM&P node will be dropped. When the XCP router is restarted on each IM&P node, all XCP functionality on that node will be disrupted.
Other XMPP Federation Settings
Changing any of the other XMPP federation settings, such as static routes, security and privacy settings, or the allow/deny lists, will only result in a restart of the XMPP Federation Connection Manager service on the Expressway- E.
End-users may notice a temporary disruption to federation; any mobile and remote access IM&P sessions will remain connected.
Client Reconnection Times After Loss of Service
The time taken for a client to reconnect to the XMPP service depends on the re-login limits specified in the Cisco Server Recovery Manager service parameters on the IM&P server.
See the High Availability Client Login Profiles section in Configuration and Administration of IM and Presence Service on Cisco Unified Communications Manager for the IM&P version that you are running.
Temporary or Partial Loss of IM and Presence Service Federation
XMPP federation for IM and Presence Service via Expressway relies on a persistent TCP connection to the federated server. If a federated server becomes unavailable due to a graceful shutdown, Expressway will immediately seek to reestablish a connection with the federated server or with another server advertised by the federated partner.
If, however, the federated server fails abruptly, it can take up to 15 minutes for Expressway to discover the TCP connection outage and attempt reconnection. During this time, a partial or full loss of IM and Presence Service connectivity with the federated partner may occur.
