Overview
Cisco UCS C225 M6 Server server is a one-rack unit server that can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture. Cisco UCS also enables end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Cisco UCS C225 M6 Server is orderable in two versions:
-
Small form-factor (SFF) drives version (UCSC-C225-M6S), with 10-drive HDD back-plane front panel configuration:
-
Front-loading drive bays 1—10 support 2.5-inch SAS/SATA drives.
-
Optionally, front-loading drive bays 1 to 4 support 2.5-inch NVMe SSDs (with optional front NVMe cables).
-
-
NVMe drives version (UCSC-C225-M6N), with 10-drive NVMe back-plane front panel configuration:
-
Front-loading drive bays 1—10 supports 2.5-inch NVMe-only SSDs.
-

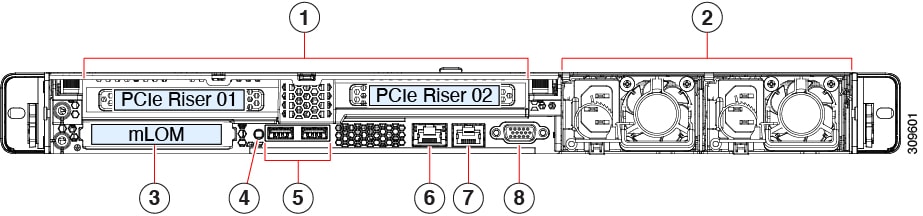

Following PCIe Riser combinations are available:
-
One half-height riser card in PCIe Riser 1
-
Three half-height riser cards in PCIe Riser 1, 2, 3
-
Two full-height riser cards Riser 1 and 3
-
Riser 1—Supports Riser1. Supports single x16 PCIe supporting full height 3/4 length cards in 2 riser configuration (or) Half-height 3/4-length cards in 3 riser configuration and NC-SI from Pilot4.
-
Riser 2—Supports Riser 1. Supports single x16 PCIe supporting only Half-height 3/4-length cards in 3-riser configuration.
-
Riser 3—Supports Riser 3A, 3B. PCIe slot 3 with the following options:
-
Riser3A Supports single x16 PCIe supporting half height 3/4 length cards in 3 riser configuration and NC-SI.
-
Riser3B Supports single x16 PCIe supporting full height 3/4-length cards in 2 riser configuration and NC-SI.
-
-
2 10GBase-T Ethernet LAN over Motherboard (LOM) ports for network connectivity, plus one 1 Gigabit Ethernet dedicated management port
-
One mLOM/VIC card provides 10G/25G/40G/50G/100G connectivity. Supported cards are:
-
Cisco UCS VIC 15427 Quad Port CNA MLOM (UCSC-M-V5Q50GV2) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
four 10G/25G/50G SFP+/SFP28/SFP56 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco UCS VIC 15425 Quad Port 10G/25G/50G SFP56 CNA PCIe (UCSC-P-V5Q50G)
-
a x16 PCIe Gen4 Host Interface to the rack server
-
Four 10G/25G/50G SFP+/SFP28/SFP56 ports
-
4GB DDR4 Memory, 3200MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco UCS VIC 15237 Dual Port 40G/100G/200G QSFP56 mLOM (UCSC-M-V5D200GV2) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
two 40G/100G/200G QSFP/QSFP28/QSFP56 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco UCS VIC 15235 Dual Port 40G/100G/200G QSFP56 CNA PCIe (UCSC-P-V5D200G)
-
a x16 PCIe Gen4 Host Interface to the rack server
-
two 40G/100G/200G QSFP/QSFP28/QSFP56 ports
-
4GB DDR4 Memory, 3200MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco UCS VIC 15238 Dual Port 40/100G QSFP28 mLOM (UCSC-M-V5D200G) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
two 40G/100G QSFP28 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
-
Cisco UCS VIC 15428 Quad Port CNA MLOM (UCSC-M-V5Q50G) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
four 10G/25G/50G SFP56 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
-
Cisco UCS VIC 1467 Quad Port 10/25G SFP28 mLOM (UCSC-M-V25-04) supports:
-
a x16 PCIe Gen3 Host Interface to the rack server
-
four 10G/25G QSFP28 ports
-
2GB DDR3 Memory, 1866 MHz
-
-
Cisco UCS VIC 1477 Dual Port 40/100G QSFP28 (UCSC-M-V100-04)
-
a x16 PCIe Gen3 Host Interface to the rack server
-
two 40G/100G QSFP28 ports
-
2GB DDR3 Memory, 1866 MHz
-
-
