Catalyst 4500 Series Supervisor Engines and Switching Modules Installation Note


This publication describes how to install and verify the operation of the Catalyst 4500 series and Catalyst 4500 E- series supervisor engines and switching modules. For configuration information for the supervisor engines and switching modules, refer to the Software Configuration Guide for your switch.


Note Catalyst 4500 E-series switching modules require the Catalyst 4500 Series Supervisor Engine VI, which requires Cisco IOS Release 12.2(40)SG or later.


Contents

This publication contains these sections:

Safety Overview

Installing Supervisor Engines and Switching Modules

Standards Compliance Specifications

Standards Compliance Specifications

Related Documentation

Obtaining Documentation and Submitting a Service Request

Safety Overview

Throughout this publication, safety warnings appear in procedures that may harm you if performed incorrectly. A warning symbol precedes each warning statement.


Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER






Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Installing Supervisor Engines and Switching Modules

All Catalyst 4500 series switches support hot swapping, which lets you install, remove, replace, and rearrange switching modules without turning off the system power. When the system detects that a switching module has been installed or removed, it runs diagnostic and discovery tests automatically, acknowledges the presence or absence of the module, and resumes system operation with no operator intervention.

This section describes the following topics:

Required Tools

Removing Switching Modules

Installing Switching Modules

Required Tools

You will need these tools to install supervisor engines and switching modules in the Catalyst 4500 series switches:

Number 1 and number 2 Phillips screwdrivers for the captive installation screws on most modules

3/16-inch flat-blade screwdriver for the captive installation screws on other modules

Antistatic mat or antistatic foam

Wrist strap or other grounding device


Note Whenever you handle switching modules, use a wrist strap or other grounding device to prevent ESD damage.


Removing Switching Modules


Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051

Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034

Warning Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through the use of a special tool, lock and key or other means of security. Statement 1072

Caution To prevent ESD damage, handle switching modules by the carrier edges only.

To remove a switching module from a Catalyst 4500 series switch, follow this procedure:


Step 1 Disconnect any network interface cables attached to the ports on the switching module that you intend to remove.

Step 2 Loosen the captive installation screws. (See Figure 1.)

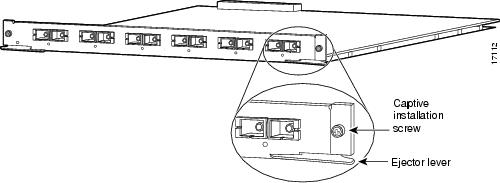

Figure 1 Captive Installation Screws and Ejector Levers

Step 3 Grasp the left and right ejector levers, and simultaneously pivot the levers outward to release the switching module from the backplane connector. Figure 1 shows a close-up view of the right ejector lever.

Step 4 Grasp the front panel of the switching-module with one hand, and place your other hand under the carrier to support and guide it out of the slot. Do not touch the printed circuit boards or connector pins.

Step 5 Carefully pull the switching module straight out of the slot, keeping your other hand under the carrier to guide it.

Step 6 Place the switching module on an antistatic mat or antistatic foam, or immediately install it in another slot.

Step 7 If the slot is to remain empty, install a switching-module filler plate (part number 800-00292-01) or a blank card if installing a Catalyst 4500 E-series chassis.



Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029

Installing Switching Modules

All Catalyst 4500 series supervisor engine modules and switching modules are installed in horizontal chassis slots that are numbered from top to bottom.


Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051

Warning Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through the use of a special tool, lock and key or other means of security. Statement 1072


Caution To prevent ESD damage, handle switching modules by the carrier edges only.

To install a switching module in a Catalyst 4500 series switch, follow this procedure:


Step 1 Take the necessary precautions to prevent ESD damage as described in the Regulatory Compliance and Safety document that accompanied your switch.

Step 2 Choose a slot for the new switching module. Ensure that you have enough clearance to accommodate any interface equipment that you will connect directly to the switching module ports. If possible, place switching modules between empty slots that contain only switching-module filler plates.

Step 3 Loosen the captive installation screws that secure the switching-module filler plate (or the existing switching module) to the desired slot.

Step 4 Remove the switching-module filler plate (or the existing switching module). Save the switching-module filler plate for future use. If you are removing an existing switching module, see the "Removing Switching Modules" section.

Step 5 To install the new switching module, grasp the switching-module front panel with one hand, and place your other hand under the carrier to support the switching module, as shown in Figure 2. Do not touch the printed circuit boards or connector pins.

Step 6 Align the edges of the circuit board with the slot guides on the sides of the switch chassis, as shown in Figure 2.

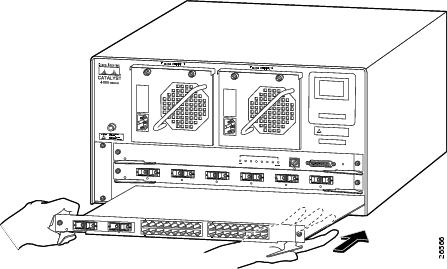

Figure 2 Installing the Switching Module in the Chassis

Step 7 Pivot the two module ejector levers out and away from the faceplate.

Step 8 Carefully slide the switching module into the slot until the notches on both ejector levers engage the chassis sides.

Step 9 Using the thumb and forefinger of each hand, simultaneously pivot in both ejector levers to fully seat the switching module in the backplane connector.


Caution Always use the ejector levers when installing or removing switching modules. A module that is partially seated in the backplane will not function correctly.

Step 10 Use a screwdriver to tighten the captive installation screws on each end of the switching module faceplate.


To check the status of the module, follow this procedure:


Step 1 Ensure that the STATUS LED is green (module operational).

Step 2 When the switch is online, enter the show module command. Verify that the system acknowledges the new module and that the module's status is listed as good in the command output.

Step 3 If the module is not operational, reseat it. If the module is still not operational, contact your customer service representative.


Standards Compliance Specifications

For information about standards compliance on Catalyst 4500 series products, please refer to Regulatory Compliance and Safety Information for the Catalyst 4500 Series Switches.
