Installation Guide for Cisco Industrial Network Director, Release 1.0.x

Last Updated: December 19, 2016

First Published: September 21, 2016

This installation guide contains the latest information about installing the Cisco Industrial Network Director (IND) application on a Microsoft Windows Operating System (OS) and details accessing the application after installation.

Conventions

This document uses the following conventions.

Conventions
Indication
bold font
Commands and keywords and user-entered text appear in bold font.
italic font
Document titles, new or emphasized terms, and arguments for which you supply values are in italic font.
[ ]
Elements in square brackets are optional.
{x | y | z }
Required alternative keywords are grouped in braces and separated by vertical bars.
[ x | y | z ]
Optional alternative keywords are grouped in brackets and separated by vertical bars.
string
A nonquoted set of characters. Do not use quotation marks around the string or the string will include the quotation marks.
courier font
Terminal sessions and information the system displays appear in courier font.
< >
Nonprinting characters such as passwords are in angle brackets.
[ ]
Default responses to system prompts are in square brackets.
!, #
An exclamation point (!) or a pound sign (#) at the beginning of a line of code indicates a comment line.

Note: Means reader take note. Notes contain helpful suggestions or references to material not covered in the manual.

System Requirements



Table 1 System Requirements for the IND Application

Desktop Requirements

Minimum Requirement

Windows Operating System (OS)

Windows 7 or Windows 10

Browser

Chrome: Version 50.0.2661.102 or later
Firefox: Version 46.01 or later

CPU

Dual Core 2.4Ghz

RAM

8 GB

Storage

50 GB

Installation Notes

1. Download the Cisco Industrial Network Director (IND) software package from Cisco.com to your system from the Cisco Download Software page https://software.cisco.com/download/navigator.html by following the path below to the IND software:

Products > Cloud and Systems Management > IoT Management and Automation > Cisco Industrial Network Director

IMPORTANT: Before you install the IND software package, confirm that:

■No other FTP server is running and listening on port 21

■Ensure the following ports are open for both inbound and outbound traffic on the firewall:

–TCP Ports 8443, 443, 80, 21, 50000-50050

–UDP Port 30162

2. Double-click the installer file (for example, ind-1.0.0.-254.installer) or Download button to begin installation of the IND application on your system.

3. At the Setup Wizard screen that appears, click Next.

4. At the License Agreement page, click the I accept the agreement radio button; and, then click Next.

5. At the Installation Directory page, click Next to confirm the destination directory (default or user-selected).

6. At the Ready to Install screen, click Next to begin installation of the IND application on your system.

IMPORTANT: When Setup completes, a window appears with:

■Your initial login information: Username and Password

■URL for the Application

– Be sure to capture this information, before you exit the screen by selecting Finish.

Logging in to Cisco IND Application

Note: Please wait approximately 8 minutes for the system to boot up after an initial install, upgrade or restart, before you log in to the user interface.

IND is a server application and it can be accessed by any client machine that has connectivity to the system where IND was installed.

Chrome and Firefox are supported browsers. See System Requirements.

1. On the client machine, open your browser window.

2. Enter the URL <https://a.b.c.d:8443> provided at the end of the IND install, where <a.b.c.d> is the IP address of the system where IND was installed.

3. At the log in window that displays, enter the initial Login and Password values provided at completion of the application install.

4. Click the arrow. A window appears requesting you to define a new password.

5. After you define a new password, the application automatically logs you out. You must reenter your login and password to reenter the application.

6. When you successfully log in to the system, the Cisco Active Advisor pop up appears.

–To learn more about Cisco Active Advisor, click Learn More. The Settings > System Settings > Cisco Active Advisor page opens. To return to the IND application, click on Industrial Network Director in the top left of the page.

–To proceed directly to IND, click Not Now.

7. When the IND opens, the Operate > Inventory page appears.





8. To set up the system:

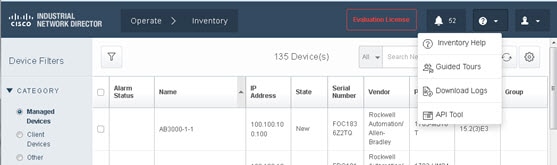

a. Click on the Online Help question (?) mark icon in the top right-hand corner of the screen to display menu options.

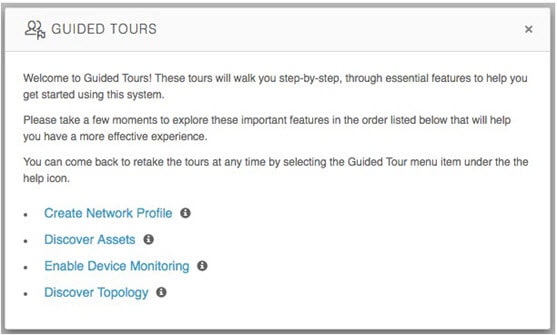

b. Click on Guided Tours. Follow the instructions in the Guide Tours pop-up to setup the system.

Installing IND Device Packs

Note: IND Device Packs can only be installed with the IND application that has a matching version number, and the release number must be the same or greater than the IND release number.

For example, in release 1.0.1-3, 1.0.1 is the version number and 3 is the release number.

A new device pack must be version 1.0.1 and the release must be 3 or higher.

Note: You can verify the Device Pack version and PID at the Settings > Device Pack page.

Installation Options

You can install the IND Device Pack through the IND Application Web User Interface or directly from an executable file present on the Windows system on which the IND Application is installed. The benefit of installing the device pack through the Web User Interface is that the device support is available immediately without having to restart the IND application.

Option 1: To install the Device Pack using the IND Application User Interface:

1. Choose Settings > Device Pack page.

The page displays the current version and release number of the installed Device Pack, when it was installed, and the PID list.

2. To install a new Device Pack, click Install New Device Pack. Browse the IND device pack executable list, select the desired device pack, and click Upload and Install.

When installation is complete, support for the new devices is available immediately on the IND application. No restart of the application is required.

Option 2: To install the Device Pack executable file directly from the Windows system:

1. Click on the executable file to start installation of the Device Pack.

2. When installation successfully completes, restart the Cisco IND application to activate the new Device Pack.

Uninstall Process for IND Application

On your system:

1. Go to the Control Panel, choose Programs > Uninstall a Program > Programs and Features.

2. In the panel that appears, double-click Cisco Industrial Network Director.

3. At the uninstall confirmation window, click Yes. A window appears showing removal of the files.

4. When the uninstall completes, a window appears confirming completion.
