Performance Route Processor Installation and Configuration Guide


Product Number: PRP-2=, PRP-3=

This hardware installation and configuration guide describes the performance route processor (PRP) PRP-2 and PRP-3 for use in Cisco XR 12000 Series Routers and Cisco 12000 Series Routers.

Changes to This Document

Table 1 lists the technical changes made to this document since it was first printed.

Table 1 Changes to This Document

Revision
Date
Change Summary

OL-17436-01

September 2008

Initial release of this document.

OL-17436-02

August 2011

Introduced PRP3-SMDC support for PRP-3.

Added PRP3-SMDC overview and installation procedure.


Document Contents

This publication includes the following sections:

Important Information

Product Overview

Preparing for Installation

Removing and Installing a PRP

Checking the Installation

Upgrading to the PRP

Configuring Interfaces on the PRP

Configuring Interfaces on the PRP-3

Additional Configuration and Maintenance Tasks

Regulatory, Compliance, and Safety Information

Important Information

This section contains information about the following hardware and software requirements:

Router Information

Cisco IOS XR Software Requirements

Hardware Revision Requirements

Router Information

For hardware installation and maintenance information about the Cisco XR 12000 Series Router, refer to the installation and configuration guide for your router. This includes information on card slot locations and other general requirements.

Supported Platforms

The PRP is supported on all Cisco XR 12000 Series Router chassis and can be installed in any available slot in any chassis; however PRP-3 is supported only on the Cisco XR 128xx and 124xx Series Router chassis. Also, PRP-1 is only supported on the Cisco 12000 Series Router chassis running Cisco IOS Software.

PRP Redundancy

When two PRPs are installed in a Cisco XR 12000 Series Router, one PRP is the active PRP and the other is a backup, or standby, PRP. If the active PRP fails or is removed from the system, the standby PRP detects the failure and initiates a switchover. During a switchover, the standby PRP assumes control of the router, connects with the network interfaces, and activates the local network management interface and system console.


Note If your system includes redundant PRPs, both PRPs should be of the same type (PRP-3 or PRP-2) and have the same memory size. We strongly recommend that you avoid configuring your router using mixed route processor cards.


Cisco IOS XR Software Requirements

For software configuration information, refer to the Cisco IOS XR getting started, configuration, and command reference publications for the installed Cisco IOS XR software release. Refer to the CiscoIOSR software release notes for additional information.


Note PRP-2 is compatible with Cisco IOS XR Software Release 3.2 or later releases, but PRP-3 is compatible only with Cisco IOS XR Software Release 3.8.0 and later releases. PRP-1 is not supported with any of the Cisco IOS XR Software Releases. PRP-1 is only supported on Cisco IOS Software Releases.


The show version and show hardware commands display the current hardware configuration of the router, including the system software version that is currently loaded and running.

Hardware Revision Requirements

To ensure compatibility with the software, the PRP should have a specific hardware revision level or greater. The hardware revision number is printed on a label affixed to the component side of the card. The hardware revision number can also be displayed using the show diags slot-number command.

The minimum hardware revision number for PRP-3 (product number PRP-3=) is 73-10255-02. The minimum hardware revision number for PRP-2 (product number PRP-2=) is 73-8812-04 Rev. A0.

Product Overview

The following sections provide information about the performance route processor (PRP), its components, functions, and features, and its use as the main system processor. Figure 1 shows the front panel view of the PRP-2.

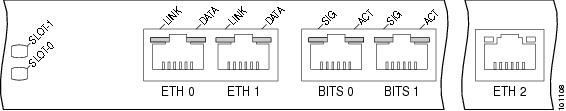

Figure 1 PRP-2 Front Panel View

The PRP-2 is available as product number PRP-2 or PRP-2=, which includes one PRP with 1 G of synchronous dynamic random-access memory (SDRAM) and one 64-MB advanced technology attachment (ATA) Flash disk. A redundant PRP (product number PRP-2/R) is also available.

Figure 2 PRP-3 Front Panel View

Table 2 PRP-3 Front Panel Hardware Component

Numeric Callout
Hardware Component

1

Ejector Lever

2

Handle

3

External Compact Flash

4

Reset button

5

Alphanumeric LEDs


Details

PRP-3 is the next-generation route processor for the Cisco XR 124xx and 128xx Router chassis running Cisco IOS XR Software Release 3.8.0 or a later release. The PRP-3 is available as product number PRP-3 or PRP-3= for a primary route processor and is available as PRP-3/R for a redundant route processor. PRP-3 has significant improvements over PRP-2. These improvements include increased speed, improved scalability, higher system memory, faster packet processing. Because PRP-3 does not support Cisco IOS Software, the bootflash memory no longer exists in PRP-3. PRP-3 ROMMON has software intelligence to download a Cisco IOS XR image without the support of bootflash memory.


Note PRP-3 supports Cisco XR 124xx (10 G per slot fabric) and Cisco XR 128xx (40 G per slot fabric) Router chassis only. PRP-3 does not support Cisco XR 120xx Router chassis (2.5-G low-speed fabric).


PRP Functions

The PRP-2 provides the following additional functions:

One IEEE 802.3 10/100/1000-megabits-per-second (Mbps) Ethernet port.

Two building integrated timing system (BITS) ports for connecting to an external clock source.


Note BITS functionality is currently not supported.


In addition to the functionality listed for the PRP-1 and PRP-2, PRP-3 provides the following specific functions:

Reduced boot time.

Increased overall scalability.

Improved memory access rates and scale.

Improved CPU performance through dual 1.3-GHz PPC processor cores.

Improved packet processing using hardware-based acceleration.

10-G bandwidth backplane connectivity.

Support for all Cisco XR 124xx and 128xx Router chassis, except low-speed fabric (2.5G).

New ROMMON that supports IPv4 network configuration directly.

PRP Components

The PRP-2 contains the following additional components:

SDRAM—Up to 4 GB of Cisco-approved synchronous dynamic random-access memory (SDRAM) on two dual in-line memory modules (DIMMs). 1 GB of SDRAM is the default shipping configuration. SDRAM is field replaceable only when using Cisco-approved DIMMs.


Note Software releases prior to 12.0(30)S do not recognize more than 2 GB of SDRAM and will only use the first 2 GB of the installed memory. This does not affect the functioning of the PRP-2, but commands such as show version will indicate that only 2 GB of SDRAM are installed.


Hard disk drive—40-GB hard disk drive can be optionally installed on the PRP-2 board.

CF—1-GB compact flash disk can be optionally installed on the PRP-2 board. It also provides option to upgrade the compact flash to 4 GB.

The PRP-3 contains the following components:

Power PC Processor—Power PC 8641D Dual Processor Central Processing Unit (CPU) e600 cores running at 1.3 GHz each.

Memory—Default internal and external compactflash of 2 GB each (2 x 2 GB = total 4 GB) and provides an option for upgrading the compact flash to 8 GB (2 x 4 GB).

Hard disk drive—80-GB hard disk drive installed on the PRP-3 board.

SDRAM—2 GB each for two DDR2 DRAMs (2 x 2 GB) for a total of 4 GB is the default shipping configuration. Option to upgrade to 8 GB (2 x 4 GB).

NVRAM—2 MB of nonvolatile RAM (NVRAM). NVRAM is not user configurable or field replaceable.

Sensors—Air-temperature sensors for environmental monitoring.

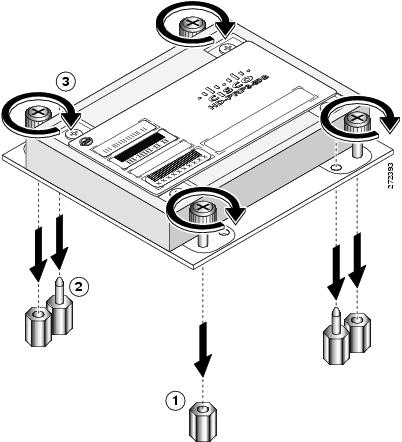

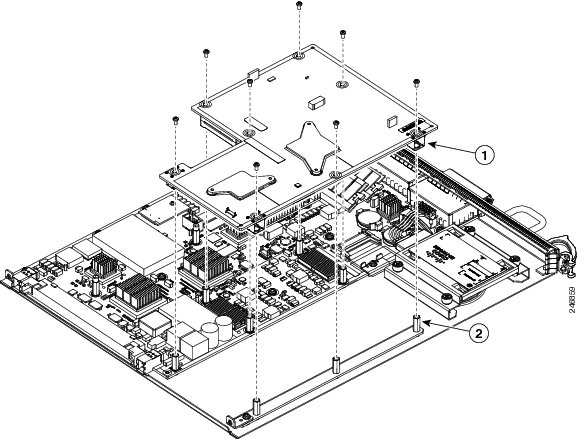

Service Module Daughter Card—Supports Layer 4 to Layer 7 services on Cisco XR 12000 Series Router. For more information, see Service Module Daughter Card for PRP-3.


Note For Cisco IOS XR Release 3.7.0 and later, SDRAM and Compact Flash memories require 2 GB capacity.


Differences Between PRP-2 and PRP-3

Table 3 provides details about hardware or software component differences between PRP-2 and PRP-3.

Table 3 Differences Between PRP-2 and PRP-3

Hardware or Software Component
PRP-2 Specifications
PRP-3 Specifications

Processor

PowerPC 7457 - single core @ 1.3GHz

PowerPC 8641D - Dual core @ 1.3GHz each

Processor Bus

64 bits @ 133 MHz (external)

64 bits @ 533 MHz (internal)

Memory

Up to 4 GB @ 133 Mhz SDR DRAM

Up to 8 GB @ 266 MHz DDRII DRAM

System Controller

Discovery GT64260

Embedded within the 8641D

Cache

L1: 32KB

L1: 32KB

L2: 256KB

L2: 1MB

L3: 2MB (external)

(No external cache needed)

Data Processing

Assembler and Chopper FPGAs

Hummer FPGA

Fabric Interface

OC-48 bandwidth (Fusilli + external serdeses)

OC-192 Bandwidth (SuperFish + Fishstick)

NVRAM

2 MB

2 MB

Bootflash

64 MB + 1 GB Compact Flash (Option to upgrade to 4 GB).

2 GB of Internal and External CompactFlash (An upgrade option is available for a total of 8 GB memory (4 GB each.)

Boot ROM

4 MB

8 MB

Ethernet Interfaces

2x 10/100 FE + 1x 10/100/GE

2x 10/100/1000 Mbps

Flash Disk

2 PCMCIA slots

1 External CompactFlash slot

BITS

2 BITS inputs

2 BITS inputs

Serial Interface

Console + Aux

Console + Aux

Hard Drive

40-GB 2.5" HDD

80-GB 2.5" SATA HDD

Operating System Supported

Cisco IOS Releases

Cisco IOS XR Software Release 3.8.0 and later releases

Chassis Supported

Cisco XR 120xx, Cisco XR 124xx, Cisco XR 128xx Series Router chassis

Cisco XR 124xx and Cisco XR 128xx Series Router chassis


Cisco IOS Software Storage

The Cisco IOS Software images are stored in flash memory. Two types of flash memory ship with the PRP-1:

Onboard flash memory—Ships as a single in-line memory module (SIMM). This flash memory contains the Cisco IOS boot image (bootflash) and is not field replaceable.

Flash disk—The PRP ships with an ATA Flash disk that can be installed in either CompactFlash disk slot. The CompactFlash disk contains the Cisco IOS software image. Linear flash memory cards are also supported in the PRP-1.

The PRP-2 provides the following additional flash memory:

CompactFlash (CF) disk—Optional 1-GB CF disk can be used for large Cisco IOS images.

Storing the Cisco IOS images in flash memory enables you to download and boot from upgraded
Cisco IOS software images remotely, or from software images that reside in PRP flash memory.

Cisco 12000 Series Internet Routers support downloadable system software for most Cisco IOS Software upgrades. This enables you to remotely download, store, and boot from a new Cisco IOS software image. The Cisco IOS software runs from within the SDRAM of the PRP.

Cisco IOS XR Software Storage

The PRP-3 provides the following compact flash memory for storing the Cisco IOS XR software image:

Internal CompactFlash (CF) on board—(compact flash:) 2-GB internal compactflash is used for large Cisco IOS XR software images.

External CompactFlash (CF)—(disk0:) 2-GB external compactflash is used for large Cisco IOS XR software images. The external CompactFlash can be inserted from the front panel of PRP-3. External CompactFlash replaces the PCMCIA slots of PRP-2.

Storing the Cisco IOS XR images in flash memory enables you to download and boot from upgraded
Cisco IOS XR software images remotely, or from software images that reside in PRP-3 flash memory.


Caution PRP-3 systems are shipped with dual compact flash disks. The internal compact flash is the recommended boot device and should not be removed even if not being used as a boot device.

PRP-3 ROMMON Changes

The PRP-3 ROMMON in Cisco IOS XR Software Release 3.8.0 has significant changes and more software intelligence than the PRP-2 ROMMON of previous releases. The following sections discuss in detail the changes introduced in PRP-3 ROMMON.

Capability of ROM Monitor to Netboot

FAT32 File System Support

ROMMON Logical Divisions

Capability of ROM Monitor to Netboot

ROMMON is the initial program that loads in Cisco IOS XR software. It loads the mini.vm file into the RAM, sets up some initial hardware needed, and then hands over control to the CPU. The CPU thereafter takes on and loads the Cisco IOS XR software to enable the router to come up. The ROMMON in PRP-3 is now more intelligent than the ROMMON in PRP-1 or PRP-2. The ROMMON of PRP-1 and PRP-2 needed a boothelper image to reach TFTP and download the Cisco IOS XR software image. The boothelper image is stored in bootflash. The PRP-3 ROMMON has more software intelligence, because it can reach the TFTP server without a boothelper image. PRP-3 ROMMON does not require a boothelper image to reach the TFTP server. Hence, bootflash memory is also removed from PRP-3.

FAT32 File System Support

PRP-3 ROMMON supports only the FAT32 file system (FS), it does not support FAT12 or FAT16 file system. PRP-3 ROMMON does the native TFTP netboot and file download over the management ports.

ROMMON Logical Divisions

The PRP-3 ROMMON is split into following three software divisions:

Boot Strap Loader (BSL)—BSL thin bootstrap starts one of the two ROMMON images (latest or golden ROMMON images).

Latest ROMMON image—It is the Primary ROMMON image, which sets up the initial hardware.

Golden ROMMON image—It serves as a backup ROMMON image, which is used only if the latest ROMMON image fails to load from upgrade, corruption, or any other issues.

ROMMON Procedure to Boot an Image from TFTP

The following section discusses booting a Cisco IOS XR software image from TFTP using ROMMON. Certain changes are related to booting from ROMMON.

Before starting to boot an image from TFTP using ROMMON, ROMMON must be initialized. The output displayed when ROMMON is initialized is displayed below. The output in blue shows the hardware changes in Cisco IOS XR Software Release 3.8.0.

         --- Output details when ROMMON is initialized ---

Cisco PRP-3 BSL, Version 1.0.0 (bld1) DEVELOPMENT SOFTWARE
Compiled on 04/07/08 at 15:19:11 PDT [BLD-rommon]
Copyright (c) 1994-2008 by cisco Systems, Inc.


1.330GHz dual-core MPC8641D Rev 2.1, 532MHz MPXclk


Discovering memory in slot DIMM1 ......................... Found 2GB DIMM
Discovering memory in slot DIMM2 ......................... Found 2GB DIMM
Pausing between init of DDR1 and DDR2...
Testing low memory ....................................... OK
Loading main ROMMON image ................................ OK
Verifying loaded image ................................... OK
Load succeeded; launching target ......................... OK


eth0 auto-negotiation completed in 1581ms
eth0 link up and operating in 100BASE-TX full-duplex mode
eth1 auto-negotiation completed in 2189ms
eth1 link up and operating in 100BASE-TX full-duplex mode


Cisco ROMMON System Bootstrap, Version 1.0.0 (bld1) DEVELOPMENT SOFTWARE
Compiled on 04/07/08 at 15:18:19 PDT [BLD-rommon]
Copyright (c) 1994-2008 by cisco Systems, Inc.
MPC8641D platform with 4GB of main memory


rommon 1 >


Execute the following steps to boot a Cisco IOS XR software image from ROMMON using TFTP.

Step 1 Configure the IP address of the Ethernet interfaces eth0: and eth1: on the router.

rommon 1 > ifconfig eth0 10.12.6.101 255.255.0.0 up
rommon 2 > ifconfig eth1 10.14.6.102 255.255.0.0 up

Step 2 Verify that the IP address is configured properly and the ethernet interface link state is UP.

rommon 3 > ifconfig
eth0    HWaddr: 00:02:17:ea:c3:f1
        IPaddr: 10.12.6.101  Netmask: 255.255.0.0
        Status: UP  Link: UP


eth1    HWaddr: 00:02:17:ea:c3:f0
        IPaddr: 10.14.6.102  Netmask: 255.255.0.0
        Status: UP  Link: UP



Step 3 Save the changes (IP address configuration) to NVRAM.


Note To save the configuration changes to NVRAM permanently, use the sync command.


rommon 4 > sync
Data successfully written to NVRAM

Step 4 To enable loading of the Cisco IOS XR software image from TFTP server, add the IP address, subnet mask, and gateway address of the TFTP from which the request is finally sent.


Note Upon adding the route details of the TFTP server and gateway, a route table is created on ROMMON.


rommon 5 > route add 223.255.254.0 255.255.255.0 10.12.0.1
Route successfully added



Step 5 Verify that the route table with the specified IP address and gateway of the TFTP has been created on ROMMON.

rommon 6 > route
Destination      Netmask          Gateway          Metric  Interface
10.12.0.0        255.255.0.0      *                     0  eth0
10.14.0.0        255.255.0.0      *                     0  eth1
223.255.254.0    255.255.255.0    10.12.0.1             1  eth0

Tip To change the IP Address of the TFTP server or gateway, delete the route details from the route table by executing the following command.


rommon 7 > route del 223.255.254.0 255.255.255.0
Route successfully deleted

Step 6 Save the changes (route table configuration) to NVRAM.

rommon 8 > sync
Data successfully written to NVRAM



Step 7 Verify that the packets have been from the router to the Ethernet interfaces (eth0 or eth1) on the router, gateway, and TFTP server by using the ping command. The output indicates that all the packets have been received and there is no packet loss. Hence, connectivity has been established to load the CiscoIOSXR software images from the TFTP server.

--- Verifying connectivity to eth0 interface of Router using ping command---
rommon 1 >
ping 10.12.6.101

!!!!
5 packets transmitted, 5 received, 0% loss, av time 0.167ms


--- Verifying connectivity to gateway using pind command---
rommon 2 > ping 10.12.0.1
!!!!!
5 packets transmitted, 5 received, 0% loss, av time 0.289ms


--- Verifying connectivity to telnet server using pind command---
rommon 3 > ping 223.255.254.254
!!!!!
5 packets transmitted, 5 received, 0% loss, av time 0.188ms



Step 8 PRP-3 uses internal flash memory (compactflash:) and external compact flash memory (disk0:) to store the Cisco IOS XR software images. The following command displays the devices on PRP-3 used to store the Cisco IOS XR software images.

rommon 6 > dev -a
Devices in device table:
id                   description state type start size fs access
disk0:               compactFlash ATA disk 0 A Blk 0d 80000000d FAT32 ATA
compactflash:        internal compactFlash A Blk 0d 80000000d FAT32 ATA



Step 9 Enter the following TURBOBOOT command to automate the software installation process in ROM Monitor mode, format the boot device, and indicate the boot device that can contain internal flash memory (compactflash:) or external flash memory (disk0:). The image should be stored in internal flash memory (compactflash:).

rommon 1 > TURBOBOOT=on,compactflash:,format
rommon 2 > sync
Data successfully written to NVRAM

Step 10 Load the Cisco IOS XR software image from the TFTP server by specifying the TFTP server IP address, the location of the image, and the filename of the Cisco IOS XR software image. The IOS XR software image is loaded, and later all the packages and additional software upgrades are stored in the specified boot device.

rommon 3> boot tftp://223.255.254.254/...

Note During the PRP-3 booting, if you want to go back to the ROMMON prompt, press Ctrl-Break to force it back into ROMMON. This has to be done in the early stage of booting.



PRP Hardware Components

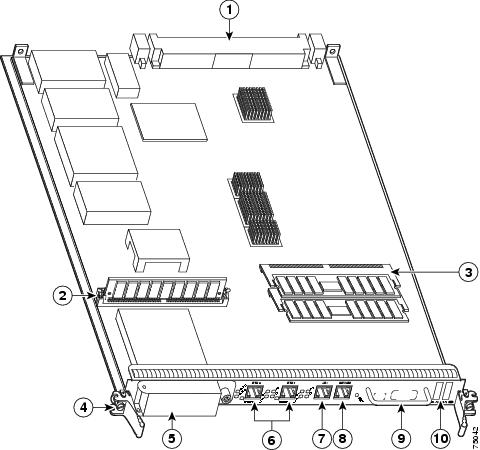

Figure 3 shows the locations of the various hardware components on the PRP-2. Memory options and functions for both are listed in Table 4.

Figure 3 PRP-2 (Horizontal Orientation)

1

Compact Flash disk (optional)

8

Console port

2

Flash SIMM (Socket number P3)

9

Gigabit Ethernet port

3

Ejector lever

10

Handle

4

Flash disk slots (covered)

11

Display LEDs

5

Ethernet ports

12

SDRAM DIMM: Bank 1 - Socket number U15

6

BITS ports1

13

SDRAM DIMM: Bank 2 - Socket number U18

7

Auxiliary port

14

Hard disk drive (optional)

1 BITS functionality is currently not supported. Support for BITS on the Cisco 12000 Series Router will be provided through an upgrade to your switch fabric card (SFC) in the future.


Table 4 PRP-2 Memory Components

Type
Size
Quantity
Description
Location

SDRAM1

2 GB (default) or 4 GB (optional)

1 or 2

2-GB or 4-GB DIMMs (based on desired SDRAM configuration) for main Cisco IOS XR software functions

U15 (bank 1)2
U18 (bank 2)

SRAM3

2 MB (fixed)

Secondary CPU cache memory functions

NVRAM4

2 MB (fixed)

1

System configuration files, register settings, and logs

HDD

40 GB

1

Contains log and crash information for specific Cisco IOS XR versions.

Flash memory

2 GB or 4 GB (optional) Compact Flash

1

Contains Cisco IOS XR boot image (bootflash), crash information, and other user-defined files

P3



4 MB Boot ROM

1

Stores the ROMMON minimum boot image (MBI).




Flash disks5 2 GB (default) or 4 GB (optional)

1 or 2

Contains Cisco IOS XR software images, system configuration files, and other user-defined files on up to two flash disks

Flash disk
slot 0 and
slot 1



1 GB CF6

1

Contains large Cisco IOS XR software images

1 Default SDRAM configuration is 2-GB for PRP-2. Bank 1 (U15) must be populated first. You can use one or both banks to configure SDRAM combinations of 2 GB and 4 GB for the PRP-2. 1.5-GB configurations.and DIMM devices that are not from Cisco are not supported.

2 If both banks of the PRP-2 are populated, bank 1 and bank 2 must contain the same size DIMM.

3 SRAM is not user configurable or field replaceable.

4 NVRAM is not user configurable or field replaceable.

5 ATA Flash disks are supported in the PRP-2.

6 Optional PRP-2 hardware. Compact disks that are not from Cisco are not supported.



Note If a single DIMM module is installed, it must be placed in bank 1 (U8).


Figure 4 PRP-3 (Horizontal Orientation)

1

SDRAM DIMM: Bank 1 - Socket number U8

2

SDRAM DIMM: Bank 2 - Socket number U10

3

External Compact Flash

4

Hard Disk (80 GB)

5

Internal Compact Flash


Table 5 PRP-3 Memory Components

Type
Size
Quantity
Description
Location

SDRAM1

2 GB (Default) for each DDR2 DRAM for a total system memory of 4 GB, option for upgrade to total system memory of 8 GB (4 GB each).

2

Two 2-GB default DDR2 DRAM for main CiscoIOSXR software functions. Provision for optional upgrade to 4 GB also possible to provide total system memory of 8 GB.

U8 (bank 1)2
U10 (bank 2)

NVRAM3

2 MB (fixed)

1

System configuration files, register settings, and logs

Flash memory

2 GB (default) or 4 GB (optional) Flash disks4

2 (Internal and External CompactFlash)

Contains Cisco IOS XR software images, system configuration files, and other user-defined files on two CompactFlash.

Internal and External Compact Flash5

Flash boot ROM

8 MB

1

Flash EPROM for the ROM monitor program boot image

HDD6

80 GB SATA

1

Contains log and crash information for specific Cisco IOS XR versions

1 Default SDRAM configuration is a total of 4 GB (2 x 2GB) system memory for PRP-3. Bank 1 (U15) must be populated first. You can use one or both banks to configure DDR2 DRAM combinations of 2 GB or 4 GB for the PRP-3. DIMM devices that are not from Cisco are not supported.

2 If both banks of the PRP-3 are populated, bank 1 and bank 2 must contain the same size DIMM.

3 NVRAM is not user configurable or field replaceable.

4 ATA Flash disks are supported in the PRP-3.

5 PRP-3 provides an onboard internal CompactFlash and also an external CompactFlash. The external CompactFlash in PRP-3 replaces the two PCMCIA slots (slot0 and slot1) of PRP-2.

6 Hard disk drives that are not from Cisco are not supported.


SDRAM

SDRAM stores routing tables, protocols, and network accounting applications, and runs the Cisco IOS software. The default PRP-2 configuration includes 1 GB of ECC SDRAM. DIMM upgrades of 1 GB and 2 GB are available for the PRP-2. You can mix memory sizes as long as the larger DIMM is placed in bank 1 (U15).

The PRP-3 provides more system memory than PRP-1 and PRP-2. PRP-3 is shipped with 2 GB system memory in each DDR2 DRAMs for a total of 4 GB and provides an upgrade option for a total of 8 GB (4 GB x 2 DRAM).


Caution Only Cisco-approved memory is supported. Do not attempt to install other devices or DIMMs in the DIMM sockets not approved by Cisco. (See Table 29.)

NVRAM

NVRAM provides 2 MB of memory for system configuration files, software configuration register settings, and environmental monitoring logs. This information is backed up with built-in lithium batteries that retain the contents for a minimum of 5 years. NVRAM is not user configurable or field replaceable.

Flash Memory

Flash memory allows you to remotely load and store multiple Cisco IOS software and microcode images. You can download a new image over the network or from a local server and then add the new image to Flash memory or replace the existing files. You then can boot the routers either manually or automatically from any of the stored images.

Flash memory also functions as a Trivial File Transfer Protocol (TFTP) server to allow other servers to boot remotely from stored images or to copy them into their own Flash memory. The onboard Flash memory (called bootflash) contains the Cisco IOS boot image, and the Flash disk contains the Cisco IOS software image.

PRP-3 provides more flash memory than PRP-1 and PRP-2. PRP-3 includes a default internal compact flash of 2 GB and also has an external compact flash of 2-GB. Compact flash upgrade option is also available for a total of 8 GB (2 x 4 GB).


Note PRP-3 external compact flash replaces the two PCMCIA slots of PRP-2. The external compact flash can be installed or removed from PRP-3 front panel. Internal compact flash is denoted as compactflash: while external compact flash is denoted as disk0:.


PRP-3 Compact Flash

PRP-3 provides more flash memory than PRP-1 and PRP-2. PRP-3 uses compact flash to store Cisco IOS XR software images. PRP-3 includes a default internal compact flash of 2-GB and also has an external compact flash of 2-GB. Compact flash upgrade option is also available for a total of 8-GB (2 x 4-GB).


Caution PRP-3 systems are shipped with dual compact flash disks. The internal compact flash is the recommended boot device and should not be removed even if not being used as a boot device.


Note PRP-3 external compact flash replaces the two PCMCIA slots of PRP-2. The external compact flash can be installed or removed from PRP-3 front panel. Internal compact flash is denoted as compactflash:, while external compact flash is denoted as disk0:.

Table 6 PRP-3 Compact Flash Disk Sizes

Compact Flash Sizes
Part Numbers

2 GB

FLASH-PRP3-2G(=)

4 GB

FLASH-PRP3-4G(=)


PRP LEDs

The following LEDs are used on the PRP:

Status LEDs

Display LEDs

Status LEDs

The PRP-2 has the following LED indicators:

Two Flash disk activity LEDs, one for each Flash disk slot (labeled SLOT-0 and SLOT-1)—Indicate when the Flash disk slot is accessed.

Two Ethernet port LEDs used in conjunction with each of the three RJ-45 Ethernet connectors:

LINK—Indicates link activity

DATA—Indicates data transmission or reception

Two BITS port LEDs used in conjunction with each of the two BITS ports:

SIG—Indicates carrier signal available

ACT—Indicates the interface is active

The PRP-3 has the following LED indicators:

Two Ethernet port LEDs used in conjunction with each of the three RJ-45 Ethernet connectors:

LINK—Indicates link activity

DATA—Indicates data transmission or reception

Two BITS port LEDs used in conjunction with each of the two BITS ports:

SIG—Indicates carrier signal available

ACT—Indicates that the interface is active


Note The BITS feature is not supported in Release 3.8.0.


One auxiliary port (AUX) and one console port (CONSOLE) LED:

AUX—Used as a backup for the command outputs on the Console.

CONSOLE—Used for configuring the router by connecting an RJ-45 cable to the console terminal. The router can be configured through the console terminal.

Display LEDs

The alphanumeric display LEDs are organized as two rows of four characters each and are located at one end of the card. These LEDs provide system status and error messages that are displayed during and after the boot process. The boot process and the content displayed are controlled by the MBus module software of the PRP.

At the end of the boot process, the LEDs are controlled by the Cisco IOS software (via the MBus), and the content displayed is designated by the Cisco IOS software.

A complete, descriptive list of all system and error messages is located in the Cisco IOS System Error Messages publications.

The display LEDs indicate the following:

Status of the PRP

System error messages

User-defined status/error messages

Soft Reset Switch

A soft reset switch provides a reset to the processor software on the PRP. You access the soft reset switch through a small opening in the PRP faceplate. To depress the switch, insert a paper clip or a similar object into the opening.


Caution The soft reset switch is not a mechanism for resetting the PRP and reloading the IOS image. It is intended for software development use. To prevent system problems or loss of data, use the soft reset switch only on the advice of Cisco service personnel.

Flash Disk Slots

The PRP includes two Flash disk slots on the front panel of the card. Either slot on the PRP-1 can support an ATA Flash disk or a linear Flash memory card. The Flash disk slots on the PRP-2 can only support ATA Flash disks.


Note The PRP only supports +5 VDC Flash disk devices. It does not support +3.3 VDC Flash disk devices.


All combinations of different Flash devices are supported by the PRP-1. You can use ATA Flash disks, linear Flash memory cards, or a combination of the two.

Each Flash disk slot has an ejector button for ejecting a card from the slot. See the "Using Flash Disks in the PRP" section for more information.


Note Linear Flash memory cards may not have the capacity to meet the requirements of your configuration. However, they can be used for emergency file recovery applications.


Asynchronous Serial Ports

The PRP has two asynchronous serial ports, the console and auxiliary ports. These allow you to connect external serial devices to monitor and manage the system. Both ports use RJ-45 receptacles.

The console port provides a data circuit-terminating equipment (DCE) interface for connecting a console terminal. The auxiliary port provides a data terminal equipment (DTE) interface and supports flow control. It is often used to connect a modem, a channel service unit (CSU), or other optional equipment for Telnet management.

Ethernet Ports

The PRP includes two 10/100 Mbps Ethernet ports, each using an 8-pin RJ-45 receptacle for either IEEE 802.3 10BASE-T (10 Mbps) or IEEE 802.3u 100BASE-TX (100 Mbps) connections.

The PRP-2 includes a 10/100/1000 Mbps Ethernet port, which uses the above connections and also a 802.3 Gigabit Ethernet connection.

The PRP-3 includes two 10/100/1000 Mbps Ethernet port, which also uses the above connections and also a 802.3 Gigabit Ethernet connection.


Note The transmission speed of the Ethernet ports is auto-sensing by default and is user configurable.


Hard Disk Drive

The PRP-2 optionally includes a 40-GB hard disk drive (HDD) that is installed on the PRP-2 board.

The PRP-3 provides an 80-GB hard disk drive (HDD) that is installed on the PRP-3 board.


Note Hard disk drives that are not from Cisco are not supported.

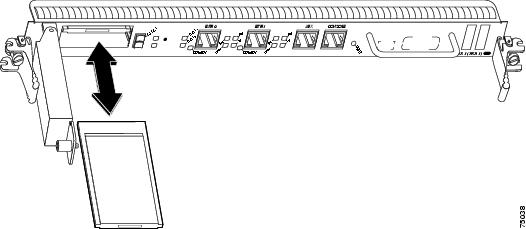

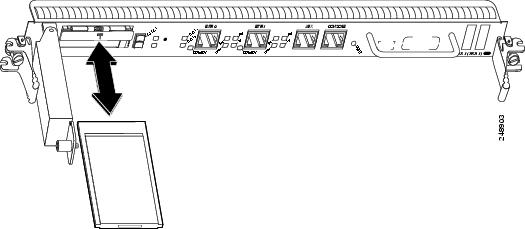

Compact Flash Disk

The PRP-2 optionally includes a 1-GB compact flash disk that is installed on the PRP-2 board.


Note PRP-2 and PRP-3 compact flashes are not compatible with each other and hence PRP-2 compact flash cannot be used in PRP-3 and vice versa. PRP-3 uses Multiword DMA to access the compact flash device, a PRP-2 compact flash does not support this access type.

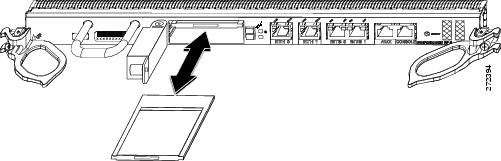

The PRP-3 board includes a default 2-GB internal compact flash and a 2-GB external compact flash. In PRP-3, the external compact flash replaces the PCMCIA slots of PRP-2.


Note Compact flash that are not from Cisco are not supported.

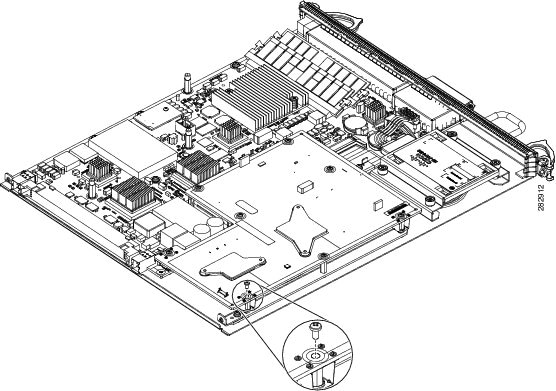

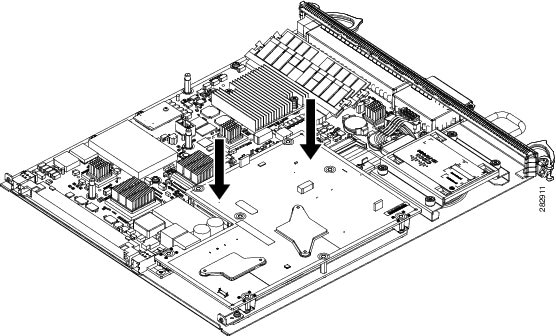

Service Module Daughter Card for PRP-3

The Service Module Daughter Card for PRP-3 (PRP3-SMDC) is a next-generation service module that plugs into the PRP-3 route processor. It adds new capabilities to the Cisco XR 12000 Series Router by supporting Layer 4 to Layer 7 services.

Services, such as carrier grade IPv6 that are not traditionaly supported on line cards, can now be provisioned on PRP3-SMDC. All packets entering the router LCs and require PRP3-SMDC processing, are diverted to PRP3-SMDC, which in turn processes the packets and routes them back to egress LCs.

Figure 5 shows the top and bottom view of a PRP3-SMDC.

Figure 5 Service Module Daughter Card - Top and Bottom View

PRP3-SMDC has a 16-core processor, optimized for fast packet handling. PRP3-SMDC does not occupy any additional slots and as a result the slots can be used to house other line cards.

In brief, PRP3-SMDC supports:

carrier grade Layer 4 to Layer 7 services

upto 10Gbps of service traffic

all service layer configuration on Cisco IOS XR software

certain types of protocol offloads to improve scalability of Cisco XR 12000 Series Router

For the PRP-3 route processer of Cisco XR 12000 Series Router, PRP3-SMDC is available with the product number, PRP-SMDC=.

Specifications

Table 7 lists the technical specifications of a PRP3-SMDC.

Table 7 Technical Specifications

Description
Specifications

Chassis Compatibility

Cisco XR 12816, XR 12810, XR 12416, XR 12410, XR 12406, XR 12404, XR 120161 , XR 12010, XR 12006, and XR 12004 Routers

1 PRP3-SMDC is not supported on the Cisco XR 12016 Router configured with original fabric cards GSR16/80-CSC and GSR16/80-SFC. The enhanced fabric cards 12016E-CSC and 12016E-SFC support PRP3-SMDC.


1 While PRP3-SMDC is supported with the chassis operating with Cisco IOS XR Release 4.1.1 and higher, the software functionality and support for PRP3-SMDC is disabled by default in Cisco IOS XR Release 4.1.1.



Table 8 lists the power requirements for a PRP3-SMDC.

Table 8 Power Requirements

Description
Specification

PRP3-SMDC

60W

PRP-3 + PRP3-SMDC

80W + 60W = 140W


Preparing for Installation

Installation preparation is presented in the following sections:

Safety Guidelines

Preventing Electrostatic Discharge

Required Tools and Equipment

Working with Electrical Equipment

Safety Guidelines

Before you perform any procedure in this publication, review the safety guidelines in this section to avoid injuring yourself or damaging the equipment.

The following guidelines are for your safety and to protect equipment. The guidelines do not include all hazards. Be alert.


Note Review the safety warnings listed in the Regulatory Compliance and Safety Information for Cisco 12000 Series Internet Router publication that accompanied your router before installing, configuring, or maintaining a line card.


Keep the work area clear and dust free during and after installation. Do not allow dirt or debris to enter into any laser-based components.

Do not wear loose clothing, jewelry, or other items that could get caught in the router while working with line cards.

Cisco equipment operates safely when it is used in accordance with its specifications and product usage instructions.

If you plan to replace a PRP, back up your current configuration file to a remote server or to Flash memory before you remove the PRP. This prevents you from having to reenter all your current configuration information manually. To back up the file, copy your configuration file to a Flash disk or access a remote server.

Preventing Electrostatic Discharge

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. Electromagnetic interference (EMI) shielding is an integral component of the line card. We recommend using an ESD-preventive strap whenever you are handling network equipment or one of its components.

The following are guidelines for preventing ESD damage:

Always use an ESD-preventive wrist or ankle strap and ensure that it makes good skin contact. Connect the equipment end of the connection cord to an ESD connection socket on the router or to bare metal on the chassis.

Handle PRPs by the captive installation screws, the provided handle, ejector levers, or the line card metal carrier only; avoid touching the board or connector pins.

Place removed PRPs board-side-up on an antistatic surface or in a static shielding bag. If you plan to return the component to the factory, immediately place it in a static shielding bag.

Avoid contact between the PRPs and clothing. The wrist strap protects the board from ESD voltages on the body only; ESD voltages on clothing can still cause damage.


Warning For safety, periodically check the resistance value of the ESD strap. The measurement should be between 1 and 10 megohms.



Required Tools and Equipment

You need the following tools and parts to remove and install a PRP:

Flat-blade or Phillips screwdriver

ESD-preventive wrist strap and instructions

Antistatic mat, foam pad, or bag for the removed PRP. Place the removed PRP into an antistatic bag if you plan to return it to the factory, or on an antistatic mat or foam if you are replacing components and will reinstall the PRP.

Working with Electrical Equipment

Follow these basic guidelines when working with any electrical equipment:

Before beginning any procedure requiring access to the chassis interior, locate the emergency power-off switch for the room in which you are working.

Disconnect all power and external cables before moving a chassis.

Do not work alone when potentially hazardous conditions exist; never assume that power has been disconnected from a circuit; always check.

Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.

Carefully examine your work area for possible hazards such as moist floors, ungrounded power extension cables, and missing safety grounds.

Removing and Installing a PRP

The following sections describe the procedures for removing and installing a PRP as well as removing and installing other field-replaceable hardware on the PRP-2 board. Before beginning the procedures, verify that your system meets the minimum requirements as described in the "Preparing for Installation" section.

Removing a PRP

Installing Service Module Daughter Card on PRP-3

Installing a PRP


Note The procedures in the following sections use illustrations of a Cisco 12404 Internet Router to support the descriptions of installing and removing a route processor card. The card cages of Cisco XR 12000 Series Routers differ in many ways. However, the process of installing and removing a route processor card are basically the same across the entire chassis line. Therefore, separate procedures and illustrations for each chassis are not included in this publication.



Caution We recommend that you do not remove a PRP while the system is operating. Doing so causes the system to stop forwarding packets and might cause the system to cease network operation. If you are upgrading your router from a GRP to a PRP, you must first power down the router and then switch out the RP cards. We strongly recommends that you avoid configuring your router using mixed RP cards. If RP redundancy is desired, you must install two PRPs.


Note You must remove the PRP-2 before you can install or remove the compact flash disk or the hard disk drive. See the "Additional Configuration and Maintenance Tasks" section for more information.


Removing a PRP

When you remove a PRP from a slot, be sure to use the ejector levers, which help to ensure that the PRP is fully dislodged from the backplane connector. A PRP that is only partially removed from the backplane can halt the system. (See Figure 8.)


Caution Before you replace the PRP, back up the running configuration to a TFTP server or a Flash disk so that you can retrieve it later. If the configuration is not saved, it will be lost and you will have to reenter the entire configuration manually. This procedure is not necessary if you are temporarily removing a PRP; lithium batteries will retain the configuration in memory until you replace the PRP in the system.

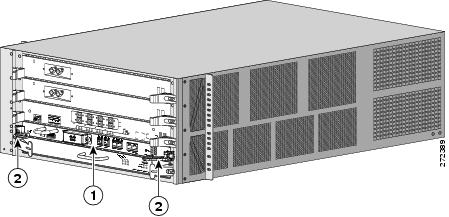

Figure 6 illustrates the PRP installed in a chassis.

Figure 6 Installed PRP (Cisco 12404 Shown)

1

PRP

2

Ejector Levers

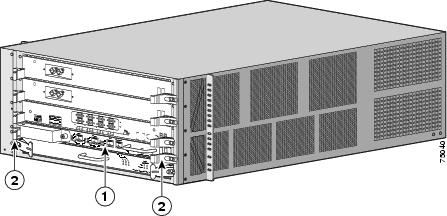

Figure 7 Installed PRP-3 (Cisco 12404 Shown)

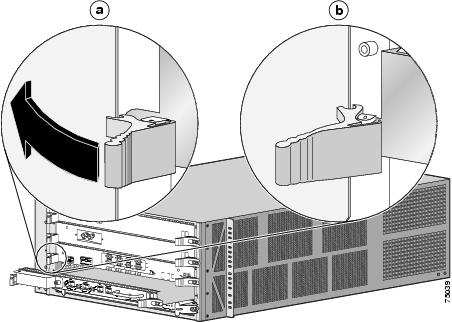

Figure 8 shows the ejector levers in detail.

Figure 8 Ejector Lever Detail (Cisco 12404 shown)

To remove a PRP, follow these steps:


Step 1 If you are replacing the PRP in a system with only one PRP, copy the currently running configuration file to a TFTP server or to a Flash disk so that you can retrieve it later.

Step 2 Turn off system power.

Step 3 Attach an ESD-preventive wrist strap and follow its instructions for use (refer to the Preventing Electrostatic Discharge section).

Step 4 If you are replacing a PRP, disconnect any devices that are attached to the Ethernet, console, or auxiliary ports. If you are removing a PRP for maintenance and will reinstall the same one, you can leave the devices attached, provided that doing so will not strain the cables.

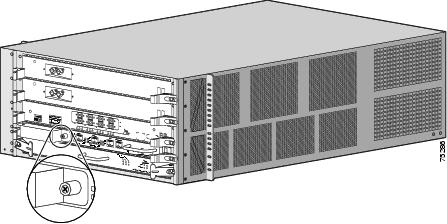

Step 5 Using a 3/16-inch flat-blade screwdriver, loosen the two captive screws on the ends of the PRP.

Step 6 Place your thumbs on the ends of each of the ejector levers and simultaneously pull them both away from the PRP faceplate (in the direction shown in Figure 8a) to release the PRP from the upper card cage slot and to dislodge the PRP edge connector from the backplane.

Step 7 Grasp the PRP faceplate handle with one hand and pull the PRP straight out of the slot, keeping your other hand under the PRP to guide it. Keep the PRP edge connector parallel to the backplane.


Caution Avoid touching the PRP printed circuit board, components, or any edge connector pins.

Step 8 Place the removed PRP on an antistatic mat or foam. If you plan to return the PRP to the factory, immediately place it in an antistatic bag to prevent ESD damage.


Installing Service Module Daughter Card on PRP-3

This section describes the procedure for installing PRP3-SMDC on PRP-3.


Step 1 Remove PRP3-SMDC unit from its protective packaging.

Step 2 Attach an ESD-preventive wrist strap and follow its instructions for use (refer to the Preventing Electrostatic Discharge section).

Step 3 Position PRP3-SMDC over PRP-3, by lining up the guiding brackets on PRP3-SMDC with standoffs on PRP-3 as shown in Figure 9.

Figure 9 Line-up Guiding Brackets on PRP3-SMDC with Standoffs on PRP-3

1

Guiding Brackets on PRP3-SMDC

2

Standoffs on PRP-3


Step 4 Carefully push PRP3-SMDC down, place your thumbs on the two connector areas shown in Figure 10 and apply force to firmly seat the guiding brackets through the standoffs.

Figure 10 Fixing PRP3-SMDC Board on PRP-3

Step 5 Install eight pan-head M3 screws (available with PRP3-SMDC package) by carefully and evenly tightening the screws as shown in Figure 11.


Caution Do not overtighten the screws or you could damage the equipment.

Figure 11 Install the screws on PRP3-SMDC board


Installing a PRP

When you install a PRP, be sure to use the ejector levers, which help to ensure that the PRP is fully inserted in the backplane connector. (See Figure 8) When you push the ejector levers simultaneously inward (toward the center of the PRP), the ejector levers push the PRP into the slot and ensure that the PRP backplane connector is fully seated in the backplane.


Caution A PRP that is only partially connected to the backplane can halt the system.

To install a PRP, follow these steps:


Step 1 Turn off system power.

Step 2 Attach an ESD-preventive wrist strap and follow its instructions for use (refer to the Preventing Electrostatic Discharge section).

Step 3 Grasp the PRP faceplate handle with one hand and place your other hand under the carrier to support and guide it into an upper card cage slot.


Caution Avoid touching the PRP printed circuit board, components, or any edge connector pins.

Step 4 Place the bus-connector edge of the PRP in the appropriate slot and align the notches along the edge of the carrier with the grooves at the top and bottom of the slot.

Step 5 While keeping the PRP edge connector parallel to the backplane, carefully slide the carrier into the slot until the PRP faceplate makes contact with the ejector levers, then stop.

Step 6 Using the thumb and forefinger of each hand to pinch each ejector lever, push both ejectors simultaneously toward the center of the PRP faceplate until they are perpendicular to the PRP faceplate. (See Figure 8b.)

Step 7 Using a 3/16-inch flat-blade screwdriver, tighten the captive screws on the ends of the PRP. The captive screws prevent the PRP from becoming partially dislodged from the backplane and ensure proper EMI shielding. (These captive screws must be tightened to meet EMI specifications.)

Step 8 If you disconnected cables to remove the PRP, or if you are installing a new PRP, reconnect the cables to the appropriate ports. (See the "Checking the Installation" section.)

Step 9 Ensure that the console terminal is turned on.

Step 10 Turn on system power.

Step 11 Attach the network end of your RJ-45 cable to your transceiver, switch, hub, repeater, DTE, or other external equipment. Be sure to use the appropriate strain relief on cable connections.


Checking the Installation

This section assists you in confirming that the PRP is installed successfully and includes the following sections:

PRP Boot Process

Starting the System and Observing Initial Conditions

Verifying Interface Status

PRP Boot Process

The following sequence describes a typical PRP boot process:

1. System power is turned on.

2. MBus module receives +5 VDC and starts executing MBus software.

3. PRP determines the system configuration by sending a message over the MBus requesting all installed devices to identify themselves. The return response provides slot number, and card and component type. The PRP, line cards, and clock scheduler cards (CSCs) are then powered up.

4. PRP power-on-reset logic delay, which allows power and both local and CSC clocks to stabilize.

5. After the power-on reset is released, the PRP begins to execute the ROM monitor software.

6. If the ROM monitor is configured to autoboot, it loads and boots the Cisco IOS software.

or

If the ROM monitor is not configured to autoboot, you must enter the appropriate b command at the ROM monitor prompt (Rommon>) to boot the Cisco IOS software.

7. When the Cisco IOS software boots, it polls all other cards in the system and powers them up, loading their Cisco IOS software as needed.

Starting the System and Observing Initial Conditions

This section describes the initial system startup processes and procedures.

To start your system, follow these steps:


Step 1 Turn on each installed power supply by turning its system power switch to the on (|) position.

For AC-input power supplies, the green AC OK LED should go on. For DC-input power supplies, the green input OK LED should go on. For both types of power supplies, the output fail LED should be off.

Step 2 Listen for the system blower modules or fan trays in the router; you should immediately hear them operating. In a noisy environment, place your hand in front of the exhaust vents to verify that the blower modules are operating.

Step 3 During the PRP boot process, observe the PRP alphanumeric display LEDs, which are located at one end of the PRP, near the ejector lever. (See Figure 12.)

The 4-digit displays show system messages and displays a sequence similar to that shown in Table 9.

Figure 12 PRP Alphanumeric Display LEDs (Vertical View)

1

Upper (or left if horizontal) LED Display

2

Lower (or right if horizontal) LED Display


Table 9 PRP Alphanumeric Display LED Sequences

LED Display
Description

MROM
nnnn

PRP microcode loads into MBus random-access memory (RAM); where nnnn is the microcode version. For example, Microcode Version 1.17 displays as 0117.1

RP
RDY

The ROMMON for this PRP is enabled and recognized by the system.

ACTV
RP

Cisco IOS is enabled and this PRP is the active PRP.

STBY
RP

Cisco IOS is enabled and this PRP is in standby mode.

1 The version of microcode running on your PRP might be different.

1 PRP-3 ALphanumeric LEDs

1 The following section discusses the alphanumeric LED messages and the console output displayed in sequence for a single PRP-3 and for dual PRP-3s. The alphanumeric LED messages help in identifying the state of the route processor and accordingly troubleshooting the problems faced.

1 Single PRP-3 Scenario

1 Table 10 displays the alphanumeric LED messages and the console output when the chassis is powered on or when the PRP-3 board is inserted into the slot.


Table 10 Single

LED Display
Description or Console Message

02A8/HW

OK/RIO

Immediately when the board is powered on.

OK/CPU

SENT/RPT

Displays "1.330GHz dual-core MPC8641D Rev 2.1, 532MHz MPXclk".

INIT/MEM

Displays "Discovering memory in slot DIMM1 ......................... Found 2GB DIMM

Discovering memory in slot DIMM2 ......................... Found 2GB DIMM"

TEST/MEM

Displays "Testing low memory ....................................... OK

Loading main ROMMON image ................................ OK

Verifying loaded image ................................... OK

Load succeeded; launching target ......................... OK"

LNCH/RMON

Displays "Cisco ROMMON System Bootstrap, Version 0.16.0 (bld1) DEVELOPMENT SOFTWARE

Compiled on 08/27/08 at 15:04:49 PDT [BLD-rommon]

Copyright (c) 1994-2008 by Cisco Systems, Inc.

MPC8641D platform with 4 GB of main memory"

RDY/RP

DISPLAYS "Loading disk0:c12k-os-mbi-3.8.0.15I/mbiprp-rp.vm (14809672 bytes)... !!!"

RUN/IOX

Displays "RP/0/2/CPU0:Sep 10 15:56:29.018: syslogd_helper: [84]: dsc_event_handler: Got SysMgr dSC

event : 1

RP/0/2/CPU0:Jan 1 00:00:04.809 : mbus-prp3[58]: mbus-prp3: mbus_platform_init() failed (0x6).

RP/0/2/CPU0:Sep 10 15:56:07.015 : dumper[53]: No HDD Controller found by process dumper

RP/0/2/CPU0:Sep 10 15:56:21.538 : sysmgr[85]: %OS-SYSMGR-5-NOTICE : Card is COLD started

RP/0/2/CPU0:Sep 10 15:56:22.622 : dsc[169]: Memory Sanity Check Enabled

RP/0/2/CPU0:Sep 10 15:56:29.007 : dsc[169]: %PLATFORM-DSC-3-ERR_I_AM_DSC : Setting myself as DSC

RP/0/2/CPU0:Sep 10 15:57:20.071 : sysldr[370]: %PLATFORM-POWERMGR-3-ROM_ERROR_STATUS :

Unable to get Mbus ROM status from SYSDB. Error ='sysdb' detected the 'warning' condition 'A SysDB client tried to access a nonexistent item or list an empty directory'

RP/0/2/CPU0:Sep 10 15:57:25.078 : sysldr[370]: % PLATFORM-SYSLDR-6-INFO : Waiting for startup config to be applied before booting LCs

Primary Clock is CSC_1 Fabric Clock is Redundant

Bandwidth Mode : Full Bandwidth"

RP/ACTV

When RP is up and running Cisco IOS XR software.


PRP-3 Alphanumeric Display LED—Chassis Is Powered ON or PRP-3 Board Inserted

Table 11 displays the alphanumeric LED messages and the console output when the chassis is loaded from ROMMON.

Table 11 Single PRP-3 Scenario — Chassis loaded from ROMMON

LED Display
Description or Console Message

INIT/NV

Displays the LED message during the initialization of the NVRAM infra code.

OK/RIO

Displays the LED message immediately when the board is powered ON.

OK/CPU

Displays "1.330GHz dual-core MPC8641D Rev 2.1, 532MHz MPXclk".

CONT...



Dual PRP-3 Scenario

If dual PRP-3s are installed and the chassis is powered on or a board is inserted, all the LED messages are same as for a single PRP-3, except for an LED message `1404/MRAM' that is displayed on the front panel when the console display is as follows:

Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706
Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0.15I
Copyright (c) 2008 by Cisco Systems, Inc.
RP/0/2/CPU0:Sep 10 16:34:19.351: syslogd_helper: [84]: dsc_event_handler: Got SysMgr dSC
event : 1

Tip The LED message "I404/MRAM" is displayed between RDY/RP and RUN/IOX alphanumeric messages.


Table 12 displays the LED alphanumeric messages on a standby PRP-3, if the current active PRP-3 is reloaded.

Table 12 Dual PRP-3 Scenario

LED Display
Description or Console Message

INIT/NV

Displays the LED message during the initialization of the NVRAM infra code.

02A8/HW

OK/RIO

LED message displayed immediately after the board is powered on.

OK/CPU

SENT/RPT

Displays "1.330GHz dual-core MPC8641D Rev 2.1, 532MHz MPXclk".

INIT/MEM

Displays "Discovering memory in slot DIMM1 ......................... Found 2GB DIMM

Discovering memory in slot DIMM2 ......................... Found 2GB DIMM"

TEST/MEM

Displays "Testing low memory ....................................... OK

Loading main ROMMON image ................................ OK

Verifying loaded image ................................... OK

Load succeeded; launching target ......................... OK"

LNCH/RMON

Displays "Cisco ROMMON System Bootstrap, Version 0.16.0 (bld1) DEVELOPMENT SOFTWARE

Compiled on 08/27/08 at 15:04:49 PDT [BLD-rommon]

Copyright (c) 1994-2008 by Cisco Systems, Inc.

MPC8641D platform with 4 GB of main memory"

RDY/RP

or

PWRD

DISPLAYS "Loading disk0:c12k-os-mbi-3.8.0.15I/mbiprp-rp.vm (14809672 bytes)... !!!"

Tip Instead of RDY/RP, sometimes PWRD is displayed in the normal booting process.

RUN/MBI

Displays "Copyright (c) 2008 by Cisco Systems, Inc.

Install (Node Preparation): Install device root is /disk0/

Install (Node Preparation): Using boot device sequence compactflash: from rommon

Install (Node Preparation): Trying device disk0:

Install (Node Preparation): Checking size of device disk0:

Install (Node Preparation): OK

Install (Node Preparation): Checking free space on disk0:

Install (Node Preparation): OK

Install (Node Preparation): Starting package and meta-data sync

Install (Node Preparation): Cleaning packages not in sync list

Install (Node Preparation): Complete

Install (Node Preparation): Syncing package/meta-data contents: /disk0/instdb/ldpath

Install (Node Preparation): Please Wait...

Install (Node Preparation): Completed syncing: /disk0/instdb/ldpath

Install (Node Preparation): Syncing package/meta-data

contents: /disk0/instdb/ldpath.committed

Install (Node Preparation): Please Wait...

Install (Node Preparation): Completed syncing: /disk0/instdb/ldpath.committed

Install (Node Preparation): Completed sync of all packages and meta-data."

RP/STBY

ios con0/2/CPU0 is in standby


Step 4 During the line card boot process, which occurs immediately after the PRP boots, observe the alphanumeric display LEDs on each line card.

The system attempts to boot identical line cards in parallel. Furthermore, the system boots line cards as soon as they are powered on and become available for a system boot. The physical location of the alphanumeric display LEDs on the line cards is the same as on the PRP, which is shown in Figure 12.

See the appropriate line card installation and configuration note for complete details on line card display LED sequences.

You must meet the following criteria to successfully boot the PRP:

Flash disk is installed in Flash disk slot 0

Flash disk contains a valid Cisco IOS software image

Software configuration register is set to 0x2102

The system automatically boots this Cisco IOS software image. The system then enters the setup facility, where you are prompted to perform a basic configuration of the system.

Otherwise, the system enters the ROM monitor and the appropriate prompt appears (Rommon>).

Step 5 If the ROM monitor prompt (Rommon>) appears, you must boot the Cisco IOS software image you want to use by entering the appropriate b command at the ROM monitor prompt:

b—Boots the default system software from onboard Flash memory
(if it is present in onboard Flash memory)

b filename [host]Boots the file filename from the server host using TFTP

b flash—Boots the first file in the Flash memory card in Flash card slot 0


Caution To prevent system problems, use the b flash command option carefully; otherwise, you might instruct the system to boot a non-Cisco IOS software image from Flash memory. This command is not used with Flash disks.

b slot0: filename—Boots the file filename from the Flash memory card in Flash card slot 0

b slot1: filename—Boots the file filename from the Flash memory card in Flash card slot 1

b flash disk0: filename—Boots the file filename from the Flash disk in Flash card slot 0

b flash disk1: filename—Boots the file filename from the Flash disk in Flash card slot 1


Caution The b flash disk0: and b flash disk1: commands are only used from the ROM monitor ( Rommon>) prompt if the system fails to load normally. Do not use these commands from the router ( Router>) prompt.

While the system boots, the console screen displays a script and system banner similar to the following:

Cisco Internetwork Operating System Software
IOS (tm) GS Software (PRP-P-MZ), Released Version 12.0(22)S
Copyright (c) 1986-2002 by cisco Systems, Inc.
Compiled Sat 10-May-02 06:02a



Step 6 Observe the system startup banner. When you start up an unconfigured system for the first time, the system automatically enters the setup facility, which determines which interfaces are installed and prompts you for configuration information for each one.

On the console screen, after the system displays the system banner and hardware configuration, the following System Configuration Dialog prompt appears:

         --- System Configuration Dialog ---


At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.


Continue with configuration dialog? [yes/no]:



Step 7 You can either proceed with the setup facility or exit from setup and use configuration commands to configure global (system-wide) and interface-specific parameters.


You do not have to configure the interfaces immediately; however, you cannot enable the interfaces or connect them to any networks until they are configured.

The interface-specific LEDs on line cards might not go on until after you configure the line card interfaces. To verify correct operation of each interface, complete the first-time setup procedures and configuration, then refer to the LED descriptions in the configuration notes for each line card to check the status of the interfaces.

Verifying Interface Status

The status LEDs on the PRP indicate system and PRP status, which Flash disk slot is active, which Ethernet connection is in use, and what is occurring on the Ethernet interface. This section provides functional descriptions of the status LEDs on the PRP-2 (Figure 13) and the processes you should observe.

Figure 13 PRP-2 LEDs (Partial Front Panel View)

The PRP-2 has the following LED indicators:

Two Flash disk activity LEDs, one for each Flash disk slot (labeled SLOT-0 and SLOT-1)—Identify which of the Flash disk slots is accessed.

Two Ethernet port LEDs used in conjunction with each of the three RJ-45 Ethernet connectors:

LINK—Indicates that link activity

DATA—Indicates that data transmission or reception

Two BITS port LEDs used in conjunction with each of the two BITS ports:

SIG—Indicates carrier signal available

ACT—Indicates that the interface is active

Figure 14 PRP-3 LEDs (Partial Front View)

The PRP-3 has the following LED indicators:

Two Ethernet port LEDs used in conjunction with each of the three RJ-45 Ethernet connectors:

LINK—Indicates link activity

DATA—Indicates data transmission or reception

Two BITS port LEDs used in conjunction with each of the two BITS ports:

SIG—Indicates carrier signal available

ACT—Indicates that the interface is active


Note The BITS feature is not supported in Release 3.8.0.


One auxiliary port (AUX) and one console port (CONSOLE) LED:

AUX—Used as a backup for the command outputs on the console.

CONSOLE—Used for configuring the router by connecting an RJ-45 cable to the console terminal. The router can be configured through the console terminal.

Upgrading to the PRP

This section details how to upgrade from the GRP to the PRP. The procedures described are the same whether you are upgrading to a PRP-1 or PRP-2.

Upgrading to the PRP Without Rebooting the Router

Upgrading to the PRP With Rebooting the Router

Differentiating Between PRP-1 and PRP-2

Upgrading from PRP-1 OR PRP-2 to PRP-3

Upgrading to the PRP Without Rebooting the Router

To upgrade to the PRP from the GRP without interruption of service, you must have support for High Availability in your router. This means that two GRPs must be installed in the router and the redundancy must be set to either SSO or RPR+ mode. To configure the redundancy, use the redundancy command in global configuration mode. To view the redundancy configuration on the RPs, use the show redundancy command.

To upgrade to the PRP using High Availability, use the following procedure:


Step 1 Verify that there are two GRPs in the router, both running the same Cisco IOS version, and that the router is configured for SSO or RPR+ redundancy. The show redundancy command indicates the redundancy mode as well as the Cisco IOS version running on the GRPs. Take note of the Cisco IOS version running on the GRPs (12.0(26)S in this example).

Router# show redundancy
Redundant System Information :
------------------------------
       Available system uptime = 1 day, 47 minutes
Switchovers system experienced = 0
              Standby failures = 0
        Last switchover reason = none


                 Hardware Mode = Duplex
    Configured Redundancy Mode = SSO
     Operating Redundancy Mode = SSO
              Maintenance Mode = Disabled
                Communications = Up


Current Processor Information :
-------------------------------
               Active Location = slot 3
        Current Software state = ACTIVE
       Uptime in current state = 1 day, 47 minutes
                 Image Version = Cisco Internetwork Operating System
Software
IOS (tm) GS Software (GSR-P-M), Version 12.0(26)S, EARLY DEPLOYMENT
RELEASE SOFTWARE (fc1)
TAC Support: http://www.cisco.com/tac
Copyright (c) 1986-2003 by cisco Systems, Inc.
Compiled Mon 25-Aug-03 10:44 by nmasa
                          BOOT =
                   CONFIG_FILE =
                       BOOTLDR =
        Configuration register = 0x2102


Peer Processor Information :
----------------------------
              Standby Location = slot 4
        Current Software state = STANDBY HOT
       Uptime in current state = 2 hours, 13 minutes
                 Image Version = Cisco Internetwork Operating System
Software
IOS (tm) GS Software (GSR-P-M), Version 12.0(26)S, EARLY DEPLOYMENT
RELEASE SOFTWARE (fc1)
TAC Support: http://www.cisco.com/tac
Copyright (c) 1986-2003 by cisco Systems, Inc.
Compiled Mon 25-Aug-03 10:44 by nmasa
                          BOOT =
                   CONFIG_FILE =
                       BOOTLDR =
        Configuration register = 0x2102



Step 2 Remove the Flash disk from the PRP card and install it into slot 1 of the active RP. The following message will be displayed; do not format the disk.

22:21:31: %PCMCIAFS-5-DIBERR: PCMCIA disk 1 is formatted from a different router or PC. A
format in this router is required before an image can be booted from this device



Note If your router is running an image prior to Cisco IOS Release 12.0(25)S2, you are advised to insert the Flash disk into slot 1 of the standby RP, and not the active RP.


Step 3 Verify the disk contents using the dir disk1: command (or the dir stby-disk1: command if the Flash disk is in the standby RP).

Router# dir disk1:
Directory of disk1:/


    1  -rw-    17329392   Dec 3 2003 11:44:46 +00:00  c12kprp-p-mz.120-27.S


63832064 bytes total (46465024 bytes free)



Step 4 If the Cisco IOS version is not the same as the one running on the GRPs, delete the image from the disk using the delete disk1: filename command (or the delete stby-disk1:filename command if the Flash disk is in the standby RP). If the image is correct, continue with Step 7.


Note Before you delete the image, verify that you have a copy of this image on another disk or at another location.


Step 5 Use the copy tftp: disk1: command to copy onto the Flash disk a PRP image that is the same as that currently running on the GRPs (in this example, 12.0(26)S). PRP images are titled c12kprp-<feature set>-<compression>.120-<release id>. You will receive an error that the PRP image is not executable on the GRP. When prompted to abort the copy, type n.

Use the copy tftp: stby-disk1: command if the Flash disk is in the standby RP.

Router# copy tftp: disk1:
Address or name of remote host [172.16.16.254]?
Source filename [c12kprp-boot-mz.120-26.S]? c12kprp-p-mz.120-26.S
Destination filename [c12kprp-p-mz.120-26.S]?
Accessing tftp://172.16.16.254/c12kprp-p-mz.120-26.S...
%Warning: File not a valid executable for this system
Abort Copy? [confirm] n



Step 6 To verify that the image has been copied correctly, verify the MD5 hash for the new image on disk1:. To do this, use the command verify /md5 disk1image-name. The resulting string should be compared against the MD5 hash value posted on the Software download page on Cisco.com.

Step 7 Place the Flash disk referred to in Step 5 back into the PRP Flash disk drive.

Step 8 Repeat Step 2 through Step 7 for the second PRP to be installed as standby.

Step 9 Remove any existing boot system commands from the running configuration by using the command no boot system. This will make the PRP boot from the image on the Flash disk.

Step 10 Remove the standby GRP from the router.

Step 11 Insert the PRP into the router in place of the standby GRP. The PRP will now begin to load the Cisco IOS image contained on the Flash disk. At this stage, even though a GRP and a PRP are in the chassis simultaneously, the router remains in SSO or RPR+ mode because the RPs are running the same image.


Note The PRP and GRP must both be running the same Cisco IOS version; otherwise, the redundancy will revert to RPR mode and there may be traffic disruption.


Step 12 Remove the active GRP. Because the router is configured for High Availability (SSO or RPR+ mode), the switchover to the PRP will take advantage of the High Availability feature and there will be minimum disruption in operation.

Step 13 Insert the standby PRP into the chassis, also with the same Cisco IOS image loaded onto its Flash disk. Now both PRPs will be up and running the same image that was originally running on the GRPs. At this point you can upgrade the Cisco IOS version on the PRPs to the version shipped with the cards.


Note You must have the same Cisco IOS image loaded on the Flash disks of the two PRPs. If different versions are loaded, the redundancy will revert to RPR and there may be traffic disruption.




Note If a GRP and PRP are running simultaneously in the router chassis and the PRP is active and the GRP standby, the router will revert to RPR redundancy mode. This is because the upgrade from GRP to PRP is supported with High Availability, but not the downgrade from PRP to GRP.


After you enter the configuration to load the new Cisco IOS software image, you must upgrade the RP ROM monitor. Follow the appropriate procedure, depending on which version of Cisco IOS software is currently running on the RP.

Upgrading the RP ROM Monitor Using Cisco IOS Release 12.0(24)S or Later

Upgrading the RP ROM Monitor Prior to Cisco IOS Release 12.0(24)S


Note The PRP-2 does not require an RP ROM monitor upgrade before Cisco IOS Software Release 12.0(30)S. If you attempt this upgrade on a PRP-2 using a prior software release, you will receive the following error message:
Error: Unknown Flash Device type!
GRP ROM monitor upgrade won't continue


Upgrading the RP ROM Monitor Using Cisco IOS Release 12.0(24)S or Later

New functionality was introduced in Cisco IOS Software Release 12.0(24)S that enables the secondary RP to have its ROM monitor image upgraded while in standby mode, and does not require a reboot of the router. In order for this to work, the router must already be running Cisco IOS Software Release 12.0(24)S or later.

In the following procedure, RP1 is initially the active RP and RP2 is the standby RP.


Step 1 After you enter the configuration to load the new Cisco IOS software image, reload the standby PRP (RP2) using the hw-module standby reload command.

Step 2 Once the standby RP (RP2) is available again, use the upgrade rom-monitor slot sec-rp-slot command. If the routine finds that an upgrade is necessary, the new code will begin to be loaded. When this command is completed, reload the RP2 using the hw-module standby reload command.

Step 3 Switch over from the active PRP (RP1) to the standby PRP (RP2) using the redundancy force-switchover command. Once RP2 becomes active, the line cards will be reloaded.

Step 4 Let the router return to full operation with Interior Gateway Protocol (IGP) and Exterior Gateway Protocol (EGP) peers established (this may take a considerable amount of time, depending on the size and complexity of the router configuration).

Step 5 Check the line card CPU utilization using the execute-on all show proc cpu | inc CPU command. If the CPU utilization has stabilized at the normal running level, proceed with the next step; otherwise, wait another five minutes and check again.

Step 6 Upgrade the Mbus-agent-rom using the upgrade mbus-agent-rom all command. Normal forwarding operation of the line cards will not be affected during the upgrade. The line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

MBus agent ROM upgrade failed on slot 7 (rc=5)
MBus agent ROM upgrade failed on slot 8 (rc=6)



Step 7 Use the show version command. If there is an error message at the bottom of the output indicating that a Fabric-downloader code upgrade is required, use the upgrade fabric-downloader all command. Normal forwarding operation of the line cards will not be affected during the upgrade. The line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

Fabric-downloader upgrade failed on slot 7 (rc=5)
Fabric-downloader upgrade failed on slot 8 (rc=6)



Step 8 Upgrade the ROM monitor image in RP1 using the upgrade rom-monitor slot sec-rp-slot command. If the routine finds that an upgrade is necessary, the new code will begin to be loaded. Once complete, reload the standby RP using the hw-module standby reload command.


Upgrading the RP ROM Monitor Prior to Cisco IOS Release 12.0(24)S

If your RPs are running a software image prior to Cisco IOS Release 12.0(24)S, you must use the following procedure to upgrade the RP ROM monitor, which requires a reboot of the router.

In the following procedure, RP1 is initially the active RP and RP2 is the standby RP.


Step 1 After you enter the configuration to load the new Cisco IOS software image, reload the standby PRP (RP2) using the hw-module standby reload command.

Step 2 Switch over from the active PRP (RP1) to the standby PRP (RP2) using the redundancy force-switchover command. Once RP2 becomes active, the line cards will be reloaded.

Step 3 As soon as the "Press RETURN to get started!" message appears on the console, enter enable mode and use the upgrade rom-monitor slot rp-slot command. If the routine finds that an upgrade is necessary, the new code will begin to be loaded. The router will reload once the ROM monitor upgrade has completed.

Step 4 RP1 will now be active. As soon as the "Press RETURN to get started!" message appears on the console, enter enable mode and use the upgrade rom-monitor slot rp-slot command. If the routine finds that an upgrade is necessary, the new code will begin to be loaded. The router will reload once the ROM monitor upgrade has completed.

Step 5 RP2 will be primary now. Let the router return to full operation with IGP and EGP peers established (this may take a considerable amount of time, depending on the size and complexity of the router configuration).

Step 6 Check the line card CPU utilization using the execute-on all show proc cpu | inc CPU command. If the CPU utilization has stabilized at the normal running level, proceed with the next step; otherwise, wait another five minutes and check again.

Step 7 Upgrade the Mbus-agent-rom using the upgrade mbus-agent-rom all command. Normal forwarding operation of the line cards will not be affected during the upgrade. The line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

MBus agent ROM upgrade failed on slot 7 (rc=5)
MBus agent ROM upgrade failed on slot 8 (rc=6)



Step 8 Use the show version command. If there is an error message at the bottom of the output indicating that a Fabric-downloader code upgrade is required, use the upgrade fabric-downloader all command. Normal forwarding operation of the line cards will not be affected during the upgrade. The line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

Fabric-downloader upgrade failed on slot 7 (rc=5)
Fabric-downloader upgrade failed on slot 8 (rc=6)



Upgrading to the PRP With Rebooting the Router

If for any reason you cannot use High Availability, you should use the following procedure to upgrade from a GRP to a PRP.


Step 1 Remove the Flash disk from the PRP card and install it into slot 1 of the active GRP. The following message will be displayed; do not format the disk.

22:21:31: %PCMCIAFS-5-DIBERR: PCMCIA disk 1 is formatted from a different router or PC. A
format in this router is required before an image can be booted from this device



Step 2 Verify the disk contents using the dir disk1: command.

Router# dir disk1:
Directory of disk1:/


    1  -rw-    17329392   Dec 3 2003 11:44:46 +00:00  c12kprp-p-mz.120-27.S


63832064 bytes total (46465024 bytes free)



Step 3 If the Cisco IOS version is not the one you need, delete the image from the disk using the delete disk1: filename command. If the image is correct, continue with Step 6.

Step 4 Use the copy tftp: disk1: command to copy onto the Flash disk the appropriate PRP image. PRP images are titled c12kprp-<feature set>-<compression>.120-<release id>. You will receive an error that the PRP image is not executable on the GRP. When prompted to abort the copy, type n.

Router# copy tftp: disk1:
Address or name of remote host [172.16.16.254]?
Source filename [c12kprp-boot-mz.120-26.4.S]? c12kprp-p-mz.120-26.4.S
Destination filename [c12kprp-p-mz.120-26.4.S]?
Accessing tftp://172.16.16.254/c12kprp-p-mz.120-26.4.S...
%Warning: File not a valid executable for this system
Abort Copy? [confirm] n



Step 5 To verify that the image has been copied correctly, verify the MD5 hash for the new image on disk1:. To do this, use the command verify /md5 disk1image-name. The resulting string should be compared against the MD5 hash value posted on the Software download page on Cisco.com.

Step 6 Remove any existing boot system commands from the running configuration by using the command no boot system.

Step 7 Make a note of the image name that is being used on the PRP. You can use the command dir disk1:.

Step 8 Set the boot system command to boot the new IOS image. Note that the reference will be against disk0:. This is deliberate. Use the command boot system flash disk0: PRP-image-name.

Step 9 Save the running configuration to disk1: by using the command copy running-config disk1: config-name. You can check the configuration by using the command more disk1: config-name.


Note Do not save the configuration on the GRP. In other words, do not type copy running-config startup-config or write memory. Not saving the configuration ensures that the GRP maintains its original configuration, which will enable you to reinstall the GRP in the future if necessary.


Step 10 Confirm that disk1 now contains the IOS image and configuration by using the command dir disk1:. The Cisco IOS image needs to be the first image on the disk.

Step 11 Turn off the router.

Step 12 Remove the GRP and insert the PRP in its place.

Step 13 Connect the Ethernet and console cables to the PRP.

Step 14 Remove the Flash disk from slot1: on the GRP and insert the Flash disk into slot0: on the PRP.

Step 15 Boot the router.

Step 16 The router will come up with no configuration and prompt you to enter the Initial Configuration menu. Abort the Initial Configuration options by entering no when prompted.

Step 17 Copy the configuration file which is stored on disk0: to the startup-configuration on the PRP by using the command copy disk0: config-name startup-config.


Note Do not copy the configuration file to the running configuration.


Step 18 Upgrade the Mbus-agent-rom by using the command upgrade mbus-agent-rom all. Line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

MBus agent ROM upgrade failed on slot 7 (rc=5)
MBus agent ROM upgrade failed on slot 8 (rc=6)



Step 19 Upgrade the fabric downloader by using the command upgrade fabric-downloader all. The line cards do not need to be reloaded. If any error messages are displayed (see following example), repeat this step before contacting Cisco TAC.

Fabric-downloader upgrade failed on slot 7 (rc=5)
Fabric-downloader upgrade failed on slot 8 (rc=6)



Step 20 Make a note of which slot the PRP is installed in the chassis. You can use the show gsr command to view this information. In the following example, the RP is located in slot 3.

Router# show gsr
Slot 0  type  = 3 Port Gigabit Ethernet
        state = IOS RUN   Line Card Enabled
Slot 3  type  = Route Processor
        state = ACTV RP   IOS Running  ACTIVE
Slot 17 type  = Clock Scheduler Card(6) OC-192
        state = Card Powered  PRIMARY CLOCK
Slot 18 type  = Switch Fabric Card(6) OC-192
        state = Card Powered
Slot 19 type  = Switch Fabric Card(6) OC-192
        state = Card Powered
Slot 20 type  = Switch Fabric Card(6) OC-192
        state = Card Powered
Slot 24 type  = Alarm Module(6)
        state = Card Powered
Slot 25 type  = Alarm Module(6)
        state = Card Powered
Slot 28 type  = Blower Module(6)
        state = Card Powered



Step 21 Use the command upgrade rom-monitor slot rp-slot.

Step 22 If the routine finds that an upgrade is necessary, the new code will be loaded. The router will reload once the rom-monitor upgrade has completed, without saving the running configuration.

If the rom-monitor upgrade was not required, you must now reload the router. If you are prompted to save the system configuration, answer no.

System configuration has been modified. Save? [yes/no]: no



Step 23 The router will now boot with the correct configuration as was previously running on the GRP. Perform any post-boot checks: verify that the line cards have booted, required interfaces are active, CEF is operational, IGP adjacencies have formed, and the BGP peerings are established.


Differentiating Between PRP-1 and PRP-2

You can use the software to determine whether you have installed a PRP-1 or a PRP-2. Use the command show diags prp-slot-number and examine the value in the HW config field. If the value is 0x10, the card is a PRP-2; if the value is 0x00, the card is a PRP-1. The following example is of a PRP-2 (Note bold text in output.):

Router# show diags 5


SLOT 5  (RP/LC 5 ): Performance Route Processor
  MAIN: type 96,  800-23469-01 rev ;7
        Deviation: 0
        HW config: 0x10    SW key: 00-00-00
  PCA:  73-8812-02 rev 80 ver 2
        Design Release 0.0  S/N SAD0734045M
  MBUS: Embedded Agent
        Test hist: 0x00    RMA#: 00-00-00    RMA hist: 0x00
  DIAG: Test count: 0x00000000    Test results: 0x00000000
  FRU:  Linecard/Module: FRU number not known
        Route Memory: MEM-PRP/LC-1024=
  MBUS Agent Software version 01.50 (RAM) (ROM version is 02.20)
  ROM Monitor version 17302099
  Primary clock is CSC 1  Board is analyzed
  Board State is IOS Running (ACTV  RP )
  Insertion time: 00:00:00 (00:31:03 ago)
  DRAM size: 1073741824 bytes



Note Field diagnostics cannot be run on the PRP-2 unless you are using software release 12.0(30)S or higher.



Note The show version command may display incorrect information for the PRP-2 card in software releases prior to Cisco IOS Software Release 12.0(30)S.


Upgrading from PRP-1 OR PRP-2 to PRP-3

The upgrade procedure from PRP-1 or PRP-2 to PRP-3 involves two scenarios. The following section discusses the upgrade procedure, based on whether Cisco IOS or Cisco IOS XR software is installed on PRP-1 or PRP-2.

Upgrading PRP-1 or PRP-2 with Cisco IOS XR to PRP-3

Upgrading GRP or PRP-1 or PRP-2 with Cisco IOS Software to PRP-3

Upgrading PRP-1 or PRP-2 with Cisco IOS XR to PRP-3

There are two approaches for upgrading PRP-1 or PRP-2 with Cisco IOS XR software to PRP-3:

Turboboot Approach

Pre-Staging Approach


Note Coexistence of PRP-2 and PRP-3 on a single Cisco XR 12000 Series Router is not supported in a production environment.


Turboboot Approach

You can upgrade PRP-1 or PRP-2 with Cisco IOS XR software installed to PRP-3 using route processor failover (RPFO). RPFO helps to minimize downtime and ensures service availability. To support RPFO the PRP-1 or PRP-2 must have Cisco IO S XR Software Release 3.8.0 or a later release, which supports PRP-3. To upgrade PRP-1 or PRP-2 with Cisco IOS XR software to PRP-3 execute the following steps:


Step 1 Remove the standby PRP-1 or PRP-2.

Step 2 Insert PRP-3 in the slot where standby PRP-2 has been removed.

Step 3 Turboboot PRP-3 with the Cisco IOS XR Software Release 3.8.0 or a later MBI (minimum boot image).

Step 4 After the standby PRP-3 is ready, perform a route processor fail over (RPFO) from PRP-1 or PRP-2 to PRP-3.

Step 5 Double check if the configuration is correct and traffic resumes.

Step 6 Remove the standby PRP-1 or PRP-2 from the chassis after PRP-3 becomes an active RP.

Step 7 Insert the secondary PRP-3 board in the chassis.

Step 8 Turboboot and make the PRP-3 the new standby RP.


Pre-Staging Approach

In a pre-staging approach the PRP-3 is loaded with the necessary Cisco IOS XR Software Release 3.8.0 software image, optional PIEs, and SMUs in a standalone chassis. After PRP-3 is in working condition, insert into PRP-2 chassis. To upgrade PRP-1 or PRP-2 with Cisco IOS XR software to PRP-3, perform the following steps:


Step 1 Turboboot PRP-3 in a standalone chassis.

Step 2 Install the necessary PIEs, SMUs on the PRP-3.

Step 3 Remove the standby PRP-2 from the working Cisco XR 12000 Series Router.

Step 4 Insert the PRP-3 in the slot from where the standby PRP-2 has been removed. PRP-3 will become the standby RP.

Step 5 Perform RP fail over from PRP-2 to PRP-3 after the RPs are synchronized. The PRP-3 becomes the active RP.

Step 6 Confirm all the configurations are correct and traffic resumes.

Step 7 Remove the standby PRP-2.

Step 8 Insert another PRP-3 to form RP redundancy.


Upgrading GRP or PRP-1 or PRP-2 with Cisco IOS Software to PRP-3

This section discusses upgrading GRP or PRP-1 or PRP-2 with Cisco IOS software installed to PRP-3. There are two approaches for upgrading PRP-1 or PRP-2 with Cisco IOS software to PRP-3:

Turboboot Approach

Pre-Staging Approach


Caution The upgrade procedure from Cisco IOS software to Cisco IOS XR software causes service interruption, because the route processor switchover is not supported while upgrading from Cisco IOS software to Cisco IOS XR software.

Turboboot Approach

The upgrade procedure for GRP or PRP-1 or PRP-2 with Cisco IOS software installed to PRP-3 is same as the basic PRP-3 turboboot upgrade procedure.


Caution The turboboot process causes system downtime.

To upgrade PRP-1 or PRP-2 with Cisco IOS software to PRP-3 execute the following steps:


Step 1 Save the Cisco IOS Software configuration to a secured local computer.

Step 2 Convert the Cisco IOS Software configuration to Cisco IOS XR software configuration using the URL http://sox.ecsforge.cisco.com/twiki/prod/bin/view/Sox/SoxTryOut

Step 3 Verify that the converted Cisco IOS XR software configuration has been successfully converted.

Step 4 Remove all the PRP-2 from the Cisco XR 12000 Series Router chassis.

Step 5 Insert the PRP-3 into the Cisco XR 12000 Series Router chassis.

Step 6 Turboboot the PRP-3 as indicated in section Turboboot Approach.

Step 7 After PRP-3 finishes loading Cisco IOS XR Software image, load the converted Cisco IOS XR Software configuration.

Step 8 Verify that all configurations are properly configured on PRP-3 and if the traffic has resumed.

Pre-Staging Approach

To upgrade PRP-1 or PRP-2 with Cisco IOS Software to PRP-3 execute the following steps:


Step 1 Save the Cisco IOS software configuration to a local computer.

Step 2 Convert the Cisco IOS software configuration to Cisco IOS XR software configuration using the web tool http://sox.ecsforge.cisco.com/twiki/prod/bin/view/Sox/SoxTryOut

Step 3 Double check the converted Cisco IOS XR software configuration and any missing configurations. Modify the interface configuration to be pre-configured.

Step 4 Insert PRP-3 into a standalone Cisco XR 12000 Series Router chassis.

Step 5 Turboboot PRP-3 as indicated in section Turboboot Approach.

Step 6 Load the converted Cisco IOS XR software pre-configuration on PRP-3.

Step 7 Remove the PRP-2 from the working chassis and insert the PRP-3.

Step 8 PRP-3 loads the Cisco IOS XR software image, recognizes LCs in the chassis, and loads the pre-configuration.

Step 9 Verify that all configurations are properly configured on PRP-3 and the traffic has been resumed.


Configuring Interfaces on the PRP

This section includes configuration and connection information for the Ethernet, console, and auxiliary interfaces on the PRP, and includes the following sections:

Configuring an Ethernet Interface

Configuring the Console Interface

Configuring the Auxiliary Interface

Configuring an Ethernet Interface

PRP Ethernet interface connection and configuration information is presented in the following sections:

Ethernet Interface Receptacles, Cables, and Pinouts

Ethernet Interface Cable Connection Procedure

Configuring the Ethernet Interfaces

Ethernet Interface Receptacles, Cables, and Pinouts

There are two RJ-45 Ethernet interface receptacles on the PRP and one RJ-45 Gigabit Ethernet interface receptacle on the PRP-2, providing media-dependent interface (MDI) Ethernet ports. These connections support IEEE 802.3 and IEEE 802.3u interfaces compliant with 10BASE-T and 100BASE-TX standards. The transmission speed of the Ethernet ports is auto-sensing by default and is user configurable.

Figure 15 shows a PRP RJ-45 receptacle and cable connectors. The RJ-45 connection does not require an external transceiver. The RJ-45 connection requires Category 5 unshielded twisted-pair (UTP) cables, which are not available from Cisco Systems, but are available from commercial cable vendors. Table 13 lists the pinout for the RJ-45 receptacle.

Figure 15 RJ-45 Receptacle and Plug (Horizontal Orientation)

1

RJ-45 receptacle

2

Category 5 UTP cable with plug



Warning The ports labeled Ethernet, 10BASE-T, Token Ring, Console, and AUX are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because the BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the telephone network voltage (TNV) circuits.

Table 13 RJ-45 Receptacle Pinout

Ethernet Port Pin
Signal
Description

1

TxD+

Transmit data +

2

TxD-

Transmit data -

3

RxD+

Receive data +

4

Termination Network

No connection

5

Termination Network

No connection

6

RxD-

Receive data -

7

Termination Network

No connection

8

Termination Network

No connection


Depending on your RJ-45 cabling requirements, use the cable pinouts shown in Figure 16 or Figure 17.

Figure 16 Straight-Through Cable Pinout (Connecting MDI Ethernet Port to MDI-X Wiring)

Figure 17 Crossover Cable Pinout (for Connecting Two PRPs)

Table 14 lists the cabling specifications for 100-Mbps transmission over unshielded twisted-pair (UTP) cables.


Note The transmission speed of the Ethernet ports is auto-sensing by default and is user configurable.


Table 14 Specifications and Connection Limits for 100-Mbps Transmission

Parameter
RJ-45

Cable specification

Category 51 UTP, 22 to 24 AWG2

Cable length (max)

Segment length (max)

328 feet (100 m) for 100BASE-TX

Network length (max)

656 feet (200 m)3 (with one repeater)

1 EIA/TIA-568 or EIA-TIA-568 TSB-36 compliant. Not supplied by Cisco.

2 AWG = American Wire Gauge. This gauge is specified by the EIA/TIA-568 standard.

3 This length is specifically between any two stations on a repeated segment.


Table 15 lists IEEE 802.3u physical characteristics for 100BASE-TX.

Table 15 IEEE 802.3u Physical Characteristics

Parameter
100BASE-TX

Data rate (Mbps)

100

Signaling method

Baseband

Maximum segment length

100 m between DTE1 and repeaters

Media

Category 5 UTP (for RJ-45)

Topology

Star/Hub

1 DTE = data terminal equipment.


Ethernet Interface Cable Connection Procedure

The RJ-45 receptacles on the PRP-1 provide two physical connection options for Ethernet interfaces and three physical connections on the PRP-2. RJ-45 cables are not available from Cisco Systems; they are available from commercial cable vendors. To connect cables to the PRP Ethernet interfaces (ports labeled ETH0, ETH1 and ETH2; see Figure 13), attach the Category 5 UTP cable directly to an RJ-45 receptacle on the PRP.

The Ethernet interfaces on the PRP are end-station devices, not repeaters; therefore, you must connect an Ethernet interface to a repeater or hub.


Note Only connect cables that comply with EIA/TIA-568 standards. (See Table 14 and Table 15 for cable recommendations and specifications.)



Caution The Ethernet ports are used primarily as Telnet ports into the Cisco XR 12000 Series Router and for booting or accessing Cisco IOS software images over a network to which an Ethernet port is directly connected. Cisco Express Forwarding (CEF) functions are switched off by default for security reasons. We strongly caution you to consider the security implications of switching on CEF routing functions on these ports.

Figure 18 shows an example of the functionality of an Ethernet port. In this example, you cannot access Network 2.0.0.0 via the Ethernet port (ETH0) on the PRP in Router A; you can only access the hosts and Router C, which are in Network 1.0.0.0. (See dotted arrows in Figure 18.)

To access Network 2.0.0.0 from Router A, you must use an interface port on one of your line cards (in this example, a Packet-over-SONET [POS] line card in Router A) to go through Router B, through Router C, and into Network 2.0.0.0. (See solid arrows in Figure 18.)

Figure 18 Using the Ethernet Port on the PRP

Configuring the Ethernet Interfaces

The IEEE 802.3 Ethernet interfaces, located on the PRP, allow connections to external Ethernet networks and are capable of data transmission rates of 10 Mbps and 100 Mbps. The transmission speed of the Ethernet ports is auto-sensing by default and is user configurable.


Caution An Ethernet port is used primarily as a Telnet port into the Cisco XR 12000 Series Router or for booting or accessing Cisco IOS software images over a network to which an Ethernet port is directly connected. Cisco Express Forwarding (CEF) functions are switched off by default for security reasons. Cisco strongly cautions you to consider the security implications of switching on CEF routing functions on these ports.

The following sections provide two methods for configuring the Ethernet interface:

Using Configuration Mode to Configure an Ethernet Interface

Using the Setup Command Facility to Configure an Ethernet Interface

Using Configuration Mode to Configure an Ethernet Interface

To perform a basic configuration of an Ethernet interface in configuration mode, follow these steps:


Step 1 At the privileged-level prompt, enter configuration mode and specify that the console terminal is the source of the configuration subcommands as follows:

Router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#



Step 2 At the configuration mode prompt, specify the Ethernet interface by entering the sub command interface, followed by the type (ethernet) and port (0) as follows:

Router(config)# interface ethernet 0
Router(config-if)#



Step 3 If IP routing is enabled on the system, you can assign an IP address and subnet mask to the interface with the ip address configuration sub command, as in the following example:

Router(config-int)# ip address 1.1.1.10 255.255.255.0



Step 4 Add any additional configuration subcommands required to enable or disable routing protocols (such as the no ip mroute-cache command) and to set other interface characteristics.

Step 5 Change the shutdown state to Up and enable the Ethernet interface as follows:

Router(config-int)# no shutdown



Step 6 After you include all the configuration subcommands necessary to complete the configuration, press Ctrl-Z to exit configuration mode.

Step 7 Write the new configuration to nonvolatile memory as follows:

Router# write memory
[OK]
Router#

Using the Setup Command Facility to Configure an Ethernet Interface

In the following example of an Ethernet configuration using the setup command facility, the Ethernet interface is configured using IP and Connectionless Network Service (CLNS). In this example, you should use IP, CLNS, and the default RJ-45 Ethernet connection.

Enter the setup facility using the setup command and respond to prompts as appropriate for your needs, using your own address and mask for the setup prompts.

(Additional displayed text omitted from this example.)


Configuring interface Ethernet0:
  Is this interface in use?: yes
  Configure IP on this interface?: yes
    IP address for this interface: 3.3.1.1
    Number of bits in subnet field: 8
    Class A network is 3.0.0.0, 8 subnet bits; mask is 255.255.0.0
Configure CLNS on this interface?: yes



Configuring the Console Interface

The system console port on the PRP is a DCE RJ-45 receptacle for connecting a data terminal, which you must configure. The console port is labeled Console, as shown in Figure 19. Before connecting the console port, check the documentation for your terminal to determine the baud rate of the terminal you plan to use.

The baud rate of the terminal must match the default baud rate (9600 baud). Set up the terminal as follows: 9600 baud, 8 data bits, no parity, and 2 stop bits (9600, 8N2). The console port requires a straight-through RJ-45 cable.

Figure 19 Console and Auxiliary Port Connections

1

Modem

4

Auxiliary port

2

Console terminal

5

Console port

3

RJ-45 Ethernet cables





Note The console and auxiliary ports are both asynchronous serial ports; any devices connected to these ports must be capable of asynchronous transmission. (Asynchronous is the most common type of serial device; for example, most modems are asynchronous devices.)


The console port on the PRP is a DCE RJ-45 receptacle. Table 16 lists the pinout for this port.

Table 16 Console Port Pinout

Console Port Pin
Signal
Input/Output
Description

11

2

DTR

Output

Data Terminal Ready

3

TxD

Output

Transmit Data

4

GND

Signal Ground

5

GND

Signal Ground

6

RxD

Input

Receive Data

7

DSR

Input

Data Set Ready

81

1 These pins are connected to each other.


Configuring the Auxiliary Interface

The auxiliary port on the PRP is a DTE, RJ-45 plug for connecting a modem or other DCE device (such as a CSU/DSU or another router) to the router. The port is labeled Aux, as shown in Figure 19. The asynchronous auxiliary port supports hardware flow control and modem control. Table 17 lists the pinout for this port.

Table 17 Auxiliary Port Pinout

Auxiliary Port Pin
Signal
Input/Output
Description

1

RTS

Output

Request To Send

2

DTR

Output

Data Terminal Ready

3

TxD

Output

Transmit Data

4

GND

Signal Ground

5

GND

Signal Ground

6

RxD

Input

Receive Data

7

DSR

Input

Data Set Ready

8

CTS

Input

Clear To Send


Configuring Interfaces on the PRP-3

This section includes configuration and connection information through the Ethernet, console, and through the terminal server on the PRP-3. The following sections describe three ways to connect to a DSC or DSDRSC:

Establishing a Connection Through the Console Port

Establishing a Connection Through a Terminal Server

Establishing a Connection Through the Management Ethernet Interface

Establishing a Connection Through the Console Port

To connect to the router through the console port, perform the following procedure.

SUMMARY STEPS

1. Identify the active RP or DRP.

2. Connect a terminal to the Console port of the active RP or DRP.

3. Start the terminal emulation program.

4. Press Enter.

5. Log in to the router.

DETAILED STEPS


Command or Action
Purpose

Step 1

Identify the active RP or DRP.

Identifies the RP or DRP to which you must connect in the next step.

This step is not required when the router hosts only one RP.

On a Cisco CRS-1 router, the active RP or DRP is identified by a lighted Primary LED on the RP front panel.

On a Cisco XR 12000 Series Router, the active RP is identified by the alphanumeric display: ACTV RP.

Step 2

Connect a terminal to the Console port of the active RP or DRP.

Establishes a communications path to the router.

During the initial setup, you can communicate with the router only through the Console port of the active RP.

The router Console port is designed for a serial cable connection to a terminal or a computer that is running a terminal emulation program.

The terminal settings are:

Bits per second: 9600/9600

Data bits: 8

Parity: None

Stop bit: 2

Flow control: None

Step 3

Start the terminal emulation program.

(Optional) Prepares a computer for router communications.

The step is not required if you are connecting through a terminal.

Terminals send keystrokes to and receive characters from another device. If you connect a computer to the Console port, you must use a terminal emulation program to communicate with the router. For instructions on using the terminal emulation program, see the documentation for that program.

Step 4

Press Enter.

Initiates communication with the router.

If no text or router prompt appears when you connect to the Console port, press Enter to initiate communications.

If no text appears when you press Enter and the router has been started recently, give the router more time to complete the initial boot procedure, then press Enter.

If the router has no configuration, the router displays the prompt: Enter root-system username:

If the router has been configured, the router displays the prompt: Username:

Step 5

Log in to the router.

Establishes your access rights for the router management session.

Enter your username and password, as described in the "Logging In to a Router or an SDR" section.

After you log in, the router displays the CLI prompt, which is described in the "CLI Prompt" section.

Establishing a Connection Through a Terminal Server

A terminal server connection provides a way to access the Console port from a remote location. It is less expensive to connect to the router through the Management Ethernet interface (because you do not have the additional cost of a terminal server). However, if you need to perform tasks that require Console port access from a remote location, a terminal server is the best connection method.

The procedure for connecting to the router through a terminal server is similar to the procedure for directly connecting through the Console port. For both connection types, the physical connection takes place through the Console port. The difference is that the terminal server connects directly to the Console port, and you must use a Telnet session to establish communications through the terminal server to the router.

To establish a connection through a terminal server, perform the following procedure:

SUMMARY STEPS

1. Install and configure the terminal server.

2. Connect the terminal server to the Console port of the target RP or DRP.

3. Power on the router.

4. Identify the target RP or DRP.

5. telnet access-server-address port

6. Press Enter.

7. Log in to the router.

DETAILED STEPS


Command or Action
Purpose

Step 1

Install and configure the terminal server.

Prepares the terminal server for communications with the router and with Telnet clients.

This step is usually preformed once.

For router access, users need the Telnet server IP address and port number for each RP they access.

For additional information on configuring terminal services, including terminal servers and templates, see the Cisco IOS XR System Management Configuration Guide.

Step 2

Connect the terminal server to the Console port of the target RP or DRP.

Establishes a communications path between the terminal server and the router.

During the initial router setup, you can communicate with the router only through the Console port of the primary RP.

The router Console port is designed for a serial cable connection to a terminal or terminal server.

The terminal settings are:

Bits per second: 9600/9600

Data bits: 8

Parity: None

Stop bit: 2

Flow control: None

To enable terminal server connections to the Console ports on multiple RPs and DRPs, install a cable between each Console port and the terminal server.

Step 3

Power on the router.

Starts the router.

This step is required only if the router power is not on.

Step 4

Identify the target RP or DRP.

Identifies the RP or DRP to which you connect in the next step.

This step is not required when the router hosts only one RP or DRP.

On a Cisco CRS-1 router, the active RP or DRP is identified by a lighted Primary LED on the RP front panel.

On a Cisco XR 12000 Series Router, the active RP is identified by the alphanumeric display: ACTV RP.

If you cannot look at the RPs, use a Management Ethernet interface connection to determine which RP is active, or establish terminal server connections to both RPs and then try both.

Step 5

telnet access-server-address port

Establishes a Telnet session with the terminal server.

Replace access-server-address with the IP address of the terminal server, and replace port with the terminal server port number that connects to the target RP Console port.

Step 6

Press Enter.

(Optional) Initiates communications with the RP or DRP.

If no text or router prompt appears when you start the Telnet session, press Enter to initiate communications.

If the router has no configuration, the router displays the prompt: Enter root-system username: Enter the root-system username and password when prompted.

If the router has been configured, the router displays the prompt: Username:

Step 7

Log in to the router.

Establishes your access rights for the router management session.

Enter a username and password when prompted.

Establishing a Connection Through the Management Ethernet Interface

The Management Ethernet interface allows you to manage the router using a network connection. Before you can use the Management Ethernet interface, the interface must be configured, as described in the "Configuring the Management Ethernet Interface" section.

Once configured, the network connection takes place between client software on a workstation computer and a server process within the router. The type of client software you use depends on the server process you want to use. The Cisco IOS XR software supports the following client and server services:

Telnet clients can connect to a Telnet server in the router. The Telnet server is disabled by default and can be enabled with the telnet ipv4 server or telnet ipv6 server command in global configuration mode.

Secure Shell (SSH) clients can connect to an SSH server in the router. The SSH server is disabled by default and can be enabled with the ssh server command in global configuration mode. The SSH server handles both Secure Shell Version 1 (SSHv1) and SSHv2 incoming client connections for both IPv4 and IPv6 address families.

To start a Telnet network connection, you start the Telnet client software with a command similar to the following:

telnet ManagementEthernetInterfaceIPaddress

For specific instructions on connecting to the router through a Telnet or SSH client, see the instructions for that software.

Ask your system administrator for the IP address of the Management Ethernet interface.

When the Telnet session is established, the router prompts you to log in, as described in the "Logging In to a Router or an SDR" section.

Logging In to a Router or an SDR

The login process can require users to enter a password or a username and password before accessing the router CLI. The user groups to which your username is assigned determine which commands you can use.

If you log in to a router with a single SDR configured (this is the default configuration), you can manage the entire router. If you log in to the owner SDR on a system with multiple SDRs, you can manage general features that apply to the entire system and the interfaces assigned to the owner SDR. If you log in to a named SDR, you can manage only that SDR.

When you log in, the username and password may be validated by any of the following services:

Usernames configured on the router (username command in global configuration mode)

Root-system usernames configured on the owner SDR

Passwords configured for the router console and auxiliary ports (password or secret command in line configuration mode)

A RADIUS server

A TACACS+ server

The username and password validation method that your router uses is determined by the router configuration. For information on configuring username and password validation methods, see the Cisco IOS XR System Security Configuration Guide. For information on which username and password to use, see your system administrator.

To log in to the router, enter your username and password when prompted. For example:

User Access Verification


Username: iosxr
Password: password
RP/0/RP0/CPU0:router#



Note Passwords are case sensitive. If you want to log in to an SDR using a root-system username from the owner SDR, enter the username in the following format: username@admin. To support admin login, local database authentication must be enabled with the aaa authentication login remote local command. For more information, see Cisco IOS XR System Security Configuration Guide.


After you log in, the router displays the CLI prompt, which is described in the "CLI Prompt" section. The command set that you can use is determined by the privileges assigned to your username. For information on how privileges are assigned to usernames, see the Cisco IOS XR System Security Configuration Guide.

CLI Prompt

After you log in, you see the CLI prompt for the Cisco IOS XR software. This prompt identifies the router or SDR to which you are issuing commands. The CLI prompt represents the path, through the router, to the CPU that executes the commands you enter. The syntax for the CLI prompt is: type/rack/slot/module: router-name#. The CLI prompt is described in Table 18.

Table 18 CLI Prompt Description

Prompt Syntax Components
Description

type

Type of interface or card with which you are communicating. For most user communication tasks, the type is "RP."

rack

Rack number. In a standalone router, the rack number is always "0." In a multishelf system, the range for LCC rack numbers is 0 to 255, and the range for FCC rack numbers is F0 to F7.

slot

Slot in which the RP or DRP is installed. In a Cisco CRS-1 router, the RP physical slot number is "RP0" or "RP1." In a Cisco XR 12000 Series Router, the physical slot number can be 0 to 15, and there can be multiple SDRs, each of which is represented by an RP.

module

Entity on a card that executes user commands or communicates with a port (interface). For executing commands from the EXEC prompt, the module is the "CPU0" of the RP. "CPU0" also controls the forwarding and operating system (OS) functions for the system. DRPs have two processors: CPU0 and CPU1.

router-name

Hostname of the router or SDR. The hostname is usually defined during initial configuration of the router.


For example, the following prompt indicates that the CLI commands are executed on the RP in rack 0, slot RP0, by the "CPU0" module on a router named "router:"

RP/0/RP0/CPU0:router#

Configuring the Management Ethernet Interface on PRP-3

The Management Ethernet interface on the PRP-3 is used to connect the router to a network for remote management using a Telnet client, the Craft Works Interface (CWI), the Simple Network Management Protocol (SNMP), or other management agents. The following sections provide information on the Management Ethernet interface:

Specifying the Management Ethernet Interface Name in CLI Commands

Displaying the Available Management Ethernet Interfaces

Configuring the Management Ethernet Interface

Specifying the Management Ethernet Interface Name in CLI Commands

Before you can configure the Management Ethernet interface, you must know the Management Ethernet interface name, which is defined using the following syntax: typerack/slot/module/port. Table 19 describes the Management Ethernet interface name syntax.

Table 19 Management Ethernet Interface Name Syntax Description

Syntax Components
Description

type

Interface type for a Management Ethernet port is "MgmtEth."

rack

Chassis number of the rack. In a single-shelf system, the rack is always "0." In a multishelf system, the LCC rack number range is 0 to 255.

slot

Physical slot of the RP or DRP on which the interface is located. For a Cisco XR 12000 Series Router, the PRPs may be installed in slots 0 through 15, depending on the router model.

module

On an RP, the module is "CPU0." DRPs have two processors, so the module is either "CPU0" and "CPU1."

port

On Cisco XR 12000 Series Routers, there are three Ethernet ports on PRP-2 cards. The Ethernet ports are labeled ETH 0, ETH 1, and ETH 2. For the ETH 0 port, specify 0, for the ETH 1 port, specify 1, and for the ETH 2 port, specify 2.


Table 20 provides examples of Management Ethernet interface names for a single-shelf system.

Table 20 Management Ethernet Interface Names for Single-Shelf Systems

Management Interface
Interface Name
Example

Cisco XR 12000 Series Router PRP-3 in slot 0, port ETH0

MgmtEth0/0/CPU0/0

router(config)# interface MgmtEth0/0/CPU0/0

Cisco XR 12000 Series Router PRP-3 in slot 0, port ETH1

MgmtEth0/0/CPU0/1

router(config)# interface MgmtEth0/0/CPU0/1

Cisco XR 12000 Series Router PRP-3 in slot 1, port ETH0

MgmtEth0/1/CPU0/0

router(config)# interface MgmtEth0/1/CPU0/0

Cisco XR 12000 Series Router PRP-3 in slot 1, port ETH1

MgmtEth0/1/CPU0/1

router(config)# interface MgmtEth0/1/CPU0/1


Displaying the Available Management Ethernet Interfaces

To display the router interfaces, enter the show interfaces brief command in EXEC mode as follows:

RP/0/0/CPU0:router# show interfaces brief


               Intf        Intf         LineP              Encap  MTU       BW
               Name        State        State               Type (byte)   (Kbps)
--------------------------------------------------------------------------------
                Nu0           up           up               Null  1500   Unknown
       Mg0/0/CPU0/0           up           up               ARPA  1514    100000
       Mg0/0/CPU0/1   admin-down   admin-down               ARPA  1514     10000
          PO0/3/0/0   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/1   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/2   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/3   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/4   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/5   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/6   admin-down   admin-down               HDLC  4474    155520
          PO0/3/0/7   admin-down   admin-down               HDLC  4474    155520
.
.
.



The Management Ethernet interfaces are listed with the prefix Mg in the Intf Name column.

Configuring the Management Ethernet Interface

To use the Management Ethernet interface for system management and remote communication, you must configure an IP address and a subnet mask for the interface. If you want the interface to communicate with devices on other networks (such as remote management stations or TFTP servers), you need to configure a default route for the router.


Tip For information on additional configuration options for the Management Ethernet interface, see Cisco IOS XR Interface and Hardware Component Configuration Guide.


Prerequisites

To configure the Ethernet Management port for network communications, you must enter the interface network addresses and subnet mask. Consult your network administrator or system planner for this information.

SUMMARY STEPS

1. configure

2. interface MgmtEthrack/slot/CPU0/port

3. ipv4 address ipv4-address subnet-mask

4. no shutdown

5. exit

6. router static address-family ipv4 unicast 0.0.0.0/0 default-gateway

7. commit

8. end

9. show interfaces MgmtEthrack/slot/CPU0/port

DETAILED STEPS


Command or Action
Purpose

Step 1

configure

Example:
RP/0/RP0/CPU0:router# configure



Enters global configuration mode.

Step 2

interface MgmtEthrack/slot/CPU0/port

Example:
RP/0/RP0/CPU0:router(config)# interface
MgmtEth0/RP0/CPU0/0

Enters interface configuration mode and specifies the Management Ethernet interface of the primary RP.

The syntax is
interface typerack/slot/module/port:

The command parameters are described in Table 19.

Step 3

ipv4 address ipv4-address subnet-mask

Example:
RP/0/RP0/CPU0:router(config-if)# ipv4 address
10.1.1.1 255.0.0.0

Assigns an IP address and subnet mask to the interface.

Step 4

no shutdown

Example:
RP/0/RP0/CPU0:router(config-if)# no shutdown

Places the interface in an "up" state.

Step 5

exit

Exits the Management Ethernet interface configuration mode.

Step 6

router static address family ipv4 unicast 0.0.0.0/0 default-gateway

Example:

RP/0/RP0/CPU0:router (config)# router static address-family ipv4 unicast 0.0.0.0/0 12.25.0.1

Configures a default route to use for communications with devices on other networks.

Replace default-gateway with the IP address of the local gateway that can be used to reach other networks.

This default route applies to all interfaces. You might need to configure additional static routes to support your network. For more information on configuring static routes, see Cisco IOS XR Routing Configuration Guide.

Step 7

commit

Example:

RP/0/RP0/CPU0:router(config)# commit

Commits the target configuration to the running configuration.

Step 8

end

Example:

RP/0/RP0/CPU0:router(config)# end

Ends the configuration session and returns to EXEC mode.

Step 9

show interfaces MgmtEthrack/slot/CPU0/port

Example:

RP/0/RP0/CPU0:router# show interfaces MgmtEth0/RP0/CPU0/0

Displays the interface details to verify the settings.

Examples

In the following example, the Management Ethernet interface on the RP in slot RP1 is configured with an IP address:

RP/0/RP0/CPU0:router# configure
RP/0/RP0/CPU0:router(config)# interface MgmtEth0/RP1/CPU0/0
RP/0/RP0/CPU0:router(config-if)# ipv4 address 10.1.1.1 255.255.255.0
RP/0/RP0/CPU0:router(config-if)# no shutdown
RP/0/RP0/CPU0:router(config-if)# commit
RP/0/RP0/CPU0:router(config-if)# end
RP/0/RP0/CPU0:router#
RP/0/RP0/CPU0:router# show interfaces mgmtEth 0/RP0/CPU0/0


MgmtEth0/RP0/CPU0/0 is up, line protocol is up
  Hardware is Management Ethernet, address is 0011.93ef.e8ea (bia 0011.93ef.e8e)
  Description: Connected to Lab LAN
  Internet address is 10.1.1.1/24
  MTU 1514 bytes, BW 100000 Kbit
     reliability 255/255, txload Unknown, rxload Unknown
  Encapsulation ARPA,  loopback not set,
  ARP type ARPA, ARP timeout 04:00:00
  Last clearing of "show interface" counters never
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     375087 packets input, 22715308 bytes, 87 total input drops
     0 drops for unrecognized upper-level protocol
     Received 297320 broadcast packets, 0 multicast packets
              0 runts, 0 giants, 0 throttles, 0 parity
     48 input errors, 43 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     89311 packets output, 6176363 bytes, 0 total output drops
     Output 53 broadcast packets, 0 multicast packets
     0 output errors, 0 underruns, 0 applique, 0 resets
     0 output buffer failures, 0 output buffers swapped out
     0 carrier transitions

Related Documents

Related Topic
Document Title

Additional information about configuring management interfaces

Advanced Configuration and Modification of the Management Ethernet Interface on Cisco IOS XR Software module of Cisco IOS XR Interface and Hardware Component Configuration Guide


Additional Configuration and Maintenance Tasks

This section contains information on the following additional configuration, maintenance, and upgrade tasks:

Understanding the Cisco IOS Software Configuration Register

Understanding the Cisco IOS XR Software Configuration Register

Using Flash Disks in the PRP

Removing and Installing a Compact Flash Disk

Removing and Installing a Hard Disk Drive

Recovering a Lost Password For IOS

Recovering Password for IOS XR

Upgrading PRP Memory

Understanding the Cisco IOS Software Configuration Register

Configuring the software configuration register is described in the following sections:

Description of the Software Configuration Register

Boot Field Settings

Configuring the Software Configuration Register

Bits in the Software Configuration Register

Description of the Software Configuration Register

The software configuration register is a 16-bit register in NVRAM that you use to define specific system parameters. You can set or change the contents of this register to accomplish the following tasks:

Define the source for the default Cisco IOS software. You can specify any of the following:

Flash memory card inserted in PCMCIA slot 0

TFTP server on the network

Flash memory SIMM (NVRAM) on the RP

Boot image stored within the operating environment, which you access by using an appropriate form of the boot command entered at the ROM monitor prompt (rommon>)

Define a default boot filename.

Enable or disable the Break function.

Control broadcast addresses.

Set the console terminal baud rate.

Recover a lost password.

Force an automatic boot using a boot image.

When you first power on the router, a boot image called the RP ROM monitor is executed, resulting in the display of the ROM monitor prompt (Rommon>). At this prompt, you have access to a limited set of commands that enable you to set values in the software configuration register and to perform a number of other tasks.

The RP ROM monitor is loaded into the RP Flash ROM when the RP is manufactured. You can use it to boot the system from local Flash memory devices. The RP ROM monitor software can be upgraded in the field, if necessary.


Note All PRP-2 cards shipped prior to the release of Cisco IOS release 12.0(30)S are provided with a ROM monitor version installed at the factory. This ROM monitor version cannot be changed while using IOS images older than 12.0(30)S. When using software release 12.0(30)S or later, the ROM monitor software can be updated normally.

If you attempt to upgrade the ROM monitor software while running a release prior to 12.0(30)S, you will receive the following error message:
Unknown device (mfg id 0x01, dev id 0xA3
Error: Unknown Flash Device type!
GRP ROM monitor upgrade won't continue

If you are running a PRP-2 on a software release prior to 12.0(30)S and you receive an error message that you must upgrade the ROM monitor software, ignore this error message.


Read boot system commands from the configuration file stored in NVRAM.

Table 21 defines the bits in the software configuration register.

Table 21 Software Configuration Register Bit Meanings

Bit Number 1
Hexadecimal Value
Meaning/Function

00 to 03

0x0000 to 0x000F

Comprises the boot field for defining the source of a default Cisco IOS software image required to run the router (see Table 22)

06

0x0040

Causes system software to ignore the contents of NVRAM

07

0x0080

Enables the OEM2 bit

08

0x0100

Disables the Break function

09

0x0200

Uses a secondary bootstrap

10

0x0400

Broadcasts Internet Protocol (IP) with all zeros

11 and 12

0x0800 to 0x1000

Defines the console baud rate (the default setting is 9600 bps)

13

0x2000

Boots the default Flash memory software if the network boot fails

14

0x4000

Excludes network numbers from IP broadcasts

15

0x8000

Enables diagnostic messages and ignores the contents of NVRAM

1 The factory default value for the software configuration register is 0x0102. This value is a combination of binary bit 8 = 0x0100 and binary bits 00 through 03 = 0x0002.

2 OEM = original equipment manufacturer.



Note Valid software configuration register values may be combinations of settings, rather than the individual settings listed in Table 21. For example, the factory default value 0x0102 for the software configuration register is a composite of several settings.


Boot Field Settings

Bits 00 to 03 of the software configuration register are referred to as the boot field, which defines a source for booting the default Cisco IOS software image required to run the router. The value of the boot field is specified as a binary number, as described in Table 22.

Table 22 Definition of Bits in Boot Field of Software Configuration Register

Boot Field
Meaning

00

On power up, the system remains at the ROM monitor prompt (Rommon>), awaiting a user command to boot the system manually.

01

On power up, the system automatically boots the first system image found in the onboard Flash memory SIMM on the RP.

02 to 0F

If a valid boot system command is stored in the NVRAM configuration file, the router boots the Cisco IOS software image as directed by that value.

If no boot system command is present in the configuration file, the router forms a default boot filename and attempts to acquire that file from a network TFTP server. To compute the filename of this default image, the router starts with cisco and appends the octal equivalent of the boot field value, a hyphen, and the processor type (grp or prp). Table 23 lists the range of possible computed default filenames for booting over the network.

The router would use one of these filenames to boot a default system image stored on a network TFTP server. If the configuration file contains a valid boot system configuration command, the system uses these instructions to boot the system, rather than using the filename it computed from the software configuration register settings.

For this setting, it is assumed that the Ethernet port on the RP is configured and operational.

Note If a bootable Cisco IOS software image exists in a Flash memory card inserted in PCMCIA slot 0 or slot 1, the software configuration register boot field setting is overridden, and the system boots from the Cisco IOS software image in the Flash memory card, rather than from a network TFTP image.



Note Cisco 12000 Series Internet Routers are typically delivered from the factory with a mini-Cisco IOS software boot image in the boot flash and a flash card containing a suitable working Cisco IOS image. If you need a Cisco IOS upgrade, download the appropriate Cisco IOS image from Cisco.com.


Configuring the Software Configuration Register

To configure the software configuration register, follow these steps:


Command
Purpose

Step 1

Router> enable

Password: <password>

Enters privileged EXEC mode.

Step 2

Router# configure terminal

Enters global configuration mode.

Step 3

Router(config)# config-register 0xvalue

Sets the contents of the software configuration register, where value is a 4-bit hexadecimal number as described in Table 21.

Step 4

Router(config)# ctrl-Z

Exits global configuration mode.

Step 5

Router# show version

Displays the software configuration register value currently in
effect. This is the value that will be used the next time the router
reloads. The value is displayed on the last line of the display, as
in the following example:

Configuration register is 0x141 (will be 0x102 at next reload)

Step 6

Router# copy running-config startup-config

or

Router# write memory

Saves the software configuration register settings to NVRAM.

Step 7

Router# reload

Reboots the router. Configuration register changes take effect
only after the system reloads.

Bits in the Software Configuration Register

As described in the "Boot Field Settings" section, the boot field setting determines the source of the Cisco IOS software image that is used to boot the router. A detailed description of the bit values for the boot field and their associated action or filename is given in Table 23

Table 23 Default Boot Filenames

Action/Filename
Bit 3
Bit 2
Bit 1
Bit 0

Bootstrap mode

0

0

0

0

Default software

0

0

0

1

cisco2-grp or cisco2-prp

0

0

1

0

cisco3-grp or cisco3-prp

0

0

1

1

cisco4-grp or cisco4-prp

0

1

0

0

cisco5-grp or cisco5-prp

0

1

0

1

cisco6-grp or cisco6-prp

0

1

1

0

cisco7-grp or cisco7-prp

0

1

1

1

cisco10-grp or cisco10-prp

1

0

0

0

cisco11-grp or cisco11-prp

1

0

0

1

cisco12-grp or cisco12-prp

1

0

1

0

cisco13-grp or cisco13-prp

1

0

1

1

cisco14-grp or cisco14-prp

1

1

0

0

cisco15-grp or cisco15-prp

1

1

0

1

cisco16-grp or cisco16-prp

1

1

1

0

cisco17-grp or cisco17-prp

1

1

1

1


The remaining bits in the software configuration register are described following:

Bit 8 of the software configuration register controls the console Break key. Setting bit 8 causes the system to ignore the console Break key. This is the factory default. Conversely, clearing bit 8 causes the system to interpret a Break keystroke as a command to halt normal system operation and force the system into ROM monitor mode. Regardless of the setting of the Break enable bit in the software configuration register, pressing the Break key during approximately the first 5 seconds of booting causes a return to the ROM monitor.

Bit 9 is not used.

Bit 10 of the software configuration register controls the host portion of the IP broadcast address. Setting bit 10 causes the processor to use all zeros in the host portion of the IP broadcast address; clearing bit 10 (the factory default) causes the processor to use all ones. Bit 10 interacts with bit 14, which controls the network and subnet portions of the IP broadcast address.

Table 24 shows the combined effect of bits 10 and 14.

Table 24 Configuration Register Settings for Broadcast Address Destination

Bit 14
Bit 10
Address (<net> <host>)

Off

Off

<ones> <ones>

Off

On

<zeros> <zeros>

On

On

<net> <zeros>

On

Off

<net> <ones>


Bits 11 and 12 of the software configuration register determine the data transmission rate of the console terminal. Table 25 shows the bit settings for the four available data transmission rates. The factory-set default data transmission rate is 9600 bps.

Table 25 System Console Terminal Data Transmission Rate Settings

Bit 12
Bit 11
Data Transmission Rate (bps)

0

0

9600

0

1

4800

1

0

1200

1

1

2400


Bit 13 of the software configuration register determines the response of the system to a bootload failure. Setting bit 13 causes the system to load Cisco IOS software from Flash memory after five unsuccessful attempts to load a boot file from the network TFTP server. Clearing bit 13 causes the system to continue attempting to load a boot file from the network TFTP server indefinitely. Bit 13 in the software configuration register is set to 0 as the default at the factory.

Understanding the Cisco IOS XR Software Configuration Register

The Cisco IOS XR Software configuration register (config-register) is a 16-bit, user-configurable value that determines how the router functions during initialization. The configuration register can cause the router to boot normally from the default startup configuration, or to enter ROM monitor mode during a system reset. Typically, ROM monitor mode is used only for password recovery or for software maintenance that cannot be performed in Exec mode or global configuration mode.

The following sections describes how to change the configuration register settings from EXEC mode and from the ROM monitor mode:

Commonly Used Configuration Register Value Settings

Changing the Configuration Register Settings from EXEC Mode

Changing the Configuration Register Settings from ROM Monitor Mode

Commonly Used Configuration Register Value Settings

To change the configuration register setting from normal operating mode, enter the config-register value command. The most commonly used values are described in Table 26.

Table 26 Common config-register Settings

config-register Value
Description

0x0

The router enters ROM monitor (rommon1>) on the next system boot.

0x2

The router boots the Cisco IOS XR software and default configuration on the next system boot. After logging in, the user can access EXEC mode.

0x102

The router disables the break key.

0x42

The router enters the password recovery mode on the next system boot.



Note By default, the configuration register value is 0x2, which automatically boots the system to normal EXEC mode.


Changing the Configuration Register Settings from EXEC Mode

To change the configuration register setting from normal operating mode, enter the config-register value command.


Note To display the current configuration register setting, enter the show variables boot command in EXEC mode.


Perform the following procedure in the order shown to restart the Router in ROM monitor mode:

SUMMARY STEPS

1. Connect a terminal to the primary RP console port and log in to the router.

2. configure

3. config-register value

4. commit

5. no config-register 0x0

6. commit

7. end

8. reload

DETAILED STEPS


Command or Action
Purpose

Step 1

Connect a terminal to the primary RP console port and log in to the router.

Connects a terminal or PC to the primary RP console port and logs in to the router

Step 2

configure

Example:
Router# configure

Enters global configuration mode.

Step 3

config-register value

Example:
Router(config)# config-register 0x0

Sets the configuration register to the assigned value in the running configuration.

See the Commonly Used Configuration Register Value Settings section for more information.

Changes take effect when you reload the router.


Caution Resetting the configuration register may change the baud rate for the console.

Step 4

commit

Example:
Router(config)# commit

Saves the changes to the running configuration.


Caution You must commit the setting and enter the no config-register 0x0 command for the settings to take effect.

Step 5

no config register 0x0

Example:
Router(config)# no config regsiter 0x0

Prevents unwanted changes to the configuration register at a later point, and guarantees the setting is the same between the Cisco IOS XR software and the ROM monitor.

Step 6

commit

Example:
Router(config)# commit

Saves the changes to the running configuration.

Step 7

end


Example:
Router(config)# end

Exits global configuration mode.

Step 8

reload


Example:
Router# reload

Reloads the system for the changes to take effect.


Examples

The following example sets the configuration register so that the router will restart in ROM monitor mode:

Router# configure

Router(config)# config-register 0x0

Router(config)# commit

Router(config)# no config-register 0x0

Router(config)# commit

Router(config)# end

Router# reload

Changing the Configuration Register Settings from ROM Monitor Mode

When the router is in ROM monitor mode, you can change the configuration register by entering the value manually, or by allowing the ROM monitor to prompt you for the setting. This section describes how to manually enter the configuration register setting.

To manually change the configuration register setting in ROM monitor mode, enter the confreg command followed by the new value.

SUMMARY STEPS

1. confreg value

2. reset

DETAILED STEPS


Command or Action
Purpose

Step 1

confreg value

Example:
rommon1> confreg 0x2

Sets the configuration register to the assigned value.

See the Commonly Used Configuration Register Value Settings section for more information.


Caution Resetting the configuration register may change the baud rate for the console.

Step 2

reset


Example:

rommon1> reset

Reloads the system for the changes to take effect.


Examples

The following examples sets the configuration register to load the Cisco IOS XR software and restart in Exec mode:

rommon1> confreg 0x2


You must reset or power cycle for new config to take effect.
rommon1> reset

Using Flash Disks in the PRP

Procedures for using Flash disks in the PRP are presented in the following sections:

About Flash Disks

Removing and Installing a Flash Disk in the PRP

Graceful OIR Procedure for Flash Disk

Working with Flash Disks

About Flash Disks

ATA Flash disks are similar to linear Flash memory cards. Flash disks combine Flash memory technology with a controller chip to achieve higher capacity and better performance than linear Flash memory cards. The controller circuitry allows Flash disks to emulate hard disk capabilities, such as automatically mapping out bad blocks and block erasure. Flash disks also provide the capability to allocate noncontiguous sectors, eliminating the need for the squeeze command that is required for space retrieval on linear Flash memory cards.

Flash disks look similar to older Cisco 20-MB linear Flash memory cards. You can install a flash disk into either flash card slot on the PRP. Table 27 lists the Cisco product numbers for the flash disks that are available for use with Cisco XR 12000 Series Routers.

Table 27 Supported Flash Disk Sizes and Product Numbers

Flash Disk Size
Product Number

64 MB

MEM-12KRP-FD64=

128 MB

MEM-12KRP-FD128=

255 MB

MEM-12KRP-FD256=

1 GB

MEM-12KRP-FD1G=


Removing and Installing a Flash Disk in the PRP

The PRP has two Flash disk slots into which you can install ATA Flash disks, linear Flash memory cards, or a combination of the two. Slot positions are labeled slot 0 and slot 1.

The following generic procedure can be used for a Flash disk in either slot position.

Removing a Flash Disk

To remove a Flash disk, follow these steps:


Step 1 Remove the Flash disk slot cover by loosening the captive screw shown in Figure 20.

Step 2 Depending on the type of PRP-2 insalled in the chassis, eject the flash disk using the applicable method from the following steps:

a. If ejector button is directly accessible, press the ejector button until the card is free of the connector at the back of the slot. (See Figure 21.)

OR

b. If you see a metallic flash disk cover, lift the cover along the spring hinge so that you can view both the flash disk slots.

c. If you see a metallic stopper preventing direct access to the button as in Figure 22, use a philips screw driver and press the flash disk beneath the metallic stopper to eject the card.

Step 3 Remove the card from the slot and place it in an antistatic bag to protect it.

Step 4 Replace the Flash disk slot cover.


Figure 20 Flash Disk Slot Cover Removal and Installation

Figure 21 PRP-2 with direct access to Ejector Button

Figure 22 PRP-2 with Metallic Stopper and Flash Disk Cover

Figure 23 PRP-3—Installing and Removing an External CompactFlash

Installing a Flash Disk

To install a flash disk, follow these steps:


Step 1 Remove the flash disk slot cover by loosening the captive screw shown in Figure 20.

Step 2 Facing the PRP front panel, hold the flash disk with the connector end of the card toward the slot and the label facing to your right. (See Figure 21.)


Note The Flash disk is keyed and cannot be seated the wrong way. The ejector button will not pop out if the card is not properly inserted.


Step 3 Insert the card into the appropriate slot until the card completely seats in the connector at the back of the slot and the ejector button pops out toward you.

Step 4 Replace the flash disk slot cover.



Caution The Flash disk does not insert all the way inside the PRP; a portion of the card remains outside of the slot. Do not attempt to force the card past this point.

Graceful OIR Procedure for Flash Disk

The flash disks in the PRP are very critical part of Cisco IOS XR system and are accessible anytime without operator's intervention. Flash disks contain the critical data including the boot image. To avoid any data corruption and the related side effects such as crash and abnormal system behavior, you need to remove the disk using a correct procedure.

To gracefully remove a flash disk from a running Cisco IOS XR system, follow these steps:


Note The minimum requirement before removal of the disk is visual inspection of the front panel LEDs below disk slots. Make sure the LEDs are not blinking or not solid ON before attempting removal of the disk.



Step 1 List the files and directories on disk1 using dir disk1: command.

RP/0/RP1/CPU0:akki# dir disk1:


Directory of disk1:


2           drwx  32768        Sat Jun 30 06:46:29 2007  LOST.DIR
65632   -rwx  9298550     Sat Jun 30 06:55:27 2007  c12k-mgbl.pie
3           dr-x  32768           Sat Jun 30 07:01:09 2007  bcm-cur


2054717440 bytes total (2045280256 bytes free)



Step 2 Unmount disk1 using unmount disk1: command.

RP/0/RP1/CPU0:akki# unmount disk1:


Device /disk1: is now unmounted and is safe to remove.
RP/0/RP1/CPU0:akki#



Step 3 Again, list the files and directories on disk1 using dir disk1: command.

RP/0/RP1/CPU0:akki# dir disk1:
%Error: No such file or directory
RP/0/RP1/CPU0:akki#


Now you can remove disk1: from the router.



Step 4 The disk is now safe to remove from the router.

Working with Flash Disks

A Flash disk contains the Cisco IOS software image you need to boot your router. In some cases, you might need to insert a new Flash disk and copy images or backup configuration files onto it. Before you can use a new Flash disk, you must format it.

When using Cisco IOS commands, there is one major difference between using Flash disks and linear Flash memory cards: When using a linear Flash memory card, the Cisco IOS command to identify and access the card is slot0: or slot1:, depending on the card slot in use. When using a Flash disk, those commands are replaced with disk0: or disk1:. Other specific Flash disk information is found in the remainder of this section.


Note This publication does not cover all Cisco IOS Flash card commands. For complete Flash card command descriptions and configuration information, refer to the Cisco IOS Configuration Fundamentals Command Reference and to the Cisco IOS Configuration Fundamentals Configuration Guide.


Booting from a Flash Disk

This section describes the commands used to boot from a Flash disk. Flash disks are accessed using disk0: or disk1:, depending on the card slot location, instead of slot0: or slot1:, which is used with linear Flash memory cards.


Note A boot image that supports the ATA Flash disk file system must reside in bootflash.


To enable booting from a Flash disk, set the register bits to 0x2102 and add the boot system command, as follows:

Router# configure terminal
Enter configuration commands, one per line. End with CTRL-Z.
Router(config)# config-reg 0x2102
Router(config)# boot system disk0:c12kprp-p-mz.120-22.S
Router(config)# ^Z
Router# copy running-config startup-config



The boot system command may require a file name when applied to a Flash disk. The format is described in Table 28.

Table 28 Boot System Command Format

Router(config)# boot system disk0:filename1

Boots the named file from the Flash disk in slot 0.

Router(config)# boot system disk1:filename1

Boots the named file from the Flash disk in slot 1.

1 Entering a filename is optional. If a filename is not specified, the system attempts to boot the first file located on the
Flash disk.


Removing and Installing a Compact Flash Disk


Note You must remove the PRP-2 before you can remove or install a compact flash disk. The internal compact flash disk is only supported on the PRP-2.


To remove a compact flash disk (CF) from the PRP-2 board, follow these steps:


Step 1 Loosen the screw fastening the retaining bracket for the CF. (See Figure 24.)

Step 2 Lift the end of the retaining bracket out of the hole that holds it in place flush with the CF, and swivel it around until it is not in the way of removing the CF. (See Figure 24.)

Step 3 Press lightly on the CF and push it out of its socket in the direction of the retaining bracket. (See Figure 24.)

Figure 24 Removing the CF from the PRP-2 Board

Step 4 Once the CF is released from the socket, pull it completely out of the board.

Step 5 If you are not inserting another CF into the socket on the board, replace the retaining bracket by swivelling it back around until the end rests in the hole on the PRP-2 board and fastening the screw into the board.


To install a CF into the PRP-2 board, follow these steps:


Step 1 Loosen the screw fastening the retaining bracket for the CF.

Step 2 Lift the end of the retaining bracket out of the hole that holds it in place flush with the CF socket, and swivel it around until it is not in the way of installing the CF.

Step 3 Guide the CF into the socket with the side with the connectors going into the socket.

Step 4 Push the CF until it snaps into place in the socket.

Step 5 Swivel the retaining bracket back into place with the end of the bracket resting in the hole on the PRP-2 board.

Step 6 Fasten the screw on the retaining bracket.



Note The PRP-3 has an external compact flash disk. To install a CF into the PRP-3 board, make sure you hold the CF straight and push it carefully into the slot so that it does not stuck into the slot.


Removing and Installing a Hard Disk Drive


Note You must remove the PRP-3 or PRP-2 before you can remove or install a hard disk drive. The hard disk drive is only supported on the PRP-2.


To remove a hard disk drive (HDD) from the PRP-3 or PRP-2 board, follow these steps:


Step 1 Loosen the four screws fastening the HDD to the board. The screws will pop out of place when they are completely loosened.

Step 2 Pull the HDD straight up off the board.


To install an HDD onto the PRP-3 or PRP-2 board, follow these steps:


Step 1 Position the HDD over the four screw receptors on the PRP-3 or PRP-2 board so that the two silver guide pins on the board fit into the two associated holes on the HDD (next to two of the screws) and the arrow printed on the top of the HDD points toward the faceplate of the card. See Figure 25.

Figure 25 Installing the Hard Disk Drive

Figure 26 PRP-3—Installing and Removing a Hard Drive

1

Screw receptor on a PRP-3 or PRP-2 board

2

Guide pin on PRP-3 or PRP-2 board

3

Screw to fasten HDD to PRP-3 or PRP-2 board


Step 2 Tighten all four of the screws on the HDD into the PRP-3 or PRP-2 board.


Recovering a Lost Password For IOS

This section provides information on how to recover a lost password.

The following overview describes this process:

1. Use the show version command to note the existing software configuration register value.

2. Break to the bootstrap program prompt.

3. Change the configuration register to ignore NVRAM.


Note A key to recovering a lost password is to set the configuration register so that the contents of NVRAM are ignored (0x0040), allowing you to see your password.


4. Enter privileged level in the system EXEC.

5. Use the show startup-config command to display the enable password.

6. Change the configuration register value back to its original setting.

To recover a lost password, follow these steps:


Note If the enable password is encrypted, the following password recovery procedure will not work and you will have to reconfigure the system; you will not be able to reboot it. To reconfigure the system, use the displayed configuration, which is shown using the show startup-config EXEC command. (See Step 11.)



Step 1 Attach an ASCII terminal to the PRP console port.

Step 2 Configure the terminal to operate at 9600 bps, 8 data bits, no parity, 2 stop bits (or to the settings at which the console port is set).

Step 3 Enter the show version command to display the existing configuration register value. Note this value for later use.

Step 4 If Break is disabled, power cycle the router. (To power cycle, turn off power, wait 5 seconds, then turn it on again.) If Break is enabled on the router, press the Break key or send a break by holding down the Control key and pressing the right square bracket key (^]); then proceed to Step 5.

Step 5 Within 5 seconds of turning on the router, press the Break key. This action causes the terminal to display the bootstrap program prompt as follows:

Rommon 1>



Step 6 Set the configuration register to ignore the configuration file information as follows:

Rommon 1> confreg


	Configuration Summary
enabled are:
console baud: 9600
boot: image specified by the boot system command
	or default to: cisco2-PRP


do you wish to change the configuration? y/n [n]: y
enable "diagnostic mode"? y/n [n]:
enable "use net in IP bcast address"? y/n [n]:
enable "load rom after netbootfails"? y/n [n]:
enable "use all zero broadcast"? y/n [n]:
enable "break/abort has effect?" y/n [n]:
enable "ignore system config info?" [n]: y
change console baud rate? y/n [n]:
change boot characteristics? y/n [n]


	Configuration Summary
enabled are:
console baud: 9600
boot: image specified by the boot system command
	or default to: cisco2-PRP
Do you wish to change the configuration? y/n [n]


You must reset or power cycle for the new config to take effect



Step 7 Initialize the router by entering the i command as follows:

Rommon 1> i



The router power cycles, the configuration register is set to ignore the configuration file, and the router boots the boot system image and prompts you with the system configuration dialog as follows:

         --- System Configuration Dialog ---



Step 8 Enter no in response to the system configuration dialog prompts until the following system message is displayed:

Press RETURN to get started!



Step 9 Press Return.

After some interface information displays, the prompt appears as follows:

Router>



Step 10 Enter the enable command to enter enabled mode.

The prompt changes to the following:

Router#



Step 11 Enter the show start-up config EXEC command to display the enable password in the configuration file.

Step 12 Enter the configure terminal command at the EXEC prompt.

You are prompted as follows:

Router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#



Change the configuration register value back to its original value (noted from Step 3.)

Change it to a value of 0x0102 (factory default) using the config-register 0x value command.

Step 13 Press Ctrl-Z or type end to exit configuration mode.

Step 14 Reboot the router and enable it using the recovered password.


Recovering Password for IOS XR

If the root password is forgotten, it can be recovered only at the DSC. To recover the password at the DSC, set the configuration register to 0x42 on the active RP and reboot the router. When the router boots, a password recovery dialog appears. This dialog prompts you to reset the root-system username and password. After you save the new password, the configuration register automatically resets to the prior value (such as 0x102).

This chapter also includes instructions to bypass ksh authentication on a node.

This chapter contains the following sections:

Recovering the Root Password on Single-RP Routers

Recovering the Root Password on Redundant-RP Routers

Recovering the Root Password on Single-RP Routers

Use the following procedure to recover the router password from a router with a single RP.


Step 1 Place the router in ROM Monitor mode.

Step 2 Set the RP configuration register to 0x42 at the ROMMON prompt:

rommon 1 > confreg 0x42

Note The configuration register is not an environment variable like TURBOBOOT (which is described earlier in this chapter). Do not enter an equal sign when entering the confreg command.


Step 3 Reset or power cycle the router so that the new setting can take effect:

rommon 2 > reset



Step 4 Press Return at the prompt to enter the password recovery dialog. Then enter the new root-system username and password and save the configuration.

router con0/0/CPU0 is now available


Press RETURN to get started.




--- Administrative User Dialog ---




  Enter root-system username: user
  Enter secret:
  Enter secret again:
RP/0/0/CPU0:Jan 10 12:50:53.105 : exec[65652]: %MGBL-CONFIG-6-DB_COMMIT :
'Administration configuration committed by system'. Use 'show configuration commit changes
2000000009' to view the changes.
Use the 'admin' mode 'configure' command to modify this configuration.






User Access Verification


Username: user
Password:
RP/0/0/CPU0:router#



Recovering the Root Password on Redundant-RP Routers

Use the following procedure to recover the router password from a router with redundant RPs.


Step 1 Place both RPs in ROM Monitor mode.

Step 2 Set the configuration register of the standby RP to 0x0 so that the standby RP does not take control during the password recovery:

rommon 1> confreg 0x0

Note The configuration register is not an environment variable like TURBOBOOT (which is described earlier in this chapter). Do not enter an equal sign when entering the confreg command.


Step 3 Set the active RP configuration register to 0x42:

rommon 1 > confreg 0x42



Step 4 Reset or power cycle the router so that the new setting can take effect:

rommon 2 > reset



Step 5 Press Return at the prompt to enter the password recovery dialog. Then enter the new root-system username and password and save the configuration, as shown in the following example:

router con0/0/CPU0 is now available


Press RETURN to get started.






--- Administrative User Dialog ---




  Enter root-system username: user
  Enter secret:
  Enter secret again:
RP/0/0/CPU0:Jan 10 12:50:53.105 : exec[65652]: %MGBL-CONFIG-6-DB_COMMIT :
'Administration configuration committed by system'. Use 'show configuration commit changes
2000000009' to view the changes.
Use the 'admin' mode 'configure' command to modify this configuration.






User Access Verification


Username: user
Password:
RP/0/0/CPU0:router#



Step 6 Set the configuration register of the standby RP to 0x102:

rommon 1> confreg 0x102



Step 7 Reset the standby RP so that the new setting can take effect and the standby RP becomes operational:

rommon 2 > reset



Upgrading PRP Memory

This section provides the procedure for increasing the amount of SDRAM on a PRP by replacing up to two SDRAM DIMMs that reside on the PRP. The SDRAM DIMM sockets are U15 (bank 1) and U18 (bank 2). (See Figure 27.)

The default SDRAM configuration for PRP-2 is 1 GB DIMM in U15. If two memory modules of different size are installed, the larger DIMM must be installed in bank 1 (U15).


Note The DIMMs in Figure 27 and Figure 31 show a generic representation of the SDRAM DIMMs for your PRP. To be assured that you are using the correct DIMMs, refer to the specific part numbers for your SDRAM upgrade kit and to the Cisco part numbers on the DIMMs. (See Table 30.)


Figure 27 Locations of PRP Components and Memory

1

Backplane connector

6

Ethernet ports

2

Flash SIMM (Socket number P3)

7

Auxiliary port

3

SDRAM DIMMs
Bank 1 - Socket number U15
Bank 2 - Socket number U18

8

Console port

4

Ejector lever

9

Handle

5

Flash disk slots

10

Display LEDs


Before proceeding, ensure that you have the proper tools and ESD-prevention equipment available. To upgrade SDRAM, you will install DIMMs in one or two banks (U15 and U18). Table 30 list the various available configurations of SDRAM DIMMs, the number of DIMMs for each configuration, and the SDRAM banks they occupy. Note which banks you should use, given the combinations of available DIMM sizes and the maximum SDRAM you require.


Note Depending on the configuration of your router and the protocols and features your system is running, you might require more than the default SDRAM provided. Upgrade SDRAM based on your requirements and the information in Table 30.


Table 29


Table 30 Supported PRP-2 Route Memory Configurations

Total Route Memory
Cisco Product Number
DIMM Modules
SDRAM DIMM Sockets 1

1 GB2

MEM-PRP2-1G

1 1-GB DIMM

Bank 1 (U15)

2 GB

MEM-PRP2-1G

1 2-GB DIMM

Bank 1 (U15)

3 GB3

MEM-PRP2-3G

1 2-GB DIMM + 1 1-GB DIMM

Bank 1(U15) and Bank 2 (U18)4

4 GB

MEM-PRP2-4G

2 2-GB DIMMs

Bank 1 (U15) and Bank 2 (U18)

1 Bank 1 (U15) must be populated first.

2 One 1-GB DIMM is the default SDRAM configuration for PRP-2.

3 A PRP-2 in the Cisco XR 12000 Series Router does not support a single memory card of 3-GB but it supports a combination of 1 GB on one DIMM and 2 GB on other DIMM.

4 The larger DIMM must be placed in Bank 1 (U15).



Note If your system includes redundant PRPs, both PRPs should have the same memory size. Redundancy is not supported when using a GRP and a PRP in the same chassis. Cisco strongly recommends that you avoid configuring your router using mixed route processor cards. Refer to the Route Processor Redundancy Plus for the Cisco 12000 Series Internet Router publication for more information.


Figure 28 Supported PRP-3 Route Memory Configurations (Continued)

Table 31 Supported PRP-3 Route Memory Configurations

Total Route Memory
Cisco Product Number
DIMM Modules
SDRAM DIMM Sockets 1

4 GB

MEM-PRP3-4G=

2 2-GB DIMMs

Bank 1 (U8) and Bank 2 (U10)

8 GB

MEM-PRP3-8G=

2 4-GB DIMMs

Bank 1 (U8) and Bank 2 (U10)

1 Bank 1 (U15) must be populated first.



Caution Only memory approved by Cisco is supported. Both the DIMMs must be of the same size. Do not attempt to install other devices or DIMMs not approved by Cisco in the DIMM sockets. (See Table 29 and Table 30.)

Removing a DIMM

To remove a DIMM from a line card, follow these steps:


Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.

Step 2 Place the line card on an antistatic mat so that the faceplate is nearest to you.

Step 3 Locate the DIMM sockets on the line card.


Note Some line cards use DIMM sockets equipped with dual release levers, as shown in Figure 29; other line cards use DIMM sockets equipped with a single release lever, as shown in Figure 30. Both DIMM sockets operate in the same general way.


Figure 29 DIMM Socket with Dual Release Levers

Figure 30 DIMM Socket with Single Release Lever

Step 4 Use the socket release levers to eject the DIMM.

For a socket with dual release levers (see Figure 29), pull down both levers at the same time to eject the DIMM.

or

For a socket with a single release lever (see Figure 30), pull the lever to eject the DIMM.


Caution Handle the edges of the DIMM only. Do not touch the integrated circuit devices on the DIMM, the metal traces, or fingers, along the edge of the DIMM, or the pins in the DIMM socket.

Step 5 As one end of the DIMM is released, grasp the top corners of the DIMM with the thumb and forefinger of each hand and pull the DIMM completely out of its socket.

Step 6 Immediately place the DIMM in an antistatic bag to protect it from ESD damage.

Step 7 Repeat Step 4 through Step 6 for any remaining DIMMs that you want to remove.


Installing a DIMM

This section contains instructions for installing DIMM memory into a line card.


Note If you are upgrading packet memory, both DIMM sockets of a given pair (either the transmit buffer or the receive buffer) must be populated with a DIMM of the same type and size.


To install DIMMs in a line card, follow these steps:


Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.

Step 2 Place the line card on an antistatic mat so that the faceplate is nearest to you.


Caution To prevent router and memory problems, all DIMMs installed in the line card must be 3.3V devices.

Step 3 Remove the new DIMM from its protective antistatic bag.

Step 4 Grasp the edges of the DIMM only. Do not touch the integrated circuit devices on the DIMM, the metal traces, or fingers, along the edge of the DIMM, or the pins in the DIMM socket. (See Figure 31.)

Step 5 To position the DIMM for insertion, orient it at the same angle as the DIMM socket. The two notches (keys) on the bottom edge of the module ensure that the DIMM edge connector is registered properly in the socket. (See Figure 31.)

If necessary, rock the DIMM back and forth gently to align it in the socket.

Figure 31 Handling a DIMM


Caution When inserting DIMMs into a socket, apply firm, but not excessive, pressure. If you damage a DIMM socket, you must return the line card for repair.

Step 6 Gently insert the DIMM into the socket and push until the DIMM snaps into place and the release lever is flush against the side of the socket.

Step 7 Verify that the release lever is flush against the side of the socket. If it is not, the DIMM might not be seated properly. On a socket with dual release levers, both levers should be flush against the sides of the DIMM.

If the module appears misaligned, carefully remove it and reseat it, ensuring that the release lever is flush against the side of the DIMM socket.

Step 8 Repeat Step 3 through Step 7 to install any remaining DIMMs for your memory configuration.


Checking the DIMM Installation

After you install new DIMMs and replace the PRP in the router, the router reinitializes the PRP and detects the memory change as part of the reinitialization cycle. The time required for the router to initialize can vary with different router configurations and memory configurations.

If the PRP or the system does not reinitialize properly after you upgrade memory, or if the console terminal displays a checksum or memory error, verify the following:


Step 1 Check the packet memory DIMMs to verify that the type, size, and speed of the DIMMs are compatible with the PRP. DIMMs must operate at 60 ns or faster. The speed of the DIMM is printed along one of its edges.

Step 2 Ensure that the DIMMs are installed correctly on the PRP. Check the alignment of the DIMMs by looking at them across the horizontal plane of the card. The DIMMs should be aligned at the same angle and be fully inserted into their respective sockets. If a DIMM is not correctly aligned, remove it and reinsert it.

Step 3 Reinstall the PRP and perform another installation check.


If the router fails to restart properly after several attempts and you are unable to resolve the problem, access Cisco.com or contact your Cisco service representative for assistance. Before calling, however, make note of any console error messages, unusual LED states, or other router indications or behaviors that might help to resolve the problem.

Regulatory, Compliance, and Safety Information

This section includes regulatory, compliance, and safety information.

Translated Safety Warnings and Agency Approvals

Translated Safety Warnings and Agency Approvals

The complete list of translated safety warnings and agency approvals is available in the Regulatory Compliance and Safety Information for Cisco 12000 Series Internet Routers publication.
