Overview of Cisco Interface Cards for Cisco Access Routers

Table Of Contents

Overview of Cisco Interface Cards for Cisco Access Routers

Overview

Introduction to Cisco Interface Cards

Cisco Access Routers and Cisco Interface Cards

Interface Card Slot Locations and Numbering on Cisco Access Routers

Platform Slot Numbering and Limitations for Cisco Interface Cards

Cisco IOS Software Releases and Cisco Interface Cards

Cisco Network Modules Supporting Cisco Interface Cards

Cabling for Cisco Interface Cards

Platform Support for Cisco Interface Cards

Related Documents

Obtaining Documentation, Obtaining Support, and Security Guidelines


Overview of Cisco Interface Cards for Cisco Access Routers


Revised: 12/03/2011, OL-12796-03

Overview

This document provides an overview of Cisco interface cards used in Cisco access routers, and contains the following sections:

Introduction to Cisco Interface Cards

Cisco Access Routers and Cisco Interface Cards

Cisco IOS Software Releases and Cisco Interface Cards

Cisco Network Modules Supporting Cisco Interface Cards

Cabling for Cisco Interface Cards

Platform Support for Cisco Interface Cards

Related Documents

Installing Cisco Interface Cards in Cisco Access Routers

Obtaining Documentation, Obtaining Support, and Security Guidelines

Introduction to Cisco Interface Cards

Cisco interface cards are classified according to the technologies they support. For example, WAN interface cards (WICs) support WAN technologies, such as Gigabit Ethernet; and voice interface cards (VICs) support voice technologies. Voice/WAN interface cards (VWICs) can support voice, data, and voice and data applications, depending on the capabilities of the router in which the VWIC is installed. Enhanced High-speed WAN interface cards (EHWIC) provide expanded LAN and WAN capabilities, such as Gigabit Ethernet and Ethernet switching.


Note EHWICs are supported on Cisco 1861-E, Cisco 1900 series (modular), Cisco 2900 series, and Cisco 3900 series routers.


Cisco interface cards are available in the following two form factors to provide greater modularity and functionality for users:

Single-wide interface cards (see Figure 1)

Double-wide interface cards (see Figure 2)

Single-wide interface cards can be installed in interface card slots on supported Cisco access routers, in 1- or 2-slot network modules to be installed in network module slots on supported Cisco access routers, and in interface card slots on Cisco 1800 (modular) series, Cisco 2800 series, and Cisco 3800 series routers. Figure 1 shows a sample single-wide interface card.

Figure 1 Sample Single-Wide Interface Card

Double-wide interface cards can only be installed in interface card slots on Cisco 1900 series, Cisco 2800 series, Cisco 2900 series, Cisco 3800 series, and Cisco 3900 series routers. Figure 2 shows a sample double-wide interface card.

Figure 2 Sample Double-Wide Interface Card

Cisco Access Routers and Cisco Interface Cards

The Cisco interface cards described in this document are supported on the following Cisco routers:

Cisco 1800 series (modular), including the Cisco 1841 routers (see Figure 3)

Cisco 1900 series (modular), including the Cisco 1941 routers (see Figure 4)

Cisco 2800 series, including the Cisco 2801, Cisco 2811, Cisco 2821, and Cisco 2851 routers (see Figure 5 and Figure 6)

Cisco 2900 series, including the Cisco 2901, Cisco 2911, Cisco 2921, and Cisco 2951 routers (see Figure 7, Figure 8, and Figure 9)

Cisco 3700 series, including the Cisco 3725 and Cisco 3745 routers (see Figure 10 and Figure 11)

Cisco 3800 series, including the Cisco 3825 and Cisco 3845 routers (see Figure 10)

Cisco 3900 series, including the Cisco 3925 and Cisco 3945 routers (see Figure 11)

Cisco MWR 1941-DC routers (see Figure 12)

Cisco ICS 7750 routers

For information on these Cisco routers, see the hardware documentation described in the "Related Documents" section.


Note Certain Cisco interface cards are also supported on the Cisco ICS 7750. See Table 4 for more information.


Interface Card Slot Locations and Numbering on Cisco Access Routers

See Figure 3 through Figure 12 for interface card slot locations on sample Cisco access routers. See the hardware documentation for your router for detailed information on slot and interface numbering.

Figure 3 Interface Card Slot Locations on Cisco 1800 Series (Modular) Series Routers (Cisco 1841 Router Shown)

1

WIC, VWIC—data only, or HWIC slot 1

2

WIC, VWIC—data only, or HWIC slot 0


Figure 4 Interface Card Slot Locations on Cisco 1900 Series Routers

1

EHWIC, HWIC, WIC, VWIC1 , slot 0

2

EHWIC, HWIC, WIC, slot 1, 1 double-wide2 , or 1 single-wide

1 VWIC support is for data only.

2 The double-wide slot can accommodate a single wide EHWIC, HWIC, WIC, or VWIC (data only), on the left side of the slot.


Figure 5 Interface Card Slot Locations on Cisco 2801 Routers

1

WIC/VIC/VWIC/HWIC slot 3

4

VIC/VWIC (voice only) slot 0

2

WIC/VIC/VWIC slot 2

5

Interface card slot divider

3

WIC/VIC/VWIC/HWIC slot 1

6

Interface card slot divider



Note To install double-wide interface cards in Cisco 2801 routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.


Figure 6 Interface Card Slot Locations on Cisco 2800 Series Routers (Cisco 2851 Router Shown)

1

HWIC slot 3

4

HWIC slot 0

2

HWIC slot 1

5

EVM1 slot

3

HWIC slot 2

6

NME2 slot

1 EVM = Extension voice module

2 NME = Network module enhanced



Note To install double-wide interface cards in Cisco 2811, Cisco 2821, and Cisco 2851 routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.

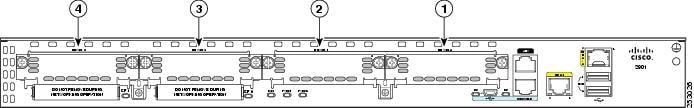

Figure 7 Interface Card Slot Locations on Cisco 2901

1

EHWIC 0

3

EHWIC 2

2

EHWIC 1

4

EHWIC 3



Note To install double-wide interface cards in Cisco 2901 routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.


Figure 8 Interface Card Slot Locations on Cisco 2911

1

EHWIC 0

4

EHWIC 3

2

EHWIC 1

5

Service module slot (SM)

3

EHWIC 2




Note To install double-wide interface cards in Cisco 2911, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.


Figure 9 Interface Card Slot Locations on Cisco 2921 and 2951

1

EHWIC 0

4

EHWIC 3

2

EHWIC 1

5

2951 SM

3

EHWIC 2

2921 SM



6

2951 SM

2921 blank panel



Note To install double-wide interface cards in Cisco 2951 routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.


Figure 10 Interface Card Slot Locations on Cisco 3800 Series Routers (Cisco 3825 Router Shown)

1

Network module slot 2 (extended double-wide)

4

HWIC slot 2

2

HWIC slot 2

5

HWIC slot 3

3

HWIC slot 1

6

Network module slot 1 (extended single-wide)



Note To install double-wide interface cards in Cisco 3800 series routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.


Figure 11 Interface Card Slot Locations on Cisco 3900 Series Routers

1

EHWIC 0

5

3945 SM1

2

EHWIC 1

6

3945 SM2, 3925 SM1

3

EHWIC 2

7

3945 SM3

4

EHWIC 3

8

3945 SM4, 3925 SM2



Note To install double-wide interface cards in the Cisco 3900 series  routers, remove the slot divider. When the slot dividers are removed, slot 0 and slot 1 become slot 1, and slot 2 and slot 3 become slot 3.



Note To install double-wide service modules in the Cisco 3900 series routers, remove the slot divider between slots SM3 and SM4 (3945), and remove the blank panel to the right of SM2 (3925).


Figure 12 Interface Card Slot Locations on Cisco MWR 1941-DC Routers

1

Network module slot

3

Interface card slot 0

2

Interface card slot 1

4

Interface card slot 2


Platform Slot Numbering and Limitations for Cisco Interface Cards

Certain platforms have restrictions on the number of total interface cards of a certain type that can be installed, and some slots do not support certain interface cards.

See Table 1 for information about the interface card slots available on Cisco access routers.

Table 1 Interface Card Slots Available on Cisco Access Routers

Cisco Router
Number of Slots
Slot Type
Slot Numbering
Installation Notes and Limitations

Cisco 1800 series

2

Single-wide

Slot 0, slot 1

Does not support VICs.

Does not support double-wide HWICs.

Supports VWICs for data applications only.

Cisco 1900 series

2

1 Single-wide

and

1 Double-wide1

Slot 0, slot 1

EHWIC, HWIC, WIC, or VWIC2 .

Cisco 2801 routers

4

Single-wide

Slot 0 through slot 3

Slot 0 supports only VICs and VWICs in voice mode only.

Slot 1 and slot 3 support HWICs.

Slot 0 and slot 2 do not support HWICs.

2

Double-wide

Slot 1, slot 3

Removing the slot divider changes slot numbering as follows:

Slot 0 and slot 1 become slot 1

Slot 2 and slot 3 become slot 3

Tip To install double-wide interface cards, remove the slot divider (see the "Installing Double-Wide Interface Cards" section in Installing Cisco Interface Cards in Cisco Access Routers).

Cisco 2811, Cisco 2821, and Cisco 2851 routers

4

Single-wide

Slot 0 through slot 3

2

Double-wide

Slot 1, slot 3

Removing the slot divider changes slot numbering as follows:

Slot 0 and slot 1 become slot 1

Slot 2 and slot 3 become slot 3

Tip To install double-wide interface cards, remove the slot divider (see the "Installing Double-Wide Interface Cards" section in Installing Cisco Interface Cards in Cisco Access Routers).

Cisco 2900 series

4

4 Single-wide

or

2 Double-wide

Slot 0 through 3

EHWIC, HWIC, VIC, and WICs

Removing the slot divider changes slot numbering as follows:

Slot 0 and slot 1 become slot 1

Slot 2 and slot 3 become slot 3

Tip To install double-wide interface cards, remove the slot divider (see the "Installing Double-Wide Interface Cards" section in Installing Cisco Interface Cards in Cisco Access Routers).

Cisco 3800 series

4

Single-wide

Slot 0 through slot 3

2

Double-wide

Slot 1, slot 3

Removing the slot divider changes slot numbering as follows:

Slot 0 and slot 1 become slot 1

Slot 2 and slot 3 become slot 3

Tip To install double-wide interface cards, remove the slot divider (see the "Installing Double-Wide Interface Cards" section in Installing Cisco Interface Cards in Cisco Access Routers).

Cisco 3900 series

4

4 Single-wide

or

2 Double-wide

Slot 0 through 3

EHWIC, HWIC, VIC, and WICs

Removing the slot divider changes slot numbering as follows:

Slot 0 and slot 1 become slot 1

Slot 2 and slot 3 become slot 3

Tip To install double-wide interface cards, remove the slot divider (see the "Installing Double-Wide Interface Cards" section in Installing Cisco Interface Cards in Cisco Access Routers).

Cisco ICS 7750

Routers do not support HWICs.

To install interface cards in the Cisco ICS 7750, use a MRP3 or ASI 814 card.

Tip See the "Processor Cards Feature Summary" chapter in Cisco ICS 7750 System Description for more information about these cards.

Cisco MWR 1941-DC routers

1

Single-wide

Slot 1 through slot 3

Routers do not support HWICs.

1 The double-wide slot can accommodate a single wide EHWIC, HWIC, WIC, or VWIC (data only), on the left side of the slot.

2 VWIC support is for data only.

3 MRP = multiroute processor.

4 ASI 81 = analog station interface 81.


Cisco IOS Software Releases and Cisco Interface Cards

Cisco interface cards are often supported on multiple Cisco IOS releases. Cisco IOS release information is documented in the product data sheet and in Feature Navigator II.

To determine which Cisco IOS releases support your particular router and combination of cards and modules, go to the Software Advisor at http://tools.cisco.com/Support/Fusion/.

You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Cisco Network Modules Supporting Cisco Interface Cards

Some Cisco network modules have interface card slots to allow installation of Cisco interface cards. These network modules have either one or two interface card slots, supporting either voice or data interface cards. See Figure 13 and Figure 14 for sample 1-slot and 2-slot network modules.


Note Some combination voice/data interface cards are supported on 1- or 2-slot network modules. However, interface card functionality is limited to either voice or data applications. See Table 1 for more information.


Figure 13 Sample 1-Slot Network Module

1

Interface card slot 0


Figure 14 Sample 2-Slot Network Module

1

Interface card slot 1

2

Interface card slot 0


For information on installing interface cards onto network modules, see Installing Cisco Interface Cards in Cisco Access Routers.

For more information about Cisco network modules, see Cisco Network Modules Hardware Installation Guide.

Cabling for Cisco Interface Cards

The cables required to connect the interface card to the network differ according to interface and connector type. See Table 2 for more information.


Note Cabling for 1- or 2-slot network modules is determined by the installed interface cards.



Note For network-end connectors and pinout specifications of the cables connecting the voice cards, see Cisco Modular Access Router Specifications.


Table 2 Cabling for Cisco Interface Cards

Technology
Connection Type
Connector Type, Cable Color
Cable
Use with
Analog Dialup

300 bps to 33.6 kbps analog dialup

RJ-11, pink

RJ-11 straight-through

WIC-1AM
WIC-2AM
WIC-1AM-V2
WIC-2AM-V2

Cable Modem

Cable

F

CATV coaxial

HWIC-CABLE-D-2
HWIC-CABLE-E/J-2

DSL

ADSL/VDSL

RJ-11C/CA11A, lavender

RJ-11 straight-through

WIC-1ADSL
WIC-1ADSL-DG
WIC-1ADSL-I-DG
HWIC-1ADSL
HWIC-1ADSLI
HWIC-1VDSL
EHWIC-VA-DSL-A
EHWIC-VA-DSL-B
EHWIC-VA-DSL-M

SHDSL

RJ-11C/CA11A, lavender

RJ-11 straight-through for 2-wire
RJ-14 straight-through for 4-wire

WIC-1SHDSL
WIC-1SHDSL-V2
WIC-1SHDSL-V3

RJ-11

RJ-11 straight-through

HWIC-2SHDSL

RJ-45

RJ-45 straight-through

HWIC-4SHDSL
HWIC-4SHDSL-E
EHWIC-4SHDSL-EA

Ethernet

Fast Ethernet, copper

RJ-45

100BASE-T Category 5 or above UTP

WIC-4ESW
HWIC-4ESW
HWIC-4ESW-POE
HWIC-D-9ESW
HWIC-D-9ESW-POE

Fast Ethernet, copper

RJ-45

For 10BASE-T operation, use Category 3, 4, or 5 UTP cable

For 100BASE-TX operation, use Category 5 UTP cable

HWIC-1FE
HWIC-2FE

Gigabit Ethernet, copper

RJ-45

1000BASE-T Category 5 or above UTP

EHWIC-4ESG
EHWIC-4ESG-P
EHWIC-D-8ESG
EHWIC-D-8ESG-P
HWIC-1GE-SFP (through SFP)

Gigabit Ethernet, optical

Note A single fiber link should not mix 62.5- and 50-micron cable.

LC, color according to optical wavelength

Optical fiber as specified on applicable data sheet

HWIC-1GE-SFP (through SFP)

ISDN Connections

BRI S/T
(external NT1)

RJ-48C

RJ-48C straight-through

WIC36-1B-S/T
WIC-1B-S/T
WIC-1B-S/T-V3
WIC-1B-S/T-LL

BRI S/T
(external NT1)

RJ-45

RJ-45 Straight-through

HWIC-ADSL-B/ST
HWIC-ADSLI-B/ST

BRI U
(built-in NT1)

RJ-49C/CA-A11, red

RJ-11; RJ-21 if using NM-HDA, straight-through

WIC36-1B-U
WIC-1B-U
WIC-1B-U-V2

56/64 kbps DSU/CSU

8-pin modular, blue

RJ-48S straight-through

WIC-1DSU-56K4

T1/fractional T1 DSU/CSU

RJ-48C

RJ-48C straight-through

WIC-1DSU-T1
WIC-1DSU-T1-V2

Serial Connections

Synchronous serial

60-pin D, blue

Serial transition cable (EIA/TIA-232, EIA/TIA-449, EIA/TIA-530 DTE, V.35, X.21, NRZ/NRZI)

WIC-1T

Serial

26-pin Cisco Smart serial

Cisco Smart serial interface cable (see Table 3)

HWIC-4A/S
HWIC-4T
WIC-2A/S
WIC-2T

68-pin

Cisco 4-port RS-232 DCE or DTE cable assembly (two cable assemblies are required for each HWIC-8A/S-RS232)

HWIC-8A/S-RS232

Cisco 8-port RS-232 DTE cable assembly (two cable assemblies are required for each HWIC-16A)

HWIC-8A
HWIC-16A

Voice Connections

Digital voice, T1/E1

RJ-48C/CA81A, tan

RJ-48C straight-through

VIC-2BRI-NT/TE
VIC2-2BRI-NT/TE
VIC-2BRI-ST/TE

Digital voice/data, T1/E1

VWIC-1MFT-E1
VWIC-1MFT-G703
VWIC-1MFT-T1
VWIC-2MFT-E1
VWIC-2MFT-E1-DI
VWIC-2MFT-G703
VWIC-2MFT-T1
VWIC-2MFT-T1-DI
VWIC2-1MFT-G703
VWIC2-1MFT-T1/E1
VWIC2-2MFT-G703
VWIC2-2MFT-T1/E1

Analog voice, FXS

RJ-11, gray

RJ-11 straight-through

VIC-2FXS
VIC2-2FXS
VIC-4FXS/DID
VIC3-2FXS/DID
VIC3-2FXS-E/DID
VIC3-4FXS/DID

Analog voice, FXO

RJ-11, pink

VIC-2FXO
VIC-2FXO-M1
VIC-2FXO-M2
VIC-2FXO-M3
VIC2-2FXO
VIC2-4FXO

Analog voice, CAMA

VIC-2CAMA
VIC2-2FXo
VIC2-4FXO

Analog voice, DID

RJ-11

VIC-2DID
VIC-4FXS/DID
VIC3-2FXS/DID
VIC3-2FXS-E/DID
VIC3-4FXS/DID

Analog voice, E&M

RJ-45, brown

RJ-45 straight-through

VIC-2E/M
VIC2-2E/M
VIC3-2E/M


Table 3 lists Cisco 12-in-1 Smart Serial Interface Cable part numbers.

Table 3 Cisco 12-in-1 Smart Serial Interface Cable Part Numbers

Interface
DCE/DTE
Cisco Cable Part Number

EIA/TIA-232

Female DCE
Male DTE

CAB-SS-232FC
CAB-SS-232MT

EIA/TIA-449

Female DCE
Male DTE

CAB-SS-449FC
CAB-SS-449MT

EIA-530

Male DTE

CAB-SS-530MT

EIA-530A

Male DTE

CAB-SS-530AMT

V.35

Female DCE
Female DTE
Male DCE
Male DTE

CAB-SS-V35FC
CAB-SS-V35FT
CAB-SS-V35MC
CAB-SS-V35MT

X.21

Female DCE
Male DTE

CAB-SS-X21FC
CAB-SS-X21MT


Platform Support for Cisco Interface Cards

Table 4 lists the platforms supported by each interface card. The interface cards are grouped by technology area:

Analog Modem WAN Interface Cards

Cable Modem High-Speed WAN Interface Cards

Channel Service Unit/Data Service Unit (CSU/DSU) WAN Interface Cards

DSL WAN Interface Cards

Ethernet Switch WAN Interface Cards

ISDN BRI WAN Interface Cards

Serial WAN Interface Cards

T1, E1, and G.703 Multiflex Trunk Voice and WAN Interface Cards

Voice Interface Cards

Wireless Interface Cards

Table 4 Platform Support for Cisco Interface Cards

Product Description
Cisco Product ID
Supported on Cisco Routers
See Document
Analog Modem WAN Interface Cards

1-port analog modem WIC

WIC-1AM

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Analog Modem WAN Interface Cards

2-port analog modem WIC

WIC-2AM

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Analog Modem WAN Interface Cards

1-port analog modem WIC, version 2

WIC-1AM-V2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Analog Modem WAN Interface Cards

2-port analog modem WIC, version 2

WIC-2AM-V2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Analog Modem WAN Interface Cards

Cable Modem High-Speed WAN Interface Cards

Cable modem HWIC, United States version

HWIC-CABLE-D-2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Cisco Cable Modem High-Speed WAN Interface Cards

Cable modem HWIC, Europe and Japan version

HWIC-CABLE-E/J-2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Cisco Cable Modem High-Speed WAN Interface Cards

Channel Service Unit/Data Service Unit (CSU/DSU) WAN Interface Cards

1-port T1/fractional T1 DSU/CSU WIC

WIC-1DSU-T1

Cisco ICS 7750

DSU/CSU WAN Interface Cards

1-port T1/fractional T1 DSU/CSU WIC, version 2

WIC-1DSU-T1-V2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

DSU/CSU WAN Interface Cards

1-port 4-wire 56/64 kbps CSU/DSU WIC

WIC-1DSU-56K4

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSU/CSU WAN Interface Cards

DSL WAN Interface Cards

1-port ADSL-over-POTS WIC

WIC-1ADSL

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-POTS with dying gasp WIC

WIC-1ADSL-DG

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-ISDN with dying gasp WIC

WIC-1ADSL-I-DG

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-POTS with dying gasp HWIC

HWIC-1ADSL

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-ISDN with dying gasp HWIC

HWIC-1ADSLI

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-POTS with dying gasp HWIC with backup ISDN port

HWIC-1ADSL-B/ST

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port ADSL-over-ISDN with dying gasp HWIC with backup ISDN port

HWIC-1ADSLI-B/ST

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port G.SHDSL WIC (two-wire only)

WIC-1SHDSL

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

1-port G.SHDSL WIC (two- and four-wire), version 2

WIC-1SHDSL-V2

Cisco 2800 series1
Cisco 3800 series

DSL Interface Cards

1-port G.SHDSL WIC (two- and four-wire), version 3

WIC-1SHDSL-V3

Cisco 1841
Cisco 2600XM series
Cisco 2800 series1
Cisco 3800 series

DSL Interface Cards

2-port G.SHDSL WIC

HWIC-2SHDSL

Cisco 1841 router
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

4-port G.SHDSL WIC

HWIC-4SHDSL

Cisco 1841 router
Cisco 2800 series
Cisco 3800 series

DSL Interface Cards

4-pair EFM over G.SHDSL HWIC

HWIC-4SHDSL-E

Cisco 1841
Cisco 1861
Cisco 1941
Cisco 1941W
Cisco 2851
Cisco 2821
Cisco 2801
Cisco 3845
Cisco 3845-NOVPN
Cisco 2911
Cisco 2921
Cisco 2951
Cisco 3925
Cisco 3925-E
Cisco 3945
Cisco 3945-E

DSL Interface Cards

4-pair EFM/ATM over G.SHDSL EHWIC

EHWIC-4SHDSL-EA

Cisco 1921
Cisco 1941
Cisco 2901
Cisco 2911
Cisco 2921
Cisco 2951
Cisco 3925
Cisco 3925-E
Cisco 3945-E

DSL Interface Cards

Ethernet Switch WAN Interface Cards

Gigabit EtherSwitch EHWIC

EHWIC-4ESG
EHWIC-4ESG-P
EHWIC-D-8ESG
EHWIC-D-8ESG-P

Cisco 3945
Cisco 3945E
Cisco 3925
Cisco 3925E
Cisco 2951
Cisco 2921
Cisco 2911
Cisco 2901
Cisco 1941
Cisco 1921

Connecting Cisco Gigabit EtherSwitch EHWICs

4-port 10/100BASE-T Ethernet switch HWIC

HWIC-4ESW

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

10/100BASE-T Ethernet Switch High-Speed Interface Cards

4-port Ethernet switch HWIC with inline power

HWIC-4ESW-POE

Cisco 2800 series
Cisco 3800 series

10/100BASE-T Ethernet Switch High-Speed Interface Cards

9-port 10/100BASE-T Ethernet switch HWIC

HWIC-D-9ESW

Cisco 2800 series
Cisco 3800 series

10/100BASE-T Ethernet Switch High-Speed Interface Cards

9-port Ethernet switch HWIC with inline power

HWIC-D-9ESW-POE

Cisco 2800 series
Cisco 3800 series

10/100BASE-T Ethernet Switch High-Speed Interface Cards

1-port Fast Ethernet HWIC

HWIC-1FE

Cisco 1841 router
Cisco 2800 series
Cisco 3800 series

Fast Ethernet High-Speed WAN Interface Cards to a Network

2-port Fast Ethernet HWIC

HWIC-2FE

Cisco 1800 series
Cisco 2800 series
Cisco 3800 series

Fast Ethernet High-Speed WAN Interface Cards to a Network

1-port Gigabit Ethernet HWIC

HWIC-1GE-SFP

Cisco 2800 series1
Cisco 3800 series

Gigabit Ethernet High-Speed Interface Cards

ISDN BRI WAN Interface Cards

1-port ISDN BRI WIC with integrated NT1—U interface

WIC-1B-U

Cisco ICS 7750

ISDN WAN Interface Cards

1-port ISDN BRI WIC with integrated NT1—U interface,
version 2

WIC-1B-U-V2

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

ISDN WAN Interface Cards

1-port ISDN BRI WIC with S/T interface

WIC-1B-S/T

Cisco ICS 7750

ISDN WAN Interface Cards

1-port ISDN BRI WIC with S/T interface, version 3

WIC-1B-S/T-V3

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

ISDN WAN Interface Cards

Serial WAN Interface Cards

1-port serial WIC

WIC-1T

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Serial Interface Cards

2-port serial WIC

WIC-2T

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Serial Interface Cards

2-port asynchronous/
synchronous serial WIC

WIC-2A/S

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750
Cisco MWR 1941-DC

Serial Interface Cards

4-port multiprotocol serial HWIC

HWIC-4T

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Serial Interface Cards

4-port multiprotocol low speed asynchronous/
synchronous serial HWIC

HWIC-4A/S

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Serial Interface Cards

8-port RS-232 asynchronous/
synchronous serial HWIC

HWIC-8A-RS232

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Serial Interface Cards

8-port asynchronous serial HWIC

HWIC-8A

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Serial Interface Cards

16-port asynchronous serial HWIC

HWIC-16A

Cisco 2800 series
Cisco 3800 series

Serial Interface Cards

T1, E1, and G.703 Multiflex Trunk Voice and WAN Interface Cards

1-port T1 RJ-48 multiflex trunk VWIC

VWIC-1MFT-T1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port T1 RJ-48 multiflex trunk VWIC

VWIC-2MFT-T1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port T1 RJ-48 multiflex trunk VWIC with drop-and-insert capability

VWIC-1MFT-T1-DI

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

1-port E1 RJ-48 multiflex trunk VWIC

VWIC-1MFT-E1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port E1 RJ-48 multiflex trunk VWIC

VWIC-2MFT-E1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

1-port T1/E1 RJ-48 multiflex trunk VWIC with hardware echo cancellation, version 2

VWIC2-1MFT-T1/E1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port T1/E1 RJ-48 multiflex trunk VWIC with hardware echo cancellation, version 2

VWIC2-2MFT-T1/E1

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port E1 RJ-48 multiflex trunk VWIC with drop-and-insert capability

VWIC-2MFT-E1-DI

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

1-port G.703 RJ-48 multiflex trunk VWIC

VWIC-1MFT-G703

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port G.703 RJ-48 multiflex trunk VWIC

VWIC-2MFT-G703

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

1-port G.703 RJ-48 multiflex trunk VWIC with hardware echo cancellation, version 2

VWIC2-1MFT-G703

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port G.703 RJ-48 multiflex trunk VWIC with hardware echo cancellation, version 2

VWIC2-2MFT-G703

Cisco 1800 series (modular)
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port T1/fractional T1 multiflex trunk VWIC with drop-and-insert capability and integrated CSU/DSU

VWIC-2MFT-T1-DIR

Cisco MWR 1941-DC

VWIC-2MFT-T1-DIR, VWIC-2MFT-E1-DIR Installation Instructions

2-port E1/fractional E1 multiflex trunk VWIC with drop-and-insert capability and integrated DSU

VWIC-2MFT-E1-DIR

Cisco MWR 1941-DC

VWIC-2MFT-T1-DIR, VWIC-2MFT-E1-DIR Installation Instructions

2-port T1/E1 radio access network optimization VWIC

VWIC-2T1/E1-RAN

Cisco MWR 1941-DC

Cisco 2-port T1/E1-RAN Installation Instructions

Voice Interface Cards

2-port Direct Inward Dial (DID) VIC

VIC-2DID

Cisco 2800 series
Cisco ICS 7750

Voice Interface Cards

1-port digital VIC for Japan

VIC-1J1

Cisco 2800 series1

Voice Interface Cards

4-port FXS or DID VIC

VIC-4FXS/DID

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port FXS VIC

VIC-2FXS2

Cisco ICS 7750

Voice Interface Cards

2-port FXS VIC, version 2

VIC2-2FXS2

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

2-port FXO VIC for the United States

VIC-2FXO-M12

Cisco ICS 7750

Voice Interface Cards

2-port FXO VIC for Europe

VIC-2FXO-M22

Cisco ICS 7750

Voice Interface Cards

2-port FXO VIC for Australia

VIC-2FXO-M32

Cisco ICS 7750

Voice Interface Cards

2-port FXO VIC

VIC-2FXO2

Cisco ICS 7750

Voice Interface Cards

2-port FXO (universal) VIC, version 2

VIC2-2FXO2

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

4-port FXO VIC for the United States

VIC-4FXO-M1

Cisco ICS 7750

Voice Interface Cards

4-port FXO (universal) VIC, version 2

VIC2-4FXO2

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port E&M VIC

VIC-2E/M2

Cisco ICS 7750

Voice Interface Cards

2-port E&M VIC, version 2

VIC2-2E/M2

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port ISDN BRI S/T (NT and TE) VIC

VIC-2BRI-NT/TE

Cisco ICS 7750

Voice Interface Cards

2-port ISDN BRI S/T (NT and TE) VIC, version 2

VIC2-2BRI-NT/TE

Cisco 2600XM series
Cisco 2800 series
Cisco 3800 series
Cisco ICS 7750

Voice Interface Cards

2-port E&M VIC version 2

VIC3-2E/M

Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

4-port FXS or DID VIC

VIC3-2FXS/DID

Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

4-port FXS or DID VIC

VIC3-2FXS-E/DID

Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

4-port FXS or DID VIC

VIC3-4FXS/DID

Cisco 2800 series
Cisco 3800 series

Voice Interface Cards

Wireless Interface Cards

Access point HWIC for North America

HWIC-AP-G-A

Cisco 1841
Cisco 2801
Cisco 2811
Cisco 2821
Cisco 2851
Cisco 3825
Cisco 3845

Access Point High-Speed WAN Interface Cards

Access point HWIC for Europe

HWIC-AP-G-E

Cisco 1841
Cisco 2801
Cisco 2811
Cisco 2821
Cisco 2851
Cisco 3825
Cisco 3845

Access Point High-Speed WAN Interface Cards

Access point HWIC for Japan

HWIC-AP-G-J

Cisco 1841
Cisco 2801
Cisco 2811
Cisco 2821
Cisco 2851
Cisco 3825
Cisco 3845

Access Point High-Speed WAN Interface Cards

GSM 3G Wireless WAN HWIC

HWIC-3G-GSM

Cisco 1841
Cisco 2801
Cisco 2811
Cisco 2821
Cisco 2851
Cisco 3825
Cisco 3845

3G Wireless WAN Interface Cards to a Network

CDMA 3G Wireless WAN HWIC

HWIC-3G-CDMA

Cisco 1841
Cisco 2801
Cisco 2811
Cisco 2821
Cisco 2851
Cisco 3825
Cisco 3845

3G Wireless WAN Interface Cards to a Network

1 Not supported on Cisco 2801 routers.

2 In Cisco 1751 and Cisco 1760 routers, can be directly installed into a router interface slot. For other routers, cannot be installed directly into Cisco router interface card slots. Install in a voice network module (NM-1V or NM-2V).


Related Documents

Cisco product documentation is available online at www.cisco.com.

Installing Cisco Interface Cards in Cisco Access Routers

Cisco Network Modules and Interface Cards Regulatory Compliance and Safety Information

Cisco Router Guide—For teleworkers, small offices, small to medium-sized businesses and enterprise branch and head offices

Obtaining Documentation, Obtaining Support, and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

© 2011 Cisco Systems, Inc. All rights reserved.
