Cisco SM-X Layer 2/3 EtherSwitch Service Module (ESM) Configuration Guide for Cisco 2900 and Cisco 3900 Series ISRs

April 2, 2014

OL-30026-01

The Cisco SM-X Layer 2/3 EtherSwitch Service Modules (Cisco SM-X Layer 2/3 ESM) integrates the Layer 2 and Layer 3 switching features and provide the Cisco 2900 series and Cisco 3900 series ISRs the ability to use the Cisco SM-X Layer 2/3 ESM as an independent Layer 3 switch when running the Cisco IOS software.

The Cisco SM-X Layer 2/3 ESMs also provide a 1-Gbps connection to the multigigabit fabric (MGF) for intermodule communication without burdening your router’s CPU.

The Cisco SM-X Layer 2/3 ESMs are capable of providing up to 30 watts of power per port with the robust Power over Ethernet Plus (PoE+) feature along with IEEE 802.3ae Media Access Control Security (MACSec) port-based, hop-to-hop, encryption, and Cisco TrustSec (CTS) that work on multiple router families

The Cisco SM-X Layer 2/3 ESM can co-exist with EtherSwitch service modules from previous releases on the host Cisco 2900 and 3900 series ISRs and these modules are capable of interoperability with each other. Support for the maximum number of service modules that can be present on the 2900 and 3900 series ISRs is dictated by the total number of service module slot count on the host router.

The following are the feature histories for the Cisco SM-X Layer 2/3 ESMs:

Feature History for Cisco SM-X Layer 2/3 ESM (SM-X-ES3-16-P and SM-X-ES3-24-P)

Release
Modification

Cisco IOS Release15.3(3)M (router software)

Cisco IOS Release 15.0(2)EJ (switch software)

Modified for Layer 3 switches

Cisco IOS Release 15.4(1) T (router software)

Cisco IOS Release 15.0(2)EJ1 (switch software)

Support for SM-X-ES3D-48-P was added.

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Prerequisites for the Cisco SM-X Layer 2/3 ESMs

The Cisco IOS version on the Cisco SM-X Layer 2/3 ESMs must be compatible with the Cisco IOS software release and feature set on the router. See the Feature History for Cisco SM-X Layer 2/3 ESM (SM-X-ES3-16-P and SM-X-ES3-24-P).

  • To view the router, Cisco IOS software release, and feature set, enter the show version command in privileged EXEC mode.
  • To view the Cisco SM-X Layer 2/3 ESM IOS version, enter the service-module gigabitethernet x/0 status command in privileged EXEC mode, where X is the slot number.

Information About the Cisco SM-X Layer 2/3 ESMs

This section describes the features and some important concepts about the Cisco SM-X Layer 2/3 ESMs:


Note For a list of Switch IOS feature documentation with information on various supported features on your Cisco SM-X Layer 2/3 ESM, see the Related Documents


Hardware Overview

Cisco SM-X Layer 2/3 ESM are modules to which you can connect devices such as Cisco IP phones, Cisco wireless access points, workstations, and other network devices such as servers, routers, and switches.

The Cisco SM-X Layer 2/3 ESMs can be deployed as backbone switches, aggregating 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet traffic from other network devices.

The following Cisco SM-X Layer 2/3 ESMs are available with this release of the hardware:

  • SM-X-ES3-16-P—16-port 10/100/1000 Gigabit Ethernet, PoE+, MACSec enabled Service Module, single-wide form factor
  • SM-X-ES3-24-P—24-port 10/100/1000 Gigabit Ethernet, PoE+, MACSec enabled Service Module, single-wide form factor
  • SM-X-ES3D-48-P—48-port, 10/100/1000 Gigabit Ethernet, 100/1000 Mbps SFPs, PoE+, MACSec enabled Service Module, double-wide form factor

For complete information about the Cisco SM-X Layer 2/3 ESMs hardware,
see the Connecting Cisco SM-X Layer 2/3 ESMs to the Network guide.

Cisco Trust Sec encryption

The Cisco TrustSec security architecture builds secure networks by establishing clouds of trusted network devices. Each device in the cloud is authenticated by its neighbors. Communication on the links between devices in the cloud is secured with a combination of encryption, message integrity checks, and data-path replay protection mechanisms. Cisco TrustSec also uses the device and user identification information acquired during authentication for classifying, or coloring, the packets as they enter the network. This packet classification is maintained by tagging packets on ingress to the Cisco TrustSec network so that they can be properly identified for the purpose of applying security and other policy criteria along the data path. The tag, also called the security group tag (SGT), allows the network to enforce the access control policy by enabling the endpoint device to act upon the SGT to filter traffic. See Configuring Cisco TrustSec Chapter in the Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later.

IEEE 802.1x Protocol

The IEEE 802.1x standard defines a client-server-based access control and authentication protocol that prevents clients from connecting to a LAN through publicly accessible ports unless they are authenticated. The authentication server authenticates each client connected to a port before making available any services offered by the router or the LAN.

Until the client is authenticated, IEEE 802.1x access control allows only Extensible Authentication Protocol over LAN (EAPOL), Cisco Discovery Protocol (CDP), and Spanning Tree Protocol (STP) traffic through the port to which the client is connected. After authentication, normal traffic can pass through the port. See Configuring IEEE 802.1x Port-Based Authentication Chapter in the Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later for information on configuring this feature.

Licensing and Software Activation

The Cisco SM-X Layer 2/3 ESM utilizes the Cisco licensing software activation mechanism for different levels of technology software packages. This mechanism is referred to as technology package licensing and leverages the universal technology package based licensing solution. A universal image containing all levels of a software package is loaded on your Cisco SM-X Layer 2/3 ESM.

During startup, the Cisco SM-X Layer 2/3 ESM determines the highest level of license and loads the corresponding software features.

The Cisco SM-X Layer 2/3 ESM has a right to use (RTU) license, also known as honor-based license.

The RTU license on Cisco SM-X Layer 2/3 ESM supports the following three feature sets:



  • LAN Base: Enterprise access Layer 2 switching features
  • IP Base: Enterprise access Layer 3 switching features
  • IP Services: Advanced Layer 3 switching (IPv4 and IPv6) features.

You can deploy a specific feature package by applying corresponding software activation licenses. See Upgrading your License Using Right-To-Use Features for more information on licensing and software activation.



MACsec Encryption

Media Access Control Security (MACsec) encryption is the IEEE 802.1AE standard for authenticating and encrypting packets between two MACsec-capable devices. MACsec encyprtion is defined in 802.1AE to provide MAC-layer encryption over wired networks by using out-of-band methods for encryption keying. The MACsec Key Agreement (MKA) Protocol provides the required session keys and manages the required encryption keys. MKA and MACsec are implemented after successful authentication using the 802.1x Extensible Authentication Protocol (EAP) framework. Only host facing links (links between network access devices and endpoint devices such as a PC or IP phone) can be secured using MACsec.

The Cisco SM-X Layer 2/3 ESM supports 802.1AE encryption with MACsec Key Agreement (MKA) on downlink ports for encryption between the module and host devices. The module also supports MACsec link layer switch-to-switch security by using Cisco TrustSec Network Device Admission Control (NDAC) and the Security Association Protocol (SAP) key exchange. Link layer security can include both packet authentication between switches and MACsec encryption between switches (encryption is optional). See Configuring MACsec Encryption Chapter in the Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later for information on configuring this feature.

Power over Ethernet (Plus) Features

The Cisco SM-X Layer 2/3 ESM is capable of providing power to connected Cisco pre-standard and IEEE 802.3af-compliant powered devices (PD) from Power over Ethernet (PoE)-capable ports when the switch detects that there is no power on the circuit.

The ESM supports IEEE 802.3at (PoE+), that increases the available power for PDs from 15.4W to 30 W per port. For more information, see the Power over Ethernet Ports . The PoE plus feature supports the cisco discovery protocol (CDP) with power consumption reporting and allows the PDs to notify the amount of power consumed. The PoE plus feature also supports the link layer discovery protocol (LLDP)

Cisco Intelligent Power Management

The PDs and the switch negotiate through power-negotiation CDP messages for an agreed power-consumption level. The negotiation allows a high-power Cisco PDs to operate at its highest power mode.

The PoE plus feature enable automatic detection and power budgeting; the switch maintains a power budget, monitors, and tracks requests for power, and grants power only when it is available. See the Configuring the External PoE Service Module Power Supply Mode section in the Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later.

Power Policing (Sensing)

The power policing or power sensing feature allows you to monitor the real-time power consumption. On a per-PoE port basis, the switch senses the total power consumption, polices the power usage, and reports the power usage. For more information on this feature, see Power Monitoring and Power Policing section in the Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later



Smart Install Support

The Cisco SM-X Layer 2/3 ESM supports the Smart Install feature. The Smart Install is a plug-and-play configuration and image-management feature that provides zero-touch deployment for new switches. You can ship a switch to a location, place it in the network and power it on with no configuration required on the device.

A network using Smart Install includes a group of networking devices, known as clients, that are served by a common Layer 3 switch or router that acts as a director. In a Smart Install network, you can use the Zero-Touch Installation process to install new access layer switches into the network without any assistance from the network administrator. The Smart Install Configuration Guide provides detailed information on configuring and using this feature.



Managing Cisco SM-X Layer 2/3 ESM Using Cisco IOS Software

This sections contains the following topics with information on configuring and managing the Cisco SM-X Layer 2/3 ESM on Cisco ISR-G2 using the Cisco IOS software:

Using OIR to Manage the Cisco SM-X Layer 2/3 ESM

The online insertion and removal (OIR) feature allows you to insert or remove your Cisco SM-X Layer 2/3 ESM from a router. The Cisco SM-X Layer 2/3 ESM must be gracefully powered down before removing it from the router using the managed OIR or soft OIR feature. The managed OIR feature allows you to stop the power supply to your module using the hw-module sm command and remove a module from one of the subslots while other active modules remain installed on the router.


Note If you are not planning to immediately replace a module after performing OIR, ensure that you install a blank filter plate in the subslot.


The oir-stop option allows you to gracefully deactivate a module and the module is rebooted when the- oir-start option of the command is executed. The reload option will stop or deactivate a specified module and restart it. See the Shutting Down, Resetting, and Reloading the Cisco SM-X Layer 2/3 ESM for more information.


Note The managed OIR feature is only supported on Cisco 3900 Series ISR.


Managing Backplane Switch Ports

Cisco SM-X Layer 2/3 ESM manages the layer 2 switching properties such as access, trunk, and dynamic mode with the help of the two MGF ports, GE0 and GE1. The MGF port use certain switchport CLI to perform different functions for different modes. For example, the access mode is used for end devices, trunk mode is used for lines between switches and other lines that send multiple VLANs over a single connection, and the dynamic mode automatically detects what kind of device is connected and initiate its port accordingly.

When there are no legacy switch modules such as the HWIC-4ESW module in the router, a 2nd GE interface gigabitethernet slot/1 is created for the SM. This is a Layer-2 switch interface and used to manage the inter module connectivity with other SM in the system via the backplane MGF. You can use the switchport CLIs to manage the L2 switch properties (e.g. access mode, trunk mode, native vlan etc.) for this interface.


Note You can install up to one Cisco SM-X-ES3-16-P or SM-X-ES3-24-P in Cisco 2911 routers and in Cisco 2921 routers. You can install up to two Cisco SM-X-ES3-16P or SM-X-ES3-24-P in Cisco 2951 and Cisco 3925 routers. You can install up to four Cisco SM-X-ES3-16-P or SM-X-ES3-24-P ESMs in Cisco 3945 routers.


Internal Port Mapping

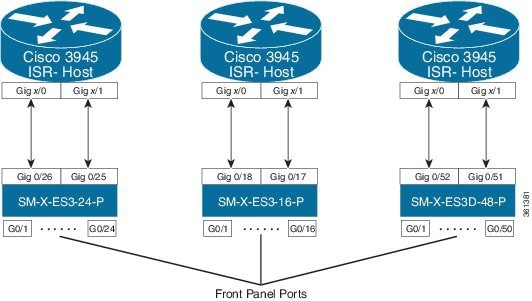

The Figure 1 below displays the internal port mapping for the Cisco SM-X Layer 2/3 ESM for the Cisco ISR G2. The variable “x” indicates the slot number where the Cisco SM-X-ES3-24-P and Cisco SM-X- ES3-16-P SKUs of the module are inserted on Cisco 3945 ISR G2.

Figure 1 Port Mapping for Cisco SM-X Layer 2/3 ESM on Cisco ISR G2

How to Configure the Cisco SM-X Layer 2/3 ESM on the Router

This section contains the following procedures:

Accessing the CLI Through a Console Connection or Through Telnet

Before you can access the Cisco SM-X Layer 2/3 ESM CLI, you must connect to the host router through the router console or through Telnet. Once you are connected to the router, you must configure an IP address on the Gigabit Ethernet interface connected to the Cisco SM-X Layer 2/3 ESM. Open a session to the Cisco SM-X Layer 2/3 ESM using the service-module gigabitethernet x/0 session command in privileged EXEC mode on the router.

You can use one of these methods to establish a connection to the Cisco SM-X Layer 2/3 ESM:

  • Connect to the router console using Telnet or Secure Shell (SSH) and open a session to the switch using the service-module gigabitethernet x/0 session command in privileged EXEC mode on the router.

Note When connecting to the router through the console using Telnet or SSH from a client station, you must have IP connectivity from the station to the switch.



Note The default baud rate of the console connection is 9600.


  • Use any Telnet TCP/IP or encrypted SSH package from a remote management station. The internal interface must have network connectivity with the Telnet or SSH client, and the internal interface must have an enable secret password configured. After you connect through the CLI, a Telnet session, or an SSH session, the user EXEC prompt appears on the management station.

The Cisco SM-X Layer 2/3 ESM or switch supports up to 5 simultaneous secure SSH sessions and up to 16 simultaneous Telnet sessions. Changes made by one Telnet user are reflected in all other Telnet sessions.

You can use the following configuration examples to establish a connection:

  • To configure an IP address and subnet mask for Gigabit Ethernet interface (gigabitethernet 1/0) on the router, use the following command:
Router(config)#interface gigabitethernet 1/0
Router(config-if)#ip address 10.1.1.111 255.255.255.252
Router(config-if)#no shutdown

  • To open a session from the router to the Cisco SM-X Layer 2/3 ESM, use the following command:
Router#service-module gigabitethernet1/0 session


Understanding Interface Types on the Cisco SM-X Layer 2/3 ESMs

This section describes the different types of interfaces supported by the Cisco SM-X Layer 2/3 ESM with references to chapters that contain more detailed information about configuring these interface types.

The Cisco SM-X Layer 2/3 ESM supports the following interface types:

  • Gigabit Ethernet interfaces
  • VLAN switched virtual interface (SVI)

Configuring the Cisco SM-X Layer 2/3 ESM in the Router

This section describes how to perform the initial configuration on the router with a Cisco SM-X Layer 2/3 ESM installed. This section also describes the initial configuration on the Cisco SM-X Layer 2/3 ESM itself. Once an IP address has been configured on the Gigabit Ethernet interface on the router (representing the Cisco SM-X Layer 2/3 ESM), you can open a console session to the Cisco SM-X Layer 2/3 ESM and configure its Gigabit Ethernet interface for Layer 2 or Layer 3 features.

Once the Cisco SM-X Layer 2/3 ESM interface has been configured and you boot up the service module image, you can switch back and forth between the router and the service module.


Note During auto boot loader operation, you are not presented with the boot loader command-line prompt. You gain access to the boot loader command line if the switch is set to boot manually or, if a corrupted Cisco IOS image is loaded. You can also access the boot loader if you have lost or forgotten the switch password.


SUMMARY STEPS

1. dir flash:

2. boot flash: image-name

3. enable

4. show running interface

5. configure terminal

6. interface gigabitethernet slot/port

7. ip address ip address/subnet mask

8. no shutdown

9. end

10. service-module interface slot/port session

11. enable

12. show ip interface brief

13. control+shift+6 x

14. disconnect

15. service-module gigabitethernet slot/port status

DETAILED STEPS

Command or Action
Purpose

Step 1

dir flash:



rommon> dir flash:

Displays a list of all files and directories in router flash memory.

Step 2

boot flash:image-name



rommon> boot flash:c3900-universalk9-mz

Boots the router image that supports the Cisco SM-X Layer 2/3 ESM.

  • Enter no when prompted to enter the initial configuration dialog and then press Enter.

Step 3

enable



Router> enable

Enters privileged EXEC mode.

Step 4

show running interface



Router# show running interface gigabitethernet1/0

Displays the running interface of the router, which should have a Gigabit Ethernet interface representing the Cisco SM-X Layer 2/3 ESM.

Step 5

configure terminal



Router# configure terminal

Enters global configuration mode.

Step 6

interface gigabitethernet slot/port



Router(config)# interface gigabitethernet1/0

Enters interface configuration mode and specifies an interface for configuration.

Step 7

ip address ip address/subnet mask



Router(config-if)# ip address 20.0.0.1 255.255.255.0

Configures an IP address and subnet mask on this Gigabit Ethernet interface.

Step 8

no shutdown



Router(config-if)# no shutdown

Enables the service module port.

Step 9

end



Router(config-if)# end

Returns you to privileged EXEC mode.

Step 10

service-module interface slot/port session



Router# service-module gigabitethernet1/0 session

Connects to and opens a session on the Cisco SM-X Layer 2/3 ESM.

Step 11

enable



Switch> enable

Enters privileged EXEC mode on the Cisco SM-X Layer 2/3 ESM.

Step 12

show ip interface brief



Switch# show ip interface brief

Displays brief version of the Cisco SM-X Layer 2/3 ESM configuration information.

Step 13

control+shift+6 x



Switch# control+shift+6 x

Returns you to the router console while keeping the console session to the switch intact.

Step 14

disconnect



Router# disconnect

Terminates the console session to the Cisco SM-X Layer 2/3 ESM.

Step 15

service-module gigabitethernet slot/port status



Router# service-module gigabitethernet 1/0 status

Displays the service module status information.

Examples

The sections provides the following example:

Sample Uutput From the show version Command

The following example displays the configuration details of the Cisco SM-X Layer 2/3 ESM configured on the router.

Switch# show version

Cisco IOS Software, C3560E Software (C3560E-UNIVERSALK9-M), Version 15.0(2)EJ, RELEASE SOFTWARE (fc1)

Technical Support: http://www.cisco.com/techsupport

Copyright (c) 1986-2013 by Cisco Systems, Inc.

Compiled Fri 13-Sep-13 12:09 by prod_rel_team



ROM: Bootstrap program is C3560E boot loader

BOOTLDR: C3560E Boot Loader (C3560X-HBOOT-M) Version 15.0(2r)EJ, RELEASE SOFTWARE (fc1)



Switch uptime is 1 hour, 55 minutes

System returned to ROM by power-on

System restarted at 06:49:50 UTC Wed Nov 13 2013

System image file is "flash:c3560e-universalk9-mz.150-2.EJ"





This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and

use. Delivery of Cisco cryptographic products does not imply

third-party authority to import, export, distribute or use encryption.

Importers, exporters, distributors and users are responsible for

compliance with U.S. and local country laws. By using this product you

agree to comply with applicable laws and regulations. If you are unable

to comply with U.S. and local laws, return this product immediately.



A summary of U.S. laws governing Cisco cryptographic products may be found at:

http://www.cisco.com/wwl/export/crypto/tool/stqrg.html



If you require further assistance please contact us by sending email to

export@cisco.com.



License Level: ipservices

License Type: Permanent Right-To-Use

Next reload license Level: ipservices



cisco SM-X-ES3-16-P (PowerPC405) processor with 262144K bytes of memory.

Processor board ID FOC17223S3Z

Last reset from power-on

1 Virtual Ethernet interface

18 Gigabit Ethernet interfaces

The password-recovery mechanism is enabled.



512K bytes of flash-simulated non-volatile configuration memory.

Base ethernet MAC Address : EC:E1:A9:5A:C3:00

Model number : SM-X-ES3-16-P

System serial number : FOC17223S3Z

Hardware Board Revision Number : 0x00





Switch Ports Model SW Version SW Image

------ ----- ----- ---------- ----------

* 1 18 SM-X-ES3-16-P 15.0(2)EJ C3560E-UNIVERSALK9-M





Configuration register is 0xF



Switch#

Shutting Down, Resetting, and Reloading the Cisco SM-X Layer 2/3 ESM

This section describes how to shut down, reset, and reload a Cisco SM-X Layer 2/3 ESM after it has been installed.

SUMMARY STEPS

1. service-module gigabitethernet slot/port shutdown

2. service-module gigabitethernet slot/port reset

3. service-module gigabitethernet slot/port reload


Note The argument slot indicates the number of the router chassis slot for the service module. The argument unit indicates the number of the daughter card on the service module. For Cisco SM-X Layer 2/3 ESMs, always use 0.


DETAILED STEPS

Command or Action
Purpose

Step 1

service-module gigabitethernet slot / port shutdown



Router# service-module gigabitethernet1/0 shutdown

Performs a graceful halt of the Cisco SM-X Layer 2/3 ESM operating system. Use the service-module reset command to power up the service module again.

Note Use the hw-module slot / port oir-stop command when removing or replacing a hot-swappableCisco SM-X Layer 2/3 ESM during online insertion and removal (OIR).

Step 2

service-module gigabitethernet slot / port reset



Router# service-module gigabitethernet1/0 reset

Performs a hardware reset of the Cisco SM-X Layer 2/3 ESM.

Step 3

service-module gigabitethernet slot / port reload



Router# service-module gigabitethernet1/0 reload

Performs a graceful halt and reload of the Cisco SM-X Layer 2/3 ESM operating system. The configuration of the switch is saved before reload.

Examples

This section provides the following examples:

Sample Output for the service-module gigabitethernet shutdown Command

The following example shows what appears when you enter the service-module gigabitethernet slot/port shutdown command:

Router# service-module gigabitethernet1/0 shutdown
Shutdown is used for Online removal of Service Module.
Do you want to proceed with shutdown?[confirm]
Use service-module reset command to recover from shutdown.

Note At the confirmation prompt, press Enter to confirm the action or n to cancel.


Sample Output for the service-module gigabitethernet reset Command

The following example shows what appears when you enter the service-module gigabitethernet slot/port reset command:

Router# service-module g3/0 reset
Use reset only to recover from shutdown or failed state
Warning: May lose data on the NVRAM, nonvolatile file system or unsaved configuration!
Do you want to reset?[confirm]

Note At the confirmation prompt, press Enter to confirm the action or n to cancel.


Sample Output for the service-module gigabitethernet reload Command

The following example shows what appears when you enter the service-module gigabitethernet slot/port reload command:

Router# service-module gigabitethernet1/0 reload
Do you want to proceed with reload?[confirm]

Note At the confirmation prompt, press Enter to confirm the action or n to cancel.


Monitoring Real-Time Power Consumption (power sensing)

Cisco SM-X Layer 2/3 ESMs’ hardware allows the ESM to accurately monitor the real-time power consumption on each port by measuring the port current as well as the voltage while the powered devices such as IP phones and wireless access points are powered up.

If a powered device is misbehaving by consuming more power than the actual configured value, you can take an appropriate ‘action’ by enabling the power policing or sensing feature on a port using the power inline (config-if) command. The ‘action’ is either “logging a warning message” (also knows as lax policing) or shutting down a misbehaving port (strict policing). The ESM constantly monitors the power drawn by the powered devices and takes appropriate action on misbehaving ports. You can monitor the power drawn by the powered devices through show power inline CLI.

You can monitor the power drawn at the router level through show power inline command on the Cisco ISR-G2 routers. To monitor port-level power consumption use the show power inline command on the Cisco SM-X Layer 2/3 ESM in Exec mode.

When power policing is enabled on a port, you can pick a cutoff power value of “x” watts per port and choose an ‘action’ to be taken on the misbehaving ports. Power policing is disabled by default on all ports.


Note You must take the cable loss into consideration when configuring the power monitoring or power policing value for a given port of the switch. There might be some cable loss while configuring power cutoff value at the PSE. The switch can only police the power drawn at the PSE RJ45 port and not the actual power consumed by the powered device.


Restrictions

  • Because the switch can only monitor the power drawn at the PSE RJ45 port and not what the PD actually consumes, you must plan for the worst case cable loss when configuring the power cutoff value.
  • When power drawn by the power devices exceeds the maximum limit after a period of 1 second or more, the system considers the ports as, “misbehaving ports” and shuts down the power supply.

SUMMARY STEPS

1. interface gigabiethernet 0/x

2. power inline max max-wattage

3. power inline police action action

4. exit

Detailed Steps

Command or Action
Purpose

Step 1

enable



Switch> enable

Enters privileged EXEC mode.

Step 2

configure terminal



Switch# configure terminal

Enters global configuration mode.

Step 3

interface gigabitethernet 0/x



Switch(config)# interface gigabitethernet 0/24

Enter interface configuration mode and places you at the GigabitEthernet 0/24 interface.

Step 4

power inline max max-wattage



Switch(config-if)# power inline max 4000

Specifies the cut off power value for a port.

  • max max-wattage —Limits the power allowed on the port. The range is 4000 to 30000 mW. If no value is specified, the maximum is allowed.

Step 5

power inline police action action



Switch(config-if)# power inline police action action

Enables the ESM to generate a syslog message while still providing power to the device.



  • action action — Specifies an action. For example, a log message or a warning message to avoid flooding of event log or even shutting down the port.

Step 6

exit



Switch(config-if)# exit

Exits the interface configuration mode.

Example

Upgrading the Cisco SM-X Layer 2/3 ESM Software

You can copy the switch image to the ESM flash by following one of the two methods listed below:

  • Establish connectivity from your ESM’s front panel port to the TFTP server where the desired switch Cisco.com image is stored
  • Copy the switch image (available on Cisco.com) to the router’s flash and copy this image to ESM flash through TFTP.]



Copying Switch Image Directly to ESM flash Through TFTP Server

This section describes how to copy a switch image directly to the ESM flash through the TFTP server.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface gigabitethernet 0/x

4. no switchport

5. ip address ip address/subnet mask

6. no shutdown

7. end

8. show run interface gigabitethernet 0/x

9. ping tftp-server-ip-address

10. dir flash:

11. copy tftp: flash:

DETAILED STEPS

Command or Action
Purpose

Step 1

enable



Switch> enable

Enters privileged EXEC mode.

Step 2

configure terminal



Switch# configure terminal

Enters global configuration mode.

Step 3

interface gigabitethernet 0/x



Switch(config)# interface gigabitethernet 0/24

Enter interface configuration mode and places you at the GigabitEthernet 0/24 interface.

Step 4

no switchport



Switch(config-if)# no switchport

Enables the routed port.

Note The no switchport command is only available on the SM-X Layer3 ESMs.

Step 5

ip address ip address/subnet mask 192.1.10.200 255.255.255.240



Switch(config-if)# ip address

192.1.10.200 255.255.255.240

Sets a primary or secondary IP address for this interface.

Step 6

no shutdown



Switch(config-if)# no shutdown

Enables the port that is connected to the TFTP server.

Step 7

end



Switch(config)# end

Switch#

Exits interface configuration mode, and returns to privileged EXEC mode.

Step 8

show run interface gigabitethernet 0/x



Switch# show run interface gigabitethernet 0/24

Shows the configuration applied on this interface.

Step 9

ping tftp-server-ip-address



Switch# ping 172.16.1.100

Pings for network connectivity.

Step 10

dir flash:



Switch# dir flash:

Displays a list of all files and directories in the Cisco SM-X Layer 2/3 ESM flash memory.

Step 11

copy tftp: flash:



Switch# copy tftp: flash:

Copies an image from a TFTP server to flash memory.

Examples

This section provides the following examples:

Sample Output for the show run interface gigabitethernet Command

The following example shows what appears when you enter the show run interface gigabitethernet command:

Switch# show run gigabitethernet 0/24
Building configuration...
Current configuration : 87 bytes
!
interface GigabitEthernet0/24
no switchport
ip address 172.16.1.100 255.255.255.0
end


Sample Output for the ping tftpserver Command

The following example shows what appears when you enter the ping ip address command:

Switch# ping 172.16.1.100

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.100, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/9 ms
Copy the image from the tftp server to the switch flash using standard tftp copy procedure.

Sample Output for the show flash: Command

The following example shows what appears when you enter the dir flash: command:

Switch# dir flash:

Directory of flash:/

2 -rwx 2998 Mar 3 1993 19:26:15 +00:00 express_setup.debug
3 -rwx 20291584 Aug 12 2013 14:51:08 +00:00 c3560e-universalk9-mz
4 -rwx 6168 Mar 30 2011 01:31:04 +00:00 multiple-fs
13 -rwx 3453 Mar 30 2011 01:31:03 +00:00 config.text
6 -rwx 1916 Mar 30 2011 01:31:03 +00:00 private-config.text
8 -rwx 1149 Apr 6 2011 18:05:53 +00:00 FOC163902N0_20130808013323578.lic
9 drwx 4096 Jul 25 2013 06:51:51 +00:00 dc_profile_dir
11 drwx 4096 Mar 30 2011 01:30:06 +00:00 front_end_ucode_cache

88735744 bytes total (67715072 bytes free)
Switch#


Sample Output for the copy tftp: flash: Command

The following example shows what appears when you enter the copy tftp: flash: command:

Switch# copy tftp: flash:

Address or name of remote host []? 172.16.1.100
Source filename []? ciscouser/c3560e-universalk9-mz
Destination filename [c3560e-universalk9-mz]?
Accessing tftp://172.16.1.100/ciscouser/c3560e-universalk9-mz...
Loading ciscouser/c3560e-universalk9-mz from 172.16.1.100 (via GigabitEthernet0/1): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!O!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 20291584 bytes]

20291584 bytes copied in 113.170 secs (179302 bytes/sec)
Switch#







Copying Switch Image to ESM Flash Through Host Router

This section describes how to copy the switch image to the ESM flash through the host router.

Summary Steps

1. copy tftp: flash:

2. config terminal

3. tftp-server flash: switch-image

4. interface gigabitethernet slot/port

5. ip address ip address/subnet mask

6. no shutdown

7. end

8. service-module gigabitethernet slot/port session

9. config terminal

10. interface gigabitethernet slot/port

11. ip address ip address/subnet mask

12. copy tftp: flash:



Detailed Steps

Command or Action
Purpose

Step 1

copy tftp: flash:



Router# copy tftp: flash:

Copies an image from a TFTP server to flash memory.

Step 2

config terminal



Router# conf t

Enters global configuration mode.

Step 3

tftp-server flash: filename



Router(config)#tftp-server flash:c3560e-universalk9-mz

Specifies TFTP service of a file on a Flash memory device. Specify the Switch image in the filename parameter.

Step 4

interface gigabitethernet x/0



Router(config)#interface gigabitethernet1/0

Enter interface configuration mode and places you at the GigabitEthernet 0/24 interface.

Step 5

ip address ip-address subnet-mask



Router(config-if)#ip address 1.1.1.1 255.255.255.0

Sets a primary or secondary IP address for this interface.

Step 6

no shutdown



Router(config-if)#no shutdown

Enables the port that is connected to the TFTP server.

Step 7

end



Router(config-if)#end

Exits interface configuration mode, and returns to privileged EXEC mode.

Step 8

service-module gigabitethernet x/0 session



Router# service-module gigabitethernet 1/0 session

Connects to the service module and opens a service module session.

Step 9

config terminal



Switch#config terminal

Enters global configuration mode.

Step 10

interface gigabiethernet 0/26



Switch(config)#interface gigabitether 0/26

Enters interface configuration mode and specifies an interface for configuration.

Step 11

ip address ip-address / subnet-mask



Switch(config-if)#ip address 1.1.1.2 255.255.255.0

Sets a primary or secondary IP address for this interface.

Note IP address here should in the same subnet as mentioned in the example in Step 5.

Step 12

no shutdown



Switch(config-if)#no shutdown

Enables the port that is connected to the TFTP server.

Note You can skip Steps 4 through 6 and 9 through 11, if there is already reachability between host router and switch module.

Step 13

end



Switch(config-if)#end

Exits interface configuration mode, and returns to privileged EXEC mode.

Step 14

copy tftp: flash:



Switch# copy tftp: flash:

Copies an image from a TFTP server to flash memory





Troubleshooting the Cisco SM-X Layer 2/3 ESM Software

This section describes how to troubleshoot the Cisco SM-X Layer 2/3 ESM:

Recovering from a Corrupted Software Image Using Recovery Image

This section describes how to recover from a corrupted software image by using a recovery image.


Note The router should have the switch image in the router flash memory or have network connectivity to the TFTP server.


The Cisco SM-X Layer 2/3 EtherSwitch Service Module software can get corrupted when downloading a wrong file during the software upgrade process and when the image is invalid or even when there is no image available.

The load_recovery CLI allows you to recover from a corrupted software image, an invalid image or no image on the flash of the module.

The load_ recovery command boots the ESM with an IOS image (recovery image). Once the ESM is booted, desired Cisco.com switch image can be copied to the ESM flash through TFTP from the router’s flash or through the ESM front panel switch ports.

Copying a Cisco.com switch image to the ESM flash through ESM front panel switch ports only works when there is a connectivity established to the TFTP servers from the front panel ports of your ESM.


Note The router should have the ESM image in the router flash memory or the ESM should have network connectivity to TFTP server through its front panel ports.



Note We recommend that you continue all network operations using the new image and not the recovery image.


To start the load recovery process, issue the load_recovery command in bootloader prompt. After you issue the load_recovery command, the following message appears:

switch: load_recovery
Loading "rs:/c3560e-universalk9-mz.recovery_04302013"...Verifying image rs:/c3560e-universalk9-mz.recovery_04302013......................................................................................................................................................................................................................................................................................................................
Image passed digital signature verification
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
File "rs:/c3560e-universalk9-mz.recovery_04302013" uncompressed and installed, entry point: 0x3000
executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706


Switch>



Now you can upgrade to a new switch image, see the Upgrading the Cisco SM-X Layer 2/3 ESM Software.

Recovering from a Lost or Forgotten Password

This section shows how to recover from a lost or forgotten password.

The default configuration for the Cisco SM-X Layer 2/3 ESM allows an end user to recover from a lost password by entering a new password.

During auto boot loader operation, you are not presented with the boot loader command-line prompt. You gain access to the boot loader command line if the switch is set to manually boot or, if an error occurs, the operating system (a corrupted Cisco IOS image) is loaded. You can also access the boot loader if you have lost or forgotten the switch password.


Note The default configuration for Cisco SM-X Layer 2/3 ESMs allows an end user to recover from a lost password. The password recovery disable feature allows the system administrator to protect access to the switch password by disabling part of this functionality and allowing the user to interrupt the boot process only by agreeing to set the system back to the default configuration. With password recovery disabled, the user can still interrupt the boot process and change the password, but the configuration file (config.text) and the VLAN database file (vlan.dat) are deleted.


Prerequisites

This recovery procedure requires you to have physical access to the service module.

SUMMARY STEPS

1. service-module interface slot/port password-reset

2. flash_init

3. rename

4. boot

5. copy flash:

6. configure terminal

7. enable secret password

8. exit

9. copy running-configuration startup-configuration

10. reload

DETAILED STEPS

Command or Action
Purpose

Step 1

service-module interface slot/port password-reset



Router# service-module gigabitethernet1/0 password-reset

Enables password recovery.

Step 2

flash_init



switch: flash_init

Initializes the flash memory file system.

Step 3

rename



switch: rename flash: config.text flash: config.text.old

Renames the configuration file to config.text.old.

Step 4

boot [-x] [-v] [device:][imagename]



switch: boot

Use the boot command to boot up an external process.

Step 5

copy flash:



Switch# copy flash: config.text system: running-config

Copies the configuration file into memory.

Step 6

configure terminal



Switch# configure terminal

Enters global configuration mode.

Step 7

enable secret password



Switch(config)# enable secret 5 $1$LiBw$0Xc1wyT.PXPkuhFwqyhVi0

Sets the password.

  • The secret password can be from 1 to 25 alphanumeric characters.
  • It can start with a number.
  • It is case sensitive.
  • It allows spaces but ignores leading spaces.

Step 8

exit



Switch(config)# exit

Returns you to privileged EXEC mode.

Step 9

copy running-configuration startup-configuration



Switch# copy running-config startup-config

Copies the configuration from the running configuration file to the switch startup configuration file.

  • This procedure is likely to leave your Cisco SM-X Layer 2/3 ESM virtual interface in a shut down state.
  • You can see which interface is in this state by entering the show running-configuration privileged EXEC command.
  • To reenable the interface, enter the interface vlan vlan-id global configuration command, and specify the VLAN ID of the shut down interface. With the Cisco SM-X Layer 2/3 ESM in interface configuration mode, enter the no shutdown command.

Step 10

reload



Switch# reload

Reloads the switch.

Recovering from a Lost or Forgotten Password When Password Recovery Is Disabled

When password recovery is disabled, access to the boot loader prompt through the password-recovery mechanism is disallowed even though the password-recovery mechanism has been triggered. If you agree to let the system be reset to the default system configuration, access to the boot loader prompt is then allowed, and you can set the environment variables.

SUMMARY STEPS

1. service-module interface slot/port password-reset

2. service-module interface slot/port session

3. dir flash:

4. boot

5. enable

6. configure terminal

7. enable secret password

8. exit

9. copy running-configuration startup-configuration

10. reload

DETAILED STEPS

Command or Action
Purpose

Step 1

service-module interface slot/port password-reset



Router# service-module gigabitethernet1/0 password-reset

Resets the password on the router.

Step 2

service-module interface slot/port session



Router# service-module gigabitethernet 1/0 session

Connects to the service module and opens a service module session.

  • Entering no leaves the current configuration file intact, so you can rename it.
  • Entering yes deletes the configuration file.

Note This configuration can only be done if the service-module session command is entered within 50 seconds after entering the service-module password-reset command.

Step 3

dir flash:



switch: dir flash:

Displays a list of all files and directories in flash memory on the service module.

Step 4

boot



switch: boot

Boots the system.

Step 5

enable



Switch> enable

Enters privileged EXEC mode from the service module prompt.

Step 6

configure terminal



Switch# configure terminal

Enters global configuration mode.

Step 7

enable secret password



Switch(config)# enable secret 5 $1$LiBw$0Xc1wyT.PXPkuhFwqyhVi0

Changes the password.

  • The secret password can be from 1 to 25 alphanumeric characters.
  • It can start with a number.
  • It is case sensitive.
  • It allows spaces but ignores leading spaces.

Step 8

exit



Switch(config)# exit

Returns you to privileged EXEC mode.

Step 9

copy running-configuration startup-configuration



Switch# copy running-config startup-config

Copies the configuration from the running configuration file to the switch startup configuration file.

  • This procedure is likely to leave your Cisco SM-X Layer 2/3 ESM virtual interface in a shut down state.
  • You can see which interface is in this state by entering the show running-configuration privileged EXEC command.
  • To reenable the interface, enter the interface vlan vlan-id global configuration command, and specify the VLAN ID of the shut down interface. With the Cisco SM-X Layer 2/3 ESM in interface configuration mode, enter the no shutdown command.

Step 10

reload



Switch# reload

Reloads the switch.

Note This does not set the environment variables if the switch is set to auto boot.

Example

Sample Output for Recovering from a Lost or Forgotten Password When Password Recovery is Disabled

Switch#conf t

Switch(config)#no service password-recovery

Switch(config)#end

Switch#

c3945#disconnect

Closing connection to 99.0.0.1 [confirm]

c3945#

c3945#service-module gig4/0 password-reset

Do you want to proceed with password reset process?[confirm]

Starting password reset process...

Wait for 50 secs for password reset process to complete

c3945#

c3945#

*Nov 13 10:17:36.488 IST: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet4/1, changed state to down

c3945#service-module gig4/0 sess

Trying 99.0.0.1, 2259 ... Open



Using driver version 3 for media type 2

Base ethernet MAC Address: 04:da:d2:ef:a0:00

Xmodem file system is available.

The password-recovery mechanism is disabled.





Password reset process is complete...



Initializing Flash...

mifs[2]: 12 files, 1 directories

mifs[2]: Total bytes : 2097152

mifs[2]: Bytes used : 888832

mifs[2]: Bytes available : 1208320

mifs[2]: mifs fsck took 1 seconds.

mifs[3]: 1 files, 1 directories

mifs[3]: Total bytes : 4194304

mifs[3]: Bytes used : 217088

mifs[3]: Bytes available : 3977216

mifs[3]: mifs fsck took 1 seconds.

mifs[4]: 5 files, 1 directories

mifs[4]: Total bytes : 524288

mifs[4]: Bytes used : 49152

mifs[4]: Bytes available : 475136

mifs[4]: mifs fsck took 1 seconds.

mifs[5]: 5 files, 1 directories

mifs[5]: Total bytes : 524288

mifs[5]: Bytes used : 49152

mifs[5]: Bytes available : 475136

mifs[5]: mifs fsck took 0 seconds.

mifs[6]: 1 files, 1 directories

mifs[6]: Total bytes : 30408704

mifs[6]: Bytes used : 20324352

mifs[6]: Bytes available : 10084352

mifs[6]: mifs fsck took 8 seconds.

mifs[7]: 8 files, 1 directories

mifs[7]: Total bytes : 88735744

mifs[7]: Bytes used : 63512576

mifs[7]: Bytes available : 25223168

mifs[7]: mifs fsck took 24 seconds.

...done Initializing Flash.

done.

Verifying image ucode0:usbdos.dl....

Image passed digital signature verification

Verifying bootloader image........

BootLoader self verification passed





The password-recovery mechanism has been triggered, but

is currently disabled. Access to the boot loader prompt

through the password-recovery mechanism is disallowed at

this point. However, if you agree to let the system be

reset back to the default system configuration, access

to the boot loader prompt can still be allowed.



Would you like to reset the system back to the default configuration (y/n)?y





The system has been interrupted, and the config file

has been deleted. The following command will finish

loading the operating system software:



boot





switch: boot

Loading "flash:c3560e-universalk9-mz"...Verifying image flash:c3560e-universalk9-mz ......................................................................................................................................................................................................................................................................................................................



<omitted non relevant boot logs>





--- System Configuration Dialog ---



Enable secret warning

----------------------------------

In order to access the device manager, an enable secret is required

If you enter the initial configuration dialog, you will be prompted for the enable secret

If you choose not to enter the intial configuration dialog, or if you exit setup without setting the enable secret,

please set an enable secret using the following CLI in configuration mode-

enable secret 0 <cleartext password>

----------------------------------

Would you like to enter the initial configuration dialog? [yes/no]:

% Please answer 'yes' or 'no'.

Would you like to enter the initial configuration dialog? [yes/no]: no

Switch>

Switch>

Nov 13 04:53:57.888: %LINK-5-CHANGED: Interface Vlan1, changed state to administratively down

Nov 13 04:53:57.896: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down

Switch>

Related Documents



Related Topic
Document Title

Hardware installation instructions for network modules

Cisco 2900 Series and 3900 Series Hardware Installation

General information about configuration and command reference.

Cisco 3900 Series, 2900 Series, and 1900 Series Integrated Services Routers Software Configuration Guide

General information about configuring all supported Switching features.

Catalyst 3560 Switch Software Configuration Guide, Cisco IOS Release 15.0(2)SE and Later

Configurationg information about Cisco Enhanced EtherSwitch Service Modules support on ISR G2

Cisco Enhanced EtherSwitch Service Modules Configuration Guide

Regulatory compliance information for Cisco 2900 series routers.

Regulatory Compliance and Safety Information for Cisco 2900 Series Integrated Services Routers

Regulatory compliance information for Cisco 3900 series routers.

Regulatory Compliance and Safety Information for Cisco 3900 Series Integrated Services Routers

Technical Assistance



Description
Link

Technical Assistance Center (TAC) home page, containing 30,000 pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.

http://www.cisco.com/public/support/tac/home.shtml
