Turn Up a Node

Table Of Contents

Turn Up a Node

Before You Begin

NTP-G139 Verify Cisco TransportPlanner Reports and Files

NTP-G22 Verify Common Card Installation

NTP-G144 Provision a Multishelf Node

NTP-G23 Create Users and Assign Security

DLP-G54 Create a New User on a Single Node

DLP-G55 Create a New User on Multiple Nodes

NTP-G24 Set Up Name, Date, Time, and Contact Information

NTP-G25 Set Battery Power Monitor Thresholds

NTP-G26 Set Up CTC Network Access

DLP-G56 Provision IP Settings

DLP-G439 Provision the Designated SOCKS Servers

DLP-G57 Set the IP Address, Default Router, and Network Mask Using the LCD

DLP-G264 Enable Secure Mode

DLP-G58 Create a Static Route

DLP-G59 Set Up or Change Open Shortest Path First Protocol

DLP-G60 Set Up or Change Routing Information Protocol

NTP-G194 Set Up EMS Access to the ONS 15454

NTP-G341 Set Up Secure Access to the ONS 15454 TL1

NTP-G27 Set Up the ONS 15454 for Firewall Access

DLP-G61 Provision the IIOP Listener Port on the ONS 15454

DLP-G62 Provision the IIOP Listener Port on the CTC Computer

NTP-G132 Provision OSI

DLP-G283 Provision OSI Routing Mode

DLP-G284 Provision the TARP Operating Parameters

DLP-G285 Add a Static TID-to-NSAP Entry to the TARP Data Cache

DLP-G287 Add a TARP Manual Adjacency Table Entry

DLP-G288 Provision OSI Routers

DLP-G289 Provision Additional Manual Area Addresses

DLP-G290 Enable the OSI Subnet on the LAN Interface

DLP-G291 Create an IP-Over-CLNS Tunnel

NTP-G28 Set Up SNMP

NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File

DLP-G351 Delete a Card in CTC

DLP-G353 Preprovision a Single Slot

NTP-G320 Configure the Node as a Non-DWDM Network

DLP-G693 Configure the Amplifier

DLP-G694 Configure the PSM


NTP-G30 Install the DWDM Cards

DLP-G348 Use the Cisco TransportPlanner Shelf Layout Report

NTP-G31 Install the DWDM Dispersion Compensating Units

NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

DLP-G63 Install an SFP or XFP

DLP-G273 Preprovision an SFP or XFP Slot

DLP-G64 Remove an SFP or XFP

NTP-G123 Install the Filler Cards

NTP-G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

DLP-G349 Use the Cisco TransportPlanner Internal Connections Report

NTP-G140 Install Fiber-Optic Cables Between Terminal, Hub, or ROADM Nodes

DLP-G315 Install Fiber-Optic Cables From the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Standard Patch-Panel Tray

DLP-G316 Install Fiber-Optic Cables from TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Standard Patch-Panel Tray

DLP-G356 Install Fiber-Optic Cables from the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Deep Patch-Panel Tray

DLP-G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray

DLP-G428 Install Fiber-Optic Cables from the 40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE Cards in an Expanded ROADM, Terminal, or Hub Node to the 40-Channel Patch-Panel Tray

DLP-G357 Install Fiber-Optic Cables from the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Deep Patch-Panel Tray or 40-Channel Patch-Panel Tray

NTP-G185 Install Fiber-Optic Cables between Mesh Nodes

DLP-G430 Install Fiber-Optic Cables from the 40-MUX-C and 40-DMX-C Cards in a Mesh Node to the 40-Channel Patch-Panel Tray

DLP-G431 Install Fiber-Optic Cables from the 40-WXC-C Cards in a Mesh Node to a Mesh Patch-Panel Tray

NTP-G191 Install Fiber-Optic Cables on Passthrough ROADM Nodes

NTP-G141 Install Fiber-Optic Cables for Y-Cable Protection Modules

DLP-G375 Install Fiber-Optic Cables on the Y-Cable Modules in the FlexLayer Shelf

DLP-G376 Install Fiber-Optic Cables on the Y-Cable Modules in the Y-Cable Module Tray

NTP-G152 Create and Verify Internal Patchcords

DLP-G354 Create an Internal Patchcord Manually

DLP-G355 Delete an Internal Patchcord

NTP-G209 Create, Edit, and Delete Optical Sides

DLP-G491 Create an Optical Side

DLP-G492 Edit an Optical Side

DLP-G480 Delete an Optical Side

NTP-G38 Provision OSC Terminations

NTP-G37 Run Automatic Node Setup

NTP-G39 Verify OSCM Transmit Power

DLP-G314 Verify OSCM Transmit Power

NTP-G163 Upgrade Nodes in Single-Shelf Mode to Multishelf Mode


Turn Up a Node


This chapter explains how to provision a single Cisco ONS 15454 dense wavelength division multiplexing (DWDM) node and turn it up for service, including assigning the node name, date, and time; provisioning timing references; provisioning network attributes such as IP address and default router; setting up users and user security; installing cards; and creating DWDM connections.


Note Procedures in this chapter require that you have a network plan calculated for your DWDM network with Cisco TransportPlanner, Release 8.5. Cisco TransportPlanner is a DWDM planning tool that is available from your Cisco account representative. Cisco TransportPlanner prepares a shelf plan for each network node and calculates the power and attenuation levels for the DWDM cards installed in the node. For information about Cisco TransportPlanner, contact your Cisco account representative. For instructions on using Cisco TransportPlanner, refer to the Cisco TransportPlanner DWDM Operations Guide, Release 8.5.



Note Unless otherwise specified, in this document "ONS 15454" refers to both ANSI (ONS 15454) and ETSI (ONS 15454 SDH) shelf assemblies.



Note Cisco Transport Controller (CTC) views referenced in these procedures depend on the ONS 15454 mode. In single-shelf mode, the views are network, node, and card. In multishelf mode, the views are network, multishelf, shelf, and card. For more information about CTC views, refer to "CTC Information and Shortcuts."


Before You Begin

This section lists the non-trouble procedures (NTPs) needed to turn up a DWDM node. Turn to an NTP for applicable detail-level procedures (DLPs), known as tasks.

1. G139 Verify Cisco TransportPlanner Reports and Files—Complete this procedure first.

2. G22 Verify Common Card Installation—Complete this procedure next.

3. G144 Provision a Multishelf Node—Complete this procedure as needed.

4. G23 Create Users and Assign Security—Complete this procedure to create CTC users and assign their security levels.

5. G24 Set Up Name, Date, Time, and Contact Information—Continue with this procedure to set the node name, date, time, location, and contact information.

6. G25 Set Battery Power Monitor Thresholds—Continue with this procedure to set the node battery power thresholds.

7. G26 Set Up CTC Network Access—Continue with this procedure to provision the IP address, default router, subnet mask, and other network configuration settings.

8. G194 Set Up EMS Access to the ONS 15454—Continue with this procedure to connect the CTC in secure mode.

9. G341 Set Up Secure Access to the ONS 15454 TL1—Continue with this procedure to enable secure access to TL1.

10. G27 Set Up the ONS 15454 for Firewall Access—Continue with this procedure if the ONS 15454 will be accessed behind firewalls.

11. G132 Provision OSI—Continue with this procedure if the ONS 15454 will be installed in networks with third-party, Open Systems Interconnection (OSI)-based network elements (NEs).

12. G28 Set Up SNMP—Complete this procedure if Simple Network Management Protocol (SNMP) will be used for network monitoring.

13. "NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File" procedure—Complete this procedure to preprovision the ONS 15454 slots and install the card and automatic node setup (ANS) parameters.

14. G30 Install the DWDM Cards—Complete this procedure to install the DWDM cards, including the OSCM, OSC-CSM, 32WSS, 32WSS-L, 40-WSS-C, 40-WSS-CE, 40-WXC-C, OPT-BST, OPT-BST-E, OPT-BST-L, OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, OPT-PRE, 32MUX-O, 40-MUX-C, 32DMX-O, 32DMX, 32DMX-L, 40-DMX-C, 40-DMX-CE, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, AD-4C-xx.x, AD-1B-xx.x, AD-4B-xx.x, and MMU.

15. G31 Install the DWDM Dispersion Compensating Units—Complete this procedure, as needed, to install a dispersion compensating unit (DCU).

16. G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards—Complete this procedure, as needed, to install transponder (TXP), muxponder (MXP), GE_XP, 10GE_XP, or ADM-10G cards.

17. G123 Install the Filler Cards—Complete this procedure, as needed, to install ONS 15454 filler cards.

18. G34 Install Fiber-Optic Cables on DWDM Cards and DCUs—Complete this procedure, as needed, to install the fiber-optic cables on the DWDM cards.

19. G140 Install Fiber-Optic Cables Between Terminal, Hub, or ROADM Nodes—Complete this procedure, as needed, to connect TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards to DWDM cards in a terminal, hub, or reconfigurable optical add-drop multiplexer (ROADM) node through the patch panel.

20. G185 Install Fiber-Optic Cables between Mesh Nodes—Complete this procedure, as needed, to connect 40-WXC-C cards in a mesh node to the 4-degree or 8-degree patch panel.

21. G141 Install Fiber-Optic Cables for Y-Cable Protection Modules—Complete this procedure, as needed, to connect fiber-optic cables to Y-cable modules from client TXP, MXP, GE_XP and 10GE_XP cards.

22. G152 Create and Verify Internal Patchcords—Complete this procedure to calculate the DWDM cable connections.

23. G209 Create, Edit, and Delete Optical Sides—Complete this procedure to create, edit, and delete an optical side.

24. G38 Provision OSC Terminations—Complete this procedure next.

25. G37 Run Automatic Node Setup—Complete this procedure next.

26. G39 Verify OSCM Transmit Power—Complete this procedure next.

27. G163 Upgrade Nodes in Single-Shelf Mode to Multishelf Mode—Complete this procedure as needed.

NTP-G139 Verify Cisco TransportPlanner Reports and Files

Purpose

This procedure verifies that you have the Cisco TransportPlanner reports and files needed to turn up the node.

Tools/Equipment

None

Prerequisite Procedures

Chapter 1 "Install the Shelf and Common Control Cards"

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Verify that you have the Cisco TransportPlanner reports and files shown in Table 3-1 for the node that you will provision. The reports and files can be provided in one of the following ways:

If you have Cisco TransportPlanner, verify that you have the electronic network design plan from which you can generate the reports in Cisco TransportPlanner. For information about generating the reports, refer to the Cisco TransportPlanner DWDM Operations Guide.

If you do not have Cisco TransportPlanner, you must have printouts of all reports listed in Table 3-1 except the Assisted Configuration Setup file. Assisted Configuration Setup is an electronic file that will be imported into CTC. You must be able to access it from the CTC computer used to provision the node.

Table 3-1 Cisco TransportPlanner Node Setup Information and Files

Source
Format
Description

Shelf layout

JPG file

Cisco TransportPlanner provides a shelf layout (Figure 3-1) showing the cards that should be installed in each ONS 15454 slot. Cisco TransportPlanner can export this as a JPG file with a user-defined name.

Installation Parameters

Table

Provides the target reference values for the variable optical attenuators (VOAs), output power, optical thresholds, and amplifier configuration parameters.

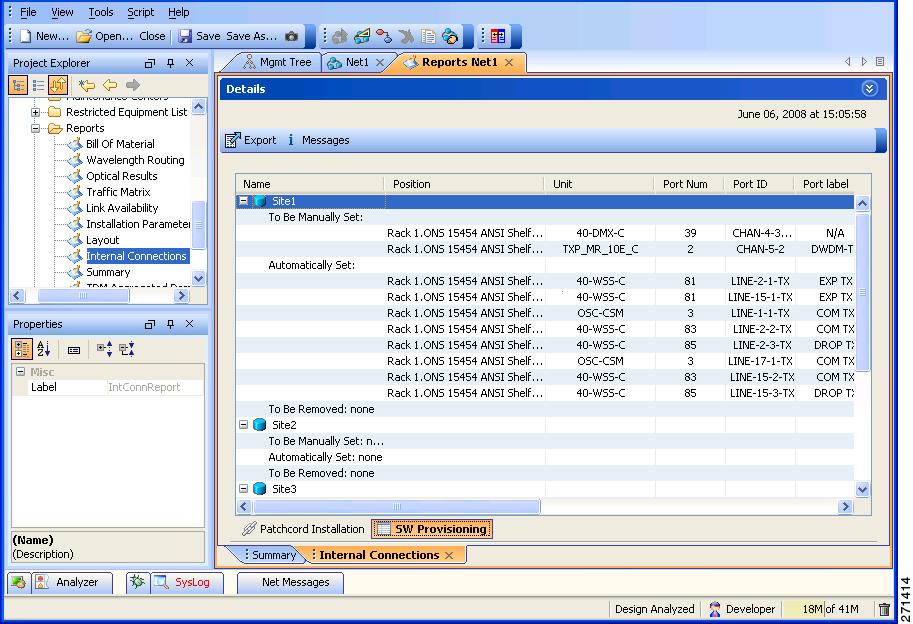

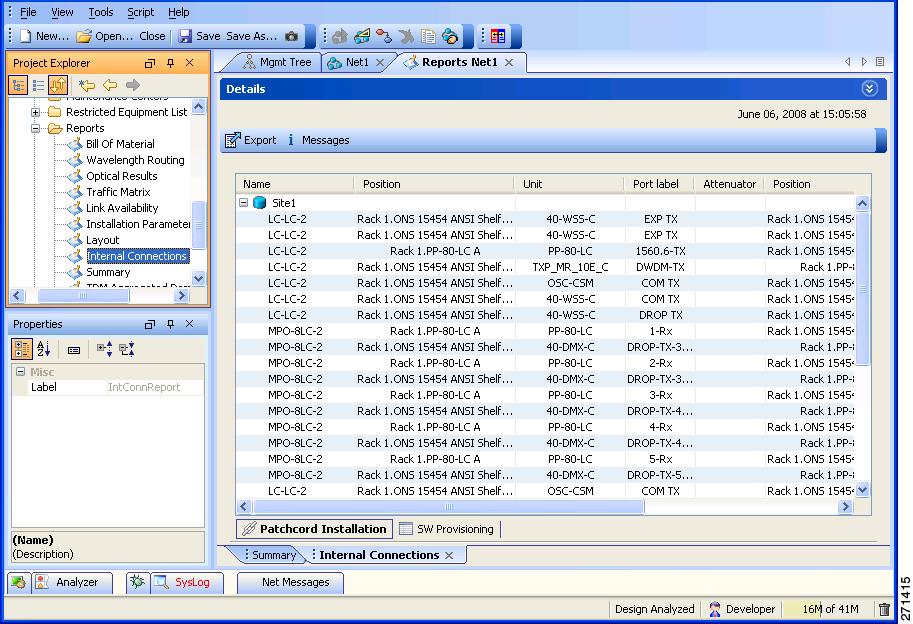

Internal Connections

Table

Identifies the patchcords that must be installed within the shelf.

NE Update Configuration file

XML file

The Cisco TransportPlanner NE Update configuration file is an electronic file with an XML extension and a name assigned by the network designer for the network you are provisioning. The file is imported into CTC where it preprovisions the shelf and configures the following card parameters: OTN and FEC parameters for TXP, MXP, GE_XP, 10GE_XP, ADM-10G cards, card mode for OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, GE_XP, and 10GE_XP cards. It also provisions the OCH trunk to OCH filter internal patchcords, the optical sides. and it configures the ANS parameters based on the network calculated by Cisco TransportPlanner.

Traffic Matrix

Table

Shows the traffic flow within the node. During node turn-up, this report is used to identify the location of Y-cable protection groups.

Cable list

Table or list

A list of cables needed to provision the node. The list can be derived from the Internal Connections Report or from the Bill of Materials report prepared by Cisco TransportPlanner.


Figure 3-1 Cisco TransportPlanner Shelf Layout

If you not do not have all the reports and files listed in Table 3-1, do not continue. See your site or network planner for the required information and files.

Step 2 Print Table 3-1 for reference. You will need information from the reports during node turn-up.

Stop. You have completed this procedure.


NTP-G22 Verify Common Card Installation

Purpose

This procedure verifies that the ONS 15454 node has two TCC2 or TCC2P cards installed. It also verifies the installation of the AIC-I and MS-ISC-100T cards, if they are installed.

Tools/Equipment

None

Prerequisite Procedures

Chapter 1 "Install the Shelf and Common Control Cards"

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Verify that two TCC2 cards or two TCC2P cards are installed in Slots 7 and 11.

Step 2 Verify that the FAIL LED is off on both TCC2/TCC2P cards.

Step 3 Verify that the green ACT (active) LED is illuminated on one TCC2/TCC2P card and that the amber STBY (standby) LED is illuminated on the other TCC2/TCC2P card.


Note If the TCC2/TCC2P cards are not installed, or if their LEDs are not operating as described, do not continue. Complete the "DLP-G33 Install the TCC2 or TCC2P Card" task or refer to the Cisco ONS 15454 DWDM Troubleshooting Guide to resolve installation problems before proceeding to Step 4.


Step 4 If the AIC-I card is installed, verify that it is installed in Slot 9 and that its ACT (active) LED displays a solid green light.


Note If the AIC-I card is not installed and the card is required by the Cisco TransportPlanner shelf layout, or if it is installed and its LEDs are not operating as described, do not continue. Complete the "DLP-G34 Install the AIC-I Card" task or refer to the Cisco ONS 15454 DWDM Troubleshooting Guide to resolve installation problems before proceeding to Step 5.


Step 5 Verify that the software release shown on the LCD matches the software release required for your network. On the LCD, the software release is shown under the platform (SONET or SDH) and date/temperature. If the release does not match, perform one of the following procedures:

Perform a software upgrade using a Cisco ONS 15454 software CD or Cisco ONS 15454 SDH software CD. Refer to the release-specific software upgrade document.

Replace the TCC2/TCC2P cards with cards containing the correct release.

Step 6 If the node will be configured as a multishelf node, verify that redundant MS-ISC-100T cards are installed (Slots 6 and 12 are recommended) and that the green ACT (active) LED is illuminated on both cards.


Note If the MS-ISC-100T card is not installed and the card is required by the Cisco TransportPlanner shelf layout, or if the card's LEDs are not operating as described, do not continue. Complete the "DLP-G309 Install the MS-ISC-100T Card" task or refer to the Cisco ONS 15454 DWDM Troubleshooting Guide to resolve installation problems before proceeding to the next procedure.


Stop. You have completed this procedure.


NTP-G144 Provision a Multishelf Node

Purpose

This procedure provisions a multishelf node from CTC. A multishelf node consists of a control node and subtending shelves that are configured to operate as a single node.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

G145 Connect a Multishelf Node and Subtending Shelves to an MS-ISC-100T Card or

G158 Connect a Multishelf Node and Subtending Shelves to a Catalyst 2950

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Caution An optical shelf in a multishelf configuration must be provisioned as the node controller shelf and not a subtending shelf. Otherwise, traffic will be dropped. If no slots are available on an optical shelf to install the MS-ISC-100T cards needed for a node controller shelf, install and configure the Cisco Catalyst 2950. See the "NTP-G158 Connect a Multishelf Node and Subtending Shelves to a Catalyst 2950" procedure.


Step 1 Complete the "DLP-G46 Log into CTC" task at the node that you want to configure as a multishelf node.

Step 2 If you want to set up the login node as the node controller, complete the following steps. If not, continue with Step 3.

a. In node view (single-node mode) or multishelf view (multishelf mode), click the Provisioning > General > Multishelf Config tabs.

b. Click Enable as Node Controller.

c. From the LAN Config drop-down list, complete one of the following:

Choose Ethernet Switch if MS-ISC-100T cards or the Catalyst 2950 switches are already installed and configured.

Choose Stand-Alone if MS-ISC-100T cards are not installed yet but will be included in the final layout. This option will allow a safe migration of the TCC2/TCC2P card database when the multishelf configuration is complete.

d. Click Apply.

e. In the confirmation dialog box, click Yes to allow the node to reboot. The CTC view changes to network view and the node icon changes to gray. Wait for the reboot to finish. (This might take several minutes.)

f. After the node reboots, double-click the node. The multishelf view appears.


Note The shelf ID of the node controller is automatically assigned as 1.


Step 3 If you want to add a node as a subtending shelf in the multishelf configuration, complete the following steps. If not, you have completed this procedure.

a. In multishelf view, right-click the white space in the rack and choose Add Shelf from the shortcut menu.

b. In the Shelf ID Selection dialog box, choose a shelf ID (from 2 to 8) from the drop-down list.

c. Click OK. The shelf appears in multishelf view.

d. Disconnect the cross-over (CAT-5) LAN cable from the RJ-45 LAN (TCP/IP) port of the subtending shelf TCC2/TCC2P card in Slot 11.

e. Connect your Windows PC or Solaris workstation network interface card (NIC) to the RJ-45 LAN (TCP/IP) port on the TCC2/TCC2P card in Slot 11.

f. Complete the "DLP-G46 Log into CTC" task at the subtending shelf.

g. Click the Provisioning > General > Multishelf Config tabs.

h. Click Enable as Subtended Shelf.

i. From the Shelf ID drop-down list, choose the shelf ID that you created in Step b.

j. Click Apply.

k. In the confirmation dialog box, click Yes to reboot the shelf. The CTC view changes to network view and the node icon changes to gray. Wait for the reboot to finish. (This might take several minutes.)

l. Disconnect your Windows PC or Solaris workstation NIC from the RJ-45 LAN (TCP/IP) port of the subtending shelf TCC2/TCC2P card in Slot 11.

m. Reconnect the cross-over (CAT-5) LAN cable (disconnected in Step d) to the RJ-45 LAN (TCP/IP) port of the subtending shelf TCC2/TCC2P card in Slot 11.

n. Repeat Steps a through m to set up additional subtending shelves.

Step 4 Complete "NTP-G145 Connect a Multishelf Node and Subtending Shelves to an MS-ISC-100T Card" task to discover shelves and configure them as a multi-shelf mode.


Note Non-LAN connected Multishelf nodes are not manageable from CTC unless SOCKS Proxy is enabled on the node.


Stop. You have completed this procedure.


NTP-G23 Create Users and Assign Security

Purpose

This procedure creates ONS 15454 users and assigns their security levels.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you need to create users. If you are already logged in, continue with Step 2.


Note You must log in as a Superuser to create additional users. The CISCO15 user provided with each ONS 15454 can be used to set up other ONS 15454 users. You can add up to 500 users to one ONS 15454.


Step 2 Complete the "DLP-G54 Create a New User on a Single Node" task or the "DLP-G55 Create a New User on Multiple Nodes" task as needed.


Note You must add the same user name and password to each node that a user will access.


Step 3 If you want to modify the security policy settings, including password aging and idle user timeout policies, complete the "NTP-G88 Modify Users and Change Security" procedure.

Stop. You have completed this procedure.


DLP-G54 Create a New User on a Single Node

Purpose

This task creates a new user for one ONS 15454.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Security > Users tabs.

Step 2 In the Users window, click Create.

Step 3 In the Create User dialog box, enter the following:

Name—Type the user name. The name must be a minimum of six and a maximum of 20 alphanumeric (a-z, A-Z, 0-9) characters. For Transaction Language One (TL1) compatibility, the user name must be 6 to 10 characters.

Password—Type the user password. The password length, by default, is set to a minimum of six and a maximum of 20 characters. You can configure the default values in node view using the Provisioning > NE Defaults > Node > security > passwordComplexity tabs. The minimum length can be set to eight, ten or twelve characters, and the maximum length to 80 characters. The password must be a combination of alphanumeric (a-z, A-Z, 0-9) and special (+, #,%) characters, where at least two characters are not alphabetic and at least one character is a special character. For TL1 compatibility, the password must be six to ten characters.


Note The password must not contain the user name.


Confirm Password—Type the password again to confirm it.

Security Level—Choose a security level for the user: RETRIEVE, MAINTENANCE, PROVISIONING, or SUPERUSER.


Note Each security level has a different idle time. The idle time is the length of time that CTC can remain idle before the password must be reentered. The defaults are: Retrieve user = unlimited, Maintenance user = 60 minutes, Provisioning user = 30 minutes, and Superuser = 15 minutes. To change the idle times, see the "NTP-G88 Modify Users and Change Security" procedure.


Step 4 Click OK.

Step 5 Return to your originating procedure (NTP).


DLP-G55 Create a New User on Multiple Nodes

Purpose

This task adds a new user to multiple ONS 15454 nodes.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note All nodes where you want to add users must be accessible in network view.



Step 1 From the View menu, choose Go to Network View.

Step 2 Click the Provisioning > Security > Users tabs.

Step 3 In the Users window, click Create.

Step 4 In the Create User dialog box, enter the following:

Name—Type the user name. The name must be a minimum of six and a maximum of 20 alphanumeric (a-z, A-Z, 0-9) characters. For TL1 compatibility, the user name must be 6 to 10 characters.

Password—Type the user password. The password length, by default, is set to a minimum of six and a maximum of 20 characters. You can configure the default values in node view through Provisioning > NE Defaults > Node > security > passwordComplexity. The minimum length can be set to eight, ten or twelve characters, and the maximum length to 80 characters. The password must be a combination of alphanumeric (a-z, A-Z, 0-9) and special (+, #, %) characters, where at least two characters are not alphabetic and at least one character is a special character. For TL1 compatibility, the password must be six to ten characters. The password must not contain the user name.

Confirm Password—Type the password again to confirm it.

Security Level—Choose a security level for the user: RETRIEVE, MAINTENANCE, PROVISIONING, or SUPERUSER.


Note Each security level has a different idle time. The idle time is the length of time that CTC can remain idle before it locks up and the password must be reentered. The defaults are: Retrieve user = unlimited, Maintenance user = 60 minutes, Provisioning user = 30 minutes, and Superuser = 15 minutes. To change the idle times, refer to the "NTP-G88 Modify Users and Change Security" procedure.


Step 5 In the Select Applicable Nodes area, deselect any nodes where you do not want to add the user (all network nodes are selected by default).

Step 6 Click OK.

Step 7 In the User Creation Results dialog box, verify that the user was added to all the nodes chosen in Step 5. If not, click OK and repeat Steps 2 through 6. If the user was added to all nodes, click OK and continue with the next step.

Step 8 Return to your originating procedure (NTP).


NTP-G24 Set Up Name, Date, Time, and Contact Information

Purpose

This procedure provisions identification information for the node, including the node name, a contact name and phone number, the location of the node, and the date, time, and time zone.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 Complete the "DLP-G46 Log into CTC" task for the node you will turn up. If you are already logged in, continue with Step 2.

Step 2 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > General > General tabs.

Step 3 In the Node Name field, type a name for the node. For TL1 compliance, names must begin with an alpha character and have no more than 20 alphanumeric (a-z, A-Z, 0-9) characters.


Note To avoid errors when you import the Cisco TransportPlanner configuration file using the "NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File" procedure, the CTC node name and the Cisco TransportPlanner site name should be the same (or at least easy to identify).


Step 4 (Optional) In the Contact field, type the name of the node contact person and the phone number, up to 255 characters.

Step 5 (Optional) In the Latitude field, enter the node latitude: N (north) or S (south), degrees, and minutes.

Step 6 (Optional) In the Longitude field, enter the node longitude: E (east) or W (west), degrees, and minutes.


Note The latitude and longitude values only indicate the geographical position of the nodes in the actual network and not the CTC node position.


Step 7 (Optional) In the Description field, type a description of the node. The description can be a maximum of 255 characters.

Step 8 (Optional) Check the Use NTP/SNTP Server check box if you want CTC to use a Network Time Protocol (NTP) or Simple Network Time Protocol (SNTP) server to set the date and time of the node. Using an NTP or SNTP server ensures that all ONS 15454 network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades.

a. If you check the Use NTP/SNTP Server check box, type the IP address of one of the following:

An NTP/SNTP server connected to the ONS 15454

Another ONS 15454 with NTP/SNTP enabled that is connected to the ONS 15454


Note If you plan to check gateway network element (GNE) for the ONS 15454 SOCKS proxy server (see "DLP-G56 Provision IP Settings" task), external ONS 15454 nodes must reference the gateway ONS 15454 for NTP/SNTP timing. For more information about the ONS 15454 gateway settings, refer to the "Management Network Connectivity" chapter in the Cisco ONS 15454 DWDM Reference Manual.



Caution If you reference another ONS 15454 for the NTP/SNTP server, make sure that the second ONS 15454 references an NTP/SNTP server and not the first ONS 15454 (that is, do not create an NTP/SNTP timing loop by having two ONS 15454 nodes reference each other).

b. If you do not check Use SNTP/NTP Server, complete the Date and Time fields. The ONS 15454 will use these fields for alarm dates and times. By default, CTC displays all alarms in the CTC computer time zone for consistency. To change the display to the node time zone, complete the "DLP-G118 Display Alarms and Conditions Using Time Zone" task.

Date—Type the current date in the format m/d/yyyy, for example, September 24, 2002 is 9/24/2002.

Time—Type the current time in the format hh:mm:ss, for example, 11:24:58. The ONS 15454 uses a 24-hour clock, so 10:00 PM is entered as 22:00:00.

Step 9 Click the Time Zone field and choose a city within your time zone from the drop-down list. The list displays the 80 World Time Zones from -11 through 0 (GMT) to +14. Continental United States time zones are GMT-05:00 (Eastern), GMT-06:00 (Central), GMT-07:00 (Mountain), and GMT-08:00 (Pacific).

Step 10 Check the Use Daylight Savings Time check box if the time zone that you chose uses Daylight Savings Time.


Note The Insert AIS-V on STS-1 SD-P and SD-P BER field are not used in DWDM networks.


Step 11 Click Apply.

Step 12 In the confirmation dialog box, click Yes.

Step 13 Review the node information. If you need to make corrections, repeat Steps 3 through 12 to enter the corrections. If the information is correct, continue with the "NTP-G25 Set Battery Power Monitor Thresholds" procedure.

Stop. You have completed this procedure.


NTP-G25 Set Battery Power Monitor Thresholds

Purpose

This procedure provisions extreme high, high, low, and extreme low input battery power thresholds within a -48 VDC environment.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Caution The default battery power thresholds are normally not changed. Threshold changes should only be performed at the direction of your site administrator.


Note When the thresholds are crossed, the TCC2/TCC2P card generates warning alarms in CTC. For ONS 15454 power specifications, see the "Hardware Specifications" appendix in the Cisco ONS 15454 DWDM Reference Manual.



Step 1 Complete the "DLP-G46 Log into CTC" task for the node that you will set up. If you are already logged in, continue with Step 2.

Step 2 In node view (single-shelf mode) or shelf view (multishelf mode), click the Provisioning > General > Power Monitor tabs.


Note In multishelf mode, power monitor thresholds must be provisioned separately for each shelf within the multishelf including the node controller and all subtending shelves.


Step 3 To change the extreme low battery voltage threshold in 0.5 VDC increments, choose a voltage from the ELWBATVGVdc drop-down list.

Step 4 To change the low battery voltage threshold in 0.5 VDC increments, choose a voltage from the LWBATVGVdc drop-down list.

Step 5 To change the high battery voltage threshold in 0.5 VDC increments, choose a voltage from the HIBATVGVdc drop-down list.

Step 6 To change the extreme high battery voltage threshold in 0.5 VDC increments, choose a voltage from the EHIBATVGVdc drop-down list.

Step 7 Click Apply.

Stop. You have completed this procedure.


NTP-G26 Set Up CTC Network Access

Purpose

This procedure provisions network access for a node, including its subnet mask, default router, Dynamic Host Configuration Protocol (DHCP) server, Internet Inter-Orb Protocol (IIOP) listener port, gateway settings, static routes, Open Shortest Path First (OSPF) protocol, Routing Information Protocol (RIP), and designated SOCKS servers.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 Complete the "DLP-G46 Log into CTC" task. If you are already logged in, continue with Step 2.

Step 2 Complete the "DLP-G56 Provision IP Settings" task to provision the ONS 15454 IP address, subnet mask, default router, DHCP server, IIOP listener port, and SOCKS proxy server settings.


Tip If you cannot log into the node, you can change its IP address, default router, and network mask by using the LCD on the ONS 15454 fan-tray assembly (unless LCD provisioning is suppressed). See the "DLP-G57 Set the IP Address, Default Router, and Network Mask Using the LCD" task for instructions. However, you cannot use the LCD to provision any other network settings.



Note When accessing CTC from a machine running Windows XP operating system, CTC may sometimes fail to reconnect to a GNE when the GNE proxies for several ENE nodes (approximately 15 ENE nodes). This can happen when there is a side switch or when the LAN is enabled/disabled. This is due to the Windows XP operating system limiting the number of simultaneous TCP/IP connection attempts. As a workaround, relaunch CTC on the GNE node. You can configure a designated socks server list on the CTC to mitigate the problem.


Step 3 If TCC2P cards are installed and you want to turn on the ONS 15454 secure mode, which allows two IP addresses to be provisioned for the node, complete the "DLP-G264 Enable Secure Mode" task. Secure mode is not available if TCC2 cards are installed.

Step 4 If static routes are needed, complete the "DLP-G58 Create a Static Route" task. For more information about static routes, refer to the "Management Network Connectivity" chapter in the Cisco ONS 15454 DWDM Reference Manual.

Step 5 If the ONS 15454 is connected to a LAN or WAN that uses OSPF and you want to share routing information between the LAN or WAN and the ONS network, complete the "DLP-G59 Set Up or Change Open Shortest Path First Protocol" task.

Step 6 If the ONS 15454 is connected to a LAN or WAN that uses RIP, complete the "DLP-G60 Set Up or Change Routing Information Protocol" task.

Step 7 Complete the "DLP-G439 Provision the Designated SOCKS Servers" task after the network is provisioned and one or more of the following conditions exist:

SOCKS proxy is enabled.

The ratio of ENEs to GNEs is greater than eight to one.

Most ENEs do not have LAN connectivity.

Stop. You have completed this procedure.


DLP-G56 Provision IP Settings

Purpose

This task provisions IP settings, which includes the IP address, default router, DHCP access, firewall access, and SOCKS proxy server settings for an ONS 15454 node.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Caution All network changes should be approved by your network (or LAN) administrator.


Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network > General tabs.

Step 2 Complete the following information in the fields listed:

IP Address—Type the IP address assigned to the ONS 15454 node.


Note If TCC2P cards are installed, dual IP addressing is available using the secure mode. When secure mode is off (sometimes called repeater mode), the IP address entered in the IP Address field applies to the ONS 15454 backplane LAN port and the TCC2P TCP/IP (LAN) port. When secure mode is on, the IP Address field shows the address assigned to the TCC2P TCP/IP (LAN) port and the Superuser can enable or disable display of the backplane IP address. See the "DLP-G264 Enable Secure Mode" task as needed. Refer to the "Management Network Connectivity" chapter in the Cisco ONS 15454 DWDM Reference Manual for more information about secure mode.


Net/Subnet Mask Length—Type the subnet mask length (decimal number representing the subnet mask length in bits) or click the arrows to adjust the subnet mask length. The subnet mask length is the same for all ONS 15454 nodes in the same subnet.

MAC Address—(Display only) Displays the ONS 15454 IEEE 802 MAC address.


Note In secure mode, the front and back TCP/IP (LAN) ports are assigned different MAC addresses, and the backplane information can be hidden or revealed by a Superuser.


Default Router—If the ONS 15454 is connected to a LAN, enter the IP address of the default router. The default router forwards packets to network devices that the ONS 15454 cannot directly access. This field is ignored if any of the following are true:

The ONS 15454 is not connected to a LAN.

The SOCKS proxy server is enabled and the ONS 15454 is provisioned as an end network element (ENE).

OSPF is enabled on both the ONS 15454 and the LAN where the ONS 15454 is connected. (OSPF is provisioned in the "DLP-G59 Set Up or Change Open Shortest Path First Protocol" task.)

LCD IP Setting—Choose one of the following:

Allow Configuration—Displays the node IP address on the LCD and allows users to change the IP settings using the LCD. This option enables the "DLP-G57 Set the IP Address, Default Router, and Network Mask Using the LCD" task.

Display Only—Displays the node IP address on the LCD but does not allow users to change the IP settings using the LCD.

Suppress Display—Suppresses the node IP address display on the LCD.

Suppress CTC IP Display—Check this check box if you want to prevent the node IP address from appearing in CTC to users with Provisioning, Maintenance, or Retrieve security levels. (The IP address suppression is not applied to users with Superuser security level.)


Note IP address suppression is not applied to users with Superuser security level. However, in secure mode the backplane IP address visibility can be restricted to only a locally connected Superuser viewing the routing table. In this case, the backplane IP address is not revealed to any user at any other NE, either on the routing table or in autonomous messages (such as the TL1 REPT DBCHG message, alarms, and performance monitoring [PM] reporting).


Forward DHCP Request To—Check this check box to enable DHCP. Also, enter the DHCP server IP address in the Request To field. Unchecked is the default. If you will enable any of the gateway settings to implement the ONS 15454 SOCKS proxy server features, do not check this check box.


Note If you enable DHCP, computers connected to an ONS 15454 node can obtain temporary IP addresses from an external DHCP server. The ONS 15454 only forwards DHCP requests; it does not act as a DHCP server.


Gateway Settings—Provisions the ONS 15454 SOCKS proxy server features. (SOCKS is a standard proxy protocol for IP-based applications.) Do not change these options until you review Scenario 7 "Provisioning the ONS 15454 Proxy Server" in the "Management Network Connectivity" chapter of the Cisco ONS 15454 DWDM Reference Manual. In SOCKS proxy server networks, the ONS 15454 is either an ENE, a GNE, or a proxy-only server. Provisioning must be consistent for each NE type.

Enable SOCKS proxy server on port—If checked, the ONS 15454 serves as a proxy for connections between CTC clients and ONS 15454 nodes that are connected by data communications channels (DCCs) to the proxy ONS 15454. The CTC client establishes connections to DCC-connected nodes through the proxy node. The CTC client does not require IP connectivity to the DCC-connected nodes; it only requires IP connectivity to the proxy ONS 15454. If the Enable SOCKS proxy server on port check box is unchecked, the node does not proxy for any CTC clients. When this box is checked, you can provision one of the following options:

External Network Element (ENE)—Choose this option when the ONS 15454 is not connected to a LAN but has DCC connections to other ONS nodes. A CTC computer connected to the ENE through the TCC2/TCC2P card TCP/IP (craft) port can manage nodes that have DCC connections to the ENE. However, the CTC computer does not have direct IP connectivity to these nodes or to any LAN or WAN that those nodes might be connected to.

Gateway Network Element (GNE)—Choose this option when the ONS 15454 is connected to a LAN and has DCC connections to other nodes. A CTC computer connected to the LAN can manage all nodes that have DCC connections to the GNE, but the CTC computer does not have direct IP connectivity to them. The GNE option isolates the LAN from the DCC network so that IP traffic originating from the DCC-connected nodes and any CTC computers connected to them is prevented from reaching the LAN.

SOCKS proxy only—Choose this option when the ONS 15454 is connected to a LAN and the LAN is separated from the node by a firewall. The SOCKS proxy only option is the same as the GNE option, except that the SOCKS proxy only option does not isolate the DCC network from the LAN.


Note If a node is provisioned in secure mode, it is automatically provisioned as a GNE with SOCKS proxy enabled. However, this provisioning can be overridden, and the secure node can be changed to an ENE. In secure mode, SOCKS cannot be disabled. For information about provisioning, including GNE and ENE status, see the "DLP-G264 Enable Secure Mode" task.


Step 3 Click Apply.

Step 4 Click Yes in the confirmation dialog box.

Both TCC2/TCC2P cards reboot one at a time if changes were made to the IP address, subnet mask, or gateway settings. During this time (approximately 5 to 6 minutes), the active and standby TCC2/TCC2P card LEDs will blink, turn on, and turn off at different intervals. Eventually, a "Lost node connection, switching to network view" message appears.

Step 5 Click OK. The network view appears. The node icon appears in gray, during which time you cannot access the node.

Step 6 Double-click the node icon when it becomes green.

Step 7 Return to your originating procedure (NTP).


DLP-G439 Provision the Designated SOCKS Servers

Purpose

This task identifies the ONS 15454 SOCKS servers in SOCKS-proxy-enabled networks. Identifying the SOCKS servers reduces the amount of time required to log into a node and have all NEs appear in network view (NE discovery time). The task is recommended when the combined CTC login and NE discovery time is greater than five minutes in networks with SOCKS proxy enabled. Long (or failed) login and NE discovery times can occur in networks that have a high ENE-to-GNE ratio and a low number of ENEs with LAN connectivity.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note To complete this task, you must have either the IP addresses or DNS names of all ONS 15454s in the network with LAN access that have SOCKS proxy enabled.



Note SOCKS proxy servers can be any accessible ONS network nodes that have LAN access, including the ONS 15310-MA, ONS 15310-CL, ONS 15454, ONS 15454 SDH, ONS 15600, and ONS 15600 SDH nodes.



Note You must repeat this task any time that changes to SOCKS proxy server nodes occur, for example, whenever LAN connectivity is added to or removed from a node, or when nodes are added or removed from the network.



Note If you cannot log into a network node, complete the "DLP-G46 Log into CTC" task choosing the Disable Network Discovery option. Complete this task, then login again with network discovery enabled.



Step 1 From the CTC Edit menu, choose Preferences.

Step 2 In the Preferences dialog box, click the SOCKS tab.

Step 3 In the Designated SOCKS Server field, type the IP address or DNS node name of the first ONS 15454 SOCKS server. The ONS 15454 that you enter must have SOCKS proxy server enabled, and it must have LAN access.

Step 4 Click Add. The node is added to the SOCKS server list. If you need to remove a node on the list, click Remove.

Step 5 Repeat Steps 3 and 4 to add all qualified ONS 15454s within the network. Add all ONS nodes that have SOCKS proxy enabled and are connected to the LAN.

Step 6 Click Check All Servers. CTC verifies that all nodes can perform as SOCKS servers. Once verified, a check is placed next to the node IP address or node name in the SOCKS server list. An X placed next to the node indicates one or more of the following:

The entry does not correspond to a valid DNS name.

The numeric IP address is invalid.

The node cannot be reached.

The node can be reached, but the SOCKS port cannot be accessed, for example, a firewall problem might exist.

Step 7 Click Apply. The list of ONS 15454 nodes, including ones that received an X in Step 6, are added as SOCKS servers.

Step 8 Click OK to close the Preferences dialog box.

Step 9 Return to your originating procedure (NTP).


DLP-G57 Set the IP Address, Default Router, and Network Mask Using the LCD

Purpose

This task changes the ONS 15454 IP address, default router, and network mask using the LCD on the fan-tray assembly. Use this task if you cannot log into CTC.

Tools/Equipment

None

Prerequisite Procedures

G33 Install the TCC2 or TCC2P Card

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note You cannot perform this task if the LCD IP Display field on the node view Provisioning > Network tab is set to Display Only or Suppress Display. See the "DLP-G56 Provision IP Settings" task to view or change the LCD IP Display field. If the node is locked in secure mode with the LCD display disabled, you will not be able to change this provisioning unless the lock is disabled by Cisco Technical Support. Refer to the "Management Network Connectivity" chapter in the Cisco ONS 15454 DWDM Reference Manual for more information about secure mode.



Note The LCD reverts to normal display mode after 5 seconds of button inactivity.



Step 1 On the ONS 15454 front panel, repeatedly press the Slot button until SHELF appears on the first line of the LCD. You are in the Shelf menu.

Step 2 Repeatedly press the Port button until the following information appears:

To change the node IP address, Node Status=IpAddress (Figure 3-2)

To change the node network mask, Node Status=Net Mask

To change the default router IP address, Node Status=Default Rtr

Figure 3-2 Selecting the IP Address Option

Step 3 Press the Status button to display the node IP address (Figure 3-3), the node subnet mask length, or the default router IP address.

Figure 3-3 Changing the IP Address

Step 4 Push the Slot button to move to the digit of the IP address, subnet mask, or default router that you want to change. The selected digit flashes.


Tip The Slot, Status, and Port button positions correspond to the positions of the commands shown on the LCD. For example, in Figure 3-3, you press the Slot button to invoke the Next command and the Status button to invoke the Done command.


Step 5 Press the Port button to cycle the IP address, subnet mask, or default router to the correct digit.

Step 6 When the change is complete, press the Status button to return to the relevant Node Status menu.

Step 7 Repeatedly press the Port button until the Shelf Save Configuration option appears (Figure 3-4).

Figure 3-4 Selecting the Save Configuration Option

Step 8 Press the Status button to choose the Save Configuration option.

A Save and REBOOT message appears (Figure 3-5).

Figure 3-5 Saving and Rebooting the TCC2/TCC2P

Step 9 Press the Slot button to apply the new IP address, subnet mask, or default router configuration or press Port to cancel the configuration.


Note The IP address and default router must be on the same subnet. If not, you cannot apply the configuration.


Step 10 Saving the new configuration causes the TCC2/TCC2P cards to reboot. During the reboot, a "TCC may Reset" message appears on the LCD. The LCD returns to the normal alternating display after both TCC2/TCC2P cards finish rebooting.

Step 11 Return to your originating procedure (NTP).


DLP-G264 Enable Secure Mode

Purpose

This task enables the ONS 15454 security mode. When security mode is enabled, two IP addresses are assigned to the node. One address is assigned to the backplane LAN port and the other to the TCC2P RJ-45 TCP/IP (LAN) port. The TCC2 card does not support security mode.

Tools/Equipment

TCC2P cards must be installed. Do not install a mix of TCC2 and TCC2P cards.

Prerequisite Procedures

G103 Back Up the Database

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Caution The IP address assigned to the TCC2P TCP/IP (LAN) port must reside on a different subnet from the backplane LAN port and the ONS 15454 default router. Verify that the new TCC2P IP address meets this requirement and is compatible with ONS 15454 network IP addresses.


Note The node will reboot after you complete this task, causing a temporary disconnection between the CTC computer and the node.



Note If an OTS-to-OTS PPC is created between nodes, it will no longer function if the node Security Mode is enabled (see G264 Enable Secure Mode). The reason for this is that if the Secure mode is enabled, it is no longer possible for the DCN extension feature to use the LAN interface to extend the internal network (due to the network isolation in this configuration mode). The result is that the topology discovery on the OTS-to-OTS PPC no longer operates.



Step 1 Click the Provisioning > Security > Data Comm tabs.


Note The security mode options are not available in CTC if TCC2 cards or a mix of TCC2 and TCC2P cards are installed.


Step 2 Click Change Mode.

Step 3 Review the information on the Change Secure Mode page, then click Next.

Step 4 On the TCC Ethernet Port page, enter the IP address and subnet mask for the TCC2P TCP/IP (LAN) port. The IP address cannot reside on the same subnet as the backplane LAN port or the ONS 15454 default router.

Step 5 Click Next.

Step 6 If needed, on the Backplane Ethernet Port page, modify the backplane IP address, subnet mask, and default router. (You normally do not modify these fields if no ONS 15454 network changes have occurred.)

Step 7 Click Next.

Step 8 On the SOCKS Proxy Server Settings page, choose one of the following options:

External Network Element (ENE)—If selected, the CTC computer is only visible to the ONS 15454 where the CTC computer is connected. The CTC computer is not visible to the nodes connected to the DCC. In addition, firewall is enabled, which means that the node prevents IP traffic from being routed between the DCC and the LAN port.

Gateway Network Element (GNE)—If selected, the CTC computer is visible to other DCC-connected nodes. The node prevents IP traffic from being routed between the DCC and the LAN port.


Note The SOCKS proxy server is automatically enabled when you enable secure mode.


Step 9 Click Finish.

Within the next 30 to 40 seconds, the TCC2P cards reboot. CTC switches to network view, and the CTC Alerts dialog box appears. In network view, the node changes to gray and a DISCONNECTED condition appears in the Alarms tab.

Step 10 In the CTC Alerts dialog box, click Close. Wait for the reboot to finish. (This might take several minutes.)

Step 11 After the DISCONNECTED condition clears, complete the following steps to suppress the backplane IP address from appearing in CTC and the LCD. If you do not want to suppress the backplane IP address display, continue with Step 12.

a. Display the node in node view (single-shelf mode) or multishelf view (multishelf mode).

b. Click the Provisioning > Security > Data Comm tabs.

c. In the LCD IP Setting field, choose Suppress Display. The IP address will not appear on the ONS 15454 LCD.

d. Check the Suppress CTC IP Address check box. The IP address will not appear in the CTC information area or the Provisioning > Security > Data Comm tabs.

e. Click Apply.


Note After you turn on secure mode, the TCC2P IP address becomes the node IP address.


Step 12 Return to your originating procedure (NTP).


DLP-G58 Create a Static Route

Purpose

This task creates a static route to establish CTC connectivity to a computer on another network. This task is performed when one of the following conditions exists:

CTC computers on one subnet need to connect to ONS 15454 nodes that are connected by a router to ONS 15454 nodes residing on another subnet.

OSPF is not enabled (the OSPF Active on LAN check box is not checked on the Provisioning > Network > OSPF tab) and the External Network Element (ENE) gateway setting is not checked.

You need to enable multiple CTC sessions among ONS 15454 nodes residing on the same subnet and the External Network Element (ENE) gateway setting is not checked.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed.

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network tabs.

Step 2 Click the Static Routing tab. Click Create.

Step 3 In the Create Static Route dialog box, enter the following:

Destination—Enter the IP address of the computer running CTC. To limit access to one computer, enter the full IP address and a subnet mask of 255.255.255.255. To allow access to all computers on the 192.168.1.0 subnet, enter 192.168.1.0 and a subnet mask of 255.255.255.0. You can enter a destination of 0.0.0.0 to allow access to all CTC computers that connect to the router.

Mask—Enter a subnet mask. If the destination is a host route (that is, one CTC computer), enter a 32-bit subnet mask (255.255.255.255). If the destination is a subnet, adjust the subnet mask accordingly, for example, 255.255.255.0. If the destination is 0.0.0.0, CTC automatically enters a subnet mask of 0.0.0.0 to provide access to all CTC computers. You cannot change this value.

Next Hop—Enter the IP address of the router port or the node IP address if the CTC computer is connected to the node directly.

Cost—Enter the number of hops between the ONS 15454 and the computer.

Step 4 Click OK. Verify that the static route appears in the Static Route window.


Note Static route networking examples are provided in the "Management Network Connectivity" chapter of the Cisco ONS 15454 DWDM Reference Manual.


Step 5 Return to your originating procedure (NTP).


DLP-G59 Set Up or Change Open Shortest Path First Protocol

Purpose

This task enables the OSPF routing protocol on the ONS 15454. Perform this task if you want to include the ONS 15454 in OSPF-enabled networks.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

You will need the OSPF Area ID, Hello and Dead intervals, and authentication key (if OSPF authentication is enabled) provisioned on the router to which the ONS 15454 is connected.

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network > OSPF tabs.

Step 2 On the top left side of the OSPF area, complete the following:

DCC/GCC OSPF Area ID Table—In dotted decimal format, enter the number that identifies the ONS 15454 nodes as a unique OSPF area ID. The Area ID can be any number between 000.000.000.000 and 255.255.255.255, but must be unique to the LAN OSPF area.

ANSI Nodes

SDCC Metric—This value is normally unchanged. It sets a cost for sending packets across the Section DCC, which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default SDCC metric is 100.

LDCC Metric—Sets a cost for sending packets across the Line DCC. This value should always be lower than the SDCC metric. The default LDCC metric is 33. It is usually not changed.

ETSI Nodes

RS-DCC Metric—This value is normally unchanged. It sets a cost for sending packets across the regenerator section DCC (RS-DCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default RS-DCC metric is 100.

MS-DCC Metric—Sets a cost for sending packets across the multiplex section DCC (MS-DCC). This value should always be lower than the SDCC metric. The default MS-DCC metric is 33. It is usually not changed.

Step 3 In the OSPF on LAN area, complete the following:

OSPF active on LAN—When checked, enables the ONS 15454 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15454 nodes that directly connect to OSPF routers.

LAN Port Area ID—Enter the OSPF area ID (dotted decimal format) for the router port where the ONS 15454 is connected. (This number is different from the DCC/GCC OSPF Area ID.)

Step 4 By default, OSPF is set to No Authentication. If the OSPF router requires authentication, complete the following steps. If not, continue with Step 5.

a. Click the No Authentication button.

b. In the Edit Authentication Key dialog box, complete the following:

Type—Choose Simple Password.

Enter Authentication Key—Enter the password.

Confirm Authentication Key—Enter the same password to confirm it.

c. Click OK.

The authentication button label changes to Simple Password.

Step 5 Provision the OSPF priority and interval settings. The OSPF priority and interval defaults are the defaults most commonly used by OSPF routers. Verify that these defaults match the ones used by the OSPF router where the ONS 15454 is connected.

Router Priority—Provision the router priority, which determines the designated router for a subnet.

Hello Interval (sec)—Provision the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.

Dead Interval—Provision the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.

Transit Delay (sec)—Provision the service speed. One second is the default.

Retransmit Interval (sec)—Provision the number of seconds that will elapse before a packet is resent. Five seconds is the default.

LAN Metric—Provision the cost for sending packets across the LAN. This value should always be lower than the SDCC or RS-DCC metric. Ten is the default.

Step 6 Under OSPF Area Range Table, create an area range table if one is needed:


Note Area range tables consolidate the information that is outside an OSPF area border. One ONS 15454 in the ONS 15454 OSPF area is connected to the OSPF router. An area range table on this node points the router to the other nodes that reside within the ONS 15454 OSPF area.


a. Click Create.

b. In the Create Area Range dialog box, enter the following:

Range Address—Enter the area IP address for the ONS 15454 nodes that reside within the OSPF area. For example, if the ONS 15454 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.

Range Area ID—Enter the OSPF area ID for the ONS 15454 nodes. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.

Mask Length—Enter the subnet mask length. In the Range Address example, this is 16.

Advertise—Check this box if you want to advertise the OSPF range table.

c. Click OK.

Step 7 All OSPF areas must be connected to Area 0. If the ONS 15454 OSPF area is not physically connected to Area 0, use the following steps to create a virtual link table that will provide the disconnected area with a logical path to Area 0:

a. Under the OSPF Virtual Link Table, click Create.

b. In the Create Virtual Link dialog box, complete the following fields. OSPF settings must match OSPF settings for the ONS 15454 OSPF area:

Neighbor—Enter the router ID of the Area 0 router.

Transit Delay (sec)—Enter the service speed. One second is the default.

Hello Int (sec)—Provision the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.

Auth Type—If the router where the ONS 15454 is connected uses authentication, choose Simple Password. Otherwise, choose No Authentication.

Retransmit Int (sec)—Provision the time that will elapse, in seconds, before a packet is resent. Five seconds is the default.

Dead Int (sec)—Provision the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.

c. Click OK.

Step 8 After entering the ONS 15454 OSPF area data, click Apply.

If you changed the Area ID, the TCC2/TCC2P cards reset, one at a time. The reset takes approximately 10 to 15 minutes.

Step 9 Return to your originating procedure (NTP).


DLP-G60 Set Up or Change Routing Information Protocol

Purpose

This task enables RIP on the ONS 15454. Perform this task if you want to include the ONS 15454 in RIP-enabled networks.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

You need to create a static route to the router adjacent to the ONS 15454 for the ONS 15454 to communicate its routing information to non-DCC-connected nodes.

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Network > RIP tabs.

Step 2 Check the RIP Active check box if you are activating RIP.

Step 3 Choose either RIP Version 1 or RIP Version 2 from the drop-down list, depending on which version is supported in your network.

Step 4 Set the RIP metric. The RIP metric can be set to a number between 1 and 15 and represents the number of hops.

Step 5 By default, RIP is set to No Authentication. If the router that the ONS 15454 is connected to requires authentication, complete the following steps. If not, continue with Step 6.

a. Click the No Authentication button.

b. In the Edit Authentication Key dialog box, complete the following:

Type—Choose Simple Password.

Enter Authentication Key—Enter the password.

Confirm Authentication Key—Enter the same password to confirm it.

c. Click OK.

The authentication button label changes to Simple Password.

Step 6 If you want to complete an address summary, complete the following steps. If not, continue with Step 7. Complete the address summary only if the ONS 15454 is a gateway NE with multiple external ONS 15454 NEs attached with IP addresses in different subnets.

a. In the RIP Address Summary area, click Create.

b. In the Create Address Summary dialog box, complete the following:

Summary Address—Enter the summary IP address.

Mask Length—Enter the subnet mask length using the up and down arrows.

Hops—Enter the number of hops. The smaller the number of hops, the higher the priority.

c. Click OK.

Step 7 Return to your originating procedure (NTP).


NTP-G194 Set Up EMS Access to the ONS 15454

Purpose

This procedure provisions ONS 15454s and CTC computers for secure access.

Tools/Equipment

None

Prerequisite Procedures

G26 Set Up CTC Network Access

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser



Step 1 In node view, click the Provisioning > Security > Access pane.

Step 2 Under the EMS Access area, change the Access State to Secure.

Step 3 Click Apply. The CTC disconnects and reconnects through a secure socket connection.

Step 4 To create a secure connection, enter https://node-address.


Note After setting up a CTC connection in secure mode, http requests are automatically redirected to https mode.


Step 5 A first time connection is authenticated by the Website Certification is Not Known dialog box. Accept the certificate and click OK. The Security Error: Domain Name Mismatch dialog box appears. Click OK to continue.

Stop. You have completed this procedure.


NTP-G341 Set Up Secure Access to the ONS 15454 TL1

Purpose

This procedure provisions ONS 15454s for secure access to TL1.

Tools/Equipment

None

Prerequisite Procedures

G26 Set Up CTC Network Access

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser



Step 1 In the node view, click the Provisioning > Security > Access pane.

Step 2 Under the TL1 Access area, change the Access State to Secure.

Step 3 Click Apply.

Existing non-secure TL1 sessions, if any, are terminated.

Step 4 To create a secure TL1 connection, enter the following command at the UNIX or Linux prompt:

ssh -l username node-ip -p port-number

The port number for secure TL1 is 4083.


Note Use any SSH client on Windows.


Stop. You have completed this procedure.


NTP-G27 Set Up the ONS 15454 for Firewall Access

Purpose

This procedure provisions ONS 15454 nodes and CTC computers for access through firewalls.

Tools/Equipment

IIOP listener port number provided by your LAN or firewall administrator

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 Log into a node that is behind the firewall. See the "DLP-G46 Log into CTC" task for instructions. If you are already logged in, continue with Step 2.

Step 2 If the ONS 15454 node is in a protected network and the CTC computer is in an external network, complete the "DLP-G61 Provision the IIOP Listener Port on the ONS 15454" task.

Figure 3-6 shows ONS 15454 nodes in a protected network and the CTC computer in an external network. For the computer to access the ONS 15454 nodes, you must provision the IIOP listener port specified by your firewall administrator on the ONS 15454.

Figure 3-6 Nodes Behind a Firewall

Step 3 If the CTC computer resides behind a firewall, complete the "DLP-G62 Provision the IIOP Listener Port on the CTC Computer" task.

Figure 3-7 shows a CTC computer and ONS 15454 behind firewalls. For the computer to access the ONS 15454, you must provision the IIOP port on the CTC computer and on the ONS 15454.

Figure 3-7 CTC Computer and ONS 15454 Nodes Residing Behind Firewalls

Stop. You have completed this procedure.


DLP-G61 Provision the IIOP Listener Port on the ONS 15454

Purpose

This task sets the IIOP listener port on the ONS 15454, which enables you to access ONS 15454 nodes that reside behind a firewall.

Tools/Equipment

IIOP listener port number provided by your LAN or firewall administrator

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note If the Enable SOCKS proxy on port 1080 check box is checked, CTC will use Port 1080 and ignore the configured IIOP port setting. If the check box is later unchecked, the configured IIOP listener port will be used.



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Security > Access tabs.

Step 2 In the TCC CORBA (IIOP) Listener Port area, choose a listener port option:

Default - TCC Fixed—Uses Port 57790 to connect to ONS 15454 nodes on the same side of the firewall or if no firewall is used (default). This option can be used for access through a firewall if Port 57790 is available.

Standard Constant—Uses Port 683, the Common Object Request Broker Architecture (CORBA) default port number.

Other Constant—If Port 683 is not used, type the IIOP port specified by your firewall administrator.

Step 3 Click Apply.

Step 4 When the Change Network Configuration message appears, click Yes.

Both ONS 15454 TCC2/TCC2P cards reboot, one at a time. The reboot takes approximately 15 minutes.

Step 5 Return to your originating procedure (NTP).


DLP-G62 Provision the IIOP Listener Port on the CTC Computer

Purpose

This task selects the IIOP listener port for CTC and must be completed if the computer running CTC resides behind a firewall.

Tools/Equipment

IIOP listener port number from LAN or firewall administrator

Prerequisite Procedures

G22 Verify Common Card Installation

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 From the Edit menu, choose Preferences.

Step 2 In the Preferences dialog box, click the Firewall tab.

Step 3 In the CTC CORBA (IIOP) Listener Port area, choose a listener port option:

Default - Variable—Use to connect to ONS 15454 nodes from within a firewall or if no firewall is used (default).

Standard Constant—Use Port 683, the CORBA default port number.

Other Constant—If Port 683 is not used, enter the IIOP port defined by your administrator.

Step 4 Click Apply. A warning appears telling you that the port change will apply during the next CTC login.

Step 5 Click OK.

Step 6 In the Preferences dialog box, click OK.

Step 7 To access the ONS 15454 using the IIOP port, log out of CTC then log back in. (To log out, choose Exit from the File menu).

Step 8 Return to your originating procedure (NTP).


NTP-G132 Provision OSI

Purpose

This procedure provisions the ONS 15454 so it can be installed in networks with other vendor NEs that use the OSI protocol stack for data communications network (DCN) communications. This procedure provisions the Target Identifier Address Resolution Protocol (TARP), OSI routers, manual area addresses, subnetwork points of attachment, and IP-over-Connectionless Network Service (CLNS) tunnels.

Tools/Equipment

None

Prerequisite Procedures

G15 Install the Common Control Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Caution This procedure requires an understanding of OSI protocols, parameters, and functions. Before you begin, review the OSI reference sections in the "Management Network Connectivity" chapter of the Cisco ONS 15454 DWDM Reference Manual and ensure that you know the role of the ONS 15454 within the OSI and IP network.


Note This procedure requires provisioning of non-ONS equipment including routers and third party NEs. Do not begin until you have the capability to complete that provisioning.



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to provision the OSI. If you are already logged in, continue with Step 2.

Step 2 As needed, complete the following tasks:

G283 Provision OSI Routing Mode—Complete this task first.

G284 Provision the TARP Operating Parameters—Complete this task second.

G285 Add a Static TID-to-NSAP Entry to the TARP Data Cache—Complete this task as needed.

G287 Add a TARP Manual Adjacency Table Entry—Complete this task as needed.

G288 Provision OSI Routers—Complete this task as needed.

G289 Provision Additional Manual Area Addresses—Complete this task as needed.

G290 Enable the OSI Subnet on the LAN Interface—Complete this task as needed.

G291 Create an IP-Over-CLNS Tunnel—Complete this task as needed.

Stop. You have completed this procedure.


DLP-G283 Provision OSI Routing Mode

Purpose

This task provisions the OSI routing mode. Complete this task when the ONS 15454 is connected to networks with third party NEs that use the OSI protocol stack for DCN communication.

Tools/Equipment

None

Prerequisite Procedures

G15 Install the Common Control Cards

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Caution Do not complete this task until you confirm the role of the node within the network. It will be either an End System, Intermediate System Level 1, or IS Level 1/Level 2. This decision must be carefully considered. For additional information about OSI provisioning, refer to the "Management Network Connectivity" chapter of the Cisco ONS 15454 DWDM Reference Manual.


Caution Link State Protocol (LSP) buffers must be the same at all NEs within the network, or loss of visibility might occur. Do not modify the LSP buffers unless you confirm that all NEs within the OSI have the same buffer size.


Caution LSP buffer sizes cannot be greater than the LAP-D maximum transmission unit (MTU) size within the OSI area.


Note For ONS 15454 nodes, three virtual routers can be provisioned. The node primary Network Service Access Point (NSAP) address is also the Router 1 primary manual area address. To edit the primary NSAP, you must edit the Router 1 primary manual area address. After you enable Router 1 on the Routers subtab, the Change Primary Area Address button is available to edit the address.



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > OSI tabs.

Step 2 Choose a routing mode:

End System—The ONS 15454 performs OSI end system (ES) functions and relies upon an intermediate system (IS) for communication with nodes that reside within its OSI area.


Note The End System routing mode is not available if more than one virtual router is enabled.


Intermediate System Level 1—The ONS 15454 performs OSI IS functions. It communicates with IS and ES nodes that reside within its OSI area. It depends upon an IS L1/L2 node to communicate with IS and ES nodes that reside outside its OSI area.

Intermediate System Level 1/Level 2—The ONS 15454 performs IS functions. It communicates with IS and ES nodes that reside within its OSI area. It also communicates with IS L1/L2 nodes that reside in other OSI areas. Before choosing this option, verify the following:

The node is connected to another IS Level 1/Level 2 node that resides in a different OSI area.

The node is connected to all nodes within its area that are provisioned as IS L1/L2.

Step 3 If needed, change the LSP data buffers:

L1 LSP Buffer Size—Adjusts the Level 1 link state protocol data unit (PDU) buffer size. The default is 512. It should not be changed.

L2 LSP Buffer Size—Adjusts the Level 2 link state PDU buffer size. The default is 512. It should not be changed.

Step 4 Return to your originating procedure (NTP).


DLP-G284 Provision the TARP Operating Parameters

Purpose

This task provisions the TARP operating parameters including TARP PDU propagation, timers, and loop detection buffer (LDB).

Tools/Equipment

None

Prerequisite procedures

G46 Log into CTC

Required/As needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > OSI > TARP > Config tabs.

Step 2 Provision the following parameters, as needed:

TARP PDUs L1 Propagation—If checked (default), TARP Type 1 PDUs that are received by the node and are not excluded by the LDB are propagated to other NEs within the Level 1 OSI area. (Type 1 PDUs request a protocol address that matches a target identifier [TID] within a Level 1 routing area.) The propagation does not occur if the NE is the target of the Type 1 PDU, and PDUs are not propagated to the NE from which the PDU was received.


Note The TARP PDUs L1 Propagation parameter is not used when the Node Routing Area (on the Provisioning > OSI > Main Setup tab) is set to End System.


TARP PDUs L2 Propagation—If checked (default), TARP Type 2 PDUs that are received by the node and are not excluded by the LDB are propagated to other NEs within the Level 2 OSI areas. (Type 2 PDUs request a protocol address that matches a TID within a Level 2 routing area.) The propagation occurs if the NE is not the target of the Type 2 PDU, and PDUs are not propagated to the NE from which the PDU was received.


Note The TARP PDUs L2 Propagation parameter is only used when the Node Routing Area is provisioned to Intermediate System Level 1/Level 2.


TARP PDUs Origination—If checked (default), the node performs all TARP origination functions including:

TID-to-NSAP resolution requests (originate TARP Type 1 and Type 2 PDUs)

NSAP-to-TID requests (originate Type 5 PDUs)

TARP address changes (originate Type 4 PDUs)


Note TARP Echo and NSAP to TID are not supported.


TARP Data Cache—If checked (default), the node maintains a TARP data cache (TDC). The TDC is a database of TID-to-NSAP pairs created from TARP Type 3 PDUs received by the node and modified by TARP Type 4 PDUs (TID-to-NSAP updates or corrections). TARP 3 PDUs are responses to Type 1 and Type 2 PDUs. The TDC can also be populated with static entries entered on the TARP > Static TDC tab.


Note TARP Data Cache is only used when the TARP PDUs Origination parameter is enabled.


L2 TARP Data Cache—If checked (default), the TIDs and NSAPs of NEs originating Type 2 requests are added to the TDC before the node propagates the requests to other NEs.


Note The L2 TARP Data Cache parameter is designed for Intermediate System Level 1/Level 2 nodes that are connected to other Intermediate System Level 1/Level 2 nodes. Enabling the parameter for Intermediate System Level 1 nodes is not recommended.


LDB—If checked (default), enables the TARP loop detection buffer. The LDB prevents TARP PDUs from being sent more than once on the same subnet.


Note The LDB parameter is not used if the Node Routing Mode is provisioned to End System or if the TARP PDUs L1 Propagation parameter is not enabled.


LAN TARP Storm Suppression—If checked (default), enables TARP storm suppression. This function prevents redundant TARP PDUs from being unnecessarily propagated across the LAN network.

Send Type 4 PDU on Startup—If checked, a TARP Type 4 PDU is originated during the initial ONS 15454 startup. Type 4 PDUs indicate that a TID or NSAP change has occurred at the NE. (The default setting is not enabled.)

Type 4 PDU Delay—Sets the amount of time that will pass before the Type 4 PDU is generated when Send Type 4 PDU on Startup is enabled. 60 seconds is the default. The range is 0 to 255 seconds.


Note The Send Type 4 PDU on Startup and Type 4 PDU Delay parameters are not used if TARP PDUs Origination is not enabled.


LDB Entry—Sets the TARP loop detection buffer timer. The loop detection buffer time is assigned to each LDB entry for which the TARP sequence number (tar-seq) is zero. The default is 5 minutes. The range is 1 to 10 minutes.

LDB Flush—Sets the frequency period for flushing the LDB. The default is 5 minutes. The range is 0 to 1440 minutes.

T1—Sets the amount of time to wait for a response to a Type 1 PDU. Type 1 PDUs seek a specific NE TID within an OSI Level 1 area. The default is 15 seconds. The range is 0 to 3600 seconds.

T2—Sets the amount of time to wait for a response to a Type 2 PDU. TARP Type 2 PDUs seek a specific NE TID value within OSI Level 1 and Level 2 areas. The default is 25 seconds. The range is 0 to 3600 seconds.

T3—Sets the amount of time to wait for an address resolution request. The default is 40 seconds. The range is 0 to 3600 seconds.

T4—Sets the amount of time to wait for an error recovery. This timer begins after the T2 timer expires without finding the requested NE TID. The default is 20 seconds. The range is 0 to 3600 seconds.


Note The T1, T2, and T4 timers are not used if the TARP PDUs Origination check box is not checked.


Step 3 Click Apply.

Step 4 Return to your originating procedure (NTP).


DLP-G285 Add a Static TID-to-NSAP Entry to the TARP Data Cache

Purpose

This task adds a static TID-to-NSAP entry to the TDC. The static entries are required for NEs that do not support TARP and are similar to static routes. For a specific TID, you must force a specific NSAP.

Tools/Equipment

None

Prerequisite procedures

G46 Log into CTC

Required/As needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioner or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > OSI > TARP > Static TDC tabs.

Step 2 Click Add Static Entry.

Step 3 In the Add Static Entry dialog box, enter the following:

TID—Enter the TID of the NE. (For ONS nodes, the TID is the Node Name parameter on the node or multishelf view Provisioning > General tab.)

NSAP—Enter the OSI NSAP address in the NSAP field or, if preferred, click Use Mask and enter the address in the Masked NSAP Entry dialog box.

Step 4 Click OK to close the Masked NSAP Entry dialog box, if used, and then click OK to close the Add Static Entry dialog box.

Step 5 Return to your originating procedure (NTP).


DLP-G287 Add a TARP Manual Adjacency Table Entry

Purpose

This task adds an entry to the TARP manual adjacency table (MAT). Entries are added to the MAT when the ONS 15454 must communicate across routers or NEs that lack TARP capability.

Tools/Equipment

None

Prerequisite procedures

G46 Log into CTC

Required/As needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > OSI > TARP > MAT tabs.

Step 2 Click Add.

Step 3 In the Add TARP Manual Adjacency Table Entry dialog box, enter the following:

Level—Sets the TARP Type Code that will be sent:

Level 1—Indicates that the adjacency is within the same area as the current node. The entry generates Type 1 PDUs.

Level 2—Indicates that the adjacency is in a different area than the current node. The entry generates Type 2 PDUs.

NSAP—Enter the OSI NSAP address in the NSAP field or, if preferred, click Use Mask and enter the address in the Masked NSAP Entry dialog box.

Step 4 Click OK to close the Masked NSAP Entry dialog box, if used, and then click OK to close the Add Static Entry dialog box.

Step 5 Return to your originating procedure (NTP).


DLP-G288 Provision OSI Routers

Purpose

This task enables an OSI router and edits its primary manual area address.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note Router 1 must be enabled before you can enable and edit the primary manual area addresses for Routers 2 and 3.



Note The Router 1 manual area address, System ID, and Selector "00" create the node NSAP address. Changing the Router 1 manual area address changes the node NSAP address.



Note The System ID for Router 1 is the node MAC address. The System IDs for Routers 2 and 3 are created by adding 1 and 2 respectively to the Router 1 System ID. You cannot edit the System IDs.



Step 1 Click the Provisioning > OSI > Routers > Setup tabs.

Step 2 Chose the router you want provision and click Edit. The OSI Router Editor dialog box appears.

Step 3 In the OSI Router Editor dialog box:

a. Check Enable Router to enable the router and make its primary area address available for editing.

b. Click the manual area address, then click Edit.

c. In the Edit Manual Area Address dialog box, edit the primary area address in the Area Address field. If you prefer, click Use Mask and enter the edits in the Masked NSAP Entry dialog box. The address (hexadecimal format) can be 8 to 24 alphanumeric characters (0-9, a-f) in length.

d. Click OK successively to close the following dialog boxes: Masked NSAP Entry (if used), Edit Manual Area Address, and OSI Router Editor.

Step 4 Return to your originating procedure (NTP).


DLP-G289 Provision Additional Manual Area Addresses

Purpose

This task provisions the OSI manual area addresses. One primary area and two additional manual areas can be created for each virtual router.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

G288 Provision OSI Routers

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 Click the Provisioning > OSI > Routers > Setup tabs.

Step 2 Chose the router where you want provision an additional manual area address and click Edit. The OSI Router Editor dialog box appears.

Step 3 In the OSI Router Editor dialog box:

a. Check Enable Router to enable the router and make its primary area address available for editing.

b. Click the manual area address, then click Add.

c. In the Add Manual Area Address dialog box, enter the primary area address in the Area Address field. If you prefer, click Use Mask and enter the address in the Masked NSAP Entry dialog box. The address (hexadecimal format) can be 2 to 24 alphanumeric characters (0-9, a-f) in length.

d. Click OK successively to close the following dialog boxes: Masked NSAP Entry (if used), Add Manual Area Address, and OSI Router Editor.

Step 4 Return to your originating procedure (NTP).


DLP-G290 Enable the OSI Subnet on the LAN Interface

Purpose

This task enables the OSI subnetwork point of attachment on the LAN interface.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note When you create communication channels (optical service channel [OSC] or generic communications channel [GCC]), OSI subnetwork points of attachment are enabled on the communication channels. See the "NTP-G38 Provision OSC Terminations" procedure and the "DLP-G76 Provision DCC/GCC Terminations" task.



Note The OSI subnetwork point of attachment cannot be enabled for the LAN interface if the OSI routing mode is set to ES.



Note If secure mode is on, the OSI subnet is enabled on the backplane LAN port, not the front TCC2P TCP/IP (LAN) port.



Step 1 Click the Provisioning > OSI > Routers > Subnet tabs.

Step 2 Click Enable LAN Subnet.

Step 3 In the Enable LAN Subnet dialog box, complete the following fields:

ESH—Sets the End System Hello (ESH) propagation frequency. An ES NE transmits ESHs to inform other ESs and ISs about the NSAPs it serves. The default is 10 seconds. The range is 10 to 1000 seconds.

ISH—Sets the Intermediate System Hello (ISH) PDU propagation frequency. An intermediate system NE sends ISHs to other ESs and ISs to inform them about the IS NEs it serves. The default is 10 seconds. The range is 10 to 1000 seconds.

IIH—Sets the Intermediate System to Intermediate System Hello (IIH) PDU propagation frequency. The IS-IS Hello PDUs establish and maintain adjacencies between ISs. The default is 3 seconds. The range is 1 to 600 seconds.

IS-IS Cost—Sets the cost for sending packets on the LAN subnet. The IS-IS protocol uses the cost to calculate the shortest routing path. The default IS-IS cost for LAN subnets is 20. It normally should not be changed.

DIS Priority—Sets the designated intermediate system (DIS) priority. In IS-IS networks, one router is elected to serve as the DIS (LAN subnets only). Cisco router DIS priority is 64. For the ONS 15454 LAN subnet, the default DIS priority is 63. It normally should not be changed.

Step 4 Click OK.

Step 5 Return to your originating procedure (NTP).


DLP-G291 Create an IP-Over-CLNS Tunnel

Purpose

This task creates an IP-over-CLNS tunnel to allow ONS 15454 nodes to communicate across equipment and networks that use the OSI protocol stack.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Caution IP-over-CLNS tunnels require two endpoints. You will create one point on an ONS 15454. The other endpoint is generally provisioned on non-ONS equipment including routers and other vendor NEs. Before you begin, verify that you have the capability to create an OSI-over-CLNS tunnel on the other equipment location.


Step 1 Click the Provisioning > OSI > Tunnels tabs.

Step 2 Click Create.

Step 3 In the Create IP Over CLNS Tunnel dialog box, complete the following fields:

Tunnel Type—Choose a tunnel type:

Cisco—Creates the proprietary Cisco IP tunnel. Cisco IP tunnels add the CLNS header to the IP packets.

GRE—Creates a generic routing encapsulation (GRE) tunnel. GRE tunnels add the CLNS header and a GRE header to the IP packets.

The Cisco proprietary tunnel is slightly more efficient than the GRE tunnel because it does not add the GRE header to each IP packet. The two tunnel types are not compatible. Most Cisco routers support the Cisco IP tunnel, while only a few support both GRE and Cisco IP tunnels. You generally should create Cisco IP tunnels if you are tunneling between two Cisco routers or between a Cisco router and an ONS node.


Caution Always verify that the IP-over-CLNS tunnel type that you choose is supported by the equipment at the other end of the tunnel.

IP Address—Enter the IP address of the IP-over-CLNS tunnel destination.

IP Mask—Enter the IP address subnet mask of the IP-over-CLNS destination.

OSPF Metric—Enter the OSPF metric for sending packets across the IP-over-CLNS tunnel. The OSPF metric, or cost, is used by OSPF routers to calculate the shortest path. The default is 110. Normally, it is not be changed unless you are creating multiple tunnel routes and want to prioritize routing by assigning different metrics.

NSAP Address—Enter the destination NE or OSI router NSAP address.

Step 4 Click OK.

Step 5 Provision the other tunnel endpoint using the documentation provided by the manufacturer of the third party vendor NE.

Step 6 Return to your originating procedure (NTP).


NTP-G28 Set Up SNMP

Purpose

This procedure provisions the SNMP parameters so that you can use SNMP management software with the ONS 15454.

Tools/Equipment

None

Prerequisite Procedures

G22 Verify Common Card Installation

Required/As Needed

Required if SNMP is used at your site.

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to set up SNMP. If you are already logged in, continue with Step 2.

Step 2 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > SNMP tabs.

Step 3 In the Trap Destinations area, click Create.

Step 4 Complete the following in the Create SNMP Trap Destination dialog box (Figure 3-8):

Destination IP Address—Type the IP address of your network management system (NMS). If the node you are logged into is an ENE, set the destination address to the GNE.

Community—Type the SNMP community name. For a description of SNMP community names, refer to the "SNMP" chapter in the Cisco ONS 15454 DWDM Reference Manual.


Note The community name is a form of authentication and access control. The community name assigned to the ONS 15454 is case-sensitive and must match the community name of the NMS.


UDP Port—The default User Datagram Protocol (UDP) port for SNMP is 162.

Trap version—Choose either SNMPv1 or SNMPv2. Refer to your NMS documentation to determine which version to use.

Figure 3-8 Creating an SNMP Trap

Step 5 Click OK. The node IP address of the node where you provisioned the new trap destination appears in the Trap Destinations area.

Step 6 Click the node IP address in the Trap Destinations area. Verify the SNMP information that appears in the Selected Destination list.

Step 7 If you want the SNMP agent to accept SNMP SET requests on certain MIBs, click the Allow SNMP Sets check box. If this box is not checked, SET requests are rejected.

Step 8 If you want to set up the SNMP proxy feature to allow network management, message reporting, and performance statistic retrieval across ONS firewalls, click the Allow SNMP Proxy check box located on the SNMP tab.


Note The Use Generic MIB check box is normally not checked for MSTP. It is checked only when the ONS 15454 resides in networks with multiple ONS products, and the network management system requires MIBs with the same name to have the same object IDs. By default, the ONS 15454 uses the CERENT-454-MIBs. Other ONS products, such as the ONS 15600, the ONS 15327, and ONS 15310-CL, use the CERENT-GENERIC-MIBs. If Use Generic MIB is checked, the ONS 15454 will use the CERENT-GENERIC-MIBs so the object IDs will be the same for all products.



Note Using the ONS firewall proxy feature effectively breaches the ONS firewall to exchange management information.


For more information about the SNMP proxy feature, refer to the "SNMP" chapter in the Cisco ONS 15454 DWDM Reference Manual.

Step 9 Click Apply.

Step 10 If you are setting up SNMP proxies, you can set up to three relays that send SNMP trap error counts back to the NE for each trap destination address:

a. Click the first trap destination IP address. The address and its community name appear in the Destination fields.

b. Enter up to three SNMP Proxy relay addresses and community names in the fields for Relay A, Relay B, and Relay C.


Note The community names specified for each relay node must match one of the provisioned SNMP community names in the NE.



Note The SNMP proxy directs SNMP traps from this node through Relay A to Relay B to Relay C to the trap destination. Ensure that you enter the IP addresses in the correct order so that this sequence runs correctly.


Step 11 Click Apply.

Stop. You have completed this procedure.


NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File

Purpose

This procedure imports the Cisco TransportPlanner NE Update configuration file and creates a log file. The configuration file, which is provided in XML format, provisions the shelf layout by preprovisioning each slot for the card that will be installed. For TXP, MXP, GE_XP, 10GE_XP, and ADM-10G cards, the NE Update file provisions the OTN, FEC and card mode parameters, and it also provisions the card mode. The file provisions internal OCH trunk to OCH filter patchcords, and it provisions the optical sides. Finally, the NE Update file installs the ANS parameters calculated by Cisco TransportPlanner. The log file, which is a text document records the results of the NE update.

Tools/Equipment

A Cisco TransportPlanner NE Update file for the network where the node is installed must be accessible to the CTC computer.

Prerequisite Procedures

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Caution Verify that you have the correct Cisco TransportPlanner network file before you begin this procedure. The file will have an XML extension and a name assigned by your network planner. Check with your network planner or administrator if you have any questions.


Note The Cisco TransportPlanner configuration file contains parameters for the node, shelf, card type, port (including the card's wavelength), pluggable port module (PPM), as well as OTN and FEC parameters. Only the values present in XML format appear in the configuration file parameters; if the values are not in XML format, a column appears blank. The XML file values are independently reported and do not affect any manual configuration changes that you applied.



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to import the Cisco TransportPlanner configuration file. If you are already logged in, continue with Step 2.

Step 2 If you choose the Provision Node Layout option to preprovision the cards in the shelf, complete the following steps. If not, continue with Step 3.

a. Display the node in node view (single-shelf mode) or multishelf view (multishelf mode).

b. Verify that the common control cards (TCC2/TCC2P, AIC-I and MSC-ISC) cards are the only cards installed. If in single or multishelf mode, verify that each shelf in the multishelf has two TCC2/TCC2P cards.

If common control cards are the only cards installed, continue with Step 3.

If other cards appear, continue with Step c.

c. If a physical card other than the common control cards is installed, remove it from the shelf.

d. If preprovisioned DWDM cards are present, delete them using the "DLP-G351 Delete a Card in CTC" task, then repeat Steps a and b.

Step 3 If you have not created a log file to record the results of the NE update, complete the following steps. If a log file has been created, continue with Step 4.

a. Open a text editor or word processing application.

b. Create a new text (TXT) document with a file name of your choosing.

c. Save the text document in a directory that is easy to navigate to from CTC.

Step 4 In CTC node view (single-shelf mode) or multishelf view, click the Provisioning > WDM-ANS > Node Setup tabs.

Step 5 In the field under Select XML file, type the path to the Cisco TransportPlanner node setup file containing the parameters for the network where your node resides, or click Browse and navigate to the file on your computer or network server. Click the file, then click Open. The file will have an XML extension.

Step 6 In the field under Select Log file, type the path to the text file that you created in Step 3, or click Browse and navigate to the file on your computer or a network server where you want the node setup results recorded.


Note The log file records parameters that were updated successfully and provides an explanation of why an update could not be completed. Each node setup session overwrites the log file contents. If you want to save the results from a previous NE update, save the log file with new name.


Step 7 Click Apply.

Step 8 When the Node Setup Selection for Node-Name page appears, complete the following steps. If not, continue with Step 9.

a. Choose the node profile that you want to apply to the node. The Cisco TransportPlanner XML file contains profiles for all nodes in the network. Choose the profile that applies to the node you are provisioning.

b. Click Next.

Step 9 On the Node Setup for node name page, choose one or more of the following boxes:

Node Layout—Preprovisions the slots in CTC for the cards required by the network plan. Choose this option when no DWDM cards are installed. (Errors will occur if cards are installed or the slots are preprovisioned.) Preprovisioning the slots before the physical cards are installed ensures that card installers place the cards in the correct slots. Preprovisioning the slots is also useful if you want to set up the network prior to card installation.

Card Parameters—If checked, provisions the following parameters, if the cards are installed.

TXP, MXP, GE_XP, 10GE_XP and ADM-10G cards—Provisions the OTN and FEC parameters.

OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, GE_XP and 10GE_XP cards—Provisions the card mode.

Pluggable Port Modules— If checked, allows the provisioning of PPMs on TXP, MXP, GE_XP, 10GE_XP and ADM-10G cards, including PPM payloads.

Internal Patchcords—If checked, allows the creation of OCH trunk to OCH filter patchcords between TXP, MXP, GE_XP, 10GE_XP, and ADM-10G card trunk ports, and the OCH card filter port.

Optical Sides—If checked, allows the provisioning of optical sides.

ANS Parameters—If checked, installs the ANS parameters. ANS parameters provision the values required for the node to function within the specified network design. ANS parameters include span losses, optical power, optics thresholds, amplifier working mode, gain, tilt, and many others. Refer to the "Node Reference" chapter in the Cisco ONS 15454 DWDM Reference Manual for a list of ONS 15454 ANS parameters.


Note If you are importing the Cisco TransportPlanner configuration file for the first time, you normally choose all available options.


Skip Interactive Mode—If checked, CTC provisions all the chosen setup components automatically without allowing you to view the results after each one.

Step 10 Click Next. If you chose Skip Interactive Mode, continue with Step 11. If not, the wizard page that appears depends on the options chosen in Step 9: Complete the steps shown in Table 3-2 for each option.

Table 3-2 NE Update Wizard Options

NE Update Function


Node Layout

View the cards and slots on the left side of the page and verify that they are the same as the layout in the Cisco TransportPlanner Shelf Layout (see Table 3-1). If the cards and slots match, click Apply. If not, click Cancel. and contact your next level of support to verify that you have the correct node setup file. If the site has a multishelf configuration, click Next and repeat this step for each shelf at the site.

CTC preprovisions the slots. (This might take a few seconds.) The results appear in the Log window. Slots that are successfully provisioned display an "Applied" status. A "Slot not empty" status appears if slots cannot be provisioned because a card is physically installed or the slot is already provisioned. If this occurs, complete the following steps. Otherwise, continue with the next NE Update function.

1. Click Cancel, then click Yes in the confirmation dialog box. The slot preprovisioning does not revert when you click Cancel.

2. If a physical card is installed, remove it from the shelf.

3. Perform one of the following steps:

Delete all the preprovisioned slots using the "DLP-G351 Delete a Card in CTC" task, then repeat Steps 2 through Step 10.

Delete the slot where the Slot Not Empty error occurred using the "DLP-G351 Delete a Card in CTC" task. Complete the "DLP-G353 Preprovision a Single Slot" task to provision the slot manually, then repeat Steps 2 through 10 making sure to uncheck the Provision Node Layout option in Step 9.


Note When you preprovision a slot, the card is purple in the CTC shelf graphic and "NP" (not present) appears on the card. After the physical card is installed, the card changes to white and "NP" is removed from the CTC shelf graphic.


Card Parameters

1. Review the OTN, FEC, and card mode settings for each TXP, MXP, GE_XP, and 10GE_XP card.

2. Click Apply.

3. Click Next.

Pluggable Port Modules

1. Review the PPM settings for each TXP, MXP, GE_XP, and 10GE_XP card.

2. Click Apply.

3. Click Next.

Internal Patchcords

1. Review the internal patchcords.

2. Click Apply.

3. Click Next.

Optical Sides

1. Review the optical side assignments.

2. Click Apply.

3. Click Next.

ANS Parameters

1. Review the ANS parameters on the left half of the page.

c. Click Apply. The log file displays the results. At the end, a Done status will appear. If a parameter could not be applied, a Setting Refused status appears. If this occurs, contact your next level of support.


Step 11 Click Finish, then click OK in the Wizard Complete confirmation dialog box.


Note Common control cards are not provisioned by Cisco TransportPlanner.


Stop. You have completed this procedure.


DLP-G351 Delete a Card in CTC

Purpose

This task deletes a card from an ONS 15454 slot that is provisioned in CTC.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note It is recommended that the card be physically removed from its slot before deleting it from CTC.



Step 1 Verify that the following conditions are not present. (During node turn-up, these conditions are normally not present):

The card is a TCC2/TCC2P card.

The card is part of a protection group.

The card has optical channels or overhead circuits provisioned.

The card is being used for timing.

The card has an OSC/GCC termination.

A port on the card is being used for a Link Management Protocol (LMP) channel or link.

If any of these conditions exist, do not continue. You will not be able to delete the card until the card is removed from protection groups; circuits, DCC, and GCCs are deleted; a different timing source is provisioned, and the LMP link or channel is deleted.

To replace a TCC2/TCC2P card, refer to the Cisco ONS 15454 DWDM Troubleshooting Guide.

To delete a protection group, see the "NTP-G83 Modify or Delete Card Protection Settings" procedure.

To delete optical channels see the "DLP-G347 Delete Optical Channel Client Connections" task and the "DLP-G106 Delete Optical Channel Network Connections" task; to delete overhead circuits, see the "DLP-G112 Delete Overhead Circuits" task.

To remove the card as a timing source, see the "NTP-G87 Change Node Timing Parameters" procedure.

To remove OSC or GCC terminations, see the "NTP-G85 Modify or Delete OSC Terminations, DCC/GCC Terminations, and Provisionable Patchcords" procedure.

To delete LMP channels or links, see "NTP-G164 Configure Link Management Protocol" procedure.

To remove a DWDM patchcord, see G355 Delete an Internal Patchcord.

To remove an optical side, see G480 Delete an Optical Side.

Step 2 On the shelf graphic in CTC, right-click the card that you want to remove and choose Delete Card.

Step 3 Return to your originating procedure (NTP).


DLP-G353 Preprovision a Single Slot

Purpose

This task preprovisions a single ONS 15454 slot in CTC. Preprovisioning of all the slots in the shelf is normally performed when you complete the "NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File" procedure. Use this task if you need to manually preprovision a single slot. All slot preprovisioning must be based upon the Cisco TransportPlanner shelf layout prepared for your site.

Tools/Equipment

Cisco TransportPlanner shelf layout table or JPG file.

Prerequisite Procedures

G139 Verify Cisco TransportPlanner Reports and Files

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), right-click an empty slot where you will install a card.

Step 2 From the Add Card shortcut menu, choose the card type that will be installed based on the Cisco TransportPlanner shelf layout (see Table 3-1). Only cards that can be installed in the slot appear in the Add Card shortcut menu. The OPT-AMP-L, 32WSS, 32MUX-O, and 32DMX-O cards require two vacant slots, or they will not appear in the shortcut menu. Table 3-3 shows the Add Card shortcut menu items and submenu items, and the card groups and menu options/cards that they reference.

Table 3-3 CTC Add Card Shortcut Menu for DWDM Cards

Menu Item
Submenu Category
Card Group
Submenu Item 1
Submenu Item 2
Card(s)

DWDM

nXP

Transponder and Muxponder

10GE_XP

10GE_XP

ADM-10G

ADM-10G

GE_XP

GE_XP

MXPP_MR_2.5G

MXPP_MR_2.5G

MXP_2.5G_10E

MXP_2.5G_10E

MXP_2.5G_10E_C

MXP_2.5G_10E_L

MXP_2.5G_10G

MXP_2.5G_10G

MXP_MR_10DME

MXP_MR_10DME_C

MXP_MR_10DME_L

MXP_MR_2.5G

MXP_MR_2.5G

TXPP_MR_2.5G

TXPP_MR_2.5G

TXP_MR_10E

TXP_MR_10E

TXP_MR_10E_C

TXP_MR_10E_L

TXP_MR_10G

TXP_MR_10G

TXP_MR_2.5G

TXP_MR_2.5G

MD

Multiplexer and Demultiplexer

C Band

32 DMXO

32DMX-O

40 WSS

40-WSS-C or 40-WSS-CE

32 MUXO

32MUX-O

32 WSS

32WSS

4MD

4MD-xx.x

32 DMX

32DMX

40-MUX-C

40-MUX-C

32 MUXO

32MUX-O

40-DMX-C, or
40-DMX-CE

40-DMX-C, or
40-DMX-CE

L Band

32 WSS L

32WSS-L

32 DMXL

32DMX-L

WXC

Cross-connect

C Band

40 WXC

40-WXC-C

OSC

Optical Service Channel

MMU

MMU

OSC-CSM

OSC-CSM

DWDM

OADM

Optical Add/Drop Multiplexer

AD-1B

AD-1B-xx.x

AD-1C

AD-1C-xx.x

AD-2C

AD-2C-xx.x

AD-4B

AD-4B-xx.x

AD-4C

AD-4C-xx.x

Ampli

Optical Amplifier

C Band

OPT-AMP-17-C

OPT-AMP-17-C

OPT-AMP-C

OPT-AMP-C

OPT-PRE

OPT-PRE

OPT-BST

OPT-BST

OPT-BST E

OPT-BST-E

L Band

OPT-BST L

OPT-BST-L

OPT-AMP L

OPT-AMP-L

Ethernet

MS-ISC-100T

MS-ISC-100T

G1000

G1000

OSCM

OSCM (Slots 8 and 10 only)



Note When you preprovision a slot, the card appears purple in the CTC shelf graphic (the card appears as white when a card is installed in the slot). NP on the card graphic indicates that the card is not physically installed.


Step 3 Repeat Step 2 until all the cards shown in the Cisco TransportPlanner shelf layout are provisioned in CTC.

Stop. You have completed this procedure.

NTP-G320 Configure the Node as a Non-DWDM Network

Purpose

This tasks configures a node as a Non-DWDM network.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Provisioning tabs.

Step 2 From the Selector area, select Network Type.

Step 3 Choose Not-DWDM, from the Value drop-down list. Click Apply.

Step 4 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Port Status tabs.

Step 5 Click the Launch ANS button. The relevant ports in the node will be in IS state.

Step 6 Click OK.

Step 7 Return to your originating procedure (NTP).


DLP-G693 Configure the Amplifier

Purpose

This task configures the optical parameters and threshold values of the amplifier card.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 Display the amplifier card in card view.

Step 2 Click the Provisioning > Card tabs.

Step 3 Select the working mode from the Card Working Mode drop-down list.

Step 4 Change to node view (single-shelf mode) or multishelf view (multishelf mode), then click the Provisioning > WDM-ANS > Provisioning tabs.

Step 5 From the Selector area, select the amplifier slot. If the default parameters are present, continue with Step 6. If not, click Add to add the Channel LOS Threshold, Amplifier Tilt, Power, and Amplifier Working Mode parameters. To add the ANS parameters, see the "DLP-G541 Add an ANS Parameter" task on page 14-60 for instructions.

Step 6 Click the value of the ANS parameter that you want to modify and enter the new value specified in Table 3-4. To modify the ANS parameters, see the "DLP-G681 Modify an ANS Parameter" task on page 14-61 for instructions.

Table 3-4 Values for the ANS Parameters (amplifier)

Port
ANS Parameter
Value

Slot 16 (OPT-AMP C).Port COM-RX

Channel LOS Threshold

35.0 dBm

Slot 16 (OPT-AMP C).Port LINE-TX

Amplifier Working Mode

Control Gain

Slot 16 (OPT-AMP C).Port LINE-TX

Amplifier Tilt

0.0 dB

Slot 16 (OPT-AMP C).Port LINE-TX

Power

1.0 dBm


Step 7 Click Apply.

Step 8 Click the Provisioning > WDM-ANS > Port Status tabs.

Step 9 Click Launch ANS.

Step 10 In the Apply Launch ANS dialog box, click Yes.

Step 11 In the Launch ANS confirmation dialog box, click OK.

Step 12 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Provisioning tabs.

Step 13 Verify the following in the Results column:

Success - Changed —The parameter has been successfully changed with the ports in IS.

Step 14 Verify that the Set By column displays t he value "ANS" or "APC" as the application that sets the ANS parameter.

Step 15 Return to your originating procedure (NTP).


DLP-G694 Configure the PSM

Purpose

This tasks configures the PSM behavior.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Provisioning tabs.

Step 2 From the Selector area, select the PSM slot. If the default parameters are present, continue with Step 3. If not, click Add to add the Channel LOS Threshold and VOA Attenuation parameters. To add the ANS parameters, see the "DLP-G541 Add an ANS Parameter" task on page 14-60 for instructions.

Step 3 Click the value of the ANS parameter that you want to modify and enter the new value specified in Table 3-4. To modify the ANS parameters, see the "DLP-G681 Modify an ANS Parameter" task on page 14-61 for instructions.

Table 3-5 Values for the ANS Parameters (PSM)

Port
ANS Parameter
Value

Slot 14(PSM).Port W-RX

VOA Attenuation

3.0 dB

Slot 14(PSM).Port W-RX

Channel LOS Threshold

15.0 dB

Slot 14(PSM).Port P-RX

VOA Attenuation

10.0 dB

Slot 14(PSM).Port P-RX

Channel LOS Threshold

20.0 dB


Step 4 Click Apply.

Step 5 Click the Provisioning > WDM-ANS > Port Status tabs.

Step 6 Click Launch ANS.

Step 7 In the Apply Launch ANS dialog box, click Yes.

Step 8 In the Launch ANS confirmation dialog box, click OK.

Step 9 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Provisioning tabs.

Step 10 Verify the following in the Results column:

Success - Changed —The parameter has been successfully changed with the ports in IS.

Step 11 Verify that the Set By column displays t he value "ANS" or "APC" as the application that sets the ANS parameter.

Step 12 Return to your originating procedure (NTP).


NTP-G30 Install the DWDM Cards

Purpose

This procedure describes how to install the DWDM multiplexer, demultiplexer, wavelength selective switch, wavelength cross-connect, OADM, OSC, and optical amplifier cards.

Tools/Equipment

Cisco TransportPlanner shelf layout

The following cards, as required by your site plan:

C Band: OPT-PRE, OPT-BST, OPT-BST-E, 32MUX-O, 40-MUX-C, 32DMX-O, 32DMX, 40-DMX-C, 40-DMX-CE, 32WSS, 40-WSS-C, 40-WSS-CE, 40-WXC-C, OPT-AMP-17-C, OPT-AMP-C, MMU, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, AD-4C-xx.x, AD-1B-xx.x, AD-4B-xx.x, OSCM, and OSC-CSM cards (as applicable), or

L Band: 40-WXC-C-L, 32WSS-L, 32DMX-L, OPT-BST-L, OPT-AMP-L

The ONS 15454 NE defaults file if the node will use custom NE defaults

Prerequisite Procedures

G15 Install the Common Control Cards

G14 Install DWDM Equipment

G139 Verify Cisco TransportPlanner Reports and Files

G143 Import the Cisco TransportPlanner NE Update Configuration File

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document for the appropriate Cisco chassis. Statement 274

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94

Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055

Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056

Warning High-performance devices on this card can get hot during operation. To remove the card, hold it by the faceplate and bottom edge. Allow the card to cool before touching any other part of it or before placing it in an antistatic bag. Statement 201

Caution Always use the supplied electrostatic discharge (ESD) wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note For United States installations, complies with the United States Federal Drug Administration Code of Federal Regulations Title 21, Sections 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note If you install a card incorrectly, the FAIL LED flashes continuously.



Step 1 If the node requires a custom NE default settings to be installed on the node, complete the "NTP-G136 Import Network Element Defaults" procedure. If not, continue with Step 2. (For information about the ONS 15454 NE defaults, refer to the "Network Elements Defaults" appendix in the Cisco ONS 15454 DWDM Reference Manual.)


Caution If custom NE defaults are required, they must be installed before you install the DWDM cards.

Step 2 Verify that you have one of the following guides for the DWDM card installation:

The slots that were preprovisioned when you completed the "NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File" procedure.

The Cisco TransportPlanner shelf layout report (see Table 3-1).

Step 3 If the slots are preprovisioned, continue with Step 4. If you are using the Cisco TransportPlanner shelf layout report, complete the "DLP-G348 Use the Cisco TransportPlanner Shelf Layout Report" task.

Step 4 Remove a DWDM card from its packaging, then remove the protective caps from the backplane connectors. (Safety caps are typically yellow.)

Step 5 Open the card latches/ejectors.

Step 6 Use the latches/ejectors to firmly slide the card along the slot guide rails until the card plugs into the receptacle at the back of the slot. The correct slot is designated by the Cisco TransportPlanner shelf layout.

Step 7 Verify that the card is inserted correctly. Simultaneously close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged in. Ensure that you cannot insert the card any further.


After installing the card, the following LED activity will occur:

The card's LEDs will go through a sequence of activities (turn on, turn off, blinking.) This will take 2 to 3 minutes.

The ACT LED turns on.

The signal fail (SF) LED might persist until all card ports connect to their far-end counterparts and a signal is present.

Step 8 If the card does not boot up properly, or the LED activity is not similar to the activity in Step 7, check the following:

When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot. If a DWDM card does not boot, open CTC and ensure that the slot is not provisioned for a different card type before assuming that the card is faulty.

If the red FAIL LED does not turn on, check the power.

If you insert a card into a slot provisioned for a different card, all LEDs turn off and a minor equipment mismatch alarm appears on the CTC Alarms tab.

If the red FAIL LED is on continuously or the LEDs behave erratically, the card is not installed.

If any of conditions are present, remove the card and repeat Steps 4 to 7. If the card does not boot up properly the second time, it might be defective. Contact your next level of support.

Step 9 Repeat Steps 5 through 8 until all the DWDM cards are installed in the node.

Step 10 If an OPT-PRE card (or the OPT-AMP-L, OPT-AMP-17-C, or OPT-AMP-C card in OPT-PRE card mode) are installed, complete one of the following steps for each OPT-PRE card based on the Cisco TransportPlanner shelf layout. If an OPT-PRE is not installed, you have completed this procedure.

If the Cisco TransportPlanner shelf layout does not include DCUs, install a patchcord and 4-dB attenuator with a tolerance of +/-1 dB between the DC TX and RX ports of all OPT-PRE or OPT-AMP-L DC TX and RX ports for each OPT-PRE or OPT-AMP-L card installed in the shelf.

If the shelf layout includes DCUs, complete the "NTP-G31 Install the DWDM Dispersion Compensating Units" procedure for each side of the shelf that requires a DCU.

Stop. You have completed this procedure.


DLP-G348 Use the Cisco TransportPlanner Shelf Layout Report

Purpose

This task describes how to use the Cisco TransportPlanner shelf layout report to install cards in a DWDM node.

Tools/Equipment

None

Prerequisite Procedures

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Step 1 Display the Cisco TransportPlanner shelf layout report for your site. The report can be viewed in Cisco TransportPlanner (see Figure 3-9). It can also be viewed as a JPEG graphic. Refer to the Cisco TransportPlanner DWDM Operations Guide for information about generating shelf layout reports.

Figure 3-9 Cisco TransportPlanner Shelf Layout Report Displayed in Cisco TransportPlanner

Step 2 Review the following installation information:

Rack—Indicates the rack in the node where the cards must be installed.

Shelf—Indicates the shelf in the rack where the cards must be installed. Shelf options include:

Flex Shelf—The ONS 15216 FlexLayer mechanical shelf houses Y-cable modules. Flex shelf positions are numbered 1 to 4 from left to right.

DCU Shelf—The Cisco ONS 15216 dispersion compensation shelf assembly houses DCUs. DCU positions are numbered 1 to 2 from left to right.

Shelf-ANSI-n or Shelf-ETSI-n—The ONS 15454 shelf assembly houses ONS 15454 common, DWDM, and client cards. Positions in this type of shelf are numbered 1 to 17 from left to right. Multiple shelves might appear.

Slot—Indicates the slot in the specific shelf where the cards must be installed:

Unit Name (Product ID)— Identifies the card by its Product ID.

Unit Description—Identifies the card by its name.

Unit Side—Identifies the side of the node that the specific card is serving: A, B, C, D, E, F, G, or H.

Unit Plug-in Modules—Identifies the type and number of PPMs that will be used with specific TXP, MXP, GE_XP, or 10GE_XP cards.

Step 3 Return to your originating procedure (NTP).


NTP-G31 Install the DWDM Dispersion Compensating Units

Purpose

This procedure describes how to install the DCUs for DWDM shelves.

Tools/Equipment

DCUs

Prerequisite Procedures

G15 Install the Common Control Cards

G14 Install DWDM Equipment

G30 Install the DWDM Cards

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055

Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056

Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right side of the shelf assembly.


Note For US installations, complies with the US Federal Drug Administration Code of Federal Regulations Title 21, Sections 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Step 1 Remove the DCU from its packaging, then remove the protective caps from the connectors. (Safety caps are typically yellow.)

Step 2 Use both hands to push the DCU all the way into the chassis until the connector spring lock on the right side of the module clicks into place.

Step 3 Open the cover with the laser warning on the connector adapter and then connect the cable connector.


Note The Side A DCU is commonly installed on the left side and the Side B DCU is commonly installed on the right side.



Note Double-check the placement of the DCU card(s) with your Cisco TransportPlanner shelf layout. If you install the wrong DCU in a slot, remove the DCU and install the correct one.


Stop. You have completed this procedure.


NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Purpose

This procedure describes how to install the ONS 15454 TXP, MXP, GE_XP, 10GE_XP, and ADM-10G cards.

Tools/Equipment

TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, TXP_MR_10E_L, TXP_MR_2.5G, TXPP_MR_2.5G, MXP_2.5G_10G, MXPP_2.5G_10G, MXP_2.5G_10E, MXP_2.5G_10E_C, MXP_2.5G_10E_L, MXP_MR_2.5G, MXP_MR_10DME_C, MXP_MR_10DME_L, 10GE_XP, GE_XP, or ADM-10G cards (as applicable)

Prerequisite Procedures

G15 Install the Common Control Cards

G14 Install DWDM Equipment

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94

Warning Class 1 laser product. Statement 1008

Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056

Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055

Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note For US installations, complies with the US Federal Drug Administration Code of Federal Regulations Title 21, Sections 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note If you install a card incorrectly, the FAIL LED flashes continuously.



Step 1 Display the Cisco TransportPlanner shelf layout (see Table 3-1) for the node where you will install the card.

Step 2 Remove the card from its packaging, then remove the protective clips from the backplane connectors.

Step 3 Open the card latches/ejectors.

Step 4 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot designated by the Cisco TransportPlanner shelf layout.

Step 5 Verify that the card is inserted correctly and simultaneously close the latches/ejectors on the card.


Note It is possible to close the latches and ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.



Note If you install the card in the wrong slot, CTC will raise a MEA (EQPT) alarm. To clear this alarm, open the latches, slide the card out, then insert it in the correct slot.


After you install the card, the FAIL, ACT, and SF LEDs will go through a sequence of activities. They will turn on, turn off, and blink at different points. After approximately 2 to 3 minutes, the ACT or ACT/STBY LED turns on. The SF LED might persist until all card ports connect to their far-end counterparts and a signal is present.


Note Until a card is provisioned, the card is in the standby condition and the ACT/STBY LED remains amber in color.


Step 6 If the card does not boot up properly or the LEDs do not progress through the activities described in Step 5, check the following:

When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot and CTC will show a MEA (EQPT) alarm. If the card does not boot, open CTC and ensure that the slot is not provisioned for a different card type before assuming that the card is faulty.

If the red FAIL LED does not turn on, check the power.

If you insert a card into a slot provisioned for a different card, all LEDs turn off.

If the red FAIL LED is on continuously or the LEDs behave erratically, the card is not installed properly.

If any of these conditions are present, remove the card and repeat Steps 3 to 5. If the card does not boot up properly the second time, contact your next level of support.

Step 7 If the card requires a Small Form-factor Pluggable (SFP or XFP) connector, complete one of the following tasks:

G63 Install an SFP or XFP—Complete this task to install the physical SFP or XFP into the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card.

G273 Preprovision an SFP or XFP Slot—(Optional) Complete this task if you do not have the physical SFP or XFP and need to preprovision the SFP or XFP slot.


Note SFPs/XFPs are hot-swappable input/output devices that plug into a TXP, MXP, GE_XP, 10GE_XP, ADM-10G, or line card port to link the port with the fiber-optic network. For more information about SFPs and XFPs, refer to For more information, refer to the Cisco ONS 15454 DWDM Reference Manual and the Installing GBIC, SFP, and XFP Optics Modules in ONS Platforms document.



Note PPM provisioning determines how the SFPs and XFPs are used in CTC. PPM provisioning procedures are provided in Chapter 5 "Provision Transponder and Muxponder Cards."


Step 8 If you need to remove an SFP or XFP, complete the "DLP-G64 Remove an SFP or XFP" task.


Note You will provision the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards after you complete all node turn-up procedures. TXP and MXP provisioning procedures are provided in Chapter 5 "Provision Transponder and Muxponder Cards."



Note Until a card is provisioned, the card is in the standby condition and the ACT/STBY LED remains amber in color.


Stop. You have completed this procedure.


DLP-G63 Install an SFP or XFP

Purpose

This task installs SFPs and XFPs into TXP, MXP, GE_XP, 10GE_XP and ADM-10G cards. SFPs and XFPs provide a fiber interface to the card.

Tools/Equipment

None

Prerequisite Procedures

G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning The intrabuilding ports of the ONS 15454 are suitable for connection to intrabuilding or unexposed wiring or cabling only. The intrabuilding ports of the ONS 15454 must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intrabuilding interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 4), and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection while connecting these interfaces metallically to the OSP wiring.

Warning The intrabuilding ports of the ONS 15454 are suitable for connection only to shielded intrabuilding cabling, grounded at both ends.

Note The CC-FTA fan tray is mandatory if CWDM SFPs and DWDM SFPs are used on MSTP units.



Note SFPs and XFPs are hot-swappable input/output devices that plug into a TXP, MXP, GE_XP, 10GE_XP, or ADM-10G port to link the port with the fiber-optic network. For more information, refer to the Cisco ONS 15454 DWDM Reference Manual and the Installing GBIC, SFP, and XFP Optics Modules in ONS Platforms document.



Note If you have installed a fan tray lower than CC-FTA on the MSTP unit, you must have the transponder cards (TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L) installed in Slot 5, 6, 12, or 13. This limitation does not exist for fan-tray versions higher than CC-FTA.



Note SFPs and XFPs are generically called PPMs in CTC. After installing multirate SFPs or XFPs, multirate PPMs must be provisioned in CTC. To complete the provisioning of the pluggable port, complete the "DLP-G277 Provision a Multirate PPM" task.



Step 1 Verify that the SFP or XFP is correct for your network and TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card (see the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual for card and SFP/XFP compatibility information). Check that you are installing compatible SFPs or XFPs, for example, SX to SX or LX/LH to LX/LH.

Step 2 Install the SFP or XFP:

For a mylar tab SFP or XFP: Slide the SFP or XFP into the slot.

For an actuator/button SFP or XFP: Slide the SFP or XFP all the way into the slot until you hear a click.

For a bail clasp SFP or XFP: Latch (flip upwards) the bail clasp before inserting the SFP or XFP into the slot and then slide it into the slot.


Note SFP and XFPs are keyed to prevent incorrect installation.


Step 3 Do not remove the protective caps from the SFP or XFP until you are ready to attach the network fiber-optic cable.

Step 4 Return to your originating procedure (NTP).


DLP-G273 Preprovision an SFP or XFP Slot

Purpose

This task preprovisions SFPs and XFPs, which connect fiber to TXP, MXP, GE_XP, 10GE_XP, and ADM-10G cards.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note SFPs and XFPs are generically called PPMs in CTC. After installing multirate SFPs or XFPs, multirate PPMs must be provisioned in CTC.



Step 1 In node view (single-shelf mode) or shelf view (multishelf mode), double-click the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card where you want to provision PPM settings.

Step 2 Click the Provisioning > Pluggable Port Modules tabs.

Step 3 In the Pluggable Port Modules area, click Create. The Create PPM dialog box appears.

Step 4 In the Create PPM dialog box, complete the following:

PPM—Choose the PPM slot number where the SFP or XFP is installed from the drop-down list.

PPM Type—Choose the number of ports supported by your SFP or XFP from the drop-down list. The drop-down list displays the number of PPMs that are available for provisioning. If only one port is supported, PPM (1 port) is the only option.

Step 5 Click OK. The newly created port appears in the Pluggable Port Modules pane. The row in the Pluggable Port Modules pane turns light blue. The Actual Equipment Type column remains blank until the actual SFP or XFP is installed. After the SFP or XFP is installed, the row in the pane turns white and the Actual Equipment Type column shows the equipment name.

Step 6 Verify that the PPM appears in the list in the Pluggable Port Modules pane. If it does not, repeat Steps 3 through 5.

Step 7 Repeat the task to provision a second PPM, if needed. If not, continue with Step 8.

Step 8 Click OK.

Step 9 Return to your originating procedure (NTP).


DLP-G64 Remove an SFP or XFP

Purpose

This task removes SFPs and XFPs from TXP, MXP, GE_XP, 10GE_XP, and ADM-10G cards.

Tools/Equipment

None

Prerequisite Procedures

G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Note This task removes the SFP or XFP hardware. To delete the provisioning for an SFP or XFP, see the "DLP-G280 Delete a PPM" procedure.



Step 1 If a fiber is connected, disconnect the network fiber cable from the SFP or XFP LC-type connector.

Step 2 Release the SFP or XFP from the slot by performing one of the following actions (depending which latch is on the SFP or XFP):

For a mylar tab SFP or XFP: Pull out the mylar tab.

For an actuator/button SFP or XFP: Press the actuator/button.

For a bail clasp SFP or XFP: Unlatch the bail clasp and swing it downward.

Step 3 Slide the SFP or XFP out of the slot.

Step 4 Return to your originating procedure (NTP).


Note Removing an SFP from the client ports of a Y-cable protection group card causes an IMPROPRMVL (PPM) alarm. The working port raises the CR,IMPROPRMVL,SA alarm and the protected port raises the MN,IMPROPRMVL,NSA alarm. The severity on the client ports is changed according to the protection switch state.



NTP-G123 Install the Filler Cards

Purpose

This procedure explains how to install the filler cards (blank faceplates) in any unused traffic or AIC-I card slots (Slots 1 through 6, 9, and 11 through 17). The filler card aids in maintaining proper air flow and electro-magnetic interference (EMI) requirements and is detected by CTC in Software Release 6.0 and later.

Tools/Equipment

Filler cards (Cisco P/N 15454-FILLER)

Prerequisite Procedures

G30 Install the DWDM Cards

G31 Install the DWDM Dispersion Compensating Units

G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning Blank faceplates (filler panels) serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards and faceplates are in place. Statement 156

Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower right outside edge of the shelf assembly and ensure the shelf assembly is properly grounded.


Step 1 Open the card ejectors.

Step 2 Slide the card along the guide rails into the correct slot.

Step 3 Close the ejectors.

Step 4 Repeat for any remaining unused card slots.

Stop. You have completed this procedure.


NTP-G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

Purpose

This procedure attaches fiber-optic cables on the DWDM cards and DCUs.

Tools/Equipment

Fiber-optic cables

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G30 Install the DWDM Cards

G31 Install the DWDM Dispersion Compensating Units (as applicable)

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055

Note For US installations, complies with the US Federal Drug Administration Code of Federal Regulations Title 21, Sections 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Note In this procedure, you will generally connect fibers in an Side B-to-Side A or Side B-to-Side B pattern only. "Side A" refers to cards and ports in Slots 1 through 8. "Side B" refers to cards and ports installed in Slots 10 through 17.



Note You will install fiber-optic cables on TXP, MXP, GE_XP, 10GE_XP, and ADM-10G cards later in the chapter during the "NTP-G140 Install Fiber-Optic Cables Between Terminal, Hub, or ROADM Nodes" procedure.



Step 1 Refer to the "DLP-G349 Use the Cisco TransportPlanner Internal Connections Report" task to install cables to the DWDM cards.

Step 2 Verify that the appropriate fiber optic cables are available to complete the connections shown in the Cisco TransportPlanner Internal Connections report:

a. Count the number of connections listed in the Internal Connections and verify that you have the same number of cables.

b. Measure the distance between Origination Position and Destination Position for each connection, then verify that the fiber lengths will fit each one.

Step 3 Complete the "NTP-G115 Clean Fiber Connectors" procedure for all fiber connections, even new fiber. Dust particles can degrade performance. Put caps on any fiber connectors that are not used.

Step 4 On the front of the fiber-storage tray (usually installed below the node you are fibering), push the tabs on the left and right sides inward to release the lock on the tray.

Step 5 Pull the fiber-storage tray away from the shelf until it is fully opened.

Step 6 Open the fold-down door that at the bottom of the shelf assembly to expose the cable-routing channel (Figure 3-10).

Figure 3-10 Managing Cables on the Front Panel

Step 7 Using the Cisco TransportPlanner Internal Connections Report, connect one end of the fiber cable plug into the Origination Position.

Step 8 Route the fiber cable on the card faceplate through the fiber clip on the faceplate, if provided. (Fiber clips are factory-attached to the faceplates of 32MUX-O, 32DMX, 32DMX-O, OSCM, OSC-CSM, OPT-PRE, OPT-BST, OPT-BST-E, OPT-BST-L, OPT-AMP-L, OPT-AMP-17-C, and OPT-AMP-C cards.)

Step 9 Route the fiber cable through the cable-routing channel and cutout on the appropriate side of the shelf assembly, as necessary.

Step 10 As needed, route slack fiber-optic cable around the round cable retainers in the fiber-storage tray (Figure 3-11).

Figure 3-11 Fiber-Storage Tray


Caution When you close the fiber-storage tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the fiber-storage tray, make sure that adequate cable slack remains.

Step 11 Route the fiber cable out either side of the fiber-storage tray as necessary.

Step 12 Plug the other end of the cable into the Destination position.


Note Cards display an SF LED after the OSC terminations are created (see the "NTP-G38 Provision OSC Terminations" procedure) if transmit and receive fibers are not connected correctly. For example, an RX port is connected to another RX port or a TX port is connected to another TX port.


Step 13 Repeat Steps 4 through 12 until you have connected the intra-shelf fibers according to the Cisco TransportPlanner Internal Connections report.

Step 14 To close the fiber-storage tray, push the tray back toward the rack until it locks into place.

Stop. You have completed this procedure.


DLP-G349 Use the Cisco TransportPlanner Internal Connections Report

Purpose

This task describes how to use the Cisco TransportPlanner Internal Connections report to install cables on the DWDM cards.

Tools/Equipment

None

Prerequisite Procedures

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Step 1 Display the Cisco TransportPlanner Internal Connections report for the node that you are provisioning. The Internal Connections report is presented in two views, a patchcord installation view and a software provisioning view. The Patchcord installation view lists all the patchcord connections that the installer has to mechanically cable within the site between the different ports of the DWDM cards. Figure 3-12 shows an example patchcord installation view. The SW Provisioning view contains all the connections to be manually set or removed via CTC with respect to the default connections that are automatically generated by the system software running on the node. Figure 3-13 shows an example of a software provisioning view.

The tables identify the patchcords that you must cable by their endpoints. Starting from the left side of report, Position identifies the fiber origination point the location shown in the next Position to right is the destination point for the fiber connection. The patchcord endpoints are identified by site, assembly shelf, slot, and port number. Information provided by the Internal Connections Software report includes:

Name—Displays the name of the site.On the SW provisioning view, this column indicates whether the connection was automatically set, or should be manually set or removed via CTC.

Position—The cable origination in the format is Rack.Shelf.Slot. For example, Rack#1.Shelf Assembly 1.Slot 2 refers to Slot 2 in shelf assembly 1(DWDM) shelf of Rack 1. Refer to the Cisco TransportPlanner Site Dialog box for rack and shelf names and locations.

Unit—The ONS 15454 DWDM card (unit) that is installed in the Position's slot. This is where the patchcord originates.

Port Number—The port number where the patchcord connection originates.

Port ID—(Software provisioning view only) The port identifier shown in TL1 for the Position-1 connection.

Port Label—The name of the physical port printed on the DWDM card's front panel and shown in CTC card view.

Attenuator—If attenuation is required, the product ID (PID) of the bulk fixed attenuator is shown. "Att-Lpbk-4dB" indicates that the DC TX and DC RX ports on an OPT-PRE (or OPT-AMP-L, OPT-AMP-17-C, or OPT-AMP-C card provisioned in OPT-PRE card mode) card are to be connected with an attenuated loopback that is shipped with the OPT-PRE card. This parameter also indicates when an internal attenuator must be placed between the OPT-PRE DC-TX and DC-RX ports on the when a DCU is equipped.


Note If the Attenuator field is blank, no attenuation is needed.


Position—The cable termination in the format is Rack.Shelf.Slot.

Unit—The ONS 15454 DWDM card that is installed in the Position's slot. This is where the cabling terminates.

Port—The port number where the patchcord connection terminates.

Port ID—(Software provisioning view only) The port identifier shown in TL1 for the Position-2 connection.

Port Label—The name of the physical port printed on the DWDM card's front panel and shown in CTC card view for the Position-2 connection.

P/F—Indicates whether you must create the connection manually in CTC. A Yes appearing in this column means that you must create the connection manually.


Caution Failure to create the required manual connections will prevent the node from turning up properly.

Figure 3-12 Cisco TransportPlanner Internal Connections Report—Patchcord Installation View

Figure 3-13 Cisco TransportPlanner Internal Connections Report—Software Provisioning View

Step 2 Return to your originating procedure (NTP).


NTP-G140 Install Fiber-Optic Cables Between Terminal, Hub, or ROADM Nodes

Purpose

This procedure routes fiber-optic cables from the DWDM optical cards in a terminal, hub, or ROADM node to the patch panel, and from the patch panel to TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards.

Tools/Equipment

See Step 1 for a list of equipment specific to each node type.

All node types require fiber-optic cables, terminated with a single LC-type connector on each end.

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G28 Install the Fiber Patch-Panel Tray

G29 Install the Fiber-Storage Tray

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

G348 Use the Cisco TransportPlanner Shelf Layout Report

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Determine which type of node you are fibering.

The following node types require the listed equipment. The cards and patch panels should already be installed before you begin this procedure.

Terminal node: One 32DMX-O card, one 32MUX-O card, and one standard patch-panel tray or one deep patch-panel tray

Hub node: Two 32DMX-O cards, two 32MUX-O cards, and two standard patch-panel trays or two deep patch-panel trays

ROADM node: Two 32WSS cards, two 32DMX cards, and two standard patch-panel trays or two deep patch-panel trays

Expanded ROADM node: Two 40-WSS-C/40-WSS-CE cards, two 40-DMX-C/40-DMX-CE cards, and two 40-channel patch-panel trays, preinstalled with MPO-LC cables


Note If you are using standard patch panels, you will also need eight multifiber push-on (MPO) cables per standard patch panel. MPO cables are fiber-optic cables terminated on one end with one MPO connector and on the other end with eight LC-type connectors. Deep patch-panel trays come pre-installed with MPO cables.


Step 2 On the front of the patch-panel tray, push the tabs on the left and right sides inward to release the lock on the tray.

Step 3 Pull the patch-panel tray away from the shelf until it is fully opened.


Note The red latch inside the patch-panel tray at the top left corner will automatically click and lock the tray in the open position when you have fully opened the tray.


Step 4 Depending on the type of patch-panel tray you are using:

If you are using the standard patch-panel tray:

Complete the "DLP-G315 Install Fiber-Optic Cables From the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Standard Patch-Panel Tray" task.

Complete the "DLP-G316 Install Fiber-Optic Cables from TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Standard Patch-Panel Tray" task.

If you are using the deep patch-panel tray:

Complete the "DLP-G356 Install Fiber-Optic Cables from the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Deep Patch-Panel Tray" task.

Complete the "DLP-G357 Install Fiber-Optic Cables from the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Deep Patch-Panel Tray or 40-Channel Patch-Panel Tray" task.

If you are using the 40-channel patch-panel tray:

As needed, complete the "DLP-G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray" task to route the MPO cables out of the right side of the tray so they can be easily connected to cards installed on the right side of the shelf (Slots 12 through 17).

Complete the "DLP-G428 Install Fiber-Optic Cables from the 40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE Cards in an Expanded ROADM, Terminal, or Hub Node to the 40-Channel Patch-Panel Tray" task

Step 5 To close the patch-panel tray, unlock it by pressing the red latch in the top left corner, and then push the tray back toward the rack until it locks into place.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Stop. You have completed this procedure.


DLP-G315 Install Fiber-Optic Cables From the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Standard Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from 32MUX-O, 32WSS, 32DMX-O, and 32DMX cards in a terminal, hub, or ROADM node to the standard patch panel.

Tools/Equipment

The following node types require the following equipment. The cards and patch panels should already be installed before you begin this procedure.

Terminal node:

One 32DMX-O card

One 32MUX-O card

One standard patch-panel tray

Eight fiber-optic MPO cables: each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors

Hub node:

Two 32DMX-O cards

Two 32MUX-O cards

Two standard patch-panel trays

Sixteen fiber-optic MPO cables: each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors

ROADM node:

Two 32WSS cards

Two 32DMX cards

Two standard patch-panel trays

Sixteen fiber-optic MPO cables: each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note For a ROADM or hub node, two patch panels will be used, one for Side B side and one for Side A. The Side B 32WSS/32DMX card will connect to the Side B patch panel. The Side A 32WSS/32DMX card will connect to the Side A patch panel.



Step 1 Choose either the Side B or Side A to cable the 32MUX-O and 32DMX-O cards (or the 32WSS and 32DMX cards for a ROADM node).

Step 2 On the patch panel, pull up firmly on the two latches and use them to slide the patch panel up until it snaps in place above the tray (Figure 3-14).

Figure 3-14 Using the Patch-Panel Latches to Slide the Patch Panel Away from the Tray

Step 3 At the 32WSS or 32MUX-O card in the node, plug the MPO connector of an MPO cable (Figure 3-15) into the top Add RX (30.3-36.6) port of the card. If you are connecting a subsequent MPO cable, plug the MPO connector into the first vacant Add RX card port below the last MPO cable that was installed.

Figure 3-15 MPO Cable

.

Step 4 Route the MPO cable slack through the patch-panel tray as necessary.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 5 While facing the front of the patch panel, at the rear side of the patch panel, plug the eight LC-connector fan-out cables on the MPO cable into their corresponding connectors on the bottom row of the patch panel. You should plug the fan-out cables from left to right (as you face the patch panel), following the numbers tagged (1 through 8) on the cables.

Figure 3-16 shows the patch-panel connectors from the rear of the patch-panel tray. Figure 3-17 shows the assigned wavelengths for each port on the patch panel, as indicated at the top of the patch-panel bar. The numbers on the patch-panel bar correspond to a wavelength on the ITU grid.

Figure 3-16 Rear View of the Patch Panel

.

Figure 3-17 Top View of the Patch-Panel Bar

Step 6 As necessary, repeat Steps 3 through 5 for the remaining three Add RX ports on the 32WSS or 32MUX-O card, until all 32 LC connectors on the bottom row of the rear of the patch panel are connected.

Step 7 At the adjacent 32DMX or 32DMX-O card in the same side of the shelf, plug the MPO connector of an MPO cable into the top Drop TX (30.3-36.6) port of the 32DMX or 32DMX-O card. If you are connecting a subsequent MPO cable, plug the MPO connector into the first vacant Drop TX card port below the last MPO cable that was installed.

Step 8 Route the MPO cable slack through the patch-panel tray as necessary.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 9 While facing the front of the patch panel, at the rear of the patch panel, plug the eight LC-connector fan-out cables on the MPO cable into their corresponding connectors on the top row of the patch panel. You should plug the fan-out cables from left to right (as you face the patch panel), following the numbers tagged (1 through 8) on the cables.

Step 10 As necessary, repeat Steps 7 through 9 for the remaining three Drop TX ports on the 32DMX or DMX-O card, until all 32 LC connectors on the top row of the rear of the patch panel are connected.

Step 11 For a hub or ROADM node, repeat Steps 2 through 10 to cable the other side of the shelf to the second patch panel. For a terminal node, go to Step 12.

Step 12 Return to your originating procedure (NTP).


DLP-G316 Install Fiber-Optic Cables from TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Standard Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from the patch panel to TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards.

Tools/Equipment

TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card(s)

Fiber-optic cable(s)

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 At the appropriate TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card, plug one end of a fiber-optic cable into the TX port of the DWDM adapter.

Step 2 As needed, route slack fiber-optic cable around the round cable retainers in the fiber-storage tray.


Caution When you close the fiber-storage tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the fiber-storage tray, make sure that adequate cable slack remains.

Step 3 On the DWDM (front) side of the patch panel, plug the other end of the cable into the connector on the bottom row that corresponds to the wavelength to which the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G port is tuned. (See Figure 3-17 for a view of the wavelengths assigned to the patch-panel connectors).

Figure 3-18 shows the patch-panel connectors from the front of the patch-panel tray.

Figure 3-18 Front View of the Patch Panel

.

Step 4 Plug one end of a fiber-optic cable into the RX port of the DWDM adapter on the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card.

Step 5 On the DWDM (front) side of the patch panel, plug the other end of the cable into the connector on the top row that corresponds to the wavelength to which the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G is tuned.

Step 6 Repeat Steps 1 through 5 for all of the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards that you want to connect to this patch panel.

Step 7 Return to your originating procedure (NTP).


DLP-G356 Install Fiber-Optic Cables from the 32WSS/32DMX and 32MUX-O/32DMX-O Cards to the Deep Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from 32MUX-O, 32WSS, 32DMX-O, and 32DMX cards in a terminal, hub, or ROADM node to the deep patch-panel tray.

Tools/Equipment

The following node types require the following equipment. The cards and patch panels should already be installed before you begin this procedure.

For terminal nodes, one of the following card sets:

One 32MUX-O card and one 32DMX-O or 32DMX card

One 32WSS card and one 32DMX or 32DMX-O card

One 32WSS-L cards and one 32DMX-L card

Plus one deep patch-panel tray, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

For hub nodes, one of the following card sets:

Two 32MUX-O cards and two 32DMX-O or 32DMX cards

Two 32WSS cards and two 32DMX or 32DMX-O cards

Two 32WSS-L cards and two 32DMX-L cards

Plus two deep patch-panel trays, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

For ROADM nodes, one of the following card sets:

Two 32WSS cards and two 32DMX or 32DMX-O cards

Two 32WSS-L cards and two 32DMX-L cards

Plus two deep patch-panel trays, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note For a ROADM or hub node, two patch panels will be used, one for Side A (Slots 1 through 6) and one for Side B (Slots 12 through 17). The Side B 32WSS/32DMX card will connect to the Side B patch panel. The Side A 32WSS/32DMX card will connect to the Side A patch panel. The MPO cables in the patch panel are preinstalled and routed out of the right side of the patch-panel tray.



Step 1 Choose either Side A or Side B of the shelf to cable the 32MUX-O and 32DMX-O cards (or the 32WSS and 32DMX cards for a ROADM node).

Step 2 On the patch panel, locate the MPO connectors (Figure 3-15).

Step 3 Route the preinstalled MPO cables out of the tray to the right or left (Figure 3-19).

Figure 3-19 Deep Patch-Panel Tray

Step 4 At the 32WSS or 32MUX-O card in the node, plug the MPO connector labeled 1 RX on an MPO cable (Figure 3-15) into the top Add RX (30.3-36.6) port of the card.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 5 Plug the MPO connector labeled 2-RX into the Add RX (38.1-44.5) port on the card.

Step 6 Plug the MPO connector labeled 3-RX into the Add RX (46.1-52.5) port on the card.

Step 7 Plug the MPO connector labeled 4-RX into the Add RX (54.1-60.6) port on the card.

Figure 3-20 shows the deep patch-panel ports and corresponding wavelengths.

Figure 3-20 Deep Patch-Panel Port Wavelengths

Step 8 At the adjacent 32DMX or 32DMX-O card in the same side of the shelf, plug the MPO connector labeled 1 TX on the MPO cable (Figure 3-15) into the top Drop TX (30.3-36.6) port of the card (Figure 3-20).

Step 9 Plug the MPO connector labeled 2-TX into the Drop TX (38.1-44.5) port on the card.

Step 10 Plug the MPO connector labeled 3-TX into the Drop TX (46.1-52.5) port on the card.

Step 11 Plug the MPO connector labeled 4-TX into the Drop TX (54.1-60.6) port on the card.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 12 For a hub or ROADM node, repeat Steps 2 through 11 to cable the other side of the shelf to the second patch panel. For a terminal node, go to Step 13.

Step 13 Return to your originating procedure (NTP).


DLP-G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray

Purpose

This task reroutes the MPO cables that are preinstalled in the 40-channel patch-panel tray. The cables exit to the left when shipped; this task reroutes the cables out of the right side of the tray. Use this task when you want to connect these MPO cables to cards installed on the right side of the shelf (Slots 12 through 17).

Tools/Equipment

#2 Phillips screwdriver

Prerequisite Procedures

None

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Carefully unwind all of the MPO cables in the patch-panel tray and gently set the cables to the side of the tray, out of the way of the internal hardware.

Figure 3-21 and Figure 3-22 show the 40-channel patch-panel tray.

Figure 3-21 40-Channel Patch-Panel Tray, Side View

Figure 3-22 40-Channel Patch-Panel Tray, Top View

Step 2 Slide each of the ten LC-port adapter packs upward.

Step 3 Unscrew the two screws in the bottom left bending limiter and remove the bending limiter.

Step 4 Remove the single screw below the center of the patch panel to free the patch panel hardware.

Step 5 Slide the patch panel to the left, and reinstall the screw below the center of the patch panel.

Step 6 Install the bending limiter to the right of the patch panel by installing the two screws.

Step 7 Carefully route all of the MPO cables around the bending limiter and out the exit on the right side of the patch-panel tray.

Step 8 Slide each of the ten LC-port adapter packs downward.

Step 9 Return to your originating procedure (NTP).


DLP-G428 Install Fiber-Optic Cables from the 40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE Cards in an Expanded ROADM, Terminal, or Hub Node to the 40-Channel Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from 40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards in an expanded ROADM, terminal, or hub node to the 40-channel (80-port) patch-panel tray (15454-PP-80).

Tools/Equipment

The following node types require the following equipment. The cards and patch panels should already be installed before you begin this procedure.

Expanded terminal nodes:

One 40-WSS-C or 40-WSS-CE card

One 40-DMX-C or 40-DMX-CE card

Plus one 40-channel patch-panel tray, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

Expanded hub or ROADM nodes:

Two 40-WSS-C or 40-WSS-CE cards

Two 40-DMX-C or 40-DMX-CE cards

Plus two 40-channel patch-panel trays, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note For a ROADM node, two patch panels will be used, one for the Side A (Slots 1 through 6) and one for Side B (Slots 12 through 17). The Side B 40-WSS-C/40-WSS-CE card will connect to the Side B patch panel. The Side A 40-WSS-C/40-WSS-CE will connect to the Side A patch panel. The MPO cables in the patch panel are preinstalled and routed out of the left side of the patch-panel tray.



Step 1 Choose either the Side A or Side B side of the shelf to cable the 40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards.


Note If you are cabling cards on Side B of the shelf, you must first perform the "DLP-G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray" task to route the MPO cables out of the right side of the patch-panel tray, or route the cables through a fiber storage panel.


Step 2 On the patch panel, locate the MPO cables and connectors.

Step 3 At the 40-WSS-C/40-WSS-CE card in the node, plug the MPO connector labeled 1 RX on an MPO cable (Figure 3-15) into the top Add RX (30.3-35.8) port of the card.

Step 4 Plug the MPO connector labeled 2-RX into the Add RX (36.6-42.1) port on the card.

Step 5 Plug the MPO connector labeled 3-RX into the Add RX (42.9-48.5) port on the card.

Step 6 Plug the MPO connector labeled 4-RX into the Add RX (49.3-54.9) port on the card.

Step 7 Plug the MPO connector labeled 5-RX into the Add RX (55.7-61.4) port on the card.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Figure 3-23 shows the 40-channel patch-panel ports and corresponding wavelengths.

Figure 3-23 40-Channel (15454-PP-80) Patch-Panel Port Wavelengths

Step 8 At the adjacent 40-DMX-C/40-DMX-CE card in the same side of the shelf, plug the MPO connector labeled 1 TX on the MPO cable into the top Drop TX (30.3-35.8) port of the card.

Step 9 Plug the MPO connector labeled 2-TX into the Drop TX (36.6-42.1) port on the card.

Step 10 Plug the MPO connector labeled 3-TX into the Drop TX (42.9-48.5) port on the card.

Step 11 Plug the MPO connector labeled 4-TX into the Drop TX (49.3-54.9) port on the card.

Step 12 Plug the MPO connector labeled 5-TX into the Drop TX (55.7-61.4) port on the card.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 13 Repeat Steps 2 through 12 to cable the other side of the shelf to the second patch panel.

Step 14 Return to your originating procedure (NTP).


DLP-G357 Install Fiber-Optic Cables from the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G Cards to the Deep Patch-Panel Tray or 40-Channel Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from the deep patch panel (32-channel) or 40-channel patch panel to TXP, MXP, GE_XP, 10GE_XP, or ADM-10G cards.

Tools/Equipment

TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card(s)

Deep (32-channel) patch panel tray or 40-channel patch panel tray

Fiber-optic cable(s)

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Refer to the Cisco TransportPlanner Internal Connections Report to connect the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card to the proper (Side A or Side B) patch panel. Cisco TransportPlanner designates Side A as Slots 1 to 6 and Side B as Slots 12 to 17. At the appropriate TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card, plug one end of a fiber-optic cable into the TX port of the DWDM adapter.

Step 2 As needed, route slack fiber-optic cable around the round cable retainers in the fiber-storage tray.


Caution When you close the fiber-storage tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the fiber-storage tray, make sure that adequate cable slack remains.

Step 3 Plug the other end of the cable into the RX connector on the patch panel that corresponds to the wavelength to which the TXP, MXP, GE_XP, 10GE_XP or ADM-10G port is tuned. (See Figure 3-20 for a view of the wavelengths assigned to the deep patch-panel connectors or Figure 3-23 for a view of the wavelengths assigned to the 40-channel patch-panel connectors).

Step 4 On the patch-panel tray, slide each of the ten LC-port adapter packs upward.

Step 5 Plug one end of a fiber-optic cable into the RX port of the DWDM adapter on the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card.

Step 6 Plug the other end of the cable into the TX connector on the patch panel that corresponds to the wavelength to which the TXP, MXP, GE_XP, 10GE_XP, or ADM-10G port is tuned.

Step 7 Repeat Steps 1 through 6 for each TXP, MXP, GE_XP, 10GE_XP, or ADM-10G card that you want to connect to this patch panel.

Step 8 Return to your originating procedure (NTP).


NTP-G185 Install Fiber-Optic Cables between Mesh Nodes

Purpose

This procedure describes how to install fiber-optic cables to create mesh nodes. You must route fiber-optic cables from 40-MUX-C and 40-DMX-C cards in a mesh node to the 40-channel (80-port) patch-panel tray (15454-PP-80), and from the 40-WXC-C cards in a mesh node to one of the mesh patch-panel trays (four-degree or eight-degree).

Tools/Equipment

Mesh nodes require the following equipment. The cards and patch panels should already be installed before you begin this procedure.

One 40-MUX-C card per side of the mesh node (up to 8 sides per node)
One 40-DMX-C card per side of the mesh node (up to 8 sides per node)

One 40-channel patch-panel tray per side of the mesh node (up to 8 sides per node)

One 40-WXC-C card per side (up to 8 sides per node)

One MPO-MPO fiber-optic cable per side (up to 8 sides per node)

One LC-LC fiber-optic cable per side (up to 8 sides per node)

One four-degree (PP-MESH-4) or eight-degree (PP-MESH-8) mesh patch-panel tray, depending on the type of mesh node you want to install

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Open the patch-panel tray:

40-channel patch-panel tray: On the front of the patch-panel tray, push the tabs on the left and right sides inward to release the lock on the tray. Pull the patch-panel tray away from the shelf until it is fully opened.

Mesh patch-panel tray: On the front of the patch-panel tray, push the tabs on the left and right sides inward to open the front door. Raise the plunger located to the right of the TEST ACCESS Tx port and pull the tray toward away from the rack.

Step 2 Complete the "DLP-G430 Install Fiber-Optic Cables from the 40-MUX-C and 40-DMX-C Cards in a Mesh Node to the 40-Channel Patch-Panel Tray" task.

Step 3 Complete the "DLP-G431 Install Fiber-Optic Cables from the 40-WXC-C Cards in a Mesh Node to a Mesh Patch-Panel Tray" task.

Step 4 Close the patch-panel tray:

40-channel patch-panel tray: Push the tray back toward the rack until it locks into place.

Mesh patch-panel tray: Raise the plunger located on the right of the TEST ACCESS Tx port and push the tray until the plunger locks into the closed position.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the tray, make sure that adequate cable slack remains.

Stop. You have completed this procedure.


DLP-G430 Install Fiber-Optic Cables from the 40-MUX-C and 40-DMX-C Cards in a Mesh Node to the 40-Channel Patch-Panel Tray

Purpose

This task describes how to route fiber-optic cables from 40-MUX-C and 40-DMX-C cards in mesh node to the 40-channel (80-port) patch-panel tray (15454-PP-80). In a mesh node, one 40-channel patch panel tray is required for each direction. The Side A 40-MUX-C and 40-DMX-C cards will connect to the Side A 40-channel patch panel. The Side B 40-MUX-C and 40-DMX-C cards will connect to the Side B 40-channel patch panel, and so forth, up to a maximum of an eight-degree mesh node (Sides A through H).

Tools/Equipment

The cards and patch panels should already be installed before you begin this procedure.

One 40-MUX-C card per side of the mesh node

One 40-DMX-C card per side of the mesh node

One 40-channel patch-panel trays per side of the mesh node, preinstalled with MPO cables (each MPO cable is terminated on one end with one MPO connector and on the other end with eight LC-type connectors)

Prerequisite Procedures

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Choose Side A of the shelf to cable the 40-MUX-C and 40-DMX-C cards.


Note If you are cabling any cards from the right side of the shelf (Slots 12 through 17), you must first perform the "DLP-G427 Reroute Fiber-Optic Cables in the 40-Channel Patch-Panel Tray" task to route the MPO cables out of the right side of the patch-panel tray, or route the cables through a fiber storage panel.


Step 2 On the patch panel, locate the MPO cables and connectors.

Step 3 At the 40-MUX-C card in the node, plug the MPO connector labeled 1 RX on an MPO cable into the top Add RX (30.3-35.8) port of the card.

Step 4 Plug the MPO connector labeled 2-RX into the Add RX (36.6-42.1) port on the card.

Step 5 Plug the MPO connector labeled 3-RX into the Add RX (42.9-48.5) port on the card.

Step 6 Plug the MPO connector labeled 4-RX into the Add RX (49.3-54.9) port on the card.

Step 7 Plug the MPO connector labeled 5-RX into the Add RX (55.7-61.4) port on the card.

Step 8 At the adjacent 40-DMX-C card in the same side of the shelf, plug the MPO connector labeled 1 TX on the MPO cable.

Step 9 Plug the MPO connector labeled 2-TX into the Drop TX (36.6-42.1) port on the card.

Step 10 Plug the MPO connector labeled 3-TX into the Drop TX (42.9-48.5) port on the card.

Step 11 Plug the MPO connector labeled 4-TX into the Drop TX (49.3-54.9) port on the card.

Step 12 Plug the MPO connector labeled 5-TX into the Drop TX (55.7-61.4) port on the card.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Step 13 Repeat Steps 2 through 12 for the remaining sides of the mesh node (Sides B through H, depending on the type of mesh node you want to cable).

Step 14 Return to your originating procedure (NTP).


DLP-G431 Install Fiber-Optic Cables from the 40-WXC-C Cards in a Mesh Node to a Mesh Patch-Panel Tray

Purpose

This task connects fiber-optic cables from the 40-WXC-C cards in a mesh node to the 4-degree or 8-degree mesh patch panel. The four-degree patch panel allows up to 4 sides to be used per node, while the eight-degree patch panel allows up to 8 sides to be used per node.

Tools/Equipment

The cards and patch panel trays should already be installed before you begin this procedure.

One 40-WXC-C card per side (up to 8 sides per node)

One MPO-MPO fiber-optic cable per side

One LC-LC fiber-optic cable per side

One four-degree or eight-degree mesh patch-panel tray

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G28 Install the Fiber Patch-Panel Tray

G29 Install the Fiber-Storage Tray

G34 Install Fiber-Optic Cables on DWDM Cards and DCUs

G348 Use the Cisco TransportPlanner Shelf Layout Report

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Choose Side A of the shelf to cable the 40-WXC-C card to the mesh patch panel.

Step 2 On the mesh patch panel, locate the EXP TX A port and insert one end of an MPO-MPO cable.

Step 3 Route the MPO cable through the mesh patch panel and out to the 40-WXC-C card on Side A of the node.

Step 4 Connect the other end of the MPO cable to the EXP RX port on the 40-WXC-C.

Step 5 On the mesh patch panel, locate the COM RX A port and insert one end of an LC-LC cable.

Step 6 Route the LC cable through the mesh patch panel to the 40-WXC-C card on Side A of the node.

Step 7 Connect the other end of the LC cable to the EXP TX port on the 40-WXC-C.

Step 8 Repeat Steps 1 through 7 as necessary to cable Sides B through D for a 4-degree patch panel, and Sides B through H for an 8-degree patch panel.


Caution When you close the patch-panel tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the patch-panel tray, make sure that adequate cable slack remains.

Stop. You have completed this procedure.


NTP-G191 Install Fiber-Optic Cables on Passthrough ROADM Nodes

Purpose

This procedure routes fiber-optic cables from a 32WSS card in a ROADM node in one shelf to the corresponding 32WSS card in a ROADM node in another shelf. The purpose of this routing is to connect East and West intershelf ROADMs in a passthrough configuration.

Tools/Equipment

Each ROADM node requires the listed equipment. The cards and fiber-storage trays should already be installed before you begin this procedure.

One 32WSS card

One fiber-storage tray

Two 3-meter fiber-optic cables, each terminated with a single LC connector on each end.

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G29 Install the Fiber-Storage Tray

G348 Use the Cisco TransportPlanner Shelf Layout Report

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Choose either the East or West side of the first shelf to cable the 32WSS card for the first ROADM node.

Step 2 Choose the corresponding West or East side of the second shelf to cable the 32WSS card for the second ROADM node.

Step 3 On the front of the fiber-storage tray that will be used for routing the fiber-optic cable, push the tabs on the left and right sides inward to release the lock on the tray.

Step 4 Pull the fiber-storage tray away from the shelf until it is fully opened.

Step 5 Open the fold-down door located at the bottom of both shelf assemblies to expose the cable-routing channels for each (Figure 3-24).

Figure 3-24 Managing Cables on the Front Panel

Step 6 Plug one end of the first 3-meter fiber-optic cable into the EXP-TX connector on the first 32WSS card.

Step 7 Route the fiber-optic cable through the shelf cable-routing channel and cutout on the appropriate side of the shelf assembly, as necessary.

Step 8 Route the fiber-optic cable through the vertical fiber guide as needed to reach the entry to the fiber-storage tray.

Step 9 Thread the cable into the fiber-storage tray at the appropriate side and around the first bend radius delimiter as shown (Figure 3-25).

Step 10 As needed, route slack fiber-optic cable around the slack management cable retainers in the fiber-storage tray (Figure 3-25).

Figure 3-25 Fiber-Storage Tray


Caution When you close the fiber-storage tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the fiber-storage tray, make sure that adequate cable slack remains.

Step 11 Thread the fiber cable through the second bend delimiter and out the appropriate side of the fiber-storage tray as necessary.

Step 12 Route the fiber-optic cable through the vertical fiber guide as needed to reach the second ROADM shelf where the second 32WSS is located.

Step 13 Route the fiber-optic cable through the shelf cutout and through the shelf cable routing channel as needed.

Step 14 Plug the end of the 3-meter fiber-optic cable into the EXP-RX port of the second 32WSS card.

Step 15 Plug one end of the second 3-meter fiber-optic cable into the EXP-TX connector on the second 32WSS card.

Step 16 Follow Step 7 through Step 14 to connect the EXP-TX connector of the second 32WSS card to the EXP-RX port of the first 32WSS card.

Step 17 Close the fold-down doors located at the bottom of both shelf assemblies and slide the fiber-storage tray back into its normal locked position.

Stop. You have completed this procedure.


NTP-G141 Install Fiber-Optic Cables for Y-Cable Protection Modules

Purpose

This procedure installs and routes fiber-optic cables from the client signal to the Y-cable protection module (single mode or multimode), and from the Y-cable module to the transponder node. Using one Y-cable protection module, you can protect one client signal with two TXP, MXP, GE_XP, or 10GE_XP cards, and two client signals with four TXP, MXP, GE_XP, or 10GE_XP cards. You can use Y-cable protection modules that you have installed in a FleyLayer shelf, or Y-cable modules installed in a Y-cable module tray.

Tools/Equipment

Fiber-optic cables

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G32 Install the Y-Cable Protection Modules in the FlexLayer Shelf

G377 Install the Y-Cable Protection Modules in the Y-Cable Module Tray

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note Refer to the "Shelf Assembly Hardware" and "Transponder and Muxponder Cards" chapters in the Cisco ONS 15454 DWDM Reference Manual for more information about Y-cable protection.



Note To use Y-cable protection for GE_XP and 10GE_XP cards, the cards must be provisioned in 10GE MXP, 20GE MXP, or 10GE TXP mode. (See the "DLP-G379 Change the GE_XP or 10GE_XP Card Mode" task.) Y-cable protection cannot be used for GE_XP and 10GE_XP cards that are provisioned in L2 over DWDM mode.



Step 1 As needed, complete the "DLP-G375 Install Fiber-Optic Cables on the Y-Cable Modules in the FlexLayer Shelf" task.

Step 2 As needed, complete the "DLP-G376 Install Fiber-Optic Cables on the Y-Cable Modules in the Y-Cable Module Tray" task.

Stop. You have completed this procedure.


DLP-G375 Install Fiber-Optic Cables on the Y-Cable Modules in the FlexLayer Shelf

Purpose

This task installs fiber-optic cables from the TXP, MXP, GE_XP, or 10GE_XP cards to the Y-cable modules installed in the FlexLayer shelves, and from the Y-cable modules to the client devices.

Tools/Equipment

Fiber-optic cables

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G32 Install the Y-Cable Protection Modules in the FlexLayer Shelf

G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Referring to the Cisco TransportPlanner Internal Connections Report, install a fiber-optic cable between a TXP, MXP, GE_XP, or 10GE_XP card and a Y-cable module.

If you want to protect one client signal, connect the fiber-optic cables according to either Table 3-6 or Table 3-7. To protect two client signals using a single Y-cable module, connect the cables according to both Table 3-6 and Table 3-7.

Table 3-6 Cable Connections for Y-Cable Protection of One Client Signal

From
To (Y-Cable Port Number)

Client 1 TX port

10

Client 1 RX port

5

TXP/MXP/GE_XP/10GE_XP 1 TX port

1

TXP/MXP/GE_XP/10GE_XP 1 RX port

2

TXP/MXP/GE_XP/10GE_XP 2TX port

6

TXP/MXP/GE_XP/10GE_XP 2RX port

7


Table 3-7 Cable Connections for Y-Cable Protection of a Second Client Signal

From
To (Y-Cable Port Number)

Client 2 TX port

12

Client 2 RX port

11

TXP/MXP/GE_XP/10GE_XP 3 TX port

3

TXP/MXP/GE_XP/10GE_XP 3 RX port

4

TXP/MXP/GE_XP/10GE_XP 4 TX port

8

TXP/MXP/GE_XP/10GE_XP 4 RX port

9


Step 2 As needed, route slack fiber-optic cable around the round cable retainers in the fiber-storage tray as you install cables between the Y-cable module and the TXP, MXP, GE_XP, or 10GE_XP cards (Figure 3-11).


Caution When you close the fiber-storage tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the fiber-storage tray, make sure that adequate cable slack remains.

Step 3 Install a fiber-optic cable between the client device and the Y-cable module where you just installed a fiber-optic cable to the TXP, MXP, GE_XP, or 10GE_XP card.

Step 4 Repeat Steps 1 through 3 for each Y-cable module you need to use for Y-cable protection.

Step 5 Return to your originating procedure (NTP).


DLP-G376 Install Fiber-Optic Cables on the Y-Cable Modules in the Y-Cable Module Tray

Purpose

This task installs fiber-optic cables from the TXP, MXP, GE_XP, or 10GE_XP cards to the Y-cable modules installed in the Y-cable module tray, and from the Y-cable modules to the client devices.

Tools/Equipment

Fiber-optic cables (4-meter [13.12-foot]), single-mode or multimode as appropriate

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G32 Install the Y-Cable Protection Modules in the FlexLayer Shelf

G179 Install the TXP, MXP, GE_XP, 10GE_XP, and ADM-10G Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Open the drawer of the tray by pushing inward on the latches located at the left and right front of the tray.

Step 2 On each Y-cable module you will connect, use the tab to slide the module up so that it is fully extended and easily accessible in the tray.

Step 3 Referring to the Cisco TransportPlanner Internal Connections Report, install a 4-meter (13.12-foot) fiber-optic cable (single-mode or multimode, as appropriate) between a TXP, MXP, GE_XP, or 10GE_XP card and the Y-cable module installed farthest to the left. Proceed according to the port label affixed to the front of the tray to identify the ports on each installed module (Figure 3-26).

Figure 3-26 Y-Cable Protection Port Label


Note You can use the label shown in Figure 3-26 to take notes as to which wavelength/port you are connecting to each Y-cable module. "W" denotes the indicated Working port on the TXP, MXP, GE_XP, or 10GE_XP card. "P" denotes the indicated Protect port on the TXP, MXP, GE_XP, or 10GE_XP card.



Note Protective covers are installed over the third and fourth ports on the Y-cable modules because they are not used.


As needed, route slack fiber-optic cable around the round cable retainers in theY-cable module tray as you install cables between the Y-cable module and the TXP, MXP, GE_XP, or 10GE_XP card (Figure 3-27).

Figure 3-27 Y-Cable Protection Module Tray


Caution When you close the Y-cable module tray, the cables must not be pinched, and the cable bend radius must be equal to or greater than the minimum radius that is recommended in your site specifications. As you route each cable through the tray, make sure that adequate cable slack remains.

Step 4 Referring to the Cisco TransportPlanner Internal Connections Report, install a fiber-optic cable of adequate length (single-mode or multimode, as appropriate) between the Y-cable module and the client signal that you want to protect.

Step 5 As needed, route slack fiber-optic cable around the round cable retainers in theY-cable module tray as you install cables between the Y-cable module and the TXP, MXP, GE_XP, or 10GE_XP card.

Step 6 Repeat Steps 2 through 5 for each Y-cable module you need to use for Y-cable protection.

Step 7 To close the tray, unlock the drawer from the open position by depressing the red lock at the back left of the tray and push the tray closed.

Step 8 Return to your originating procedure (NTP).


NTP-G152 Create and Verify Internal Patchcords

Purpose

This procedure creates the default internal patchcords, verifies the installed cards, and calculates the connections that should be provisioned for them.

Tools/Equipment

Cisco TransportPlanner shelf layout

Cisco TransportPlanner Internal Connections Report

Prerequisite Procedures

G22 Verify Common Card Installation

G139 Verify Cisco TransportPlanner Reports and Files

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to provision the DWDM cable connections. If you are already logged in, continue with Step 2.

Step 2 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Internal Patchcords tabs.

Step 3 Click Default Patchcords.

CTC verifies that the cards installed in the ONS 15454 shelf are compatible and will operate together as a valid DWDM node configuration. Furthermore, based on the cards installed or preprovisioned, CTC calculates the intra-shelf patchcords that are expected to be installed.


Note The Internal Patchcords tab does not show OPT-PRE DCU connections or span connections.



Note The connections calculation is not based on the Cisco TransportPlanner shelf layout or Internal Connections report. Calculations are based on the cards that are physically installed. If the Cisco TransportPlanner shelf layout calls for a hub node but OADM cards are installed, CTC calculates connections based on the cards expected for an OADM node.



Note The number of rows in the Maintenance > DWDM > Mesh Patch Panel Internal Patchcords tab are created dynamically, as per the number of sides present in a node.


Step 4 If no errors were generated, continue with Step 5. If errors appear, verify that the cards installed in the shelf match the Cisco TransportPlanner shelf layout. If the wrong cards are installed or are missing, install the correct cards following the "NTP-G30 Install the DWDM Cards" procedure.

Step 5 Verify that the connections in the Internal Patchcords tab match the connections in the Cisco TransportPlanner Internal Connections Report for the DWDM cards (see the "DLP-G349 Use the Cisco TransportPlanner Internal Connections Report" task). The Internal Patchcords tab will not show OPT-PRE DCU connections or span connections.

Step 6 Complete the "DLP-G354 Create an Internal Patchcord Manually" task for any connections that require manual provisioning, for example, to create patchcords between TXP and MXP trunk ports and OCH filter ports. If you need to delete a connection, complete the "DLP-G355 Delete an Internal Patchcord" task.


Note Although CTC calculates most DWDM connections automatically, some connections cannot be calculated because of the DWDM card type and position. You must create these connections manually. For example, connections related to optical bypass circuits must be manually provisioned.


Stop. You have completed this procedure.


DLP-G354 Create an Internal Patchcord Manually

Purpose

This task creates an internal patchcord manually when CTC is unable to calculate the internal patchcords automatically.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note Use only one management interface to complete the creation of internal patchcords. For example, do not begin the internal patchcord creation using the TL1 interface or CTP XML file and end the internal patchcord creation using CTC.



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Internal Patchcord tabs.

Step 2 Click Create.

Step 3 Choose one of the following link types for the internal patchcord. See Table 3-8 for a list of ports that are available for each option.

OCH-Trunk to OCH-FILTER—Creates an internal patchcord between an optical channel trunk port on a TXP, MXP, GE_XP, 10GE_XP, ADM-10G, or ITU-T line card and an optical channel filter port on a 32MUX, 40-MUX-C, 32WSS, or 40-WSS-C/40-WSS-CE card.

OTS/OCH to OTS/OCH—Creates an internal patchcord between two optical transport section (OTS) ports.


Note Manual creation of OTS/OCH to OTS/OCH internal patchcords should never be needed for standard DWDM nodes. Manual creation might be needed for non-standard nodes, for example, a hub node that has wavelength selective switches installed. Manual creation will be recommended by Cisco TransportPlanner.


The remaining fields on the page depend on the patchcord type selected.

OCHNC Wavelength (OCH-Trunk to OCH-FILTER only)—Sets the OCHNC wavelength for the OCH trunk to OCH filter internal patchcord. Use the unnamed band selection box below to display C-band or L band wavelengths in the OCHNC Wavelength field. Provision the OCHNC wavelength to the wavelength provisioned for the TXP, MXP, GE_XP, 10GE_XP, ADM-10G, or ITU-T line card trunk port.

Bidirectional (OTS/OCH to OTS/OCH only)—If selected, creates a bidirectional OTS/OCH to OTS/OCH internal patchcord.


Note To successfully create an Internal Patchcord between WSS/DMX channel port and TxP trunk port, the TxP must be choosen as "From" end point while WSS/DMX must be choosen as "To" end point.


Table 3-8 Internal Patchcord Ports

Card
OCH Trunk Port
OTS/OCH Port
OCH Filter Port

TXP, MXP, GE_XP, 10GE_XP, ADM-10G or ITU-T line card

Any trunk port

OPT-BST

COM RX

COM TX

LINE RX

LINE TX

OPT-AMP-17-C

COM RX

COM TX

LINE RX

LINE TX

OPT-AMP-C

COM RX

COM TX

LINE RX

LINE TX

OPT-PRE

COM RX



OSC-CSM

COM RX

COM TX

LINE RX

LINE TX

32MUX/40-MUX-C

COM TX

Any CHAN RX port

32DMX/
40-DMX-C or 40-DMX-CE

COM RX

Any CHAN TX port

32WSS/
40-WSS-C or 40-WSS-CE

COM RX

COM TX

Any ADD or PT port

40-WXC-C

COM RX

COM TX

AD-1C-xx.x

AD-1B-xx.x

4MX-xx.x

COM RX

COM TX


Step 4 Click Next.

Step 5 On the Internal Patchcord Creation page, provision the internal patchcord origination parameters.

Shelf—(multishelf nodes only) Choose the shelf where the internal patchcord originates.

Slot—Choose the slot containing the card where the internal patchcord originates. Refer to Table 3-8 for a list of cards that are available, based on the patchcord type chosen in Step 3.

Port—Choose the TX port where the internal patchcord originates.

Step 6 Click Next.

Step 7 In the Internal Patchcord Termination page, provision the internal patchcord termination parameters.

Shelf—(multishelf nodes only) Choose the shelf where the internal patchcord terminates.

Slot—Choose the slot containing the card where the internal patchcord terminates. Refer to Table 3-8 for a list of cards that are available, based on the patchcord type chosen in Step 3.

Port—Choose the TX port where the internal patchcord terminates.

Step 8 Click Next. If you chose the OTS/OCH to OTS/OCH patchcord type Step 3 and did not choose bidirectional, continue with Step 12. Otherwise, continue with the next step.

Step 9 Review the display-only information on the Internal Patchcord Origination Reverse page. This page shows the shelf (multishelf nodes only), slot, and port that CTC will use for the opposite internal patchcord origination route.

Step 10 Click Next.

Step 11 Review the information displayed on the Internal Patchcord Termination Reverse page. This display-only page shows the shelf (multishelf nodes only), slot, and port that CTC will use for the reverse internal patchcord termination route.

Step 12 Click Finish. The new internal patchcord appears on the Internal Patchcord table.

Step 13 Return to your originating procedure (NTP).


DLP-G355 Delete an Internal Patchcord

Purpose

This task deletes an internal patchcord.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Internal Patchcord tabs.

Step 2 Click the connection you want to delete.

Step 3 Click Delete, then click Yes.

Step 4 Return to your originating procedure (NTP).


NTP-G209 Create, Edit, and Delete Optical Sides

Purpose

This procedure allows you to create, edit, and delete optical sides on a DWDM node.

Tools/Equipment

None

Prerequisite Procedures

G143 Import the Cisco TransportPlanner NE Update Configuration File

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note For any node type including mesh nodes, the association between the shelf, linecard and side is reported in the left top window of CTC (Vital Status Pane) in the mode view.



Note For mesh nodes, the association between sides and the 40-WXC-C cards can be found in the Maintenance > DWDM > Mesh Patch Panel Internal Patchcords screen.
For example:
PP-MESH, LC (A): Shelf 1, Slot 3 (40 WXC), port EXP-TX
PP-MESH, MPO (A): Shelf 1, Slot 3 (40 WXC), port EXP-RX
The above rows indicate that the:
WXC port located in Shelf 1, Slot 3 is connected to the LC connector A (Side A) on PP-MESH.
WXC port located in Shelf 1, Slot 3 is connected to the MPO connector A (Side A) on PP-MESH.



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to provision the optical side. If you are already logged in, continue with Step 2.

Step 2 As needed, complete the following tasks:

Complete the "DLP-G491 Create an Optical Side" task.

Complete the"DLP-G492 Edit an Optical Side" task.

Complete the "DLP-G480 Delete an Optical Side" task.

Stop. You have completed this procedure.


DLP-G491 Create an Optical Side

Purpose

This task creates an optical side. For more details on optical sides, refer to the Node Reference chapter in the Cisco ONS 15454 DWDM Reference Manual.

Tools/Equipment

None

Prerequisite Procedures

"DLP-G46 Log into CTC" task

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Optical Sides tabs.

Step 2 Click Create.

Step 3 In the Create Side dialog box, enter the following:

Side ID—Choose a side ID (A, B,C, D, E, F, G, or H) from the drop-down list.

Line In—Choose an RX port from the drop-down list.

Line Out—Choose a TX port from the drop-down list.

Step 4 Return to your originating procedure (NTP).


DLP-G492 Edit an Optical Side

Purpose

This task edits the side ID of an optical side.

Tools/Equipment

None

Prerequisite Procedures

"DLP-G46 Log into CTC" task

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > WDM-ANS > Optical Sides tabs.

Step 2 Click the optical side you want to edit.

Step 3 Click Edit.

Step 4 In the Edit Side ID dialog box, choose a side ID (A, B,C, D, E, F, G, or H) from the drop-down list.

Step 5 Click OK.

Step 6 Return to your originating procedure (NTP).


DLP-G480 Delete an Optical Side

Purpose

This task deletes an optical side.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click Provisioning > WDM-ANS > Optical Sides tabs.

Step 2 Click the optical side you want to delete.

Step 3 Click Delete

Step 4 In the confirmation dialog box, click Yes to continue.

Step 5 Return to your originating procedure (NTP).


NTP-G38 Provision OSC Terminations

Purpose

This procedure provisions the OSC terminations. The OSC provides a bidirectional channel that connects all nodes within a DWDM ring. The OSC carries a supervisory data channel and synchronizes clocking at network nodes. The OSC also carries a user data channel.

Tools/Equipment

None

Prerequisite Procedures

G143 Import the Cisco TransportPlanner NE Update Configuration File

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note The DCCs, GCCs, and OSCs should not be provisioned between SONET (ANSI) and SDH (ETSI) nodes using CTC or TL1 because they cannot operate between SONET and SDH nodes. These communication channels should be provisioned on similar nodes, such as SONET-to-SONET or SDH-to-SDH.



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to provision the OSC terminations. If you are already logged in, continue with Step 2.

Step 2 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Comm Channels > OSC tabs.

Step 3 In the OSC Terminations area, click Create (Figure 3-28).

Figure 3-28 OSC Terminations Area

Step 4 In the Create OSC Terminations dialog box, choose the ports where you want to create the OSC termination. To select more than one port, press the Shift key (to select a range of ports) or the Ctrl key (to select multiple individual ports).


Note The number of OSC terminations that you create depends on the node type defined by Cisco TransportPlanner. Terminal nodes require one OSC termination. Hub, OADM, and ROADM nodes require two OSC terminations.


Step 5 In the Layer 3 area, check the OSI box if the following conditions are met:

The OSC termination is between the ONS 15454 and another ONS node.

Third party NEs that use the OSI protocol stack are on the same network.

If you checked OSI, complete the following steps. If not, continue with Step 6.

a. Click Next.

b. Provision the following fields:

Router—Choose the OSI router.

ESH—Set the ESH propagation frequency. End system NEs transmit ESHs to inform other ESs and ISs about the NSAPs they serve. The default is 10 seconds. The range is 10 to 1000 seconds.

ISH—Sets the ISH PDU propagation frequency. Intermediate system NEs send ISHs to other ESs and ISs to inform them about the IS NETs it serves. The default is 10 seconds. The range is 10 to 1000 seconds.

IIH—Sets the IIH PDU propagation frequency. The IS-IS Hello PDUs establish and maintain adjacencies between ISs. The default is 3 seconds. The range is 1 to 600 seconds.

Metric—Sets the cost for sending packets on the LAN subnet. The IS-IS protocol uses the cost to calculate the shortest routing path. The default metric cost for LAN subnets is 20. It normally should not be changed.

Step 6 Click Finish. Ports are automatically placed in service. The following alarms might appear in the node view (single-shelf mode) or multishelf view (multishelf mode) Alarms tab Description field. They will remain until all the network OSC connections between the adjacent nodes are created:

SDCC Termination Failure (ANSI) or RS-DCC Termination Failure (ETSI) on the OSCM or OSC-CSM card

LOS on the OC-3 port (Port 1) on the OSCM, OSC-CSM, or OPT-BST card

OPWR-LFAIL on the OPT-BST or OSC-CSM card


Note After the OSC termination is created, the line ports are placed in service and span power levels are checked.


Stop. You have completed this procedure.


NTP-G37 Run Automatic Node Setup

Purpose

This procedure runs the Launch ANS function. Launch ANS applies the ANS parameters (calculated in the "NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File" procedure or the "NTP-G169 Calculate ANS Installation Values for Installation Without Cisco TransportPlanner" procedure) to the node and to the ports for cards installed in the node. The applied ANS parameters include span loss values, threshold values, power references, and others. Launch ANS also sets the VOA references based on the calculated power references.

Tools/Equipment

The Cisco TransportPlanner Installation Parameters file

Prerequisite Procedures

G139 Verify Cisco TransportPlanner Reports and Files

G30 Install the DWDM Cards

G152 Create and Verify Internal Patchcords

G143 Import the Cisco TransportPlanner NE Update Configuration File

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note If you are provisioning ANS parameters that were not calculated using Cisco TransportPlanner, do not complete this procedure until after you complete the "NTP-G169 Calculate ANS Installation Values for Installation Without Cisco TransportPlanner" procedure.



Note Provisioning ANS may impact traffic under the following conditions:

when Input FailThreshold is set to high for OPT-PRE

when wrong threshold values are set on OSC or BST/OSC-CSM



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to run ANS. If you are already logged in, continue with Step 2.

Step 2 Referring to the Cisco TransportPlanner Installation Parameters (see Table 3-1), identify the parameters that have a Yes in the Manually Set column. If there are no parameters that have a Yes in the Manually Set column, continue with Step 6.

Step 3 In CTC, display the card where the parameter is to be manually provisioned in card view.

Step 4 Enter the specified Calibration parameter from the Cisco TransportPlanner Installation Parameters table. Click Apply.

Step 5 Repeat Steps 2 through 4 for each parameter in the Cisco TransportPlanner Installation Parameters table that displays Yes in the Manually Set field.

Step 6 Change to node view (single-shelf mode) or multishelf view (multishelf mode).

Step 7 Click the Provisioning > WDM-ANS > Port Status tabs.

Step 8 Click Launch ANS.

Step 9 In the Apply Launch ANS dialog box, click Yes.

Step 10 In the Launch ANS confirmation dialog box, click OK.

Step 11 Verify that one of the following statuses appears in the Link Status column for all ports:

Success - Changed—The parameter setpoint was recalculated successfully.

Success - Unchanged—The parameter setpoint did not need recalculation.

Not Applicable—The parameter setpoint does not apply to this node type.

If one of the following statuses is shown, complete the provided instructions:

Fail - Out of Range—The calculated setpoint is outside the expected range. If this status appears, do not continue until you have investigated and cleared the cause. This status might appear because of an error in the Cisco TransportPlanner file. It could also appear because the insertion loss of the installed cards is greater than the estimated insertion loss calculated by Cisco TransportPlanner. If so, the Cisco TransportPlanner file will need to be recalculated. If the installation without Cisco TransportPlanner function is being used, an error could have occurred in the retrieval of values from the far-end nodes. The error could be caused by an incorrect CTC calculation, or by an incorrect manual calculation. All of these possible causes should be investigated. Contact your next level of support if you are unable to clear this status.

Fail - Port in IS State—The parameter could not be calculated because the port is in service. This status should normally not appear at this point in node turn-up. If it does, display the card in card view, change the port administrative state to OOS,DSLB (ANSI) or Locked,disabled (ETSI), and repeat Steps 6 through 11.


Note If the ports that are in service carry circuits, you must delete the circuits before you can place the ports out of service. See the "DLP-G347 Delete Optical Channel Client Connections" task, the "DLP-G418 Delete an Optical Channel Trail" task, or the "DLP-G106 Delete Optical Channel Network Connections" task.


Stop. You have completed this procedure.


NTP-G39 Verify OSCM Transmit Power

Purpose

This procedure verifies that the transmit power for the ONS 15454 OSCM and the OSC-CSM cards is correct.

Tools/Equipment

None

Prerequisite Procedures

G37 Run Automatic Node Setup

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Note Throughout this procedure, Side A refers to Slots 1 through 6, and Side B refers to Slots 12 through 17.



Step 1 Complete the "DLP-G46 Log into CTC" task at the node where you want to verify the OSCM or OSC-CSM transmit power. If you are already logged in, continue with Step 2.

Step 2 Disable automatic laser shutdown (ALS) on Side A or (for terminal nodes) the terminal side OSCM or OSC-CSM card:

a. In the node view (single-shelf mode) or shelf view (multishelf mode), double-click the Side A or terminal-side OSCM or OSC-CSM card.

b. Click the Maintenance > ALS tabs.

c. From the ALS Mode drop-down list, choose Disable.

d. Click Apply. Click Yes in the confirmation dialog box.

Step 3 If an OSC-CSM or OSCM card is installed on Side B, complete the following steps. If not, continue with Step 4.

a. In the node view (single-shelf mode) or shelf view (multishelf mode), double-click the Side B OSCM or OSC-CSM card.

b. Click the Maintenance > ALS tabs.

c. From the ALS Mode drop-down list, choose Disable.

d. Click Apply. Click Yes in the confirmation dialog box.

Step 4 Complete the "DLP-G314 Verify OSCM Transmit Power" task.

Step 5 Change ALS to Auto Restart on the Side A or (for terminal nodes) the terminal side OSCM or OSC-CSM card:

a. In the node view (single-shelf mode) or shelf view (multishelf mode), double-click the Side A or terminal-side OSCM or OSC-CSM card.

b. Click the Maintenance > ALS tabs.

c. From the ALS Mode drop-down list, choose Auto Restart.

d. Click Apply. Click Yes in the confirmation dialog box.

Step 6 If an OSC-CSM or OSCM card is installed on Side B, complete the following steps. If not, you have completed this procedure.

a. In the node view (single-shelf mode) or shelf view (multishelf mode), double-click Side B OSCM or OSC-CSM card.

b. Click the Maintenance > ALS tabs.

c. From the ALS Mode drop-down list, choose Auto Restart.

d. Click Apply. Click Yes in the confirmation dialog box.

Stop. You have completed this procedure.


DLP-G314 Verify OSCM Transmit Power

Purpose

This task verifies that the transmit power of the OSCM card is correct.

Tools/Equipment

None

Prerequisite Procedures

G46 Log into CTC

Required/As Needed

Required

Onsite/Remote

Onsite or remote

Security Level

Superuser only



Step 1 Display the OSCM card in card view.

Step 2 Click the Provisioning > Optical Line > Parameters tabs.

Step 3 Record the Port 3 (OSC TX) Power value: _____.

Step 4 Change to node view (single-shelf mode) or multishelf view (multishelf mode), then click the Provisioning > WDM-ANS > Provisioning tabs.

Step 5 Record the OSC Power value under the OSCM card in the tree view.

Step 6 If the power value recorded in Step 3 is not within the range of +/- 0.5 dBm recorded in Step 5, complete the following steps. Otherwise, continue with Step 7.

a. Click the Maintenance > ALS tabs. Verify that the ALS Command is set to OSRI Off. If not, choose Off from the drop-down list. Click Apply, then click Yes.

b. Clean the optical connections. See the "NTP-G115 Clean Fiber Connectors" procedure.

c. Complete the following procedures:

Delete the two OSC channels using the "DLP-G186 Delete an OSC Termination" task.

Complete the "NTP-G37 Run Automatic Node Setup" procedure.

Create the OSC channels using the "NTP-G38 Provision OSC Terminations" procedure.

d. Repeat Step 3 through 6. If the power level is still not within the specified range, contact your next level of support.

Step 7 Return to your originating procedure (NTP).


NTP-G163 Upgrade Nodes in Single-Shelf Mode to Multishelf Mode

Purpose

This procedure upgrades nodes in single-shelf mode to multishelf mode.

Tools/Equipment

The node you plan to use as the node controller must be equipped with optical units and cannot have a cross-connect card installed. Any nodes that you plan to add to the multishelf configuration as subtending shelves can be equipped with transponder and muxponder units. For more information on multishelf configurations, see the "Node Reference" chapter in the Cisco ONS 15454 DWDM Reference Manual.

Prerequisite Procedures

G22 Verify Common Card Installation

One of the following procedures:

G145 Connect a Multishelf Node and Subtending Shelves to an MS-ISC-100T Card, or

G158 Connect a Multishelf Node and Subtending Shelves to a Catalyst 2950

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Superuser only



Caution An optical shelf in a multishelf configuration must be provisioned as the node controller shelf and not a subtending shelf, otherwise traffic will be dropped. If no slots are available on an optical shelf to install the MS-ISC-100T cards needed for a node controller shelf, install and configure the Cisco Catalyst 2950. See the "NTP-G158 Connect a Multishelf Node and Subtending Shelves to a Catalyst 2950" procedure.


Step 1 Complete the "DLP-G46 Log into CTC" task at the node that you want to configure as a multishelf node.

Step 2 If you want to configure a shelf as the node controller, continue with Step 3. If you want to configure a shelf as a subtending shelf, continue with Step 4.

Step 3 To set up the login node as the node controller, complete the following steps:

a. In node view (single-node mode) or multishelf view (multishelf mode), click the Provisioning > General > Multishelf Config tabs.

b. Click Enable as Node Controller.

c. From the LAN Config drop-down list, complete one of the following:

Choose Ethernet Switch if MS-ISC-100T cards or the Catalyst 2950 switches are already installed and configured.

Choose Stand-Alone if MS-ISC-100T cards are not installed yet but will be in the final layout or if this is a line amplifier or an OSC-only site. This option will allow a safe migration of the TCC2/TCC2P database when the multishelf configuration is complete.

d. Click Apply.

e. In the confirmation dialog box, click Yes to allow the node to reboot. The CTC view changes to network view and the node icon changes to gray. Wait for the reboot to finish. (This might take several minutes.)

f. After the node reboots, double-click the node. The multishelf view appears.


Note The shelf ID of the node controller is automatically assigned as 1.


Step 4 To add a node as a subtending shelf in the multishelf configuration, complete the following:

a. In multishelf view, right-click in the white space in the rack and choose Add Shelf.

b. In the Shelf ID Selection dialog box, choose a shelf ID (from 2 to 8) from the drop-down list.

c. Click OK. The shelf appears in the multishelf view.

d. Preprovision the new shelf so that it has the same provisioning as the actual shelf that you will add as the subtending shelf:


Caution If the subtending shelf is not preprovisioned, traffic will be lost.

Cards, PPMs, administrative states, client and trunk port configuration—For more information on card and port settings, see Chapter 5 "Provision Transponder and Muxponder Cards."

Timing—For more information, see the "NTP-G53 Set Up Timing" procedure.

GCC—For more information, see the "DLP-G76 Provision DCC/GCC Terminations" task.

e. Disconnect the cross-over (CAT-5) LAN cable from the RJ-45 (LAN) port of the subtending shelf TCC2/TCC2P card in Slot 11.

f. Connect your Windows PC or Solaris workstation NIC to the RJ-45 (LAN) port on the TTC2/TCC2P card in Slot 11.

g. Complete the "DLP-G46 Log into CTC" task at the subtending shelf.

h. Click the Provisioning > General > Multishelf Config tabs.

i. Click Enable as Subtended Shelf.

j. From the Shelf ID drop-down list, choose the shelf ID that you created in Step b.

k. Click Apply.

l. In the confirmation dialog box, click Yes to reboot the shelf. The CTC view changes to network view and the node icon changes to gray. Wait for the reboot to finish. (This might take several minutes.)

m. Disconnect your Windows PC or Solaris workstation network interface card (NIC) from the RJ-45 (LAN) port of the subtending shelf TTC2/TCC2P card in Slot 11.

n. Reconnect the cross-over (CAT-5) LAN cable (disconnected in Step e) to the RJ-45 (LAN) port of the subtending shelf TCC2/TCC2P card in Slot 11.


Note The Ethernet cable must be connected to the subtended shelf TCC2/TCC2P cardsoon after this TCC2/TCC2P card completes its boot phase (when it becomes active and its peer TCC2/TCC2P card starts rebooting). Connecting it before the TCC2/TCC2P card completes its boot phase is a risk in the conversion process. Connecting it long time after completion of the boot phase might affect traffic due to missing provisioning.


o. Repeat Steps a through n to set up additional subtending shelves.


Note Cisco Transport Manager (CTM) users can use the CTM NE Explorer to monitor and configure single-shelf and multishelf nodes. When the upgrade is complete, the original individual subtending shelves will remain the CTM network view and must be manually deleted. For detailed information, refer to the Cisco Transport Manager User Guide, Appendix B, "NE Explorer Information."


Stop. You have completed this procedure.
