CTC Operations


This chapter covers Cisco Transport Controller (CTC) operations of the ML-Series card. All operations described in the chapter take place at the card-level view of CTC. CTC shows provisioning information and statistics for both the Ethernet and packet over SONET/SDH (POS) ports of the ML-Series card. For the ML-Series cards, CTC manages SONET/SDH alarms and provisions STS/STM circuits in the same manner as other ONS 15454 SONET/SDH traffic cards.

Use CTC to load a Cisco IOS configuration file or to open a Cisco IOS command-line interface (CLI) session, see Chapter 3, "Initial Configuration."

This chapter contains the following major sections:

Displaying ML-Series Ethernet Statistics on CTC

Displaying ML-Series POS Statistics on CTC

Displaying ML-Series Ethernet Ports Provisioning Information on CTC

Displaying ML-Series POS Ports Provisioning Information on CTC

Managing SONET/SDH Alarms

Displaying Maintenance Information

Provisioning SONET/SDH Circuits

Provisioning VCAT Circuits

Displaying ML-Series Ethernet Statistics on CTC

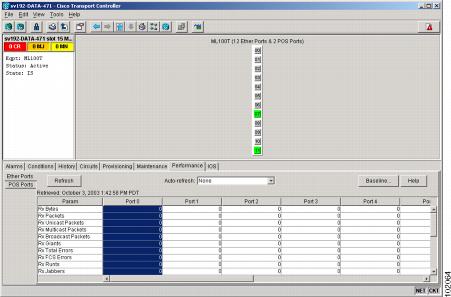

The Ethernet statistics window (Figure 2-1) lists Ethernet port-level statistics. The ML-Series Ethernet ports are zero based. Display the CTC card view for the ML-Series card and click the Performance > Ether Ports tabs to display the window.

Figure 2-1 Displaying ML-Series Ethernet Statistics

Table 2-1 describes the buttons in the EtherPorts window.

Table 2-1 ML-Series Ethernet Statistics Fields and Buttons

Button or Field
Description
Baseline

Resets the software counters (in that particular CTC client only) temporarily to zero without affecting the actual statistics on the card. From that point on, only counters displaying the change from the temporary baseline are displayed by this CTC client. These new baselined counters appear as long as the user displays the Performance window. If the user navigates to another CTC window and comes back to the Performance window, the true actual statistics retained by the card are shown.

Refresh

Queries the current values from the card and updates the CTC display.

Auto-Refresh

Sets a time interval for the automatic refresh of statistics.


Table 2-2 lists the ONS 15454 SONET/SDH Ethernet parameters.

Table 2-2 Ethernet Parameters

Parameter
Meaning

Rx Bytes

Number of bytes received since the last counter reset

Rx Packets

Number of packets received since the last counter reset

Rx Unicast Packets

Number of unicast packets received

Rx Multicast Packets

Number of multicast packets received

Rx Broadcast Packets

Number of broadcast packets received

Rx Giants

Number of packets received that are greater than 1530 bytes in length

Rx Total Errors

Total number of receive errors

Rx FCS Errors

Number of packets with a frame check sequence (FCS) error

Rx Runts

Total number of frames received that are less than 64 bytes in length and have a cyclic redundancy check (CRC) error

Rx Jabbers

Total number of frames received that exceed the maximum 1548 bytes and contain CRC errors

Rx Align Errors

Number of received packets with alignment errors

Tx Bytes

Number of bytes transmitted since the last counter reset

Tx Packets

Number of packets transmitted since the last counter reset

Tx Unicast Packets

Number of unicast packets transmitted

Tx Multicast Packets

Number of multicast packets transmitted

Tx Broadcast Packets

Number of broadcast packets transmitted

Tx Giants

Number of packets transmitted that are greater than 1548 bytes in length

Tx Collisions

Number of transmitted packets that collided

Port Drop Counts

Number of received frames dropped at the port level

Rx Pause Frames

Number of received pause frames (applies only to the ML1000-2 Ethernet ports)

Rx Threshold Oversizes

Number of received packets larger than the ML-Series remote monitoring (RMON) threshold (applies only to the ML1000-2 Ethernet ports)

Rx GMAC Drop Counts

Number of received frames dropped by MAC module (applies only to the ML1000-2 Ethernet ports)

Tx Pause Frames

Number of transmitted pause frames (applies only to the ML1000-2 Ethernet ports)


Displaying ML-Series POS Statistics on CTC

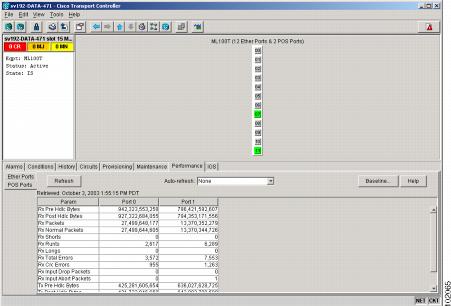

The POS statistics window lists POS port-level statistics (Figure 2-2). Display the CTC card view for the ML-Series card and click the Performance > POS Ports tabs to display the window.

Figure 2-2 Displaying ML-Series POS Statistics

Table 2-3 describes the buttons in the POS Ports window.

Table 2-3 ML-Series POS Statistics Fields and Buttons

Button or Field
Description
Baseline

Resets the software counters (in that particular CTC client only) temporarily to zero without affecting the actual statistics on the card. From that point on, only counters displaying the change from the temporary baseline are displayed by this CTC client. These new baselined counters are shown only as long as the user displays the Performance window. If the user navigates to another CTC window and comes back to the Performance window, the true actual statistics retained by the card are shown.

Refresh

Manually refreshes the statistics.

Auto-Refresh

Sets a time interval for the automatic refresh of statistics.


Table 2-4 lists the ONS 15454 SONET/SDH POS parameters.

Table 2-4 POS Parameters

Parameter
Meaning

Rx Pre Hdlc Bytes

Number of bytes received prior to the bytes undergoing high-level data link control (HDLC) encapsulation by the policy engine

Rx Post Hdlc Bytes

Number of bytes received after the bytes undergoing HDLC encapsulation by the policy engine

Rx Packets

Total number of packets received since the last counter reset

Rx Normal Packets

Number of packets between the minimum and maximum packet size received

Rx Shorts

Number of packets below the minimum packet size received

Rx Runts

Total number of frames received that are less than 64 bytes in length and have a CRC error

Rx Longs

Counter for the number of received frames that exceed the maximum valid packet length of 1518 bytes

Rx Total Errors

Total number of receive errors

Rx Crc Errors

Number of packets with a CRC error

Rx Input Drop Packets

Number of received packets dropped on input

Rx Input Abort Packets

Number of received packets aborted on input

Tx Pre Hdlc Bytes

Number of bytes transmitted prior to the bytes undergoing HDLC encapsulation by the policy engine

Tx Post Hdlc Bytes

Number of bytes transmitted after the bytes undergoing HDLC encapsulation by the policy engine

Tx Packets

Number of packets transmitted since the last counter reset

Port Drop Counts

Number of received frames dropped at the port level


Displaying ML-Series Ethernet Ports Provisioning Information on CTC

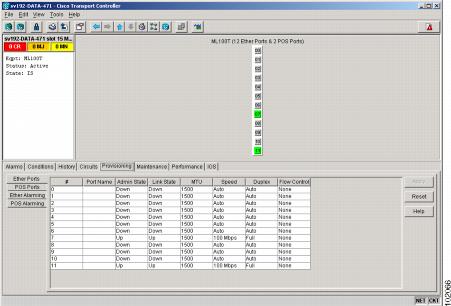

The Ethernet port provisioning window displays the provisioning status of the Ethernet ports (Figure 2-3). Click the Provisioning > Ether Ports tabs to display this window. For ML-Series cards, only the Port Name field can be provisioned from CTC. The user must configure ML-Series ports using the Cisco IOS CLI.

Figure 2-3 Displaying ML-Series Ethernet Port Provisioning Information

The Provisioning > Ether Ports tab displays the following information:

Port Name—Configurable identifier for the port.

Admin State—Configured port state, which is administratively active or inactive. Possible values are UP and DOWN.

Link State—Status between signaling points at port and attached device. Possible values are UP and DOWN.

MTU—(maximum transfer unit) Largest acceptable packet size configured for that port. Default value is 1500.

Speed—ML1000-2 possible values are Auto or 1 Gbps. ML100T-12 possible values are Auto, 10Mbps, or 100Mbps.

Duplex—Setting of the port. ML1000-2 possible values are Auto or Full. ML100T-12 possible values are Auto, Full, or Half.

Flow Control—Negotiated flow control mode. Possible values are None, Symmetrical, or Asymmetrical.

Optics—Small form-factor pluggable (SFP) physical media type. Possible values are Unplugged, 1000 SX, or 1000 LX. (This information does not apply to the ML100T-12 card.)


Note Auto indicates the port is set to autonegotiate capabilities with the attached link partner.



Note The port name field configured in CTC and the port name configured in Cisco IOS are independent of each other. The name for the same port under Cisco IOS and CTC does not match, unless the same name is used to configure the port name in both CTC and Cisco IOS.



Note When set to autonegotiate, the ML1000-2 might show Auto in the speed and duplex columns of the Ether ports provisioning screen. This indicates that the ML1000-2 is set to autonegotiate flow control with the link partner. It does not mean the speed or duplex mode of the card will vary from the 1-Gbps, full duplex characteristics of Gigabit Ethernet.


Displaying ML-Series POS Ports Provisioning Information on CTC

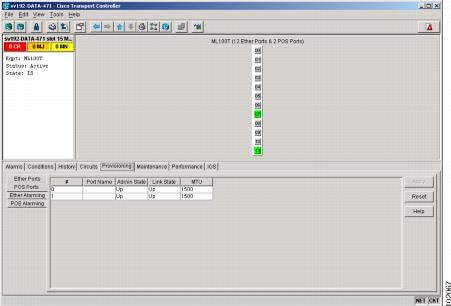

The POS ports provisioning window displays the provisioning status of the card's POS ports (Figure 2-4). Click the Provisioning > POS Ports tabs to display this window. For ML-Series cards, only the POS Port Name field can be provisioned from CTC. The user must configure ML-Series ports through the Cisco IOS CLI.

Figure 2-4 Displaying POS Port Provisioning Information

The Provisioning > POS Ports tab displays the following information:

Port Name—Configurable identifier for the port.

Admin State—Configured administrative port state, which is active or inactive. Possible values are UP and DOWN.

Link State—Status between signaling points at the port and an attached device. Possible values are UP and DOWN.

MTU—(maximum transfer unit) Largest acceptable packet size configured for that port. Maximum setting is 9000 and default size is 1500 for the G-Series card compatible encapsulation (LEX) and 4470 for Cisco HDLC and point-to-point protocol/bridging control protocol (PPP/BCP) encapsulation. The MTU value is 0 until the POS port is used in creating a circuit.


Note POS interfaces are first created when a CTC STS/STM circuit is provisioned.



Note The port name field configured in CTC and the port name configured in Cisco IOS are independent of each other. The name for the same port under Cisco IOS and CTC does not match, unless the same name is used to configure the port name in both CTC and Cisco IOS.


Managing SONET/SDH Alarms

CTC manages the ML-Series SONET/SDH alarm behavior in the same manner as it manages alarm behavior for other ONS 15454 SONET/SDH cards. Refer to the "Manage Alarms" chapter of the Cisco ONS 15454 Procedure Guide or the Cisco ONS 15454 SDH Procedure Guide for detailed information. For information on specific alarms, refer to the "Alarm Troubleshooting" chapter of the Cisco ONS 15454 Troubleshooting Guide or Cisco ONS 15454 SDH Troubleshooting Guide for detailed information.

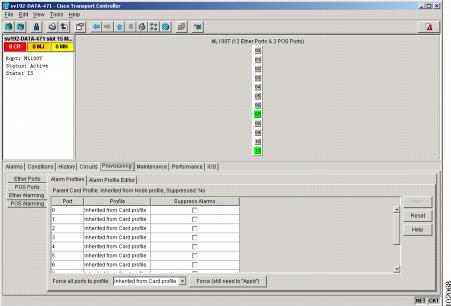

To view the window, click the Ether Alarming > Provisioning tabs for the Ethernet ports or POS Alarming > Provisioning tabs for the POS ports. Figure 2-5 shows the Ethernet ports alarming pane.

Figure 2-5 Managing ML-Series SONET/SDH Alarms

Displaying Maintenance Information

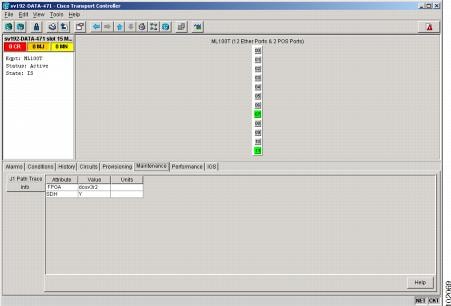

The maintenance information window displays the ML-Series card's field programmable gate array (FPGA) version (Figure 2-6). It also displays whether the card is installed in a SONET or SDH shelf. Click the Maintenance > Info tabs to display this window.

ML-Series card manufactured prior to Software Release 4.6 need an updated version of the FPGA to support virtual concatenation (VCAT).

Figure 2-6 Displaying Maintenance Information

Provisioning SONET/SDH Circuits

CTC provisions and edits STS/STM level circuits for the two virtual SONET/SDH ports of the ML-Series card in the same manner as it provisions other ONS 15454 SONET/SDH OC-N cards. For the ONS 15454 SONET, refer to the "Create Circuits and VT Tunnels" chapter of the Cisco ONS 15454 Procedure Guide to create ML-Series STS circuits. For the ONS 15454 SDH, refer to the "Create Circuits and Low-Order Tunnels" chapter of the Cisco ONS 15454 SDH Procedure Guide to create ML-Series SDH circuits.

Provisioning VCAT Circuits

CTC provisions VCAT circuits for the two virtual SONET/SDH ports of the ML-Series card in the same manner as it provisions VCAT circuits for other cards. For step-by-step instructions on configuring an ML-Series card SONET VCAT circuit, refer to the "Create Circuits and VT Tunnels" chapter of the Cisco ONS  15454  Procedure Guide. For step-by-step instructions on configuring an ML-Series card SDH VCAT circuit, refer to the "Create Circuits and Tunnels" chapter of the Cisco ONS  15454  SDH Procedure Guide. For more general information on VCAT circuits, refer to the "Circuits and Tunnels" chapter of the Cisco ONS  15454  Reference Guide or the Cisco ONS  15454  SDH Reference Guide. For a summary of the ML-Series card VCAT capabilities, refer to the "VCAT" section on page 1-8. For a summary of the SW-LCAS feature on the ML-Series card, refer to the "SW-LCAS" section on page 1-7.

J1 Path Trace

The J1 Path Trace is a repeated, fixed-length string comprised of 64 consecutive J1 bytes. You can use the string to monitor interruptions or changes to SONET/SDH circuit traffic. For information on J1 Path Trace, refer to the "Circuits and Tunnels" chapter of the Cisco ONS  15454  Reference Guide or the Cisco ONS  15454  SDH Reference Guide.
