Monitoring with the Multicast Manager Tool
This chapter contains the following sections:
•Viewing the Multicast Manager Home Page
Viewing the Multicast Manager Home Page
When you log into the CMM, the Multicast Manager Home Page opens. To access this page from within the CMM, select the Multicast Manager tool, then select Home.
The Home page shows the last 20 events (see the "Latest Events" section).
Figure 3-1 Multicast Manager Home Page
Viewing Topology
Using Topology, you can display routers and their multicast information in the database, on an individual basis, or by showing the complete database.
If you are using video probes in your installation, the Cisco Multicast Manager home page displays threshold exceeded alerts that the probes generate. You can click on the group information in the alert (an underlined IP address) to launch the Diagnostics tool and view detailed information about the multicast, which includes a display of the network topology that includes both routers and probes.
This section contains:
•Viewing Router Topology and Multicast Information
•Viewing Topology Including Probe Information
Viewing Router Topology and Multicast Information
To view router topology and multicast information:
Step 1 Select the Multicast Manager tool.
Step 2 Click Topology.
Step 3 To see the complete database, select Display All.

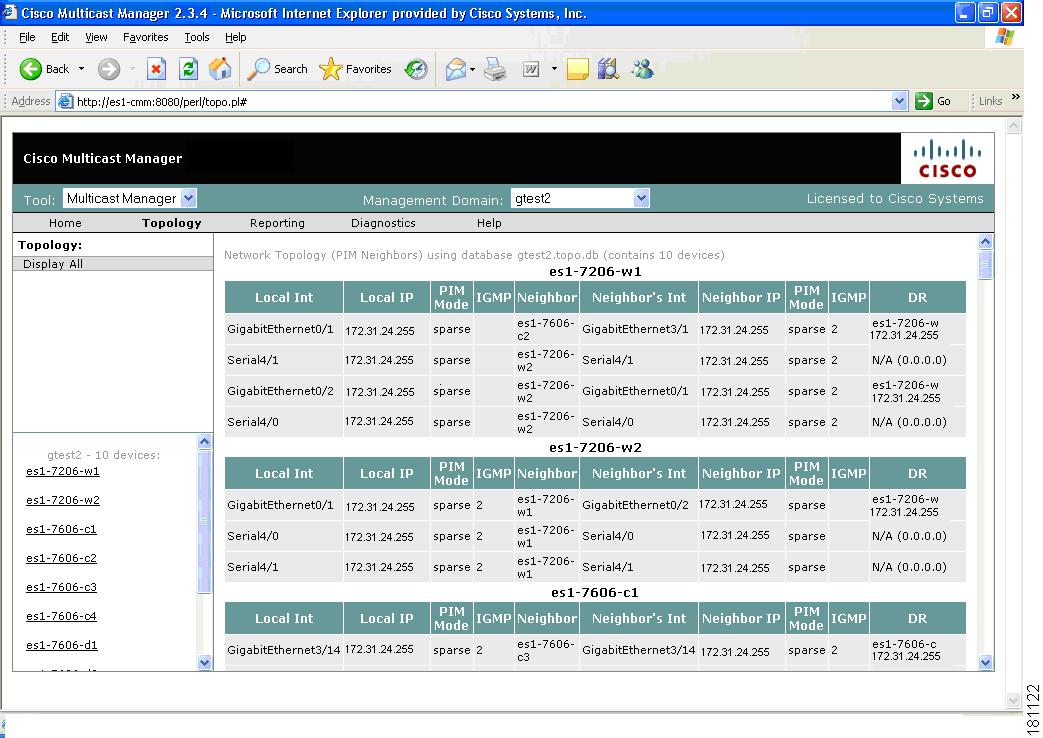

A network topology table appears, as shown in Figure 3-2. Router names appear at the top of each table.
Figure 3-2 Topology Display All
For each device, the table shows the following information:
Step 4 To see topology for an individual router, click a router from the list pane at the lower left of the interface.

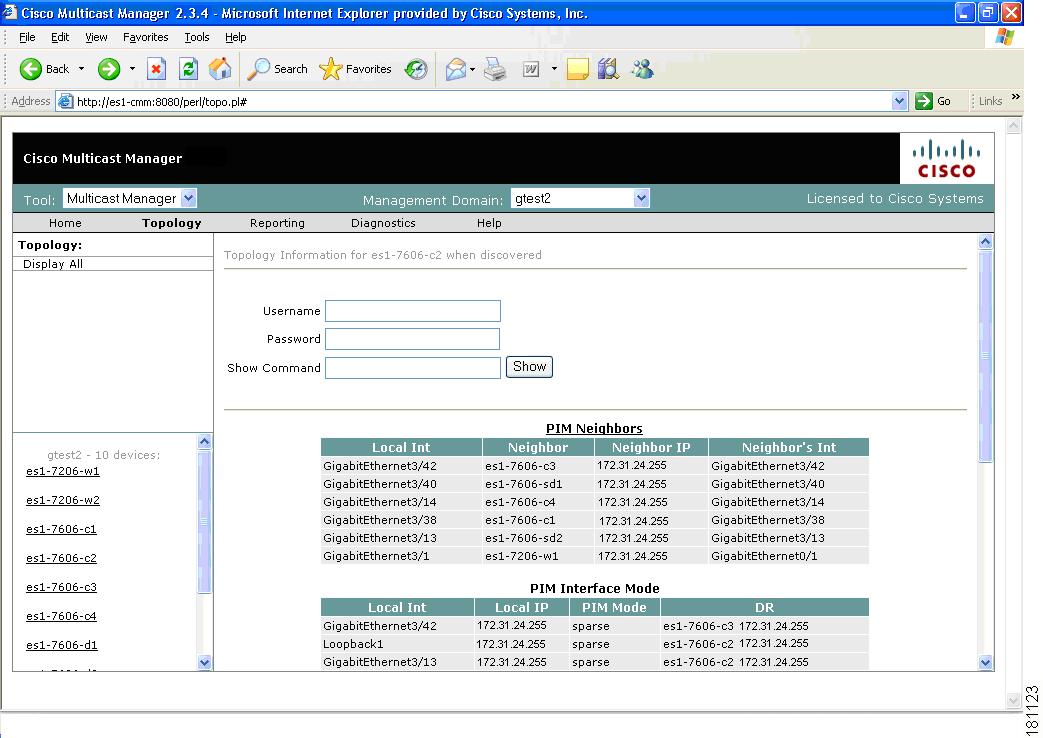

Topology information for the selected device appears, as shown in Figure 3-3.
Figure 3-3 Topology for an Individual Router
The topology display contains these fields and buttons:
Note For details on the columns within this table, see the descriptions for the Topology Display All window.
Step 5 To see a topological display of the routers, select PIM Neighbors.

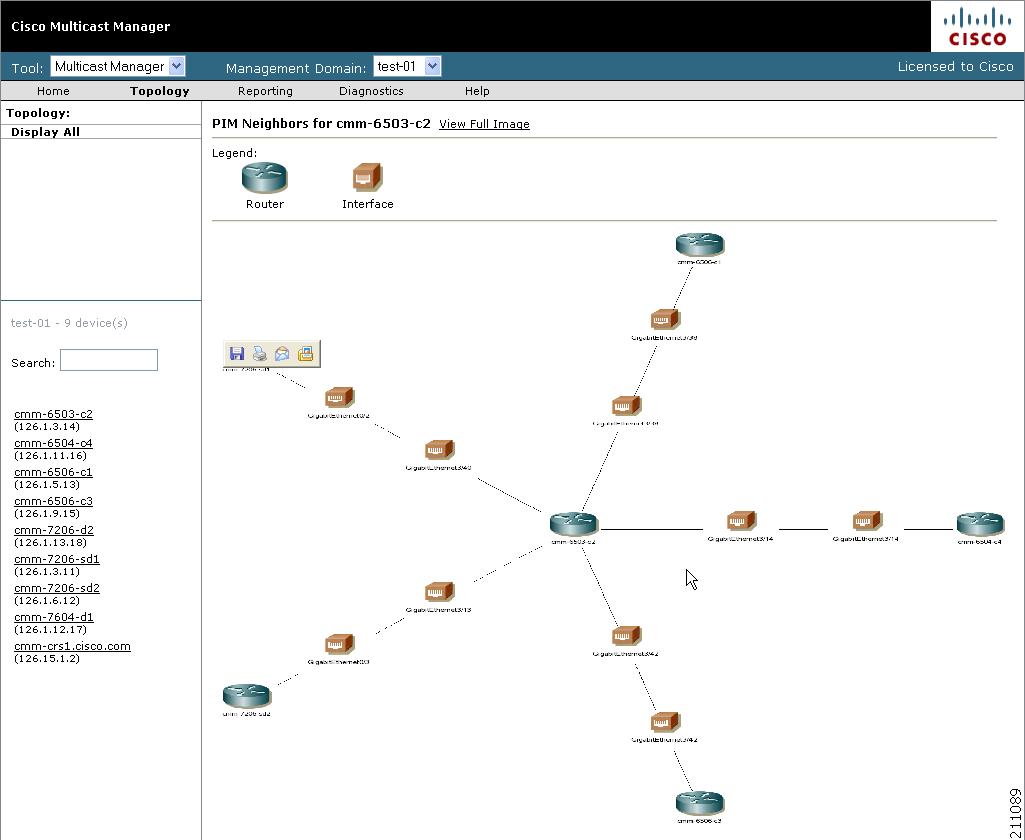

A topological display appears, as shown in Figure 3-4.
Figure 3-4 PIM Neighbors
The topology display shows:
•Each router and its local interfaces.
•The interfaces on each of the router's PIM neighbors.
•The names of the routers and their PIM neighbors.
Viewing Topology Including Probe Information
You can view topology information that shows probes and probe status from the Cisco Multicast Manager home page and from the Diagnostics tool.
The multicast diagnostic information shown on the home page includes:
•The source, group, and channel association that you are troubleshooting.
•A graphical topology tree that clearly shows all of the routers that form the tree, and their input and output interfaces. along with IP addresses and interface descriptions
•The packets per sampling period being received at each point in the tree (sampling periods range from 5 seconds to 30 and are configurable).
•The packet input, output and discard errors being received at each interface.
•A text representation of the tree, which is invaluable when troubleshooting large multicast trees.
Note For detailed information on using the Diagnostic tool to troubleshoot video multicast flows and viewing a topology tree that shows the multicast topology, see Video Probe Status, page 4-15.
Managing Reports
To start managing reports, within the Multicast Manager tool, click on Reporting.
Within Reporting, you can view:
•A record of the latest SNMP traps sent.
•Historical graphs or trends.
•Routers in the database IOS versions.
•Video probe reports.
•Reports on VPN routing/forwarding instances (VRFs).
Note The information shown for each type of report, with the exception of Historical Graphs, spans only the previous 24 hours. There may be more information available in the log file. However, it is recommended that the events.log file be rotated every 24 to 48 hours, depending on event activity.
Latest Events
Using the Latest Events page, you can set a configurable amount of the latest events generated by the CMM. Clicking Report lists the traps in time order.

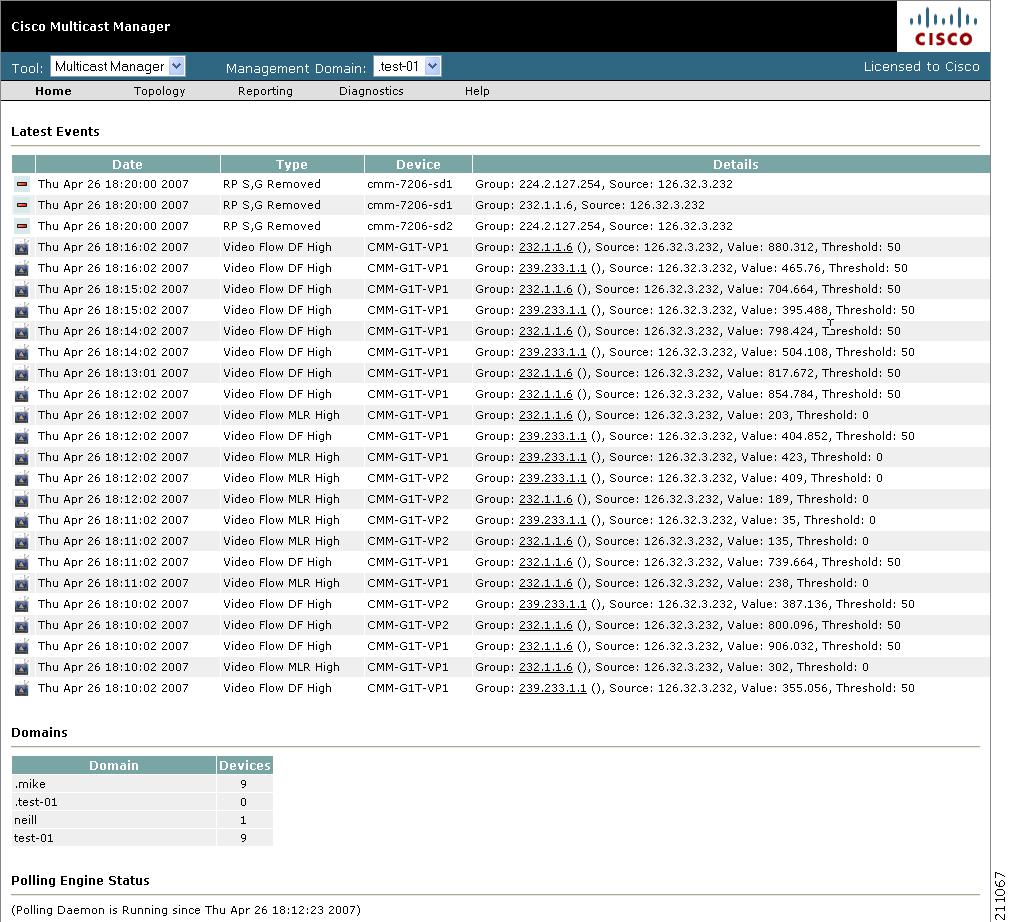

Figure 3-5 shows the Latest Events page.
Figure 3-5 Latest Events
RP Polling Report
Using the RP Polling Report, you can monitor:
•All leaves and joins for the selected RP (if the Enable RP Add/Delete Traps option is selected, see the "RP Polling" section on page 2-26).
•If the selected RP becomes unavailable.
•Any rogue source or group that joins the selected RP.
To generate an RP Polling report:
Step 1 Select the Multicast Manager tool.
On the Reporting menu, select RP Polling Report.
The RP Polling Report page opens.
Step 2 On the RP Polling Report page:
•Select an RP from the list.
•Specify the maximum number of events to display.
Step 3 Click Report.
An RP Polling Report appears, as shown in Figure 3-6. The report contains any events that have occurred in the last 24 hours.

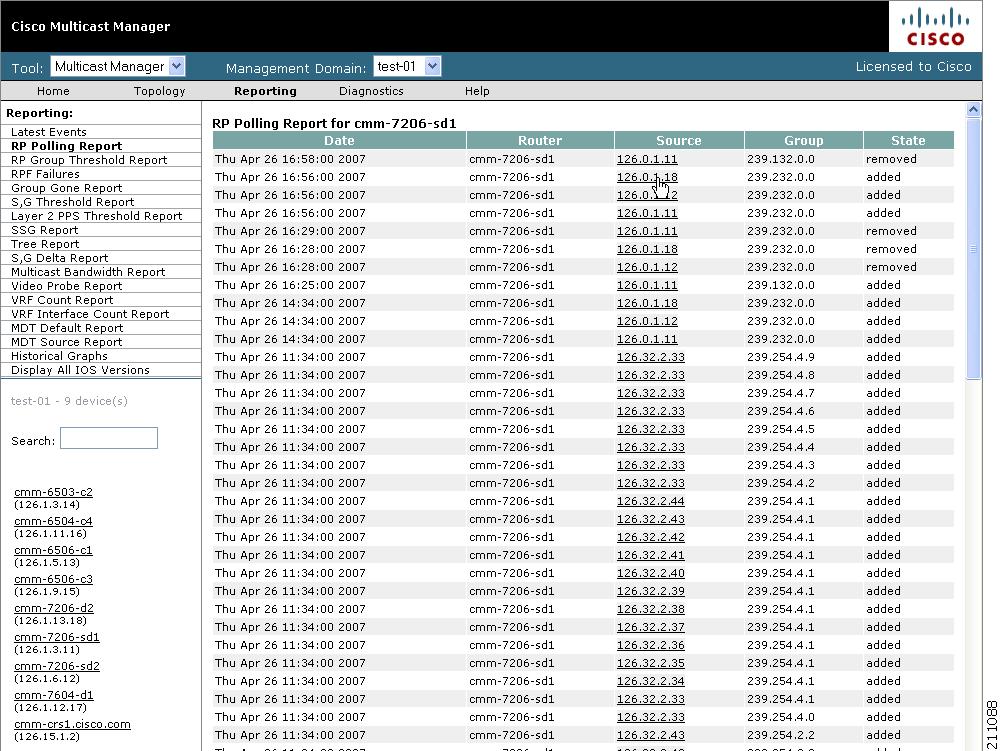

Figure 3-6 RP Polling Report
Step 4 To see detailed information about a source, click on an IP address in the Source column.
RP Group Threshold Report
Using the RP Group Threshold Report, you can monitor a list of RPs that have exceeded their active number of groups limit.
To generate an RP Group Threshold report:
Step 1 Select the Multicast Manager tool.
Step 2 On the Reporting menu, select RP Group Threshold Report.
The RP Group Threshold Report page opens.
Step 3 On the RP Polling Report page:
•Select an RP from the list.
•You can specify the maximum number of events to display.
Step 4 Click Report.
An RP Group Threshold Report appears.
Step 5 The report contains any events that have occurred in the last 24 hours.
RPF Failures
Using the RPF Failures Report, you can monitor all routers that are experiencing RPF failures above the configured threshold for the configured sources and groups.
To generate an RPF Failures report:
Step 1 Select the Multicast Manager tool.
Step 2 On the Reporting menu, select RPF Failures.
The RPF Failure Report page opens.
Step 3 On the RPF Failure Report page:
•Select an RP from the list.
•You can specify the maximum number of events to display.
Step 4 Click Report.
The report contains any events that have occurred in the last 24 hours.
Group Gone Report
The Group Gone Report is currently unsupported. Please refer to the S,G Polling Report (see S,G Threshold Report).
S,G Threshold Report
Using the S,G Threshold Report, you can monitor every source and group that has exceeded its configured threshold.
To generate an S,G Threshold report:
Step 1 Select a group from the list.
Step 2 You can specify the maximum number of events to display.
Step 3 Click Report. The report contains any events that have occurred in the last 24 hours, and shows pps and bps.
Layer 2 PPS Threshold Report
Using the Layer 2 PPS Threshold Report, you can monitor all Layer 2 ports that have exceeded their configured thresholds.
To generate a Layer 2 PPS Threshold Report:
Step 1 Select a switch from the list.
Step 2 Select a port from the list.
Step 3 Click Select. The report contains any events that have occurred in the last 24 hours.
Note The report is for inbound and outbound traffic on the port.
SSG Report
Using the SSG Report, you can display information about groups that have more than one sender.
To generate an SSG Report:
Step 1 Enter the multicast group address.
Step 2 Click Report. The report contains any events that have occurred in the last 24 hours. The count indicates the number of sources sending to the group.
Tree Report
Using the Multicast Tree Report, you can draw and save multicast trees (called baselines). You can then set up the CMM to draw trees that have been saved in the background, and report any changes. (Only changes to Layer 3 devices are reported.)
Note The drawing and saving of trees is covered in Show All Groups, page 4-2.
If a multicast tree you are monitoring changes, a trap is generated. You can then view the baseline and the changed tree. Changes are highlighted in the text and also in the drawing.
To generate a Multicast Tree Report:
Step 1 Select a baseline (multicast tree) from the list.
Step 2 You can specify the maximum number of events to display.
Step 3 Click Select. The report contains any events that have occurred in the last 24 hours.
Selecting "trchanged" in the third column in the report will graphically show the baseline, along with the changed tree. Changes to the tree are highlighted in the table at the top as shown in the figure. The baseline and the current tree are also shown graphically.
Figure 3-7 Tree Report Page with Changed Tree Data
S,G Delta Report
Using the Multicast S,G Delta Report, you can view information about PPS rate deviation on multicast trees.
To generate a Multicast S,G Delta Report:
Step 1 Select a baseline (multicast tree) from the list.
Step 2 You can specify the maximum number of events to display.
Step 3 Click Select. The report contains any events that have occurred in the last 24 hours.
Multicast Bandwidth Report
To generate a report for a router interface that has exceeded its multicast bandwidth thresholds:
Step 1 Select the device.
Step 2 Select the port.
Step 3 Select the maximum number of events.
Step 4 Click Report.
Video Probe Report
Each time CMM interrogates a probe and finds an exception it generates a video probe report and stores it on the hard drive. Using the Video Probe Report, you can view a detailed listing of video probe reports. Each report provides the following information from a video probe:
•VOS flow MRL high—The media loss rate (MLR) over the configured threshold
•VOS delay factor high—The delay factor (DF) over the configured threshold
To view video probe reports:
Step 1 Select Multicast Manager > Reporting.
Step 2 Click Video Probe Report.

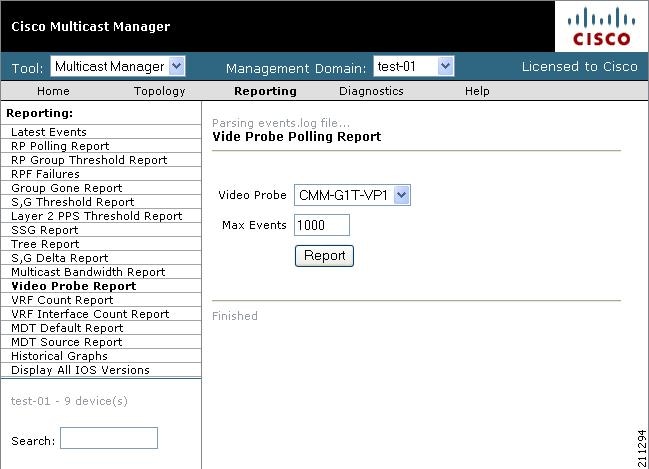

The Video Probe Polling Report page appears, as shown in Figure 3-8.
Figure 3-8 Specifying Parameters for the Video Probe Report
Step 3 From the pull-down list in the Video Probe field, select a probe.
Step 4 Enter the number of events you would like to see.
Step 5 Click Report.

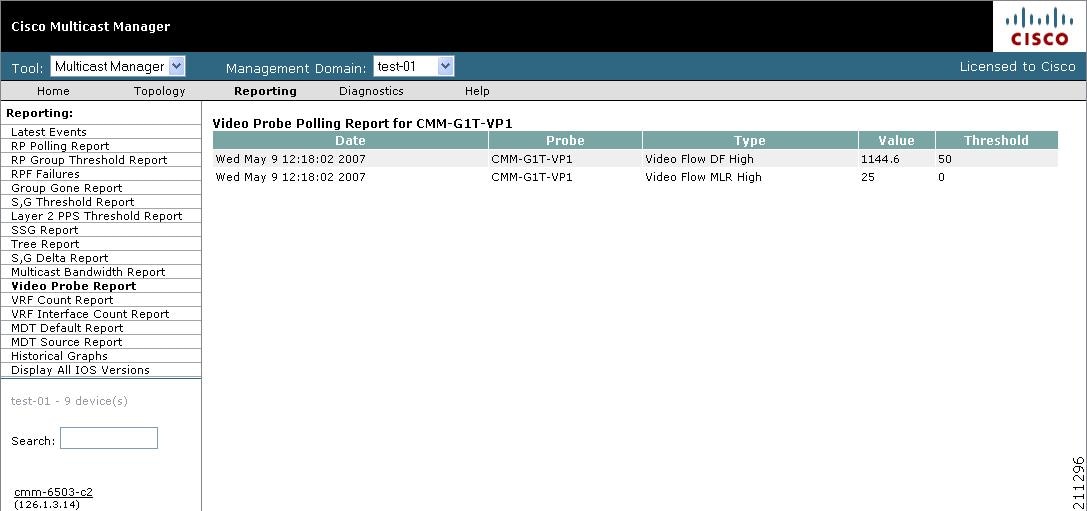

A report for the specified probe appears. Figure 3-9 shows a sample report.
Figure 3-9 Video Probe Report
VRF Count Report
To generate a VRF Count Report:
Step 1 On the Reporting menu, select VRF Count Report.
The VRF Count Report page appears.
Step 2 On the VRF Count Report page, enter the parameters for the report.
A VRF Count Report appears.
VRF Interface Count Report
To generate a VRF Interface Count Report:
Step 1 On the Reporting menu, select VRF Interface Count Report.
The VRF Interface Count Report page appears.
Step 2 On the VRF Interface Count Report page, enter the parameters for the report.
The VRF Interface Count report appears.
MDT Default Report
To generate a MDT Default Report:
Step 1 On the Reporting menu, select MDT Default Report.
The MDT Default Report page appears.
Step 2 On the MDT Default Report page, enter the parameters for the report.
A MDT Default Report appears.
MDT Source Report
To generate an MDT Source Report:
Step 1 On the Reporting menu, select MDT Source Report.
The MDT Source Report page appears.
Step 2 On the MDT Source Report page, enter the parameters for the report.
An MDT Source Report appears.
Historical Graphs
Using Historical Graphs, you can view historical data in a graph format. Historical data is collected when you start to monitor any of the following:
•Source and group activity in a router.
•Multicast packets inbound or outbound of a Layer 2 port.
•Source and group packet deviations on baseline multicast trees.
To view Historical Graphs:
Step 1 Select a Graph Type from the list:
•SG Delta PPS
•SG PPS
•SG BPS
•Switch Port PPS
Step 2 Select a Time Range:
•User Specified
•Hour
•Day
•Week
•Month
Step 3 Select a Start and End range.
Step 4 A list of available reports appears. Highlight the appropriate report(s) and click Display. You can select up to 3 reports to display on the graph. Data stored for trending purposes is kept for up to 18 months.
Note Data must be collected to generate a report. If you have selected the correct Graph Type, and you do not see any entries, ensure that data is being collected (see Top Talkers, page 4-14).

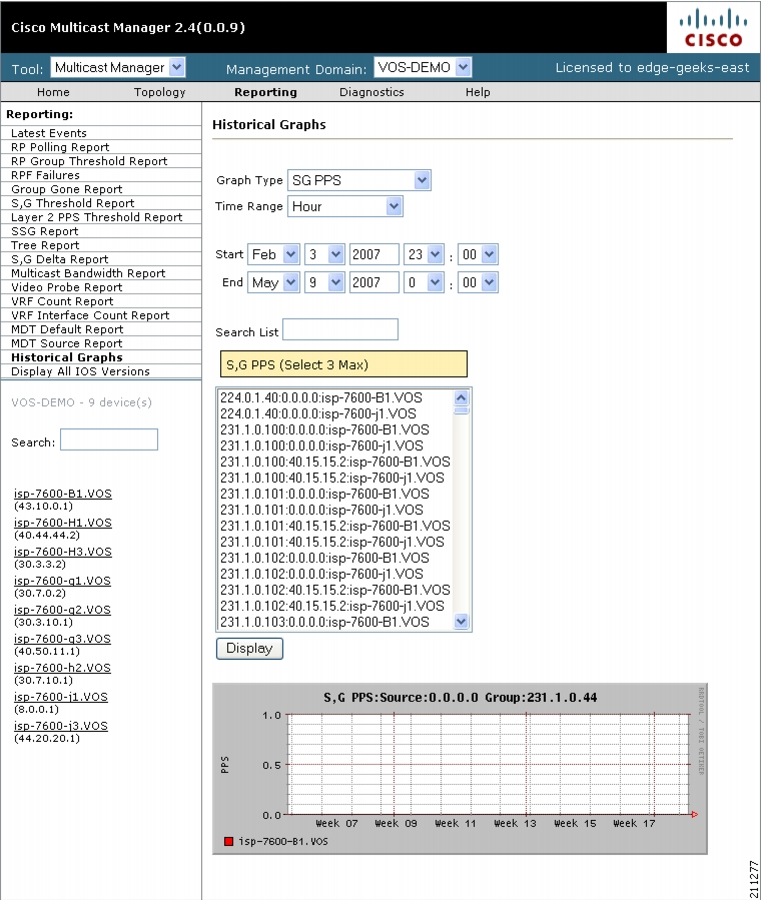

Figure 3-10 Historical Graphs
Display All IOS Versions
Using the IOS Version Info page, you can view the IOS version of all discovered routers in the current domain. You can sort the table by device, IP address, IOS version, or model by selecting the corresponding column heading.

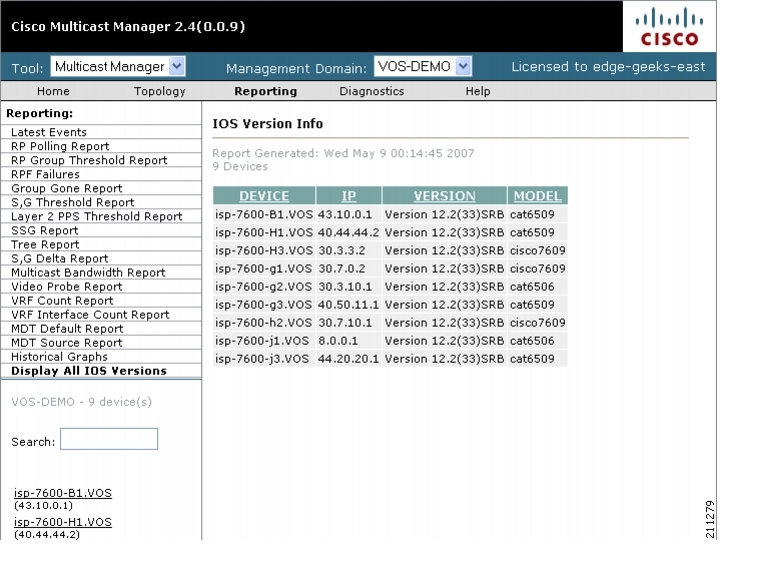

Figure 3-11 shows a sample IOS Versions Report.
Figure 3-11 IOS Version Info
