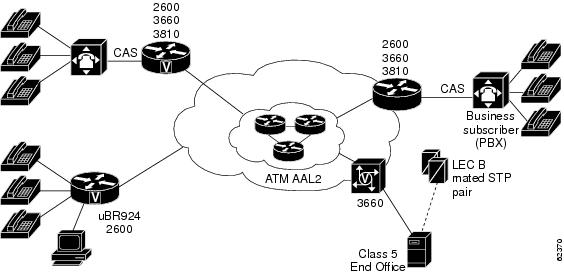

Step 1 |
mml> prov-add:extnode:name= media-gateway-name ,
|
Assigns a name to the media gateway (the external node) at the far end of a backhaul link.
|
Step 2 |
desc=
media-gateway-name
|
Provides a description of the media gateway (MG).
|
Step 3 |
mml> prov-add:ipfaspath:name= ipfaspath-name ,
|
Adds an IP path for D-channel transport (ipfaspath) from the Cisco VSC3000 to a media gateway and assigns it a path name.
|
Step 4 |
extnode=
media-gateway-name
,
|
Specifies the media gateway (external node) at the opposite end of the IP path; the name must match the media gateway name assigned in Step 1.
|
Step 5 |
mdo=
ISDN-varient
,
|
Specifies the ISDN variant. Options include:
ETSI_300_102
ETSIS_300_102_C1
ATT_41459
ATT_41459_C2
BELL_1268
ETSI_300_172
BELL_1268_C3
|
Step 6 |
custgrpid=
customer-group-ID
,
|
Assigns a customer group ID (the dial plan to use for this connection).
|
Step 7 |
side=
equipment-location
,
|
Defines the Cisco VSC3000 as network side or user side. The Cisco VSC3000 is normally network side, opposite to the PBX, which is normally the user side. Enter network, or user,.
|
Step 8 |
desc=
description
|
Describes the function of this IP path (backhaul service to a specified media gateway, for example Backhaul service to 3660-6).
|
Step 9 |
mml> prov-add:iplnk:name= iplink-name ,
|
Adds an IP link for the PRI D-channel and assigns it a name.
|
Step 10 |
if=enif
interface-number
,
|
The Ethernet interface name for the Cisco VSC3000 Ethernet card (typically enif1).
|
Step 11 |
ipaddr=IP_Addr
number
,
|
The IP address of the Cisco VSC3000 Ethernet port as defined in ../etc/XECfgParm.dat (for example, IP_Addr1).
|
Step 12 |
port=
port-number
,
|
The port number on the Cisco VSC3000.
|
Step 13 |
pri=
priority-number
,
|
The selection priority of this IP link. (1, 2 and so on; this should match the selection priority specified on the media gateway for this IP link.)
|
Step 14 |
peeraddr=
IP-address
,
|
The IP address of the media gateway.
|
Step 15 |
peerport=
port-number
,
|
The port number on the media gateway; does not have to match the Cisco VSC3000 port
|
Step 16 |
sigslot=
slot-number
,
|
The physical card slot in the media gateway.
|
Step 17 |
sigport=
port-number
,
|
The PRI port number in the media gateway (= the T1/E1 controller number).
|
Step 18 |
svc=
ipfaspath-name
,
|
The IP path that this IP link is assigned to, which matches the ipfaspath-name assigned in Step 2.
|
Step 19 |
desc=
description
|
Optional description of this IP link. For example, IP link-backhaul svc 3660-6could describe an IP link for backhaul service to media gateway 3660-6.
|

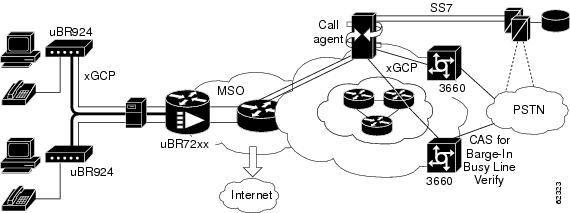

Step 20 |
mml>prov-add:mgcppath:name= MGCP-path-name ,
|
Defines an MGCP control path. For example, mgcp36606 could define an MGCP path to media gateway 3660-6.
|
Step 21 |
extnode=
ipfaspath-name
,
|
Associates the MGCP control path with an IP path for D-channel transport. The ipfaspath-name must match the ipfaspath-name specified inStep 2.
|
Step 22 |
desc=
description
|
Optional description of this MGCP control path. For example, MGCP service to 3660-6 could describe the function of this MGCP control path.
|
Step 23 |
mml>prov-add:iplnk:name= clink6 ,
|
Adds an IP link for the MGCP control path.
|
Step 24 |
if=
enif1
,
|
The Ethernet interface name for the Cisco VSC3000 Ethernet card (typically enifl).
|
Step 25 |
ipaddr=IP_Addr
number
,
|
The IP address of the Cisco VSC3000 Ethernet port as defined in ../etc/XECfgParm.dat (for example, IP_Addr1).
|
Step 26 |
port=2427,
|
The port used by the IP link for the MGCP control path on the Cisco VSC3000 (2427 is pre-defined for MGCP use).
|
Step 27 |
peeraddr=
IP-address
,
|
The IP address of the media gateway connected to this IP link.
|
Step 28 |
peerport=2427,
|
The IP port at the media gateway for this IP link (2427 is pre-defined for MGCP use).
|
Step 29 |
svc=
mgcp-service-name
,
|
A name of the MGCP signaling service supported by this IP link. For example, mgcp36606 could be the name for MGCP signaling service to 3660-6).
|
Step 30 |
pri=1,
|
Selection priority for this IP link(1, 2, and so on).
|
Step 31 |
desc=
description
|
Optional description of the IP link for the MGCP control path. For example, MGCP link to 3660-6 could describe the IP link for the MGCP path to 3660-6.
|
