Cisco 40-Gigabit and 100-Gigabit CFP Transceiver Modules Installation Note


Revised: July 5, 2012

Product Numbers:
CFP-100G-LR4
CFP-40G-SR4
CFP-40G-LR4

CVR-CPR-4SFP10G
CFP-40G-FR
CFP-100G-SR10

The CFP transceiver module connects the electrical circuitry of the platform with an optical network. This installation note provides instructions for installing the 40-Gigabit and 100-Gigabit CFP transceiver modules.

Contents

This document contains these sections:

Overview

Safety

Required Tools

Installing the CFP Transceiver

Removing the CFP Transceiver

Translated Safety Warnings

Obtaining Documentation and Submitting a Service Request

Overview

The 40-Gigabit and 100-Gigabit Ethernet CFP transceivers are hot-swappable I/O devices that plug into 40-Gigabit and 100-Gigabit Ethernet module ports. Figure 1 shows a CFP-40G-LR4 module with duplex SC fiber connectors. The CFP-100G-LR4 and CFP-40G-FR also use duplex SC fiber connectors.

Figure 1 CFP-40G-LR4 Transceiver Features

1

Captive installation screws

3

Transmit optical bore, SC connector

2

Optical bore dust plug

4

Receive optical bore, SC connector


Figure 2 shows a CFP-40G-SR4 module with a 12-fiber MPO connector. The CFP-100G-SR10 module is very similar, but uses a 24-fiber MPO connector.

Figure 2 CFP-40G-SR4 Transceiver Features

1

Captive installation screws

3

Transmit and receive multifiber optical bore, MPO/MTP connector

2

Optical bore dust plug



Figure 3 shows a CVR-CFP-4SFP10G module. This is an adapter module that converts a Cisco switch or router CFP port to four 10-Gigabit SFP+ ports. The SFP+ transceivers are not included with the converter module.

Figure 3 CVR-CFP-4SFP10G CFP to Four SFP+ Converter Module

1

Captive installation screws

2

10G SFP+ ports (4X)


Table 1 lists the currently supported types of CFP transceivers.

Table 1 CFP Transceiver Product Numbers and Descriptions

CFP Transceiver Module Product Number
Transceiver Description
100-Gigabit

CFP-100G-LR4

Cisco 100GBASE-LR4 CFP transceiver module for SMF, 1310 nm window, SC connector

CFP-100G-SR10

Cisco 100GBASE-SR10 CFP transceiver module for MMF, 850 nm, 24-fiber MPO/MTP connector

40-Gigabit

CFP-40G-SR4

Cisco 40GBASE-SR4 CFP transceiver module forMMF, 850 nm, 12-fiber MPO/MTP connector

CFP-40G-LR4

Cisco multirate 40GBASE-LR4 and OTU3 C4S1-2D1 for SMF, 1310 nm window, SC connector

CFP-40G-FR

Cisco multirate 40GBASE-FR and OTU3 VSR2000-3R2 CFP transceiver module for SMF, 1550 nm, SC connector

CVR-CFP-4SFP10G

Cisco FourX CFP to four SFP+ Converter Module



Note The SC and MPO connectors on the optical CFP transceivers support network interface cables with either Physical Contact (PC) or Ultra-Physical Contact (UPC) flat polished face types. The SC and MPO connectors on the optical CFP transceivers do not support network interface cables with an Angle Polished Connector (APC) polished face type.


Table 2 lists the 100-Gigabit CFP port cabling specifications. Table 3 lists the optical transmit and receive specifications for 100-Gigabit CFP transceivers.

Table 2 CFP Optical Transceiver Module Cabling Specifications

CFP Transceiver Module Model
Wavelength (nm)
Fiber Type
Core Size (µm)
Modal Bandwidth (MHz/km)
Cabling Distance
100-Gigabit

CFP-100G-LR4

1310

SMF

G.652

6.28 miles (10 km)

CFP-100G-SR10

850

MMF

50.0
50.0

2000 (OM3)
4700 (OM4)

328.1 ft (100 m)
492.1 ft (150 m)

40-Gigabit

CFP-40G-SR4

850

MMF

50.0
50.0
50.0

500 (OM2)
2000 (OM3)
4700 (OM4)

98.4 ft (30 m)
328.1 ft (100 m)
492.1 ft (150 m)

CFP-40G-LR4

1310

SMF

G652

6.28 miles (10 km)

CFP-40G-FR

1550

SMF

G.652

1.24 miles (2 km)



Note The minimum cabling distance for the CFP-100G-LR4, CFP-40G-FR, and the CFP-40G-LR4 transceivers is 6.56 feet (2 meters). The minimum cabling distance for the CFP-40G-SR4 and the CFP-100G-SR10 transceivers is 1.64 feet (0.5 m).


Table 3 CFP Transceiver Module Optical Transmit and Receive Specifications

CFP Transceiver Module Model
Transceiver Type
Transmit
Power (dBm)
Receive Power (dBm)
Transmit and Receive Wavelength (nm)
100-Gigabit

CFP-100G-LR4

100GBASE-LR4, 1310-nm SMF

4.5 per lane (Max)

-4.3 per lane (Min)

4.5 per lane (Max)

-10.6 per lane (Min)

Four lanes:

1295.6
1300.1
1304.6
1309.1

CFP-100G-SR10

100GBASE-SR10

-1.0 per lane (Max)

-7.6 per lane (Min)

2.4 per lane (Max)

-9.5 per lane (Min)

Ten lanes 840 to 860

40-Gigabit

CFP-40G-SR4

40GBASE-SR4, 850 nm MMF

2.4 per lane (Max)

-7.6 per lane (Min)

2.4 per lane (Max)

-9.5 per lane (Min)

Four lanes 840 to 860

CFP-40G-LR4

40GBASE-LR4, 1310-nm SMF

2.3 per lane (Max)

-7 per lane (Min)

2.3 per lane (Max)

-13.7 per lane (Min)

Four lanes:

1271
1291
1311
1331

OTU3 C4S1-2D1, 1310-nm SMF

2.3 per lane (Max)

-2.3 per lane (Min)

2.3 per lane (Max)

-9 per lane (Min)

Four lanes:

1271
1291
1311
1331

CFP-40G-FR

40GBASE-FR and OTU3 VSR2000-3R2, 1550 nm SMF

3.0 (Max)

0.0 (Min)

3.0 (Max)

-6.0 (Min)

One lane, 1530 to 1565


Safety

Safety warnings appear throughout this publication in procedures that may harm you if performed incorrectly or are ignored. A warning symbol precedes each warning statement.

Statement 1071—Warning Definition


Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER






Warning Class 1 laser product. Statement 1008

Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70

Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057

Required Tools

You will need these tools to install the CFP transceiver module:

Small flat-blade screwdriver for removing the CFP transceiver socket cover.

Wrist strap or other personal grounding device to prevent electro-static discharge (ESD) occurrences.

Fiber-optic end-face cleaning tools and inspection equipment. For complete information on inspecting and cleaning fiber-optic connections, refer to the white paper at this URL:

http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtml

Installing the CFP Transceiver


Caution The CFP transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling the CFP transceivers or coming into contact with the modules.

To install a CFP transceiver, follow these steps:


Step 1 Remove the CFP transceiver from its protective packaging.

Step 2 Check the label on the CFP transceiver body to verify that you have the correct model for your network.

Step 3 Remove the dust plug from the CFP transceiver module optical port and set it aside.

Step 4 Align the CFP device into the transceiver port socket of your networking module, and slide it in until the CFP transceiver EMI gasket flange makes contact with the module faceplate. (See Figure 4.)

Figure 4 Installing the CFP Transceiver Module

Step 5 Press firmly on the front of the CFP transceiver with your thumb to fully seat it in the transceiver socket. (See Figure 5.)

Figure 5 Seating the CFP Transceiver Module in the Socket

Step 6 Gently tighten the two captive installation screws on the transceiver to secure the CFP transceiver in the socket. (See Figure 6.)

Figure 6 Securing the CFP Transceiver Module

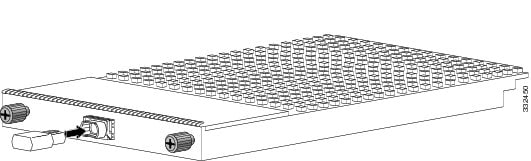

Step 7 Reinstall the dust plug into the CFP transceiver's optical bore until you are ready to attach the network interface cable.

Step 8 When you are ready to attach the network cable interface, remove the dust plugs and inspect and clean fiber connector end faces, and then immediately attach the network interface cable connectors into the CFP transceiver optical bores. (See Figure 7and Figure 8.)


Note If you are installing a FourX adapter (CVR-CFP-4SFP10G=) (shown in Figure 3), you must install 10GBASE-X SFP+ transceivers in the adapter ports. Follow the SFP+ transceiver installation procedure documented at:

http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/installation/note/78_15160.html


For complete information on inspecting and cleaning fiber-optic connections, see the white-paper document at this URL:

http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtml

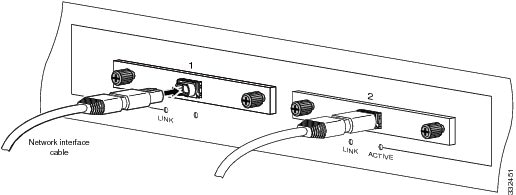

Figure 7 Cabling an Optical CFP Transceiver Module with SC Connectors

Figure 8 Cabling an Optical CFP Transceiver Module with MPO Connectors


Removing the CFP Transceiver


Caution The CFP transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling the CFP transceivers or coming into contact with the modules.


Warning Class 1 laser product. Statement 1008

Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70

Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

If you need to remove a CFP transceiver, follow these steps:


Step 1 Disconnect the network fiber-optic cable from the CFP transceiver connectors. Immediately reinstall the dust plugs in the CFP transceiver optical bores.

Step 2 Loosen the two captive installation screws that secure the CFP to the networking module.

Step 3 Slide the CFP transceiver out of the module socket. (See Figure 9.) Immediately place the CFP transceiver in antistatic protective packaging.

Figure 9   Removing a CFP Transceiver Module


Translated Safety Warnings

This section repeats in multiple languages the basic warnings that appear in this document.

Statement 70—Invisible Laser Radiation Warning


Warning

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Waarschuwing

Omdat er onzichtbare laserstraling uit de opening van de poort geëmitteerd kan worden wanneer er geen kabel aangesloten is, dient men om blootstelling aan laserstraling te vermijden niet in de open openingen te kijken.

Varoitus

Kun porttiin ei ole kytketty kaapelia, portin aukosta voi vuotaa näkymätöntä lasersäteilyä. Älä katso avoimiin aukkoihin, jotta et altistu säteilylle.

Attention

Etant donné qu'un rayonnement laser invisible peut être émis par l'ouverture du port quand aucun câble n'est connecté, ne pas regarder dans les ouvertures béantes afin d'éviter tout risque d'exposition au rayonnement laser.

Warnung

Aus der Öffnung des Ports kann unsichtbare Laserstrahlung austreten, wenn kein Kabel angeschlossen ist. Kontakt mit Laserstrahlung vermeiden und nicht in offene Öffnungen blicken.

Avvertenza

Poiché quando nessun cavo è collegato alla porta, da quest'ultima potrebbe essere emessa radiazione laser invisibile, evitare l'esposizione a tale radiazione e non fissare con gli occhi porte a cui non siano collegati cavi.

Advarsel

Usynlige laserstråler kan sendes ut fra åpningen på utgangen når ingen kabel er tilkoblet. Unngå utsettelse for laserstråling og se ikke inn i åpninger som ikke er tildekket.

Aviso

Evite uma exposição à radiação laser e não olhe através de aberturas expostas, porque poderá ocorrer emissão de radiação laser invisível a partir da abertura da porta, quando não estiver qualquer cabo conectado.

¡Advertencia!

Cuando no esté conectado ningún cable, pueden emitirse radiaciones láser invisibles por el orificio del puerto. Evitar la exposición a radiaciones láser y no mirar fijamente los orificios abiertos.

Varning!

Osynliga laserstrålar kan sändas ut från öppningen i porten när ingen kabel är ansluten. Undvik exponering för laserstrålning och titta inte in i ej täckta öppningar.



Statement 1008—Class 1 Laser Product


Warning

Class 1 laser product.

Waarschuwing

Klasse-1 laser produkt.

Varoitus

Luokan 1 lasertuote.

Attention

Produit laser de classe 1.

Warnung

Laserprodukt der Klasse 1.

Avvertenza

Prodotto laser di Classe 1.

Advarsel

Laserprodukt av klasse 1.

Aviso

Produto laser de classe 1.

¡Advertencia!

Producto láser Clase I.

Varning!

Laserprodukt av klass 1.

Aviso

Produto a laser de classe 1.

Advarsel

Klasse 1 laserprodukt.





Statement 1040—Product Disposal


Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Waarschuwing

Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

Varoitus

Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

Avvertenza

Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.

Advarsel

Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og bestemmelser.

Aviso

Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

Varning!

Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.

Aviso

O descarte definitivo deste produto deve estar de acordo com todas as leis e regulamentações nacionais.

Advarsel

Endelig bortskaffelse af dette produkt skal ske i henhold til gældende love og regler.





Statement 1057—Hazardous Radiation Exposure


Warning

Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure.

Waarschuwing

Het gebruik van regelaars of bijstellingen of het uitvoeren van procedures anders dan opgegeven kan leiden tot blootstelling aan gevaarlijke straling.

Varoitus

Säätimien tai säätöjen käyttö ja toimenpiteiden suorittaminen ohjeista poikkeavalla tavalla voi altistaa vaaralliselle säteilylle.

Attention

L'utilisation de commandes, de réglages ou de procédures autres que ceux spécifiés peut entraîner une exposition dangereuse à des radiations.

Warnung

Die Verwendung von nicht spezifizierten Steuerelementen, Einstellungen oder Verfahrensweisen kann eine gefährliche Strahlenexposition zur Folge haben.

Avvertenza

L'adozione di controlli, regolazioni o procedure diverse da quelle specificate può comportare il pericolo di esposizione a radiazioni.

Advarsel

Bruk av kontroller eller justeringer eller utførelse av prosedyrer som ikke er spesifiserte, kan resultere i farlig strålingseksponering.

Aviso

O uso de controles, ajustes ou desempenho de procedimentos diferentes dos especificados pode resultar em exposição prejudicial de radiação.

¡Advertencia!

La aplicación de controles, ajustes y procedimientos distintos a los especificados puede comportar una exposición peligrosa a la radiación.

Varning!

Om andra kontroller eller justeringar än de angivna används, eller om andra processer än de angivna genomförs, kan skadlig strålning avges.

Aviso

O uso de controles, ajustes ou procedimentos diferentes daqueles especificados pode resultar em exposição perigosa à radiação.

Advarsel

Brug af kontrolfunktioner, justeringer, eller udførelse af procedurer andre end de, der er angivet, kan resultere i udsættelse for farlig bestråling.





Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.


This document is to be used in conjunction with the publications documents that support your specific Cisco device.
