Overview


This chapter describes the Cisco PA-8T-X21 synchronous serial port adapter. This chapter contains the following sections:

Port Adapter Overview

Serial Interface Specifications

LEDs

Cables and Pinouts

Port Adapter Slot Locations on the Supported Platforms

Identifying Interface Addresses

Port Adapter Overview

The PA-8T-X21 synchronous serial port adapter, shown in Figure 1-1, provides up to eight synchronous serial interfaces for the Cisco 7000 family routers and the Cisco uBR7200 series routers. PA-8T-X21 network interfaces provide a direct connection between the high-speed bus in the router and external networks. Each PA-8T-X21 interface provides full-duplex (FDX) operation at T1 (1.544 Mbps) and E1 (2.048 Mbps) speeds. The X.21 interface is commonly used in the United Kingdom to connect to public data networks.

All eight PA-8T-X21 interfaces connect to external networks through a single port that has a 200-pin, D-shell receptacle. You must use an X.21 compact serial cable to connect PA-8T-X21 interfaces to an external data service unit (DSU) or channel service unit (CSU). The compact serial cable attached to the single receptacle determines the mode (DCE or DTE) for all eight interfaces.


Note Although the Cisco 7304 PCI Port Adapter Carrier Card in the Cisco 7304 router, Catalyst RSM/VIP2, the Catalyst 6000 family FlexWAN module, and the VIP support online insertion and removal (OIR), individual port adapters do not. To replace port adapters, you must first remove the Cisco 7304 PCI Port Adapter Carrier Card in the Cisco 7304 router, the Catalyst RSM/VIP2, the Catalyst 6000 family FlexWAN module, or the VIP from the chassis, and then replace port adapters as required.

The Cisco 7100 series, Cisco 7200 series, Cisco uBR7200 series routers, Cisco 7301 router, and Cisco 7401ASR routers support the OIR of all port adapter types.


Figure 1-1 PA-8T-X21—Faceplate View

All serial interface types of Cisco 7200 series, Cisco uBR7200 series, Cisco 7100 series, Cisco 7301 routers, Cisco 7304 routers, Cisco 7401ASR routers, VIPs, and Catalyst RSM/VIP2s support non return to zero (NRZ) and non return to zero inverted (NRZI) format, and both 16-bit and 32-bit cyclic redundancy checks (CRCs). The default configuration is for NRZ format and 16-bit CRC. You can change the default settings with software commands. (For more information, see "Configuring the PA-8T-X21 Interfaces".)

No default mode or clock rate are set on the serial ports of Cisco 7200 series, Cisco uBR7200 series, Cisco 7100 series, Cisco 7301 routers, Cisco 7304 routers, Cisco 7401ASR routers, VIPs, and Catalyst RSM/VIP2s, although an internal clock signal is present on all ports for data communications equipment (DCE) support. The internal clock also allows you to perform local loopback tests without having to terminate the port or connect a cable. To use the port as a DCE interface, you must set the clock rate and connect a DCE compact serial cable. To use the port as a data terminal equipment (DTE) interface, you need only connect a DTE compact serial cable to the port. Because the serial adapter cables determine the mode and interface type, the PA-8T-X21 port adapter interface becomes a DTE when a DTE cable is connected to it.

If a DTE cable is connected to a port with a clock rate set, the DTE ignores the clock rate and uses the external clock signal that is sent from the remote DCE. For a brief description of the clock rate command, see the "Configuring Timing (Clock) Signals" section. For complete command descriptions and instructions, refer to the publications listed in the "Related Documentation" section on page viii.

Serial Interface Specifications

Serial signals can travel a limited distance at any given bit rate; generally, the slower the bit rate, the greater the distance. All serial signals are subject to distance limits beyond which a signal degrades significantly or is completely lost. Table 1-1 lists recommended transmission speeds and distances for X.21 serial interfaces. The recommended maximum rate for X.21 is 2.048 Mbps.

Table 1-1 Recommended Transmission Speed Versus Distance


X.21 Distances
Rate (bps)
Feet
Meters

2400

4,100

1,250

4800

2,050

625

9600

1,025

312

19200

513

156

38400

256

78

56000

102

31

2048000

25

8



Note X.21 supports 2.048-Mbps rates without any problems; we do not recommend exceeding the above specifications for transmission speed versus distance. Do so at your own risk. The total aggregate bandwidth for the PA-8T-X21 is 16 Mbps, which can be divided into 8 Mbps on two ports, 4 Mbps on four ports, or 2 Mbps on eight ports.


The PA-8T-X21 can be installed in the following slots on the hardware platforms described in this document:

Catalyst RSM/VIP2—Port adapter slot 0 and port adapter slot 1

Catalyst 6000 family FlexWAN module—Port adapter bay 0 and port adapter bay 1

Cisco 7100 series—Port adapter slot 3 of the Cisco 7120 series, and port adapter slot 4 of the Cisco 7140 series

Cisco 7200 series routers—Port adapter slot 1 and slot 2 of the Cisco 7202; port adapter slot 1 through slot 4 of the Cisco 7204 and Cisco 7204VXR; port adapter slot 1 through slot 6 of the Cisco 7206 and Cisco 7206VXR

Cisco uBR7200 series—Port adapter slot 1 and port adapter slot 2 of the Cisco uBR7246 and port adapter slot 1 of the Cisco uBR7223

Cisco 7301—Port adapter slot 1

Cisco 7304 PCI Port Adapter Carrier Card in the Cisco 7304 router — Port adapter slot 2 through 5

Cisco 7401ASR routers—Port adapter slot 1

VIP—Port adapter slot 0 and port adapter slot 1

Port adapters have a handle attached, but this handle is occasionally not shown in this document to allow a full view of the port adapter's faceplate.

LEDs

The PA-8T-X21 has one row of eight status LEDs (one for each port) and one enabled (EN) LED. (See Figure 1-2.) The green- and amber-colored LED for each port indicates port status.

Figure 1-2 LEDs on the PA-8T-X21—Horizontal Orientation

After system initialization, the enabled LED goes on to indicate that the port adapter has been enabled for operation.

The following conditions must be met before the PA-8T-X21 is enabled:

Port adapter is correctly connected to the backplane or midplane and receiving power.

Valid system software image for the port adapter has been downloaded successfully.

System recognizes the port adapter or PA-8T-X21-equipped Catalyst RSM/VIP2, Catalyst 6000 family FlexWAN module, VIP, or Cisco 7304 PCI Port Adapter Carrier Card.

If any of the above conditions are not met, or if the initialization fails for other reasons, the enabled LED does not go on.

Table 1-2 lists port LED colors and status.

Table 1-2 PA-8T-X21 Port LED Indications

Port LED
Color
Status

0 through 7

Green

Port is initialized by the system (the software recognizes the hardware), and an X.21 compact serial cable is properly connected at the router end (VIP, Catalyst RSM/VIP2, Cisco 7200 series, Cisco uBR7200 series, Cisco 7100 series, Cisco 7301 routers, or Cisco 7401ASR routers) and the network end. The LED flashes on and off when the port is sending and receiving data in half-duplex mode (in Cisco 7200 series routers only).

Amber

Port is in loopback mode, the compact serial cable is not properly connected at the router or network end, or there is a problem with the hardware at the network end of the compact serial cable.

Off

Port is administratively down.


Cables and Pinouts

The compact serial cable for the PA-8T-X21 is available in DTE or DCE mode with a 200-pin, D-shell receptacle at the router end (Catalyst RSM/VIP2, Catalyst 6000 family FlexWAN module, Cisco 7200 series, Cisco 7301 routers, Cisco 7401ASR routers, or VIP) and eight, 15-pin Winchester block-type receptacles or plugs at the network end. (See Figure 1-3.) The compact serial cable for the PA-8T-X21 is 6 feet (1.8 meters) long.


Note The X.21 compact serial cable attached to the single PA-8T-X21 port determines the mode (DTE or DCE) of the eight PA-8T-X21 interfaces.


Following are the product numbers, according to mode, for the PA-8T-X21 compact serial cable:

DTE mode with a 15-pin Winchester-type X.21 plug (CAB-OCT-X21-MT[=])

DCE mode with a 15-pin Winchester-type X.21 receptacle (CAB-OCT-X21-FC[=])

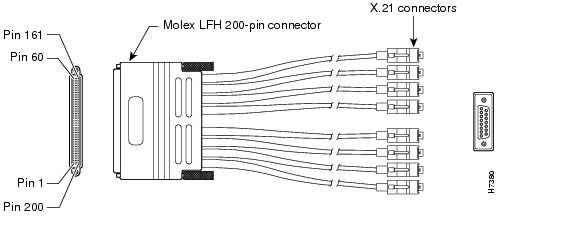

Figure 1-3 X.21 Compact Serial Cable

Because the PA-8T-X21 uses a special, high-density port that requires special compact serial interface cables, we recommend that you obtain the cables from the factory. Figure 1-4 shows the connectors at the network end of the PA-8T-X21 compact serial cable.

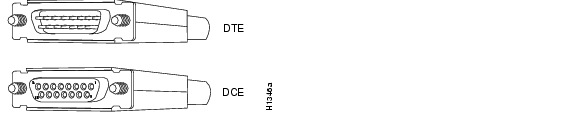

Figure 1-4 PA-8T-X21 Compact Serial Cable Connectors

Table 1-3 lists connector pinouts for the PA-8T-X21 DTE compact serial cable (CAB-OCT-X21-MT[=]), and Table 1-4 lists connector pinouts for the PA-8T-X21 DCE compact serial cable (CAB-OCT-X21-FC[=]).

Table 1-3 PA-8T-X21 DTE Compact Serial Cable Pinouts

Router End (200-Position Plug)

Network End (15-Pin Connector)
Pin
Signal
Note
Direction
Signal
Pin

J8-75

J8-76

MODE_2

GROUND

Shorting

Group

-

J8-26

J8-25

MODE_DCE

GROUND

Shorting

Group

-



SHIELD_GROUND

Braid



SHIELD GND

J0-1

J8-1

J8-2

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J0-2

J0-9

J8-16

J8-17

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J0-3

J0-10

J8-5

J8-6

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J0-4

J0-11

J8-23

J8-24

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J0-5

J0-12

J8-7

J8-8

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J0-6

J0-13

J8-11

J8-18

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J0-8

J0-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J1-1

J8-50

J8-49

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J1-2

J1-9

J8-35

J8-34

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J1-3

J1-10

J8-46

J8-45

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J1-4

J1-11

J8-28

J8-27

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J1-5

J1-12

J8-44

J8-43

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J1-6

J1-13

J8-40

J8-33

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J1-8

J1-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J2-1

J8-51

J8-52

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J2-2

J2-9

J8-66

J8-67

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J2-3

J2-10

J8-55

J8-56

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J2-4

J2-11

J8-73

J8-74

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J2-5

J2-12

J8-57

J8-58

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J2-6

J2-13

J8-61

J8-68

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J2-8

J2-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J3-1

J8-100

J8-99

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J3-2

J3-9

J8-85

J8-84

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J3-3

J3-10

J8-96

J8-95

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J3-4

J3-11

J8-78

J8-77

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J3-5

J3-12

J8-94

J8-93

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J3-6

J3-13

J8-90

J8-83

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J3-8

J3-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J4-1

J8-101

J8-102

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J4-2

J4-9

J8-116

J8-117

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J4-3

J4-10

J8-105

J8-106

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J4-4

J4-11

J8-123

J8-124

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J4-5

J4-12

J8-107

J8-108

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J4-6

J4-13

J8-111

J8-118

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J4-8

J4-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J5-1

J8-150

J8-149

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J5-2

J5-9

J8-135

J8-134

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J5-3

J5-10

J8-146

J8-145

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J5-4

J5-11

J8-128

J8-127

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J5-5

J5-12

J8-144

J8-143

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J5-6

J5-13

J8-140

J8-133

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J5-8

J5-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J6-1

J8-151

J8-152

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J6-2

J6-9

J8-166

J8-167

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J6-3

J6-10

J8-155

J8-156

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J6-4

J6-11

J8-173

J8-174

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J6-5

J6-12

J8-157

J8-158

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J6-6

J6-13

J8-161

J8-168

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J6-8

J6-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J7-1

J8-200

J8-199

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 1

—>

—>

TRANSMIT+

TRANSMIT-

J7-2

J7-9

J8-185

J8-184

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 4

—>

—>

CONTROL+

CONTROL-

J7-3

J7-10

J8-196

J8-195

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 2

<—

<—

RECEIVE+

RECEIVE-

J7-4

J7-11

J8-178

J8-177

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 5

<—

<—

INDICATION+

INDICATION-

J7-5

J7-12

J8-194

J8-193

I_RXC/TXCE+

I_RXC/TXCE-

Twisted pair no. 3

<—

<—

TIMING+

TIMING-

J7-6

J7-13

J8-190

J8-183

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J7-8

J7-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-


Table 1-4 PA-8T-X21 DCE Compact Serial Cable Pinouts

Router End (200-Position Plug)

Network End (15-Pin Connector)
Pin
Signal
Note
Direction
Signal
Pin

J8-75

J8-76

MODE_2

GROUND

Shorting

Group

-



SHIELD_GROUND

Braid



SHIELD GND

J0-1

J8-5

J8-6

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J0-2

J0-9

J8-23

J8-24

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J0-3

J0-10

J8-1

J8-2

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J0-4

J0-11

J8-16

J8-17

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J0-5

J0-12

J8-3

J8-4

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J0-6

J0-13

J8-11

J8-18

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J0-8

J0-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J1-1

J8-46

J8-45

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J1-2

J1-9

J8-28

J8-27

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J1-3

J1-10

J8-50

J8-49

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J1-4

J1-11

J8-35

J8-34

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J1-5

J1-12

J8-48

J8-47

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J1-6

J1-13

J8-40

J8-33

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J1-8

J1-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J2-1

J8-55

J8-56

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J2-2

J2-9

J8-73

J8-74

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J2-3

J2-10

J8-51

J8-52

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J2-4

J2-11

J8-66

J8-67

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J2-5

J2-12

J8-53

J8-54

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J2-6

J2-13

J8-61

J8-68

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J2-8

J2-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J3-1

J8-96

J8-95

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J3-2

J3-9

J8-78

J8-77

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J3-3

J3-10

J8-100

J8-99

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J3-4

J3-11

J8-85

J8-84

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J3-5

J3-12

J8-98

J8-97

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J3-6

J3-13

J8-90

J8-83

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J3-8

J3-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J4-1

J8-105

J8-106

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J4-2

J4-9

J8-123

J8-124

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J4-3

J4-10

J8-101

J8-102

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J4-4

J4-11

J8-116

J8-117

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J4-5

J4-12

J8-103

J8-104

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J4-6

J4-13

J8-111

J8-118

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J4-8

J4-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J5-1

J8-146

J8-145

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J5-2

J5-9

J8-128

J8-127

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J5-3

J5-10

J8-150

J8-149

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J5-4

J5-11

J8-135

J8-134

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J5-5

J5-12

J8-148

J8-147

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J5-6

J5-13

J8-140

J8-133

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J5-8

J5-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J6-1

J8-155

J8-156

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J6-2

J6-9

J8-173

J8-174

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J6-3

J6-10

J8-151

J8-152

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J6-4

J6-11

J8-166

J8-167

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J6-5

J6-12

J8-153

J8-154

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J6-6

J6-13

J8-161

J8-168

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J6-8

J6-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-



SHIELD_GROUND

Braid



SHIELD GND

J7-1

J8-196

J8-195

I_RXD/TXD+

I_RXD/TXD-

Twisted pair no. 1

<—

<—

TRANSMIT+

TRANSMIT-

J7-2

J7-9

J8-178

J8-177

I_CTS/RTS+

I_CTS/RTS-

Twisted pair no. 4

<—

<—

CONTROL+

CONTROL-

J7-3

J7-10

J8-200

J8-199

O_TXD/RXD+

O_TXD/RXD-

Twisted pair no. 2

—>

—>

RECEIVE+

RECEIVE-

J7-4

J7-11

J8-185

J8-184

O_RTS/CTS+

O_RTS/CTS-

Twisted pair no. 5

—>

—>

INDICATION+

INDICATION-

J7-5

J7-12

J8-198

J8-197

O_TXCE/RXC+

O_TXCE/RXC-

Twisted pair no. 3

—>

—>

TIMING+

TIMING-

J7-6

J7-13

J8-190

J8-183

SIG_GROUND

SIG_GROUND

Twisted pair no. 6

-

SIG GND

SIG GND

J7-8

J7-8

-

Not used

Not used

Twisted pair no. 7

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 8

-

Not used

Not used

-

-

Not used

Not used

Twisted pair no. 9

-

Not used

Not used

-


Port Adapter Slot Locations on the Supported Platforms

This section discusses port adapter slot locations on the supported platforms. The Illustrations that follow summarize slot locations on each platform:

Catalyst RSM/VIP2 Slot Numbering

Catalyst 6000 Family FlexWAN Module Slot Numbering

Cisco 7100 Series Routers Slot Numbering

Cisco 7200 Series and Cisco uBR7200 Series Routers Slot Numbering

Cisco 7301 Router Slot Numbering

Cisco 7304 PCI Port Adapter Carrier Card Slot Numbering

Cisco 7401ASR Router Slot Numbering

VIP Slot Numbering

Catalyst RSM/VIP2 Slot Numbering

The Catalyst RSM/VIP2 can be installed in any slot except the top slots, which contain the supervisor engines. The Catalyst RSM/VIP2 in a Catalyst 5000 family switch does not use interface processor slot numbering; therefore, slots are not numbered in Figure 1-5. The PA-8T-X21 can be installed into either port adapter slot 0 or slot 1 on a Catalyst RSM/VIP2. Figure 1-5 shows a Catalyst RSM/VIP2 with two port adapters installed.


Note The Catalyst 5500 switch has 13 slots. Slot 1 is reserved for the supervisor engine. If a redundant supervisor engine is used, it would go in slot 2; otherwise, slot 2 can be used for other modules. Slot 13 is a dedicated slot, reserved for the ATM switch processor (ASP) module. Refer to the Catalyst 5000 Series Route Switch Module Installation and Configuration Note for any additional slot restrictions for the Catalyst RSM/VIP2.


Figure 1-5 Catalyst 5000 Family Switch with Port Adapters Installed on Catalyst RSM/VIP2

Catalyst 6000 Family FlexWAN Module Slot Numbering

The Catalyst 6000 family FlexWAN module can be installed in any slot except slot 1, which is reserved for the supervisor engine. The PA-8T-X21 can be installed into either port adapter bay 0 or bay 1 on a FlexWAN module. Figure 1-6 shows a FlexWAN module with two blank port adapters installed.


Note Slot 1 is reserved for the supervisor engine. If a redundant supervisor engine module is used, it would go in slot 2; otherwise, slot 2 can be used for other modules.


Figure 1-6 Catalyst 6000 Family Switch with Blank Port Adapters Installed on FlexWAN Module

Cisco 7100 Series Routers Slot Numbering

The PA-8T-X21 can be installed in port adapter slot 3 in Cisco 7120 series routers, and in port adapter slot 4 in Cisco 7140 series routers. Figure 1-7 shows a Cisco 7120 with a port adapter installed in slot 3. Figure 1-8 shows a Cisco 7140 with a port adapter installed in slot 4.

Figure 1-7 Port Adapter Slots in the Cisco 7100 Series Router—Cisco 7120 Series

Figure 1-8 Port Adapter Slots in the Cisco 7100 Series Router—Cisco 7140 Series

Cisco 7200 Series and Cisco uBR7200 Series Routers Slot Numbering

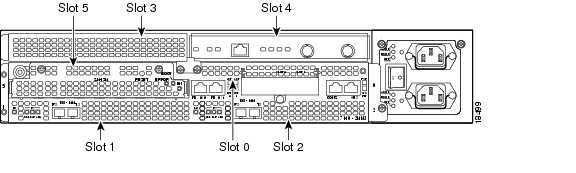

Figure 1-9 shows a Cisco 7206 with port adapters installed. In the Cisco 7206, port adapter slot 1 is in the lower left position, and port adapter slot 6 is in the upper right position. (The Cisco 7202 and Cisco 7204 are not shown; however, the PA-8T-X21 can be installed in any available port adapter slot.)

Figure 1-9 Port Adapter Slots in the Cisco 7206

Figure 1-10 shows the slot numbering of port adapters in a Cisco uBR7246 and Cisco uBR7246VXR router. The port adapter slots are numbered slot 1 and slot 2 for the Cisco uBR7246 and Cisco uBR7246VXR router and slot 1 for the Cisco uBR7223. (Slot 0 is always reserved for the Fast Ethernet port on the I/O controller—if present.)

Figure 1-10 Port Adapter Slots in the Cisco uBR7246 and Cisco uBR7246VXR

Cisco 7301 Router Slot Numbering

The Cisco 7301 router has one standard port adapter slot. See Figure 1-11.

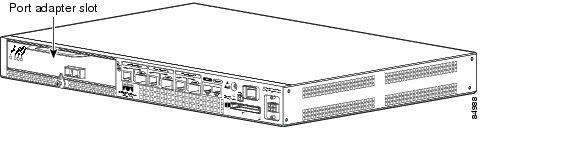

Figure 1-11 Port Adapter Slot in the Cisco 7301 Router

Cisco 7304 PCI Port Adapter Carrier Card Slot Numbering

The Cisco 7304 PCI Port Adapter Carrier Card accepts one single-width port adapter. Figure 1-12 shows a Cisco 7304 PCI Port Adapter Carrier Card with a port adapter installed.

Figure 1-12 Cisco 7304 PCI Port Adapter Carrier Card—Port Adapter Installed

The Cisco 7304 PCI Port Adapter Carrier Card installs in Cisco 7304 router module slots 2 through 5. See Figure 1-13 for module slot numbering on a Cisco 7304 router.

Figure 1-13 Module Slots on the Cisco 7304 Router

Cisco 7401ASR Router Slot Numbering

Figure 1-14 shows the front view of a Cisco 7401ASR router with a port adapter installed. There is only one port adapter slot in a Cisco 7401ASR router.

Figure 1-14 Cisco 7401ASR Router with a Port Adapter Installed

VIP Slot Numbering

Figure 1-15 shows a partial view of a VIP motherboard with installed port adapters. With the motherboard oriented as shown in Figure 1-15, the left port adapter is in port adapter slot 0, and the right port adapter is in port adapter slot 1. The slot numbering is the same for the Catalyst RSM/VIP2. The slots are always numbered 0 and 1.

Figure 1-15 VIP Motherboard with Two Port Adapters Installed—Horizontal Orientation


Note In the Cisco 7000, Cisco 7507, and Cisco 7513 chassis, the VIP motherboard is installed vertically. In the Cisco 7010 and Cisco 7505 chassis, the VIP motherboard is installed horizontally.


Interface processor slots are numbered as shown in Figure 1-16.

Figure 1-16 Interface Slot Numbers—Cisco 7505 shown

Identifying Interface Addresses

This section describes how to identify interface addresses for the PA-8T-X21 in supported platforms. Interface addresses specify the actual physical location of each interface on a router or switch.

Interfaces on the PA-8T-X21 installed in a router maintain the same address regardless of whether other port adapters are installed or removed. However, when you move a port adapter to a different slot, the first number in the interface address changes to reflect the new port adapter slot number.

Interfaces on a PA-8T-X21 installed in a Catalyst 6000 family FlexWAN module or a VIP maintain the same address regardless of whether other interface processors are installed or removed. However, when you move a VIP to a different slot, the interface processor slot number changes to reflect the new interface processor slot.


Note Interface ports are numbered from left to right starting with 0.


Table 1-5 explains how to identify interface addresses.

Table 1-5 Identifying Interface Addresses

Platform
Interface Address Format
Numbers
Syntax

Catalyst RSM/VIP2 in Catalyst 5000 family switches

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 0 or 1

Interface port—0 through 7

0/1

Catalyst 6000 family FlexWAN module in Catalyst 6000 family switches

Module-slot-number/port-adapter-bay-number/
interface-port-number

Module slot number—21 through 6 or 9 (depending on the number of slots in the switch)

Port adapter bay—always 0 or 1

Interface port—0 through 7

3/0/0

Cisco 7120 series routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 3

Interface port—0 through 7

3/1

Cisco 7140 series routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 4

Interface port—0 through 7

4/0

Cisco 7200 series routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—0 through 6 (depends on the number of slots in the router)2

Interface port—0 through 7

1/0

Cisco uBR7223 router

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 12

Interface port—0 through 7

1/0

Cisco uBR7246 and Cisco uBR7246VXR routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 1 or 22

Interface port—0 through 7

1/2

Cisco 7301 router

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 1

Interface port—0 through 7

1/1

Cisco 7304 PCI Port Adapter Carrier Card in Cisco 7304 routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—router module slot 2 through 5

Interface port—0 through 7

3/0

Cisco 7401ASR routers

Port-adapter-slot-number/interface-port-number

Port adapter slot—always 1

Interface port—0 through 7

1/1

VIP in Cisco 7000 series or Cisco 7500 series routers

Interface-processor-slot-number/port-adapter-
slot-number/interface-port-number

Interface processor slot—0 through 12 (depends on the number of slots in the router)

Port adapter slot—always 0 or 1

Interface port—0 through 7

3/1/0

1 Slot 1 is reserved for the supervisor engine. If a redundant supervisor engine is used, it must go in slot 2; otherwise, slot 2 can be used for other modules.

2 Port adapter slot 0 is reserved for the Fast Ethernet port on the I/O controller (if present).


Catalyst RSM/VIP2 Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 on the Catalyst RSM/VIP2 in Catalyst 5000 family switches. The interface address is composed of a two-part number in the format port-adapter-slot number/interface-port number.

See Table 1-5 for the interface address format.

Catalyst 6000 Family FlexWAN Module Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 on the Catalyst FlexWAN module in Catalyst 6000 family switches.The interface address is composed of a three-part number in the format module-number/port-adapter-bay-number/interface-port-number.

See Table 1-5 for the interface address format.

If the FlexWAN module is inserted in module slot 3, then the interface addresses of the PA-8T-X21 are 3/0/0 through 3/0/7 (module slot 3, port adapter bay 0, and interfaces 0 through 7). If the port adapter was in port adapter bay 1 on the FlexWAN module, these same interface addresses would be numbered 3/1/0 through 3/1/7.


Note If you remove the FlexWAN module with the PA-8T-X21 from module slot 3 and install it in module slot 6, the interface addresses become 6/0/0 through 6/0/7.



Note The FlexWAN module physical port address uses a zero- (0-) based port address, which differs from the conventional Catalyst 6000 family one- (1-) based port address.


Cisco 7100 Series Routers Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 in Cisco 7100 series routers. The interface address is composed of a two-part number in the format port-adapter-slot-number/interface-port-number. See Table 1-5 for the interface address format.

Cisco 7200 Series and Cisco uBR7200 Series Routers Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 in Cisco 7200 series routers or Cisco uBR7200 series routers. The interface address is composed of a two-part number in the format port-adapter-slot-number/interface-port-number. See Table 1-5 for the interface address format.

In Cisco 7200 series routers, port adapter slots are numbered from the lower left to the upper right, beginning with port adapter slot 1 and continuing through port adapter slot 2 for the Cisco 7202, slot 4 for the Cisco 7204 and Cisco 7204VXR, and slot 6 for the Cisco 7206 and Cisco 7206VXR. (Port adapter slot 0 is reserved for the optional Fast Ethernet port on the I/O controller—if present.)

The interface addresses of the interfaces on the PA-8T-X21 in port adapter slot 1 are 1/0 through 1/7 (port adapter slot 1 and interfaces 0 through 7). If the PA-8T-X21 was in port adapter slot 4, these same interfaces would be numbered 4/0 through 4/7 (port adapter slot 4 and interfaces 0 through 7).

In Cisco uBR7200 series routers, port adapter slots are numbered slot 1 and slot 2 for the Cisco uBR7246 and Cisco uBR7246VXR and slot 1 for the Cisco uBR7223. (Slot 0 is always reserved for the Fast Ethernet port on the I/O controller—if present.) The individual interfaces always begin with 0. The number of additional interfaces depends on the number of interface ports on a port adapter.

The interface addresses of the interfaces on a PA-8T-X21 in port adapter slot 2 are 2/0 and 2/1 (port adapter slot 2 and interfaces 0 and 1). If the PA-8T-X21 was in port adapter slot 1, these same interfaces would be numbered 1/0 and 1/1 (port adapter slot 1 and interfaces 0 and 1).

Cisco 7301 Router Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 port adapter in Cisco 7301 router. The interface address is composed of a two-part number in the format port-adapter-slot-number/interface-port-number. See Table 1-5 for the interface address format.

Cisco 7304 PCI Port Adapter Carrier Card Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 in the Cisco 7304 PCI Port Adapter Carrier Card in Cisco 7304 routers. The interface address is made of a two-part number in the format port-adapter-slot-number/interface-port-number.

The Cisco 7304 PCI Port Adapter Carrier Card installs into Cisco 7304 router module slots 2 through 5 (See Figure 1-13.) The port-adapter-slot-number is the Cisco 7304 router module slot number. For example, the interface address of port 0 on a PA-8T-X21, in which the Cisco 7304 PCI Port Adapter Carrier Card is installed in Cisco 7304 router module slot 3, would be numbered 3/0.

Cisco 7401ASR Router Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 in the Cisco 7401ASR router. In the Cisco 7401ASR router, slot 1 is the port adapter slot you use for the PA-8T-X21. The interface address is composed of a two-part number in the format port-adapter-slot-number/interface-port-number. See Table 1-5 for the interface address format.

VIP Interface Addresses

This section describes how to identify the interface addresses used for the PA-8T-X21 on a VIP in Cisco 7000 series and Cisco 7500 series routers.


Note Although the processor slots in the 7-slot Cisco 7000 and Cisco 7507 and the 13-slot Cisco 7513 and Cisco 7576 are vertically oriented and those in the 5-slot Cisco 7010 and Cisco 7505 are horizontally oriented, all Cisco 7000 series and Cisco 7500 series routers use the same method for slot and port numbering.


See Table 1-5 for the interface address format. The interface address is composed of a three-part number in the format interface-processor-slot-number/port-adapter-slot-number/
interface-port-number
.

If the VIP is inserted in interface processor slot 3, then the interface addresses of the PA-8T-X21 are 3/1/0 through 3/1/7 (interface processor slot 3, port adapter slot 1, and interfaces 0 through 7). If the port adapter was in port adapter slot 0 on the VIP, these same interface addresses would be numbered 3/0/0 through 3/0/7.


Note If you remove the VIP with the PA-8T-X21 (shown in Figure 1-16) from interface processor slot 3 and install it in interface processor slot 2, the interface addresses become 2/1/0 through 2/1/7.
