Removing and Installing Port Adapters
This chapter describes how to remove the PA-8B-ST from supported platforms and also how to install a new or replacement port adapter. This chapter contains the following sections:
•Handling Port Adapters
•Online Insertion and Removal
•Warnings and Cautions
•Port Adapter Removal and Installation
•Connecting a PA-8B-ST Interface Cable
Handling Port Adapters
Each port adapter circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD) damage.
Note When a port adapter slot is not in use, a blank port adapter must fill the empty slot to allow the router or switch to conform to electromagnetic interference (EMI) emissions requirements and to allow proper airflow across the port adapters. If you plan to install a new port adapter in a slot that is not in use, you must first remove the blank port adapter.
When powering off the router, wait a minimum of 30 seconds before powering it on again.
Always handle the port adapter by the carrier edges and handle; never touch the port adapter components or connector pins. (See
Figure 3-1 Handling a Port Adapter
Online Insertion and Removal
Several platforms support online insertion and removal (OIR) of port adapters; therefore, you do not have to power down routers when removing and replacing a PA-8B-ST in the Cisco 7100 series routers, Cisco 7200 series routers, Cisco 7200 VXR routers, Cisco 7301 router, and Cisco 7401ASR router.
It is wise to gracefully shut down the system before removing a port adapter that has active traffic moving through it. Removing a port adapter while traffic is flowing through the ports can cause system disruption. Once the port adapter is inserted, the ports can be brought back up.
Note As you disengage the port adapter from the router or switch, OIR administratively shuts down all active interfaces in the port adapter.
OIR allows you to install and replace port adapters while the router is operating; you do not need to notify the software or shut down the system power, although you should not run traffic through the port adapter you are removing while it is being removed. OIR is a method that is seamless to end users on the network, maintains all routing information, and preserves sessions.
The following is a functional description of OIR for background information only; for specific procedures for installing and replacing a port adapter in a supported platform, refer to the "Port Adapter Removal and Installation" section.
Each port adapter has a bus connector that connects it to the router. The connector has a set of tiered pins in three lengths that send specific signals to the system as they make contact with the port adapter. The system assesses the signals it receives and the order in which it receives them to determine if a port adapter is being removed from or introduced to the system. From these signals, the system determines whether to reinitialize a new interface or to shut down a disconnected interface.
Specifically, when you insert a port adapter, the longest pins make contact with the port adapter first, and the shortest pins make contact last. The system recognizes the signals and the sequence in which it receives them.
When you remove or insert a port adapter, the pins send signals to notify the system of changes. The router then performs the following procedure:
1. Rapidly scans the system for configuration changes.
2. Initializes newly inserted port adapters or administratively shuts down any vacant interfaces.
3. Brings all previously configured interfaces on the port adapter back to their previously installed state. Any newly inserted interface is put in the administratively shutdown state, as if it was present (but not configured) at boot time. If a similar port adapter type is reinserted into a slot, its ports are configured and brought online up to the port count of the originally installed port adapter of that type.
Note Before you begin installation, read
Warnings and Cautions
Observe the following warnings and cautions when installing or removing port adapters.
Do not slide a port adapter all the way into the slot until you have connected all required cables. Trying to do so disrupts normal operation of the router or switch.
Note If a port adapter lever or other retaining mechanism does not move to the locked position, the port adapter is not completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever or other mechanism to the locked position.
To prevent jamming the carrier between the upper and the lower edges of the port adapter slot, and to ensure that the edge connector at the rear of the port adapter mates with the connection at the rear of the port adapter slot, make certain that the carrier is positioned correctly, as shown in the cutaway illustrations in the
"Port Adapter Removal and Installation" section.
Warning When performing the following procedures, wear a grounding wrist strap to avoid ESD damage to the card. Some platforms have an ESD connector for attaching the wrist strap. Do not directly touch the midplane or backplane with your hand or any metal tool, or you could shock yourself.
Port Adapter Removal and Installation
In this section, the illustrations that follow give step-by-step instructions on how to remove and install port adapters. This section contains the following illustrations:
•Cisco 7100 Series Routers—Removing and Installing a Port Adapter
•Cisco 7200 Series Routers and Cisco 7200 VXR Routers—Removing and Installing a Port Adapter
•Cisco 7301 Router—Removing and Installing a Port Adapter
•Cisco 7401ASR Router—Removing and Installing a Port Adapter
Cisco 7100 Series Routers—Removing and Installing a Port Adapter
Cisco 7200 Series Routers and Cisco 7200 VXR Routers—Removing and Installing a Port Adapter
Cisco 7301 Router—Removing and Installing a Port Adapter
Cisco 7401ASR Router—Removing and Installing a Port Adapter
Connecting a PA-8B-ST Interface Cable
To continue your PA-8B-ST port adapter installation, you must install the port adapter cables. The instructions that follow apply to all supported platforms.
On a single PA-8B-ST, you can use up to eight BRI connections.
Connect a PA-8B-ST interface cable as follows:
Step 1 Attach the cable directly to the receptacle on the PA-8B-ST. (See Figure 3-2.)
Note Port adapters have a handle attached, but this handle is not shown to allow a detailed view of each port adapter faceplate.

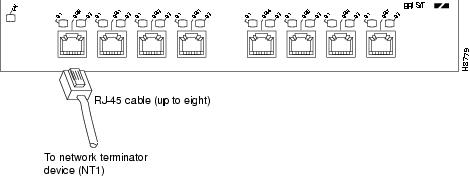

Figure 3-2 Connecting a PA-8B-ST Interface Cable—PA-8B-ST Front View (Shown Without Handle)
Step 2 Attach the network end of the cable to your network terminator device.
This completes the procedure for attaching a PA-8B-ST interface cable.
