Field Notice: FN - 72437 - AMD M6 Servers Might Fail Initial Discovery When Equipped with a Cisco VIC Card - Configuration Change Recommended

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Revision History

Revision	Publish Date	Comments
1.0	30-Aug-22	Initial Release

Products Affected

Affected Product ID	Comments
UCSC-C245-M6SX
UCSC-C225-M6N
UCSC-C225-M6S
UCSC-C225-M6N=	Part Alternate
UCSC-C225-M6S=	Part Alternate
UCSC-C245-M6SX=	Part Alternate

Defect Information

Defect ID	Headline
CSCwc50011	AMD M6 servers may fail initial discovery when equipped with Cisco card for Management

Problem Description

Cisco Unified Computing System (UCS) AMD-based M6 rack servers might not discover properly in UCS Manager Integrated Mode or Intersight Managed Mode (IMM) due to the incorrect Cisco Integrated Management Controller (IMC) setting from manufacturing. Standalone servers might also be unmanageable during initial installation from the factory.

Background

All Cisco UCS AMD-based M6 rack servers that were manufactured before August 2022 were shipped with the incorrect Network Interface Controller (NIC) mode setting. The NIC mode setting is the configuration option that tells the rack server which port to use for management, which includes UCS Manager integration or IMM discovery. When the server is configured with a Cisco card (VIC/MLOM), the expectation is that it will be configured to be managed through the Cisco card by default. Instead, these servers shipped from manufacturing with the Cisco NIC mode set to Dedicated, which means that the server will attempt to use the dedicated management port on the back of the server for all management functions, which includes discovery and UCS Manager integration.

Problem Symptom

Cisco UCS AMD-based M6 rack servers (C225 and C245) will fail initial automatic discovery under IMM/UCS Manager integration when they attempt to discover using the Cisco card. The servers will not appear as available to be claimed or discovered. Only the dedicated management port will allow for successful discovery, management, or integration until any of the workarounds are performed.

These servers will not be manageable through the Cisco card until a workaround is performed. Instead, they can be managed through the dedicated management port, which is the port marked 8 in this image:

Workaround/Solution

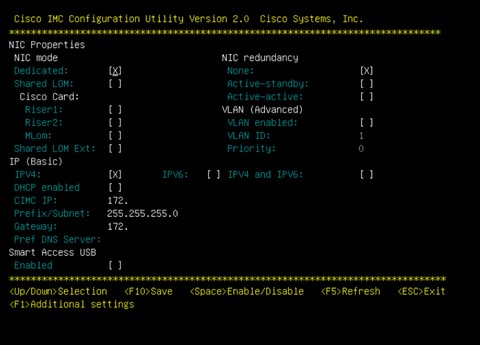

Reset Cisco IMC to factory defaults in order to restore the appropriate management mode option for the server. Alternatively, from the Cisco IMC Configuration Utility, change the NIC mode setting to the appropriate Cisco card. Setting up server management through the dedicated management port is not required in order to reset a server back to factory defaults.

Option 1. Reset Using Local Keyboard, Video, and Mouse

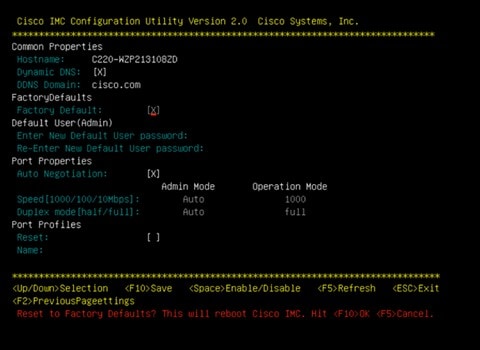

From a local keyboard, video, and mouse (KVM) session, reboot the server into the F8 Configuration Utility and reset to factory defaults. Alternatively, manually change to the desired NIC mode settings which are on the first property page. In order to reset to the defaults, press F1 to show additional settings, choose Factory Default, and then press F10 two times to save the configuration.

Option 2. Reset Using Smart Access Serial

Use the Smart Access Serial or USB connection to connect directly to the Cisco IMC CLI and reset the Cisco IMC to factory defaults. The serial interface is Port 7 in the previous figure. This mode requires authentication to the Cisco IMC with the default password. More details can be found in the Cisco UCS C-Series Servers Integrated Management Controller CLI Configuration Guide, Release 4.2.

The CLI command to reset a server to factory defaults is:

Server# scope server
Server /cimc # factory-default

Option 3. Reset with XML API

Users who have a method to connect to a dedicated management port through DHCP can use the XML Application Programming Interface (API) to perform a bulk Cisco IMC reset to factory defaults or NIC mode change. For information on which APIs to use, see the Cisco UCS Rack-Mount Servers Cisco IMC XML API Programmer's Guide, Release 4.2.
