Field Notice: FN - 72073 - Prime Infrastructure Might Not Render the Background Street Maps in Selected Screens - Workaround Provided

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Revision History

Revision	Publish Date	Comments
1.0	20-Jan-21	Initial Release
1.1	20-Jan-21	Updated the Workaround/Solution Section

Products Affected

Affected OS Type	Affected Software Product	Affected Release	Affected Release Number	Comments
NON-IOS	Prime Infrastructure Software	3	3.2, 3.2.0-FIPS, 3.3.0, 3.4.0, 3.5.0, 3.6.0, 3.7.0, 3.8.0

Defect Information

Defect ID	Headline
CSCvw84325	Prime Infrastructure may not render the background street maps in selected screens

Problem Description

The background maps for select versions of Prime Infrastructure will not be rendered in these user interface pages:

• Inventory > Group Management > Network Device Groups > Location Groups
• Maps > Wireless maps > Site Maps (New)
• Dashboard > Network Summary > Network Health

This issue will be resolved in future Prime Infrastructure code releases expected in 90 days. Continue to monitor your normal download sites for updated code releases.

Background

The current implementation uses third-party MapBox APIs which are discontinued, therefore the maps will not be rendered on these pages:

• Inventory > Group Management > Network Device Groups > Location Groups
• Maps > Wireless maps > Site Maps (New)
• Dashboard > Network Summary > Network Health

Problem Symptom

If the user launches the pages shown, maps might not be rendered as expected.

• Inventory > Group Management > Network Device Groups > Location Groups



• Maps > Wireless maps > Site Maps (New)



• Dashboard > Network Summary > Network Health



Workaround/Solution

If you encounter the issue, follow the workaround for the page:

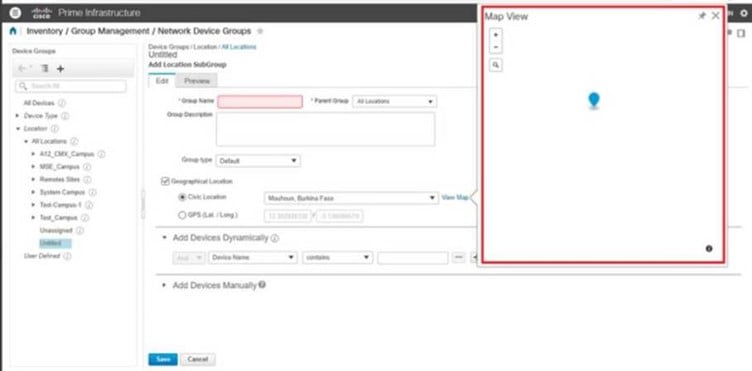

• Page: Inventory > Group Management > Network Device Groups > Location Groups

  Workaround: Enter the Civic Location manually instead of choosing it from the inline popup “View Map”.

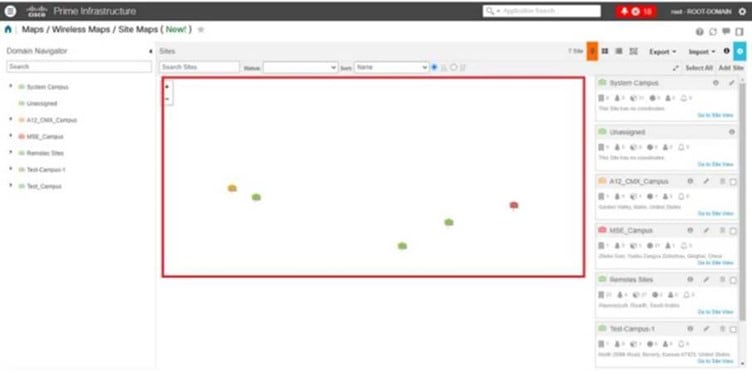

• Page: Maps > Wireless maps > Site Maps (New)

  Workaround: Enter the Civic Location manually instead of choosing it or pinning the navigation pin icon in the Maps view during Add site.

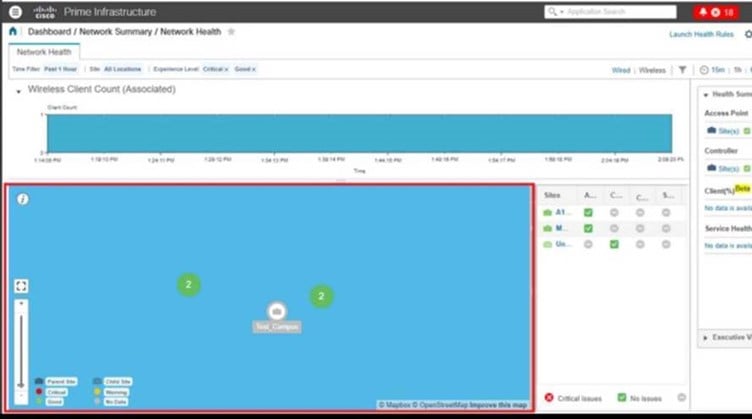

• Page: Dashboard > Network Summary > Network Health

  Workaround: None - future releases will address this page.

All of these issues will be addressed in future releases.

For More Information

If you require further assistance, or if you have any further questions regarding this field notice, please contact the Cisco Systems Technical Assistance Center (TAC) by one of the following methods:

• Open a service request on Cisco.com
• By email or telephone
