Data Sheet

The Cisco® 12000 Series of packet over SONET/SDH (POS) line cards deliver state-of-the-art technology to cost-effectively scale carrier-class IP/Multiprotocol Label Switching (MPLS) packet infrastructures to meet the needs of service providers around the world (Figures 1 and 2). The POS interfaces deliver high-performance, powerful features and a full range of interface types, speeds, and connectors, enabling deployment of high-speed core, peering, and edge applications. The POS line cards provide the ideal solution to meet and exceed the ever-growing demands for higher capacity and service availability.

CISCO ISE POS INTERFACES-DELIVERING ROBUST HIGH-SPEED EDGE FUNCTIONS

Service providers face the challenge of meeting customer demand by building scalable, feature-rich networks that can deliver value-added services such as private IP connectivity; integrated data, voice, and video services; and tiered service offerings-at all interface rates without compromising density or line-rate performance. The Cisco IP Services Engine (ISE) line cards provide the same powerful feature set as the standard POS line cards and also accommodate service provider requirements by providing an extensive set of service-enabling edge features at line rate such as packet classification, congestion avoidance, and low-latency queuing (LLQ).

Figure 1. Cisco 12000 Series 1-Port OC-48c/STM-16c POS ISE Line Card

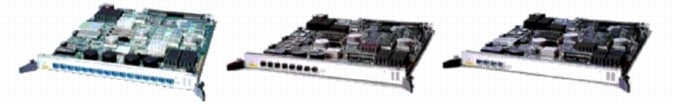

Figure 2. Cisco 12000 Series 16-, 8-, and 4-Port OC-3c/STM-1c POS ISE Line Cards

PRODUCT FEATURES

Table 1 describes the basic features on the Cisco 12000 Series POS line cards.

Table 1. Product Features

Feature

Description

Performance
• Line-rate throughput for IP forwarding and MPLS switching
• Performance sustained in fully loaded system
• No performance drops as quality-of-service (QoS) or accounting features are enabled
Reliability and Availability
• Online insertion and removal (OIR) enabling insertion and removal of line cards without affecting traffic
• Mean time between failure (MTBF) more than 80,000 hours
Network Management
• Cisco IOS ® Software command-line interface (CLI)
• Cisco 12000 Manager for configuration, fault, and performance element management
• Simple Network Management Protocol (SNMP) MIBs:
· SONET/SDH MIB (RFC 2558)
· MIB-II
Statistics and Accounting
• Byte and packet counting per ingress port for IP and MPLS packets
• Byte and packet counting per ingress port for IP and MPLS type-of-service (ToS) bits
• Packet counting for Modified Deficit Round Robin (MDRR) and Weighted Random Early Detection (WRED) functions
• Packet and byte counting for committed-access-rate (CAR) feature
• Counting per ingress port for IP prefixes and Cisco Express Forwarding adjacencies
SONET/SDH Functions
• Error counts for B1, B2, and B3
• Threshold crossing alerts (TCAs), far end block error path (FEBE) for B1, B2, and B3 with threshold that can be set
• Loss of signal (LOS), loss of frame (LOF), line alarm indicator signal (LAIS), path alarm indicator signal (PAIS), loss of pointer (LOP), line remote defect indicator (LRDI), path remote defect indicator (PRDI), signal failure (SF), signal degrade (SD), line remote error indicator (line FEBE), and path remote error indicator (path FEBE)
• Performance monitoring: Error counts for B1, B2, and B3; TCAs; and FEBE for B1, B2, and B3 with threshold that can be set
• Synchronization
· Local (internal) or loop timed (recovered from network)
· Stratum 3 clock accuracy over full operating temperature
· Pointer activity monitoring
• Local (diagnostic) and line (network) loopback
• Payload mapping
· 1 + X 43 self-synchronous scrambler

PRODUCT SPECIFICATIONS

Table 2 provides specifications for the different Cisco 12000 Series POS line cards.

Table 2. Product Specifications

Line Card and Description

Forwarding Engine

Cisco IOS Software Release

Chassis Supported

Per-Chassis Port Densities

Per-Rack Port Densities

2-Port OC-192c POS
2-Port OC-192c/STM-64c POS

Engine 6

• 12.0(27)S
• Cisco 12816
• Cisco 12810
• 30 ports
• 18 ports
• 30 ports
• 36 ports
1-Port OC-192c POS ES
1-Port OC-192c/STM-64c POS ES

Engine 4+

• 12.0(21)S
• 12.0(21)ST
• Cisco 12416
• Cisco 12816
• Cisco 12410
• Cisco 12810
• Cisco 12406
• Cisco 12404
• 15 ports
• 15 ports
• 9 ports
• 9 ports
• 5 ports
• 3 ports
• 15 ports
• 15 ports
• 18 ports
• 18 ports
• 20 ports
• 24 ports
8-Port OC-48c POS
8-Port OC-48c/STM-16c POS

Engine 6

• 12.0(27)S
• Cisco 12816
• Cisco 12810
• 120 ports
• 72 ports
• 120 ports
• 144 ports
4-Port OC-48c POS ES
4-Port OC-48c/STM-16c POS ES

Engine 4+

• 12.0(21)S
• 12.0(21)ST
• Cisco 12416
• Cisco 12816
• Cisco 12410
• Cisco 12810
• Cisco 12406
• Cisco 12404
• 60 ports
• 60 ports
• 36 ports
• 36 ports
• 20 ports
• 12 ports
• 60 ports
• 60 ports
• 72 ports
• 72 ports
• 80 ports
• 96 ports
1-Port OC-48c POS ISE
1-Port OC-48c/STM-16c POS ISE

Engine 3

• 12.0(21)S
• 12.0(21)ST
• Cisco 12x16
• Cisco 12x10
• Cisco 12x06
• Cisco 12x04
• 15 ports
• 9 ports
• 5 ports
• 3 ports
• 15 ports
• 18 ports
• 20 ports
• 24 ports
4-Port OC-12c POS ISE
4-Port OC-12c/STM-4c POS ISE

Engine 3

• 12.0(21)S
• 12.0(21)ST
• Cisco 12x16
• Cisco 12x10
• Cisco 12x06
• Cisco 12x04
• 60 ports
• 36 ports
• 20 ports
• 12 ports
• 60 ports
• 72 ports
• 80 ports
• 96 ports
16-Port OC-3c POS ISE
16-Port OC-3c/STM-1c POS ISE

Engine 3

• 12.0(21)S
• 12.0(21)ST
• Cisco 12x16
• Cisco 12x10
• Cisco 12x06
• Cisco 12x04
• 240 ports
• 144 ports
• 80 ports
• 48 ports
• 240 ports
• 288 ports
• 320 ports
• 384 ports
8-Port OC-3c POS ISE
8-Port OC-3c/STM-1c POS ISE

Engine 3

• 12.0(22)S
• Cisco 12x16
• Cisco 12x10
• Cisco 12x06
• Cisco 12x04
• 120 ports
• 72 ports
• 40 ports
• 24 ports
• 120 ports
• 144 ports
• 160 ports
• 192 ports
4-Port OC-3c POS ISE
4-Port OC-3c/STM-1c POS ISE

Engine 3

• 12.0(22)S
• Cisco 12x16
• Cisco 12x10
• Cisco 12x06
• Cisco 12x04
• 60 ports
• 36 ports
• 20 ports
• 12 ports
• 60 ports
• 72 ports
• 80 ports
• 96 ports

PHYSICAL AND ELECTRICAL SPECIFICATIONS

Table 3 provides details about the physical and electrical specifications of the different Cisco 12000 Series POS line cards.

Table 3. Physical and Electrical Specifications

Line Card

Dimensions

Weight

Power

Route Memory (default and maximum)

LEDs

2-Port OC-192c POS
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

9.51 lb (4.32 kg)

174W Maximum

• Default: 512 MB
• Maximum: 512 MB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
1-Port OC-192c POS ES
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

9.51 lb (4.32 kg)

174W Maximum

• Default: 256 MB
• Maximum: 512 MB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
8-Port OC-48c POS
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

9.51 lb (4.32 kg)

174W Maximum

• Default: 512 MB
• Maximum: 512 MB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
4-Port OC-48c POS ES
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

10.21 lb (4.64 kg)

214W Maximum

• Default: 256 MB
• Maximum: 512 MB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
1-Port OC-48c POS ISE
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

6.0 lb (2.7 kg)

140W Maximum

• Default: 256 MB
• Maximum: 1 GB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
4-Port OC-12c POS ISE
• Height: 14 in. (35.6 cm)
• Depth: 18 in. (45.7 cm)

6.0 lb (2.7 kg)

140W Maximum

• Default: 256 MB
• Maximum: 1 GB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
16-Port OC-3c POS ISE
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

6.0 lb (2.7 kg)

196W Maximum

• Default: 256 MB
• Maximum: 1 GB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
8-Port OC-3c POS ISE
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

6.0 lb (2.7 kg)

196W Maximum

• Default: 256 MB
• Maximum: 1 GB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display
4-Port OC-3c POS ISE
• Height: 14.5 in. (36.5 cm)
• Depth: 18 in. (45.7 cm)

6.0 lb (2.7 kg)

196W Maximum

• Default: 256 MB
• Maximum: 1 GB
• Enable
• Receive carrier
• Receive packets
• Alphanumeric management display

OPTICAL SPECIFICATIONS

Table 4 provides details about the optical specifications of the different Cisco 12000 Series POS line cards.

Table 4. Optical Specifications

Line Card

Tx

Power

Rx

Power

Po (dB)

DSRmax* ps/nm

Target Distance (km)**

Rx Wavelength (nm)

Tx Wave-length (nm)

Fiber Type***

Compliance****


P Tmax (dBm)
P Tmin (dBm)
P Rmax (dBm)
P Rmin (dBm)

Telcordia
ITU
OC-192

GR-253

G.691

OC-192 SR-1

-1

-6

-1

-11

1

6.6

2

1260-1600

1290-1330

G.652

SR-1

I-64.1

OC-192 IR

2

-1

-1

-14

2

800

40

1260-1600

1530-1565

G.652

IR-2

S-64.2b

OC-192 LR

7

4

-9

-22

2

1600

80

1260-1600

1530-1565-

G.652

Cisco LR

S-64.2b

OC-48

GR-253

G.957

OC-48/POS-SR-xx and OC-48/SRP-SR-SC

-3

-10

-3

-18

1

12

2

1260-1600

1266-1360

G.652

SR-1

I-16

OC-48/POS-1550-xx***** and OC-48/SRP-LR-SC

+3

-2

-9

-28

2

1600

80

1260-1600

1500-1580

G.652 G.654***

LR-2

L-16.2

OC-48 Pluggable Optic Modules

POM-OC48-SR-LC

-3

-10

-3

-18

1

12

2

1260-1600

1266-1360

G.652

SR-1

I-16

POM-OC48-IR1-LC

0

-5

0

-18

1

-

15

1260-1600

1266-1360

G.652

IR-1

S-16.1

POM-OC48-LR2-LC

3

-2

-9

-28

2

1600

80

1260-1600

1500-1580

G.652

LR-2

L-16.2

OC-12

GR-253

G.957

OC-12/POS-MM****** and OC-12/SRP-MM******

-14

-20

-14

-23

-

-

-



-

-

NA

NA

OC-12/POS-SM and OC-12/SRP-SM

-8

-15

-8

-28

1

46 (74)

15

1260-1600

1293-1334

G.652

IR-1

S-4.1

OC-3

GR-253

G.957

OC-3 POS-MM******

-14

-20

-14

-23

1

-

-



-

-

NA

NA

OC-3 POS-SM

-8

-15

-8

-28

1

96

15

1260-1600

1261-1360

G.652

IR-1

S-1.1

OC-3 POS-LR

0

-5

-10

-34

1

246

(NA)

40

1260-1600

1263-1360

G.652

LR-1

L-1.1

* In some cases there are two different types of lasers with different spectral widths specified in one application code. Different spectral widths introduce different values of D SRmax.
** Target distances are used for classification only and not for specification.
*** Either G.652 or G.654 fiber can be used for long-reach (LR) applications. G.654 has low fiber attenuation at 1550-nm wavelength.
**** Contact your Cisco account team for details about compliance level to these standards.
***** xx=SC or FC connectors
****** There are no Telcordia or ITU specifications for multimode SONET/SDH interfaces.

Note: Cisco 1-port OC-192c/STM-64c POS and DPT line cards with short reach (SR)-2 optics are compliant with GR-1337-CORE.

TELCORDIA AND ITU OPTICAL INTERFACE STANDARDS

Table 5 gives details about Telcordia and ITU interface standards.

Table 5. Telcordia and ITU Optical Interface Standards

Telcordia

ITU

SR-1

I-64.1

LR

IR-2

S-64.2b

SR-1

I-16

LR-2 L-16.2

IR-1

S-4.1

IR-1

S-1.1

LR-1

L-1.1

System

OC-192

OC-192

OC-192

OC-48

OC-48

OC-12

OC-3

OC-3

Transmitter

SLM (DFB)



SLM (DFB)

MLM (FP)

SLM (DFB)

MLM (FP)

MLM (FP)

MLM/SLM*

Tx Wavelength (nm)

1290-1330

1530-1565

1530-1565

1266-1360

1500-1580

1293-1334

1261-1360

1263-1360

Rx Wavelength (nm)

1260-1600

1260-1600

1260-1600

1260-1600

1260-1600

1260-1600

1260-1600

1260-1600

P Tmax (dBm)

-1

7

2

-3

3

-8

-8

0

P Tmin (dBm)

-6

4

-1

-10

-2

-15

-15

-5

Dlrms (nm)

-

-

-

4

-

4, (2.5)**

7.7

3/NA*

Dl 20 (nm)

1

-

NA

-

<1

-

-

NA/1

Receiver

P Rmax (dBm)

-1

-9

-1

-3

-9

-8

-8

-10

P Rmin (dBm)

-11

-22

-14

-18

-28

-28

-28

-34

Optical Path

Target Distance (km) 3

2

80

40

2

80

15

15

40

Path Penalty Po (dB)

1

2

2

1

2

1

1

1

Link Budget (dB)

4

24

11

8

26

13

13

29

D SRmax (ps/nm)

6.6

1600

800

12

1600

46, (74)**

96

246/NA*

Fiber Type

G.652

G.652

G.652

G. 652

G.652, G.654

G.652

G.652

G.652

* Both MLM and SLM lasers are specified. If the transmitter is an MLM laser, the specification for the MLM laser should be applied. If the transmitter is an SLM laser, the specification for the SLM laser should be applied.
** In OC-12, I-1, S-4.1, if maximum Δλrms of MLM laser ≤2.5nm, then the D SRmax=74. If maximum Δλrms of MLM laser ≤4 nm and ≥2.5 nm, then the D SRmax=46.
*** The target distances are to be used for classification only and not for specification.

ENVIRONMENTAL APPROVALS AND COMPLIANCE

Table 6 gives standards-compliance information for the Cisco 12000 Series POS line cards.

Table 6. Compliance and Agency Approvals

Feature

Description

Environmental
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -4 to 149°F (-20 to 65°C)
• Relative humidity:
· 10 to 90%, noncondensing, operating conditions
· Up to 95%, noncondensing, nonoperating conditions
Safety
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950
• EN60825/IEC 60825 Laser Safety
• FDA - Code of Federal Regulations (USA) Laser Safety
EMI
• FCC Part 15 Class A
• ICES 003 Class A
• AS/NZS Class A
• CISPR 22 (insert Class A or Class B (up to 1 GHz)
• EN55022 (insert Class A or Class B (up to 1 GHz)
• VCCI Class A
• BSMI Class A
• IEC/EN61000-3-2 Power Line Harmonics
• IEC/EN61000-3-3 Voltage Fluctuations and Flicker
• Note 1: Group 1 systems meet CISPR/EN55022 Class B (up to 1 GHz). Group 2 systems meet CISPR/EN55022 Class A. Use Class B (up to 1 GHz) for line cards designed for use in Group 1 systems. New chassis not requiring Class B explicitly should use Class A.
• Group 1: Cisco 12006, 12010, 12404, 12406, 12410, 12016, 12416, 12810, and 12816
• Group 2: Cisco 12008 and 12012
Immunity (Basic Standards)
• IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)
• IEC/EN61000-4-3 Radiated Immunity (10 V/m)
• IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)
• IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)
• IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)
• IEC/EN61000-4-5 Surge DC Port (1 kV)
• IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)
• IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)
• IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
ETSI and EN
• EN 300 386 Telecommunications Network Equipment (EMC)
• EN55022 Information Technology Equipment (Emissions)
• EN55024 Information Technology Equipment (Immunity)
• EN50082-1/EN61000-6-1 Generic Immunity Standard
Network Equipment Building Standards (NEBS)

This product is designed to meet the following requirements:

• GR-1089-CORE EMC and Safety
• GR-63-CORE Physical Protection
• SR-3580 NEBS Criteria Levels (Level 3)

ORDERING INFORMATION

To place an order, contact your local Cisco Systems ® representative or visit the ordering page on the Cisco Website. Use the ordering information in Table 7.

Table 7. Ordering Information

Product Part Number

Description

2OC192/POS-IR-SC(=)

2-port OC-192c/STM-64c POS line card, IR optics (Engine 6)

2OC192/POS-SR-SC(=)

2-port OC-192c/STM-64c POS line card, SR optics (Engine 6)

2OC192/POS-VSR(=)

2-port OC-192c/STM-64c POS line card, very-short-reach (VSR) optics (Engine 6)

OC192E/POS-LR-SC(=)

1-port OC-192/STM-64 POS line card, LR optics (Engine 4+)

OC192E/POS-IR-SC(=)

1-port OC-192c/STM-64c POS line card, IR optics (Engine 4+)

OC192E/POS-SR-SC(=)

1-port OC-192c/STM-64c POS line card, SR optics (Engine 4+)

OC192E/POS-VSR(=)

1-port OC-192c/STM-64c POS line card, VSR optics (Engine 4+)

8OC-48/POS-SFP(=)

8-port OC-48c/STM-16c POS line card, Small Form-Factor Pluggable (SFP) optics (Engine 6)

OC48X/POS-LR-SC(=)

1-port OC-48c/STM-16c POS line card, LR optics (Engine 3)

OC48X/POS-SR-SC(=)

1-port OC-48c/STM-16c POS line card, SR optics (Engine 3)

4OC48E/POS-LR-SC(=)

4-port OC-48c/STM-16c POS line card, LR optics (Engine 4+)

4OC48E/POS-SR-SC(=)

4-port OC-48c/STM-16c POS line card, SR optics (Engine 4+)

4OC12X/POS-M-SC-B(=)

4-port OC-12/STM-4c POS line card, multimode optics (Engine 3)

4OC12X/POS-I-SC-B(=)

4-port OC-12/STM-4c POS line card, multimode optics (Engine 3)

16OC3X/POS-I-LC-B(=)

16-port OC-3/STM-1 POS line card, IR optics (Engine 3)

16OC3X/POS-M-MJ-B(=)

16-port OC-3/STM-1 POS line card, multimode optics (Engine 3)

8OC3X/POS-IR-LC-B(=)

8-port OC-3/STM-1 POS line card, IR optics (Engine 3)

8OC3X/POS-MM-MJ-B(=)

8-port OC-3/STM-1 POS line card, multimode optics (Engine 3)

4OC3X/POS-LR-LC-B(=)

4-port OC-3/STM-1 POS line card, LR optics (Engine 3)

4OC3X/POS-IR-LC-B(=)

4-port OC-3/STM-1 POS line card, IR optics (Engine 3)

4OC3X/POS-MM-MJ-B(=)

4-port OC-3/STM-1 POS line card, multimode optics (Engine 3)

SERVICE AND SUPPORT

Cisco Systems delivers innovative services programs through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, contact your local Cisco representative or visit the Cisco Website.

FOR MORE INFORMATION

For more information about the Cisco 12000 Series POS interfaces, contact your local Cisco representative or visit: http://www.cisco.com/go/12000
