Cisco 2000 Series Connected Grid Routers

8-port Asynchronous Synchronous Serial GRWIC for the Cisco 2010 Connected Grid Router Data Sheet

  • Viewing Options

  • PDF (284.3 KB)
  • Feedback

The Cisco® Connected Grid portfolio of solutions is designed specifically for the harsh, rugged environments often found in the energy and utility industries. These solutions include the Cisco 2010 Connected Grid Router (CGR 2010) and the Cisco 2520 Connected Grid Switch (CGS 2520), which have been designed to support the communications infrastructure needs of the energy delivery infrastructure across the generation, transmission, and distribution sectors. This infrastructure includes utility- and customer-owned energy infrastructure such as substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, co-generation, and trackside operations. The infrastructure also includes communications infrastructure for delivery applications such as transmission pipelines, distribution mains, and service lines for oil and gas and water. Designed for highly secure, reliable, and scalable infrastructure, the CGR 2010 and CGS 2520 are an ideal platform to support the Smart Grid and other energy delivery infrastructure needs of customers. These ruggedized products have been extensively tested and are KEMA certified to meet challenging substation compliance standards, including IEEE 1613 and IEC 61850-3.

The 8-port Asynchronous/Synchronous Grid Router WAN Interface Card (GRWIC) provides low-speed synchronous/asynchronous serial connections supporting EIA-RS232 for the Cisco CGR 2010. The 8-port serial RS-232 GRWIC helps customers to enable applications such as legacy protocol transport, console server, and dial access server. Combining a high-density serial GRWIC with the Cisco CGR 2010 enables energy networks to transport mission-critical communication such as Supervisory Control and Data Acquisition (SCADA) over an IP network.

Figure 1. 8-port Asynchronous/Synchronous GRWIC

HKK08033


Common Applications

These highly flexible interface cards enable several important applications.

Legacy Protocol Transport

For example, utility companies are migrating their substations from serial to ethernet communications. Given the amount of serial communications that exist in substations today, the migration will take place over a number of years. An 8-port Async/Sync serial module in the Cisco CGR 2010 helps utilities to transport legacy SCADA traffic across a TCP/IP network. The serial interfaces provide a converged communications solution while utilities migrate from serial-based Remote Terminal Units (RTUs) to ethernet-enabled RTUs and Intelligent Electronic Devices (IEDs). This capability enables network convergence, eliminating costly separate leased lines for this traffic. Legacy protocols supported by Cisco IOS® Software include:

Bi-Synchronous Tunnel Protocol (BSTUN)

Systems Network Architecture (SNA) and Synchronous Data Link Control (SDLC) Protocol

Binary Synchronous Communications Protocol (Bisync)

Console and Terminal Server

Asynchronous ports provide highly flexible connections that allow access to EIA-232 devices across a TCP/IP network. This access allows out-of-band management to console or craft ports, enabling the network operator to manage anetwork of remote devices from a central location (Figure 3).

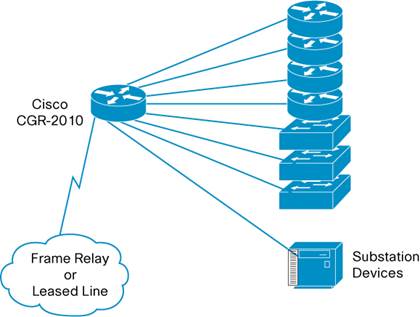

Figure 2. Managing Multiple Remote Devices from a Single Location

fig03


Connectors and Cabling

The 8-port serial GRWIC has connectors and cabling that allow high port densities in the compact GRWIC form factor. Table 1 show connector and cabling specifications.

High-Density Synchronous/Asynchronous Cabling

The 8-Port Asynchronous/Synchronous GRWIC uses two high-density 4-port connectors. Each connector supports four ports of EIA-232 with data communications equipment (DCE) or data terminal equipment (DTE) interfaces. All four ports on one cable use the same DTE/DCE mode. Table 1 outlines the cable specifications for the 8-Port Async/Sync RS-232 GRWIC.

Table 1. High-Density Synchronous/Asynchronous Cabling for the 8-port Async/Sync RS-232 GRWIC

Product Number

Cable Type

Length

Connector Type

CAB-HD4-232FC

4-port EIA-232 DCE

10 ft (3 m)

Female DB-25

CAB-HD4-232MT

4-port EIA-232 DTE

10 ft (3 m)

Male DB-25

CAB-QUAD-ASYNC-F

4-port EIA-232 DTE

18 in (0.46 m)

Female RJ-45

CAB-QUAD-ASYNC-M

4-port EIA-232 DTE

10 ft (3 m)

Male RJ-45

CAB-9AS-M

4-port EIA-232 DTE

10 ft (3 m)

Male DB-9

Platform Support

The 8-port Asynchronous/Synchronous RS-232 GRWIC is a ruggedized module supported on the Cisco Connected Grid Router 2000 Series. It is not supported on the ISR-G2 family of routers. Table 2 outlines the minimum Cisco IOS Software release support for this GRWIC module.

Table 2. Minimum Cisco IOS Software Release Supported

Cisco 2935R Integrated Services Router

Minimum IOS Release

15.1(1)T

Minimum IOS Technology Package

IP Base

Specifications

The specifications of the 8-port Async/Sync RS-232 GRWIC are listed in Table 3.

Table 3. GRWIC Specifications

Specification

HWIC-8A/S-232

Synchronous Support

Yes

Synchronous Maximum Speed (per port)

256 kbps

Asynchronous Support

Yes

Asynchronous Maximum Speed (per port)

230.4 kbps

Bisync Support

Yes

Serial Protocols

EIA-232

Lead Manipulation

Yes

Network Clock Synchronization

Yes


Common Specifications

The specifications listed below apply to the 8-port Async/Sync RS-232 GRWIC.

Feature

Specification

Environmental Specifications

Operating Conditions

Environmental Substation Compliance

IEC-61850-3

IEEE1613

Operating Temperature

-40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range

-40 ºF to 185ºF (-40 to +85ºC) type test for 100 hours at 85ºC

Shock/Vib

30G @11 ms

Altitude

10,000 ft (3,048 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008

Relative Humidity

5 to 95% non-condensing

Non-operating Conditions

Temperature

–40ºF to 185ºF (–40ºC to 85ºC)

Relative Humidity

5 to 95% non-condensing

Altitude

16,000 ft (4,876 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008

Non-Op Free Fall Drop

4in. (100 mm) per ENG-339611

Operating Seismic/Earthquake

NEBS GR-63 (5.4.1)

Non-Op Shock/Vib

40-50G (3.26 m/s minimum)

Regulatory Compliance and Safety*

Immunity

EN61000-6-2

EN61000-4-2 (ESD)

EN61000-4-3 (RF)

EN61000-4-4 (EFT)

EN61000-4-5 (SURGE)

EN61000-4-6 (CRF)

EN61000-4-11 (VDI)

EN 55024, CISPR 24

EN50082-1

EMC

47 CFR, Part 15

ICES-003 Class A

EN55022 Class A

CISPR22 Class A

AS/NZS 3548 Class A

VCCI V-3

CNS 13438

EN 300-386

Safety

USA: UL 60950-1

Canada: CAN/CSA C22.2 No. 60950-1

Europe: EN 60950-1

China: GB 60950-1

Australia/New Zealand: AS/NZS 60950-1

Rest of World: IEC 60950-1

CSA certified to UL/CSA 60950-1, 2nd Ed.

CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations

Telecom

US: TIA-968-A

CA: CS-03

EU: TBR1, 2, 4, 12, 13

RTTE Directive

Australia: AS/ASIF S016, S038

Japan: JATE

Telecom Interface Standards

RS-232 GRWIC: RS232, ITU-T V.11

Physical Specifications

Form Factor

Single-wide GRWIC, no slot restrictions

Dimensions

2.52 x 3.0 x 7.81 in. (6.4 x 7.6 x 19.8 cm)

Weight

0.84 lb (0.38 kg)


* For more information, consult the Product Approval Database http://www.ciscofax.com or consult your local Cisco representative (Cisco.com login required).

Product Part Numbers

Connected Grid Router WIC

GRWIC-8A/S-232

8-Port Async/Sync Serial GRWIC, EIA-232

GRWIC-8A/S-232=

8-Port Async/Sync Serial GRWIC, EIA-232, spare

Cisco and Partner Services

Services from Cisco and our certified partners can help you transform the network, and accelerate business innovation across the grid & enterprise. We have the depth and breadth of expertise to create a clear, replicable, optimized branch footprint across technologies. Planning and design services align technology with business goals and can increase the accuracy, speed, and efficiency of deployment. Technical services help improve operational efficiency, save money, and mitigate risk. Optimization services are designed to continuously improve performance and help your team succeed with new technologies. For more information, visit http://www.cisco.com/go/services.

For more information on the Cisco CGR 2010 please visit: http://www.cisco.com/go/cgr2000
