Part 1: Models and Technologies
by T. Sridhar
Cloud computing is an emerging area that affects IT infrastructure, network services, and applications. Part 1 of this article introduces various aspects of cloud computing, including the rationale, underlying models, and infrastructures. Part 2 will provide more details about some of the specific technologies and scenarios.
The term "cloud computing" has different connotations for IT professionals, depending upon their point of view and often their own products and offerings. As with all emerging areas, real-world deployments and customer success stories will generate a better understanding of the term. This discussion starts with the National Institute of Standards and Technology (NIST) definition:
"Cloud computing is a model for enabling convenient, on-demand network access to a shared pool of configurable computing resources (for example, networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction."
The following is a list of characteristics of a cloud-computing environment. Not all characteristics may be present in a specific cloud solution.
Cloud computing involves shifting the bulk of the costs from capital expenditures (CapEx), or buying and installing servers, storage, networking, and related infrastructure) to an operating expense (OpEx) model, where you pay for usage of these types of resources. Figure 1 provides a context diagram for the cloud.
How Is Cloud Computing Different from Hosted Services?
From an infrastructure perspective, cloud computing is very similar to hosted services—a model established several years ago. In hosted services, servers, storage, and networking infrastructure are shared across multiple tenants and over a remote connection with the ability to scale (although scaling is done manually by calling or e-mailing the hosting provider). Cloud computing is different in that it offers a pay-per-use model and rapid (and automatic) scaling up or down of resources along with workload migration. Interestingly, some analysts group all hosted services under cloud computing for their market numbers.
Virtualization and Its Effect on Cloud Computing
It can be argued to good effect that cloud computing has accelerated because of the popularity and adoption of virtualization, specifically server virtualization. So what is virtualization? Here, virtualization software is used to run multiple Virtual Machines (VMs) on a single physical server to provide the same functions as multiple physical machines. Known as a hypervisor, the virtualization software performs the abstraction of the hardware to the individual VMs.
Virtualization is not new—it was first invented and popularized by IBM in the 1960s for running multiple software contexts on its mainframe computers. It regained popularity in the past decade in data centers because of server usage concerns. Data centers and web farms consisted of multiple physical servers. Measurement studies on these server farms noted that individual server usage was often as low as 15 percent for various reasons, including traffic loads and the nature of the applications (available, not always used fully), among others. The consequence of this server sprawl with low usage was large financial outlays for both CapEx and OpEx—extra machines and related power and cooling infrastructure and real estate.

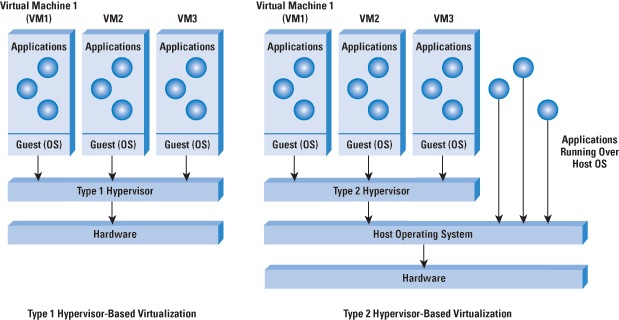

Enter virtualization. A hypervisor is implemented on a server either directly running over the hardware (a Type 1 hypervisor) or running over an operating system (OS) (a Type 2 hypervisor). The hypervisor supports the running of multiple VMs and schedules the VMs along with providing them a unified and consistent access to the CPU, memory, and I/O resources on the physical machine. A VM typically runs an operating system and applications. The applications are not aware that they are running in a virtualized environment, so they do not need to be changed to run in such an environment. Figure 2 depicts these scenarios. The OS inside the VM may be virtualization—aware and require modifications to run over a hypervisor—a scheme known as paravirtualization (as opposed to full virtualization).
VM Migration: An Advantage of Virtualization
Some vendors have implemented VM migration in their virtualization solution—a big advantage for application uptime in a data center. What is VM migration? Consider the case of a server with a hypervisor and several VMs, each running an OS and applications. If you need to bring down the server for maintenance (say, adding more memory to the server), you have to shut down the software components and restart them after the maintenance window—significantly affecting application availability. VM migration allows you to move an entire VM (with its contained operating system and applications) from one machine to another and continue operation of the VM on the second machine. This advantage is unique to virtualized environments because you can take down physical servers for maintenance with minimal effect on running applications.
You can perform this migration after suspending the VM on the source machine, moving its attendant information to the target machine and starting it on the target machine. To lower the downtime, you can perform this migration while the VM is running (hence the name "live migration") and resuming its operation on the target machine after all the state is migrated.
The following are some of the benefits of virtualization in a cloud-computing environment:
It must be clarified that virtualization is not a prerequisite for cloud computing. In fact, there are examples of large cloud service providers using only commodity hardware servers (with no virtualization) to realize their infrastructure. However, virtualization provides a valuable toolkit and enables significant flexibility in cloud-computing deployments.
Major Models in Cloud Computing
This section discusses some popular models of cloud computing that are offered today as services. Although there is broad agreement on these models, there are variations based on specific vendor offerings—not surprising during these early days of cloud computing.
Software as a Service
Consider the case of an enterprise with its set of software licenses for the various applications it uses. These applications could be in human resources, finance, or customer relationship management, to name a few. Instead of obtaining desktop and server licenses for software products it uses, an enterprise can obtain the same functions through a hosted service from a provider through a network connection. The interface to the software is usually through a web browser. This common cloud-computing model is known as Software as a Service (SaaS) or a hosted software model; the provider is known as the SaaS Provider.
SaaS saves the complexity of software installation, maintenance, upgrades, and patches (for example, for security fixes) for the IT team within the enterprise, because the software is now managed centrally at the SaaS provider's facilities. Also, the SaaS provider can provide this service to multiple customers and enterprises, resulting in a multitenant model. The pricing of such a SaaS service is typically on a per-user basis for a fixed bandwidth and storage. Monitoring application-delivery performance is the responsibility of the SaaS provider. Salesforce.com is an example of a SaaS provider. The company was founded to provide hosted software services, unlike some of the software vendors that have hosted versions of their conventional offerings.
Platform as a Service
Unlike the fixed functions offered by SaaS, Platform as a Service (PaaS) provides a software platform on which users can build their own applications and host them on the PaaS provider's infrastructure. The software platform is used as a development framework to build, debug, and deploy applications. It often provides middleware-style services such as database and component services for use by applications. PaaS is a true cloud model in that applications do not need to worry about the scalability of the underlying platform (hardware and software). When enterprises write their application to run over the PaaS provider's software platform, the elasticity and scalability is guaranteed transparently by the PaaS platform.
The platforms offered by PaaS vendors like Google (with its App-Engine) or Force.com (the PaaS offering from Salesforce.com) require the applications to follow their own Application Programming Interface (API) and be written in a specific language. This situation is likely to change but is a cause for concerns about lock-in. Also, it is not easy to migrate existing applications to a PaaS environment. Consequently, PaaS sees the most success with new applications being developed specifically for the cloud. Monitoring application-delivery performance is the responsibility of the PaaS provider. Pricing for PaaS can be on a per-application developer license and on a hosted-seats basis. Note that PaaS has a greater degree of user control than SaaS.
Infrastructure as a Service
Amazon is arguably the first major proponent of Infrastructure as a Service (IaaS) through its Elastic Computing Cloud (EC2) service. An IaaS provider offers you "raw" computing, storage, and network infrastructure so that you can load your own software, including operating systems and applications, on to this infrastructure. This scenario is equivalent to a hosting provider provisioning physical servers and storage and letting you install your own OS, web services, and database applications over the provisioned machines. Amazon lets you rent servers with a certain CPU speed, memory, and disk capacity along with the OS and applications that you need to have installed on them (Amazon provides some "canned" software for the OS and applications known as Amazon Machine Images [AMIs], so that is one starting point). However, you can also install your own OSs (or no OS) and applications over this server infrastructure.
IaaS offers you the greatest degree of control of the three models. You need to know the resource requirements for your specific application to exploit IaaS well. Scaling and elasticity are your—not the provider's—responsibility. In fact, it is a mini do-it-yourself data center that you have to configure to get the job done. Interestingly, Amazon uses virtualization as a critical underpinning of its EC2 service, so you actually get a VM when you ask for a specific machine configuration, though VMs are not a prerequisite for IaaS. Pricing for the IaaS can be on a usage or subscription basis. CPU time, storage space, and network bandwidth (related to data movement) are some of the resources that can be billed on a usage basis.
In summary, these are three of the more common models for cloud computing. They have variations and add-ons, including Data Storage as a Service (providing disk access on the cloud), communications as a service (for example, a universal phone number through the cloud), and so on.
Public, Private, and Internal Clouds
We have focused on cloud service providers whose data centers are external to the users of the service (businesses or individuals). These clouds are known as public clouds—both the infrastructure and control of these clouds is with the service provider. A variation on this scenario is the private cloud. Here, the cloud provider is responsible only for the infrastructure and not for the control. This setup is equivalent to a section of a shared data center being partitioned for use by a specific customer. Note that the private cloud can offer SaaS, PaaS, or IaaS services, though IaaS might appear to be a more natural fit.
An internal cloud is a relatively new term applied to cloud services provided by the IT department of an enterprise from the company's own data centers. This setup might seem counterintuitive at first—why would a company run cloud services for its internal users when public clouds are available? Doesn't this setup negate the advantages of elasticity and scalability by moving this service to inside the enterprise?
It turns out that the internal cloud model is very useful for enterprises. The biggest concerns for enterprises to move to an external cloud provider are security and control. CIOs are naturally cautious about moving their entire application infrastructure and data to an external cloud provider, especially when they have several person-years of investment in their applications and infrastructure as well as elaborate security safeguards around their data. However, the advantages of the cloud—resiliency, scalability, and workload migration—are useful to have in the company's own data centers. IT can use per-usage billing to monitor individual business unit or department usage of the IT resources and charge them back. Controlling server sprawl through virtualization and moving workloads to geographies and locations in the world with lower power and infrastructure costs are of value in a cloud-computing environment. Internal clouds can provide all these benefits.
This classification of clouds as public, private, and internal is not universally accepted. Some researchers see the distinction between private and internal clouds to be a matter of semantics. In fact, the NIST draft definition considers a private cloud to be the same as an internal cloud. However, the concepts are still valid and being realized in service provider and enterprise IT environments today.
When Does Cloud Computing Make Sense?
Outsourcing your entire IT infrastructure to a cloud provider makes sense if your deployment is a "green field" one, especially in the case of a startup. Here, you can focus on your core business without having to set up and provision your IT infrastructure, especially if it primarily involves basic elements such as e-mail, word processing, collaboration tools, and so on. As your company grows, the cloud-provided IT environment can scale along with it.
Another scenario for cloud usage is when an IT department needs to "burst" to access additional IT resources to fulfill a short-term requirement. Examples include testing of an internally developed application to determine scalability, prototyping of "nonstandard" software to evaluate suitability, execution of a one-time task with an exponential demand on IT resources, and so on. The term cloud bursting is sometimes used to describe this scenario. The cloud resources may be loosely or tightly coupled with the internal IT resources for the duration of the cloud bursting. In an extremely loosely coupled scenario, only the results of the cloud bursting are provided to the internal IT department. In the tightly coupled scenario, the cloud resources and internal IT resources are working on the same problem and require frequent communication and data sharing.
In some situations cloud computing does not make sense for an enterprise. Regulation and legal considerations may dictate that the enterprise house, secure, and control data in a specific location or geographical area. Access to the data might need to be restricted to a limited set of applications, all of which need to be internal. Another situation where cloud computing is not always the best choice is when application response time is critical. Internal IT departments can plan their server infrastructure and the network infrastructure to accommodate the response-time requirements. Although some cloud providers provide high-bandwidth links and can specify Service-Level Agreements (SLAs) (especially in the case of SaaS) for their offerings, companies might be better off keeping such demanding applications in house.
An interesting variation of these scenarios is when companies outsource their web front ends to a cloud provider and keep their application and database servers internal to the enterprise. This setup is useful when the company is ramping up its offerings on the web but is not completely certain about the demand. It can start with a small number of web servers and scale up or down according to the demand. Also, acceleration devices such as Application Delivery Controllers (ADCs) can be placed in front of the web servers to ensure performance. These devices provide server load balancing, Secure Sockets Layer (SSL) front ends, caching, and compression. The deployment of these devices and the associated front-end infrastructure can be completely transparent to the company; it only needs to focus on the availability and response time of its application behind the web servers.
Cloud Computing Infrastructure
The most significant infrastructure discussion is related to the data center, the interconnection of data centers, and their connectivity to the users (enterprises and consumers) of the cloud service.
A simple view of the cloud data center is that it is similar to a corporate data center but at a different scale because it has to support multiple tenants and provide scalability and elasticity. In addition, the applications hosted in the cloud as well as virtualization (when it is used) also play a part.
A case in point is the MapReduce computing paradigm that Google implements to provide some of its services (other companies have their own implementations of MapReduce). Put simply, the MapReduce scheme takes a set of input key-value pairs, processes it, and produces a set of output key-value pairs. To realize the implementation, Google has an infrastructure of commodity servers running Linux interconnected by Ethernet switches. Storage is local through inexpensive Integrated Drive Electronics (IDE) disks attached to each server.
Jobs, which consist of a set of tasks, are scheduled and mapped to the available machine set. The scheme is implemented through a Master machine and Worker machines. The latter are scheduled by the Master to implement Map and Reduce tasks, which themselves operate on chunks of the input data set stored locally. The topology and task distribution among the servers is optimized for the application (MapReduce in this case). Although Google has not made public the details of how the back-end infrastructure is implemented for Google Apps and Gmail, we can assume that the physical and logical organization is optimized for the tasks that need to be carried out, in a manner similar to what is done for MapReduce.
SaaS vendors can partition their cloud data center according to load, tenant, and type of application that they will offer as a service. In some cases they might have to redirect the traffic to a different data center, based on the load in the default data center. IaaS provides the greatest degree of control for the user, as discussed earlier. Even here, the topology and load assignment can be based on the number and type of servers that are allocated.
Storage plays a major part in the data center and for cloud services, especially in environments with virtualization. Storage can be locally attached or accessible through a network—the most popular storage network technologies being Fibre Channel and Ethernet. For such network access of storage, servers are equipped with Fibre Channel or Ethernet adapters through which they connect to a Fibre Channel or Ethernet switch. The switch provides the connectivity to storage arrays. Fibre Channel is more popular, though Network Attached Storage (NAS) devices with Ethernet interfaces also have a strong presence in the data center. Another Ethernet-based storage option is the Internet Small Computer System Interface (iSCSI), which is quite popular among smaller data centers and enterprises because of the cost benefits. This technology involves running the SCSI protocol on a TCP/IP-over-Ethernet connection.

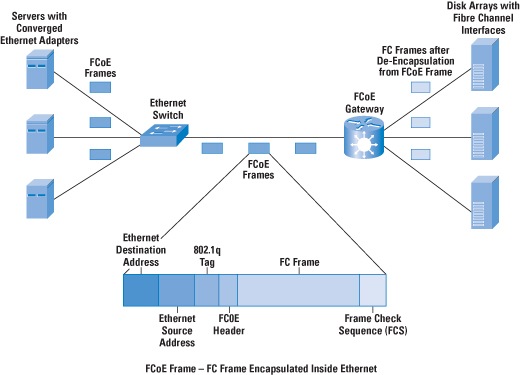

Fibre Channel connections to the storage network necessitate two types of network technologies in the data center: Ethernet for server-to-server and server-to-client connectivity and Fibre Channel for server-to-storage connectivity. A recent initiative in data-center technology is a converged network, which involves the transport of Fibre Channel over Ethernet (FCoE). FCoE removes the need for each server to have an Fibre Channel adapter to connect to storage. Instead, Fibre Channel traffic is encapsulated inside an Ethernet frame and sent across to a FCoE gateway that provides Ethernet-to-FCoE termination to connect to Fibre Channel storage arrays (refer to Figure 3). Some storage products provide FCoE functions, so the Ethernet frame can be carried all the way to the storage array. An adapter on the server that provides both "classical" Ethernet and FCoE functions is known as a Converged Network Adapter (CNA). Cloud-computing environments can reduce the data-center network complexity and cost through this converged network environment.
Another area in which storage is important is in virtualization and live migration. When a VM migrates to a different physical machine, it is important that the data used by the VM is accessible to both the source and the target machines. Alternatively, if the VM is migrated to a remote data center, the stored data needs to be migrated to the remote data center too. Also, in a virtualized environment, the Fibre Channel, Ethernet, or converged adapter driver should support multiple VMs and interleave its storage traffic to the storage devices. This interleaving is done in consonance with the hypervisor and a designated VM (paravirtualized environments often use this tool), as appropriate.
Cloud Computing: Effect on the Network

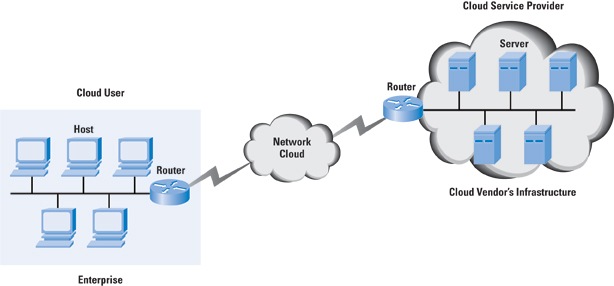

The previous discussion indicated that the network is a big part of cloud computing. A cloud user connects to the network to access the cloud resources, as indicated earlier in Figure 1. The cloud is accessible through a public network (the Internet) or through a private network (dedicated lines or Multiprotocol Label Switching [MPLS] infrastructure, for example). Response-time guarantees depend upon this connectivity. Some cloud vendors offer dedicated links to their data centers and provide appropriate SLAs for uptime or response time and charge for such SLAs. Others might implement a best-effort scheme but provide tools for monitoring and characterizing application performance and response time, so that users can plan their bandwidth needs.
The most significant effect on the network is in the data center, as indicated previously. Let us start with the network architecture or topology. The most common network architecture for enterprises is the three-layer architecture with access, aggregation or distribution, and core switches. The data center requires a slightly different variation to this layering, as proposed by some vendors. The data center consists mainly of servers in racks interconnected through a Top-of-Rack (TOR) Ethernet switch which, in turn, connects to an aggregation switch, sometimes known as an End-of-Rack (EOR) switch (Figure 4).
The aggregation switch connects to other aggregation switches and through these switches to other servers in the data center. A core switch connects to the various aggregation switches and provides connectivity to the outside world, typically through Layer 3 (IP). It can be argued that most of intra-data center traffic traverses only the TOR and the aggregation switches. Hence the links between these switches and the bandwidth of those links need to account for the traffic patterns. Some vendors have proposed a fat-tree or a leaf-spine topology to address this anomaly, though this is not the only way to design the data-center network. Incidentally, the fat-tree topology is not new—it has been used in Infiniband networks in the data center.
The presence of virtualized servers adds an extra dimension. Network connections to physical servers will need to involve "fatter pipes" because traffic for multiple VMs will be multiplexed onto the same physical Ethernet connection. This result is to be expected because you have effectively collapsed multiple physical servers into a single physical server with VMs. It is quite common to have servers with 10-Gbps Ethernet cards in this scenario.
New Protocols for Data-Center Networking
Numerous initiatives and standards bodies are addressing the standards related to cloud computing. From the networking side, the IEEE is working on new protocols and the enhancement of existing protocols for data centers. These enhancements are particularly useful in data centers with converged networks—the area is often known as Convergence Enhanced Ethernet (CEE).
A previous section indicated the importance of FCoE for converged storage network environments. The IEEE is working to enable FCoE guarantees (because Fibre Channel is a reliable protocol as compared to best-effort Ethernet) through an Ethernet link in what is known as "Lossless Ethernet." FCoE is enabled through a Priority Flow Control (PFC) mechanism in the 802.1Qbb activities in the IEEE. In addition, draft IEEE 802.1Qau provides end-to-end congestion notification through a signaling mechanism propagating up to the ingress port, that is, the port connected to the server Network Interface Card (NIC). This feature is useful in a data-center topology.
A third draft IEEE 802.1aq defines shortest-path bridging. This work is similar to the work being done in the IETF TRILL (Transparent Interconnect of Lots of Links) working group. The key motivation behind this work is the relatively flat nature of the data-center topology and the requirement to forward packets across the shortest path between the endpoints (servers) to reduce latency, rather than a root bridge or priority mechanism normally used in the Spanning Tree Protocol (STP). The shortest-path bridging initiative in IEEE 802.1aq is an incremental advance to the Multiple Spanning Tree Protocol (MSTP), which uses the Intermediate System-to-Intermediate System (IS-IS) link-state protocol to share learned topologies between switches and to determine the shortest path between endpoints.
The fourth draft 802.1Qaz is also known as Enhanced Transmission Selection (ETS). It allows lower-priority traffic to burst and use the unused bandwidth from the higher-priority traffic queues, thus providing greater flexibility.
Virtualized Network Equipment Functions
Though cloud computing does not depend upon virtualization, several cloud infrastructures are built with virtualized servers. In an environment with physical servers, switches are used to connect servers to other servers. Firewalls and application-delivery controllers are other types of equipment that you can use in a data center on the connection to external clients. With a virtualized environment, you can move some or all of these functions to reside inside a server.

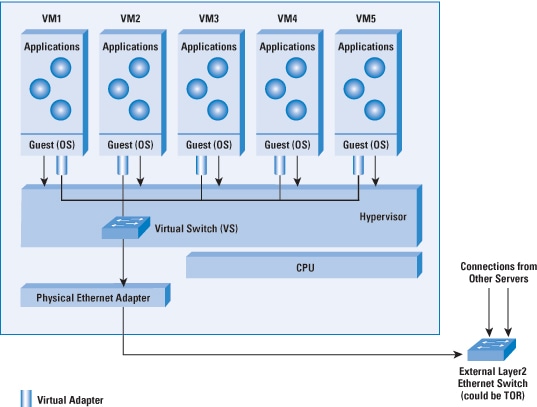

Consider the case of the software-based Virtual Switch as shown in Figure 5. You can use the Virtual Switch to switch between VMs inside the same physical server and aggregate the traffic for connection to the external switch. The Virtual Switch is often implemented as a plug-in to the hypervisor. The VMs have virtual Ethernet adapters that connect to the Virtual Switch, which in turn connects to the physical Ethernet adapter on the server and to the external Ethernet switch. To the network manager, the virtual switch can appear as a part of the network. Unlike physical switches, the Virtual Switch does not necessarily have to run network protocols for its operation, nor does it need to treat all its ports the same because it knows that some of them are connected to virtual Ethernet ports (for example, it can avoid destination address learning on the ports connected to the VMs). It can function through appropriate configuration from an external management entity.
It is possible to implement a virtualized firewall as a VM instead of as a plug-in to the hypervisor. These VMs are self-contained, with an operating system along with the firewall software. The complete package is known as a firewall virtual appliance. These VMs can be loaded and configured so that network packets destined for any of the VMs pass through the firewall VM, where they are validated before being passed to the other VMs. Another use of the firewall VM is as a front end to the physical servers in the data center. The disadvantage of a virtual appliance is the performance hit due to its implementation as a software function in a virtualized environment.
Management has several facets in a cloud-computing environment: billing, application-response monitoring, configuring network resources (virtual and physical), and workload migration. In a private cloud or tightly coupled environment, management of the applications may have to be shared between the internal cloud and the private cloud.
You can manage cloud-computing environments in several ways, depending upon the specific area. You can manage the network equipment (physical and virtual) through the Simple Network Management Protocol (SNMP) and a network management console. In a virtualized environment, the virtualization vendor often offers a framework to manage and monitor VMs, so this is another part of the equation. Several vendors offer products to act as management front ends for public clouds; for example, Amazon, whose products act as brokers and management consoles for your application deployed over the Amazon cloud offering.
It is clear that this area of management for cloud computing is still evolving and needs to be tied together for a unified management view.
Cloud Computing: Common Myths
Thus far, we have considered the important technologies, terminology, and developments in cloud computing. This section outlines some common myths about cloud computing.
Cloud Computing: Gaps and Concerns
Cloud-computing technology is still evolving. Various companies, standards bodies, and alliances are addressing several remaining gaps and concerns. Some of these concerns follow:
This article introduced the still-evolving area of cloud computing, including the technologies and some deployment concerns. Definitions and standardization in this area are a work in progress, but there is clear value in cloud computing as a solution for several IT requirements. In Part 2 we will provide a more detailed look at some of the technologies and scenarios for cloud computing.
