CISCO AIRONET 1300 SERIES Hardware View

The Cisco Aironet® 1300 Series Outdoor Access Point/Bridge is a flexible platform with the capability of access point, bridge, and workgroup bridge functionality. The Cisco Aironet 1300 Series provides high speed and cost effective wireless connectivity between multiple fixed or mobile networks and clients. Building a metropolitan area wireless infrastructure with the Cisco Aironet 1300 Series provides deployment personnel with a flexible, easy to use solution that meets the security requirements of wide area networking professionals.

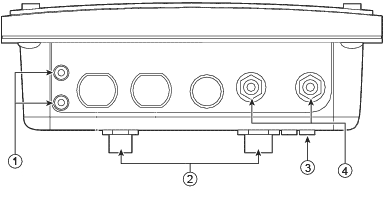

AIR-BR1410A-A-K9





  1. Grounding studs
  2. Mounting lugs
  3. LEDs
  4. Dual-coax Ethernet ports (F-Type connectors)

Note:  "X" equals the country code configuration: A (FCC), E (ETSI), or J (JAPAN).

Return to Top

AIR-BR1300G-X-K9-R



  1. Grounding studs
  2. Antenna connectors
  3. Mounting lugs
  4. LEDs
  5. Dual-coax Ethernet ports (F-Type connectors)

Note:  "X" equals the country code configuration: A (FCC), E (ETSI), or J (JAPAN).

Return to Top

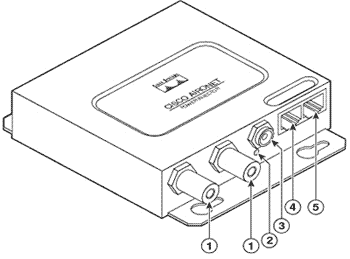

AIR-PWRINJ-BLR2 / AIR-PWRINJ-BLR2T



  1. Dual-coax Ethernet ports (F-Type connectors)
  2. Power LED
  3. Power jack
  4. Ethernet LAN port (RJ-45 connector)
  5. Console serial port (RJ-45 connector)
AIR-PWRINJ-BLR2 AIR-PWRINJ-BLR2T
Shipped with Aironet 1300 AP/Bridge Must be purchased separately.
Requires Cisco +48 VDC power supply. Requires user supplied +12 to +40 VDC source
Power source not flexible. Greater DC range allows input from various sources. e.g. Vehicle battery.
