CISCO AIRONET 1200 SERIES Hardware View

The Cisco Aironet 1200 Series is the flagship of the Aironet line, setting the enterprise standard for next-generation high performance, secure, manageable, and reliable wireless local-area networks (WLANs). The Cisco Aironet 1200 Series integrates seamlessly into an existing network as a wireless overlay, or creates freestanding all-wireless networks, enabling mobility quickly and cost effectively. The modular and upgradable platform protects current and future network infrastructure investments. Compliant with IEEE 802.11a and 802.11b standards, the Cisco Aironet 1200 Series allows for both single- and dual-band configuration plus field upgradability to modify these configurations as your requirements and technology evolve. The Cisco Aironet 1200 Series creates a wireless infrastructure that provides customers with maximum mobility and flexibility; enabling constant connection to all network resources from virtually anywhere wireless access is deployed.

AIR-AP1200 / AIR-AP1210 / AIR-AP1220 / AIR-AP1230 - End Of Sale

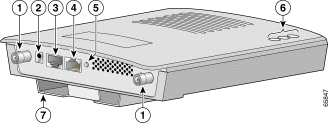

  1. 2.4-GHz antenna connectors.
  2. 48-VDC power port.
  3. Ethernet port (RJ-45).
  4. Console port (RJ-45).
  5. Mode button.
  6. Status LEDs.
  7. Mounting bracket.




AIR-AP1200: AP Platform, Cardbus and MPCI Slots (no radio), Enet Uplink.
AIR-AP1210: IOS AP, CBus and MPCI Slots (no radios), Enet Uplink.
AIR-AP1220: AP Platform, Cardbus and MPCI Slots (either A or B radio), Enet Uplink.
AIR-AP1230: IOS AP, CBus and MPCI Slots (either A or B radio), Enet Uplink.
