PIX-501 - End Of Sale
The Cisco PIX 501 Security Appliance delivers up to 60 Mbps of firewall throughput, 3 Mbps of 3DES VPN throughput and 4.5 Mbps of AES-128 VPN throughput. Interfaces:
Console Port: RS-232 (RJ-45) 9600 baud; Outside: Integrated 10/100 Fast Ethernet port, auto-negotiate (half/full duplex), RJ45; Inside: Integrated auto-sensing, auto-MDIX 4-port 10/100 Fast Ethernet switch, RJ45.
NOTE: 10/100 full-duplex with PIX OS 6.3, 10BaseT half-duplex with previous releases.
Return to Top
PIX-506 - End Of Sale / PIX-506E
The Cisco PIX 506E Security Appliance delivers up to 100 Mbps of firewall throughput, 16 Mbps of 3DES VPN throughput and 30 Mbps of AES-128 VPN throughput. Interfaces:
Console Port: RS-232 (RJ-45) 9600 baud; Outside: Integrated 10/100 Fast Ethernet port, auto-negotiate (half/full duplex), RJ45; Inside: Integrated 10/100 Fast Ethernet port, auto-negotiate (half/full duplex), RJ45.
NOTE: 10/100 full-duplex with PIX OS 6.3, 10BaseT full-duplex with previous releases.
Return to Top
PIX-515 - End Of Sale / PIX-515E
The Cisco PIX 515E Security Appliance is a versatile one-rack unit (1RU) design, supports up to six 10/100 Fast Ethernet interfaces. It delivers up to 188 Mbps of firewall throughput with the ability to handle over 130,000 simultaneous sessions. Certain PIX 515E models include integrated hardware VPN acceleration delivering up to 140 Mbps of 3DES VPN throughput and 140 Mbps of AES-256 VPN throughput.
Expansion:
Two 32-bit/33-MHz PCI slots; Two 168-pin DIMM RAM slots, supporting up to 64 MB memory maximum.
Interfaces:
Console Port: RS-232 (RJ-45) 9600 baud; Failover Port: RS-232 (DB-15) 115 Kbps (Cisco specified cable required); Two integrated 10/100 Fast Ethernet ports, auto-negotiate (half/full duplex), RJ-45.
Return to Top
PIX-520 - End Of Sale
The Cisco PIX 520 Security Appliance supports upto 6 interfaces.
Return to Top

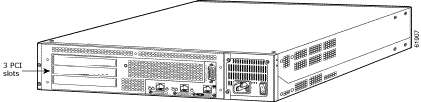

PIX-525 - End Of Sale
The Cisco PIX 525 Security Appliance is a modular two-rack unit (2RU) design and supports up to eight 10/100 Fast Ethernet interfaces or three Gigabit Ethernet interfaces. It delivers over 330 Mbps of firewall throughput with the ability to handle over 280,000 simultaneous sessions. Certain PIX 525 models include integrated hardware VPN acceleration delivering up to 155 Mbps of 3DES VPN throughput and 170 Mbps of AES-256 VPN throughput.
Expansion:
Three 32-bit/33-MHz PCI slots; Two 168-pin DIMM RAM slots, supporting up to 256 MB memory maximum
Interfaces:
Console Port: RS-232 (RJ-45) 9600 baud; Failover Port: RS-232 (DB-15) 115 Kbps (Cisco specified cable required); Two integrated 10/100 Fast Ethernet ports, auto-negotiate (half/full duplex), RJ-45.
Return to Top
PIX-535
The Cisco PIX 535 Security Appliance is highly modular three-rack unit (3RU) design and supports up to ten 10/100 Fast Ethernet interfaces or nine Gigabit Ethernet interfaces as well as redundant power supplies. It delivers up to 1.7 Gbps of firewall throughput with the ability to handle over 500,000 simultaneous sessions. Certain PIX 535 models include integrated hardware VPN acceleration delivering up to 440 Mbps of 3DES VPN throughput and 440 Mbps of AES-256 VPN throughput.
Expansion:
Four 64-bit/66-MHz PCI slots; Five 32-bit/33-MHz PCI slots; Six 168-pin DIMM RAM slots, supporting up to 1 GB PC133 DRAM
Interfaces:
Console Port: RS-232 (RJ-45) 9600 baud; Failover Port: RS-232 (DB-15) 115 Kbps (Cisco specified cable required); Two integrated 10/100 Fast Ethernet ports, auto-negotiate (half/full duplex), RJ-45.
Return to Top

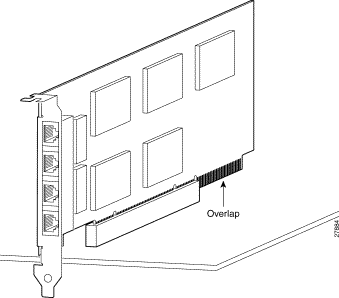

PIX-4FE -End Of Sale / PIX-4FE-66 / PIX-1FE
PIX-1FE: PIX 10/100 Fast Ethernet interface card, RJ45.
PIX-4FE-66: Cisco Systems introduced a new Fast Ethernet 100BASE-TX interface card for the Cisco PIX Security Appliances based on the higher performance 64-bit/66-MHz PCI bus. The new card provides four 100BASE-TX ports, increased performance, and deployment flexibility on modular Cisco PIX Security Appliances. It is supported by the latest maintenance releases of all current Cisco PIX OS trains, namely versions 5.2(9), 6.0(4), 6.1(4), 6.2(2) and 6.3(1) or later.
Return to Top
PIX-1GE - End Of Sale / PIX-1GE-66
Single Gigabit Ethernet interface for Cisco PIX 52X, 535 Firewalls. The recommended upgrade path for the 33-MHz Gigabit Ethernet card is the 66-MHz Gigabit Ethernet card. These interfaces offer greater performance at a comparable price point. 64-bit, 66-MHz Gigabit Ethernet interfaces are supported in the Cisco PIX 520, 525, and 535 Firewalls.
Return to Top

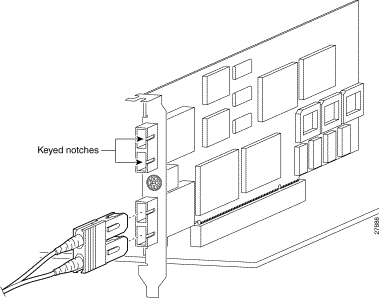

PIX-FDDI -End Of Sale
Fiber Distributed Data Interface for PIX is EOS/EOL. The recommended upgrade path for the FDDI is Gigabit Ethernet. These interfaces offer greater performance at a comparable price point. 32-bit, 33-MHz Gigabit Ethernet interfaces are supported in the PIX 520 and 525 just as FDDI. In addition, the PIX 535 uses a higher-performance 64-bit, 66-MHz Gigabit Ethernet interface, providing up to 1 Gbps of throughput.
Return to Top
PIX-VPN-ACCEL / PIX-VAC-PLUS
PIX-VPN-ACCEL: The PIX VAC offers standards-based IP Security (IPsec) VPN and encrypts data using the 56-bit Data Encryption Standard (DES) or 168-bit Triple DES (3DES) algorithms. In addition, the PIX VAC can offer 168-bit 3DES IPsec VPN throughput at 100 Mbps and Simultaneous VPN tunnels upto 2,000. The PIX VAC is supported on PIX 515, 520, 525, and 535 platforms.
PIX-VAC-PLUS:
Performance Summary
3DES SHA-1 throughput: 305 Mbps @ 300-byte packets
3DES SHA-1 throughput: 440 Mbps @ 1,400-byte packets
AES128 SHA-1 throughput: 340 Mbps @ 300-byte packets
AES128 SHA-1 throughput: 535 Mbps @ 1,400-byte packets
AES256 SHA-1 throughput: 300 Mbps @ 300-byte packets
AES256 SHA-1 throughput: 440 Mbps @ 1,400-byte packets
Simultaneous VPN tunnels: 2,000.
System Requirements
Operating system: Cisco PIX OS Release 6.3(1) or later (with DES or 3DES/AES license)
Platforms: Cisco PIX 515/515E, 520, 525, 535 (limit one per chassis).
