CISCO 2600 Series Router Hardware View
Table of Contents

The Cisco 2600/2600XM series family of modular multiservice access routers provides flexible LAN and WAN configurations, multiple security options, voice/data integration, and a range of high performance processors. This range of features make the Cisco 2600/2600XM family the ideal branch-office router for today's and tomorrow's customer requirements.

The latest additions to the Cisco 2600/2600XM series family of Modular Routers include the Cisco 2600XM models and the Cisco 2691. These new models deliver extended performance, higher density, enhanced security performance and increased concurrent application support to meet the growing demands of branch offices.

The new Cisco 2600XM models are based on the current Cisco 2600 platform architecture, and extend the performance by as much as 33%. They also increase default platform memory and provide increases in memory capacity at the same price points when compared to the current Cisco 2600 models.

The highest performing router in the Cisco 2600 family that extends the density of emerging branch office applications, the Cisco 2691 offers almost twice the performance of the Cisco 2650XM platform while leveraging the same modules from other Cisco 2600, Cisco 3600 and Cisco 3700 Series routers. Compared to the Cisco 2600XM models, the new Cisco 2691 is designed to offer a higher degree of versatility, providing greater throughput for higher density WAN applications, support for high speed interfaces and increased performance to handle new services.

End-of-Sale / End-of-Life announcement for the Cisco 2600 "Non XM" MultiService Access router (last date to order April 26, 2003). Product Substitution - CISCO 2600XM Series

End-of-Sale / End-of-Life announcement for the Cisco 2600 XM and 2691 series MultiService Platform (last date to order March 27, 2007). Product Substitution - CISCO 2800 Series

Base Models 1&2 ISDN PRI/Channelized E1 Network Module WIC-1DSU-T1-V2
CISCO2610 - End Of Sale Analog Modem Network Modules Voice Interface Cards
CISCO2610XM Voice Network Modules VIC-2E/M
CISCO2611 - End Of Sale High Density Voice Network Module VIC2-2E/M
CISCO2611XM High Density Analog Voice Network Module VIC-2FXS
CISCO2612 - End Of Sale ATM E1 IMA Network Modules VIC2-2FXS
CISCO2613 - End Of Sale ATM/25 Mbps Network Module VIC-2FXO
CISCO2620- End Of Sale ATM E3 Network Modules VIC2-2FXO
CISCO2620XM 1 T3/E3 Network Module VIC2-4FXO
CISCO2621- End Of Sale 1CE1T1-PRI & 2CE1T1-PRI Network Modules VIC-2BRI-NT/TE
CISCO2621XM Gigabit Ethernet Network Module VIC-2DID
CISCO2650- End Of Sale Alarm Interface Controller Network Module EoS VWIC-1MFT-E1
CISCO2650XM Content Engine Network Modules VWIC-2MFT-E1
CISCO2651- End Of Sale Intrusion Detection Network Modules VWIC-2MFT-E1-DI
CISCO2651XM EtherSwitch Service Module VWIC-1MFT-G703
CISCO2691 WAN Interface Cards VWIC-2MFT-G703
Network Modules WIC-1T 2nd Generation VWIC
Etherswitch Network Modules WIC-2T Echo cancellation module
1 and 4 Ethernet Network Modules WIC-2A/S AIM's
WIC Network Modules WIC-1ADSL Compression
4 and 8 ISDN BRI Network Modules WIC-1SHDSL EoS Encryption
Async/Sync Network Modules WIC-1SHDSL-V2 EoS ATM / Voice DSP
4 port Serial Network Module WIC-1SHDSL-V3 Voice Network Modules
16 and 32 Port Async Network Modules WIC-1B-S/T -V3 AIM-CUE
Circuit Emulation over IP Network Module WIC-1AM NM-CUE
  WIC-2AM NM-CUE-EC

CISCO2610 - End Of Sale


One ethernet port, 10 Base-T only, no AUI, One Network Module slot, Two WIC slots.Console and aux ports with max speed of 115.2 KBPS.

Return to Top

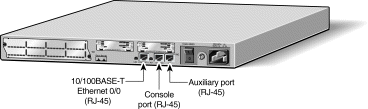

CISCO2610XM - End Of Sale



One fast ethernet port, 10/100M only, no AUI, One Network Module slot, Two WIC slots.Console and aux ports with max speed of 115.2 KBPS.

Return to Top

CISCO2611 - End Of Sale



Two ethernet port, 10 Base-T only, no AUI, One Network Module slot, Two WIC slots.Console and aux ports with max speed of 115.2 KBPS.

Return to Top

CISCO2611XM - End Of Sale



Two fast ethernet port, 10/100M only, no AUI, One Network Module slot, Two WIC slots.Console and aux ports with max speed of 115.2 KBPS.

Return to Top

CISCO2612 - End Of Sale



One ethernet port, 10 Base-T only, no AUI. One token ring port, RJ-45 only, supports STP and UTP. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

CISCO2613 - End Of Sale



One token ring port, RJ-45 only, supports STP and UTP. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

CISCO2620 - End Of Sale



One fast ethernet port, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

CISCO2620XM - End Of Sale



One fast ethernet port, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

CISCO2621 - End Of Sale



Two fast ethernet ports, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

CISCO2621XM - End Of Sale



Two fast ethernet ports, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.


Return to Top

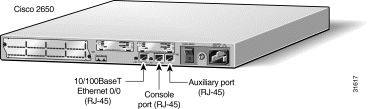

CISCO2650 - End Of Sale



One fast ethernet port, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.

Return to Top

CISCO2650XM - End Of Sale



One fast ethernet port, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.

Return to Top


CISCO2651 - End Of Sale



Two fast ethernet ports, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.

Return to Top


CISCO2651XM - End Of Sale



Two fast ethernet ports, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Two WIC slots. Console and aux ports with max speed of 115.2 KBPS.

Return to Top

CISCO2691 - End Of Sale



Two fast ethernet ports, 10 Base-T or 100 Base-TX only, no AUI, no MII. One Network Module slot, Three WIC slots. Console and aux ports with max speed of 115.2 KBPS.

Return to Top

Etherswitch Network Modules

NM-16ESW



NMD-36-ESW



Product Description Features
NM-16ESW 16 port 10/100 EtherSwitch NM
  • 16 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect.
  • 36 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect on a double-wide network module (requires chassis with double-wide network module support: 3660, 3725, or 3745).
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
GE-DCARD-ESW 1000BaseT daughtercard for Etherswitch NM
PPWR-DCARD-16ESW Power daughtercard for 16 port Etherswitch NM
NMD-36-ESW 36 port 10/100 EtherSwitch Double-wide NM
PPWR-DCARD-36ESW Inline power daughtercard for 36 port EtherSwitch NM

Platform Support
IOS Support 2600 2600XM 3620 3631 3640, 3640A 3660, 3725, 3745
NM-16ESW 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1) 12.2(8)T1, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1), 12.3(2)T 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T
NMD-36-ESW Not supported Not supported Not supported Not supported Not supported

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series and 3700 Series ( Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, yEnterprise Base, Enterprise Services, SP Services).

Return to Top

1 and 4 Ethernet Network Modules

NM-1E



NM-4E



Product Description Features
NM-1E One 10 Mbps ethernet network module Ethernet 0 has both 10 Base-T and AUI connectors(auto sensing). Supports half duplex in all IOS versions. Supports full duplex beginning with IOS 12.0(4)T.
NM-4E Four 10 Mbps ethernets network module

Platform Support
IOS Support 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
NM-1E 11.3(4)T1, all 12.x All IOS versions 11.2(4)XA, 11.2(5)P, 11.3, 11.3T, all 12.x Not Supported All IOS versions Not Supported
NM-4E 11.3(4)T1, all 12.x All IOS versions 11.2(6)P, 11.3, 11.3T, all 12.x Not supported All IOS versions Not Supported

Return to Top

WIC Network Module



Product Description
NM-2W Network Module with 2 WIC slots.

Platform Support
IOS Support 2600 2800 2600XM 3620, 3640, 3660 3631 2691, 3725, 3745 3800
NM-2W 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported 12.2(8)T1 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported All IOS versions 12.3(11)T

Return to Top

4 and 8 ISDN BRI Network Modules

NM-4B-S/T



NM-8B-S/T



Product Description
NM-4B-S/T 4-Port ISDN-BRI Network Module
NM-8B-S/T 8-Port ISDN-BRI Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4B-S/T 11.3(4)T, all 12.x All IOS versions Not Supported 12.3(8)T All IOS versions All IOS versions 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions 12.3(11)T
NM-8B-S/T 11.3(4)T, all 12.x All IOS versions Not Supported 12.3(8)T All IOS versions All IOS versions 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions 12.3(11)T
Return to Top

Async/Sync Network Modules

NM-4A/S

NM-8A/S


NM-16A/S



Product Description Features
NM-4A/S 4 port Async/Sync Network Module Four, Eight or 16 Async/Sync Ports
NM-4A/S and NM-8A/S use Cisco 60-pin "5-in-1" connectors
NM-16A/S uses Smart Serial connectors (same as WIC-2T)
Max speed 115.2 KBPS async, 128 Kbps sync external clock, 125 Kbps internal clock
NM-8A/S 8 port Async/Sync Network Module
NM-16A/S 16 port Async/Sync Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4A/S All IOS versions Not supported 12.3(8)T All IOS versions 12.3(11)T
NM-8A/S
NM-16A/S Not supported 12.2(15)ZJ Not supported Not supported 12.2(15)ZJ 12.2(15)ZJ Not supported

Return to Top

4 Serial Network Module



Product 3660 2691, 3725, 3745
NM-4T 4 port Synchronous Serial Network Module
  • Four serial ports.
  • Cisco DB-60 connectors.
  • The module provides a synchronous data rate of 8 MB/sec on port 0, 4 MB/sec each on port 0 and port 2, or 2 MB on all four ports simultaneously.
  • No bisync or half-duplex support.

IOS Support 2600, 2600XM 2811, 2821, 2851 3620 3640 3631 3660 2691, 3725, 3745 3800
NM-4T Not supported 12.3(8)T 11.2(4)XA, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 11.2(4)XA, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.2(13)T, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
Return to Top

16 and 32 Port Async Network Modules

NM-16A



NM-32A



Product Description Features
NM-16A 16 Async Ports 16 or 32 async ports
Uses 68-pin connectors with the same cabling and connectors as the 2509 (CAB-OCTAL-xxxx or CAB-25AS-xxxx).
Supports 134 kbps async on all ports simultaneously.
NM-32A 32 Async Ports

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3640 3631 3660 2691, 3725, 3745 3800
NM-16A 11.3(3)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supporte 12.3(8)T 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.2(8)T1, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-32A

Return to Top

1 & 2 ISDN PRI/Channelized E1 Network Module





Product Description Features
NM-1CE1B 1-Port Channelized E1/ISDN-PRI Network Module, 120 ohm balanced One or Two E1 ports
Supports Channelized E1 or ISDN PRI. Each port is configured independantly. You can configure one port for ISDN and the other for channelized E1.
Supports framed G.704. For unframed G.703 see the VWIC-1MFT-G703.
Available in balanced 120 ohm and unbalanced 75 ohm (different physical hardware, cannot be upgraded in the field).
Interface is DB-15
NM-2CE1B 2-Port Channelized E1/ISDN-PRI Network Module, 120 ohm balanced
NM-1CE1U 1-Port Channelized E1/ISDN-PRI Network Module, 75 ohm unbalanced
NM-2CE1U 2-Port Channelized E1/ISDN-PRI Network Module, 75 ohm unbalanced

Platform Support
IOS Support 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
NM-1CE1B / NM2CE1B 11.3(4)T, all 12.x All IOS versions All IOS versions All IOS versions 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions
NM-1CE1U / NM-2CE1U

Return to Top

Analog Modem Network Modules

NM-8AM



NM-16AM



Product Description Features
NM-8AM Network Module with 8 analog modems Supports speeds up to 33.6 kbps (V.34bis). No 56 kbps support.
Two wire leased line is supported beginning in 12.1(5)T with firmware version 1.2.8.
Supports fax-out utilizing the Cisco Dial-Out Client.
All connectors are RJ-11. Comes with 8 or 16 pink cables (bundle of 8 pink cables is available as CAB-NM-ANALOGMOD).
NM-16AM Network Module with 16 analog modems
NM-8AM-V2 Network Module with 8 analog modems 8 or 16 internal V.34/V.92/V.90/V.44/V.42bis analog modems per network module
Up to 56 Kbps data download and 14.4 Kbps fax communication
V.92 Quick Connect and Modem-on-Hold features
Centrally managed modem capabilities Simple Network Management Protocol (SMNP) based tools used to manage the rest of the network (such as CiscoView and Cisco Works 2000)
NM-16AM-V2 Network Module with 16 analog modems

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3631 3640 3660 2691, 3725, 3745 3800
NM-8AM / NM-16AM 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) Not Supported 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported
NM-8AM-V2 / NM-16AM-V2 12.3(4)XD 12.3(4)XD Not Supported 12.3(8)T Not Supported Not Supported Not Supported 12.3(4)XD 12.3(4)XD 12.3(11)T

Return to Top

Voice Network Modules

NM-1V



NM-2V



Product Description Features
NM-1V Voice Network Module with one Voice Interface Card (VIC) slot Voice features require a "Plus" feature set.
NM-2V Voice Network Module with two Voice Interface Card (VIC) slots

Platform Support
IOS Support 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
NM-1V All IOS versions 11.3(1)T, all 12.x Not supported All IOS versions All IOS versions
NM-2V

Voice features require a "Plus" feature set.

Return to Top

High Density Voice Network Module

NM-HDV



NM-HDV2



NM-HDV2-1T1/E1



NM-HDV2-2T1/E1



Product Description Features
NM-HDV High Density Voice Network Module (no VWIC, no PVDMs)
  • Each PVDM-12 contains 3 DSPs
    • Runs up to 12 voice calls using a low complexity CODEC (G.711, G.729a/b, G.726, fax).
    • Runs up to 6 voice calls using a high complexity CODEC (G.729, G.728, G.723.1).
    • PVDM-12 fits into SIMM sockets on the NM-1HDV network module, five PVDM SIMM sockets on the NM-1HDV network module
  • Requires an IOS "Plus" feature set.
NM-HDV-1E1-12 High Density Voice Network Module, with 1 VWIC-1MFT-E1 and 1 PVDM-12
NM-HDV-1E1-30 High Density Voice Network Module, with 1 VWIC-1MFT-E1 and 3 PVDM-12
NM-HDV-1E1-30E High Density Voice Network Module, with 1 VWIC-1MFT-E1 and 5 PVDM-12
NM-HDV-2E1-60 High Density Voice Network Module, with 1 VWIC-2MFT-E1-DI and 5 PVDM-12
PVDM-12 12-Channel Packet Voice DSP Module
  • PVDM2-x, where x equals the number of channels supported using the G.711 codec. x has the following values: 8, 16, 32, 48, 64.
    • Supports the following high complexity codecs: G.723.1, G.728, G.729, G.729b, Global System for Mobile Communications (GSM)-enhanced full rate and Modem Relay.
    • Supports the following medium level codecs: G.711, g.729a, G.729ab, G.726, GSM-Full Rate and Fax Relay.
  • Requires "IP Plus" and higher feature set.
NM-HDV2 IP Communications high-density voice and fax network module.
NM-HDV2-1T1/E1 1-port T1/E1 IP Communications high-density voice and fax network module.
NM-HDV2-2T1/E1 2-port T1/E1 IP Communications high-density voice and fax network module.
PVDM2-x Packet Voice digital signal processor Module. Provides high-density voice connectivity,
conferencing, and transcoding capabilities.

Note: PVDM and PVDM2 are NOT interchangeable. Use the PVDM with NM-HDV only, and use PVDM2 with NM-HDV2 only.

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-HDV 12.0(7)XK, 12.1(2)T, 12.2, 12.2T 12.2(8)T1 Not supported 12.3(8)T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T Not supported 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All IOS versions 12.3(11)T
NM-2V Not Supported 12.3(7)T

12.3(8)T
for conferencing
or transcoding 		Not Supported 12.3(8)T4 Not Supported 12.3(7)T

12.3(8)T
for conferencing
or transcoding 		12.3(11)T
NM-HDV2-1T1/E1
NM-HDV2-2T1/E1

Requires an IOS "Plus" and higher feature set.

Return to Top

High Density Analog Voice Network Module

NM-HDA-4FXS



Product Description Features
NM-HDA-4FXS High density analog voice/fax network module with 4 FXS. Base Module.
  • DSPs are on the base board and the DSP expansion module
    • NM-HDA-FXS supports 8 high-complexity or 16 medium-complexity voice channels
    • DSP-HDA-16 supports an additional 8 high-complexity or 16 medium-complexity voice channels
  • You cannot use 2 EM-HDA-8FXS modules on the one card. All other combinations are valid
  • See Config Guide for details of codecs, signalling protocols, configuration and troubleshooting.
  • Requires an IOS Plus Feature set.
EM-HDA-8FXS 8-port voice/fax expansion module - FXS. Expansion module
EM-HDA-4FXO 4-port voice/fax expansion module - FXO. Expansion module
DSP-HDA-16 16-channel DSP module for NM-HDA

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3640, 3660 3631 2691, 3725, 3745 3800
NM-HDA 12.2(2)XT, 12.2(8)T 12.2(8)T1 Not Supported 12.3(8)T Not Supported 12.2(2)XT, 12.2(8)T Not supported All IOS versions 12.3(11)T

Requires an IOS "Plus" Feature set.

Return to Top

ATM E1 IMA Network Modules

NM-4E1-IMA End of Sale



NM-8E1-IMA End of Sale



Product Description Features
NM-4E1-IMA 4-port E1 ATM network module with Inverse Multiplexing over ATM
  • E1 interface is software configurable for 75 and 120 ohm support (default 120 ohm).
  • Requires an IOS "Plus" or Service Provider ("-p-") feature set.
NM-8E1-IMA 8-port E1 ATM network module with Inverse Multiplexing over ATM

Platform Support
IOS Support 2600 2600XM 2800 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4E1-IMA / NM-8E1-IMA 12.0(5)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All IOS versions Not Supported 12.0(5)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All IOS versions 12.0(5)XK, 12.1, 12.1T, 12.2, 12.2T 12.2(8)T 12.3(11)T

Requires an IOS "Plus" or Service Provider ("-p") feature set.

Return to Top

ATM/25 Mbps Network Module

NM-1ATM-25



Product Description Features
NM-1ATM-25 1 ATM/25 Network Module
  • ATM/25 RJ-45 interface
  • Requires an IOS "Plus" feature set

Platform Support
IOS Support 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
NM-4E1-IMA / NM-8E1-IMA 11.3(4)T, all 12.x 11.3(3a)T, all 12.x Not Supported 12.0(7)XK, 12.1T, 12.2, 12.2T Not Supported

Requires an IOS "Plus" feature set.

Return to Top

ATM E3 Network Modules

NM-1A-E3/NM-1A-T3



Both versions provide a single ATM connection of either 44 Mbps for DS3, or 34 Mbps for E3 using 75-ohm BNC connectors. Both the DS3 and E3 ATM network modules support ATM Forum compliant framing standard AAL5. ATM Traffic Management support includes UBR, UBR+, VBR-rt, VBR-nrt, CBR, and ABR classes of traffic.

Product Description Features
NM-1A-T3 Single port ATM E3 75 ohm unbalanced Requires an IOS "Plus" or Service Provider ("-p-") feature set.
NM-1A-E3 Single port ATM E3 75 ohm unbalanced Requires an IOS "Plus" or Service Provider ("-p-") feature set.

Platform Support
IOS Support 2600 Series 2691 2811,2821,2851 3620, 3640,3660 3725, 3745 3800
NM-1A-X3 12.1(2)T 12.2(8)T 12.3(8)T 12.1(2)T 12.2(8)T 12.3(11)T

Requires an IOS "Plus" or Service Provider ("-p-") feature set

Return to Top

1 T3/E3 Network Module

NM-1T3/E3



Product Description Features
NM-1T3/E3 Single port T3/E3 Network Module
  • Supports clear and sub-rate T3/E3. No channelized T3/E3
  • Supports up to 1 port of T3 or E3 rates.
  • Universal T3/E3 card. Software configures the “card type” to T3 or E3. Card type can be changed later.

Platform Support
IOS Support 2600 2650XM, 2651XM 2801 2811,2821,2851 3631, 3620, 3640 2691, 3660, 3725, 3745 3800
NM-1T3/E3 Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

Circuit Emulation Modules

NM-CEM-4SER



NM-CEM-4TE1



Product Description
NM-CEM-4SER 4 Port Serial Circuit Emulation over IP Network Module
NM-CEM-4TE1 4 Port T1/E1 Circuit Emulation over IP Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640, 3631 3660 2691, 3725, 3745 3800
NM-CEM-4SER Not Supported 12.3(7)T and later Not Supported 12.3(8)T Not Supported 12.3(7)T and later 12.3(7)T and later 12.3(11)T
NM-CEM-4TE1

Note: Emulation network modules require one of the following feature sets:

  • SP Services and above (Cisco 2600XM Series, and Cisco 2691, 3725, and 3745)
    - SP Services
    - Advanced IP Services
    - Enterprise Services
    - Advanced and Enterprise Services
  • IP Plus and above (Cisco 3660 only)
Return to Top

1CE1T1-PRI & 2CE1T1-PRI Network Modules

NM-1CE1T1-PRI



NM-2CE1T1-PRI



Product Description Features
NM-1CE1T1-PRI 1-Port Channelized E1/T1/ISDN-PRI Network Module
  • Balanced or unbalanced E1 termination in the same module.
  • Supports PRI for data, T1-CAS, and E1-CAS R2 signaling.
  • E1 unframed and framed modes (G.703/G.704) available.
  • Cisco IOS® Software configurable for T1 or E1 operation.
NM-2CE1T1-PRI 2-Port Channelized E1/T1/ISDN-PRI Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640, 3640A 3631 3660 2691, 3725, 3745 3800
NM-1CE1T1-PRI Not supported 12.3(1), 12.3(2)T Not Supported 12.3(8)T Not supported 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(11)T
NM-2CE1T1-PRI Not supported 12.3(1), 12.3(2)T Not Supported 12.3(8)T Not Supported 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(11)T

Functionality for the NM-1CE1T1-PRI and NM-2CE1T1-PRI modules are supported in all feature sets beginning in Cisco IOS 12.3(1) mainline and 12.3(1)T.

Return to Top

Gigabit Ethernet Network Module

NM-1GE



Product Description Features
NM-1GE Gigabit Ethernet Network Module with 1 GBIC Slot
  • Supports available copper and optical GBICs, including CWDM.
  • Optimize performance in the LAN through High Speed trunk uplink for InterVLAN Routing and Bridging.
  • 802.1q and ISL trunking.
  • No half duplex mode supported.

Platform Support
IOS Support 2600 2600XM 2801 3620, 3640, 3640A 3631 3660 2691, 3725, 3745 3800
NM-1GE Not supported Not supported Not Supported Not supported Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

VLAN support requires a Cisco IOS “Plus” feature set prior to Cisco IOS 12.3 Mainline. After 12.3 Mainline, supported in Cisco IOS advanced security feature set.

Return to Top

Alarm Interface Controller Network Module End Of Sale

NM-AIC-64



Product Description Features
NM-AIC-64 Cisco Alarm Interface Controller
  • Each Network Module can remotely monitor up to 64 network elements, and remotely control up to 16 network devices.
  • Ability to monitor powerplants for voltage fluctuations/thresholds.
  • Environmental condition monitoring for things such as, temperature and humidity.
  • Enhanced premise security monitoring, autonomous control of security camera's triggered by door/window alarm.
  • Software selectable TL1 or SNMP notification with multiple sessions.
  • More than one AIC can be installed per router for example a Cisco 366x can accommodate up to six AICs and can monitor up to 384 network elements, and remotely control up to 96 network devices.
  • Use the AIC Patch Panel to inject current into loops, and to break out the signals to RJ-21 telco connectors.

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-AIC-64 12.2(2)XG, 12.2(8)T 12.2(8)T1 Not Supported 12.3(8)T 12.2(2)XG, 12.2(8)T All IOS versions 12.2(2)XG, 12.2(8)T Not supported 12.3(11)T

Return to Top

Content Engine Network Modules

NM-CE-BP-20G-K9 / NM-CE-BP-40G-K9 / NM-CE-BP-80G-K9



NM-CE-BP-SCSI-K9



Product Description Features
NM-CE-BP-20G-K9 Content Engine Network Module - Basic Perf - 20GB
  • CE507 in a network module form factor.
  • Options: 20 GB disk, 40 GB disk, 80 GB disk, or SCSI controller (no disk).
NM-CE-BP-40G-K9 Content Engine Network Module - Basic Perf - 40GB
NM-CE-BP-80G-K9 Content Engine Network Module - Basic Perf - 80GB
NM-CE-BP-SCSI-K9 Content Engine Network Module - Basic Perf - SCSI Adapter
SF-NM-ACNS4.2-K9 Enterprise Caching and ECDN SW v4.2 for NM-CE-BP, 3DES
SF-NM-RCPS-8.0 Combined Real System V8 Proxy and Subscriber for Cisco NM-CE-BP
SF-NM-WMS-1.1 Microsoft Windows Media Server V4 for Cisco NM-CE-BP

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A, 3660 2691, 3725, 3745 3800
NM-CE-BP-20G-K9 12.2(13)T, 12.3(1) 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T4 Not Supported Not Supported 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-CE-BP-40G-K9
NM-CE-BP-80G-K9
NM-CE-BP-SCSI-K9

Return to Top

NM-CIDS-K9 Network Module

NM-CIDS-K9



Product Description Features
NM-CIDS-K9 Cisco IDS Network Module, 20-GB IDE hard disk
  • The available configuration is a 20-gigabyte hard disk for logging and storage of events.
  • The external Ethernet port is used for command and control to enable a secure outbound port for management. This setup also allows for both security operations and network operations to have their own command and control interfaces.

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 2691, 3725, 3745 3800
IOS Support 12.2(15)ZJ or later 12.2(15)ZJ or later Not Supported 12.3(8)T Not Supported Not Supported Not Supported 12.2(15)ZJ or later 12.3(11)T

Note: Requires IDS feature.

Return to Top

Etherswitch Service Module (NME-16ES-1G, NME-16ES-1G-P, NME-X-23ES-1G, NME-X-23ES-1G-1P, NME-XD-24ES-1S-P, NME-XD-48ES-2S-P)



The new Cisco EtherSwitch service modules, greatly expand the capabilities of integrated switching within Cisco routers by providing support for new features such as IEEE 802.3af Power over Ethernet (PoE), local Layer 3 switching, Cisco Network Assistant and Cisco Emergency Responder, and Cisco StackWise™ interfaces (available on NME-XD-24-1S-P only), as well as software feature parity with Cisco Catalyst® 3750 Series switches

Cisco EtherSwitch service modules run their own software, independent of the router's Cisco IOS® Software image, allowing for easy upgrades and ongoing software feature parity with Cisco Catalyst 3750 Series switches

Product NME-16ES-1G NME-16ES-1GP NME-X-23ES-1G NME-X-23ES-1G-1P NME-XD-24ES-1S-P NME-XD-48ES-2S-P
Cisco pre-standard PoE support and IEEE 802.af PoE No Yes* No Yes* Yes* Yes*
Minimum Cisco IOS Software release for Cisco EtherSwitch service module 12.2(25)SEC 12.2(25)EZ 12.2(25)SEC 12.2(25)EZ 12.2(25)EZ 12.2(25)EZ

* When installed in Cisco 3700 Series routers, the modules can only provide Cisco's pre-standard PoE. The Cisco EtherSwitch service modules do not support any PoE when installed in the Cisco 2691 router.

Platform Support
IOS Support 2691 2800 series 3700 series 3800 series
NME-16ES-1G 12.4(3), 12.4(4)T 2811, 2821, and 2851 Only 12.4(3), 12.4(4)T 12.4(3), 12.4(4)T
NME-16ES-1G-P 12.3(14)T, 12.4(1)

2811, 2821, and 2851 Only

12.3(14)T, 12.4(1)

12.3(14)T, 12.4(1) 12.3(11)T12.3(14)T, 12.4(1)
NME-X-23ES-1G Not supported

2821 and 2851 Only

12.4(3), 12.4(4)T

 Not supported 12.4(3), 12.4(4)T
NME-X-23ES-1G-P Not supported

2821 and 2851 Only

12.3(14)T, 12.4(1)

Not supported 12.3(14)T, 12.4(1)
NME-XD-24ES-1S-P Not supported

2851 Only

12.3(14)T, 12.4(1)

Not supported 12.3(14)T, 12.4(1)
NME-XD-48ES-2S-P Not supported

2851 Only

12.3(14)T, 12.4(1)

Not supported 12.3(14)T, 12.4(1)

Requires an IOS Base and above

Return to Top

WIC-1T



One port serial (DB60, Cisco 60-pin "5-in-1" connector ). Supports Max sync speed 2 Mbps. Does not support hot swap.

Platform Support
Feature Carrier Module Cisco IOS software support Sync Max Speed Async Max Speed Bisync & Half Duplex
1600 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps Cisco IOS Versions 11.2(8)P and later
1700 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps All Cisco IOS versions
1800 On-Board 12.3(8)T4 2.048 Mbps - -
2600 On-Board, NM-2W All Cisco IOS versions 2.048 Mbps Not supported All Cisco IOS versions
2800 On-Board 12.3(8)T4 2.048 Mbps - -
3600 NM-1E2W, NM-1E1R2W, NM-2E2W, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W All Cisco IOS versions 2.048 Mbps Not supported Cisco IOS Versions 11.2(4)XA, 11.3, 11.3T, and all 12.x
3631 On-Board Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher
2691, 3725, 3745 On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher
3800 On-Board, NM-2W, NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-1FE2W-V2, NM-2FE2W-V2 12.3(11)T 2.048 Mbps - -

Return to Top

WIC-2T



Provides two serial ports using the "smart serial" connector.

  • Asynchronous support with a maximum speed (per port) of 115.2 Kbps, minimum 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 2.048 Mbps per port.
    • Supports one port at 8 Mbps when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports two ports at 4 Mbps each when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports 8 Mbps on all ports simultaneously on 2691, 3725, and 3745. No restrictions. Maximum six ports at 8 Mbps each.
Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not supported All Cisco IOS versions

12.3(8)T4

 All Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 Series is not capable of supporting the WIC-2T due to lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2T due to hardware limitations.

Return to Top

WIC-2A/S



The WIC-2A/S provides two serial ports using the Smart Serial connector. The only difference between the WIC-2A/S and the WIC-2T is the maximum supported sync speed.

  • Aysnchronous support with a maximum speed of 115.2 Kbps, and a minimum of 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 128 Kbps.
Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board

On-Board, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not supported All Cisco IOS versions 12.3(8)T4 All Cisco IOS versions Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions Cisco IOS versions 12.2(8)T1 12.3(8)T4 Not supported Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 series is not capable of supporting the WIC-2A/S due to the lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2A/S due to hardware limitations.

Return to Top

WIC-1ADSL



One RJ-11 ADSL interface. Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt). Supports up to 23 virtual circuits per WIC. Dying gasp is not supported on WIC-1ADSL, For Dying gasp support please refer to WIC-1ADSL-DG.

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 3800
Carrier Module On-Board On-Board On-Board On-Board, NM-2W On-Board, NM-2W On-Board NM-1E1R2W, NM-1E2W, NM-2E2W NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board On-Board NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1ADSL Not Supported 12.1(3)XJ, 12.1(3)XP, 12.1(3)XT1, 12.1(5)YB, 12.2(2)T 12.3(8)T4 12.1(5)YB, 12.2(4)T 12.2(8)T1 12.3(8)T4 Not Supported 12.1(5)YB, 12.2(4)T Not Supported All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1SHDSL End Of Sale



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds (up to 2.3 Mbps) over a single copper pair. Supports up to 23 virtual circuits per WIC.

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800

Cisco 2600

 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1SHDSL Not Supported 12.2(13)T 12.3(8)T4 12.2(4)XL, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(8)T4 12.2(8)T 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires 1700, 1800, 2600, 2800, 3700, 3800 Chassis WIC Slot, or NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W WIC slots. Not supported in NM-1E1R2W, NM-1E2W, or NM-2E2W.

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1SHDSL-V2 End Of Sale



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2691 2610-2651XM 2800 3725, 3745 3800
WIC-1SHDSL-V2 Not Supported

12.3(8)T

 12.3(8)T4 12.3(4)XD 12.3(4)XD 12.3(8)T4 12.3(4)XD 12.3(11)T

Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-FE1R2W-V2.

Return to Top

WIC-1SHDSL-V3



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.

Platform Support
Platform Cisco 1600 1721,1751,1760 1841 Cisco 2691 2610-2651XM 2811-2851 3725, 3745 2825,3845
WIC-1SHDSL-V3 Not Supported

IP/ADSL IP Base and up

IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up

* Minimum IOS release 12.4(2)XA and Mimimum IOS T train support 12.4(3rd)T or 12.4(6)T

**Difference between V2 and V3 - Conexant Firmware Version as of 8/20/2005, A29733 (based on 2.3.1)for V2, 3.0.1 for V3

***Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-1FE1R2W-V2.

Return to Top

WIC-1B-S/T End Of Sale, WIC-1B-S/T-V2, WIC-1B-S/T-V3



One ISDN BRI port (S/T interface, requires external NT-1, RJ-45 connector). Does not support hot swap.

Platform Support
Platform Cisco 1601(R), 1602 (R), and 1605-R Cisco 1603, 1603-R, 1604, and 1604-R Cisco 1720, 1721, 1751, 1760 Cisco 1750 Cisco 1800 Cisco 2600 and 2600XM Cisco 2800 Cisco 3620 and 3640, 3640A Cisco 3631 Cisco 3660 Cisco 2691, 3725, and 3745 Cisco 3800
Carrier Module On-Board On-Board On-Board On-Board On-Board On-Board NM-2W On-Board On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, and NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE1R2W, NM-2FE2W, and NM-2W Onboard, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1B-S/T All Cisco IOS versions Not supported All Cisco IOS versions All Cisco IOS versions Not supported All Cisco IOS versions Not supported Cisco IOS versions 11.2(4)XA, 11.2(5)P, 11.3, 11.3T, all 12.x All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions Not supported
WIC-1B-S/T-V2 Not supported Not supported First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) Not supported - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported 12.3(1) First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported in 12.3(1) -
WIC-1B-S/T-V3 Not Supported
 Not Supported
 12.3(10) Not Supported
 12.3(8)T4 12.3(10) 12.3(8)T Not Supported
 Not Supported
 12.3(10) 12.3(10) 12.3(11)T

Return to Top

Analogue Modem WICs

WIC-1AM



WIC-2AM



WIC-1AM and WIC-2AM provide V.90 analog modem interfaces for low density applications (router management, dial backup and access). WIC-1AM includes jack for handset sharing access to PSTN line.

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1AM Not Supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T
WIC-2AM Not Supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T

V.92 is not currently supported.

Return to Top

WIC-1DSU-T1-V2



Cisco® T1 data service unit/channel service unit (DSU/CSU) WAN Interface Card (WIC) is an integrated, fully managed DSU/CSU for T1 or fractional T1 service and is Wet T1 Capable

Platform Support
Platform Cisco 1720,1721,1751,1760 Cisco 2600XM and 2691 Cisco 3631 Cisco 3725, 3745
WIC-1DSU-T1-V2 12.2(15)ZL PCBU special
12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline		 12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline		 12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline		 12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline

Return to Top

VIC-2E/M



2-Port E&M voice/fax interface card. Used to connect to PBX or key system as tie lines. Supports 2 and 4 wire, E&M signaling types I, II, III, V via RJ-45 connectors. Both ports must use the same signaling type.

Platform Support
IOS Support 1750, 1751, 1760 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2E/M All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires an IOS "Plus" feature set.

Return to Top

VIC2-2E/M



2-port E&M voice/fax interface card. Used to connect to PBX or key system as tie lines.

Platform Support
IOS Support 1751, 1760 1800 2691 2600XM 2800 3620, 3640 3631 3640, 3660 3725, 3745 3800
VIC2-2E/M 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) Not Supported. 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Voice requires an IOS "Plus" feature set. 12.3 Mainline and forward supported in “IP Voice” feature set.

Return to Top

VIC-2FXS



2-port FXS(Foreign Exchange Station) voice / fax interface card. Connects to a telephone or fax, or to a PBX or key set that emulates a telephone. Uses RJ-11 connectors.

Platform Support
IOS Support 1750, 1751, 1760 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2FXS All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600.

Return to Top

VIC2-2FXS

>

2-port FXS voice/fax interface card. FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.

Platform Support
IOS Support 1751, 1760 2600XM 2691 2801 2811,2821,2851 3631 3640, 3660 3725, 3745 3800
VIC2-2FXS 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.3(8)T4 12.3(8)T4 Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Note:

  1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-2FXO

>

2-port FXO voice/fax interface card, Australia uses VIC-2FXO-M3. Connects to a telco line, or to a PBX or key set that emulates a telco line. Uses RJ-11 connectors.

Platform Support
IOS Support 1750, 1751 1760 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2FXO All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions
VIC-2FXO-M3 12.1(5)T , 12.2, 12.2T All Cisco IOS versions 11.3(6)T, 12.0(2), 12.0(2)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All Cisco IOS versions 11.3(6)T, 12.0(2), 12.0(2)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600.

Return to Top

VIC2-2FXO

>

2-port FXO voice/fax interface card [universal card for all countries]. Also supports analog Centralized Automated Message Accounting (CAMA) on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)

Platform Support
IOS Support 1750, 1751, and 1760 2691 2600XM 2801 2811,2821,2851 3631 3640, 3660 3745, 3725 3800
VIC2-2FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 12.3(8)T4 Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  2. .Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC2-4FXO

>

4-port FXO voice/fax interface card [universal card for all countries]. Also supports analog CAMA on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)

Platform Support
IOS Support 1750, 1751, and 1760 2691 2600XM 3640 3620, 3631 3660 3725, 3745 3800
VIC2-4FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:

  1. In the Cisco 1751 router, a maximum of one VIC2-4FXO card can be supported.
  2. In the Cisco 1760 router, a maximum of two VIC2-4FXO cards can be supported.
  3. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  4. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-2BRI-S/T-TE / VIC-2BRI-NT/TE

>

VIC-2BRI-S/T-TE - Two port ISDN BRI Voice Interface Card, S/T interface, Terminal Equipment
VIC-2BRI-NT/TE - Two port ISDN BRI Voice Interface Card, S/T interface, Network Termination or Terminal Equipment

Two ISDN BRI (RJ-45), total of 4 B channels, thus 4 voice calls per VIC.

Platform Support
IOS Support 1750 1751 1760 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2BRI-S/T-TE Not Supported Not Supported Not Supported 12.0(2)XD, 12.0(3)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All Cisco IOS versions 12.0(2)XD, 12.0(3)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions
VIC-2BRI-NT/TE Not Supported Not Supported All Cisco IOS versions 12.1(3)XI, 12.1(4)T, 12.2, 12.2T 12.2(8)T1 12.1(3)XI, 12.1(4)T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. 12.1(3)XI, 12.1(4)T, 12.2, 12.2T All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600. Voice is not supported on 3631.

When you use the VIC-2BRI-S/T-TE with a NM-1V, you will only be able to place 2 calls. The second BRI port will be shutdown. When you use the VIC-2BRI-S/T-TE with a NM-2V, you can place 4 calls. If you have another VIC in the second slot, the second BRI port on the VIC-2BRI-S/T-TE will be shut down.

Return to Top

VIC-2DID

>

2-port DID voice/fax interface card. Used to provide off-premises DID connection from central office. Serves only incoming calls from the PSTN. Supports caller ID. Connects to a telco line. Uses RJ-11 connectors.

Platform Support
IOS Support 1750, 1751 1841 2600 2600XM 2691 2801 2811,2821,2851 3620,3640,3660 3725, 3745 3800
VIC-2DID 12.2(2)XJ Not Supported 12.1(5)XM1, 12.2(2)T 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.3(8)T4 12.1(5)XM1 12.2(8)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series router, requires a voice / fax network module: NM-1V or NM-2V.
  2. When used in a Cisco 1751 or Cisco 1760 Series Router, requires a DSP module.
  3. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

1 and 2 Port E1 Multi-Flex Trunk VWIC

>

Product Description
VWIC-1MFT-E1 1-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1 2-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1-DI 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert
VWIC-1MFT-G703 1-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703
VWIC-2MFT-G703 2-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703

This Multi-Flex Trunk may be used as a Voice Interface Card or as a WAN Interface Card (in a WIC slot in the 2600 or 3600). Thus it is a Voice WAN Interface Card (VWIC).

Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3600 3631 2691, 3725, 3745 3800
Carrier Module On-Board On-Board On-Board On-Board NM-2W High Density Voice NM On-Board NM-2W High Density Voice NM On-Board NM-1E2W, NM-1E1R2W, NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W High Density Voice NM On-Board On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W		 High Density Voice NM On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
VWIC-1MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T
VWIC-2MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-2MFT-E1-DI Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-1MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-2MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 Not supported 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T

For futher reference please refer to http://www.cisco.com/en/US/products/hw/routers/ps274/products_tech_note09186a00800b6e0f.shtml

Return to Top

2nd Generation 1 and 2 Port T1E1 Multiflex Trunk Voice WAN Interface Cards

>

Product Description
VWIC2-1MFT-T1/E1 1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-T1/E1 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-1MFT-G703 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-G703 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card

* Have an onboard slot for a Cisco MFT Dedicated Echo Cancellation (ECAN) Module (part number EC-MFT-32 or EC-MFT-64),

* Support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC2s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications.

*Include the drop-and-insert multiplexing capability

*enable each port to be clocked from independent clock sources for data applications.

Platform Support
Feature 1721,1751,1760 1841 (data only) 2600XM 2691 3662 3700 2800 3800
VWIC2-XXXX 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T

* Please see the following link for more info about WIC/NM/VIC constraint :

** Data applications require at a minimum the IP Base feature set license and voice applications require at a minimum the IP Voice feature set license.

Return to Top

Multiflex trunk dedicated echo cancellation modules (EC-MFT-32, EC-MFT-64)

Cisco Multiflex Trunk Dedicated Echo Cancellation (MFT ECAN) Modules are dedicated resources for the Cisco Enhanced ITU-T G.168 ECAN feature, providing robust echo cancellation performance for demanding network environments. The modules are daughter cards that attach to Cisco Second-generation Multiflex Trunk Voice/WAN Interface Cards (MFT VWIC2 cards). The dedicated ECAN modules are available in 32- and 64-channel configurations, which match the requirements of the 1- and 2-port T1/E1 MFT VWIC2s, respectively.

Platform Support
Platform 1721,1751 and 1760 2600XM 2691 2800 3662 3700 3800
EC-MFC-XX 12.3(14)T, 12.4(1) 12.2(13)T 12.2(13)T 12.3(14)T, 12.4(1) 12.2(13)T 12.3(14)T, 12.4(1) 12.3(14)T, 12.4(1)

* Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760.

** It is possible to install a Cisco 32-Channel MFT Dedicated ECAN Module on a 2-port MFT VWIC2. However, not all voice channels will be able to concurrently use the echo cancellation feature.

*** It is possible to install a Cisco 64-Channel MFT Dedicated ECAN Module on a 1-port MFT VWIC2. However, the extra echo cancellation channels will not be used. The only ports on the MFT VWIC2 that can use the module resources are the ports directly attached to the module.

Return to Top

Cisco Unity Express Network Module

NM-CUE



Product Description Features
NM-CUE The Cisco Unity Express network module is fully self-contained with dedicated onboard processing, memory and storage, allowing for efficient message handling, a range of concurrent sessions, simultaneous processing, and ample voice mail storage capacity for a wide range of typical branch office profiles.
  • Internal Disk Storage: 20 Gig Harddrive.
  • Up to 100 hours of storage.
  • Can be licensed for up to 100 mailboxes.

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620,3631,3640,3640A,3660 2691, 3725, 3745 3800
IOS Support Not Supported 12.3(4)T Not Supported 12.3(8)T Not Supported 12.3(4)T 12.3(11)T

Return to Top

AIM-CUE



Product Description
AIM-CUE The Cisco Unity Express advanced integration module is fully self-contained with dedicated onboard processing, memory and storage. And, because the advanced integration module is internally installed on the router, it frees external interface slots for other services like analog and digital voice, VPN acceleration or switching. Advanced integration module (AIM-CUE) has a robust onboard microprocessor. Please note the Cisco Unity Express as of version 2.0, now comes with 1GIG of industrial grade compact flash storage.
AIM-CUE-1GBCF Cisco Unity Express - 1GB Compact Flash
AIM-CUE-512CF Cisco Unity ExpressCompact - 512MB Compact Flash

Platform Support
IOS Support 2600XM 2691 2801,2811,2821,2851 3725, 3745 3825,3845
AIM-CUE 12.3(7)T 12.3(7)T 12.3(8)T4 12.3(7)T 12.3(11)T

Notes:

  1. Requires IP Voice feature set.
  2. Requires Cisco Unity Express License.
Return to Top

Cisco Unity Express Network Module

NM-CUE-EC



Product Description Features
NM-CUE-EC The Cisco Unity Express network module is fully self-contained with dedicated onboard processing, memory and storage, allowing for efficient message handling, a range of concurrent sessions, simultaneous processing, and ample voice mail storage capacity for a wide range of typical branch office profiles.
  • supports up to 16 ports of concurrent voice-mail or automated-attendant sessions and up to 250 voice mailboxes (new with Release 2.3).

Platform Support
Platform 2691 2600XM 2801 2811,2821,2851 3725,3745 3825, 3845 3800
IOS Support Yes Yes Not Supported Yes Yes Yes 12.3(11)T

Mimumum of Release 12.3(11)T5, 12.3(14)T1, 12.4(1) IOS release and Unity Express 2.1

Return to Top

AIM-COMPR2 / AIM-COMPR4

>

Product Description
AIM-COMPR2 Data Compression AIM for 2600 Series. Supports compressed data up to 2 E1 full duplex. Supports PPP STAC compression, MPPC compression, and FRF.9 frame relay compression. Supports a maximum of 128 LZS sessions, or a maximum of 64 MPPC sessions.
AIM-COMPR4 Data Compression AIM for 2691, 3660, and 3700 Series. Supports compressed data up to 4 E1 full duplex. Supports PPP STAC compression, MPPC compression, and FRF.9 frame relay compression. Supports a maximum of 256 LZS sessions, or a maximum of 128 MPPC sessions.

Platform Support
IOS Support 1800 2600 2600XM 2800 3620, 3640 3631 3660 2691, 3725, 3745 3800
AIM-COMPR2 Not Supported 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.0(1)T 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-COMPR4 Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

Virtual Private Network (VPN) modules

>

Product Description Performance
AIM-VPN/BP DES/3DES VPN Encryption AIM - Base Performance 2-6Mb/s, 150 tunnels max
AIM-VPN/EP DES/3DES VPN Encryption AIM - Enhanced Performance 4-14Mb/s, 400 tunnels
(2650 performance)
AIM-VPN/HP DES/3DES VPN Encryption AIM - High Performance 10-24Mb/s, 900 tunnels max
AIM-VPN/BPII DES/3DES/AES VPN Encryption/Compression Module for 2600XM 20-Mbps 3DES performance in 2611 and up to 22 Mbps on the Cisco 2651XM
AIM-VPN/EPII DES/3DES VPN Encryption AIM - High Performance up to 150 Mb/s, 2000 tunnels max
AIM-VPN/HPII DES/3DES VPN Encryption AIM - High Performance up to 180 Mb/s, 2000 tunnels max
NM-VPN/MP DES/3DES VPN Encryption NM for 3620/3640 - Mid Performance 5-12Mb/s, 400 tunnels max
AIM-VPN/BPII-PLUS DES/3DES/AES Encryption AIM - Base Performance
up to 20-22 Mbps
AIM-VPN/EPII-PLUS DES/3DES/AES Encryption AIM - Enhanced Performance up to 80-150 Mbps
AIM-VPN/HPII-PLUS DES/3DES/AES Encryption AIM - High Performance up to 180 Mbps

Platform Support
IOS Support 1800 2600 2600XM 2800 3620 3631 3640 3660 2691, 3725 3745 3825 3845
AIM-VPN/BP Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EP Not Supported 12.2(2)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported
AIM-VPN/HP Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported
AIM-VPN/BPII Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EPII Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported
AIM-VPN/HPII Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported Not Supported
NM-VPN/MP Not Supported Not Supported Not Supported Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/BPII-PLUS 12.3(8)T Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EPII-PLUS Not Supported Not Supported Not Supported 12.3(8)T Not Supported Not Supported Not Supported Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(11)T Not Supported
AIM-VPN/HPII-PLUS Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(11)T

Software Prerequisites: Cisco IOS software with the "IPSEC" or "Advanced Security" or higher feature set and maximum ONE Encryption modules/AIMs per Router

Return to Top

AIM-ATM, AIM-VOICE-30, AIM-ATM-VOICE-30

>

Product Description Features
AIM-ATM ATM SAR Advanced Integration Module AAL1,2, and 5 Support.
PVC/SVC support.
Up to 30 Voice channels of AAL2 (AIM-ATM requires NM-HDV for voice support)
Up to 4 T1/E1 channels of AAL5 (with IMA support).
Up to 2048 VCs.
IEFT PPP over ATM Support.
AIM-ATM-VOICE-30 SAR and 30 Channel T1/E1 Digital Voice module
AIM-VOICE-30 30 Channel T1/E1 Digital Voice module

Platform Support
IOS Support 1800 2600 2600XM 2801 2811, 2821, 2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
AIM-ATM Not Supported 12.2(2)XA, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T4 Not Supported 12.3(2)T 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
AIM-ATM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported
AIM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported

Return to Top
