Cisco MGX 8800 Series Switches

Release Notes for Cisco MGX Route Processor Module (RPM-XF) IOS Release 12.3(2)T5 for PXM45-based Switches, Release 5.0.00

 Feedback

Table Of Contents

Release Notes for Cisco MGX Route Processor Module (RPM-XF) IOS Release 12.3(2)T5 for PXM45-based Switches, Release 5.0.00

Contents

About These Release Notes

Special Notes

New Features

Features Introduced with 12.3(2)T5

Features Introduced with 12.3(2)T4

Link Fragmentation Interleaving (LFI)

Increase the Maximum Number of Policy Maps to 2048

MPLS VPN Multicast

cRTP

WRED Drop Counters

TMS

SAR based TM/QoS

TCP de-compression

Dual MPLS Partition for RPM-XF (related to LSC redundancy)

Feature Introduced with 12.3(2)T2

2-Port POS (Packet Over SONET) and 2-Port GIG-E (Gigabit Ethernet) Service Module Back Cards

Features Introduced Prior to 12.3(2)T2

MGX 8950 Support for RPM-XF

EiBGP Load Balancing

IP Accounting Counters

Multiple Actions under Police Command

QoS Sub Optimal Link Utilization

RPM-XF Redundancy Support

Features Not Supported in This Release

Network Management Features

SNMP MIB

RPM-XF Limitations and Restrictions

Notes and Cautions

RPM-XF auto_config File Management

Card Management

RPM-XF Bootflash Precautions

Open Anomalies —Release 12.3(2)T5 for RPM-XF

Resolved Caveats—Release 12.3(2)T5

Resolved Caveats—Release 12.3(2)T4

Resolved Caveats—Release 12.3(2)T2

Compatibility Notes

RPM-XF Boot File and Firmware File Names and Sizes

RPM-XF Compatibility Matrix

MGX RPM-XF Hardware

Cisco IOS Release Compatibility Information

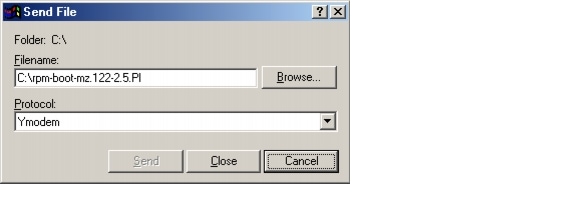

Using XModem to Download Flash to RPM-XF Cards

Historical Information for 12.2.x IOS Baseline

Resolved Caveats—Release 12.2(15)T5

Resolved Caveats in Release 12.2.15T

Resolved Caveats Prior to Release 12.2.15T

Related Documentation

Obtaining Documentation

Cisco.com

Documentation CD-ROM

Ordering Documentation

Documentation Feedback

Obtaining Technical Assistance

Cisco TAC Website

Opening a TAC Case

TAC Case Priority Definitions

Obtaining Additional Publications and Information


Release Notes for Cisco MGX Route Processor Module (RPM-XF) IOS Release 12.3(2)T5 for PXM45-based Switches, Release 5.0.00


These release notes are part OL-4536-01 Rev. B0, August 18, 2004

Contents

Limitations:      6
Limitations:      7

About These Release Notes

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more current than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription.

Note that for Release 5.0.00 user documentation (command reference, overview, and installation and configuration guides), use the MGX Release 4 and Cisco IOS documents in addition to this release note.

Product documentation for Release 5 of the MGX 8850 is available at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/wanbu/8850px45/rel5/index.htm

Product documentation for Release 5 of the MGX 8950 is available at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/wanbu/mgx8950/rel5/index.htm

Special Notes

Please refer to the this Web page for the latest updates on IOS software and firmware issues.

http://www.cisco.com/cgi-bin/Software/Iosplanner/Planner-tool/printsa.pl?get_crypto=&data_from=&hardware_name=&software_name=&release_name=12.3.2T&majorRel=12.3&state=:RL&type=Early%20Deployment&file=12.3.2T.c.html

Note that the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4 manual describes some features that are not supported in this release. Refer to the section entitled "Features Not Supported in This Release" section for a list of the affected features.

New Features

The MGX RPM-XF is a next-generation, high performance model of the RPM for the MGX 8850 and MGX 8950 platforms, using PXM45 processor modules. It is a router module based on an RM7000A MIPS processing engine that fits into slots 1-6 and slots 9-16 in the MGX 8850 and slots 1-6 and slots 11-16 in the MGX 8950.

The RPM-XF hardware provides forwarding technology for packet switching capabilities in excess of 2-million pps. The forwarding engine is packet based and is interfaced to the midplane of the system through a combination of switch interface technologies. For more information on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

Features Introduced with 12.3(2)T5

No new features were introduced with release 12.3(2)T5.

Features Introduced with 12.3(2)T4

Link Fragmentation Interleaving (LFI)

The 12.3(2)T5 release adds support for Link Fragmentation Interleaving (LFI). For more information on the CLI commands that have been introduced or modified to support this feature on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

IOS configuration information can be found at:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121newft/121t/121t5/dtlfifra.htm

Increase the Maximum Number of Policy Maps to 2048

Policy maps along with class maps and service policy maps are used to define a traffic policy and attach them to an interfaces. Prior to this release, you were able to create 256 separate policy maps and a total of 256 class maps per policy map. With this release, the maximum number of policy maps has been increased to 2048. Each policy map supports up to 32 class maps per policy map. For more information on the CLI commands that have been introduced or modified to support this feature on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

MPLS VPN Multicast

The frame-based Multicast VPN (MVPN) feature enables the RPM-XF to pass frame-based multicast traffic to VPNs across the ATM core.

Configuration information can be found at:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122s/122snwft/release/122s14/fs_mvpn.htm

cRTP

The cRTP acronym refers to the Compressed Real-Time Protocol (CRTP) header. This release of the RPM-XF adds the ability to configure this header.

Below are the CLI commands introduced to support this feature:

ip rtp header-compression - enables RTP header compression for a particular interface.

no ip rtp header-compression - disables RTP header compression for a particular interface.

clear ip rtp header-compression <interface> - resets all statistics for the interface to 0.

show ip rtp header-compression <interface> [detail] - shows all statistics for an interface.

show policy-map int sw1.x -shows the number of packets which are compressed because of match in policy map.

Configuration information can be found at http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122newft/122t/122t13/fthdrcmp.htm

WRED Drop Counters

The WRED Drop Counters feature adds Class-Based Packet Counters to existing RPM-XF functionality. The counters can be dscp based or precedence based. For more information on the CLI commands that have been introduced or modified to support the WRED Drop Counters feature on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

TMS

The TMS (Traffic Matrix Statistics) feature allows an administrator to gather the number of packets and bytes that travel across the backbone from internal and external sources. These packets and bytes are called traffic matrix statistics. Use the statistics collected to determine how much traffic the backbone handles. The statistics are always collected on the incoming interface. For more information on the CLI commands that have been introduced or modified to support TMS on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

SAR based TM/QoS

Traffic Management, Weighted RED, and Cell-Based Weighted Fair Queuing algorithm processing is now accomplished using the Segmentation and Reassembly engine (SAR).

TCP de-compression

The 12.3(2)T2 release adds support for TCP de-compression as an adjunct to supporting the Compressed Real-Time Protocol (CRTP) header feature on the RPM-XF.

Dual MPLS Partition for RPM-XF (related to LSC redundancy)

The 12.3(2)T2 release adds support for dual MPLS partitions on the RPM-XF.

Configuration information can be found at
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/8850px1e/rel4/scg/rpm.htm

Feature Introduced with 12.3(2)T2

2-Port POS (Packet Over SONET) and 2-Port GIG-E (Gigabit Ethernet) Service Module Back Cards

The 12.3(2)T2 release adds support for two new service module back cards that provide either two GIG-E (Gigabit Ethernet) or two POS (Packet Over SONET) ports. For more information on the fit and function of these 2 new service module back cards as well as the CLI commands that have been introduced or modified to support these 2 new service module back cards on the RPM-XF, refer to the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4.

Features Introduced Prior to 12.3(2)T2

MGX 8950 Support for RPM-XF

In Cisco MGX Release 3.0.10 and later, the MGX 8950 supports the MGX RPM-XF card set. The MGX RPM-XF card set can occupy any of the available service module slots in the MGX 8950, which are slots 1-6 and slots 11-16.

EiBGP Load Balancing

To balance load by BGP on multiple paths to destination, traffic is directed on multiple available paths between autonomous systems (AS) by gateway routers.

The following CLI commands are used to implement this feature.

Command
Description

maximum-path <nums>

Configure maximum number of EiBGP parallel routes.

For example:

bgpbox-zenith-CE1(config)#router bgp 4
bgpbox-zenith-CE1(config-rout)#maximum-paths 3
bgpbox-zenith-CE1(config-rout)#end

show ip bgp

This command has been enhanced to show the multipaths.

Each multipath is marked as 'multipath'.

The bestpath is marked as 'multipath' and 'bestpath'.

The output also has what flavour of multipath is enabled.

For example:

bgpbox-zenith-CE1#sh ip bgp 141.22.0.0
BGP routing table entry for 141.22.0.0/16, version 18
Paths: (2 available, best #1)
Multipath: eBGP
Advertised to non peer-group peers:
7.0.76.9
100 5
7.0.76.2 from 7.0.76.2 (100.0.0.2)
Origin IGP, localpref 100, valid, external, multipath,
best
100 5
7.0.76.9 from 7.0.76.9 (100.0.0.9)
Origin IGP, localpref 100, valid, external, multipath


Limitations:

If there are multiple alternate paths for the peering point, only one of the paths is utilized for a given prefix.

Only per-flow load balancing is supported. Per-packet load balancing is not supported.

Supported only in MPLS/VPN networks.

Load balancing proportional to the link's bandwidth [dmz-linkbw] is not supported. The load balancing will be performed on the available links with equal costs.

The maximum number of paths that can be used for load sharing is 6. This is the current IOS limitation too.

Load balance will not work if RDs are same with RR. RDs have to be different if RRs are used.

CEs in different VPNs using same RDs does not work.

IP Accounting Counters

MGX RPM-XF stores the packet/byte counters based on precedence/DSCP values on a per interface level at input ONLY.

The following CLI have been added or enhanced for this release to implement this feature:

Command
Description

ip accounting ?

pop20-slot6(config-if)#ip accounting ?
precedence         Count packets by IP precedence on
this interface
dscp               Count packets by DSCP on this
interface

ip accounting precedence ?

pop20-slot6(config-if)#ip accounting precedence ?
input   received packets and bytes

ip accounting dscp ?

pop20-slot6(config-if)#ip accounting dscp ?
input   received packets and bytes

show int [interface] precedence

pop20-slot5# show int [interface] precedence

show int [interface] dscp

pop20-slot5# show int [interface] dscp

clear counters

pop20-slot5#clear counters

Limitations:

Counters are maintained ONLY at input per interface.

There is no count of dropped/transmitted based onDSCP/PREC packets per interface.

Multiple Actions under Police Command

The MGX RPM-XF police command is now similar to the IOS/RPM command. Therefore, multiple exceed and conform actions can be applied on the police command.

The police CLI command has been enhanced as follows:

Prior to this release, the police command had no menus and all parameters were listed on one line, as shown in the following example.

domino80p01-z001#sh policy test1z
.............
police 128000 8000 8000 conform-action transmit exceed-action drop

This allows only one value for conform-action and exceed-action.

The newly enhanced police command functions as shown in the following example.

ipfrtx90r14-01(config-pmap-c)#police 128000 8000 8000
ipfrtx9(config-pmap-c-police)#conform-action transmit
ipfrtx9(config-pmap-c-police)#exceed-action set-dscp 28
ipfrtx9(config-pmap-c-police)#exceed-action set-mpls 2

Note that multiple conform-action and exceed-action parameters can be configured.

QoS Sub Optimal Link Utilization

RPM-XF uses VTMS as a scheduling algorithm. VTMS schedules queues based on the current link utilization in real time. The previous version of the VTMS algorithm was efficient and mapped well in an ASIC or network processor. However, it did not fully utilize the link.

In this release, a fix is made (via a new CLI command) to allow the user to specify the over subscription factor on a queue. The factor is in the range on 1-31 and can be denoted as 2n. An over subscription factor of n = 2 on any queue, essentially means to subscribe that queue by a factor of 4 ( 2n where n (in this example) is 2; so 2 raised to power 2=4).

The new syntax for bandwidth and priority commands are:

[no] bandwidth {<kbps> | percent <percentage> | remaining percent <percentage>}
[maximize-utilization [<max-shift>]]

[no] priority {<kbps> | percent <percentage>} [maximize-utilization

RPM-XF Redundancy Support

RPM-XF 1:N redundancy is used to switch configuration and traffic from one RPM-XF module to another RPM-XF module. Route processing continues with minimal traffic loss even if an RPM-XF fails and there is no operator or direct access to swap the failed card or fix the problem. Currently we support redundancy that ensures Layer 2 state restoration. Layer 3 state is restored via convergence.


Note When resetting a shelf with RPM-XFs configured for 1:N redundancy, it is recommended that you bring up the primary slots in active state.


The main benefits of 1:N Redundancy are:

An RPM-XF card with hardware problems can be fixed while the redundant standby card takes over its functionality.

Software upgrades are easier and can be done with less downtime.

LAN interface redundancy supported with MAC addresses of primary RPM-XF copied to standby RPM-XF.

1:N Redundancy support for Gigabit Ethernet interface backcards during front card switchover.

Y cable redundancy support for POS backcards during front card switchover. (With Y cable, 1:N redundancy is restricted to N = 1).

The following are the general guidelines for redundancy on the RPM--XF:

Addred is not allowed between RPM-PR and RPM-XF.

To configure redundancy, the Primary RPM-XF should be in Active state and Secondary RPM-XF card must be in Active/Standby state.

Removal of the Active RPM-XF back card does not cause switchover to the standby RPM-XF.

User has to make sure that E:RPM/auto_config_slot# is created before adding redundancy. This may require a login to primary card through the command line and manually adding boot config e:auto_config_slot# followed by a write mem.

Executing switchcc back-to-back with switchredcd can cause problems. We recommend giving a gap of at least 5 seconds between switchredcd and a switchcc.

IOS software on a standby card should be the same or higher version than the Active RPM-XF card.

Booting the card from an image on tftp server is not recommended when the card is in redundancy group. The card should be booted from image in bootflash or PXM disk only.

Configuring the standby RPM-XF is not recommended.

Features Not Supported in This Release

The following features are not supported in this release.

LSC Redundancy

MPLS TE tunnels on ATM Interfaces

VC Merge

RPM-PR to RPM-XF upgrade

OIR of backcards without interfaces in shutdown mode

Per packet load balancing

Modem connectivity on Auxiliary port

ROMMON's Xmodem functionality does not support the Speed option.

Network Management Features

Network management features are detailed in the Release Notes for Cisco WAN Manager 15.0.00 at:

http://cisco.com/univercd/cc/td/doc/product/wanbu/svplus/15/rnotes/index.htm

SNMP MIB

SNMP MGX Release 5.0.00 MIB files are provided with the delivery of this release. The MIB files are in standard ASN.1 format and are located in the same directory within the release bundle on CCO. These files may be compiled with most standards-based MIB compilers. The tar file for MIB contains the file that contains the MIB release notes. This contains only MGX MIBs.

Cisco IOS MIBs are not part of this bundle. They are part of the 12.3(2)T5 CCO release.

RPM-XF Limitations and Restrictions

The RPM-XF limitations and restrictions that apply to this release are as follows:

E: RPM/auto_config_slot# must be created before adding redundancy. This may require a login through the CLI and manually adding the boot config command followed by a write mem.

PVPs can not operate at a rate greater than 599039 kbps.

High speed VC (SCR greater than or equal to 599,039 kbps) would not get full-configured rate for single flow (unique source and destination IP address). This happens because for high speed VCs, the PXF creates two queues and these queues can't be shared for same stream. Sharing two queues for same stream would cause out of sequence packets.

PXF queue selection algorithm may cause traffic drop for multiple stream going to same destination via multiple paths. When the PXF gets a packet, it selects the output queue based on source and destination IP address. These addresses hash into one of the queues for the selected destination. So if there are multiple paths for the same destination, there is a possibility that multiple streams would hash to one queue, causing some queues to overflow, while others might be under-utilized.

PXF buffer depletion may occur if packets of the same size (especially packets greater than 640 bytes) are sent to a congested interface.

Currently VBR-nrt and VBR-rt are treated with same priority system wide.

RPM-XF PVP only supports UBR.

PVP in RPM-XF is not OAM managed.

If out-of-sync SPVC or SPVP exist on RPM-XF, shrinking of PNNI partition would not be permitted.

A single RPM-XF can only function as either an Edge LSR or as an LSC, but not as both.

Because RPM-XF only supports UBR, VBR-rt and VBR-nrt, on the PXM, dsppnportrsrc for RPM-XF port will show 0 available resource for CBR, ABR and signaling service types. Also, cnfpnportcac for CBR and ABR will be rejected.

If RPM-XF is configured as an eLSR, RPM-XF does not support incoming VC-merge LVCs. There is a problem logged against LSC module that it cannot support both VC-merge/non-VC-merge supporting VSI slaves at the same time. So for now, if RPM-XF eLSR is part of a cell based MPLS network (with RPM-PRs or AXSMs in the same node), disable the VC-merge feature on LSC. (Note that VC-merge is enabled on LSC by default).

RPM-XF eLSR only supports at most two MPLS sub-interfaces. Attempting to configure over the limit will result in an error message.

Although RPM-XF VSI slave supports connections statistics Get command, only packets and bytes counts are available. Therefore, show xtag cross-connect traffic int xtagatm connection statistic display on LSC are actually packet counts from RPM-XF eLSR.

OIR of MGX-1GE and MGX-1OC12POS-IR back cards are supported only with interfaces in shutdown state.

MGX-1GE back card does not have the capability to provide line loopback.

Flow Control Option is not configurable with MGX-1GE back card.

MGX-1GE back card does not support SFP security.

Line loopback and internal loopback cannot be set at the same time for the MGX-1OC12POS-IR back card with AMCC Mux.

pos ais-shut command is not supported on MGX-1OC12POS-IR back card.

Traffic rate per flow is at half the interface speed for POS/GigE interfaces in this new release.

Autonegotiation is not recommended to be toggled on GigE interfaces when traffic is going through. This may result in permanent disruption of traffic.

For UBR 2 queues always exist which would result in half the Flow rate for each flow because of hashing algorithm hashing into single queue .

The performance limits supported in this release are the following:

2K ATM SPVC Connection endpoints

2K IDBs

4K LVCs

100 VPCs

256 Policymap

100 OSPF neighbors

6 IOS-based cards in MGX shelf

500 VRFs: 500

500 BGP CE Peers

100 RIP CE sessions

500 Static CEs

100,000 VPN Routes per PE

250K non-VPN Routes per RPM-XF

50 Xtag interfaces per RPM-XF

300 OAM enabled connections

For more RPM-XF performance details, contact your sales representative.

Notes and Cautions

The following notes and cautions should be reviewed before using this release.

Attempting to initiate RPM-XF switchover when write mem is in progress on the active RPM-XF card may lead to the card coming up with a partial configuration. When an addred is executed, an automatic write mem is triggered on the primary RPM-XF. If the primary card fails when the write mem is in progress, the card may come up with a partial configuration. The duration of write mem depends on the configuration size and can take up to 4 minutes to complete.

There is a new stable "Boot-Hold" state displayed on the PXM45 when dspcds is executed. This state indicates that the RPM-XF is running only boot image. This state is reached when config register is set to 0x1 or when the bootldr cannot find the run-time image, but found the boot image. Enter cc to access the RPM-XF from the PXM45.

Valid boot image need not be the first file in the boot flash. The RPM-XF will load from any valid boot image from the bootflash:. The run-time image can be the first file in the boot flash and RPM-XF will come up with that image.

Trying to change PCR value of VP tunnel or changing MTU of switch interface with more than 4K VCs may cause CPU hog.

If there is a large number of VCs (PVCs or LVCs or both) on RPM-XF card, executing disruptive operations on the main switch interface (int switch1) may cause flapping of protocols that run on these VCs. Examples of disruptive operations are clear int switch1 and modification of PVP parameters. These operations cause deactivation and re-activation of all VCs under the main switch interface. Depending on the number of VCs, the time required to complete such operations may exceed certain protocol timeout limit. Examples of protocols that may be affected are OSPF and TDP/LDP.

RPM-XF VSI slave tends to output informational warning/trace back messages caused by misconfigurations and CAC failures (onto console/IOS log file). These messages are mostly for information/debugging purpose. When these messages are observed, confirm that connection status is still intact and traffic is still passing successfully.

Due to PXF scr granularity, the configured scr on IOS pvc CLI may not be the same as the actual scr programmed in the PXF. PXF bandwidth chunk size is 18 kbps; all PXF VC scr will be programmed as multiples of 18 kbps. For instance, if the PVCs were configured with 50 kbps as pcr, 54 kbps would be programmed in PXF. show atm pvc display will show 50 kbps, and VSI Slave will account 50 kbps during CAC. However, 54 kbps is actually being used. So as a result, when bandwidth usage is reaching the maximum value, both VSI Slave and PNNI will continue to allow connection provisioning, because VSI Slave and PNNI available bandwidth shows more than PXF actually has left.

Saveallcnf (issued on the PXM45/B card) captures configuration data saved by the RPM-XF card (as well as AXSM and PXM45 cards), and saves it on the active PXM45/B card's hard disk. Configure the RPM-XF to store its configuration on the PXM45/B hard disk (E:/RPM) by entering boot config e:auto_config_slot# in the running configuration of the RPM-XF. To ensure that the saved file contains the latest RPM-XF configuration, execute the write mem command on each RPM-XF card prior to the entering saveallcnf command. This also ensures that the RPM-XF files on the active PXM45 hard disk will contain the latest configuration to be saved.

For ELSR to LSC connectivity, the default control VC used is 32. If PNNI partition exists with VCI 32 as part of its partition range, when an MPLS partition is added, there are two options to handle the situation:

Add the MPLS controller and define its partition with available range. On eLSR, define control VC from any VCI value within the range defined in partition. The same VC should be defined on LSC on xTag interface.

Reconfigure PNNI partition to spare the control VC usage both on RPM-XF and AXSM, AXSM/B or AXSM-E APS Management Information.

Whenever the RPM-XF configuration is changed, enter the write mem command on the RPM-XF to save the configuration. If this is not done, the changed configuration will be lost on an RPM-XF card reboot or RPM-XF switchover, in the case of redundancy.

RPM-XF auto_config File Management

The RPM-XF auto_config_slot# file stores the configuration for the RPM-XF card. The slot# portion of the name should be set to the logical slot number that corresponds to the RPM-XF card. This file can be stored in bootflash or in the E:RPM directory on the PXM45 hard disk. The configuration is also stored in NVRAM using the name startup-config.

When the RPM-XF card is inserted or rebooted, it searches for the configuration file in the following sequence:

1. If there is an auto_config file corresponding to its logical slot on the PXM45 hard disk, the RPM-XF card uses the configuration stored on the hard disk.

2. If boot variable points to configuration stored in the PXM45 hard disk or Bootflash and if the file is not found, the card comes up as Active-F with the default configuration.

3. If there is no auto_config file on the hard disk, then the NVRAM version is used.


Note In case of RPM-XF redundancy, the configuration should always be stored in auto_config_slot# file in the E:RPM directory of the PXM45 hard disk. Failure to find the auto_config file will lead to aborting of a user-initiated switchover (switchredcd) and a fatal error will be flagged.


Card Management

The following card management notes and cautions should be reviewed before using this release.

There is a new stable state displayed on the PXM dspcds command—Boot-Hold, which signifies that the RPM-XF is running the boot image only. On the RPM-XF, the prompt will display as boot>

The run-time IOS image cannot be used as a bootloader to load a different IOS image.

Change of console speed on the terminal server may cause the card to end up in the ROMMON state. To avoid this, set the config register to 0x2102.

Another workaround is to enter cont on the ROMMON within 2 minutes of going into ROMMON state. This will bring the card to its original stable state.


Note It is recommended to always use 9600 baud as the console speed.


The IOS version of the runtime as well as the boot image will be displayed in the dspcd, dsprevs, and dsprevs -s output. The version will be displayed under the heading of IOS version. Revision Control is not available for RPM-XF (like RPM-PR).


Note The commands loadrev and setrev do not apply for RPM-XF.


RPM-XF Bootflash Precautions

The RPM-XF bootflash is used to store boot image, configuration and run- time files. Erasing the boot image from the Flash will cause the card to not boot.

The RPM-XF boot image, which comes loaded on the Flash, will work for all RPM-XF IOS images. Therefore, there is no reason to delete or move the factory installed boot image.

In order to avoid any unnecessary failures that would require card servicing, do the following:

Never erase the boot file from the RPM Flash

Never change the position of the boot file on the RPM Flash

Use care when "squeezing" the Flash to clean it up.

As long as the boot file remains intact in the first position on the flash, the RPM-XF will boot successfully.

If the bootflash is corrupted, use the tftpdnld procedure described in the Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide or xmodem procedure described in "Using XModem to Download Flash to RPM-XF Cards" later is this document to download a new boot image.

Open Anomalies —Release 12.3(2)T5 for RPM-XF

Table 1 lists the open caveats in Cisco IOS Release 12.3(2)T5 as of April 14, 2004.

Table 1 Open Anomalies on 12.3(2)T5 for RPM-XF

Caveat Number
Description

CSCec16481

Symptom:

A Cisco device running Internetwork Operating System (IOS) and enabled for the Open Shortest Path First (OSPF) Protocol is vulnerable to a Denial of Service (DoS) attack from a malformed OSPF packet. The OSPF protocol is not enabled by default.

Conditions:

The vulnerability is only present in IOS release trains based on 12.0S, 12.2, and 12.3. Releases based on 12.0, 12.1 mainlines and all IOS images prior to 12.0 are not affected. Refer to the Security Advisory for a complete list of affected release trains.

Workaround:

Further details and the workarounds to mitigate the effects are explained in the Security Advisory which is available at the following URL:

http://www.cisco.com/warp/public/707/cisco-sa-20040818-ospf.shtml.

(This caveat was added August 18, 2004)

CSCdy81782

no shut on the ppp interface before VA goes down causes pxf to drop

Symptom:

"no shut" on the PPP interface before VA goes down causes PXF to drop certain packets. This results in being unable to have successful ping through routes involving such a PPPoA subinterface from a remote node. Arriving ICMP packets are dropped in PXF.

Conditions:

Under a PPPoA subinterface, if "shut" and "no shut" commands are issued in succession such that "no shut" is completed before the associated virtual-access goes down.

Workaround:

After a "shut", wait until the associated virtual-access changed to go down before issuing "no shut". If symptom occurs, go to the subinterface, perform a "shut", wait for the associated virtual-access to go down and then perform a "no shut".

Further Problem Description:

When node is in this condition, pings originating from the local node and none-ICMP traffic appears to work correctly. Only pings from a remote node would fail.

CSCed05924

Symptom:

PXF reloaded abnormally due to software exception

%PXF-2-FAULT:T0 SW Exception:CPU[t0r3c1] 0x00000180 at 0x0DE1 LR 0x084B

Conditions:

MVPN traffic was being passed. No other activity on the card at that time.

Workaround:

Unknown.

CSCed16744

Symptom:

Traffic does not resume after SAR is brought out of hang state.

Conditions:

"sh rpm mxt46 rx chip" command executed several times, via a script, may cause traffic to stop completely

Workaround:

Use "microcode reload sar rx" to bring device to normal state.

CSCed34575

Symptoms:

MPLS packet will be transmitted without fragmentation even if the MPLS packet exceeds the outgoing interface MTU.

Conditions:

When the MPLS packet is greater than the outgoing interface MTU.

Workaround:

None.

CSCed39641

Symptoms:

SAR rx drops all packets due to no buffer

Conditions:

RPM-XF configured as PE in frame-based or cell-based MPLS/VPN network. Execute "sh pxf cpu buff leaked 0-5" or "clear interface sw1" command while system is under load, may cause SAR rx failure.

Workaround:

None.

CSCed41823

Symptom:

Tail drops on PXF queues and protocols go down. Tx SAR stats show no activity as Tx SAE looks hanged and it is not processing any traffic.

Condition:

This condition was reached when "microcode reload sar tx" command was executed multiple times via a script.

Workaround:

Execute "microcode reload sar tx" again.

CSCed46603

Symptoms:

MIB walk on ifOutDiscards object OID returns an error message. MIB query on ifInDiscards and ifOutDiscards together, returns ifOutDiscards object data.

Conditions:

The following query will always return "noSuchName" when querying an AAL5 layer:

snmpget <IP> <community string> ifOutDiscards.<instance>

Workaround:

Unknown.

CSCed48954

Symptoms:

Traffic will tail drop on the output of GigabitEthernet interface even when the traffic rate is well below the interface limit.

Condition:

This problem seems to happen after multiple GigabitEthernet interface flaps.

Workaround:

Reload the PXF using "microcode reload pxf" command.

CSCed53155

Symptom:

After failure recovery, the SAR Segmenter is not programmed correctly.

Condition:

A SAR fatal error occurred which generated a interrupt to the host causing a SAR reset.

Workaround:

Reload/Restart the SAR microcode via one of the following commands:

micro reload sar tx

or

micro reload sar rx

CSCed62886

Symptom:

TagI counter always shows 0 in the output of "show pxf cpu cef mem" command.

Condition:

This condition can be observed always.

Workaround:

Unknown.

CSCed68881

Symptom:

"sh controller" output is not part of sar info files. Also the timestamp of last mxt4600 interrupt is incorrect and mxt4600 info file generation stops at max files allowed + 1. The first interrupt is wrongly classified as a continuous interrupt.

Conditions:

When a SAR fatal error occurs and triggers an interrupt to the host.

Workaround:

None.

CSCed71495

Symptoms:

The exp bit on the topmost label is not changed when set mpls exp topmost is configured on the ingress interface of the P router.

Conditions:

This occurs with the use of the "set mpls exp topmost" command on the ingress interface of the P router in a frame based MPLS network

Workaround:

Use the same command on the PE router egress interface (towards P).

CSCed74882

Symptoms:

Following Tracebacks were observed when pumping traffic via POS and GigE backcards.

*%SYS-3-CPUHOG:Task is running for (2000)msecs, more than (2000)msecs (0/0),process = Router Init.

-Traceback= 40623AB0 40623B6C 40624054 407CF300 406237E8 40622650 403F1790 403F1774

Conditions:

This error message is logged when we pump more POS and GIGE traffic (around OC3 rates) through 2000 LVCs for 10 min.

Workaround:

None.

CSCed75086

Symptom:

When issuing the command show pxf cpu rewrite verification x.x.x.x you receive an error message stating that the "Channel ID in the SAR header is non-zero (x) for MVC".

Conditions:

In a cell based mpls VPN network with multi-VC, if the first label (IGP label) value is greater than 0xF.

Workaround:

None.

Ignore this message and verify that the channel ID is correct by executing: "sh pxf cpu cef <prefix used to verify>" and "sh pxf cpu rewrite <rw_index>"

CSCed82673

Symptom:

An RPM-XF card may reload abnormally when issuing some of the display commands under "show rpm vsis core conn debug-command <WORD> <Argument#1>"

Conditions:

Issuing those command with large numbers of argument values.

Workaround:

None.

CSCed86771

Symptoms:

Pull/insert RPM-XF while running call rate, made the card to reload/failed.

Conditions:

While running 360K BHCA (Busy Hour Call Attempts) with 120 sec CHT. Upon pulling one of RPM-XF card and putting it back into the rack, this RPM-XF card rebooted and went to failed state.

Workaround:

None.


Resolved Caveats—Release 12.3(2)T5

Table 3 lists the resolved caveats in Cisco IOS Release 12.3(2)T5 as of April 14, 2004.

Table 2 Resolved Caveats in Cisco IOS Release 12.3(2)T5

Caveat Number
Description

CSCed41905

DT: Automatic OIR occurred on RPM-XF card and the RPM-XF rebooted.

CSCed74712

SFP security check fails with 2-port GigE card for new SFP

CSCed48941

LSNT:PE crash with no memory for XCM temp buffer logged

CSCeb74859

DE-LSNT:BGP flap when apply/remove output policy map

CSCec14218

Trace back messages

CSCec84591

LSNT: Barium Asserted CRC error when clear int sw1

CSCec89536

LSNT: reassembler multi-bit error cause card crash

CSCed00196

RPM-XF: <show pxf tfib> doesn't display load balanced routes

CSCed21634

Need to change exp bit on topmost label on egress interface

CSCed30548

RPM-XF - input policy map does not match against mpls exp bit

CSCed46492

Ethernet Port E2/1 on RPM-PR Card Gets Shutdown Upon Resetcd

CSCed34585

Channel ID is incorrect for certain prefixes if multi-VC is enabled

CSCed35834

LSNT: Hub router with 2 POS up links crash due to bus error

CSCed35859

Need to change the way PXF services the IP packets with option

CSCed41293

LINT:improve PXF CEF and TFIB command output

CSCed47631

sar resetinfo files don't get written to the bootflash at times

CSCed49968

OSPF flaps between PE-LSC while congesting input hold queue

CSCed50101

Need 6s wait before turn on ATM OAM to VXSM while RPMXF GE is up

CSCed54591

Sar crashinfo does not capture event log but resets the event log

CSCed63090

RPM-XF: reload occurs when defragmenting ACL XCM memory

CSCed69526

Process sleep not allowed while interrupts are disabled.


Resolved Caveats—Release 12.3(2)T4

Table 3 lists the resolved caveats in Cisco IOS Release 12.3(2)T4 as of February 9, 2004.

Table 3 Resolved Caveats in Cisco IOS Release 12.3(2)T4

Caveat Number
Description

CSCec13765

micro code reload clears the crtp enable flag for ppoA links

CSCec09316

packet with out of range CID should be dropped

CSCec43590

RPM-XF IPHC does not decompress 16-bit paks with IP options

CSCec40662

RPM-XF reloads during <show pxf cpu rewrite tree> command

CSCec67863

RPM-XF: Memory leak when removing MDT

CSCec63848

RPM-XF: Some PXF drop counters are not cleared

CSCec31168

mVPN Tunnel receive counters not implemented

CSCec64570

Both local CEs cannot ping remote PEs, and hop count is 13

CSCeb59710

DE-LSNT:protocols flap on ELSR when withdraw LVCs

CSCec45704

LSNT:binding infor not used by tfib/cef for some PEs prefix

CSCec42547

LSNT:Incorrect MAC/Encap string in mpls forward table, traffic down

CSCeb10018

Tracebacks observed on reset card / clear ip bgp

CSCec31864

RPM-XF sending wrong fields in Interface load info VSI-S message

CSCec76217

VSICORE: Check null ptr in VprEncIfcCfgGetMore (CSCea64395)

CSCec78844

VSICORE: Check prev TCB is null before access (CSCdz38917)

CSCec39423

VSICORE: TCB Leak (CSCea20818) and unicast fixes from CSCdx87287

CSCec48318

VSICORE: TCB rel err reported incorrectly (CSCdw02481)

CSCec29812

CEF_scanner triggers high CPU util.

CSCea76134

e-iBGP load balancing does not work

CSCeb61055

Incorrect MPLS label built for VRF route

CSCea60559

lsr mib snmp agent consumes 99% cpu forever

CSCea74339

SAR-QoS: Data path VC (254/254) is not programmed properly

CSCeb80653

Generate mxt4600_info file on fatal 4700 SAR errors and reset chip

CSCec15993

In sar_mxt4400_info file, chip dump overwrites part of the data

CSCdx15989

Need debug information from sh rpm mxt4400 chip command

CSCec61293

RPMXF reloads unexpectedly deleting MPLS Switch subinterface

CSCeb47748

Display vtms info for to-RP link

CSCec60947

LSNT: AVL memory leak suspected

CSCec87123

LSNT: carrier transition counter is not working

CSCed00573

LSNT: No HWIDB_SB_C10K_TT (clear arp caused tracebacks)

CSCec53635

Channel_id is not updated sometimes after the main switch i/f resets

CSCec62846

Failure on the data forwarding path was not detected

CSCed20528

Periodic function keeps on invoking restart PVC after clear int sw1

CSCec20821

PXF reload is causing a card crash with cell-based MPLS setup

CSCeb05796

RPMXF: For a range of bandwidth, RPMXF provides lower end of range

CSCec85178

Reload due to L2 watchdog timer after microcode reload command

CSCed28880

ATM oam not tracking the gige link status on RPMXF

CSCec30428

Enhanced VTMS to Handle Possible Hardware Second Timer Update Miss

CSCed07480

IOS shows SFP MISSING for Hitachi Cable SFP

CSCec60594

Link can not be up when using 2-port POS with Y-cable redundancy

CSCed28404

PXF buffer leak occurs for tag switched packets with input policymap

CSCdy32261

traceback in config switch interface entering an incomplete command

CSCdx52061

Drop rate counter on output of sh pol int

CSCed07712

SARCMDTIMEOUT: SAR command timeout, device Reassembly SAR

CSCed33563

VSI CORE: Mem leak (ec66881) and VSI Core Code Audit fixes

CSCed31769

Multicast and output logging conflict -- (port CSCec60999)

CSCed37755

All VCs gets deconfigured in SAR after a microcode reload

CSCed15811

On data SAR fatal interrupts, SAR CMD TIMEOUTs are seen

CSCed17550

clearing pxf stat and drop counters cause mem leak

CSCec77300

RPM-XF returned to rom by bus error at rpm_send_atm_oam_cell

CSCed23216

LSNT:eiBGP multipath load balancing failed for some IP addresses

CSCec76702

Per packet load balance is not stable. Packets loss periodically

CSCed07231

rpmxf ucode error would cause protocol flags if PQ congested

CSCed07254

rpmxf ucode error would cause toaster stall error

CSCec66381

RPM-XF: SSI IPC errors during boot up

CSCeb84273

Need interrupt statistics in 2-port backcard drivers

CSCed11101

traffic cant recover after POS OIR when vrf configured on POS

CSCed35983

LSNT: Cannot CC to the RPMXF from PXM

CSCed22895

rpmc_ipc_vty.c: possible array out of boundary

CSCed22568

toaster/rpmxf-rp/rpmxf1_rp_cef.c: unmatched raise_interrupt_level()

CSCed07063

Certain sequence of ftctrace/ttctrace causes IOS crash

CSCed23982

col4_cicb_extra needs to be populated in right order

CSCec53230

Command to check consistency between ASIC forwarding & IOS TFIB

CSCed23060

Incorrect column number passed during a toaster write


Resolved Caveats—Release 12.3(2)T2

Table 4 lists the resolved caveats in Cisco IOS Release 12.3(2)T2 as of October 21, 2003.

Table 4 Resolved Caveats in Cisco IOS Release 12.3(2)T2

Caveat Number
Description

CSCea27838

SLT:SYS-3-CPUHOG trace back logged, card hang for a while.

CSCeb05118

LSNT:RPM-XF crash when delete sw1.1 mpls interface

CSCea60343

LSNT: connection goes into mismatch

CSCdw45040

RPM-XF comes up with partial configuration

CSCdw76205

Error messages when deleting the sw conn under PVC.

CSCdw86377

Attempting to conf a partition with more lcns than MAX causes TrBack

CSCdw86381

cnfpnportcac causes traceback if bw used is greater than min bw req

CSCdx06018

TMC: Multiple VBR flows hash to same toaster Q. Cause taildrops.

CSCdx92871

iBGP load balancing does not work when two ces are in different vpns

CSCdy05346

Missing param-groups in Sw Get Cnfg Rsp VSI slave message

CSCdy17457

sh int shows wrong packet number after shut/no shut the interface

CSCdy26882

Interface counters show incorrect values after backcard OIR

CSCdy42274

PXF doesn't recover after a reload at high traffic rates

CSCdy73751

Certain HW error interrupts may cause the Tx GigE traffic to stop

CSCdz23621

Z-RED: Standby RPM-XF vsi master endpoint id is not cleared on PXM

CSCdz86609

Packet drop was observed at switch interface1 when traffic flowing through

CSCea15938

GTS shapes too aggressively for POS/GigE interfaces


Compatibility Notes

RPM-XF Boot File and Firmware File Names and Sizes

The following table displays the RPM-XF boot and firmware file names and sizes for this release.

Table 5 RPM Boot and Firmware File Names and Sizes


File Name
File Size (in bytes)
Boot File

rpmxf-boot-mz.123-2.T5

3199320

Firmware File

rpmxf-p12-mz.123-2.T5

8858224


RPM-XF Compatibility Matrix

Table 6 RPM -XF Compatible Software Versions

MGX SW version

3.0.10

4.0.10

4.0.12

4.0.15

5.0.00

IOS Version

12.2.15T

12.2(15)T5

12.3(2)T2

12.3(2)T5

12.3(2)T5

CWM

11.0.10

12.0.00.1

12.0.00.2

12.0.00.2

15.0.00


MGX RPM-XF Hardware

Table 7 shows the front card and back card compatibility for the RPM-XF hardware supported in this release. The table lists the card model/ name, part numbers, the minimum version and the minimum revisions of each card supported. Note that there may be more than one 800 level part numbers for the same front cards. The minimum version is identified by the last 2 digits of the 800 level numbers.

Table 7 Hardware Compatibility Matrix

Front Cards
Part Number/
Min. Version
Rev.
Back Cards
Part Number/
Min. Version
Rev.

MGX-RPM-XF-512

800-09307-03

A0

MGX-XF-UI

MGX-1GE

MGX-2GE

MGX-1OC12POS-IR

MGX-2OC12POS-IR

800-09492-01

800-18420-03

800-21300-04

800-08359-05

800-20831-04

A0

A0

A0

A0

A0


Table 8 SFP Compatibility Matrix for MGX Gigabit Ethernet and POS Back Cards

SFPs
Part Number/
Min. Version
Rev.

GLC-SX-MM
(was MGX-GE-SX)

GLC-LH-SM
(was MGX-GE-LHLX)

GLC-ZX-SM
(was MGX-GE-ZX))

30-1301-01

30-1299-01

10-1439-01

A0

A0

A0


Cisco IOS Release Compatibility Information

All IOS firmware can be downloaded from CCO from the following location:

http://www.cisco.com/kobayashi/sw-center/sw-ios.shtml

Using XModem to Download Flash to RPM-XF Cards

Use the xmodem feature to download the flash to an RPM-XF card. During this process, the card should be connected to a target machine through HyperTerminal with settings of 9600, n, 8, and 1.


Step 1 Put the node in monitor mode by entering the priv command to gain access to the privileged commands as follows:

rommon 1> priv
You now have access to the full set of monitor commands. Warning:
some commands will allow you to destroy your configuration and/or
system images and could render the machine unbootable.

Step 2 The xmodem command becomes available and the general syntax of this command and availability of this can be checked by giving xmodem command without any parameters on the CLI, as follows:

rommon 2 > xmodem
usage: xmodem [-cy]
-c  CRC-16
-y  ymodem-batch protocol
rommon 3 >

The command line options for xmodem are as follows:

Option
Definition

-c

xmodem performs the download using CRC-16 error checking to validate packets. Default is 8-bit CRC.

-y

xmodem uses Ymodem-batch protocol for downloading, which uses CRC-16 error checking.



Note If you do not find the xmodem commands, then the xmodem feature is not available on this rommom version. In that case, you must return the card to Cisco.



Note The rommon "xmodem/ymodem" transfer only works on the console port. You can only download files to the router. You cannot use "xmodem/ymodem" to get files from the router.


For example:

rommon 4> xmodem -cy
Do not start sending the image yet...
Invoke this application for disaster recovery. Do you wish to
continue? y/n [n]: y

Step 3 Use the Transfer-->Send File option in HyperTerminal to start the image transfer.

In the Filename box, browse and choose the image file to be downloaded. Also since we used the "y" option while invoking the xmodem, set the transfer protocol to ymodem or use Xmodem protocol by not specifying the -y option on the command line.

The transfer screen comes up and transfer starts. (The transfer may not start immediately; wait for some time and it should start.)

The system will reset itself from here and will boot with new software image.


Historical Information for 12.2.x IOS Baseline

Resolved Caveats—Release 12.2(15)T5

Table 9 lists the resolved caveats in Cisco IOS Release 12.2(15)T5.

Table 9 Resolved Caveats in Cisco IOS Release 12.2(15)T5

Caveat Number
Description

CSCeb06375

Symptom:

An access list may fail to work as configured.

Conditions:

This symptom may be observed when virtual circuits (VCs) are torn down and recreated. The symptom occurs after the switch subinterface is shut down and then brought up.

Workaround:

Remove the access list and add it again.

CSCea49948

Symptom:

Multiple crashinfo files may be saved on a Cisco Route Processor Module XF (RPM-XF) because of a reused IPC buffer (a second IPC send). If multiple crashinfo files are generated, the available storage space in the bootflash might get all consumed. If the card is part of a redundant pair, the card may fail during an attempt to switch back to the primary card from the secondary card in the redundant pair.

Conditions:

The symptom is observed when a switchover occurs from an RPM-XF to the redundant RPM-XF. If there is not enough bootflash free storage space available to load the configuration file, RPM-XF card might not go to Active state. After multiple switchover attempts, the Processor Switch Module (PXM) marks the first RPM-XF as failed.

Workaround:

Delete some crashinfo files to clear space on the bootflash before attempting to switch back to the active RPM-XF card.

CSCea93735

Symptom:

Control traffic may not be dequeued from a Parallel Express Forwarding (PXF) processor towards a Route Processor (RP).

Conditions:

This symptom is observed on a Cisco MGX 8800 series Route Processor Module XF (RPM-XF) in a Multiprotocol Label Switching (MPLS) environment. In a cell-based MPLS network, the symptom occurs when an MP LS packet with a Time To Live (TTL) setting below 2 reaches a provider edge (PE) router. In a frame-based MPLS network, the symptom occurs when an MPLS packet with explicit null labels and with a TTL setting below 2 reaches a provider (P) or PE router.

Workaround:

Configure the "no mpls ip propagate-ttl" global configuration command on all the routers in the MPLS network to prevent MPLS packets with a TTL setting below 2 from being generated.


Resolved Caveats in Release 12.2.15T

Table 10 lists the resolved caveats in Cisco IOS Release 12.2.15T.

Table 10 Resolved Caveats in Cisco IOS Release 12.2.15T

Caveat Number
Description

CSCea49948

Symptom:

Multiple Crashinfo due to IPC Messages. Multiple crash info files are generated, filling the bootflash of RPM-XF card.

Conditions: It may happen due to polling that involves IPC communication between Processor Switch Module 45 (PXM45) controller and RPM-XF card. RPM-XF switchover may lead to this issue.

Workaround: None

CSCdz82543

Symptom:

Cannot cc to RPM-XF due to Messages on the Console. You may not be able to log into a Cisco Route Processor Module XF (RPM-XF), although when you display the status of the module from a Processor Switch Module 45 (PXM45) controller, no irregularities are shown. If you manage to establish a console connection into the RPM-XF, continuous traceback messages may be displayed on screen.

Conditions:

These symptoms are observed when RPM-XFs are installed in an MGX45 shelf, Cisco WAN Manager is configured to poll the RPM-XFs for statistics and scripts run on the node that log into every module sequentially.

Workaround: None

CSCdx08155

Symptom:

On LSC, querying of lvc statistics for an xtagatm interface would not abort command upon user entering a ctrl-c. If user use "show xtagatm cross-connect traffic" to query on lvc statistics, normally, user can quit the command in the middle by giving the ctrl-c sequence. However, the CLI would not return the prompt until the VSI Master logic complete requesting statistics for all lvcs.

Conditions:

If the number of lvcs on LSC is small, user may not be able to notice the impact. However, if the number of lvcs reach a few thousands (i.e. 4000 lvcs), user may experience no response from the cli session up to 2-3 minutes. But the rest of the system will still function normally.

Workaround:

If user needs to query on lvc statistics, try to let the command run to completion. Avoid aborting the command in the middle of execution with ctrl-c.

CSCdy26703

Symptom:

A ping from a customer edge (CE) to a provider edge (PE) may fail, and Parallel Express Forwarding (PXF) may stall.

Conditions:

These symptoms are observed on an MGX Route Processor Module (RPM) that is installed in a Cisco MGX 8000 series switch that is functioning as a PE router in a Multiprotocol Label Switching (MPLS) Virtual Private Network (VPN) network and that has VPN routing/forwarding (VRF) enabled on the virtual template. The PE router is connected to the CE router via a PPP over ATM (PPPoATM) link. PXF may stall even though the PPPoATM session is established.

Workaround:

None

CSCdy27120

Symptom:

Traffic doesn't flow thru a VLAN on GigE interface

Conditions:

If a shutdown is executed on an interface before defining the encapsulation type, traffic might not flow thru a VLAN on a GigE interface.

Workaround:

On the VLAN interface, disable and re-enable the encapsulation.

CSCdy65600

Symptom:

The output and input flow control parameters of a Gigabit Ethernet interface are displayed as ? "aused".?

Conditions:

This symptom is observed on the Gigabit Ethernet interface a Cisco router that has auto-negotiation enabled.

Workaround:

Disable auto-negotiation on the Gigabit Ethernet interface.

CSCdz70762

Symptom:

Multi-vc traffic coming on a particular precedence goes out to a queue with wrong precedence.

Conditions:

The mac rewrite string is found to be incorrectly configured.

Workaround:

None

CSCdz82543

Symptom:

You may not be able to log into a Cisco Route Processor Module XF (RPM-XF), although when you display the status of the module from a Processor Switch Module 45 (PXM45) controller, no irregularities are shown. If you manage to establish a console connection into the RPM-XF, continuous traceback messages may be displayed on screen.

Conditions:

These symptoms are observed when RPM-XFs are installed in an MGX45 shelf and Cisco WAN Manager is configured to poll the RPM-XFs for statistics, causing scripts to run on the node and log into every module sequentially.

Workaround:

None

CSCea05477

Symptom:

After policy map is created, RPM-XF reset.

Conditions:

Created a policy map with police option with CIR rate configured to 125000000 and bc configured to 20000 for confirm action and exceed action was drop. Soon after creating policy map it gave

Conform burst size increased to 62500

and card resetted.

Workaround:

None

CSCin32860

Symptom:

Access list info of snmp-server community lost after RPM-XF reset

Conditions:

After RPM-XF is reset , the access list info of the snmp-server community is lost.

Workaround:

After RPM-XF is reset, re-configure the snmp-server community string as required on RPM-XF.


Resolved Caveats Prior to Release 12.2.15T

Table 11 lists the resolved caveats prior to Cisco IOS Release 12.2.15T.

Table 11 Resolved Caveats Prior to Cisco IOS Release 12.2.15T

Caveat Number
Description

CSCdw20568

Symptom:

Cisco Class-Based QoS mib - CISCO-CLASS-BASED-QOS MIB - is not supported on RPM-PR and RPM-XF.

Conditions:

SNMP walk on CISCO-CLASS-BASED-QOS mib on RPM-PR and RPM-XF cards return no values for mib objects.

Workaround:

None.

CSCdw55382

Symptom:

The output of the command sh swi conn vcc/vpc doesn't show the value of the maximum cost field correctly.

Conditions:

Maximum cost was configured explicitly on the master endpoint of the connection to a value of 4294967295 i.e. 0xFFFFFFFF.

Workaround:

Use dspcon command on the PXM to look at the configured value.

CSCdw57105

Symptom:

Show sub-interface counter shows incorrect value.

Conditions:

When there is some drop on the sub-interface, value becomes negative, causing the numbers to be incorrect.

Workaround:

Issue clear counter command.

CSCdw68738

Symptom:

Cobalt From RP Own Errors counter increments in show hard pxf dma count output. This does not affect data/traffic.

Conditions:

Spontaneous increments of these counters have been noticed always with no specific side effect.

Workaround:

None

CSCdw69661

Symptom:

Invalid Epid Error message seen.

00:00:10: %P2IPC-4-COMEPDELETED: ssi_ipc_epid_idx_validate()
Non-existing CommEp 60010F8 has invalid tag 4096;
           Expected tag is 0
-Process= "P2IPC Receive Process", ipl= 0, pid= 17

Conditions:

After RPM-XF switchover, standby card prints invalid Epid Error messages as VSI Slave Epid on Standby is not in use.

Work around:

None

Further problem description:

The error messages are harmless traceback as it happens on the Standby card.

CSCdw88019

Symptom:

Loopbacks provided on GigE backcard should be renamed to 'internal' and 'external' from 'mac' and 'driver', respectively

Conditions:

Previously, RPM-XF software used "mac" and "driver" as loopback command parameters to mean internal and external loopbacks respectively. These parameters have been replaced by "internal" and "external" as loopback command parameters.

Workaround:

Use show controllers gigabitEthernet 1/0 command and user documentation to correlate the loopback type with the loopback configuration.

CSCdw88767

Symptom:

Humvee counters show improper value and counters cannot be cleared.

Conditions:

While traffic is passing through, counters wrap around and become negative.

Workaround:

None.

CSCdw95563

Symptom:

After increasing the PCR value of PVP, traffic is getting dropped at new rate.

Conditions:

When PCR value is changed, it does not take affect so VP is still shaped at old rate.

Workaround:

Delete the VP and readd it.

CSCdx00982

Symptom:

SNMP get returns a different value for pcr/scr from what was configured.

Conditions:

The connection was added through CWM/SNMP with a value such that on conversion from cps to kbps and then back to cps does not give back the original cps value.

Workaround:

While adding connections through CWM/SNMP, do not use such values (in cps) for scr/pcr for which conversion from cps to kbps and then back to cps does not give back the original value.

CSCdx12730

Symptom:

All the PVCs on the switch1 interface go to INACTIVE state.

Conditions:

Any destructive command can cause this condition. Some of them are:

1. clear interface switch1 command was issued.

2. Modification of the atm pvp tunnel.

3. Changing MTU value of Switch1 interface or sub-interface.

Workaround:

Issue clear interface switch1 command.

CSCdx16897

Symptom:

Performance issue observed in cleaning up and creating LVCS.

Conditions:

With RPM-XF as headend eLSR, it takes about 1 minute to cleanup and recreate 500 LVCS.

Workaround:

None

CSCdx44836

Symptom:

Modifying an existing PVP may cause the following VSI error to be displayed on console or logged:

04:57:14: %VSI_VRM-4-GENERR_NUM: VSIRmGetXConnectInfo, line 6658:
Vsis RM error <Failed to search Vco database for lcn =>>, info=1

Conditions:

This error only happens if the existing PVP has a configured switch-conn-vpc but is not routed yet (only slave end is added).

This error is informational only to indicate that there is no remote cross-connect information to be returned because the vpc is not routed yet. There is no service impact.

Workaround:

Complete the VPC connection by adding the remote end.

CSCdx46583

Symptom:

Need to verify IOS images on PXM Hard Drive and in RPM-XF Flash.

Conditions:

In order to do the health check of the IOS images on PXM Hard disk & Bootflash, a new CLI command is being introduced:

debug rpm check_image now x:<image-name>.

Workaround:

None.

CSCdx49122

Symptom:

dspcd <slot#> for RPM-XF slot doesn't show the full CLEI code / Serial number.

One character at the end is missing.

Conditions:

When dspcd command is executed on PXM.

Workaround:

cc to RPM-XF card and do sh rpm cdmgmt scmExtPollInfo to find the correct CLEI code and Serial number.

CSCdx52025

Symptom:

Could not correlate output packets dropped on sub-interface with switch1 interface packet drop counters.

Conditions:

Sub interface counters don't have any drop counters, so if any packet is dropped on a particular sub-interface, it is shown on switch1 interface but not on that sub-interface.

Workaround:

Use sh atm pvc <vpi/vci> to see all the drops.

CSCdx55586

Symptom:

Setting ccCopyEntryRowStatus to ACTIVE returns "general error" status even if the row is correctly configured.

Conditions:

Attempting to use the CISCO-CONFIG-COPY-MIB to copy a configuration file.

Workaround:

None.

CSCdx58504

Symptom:

RPM-XF show switch conn vcc|vpc displays NSAP in following format:

47.0091.8100.0000.0001.6443.6c58.0000.0109.1802.00

which is not consistent with PXM dspcons display.

Conditions:

RPM-XF "show switch conn vcc|vpc" displays NSAP in following format:

47.0091.8100.0000.0001.6443.6c58.0000.0109.1802.00

which is not consistent with PXM "dspcons" command output:

47.009181000000000164436c58.000001091802.00

Workaround:

None.

CSCdx62385

Symptom:

flapping of BGP causes RPM-XF reload.

Conditions:

The reload happened after the routes exceeded 102K vrf route limit and clear ip bgp * is executed.

Workaround:

Do not exceed the given limit of Maximum number of vrf routes which is 102k.

CSCdx64337

Symptom:

After changing the console baud rate the console may behave unpredictably.

Conditions:

The console responsiveness is unpredictable. You may need to hit enter many times to get a prompt back.

Workaround:

Avoid changing the baud rate of the console port. To recover from the erratic console behavior, you will need to perform a system reload.

CSCdx64361

Symptom:

ROMMON console can lock up after pasting a large buffer.

Conditions:

The ROMMON console driver can run out of descriptors with a sufficiently large paste buffer (~1k). After this happens, the console appears hung.

Workaround:

Paste data to the ROMMON console in increments less than 1k. Once the ROMMON console driver runs out of descriptors, the only way to recover is to perform a system reset or power cycle.

CSCdx69702

Symptom:

The output counters displayed under show policy-map int <sw1.x> are not incremented.

Conditions:

When an output service policy is applied to a subinterface and the policy map includes class maps with no actions.

Workaround:

Either do not configure class maps with no actions or rearrange the class maps within a policy map so the class maps with no actions are last.

CSCdx71190

Symptom:

A software-forced reload may occur on a router, and the Open Shortest Path First (OSPF) process may fail.

Conditions:

This symptom is observed on a Cisco 7200 series router that is running Cisco IOS Release 12.2(10.7)T1 and that is configured for Border Gateway Protocol (BGP) tag switching with OSPF in an autonomous system. The router may reload when the main link bandwidth is changed to switch to the shortest path. This behavior may cause the router OSPF process to fail.

Workaround:

There is no workaround.

CSCdx76951

Symptom:

There was humvee error on RPM-XF card.

Conditions:

When ever switchcc is done or card comesup, humvee generates some errors. These errors are harmless, unless they are incrementing coutinously.

Workaround:

None.

CSCdx80500

Symptom:

A CLI command is needed to show the history of the messages that RPM-XF received from the Shelf Manager on PXM. Also, a second command is needed to clear this log.

Conditions:

NONE

Workaround:

None

CSCdx87265

Symptom:

Deletion trap is not sent out for notOnRpm connections.

Conditions:

RPM-XF reset or switch over before provisioned connections get saved into configuration.

Workaround:

None.

CSCdx91454

Symptom:

The status LEDs for the management backcard are not illuminated correctly.

Conditions:

When the boot image is used, the status LED on the back of the management back card is not illuminated as it should be. With the system image status LED on the back of the management back card is illuminated but the LM1OK LED on the front card is off instead of green.

Workarounds:

Use the 'show interface FastEthernet2/0' and 'show interface FastEthernet2/1' commands to view the status of the management backcard.

CSCdx93773

Symptom:

Packet drop on egress sub-interface below configured rate.

Conditions:

Sending traffic at SCR rate on a vbr pvc with high SCR value configured.

Workaround:

None

CSCdy02182

Symptom:

When the GigabitEthernet device driver detects an error with the link to the front card, it does not automatically try to correct the situation properly.

Conditions:

When the GigabitEthernet device driver detects an error with the link to the front card you may see messages similar to:

BARIUM ERROR EVENT: send reason 7 slot 1

The device driver should then try to reset the link to the front card and continue but does not.

Workaround:

When you receive an error message similar to the one described in conditions, you should shutdown and restart the interface to clear the condition.

CSCdy03275

Symptom:

Traffic is not passing in frame-based MPLS network when RPM-XF is configured as P router

Conditions:

RPM-XF configured as P router.

Workaround:

None

CSCdy05871

Symptom:

Tail drops on PXF queue while sending traffic at OC12 rate.

Conditions:

Configure interface speed as more than 500Mbps (X) and send more than X/2 single flow traffic

Workaround:

Use multiple flows (different source-destination)

CSCdy09544

Symptom:

LLQ (Low Latency Queue) starves low priority traffic.

Conditions:

Traffic exceed configured bandwidth for the LLQ, but still below the configured SCR (Sustain Cell Rate). There are drops on other low priority classes even though they are in their configured limit.

Workaround:

None

CSCdy11581

Symptom:

Received traps for "Fast Ethernet Interface Down(60662)" and "Fast Ethernet Interface up(60661)" have incorrect ifName contents.

Conditions:

Generate "Fast Ethernet Interface up(60661)" by doing admin up on interface and notice the contents of "ifName" in the trap PDU on CWM or any other SNMP trap client. Do the same for "Fast Ethernet Interface Down(60662)" by doing admin down on the interface. The contents for "ifName" is "FastEthernet/12/0".

The correct value should be FastEthernet/<log-slot>/<bay>/<port>.

Workaround:

None.

CSCdy15295

Symptom:

cbQosQueueingStats and cbQosREDClassStats MIB entries are not populated.

Conditions:

SNMP mib walk on RPM-XF for cbQosQueueingStats and cbQosREDClassStats mib objects return no entries.

Workaround:

None.

CSCdy23757

Symptom:

Data stops flowing from VLAN after removal and insertion of GigabitEthernet backcard is done.

Conditions:

After removal and insertion of GigabitEthernet backcard, data traffic from the configured VLAN stops.

Workaround:

Perform `no encaps dot1q' on the VLAN interface and then re-add all the configuration defined on that VLAN.

CSCdy26495

Symptom:

class-map output queue packet counter doesn't show the correct number of packets.

Conditions:

With policy-map attached, send the traffic with the rate not to see drops

Workaround:

Use the class-map total number of packet counters.

CSCdy26755

Symptom:

Execution of PXM command "dspcd" for the RPM-XF card does not show 800 Level Rev number for the frontcard and the backcard

Conditions:

Execution of PXM command "dspcd" on a particular slot, even when backcard and front card is present, the 800 level Rev information is blank.

Workaround:

`cc' to RPM and use the command `sh rpm eeprom'

CSCdy27852

Symptom:

Excessive delay for LLQ packets.

Conditions:

Send LLQ packets during congestion of the non LLQ queues. The issue only happens for vbr-nrt connections with rate <= 128 kbps, if excessive traffic is pumped on queues other than LLQ and default queue. The issue would happen for all rates if excessive traffic is pumped on the default queue.

Workaround:

none

CSCdy28132

Symptom:

Traffic forwarding stops. You may see the traffic forwarded to the wrong VC.

Conditions:

Shut followed by no shut on the MPLS interface with multi-vc could lead to this issue. This is an intermittent issue. This could also happen if the LVCs go down and come back up for any other reason. The issue is seen only with VRF prefixes.

Workaround:

shut/no shut the interface. If problem persists, switch to a redundant card if one is available.

CSCdy30260

Symptom:

Protocol flap is observed and data labeled transfer stops temporarily on RPM-XF when RPM-XF card in adjacent slot is removed. Traffic resumes after around 100 seconds.

Conditions

The issue happens when RPM-XF card in the adjacent slot is pulled out, the RPM-XF cards being in one of the following pair of slots:

(1,2), (3,4), (5,6), (9,10), (11,12), (13,14), (15,16). (MGX 8850)

(1,2), (3,4), (5,6), (11,12), (13,14), (15,16). (MGX 8950)

This happens with or without 1:N redundancy.

Workaround

Do not use RPM-XF cards in adjacent slots with combination as above.

CSCdy31406

Symptom:

RPM-XF frame-based P router's PXF reloaded after "shut" PE subinterface.

Conditions:

RPM-XF configured as P router. Upon "shut" on PE's subinterface, PXF module on P router got reloaded.

Workaround:

None.

CSCdy37576

Symptom

Cannot add a dax connection between the RPM-XF (10) and the AXSM (1)

Condition

From the PXM perspective, the available CPS on the axsm is different than that of the rpm-xf. however when i am picking the lower value to add the pvc the pvc is still failing to add. the rpm-xf is showing reason as no resources.

Work-around

Unknown

CSCdy38362

Symptom:

Line Alarm seen on Gigabit ethernet interface on MGX-1GE even when administratively down.

Conditions:

If interface was in alarm prior to being shutdown, it continues to persist even after the shutdown.

Workaround:

Doing a 1:N redundancy switch over (if redundancy is configured) to the standby RPM-XF clears this alarm on the card and at the node level.

This is to be done after the Gigabit Ethernet interface is shutdown, and a "write mem" has been done on the active.

The alarm can be cleared by regular means such as ensuring proper cabling, SFP type match with other end, and administratively enabling other end prior to shutting down this end. If the other end is also not running the same software release that includes this bug then the alarm will move to the other end on trying such workaround.

If redundancy is not configured, resetting the front card (disruptive) would be needed to clear the alarm.

CSCdy39423

Symptom:

Traffic stops going out on GigE interface when enabling autonegotiation parameter.

Conditions:

With traffic flowing, if autonegotiation parameter is enabled on GigE interface, traffic may stop.

Workaround:

shut/no shut on the GigE interface

CSCdy39806

Symptom:

"No switch partition configured" trace back error logged.

Conditions:

Setup eLSR with vp tunnel mode on RPM-XF

Workaround:

None

CSCdy39861

Symptom:

Spurious memory trace back error logged when disable VRF forwarding under switch sub-interface

Conditions:

Disable VRF forwarding under switch sub-interface on RPM-XF LER

Workaround:

None

CSCdy40930

Symptom:

LLQ packets dropped on SAR because of lack of buffers

Conditions:

Congest the pvc with the LLQ traffic

Workaround:

none

Further problem description:

The scheduler calculates the time it took to send a burst of traffic on a VC.

This calculation results in an integer value which is a rounded down of the actual value. This rounding causes error in the scheduling time, which causes shaping inaccuracy. The fix is to try to keep the rounding error to a minimal.

CSCdy41773

Symptom:

In case of GIGE backcard initialization failure, further configuration on it may cause the RPM-XF card to reboot.

Conditions:

If the GIGE backcard initialization fails, loading start-up config or manual configuration that changes the uninitialized GIGE backcard configuration, might cause RPM-XF to get reset.

Workaround:

None

CSCdy45515

Symptom:

Connection endpoint on RPM-XF Does Not Generate RDI Upon Receiving AIS

Conditions:

RPM-XF endpoint of a xpvc does not generate RDI upon receiving AIS. The RPM-XF atm pvc erroneously reports that RDI is generated. However, a display of the connection count at the corresponding AXSM on the node indicates that the RDI is, in fact, NOT generated.

Workaround:

unknown

CSCdy51893

Symptom:

Class queues do not get programmed correctly.CBWFQ may not work correctly.

Conditions:

Modify the policy map values associated to a particular subif.

Workaround:

shut/no shut on sub-interface

CSCdy53728

Symptom:

LLQ when defined with class queues does not achieve full SCR and also improper traffic distribution between the queues.

Conditions:

With less traffic on class queues and more traffic on LLQ and with rates such that SCR is congested, its observed that the bandwidth is not being shared accurately among the queues as per the ratios assigned to them. LLQ sometimes get less traffic or more traffic and its not deterministic.

Workaround:

Enable MaxUtilization and OverSubscription on LLQ and Class Queues.

CSCdy55202

Symptom:

sh pol int shows zero bandwidth for all the classes.

Conditions:

When ever class default is configured with some bandwidth and policy is removed and reattached, all other class bandwidth becomes zero.

This happens for mpls interfaces.

Workaround:

None.

CSCdy56345

Symptom:

After removal and insertion of POS backcard, `Assertion Failure' tracebacks were observed.

Conditions:

When a policy map is configured on POS i/f and removal and insertion of the POS backcard is done, "Assertion Failure" tracebacks will be observed on the console window.

Workaround:

Remove the policy map and reapply it on the POS i/f.

Further Problem Description:

The issue is applicable to GigE backcard also.

CSCdy71426

Symptom:

All the traffic on PXF stops.

Conditions:

If a service policy was attached to an interface, with no bandwidth leftover for default class. Any traffic pumped on this interface default class would cause PXF to freeze and hence stopping traffic.

Workaround:

Reconfigure the policymap to have some bandwidth for class-default and then reload the PXF microcode using 'micro reload pxf'.

CSCdy75485

Symptom:

All Layer 2 management packets are dropped, which causes all interfaces that depend upon keepalives to transition to the down state.

Conditions:

This symptom is observed on a Cisco 10000 series router in a configuration with a large numbers of interfaces.

Workaround:

Unknown


Related Documentation

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more current than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription.

Note that for this release, in addition to the RPM-XF user documentation (Cisco MGX Route Processor Module (RPM-XF) Installation and Configuration Guide, Release 4) use the MGX Release 5 and Cisco IOS documents as well as this release note.

Product documentation for the PXM45-based MGX 8850 is available at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/wanbu/8850px45/rel5/index.htm

Product documentation for the PXM45-based MGX 8950 is available at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/wanbu/mgx8950/rel5/index.htm

Obtaining Documentation

Cisco provides several ways to obtain documentation, technical assistance, and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation on the World Wide Web at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

International Cisco websites can be accessed from this URL:

http://www.cisco.com/public/countries_languages.shtml

Documentation CD-ROM

Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which may have shipped with your product. The Documentation CD-ROM is updated regularly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual or quarterly subscription.

Registered Cisco.com users can order a single Documentation CD-ROM (product number DOC-CONDOCCD=) through the Cisco Ordering tool:

http://www.cisco.com/en/US/partner/ordering/ordering_place_order_ordering_tool_launch.html

All users can order annual or quarterly subscriptions through the online Subscription Store:

http://www.cisco.com/go/subscription

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Networking Products MarketPlace:

http://www.cisco.com/en/US/partner/ordering/index.shtml

Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA.) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).

Documentation Feedback

You can submit comments electronically on Cisco.com. On the Cisco Documentation home page, click Feedback at the top of the page.

You can send your comments in e-mail to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco Technical Assistance Center (TAC) provides 24-hour, award-winning technical support services, online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for technical assistance.

Cisco TAC Website

The Cisco TAC website (http://www.cisco.com/tac) provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365 days a year.

Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a login ID or password, register at this URL:

http://tools.cisco.com/RPF/register/register.do

Opening a TAC Case

The online TAC Case Open Tool (http://www.cisco.com/tac/caseopen) is the fastest way to open P3 and P4 cases. (Your network is minimally impaired or you require product information). After you describe your situation, the TAC Case Open Tool automatically recommends resources for an immediate solution. If your issue is not resolved using these recommendations, your case will be assigned to a Cisco TAC engineer.

For P1 or P2 cases (your production network is down or severely degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.

To open a case by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447

For a complete listing of Cisco TAC contacts, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

TAC Case Priority Definitions

To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.

Priority 1 (P1)—Your network is "down" or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.

Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.

Priority 3 (P3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://www.cisco.com/en/US/products/products_catalog_links_launch.html

Cisco Press publishes a wide range of networking publications. Cisco suggests these titles for new and experienced users: Internetworking Terms and Acronyms Dictionary, Internetworking Technology Handbook, Internetworking Troubleshooting Guide, and the Internetworking Design Guide. For current Cisco Press titles and other information, go to Cisco Press online at this URL:

http://www.ciscopress.com

Packet magazine is the Cisco quarterly publication that provides the latest networking trends, technology breakthroughs, and Cisco products and solutions to help industry professionals get the most from their networking investment. Included are networking deployment and troubleshooting tips, configuration examples, customer case studies, tutorials and training, certification information, and links to numerous in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/go/packet

iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet business strategies for executives. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html

Training—Cisco offers world-class networking training. Current offerings in network training are listed at this URL:

http://www.cisco.com/en/US/learning/index.html


[an error occurred while processing this directive]
